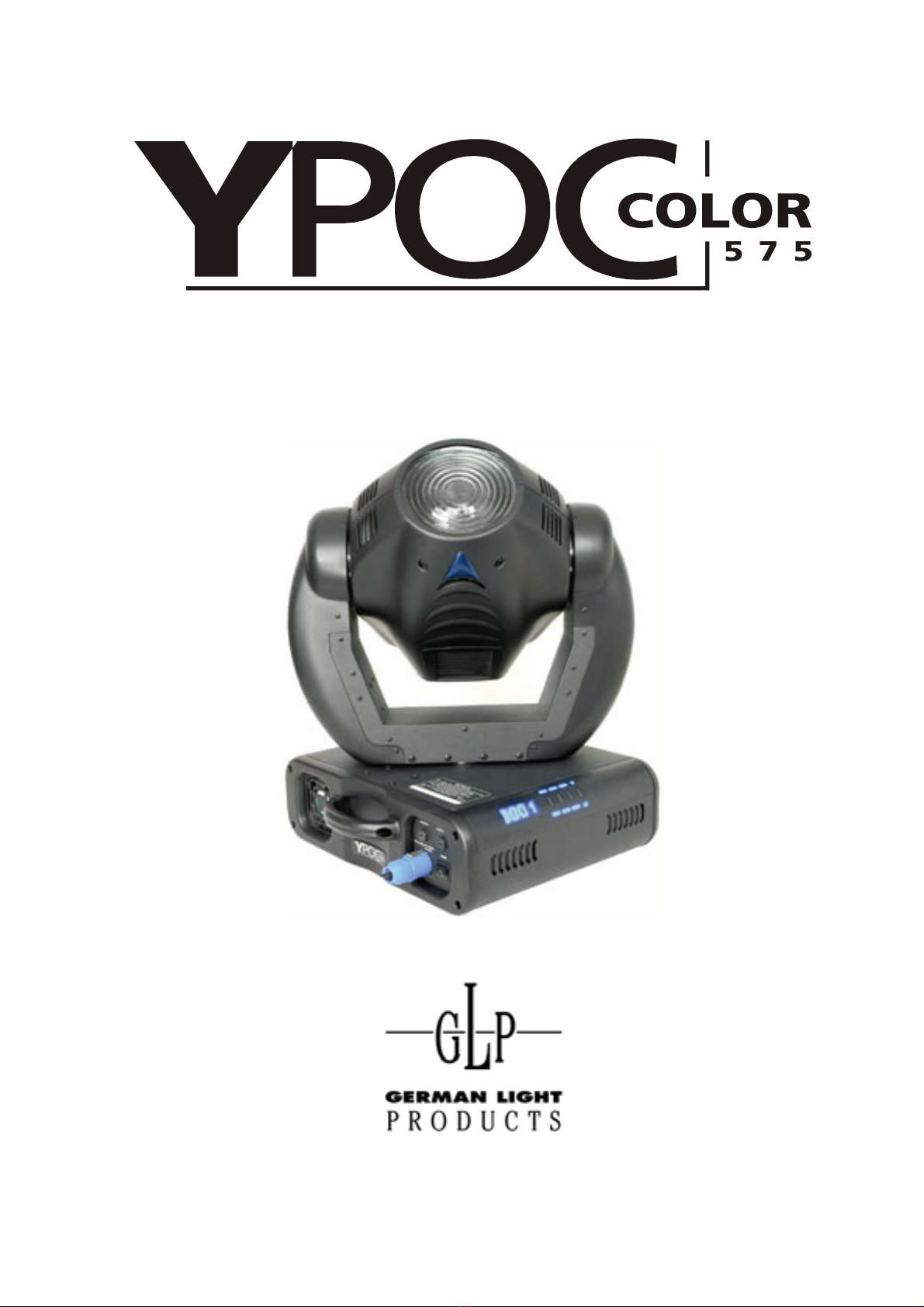

GLP YPOC 575 COLOR User manual

Instruction Manual
from software version 1.0
(instruction version 1.0)
e-mail: servic[email protected]
Internet: http://www.GLP.de

GLP German Light Production (1.0) 2
This side is intentionally unlabelled.

GLP German Light Production (1.0) 3
Table of contents
1Description of Device ............................................................................................. 5
1.1 Safety Instructions............................................................................................ 6
2Preparation and Installation .................................................................................. 7
2.1 Mounting .......................................................................................................... 7
2.1.1 Clamps .................................................................................................. 7
2.2 Secure the Y YP PO OC C 5 57 75 5 C CO OL LO OR R........................................................................ 8
2.3 Connections ..................................................................................................... 9
2.3.1 Mains supply.......................................................................................... 9
2.3.2 DMX....................................................................................................... 9
2.4 Fuses ............................................................................................................... 9
3The Menu Field ..................................................................................................... 10
3.1 Adjust the DMX- Address (D001)..................................................................... 11
3.2 The Test Program (TEST)................................................................................ 11
3.3 The Audio Program (AUDI).............................................................................. 11
3.4 Lamp On/Off (LAMP) ........................................................................................ 12
3.5 Reset (RESE) ................................................................................................... 12
3.6 Running time of lamp and unit (TIME) ............................................................. 12
3.7 Continuous Color Wheel (FCOL)...................................................................... 13
3.8 Invert Pan Movement (RPAN)........................................................................... 13
3.9 Invert Tilt Movement (RTLT) ............................................................................ 13
3.10 Special Functions (SPEC) ................................................................................ 13
3.10.1 Manual Drive (MANU) ............................................................................. 13
3.10.2 Lamp On automatically (LAAU).............................................................. 14
3.10.3 Lamp Off via DMX (DLOF) ..................................................................... 14
3.10.4 DMX Input (DMXI) ................................................................................. 14
3.10.5 Display (DISP) ...................................................................................... 15
3.10.6 Fixture Temperature (TEMP).................................................................. 15
3.10.7 Fan Control (FANS) ............................................................................... 15
3.10.8 Adjustments and Calibrations (ADJU).................................................... 16
3.10.9 Default Settings (DFSE)......................................................................... 17
3.10.10 Position Feedback (FEED)................................................................ 17
3.10.11 Correction of faults (EFLG) ............................................................... 18
3.11 Error and Information Messages.................................................................... 18
4DMX Channel Selection (DMX Protocol)............................................................. 19

GLP German Light Production (1.0) 4
5Change the Lamp.................................................................................................. 21
5.1 Safety Regulations ......................................................................................... 21
5.2 Realize the Lamp Change.............................................................................. 21
6Maintenance and Cleaning the Y YP PO OC C 5 57 75 5 C CO OL LO OR R ............................................ 21
6.1 Safety Regulations ......................................................................................... 22
6.2 Circumference and Interval (rule-of-thumb).................................................... 22
6.3 Cleaning the Optical System .......................................................................... 22
7Technical Specification........................................................................................ 23
8Index ...................................................................................................................... 24

GLP German Light Production (1.0) 5
1 Description of Device
1
2
3
4
5
1. Moving Head
2. Carrying handles
3. LED- Display
4. Arm
5. Camlock system
MaxMin
DM X IN DM X OUT
So ftwa re Upd a te
1.Ground
2. Dat a -
3. Dat a +
Mi c S e nsit iv ity
6
7
8 9
10
15
6. Software-Update
connector
7. Microphone- Intensity
8. DMX- Input
9. DMX- Output
10.Fan (air inlet/outlet)
11.Power On/Off
12.Mains supply (Powercon)
13.Fuse lamp
14.Fuse electronics
15.Carrying handles
La mp Fuse Elec tron ic Fuse
Power input: 90 - 260VAC,
50 / 60Hz PO W E R
10
11
12
13 14
15

GLP German Light Production (1.0) 6
1.1 Safety Instructions
The Y YP PO OC C 5 57 75 5 C CO OL LO OR R is a High-Tech Product. To guarantee a
smooth operation, it is necessary to keep following rules.
The manufacturer of this device will not take responsibility of
damages through disregard of the information in this manual.
Warranty adjustments will be cancelled.
1. Make sure before putting into operation, that the fan and the air inlets are
clean and not blocked by anything.
2. Attention: Don’t touch the device during the operation. This can cause
injuries or damages.
3. Unplug the
Y
YP PO OC C 5 57 75 5 C CO OL LO OR R from the AC outlet before any service.
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the Y YP PO OC C 5 57 75 5 C CO OL LO OR R. Please do not touch the bulb of the lamp if
you are not absolutely sure it is cold. -- Danger of BURNING --
5. Never look directly into the beam of the lamp. You risk injury of your retina and
blindness.
6. Pay attention of the maximum lamp operation time. You have to change it if
the lamp shows any deformations or damages. The same is with all glass
components, color filters, lenses and mirrors.
7. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the Y YP PO OC C 5 57 75 5 C CO OL LO OR R without suited safety aids like
Safety cables or clamps/hooks can increase the risk of an accident.
8. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
9. Use only original spare parts. Any structural modification will cancel all
warranty adjustments.

GLP German Light Production (1.0) 7
2 Preparation and Installation
2.1 Mounting
The Y YP PO OC C 5 57 75 5 C CO OL LO OR R is fully operational whether it hangs or is mounted to the
wall. It can also be operated while standing on the floor. Keep a safety distance of
0.5 m towards any easy inflammable materials (decoration etc.). Install a safety
wire that can hold at least 10 times the weight of the fixture. Never use the
carrying handles for secondary attachment.
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217 !
The installation should be done by qualified staff only.

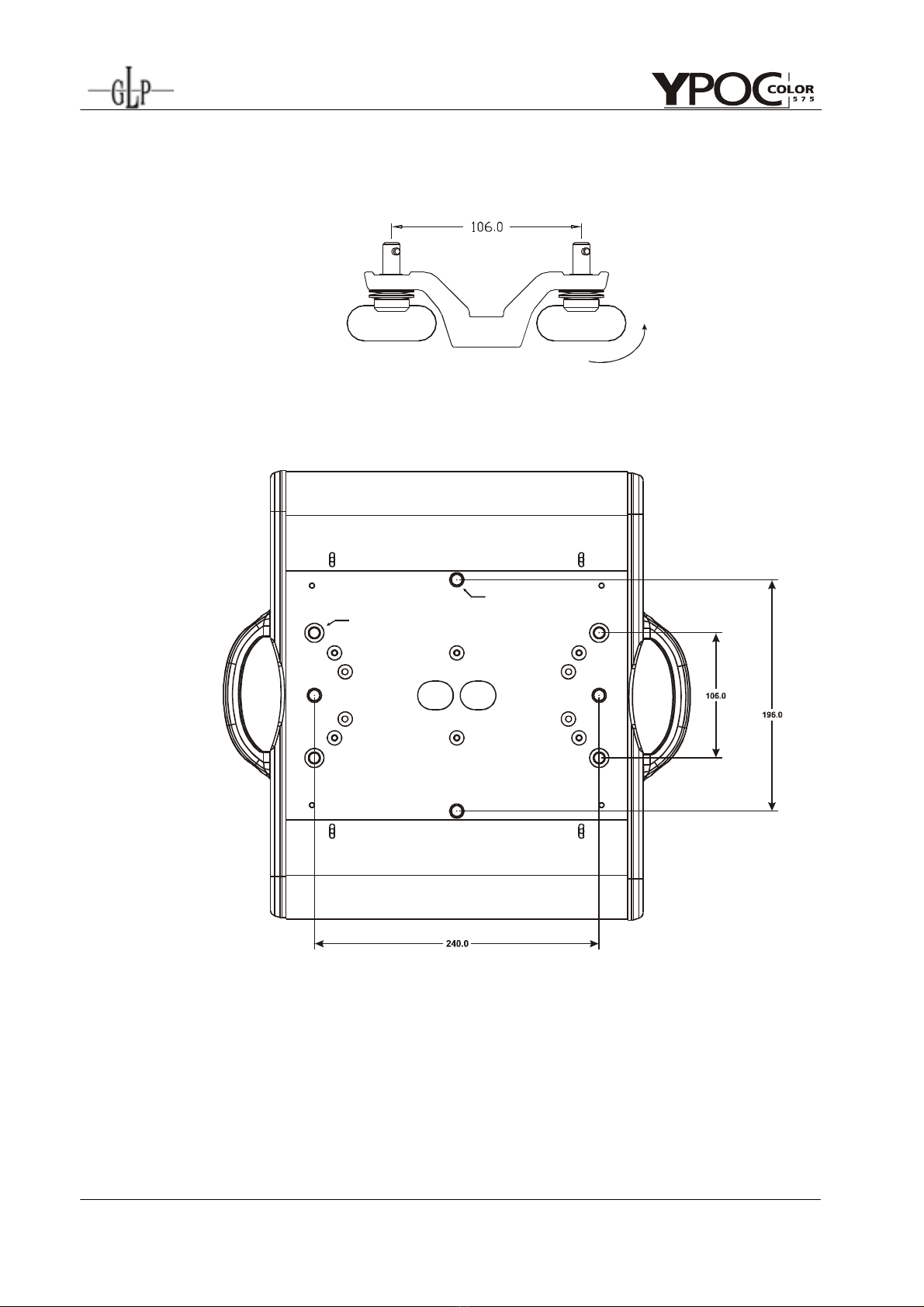

2.1.1 Clamps
There are two major possibilities to mount the Y YP PO OC C 5 57 75 5 C CO OL LO OR Rtogether
with clamps. Camlock system or direct mounting of clamps. In both cases
you have to regard a sufficient stability of the system. For installation
instructions please see also printing on the backside of the case.
a) Camlock system: This system allows you a fast and efficient setup of
clamps. Attach the two camlocks to designated position on the backside

GLP German Light Production (1.0) 8
of the case and close the locks by turning them 90°. Verify the secure fit
of the camlock system. The clamps themselves are directly attached
permanently on the camlocks.
90°
b) Use two clamps direct on the backside of the Y YP PO OC C 5 57 75 5 C CO OL LO OR Rto
mount the unit on a truss (each two opposite threads max. M10x20).
4x M10x20mm
4x Camlock
2.2 Secure the
Y
YP PO OC C 5 57 75 5 C CO OL LO OR R
Regardless of the rigging of the Y YP PO OC C 5 57 75 5 C CO OL LO OR R you have to use a stipulated
safety wire. Therefore you have to thread to safety wire through to two provided
holes on the backside of the fixture and connect it with the truss-support. Pay
attention to a safe and proper fastening.

GLP German Light Production (1.0) 9
2.3 Connections
2.3.1 Mains supply
Electronic ballast with:
~90 - 260 Volt, 50 - 60 Hz, earth contact type plug - Powercon
Connected load 780W <=> 3.8 A (blind current compensation).
Please see printing on the case for the right electronic supply!
2.3.2 DMX
DMX 512 Standard input/output. See also printing on the case for the right
pin assignment.
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
The DMX- Addressing starts at the DMX- Address [001].
2.4 Fuses
The Y YP PO OC C 5 57 75 5 C CO OL LO OR R electronic system is protected by two 5x20 mm fine-wire
fuses.
Lamp: 230V / T 5A
Electronic: 230V / T 1A
Please see the printing on the Y YP PO OC C 5 57 75 5 C CO OL LO OR R casing for more details.
Attention:
• Disconnect AC outlet before changing a fuse!
• Use only the original declared fuse type!

GLP German Light Production (1.0) 10
3 The Menu Field
You’ll find the control board on the side part of the base. It allows you to make all
necessary adjustments of the Y YP PO OC C 5 57 75 5 C CO OL LO OR R. .With the Mode-key you get
into the main menu. Afterwards you can navigate through the menu with the
Up/Down-keys. Push the Enter-key to get in the next menu level or to confirm
your settings. Make them and set functions ON/OFF with the Up/Down-keys.
Confirm and save it with the Enter-key (the display shows OK). Push the Mode-
key to cancel the entry and go back to the main menu.
MOD EENTER
UP DOWN
MODE ENTER UPDOWN
UPMODE ENTER DOWN
Display
Level 1 Level 2 Level 3 Remark
D001
Define the DMX start address
TEST
Test program of all functions
AUDI ASLW Self-running audio program (slow)
AFST Self-running audio program (fast)
MSTR Master for the audio program
SVPT Basic position for the audio program
SIZE Size for the audio program (NORM-BIG-MIDL-SMAL)
LAMP
Switch on/of the lamp direct at the Y
YP PO OC C 5 57 75 5 C CO OL LO OR R
RESE
Reset
TIME POWR Running time of the fixture (no destructible)
LA1 Running time of the lamp (erasable)
LA2 Running time of the lamp (no destructible)
FCOL
Reverse Pan-direction
RPAN
Reverse Tilt-direction
RTLT
Manual drive of all device functions
SPEC MANU Automatic lamp start
LAAU Switch off lamp via DMX
DLOF Reed out actual DMX-values
DMXI Display On/Off
DISP D ON Twist the display
REV Reed out internal temperature
TEMP Maximum cooling fan velocity
FANS HIGH Automatic cooling fan control
REG Low cooling fan speed Ælamp off
LOOF Low cooling fan speed Æautomatic
LOHI Define the DMX start address
ÅDOWN - UP Æ
ADJU CODE xxxx Use the code for entering the calibration menu (for
authorized persons only)
CYAN Calibration of the Cyan color wheel
MAGE Calibration of the Magenta color wheel
YELL Calibration of the Yellow color wheel
COLO Calibration of the color wheel
BSPR Calibration of the beam shape
ZOOM Calibration of the Zoom
Dimm Calibration of the Dimmer
SHUT Calibration of the Shutter
CLRE Settings in the internal memory (super-user only)
ARES Adjust Reset
VTIL Software version Tilt-board
VTRB1 Software version driver board 1
VTRB2 Software version driver board 2

GLP German Light Production (1.0) 11
COAD CODE
xxxx
Use the code for entering the calibration menu (for
authorized persons only)
CYAN Coarse calibration of the Cyan color wheel
MAGE Coarse calibration of the Magenta color wheel
YELL Coarse calibration of the Yellow color wheel
DFSE Call on the default function values
FEED Pan/Tilt feedback (error correction) On/Off
EFLG Correction of faults
3.1 Adjust the DMX- Address (D001)
Right after turning on the Y YP PO OC C 5 57 75 5 C CO OL LO OR R you can see the current DMX-
Address. If there is no DMX- Signal the display flashes.
D001
For the address setting please follow this procedure:
1. Switch On the
Y
YP PO OC C 5 57 75 5 C CO OL LO OR R and wait until the fixture reset has finished
('RESE'is flashing in the display).
2. Press the Mode-key in order to access the main menu. Browse through the
menu by pressing the Up/Down-keys until the display shows D001. Confirm by
pressing the Enter-key (the decimal point is flashing)
3. Use the Up/Down-keys to select the desired address. Confirm the setting by
pressing the Enter-key (the display shows OK) or press the Mode-key to
cancel.
The DMX- Address is stored also while switching off the Y YP PO OC C 5 57 75 5 C CO OL LO OR R!
3.2 The Test Program (TEST)
test
The Test-Program allows you to run a complete self test procedure of all
functions. Press Enter to confirm or Mode to cancel.
3.3 The Audio Program (AUDI)
Audi
The Audio-menu allows you to run a stand alone audio program. This chaser can
run either fast or slow. AFST: Every sound impulse on step of the chaser. Aslw:

GLP German Light Production (1.0) 12
Every second sound impulse one step of the chaser.
Additional you can choose a basic position for this audio chaser. Use therefore
either the internal manual mode or an external controller to set the desired
Pan/Tilt position. Confirm this setting in the SVPT menu by pressing the Enter-key.
You can also set the size of the audio chaser in the SIZE menu. You have the
choice between: NORM (no basic position has to bee chosen), BIG, MIDL and SMAL).
If you want to run the systems simultaneously, one of the Y YP PO OC Cs smust be
switched as the master. All others must be "Slave" Master = OFF. Notice: The
Audio function is only working if no DMX is connected. This function can work e.g.
on small events or as an emergency program.
3.4 Lamp On/Off (LAMP)
LAMP
Use the Up/Down-keys to select lamp On or lamp Off Press Enter to confirm or
Mode to cancel and return to the main menu. (The lamp OFF command is only
working if the shutter is closed at the same time. Use an external controller or the
manual drive mode, see chapter 3.10.1.
3.5 Reset (RESE)
RESE
Press the Enter-key to run a reset of all fixture functions (RST is shown in the
display).
3.6 Running time of lamp and unit (TIME)
TIME
You can read out three different running times of the fixture.
POWR Running time of the fixture (no destructible).
LA 1 Running time of the lamp (erasable). Push the Up/Down-keys at one
time to delete this running time.
LA 2 Running time of the lamp (no destructible).

GLP German Light Production (1.0) 13
3.7 Continuous Color Wheel (FCOL)
fcol
This function allows you to control the color wheel continuously. If it is switched
off, the color wheel is stepping directly from one to another color.
3.8 Invert Pan Movement (RPAN)
RPAN
This function allows you to invert the Pan movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel and return to the
main menu.
3.9 Invert Tilt Movement (RTLT)
RTLT
This function allows you to invert the Tilt movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel.
3.10 Special Functions (SPEC)
SPEC
This menu allows you to enter further special functions of the Y YP PO OC C 5 57 75 5 C CO OL LO OR R. .
In detail they are:
3.10.1 Manual Drive (MANU)
MANU
This function allows you to drive all the fixture functions manually. Select
the desired function with the Up/Down-keys and confirm with Enter. Now
choose the desired value with the Up/Down-keys and confirm again with
Enter or cancel and return to the menu with the Mode-key.
Function Value Remark
PAN 000 - 255 Pan Position
TILT 000 - 255 Tilt Position
CYAN 000 - 255 Cyan color wheel

GLP German Light Production (1.0) 14
MAGE 000 - 255 Magenta color wheel
YELL 000 - 255 Yellow color wheel
COLO 000 - 255 Color wheel (fixed colors)
SHUT 000 - 255 Shutter / Strobe function (the lamp strikes at
DMX 255 if dimmer is "open" = DMX 255)
DIMR 000 - 255 Dimmer
BSPR 000 - 255 Beam shape + Frost
ZOOM 000 - 255 Zoom
SPEC 000 - 255 Lamp Off, Reset, ...
3.10.2 Lamp On automatically (LAAU)
LAAU
This function enables to switch ON the lamp automatically after switching
on the fixture itself. Use the Up/Down-keys to select ON if you want to
switch on the lamp automatically after switching on the fixture or Off if you
don't want this function. Press Enter to confirm or Mode to cancel and
return to the menu.
If you have chosen off you have the possibility to start the lamp either via
DMX or direct at the Y YP PO OC C 5 57 75 5 C CO OL LO OR Rin the Lamp menu.
3.10.3 Lamp Off via DMX (DLOF)
DLOF
This function enables to switch OFF the lamp via DMX or not. Use the
Up/Down-keys to select ON if you want to switch off the lamp via DMX or
Off if you don't want this function. Press Enter to confirm or Mode to
cancel and return to the menu.
If you have chosen off you have the possibility to switch off the lamp either
direct at the Y YP PO OC C 5 57 75 5 C CO OL LO OR Rin the Lamp menu or switch off the main
switch.
3.10.4 DMX Input (DMXI)
DMXI
Readout DMX values of each channel received by the fixture. Use the
Up/Down-keys to select desired channel and press Enter to read its value.

GLP German Light Production (1.0) 15
Function Value Remark
PAN 0 - 255 Pan Position
TILT 0 - 255 Tilt Position
CYAN 0 - 255 Cyan color wheel
MAGE 0 - 255 Magenta color wheel
YELL 0 - 255 Yellow color wheel
COLO 0 - 255 Color wheel (fixed colors)
SHUT 0 - 255 Shutter / Strobe function
DIMR 0 - 255 Dimmer
BSPR 0 - 255 Beam shape + Frost
ZOOM 0 - 255 Zoom
SPEC 0 - 255 Lamp Off, Reset, ...
MOVE 0 - 255 Movement
SPED 0 - 255 Speed for Pan/Tilt
3.10.5 Display (DISP)
DISP
Use this function to choose between different display indications. Use the
Up/Down-keys to select desired function and press Enter to confirm or
Mode to cancel and return to the menu.
D ON Display On/Off (If you've chosen off, the display will go out within
15 seconds after the last input. The next key touch will reactivate
the display).
REV Turn around the display.
Note: You can also do this by pushing the Up/Down-keys at the
same time.
3.10.6 Fixture Temperature (TEMP)
TEMP
This function allows you to read out the actual temperature of the Y YP PO OC C
5
57 75 5 C CO OL LO OR R. Press Enter to confirm or Mode to cancel. Inside
temperatures below 80°C are not critical. 80°C and more lead the lamp
being switched off at a critical point. Please note for a save operation that
the outside temperature should not exceed 45°C.
3.10.7 Fan Control (FANS)
FANS

GLP German Light Production (1.0) 16
By using this function you can choose between 4 types of fan speed
operations. Use the Up/Down-keys to select desired function and press
Enter to confirm or Mode to cancel and return to the menu.
HIGH The cooling fan works continuously at max. speed.
REG The fan automatically raises its speed in order to control inside
temperature of the fixture.
LOOF The fan keeps the adjusted low speed until the temperature
exceeds max. inside temperature, then the Y YP PO OC C 5 57 75 5 C CO OL LO OR R
automatically switch off the lamp.
LOHI The fan keeps the adjusted low speed until the temperature
exceeds max. inside temperature, then the Y YP PO OC C 5 57 75 5 C CO OL LO OR R
automatically switch from low to high fan speed.
In addition to these settings, you can set to fan speed to minimum via DMX
(Special channel, DMX value 224..229). This will last until a temperature of
90° is reached.
3.10.8 Adjustments and Calibrations (ADJU)
ADJU
With this function you can adjust and calibrate the positions of the different
wheels and other motors. This can be necessary after a service or repair
work.
For this function you have to entry the fixture code. This work should be
done only by authorized persons.
Use the Up/Down-keys to select desired function and press Enter to
confirm or Mode to cancel and return to the menu. Use now the Up/Down-
keys to set the adjustment values and confirm once more with the Enter-
key or cancel with the Mode-key.
Function Value Remark
ADJU CODE xxxx
Adjustments in the internal setup are code protec-
ted (for authorized persons only).
CYAN - 99 - + 99 Adjustment of the Cyan color wheel
MAGE - 99 - + 99 Adjustment of the Magenta color wheel
YELL - 99 - + 99 Adjustment of the Yellow color wheel
COLO - 99 - + 99 Adjustment of the Color wheel
BSPR - 99 - + 99 Adjustment of the Beam shape
ZOOM - 99 - + 99 Adjustment of the Zoom
DIMM - 99 - + 99 Adjustment of the Dimmer

GLP German Light Production (1.0) 17
SHUT - 99 - + 99 Adjustment of the Shutter
CLRE Adjustments in the internal circuit.
ARES - 99 - + 99 Adjust Reset (wheels stand still after the reset)
VTIL - 99 - + 99 Software version of Tilt-board
VTR1 - 99 - + 99 Software version of Head- board
VTR2 - 99 - + 99 Software version of Base- board
COAD CODE xxxx Adjustments in the internal setup are code protec-
ted (for authorized persons only).
CYAN - 99 - + 99 Coarse adjustment of the Cyan color wheel
MAGE - 99 - + 99 Coarse adjustment of the Magenta color wheel
YELL - 99 - + 99 Coarse adjustment of the Yellow color wheel
3.10.9 Default Settings (DFSE)
DFSE
Press Enter to reset all fixture personalities (not the adjusted functions) to
the default values. The display will read ok to indicate that the defaults are
set.
Function Display Default Settings
DMX Address D001 D001
Pan reverse RPAN ON OFF 9
Tilt reverse RTLT ON OFF 9
Automatic lamp on LAAU ON OFF 9
Lamp on via DMX DLOF ON 9OFF
Display DISP D ON 9
Cooling fan FANS HIGH REG 9LOOF LOHI
Feedback FEED ON 9OFF
3.10.10 Position Feedback (FEED)
FEED
The Y YP PO OC C 5 57 75 5 C CO OL LO OR Ris equipped with an automatic position correction
(feedback) for the Pan and Tilt movement. Use the Up/Down-keys to
select ON if you want to enable the feedback function or Off if you don't
want this function. Press Enter to confirm or Mode to cancel and return to
the menu.

GLP German Light Production (1.0) 18
3.10.11 Correction of faults (EFLG)
EFLG
(Function available for authorized persons only)
3.11 Error and Information Messages
HEAt This message appears if you try to switch on the lamp within 5 minutes
after having switched off (lamp too hot). The message will appear on
the display if the lamp doesn’t ignite within 20 seconds. The fixture will
store this command and automatically ignite the lamp after 5 minutes.
IG E When igniting the lamp, the electronic ballast will examine whether the
lamp ignited or not. If the lamp does not ignite within 20 seconds, the
igniting sequence is broken off. Now approx. 2 minutes are waited, until
a renewed ignition attempt is started automatically. After the 3rd
unsuccessful ignition attempt the sequence is completely stopped and
the display reads "IG E" (Ignition error).
LAER As soon as the lamp ignited correctly, the lamp current is constantly
supervised by the system. If an interruption steps on (covers opened or
lamp damaged), the power is switched off immediately. The display
reads "LAER" (lamps error). Please switch off the power supply and
solve the possible problem.
After an error like "IG E" respectively "LAER" it is not anymore possible the start
the lamp via Shutter = 255. Nevertheless if a renewed ignition attempt is desired,
first run a Reset (at the Spot or over DMX). Afterwards you can try again to ignite
the lamp.
OTMP This error message informs you that the fixture was overheating and
that the relay switches off the lamp. Pleas look for possible reasons
(fan faulty, air in/outlets blocked or very dirty, lamp broken or very old,
too high ambient temperature. Switch off the power supply and solve
the possible problem.
RsER This message informs you that one of the fixture function wasn’t able to
do its reset correct (magnetic sensor, stepping motor, driver on the
PCB, cables, etc.). Repair the defect and start the fixture again.

GLP German Light Production (1.0) 19
4 DMX Channel Selection (DMX Protocol)
Channel Function Time and Value DMX HEX %
1) PAN-
coarse
0 .. 530° min. 2,65 s 0..255 00..FF 0..100
2) PAN-fine Low- Pos ... High- Pos + 2,1° (16 Bit) 0..255 00..FF 0..100
3) Tilt-
coarse
0 .. 285° min. 1,8 s 0..255 00..FF 0..100
4) Tilt-fine Low- Pos … High- Pos + 1,1° (16 Bit) 0..255 00..FF 0..100
open (fast) 0..3 00..03 0,2
color 1, Brilliant Blue (fast) 4..7 04..07 1,8
color 2, Blue (fast)
Chaser from color to
color max. 140 BPM
Æ0,43 s 8..11 08..0B 3,3
color 3, Blue Purple (fast) 12..15 0C..0F 4,9
color 4, Pink (fast) 16..19 10..13 6,5
color 5, Orange (fast) 20..23 14..17 8,0
color 6, Italian Blue (fast) 24..27 18..1B 9,6
color 7, Turquoise (fast) 28..31 1C..1F 11,2
color 8, Jade (fast) 32..35 20..23 12,7
color 9, CTB 001 (fast) 36..39 24..27 14,3
color 10, CTO 02 (fast) 40..43 28..2B 15,9
color 11, Red (fast) 44..47 2C..2F 17,5
open (fast) 48..63 30..3F 19,0
open (slow) 64..67 40..43 25,3
color 1, Brilliant Blue (slow) 68..71 44..47 26,9
color 2, Blue (slow)
Chaser from color to
color max. 70 BPM
Æ0,86 s 72..75 48..4B 28,4
color 3, Blue Purple (slow) 76..79 4C..4F 30,0
color 4, Pink (slow) 80..83 50..53 31,6
color 5, Orange (slow) 84..87 54..57 33,1
color 6, Italian Blue (slow) 88..91 58..5B 34,7
color 7, Turquoise (slow) 92..95 5C..5F 36,3
color 8, Jade (slow) 96..99 60..63 37,8
color 9, CTB 001 (slow) 100..103 64..67 39,4
color 10, CTO 02 (slow) 104..107 68..6B 41,0
color 11, Red (slow) 108..111 6C..6F 42,5
open (slow) 112.127 70..7F 44,1
color rotation, slow-fast, CW min. 1.4 turns/h 128..191 80..BF 50..75
color rotation, fast-slow, CCW max. 2.9 turns/sec. 192..253 C0..FD 76..98
Audio color chaser slow each 4th sound impulse
Ænew color
254 FE 99
5) Color*
Audio color chaser fast each sound impulse
Ænew color
255 FF 100
6) Cyan Cyan color intensity 0% - 100% 0..255 00..FF 0..100
7) Magenta Magenta color intensity 0% - 100% 0..255 00..FF 0..100
8) Yellow Yellow color intensity 0% - 100% 0..255 00..FF 0..100
Shutter closed 0..15 00..0F 0..6
Random Strobe (different pattern) 16..31 10..1F 7..11,9
Strobe Pulse effect , slow - fast min. frequency 0,7 Hz 32..47 20..2F 12..12,9
Strobe effect , slow - fast max. frequency 10 Hz 48..239 30..EF 13..93
Shutter open 240..255 F0..FF 94..100
9) Shutter
Lamp ON (ignition) 254..255 FE..FF 99..100
Dimmer closed (0%) 0..3 0..3 0..1
Dimmer 1%...99% movement time 0,3 sec. 4..251 4..FB 2..98
10) Dimmer
Dimmer open (100%) 252..255 FC..FF 99..100

GLP German Light Production (1.0) 20
Channel Function Time and Value DMX HEX %
Open 0..15 0..0F 0..5
Shaper 16..239 10..EF 6..94
11) Beam
shape
Frost 240..255 F0..FF 95..100
12) Zoom Zoom 0% - 100% 8° - 22° 0..255 00..FF 0..100
No function 0..15 00..0F 0..6
Audio CMY chaser slow 16..23 10..17 7..9
Audio CMY chaser fast 24..31 18..1F 10..12
Rotating color chaser 32..63 20..3F 13..24
Color chaser C / C+1
slow – fast
64..79 40..4F 25..31
Color chaser C / C+2
slow – fast
80..95 50..5F 32..37
PAN/Tilt chaser slow 96..111 60..6F 38..43
PAN/Tilt chaser fast 112..127 70..7F 44..50
Lamp OFF
(only if shutter is closed)!
230..249 E6..F9 92..97
13) Special
Reset 250..255 FA..FF 98..100
No movement 0 00 0
Movement Size Phase
14) Move-
ment PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D 4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D 11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159 80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191 A0..BF 63..75
lying eight size / phase see also PAN 192..223 C0..DF 76..87
random movement size see also PAN 224..255 E0..FF 88..100
Pan/Tilt relative movement 0..01 00..01 0..1
15) Speed
Pan/Tilt Pan/Tilt slow – fast
Use this channel 14) also for the speed
of the movements (channel 13).
Pan Min. 530° = 200 s
Pan Max. 530° = 2.65 s
Tilt Min. 285° = 110 s
Tilt Max. 285° = 1.8 s
02..255 02..FF 2..100
Lampe ON Shutter open 254..255 FE..FF 99..100
Lampe OFF Channel 9 ( min. 3 sec. ) (only if shutter
is closed, channel 9 = 0 ..15)
230..249 E6..F9 92..97
*) Set the function “FCOL” ‘ON’ if you want to control the color wheel continuously.
