GLP Startec-1200 User manual

Startec-1200
Instruction Manual
From Version 1.2
email: [email protected]
Internet: http://www.GLP.de

Startec-1200
GLP German Light Production (V2.1) 2

Startec-1200
Contents
1Introduction .............................................................................................................5
1.1 Safety Rules .....................................................................................................6
2Installation...............................................................................................................6
2.1 Mounting...........................................................................................................6
2.1.1 Clamps (Hooks) .....................................................................................6
2.2 Secure the S St ta ar rT Te ec c 1 12 20 00 0..................................................................................7
2.3 Connectors .......................................................................................................7
2.3.1 AC Connectors.......................................................................................7
2.3.2 DMX.......................................................................................................7
2.4 Fuse..................................................................................................................7
3The Menu Field........................................................................................................8
3.1 Adjust the DMX- Address..................................................................................8
3.2 Read out the Running Time of Lamp and Unit..................................................9
3.2.1 Lamp Time 1..........................................................................................9
3.2.2 Lamp Time 2..........................................................................................9
3.2.3 Life Time ................................................................................................9
3.3 The CODE Level...............................................................................................9
3.4 The Test Level................................................................................................10
3.4.1 Selftest Procedure................................................................................10
3.5 Temperature Control 1....................................................................................10
4Channel selection ( Overview table )...................................................................11
5Change the Lamp..................................................................................................13
5.1 Safety Rules ...................................................................................................13
5.2 How to change the lamp.................................................................................13
GLP German Light Production (V2.1) 3

Startec-1200
6Change the Gobos ................................................................................................14
6.1 Safety Rules ...................................................................................................14
6.2 How to change the Gobos ..............................................................................14
7Maintenance the S St ta ar rT Te ec c 1 12 20 00 0.............................................................................15
7.1 Mirror and Optical System ..............................................................................15
8Technical Data /Overview.....................................................................................16
GLP German Light Production (V2.1) 4

Startec-1200
1 Introduction
DMX Adress
Hours
Mode
Service
Menu Cursor Data- Data+
HandlesMirror
Color-Wheel
gobowheel
Asphere
Lamp (fillerneck up)
Concave mirror
Safety ring
Handles
AC power
Fuse lamp
10 AT Fuse electronic
4 AT
AC- control lamp
Snaps
Outer optical
system
DMX-Out DMX-In
Menu-Panel
Illustration 1-1
GLP German Light Production (V2.1) 5

Startec-1200
1.1 Safety Rules
The S St ta ar rT Te ec c 1 12 20 00 0 is a High-Tech Product. To guarantee a smooth operation, it is
necessary to keep following rules.
1. Make sure that the Mirror of the S St ta ar rT Te ec c 1 12 20 00 0, can move without any
mechanical problems and that all fan openings are clean and not blocked by
anything.
2. Touching the mirror while moving can cause serious injuries
3. Unplug the
S
St ta ar rT Te ec c 1 12 20 00 0 from the AC outlet before any service
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the S St ta ar rT
Te ec c 1 12 20 00 0. Please do not touch the Bulb if you are not
absolutely sure it is cold. -Danger of BURNING-
5. The
S
St ta ar rT Te ec c 1 12 20 00 0is provided with a protective switch to switch off the lamp
when opening it. By no means do not bridge these switch. This can cause
serious injuries of your retina.
6. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the S St ta ar rT Te ec c 1 12 20 00 0without suited safety aids like Safety
cables or clamps/hooks can increase the risk of an accident.
7. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
2 Installation
2.1 Mounting
To mount the S St ta ar rT Te ec c 1 12 20 00 0use the bow at the backside of the system witch can
moved in the slidenuts at the side of the body.
2.1.1 Clamps (Hooks)
Mount clamps and/or hooks directly to the bow of the S St ta ar rT Te ec c 1 12 20 00 0.
Please make sure to use right sized clamps and hooks and fit them
securely.
GLP German Light Production (V2.1) 6

Startec-1200
The S St ta ar rT Te ec c 1 12 20 00 0is fully operational whether it stands or hangs.
Using the S St ta ar rT Te ec c 1 12 20 00 0standing on the ground requires a rough but even
surface. Make sure that the fan openings are not blocked by any
circumstances and that the system is secured against tip over.
2.2 Secure the
S
St ta ar rT Te ec c 1 12 20 00 0
Use always safety wires to secure the S St ta ar rT Te ec c 1
12 20 00 0, connect them with the eye
bolt at the backside and check the tight fit!
2.3 Connectors
2.3.1 AC Connectors
230 Volt, 50 Hz
Power input 10A
2.3.2 DMX
DMX 512 Standard input/output. Please see printing on the case for the
right Pin usage!
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
The DMX- Address starts at the S St ta ar rT Te ec c 2 20 00 00 0at the DMX- Address [001].
2.4 Fuse
The S St ta ar rT Te ec c 1 12 20 00 0 electronic system is protected by a 5x20 T4A fuse 250V. The
lamp is protected by a 5x20 T10A fuse 250V. Please see the printing on the
S
St ta ar rT Te ec c 1 12 20 00 0,
, for more details look at the Illustration 1-1 in Chapter 1
Disconnect AC outlet before changing a fuse !!!
GLP German Light Production (V2.1) 7

Startec-1200
3 The Menu Field

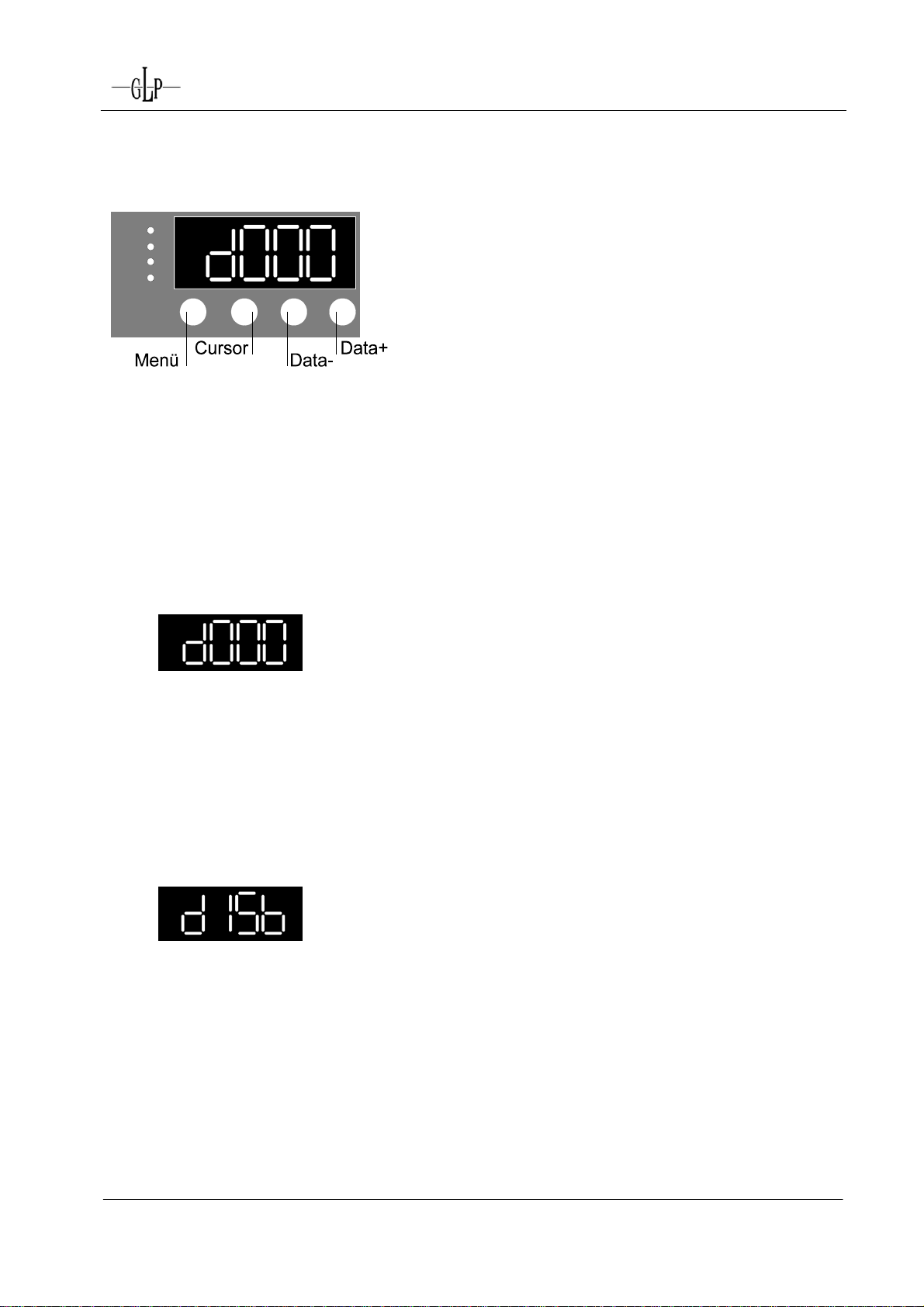

3.1 Adjust the DMX- Address
Right after turning on the S St ta ar rT Te ec c 1 12 20 00 0you can see the current DMX- Address.
Choose this as follows.
Select the DMX- Level by pressing the menu key once.
Count up or down the DMX- Address with the Data + or Data – buttons. After
pushing the Cursor button the upcounting speed increases to a multiple. You can
see that at the three decimal dots. Pushing the Cursor button again to get to the
slow speed.
Confirm the DMX-Address by pressing the Menu key once.
The DMX-Address is also stored while switching off the S St ta ar rT Te ec c 1 12 20 00 0 !!!
GLP German Light Production (V2.1) 8

Startec-1200

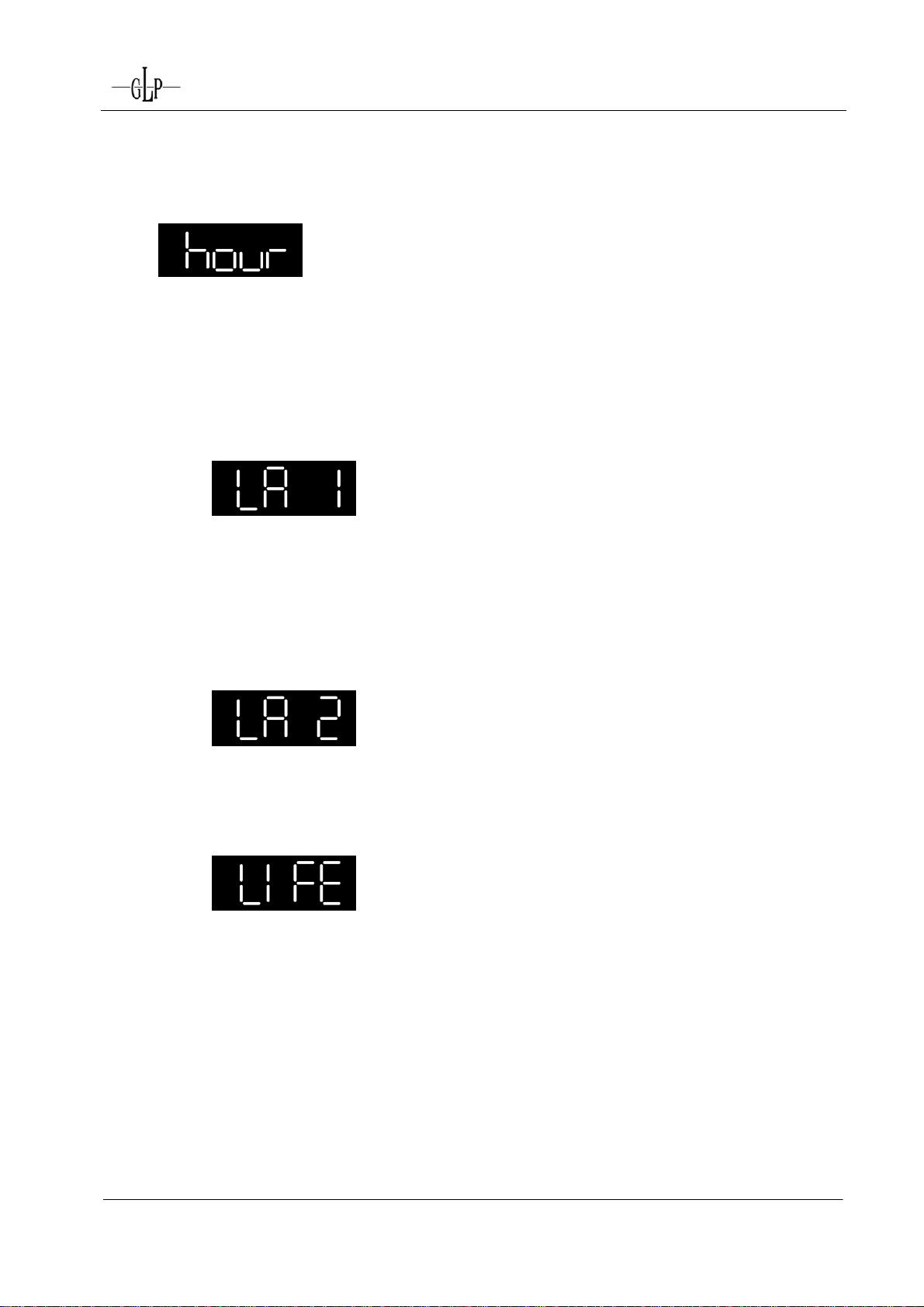

3.2 Read out the Running Time of Lamp and Unit
Select the time level by pressing the Menu key twice.
Select the requested time by pressing the Cursor key,
3.2.1 Lamp Time 1
The current lamp time is shown alternating with LA 1.
This time can be cleared by pressing the Data + and Data – keys at the
same time.
3.2.2 Lamp Time 2
The total lamp time is shown alternating with LA 2.
3.2.3 Life Time
The life time is shown alternating with LIFE.
3.3 The CODE Level
This level is accessed by authorised dealers only.
In this level you can adjust all functions.
GLP German Light Production (V2.1) 9

Startec-1200

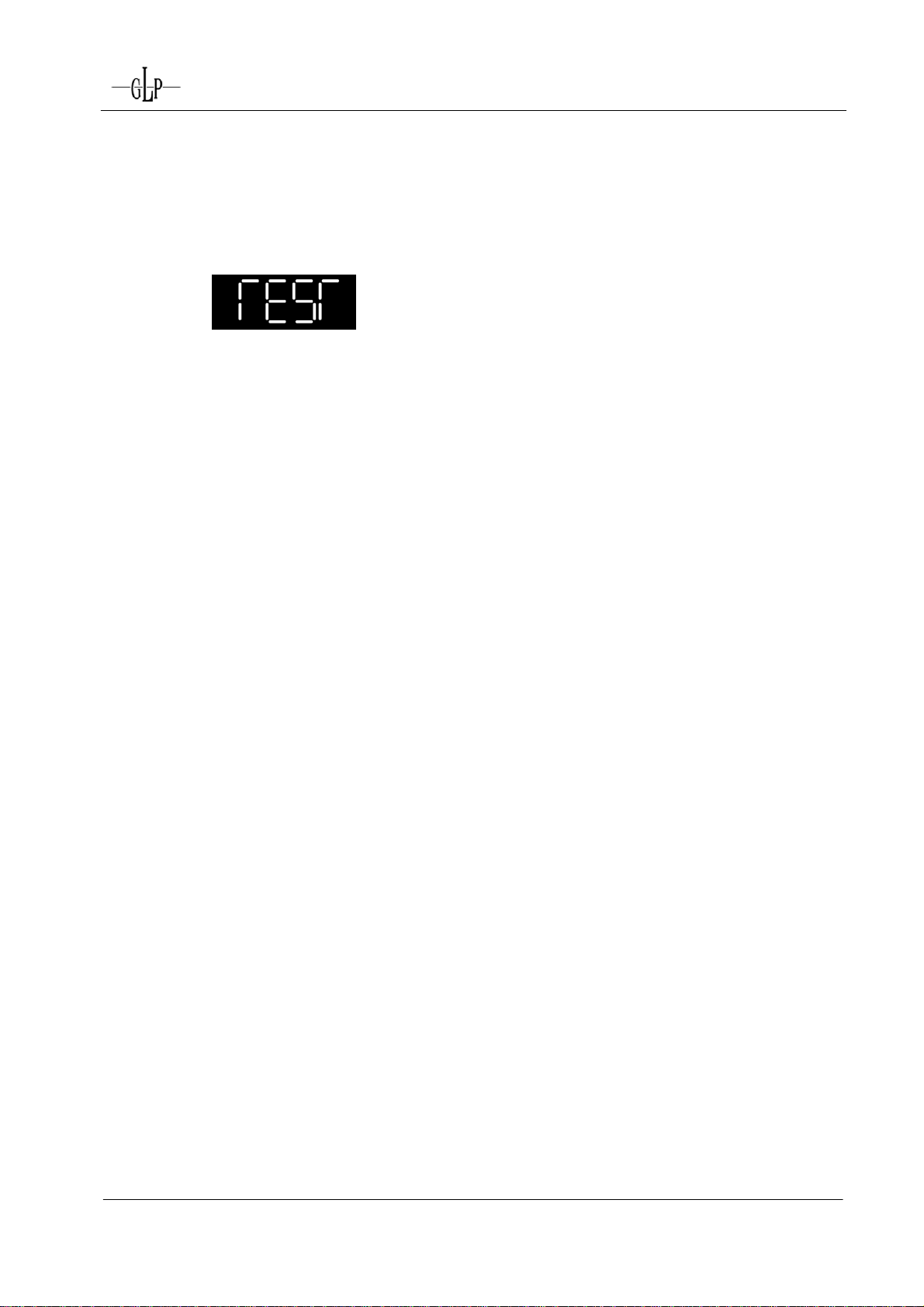

3.4 The Test Level
The Test Level makes a function test or a selftest procedure possible.
3.4.1 Selftest Procedure
Select the requested test level by pressing the Cursor key.
Start the Selftest program by pressing the Data+ key. The lamp can be
started by pressing the Data+ and Data- keys for 5 seconds at the same
time.
You have the following sections:
PR Selftest of all functions
PAN Test Mirror Pan- movement
TILT Test Mirror Tilt- movement
PSA Test Prism
dI Test Dimmer
Shut Test Shutter
CLr Test Colorwheel
GB1 Test Gobowheel
IrIS Test Iris
Gr1 Test Gobo rotation
FOCS Test Focus
Forward with the Data+ key. – Backward with the Data- key.
3.5 Temperature Control 1
Deviates the temperature value to much from the system standard, the lamp will
turn off automatically.
Reconnection can only be made by authorised dealers.
GLP German Light Production (V2.1) 10

Startec-1200
4 Channel selection ( Overview table )
Channel Description DMX-Value Hex-Value Value in %
1) Pan / coarse Pan Position, coarse ( 0o– 170o) 0 - 255 0 - FF 0 – 100%
2) Pan / fine Pan Position, fine 0 - 255 0 - FF 0 – 100%
3) Tilt / coarse Tilt Position, coarse ( 0o–110o) 0 - 255 0 - FF 0 – 100%
4) Tilt / fine Tilt Position, fine 0 - 255 0 - FF 0 – 100%
5) Color color 1 (white) 0 - 4 0 - 4 1%
bi (white – green) 5 - 9 5 - 9 2 – 3%
color 2 (green) 10 - 14 A - E 4 – 5%
bi (green – red) 15 - 19 F - 13 6 – 7%
color 3 (red) 20 -24 14 - 18 8 – 9%
bi (red – dark blue) 25 - 29 19 - 1D 10 – 11%
color 4 (dark blue) 30 - 34 1E - 22 12 – 13%
bi (dark blue – yellow) 35 - 39 23 - 27 14 – 15%
color 5 (yellow) 40 - 44 28 - 2C 16 – 17%
bi (yellow – pink) 45 - 49 2D - 31 18%
color 6 (pink) 50 - 54 32 - 36 19 – 20%
bi (pink – turquoise) 55 -59 37 - 3B 21 – 22%
color 7 (turquoise) 60 - 64 3E - 40 23 – 24%
bi (turquoise – orange) 65 - 69 41 - 45 25 – 26%
color 8 (orange) 70 - 74 46 - 4A 27 – 28%
bi (orange – cyan) 75 - 79 4B - 4F 29 – 30%
color 9 (cyan) 80 - 84 50 - 54 31 – 32%
bi (cyan – magenta) 85 - 89 55 - 59 33 – 34%
color 10 (magenta) 90 - 94 5A - 5E 35 – 36%
bi (magenta – white) 95 - 99 5F - 63 37 – 39%
rotation cw slow – fast 128 - 191 80 - BF 50 – 74%
stop 192 C0 75%
rotation ccw fast - slow 193 - 255 C1 - FF 76 – 100%
6) Gobowheel Gobo 1 (offen) 0 - 9 0 - 9 0 – 3%
Gobo 2 10 - 19 A - 13 4 – 7%
Gobo 3 20 - 29 14 - 1D 8 – 11%
Gobo 4 30 - 39 1E - 27 12 – 15%
Gobo 5 40 - 49 28 - 31 16 – 19%
Gobo 6 50 - 127 32 - 7F 20 – 50%
rotation cw fast – slow 128 - 191 80 - BF 51 – 74%
stop 192 C0 75%
rotation ccw fast – slow 193 - 255 C1 – FF 76 – 100%
7) Gobo/ Stop 0 – 4 0 – 4 0 – 1%
Rotation rotation cw slow – fast 5 – 24 5 – 18 2 – 9%
Stop 25 – 29 19 – 1D 10 – 11%
rotation ccw slow – fast 30 – 49 1E – 31 12 – 19%
GLP German Light Production (V2.1) 11

Startec-1200
Channel Description DMX-Value Hex-Value Value in %
Stop 50 – 54 32 – 36 20 – 21%
gobo position 55 - 255 37 – FF 22 – 100%
8) Iris Iris 100% - 4% open 0 - 255 0 – FF 0 – 100%
9) Prism Open 0 – 9 0 – 9 0 – 3%
prism 1 10 – 19 A – 13 4 – 7%
rot. cw prism 1 slow – fast 20 – 69 14 – 45 8 – 26%
Stop 70 46 27%
rot. ccw prism 1 fast –slow 71 – 119 47 – 77 28 – 46%
Stop 120 78 47%
Effect 121 - 129 79 – 81 48 – 50%
prism 2 130 – 139 82 – 8B 51 – 54%
rot. cw prism 2 slow – fast 140 – 189 8C – BD 55 – 73%
Stop 190 BE 74%
rot. ccw prism 2 fast –slow 191 – 239 BF – EF 75 – 93%
Stop 240 – 255 F0 – FF 94 – 100%
10) Shutter Shutter open 0 – 15 0 – F 0 – 5%
Shutter close 1 16 – 31 10 – 1F 6 – 12%
Shutter open 2 32 – 63 20 – 3F 13 – 24%
Shutterfreq., slow- fast 64 – 239 40 – EF 25 – 93%
Shutter on (Dimmer- Position) 240 – 255 F0 - FF 94 – 100%
11) Focus Min. – max. 0 – 255 0 – FF 100%
12) Dimmer Dimmer close 0 – 15 0 – F 0 – 5%
Dimmer close – open 16 – 239 10 – EF 6 – 93%
Dimmer open 240 – 255 F0 – FF 94 – 100%
13) Special
Function Reset 250 – 255 8A – FF 98 – 10%
14) Speed
Pan/Tilt Relativ speed 0 - 15 0 - F 0 – 5%
Slow - fast 16 - 255 10 - FF 6 – 100%
Lampe on Dimmer open (min. 2 sec)
Iris 255 255 FF FF 100% 100%
Lampe off Dimmer close
Special Function
Iris (max. 5sec)
0
5 – 10
x – 255 – 0
0
5 – A
x – FF – 0
0%
2 – 4%
x– 100– 0%
GLP German Light Production (V2.1) 12

Startec-1200
5 Change the Lamp
For a hassle free change of the Light bulb, it is absolutely necessary to follow all
descriptions in this chapter step by step.
5.1 Safety Rules
•Unplug AC power connection
•Allow to cool (min. 30 minutes)
•Don’t touch lamp with bare fingers.
•Install the lamp with the filler to the right direction.
•Distance between lamp and lens holder must bee min. 5mm.
•Close the
S
St ta ar rT Te ec c 1 12 20 00 0before you connect the AC power!
5.2 How to change the lamp
Please look also Illustration 1-1.
1. Press the two safety levers at the same time and lift carefully the cover plate.
2. Open the knurled nut and change the HMI lamp.
3. Close the S St ta ar rT Te ec c 1 12 20 00 0 in reverse order.
Attention:
Please make sure that the filler of the lamp is in the right direction.
That means not in direction concave mirror or lenses.
Please close the knurled nuts of the HMI lamp fast.
GLP German Light Production (V2.1) 13

Startec-1200
6 Change the Gobos
The S St ta ar rT Te ec c 1 12 20 00 0is fitted with standard Gobos (∅37,5 mm, picturesize 27 mm).
6.1 Safety Rules
•Unplug AC power connection
•Allow to cool (over 30 minutes)
•Don’t touch lamp with bare fingers.
•Close the
S
St ta ar rT Te ec c 1 12 20 00 0before you connect the AC power!
6.2 How to change the Gobos
Please look also Illustration 1-1.
1. Press the two safety levers at the same time and lift carefully the cover plate.
2. Remove the gobosprings with the help of an small screwdriver.
3. Change the Gobo’s and fix them with the gobosprings.
4. Close the S St ta ar rT Te ec c 1 12 20 00 0 in reverse order.
Attention:
If you use glasgobo’s the mirror - side of the Gobo must align towards
the mirror.
GLP German Light Production (V2.1) 14

Startec-1200
7 Maintenance the
S
St ta ar rT Te ec c 1 12 20 00 0
The cleaning of the inner optical System, color filters, color correction filter and lenses
should be done by qualified person only! Contact your local GLP Dealer for details.
Use no strong detergents, acid etc. for cleaning the case.
7.1 Mirror and Optical System
Clean the S St ta ar rT Te ec c 1 12 20 00 0 optical system with a moistened cloth and a little cleaner.
Attention:
Never clean the aspharic lens besides the lamp with water or cleaner. Do
only use a clean and dry piece of cloth.
It is necessary to clean the fan openings, air channels and fan gratings on a
regular base (depending on the local environment, about every two weeks).
GLP German Light Production (V2.1) 15

Startec-1200
8 Technical Data /Overview
•Supply Data 230V/10AT
•1200 HMI Lamp, bilateral based, with 750h Lamp Life
•Capacitor compensation
•Angle of spread 16°
•DMX 512 Standard
•weight 35 kg
•Dimensions: 880 x 220 x 360 mm
•16 bit Pan/Tilt
•Pan- movement: 170°
•Tilt- movement: 110°
GLP German Light Production (V2.1) 16

Startec-1200
GLP German Light Production (V2.1) 17
