GLP VOLKSLICHT R-G-B User manual

Instruction Manual
from software version 1.08
(Instruction version 1.0)
e-mail: [email protected]
Internet: http://www.glp.de
R-G-B

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 2

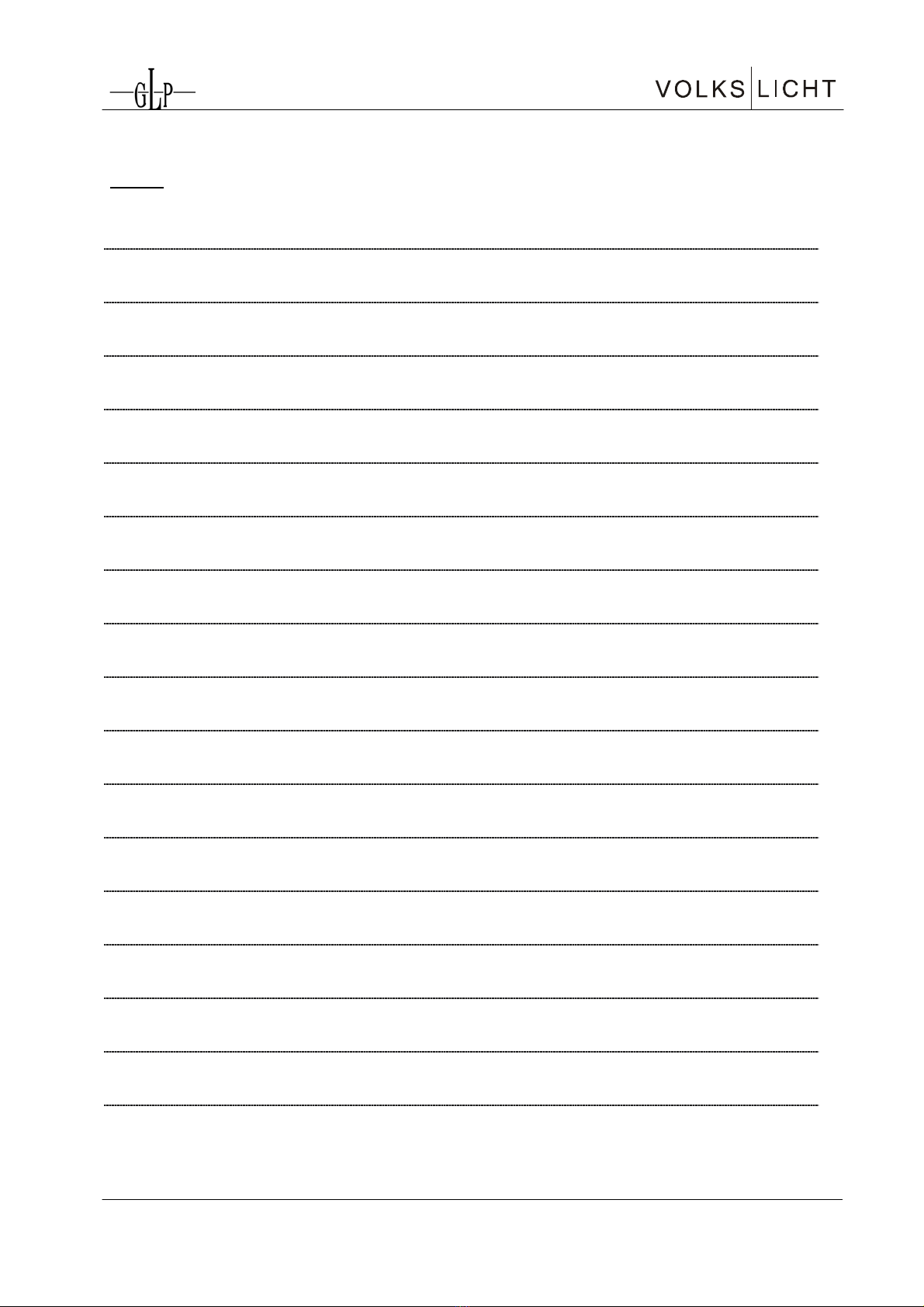

Notes:

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 3
Table of content
1Description of Device.............................................................................................. 4
1.1 Safety Instructions ............................................................................................ 5
2Preparation and Installation ................................................................................... 6
2.1 Mounting ........................................................................................................... 6
2.1.1 Mounting on the Floor (Upright).............................................................6
2.1.2 Mounting in hanging Position (Head first)..............................................7
2.1.3 Mounting in sidewise Position ...............................................................7
2.2 Secure the Device.............................................................................................8
2.3 Connections ...................................................................................................... 8
2.3.1 Power Supply ........................................................................................ 8
2.3.2 DMX ...................................................................................................... 8
3The Menu Field ........................................................................................................ 9
4DMX Channel Selection (DMX Protocol) .............................................................11
5Maintaining and Cleaning the V VO OL LK KS SL LI IC CH HT T....................................................... 13
5.1 Safety regulations ........................................................................................... 13
5.2 Circumference and Interval (rule-of-thumb) ....................................................13
6Technical Specifications....................................................................................... 14

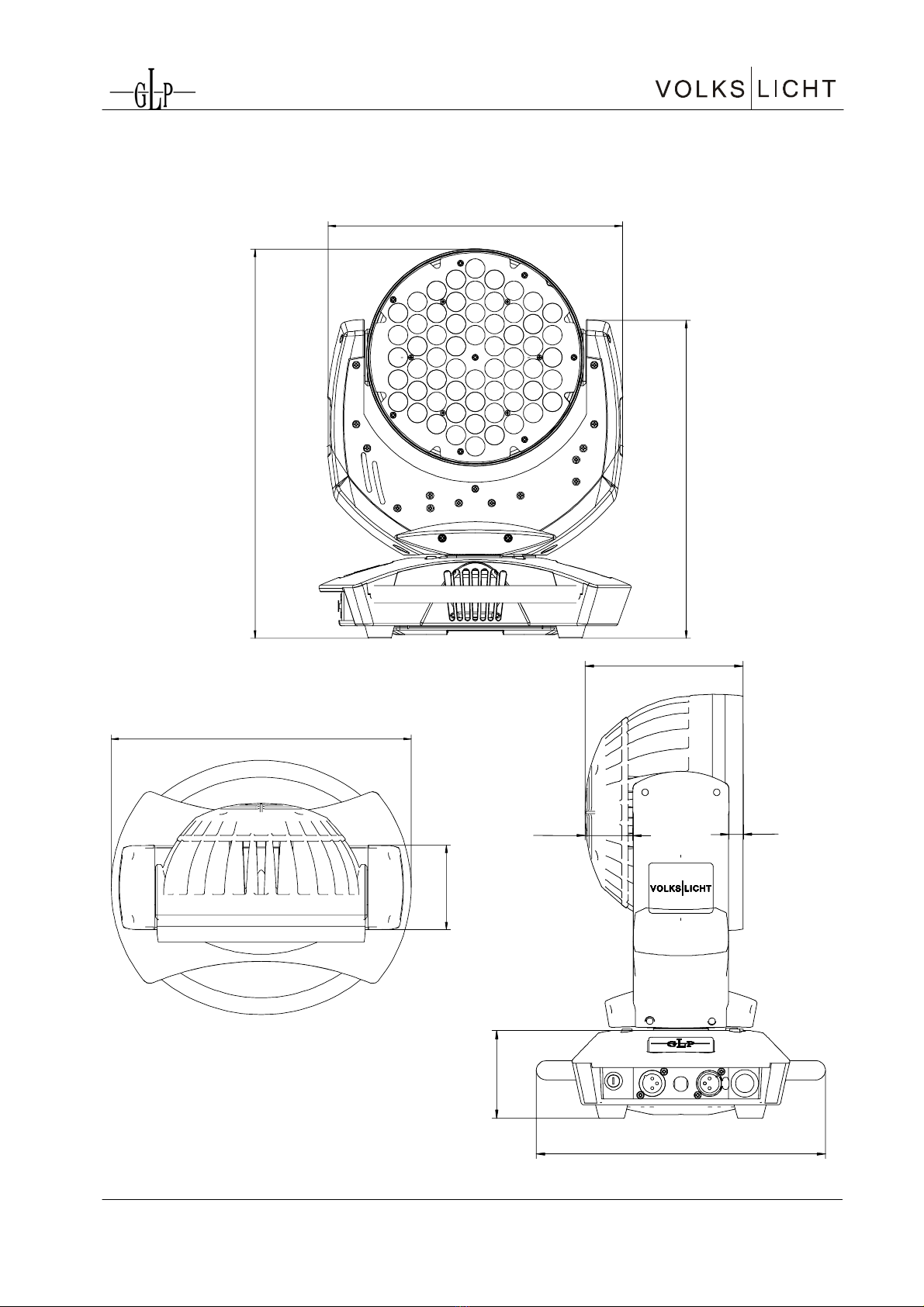

7System dimensions (in mm)................................................................................. 15
8Index ....................................................................................................................... 16

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 4
1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling vents
3. LCD-Display/Menu (data entry)
4. Base with various connectors and
Camlock mounting system
5. Carrying handle. It is also used to
attach the safety cable
6 7 8 9
6. Micro-fuse 5x20mm, T2A
7. DMX- Input (3 pole)
8. DMX- Output (3 pole)
9. Power On-/Off

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 5
1.1 Safety Instructions
The V VO OL LK KS SL LI IC CH HT T is a High-Tech Product. To guarantee a
smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility of
damages through any disregard of the information in this
manual. Warranty claims will also be terminated in case the
system casing is opened.
1. Make sure before putting the system into operation, that the fan and the air
inlets are clean and not blocked by anything.
2. It must be assured that the system-head can rotate unhindered throughout
his complete rotating range. A safety distance of at least 0.5 m to any easily
inflammable material (e.g. decoration material) must be adhered.
3. Attention! Don’t touch the device during the operation. This can cause
injuries or damages.
4. The system doesn’t contain any maintainable parts. Don’t open it!
5. It is necessary to wait at least 15 minutes after disconnecting the AC before
changing the optical carrier. Pay attention to possibly hot parts of the
system. -- Danger of BURNING --
6. Never look directly into the beam of light or into one of the LEDs.
LED Class 2M. You'll risk a serious injury of your eyes and in particular of
your retina.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Hence: Avoid direct radiation of your eyes!
7. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the V VO OL LK KS SL LI IC CH HT T without suitable safety aids like
Safety cables or clamps/hooks can increase the risk of an accident.
8. Repair-, maintenance- and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicitly mentioned in this manual.
9. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
10. Please keep this instruction manual for later reference.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 6
2 Preparation and Installation
2.1 Mounting
The V VO OL LK KS SL LI IC CH HT T is fully operational whether it hangs or is mounted to the
wall. It can also be operated while standing on the floor. Keep a safety distance
of 0.5 m towards any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the V VO OL LK KS SL LI IC CH HT T(standing on the floor,
sideways or hanging) different accessories kits are available. Through this a
safe and firm installation is assured. You'll find special connectors on the
bottom side of the system which are put to use here.
2.1.1 Mounting on the Floor (Upright)
The V VO OL LK KS SL LI IC CH HT Tis equipped with four robust rubber feet. This allows
a firm and safe stand on even surfaces.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 7
2.1.2 Mounting in hanging Position (Head first)
To operate the V VO OL LK KS SL LI IC CH HT Tin an hanging position, please use a half-
coupler (clamp) which is mounted directly onto the bottom side of the
system. It is fixed centrically with a M10 thread bolt (max. length 11 mm).
89
3x M10
(max. length 11mm)
2.1.3 Mounting in sidewise Position
To operate the V VO OL LK KS SL LI IC CH HT Tin an sidewise position, please use two
half-couplers (clamps) which are mounted directly onto the bottom side
of the system. They are fixed with two M10 thread bolts (max. length 11
mm).
This technique is necessary to cope with the torque which accrues in this
mounting position. In addition it allows a concentrically position between
two truss belts. Never use the "Mounting in hanging Position" technique
described above to fasten the system in the sidewise position. A safe
and sound installation can not be assured in this way. This also can
damage the system base.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 8
2.2 Secure the Device
Regardless of the mounting method of the V VO OL LK KS SL LI IC CH HT T you'll have to use a
stipulated safety wire. Therefore you have to pull the safety wire through to two
provided holes on the bottom side of the system and connect it with the truss-
support. Pay attention to a safe and proper fastening. Install a safety wire that
can hold at least 10 times the weight of the fixture. Never use the carrying
handles for this purpose.
The safety wire must be attached in a way that the height of drop is
minimised. A height of drop of more that 0.2m is strictly forbidden (ÆBGI
810-3).
2.3 Connections
2.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon
Connected load 140 VA (W) <=> T2A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.3.2 DMX
USITT DMX-512 Standard input/output in 3 pole connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
The DMX- Addressing starts at the DMX- Address [001].

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 9
3 The Menu Field
You'll find the illuminated control board on the upper side of
the base. It allows you to make all necessary adjustments
of the system.
The current DMX address will be shown on the top level of
the menu. Use the Enter-key to adjust the DMX address or
press the Menu-key to reach the next level of the menu
where other settings can be made.
Menu Enter
1
DMX Start Address
With the Enter-key you reach the main menu. Afterwards
you can navigate through the menu with the Up/Down-
keys. Push the Enter-key to get in the next menu level or
to confirm your settings. Adjust them and set functions
ON/OFF with the Up/Down-keys. Confirm and save it with
the Enter-key (the display shows OK).
Use the Back-key to cancel the entry and to go back to the
main menu.
Back DownUP Enter
DMX Start Address
Reset
Special
VOLKSLICHT Menü
ÅBACK - ENTER Æ
Level1 Level 2 Level 3 Level 4 Remark
DMX Start
Address
Define the DMX start address
Special Manual DMX Manual control of all system functions
Pan Manual control for Pan (X-movement)
Tilt Manual control for Tilt (Y-movement)
Speed Speed adjustment for Pan/Tilt movements Æsee
also item below
P/T Manual control for Pan/Tilt movement
Color
Wheel Manual control for the color wheel
Red Manual control for red
Green Manual control for green
Blue Manual control for blue
ÅDOWN - UP Æ
Special Manual control for special
Dimmer Manual control for the dimmer
Shutter Manual control for the shutter
Contrast Adjustment for the Display contrast
Default Set Resetting all functions to original values
Versions Reads out the current LED dimmer (software) version

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 10
Adjust Key code
xxxx Use the code for entering the calibration menu (for
authorized persons only)
Diagnose Diagnose functions
Pan Offset Calibration for Pan-Offset
Tilt Offset Calibration for Tilt-Offset
Clear
EEPROM Erase EEPROM memory
Temperatures Indicates the head and base temperature
Testmode Performs an automatic self-test
DMX Hold
Defines whether the last DMX signal is stored or the
lamp is switched OFF in case of signal interruption
Position
Feedback
Automatically position feedback (correction) for
Pan/Tilt movement. ON/OFF
Adjust White Adjustments for a uniform white color (white balance);
only in white-mode
Red Input for red adjustments
Green Input for blue adjustments
Blue Input for green adjustments
DMX Monitor Indicates the presently received DMX signal per DMX
channel
Pan Instantaneous value for Pan
Tilt Instantaneous value for Tilt
Speed Instantaneous value for Speed
P/T Instantaneous value for Pan/Tilt movements
Color
Wheel Instantaneous value for Colors
Red Instantaneous value for Red
Green Instantaneous value for Green
ÅDOWN - UP Æ
Blue Instantaneous value for Blue
Special Instantaneous value for Special
Dimmer Instantaneous value for the Dimmer
Shutter Instantaneous value for the Shutter
Live time Indicates the overall operation time of the system
Display Adjust the display
Blackout ON/OFF: Display OFF
Reverse Pan ON/OFF: Invert Pan movements
Reverse Tilt ON/OFF: Invert Tilt movements
Reset RESET and new calibration for all functions
*) Maximum light output is only achieved at values of DMX=255 for all three channels.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 11
4 DMX Channel Selection (DMX Protocol)
Channel Function Time and Value DMX HEX %
1) PAN-
coarse
0 .. 660° 0..255 00..FF 0..100
2) PAN-fine High- Pos ... High- Pos + 2,6° (16 Bit) 0..255 00..FF 0..100
3) Tilt-
coarse
0 .. 300° 0..255 00..FF 0..100
4) Tilt-fine High- Pos … High- Pos + 1,2° (16 Bit) 0..255 00..FF 0..100
5) Color Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed) Color 01 - Red 1) 8..15 08..0F 3..5,5
Color 02 - Amber 1) 16..23 10..17 6..8,5
Color 03 - Warm Yellow 1) 24..31 18..1F 9..12,5
Color 04 - Yellow 1) 32..39 20..27 13..15,5
Color 05 - Green 1) 40..47 28..2F 16..18,5
Color 06 - Turquoise 1) 48..55 30..37 19..21,5
Color 07 - Cyan 1) 56..63 38..3F 22..24,5
Color 08 - Blue 1) 64..71 40..47 25..27,5
Color 09 - Lavender 1) 72..79 48..4F 28..30,5
Color 10 - Mauve 1) 80..87 50..57 31..34,5
Color 11 - Magenta 1) 88..95 58..5F 35..37,5
Color 12 - Pink 1) 96..103 60..67 38..40,5
White - CTO Color temperature
3200K
104..111 68..6F 41..43,5
White Color temperature
5600K
112..119 70..77 44..46,5
White - CTB Color temperature
7200K
120..127 78..7F 47..49,5
Rainbow Effect Stop 2) 128 80 50
Rainbow Effect
3) slow - fast 129..223 81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E0..FF 89..100
6) Red Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns)
slow - fast 48..79 30..4F 19..31
Shutter open then down-dimming
(random patterns)
slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns)
slow - fast 112..143 70..8F 44..56
Strobe effect pause 5s .. 1s 144..199 A0..C7 57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239 C8..EF 78..94
Strobe effect 25 Hz 240 F0 94,4
Shutter open 242..255 F3..FF 95..100
10) Dimmer Dimmer 0 - 100% 0..255 0..FF 0..100
11) Special RESET 250..255 FA..FF 98..100
12) Move- No movement 0 0 0
ment Movement Size Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 12
Channel Function Time and Value DMX HEX %
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D 4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D 11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159 80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191 A0..BF 63..75
Lying eight size / phase see also PAN 192..223 C0..DF 76..87
Random movement size see also PAN 224..255 E0..FF 88..100
13) Speed Pan/Tilt relative movement 0..15 00..0F 0..6
Pan/Tilt Pan/Tilt slow – fast
Use this channel also for the SPEED of
the movements
Pan Min. 660° = 200s
Tilt Min. 300° = 110s
16..255 10..FF 7..100
1) The predefined colors can be used as start-colors for the Rainbow effect. Please select first a
desired start-color before you activate the rainbow effect. All V
Vo ol lk ks si ic ch ht ts swill afterwards start from
that color and will execute the rainbow effect synchronously. Different V
Vo ol lk ks sl li ic ch ht ts scan certainly have
different start-colors but will still execute the rainbow effect synchronously. If you choose a color
different from the once marked with 1) in the tables above the rainbow start-color will be red.
2) Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued with
the current color.
3) The Rainbow-effect will run synchronously only if it will be started going out from one of the
predefined colors (see also 1) before).

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 13
5
5 Maintaining and Cleaning the V VO OL LK KS SL LI IC CH HT T
The V VO OL LK KS SL LI IC CH HT Tis a system of very low maintenance. It is only necessary to clean
the air in- and outlets as well as the optical LED lenses from time to time. For a safe
operation it is absolutely essential that the fixture is kept clean and that dust, dirt and
smoke-fluid residues must not built up on or within the fixture. Otherwise the fixture's
light-output will be significantly reduced or damages can occur. Regular cleaning will
not only ensure the maximum light-output, but will also allow the fixture to operate
reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended, under no circumstances should alcohol or solvents be used!
5.1 Safety regulations
• Pull out the main plug!
• Wait min. 15 minutes after the last operation to cool down the fixture.
5.2 Circumference and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence no
general guidelines can be given. The intervals given below are only suggestions
from our practice experience.
Position Interval In this way
LED reflector and optical system weekly soft brush /lint-free cloth
Fan and air channel monthly vacuum cleaner, airbrush, etc.
Attention:
• Never let optical parts come into contact with oil or fat.
• Before running the fixture wait until all parts are dried up.
• Never tough lenses with bare fingers.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 14
6 Technical Specifications
Power supply
Power consumption 140 VA (Watt)
Power Input ~100-240 V AC, 50-60 Hz (wide range input)
Fuse protection Micro-fuse 5x20 mm, T2A
Operational Parameters
Max. Ambient
Temperature
45°C (integrated overheating switch)
Mounting Position Any (see chapter mounting)
Lighting System - Additive Color mixing
LED Type 60x Luxeon Rebel High-power- LEDs
Lifetime 100.000 h
21x LEDs blue, 21x LEDs green und 18x LEDs red
Wavelength optimized for maximum presentable color space
Optical System
High efficient Collimator cluster
Exchangeable optical carrier with 11° light distribution angle (24° optional)
Scattering light aperture
Shutter / Dimmer (8 Bit)
Strobe- Effect with variable speed between 1 - 10 flashes per second, Random-Strobe, Pulse-
Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
Die DMX- Addressing starts at the DMX channel [001].
Pan/Tilt (8/16 Bit)
Pan- movement 660° in min. 3 seconds (Position Feedback)
Tilt- movement 300° in min. 3 seconds (Position Feedback)
Weights and Measures
Width of the base 285 mm
Length of the base 242 mm
height (head vertical) 356 mm
Weight (net) 7,8 kg

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 15
7 System dimensions (in mm)
3
5
6
290
268
285
80
242
132
12
40
74

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 16
8 Index
B
BGI 810-3 ...................................................... 8
BGV C1.......................................................... 6
C
Circumference.............................................. 13
Cleaning....................................................... 13
D
Danger of BURNING..................................... 5
Description of Device ..................................... 4
DIN VDE 0711-217 ........................................ 6
DMX............................................................... 8
DMX Protocol............................................... 11
E
e-mail............................................................. 1
Enter-key ..................................................... 9
I
Instruction Version ......................................... 1
Internet........................................................... 1
L
LED Class 2M ............................................... 5
M
Maintenance ................................................ 13
Menu Field ..................................................... 9
Micro-fuse ...................................................... 8
Mode-key ..................................................... 9
Mounting....................................................... 6
Mounting in hanging Position ......................... 7
Mounting in sidewise Position ........................ 7
Mounting on the Floor .................................... 6
O
Optical parts ............................................... 13
P
Pan- Movement............................................ 14
Power Supply ............................................... 8
S
Safety distance............................................... 6
Safety Instructions.......................................... 5
Secure the Device ........................................ 8
Software Version............................................ 1
T
Technical Specifications ........................... 14
Tilt- Movement ............................................. 14
U
Up/Down-keys............................................. 9
V
VBG 70 .......................................................... 6
W
Warranty claims ............................................. 5
Weights and Measures ................................ 14

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.0) / from software version 1.08) 17
