GLP Junior Scan 3 User manual

Instruction Manual
from software version 1.0
(instruction version 0.91)
email: servic[email protected]
Internet: http://www.GLP.de

1(instruction version 0.91) GLP zGerman Light Production
This side is intentionally unlabelled.

GLP zGerman Light Production (instruction version 0.91) 2
Table of contents
1Description of the Device....................................................................................... 4
1.1 Safety Instructions............................................................................................ 5
2Preparation and Installation................................................................................... 6
2.1 Mounting........................................................................................................... 6
2.2 Secure the J JU UN NI IO OR R S SC CA AN N 3 3........................................................................... 6
2.3 Connectors ....................................................................................................... 6
2.3.1 Power supply ......................................................................................... 6
2.3.2 DMX....................................................................................................... 6
2.4 Fuses................................................................................................................ 6
3The Menu Field / DMX Address and Functions .................................................... 7
3.1 Adjust the DMX- Address (D001)....................................................................... 8
3.2 The Test Program (TEST) .................................................................................. 8
3.3 The Audio Program (AUDI) ................................................................................ 8
3.4 Lamp On/Off (LAMP) .......................................................................................... 9
3.5 Reset (RESE)...................................................................................................... 9
3.6 Running time of lamp and unit (TIME) ............................................................... 9
3.7 Invert Pan Movement (RPAN) ............................................................................. 9
3.8 Invert Tilt Movement (RTLT) ............................................................................ 10
3.9 Special Functions (SPEC)................................................................................. 10
3.9.1 Manual Drive (MANU) ............................................................................. 10
3.9.2 Lamp On automatically (LAAU) .............................................................. 11
3.9.3 Lamp Off via DMX (DLOF) ..................................................................... 11
3.9.4 DMX Input (DMXI).................................................................................. 11
3.9.5 Display (DISP)....................................................................................... 12
3.9.6 Adjustments and Calibrations (ADJU) .................................................... 12
3.9.7 Default Settings (DFSE) ......................................................................... 13
3.9.8 Correction of faults (EFLG) .................................................................... 13
3.10 Error and Information Messages .................................................................... 13

3(instruction version 0.91) GLP zGerman Light Production
4DMX Channel Selection (DMX Protocol)............................................................. 14
5Change the Lamp.................................................................................................. 17
5.1 Safety Regulations ......................................................................................... 17
5.2 Realize the Lamp Change.............................................................................. 17
6Change a Gobo ..................................................................................................... 17
6.1 Safety Regulations ......................................................................................... 17
6.2 Realize the Gobo Change.............................................................................. 18
7Maintenance and Cleaning the J JU UN NI IO OR R S SC CA AN N 3 3............................................... 18
7.1 Safety Regulations ......................................................................................... 18
7.2 Circumference and Interval (rule-of-thumb) ................................................... 18
7.3 Cleaning the Optical System.......................................................................... 19
7.4 Mirror and Optical System.............................................................................. 19
7.5 Fan and Cooling System................................................................................ 19
8Technical Specification........................................................................................ 20
9Index ...................................................................................................................... 21

GLP zGerman Light Production (instruction version 0.91) 4

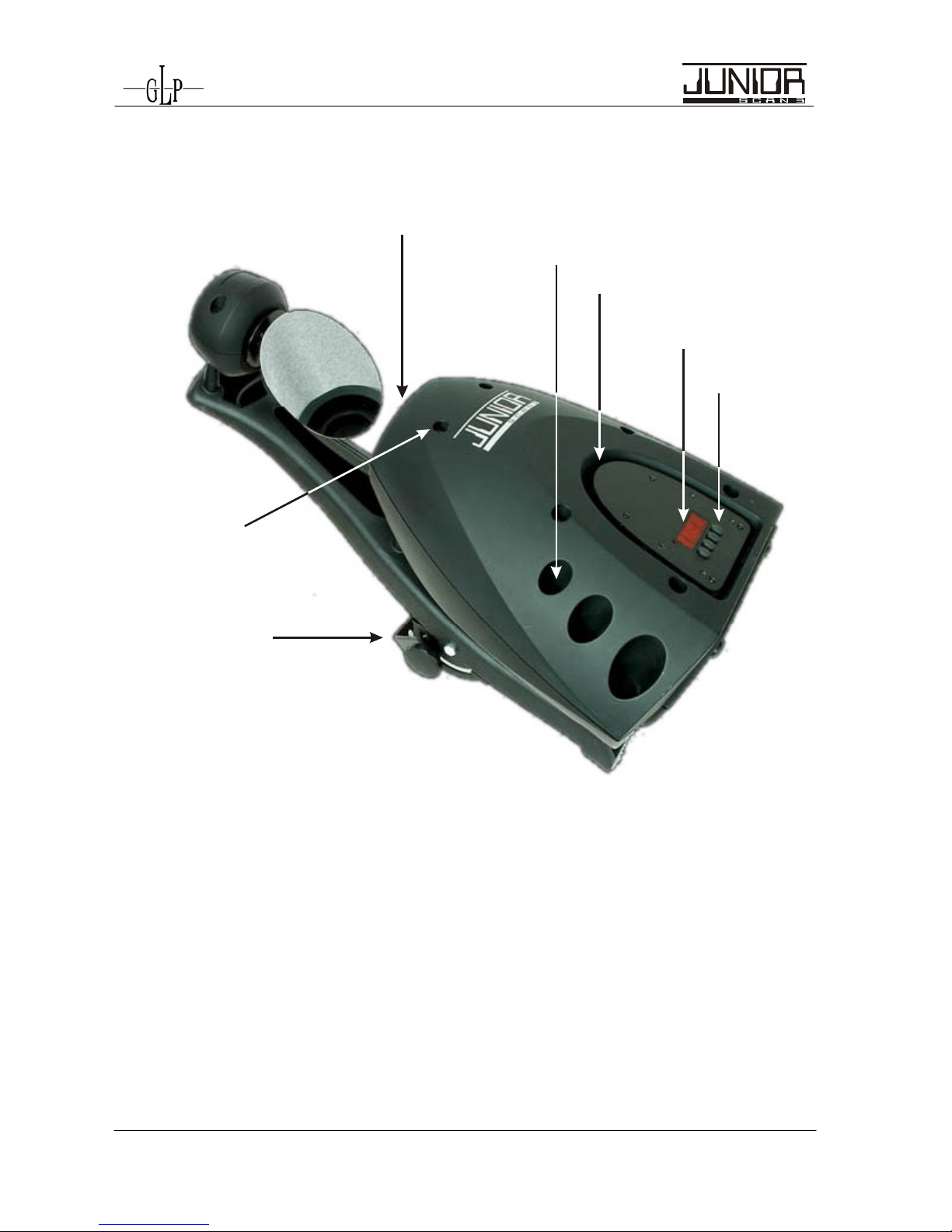

1 Description of the Device
Display
Data entry
Lens
Relay bracket
Air outlet
2x Air inlets
Casing screws
Figure 1-1

5(instruction version 0.91) GLP zGerman Light Production
1.1 Safety Instructions
The J JU UN NI IO OR R S SC CA AN N 3 3 is a High-Tech Product. To guarantee a
smooth operation, it is necessary to keep the following rules.
The manufacturer of this device will not take responsibility of
damages through disregard of the information in this manual.
Warranty adjustments will be canceled.
1. Make sure before putting into operation, that the fan and the air inlets are
clean and not blocked by anything.
2. Attention: Don’t touch the device during the operation. This can cause injuries
or damages.
3. Unplug the
J
JU UN NI IO OR R S SC CA AN N 3 3 from the AC outlet before any service.
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the J JU UN NI IO OR R S SC CA AN N 3 3. Please do not touch the bulb of the lamp if
you are not absolutely sure it is cold. -Danger of BURNING-
5. Never look directly into the beam of the lamp. You risk injury of your retina and
blindness.
6. Pay attention of the maximum lamp operation time. You have to change it if
the lamp shows any deformations or damages. The same is with all glass
components, color filters, lenses and mirrors.
7. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the J JU UN NI IO OR R S SC CA AN N 3 3 without suited safety aids like
Safety cables or clamps/hooks can increase the risk of an accident.
8. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
9. Use only original spare parts. Any structural modification will cancel all
warranty adjustments.

GLP zGerman Light Production (instruction version 0.91) 6
2 Preparation and Installation
2.1 Mounting
Mount clamps and/or hooks directly to the mounting (relay) brackets of the
J
JU UN NI IO OR R S SC CA AN N 3 3. . Please make sure to use right sized clamps and hooks and fit
them securely. Keep a safety distance of 0.5 m towards any easy inflammable
materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation should be done by qualified staff only.
2.2 Secure the
J
JU UN NI IO OR R S SC CA AN N 3 3
Regardless of the rigging of the J JU UN NI IO OR R S SC CA AN N 3 3 you have to use a stipulated
safety wire that can hold at least 10 times the weight of the fixture. Install it
through the handle and connect it with the truss-support. Pay attention to a safe
and proper fastening.
2.3 Connectors
2.3.1 Power supply
230 Volt, 50 Hz,
Connected load 370W <=> 2,2 A (blind current compensation).
or 115V, 60 Hz
Connected load 740W <=> 4,4 A (blind current compensation).
2.3.2 DMX
USITT DMX 512 Standard input/output.
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
The DMX- Addressing starts at the DMX- Address [001].
2.4 Fuses
The J JU UN NI IO OR R S SC CA AN N 3 3 electronic system is protected by a 5x20 mm fuse.
230V / T 3,15A (EU model) or 115V / T 6,3A (US model)
Please see the printing on the J JU UN NI IO OR R S SC CA AN N 3 3 for more details.
Attention:
• Disconnect AC outlet before changing a fuse!
• Use only the original declared fuse type!

7(instruction version 0.91) GLP zGerman Light Production
3 The Menu Field / DMX Address and Functions
You find the control board on the front side of the casing. It allows you
to make all necessary adjustments of the J
JU UN NI IO OR R S SC CA AN N 3 3.
.With the
Mode-key you get into the main menu. Afterwards you can navigate
through the menu with the Up/Down-keys. Push the Enter-key to get
in the next menu level or to confirm your settings. Make them and set
functions ON/OFF with the Up/Down-keys. Confirm and save it with
the Enter-key (the display shows OK). Push the Mode-key to cancel the
entry and go back to the main menu.
MODE ENTER UPDOWN
MODEENTERUP DOWN
LED-Display
Level 1 Level 2 Level 3 Remark
D001
Define the DMX start address
TEST
Test program of all functions
AUDI ASLW Self-running audio program (slow)
AFST Self-running audio program (fast)
MSTR Master for the audio program
SVPT Basic position for the audio program
SIZE Size for the audio program (NORM-BIG-MID-SMALL)
LAMP
Switch on/of the lamp direct at the Y
YP PO OC C 2 25 50 0
RESE
Reset
TIME POWR Running time of the fixture (no destructible)
LA1 Running time of the lamp (erasable)
LA2 Running time of the lamp (no destructible)
RPAN
Reverse Pan-direction
RTLT
Reverse Tilt-direction
SPEC MANU Manual drive of all device functions
LAAU Automatic lamp start
DLOF Switch off lamp via DMX
DMXI Reed out actual DMX-values
DISP D ON Display On/Off
REV Twist the display
ADJU CODE xxxx Use the code for entering the calibration menu (for
authorized person only)
COLO Calibration of the color wheel
GOBO Calibration of the gobo wheel
PRIS Calibration of the prism wheel
SHT1 Calibration of the shutter 1
SHT2 Calibration of the shutter 2
ÅDOWN - UP Æ
POFS PAN Offset
TOFS TILT Offset
CLRE Settings in the internal memory (super user only)
ARES
ADJUST RESET
DFSE Call on the default function values
TRB1
Software settings for the TRB1 board
TRB2
Software settings for the TRB2 board
EFLG Correction of faults

GLP zGerman Light Production (instruction version 0.91) 8
3.1 Adjust the DMX- Address (D001)
Right after turning on the J JU UN NI IO OR R S SC CA AN N 3 3 you can see the current DMX-
Address. If there is no DMX- Signal the display flashes.
D001
For the address setting please follow this procedure:
1. Switch On the J JU UN NI IO OR R S SC CA AN N 3 3 and wait until the fixture reset has finished
('RESE'is flashing in the display).
2. Press the Mode-key in order to access the main menu. Browse through the
menu by pressing the Up/Down-keys until the display shows D001. Confirm by
pressing the Enter-key (the decimal point is flashing)
3. Use the Up/Down-keys to select the desired address. Confirm the setting by
pressing the Enter-key (the display shows OK) or press the Mode-key to
cancel.
The DMX- Address is stored also while switching off the J JU UN NI IO OR R S SC CA AN N 3 3!
3.2 The Test Program (TEST)
Test
The Test-program allows you to run a complete self test procedure of all functions.
Press Enter to confirm or Mode to cancel.
3.3 The Audio Program (AUDI)
Audi
The Audio-menu allows you to run a stand alone audio program. This chaser can
run either fast or slow. AFST: Every sound impulse on step of the chaser. Aslw:
Every second sound impulse one step of the chaser.
Additional you can choose a basic position for this audio chaser. Use therefore
either the internal manual mode or an external controller to set the desired Pan/Tilt
position. Confirm this setting in the SVPT menu by pressing the Enter-key.
You can also set the size of the audio chaser in the SIZE menu. You have the
choice between: NORM (no basic position has to bee chosen), 'BIG', 'MID' and
'SMALL').

9(instruction version 0.91) GLP zGerman Light Production
If you want to run the systems simultaneously, one of the J JU UN NI IO OR R S SC CA AN N 3 3 must
be switched as the master. All others must be "Slave" Master = OFF. Notice: The
Audio function is only working if no DMX is connected. This function can work e.g.
on small events or as an emergency program.
3.4 Lamp On/Off (LAMP)
LAMP
Use the Up/Down-keys to select lamp On or lamp Off Press Enter to confirm or
Mode to cancel and return to the main menu. (The lamp OFF command is only
working if the shutter is closed at the same time. Use an external controller or the
manual drive mode, see also chapter 3.9.1 on page 10)
3.5 Reset (RESE)
RESE
Press the Enter-key to run a reset of all fixture functions (RST is shown in the
display).
3.6 Running time of lamp and unit (TIME)
TIME
You can read out three different running times of the fixture.
POWR Running time of the fixture (no destructible).
LA 1 Running time of the lamp (erasable). Push the Up/Down-keys at one
time to delete this running time.
LA 2 Running time of the lamp (no destructible).
3.7 Invert Pan Movement (RPAN)
RPAN
This function allows you to invert the Pan movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel and return to the
main menu.

GLP zGerman Light Production (instruction version 0.91) 10
3.8 Invert Tilt Movement (RTLT)
RTLT
This function allows you to invert the Tilt movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel.
3.9 Special Functions (SPEC)
SPEC
This menu allows you to enter further special functions of the J JU UN NI IO OR R S SC CA AN N 3 3. .
In detail they are:
3.9.1 Manual Drive (MANU)
MANU
This function allows you to drive all the fixture functions manually. Select
the desired function with the Up/Down-keys and confirm with Enter. Now
choose the desired value with the Up/Down-keys and confirm again with
Enter or cancel and return to the menu with the Mode-key.
Function Value Remark
PAN 000 - 255 Pan Position
TILT 000 - 255 Tilt Position
COLO 000 - 255 Color wheel
GOBO 000 - 255 Gobo wheel
GROT 000 - 255 Gobo rotation
PRIS 000 - 255 Prism rotation
SHUT 000 - 255 Shutter / Strobe function (the lamp strikes at
DMX 255 if dimmer is "open" = DMX 255)
DIMR 000 - 255 Dimmer
FOCU 000 - 255 Focus
SPEC 000 - 255 Lamp Off, Reset, ...

11 (instruction version 0.91) GLP zGerman Light Production
3.9.2 Lamp On automatically (LAAU)
LAAU
This function enables to switch On the lamp automatically after switching
On the fixture. Use the Up/Down-keys to select ON if you want to switch on
the lamp automatically after switching on the fixture or Off if you don't want
this function. Press Enter to confirm or Mode to cancel and return to the
menu. If you have chosen off you have the possibility to start the lamp
either via DMX or direct at the J JU UN NI IO OR R S SC CA AN N 3 3in the Lamp menu.
3.9.3 Lamp Off via DMX (DLOF)
DLOF
This function enables to switch off the lamp via DMX or not. Use the
Up/Down-keys to select ON if you want to switch off the lamp via DMX or
Off if you don't want this function. Press Enter to confirm or Mode to cancel
and return to the menu. If you have chosen off you have the possibility to
switch off the lamp either direct at the J JU UN NI IO OR R S SC CA AN N 3 3in the Lamp menu
or switch off the main switch.
3.9.4 DMX Input (DMXI)
DMXI
Readout DMX values of each channel received by the fixture. Use the
Up/Down-keys to select desired channel and press Enter to read its value.
Function Value Remark
PAN 000 - 255 Pan Position
TILT 000 - 255 Tilt Position
COLO 000 - 255 Color wheel
GOBO 000 - 255 Gobo wheel
GROT 000 - 255 Gobo rotation
PRIS 000 - 255 Prism wheel
SHUT 000 - 255 Shutter / Strobe function
DIMR 000 - 255 Dimmer
FOCU 000 - 255 Focus
SPEC 000 - 255 Lamp Off, Reset, ...

GLP zGerman Light Production (instruction version 0.91) 12
3.9.5 Display (DISP)
DISP
Use this function to choose between different display indications. Use the
Up/Down-keys to select desired function and press Enter to confirm or
Mode to cancel and return to the menu.
D ON Display On/Off (If you've chosen off, the display will go out within
15 seconds after the last input. The next key touch will reactivate
the display).
REV Turn around the display
3.9.6 Adjustments and Calibrations (ADJU)
ADJU
With this function you can adjust and calibrate the positions of the different
wheels and other motors. This can be necessary after a service or repair
work.
For this function you have to entry the fixture code. This work should be
done only by authorized persons.
Use the Up/Down-keys to select desired function and press Enter to
confirm or Mode to cancel and return to the menu. Use now the Up/Down-
keys to set the adjustment values and confirm once more with the Enter-
key or cancel with the Mode-key.
Function Value Remark
COLO - 99 - + 99 Color wheel
GOBO - 99 - + 99 Gobo wheel
PRIS - 99 - + 99 Prism wheel
SHT1 - 99 - + 99 Shutter 1
SHT2 - 99 - + 99 Shutter 2
POFS - 99 - + 99 PAN Offset
TOFS - 99 - + 99 TILT Offset
CLRE Adjustments in the internal circuit.
ARES ADJUST RESET
TRB1 Software settings for the TRB1 board
TRB2 Software settings for the TRB2 board

13 (instruction version 0.91) GLP zGerman Light Production
3.9.7 Default Settings (DFSE)
DFSE
Press Enter to reset all fixture personalities (not the adjusted functions) to
the default values. On the display will appear ok to indicate that the defaults
are set.
Function Display Default Values
DMX Address D001 D001
Pan reverse RPAN ON OFF 9
Tilt reverse RTLT ON OFF 9
Automatic lamp on LAAU ON OFF 9
Lamp on via DMX DLOF ON 9OFF
Display DISP D ON 9REV
Cooling fan FANS HIGH REG 9LOOF LOHI
3.9.8 Correction of faults (EFLG)
(Function available for authorized persons only)
3.10 Error and Information Messages
HEAt This message appears if you try to switch on the lamp within 5 minutes
after having switched off (lamp too hot). The message will appear on
the display if the lamp doesn’t ignite within 20 seconds. The fixture will
store this command and automatically ignite the lamp after 5 minutes.
LaeR After the ignition of the lamp was two times not successful the display
will show LAER. That means the lamp could be damaged or even
missed, the fixture is overheating or there could be a failure on the
igniter or ballast. Switch off the power supply and solve the possible
problem.
OTMP This error message informs you that the fixture was overheating and
that the relay switches off the lamp. Pleas look for possible reasons (fan
faulty, air in/outlets blocked or very dirty, lamp broken or very old, too
high ambient temperature. Switch off the power supply and solve the
possible problem.
RsER This message informs you that one of the fixture function wasn’t able to
do its reset correct (magnetic sensor, stepping motor, driver on the
PCB, cables, etc.). Repair the defect and start the fixture again.
EFLG

GLP zGerman Light Production (instruction version 0.91) 14
4 DMX Channel Selection (DMX Protocol)
Channel Function Time and Value DMX HEX %
1) PAN-
coarse
0 .. 230° min. 2,65 s 0..255 00..FF 0..100
2) PAN-fine High- Pos ... High- Pos + 2,1° (16 Bit) 0..255 00..FF 0..100
3) Tilt-
coarse
0 .. 110° min. 1,68 s 0..255 00..FF 0..100
4) Tilt-fine High- Pos … High- Pos + 1,1° (16 Bit) 0..255 00..FF 0..100
Open (fast) 0..1 00..01 0,2
Open / Color 1 (fast) 2..3 02..03 1,0
Color 1, red (fast)
Chaser from color to
color max. 140 BPM
=> 0,43 s 4..5 04..05 1,8
Color 1 / Color 2 (fast) 6..7 06..07 2,5
Color 2, green (fast) 8..9 08..09 3,3
Color 2 / Color 3 (fast) 10..11 0A..0B 4,1
Color 3, dark green (fast) 12..13 0C..0D 4,9
Color 3 / Color 4 (fast) 14..15 0E..0F 5,7
Color 4, blue (fast) 16..17 10..11 6,5
Color 4 / Color 5 (fast) 18..19 12..13 7,3
Color 5, yellow (fast) 20..21 14..15 8,0
Color 5 / Color 6 (fast) 22..23 16..17 8,8
Color 6, orange (fast) 24..25 18..19 9,6
Color 6 / Color 7 (fast) 26..27 1A..1B 10,4
Color 7, magenta (fast) 28..29 1C..1D 11,2
Color 7 / Color 8 (fast) 30..31 1E..1F 12,0
Color 8, neon green (fast) 32..33 20..21 12,7
Color 8 / Color 9 (fast) 34..35 22..23 13,5
Color 9, UV blue (fast) 36..37 24..25 14,3
Color 9 / Color 10 (fast) 38..39 26..27 15,1
Color 10, dark blue (fast) 40..41 28..29 15,9
Color 10 / Color 11 (fast) 42..43 2A..2B 16,7
Color 11, cyan (fast) 44..45 2C..2D 17,5
Color 11 / Open (fast) 46..47 2E..2F 18,2
Open (fast) 48..63 30..3F 19,0
Open (slow) 64..65 40..41 25,3
Open / Color 1 (slow) 66..67 42..43 26,1
Color 1, red (slow)
Chaser from color to
color max. 70 BPM
=> 0,86 s 68..69 44..45 26,9
Color 1 / Color 2 (slow) 70..71 46..47 27,6
Color 2, green (slow) 72..73 48..49 28,4
Color 2 / Color 3 (slow) 74..75 4A..4B 29,2
Color 3, dark green (slow) 76..77 4C..4D 30,0
Color 3 / Color 4 (slow) 78..79 4E..4F 30,8
Color 4, blue (slow) 80..81 50..51 31,6
Color 4 / Color 5 (slow) 82..83 52..53 32,4
Color 5, yellow (slow) 84..85 54..55 33,1
Color 5 / Color 6 (slow) 86..87 56..57 33,9
Color 6, orange (slow) 88..89 58..59 34,7
Color 6 / Color 7 (slow) 90..91 5A..5B 35,5
Color 7, magenta (slow) 92..93 5C..5D 36,3
Color 7 / Color 8 (slow) 94..95 5E..5F 37,1
Color 8, neon green (slow) 96..97 60..61 37,8
Color 8 / Color 9 (slow) 98..99 62..63 38,6
Color 9, UV blue (slow) 100..101 64..65 39,4
Color 9 / Color 10 (slow) 102..103 66..67 40,2
Color 10, dark blue (slow) 104..105 68..69 41,0
Color 10 / Color 11 (slow) 106..107 6A..6B 41,8
Color 11, cyan (slow) 108..109 6C..6D 42,5
5) Color
Color 11 / Open (slow) 110..111 6E..6F 43,3

15 (instruction version 0.91) GLP zGerman Light Production
Channel Function Time and Value DMX HEX %
open (slow) 112.127 70..7F 44,1
color rotation, slow-fast, CW min. 1,4 turns/h 128..191 80..BF 50..75
color rotation, fast-slow, CCW max. 2,9 turns/sec. 192..253 C0..FD 76..98
Audio color chaser slow each 4th sound impulse
Ænew color
254 FE 99
Audio color chaser fast each sound impulse Æ
new color
255 FF 100
Gobo 1 (open, fast) 0..3 0..3 0..1,2
Gobo 2 (fast) 4..7 4..7 1,6..2,7
Gobo 3 (fast)
Chaser from gobo to
gobo max. 100 BPM
=> 0,6 s 8..11 8..0B 3,1..4,3
Gobo 4 (fast) 12..15 0C..0F 4,7..5,9
Gobo 5 (fast) 16..19 10..13 6,4..7,5
Gobo 6 (fast) 20..23 14..17 7,8..9,0
Gobo 7 (fast) 24..27 18..1B 9,4..10,6
Gobo 8 (fast) 28..31 1C..1F 11,0..12,2
Gobo 9 (fast) 32..63 20..3F 12,5..24,7
Gobo 1 (Open, slow) 64..67 40..43 25,1..26,3
Gobo 2 (slow) 68..71 44..47 26,7..27,8
Gobo 3 (slow)
Chaser from gobo to
gobo max. 40 BPM
=> 1,51 s 72..75 48..4B 28,2..29,4
Gobo 4 (slow) 76..79 4C..4F 29,8..31,0
Gobo 5 (slow) 80..83 50..53 31,4..32,5
Gobo 6 (slow) 84..87 54..57 32,9..34,1
Gobo 7 (slow) 88..91 58..5B 34,5..35,7
Gobo 8 (slow) 92..95 5C..5F 26,1..37,3
Gobo 9 (open, slow) 96..127 60..7F 37,6..49,8
Gobo rotation, slow-fast, CW min. 1,4 turns/h 128..191 80..BF 50,2..74,9
Gobo rotation, fast-slow, CCW max. 1.0 turns/sec. 192..253 C0..FD 75,3..99,2
Audio gobo chase, slow each 4th sound impulse
Ænew gobo
254 FE 99,6
6) Gobo
Audio gobo chase, fast each sound impulse Æ
new gobo
255 FF 100
Gobo position 0 ... 540° 0..131 00..7F 0..50
Gobo rotation, slow-fast, CW min. 2,0 turns/h 132..191 80..BF 51..75
Gobo rotation, fast-slow, CCW max. 3,8 turns/sec. 192..253 C0..FD 76..100
Audio gobo rotation, slow each 4th sound impulse
Ænew position
254 FE 99
7) Gobo
Posi./Rot
Audio gobo rotation, fast each sound impulse Æ
new position
255 FF 100
Prism swing out 0..5 00..05 0..2
Prism position 0 ... 540° 6..129 06..7F 0..50
Prism rotation, slow-fast, CW min. 1,6 turns/h 130..191 80..BF 51..75
Prism rotation, fast-slow, CCW max. 4,4 turns/sec. 192..253 C0..FD 76..100
Audio prism rotation, slow each 4th sound impulse
Ænew prism
254 FE 99
8) Prism
Audio prism rotation, fast each sound impulse Æ
new prism
255 FF 100
Shutter closed 0..15 00..0F 0..6
Random Strobe (different pattern) 16..31 10..1F 7..11,9
Strobe Pulse effect , slow - fast min. frequent 0,7 Hz 32..47 20..2F 12..12,9
Strobe effect , slow - fast 48..63 30..3F 13..25
Shutter open (lamp start) max. frequent 10 Hz 64..239 40..EF 26..93
9) Shutter
Shutter closed 240..255 F0..FF 94..100
Dimmer closed (0%) 0..3 0..3 0..1
Dimmer 1%...99% movement time 0,3 sec. 4..251 4..FB 2..98
10) Dimmer
Dimmer open (100%) 252..255 FC..FF 99..100

GLP zGerman Light Production (instruction version 0.91) 16
Channel Function Time and Value DMX HEX %
11) Focus in - out (2m - infinite) full distance 1,5 sec. 0..255 0..FF 0..100
no function 0..15 00..0F 0..6
Gobo-seesaw+/- 10°
slow – fast
3,5 moves / min. up to
60 moves / max.
16..31 10..1F 7..12
Gobo-seesaw +/- 20°
slow – fast
3,5 moves / min. up to
60 moves / max.
32..47 20..2F 13..18
Gobo-seesaw +/- 30°
slow – fast
3,5 moves / min. up to
60 moves / max.
48..63 30..3F 19..24
Color-chaser C / C+1
slow – fast
0,7 BPS ... 2,3 BPS
=> 1,43 s ... 0,43 s
64..79 40..4F 25..31
Color-chaser C / C+2
slow – fast
0,7 BPS ... 2,0 BPS
=> 1,43 s ... 0,5 s
80..95 50..5F 32..37
Audio Pan / Tilt slow each 4th sound impulse
Ænew position
96..111 60..6F 38..43
Audio Pan / Tilt fast each sound impulse Æ
new position
112..127 70..7F 44..50
no function 128..249 80..E5 50..97
Lampe AUS (3 sec.) 230..249 E6..F9 92..97
12) Special
Reset 250..255 FA..FF 98..100
no movement 0 00 0
Movement Size Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D 4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D 11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159 80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191 A0..BF 63..75
lying eight size / phase see also PAN 192..223 C0..DF 76..87
13) Move-
ment
random movement size see also PAN 224..255 E0..FF 88..100
Pan/Tilt relative movement 0..15 00..0F 0..6
14) Speed
Pan/Tilt Pan/Tilt slow – fast
Use this channel 14) also for the speed
of the movements (channel 13).
Pan Min. 230° = xx s
Pan Max. 230° = 200 s
Tilt Min. 110° = xx s
Tilt Max. 110° = 110 s
16..255 10..FF 7..100
Lamp ON Shutter open 240..255 F0..FF 94..100
Lamp OFF Channel 12 ( min. 3 sec. ) (only if
shutter is closed, channel 9 = 0 ..15)
230..249 6E..9F 92..97

17 (instruction version 0.91) GLP zGerman Light Production
5 Change the Lamp
For a frictionless operation please read this chapter carefully and follow all instructions.
5.1 Safety Regulations
• Pull out the main plug!
• Wait min. 20 minutes after the last operation to cool down the fixture.
• Don’t touch the bulb of the lamp with bare fingers (this can cause damages).
• Before you put the J JU UN NI IO OR R S SC CA AN N 3 3into operation close the casing, otherwise
your retina can be hurt!
5.2 Realize the Lamp Change
Please have also a look at Figure 1-1 on page 4.
1. Pull out the main plug!
2. Open the two Phillips screws on the bottom side of the unit.
3. Release carefully the lamp holder plate from the duct where the lamp is
mounted on.
4. Replace the old lamp. (Don't touch the glass bulb of the lamp with bare fingers).
5. Put the lamp holder plate carefully back in the duct.
6. Close the two Phillips screws again.
7. Adjust the optimum position of the lamp with the three adjustment screws on the
lamp holder sheet.
Attention: Pay attention on a firm fit of the lamp!
6 Change a Gobo
The J JU UN NI IO OR R S SC CA AN N 3 3is fitted with standard gobos (outside diameter 25 mm, image
size 17 mm). You can use ether steel or glass gobos.
Gobo thickness: ~0,15 mm (stainless steel) or ~1,1 mm (glass)
6.1 Safety Regulations
• Pull out the main plug!
• Wait min. 20 minutes after the last operation to cool down the fixture.

GLP zGerman Light Production (instruction version 0.91) 18
• Before you put the J JU UN NI IO OR R S SC CA AN N 3 3into operation close the casing, otherwise
your retina can be hurt!
6.2 Realize the Gobo Change
1. Open the unit as described in the chapter before.
2. Hold the two Gobo springs aside and remove the Gobo.
3. Insert and snap in the new Gobo under the spring. Control the secure fit of the
Gobo.
4. Close the
J
JU UN NI IO OR R S SC CA AN N 3 3in reverse order.
7 Maintenance and Cleaning the J JU UN NI IO OR R S SC CA AN N 3 3
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid
residues must not built up on or within the fixture. Otherwise the fixture's light-output will
be significantly reduced. Regular cleaning will not only ensure the maximum light-
output, but will also allow the fixture to function reliable throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended, under no circumstances should alcohol or solvents be used!
The inside optical system should be maintained only by authorized persons. Please
contact your local dealer.
7.1 Safety Regulations
• Pull out the main plug!
• Wait min. 20 minutes after the last operation to cool down the fixture.
• Before you put the J JU UN NI IO OR R S SC CA AN N 3 3into operation close the casing, otherwise
your retina can be hurt!
7.2 Circumference and Interval (rule-of-thumb)
The contamination of the fixture depends on the environmental conditions.
Therefore no general guidelines can be given. Hence the intervals are only
suggestions from our practice experience.
Position Interval In this way
Outside optic weekly soft cloth and glass cleaning fluid
Color filter monthly soft cloth and glass cleaning fluid
Gobos yearly vacuum cleaner, airbrush, etc.

19 (instruction version 0.91) GLP zGerman Light Production
Glass gobos monthly soft cloth and glass cleaning fluid
Prism monthly soft cloth and glass cleaning fluid
Dimmer/Shutter yearly vacuum cleaner, airbrush, etc.
Inside lens monthly soft cloth no glass cleaning fluid
Fan and air channel monthly vacuum cleaner, airbrush, etc.
Reflector never
Lamp never
Moveable parts yearly suitable fatty oil
Attention:
1. Never let optical parts come into contact with oil or grease.
2. Before running the fixture wait until all parts are dried up.
3. Never clean the aspheric lens with water or other cleaners. Change
the lens if it looks milky (about 1-2 years). For that please contact
your local dealer.
7.3 Cleaning the Optical System
1. Pull out the main plug!
2. Wait min. 20 minutes after the last operation to cool down the fixture.
3. Open the upper shell of the casing by loosening the 4 Phillips screws.
4. Do the work as explained in the list above.
5. Close the
J
JU UN NI IO OR R S SC CA AN N 3 3in reverse order.
7.4 Mirror and Optical System
Clean the mirror and the optical system of the J JU UN NI IO OR R S SC CA AN N 3 3 with water and
some glass detergent. Be careful while drying the parts. To clean the inner side of
the lens, it can be screwed out completely.
7.5 Fan and Cooling System
Clean the fans, air channels/inlets and grills regularly.
Attention: Do not cover the air inlets!
