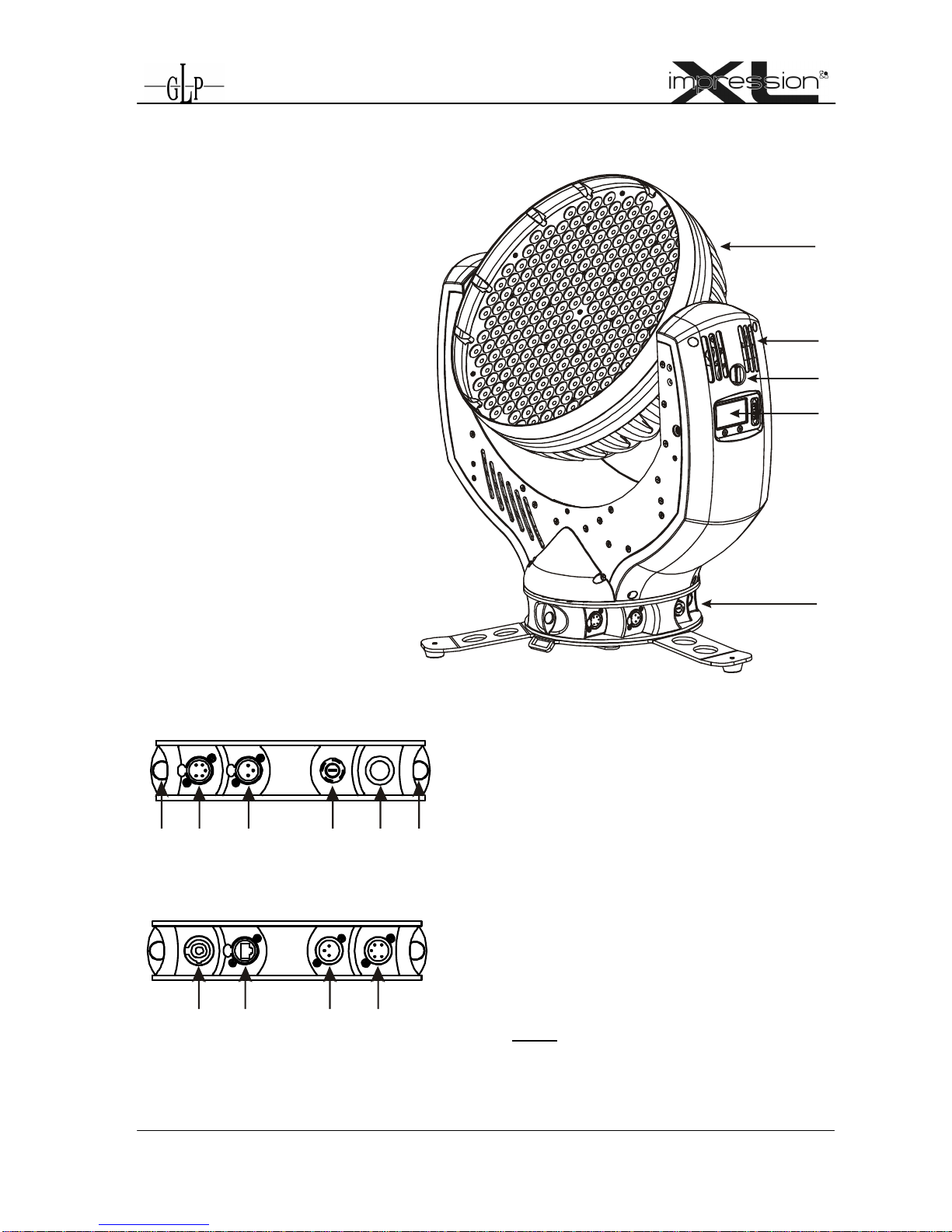

1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling
vents
3. Tilt-lock to secure and lock
the tilt movement see also
1.1Safety Instructions
4. LCD-Display/Menu (data
entry)
5. Base with various connectors
and Camlock mounting
system


Safety eyelets
1
2
4
5
3
base side 1
10
6
7
8
9
10
base side 2
11
12
13
14
6. DMX- Output (5 Pin)
7. DMX- Output (3 Pin)
8. Micro-fuse 6.3x32mm, T15A
9. Power On/Off
10.2x Safety eyelets
11.Powercon (Mains supply)
12.Blank panel
13.DMX- Input (3 Pin)
14.DMX- Input (5 in)
Note: Only connect one cable to the
DMX-Out/Input at a time!

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 5
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N X XL L is a High-Tech Product. To guarantee a
smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility of
damages through any disregard of the information in this
manual. Warranty claims also will be cancelled in case the
system casing is opened.
1. Make sure before putting the system into operation, that the fan and the air
inlets are clean and not blocked by anything.
2. It must be assured that the system-head can rotate unhindered throughout
his complete rotating range. A safety distance of at least 0.5 m to any easily
inflammable material (e.g. decoration material) must be adhered.
3. Attention! Don’t touch the device during the operation. This can cause
injuries or damages.
4. Only connect one cable to the DMX-Out/Input at a time!
5. Attention! The Tilt-Lock shall only be used to secure the head of the unit
during transport – or during repair of the fixture. Never lift or carry the fixture
by holding its head when the Tilt-Lock is in position. Otherwise the Tilt-Lock
may become dysfunctional.
6. The system doesn’t contain any maintainable parts. Don’t open it!
7. It is necessary to wait at least 15 minutes after disconnecting the AC before
changing the optical carrier. Pay attention to possibly hot parts of the
system.
-- Danger of BURNING --
8. Never look directly into the beam of light or one of the LEDs. Never use
optical apertures with a distance less than 0.5 m to observe the beam of
light. LED Class 2M. You'll risk a serious injury of your eyes and in
particular of your retina.
Attention:
LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Hence: Avoid direct radiation of your eyes!

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 6
9. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the I IM MP PR RE ES SS SI IO ON N X XL L without suitable safety aids like
Safety cables or clamps/hooks can increase the risk of an accident.
10. Repair-, maintenance- and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicit mentioned in this manual.
11. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
12. Please keep this instruction manual for later reference.
2 Preparation and Installation

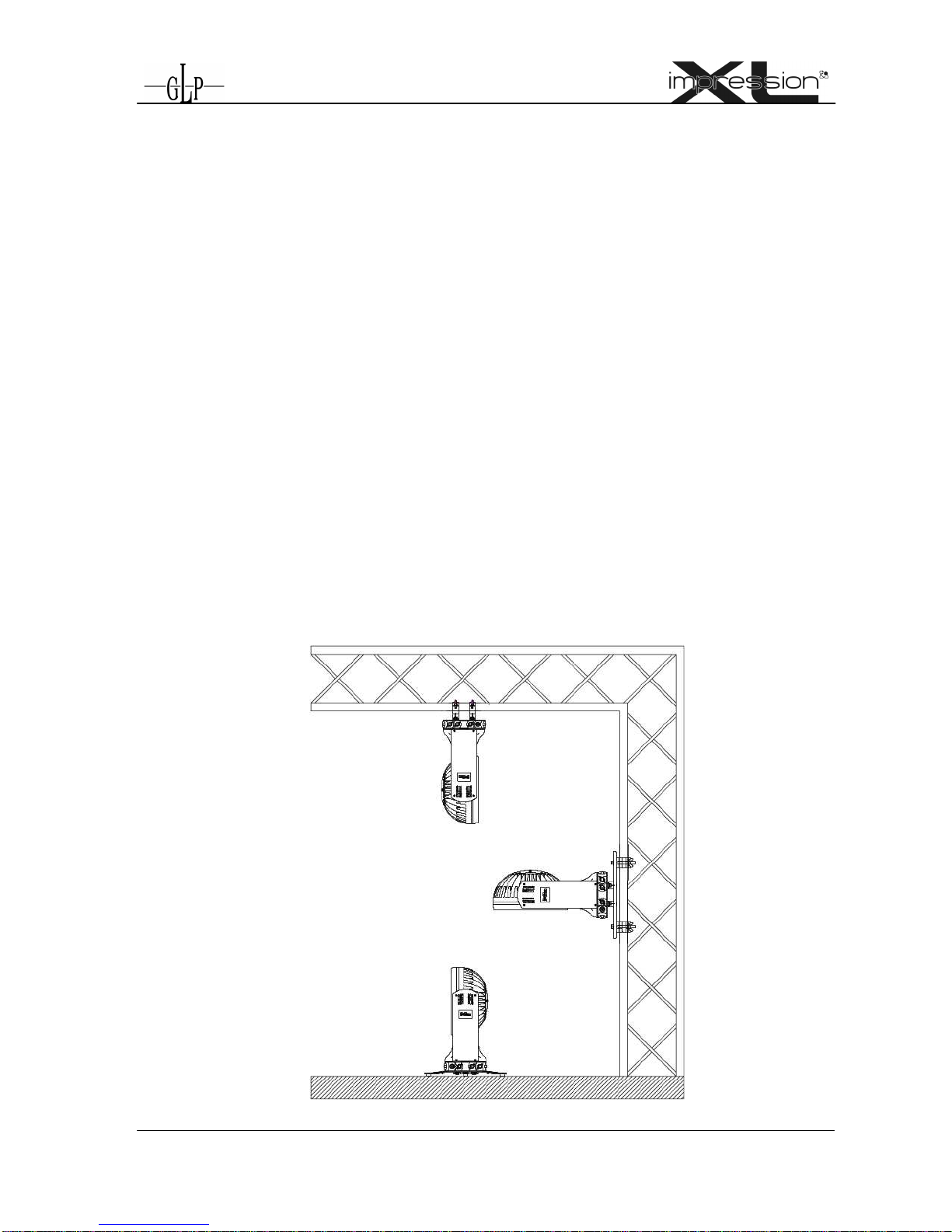

2.1 Mounting
The I IM MP PR RE ES SS SI IO ON N X XL L is fully operational whether it hangs or is mounted to the
wall. It can also be operated while standing on the floor. Keep a safety distance
of 0.5 m towards any easily inflammable materials (decoration etc.).

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 7
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the I IM MP PR RE ES SS SI IO ON N X XL L(standing on the
floor, sideways or hanging) different accessories kits are available. Through this
a safe and firm installation is assured. You'll find special connectors on the
bottom side of the system which are put to use here. In addition the front side of
the system is marked with (FRONT) as this is important for a even orientation
during installation.
2.1.1 Mounting on the Floor (Upright)
To operate the I IM MP PR RE ES SS SI IO ON N X XL Lin an upright position, please use the
dedicated tripod which is mounted to
the bottom side of the system. It is
fixed with fasteners called Camlock
quick-release connectors. Turn the
two fasteners both 90° to lock them.
Do the opposite to release them
again. On both sides you'll find
eyelets to pull though a fixing strap.
This allows an additional bracing of
the system during the upright
operation.
2.1.2 Mounting in hanging Position (Head first)
To operate the I
IM MP PR RE ES SS SI IO ON N X XL Lin an hanging position, please use two

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 8
half-couplers (clamp) which need to be mounted to the camlock
brackets.
2.1.3 Mounting in sidewise Position
To operate the I IM MP PR RE ES SS SI IO ON N X XL Lin a sidewise position, please use an
addition mounting bar. Also this is fixed by two Camlock quick-release
connectors. Two half-couplers (clamps) are now used to mount the
system to a standard truss bar. This technique is necessary to cope with
the torque which accrues in this mounting position. In addition it allows a
concentrically position between two truss belts. Never use the "Mounting
in hanging Position" technique described above to fasten the system in
the sidewise position. A safe and sound installation can not be assured
in this way. This can also damage the system base.
Without mounting bar

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 9
2.2 Secure the Device
Regardless of the mounting method of the I IM MP PR RE ES SS SI IO ON N X XL L you'll have to use
a stipulated safety wire. Therefore you have to pull the safety wire through at
least one of the two provided flat eyelets on the base of the system and connect
it with the truss-support. Pay attention to a safe and proper fastening. Install a
safety wire that can hold at least 10 times the weight of the fixture.
The safety wire must be attached in a way that the height of drop is
minimised. A height of drop of more that 0.2m is strictly forbidden (

BGI
810-3).
2.3 Connections
2.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon
Connected load 1200 VA (W) <=> T15A (micro-fuse 6.3x32mm)
Please see printing on the case for the correct mains supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.3.2 DMX
USITT DMX-512 Standard input/output in 3 pole and 5 pole connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
5 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4/5 n.c.
The DMX- Addressing starts at the DMX- Address [001].

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 10

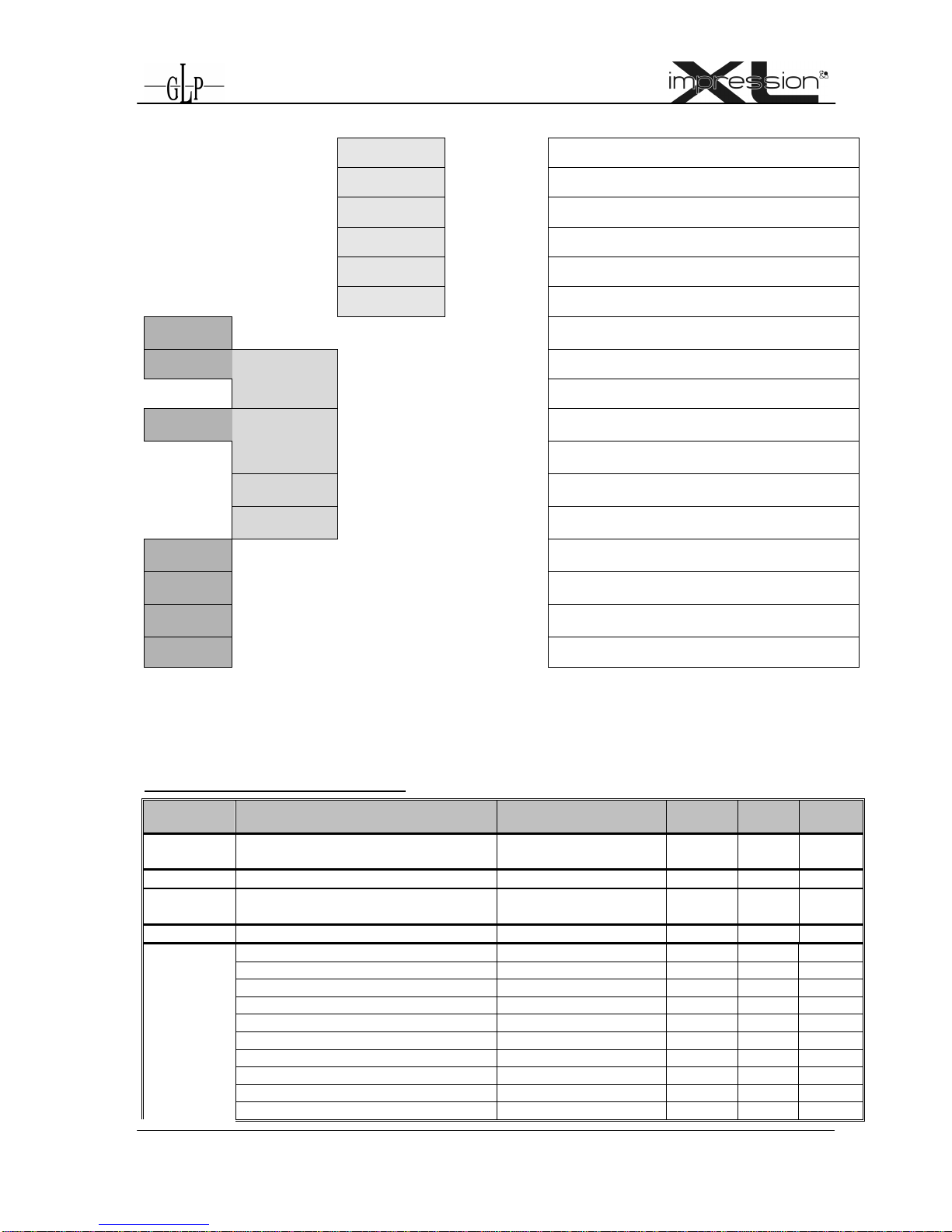

3 The Menu Field
You’ll find the control board on the side part of the arm. It allows
you to make all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N
X
XL L. .With the Mode-key you set into the main menu. Afterwards
you can navigate through the menu with the scroll-wheel. Push
the Enter-key to get in the next menu level or to confirm your
settings. Make them and set functions ON/OFF with the scroll-
wheel. Confirm and save it with the Enter-key (the display
shows OK). Push the Mode-key to cancel the entry and go
back to the main menu.
Mode
Scroll wheel - Up & Down
Enter

 
DOWN - UP 
 



MODE - ENTER 


Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address
001 Define the DMX start address
Special Manual DMX Manual control of all system functions
Pan Manual control for Pan (X-movement)
Speed
Movements Speed adjustment for Pan/Tilt movements 
see also item below
Pan/Tilt
Movements Manual control for Pan/Tilt movement
Special Activate the White- or Full-Power Mode; see
also DMX table
White
Temperature Adjustment of the white color temperature
Dimmer Manual control for Dimmer
Shutter Manual control for Shutter
Blue Manual control for blue
Green Manual control for green
Red Manual control for red
Color Wheel Manual control for the color wheel
Tilt Manual control for Tilt (Y-movement)
Display
Contrast Adjustment for the Display contrast
Default Set Resetting all functions to original values
Set Dimmer
Frequency Changes PMW frequency between 600Hz and
1200Hz
LED Dimmer
Version Reads out the current LED dimmer (software)
version
ImpressionXL
Version Reads out the current CPU software version
Adjust
Key co
de
xxxx Use the code for entering the calibration menu
(for authorized persons only)
Pan Offset Calibration for Pan-Offset

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 11
Tilt Offset Calibration for Tilt-Offset
Clear
EEPROM Erase EEPROM memory
Diagnose Diagnose functions
Pos Feed Pan
Delta Internal data and function diagnose
Anz Ti0
-
Int
-
Err Internal data and function diagnose
PFC Voltage Show the present PFC voltage
LED PWM
Vers 1 Shows Dimmer-1-Software Version
LED PWM
Vers 2 Shows Dimmer-2-Software Version
LED PWM
Vers 3 Shows Dimmer-3-Software Version
Pos Feed Tilt
Delta Internal data and function diagnose
Temperature
Arm Indicates the present arm temperature

 
DOWN - UP 
 

Temperature
Head Indicates the present head temperature
PAN/TILT
Motor Power Switches power for Pan/Tilt ON or OFF
(disconnected from power)
PAN/TILT
Silent Mode Reduces maximum speed for Pan/Tilt
DMX Hold Defines whether the last DMX signal is stored or
the lamp is switched OFF in case of signal
interruption
Position
Feedback Automatically position feedback (correction) for
Pan/Tilt movement
White Adjust Adjustments for a uniform white color (white
balance); only in white-mode
Red Input for red adjustments
Blue Input for blue adjustments
Green Input for green adjustments
Set DMX
Image Stores the Scene currently sent to the unit
DMX input
Monitor Indicates the presently received DMX signal per
DMX channel
Pan Instantaneous value for Pan
Spee
d
Movements Speed adjustment for Pan/Tilt movements 
see item below
Pan/Tilt
Movements Instantaneous value for Pan/Tilt movements
Special Instantaneous value for Special
White
Temperature Adjustment of the color temperature for WHITE
Dimmer Instantaneous value for Dimmer

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 12
Shutter Instantaneous value for Shutter
Blue Instantaneous value for Blue
Green Instantaneous value for Green
Red Instantaneous value for Red
Color Wheel Instantaneous value for Color Mixing unit
Tilt Instantaneous value for Tilt movement
Live time Indicates the overall operation time of the
system
Display Adjust the display

 
DOWN - UP 
 

Blackout ON/OFF: Display OFF
Select DMX
Mode Please select the desired DMX Mode
Compressed Only 10 DMX channels are being used if this
Mode is activated
Normal 13 DMX channels are being used if this Mode is
activated
High
-
Resolution 13 DMX channels are being used if this Mode is
activated. Dimmer operates at 16 bit.
White
Mode ON/OFF: Adjustments for white-balance are
activated
Reverse
Pan ON/OFF: Invert Pan movements
Reverse
Tilt ON/OFF: Invert Tilt movements
Reset RESET and new calibration for all functions
4 DMX Channel Sheet
Normal-Mode 14 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Til
t
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red
1)
8..15 08..0F 3..5,5
Color 02 - Amber
1)
16..23 10..17 6..8,5
Color 03 - Warm Yellow
1)
24..31 18..1F 9..12,5
Color 04 - Yellow
1)
32..39 20..27 13..15,5
Color 05 - Green
1)
40..47 28..2F 16..18,5
Color 06 - Turquoise
1)
48..55 30..37 19..21,5
Color 07 - Cyan
1)
56..63 38..3F 22..24,5
Color 08 - Blue
1)
64..71 40..47 25..27,5
Color 09 - Lavender
1)
72..79 48..4F 28..30,5

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 13
Channel
Function
Time and Value
DMX
HEX
%
Color 10 - Mauve
1)
80..87 50..57 31..34,5
Color 11 - Magenta
1)
88..95 58..5F 35..37,5
Color 12 - Pink
1)
96..103 60..67 38..40,5
White - CTO Color temperature
3200K 104..111
68..6F 41..43,5
White Color temperature
5600K 112..119
70..77 44..46,5
White - CTB Color temperature
7200K 120..127
78..7F 47..49,5
Rainbow Effect Stop
2)
128 80 50
Rainbow Effect
3)
slow - fast 129..223
81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E=..FF
89..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240..255
F0..FF 95..100
10) Dimmer
Dimmer 0% - 100% 0..255 0..FF 0..100
11) Color
No color temperature correction 0..6 0..06 0..2
temperature
Continuous color temperature
correction between 3200k - 7200k Applicable only for White color
5)
7..255 07..FF 3..100
12) Special
Max. Power-Mode
4)
Max. light output without
white balance 0..15 0..0F 0..5,5
White-Mode
4)
White balance used 16..31 10..1F 6..12,5
Fan min. as long as temp. < 90°C 224..229
E0..E5 88..89,5
RESET (Normal Mode)
250..255
FA..FF
98..100
13) Move
-
No movement
0 00 0
ment
Movement
Size
Ph
ase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D
4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D
11,2
4 270° 30..31 1E..1F 12

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 14
Channel
Function
Time and Value
DMX
HEX
%
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159
80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191
A0..BF
63..75
Lying eight size / phase see also PAN 192..223
C0..DF
76..87
Random movement size see also PAN 224..255
E0..FF 88..100
14) Speed
Pan/Tilt relative movement 0..15 00..0F 0..6
Pan/Tilt
Pan/Tilt slow – fast
Use this channel 14) als
o for the speed
of the movements (channel 13).
Pan Min. 660°= 200s
Pan Max. 660°
Tilt Min. 300°= 110s
Tilt Max. 300°
16..255 10..FF 7..100
4)
Max. Power-Mode vs. White-Mode
The I IM MP PR RE ES SS SI IO ON N X XL Lcan regard the white-balance adjustments for each individual color setting.
Whether the White-Mode is used with RGB can be selected in the Normal DMX-Mode during
operation with the Special DMX channel. If the Special channel is set to a value between DMX 0..15,
the White-Mode is not used and the RGB goes for the maximum light output. If the Special channel is
set to a value between DMX 16..31, the white balance is used for the RGB output.
Since there is no Special DMX channel in the Compress DMX-Mode, the possibility exists to likewise
select these settings also in the display menu. Is the White-Mode set to “ON”, the white-balance is
activated. If the White-Mode is set to “OFF”, the RGB goes for the maximum light output (Max. Power-
Mode).
5)
The continuous color temperature correction is applicable only for the White color i.e. if this function
is selected (DMX ≥ 001) the
I
Im mp pr re es ss si io on n X XL L will change the color to white immediately and will then
be adjustable in the color temperature in a range between 3200K and 7200K. Hence a color correction
for others than white is not intended.
Compress-Mode 10 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red
1)
8..15 08..0F 3..5,5
Color 02 - Amber
1)
16..23 10..17 6..8,5
Color 03 - Warm Yellow
1)
24..31 18..1F 9..12,5
Color 04 - Yellow
1)
32..39 20..27 13..15,5
Color 05 - Green
1)
40..47 28..2F 16..18,5
Color 06 - Turquoise
1)
48..55 30..37 19..21,5
Color 07 - Cyan
1)
56..63 38..3F 22..24,5
Color 08 - Blue
1)
64..71 40..47 25..27,5

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 15
Channel
Function
Time and Value
DMX
HEX
%
Color 09 - Lavender
1)
72..79 48..4F 28..30,5
Color 10 - Mauve
1)
80..87 50..57 31..34,5
Color 11 - Magenta
1)
88..95 58..5F 35..37,5
Color 12 - Pink
1)
96..103 60..67 38..40,5
White - CTO Color temperature
3200K 104..111
68..6F 41..43,5
White Color temperature
5600K 112..119
70..77 44..46,5
White - CTB Color temperature
7200K 120..127
78..7F 47..49,5
Rainbow Effect Stop
2)
128 80 50
Rainbow Effect
3)
slow - fast 129..223
81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E=..FF
89..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
10) Dimmer
Dimmer (0% - 100%) 0..255 0..FF 0..100
High Resolution (Extended) -Mode 13 DMX Channels
Channel
Function
Ti
me and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Red
-
coarse Color mixing system – Red 0 - 100% 0..255 00..FF 0..100
6) Red
-
fine
Color mixing system – Red-Low 0..255 00..FF 0..100
7) Green
-
coarse Color mixing system – Green 0 - 100% 0..255 00..FF 0..100
8) Green
-
fine Color mixing system – Green-Low 0..255 00..FF 0..100
9) Blue
-
coarse Color mixing system – Blue 0 - 100% 0..255 00..FF 0..100
10) Blue
-
fine
Color mixing system – Blue-Low 0..255 00..FF 0..100

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 16
Channel
Function
Ti
me and Value
DMX
HEX
%
11) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
12) Dimmer
-
coarse Dimmer 0% - 100% 0..255 0..FF 0..100
13) Dimmer
-
fine Dimmer - Low 0..255 0..FF 0..100
1)
The predefined colors can be used as start-colors for the Rainbow effect. Please select first a
desired start-color before you activate the rainbow effect. All
I
Im mp pr re es ss si io on n X XL Ls s will afterwards start
from that color and will execute the rainbow effect synchronously. Different
I
Im mp pr re es ss si io on n X XL Ls s can
certainly have different start-colors but will still execute the rainbow effect synchronously. If you
choose a color different from the once marked with
1)
in the tables above the rainbow start-color will be
red.
2)
Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued with
the current color.
3)
The Rainbow-effect will run synchronously only if it will be started going out from one of the
predefined colors (see also
1)
before).
Additional Display Indication
As a default you'll find the following additional information in the first row of the LCD display:
XX/X/XX
06 = 600Hz / 12 = 1200Hz
N = Normal Mode / C = Compressed Mode / H = High Res. Mode
N = Tilt normal / I = Tilt inverted
N = Pan normal / I = Pan inverted

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 17
5
5 Maintaining and Cleaning the I IM MP PR RE ES SS SI IO ON N X XL L
The I IM MP PR RE ES SS SI IO ON N X XL Lis a system of very low maintenance. It is only necessary to
clean the air in- and outlets as well as the optical LED lenses from time to time. For a
safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt
and smoke-fluid residues must not built up on or within the fixture. Otherwise the
fixture's light-output will be significantly reduced or damages can occur. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture
to operate reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended, under no circumstances should alcohol or solvents be used!
5.1 Safety regulations
•Pull out the main plug!
•Wait min. 15 minutes after the last operation to cool down the fixture.
5.2 Circumference and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence no
general guidelines can be given. The intervals given below are only suggestions
from our practice experience.
Position Interval In this way
LED reflector and optical system weekly soft brush /lint-free cloth
Fan and air channel monthly vacuum cleaner, airbrush, etc.
Attention:
•Never let optical parts come into contact with oil or fat.
•Before running the fixture wait until all parts are dried up.
•Never tough lenses with bare fingers.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 18
6 Technical Specifications
Power supply
Power consumption 1200 VA (Watt)
Power Input ~100-240 V AC, 50-60 Hz (wide range input)
Fuse protection Micro-fuse 6.3x32 mm, T15A
Operational Parameters
Max. Ambient
Temperature 45°C (integrated overheating switch)
Mounting Position Any (see chapter mounting)
Lighting System - Additive Color mixing
LED Type 240x Luxeon K2 High-power- LEDs
Lifetime 50.000 h
78 red, 84 green, 78 blue LEDs, wavelength optimized for maximum presentable color space.
Optical System
High efficient Collimator cluster
Exchangeable optical carrier with 10°light distribution angle (25°optional)
Scattering light aperture
Shutter / Dimmer (8/16 Bit)
Strobe- Effect with variable speed between 1 - 10 flashes per second, Random-Strobe, Pulse-
Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 3/5 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
DMX- Addressing starts at the DMX channel [001].
Pan / Tilt (8/16 Bit)
Pan- movement 660°(Position Feedback)
Tilt- movement 300°(Position Feedback)
Weights and Measures
Width of the base
550 mm
Length of the base
200 mm
Height (head vertical)
515 mm
Fixture weight (net)
23,5 kg
Floor Mount weight
(net) 2 kg

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 19
7 Index
B
BGI 810-3........................................................9
BGV C1............................................................7
C
Camlock...........................................................7
Circumference...............................................17
Cleaning.........................................................17
Compress-Mode ....................................14, 15
D
Danger of BURNING......................................5
Description of Device....................................4
DIN VDE 0711-217..........................................7
DMX.................................................................9
E
e-mail ..............................................................1
Enter-key .....................................................10
Eyelets.............................................................7
H
Half-couplers (clamps).....................................8
I
Internet ...........................................................1
K
Key code ........................................................10
L
LED Class 2M.................................................5
M
Maintenance..................................................17
Manual Version................................................1
Max. Power-Mode........................................14
Menu Field .................................................... 10
Micro-fuse ....................................................... 9
Mode-key ....................................................10
Mounting........................................................ 6
Mounting in hanging Position.......................... 7
Mounting in sidewise Position......................... 8
Mounting on the Floor..................................... 7
N
Normal-Mode...............................................12
O
Optical parts................................................17
P
Pan- Movement ..........................................18
Power Supply................................................ 9
Powercon (Mains supply................................. 4
S
Safety distance ............................................... 6
Safety Instructions .......................................... 5
Scroll-wheel ...............................................10
Secure the Device......................................... 9
Software Version............................................. 1
T
Technical Specifications............................18
Tilt- Movement ............................................18
V
VBG 70 ........................................................... 7
W
Warranty claims .............................................. 6
Weights and Measures .............................18
White-Mode..................................................14

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.04) / from Software Version 1.09/0.3) 20
