GLP IMPRESSION X4L User manual

from software version: v0.xx
[email protected]
www.glp.de
Instruction Manual

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 2
Contents
1 Description of Device ..................................................................................................... 3
1.1 Safety Instructions................................................................................................... 4
2 Preparation and Installation............................................................................................ 5
2.1 Safety Information................................................................................................... 5
2.2 Mounting................................................................................................................. 6
2.2.1 Operating on the Floor (upright)....................................................................... 7
2.2.2 Mounting in hanging position (head down):...................................................... 8
2.3 Securing the Fixture................................................................................................ 8
2.4 Connections............................................................................................................ 9
2.4.1 Power Supply................................................................................................... 9
2.4.2 DMX................................................................................................................. 9
3 The Menu Field .............................................................................................................10
4 DMX Chanel Selection (DMX Protocol).........................................................................11
4.1 Normal Mode (norm) 29 DMX channels: ................................................................11
4.2 Compressed Mode (comp) 21 DMX Channels: ......................................................15
4.3 Extended Mode (high) 31 DMX Channels: .............................................................18
4.4 Single Pixel Mode (spix) 169 DMX Channels: ........................................................20
5 Accessories...................................................................................................................28
5.1 Optional Beam-Shaper:..........................................................................................28
6 Maintaining and Cleaning..............................................................................................29
6.1 Safety regulations ..................................................................................................29
6.2 Maintenance and Interval (rule-of-thumb)...............................................................29
7 Technical Specifications:...............................................................................................30
8 Dimensions ...................................................................................................................31

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 3
1 Description of Device
Base side view:
9
5. DMX Input (5 pin)
6. DMX Output (5 pin)
7. Power On/Off
8. Mains Input (powerCON)
9. Micro-fuse 5x20mm, T10A
1. Moving head
(actively and passively cooled)
2. Arm with various cooling vents
3. LCD-Display/Menu (data entry)
4. Base with various connectors and
Camlock mounting system
(see section 2.2 below)

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 4
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N X X4 4 L L is a High-Tech Product. To guarantee a
smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility for
damages through any disregard of the information provided in this
manual. Warranty claims also will be voided in the case that the
fixture housing is opened.
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. Ensure that the fixture head can rotate unhindered throughout its complete
range of pan and tilt movement. A safety distance of at least 0.5 m must be
maintained between the fixture and any easily inflammable material (e.g.
decoration material).
3. Attention! Don’t touch the fixture during the operation. This can cause
injuries and/or damages.
4. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
5. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture.. Pay attention to possible hot parts of the
fixture. -- Danger of BURNING --
6. Never look directly into the beam of light or into one of the LEDs.
Never use optical apertures to observe the beam of light. LED Class 2M.
You'll risk serious injury of your eyes and in particular of your retina.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!
7. To ensure safe operation, follow also the Installation guide described in the
chapter below. Operating the I IM MP PR RE ES SS SI IO ON N X X4 4 L L without suitable safety
aids like Safety cables or clamps/hooks can increase the risk of an accident
and must be avoided.
8. Repair, maintenance, and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicitly mentioned in this manual.
9. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
10. Please keep this instruction manual for future reference.

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 5
2 Preparation and Installation
2.1 Safety Information
The I
IM MP PR RE ES SS SI IO ON N X X4 4 L Lfixture from GLP is fitted with a number of plano-
convex lenses in a highly efficient collimator cluster. This type of lens can act as
a strong magnifying glass.
If the rays from a strong light source (such as the sun or another lighting fixture)
are directed towards the front of any of these fixtures, then internal damage
may occur. In a worst case scenario with a high power light source this can
happen very quickly, damaging the fixture internally, potentially melting
components or causing an internal fire within seconds.
In order to avoid these possible problems please adhere to the following
requirements:
Do not expose the front of a fixture to direct sunlight or any other strong
light sources.
For outdoor applications during daylight make sure that the front face of
any fixture is either shielded or points away from the sun, even when
fixtures are not in use.
Do not modify the front glass or lenses of any fixture.
These requirements have to be followed regardless of whether a fixture is
powered on or off as the magnifying effect is an optical effect and therefore
independent from the (electrical) state of the fixture.
Especially when working with high powered b be ea am m- -l li ig gh ht ts s; extreme caution and
observance of these safety instructions is mandatory.

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 6
Should you have any questions about the operation of your fixture then please
contact your local GLP office, or their authorized distributor, a list of which can
be found at www.glp.de.
2.2 Mounting
The I IM MP PR RE ES SS SI IO ON N X X4 4 L L is fully operational whether it hangs or is mounted to the
wall. It can also be operated while standing on the floor. Keep a safety distance of
min. 0.5 m towards any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the I
IM MP PR RE ES SS SI IO ON N X X4 4 L L(standing on the
floor, sideways or hanging) different accessories kits are available. Through this
a safe and firm installation is assured. You'll find dedicated connectors on the
bottom side of the fixture which should be used. In addition the base is marked
with a FRONT arrow allowing consistent orientation during installation.

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 7

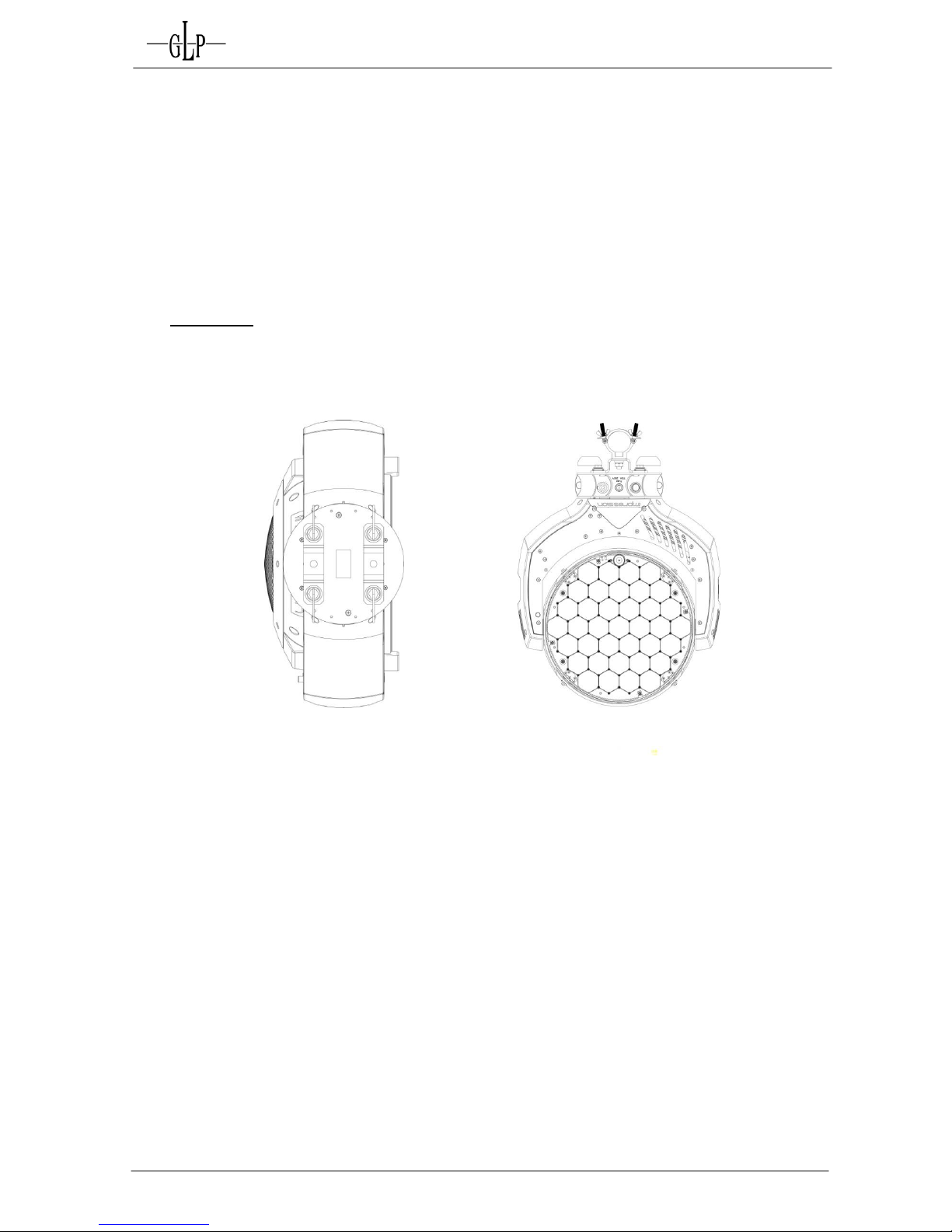

Base plate view:
2.2.1 Operating on the Floor (upright)
To operate the I IM MP PR RE ES SS SI IO ON N X X4 4 L Lin an upright position, please use the
dedicated tri-legged floor stand supplied with your fixture. It is fixed to the base of
the fixture with fasteners called Camlock quick-release connectors. Insert the two
fasteners and turn each 90° to lock them. Do the opposite to release them again.
On both sides you'll find eyelets to pull though a fixing strap. This allows for
additional bracing of the fixture.
2 x M10
length max.16mm
4 x Camlock
quick release
fasteners

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 8
2.2.2 Mounting in hanging position (head down):
To operate the I IM MP PR RE ES SS SI IO ON N X X4 4 L Lin a hanging position two (2) omega
brackets can be mounted directly to the bottom of the base using the
four (4) Camlock connectors.
Alternatively two (2) half-couplers (clamps or hooks) can be mounted directly to
the bottom side of the fixture using the two (2) M10x16 mm thread bolts.
Attention: Never use a longer bolt as this may damage the interior of the
fixture.
2.3 Securing the Fixture
Regardless of the mounting method of the I IM MP PR RE ES SS SI IO ON N X X4 4 L Lyou'll have to use
a stipulated safety wire. Attach the safety wire through one of the two holes
provided on the base of the fixture and connect it to the primary support structure.
Pay attention to a safe and proper fastening. The safety cable must comply with
EN 60598-2-17 Section 17.6.6 and be capable of bearing a static suspended load
that is ten times the weight of the fixture and all installed accessories.

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 9
2.4 Connections
2.4.1 Power Supply
~100-240 Volt AC, 50-60 Hz, powerCON AC connector
Connected load 900 VA (W) <=> T10A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.4.2 DMX
USITT DMX-512 Standard input/output in 5-pin connectors.
Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4&5 N.C.
The DMX- Addressing starts at the DMX- Address [001].

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 10

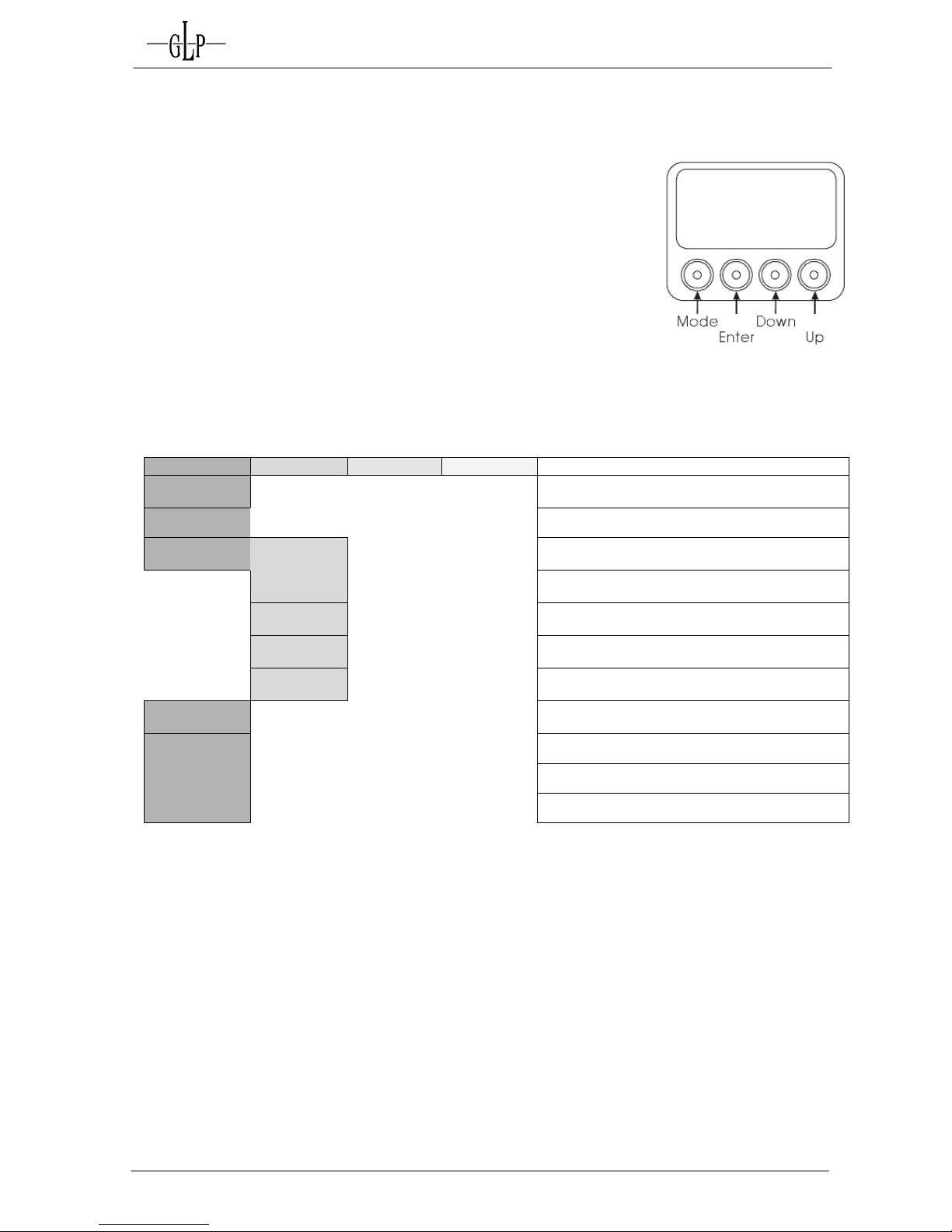

3 The Menu Field
To lock or unlock the keys of the menu field press Mode + Enter + Up simultaneously.
DOWN - UP 
MODE - ENTER 
Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address 001
Set the DMX start address
Special
Advanced settings
Set DMX
Mode
Select the desired DMX Mode
Compressed
Mode
Fixture works in "Compressed" mode see also
section 4 below
Normal
Mode
Fixture works in "Normal" mode see also
section 4 below
Extended
Mode
Fixture works in "Extended" mode see also
section 4 below
Single Pixel
Mode
Fixture works in "Single Pixel" mode see also
section 4 below
Position
feedback
Switch automatic position feedback ON/OFF
Reverse Tilt
Invert Tilt movements: ON/OFF
Reverse Pan
Invert Pan movements: ON/OFF
Reset
RESET and new calibration for all functions
You’ll find the control board on the side part of the arm. It allows you
to make all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N X X4 4 L L.
With the Mode-key you get into the main menu. Afterwards you can
navigate through the menu with the Up/Down-keys. Push the Enter-
key to get in the next menu level or to confirm your settings. Make
them and set functions ON/OFF with the Up/Down-keys. Confirm
and save it with the Enter-key (the display shows OK). Push the
Mode-key to cancel the entry and go back to the main menu.

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 11
4 DMX Chanel Selection (DMX Protocol)
4.1 Normal Mode (norm) 29 DMX channels:
Channel
Function
Time and Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 250°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Color (fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White –CTO
3200K
104..111
White
5600K
112..119
White –CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Red
Color mixing system - Red
0 - 100%
0..255
7
Green
Color mixing system - Green
0 - 100%
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..255
9
White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 12
11
Intensity
Intensity
0 - 100%
0..255
12
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
8..255
2,500k –10,000k
for ALL colors
13
Special
Pattern Block 1
0..3
Pattern Block 2
4..7
Pattern Block 3
8..11
Pattern Block 4
12..15
Pattern Block 5
16..19
Pattern Block 6
20..23
Pattern Block 7
24..27
Pattern Block 8
28..31
Pattern Block 9
32..35
Pattern Block 10
26..39
Switch Pattern to Animation
80..83
Set Zoom normal
> 1 sec
216..219
Set Zoom inverted
> 1 sec
220..223
RESET
> 1 sec
250..255
14
Movement
No macros
0..4
Macros
Movement Speed Phase
Use channel 15 to adjust
Pan 1 0°
01..01
Pan 1 90°
02..03
Pan 1 180°
04..05
Pan 1 270°
06..07
Pan 2 0°
08..09
Pan 2 90°
10..11
Pan 2 180°
12..13
Pan 2 270°
14..15
Pan 3 0°
16..17
Pan 3 90°
18..19
Pan 3 180°
20..21
Pan 3 270°
22..23
Pan 4 0°
24..25
Pan 4 90°
26..27
Pan 4 180°
28..29
Pan 4 270°
30..31
Tilt size / phase see Pan
32..63
Pan / Tilt size / phase see Pan
64..95
Pan / Tilt (inverse) size / phase see Pan
96..127
Circle size / phase see Pan
128..159

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 13
Circle (inverse) size / phase see Pan
160..191
Lying eight size / phase see Pan
192..223
Random movement size / phase see Pan
224..255
15
Pan / Tilt
Pan/Tilt movement speed from controller
0..1
Speed
Pan/Tilt, slow –fast
2..255
Use this channel for the speed of the macros on channel 14
16
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255
17
Pattern
No Pattern
0
255 pre-defined patterns
1..255
255 pre-defined animations (only if Channel 13 is set to 80..83)
1..255
18
Intensity Front
Intensity foreground layer
0 - 100%
0..255
19
Intensity Back
Intensity background layer 4)
0 - 100%
0..255
20
Back Red
Color mixing system - Background Red 4)
0 - 100%
0..255
21
Back Blue
Color mixing system - Background Green 4)
0 - 100%
0..255
22
Back Green
Color mixing system - Background Blue 4)
0 - 100%
0..255
23
Back White
Color mixing system - Background White 4)
0 - 100%
0..255
24
A - Phase
Animation starting point
0..255
25
A - Speed
Animation speed (starting from point set in Channel 24)
1..255
26
Crossfade
0..2 seconds transistion time
0..255
27
Pattern
Pan Normal / Tilt Normal
0°
0..1
Orientation
Pan Normal / Tilt Normal
60°
2..3
Pan Normal / Tilt Normal
120°
4..5
Pan Normal / Tilt Normal
180°
6..7
Pan Normal / Tilt Normal
240°
8..9
Pan Normal / Tilt Normal
300°
10..11
Pan Normal / Tilt Inverted
0°
16..17
Pan Normal / Tilt Inverted
60°
18..19
Pan Normal / Tilt Inverted
120°
20..21
Pan Normal / Tilt Inverted
180°
22..23
Pan Normal / Tilt Inverted
240°
24..25
Pan Normal / Tilt Inverted
300°
26..27
Pan inverted / Tilt normal
0°
32..33
Pan inverted / Tilt normal
60°
34..35
Pan inverted / Tilt normal
120°
36..37
Pan inverted / Tilt normal
180°
38..39
Pan inverted / Tilt normal
240°
40..41
Pan inverted / Tilt normal
300°
42..43
Pan inverted / Tilt inverted
0°
48..49
Pan inverted / Tilt inverted
60°
50..51

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 14
Pan inverted / Tilt inverted
120°
52..53
Pan inverted / Tilt inverted
180°
54..55
Pan inverted / Tilt inverted
240°
56..57
Pan inverted / Tilt inverted
300°
58..59
28
Pattern Effect
No effect
0..1
crossfade
02..15
random flash white
slow –fast
16..31
random color
slow –fast
32..47
random color background only
slow –fast
48..63
29
Beam Shaper
(optional)
Beam Shaper position
0° - 540°
0..255

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 15
4.2 Compressed Mode (comp) 21 DMX Channels:
Channel
Function
Time and
Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 250°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Color (fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White –CTO
3200K
104..111
White
5600K
112..119
White –CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Red
Color mixing system - Red
0 - 100%
0..255
7
Green
Color mixing system - Green
0 - 100%
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..255
9
White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
11
Intensity
Intensity
0 - 100%
0..255

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 16
12
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
8..255
2,500k –10,000k
for ALL colors
13
Special
Pattern Block 1
0..3
Pattern Block 2
4..7
Pattern Block 3
8..11
Pattern Block 4
12..15
Pattern Block 5
16..19
Pattern Block 6
20..23
Pattern Block 7
24..27
Pattern Block 8
28..31
Pattern Block 9
32..35
Pattern Block 10
26..39
Switch Pattern to Animation
80..83
Set Zoom normal
> 1 sec
216..219
Set Zoom inverted
> 1 sec
220..223
RESET
> 1 sec
250..255
14
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255
15
Pattern
No Pattern
0
255 pre-defined patterns
1..255
255 pre-defined animations (only if Channel 13 is set to 80..83)
1..255
16
A - Phase
Animation starting point
0..255
17
A - Speed
Animation speed (starting from point set in Channel 24)
1..255
18
Crossfade
0..2 seconds transistion time
0..255
19
Pattern
Pan Normal / Tilt Normal
0°
0..1
Orientation
Pan Normal / Tilt Normal
60°
2..3
Pan Normal / Tilt Normal
120°
4..5
Pan Normal / Tilt Normal
180°
6..7
Pan Normal / Tilt Normal
240°
8..9
Pan Normal / Tilt Normal
300°
10..11
Pan Normal / Tilt Inverted
0°
16..17
Pan Normal / Tilt Inverted
60°
18..19
Pan Normal / Tilt Inverted
120°
20..21
Pan Normal / Tilt Inverted
180°
22..23
Pan Normal / Tilt Inverted
240°
24..25
Pan Normal / Tilt Inverted
300°
26..27
Pan inverted / Tilt normal
0°
32..33
Pan inverted / Tilt normal
60°
34..35
Pan inverted / Tilt normal
120°
36..37
Pan inverted / Tilt normal
180°
38..39
Pan inverted / Tilt normal
240°
40..41
Pan inverted / Tilt normal
300°
42..43
Pan inverted / Tilt inverted
0°
48..49
Pan inverted / Tilt inverted
60°
50..51
Pan inverted / Tilt inverted
120°
52..53

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 17
Pan inverted / Tilt inverted
180°
54..55
Pan inverted / Tilt inverted
240°
56..57
Pan inverted / Tilt inverted
300°
58..59
20
Pattern Effect
No effect
0..1
crossfade
02..15
random flash white
slow –fast
16..31
random color
slow –fast
32..47
random color background only
slow –fast
48..63
21
Beam Shaper
Beam Shaper position
0° - 540°
0..255
(optional)

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 18
4.3 Extended Mode (high) 31 DMX Channels:
Channel
Function
Time and
Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 250°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Red - High
Color mixing system - Red - high
0 - 100%
0..255
6
Red - Low
Color mixing system - Red - low
0 - 100%
0..255
7
Green - High
Color mixing system - Green - high
0 - 100%
0..255
8
Green - Low
Color mixing system - Green - low
0 - 100%
0..255
9
Blue - High
Color mixing system - Blue - high
0 - 100%
0..255
10
Blue - Low
Color mixing system - Blue - low
0 - 100%
0..255
11
White - High
Color mixing system - White - high
0 - 100%
0..255
12
White - Low
Color mixing system - White - low
0 - 100%
0..255
13
Special
Pattern Block 1
0..3
Pattern Block 2
4..7
Pattern Block 3
8..11
Pattern Block 4
12..15
Pattern Block 5
16..19
Pattern Block 6
20..23
Pattern Block 7
24..27
Pattern Block 8
28..31
Pattern Block 9
32..35
Pattern Block 10
26..39
Switch Pattern to Animation
80..83
Set Zoom normal
> 1 sec
216..219
Set Zoom inverted
> 1 sec
220..223
RESET
> 1 sec
250..255
14
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
15
Intensity - High
Intensity - coarse
0 - 100%
0..255
16
Intensity - Low
Intensity - fine
0 - 100%
0..255
17
CTO
No CTO
0..7
Continuous color temperature correction
Applicable
8..255
2,500k –10,000k
for ALL colors
18
Zoom
Wide (flood) - narrow (spot)
50° - 7°
0..255

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 19
19
Pattern
No Pattern
0
255 pre-defined patterns
1..255
255 pre-defined animations (only if Channel 13 is set to 80..83)
1..255
20
Intensity Front
Intensity foreground layer
0 - 100%
0..255
21
Intensity Back
Intensity background layer 4)
0 - 100%
0..255
22
Back Red
Color mixing system - Background Red 4)
0 - 100%
0..255
23
Back Blue
Color mixing system - Background Green 4)
0 - 100%
0..255
24
Back Green
Color mixing system - Background Blue 4)
0 - 100%
0..255
25
Back White
Color mixing system - Background White 4)
0 - 100%
0..255
26
A - Phase
Animation starting point
0..255
27
A - Speed
Animation speed (starting from point set in Channel 24)
1..255
28
Crossfade
0..2 seconds transistion time
0..255
29
Pattern
Pan Normal / Tilt Normal
0°
0..1
Orientation
Pan Normal / Tilt Normal
60°
2..3
Pan Normal / Tilt Normal
120°
4..5
Pan Normal / Tilt Normal
180°
6..7
Pan Normal / Tilt Normal
240°
8..9
Pan Normal / Tilt Normal
300°
10..11
Pan Normal / Tilt Inverted
0°
16..17
Pan Normal / Tilt Inverted
60°
18..19
Pan Normal / Tilt Inverted
120°
20..21
Pan Normal / Tilt Inverted
180°
22..23
Pan Normal / Tilt Inverted
240°
24..25
Pan Normal / Tilt Inverted
300°
26..27
Pan inverted / Tilt normal
0°
32..33
Pan inverted / Tilt normal
60°
34..35
Pan inverted / Tilt normal
120°
36..37
Pan inverted / Tilt normal
180°
38..39
Pan inverted / Tilt normal
240°
40..41
Pan inverted / Tilt normal
300°
42..43
Pan inverted / Tilt inverted
0°
48..49
Pan inverted / Tilt inverted
60°
50..51
Pan inverted / Tilt inverted
120°
52..53
Pan inverted / Tilt inverted
180°
54..55
Pan inverted / Tilt inverted
240°
56..57
Pan inverted / Tilt inverted
300°
58..59
30
Pattern Effect
No effect
0..1
crossfade
02..15
random flash white
slow –fast
16..31
random color
slow –fast
32..47
random color background only
slow –fast
48..63
31
Beam Shaper
Beam Shaper position
0° - 540°
0..255
(optional)

GLP German Light Products GmbH
impression X4 L manual (v0.2) from software version: v0.xx 20
4.4 Single Pixel Mode (spix) 169 DMX Channels:
Channel
Function
Time and
Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 260°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Color (fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White –CTO
3200K
104..111
White
5600K
112..119
White –CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Red
Color mixing system - Red
0 - 100%
0..255
7
Green
Color mixing system - Green
0 - 100%
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..255
9
White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow –fast
16..47
Fade on, snap off (random patterns)
slow –fast
48..79
Snap on, fade off (random patterns)
slow –fast
80..111
Fade on, fade off (random patterns)
slow –fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
11
Intensity
Intensity
0 - 100%
0..255
