Godox UL150 User manual

Instruction Manual

705-UL1500-02
Made in China

: 2
: 0755-29609320(8062) : 0755-25723423 : [e-mail]
godox.com
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: [phone](8062) Fax: [phone] E-mail: [email protected]
GODOX Photo Equipment Co., Ltd.
LED 
SILENT LED Video Light

QCPASS

Thank you for purchasing this Godox Product!
Silent LED Video Light UL series are suitable for live recording, video shooting and
photojournalistic shooting for they have no fan and won't make noise. UL series are very
convenient due to the separation design of main body, adapter and controller. UL series create
stable light resource and even illumination for photography. With an included remote control and
easy operation, UL series LED lights can be adjusted its light brightness in separate groups.
Main Features:
• With strong power, stable light source and adjustable light brightness
• Powered by V-port Lithium battery or DC power supply with wide application
• Adapter and controller are separate from the main light body, which offers more convenient
operation and better heat dissipation
• Smartphone APP through Bluetooth
• With U-type bracket to adjust different angles easily
• Bowens-mount enables to install various of accessories
Foreword Body
When using your photographic equipment, basic safety precautions should always be followed, including the
following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance
unattended while in use.
3. Care must be taken as burns can occur from touching hot parts.
4. The appliance switch is provided with the symbols 0 indicating off and 1 indicating on. The symbols and may
be used for this purpose.
5. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged – until it has
been examined by a qualified serviceman.
6. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be
used. Cords rated for less amperage than the appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Never yank
cord to pull plug from outlet. Grasp plug and pull to disconnect.
9. Let appliance cool completely before putting away. Loop cord loosely around appliance when storing.
10. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
11. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified serviceman
when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance
is used subsequently.
12. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric
shock, or injury to persons.
13. Connect this appliance to a grounded outlet.
14. Disconnect this unit from its source of supply before replacing the projection lamp.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS







 






1. Light Body 2. Thermovent 3. Bowens Mount 4. Protect Cover
5. LED Light 6. Umbrella Input 7. Locking Ring 8. U-type Bracket
9. Bracket Locking Ring 10. Bracket Sleeve 11. Handle
12. Power Input Socket 13.Accessory Locking Button

Thank you for purchasing this Godox Product!
Silent LED Video Light UL series are suitable for live recording, video shooting and
photojournalistic shooting for they have no fan and won't make noise. UL series are very
convenient due to the separation design of main body, adapter and controller. UL series create
stable light resource and even illumination for photography. With an included remote control and
easy operation, UL series LED lights can be adjusted its light brightness in separate groups.
Main Features:
• With strong power, stable light source and adjustable light brightness
• Powered by V-port Lithium battery or DC power supply with wide application
• Adapter and controller are separate from the main light body, which offers more convenient
operation and better heat dissipation
• Smartphone APP through Bluetooth
• With U-type bracket to adjust different angles easily
• Bowens-mount enables to install various of accessories
Foreword Body
When using your photographic equipment, basic safety precautions should always be followed, including the
following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance
unattended while in use.
3. Care must be taken as burns can occur from touching hot parts.
4. The appliance switch is provided with the symbols 0 indicating off and 1 indicating on. The symbols and may
be used for this purpose.
5. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged – until it has
been examined by a qualified serviceman.
6. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be
used. Cords rated for less amperage than the appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in use. Never yank
cord to pull plug from outlet. Grasp plug and pull to disconnect.
9. Let appliance cool completely before putting away. Loop cord loosely around appliance when storing.
10. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
11. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified serviceman
when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance
is used subsequently.
12. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric
shock, or injury to persons.
13. Connect this appliance to a grounded outlet.
14. Disconnect this unit from its source of supply before replacing the projection lamp.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS







 






1. Light Body 2. Thermovent 3. Bowens Mount 4. Protect Cover
5. LED Light 6. Umbrella Input 7. Locking Ring 8. U-type Bracket
9. Bracket Locking Ring 10. Bracket Sleeve 11. Handle
12. Power Input Socket 13.Accessory Locking Button

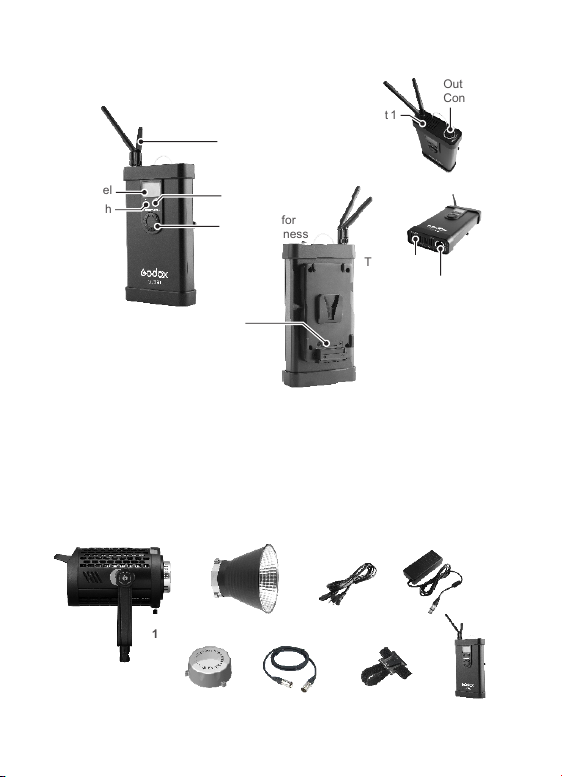

Controller
Included Items
Power Supply
Operation
GR/CH
BRIGHTNESS
GR/CH
BRIGHTNESS
BRIGHTNESS
Note: If using V-port battery, please insert the battery into the LED light and power it
on for usage.
1. LED video light 2. Reflector for Bowens mount LED light  3. Power cord
4.Adapter 5. Lamp cover 6. Connect cord 7. Fastener 8. Controller
9. Instruction manual
1
34
5
2
678
Power Switch
Control Panel Group/Channel
Button
Select Dial for
Light Brightness
Bluetooth Antenna
Battery
Compartment
Power Input
Output
Control Port
Thermovent 1
Thermovent 2

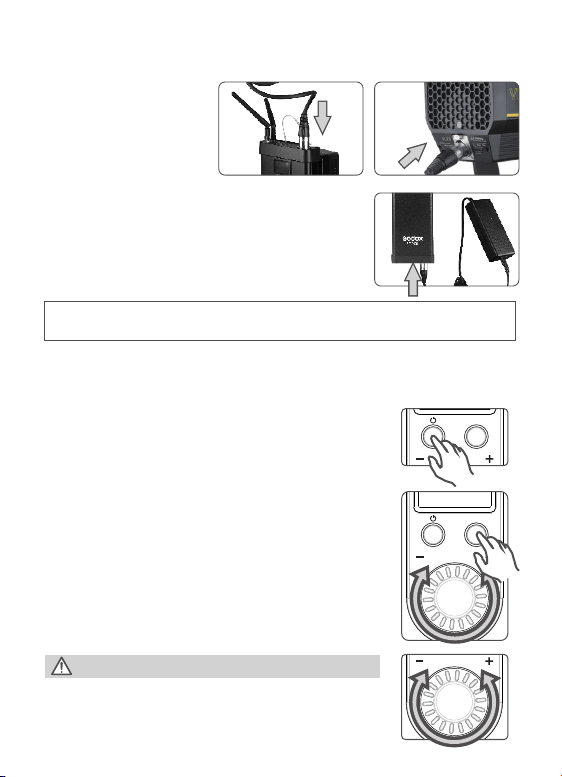

1. Firstly, plug the two ends of
connect cord separately into
the controller’s output control
port and the light’s power input
socket. A “click” will be heard
once finished.
2. Plug the output end of adapter’s connect cord into
controller’s power input end.
3. Use the power cord to connect the power supply.
1. Power on/off: long press the Power Switch of controller to
power the LED light on or off.
2. Choose group/channel: press GR/CH button for once, and
turn the Select Dial for Light Brightness to change the channel
value. Then, press GR/CH button again, and turn the Select Dial
for Light Brightness to change the group value (the group figure
will be displayed recurrently). Press GR/CH button to exit.
3. Light brightness adjustment: turn the select dial for light
brightness to change the value from 0% to 100%.
Over heat occurs when the HP appeared on the controller's display
and blinked on the display. It is recommended to turn off the light
and cool it down before reuse to avoid destroying the light beads.
Overheat Warning

Controller
Included Items
Power Supply
Operation
GR/CH
BRIGHTNESS
GR/CH
BRIGHTNESS
BRIGHTNESS
Note: If using V-port battery, please insert the battery into the LED light and power it
on for usage.
1. LED video light 2. Reflector for Bowens mount LED light  3. Power cord
4.Adapter 5. Lamp cover 6. Connect cord 7. Fastener 8. Controller
9. Instruction manual
1
34
5
2
678
Power Switch
Control Panel Group/Channel
Button
Select Dial for
Light Brightness
Bluetooth Antenna
Battery
Compartment
Power Input
Output
Control Port
Thermovent 1
Thermovent 2
1. Firstly, plug the two ends of
connect cord separately into
the controller’s output control
port and the light’s power input
socket. A “click” will be heard
once finished.
2. Plug the output end of adapter’s connect cord into
controller’s power input end.
3. Use the power cord to connect the power supply.
1. Power on/off: long press the Power Switch of controller to
power the LED light on or off.
2. Choose group/channel: press GR/CH button for once, and
turn the Select Dial for Light Brightness to change the channel
value. Then, press GR/CH button again, and turn the Select Dial
for Light Brightness to change the group value (the group figure
will be displayed recurrently). Press GR/CH button to exit.
3. Light brightness adjustment: turn the select dial for light
brightness to change the value from 0% to 100%.
Over heat occurs when the HP appeared on the controller's display
and blinked on the display. It is recommended to turn off the light
and cool it down before reuse to avoid destroying the light beads.
Overheat Warning

Wireless Control (Smartphone APP through Bluetooth) Technical Data
FCC Statement
蓝牙主页
3965
E965
4659
其他设备
清除设备
12:00
3893
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Godox UL series LED lights can also be controlled by smartphone APP through Bluetooth
with 6 groups and 16 channel.
● Bluetooth connection: power the LED light on and long press the GR/CH button until a
Bluetooth ID is displayed on the controller. Then, open the “GodoxPhoto”APP, click the
Bluetooth and choose the corresponding Bluetooth ID of the controller. Finally, enter the
password (the initial password is “000000”), and the Bluetooth is successfully connected.
Note: The channels and groups of LED controller and APP should be adjusted to the same.
● LED control: please find more details in
the “GodoxPhoto” APP of smartphone:
Setting---Help---LED.
Silent LED Video Light
Power
Supply
Power
Color Temperature
100% Light Brightness
(LUX, 1m)(≈)
CRI (≈)
TLCI (≈)
Light Brightness Range
Operation Temperature
Channel
Group
BT Frequency Range
Max. Transmitting Power
Dimension
Net Weight
UL150
AC100V-240V(50/60HZ)/2A(DC16.8V 10A)
V-port battery(separately sold)
150W
5600±200K
58000
96
97
0%-100%
-10°C~40°C
16
6 groups (A, B, C, D, E, F)
2402.0-2480.0MHz
5dbm
316.9*217.8*170mm
Light: 3.09Kg Controller: 0.86Kg Adapter: 0.72Kg
DC Power
supply
Lithium battery
Note: The illumination value will be different when changing different accessories.

Wireless Control (Smartphone APP through Bluetooth) Technical Data
FCC Statement
蓝牙主页
3965
E965
4659
其他设备
清除设备
12:00
3893
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Godox UL series LED lights can also be controlled by smartphone APP through Bluetooth
with 6 groups and 16 channel.
● Bluetooth connection: power the LED light on and long press the GR/CH button until a
Bluetooth ID is displayed on the controller. Then, open the “GodoxPhoto”APP, click the
Bluetooth and choose the corresponding Bluetooth ID of the controller. Finally, enter the
password (the initial password is “000000”), and the Bluetooth is successfully connected.
Note: The channels and groups of LED controller and APP should be adjusted to the same.
● LED control: please find more details in
the “GodoxPhoto” APP of smartphone:
Setting---Help---LED.
Silent LED Video Light
Power
Supply
Power
Color Temperature
100% Light Brightness
(LUX, 1m)(≈)
CRI (≈)
TLCI (≈)
Light Brightness Range
Operation Temperature
Channel
Group
BT Frequency Range
Max. Transmitting Power
Dimension
Net Weight
UL150
AC100V-240V(50/60HZ)/2A(DC16.8V 10A)
V-port battery(separately sold)
150W
5600±200K
58000
96
97
0%-100%
-10°C~40°C
16
6 groups (A, B, C, D, E, F)
2402.0-2480.0MHz
5dbm
316.9*217.8*170mm
Light: 3.09Kg Controller: 0.86Kg Adapter: 0.72Kg
DC Power
supply
Lithium battery
Note: The illumination value will be different when changing different accessories.

Warranty
Dear customers, as this warranty card is an important certificate to apply for our
maintenance service, please fill in the following form in coordination with the seller
and safekeep it. Thank you!
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation
(see below for further information). Other products or accessories (e.g. promotional
items,giveaways and additional accessories attached,etc.) are notincluded in this
warranty scope.
Warranty Period
The warranty period of products and accessories isimplemented according to the
relevant Product Maintenancelnformation. The warranty period is calculated from the
day(purchase date) when the product is bought for the first time,And the purchase date
is considered as the date registered onthe warranty card when buying the product.
Product
Information
Model Product Code Number
Name Contact Number
Address
Customer
Information
Seller
Information
Note:
Name
Contact Number
Address
Date of Sale
If maintenance service is needed, you can directly contact the product distributor or
authorized service institutions. You can also contact the Godox after-sale service call
and we will offer you service. When applying for maintenance service, you should
provide valid wananty card. If you cannot provide valid warranty card, we may offer you
maintenance service once confirmed that the product or accessory is involved in the
maintenance scope, but that shall not be considered as our obligation.
The guarantee and service offered by this document are not applicable in the following
cases: . The product or accessory has expired its warranty period; . Breakage or
damage caused by inappropriate usage, maintenance or preservation, such as improper
packing, improper usage, improper plugging in/out external equipment, falling off or
squeezing by external force, contacting or exposing to the improper temperature,
solvent, acid, base, flooding and damp environments, etc; . Breakage or damage
caused by non-authorized institution or staff in the process of installation, maintenance,
alternation, addition and detachment; . The original identifying information of product
or accessory is modified, alternated, or removed; . No valid warranty card; .
Breakage or damage caused by using illegally authorized, nonstandard or non-public
released software; . Breakage or damage caused by force majeure or accident; .
Breakage or damage that could not be attributed to the product itself. Once met these
situations above, you should seek solutions from the related responsible parties and
Godox assumes no responsibility. The damage caused by parts, accessories and
software that beyond the warranty period or scope is not included in our maintenance
scope. The normal discoloration, abrasion and consumption are not the breakage within
the maintenance scope.
How to Get the Maintenance Service
Inapplicable Cases
Godox After-sale Service Call 0755-29609320-8062
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the
following Product Maintenance Information:
Product
Type
Parts
Other Items
Name
Circuit Board
Battery
Electrical parts e.g.battery
charger, power cord, sync cable,
etc.
Flash tube, modeling lamp, lamp
body, lamp cover, lockingdevice,
package, etc.
Maintenance
Period(month)
12
3
12
No
Warranty Service
Type
Customer sends
the product to
designated site
Without warranty
Customer sends
the product to
designated site
Customer sends
the product to
designated site

Warranty
Dear customers, as this warranty card is an important certificate to apply for our
maintenance service, please fill in the following form in coordination with the seller
and safekeep it. Thank you!
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation
(see below for further information). Other products or accessories (e.g. promotional
items,giveaways and additional accessories attached,etc.) are notincluded in this
warranty scope.
Warranty Period
The warranty period of products and accessories isimplemented according to the
relevant Product Maintenancelnformation. The warranty period is calculated from the
day(purchase date) when the product is bought for the first time,And the purchase date
is considered as the date registered onthe warranty card when buying the product.
Product
Information
Model Product Code Number
Name Contact Number
Address
Customer
Information
Seller
Information
Note:
Name
Contact Number
Address
Date of Sale
If maintenance service is needed, you can directly contact the product distributor or
authorized service institutions. You can also contact the Godox after-sale service call
and we will offer you service. When applying for maintenance service, you should
provide valid wananty card. If you cannot provide valid warranty card, we may offer you
maintenance service once confirmed that the product or accessory is involved in the
maintenance scope, but that shall not be considered as our obligation.
The guarantee and service offered by this document are not applicable in the following
cases: . The product or accessory has expired its warranty period; . Breakage or
damage caused by inappropriate usage, maintenance or preservation, such as improper
packing, improper usage, improper plugging in/out external equipment, falling off or
squeezing by external force, contacting or exposing to the improper temperature,
solvent, acid, base, flooding and damp environments, etc; . Breakage or damage
caused by non-authorized institution or staff in the process of installation, maintenance,
alternation, addition and detachment; . The original identifying information of product
or accessory is modified, alternated, or removed; . No valid warranty card; .
Breakage or damage caused by using illegally authorized, nonstandard or non-public
released software; . Breakage or damage caused by force majeure or accident; .
Breakage or damage that could not be attributed to the product itself. Once met these
situations above, you should seek solutions from the related responsible parties and
Godox assumes no responsibility. The damage caused by parts, accessories and
software that beyond the warranty period or scope is not included in our maintenance
scope. The normal discoloration, abrasion and consumption are not the breakage within
the maintenance scope.
How to Get the Maintenance Service
Inapplicable Cases
Godox After-sale Service Call 0755-29609320-8062
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the
following Product Maintenance Information:
Product
Type
Parts
Other Items
Name
Circuit Board
Battery
Electrical parts e.g.battery
charger, power cord, sync cable,
etc.
Flash tube, modeling lamp, lamp
body, lamp cover, lockingdevice,
package, etc.
Maintenance
Period(month)
12
3
12
No
Warranty Service
Type
Customer sends
the product to
designated site
Without warranty
Customer sends
the product to
designated site
Customer sends
the product to
designated site

Instruction Manual

705-UL1500-02
Made in China

: 2
: 0755-29609320(8062) : 0755-25723423 : [e-mail]
godox.com
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: [phone](8062) Fax: [phone] E-mail: [email protected]
GODOX Photo Equipment Co., Ltd.
LED 
SILENT LED Video Light

QCPASS
