Gold's Gym XR66 GGSY69530 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Model No. GGSY69530
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will
provide immediate assistance,
free of charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m.
MST
USER’S MANUAL

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART, a PART LIST, and an EXPLODED DRAWING are attached in the cen-
ter of this manual. Remove the PART IDENTIFICATION CHART, PART LIST, and EXPLODED DRAWING before
beginning assembly.
GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and
distributed under license from Gold's Gym Merchandising, Inc.
TABLE OF CONTENTS

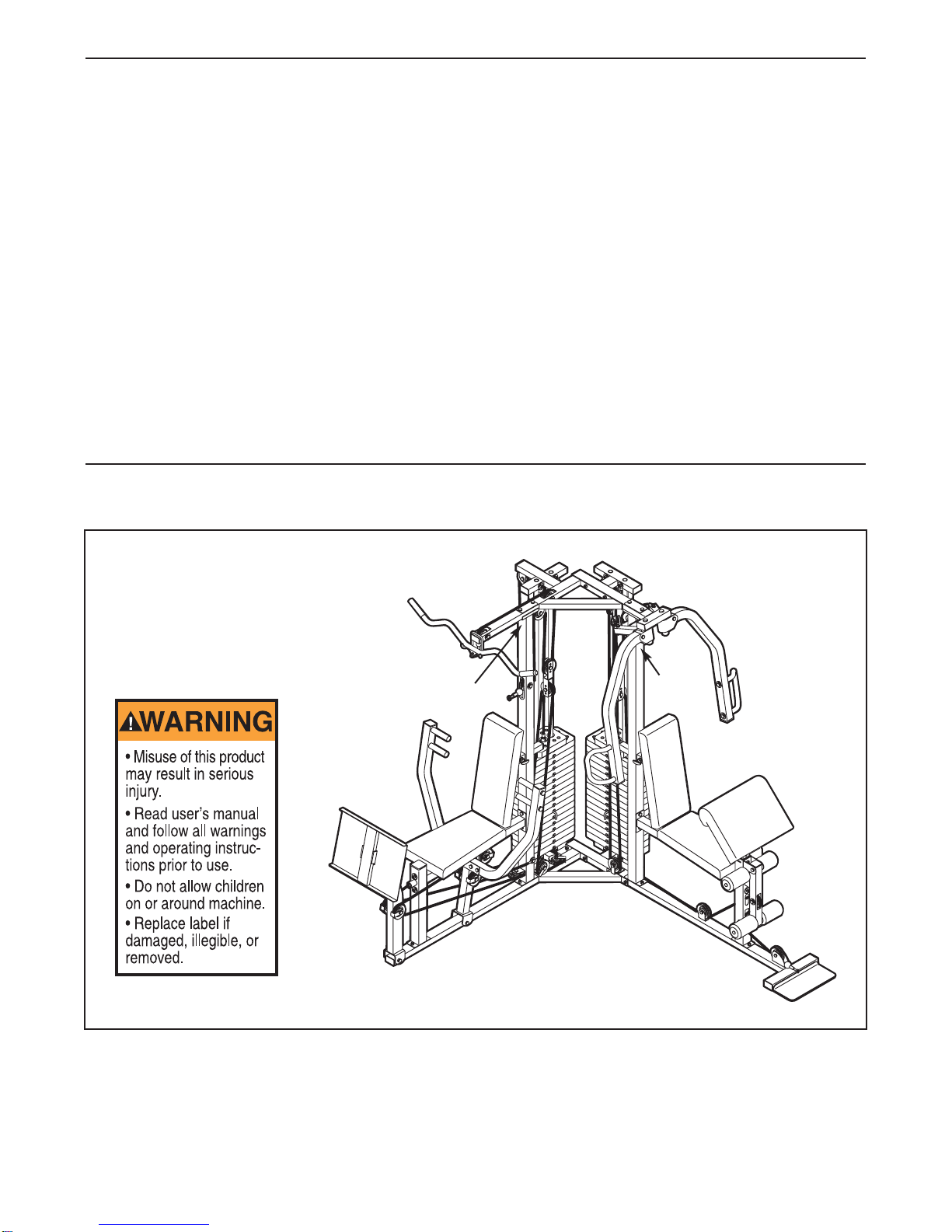

The decal shown here has been
placed on the weight system in the
indicated locations. If the decal is
missing or illegible, call our toll-free
Customer Hot Line at 1-800-999-3756
and order a free replacement decal.
Apply the decal in the location shown. Decal Decal

3
IMPORTANT PRECAUTIONS
1. Read all instructions in this manual and in
the accompanying literature before using the
weight system.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
4. Use the weight system only on a level sur-
face. Cover the floor beneath the weight sys-
tem to protect the floor.
5. Make sure that all parts are properly tight-
ened each time the weight system is used.
Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection.
9. The weight system is designed to support a
a maximum user weight of 300 pounds.
10. The weight system should not be used by
more than one person at a time.
11. Always stand on the foot plate when per-
forming an exercise that could cause the
weight system to tip.
12. Never release the butterfly arms, leg lever,
press arm, leg press arm, lat bar, ab strap, or
ankle strap while weights are raised. The
weights will fall with great force.
13. Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
14. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
15. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

ASSEMBLED
DIMENSIONS:
Height: 90 in.
Width: 87 in.
Depth: 77 in.
4
Leg Lever
High Pulley Station
Ab Pulley Station
Lat Bar
Backrest
Knob
Foot Plate
Right Side
Left Side
Note: The terms “right side” and “left side” are determined
relative to a person sitting on the seat; they do not correspond
to right and left on the drawings in the manual.
Butterfly Arm
Backrest
Low Pulley
Station
Curl Pad
Press Arm
Leg Press
BEFORE YOU BEGIN
Thank you for selecting the versatile GOLD’S GYM®
XR66 weight system. The weight system offers a
selection of weight stations designed to develop every
major muscle group of the body. Whether your goal is
to tone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
weight system will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
reading this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is GGSY69530. The
serial number can be found on a decal attached to the
weight system (see the front cover of this manual).

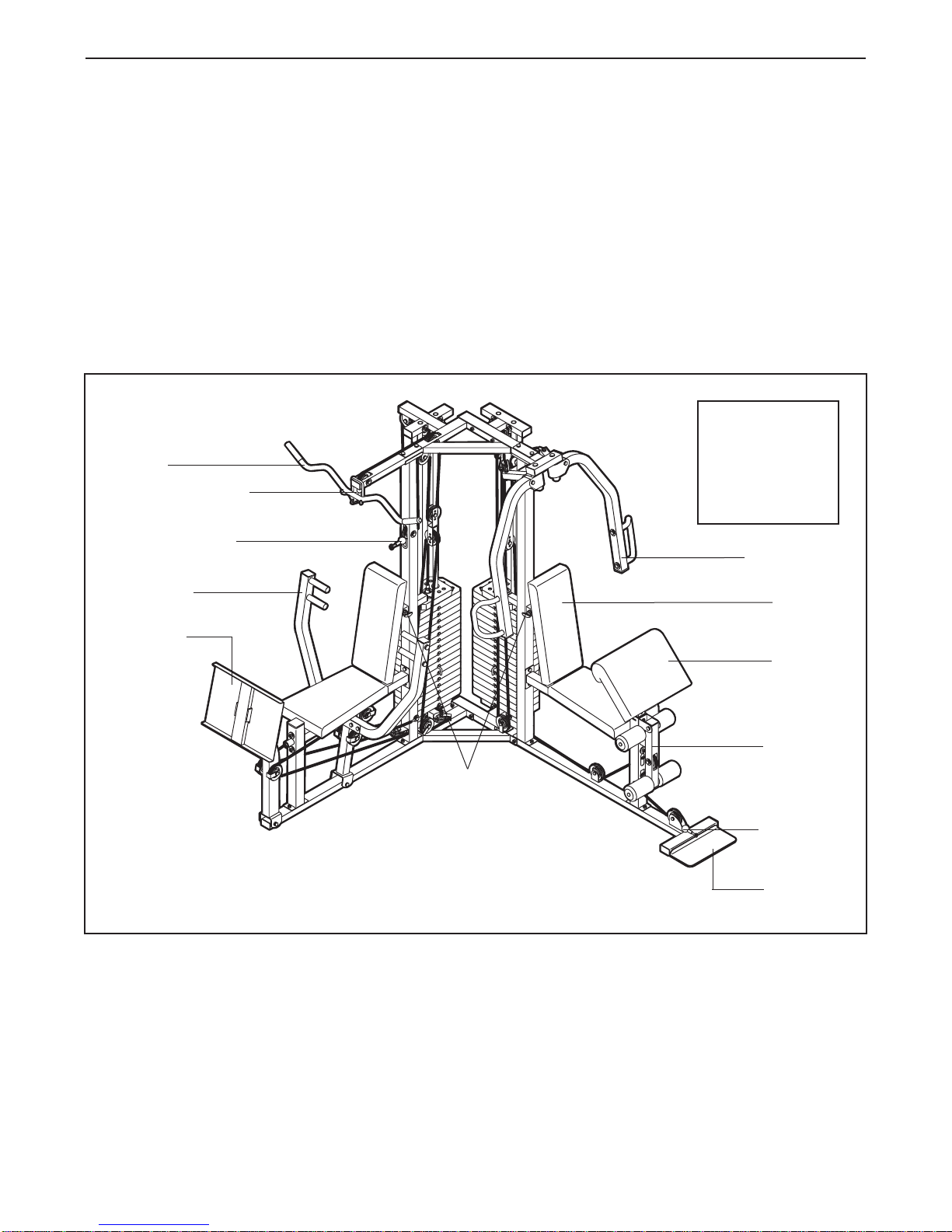

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

5
Make sure you have the following tools:
• Two adjustable wrenches
• One standard screwdriver
• One phillips screwdriver
• One rubber mallet
•You will also need grease or petroleum jelly, a
small amount of soapy water, and clear tape or
masking tape.
Note: Assembly will be more convenient if you have
a socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
How to Identify Parts
To help you identify the small parts used in assembly,
we have included a PART IDENTIFICATION CHART
in the center of this manual. Place the chart on the
floor and use it to easily identify parts during each
assembly step. Note: Some small parts may have
been pre-attached. If a part is not in the parts
bag, check to see if it has been pre-attached.
How to Orient Parts
As you assemble the weight system, make sure that
all parts are oriented exactly as shown in the draw-
ings.
Tightening Parts
Tighten all parts as you assemble them, unless
instructed to do otherwise.
Questions?
If you have questions after reading the assembly
instructions, please call our Customer Service
Department at 1-800-999-3756.
Assembly Requires Two Persons
For your convenience and safety, assemble the
weight system with the help of another person.
Set Aside Enough Time
Due to the many features of the weight system, the
assembly process will require several hours. By
setting aside plenty of time and by deciding to
make the task enjoyable, assembly will go smoothly.
You may want to assemble the weight system over
a couple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system
should be assembled in the location where it will be
used. Make sure that there is enough room to walk
around the weight system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have
divided the assembly process into four stages. The
parts needed for each stage are found in individual
bags. Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the weight system in a cleared area and
remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
Make Assembly Easier for Yourself
Everything in this manual is designed to
ensure that the weight system can be assem-
bled successfully by anyone. Before begin-
ning assembly, make sure to read the
information on this page. This brief intro-
duction will save you much more time than
it takes to read it.
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of
the weight system.
Arm Assembly—During this stage you will
assemble the arms and the leg lever.
Cable Assembly—During this stage you will
attach the cables and pulleys that connect the
arms to the weights.
Seat Assembly—During the final stage you will
assemble the seats and the backrests.
ASSEMBLY

1.
Locate and open the parts bags labeled
“FRAME ASSEMBLY 1” and “FRAME ASSEM-
BLY 2.”
Press four 40mm x 60mm Inner Caps (42) into
the Right Base (1).
Insert four M10 x 53mm Carriage Bolts (83) and
an M10 x 78mm Carriage Bolt (84) up through
the Right Base (1). Note: It may be helpful to
place tape over the heads of the Carriage
Bolts to hold them in place.
2. Press five 40mm x 60mm Inner Caps (42) into
the Left Base (2).
Insert four M10 x 53mm Carriage Bolts (83) up
through the Left Base (2). Note: It may be help-
ful to place tape over the heads of the
Carriage Bolts to hold them in place.
Before beginning assembly, make sure you
understand the information in the box on
page 5.
6

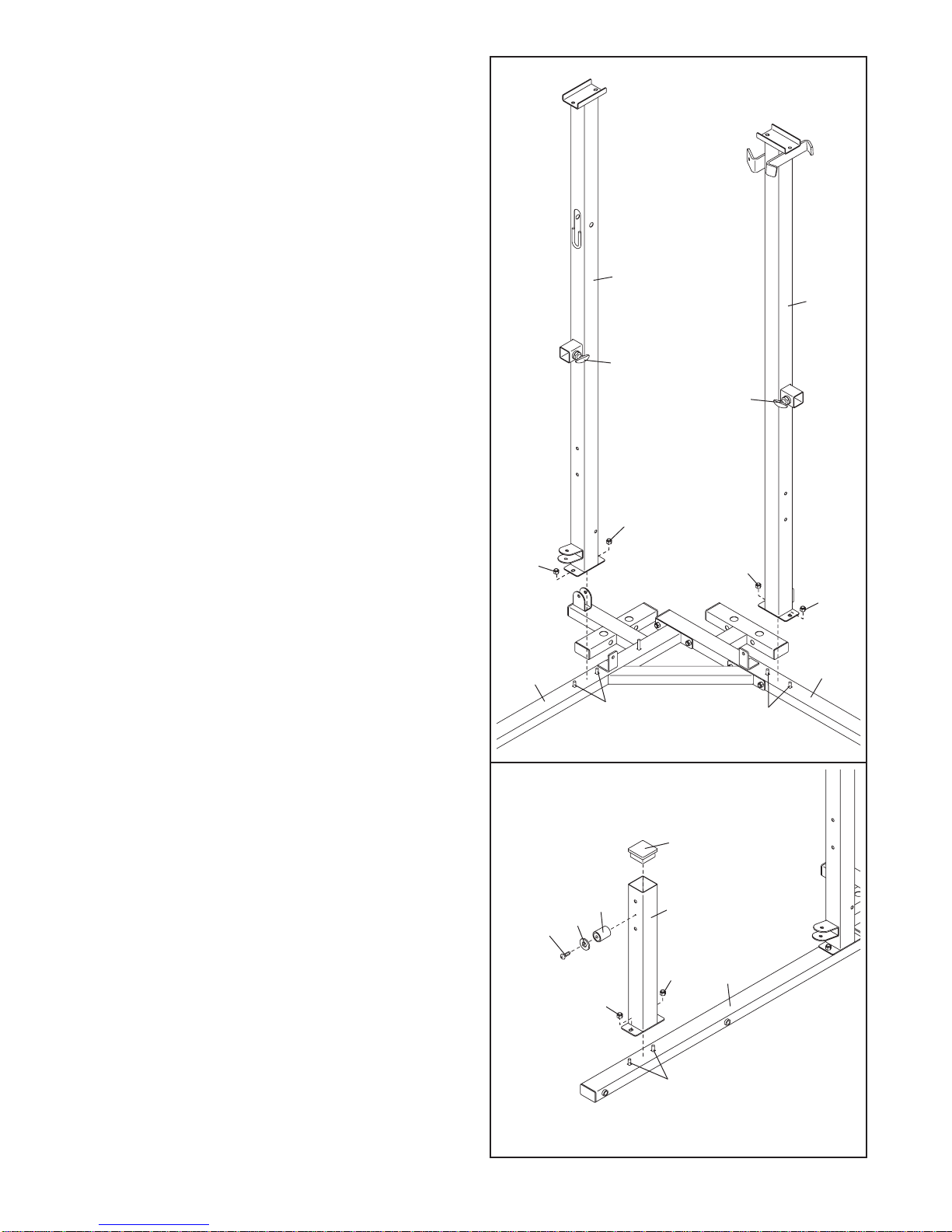

3. Attach the Right Base (1) to the Left Base (2) with
four M10 x 78mm Bolts (85), four M10 Washers
(74), and four M10 Nylon Locknuts (75). Do not
tighten the Locknuts yet.
Frame Assembly 1
2
3
42
42
42
42
184
1
83
83
75
75
2
2
1
85
74
74
2
85
85
74
42
42
42
42
83
83

7

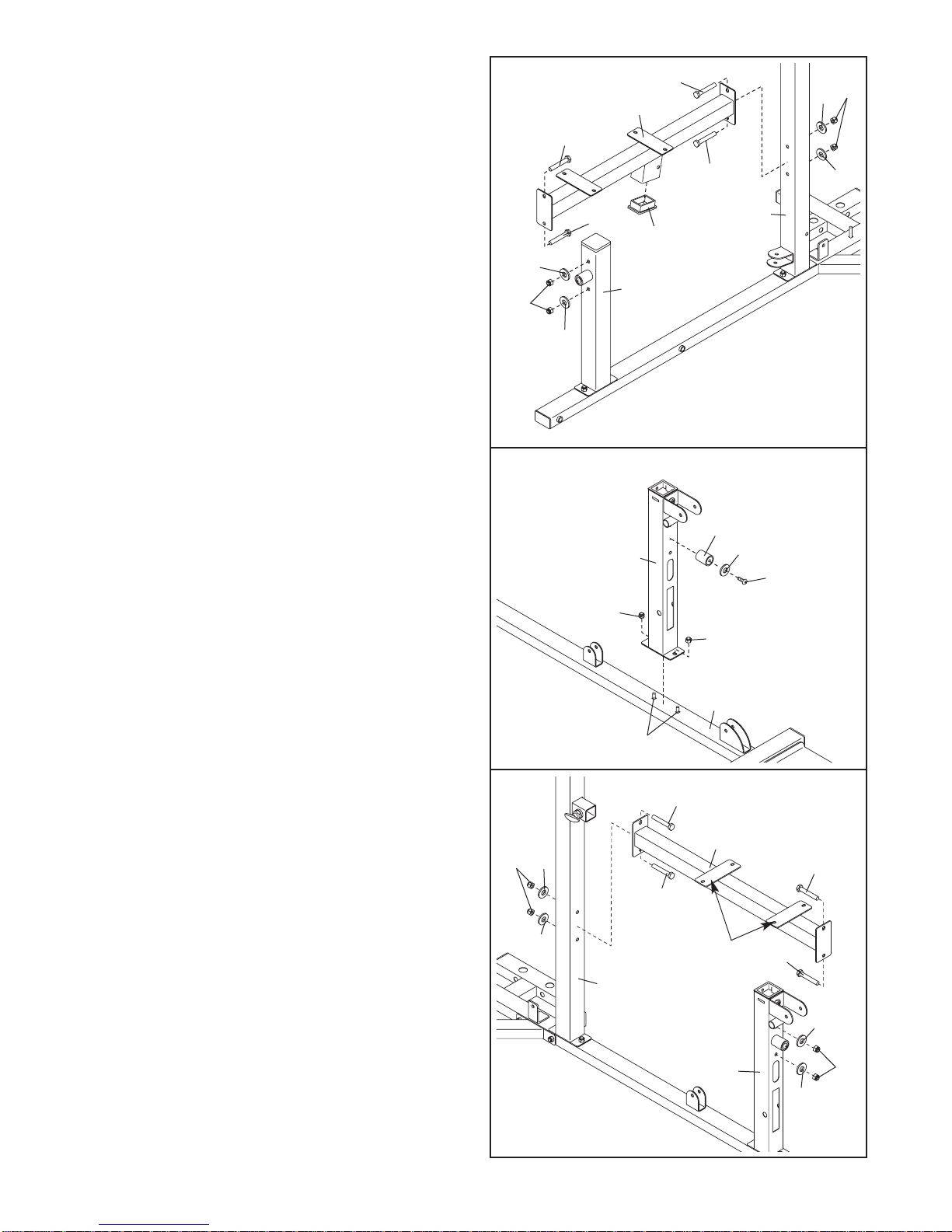

4. Attach the Right Upright (5) to the Right Base (1)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
Attach the Left Upright (6) to the Left Base (2)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
Attach two Backrest Knobs (48) to the Right and
Left Uprights (5, 6).
5. Press a 60mm Square Inner Cap (46) into the
Right Leg (7). Attach a Leg Bumper (49) to the
Right Leg with an M4 x 25mm Self-tapping Screw
(77) and an M4 Washer (93).
Attach the Right Leg (7) to the Right Base (1)
with the indicated two M10 x 53mm Carriage
Bolts (83) and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
4
5
56
75
75
1
83
75
48
48
83
83
46
77 93
1
49
75
75
75
2
7

8
6. Press a 50mm x 75mm Inner Cap (45) into the
Right Seat Frame (3).
Attach the Right Seat Frame (3) to the Right Leg
(7) with two M10 x 80mm Bolts (86), two M10
Large Washers (94), and two M10 Nylon
Locknuts (75). Do not tighten the Locknuts yet.
Attach the Right Seat Frame (3) to the Right
Upright (5) with two M10 x 80mm Bolts (86), two
M10 Large Washers (94), and two M10 Nylon
Locknuts (75). Do not tighten the Locknuts yet.
7. Attach a Leg Bumper (49) to the Left Leg (8) with
an M4 x 25mm Self-tapping Screw (77) and an
M4 Washer (93).
Attach the Left Leg (8) to the Left Base (2) with
the indicated two M10 x 53mm Carriage Bolts
(83) and two M10 Nylon Locknuts (75). Do not
tighten the Locknuts yet.
8. Orient the Left Seat Frame (4) as shown. Make
sure the brackets are closer to the Left Leg
(8). Attach the Left Seat Frame to the Left Leg
with two M10 x 80mm Bolts (86), two M10 Large
Washers (94), and two M10 Nylon Locknuts (75).
Do not tighten the Locknuts yet.
Attach the Left Seat Frame (4) to the Left Upright
(6) with two M10 x 80mm Bolts (86), two M10
Large Washers (94), and two M10 Nylon
Locknuts (75). Do not tighten the Locknuts yet.
6
7
8
4
8
86
86
86
7
3
45
86
2
49 93
77
83
75
75
75
94
94
8
75
94
94
5
75
75
94
94
94
94
86
86
Bracket 86
86
6

9

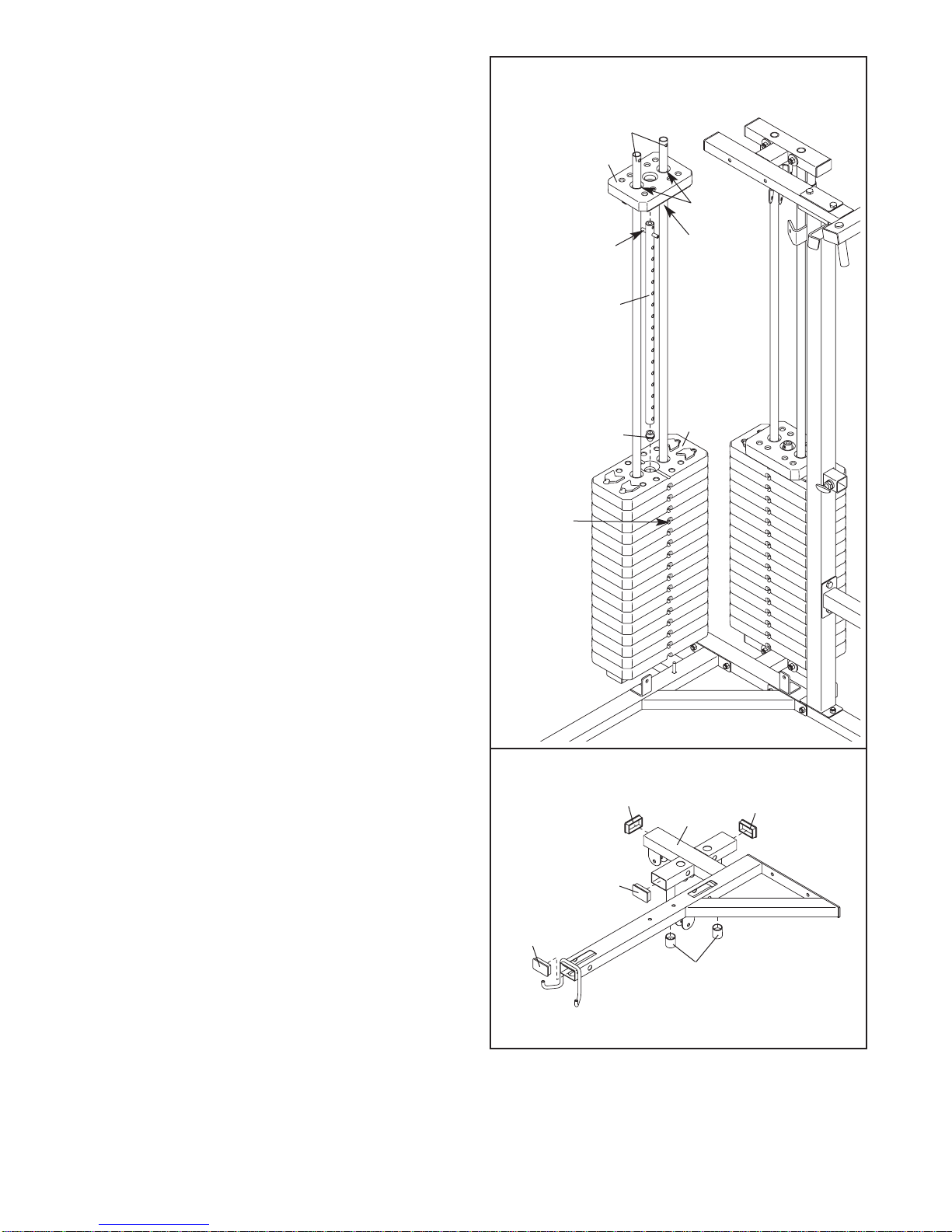

10. Slide sixteen Weights (30) onto the Weight
Guides (9). Make sure the slots for the Weight
Pin (not shown) are on the indicated side and
on the bottom of the Weights.
Press a Weight Tube Bumper (35) into a Weight
Tube (34). Insert the Weight Tube into the stack
of Weights (30) as shown.
Lubricate the indicated holes in a Top Weight (31)
with grease. Slide the Top Weight onto the Weight
Guides (9). Make sure that the groove on the
Top Weight for the Weight Tube (34) pin is on
the bottom of the Top Weight.
Lubricate
Slot
Pin
Groove Pin
9
34
31
35
30
10

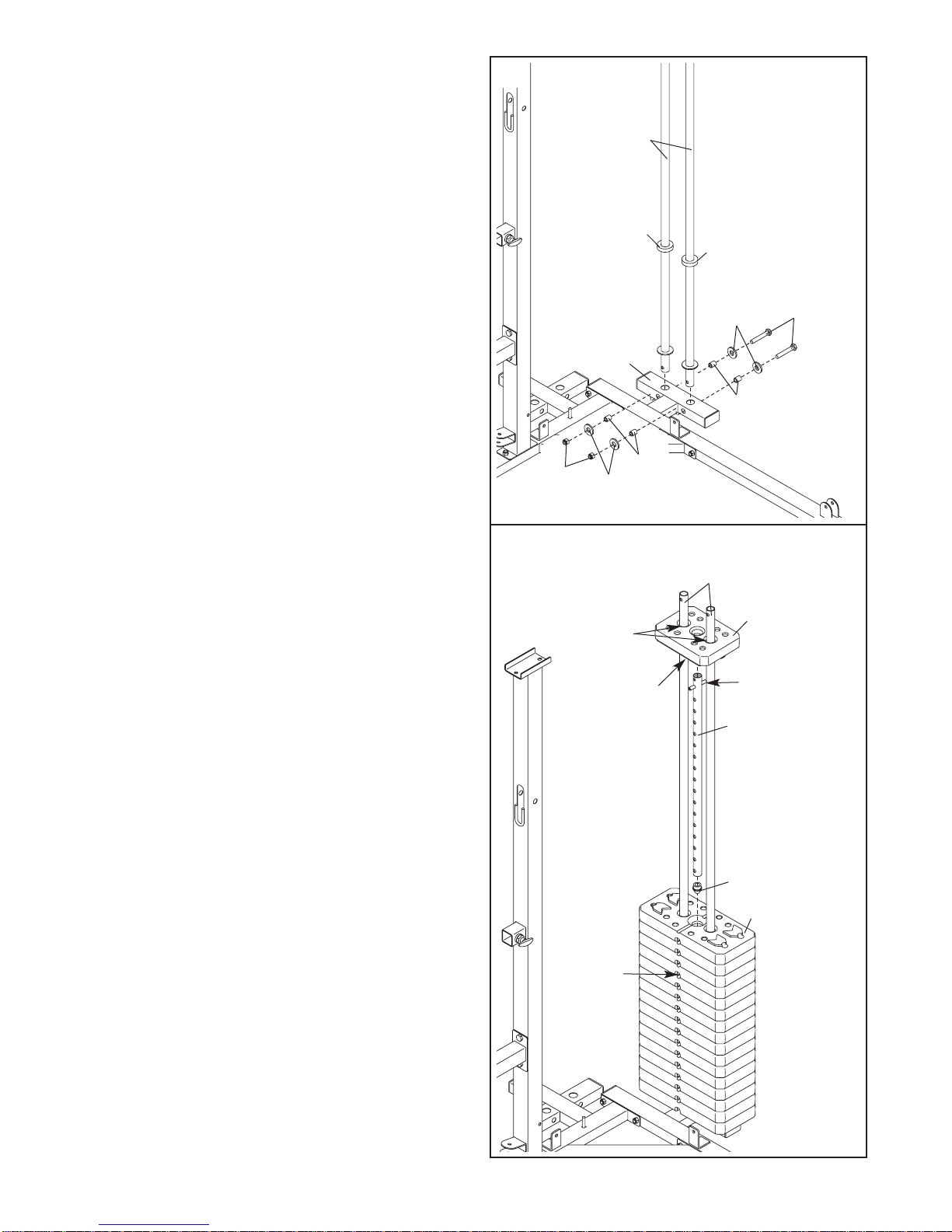

9. Slide two Weight Bumpers (50) onto two Weight
Guides (9) as shown.
Attach the Weight Guides (9) to the Left Base (2)
with two M10 x 78mm Bolts (85), four M10
Washers (74), four 17mm Spacers (58), and two
M10 Nylon Locknuts (75).
9
75
58
85
74
74 58
9
50 50
2

10
13. Slide two Weight Bumpers (50) onto the other two
Weight Guides (9).
Attach the Weight Guides (9) to the Right Base
(1) with two M10 x 78mm Bolts (85), four M10
Washers (74), four 17mm Spacers (58), and two
M10 Nylon Locknuts (75).
85 74
74 58
58
50
50
1
9
58 74 75
11.Press three 40mm x 60mm Inner Caps (42) into
the Left Top Frame (11). Press two 40mm x
60mm Thick Inner Caps (91) into the Left Top
Frame. Press two 25mm Round Outer Caps (47)
onto the Left Top Frame.
12. Attach the Left Top Frame (11) to the Weight
Guides (9) with two M10 x 78mm Bolts (85), four
M10 Washers (74), four 17mm Spacers (58), and
two M10 Nylon Locknuts (75). Do not tighten the
Locknuts yet.
Attach the Left Top Frame (11) to the Left Upright
(6) with two M10 x 60mm Bolts (82), a Support
Plate (29), and two M10 Nylon Locknuts (75). Do
not tighten the Locknuts yet.
11
12
13
6
91
91
11
29
75
75
75
9
47
11
42
42
82
85
74
74
58
58

11
14. Slide sixteen Weights (30) onto the Weight
Guides (9). Make sure the slots for the Weight
Pin (not shown) are on the indicated side and
on the bottom of the Weights.
Press a Weight Tube Bumper (35) into a Weight
Tube (34). Insert the Weight Tube into the stack
of Weights (30) as shown.
Lubricate the indicated holes in a Top Weight (31)
with grease. Slide the Top Weight onto the Weight
Guides (9). Make sure that the groove on the
Top Weight for the Weight Tube (34) pin is on
the bottom of the Top Weight.
15. Press four 40mm x 60mm Inner Caps (42) into
the Right Top Frame (10). Press two 25mm
Round Outer Caps (47) onto the Right Top
Frame.
14
15
47
42
42
42
10
42
Lubricate
Slot
Pin
Groove
Pin
9
34
35
31
30

12
16. Attach the Right Top Frame (10) to the Weight
Guides (9) with two M10 x 78mm Bolts (85), four
M10 Washers (74), four 17mm Spacers (58), and
two M10 Nylon Locknuts (75). Do not tighten the
Locknuts yet.
Attach the Right Top Frame (10) to the Right
Upright (5) with two M10 x 60mm Bolts (82), a
Support Plate (29), and two M10 Nylon Locknuts
(75). Do not tighten the Locknuts yet.
18. Open the part bag labeled “ARM ASSEMBLY.”
Press a 50mm x 75mm Inner Cap (45) into the
Leg Press Arm (12).
Lubricate an M12 x 102mm Bolt (81) with grease.
Attach the Leg Press Arm (12) to the Right Base
(1) with the Bolt and an M12 Nylon Locknut (95).
Do not overtighten the Locknut; the Leg Press
Arm must be able to pivot easily.
19. Lubricate an M12 x 104mm Bolt (67) with grease.
Attach the Leg Press Plate (13) to the Leg Press
Arm (12) with the Bolt and an M12 Nylon Locknut
(95). Make sure the bar is closer to the
ground. Do not overtighten the Locknut; the
Leg Press Plate must be able to pivot easily.
17. Attach the Right Top Frame (10) to the Left Top
Frame (11) with two M10 x 80mm Bolts (86), two
M10 Washers (74), and two M10 Nylon Locknuts
(75).
Tighten the M10 Nylon Locknuts (75) used in
steps 3–17.
16 85
58
58
58
58
10
9
5
75
75
74
82
29
74
74
74
75
75
17
18
10
75
11
86
74
74
45
81
Lubricate
95
12
1
Arm Assembly
67
13
Lubricate
Bar
95
12
19

13

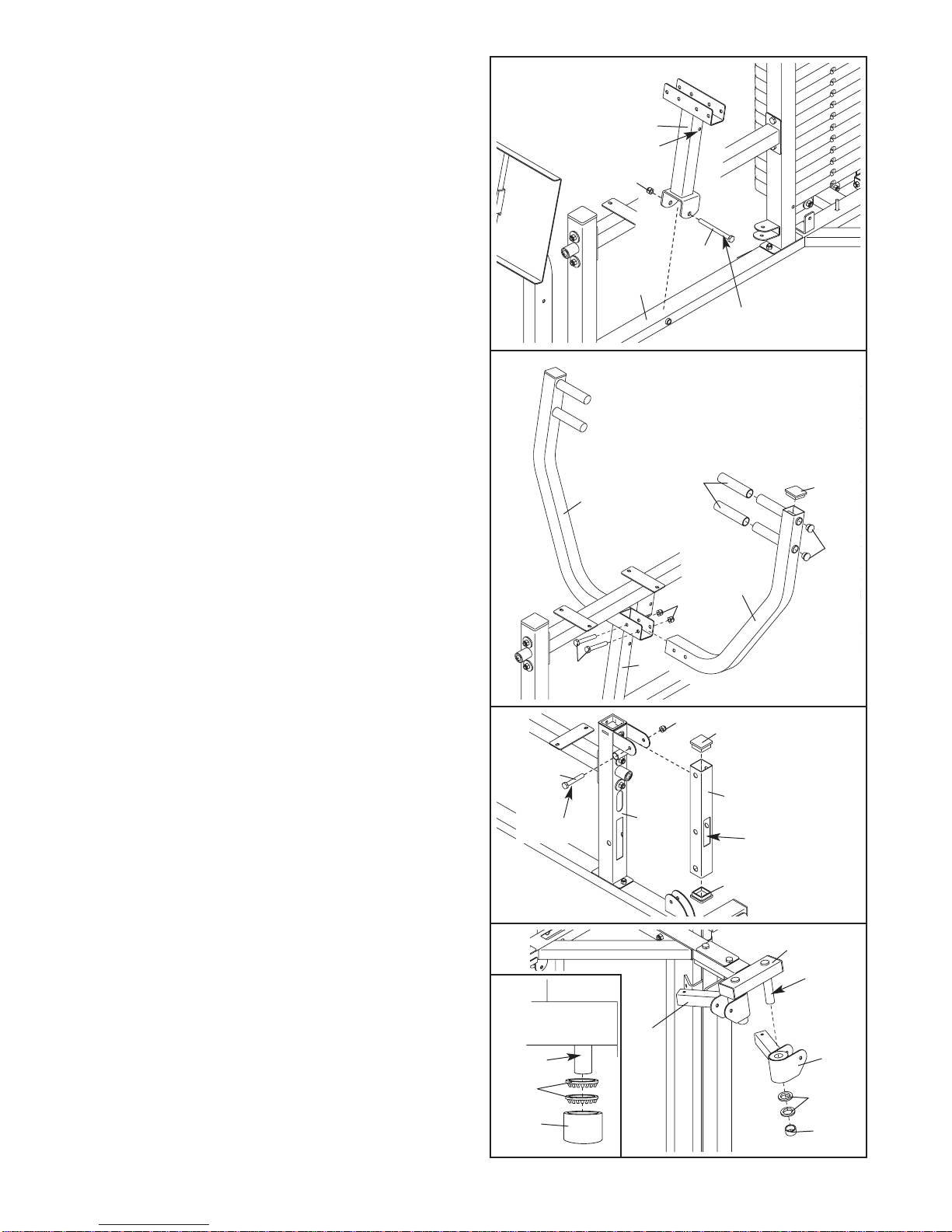

20. Lubricate an M12 x 102mm Bolt (81) with grease.
Attach the Press Frame (14) to the Right Base (1)
with the Bolt and an M12 Locknut (95). Make
sure the hole is closer to the indicated side of
the Press Frame. Do not overtighten the
Locknut; the Press Frame must be able to
pivot easily.
22. Press two 50mm Square Inner Caps (43) into the
Leg Lever (18).
Lubricate an M10 x 78mm Bolt (85) with grease.
Orient the Leg Lever (18) as shown and attach it
to the Left Leg (8) with the Bolt and an M10
Nylon Locknut (75). Do not overtighten the
Locknut; the Leg Lever must be able to pivot
easily.
23. Lubricate both axles on the Left Top Frame (11)
with grease.
Slide the Left Fly Pivot (21) onto the indicated
axle on the Left Top Frame (11). Set two 25mm
Retainer Rings (53) on a 25mm Round Outer Cap
(47). Make sure the teeth on the Rings are
toward the Cap, as shown in the inset draw-
ing. Tap the Retainer Rings and Outer Cap onto
the axle. Repeat with the Right Fly Pivot (22).
21. Press a 50mm Square Inner Cap (43) into a
Press Arm (15). Press two 25mm Round Inner
Caps (65) into the Press Arm.
Wet the handles on the Press Arm (15) with
soapy water. Slide two Grips (68) onto the han-
dles.
Attach the Press Arm (15) to the Press Frame
(14) with two M10 x 70mm Bolts (87) and two
M10 Nylon Locknuts (75).
Attach the other Press Arm (15) to the Press
Frame (14) in the same manner.
20
21
22
23
95
43
15
14
Lubricate
Hole
1
65
85 18
75 43
43
8
47
11
Lubricate Small
Slot
21
53
75 15
14
87
68
Axle
81
22
53
47
Axle

14

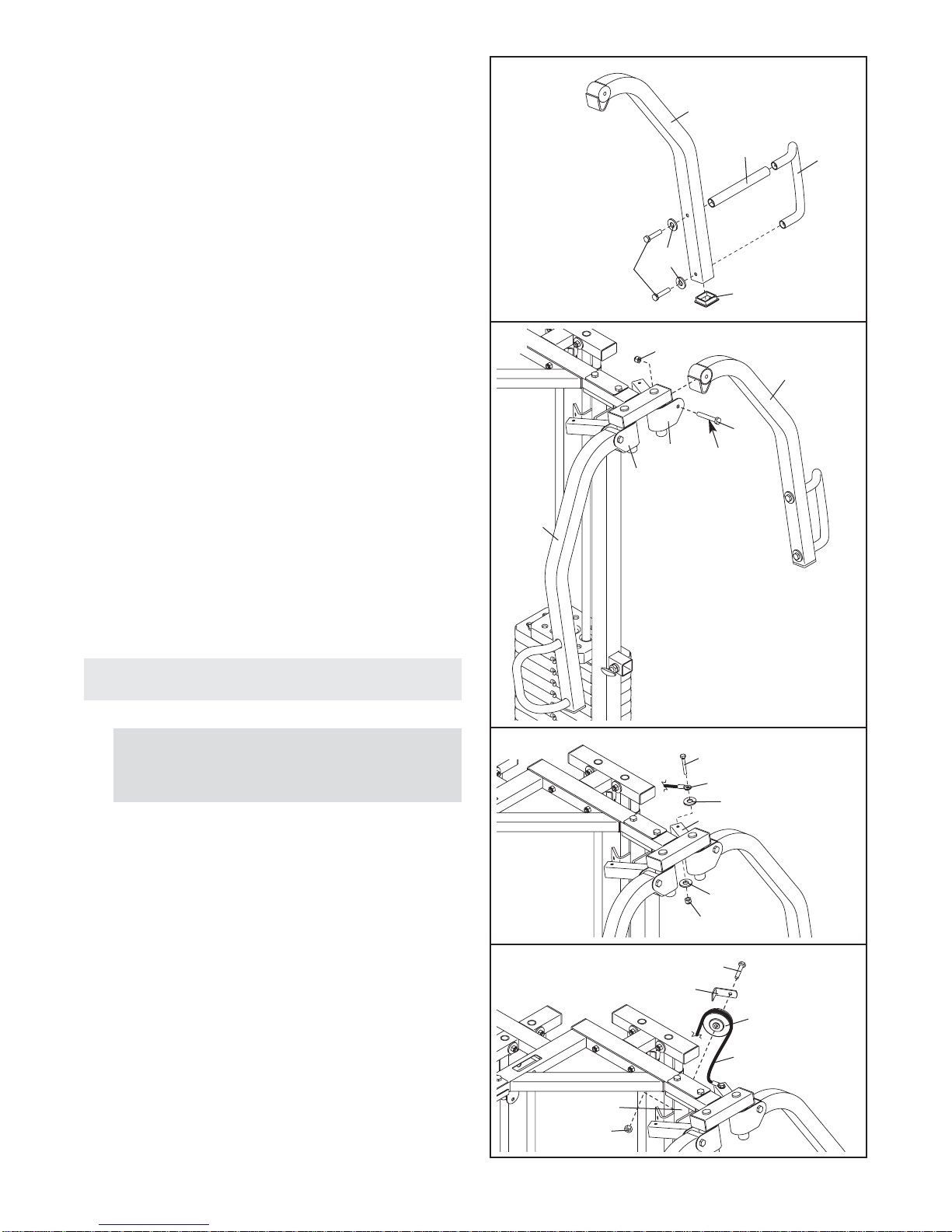

24. Press a 50mm Square Inner Cap (43) into a
Butterfly Arm (20).
Wet a Fly Handle (66) and the inside of a Long
Foam Pad (97) with soapy water. Slide the Foam
Pad onto the Handle.
Attach a Fly Handle (66) to the Butterfly Arm (20)
with two M10 x 25mm Button Screws (60) and
two M10 Washers (74).
Repeat this step with the other Butterfly Arm
(not shown). Make sure that the Fly Handle is
oriented as shown in step 25.
25. Lubricate an M10 x 80mm Bolt (86) with grease.
Attach the left Butterfly Arm (20) to the Left Fly
Pivot (21) with the Bolt and an M10 Nylon
Locknut (75).
Attach the right Butterfly Arm (20) to the Right
Fly Pivot (22) in the same manner.
26.
Locate the Butterfly Cable (64). Attach the
Cable to the Left Fly Pivot (21) with an M8 x
58mm Shoulder Bolt (89), two M8 Washers (90),
and an M8 Nylon Locknut (54).
27. Wrap the Butterfly Cable (64) over a “V”-pulley
(40). Attach the “V”-pulley and a Large Cable Trap
(39) to the bracket on the Left Upright (6) with an
M10 x 60mm Bolt (82) and an M10 Nylon Locknut
(75). Make sure that the Cable Trap is turned to
hold the Cable in the groove of the “V”-pulley.
25
26
27
Cable Assembly
IMPORTANT: Refer to the CABLE DIAGRAMS
on pages 27 and 28 for help identifying the
cables.
20
66
97
60
Lubricate
21
22
20
20
54
89
64
82
40
39
64
756
90
21
90
86
75
74
43
24

15
28. Wrap the Butterfly Cable (64) under a 90mm
Pulley (38). Attach the Pulley and a Cable Trap
(37) between the second set of holes from the top
of the two Pulley Plates (36) with an M10 x 48mm
Bolt (23) and an M10 Nylon Locknut (75). Make
sure that the Cable Trap is turned to hold the
Cable in the groove of the Pulley.
30. Attach the Butterfly Cable (64) to the Right Fly
Pivot (22) with an M8 x 58mm Shoulder Bolt (89),
two M8 Washers (90), and an M8 Nylon Locknut
(54).
31. Locate the Low Cable (63). Route the Cable
under a 90mm Pulley (38). Attach the Pulley
inside the bracket on the Left Base (2) with an
M10 x 45mm Bolt (78) and an M10 Nylon Locknut
(75).
29. Wrap the Butterfly Cable (64) over a “V”-pulley
(40). Attach the “V”-pulley and a Large Cable Trap
(39) to the bracket on the Left Upright (6) with an
M10 x 60mm Bolt (82) and an M10 Nylon Locknut
(75). Make sure that the Cable Trap is turned to
hold the Cable in the groove of the “V”-pulley.
28
29
30
31
38
37
82
75
64
90
54 22
6
39 40
64
89
38
2
75
78
63
64
23
36
36
75

32. Wrap the Low Cable (63) around a 90mm Pulley
(38). Attach the Pulley inside the Left Leg (8) with
an M10 x 78mm Bolt (85), two M10 Washers
(74), two 17mm spacers (58), and an M10 Nylon
Locknut (75).
33. Route the Low Cable (63) through the Leg Lever
(18), around a 90mm Pulley (38), and back
through the Leg Lever and Left Leg (8). Attach the
Pulley inside the Leg Lever with an M10 x 67mm
Bolt (92), two M10 Washers (74), two 12mm
Spacers (57), and an M10 Nylon Locknut (75).
32
33
38
57
57 75
74
38
63
18
8
858
58 63
85
75
74
74
16

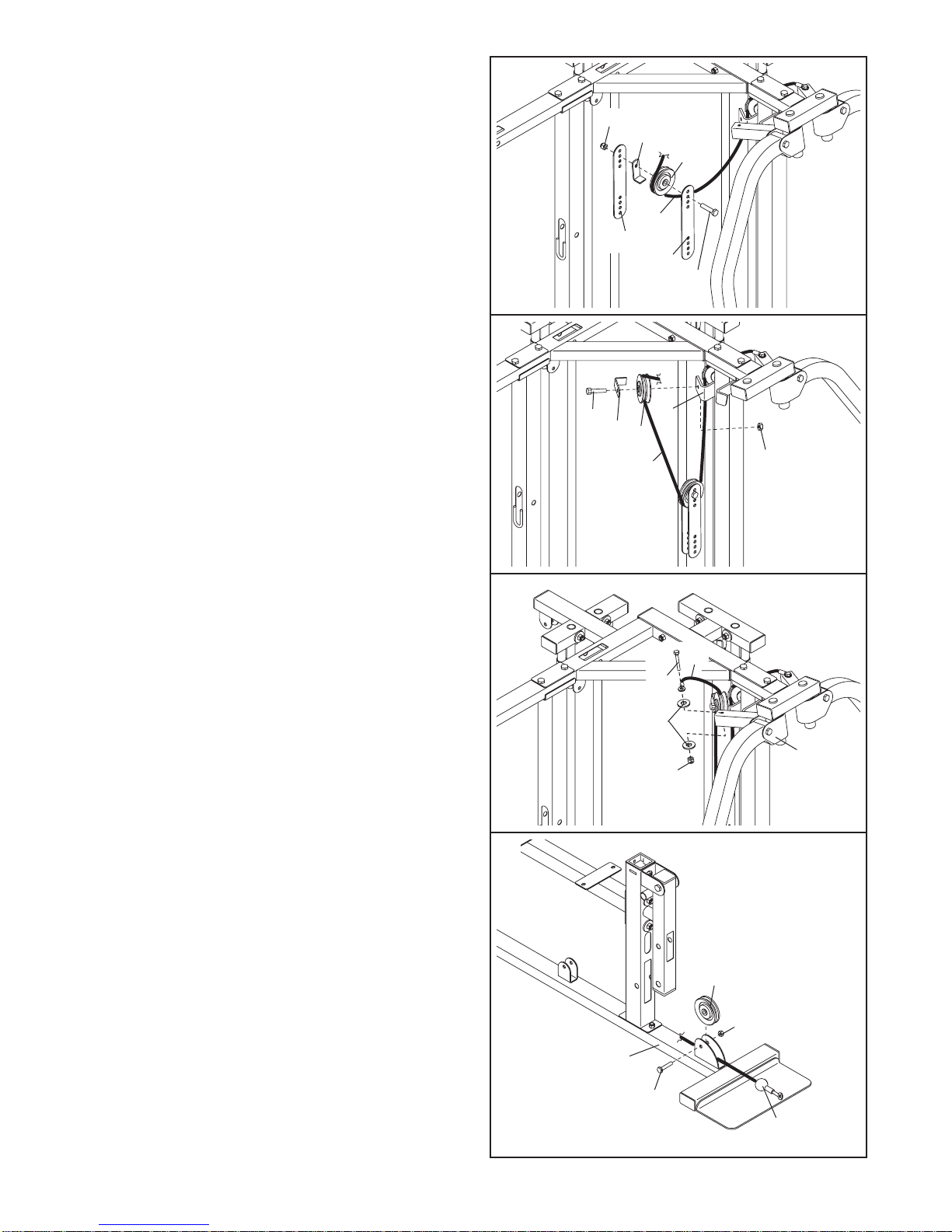

34. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley to the Left Base (2) with an
M10 x 45mm Bolt (78) and an M10 Nylon Locknut
(75).
35. Wrap the Low Cable (63) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the indicated bracket on the Left Upright (6) with
an M10 x 48mm Bolt (23) and an M10 Nylon
Locknut (75). Make sure the Cable Trap is ori-
ented to hold the Cable in the groove of the
Pulley.
34
35
75
2
38 63
23 663
38 37
75
78
92 74

17

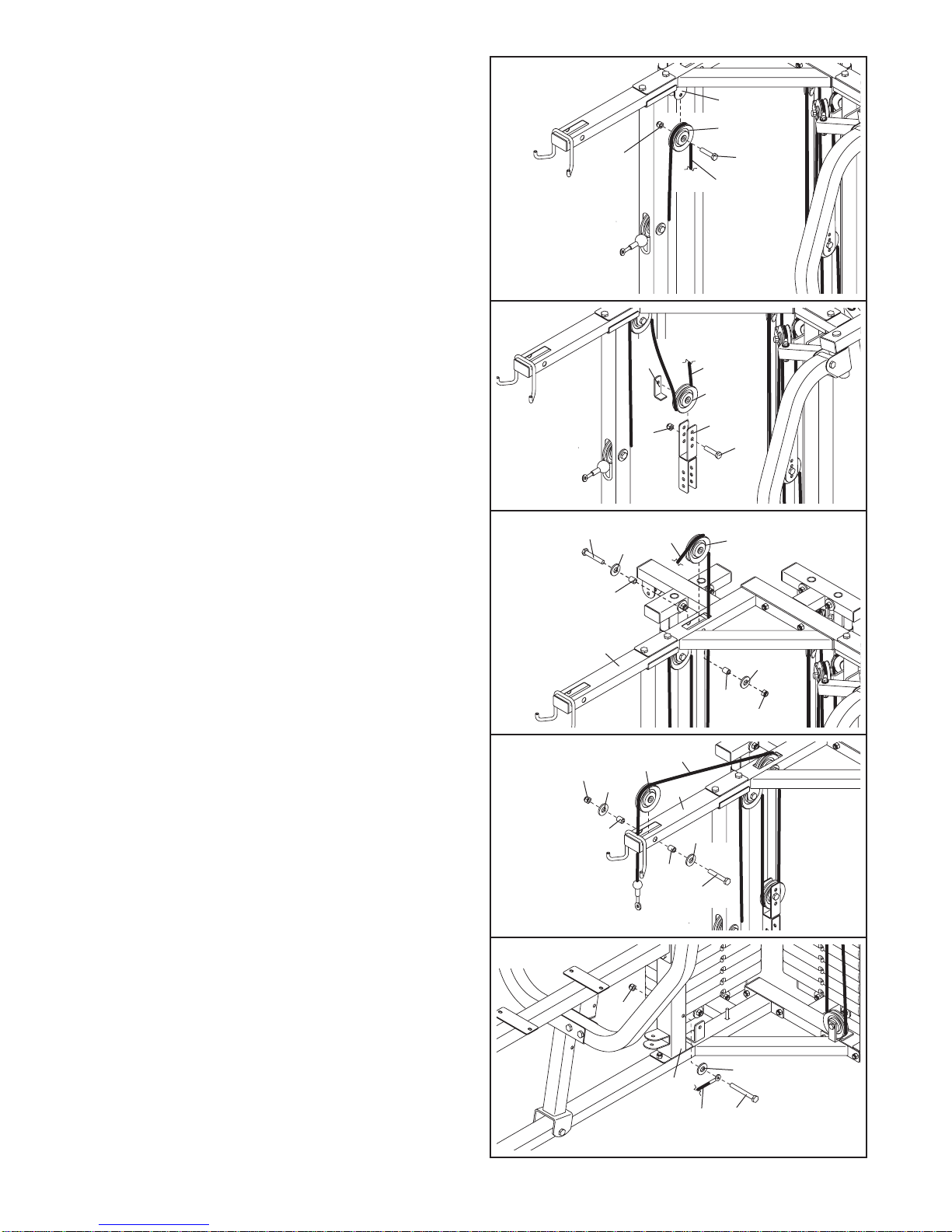

36. Wrap the Low Cable (63) over a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37)
between the second set of holes from the bottom
of the two Pulley Plates (36) with an M10 x 48mm
Bolt (23) and an M10 Nylon Locknut (75). Make
sure that the Cable Trap is turned to hold the
Cable in the groove of the Pulley.
38.Wrap the Low Cable (63) over a 90mm Pulley
(38). Attach the Pulley to the bracket (bracket 1)
on the Left Top Frame (11) with an M10 x 45mm
Bolt (78) and an M10 Nylon Locknut (75).
Wrap the Low Cable (63) over another 90mm
Pulley (38). Attach the Pulley to the other bracket
on the Left Top Frame (11) with an M10 x 45mm
Bolt (78) and an M10 Nylon Locknut (75).
39. Thread an M12 Nut (80) onto the Low Cable (63)
as far as it will go. Slide a 50mm Washer (59)
onto the Cable and thread the Cable into the left
Weight Tube (34) until the Cable is tight. Tighten
the Nut against the Washer. Do not overtighten
the Cable into the Weight Tube or the Top
Weight (31) will be lifted off the weight stack.
40. Locate the High Cable (61). Route the small ball
on the Cable (61) through the Right Upright (5)
and under a 90mm Pulley (38). Make sure the
Cable is over the welded bar inside the
Upright. Attach the Pulley inside the Upright with
an M10 x 78mm Bolt (85), two M10 Washers
(74), two 17mm Spacer (58), and an M10 Nylon
Locknut (75).
37. Wrap the Low Cable (63) under a 90mm Pulley
(78). Attach the Pulley and a Cable Trap (37) to
the Left Base (2) with an M10 x 48mm Bolt (23)
and an M10 Nylon Locknut (75). Make sure that
the Cable Trap is turned to hold the Cable in
place.
36
37
38
39
40
34
31 59
80
63
75
37
23
38
63
75
38
63
37
23
2
63
38 38
78
Bracket 1
11
75
75
36
58
58
38
5
75
74
61
Large
Ball 74 85

18
41. Wrap the High Cable (61) over a 90mm Pulley
(38). Attach the Pulley to the Right Top Frame
(10) with an M10 x 45mm Bolt (78) and an M10
Nylon Locknut (75).
43. Route the High Cable (61) up through the Right
Top Frame (10) and over a 90mm Pulley (38).
Attach the Pulley inside the Top Frame with an
M10 x 78mm Bolt (85), two M10 Washers (74),
two 17mm Spacers (58), and an M10 Nylon
Locknut (75).
44. Route the High Cable (61) over a 90mm Pulley
(38) and down through the Right Top Frame (10).
Attach the Pulley inside the Top Frame with an
M10 x 78mm Bolt (85), two M10 Washers (74),
two 17mm Spacers (58), and an M10 Nylon
Locknut (75).
45. Locate the Long Cable (62). Attach the eyelet
on the Cable to the Right Upright (5) with an M10
x 110mm Bolt (88), an M10 Small Washer (33),
and an M10 Nylon Locknut (75). Do not tighten
the Locknut yet.
42. Wrap the High Cable (61) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the second set of holes from the top of the
Double “U”-bracket (41) with an M10 x 48mm Bolt
(23) and an M10 Nylon Locknut (75). Make sure
the Cable Trap is turned to hold the Cable in
the groove of the Pulley.
41
42
43
44
45
75
38
10
78
61
37
41 23
74
74
75
38
58
58
75
85
61
38
38 61
10
10
61
75
88
74
74
58
58 85
33
5
62
75

19
46. Wrap the Long Cable (62) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Press Frame (14) with an M10 x 119mm Bolt
(76) and an M10 Nylon Locknut (75). Make sure
that the Cable Trap is turned to hold the Cable
in place. Do not tighten the Locknut yet.
48. Wrap the Long Cable (62) over a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Leg Press Arm (12) with an M10 x 123mm
Bolt (98), an M10 Large Washer (94), and an
M10 Nylon Locknut (75). Make sure that the
Cable Trap is turned to hold the Cable in
place. Do not tighten the Locknut yet.
49. Wrap the Long Cable (62) around a 90mm Pulley
(38). Attach the Pulley to the Right Upright (5)
with an M10 x 45mm Bolt (78) and an M10 Nylon
Locknut (75). Make sure that the Cable Trap is
turned to hold the Cable in place.
50. Remove the M10 Nylon Locknut (75) used in step
48.
Wrap the Long Cable (62) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Leg Press Arm (12) with the M10 x 123mm
Bolt (98) used in step 48, an M10 Large Washer
(94), and the M10 Nylon Locknut (75). Make sure
that the Cable Trap is turned to hold the Cable
in place.
47. Wrap the Long Cable (62) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Right Seat Frame (3) with an M10 x 119mm
Bolt (76) and an M10 Nylon Locknut (75). Make
sure that the Cable Trap is turned to hold the
Cable in place. Do not tighten the Locknut yet.
46
47
48
49
50
14
75
5
37
12
75
38
62
75
75
75
38 37
37
76
75 3
38
62
98
62
12
38
37
94
78
76
62
78
38 62 98
94

52
20
51. Remove the M10 Nylon Locknut (75) used in step
47.
Wrap the Long Cable (62) over a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Right Seat Frame (3) with the M10 x 119mm
Bolt (76) used in step 47 and the M10 Nylon
Locknut (75). Make sure that the Cable Trap is
turned to hold the Cable in place.
53. Remove the M10 Nylon Locknut (75) used in step
45.
Wrap the Long Cable (62) under a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Right Upright (5) with the M10 x 110mm Bolt
(88) used in step 45, an M10 Washer (74), and
the M10 Nylon Locknut (75). Make sure that the
Cable Trap is turned to hold the Cable in
place.
54. Wrap the Long Cable (62) over a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the second set of holes from the bottom of the
Double “U”-bracket (41) with an M10 x 48mm Bolt
(23) and an M10 Nylon Locknut (75). Make sure
the Cable Trap is turned to hold the Cable in
the groove of the Pulley.
55. Wrap the Long Cable (62) under a 90mm Pulley
(78). Attach the Pulley and a Cable Trap (37) to
the Right Base (1) with an M10 x 48mm Bolt (23)
and an M10 Nylon Locknut (75). Make sure that
the Cable Trap is turned to hold the Cable in
place.
52. Remove the M10 Nylon Locknut (75) used in step
46.
Wrap the Long Cable (62) over a 90mm Pulley
(38). Attach the Pulley and a Cable Trap (37) to
the Press Frame (14) with the M10 x 119mm Bolt
(76) used in step 46, and the M10 Nylon Locknut
(75). Make sure that the Cable Trap is turned
to hold the Cable in place.
51
53
54
55
75 37
62
3
38 76
75
37
62
38
14
75
74
3738
88
5
62
23 41
38
37 62
76
75
23
37
62
38
75
1
