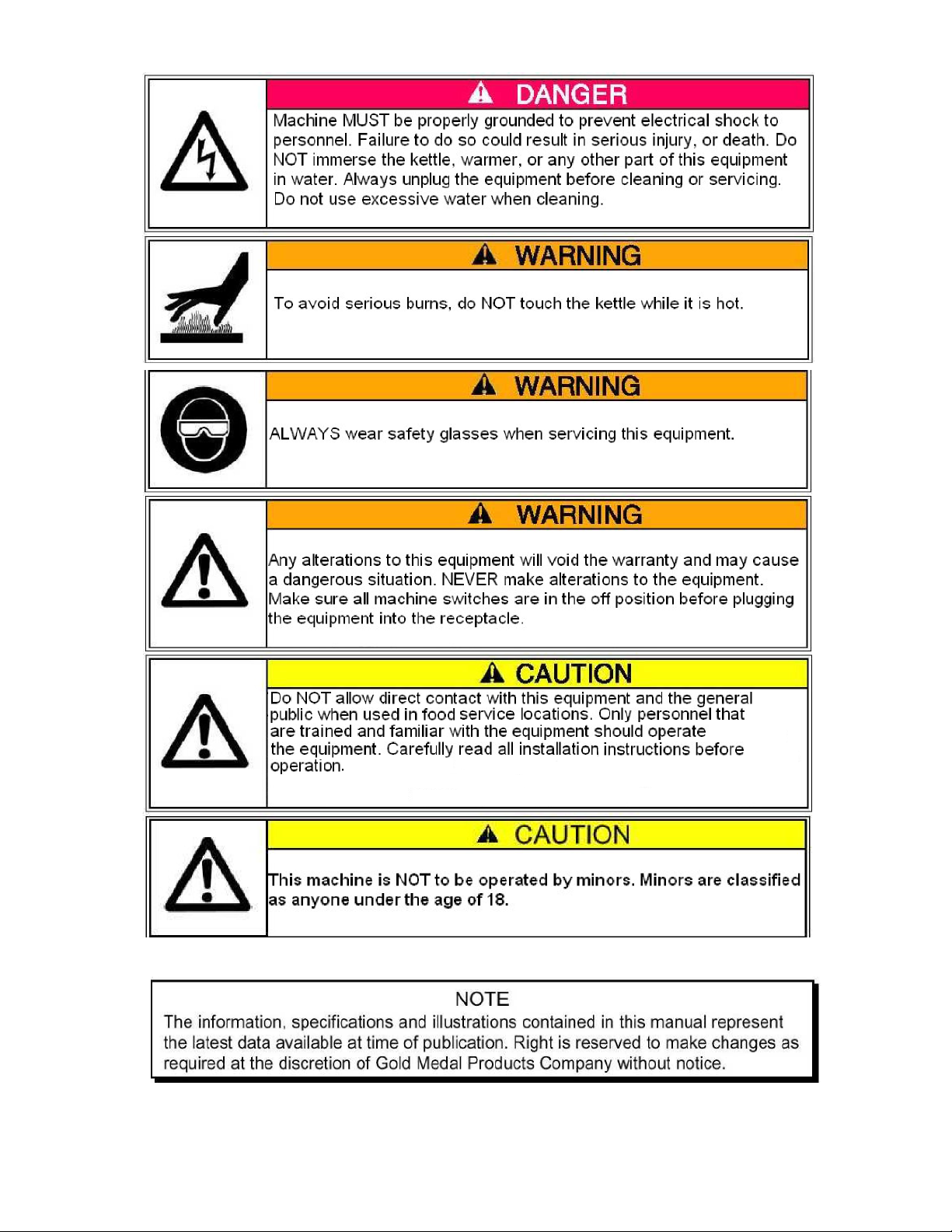

SAFETY PRECAUTIONS

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
3
TABLE OF CONTENTS
Section…………………………………………………….……...PG
Corn Treat……………………………………………………………………..10
Pralinator………………………………………………………………………15
Combo Kandy King…………………………………………………………...19

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
4
Digital Corn Treat, Pralinator, and Combo Kandy King
RH Corn Treat Model Shown – from Operator Side
Digital
Model
Description Power Requirements Plug
2174EL LH Corn Treat 120V-1908 watts 20 amp (NEMA 5-20P)
2174ER RH Corn Treat 120V-1908 watts 20 amp (NEMA 5-20P)
2175EL LH Corn Treat 120/208v or 120/240v – 3380watts 20 amp 4 wire (L14-20P)
2175ER RH Corn Treat 120/208v or 120/240v - 3380watts 20 amp 4 wire (L14-20P)
2180EL LH Pralinator 120V-1908 watts 20 amp (NEMA 5-20P)
2180ER RH Pralinator 120V-1908 watts 20 amp (NEMA 5-20P)
2181EL LH Pralinator 120/208v or 120/240v - 3380watts 20 amp 4 wire (L14-20P)
2181ER RH Pralinator 120/208v or 120/240v - 3380watts 20 amp 4 wire (L14-20P)
2183EL LH Combo Kandy King 120V-1908 watts 20 amp (NEMA 5-20P)
2183ER RH Combo Kandy King 120V-1908 watts 20 amp (NEMA 5-20P)
2182EL LH Combo Kandy King 120/208v or 120/240v - 3380watts 20 amp 4 wire (L14-20P)
2182ER RH Combo Kandy King 120/208v or 120/240v - 3380watts 20 amp 4 wire (L14-20P)
2175XEL LH Corn Treat 230v - 3380watts 3 conductor Schuko
2175XER RH Corn Treat 230v – 3380watts 3 conductor Schuko
2181XEL LH Pralinator 230v - 3380watts 3 conductor Schuko
2181XER RH Pralinator 230v - 3380watts 3 conductor Schuko
2182XL LH Combo Kandy King 230v - 3380watts 3 conductor Schuko
2182XR RH Combo Kandy King 230v - 3380watts 3 conductor Schuko
Features:
• Digital Display Temperature Control
• Combo Kandy King models include Drums and Paddles for Nuts and Caramel Corn

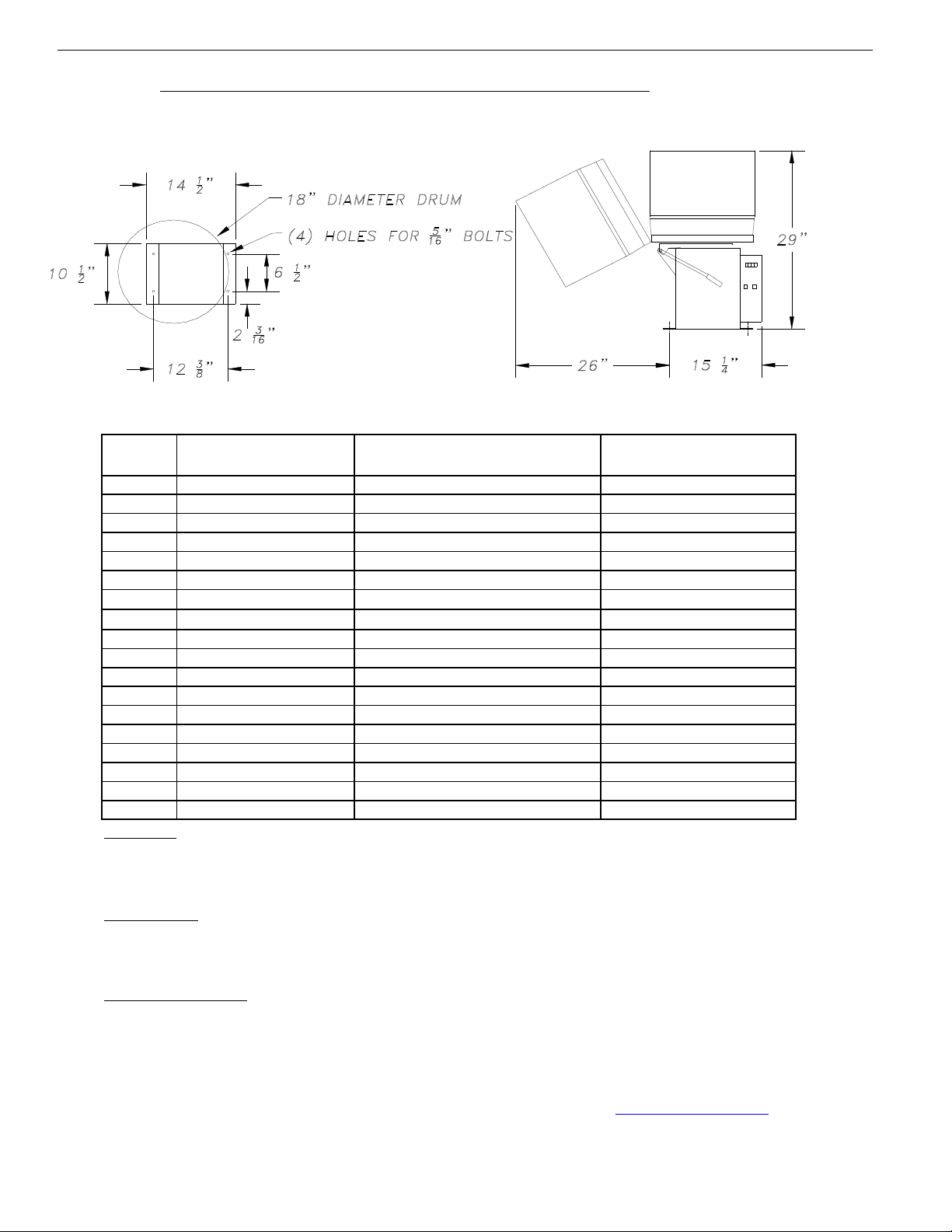

Dimensions:
Dimensions shown above are for the Corn Treat (caramel corn) Mode
For Pralinators, the height from the base is 8” shorter or 23”.
Agency Approvals: U.L., NSF
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Phone: [phone] fax: [phone] e-mail: www.gmpopcorn.com
11/02

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
5
FORWARD
This manual covers the Digital Corn Treat, Pralinator, and Combo Kandy King (both floor models and units)
with the stationary 2174EL/ER, 2175EL,ER, 2180EL/ER, 2181EL/ER, 2183EL/ER, 2182EL/ER. You can be
very proud of your product. In addition to being an attractive "eye catcher", it contains various engineering
innovations which make it the leader in the industry. The exterior of the machine is designed and built-up to
present an attractive appearance for many years.
INSTALLATION
CHECKING SHIPMENT
Unpack the shipping crate and check thoroughly for any damage which may have occurred in
transit. Any claims should be filed immediately with the transportation company.

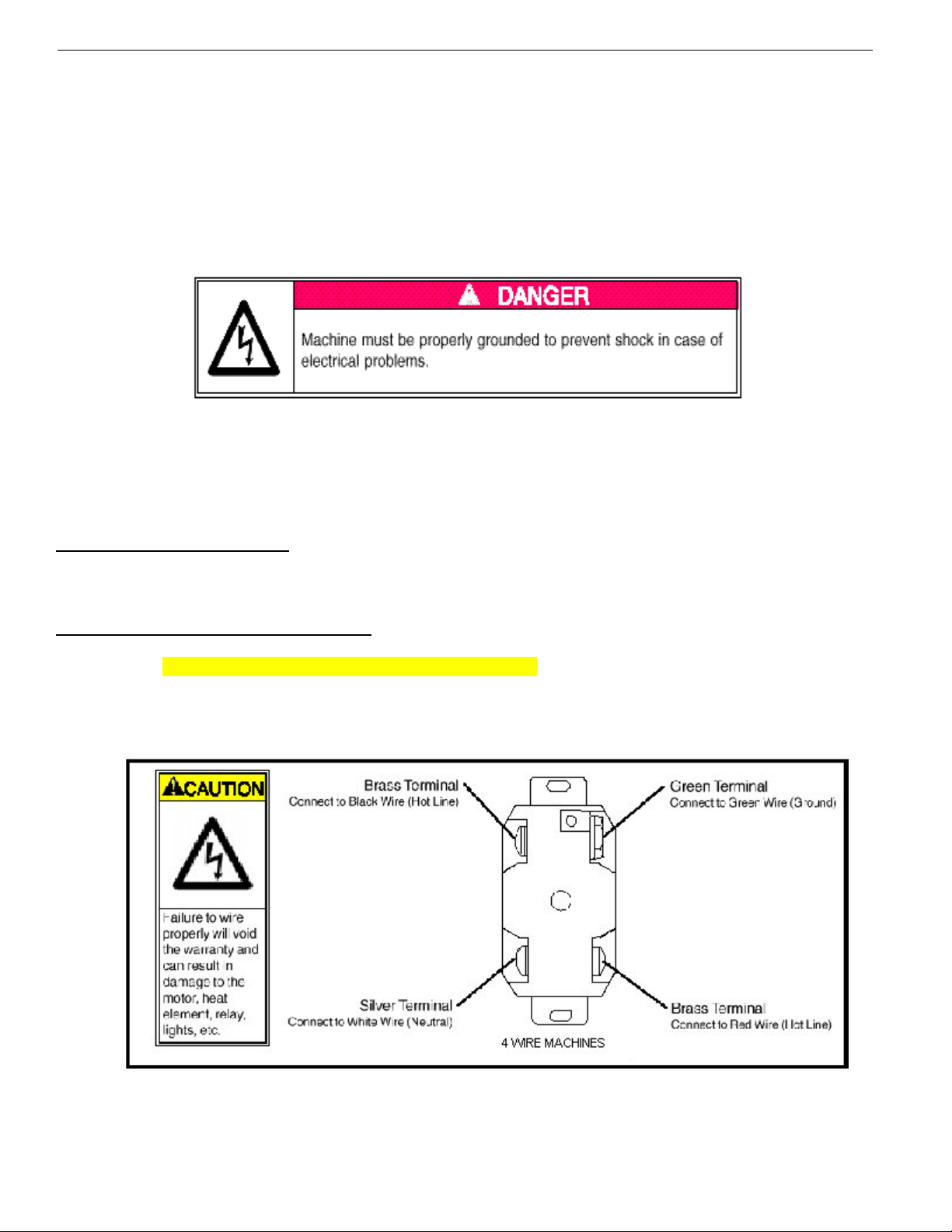

ELECTRICAL REQUIREMENTS
Voltage for the 2174EL/ER, 2180EL/ER, 2183EL/ER is 120 volt, 60 cycle single phase. A wall receptacle is
not supplied. Only for the 2175EL/ER, 2181EL/ER, 2182EL/ER This receptacle will accept the attachment
plug on your machine and must be used. The machine will draw a maximum of 20amps. Your electrician
must finish sufficient current for the proper operation of your machine. We recommend that this machine be
fused on a line by itself.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
6
CONTROLS AND THEIR FUNCTION
HEAT SWITCH
This rocker switch in the “ON” position energizes the heating elements in the bottom of the kettle.
MOTOR SWITCH
With this rocker switch in the “ON” position, the agitator motor will run continuously.
PRALINATOR/CORN TREAT SWITCH
This rocker switch in the Pralinator position and the motor switch off will run the agitator motor 55 seconds
of every minute. In the Corn Treat position, the agitator motor will run 15 seconds of every minute.
HEAT CONTROL
The machine comes from the factory preset at either 280°F for Corn Treat Centers or 310°F for Pralinators.
If more or less heat is required, remove the silver hole plug or cover plate located on the front panel of the
control box. This will allow you to access the heat control adjustment potentiometer. Turn the
potentiometer clockwise to increase the temperature.
To calibrate the heat control for corn treat, Fill the mixing bowl with a one inch depth of corn oil. Use an
accurate thermometer to measure the temperature of the oil in the mixing bowl. Stir the oil while it heats.
When the oil reaches 280°F slowly turn the potentiometer counter clockwise until the buzzer sounds. If the
buzzer sounds before the temperature reaches 280°F turn the potentiometer clockwise until the buzzer
stops and continue to turn an additional 1/8 of turn.
To calibrate the digital control for Pralinator follow the above instructions except use a final oil temperature
of 310°F.
Note: The sound of the buzzer always signals temperature cut-off.
CARE AND CLEANING
STEAM CLEANING
The easiest way to clean the kettle is to pour 8 ounces of water into the kettle while it is still hot. Place the
lid back on the kettle. Let it steam for approximately ten minutes. Remove the lid and dump out the water.
You will probably have to steam the kettle twice to remove all traces of product. Releasing the draw latch
makes the mixing drum easy to remove for cleaning. The mixing drum can be taken to the sink to clean.
The cabinet of your machine should be wiped cleaned daily; or more, depending on your usage.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
7
NEW PADDLE & HUB SEAL KIT INSTALLATION
1. Unscrew the wing bolts and remove both mix paddles.
2. Remove the old hub seal assembly.
3. Clean the area around the center hub. Clean up all food and carbon residue.
4. Remove any burrs on the top edge of the center hub. Use a fine grit emery paper to lightly sand the
surface. If the burrs are not removed, damage may occur to the hub assembly during installation.
5. Lightly lubricate the center hub of the kettle with a small amount of vegetable oil to allow for easy
installation of the hub seal assembly.
6. Slide the hub seal assembly down the agitator shaft. Apply pressure to ease the assembly over the

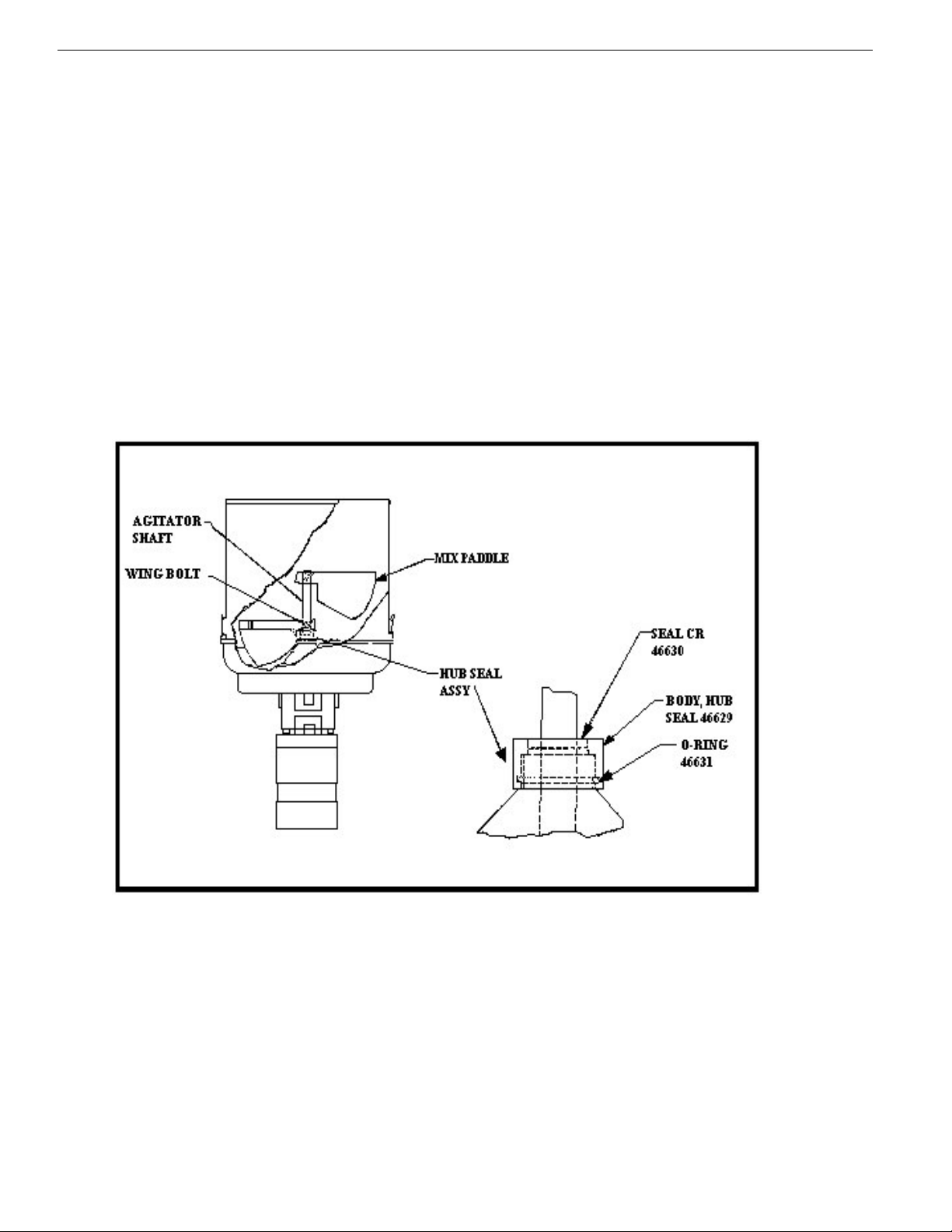

center hub of the kettle until it seats properly. (See diagram below.)
7. After the hub seal assembly has been properly installed, place the new mix paddle on the bottom and
one existing paddle on the top of the agitator shaft.
8. Replace the wing bolts and finger tighten.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
8
MAINTENANCE INSTRUCTIONS

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
9
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model name, serial number, and date of manufacture (located on the machine
nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
or, place orders at:
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
Web Page: www.gmpopcorn.com

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
10
CORN TREAT SECTION
INSTRUCTIONS FOR MAKING CARAMEL CORN
1. Set the heat controller to for the Corn Treat Temperature. (for Combo Kandy King only)
2. Set the Pralinator/Corn Treat switch to the Corn Treat position (for Combo Kandy King only).
3. Turn the heat switch "ON".
4. Add 10-12 ounces of water, one carton of Gold Medal Caramel Corn Mix and four (4) cups of granulated
sugar.
NOTE: When using the Gold Medal "One Step" Caramel Corn Mix, do NOT add granulated sugar.
5. Turn the motor switch "ON" and mix for approximately one minute. Turn the motor switch "OFF". (With
the heat switch "ON" the motor will run for 15 seconds every minute.)
6. Add four (4) ounces of stick coconut oil or vegetable oil.
7. Allow the mix to cook until the buzzer sounds at 280°F product temperature.
8. Turn the heat switch "OFF".
9. Turn the motor switch "ON".
10. Add five gallons of pre popped corn.
11. Allow the corn to mix for approximately thirty (30) seconds with the kettle in the upright position.
12. Move the kettle to the mix position and mix the popcorn until it is thoroughly coated.
13. Dump the caramel corn into the cooling pan.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
11
PARTS LIST
2174EL 2174ER 2175EL 2175ER
Item No Part No Part No Part No Part No Description
9 46006 46006 46006 46006 Tilt Lever
26 46101 ~~~ 46101 ~~~ LH Dump Bar Assy.
1 ~~~ 46103 ~~~ 46103 RH Dump Bar Assy.
2 74660 74660 74660 74660 Torsion Spring
3 74661 74661 74661 74661 Collar
4 46140 46140 46140 46140 Tilt Lever Coupling
5 46144 46144 46144 46144 Coupling Body 5/8 Bore
6 46145 46145 46145 46145 Coupling Body 3/4 Bore
7 46152 46152 46152 46152 Kettle Rest
8 46286 46286 46286 46286 Mixing Paddle
9 46288 46288 46288 46288 Mixing Drum
10 47580 47580 ~~~ ~~~ Lead In Cord
11 ~~~ ~~~ 41034 41304 Leadin Cord
12 48682 ~~~ 48682 ~~~ LH Control Box Weldment
~~~ 48681 ~~~ 48681 RH Control Box Weldment
48685 48685 48685 48685 Pedestal Welded Assy.
42006 42006 42006 42006 Terminal Block
42798 42798 42798 42798 Switch, Lighted Rocker
46081 46081 46081 46081 Relay, Power
46118 46118 46118 46118 Buzzer Signal
48301 48301 48301 48301 Capacitor Strap
82085 82085 82085 82085 Kettle Drive Motor
67207 67207 67207 67207 Motor Spacer
12889 12889 12889 12889 Standoff
40245 40245 ~~~ ~~~ Heat Element 1250W
~~~ ~~~ 40348 40348 Heat Element 2000W
46121 46121 46121 46121 Motor Mount
46143 46143 46143 46143 Agitator Shaft
46280 46280 46280 46280 Kettle
46439 46439 ~~~ ~~~ Heat Element 275W
~~~ ~~~ 41536 41536 Heat Element 1000W
67174 67174 67174 67174 Element Retainer Bracket
67185 67185 67185 67185 Heat Element 220W
67995 67995 67995 67995 Bottom Cover
68010 68010 68010 68010 RTD Heat Sensor
82219 82219 82219 82219 Thermostat Kettle L-510
82550 82550 82550 82550 Kettle Mount Bracket Casting
46326 46326 46326 46326 500 ohm Potentiometer
48688 48688 48688 48688 Percentage Timer
55057 55057 55057 55057 RTD Temperature Control
48689 48689 48689 48689 240k Resistor Red-Yel-Yel
48690 48690 48690 48690 750k Resistor Violet-Green-Yel

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
12

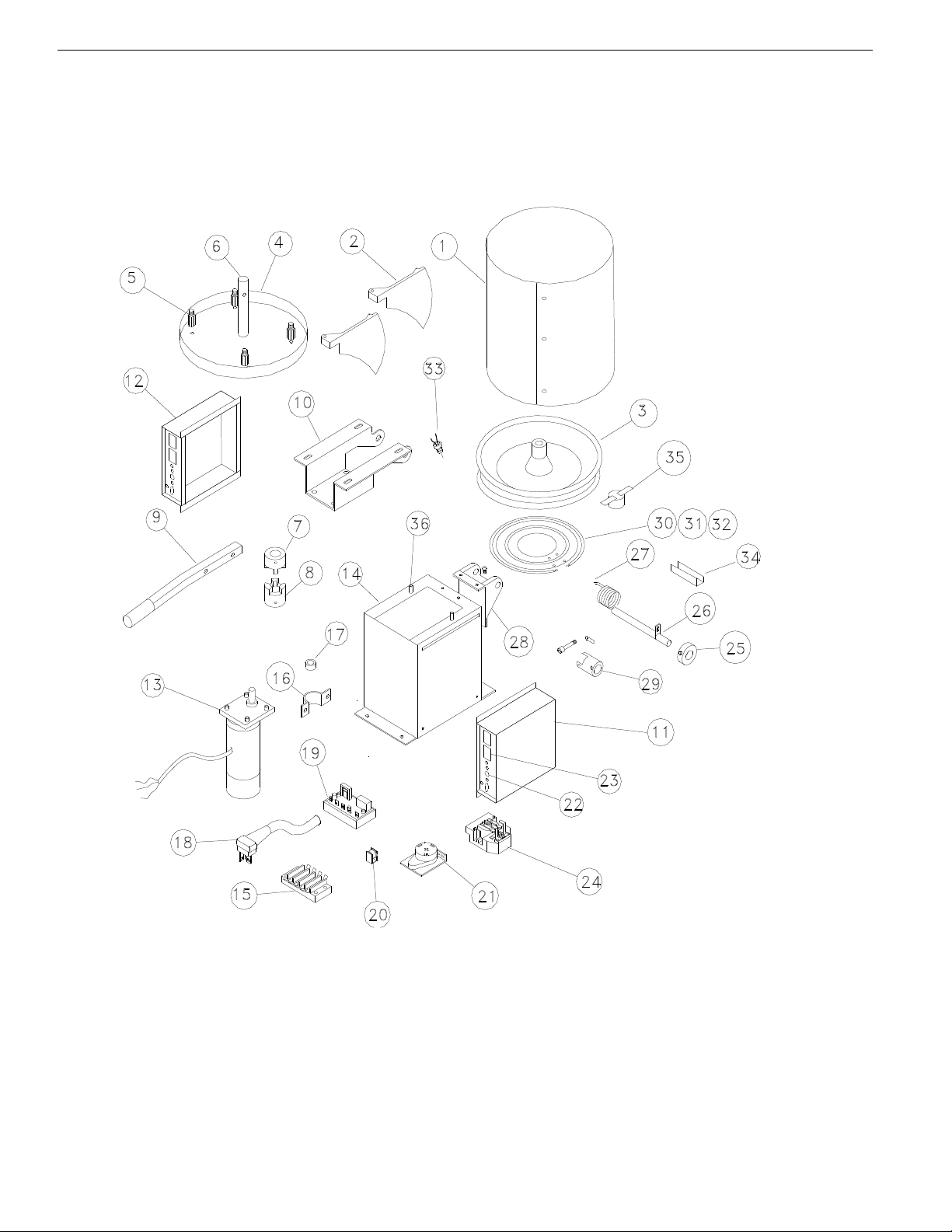

Picture for parts list.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
13

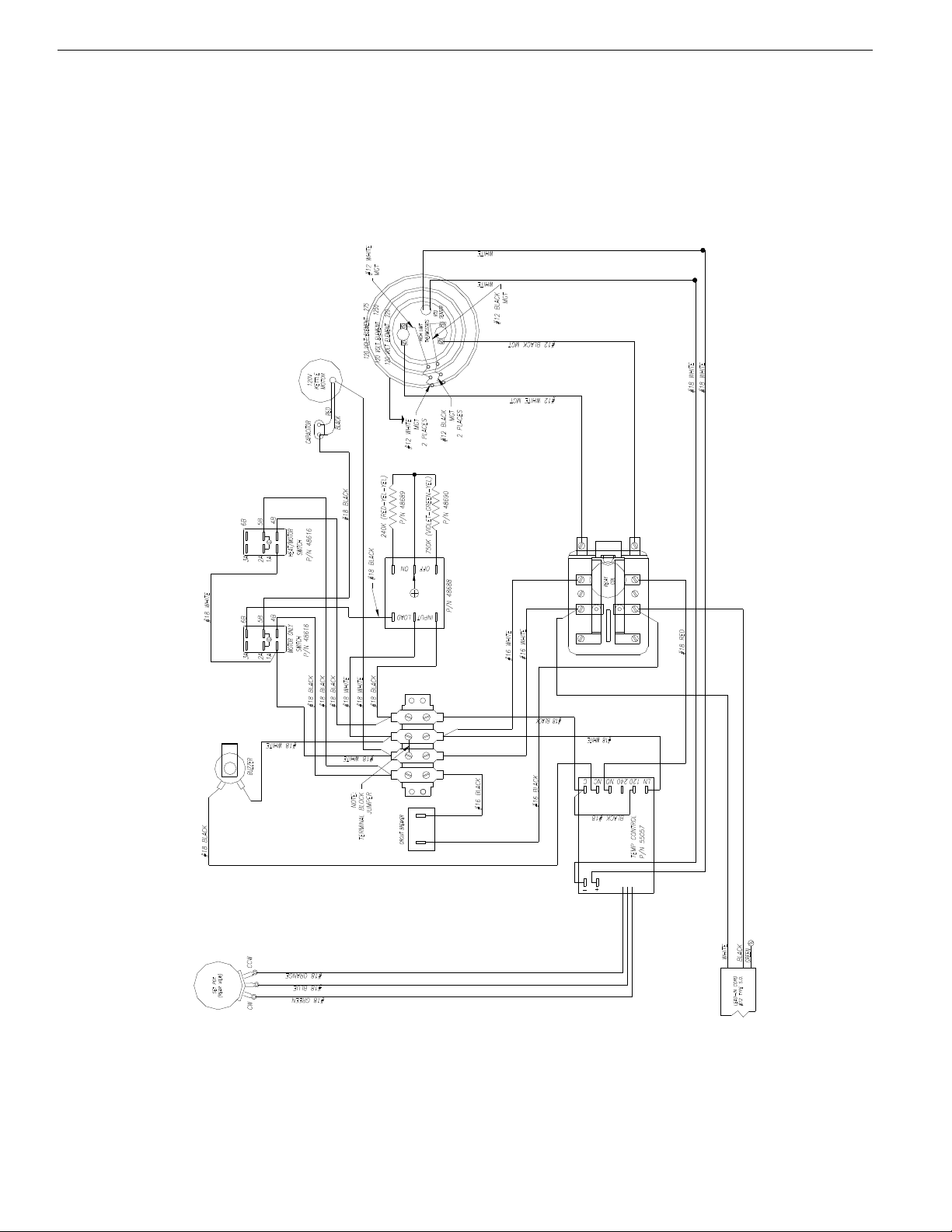

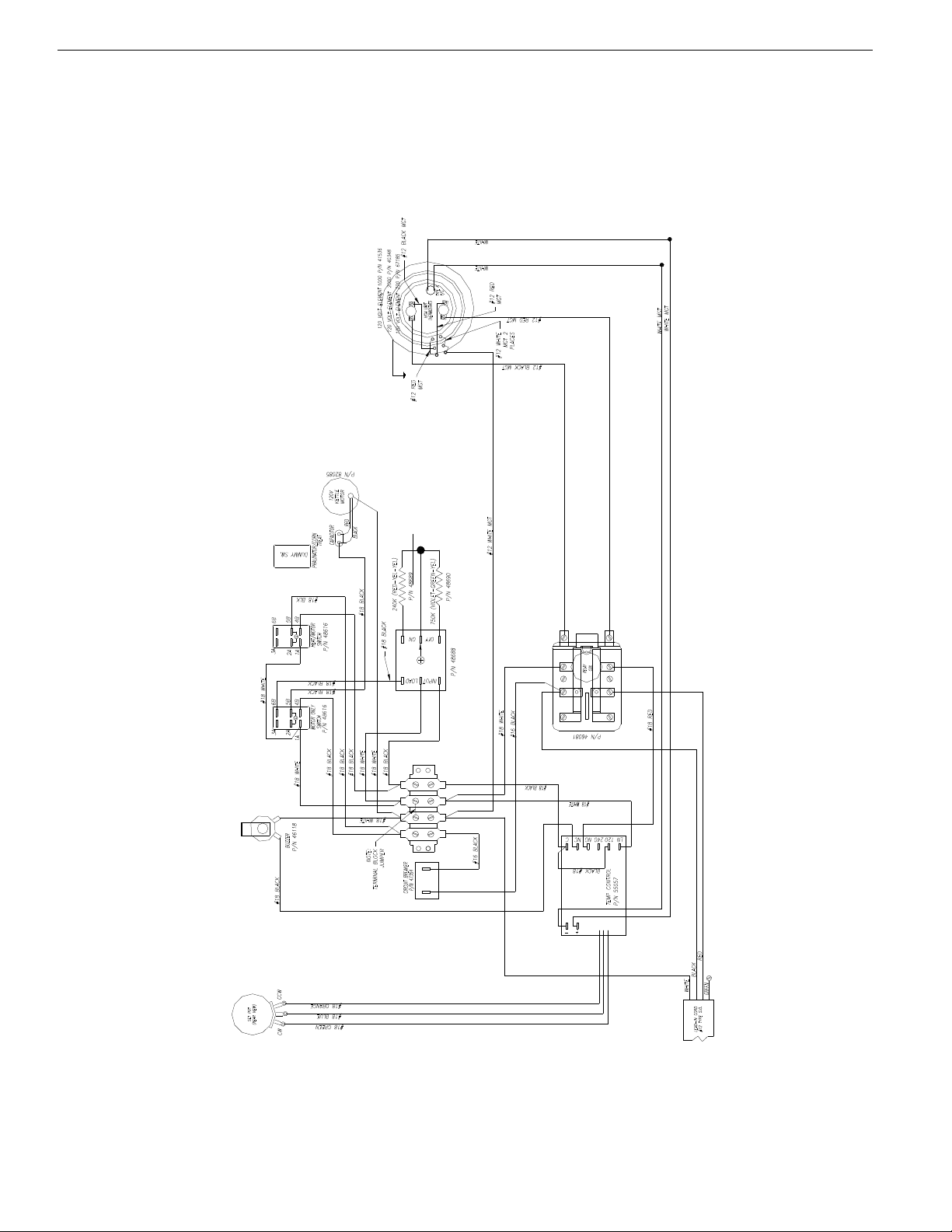

ELECTRIC SCHEMATIC
This is for the 2174ER AND 2174EL.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
14

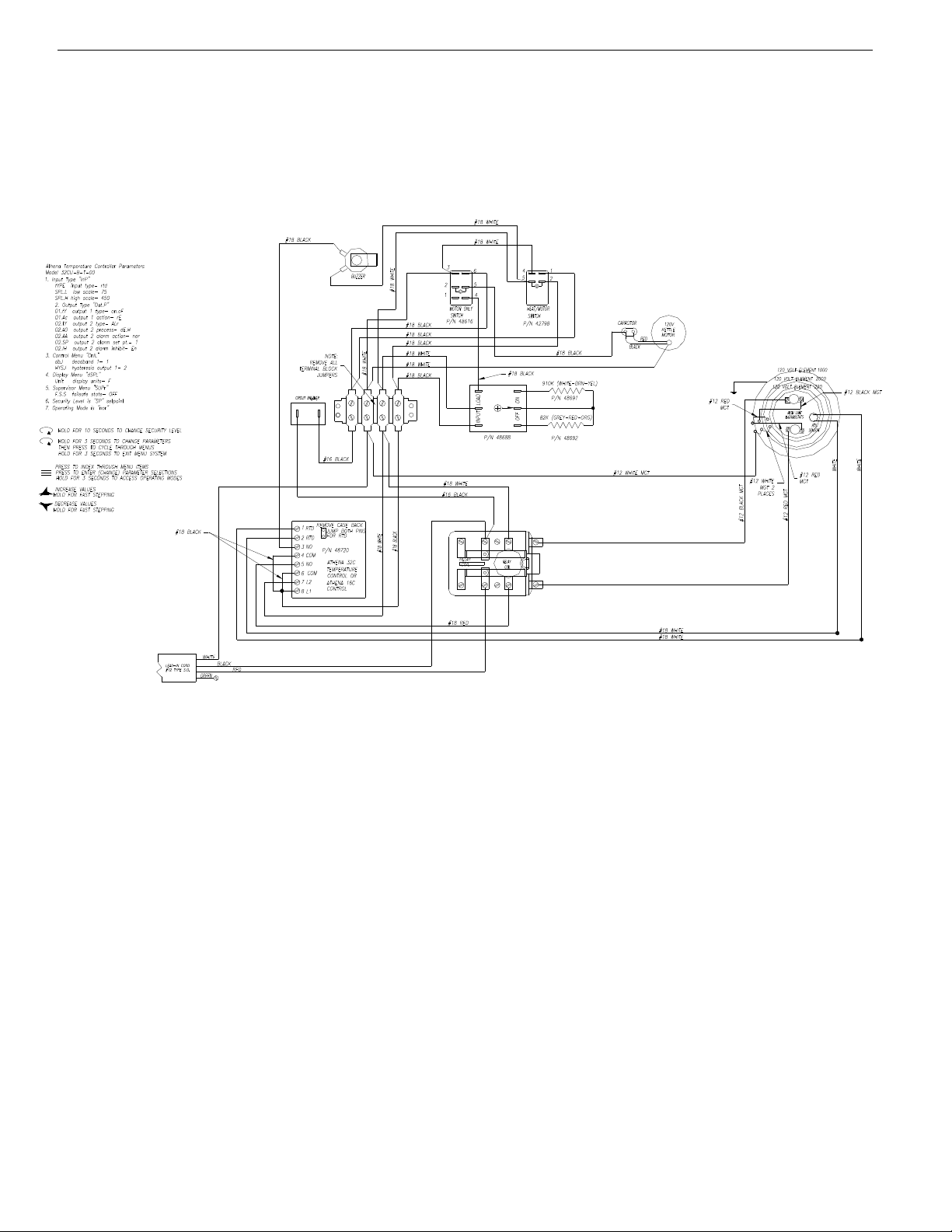

ELECTRIC SCHEMATIC
This is for the 2175EL and 2175ER.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
15
PRALINATOR SECTION
INSTRUCTIONS FOR MAKING FROSTED NUTS
1. Set the heat controller to Pralinator temperature. (for Combo Kandy King only).
2. Set the Pralinator/Corn Treat switch to the Pralinator position (for Combo Kandy King only).
3. Make a solution of (3) parts water to (1) part Gold Medal imitation vanilla (item #4515). We
recommend making at least one gallon of this “vanilla water” (1qt. of item #4515 + 3 qts. water).
4. Measure recommended ounces of water (depending on the size of the batch you are making) for
Step 6 and a minimum of recommended ounces for Step 8.
5. Turn on the heat switch and add recommended amount of pounds of nuts. (May we suggest raw
almonds, raw pecans, or roasted peanuts with skins removed).
6. Add the contents of the package and recommended ounces of vanilla water (see below).
7. Allow to heat and mix until the buzzer sounds.
8. At the buzzer, the nuts can be finished in two ways:
a. Spray on vanilla water (see above) until the buzzer stops to produce a consistent coat with a
matte finish.
b. Pour on the recommended ounces of vanilla water (see below) to produce a glossy, variable
finish.
9. Dump the frosted nuts onto a cooling tray (such as item #4140 18” x 26” aluminum pan), separate
and allow to cool 10 minutes before serving or packaging.
Recommendations for the 12oz package of Frosted Nut Mix:
For Step 4: 6 ounces and a minimum of 2-3 ounces
For Step 5: 1¼ lbs of nuts (1 full blue cup)
For Step 8: 2 ounces of vanilla water
Recommendations for the 24oz package of Frosted Nut Mix:
For Step 4: 12 ounces and a minimum of 4-6 ounces
For Step 5: 2½ lbs of nuts (2 full blue cups)
For Step 8: 4 ounces of vanilla water

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
16
PARTS LIST
2180EL 2180ER 2181EL 2181ER
Item No Part No Part No Part No Part No Description
9 46006 46006 46006 46006 Tilt Lever
26 46101 ~~~ 46101 ~~~ LH Dump Bar Assy.
~~~ 46103 ~~~ 46103 RH Dump Bar Assy.
27 74660 74660 74660 74660 Torsion Spring
25 74661 74661 74661 74661 Collar
29 46140 46140 46140 46140 Tilt Lever Coupling
7 46144 46144 46144 46144 Coupling Body 5/8 Bore
8 46145 46145 46145 46145 Coupling Body 3/4 Bore
36 46152 46152 46152 46152 Kettle Rest
2 48696 48696 48696 48696 Mixing Paddle
1 67222 67222 67222 67222 Mixing Drum
18 47580 47580 ~~~ ~~~ Lead In Cord
~~~ ~~~ 41034 41034 Lead In Cord
11 48682 ~~~ 48682 ~~~ LH Control Box Weldment
~~~ 48681 ~~~ 48681 RH Control Box Weldment
14 48685 48685 48685 48685 Pedestal Welded Assy.
15 42006 42006 42006 42006 Terminal Block
23 42798 42798 42798 42798 Switch, Lighted Rocker
24 46081 46081 46081 46081 Relay, Power
21 46118 46118 46118 46118 Buzzer Signal
16 48301 48301 48301 48301 Capacitor Strap
13 82085 82085 82085 82085 Kettle Drive Motor
67207 67207 67207 67207 Motor Spacer
12889 12889 12889 12889 Standoff
40245 40245 ~~~ ~~~ Heat Element 1250W
~~~ ~~~ 40348 40348 Heat Element 2000W
10 46121 46121 46121 46121 Motor Mount
6 48678 48678 48678 48678 Agitator Shaft
3 46280 46280 46280 46280 Kettle
46439 46439 ~~~ ~~~ Heat Element 275W
~~~ ~~~ 41536 41536 Heat Element 1000W
34 67174 67174 67174 67174 Element Retainer Bracket
67185 67185 67185 67185 Heat Element 220W
4 67995 67995 67995 67995 Bottom Cover
33 68010 68010 68010 68010 RTD Heat Sensor
35 82219 82219 82219 82219 Thermostat Kettle L-510
28 82550 82550 82550 82550 Kettle Mount Bracket Casting
46326 46326 46326 46326 46326 500 ohm Potentiometer
48688 48688 48688 48688 48688 Percentage Timer
55057 55057 55057 55057 55057 RTD Temperature Control
48691 48691 48691 48691 48691 910k Resistor White-Brn-Yel
48692 48692 48692 48692 48692 82k Resistor Grey-Red-Org

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
17
ELECTRIC SCHEMATIC
This is for the 2180ER AND 2180EL.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
18
ELECTRIC SCHEMATIC
This is for the 2181ER AND 2181EL.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
19
COMBO KANDY KING SECTION
INSTRUCTIONS TO CHANGE BETWEEN
FROSTED NUTS AND CARAMEL CORN
To change between Corn Treat and Pralinator the following items must be changed:
A. Heat controller set point
B. Paddle timing switch
C. Shaft extension and Corn Treat paddles or Pralinator paddles.
D. Kettle drum
A. The set point of the heat control is changed as follows:
1. Corn Treat temperature range is 360 to 400°F.
2. Pralinator temperature range is 375 to 415°F.
To calibrate the digital control for corn treat, set the digital control set point (SP) to 400°F. Fill the mixing
bowl with a one inch depth of corn oil. Use an accurate thermometer to measure the temperature of the oil
in the mixing bowl. Stir the oil while it heats. When the oil reaches 280°F observe the temperature displayed
on the digital heat control. This temperature is the digital heat control set point (SP).
To calibrate the digital control for Pralinator follow the above instructions except set the initial SP at 415°F
and use a final oil temperature of 310°F.
B. Set the paddle timing switch on the front panel on the machine to either Corn Treat or Pralinator. Corn
Treat, the paddles turn for 15 seconds of every minute. Pralinator, the paddles turn for 55 seconds of every
minute.
C. Use the shaft extension and two paddles for the Corn Treat. Note the shaft extension mounts to the
fixed shaft in the machine with the shorter thumb screw. Note the shaft extension is not used to the
Pralinator.
D. Mount the large drum for the Corn Treat. Mount the small drum for the Pralinator.
E. After the change over, follow the instructions on the mix package or turn to pages 11 for caramel corn
and page 17 for frosted nuts for mixing instructions.

CORNTREAT, PRALINATOR, AND COMBO KANDY KING
MODEL # 2174EL/ER, 2175EL/ER, 2180ER/EL,
2181EL/ER, 2183EL/ER, 2182EL/ER
20
PARTS LIST
8 46140 46140 46140 46140 Tilt Lever Coupling
7 46144 46144 46144 46144 Coupling Body 5/8 Bore
8 46145 46145 46145 46145 Coupling Body 3/4 Bore
36 46152 46152 46152 46152 Kettle Rest
46286 46286 46286 46286 Mixing Paddle
48696 48696 48696 48696 Mixing Paddle
1 46288 46288 46288 46288 Mixing Drum
1 67222 67222 67222 67222 Mixing Drum
18 47580 47580 ~~~ ~~~ Leading In Cord
~~~ ~~~ 41034 41034 Leading In Cord
11 48682 ~~~ 48682 ~~~ LH Control Box Weldment
~~~ 48681 ~~~ 48681 RH Control Box Weldment
14 48685 48685 48685 48685 Pedestal Welded Assy.
15 42006 42006 42006 42006 Terminal Block
23 42798 42798 42798 42798 Switch, Lighted Rocker
24 46081 46081 46081 46081 Relay, Power
21 46118 46118 46118 46118 Buzzer Signal
16 48301 48301 48301 48301 Capacitor Strap
13 82085 82085 82085 82085 Kettle Drive Motor
67207 67207 67207 67207 Motor Spacer
12889 12889 12889 12889 Standoff
40245 40245 ~~~ ~~~ Heat Element 1250W
~~~ ~~~ 40348 40348 Heat Element 2000W
10 46121 46121 46121 46121 Motor Mount
6 46143 46143 46143 46143 Agitator Shaft
3 46280 46280 46280 46280 Kettle
46439 46439 ~~~ ~~~ Heat Element 275W
~~~ ~~~ 41536 41536 Heat Element 1000W
34 67174 67174 67174 67174 Element Retainer Bracket
67185 67185 67185 67185 Heat Element 220W
4 67995 67995 67995 67995 Bottom Cover
33 68010 68010 68010 68010 RTD Heat Sensor
35 82219 82219 82219 82219 Thermostat Kettle L-510
28 82550 82550 82550 82550 Kettle Mount Bracket Casting
46326 46326 46326 46326 46326 500 ohm Potentiometer
48688 48688 48688 48688 48688 Percentage Timer
55057 55057 55057 55057 55057 RTD Temperature Control
48689 48689 48689 48689 48689 240k Resistor Red-Yel-Yel
48690 48690 48690 48690 48690 750k Resistor Violet-Green-Yel
48691 48691 48691 48691 48691 910k Resistor White-Brn-Yel
48692 48692 48692 48692 48692 82k Resistor Grey-Red-Org
