Goldmedal Medallion User manual

Part No. 49000
Medallion
52oz. Popcorn Machine
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

52 oz. Medallion
Model #2911E
2
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

52 oz. Medallion
Model #2911E
3
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
DO NOT install equipment in an area where a water jet is used.
Unit to be installed in locations where ambient temperatures are between a minimum of 5°C
(41°F) and a maximum of 55°C (131°F).
Unit to be installed in locations where it can be overseen by trained personnel.
Install unit on a level surface.
Unit is for popcorn.
Note: Improvements are always being made to Gold Medal’s equipment. This information may
not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical
Service Department at 1-800-543-0862 for any questions about your machine
operations, replacement parts, or any service questions. (Gold Medal Products Co. does
not assume any liability for injury due to careless handling and/or reckless operation of this
equipment.) General images may be used in manual for reference only.

52 oz. Medallion
Model #2911E
4
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be
filed immediately with the transportation company. The warranty does not cover damage that occurs in
transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it
is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this equipment.
To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Electrical Requirements
The following power supply must be provided:
DOMESTIC UNITS: 120/208 or 120/240 V~, 60 Hz (reference unit Data Plate for Wattage requirement)
Domestic units are designed to operate on single phase, 50 AMP, 4 wire supply, 120/208 or 120/240
V~ (2 Hot, 1 Neutral, 1 Ground). All electrical components in this machine are 120 V (motors, heat
elements, lights, etc.) and therefore require “Hot to Neutral” connection (NOT “Hot to Hot”). A 50
AMP wall receptacle (NEMA 14-50) is supplied with the machine. The receptacle will accept the
attachment plug on the machine and must be used; reference the Receptacle Wiring Diagram for
NEMA 14-50 for receptacle installation instructions.
EXPORT UNITS: 220-230 V~, 50/60 Hz (reference unit Data Plate for Wattage requirement)
Potential Electrical Variations: 220 V~, 60 Hz
Export units are designed to operate on single phase, 16 AMP, 4 wire supply, 230 V~
(2 Hot, 1 Neutral, 1 Ground). All electrical components in this machine are 230 V (motors, heat
elements, lights, etc.) and therefore require “Hot to Neutral” connection (NOT “Hot to Hot”). A
certified electrician must supply and install the wall receptacle for this unit; reference the Receptacle
Wiring Diagram for Export Units.
Australia - 52 oz. units are designed to operate on single phase, 36 AMP, 2 wire supply, plus
ground. All electrical components in machine are 230 V (motors, heat elements, lights, etc.) A
certified electrician must supply and install the wall receptacle for this unit.
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
A certified electrician must furnish sufficient power for proper machine operation and install any supplied
receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage requirements). We
recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the
warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that

52 oz. Medallion
Model #2911E
5
this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance. Make sure cord is located to
prevent a trip hazard or unit upset.
Receptacle Wiring Diagram for NEMA 14-50 (Domestic)
A certified electrician must follow the IMPORTANT instructions below for installation of the NEMA 14-50
Receptacle (Gold Medal Item No. 82920) provided with the unit.
If the receptacle is wired incorrectly, the heat elements/kettle and other electrical components could be at
208 or 240 V potential instead of the needed 120 V, resulting in excessive temperatures in the heat
elements (i.e.: kettle) and possible fire, and/or damage to electrical components.
Receptacle Wiring Diagram (for Export Units –except Australia)
A certified electrician must supply and install the required wall receptacle for this unit, follow the
IMPORTANT instructions shown.
This unit is designed to operate on single phase, 16 AMP, 4 wire supply. All electrical components in this
machine are 230 V. If the receptacle is wired incorrectly, the heat elements/kettle and other electrical
components could be at 400 V potential instead of the needed 230 V, resulting in excessive temperatures in
the heat elements (i.e.: kettle) and possible fire, and/or damage to electrical components.
3P+N+E IEC 309 Receptacle - Front and Back View
PE-G
L2
L1
Connect to Black
(Hot) Wire
Connect to Brown
(Hot) Wire
Connect to
Green/Yellow
(Ground) Wire
Connect to Blue
(Neutral) Wire
L3
N
Not Used
(If 5 wires provided,
connect Grey here.)
NEMA 14-50 Receptacle - Front and Back View
Connect to Green
(Ground) Wire
Connect to Red
(Hot) Wire
Connect to Black
(Hot) Wire
Connect to White
(Neutral) Wire

52 oz. Medallion
Model #2911E
6
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power supply
cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect
the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614
Oil Dispense Installation
This popcorn machine was adjusted, inspected, and tested before it left the factory.
To connect and calibrate the oil dispense system to this popper; refer to the Bucket Pump
(Gold Medal Item No. 2114) or Bag-in-a-Box (Gold Medal Item No. 2257) Instruction
Manual included with the unit.
The proper amount of oil for the 52oz. unit is between 13oz. to 17oz.
To check for proper amount of oil, and assure oil is liquid; dispense a test amount into a
measuring cup.

52 oz. Medallion
Model #2911E
7
OPERATING INSTRUCTIONS
CONTROLS AND THEIR FUNCTIONS
LIGHT SWITCH
Turns on all the lights, interior and dome, on your popcorn machine.
POPCORN CONDITIONER SWITCH
Operates the blower in the corn storage area, keeps popcorn fresh and crisp.
KETTLE HEAT SWITCH
Operates the heating elements in the popping kettle.
KETTLE MOTOR AND EXHAUST SWITCH
Operates both the kettle agitator motor, and the exhaust blower. The exhaust blower is only required
when popping corn.
OIL SYSTEM MASTER SWITCH
Sends power to the oil pump. (Either the Bucket Pump or Bag-in-a-Box models) The warmer/blower
on the oil pump is activated, as well as the heated line kits (If provided / purchased separately). The
warmer/blower on the oil pump will keep coconut popping oil liquid if the doors on the base are kept
closed. It may be desirable to keep this switch on at night, if you have problems keeping the coconut
oil liquid. Coconut oil will congeal at temperatures below approximately 76º F [24º C]. (Reference the
Instruction Manual for the oil dispense unit.)
“RED” OIL DISPENSE PUSH BUTTON SWITCH
When pushed, this button switch will dispense the pre-set amount of oil into the kettle. (Reference
the Instruction Manual for the oil dispense unit to program the oil dispense volume.)
YELLOW LIGHT & AUDIBLE SIGNAL (LOAD –DUMP)
Alerts the operator to:
1. Load the corn and oil or
2. Dump the popped corn from the kettle or
3. Turn off the kettle heat switch if they are done popping corn
PASS THRU SWITCHES (IF EQUIPPED)
Has double switches for the kettle heat, motor, and oil on the front side and the operator side of
popper.
FLEXI-POP SWITCH (IF EQUIPPED)
Changes energy to kettle for the load switch from 52 oz to 32 oz. It will automatically adjust the oil
amount on the 2257D model of oil pump. (Reference the Instruction Manual for the oil dispense
unit.)
SALT-SWEET SWITCH (IF EQUIPPED)
Changes the temperature setting to 50ºF lower for the sweet option.

52 oz. Medallion
Model #2911E
8
POPPING CORN
Popping Corn (Standard)
1. Turn on all Switches (except Flexi-Pop and Salt-Sweet if equipped.)
2. When popping with coconut oil, be sure the oil is liquid. Dispense oil into a measuring cup first (oil
should be between 13 oz. to 17 oz.), and then use that oil for the first popping cycle.
3. When the kettle is ready (about 5-8 minutes), the Yellow Light and Audible Signal will turn on. Lift
the kettle lid and pour in 52 oz. of corn (use the supplied corn cup) and 4 tablespoons (1/4 cup) of
Flavacol. Close lid.
4. Press the RED oil pump button. The proper amount of oil is pumped into the kettle. The Light and
Signal will turn off.
5. When the popcorn has completed popping, the Light and Signal will turn on. Dump the Popcorn.
NOTE: The signal “To Dump” was factory set based on our popcorn and oil. If the signal occurs
before or after the popping has stopped, the signal timing must be adjusted (reference the Electronic
Temperature Control section).
6. On the final kettle of corn, turn the “KETTLE HEAT” switch off just as the lids are forced open by the
popping corn. This saves electricity, and helps eliminate smoke and odor after you have stopped
popping.
Popping Corn (Flexi-Pop - If Equipped)*
1. Turn on all Switches (except Salt-Sweet if equipped.)
2. When popping with coconut oil, be sure the oil is liquid. Dispense oil into a measuring cup first
(should be between 8 oz. to 10.5 oz.), and then use that oil for the first popping cycle.
3. When the kettle is ready (about 5-8 minutes), the Yellow Light and Audible Signal will turn on. Lift
the kettle lid and pour in 32 oz. of corn (use the supplied smaller corn cup) and 2 tablespoons (29.6
cc) of Flavacol. Close lid.
4. Press the RED oil pump button. The proper amount of oil is pumped into the kettle. The Light and
Signal will turn off.
5. When the popcorn has completed popping, the Light and Signal will turn on. Dump the Popcorn.
NOTE: The signal “To Dump” was factory set based on our popcorn and oil. If the signal occurs
before or after the popping has stopped, the signal timing must be adjusted (reference the Electronic
Temperature Control section).
6. On the final kettle of corn, turn the “KETTLE HEAT” switch off, just as the lids are forced open by the
popping corn. This saves electricity, and helps eliminate smoke and odor after you have stopped
popping.

52 oz. Medallion
Model #2911E
9
Popping Corn (Sweet - If Equipped)*
1. Turn on all Switches (except Flexi-Pop if equipped.)
2. When popping with coconut oil, be sure the oil is liquid. Dispense oil into a measuring cup first
(should be between 13 oz. to 17 oz.), and then use that oil for the first popping cycle.
3. When the kettle is ready (about 5-8 minutes), the Yellow Light and Audible Signal will turn on. Lift
the kettle lid and pour in 52 oz. of corn (use the supplied corn cup.) Close lid. Wait approximately 30
to 45 seconds, then add 26 oz. of Glaze Pop or Sugar. When using sugar, we recommend the use
of Compound “S” to help keep the kettle clean.
4. Press the RED oil pump button. The proper amount of oil is pumped into the kettle. The Light and
Signal will turn off.
5. When the popcorn has completed popping, the Light and Signal will turn on. Dump the Popcorn.
NOTE: The signal “To Dump” was factory set based on our popcorn and oil. If the signal occurs
before or after the popping has stopped, the signal timing must be adjusted (reference the Electronic
Temperature Control section).
6. On the final kettle of corn, turn the “KETTLE HEAT” switch off just as the lids are forced open by the
popping corn. This saves electricity, and helps eliminate smoke and odor after you have stopped
popping.
Remember (For all Popping Modes):
If the Yellow Load - Dump light is turned on and the Signal is sounding one of the following actions
should be taken:
1. Load the corn and oil or
2. Dump the popped corn from the kettle or
3. Turn off the kettle heat switch if you are done popping corn
When you are finished popping, make sure “KETTLE HEAT” and “KETTLE MOTOR” switches
are turned “OFF”.
NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING!

52 oz. Medallion
Model #2911E
10
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jetor steam
cleaner. Always unplug the equipment before cleaning or servicing. 025_051321
WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028_082715
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only use non-
toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088) or
Watchdog Concession Equipment Degreaser (Item No. 2580) is available for use accordingly. For any
cleaning products used, follow the manufacturer’s instructions on the product. DO NOT use oven cleaners or
abrasive materials as they will damage parts of machine.
Note: It is extremely important to follow all cleaning procedures, otherwise parts damage and
equipment failure will result. The warranty does not cover parts that are damaged due to
improper cleaning.
Daily Kettle Cleaning Instructions
1. Turn machine OFF and unplug it.
CAUTION: A hot kettle will cause burns if you touch it. Allow kettle to cool at least 1 hour before
attempting to clean. DO NOT use ice or water to cool down a hot kettle! Severe kettle
damage will result and steam burns may occur!
2. When cool, wipe outsideof kettle clean using a clean, soft cloth and Gold Medal Watchdog
Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will
damage the kettle.
3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of
water.
4. Only pour enough of the Heat’n Kleen pre-mixed solution into the kettle to fill it 1/2 inch (12.7 mm)
deep (it is not necessary to use the entire gallon at once).
5. Plug in the unit.
6. Turn kettle heat ON. When solution starts to boil, turn kettle heat OFF.
7. Allow kettle to cool at least 1 hour, then unplug unit.
8. Dump solution into a bucket, do not spill any in the interior of machine.
9. Rinse kettle interior with clean water and a clean cloth.
10. Dump any water remaining into a bucket (do not spill any in the interior of machine), then wipe
the kettle interior clean with a clean dry cloth.
For an extra dirty kettle, the process may be repeated; or, after turning kettle heat OFF, allow
solution to sit in kettle overnight. The next morning, finish the cleaning steps.

52 oz. Medallion
Model #2911E
11
11. A Clean-In-Place Hook is located behind the kettle support arm (on operator side). This feature
safely holds the kettle in place for cleaning purposes and allows access to hard to reach places
without removing the kettle. To remove the lid and agitator assembly, tilt kettle into the dump
position, and swing the hook into position (see image below).
12. With unit OFF and unplugged, use a clean SLIGHTLY damp cloth (wring ANY EXCESS water from
cloth before use) and wipe the kettle lead cord clean. DO NOT get moisture into the kettle lead-in
cord, severe damage will result.
13. After kettle cleaning, check to be sure the crossbar fasteners are securely tightened.
Daily Unit Cleaning Instructions
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Remove any remaining popcorn.
3. Remove all pans/accessories and take them to the sink to clean with soap and water, then rinse
and dry.
4. Clean under corn pan to remove all popcorn bits and seeds with a vacuum as needed, then wipe
the area with a clean dry cloth to remove any grease.
5. Wipe clean the area above the corn pan and exterior surfaces using a clean, SLIGHTLY damp
cloth to remove any grease from the glass and cabinet (cloth may be SLIGHTLY dampened with
soap and water, then wipe again with clean water to remove any remaining cleaner).
6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is
recommended.
Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as
Gold Medal Watchdog Glass Cleaner (Item No. 2588).
7. Reinstall the clean and dry pans/accessories.
Sanitizing the Tubing and Pump
Reference the Oil Dispense Unit manual for oil system cleaning instructions.
Clean-In-Place Hook

52 oz. Medallion
Model #2911E
12
Filter Cleaning
The popper is equipped with an efficient and durable filtration system. The first mesh filter should be
cleaned on a daily basis, and the two internal filters should be cleaned weekly to maintain maximum
efficiency. Follow the steps below for proper filter cleaning:
Step 2: Weekly Filter Cleaning
Loosen the 2 screws on the filter cover
plate, on the ceiling inside the popper.
Remove the cover, the Bag Filter, and
the 2 Mesh Filters.
Step 3: Clean the bag filter and mesh
filters in warm soapy water, then
rinse. Let dry overnight, then reinstall.
CAUTION: It is important to keep the
filters clean, to let the exhaust system
do its job.
Oil Mist Bag Filter
(2) Metal Mesh Filters
Loosen
2 Screws
Step 1: Daily Filter Cleaning
Turn unit OFF and allow it to cool
before removing any filters.
Remove the first Mesh Filter, and clean it
each day after use. This filter can be
removed without taking off the filter
cover. See Step 3 for instructions on
cleaning the Mesh Filter.
Clean first Mesh Filter daily.

52 oz. Medallion
Model #2911E
13
Weekly Clean the Crisper/Blower Filter (if equipped)
Follow the directions below each week to clean the crisper/blower filter.
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Lift off the corn pan to view the blower assembly.
3. Remove front grid holding the filter, then lift filter out and clean using warm soapy water (or
replace if needed). Rinse thoroughly and allow to dry, before reinstalling.
Clean the Crisper/Blower Compartment (Qualified Service Personnel Only)
The blower compartment MUST be inspected/cleaned every 3-4 months by Qualified Service Personnel to
maintain proper operation.
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Lift off the corn pan to view the blower assembly.
3. Remove the blower cover and if required, carefully clean the blower compartment, and
underneath the element with a vacuum only (reference image shown).
4. After cleaning, reassemble blower cover and corn pan.
Blower Compartment - located
under the Corn Pan; shown with
blower covers removed. (Covers
to be removed by Qualified
Service Personnel only.)
Blower Compartment - located
under the Corn Pan; shown
with blower cover removed.
(Cover to be removed by
Qualified Service Personnel
only.)
Filter
General images shown for reference only.

52 oz. Medallion
Model #2911E
14
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

52 oz. Medallion
Model #2911E
15
ELECTRONIC TEMPERATURE CONTROL (Domestic)
Operation
The temperature control is factory set to stop the power to the kettle when the thermocouple reaches
setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is
the ideal time to load the corn and oil. Therefore, if the Kettle Heat Switch is turned ON and the buzzer is
sounding, one of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat Switch if you are finished popping corn.
Adjustment of Electronic Control
This unit has an electronic kettle control with 2 thermocouples (TC), one for control and one for limit. There
are no mechanical thermostats in this kettle.
There are (4) factory adjustments on the control:
1. Control Setpoint Temperature –This is factory set, DO NOT adjust.
2. Signal to Dump –If you want the signal to dump to be a little sooner or later, you can adjust the
Kettle Dump potentiometer (see image below). Turn clockwise (CW) to signal sooner,
counterclockwise (CCW) to signal later.
3. The patented Overshoot circuit is tuned for the kettle, DO NOT adjust this potentiometer.
4. The Audible Signal to Dump has three options; full volume, half volume, no sound (yellow light only).
Adjustments are made by jumper positions (see image below). The unit is shipped with full
volume.
Qualified service personnel only please see Appendix A, Service Bulletin 0074
It does not matter which TC goes
to A or B; it DOES matter that the
yellow leads go to the positive
terminals.
Remove this
jumper for
no sound.
Remove this
jumper for
lower volume.
Control Setpoint Temperature
This is factory set, DO NOT ADJUST.
Overshoot –This is factory set,
DO NOT ADJUST.
Kettle Dump - This is factory set
to signal when kettle is ready to
dump. Turn CW to signal sooner;
CCW to signal later. ONLY make
small adjustments if needed.
L2 Neutral Lead
Jumper Wire A & B
for 120 VAC
L1 Hot Lead
Audible Signal to Dump

52 oz. Medallion
Model #2911E
16
ELECTRONIC TEMPERATURE CONTROL (Export)
Operation
The temperature control is factory set to stop the power to the kettle when the thermocouple reaches
setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is
the ideal time to load the corn and oil. Therefore, if the Kettle Heat Switch is turned ON and the buzzer is
sounding, one of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat Switch if you are finished popping corn.
Adjustment of Electronic Control
This unit has an electronic kettle control with 2 thermocouples (TC), one for control and one for limit. There
are no mechanical thermostats in this kettle.
There are (4) factory adjustments on the control:
5. Control Setpoint Temperature –This is factory set, DO NOT adjust.
6. Signal to Dump –If you want the signal to dump to be a little sooner or later, you can adjust the
Kettle Dump potentiometer (see image below). Turn clockwise (CW) to signal sooner,
counterclockwise (CCW) to signal later.
7. The patented Overshoot circuit is tuned for the kettle, DO NOT adjust this potentiometer.
8. The Audible Signal to Dump has three options; full volume, half volume, no sound (yellow light only).
Adjustments are made by jumper positions (see image below). The unit is shipped with full
volume.
Qualified service personnel only please see Appendix A, Service Bulletin 0074
It does not matter which TC goes
to A or B; it DOES matter that the
yellow leads go to the positive
terminals.
Remove this
jumper for
no sound.
Remove this
jumper for
lower volume.
Control Setpoint Temperature
This is factory set, DO NOT ADJUST.
Overshoot –This is factory set,
DO NOT ADJUST.
Kettle Dump - This is factory set
to signal when kettle is ready to
dump. Turn CW to signal sooner;
CCW to signal later. ONLY make
small adjustments if needed.
L2 Neutral Lead
Jumper Wire C for 230 VAC
L1 Hot Lead
Audible Signal to Dump

52 oz. Medallion
Model #2911E
17
TROUBLESHOOTING
LONG POPPING CYCLES
If your pop cycle is longer than 4 minutes, it can be the result of several things:
A. LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach
the proper operating temperature. Voltage for each leg, with kettle turned on, must be at least 110v.
B. INADEQUATE SUPPLY LINES - Inadequately sized electrical supply lines, in addition to being a fire
hazard, would also prevent the kettle from reaching the proper operating temperature. Check with a
qualified electrician.
C. INFERIOR CORN - Inferior quality corn would result in longer popping cycles. Use only top quality
hybrid popcorn from reputable suppliers. Even then, if you let your corn pick up moisture or dry out,
your popping cycles will be slow.
KETTLE DOES NOT HEAT
Before you go any further, make sure the kettle lead-in cord is plugged in, and the kettle shunt trip
breaker is not tripped. (See Motor Plate Assy. Figure 4, Item 4.11) The shunt trip breaker may trip during
transit, if the machine has been handled in a rough manner. If the breaker is re-set - then trips again -
contact a service technician for inspection/repair before going further.
A. KETTLE HEAT SWITCH - Check the voltage to and from the “KETTLE HEAT” switch, and if the
switch is defective replace it.
B. CONTROL - A defective thermocouple lead will cause the kettle not to heat. Check for good
connections from the kettle to the control.
C. MAIN RELAY. (See Motor Plate Assy. Figure 4, Item 4.6)
MOTOR WILL NOT TURN AGITATOR
WARNING! If the kettle agitator shaft is not rotating, DO NOT pop corn. Adjust the clearance
between the kettle bottom and the stir blade to 1/32” (use a dime). Loosen the set screw in the collars
above and below the crossbar and adjust the agitator shaft as necessary. Then re-tighten the set screws
in the collars.
OIL PUMP DOES NOT DELIVER OIL TO KETTLE
If the pump is operating but oil is not dispensed, the oil may be solid in the oil lines.
If the pump is not operating at all, see the pump manual for instructions.

52 oz. Medallion
Model #2911E
18
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located on the
machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or, place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Page: gmpopcorn.com
Replacing Broken Glass
If you accidentally break a panel of glass, it can be replaced very easily. Gold Medal Products Co.
does not ship glass. It can be obtained from a local glass shop and always purchase tempered
glass.

52 oz. Medallion
Model #2911E
19

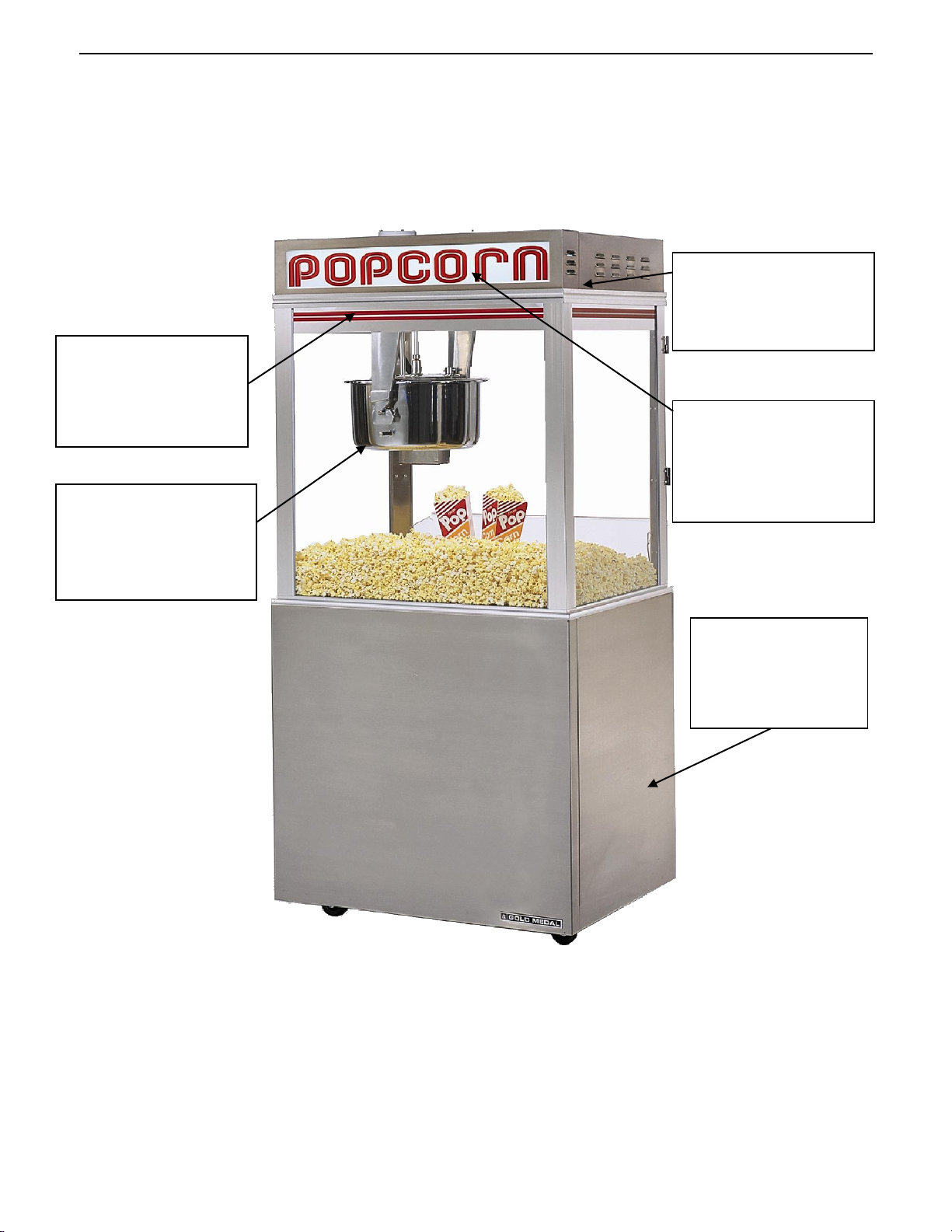

Where To Find Parts
See Dome
Assembly section
for parts
breakdown
See Cabinet
Breakdown
section for
itemized parts
See Kettle
Assembly sections
for parts
breakdown
See Top –Motor
Plate Assy. for
parts breakdown
See Cabinet
Interior - Ceiling
Components for
parts breakdown

52 oz. Medallion
Model #2911E
20
Dome –LED Lighted Sign Assembly
Item
Part Description
Part Number
LED Models
1
N/A
2
SCREW #8-32X3/8 PAN HD PH
74141
3
POG INSPECTION COVER
116269
4
1/4-20 X 1 HHC Gr2 ZINC
41903
5
FENDER WASHER
82634
6
POPCORN SIGN
111871
7
SUPPORT ANGLE, DOME
41503
8
SPONGE STRIPPING (sold by the foot)
82431
9
8-32 X 3/8 PH PAN W/SEMS
42227
10
8-32 HEX M/S NUT
74149
11
LED STRIP COOL WHITE
55379
12
BUSHING, SNAP .500 IN
47236
13
CABLE CLAMP
87219
14
MOLDED PLUG
47726
Dome –
Overall View
11
9, 10
12
13
2
14
Front View - Sign Interior
Dome - Rear Interior View
Molded Plug shown (for Molded
Receptacle, see Dome Interior section).
2011
2
3
4, 5
6*
7
8
