GOWIN GW1NSER Series User manual

GW1NSER series of SecureFPGA
Package & Pinout User Guide
UG884-1.01E, 04/16/2020

Copyright © 2020 Guangdong Gowin Semiconductor Corporation. All Rights Reserved.
, LittleBee, and GOWIN are trademarks of Guangdong Gowin Semiconductor
Corporation and are registered in China, the U.S. Patent and Trademark Office, and other
countries. All other words and logos identified as trademarks or service marks are the
property of their respective holders. No part of this document may be reproduced or
transmitted in any form or by any denotes, electronic, mechanical, photocopying, recording
or otherwise, without the prior written consent of GOWINSEMI.
Disclaimer
GOWINSEMI assumes no liability and provides no warranty (either expressed or implied)
and is not responsible for any damage incurred to your hardware, software, data, or
property resulting from usage of the materials or intellectual property except as outlined in
the GOWINSEMI Terms and Conditions of Sale. GOWINSEMI may make changes to this
document at any time without prior notice. Anyone relying on this documentation should
contact GOWINSEMI for the current documentation and errata.

Revision History
Date
Version
Description
10/8/2019
1.0E
Initial version published.
04/16/2020
1.01E
Quantity of GW1NSER-4C QN48P/QN48G Pins modified.

Contents
UG884-1.01E
i
Contents
Contents.................................................................................................................i
List of Figures.....................................................................................................ii
List of Tables......................................................................................................iii
1About This Guide ..........................................................................................1
1.1 Purpose .............................................................................................................................. 1
1.2 Related Documents ............................................................................................................1
1.3 Terminology and Abbreviations...........................................................................................2
1.4 Support and Feedback .......................................................................................................2
2Overview ........................................................................................................3
2.1 PB-Free Package ...............................................................................................................3
2.2 Package and Max. User I/O Information ............................................................................4
2.3 Power Pin ........................................................................................................................... 4
2.4 Pin Quantity ........................................................................................................................5
2.4.1 Quantity of GW1NSER-4C Pins ......................................................................................5
2.5 Pin Definitions..................................................................................................................... 6
2.6 I/O BANK Introduction ........................................................................................................9
3View of Pin Distribution ..............................................................................10
3.1 View of GW1NSER-4C Pins Distribution..........................................................................10
3.1.1 View of QN48P Pins Distribution ................................................................................... 11
3.1.2 View of QN48G Pins Distribution...................................................................................12
4Package Diagrams ......................................................................................13
4.1 QN48P / QN48G Package Outline (6mm x 6mm) ............................................................14

List of Figures
UG884-1.01E
ii
List of Figures

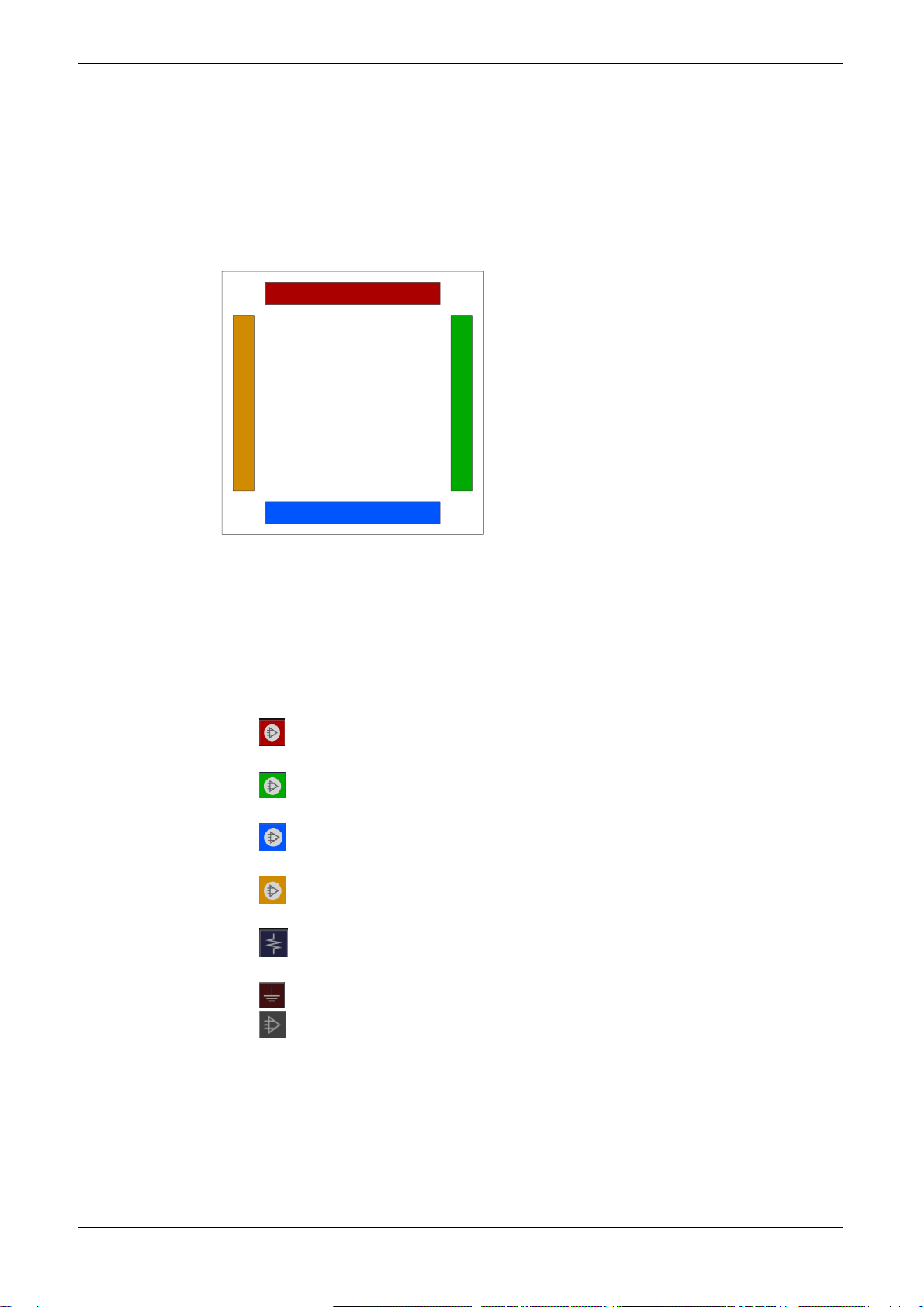

Figure 2-1 GW1NSER series of SecureFPGA products I/O Bank Distribution ................................. 9

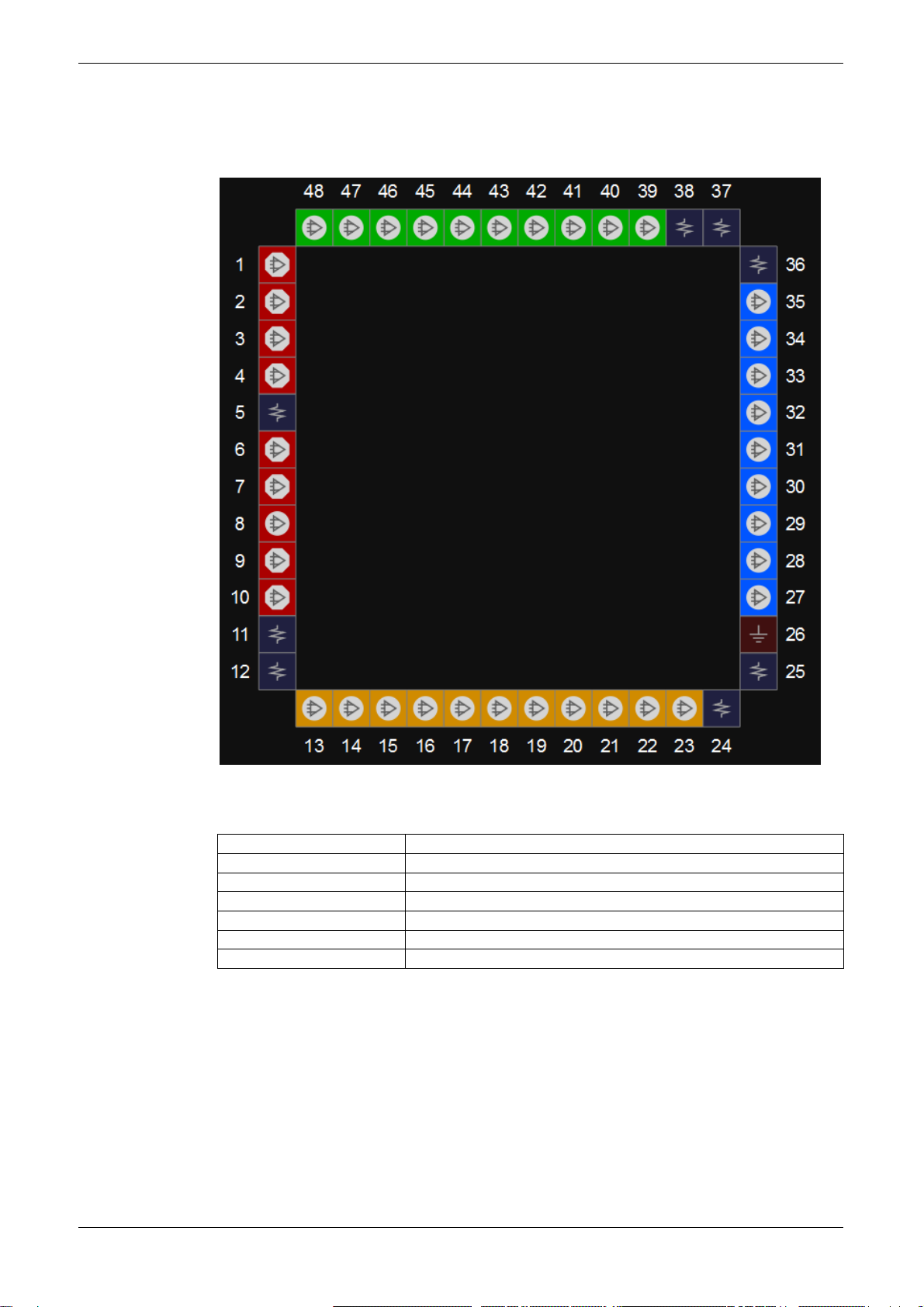

Figure 3-1 View of GW1NSER-4C QN48P Pins Distribution (Top View)........................................... 11

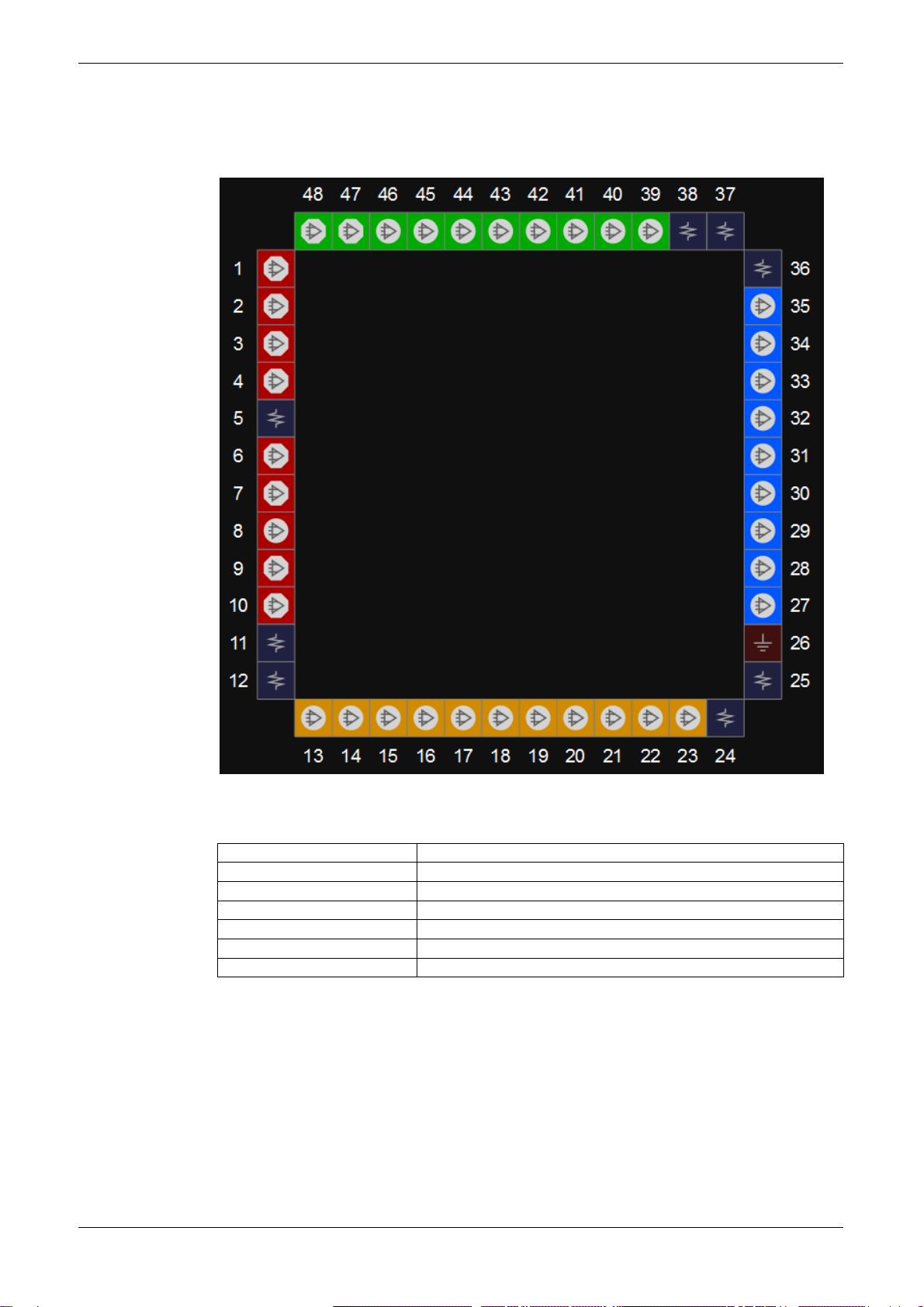

Figure 3-2 View of GW1N-4 QN48G Pins Distribution (Top View) ....................................................12
Figure 4-1 Package Outline of QN48P / QN48G ...............................................................................14

List of Tables
UG884-1.01E
iii
List of Tables
Table 1-1 Terminology and Abbreviations .......................................................................................... 2
Table 2-1 Package, Max. User I/O Information, and LVDS Paris ......................................................4
Table 2-2 GW1NSER Power Pins......................................................................................................4
Table 2-3 Quantity of GW1NSER-4CPins ..........................................................................................5
Table 2-4 Definition of the Pins in the GW1NSER series of SecureFPGA products .........................6
Table 3-1 Other pins in GW1NSER-4C QN48P.................................................................................11
Table 3-2 Other pins in GW1NSER-4C QN48G ................................................................................12

1 About This Guide
1.1 Purpose
UG884-1.01E
1(14)
1About This Guide
1.1 Purpose
This manual contains an introduction to the GW1NSER series of
SecureFPGA products together with a definition of the pins, list of pin
numbers, distribution of pins, and package diagrams.
1.2 Related Documents
The user guides are available on the GOWINSEMI Website. You can
find the related documents at www.gowinsemi.com:
1. DS881, GW1NSER series of SecureFPGA products Data Sheet
2. UG290, Gowin FPGA Products Programming and Configuration User
Guide
3. UG884, GW1NSER series of SecureFPGA products Package and
Pinout
4. UG883, GW1NSER-4C Pinout

1 About This Guide
1.3 Terminology and Abbreviations
UG884-1.01E
2(14)
1.3 Terminology and Abbreviations
The terminology and abbreviations used in this manual are as shown in
Table 1-1.
Table 1-1 Terminology and Abbreviations
Terminology and Abbreviations
Full Name
FPGA
Field Programmable Gate Array
GPIO
Gowin Programmable IO
QN48P
QFN48P
QN48G
QFN48G
1.4 Support and Feedback
Gowin Semiconductor provides customers with comprehensive
technical support. If you have any questions, comments, or suggestions,
please feel free to contact us directly by the following ways.
Website: www.gowinsemi.com
E-mail:[email protected]

2 Overview
2.1 PB-Free Package
UG884-1.01E
3(14)
2Overview
GW1NSER series of SecureFPGA products provide a Root of Trust
based on SRAM PUF technology. Each device is factory provisioned with a
unique key pair that is never exposed outside of the device or to the
internal development space. The Intrinsic ID BroadKey-Pro security library
is provided with GOWIN SecureFPGA devices allowing easy integration of
common security features into user applications. The GOWIN
SecureFPGA feature set is widely applicable and can used for a variety of
consumer, industrial IoT, edge, and server management applications.
2.1 PB-Free Package
The GW1NSER series of SecureFPGA products are PB free in line
with the EU ROHS environmental directives. The substances used in the
GW1NSER series of SecureFPGA products are in full compliance with the
IPC-1752 standards.

2 Overview
2.2 Package and Max. User I/O Information
UG884-1.01E
4(14)
2.2 Package and Max. User I/O Information
Table 2-1 Package, Max. User I/O Information, and LVDS Paris
Package
Pitch (mm)
Size (mm)
GW1NSER-4C
QN48P
0.4
6 x 6
38(4)
QN48G
0.4
6 x 6
38(4)
Note!
In this manual, abbreviations are employed to refer to the package types. See
1.3Terminology and Abbreviations.
The JTAGSEL_N and JTAG pins cannot be used as I/O simultaneously. The data in
this table is when the loaded four JTAG pins (TCK, TDI, TDO, and TMS) are used as
I/O. When mode [2:0] = 001, JTAGSEL_N and the four JTAG pins (TCK, TDI, TDO,
and TMS) can be used as GPIO simultaneously, and the Max. user I/O plus one.
2.3 Power Pin
Table 2-2 GW1NSER Power Pins
VCC
VCCO0
VCCO1
VCCO2
VCCO3
VSS

2 Overview
2.4 Pin Quantity
UG884-1.01E
5(14)
2.4 Pin Quantity
2.4.1 Quantity of GW1NSER-4C Pins
Table 2-3 Quantity of GW1NSER-4CPins
Pin Type
GW1NSER-4C
QN48P
QN48G
I/O Single end / Differential
pair1
BANK0
8/4/0
8/4/0
BANK1
10/5/0
10/5/0
BANK2
9/4/4
9/4/4
BANK3
11/5/0
11/5/0
Max. User I/O 2
38
38
Differential Pair
18
18
True LVDS output
4
4
VCC
2
2
VCCO0
1
1
VCCO1
1
1
VCCO2
1
1
VCCO3
2
2
VCCX
1
1
VSS
1
1
MODE0
0
0
MODE1
0
0
MODE2
0
0
JTAGSEL_N
1
1
Note!
Single end/ Differential I/O quantity include CLK pins, and download pins;
[2]The JTAGSEL_N and JTAG pins cannot be used as I/O simultaneously. The data
in this table is when the loaded four JTAG pins (TCK, TDI, TDO, and TMS) are used
as I/O;

2 Overview
2.5 Pin Definitions
UG884-1.01E
6(14)
2.5 Pin Definitions
The location of the pins in the GW1NSER series of SecureFPGA
products varies according to the different packages.
Table 2-4 provides a detailed overview of user I/O, multi-function pins,
dedicated pins, and other pins.
Table 2-4 Definition of the Pins in the GW1NSER series of SecureFPGA products
Pin Name
I/O
Description
Max. User I/O
IO[End][Row/Column
Number][A/B]
I/O
[End] indicates the pin location, including L(left)
R(right) B(bottom), and T(top)
[Row/Column Number] indicates the pin
Row/Column number.If [End] is T(top) or B(bottom),
the pin indicates the column number of the
corresponding CFU. If [End] is L(left) or R(right), the
pin indicates the Row number of the corresponding
CFU.
[A/B] indicates differential signal pair information.
Multi-Function Pins
IO[End][Row/Column Number][A/B]/MMM
/MMM represents one or more of the other functions
in addition to being general purpose user I/O. These
pins can be used as user I/O when the functions are
not used.
RECONFIG_N
I, internal weak
pull-up
Start new GowinCONFIG mode when low pulse
READY
I/O
When high level, the device can be programmed and
configured
When low level, the device cannot be programmed
and configured
DONE
I/O
High level indicates successful program and
configure
Low level indicates incomplete or failed to program
and configure
FASTRD_N /D3
I/O
In MSPI mode, FASTRD_N is used as Flash access
speed port. Low indicates high-speed Flash access
mode; high indicates regular Flash access mode.
Data port D3 in CPU mode
MCLK /D4
I/O
Clock output MCLK in MSPI mode
Data port D4 in CPU mode
MCS_N /D5
I/O
Enable signal MCS_N in MSPI mode, active-low
Data port D5 in CPU mode
MI /D7
I/O
MISO in MSPI mode: Master data input/Slave data
output
Data port D7 in CPU mode
MO /D6
I/O
MISO in MSPI mode: Master data output/Slave data
input
Data port D6 in CPU mode
SSPI_CS_N/D0
I/O
Enable signal SSPI_CS_N in SSPI mod, active-low,
Internal Weak Pull Up
Data port D0 in CPU mode
SO /D1
I/O
MISO in MSPI mode: Master data input/Slave data
output
Data port D1 in CPU mode

2 Overview
2.5 Pin Definitions
UG884-1.01E
7(14)
Pin Name
I/O
Description
SI /D2
I/O
MISO in MSPI mode: Master data output/Slave data
input
Data port D2 in CPU mode
TMS
I, internal weak
pull-up
Serial mode input in JTAG mode
TCK
I
Serial clock input in JTAG mode, which needs to be
connected with 4.7 K drop-down resistance on PCB
TDI
I, internal weak
pull-up
Serial data input in JTAG mode
TDO
O
Serial data output in JTAG mode
JTAGSEL_N
I, internal weak
pull-up
Select signal in JTAG mode, active-low
SCLK
I
Clock input in SSPI, SERIAL, and CPU mode
DIN
I, internal weak
pull-up
Input data in SERIAL mode
DOUT
O
Output data in SERIAL mode
CLKHOLD_N
I, internal weak
pull-up
High level, SCLK will be connected internally in SSPI
mode or CPU mode
Low level, SCLK will be disconnected from SSPI
mode or CPU mode
WE_N
I
Select data input/output of D[7:0] in CPU mode
GCLKT_[x]
I
Pins in global clock input, T(True), [x]: global clock
No.
GCLKC_[x]
I
Pins for Global clock input, C(Comp), [x]: global
clock No.
LPLL_T_fb/RPLL_T_fb
I
L/R PLL feedback input pin, T(True)
LPLL_C_fb/RPLL_C_fb
I
L/R PLL feedback input pin, C(Comp)
LPLL_T_in/RPLL_T_in
I
L/R PLL clock input pin, T(True)
LPLL_C_in/RPLL_C_in
I
L/R PLL clock input pin, C(Comp)
CH[7:0]
I
Eight-channel analog input
MODE2
I, internal weak
pull-up
GowinCONFIG modes selection pin; if this pin is not
bonded, it's internal grounded.
MODE1
I, internal weak
pull-up
GowinCONFIG modes selection pin; if this pin is not
bonded, it's internal grounded.
MODE0
I, internal weak
pull-up
GowinCONFIG modes selection pin; if this pin is not
bonded, it's internal grounded.
Other Pins
NC
NA
Reserved.
VSS
NA
Ground pins
VCC
NA
Power supply pins for internal core logic.
VCCO#
NA
Power supply pins for the I/O voltage of I/O BANK#.
VCCX
NA
Power supply pins for auxiliary voltage.
VCCP
NA
FLASH Power supply pin (1.8V)
VCCPLL
NA
Power supply pins in PLL
USB Power supply pin
DM
NA
USB data pin Data-
DP
NA
USB data pin Data+

2 Overview
2.5 Pin Definitions
UG884-1.01E
8(14)
Pin Name
I/O
Description
REXT
NA
12.7K high-accuracy resistance
XIN
NA
Crystal input signals
XOUT
NA
Crystal oscillator signals
IDPAD
NA
ID signal
VBUSPAD
NA
VBUS signal
VDDA
NA
Analog power supply voltage, VDDA=3.3V
VDDAUSB
NA
Analog power supply pin (3.3V)
VDDDUSB
NA
Analog power supply pin (3.3V)
VDDPL
NA
Power supply pin for driver (1.2V)

2 Overview
2.6 I/O BANK Introduction
UG884-1.01E
9(14)
2.6 I/O BANK Introduction
There are four I/O Banks in the GW1NSER series of SecureFPGA
products. The I/O BANK Distribution of the GW1NSER series of
SecureFPGA products is as shown in Figure 2-1.
Figure 2-1 GW1NSER series of SecureFPGA products I/O Bank Distribution
GW1NS
I/O BANK0
I/O BANK2
I/O BANK1
I/O BANK3
This manual provides an overview of the distribution view of the pins in
the GW1NSER series of SecureFPGA products. The four I/O Banks in the
GW1NSER series of SecureFPGA products are marked with four different
colors.
Various symbols are used for the user I/O, power, and ground. The
various symbols and colors used for the various pins are defined as
follows:
" " denotes the I/O in BANK0. The filling color changes with the
BANK;
" " denotes the I/O in BANK1. The filling color changes with the
BANK;
" " denotes the I/O in BANK2. The filling color changes with the
BANK;
" " denotes the I/O in BANK3. The filling color changes with the
BANK;
" " denotes VCC, VCCX, and VCCO. The filling color does not
change;
" " denotes VSS, the filling color does not change;
" " denotes NC.

3 View of Pin Distribution
3.1 View of GW1NSER-4C Pins Distribution
UG884-1.01E
10(14)
3View of Pin Distribution
3.1 View of GW1NSER-4C Pins Distribution

3 View of Pin Distribution
3.1 View of GW1NSER-4C Pins Distribution
UG884-1.01E
11(14)
3.1.1 View of QN48P Pins Distribution
Figure 3-1 View of GW1NSER-4C QN48P Pins Distribution (Top View)
Table 3-1 Other pins in GW1NSER-4C QN48P
VCC
11,37
VCCO0
5
VCCO1
38
VCCO2
36
VCCO3
12,24
VCCX
25
VSS
26

3 View of Pin Distribution
3.1 View of GW1NSER-4C Pins Distribution
UG884-1.01E
12(14)
3.1.2 View of QN48G Pins Distribution
Figure 3-2 View of GW1N-4 QN48G Pins Distribution (Top View)
Table 3-2 Other pins in GW1NSER-4C QN48G
VCC
11,37
VCCO0
5
VCCO1
38
VCCO2
36
VCCO3
12,24
VCCX
25
VSS
26

4 Package Diagrams
UG884-1.01E
13(14)
4Package Diagrams

4 Package Diagrams
4.1 QN48P / QN48G Package Outline (6mm x 6mm)
UG884-1.01E
14(14)
4.1 QN48P / QN48G Package Outline (6mm x 6mm)
Figure 4-1 Package Outline of QN48P / QN48G
PAD ZONE
EXPOSED THERMAL
BOTTOM VIEW
4.20
4.20
4.10 4.30
4.10 4.30
177*177
L/F载体尺寸
（MIL）
Ne 4.40BSC
c
0.200.15 0.25
__
A1 0.05
0.02
0.85
6.00 6.10
e0.40BSC
E2
0.75 0.85
E
D2
A
D
0.230.18 0.20
b
MAXNOMMIN
MILLIMETER
SYMBOL
5.90
6.10
6.00
5.90
L0.450.35 0.40
0.30 0.40
h0.35
4.40BSC
Nd
