Graco TrueCoat 360 User manual

For portable spray applications of water-based and oil-based
non-flammable architectural paints and coatings only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Important Safety Instructions
Read all warnings and instructions in this manual, and on the unit, including the power
cord, before using the equipment. Be familiar with the controls and the proper usage
of the equipment. Save these instructions.
Important Medical Information
Read the medical alert card provided with the gun. It contains injection injury
treatment information for a doctor. Keep it with you when operating the equipment.
3A9014A
EN
Owners Manual
Project Series Paint Sprayers

Before You Spray
2 3A9014A
Before You Spray
Review Warnings for Important Safety Information
Important! Read carefully and practice good safety habits.
Models
Online Resources
Model Name Voltage Description
Maximum Working
Pressure
110474
Certified to
CAN/CSA
C22.2 No. 68
Conforms to
UL 1450
26D280
CAN280
TrueCoat 360 120V Single Speed
2000 psi
(13.8 MPa, 138 bar)
26D281
CAN281
TrueCoat 360 DS 120V Dual Speed
26D282
CAN282
TrueCoat 360 DSP 120V Dual Speed
Premium
26D283
CAN283
TrueCoat 360 VSP 120V
Variable
Speed
Premium
Visit Our Website: graco.com/HomeOwner
Operational Videos: graco.com/HomeEducationCenter
Manuals: graco.com/HomeOwnerSupport
Parts Online: graco.com/HomeOwnerParts
Operational Videos
http://graco.com/HomeEducationCenter

Important User Information
3A9014A 3
Important User Information
Thank You for Your Purchase!
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc. This
sprayer is designed to provide superior spray performance with water-based and oil-based
(mineral spirit-type) architectural paints and coatings. This user information is intended to help
you understand the types of materials that can be used with your sprayer.
Please read the information on the material container label to determine if it can be used with
your sprayer. Ask for a Safety Data Sheet (SDS) from your supplier. The container label and
SDS will explain the contents of the material and the specific precautions related to it.
Paints, coatings and clean-up materials generally fit
into one of the following 3 basic categories:
WATER-BASED: The container label should indicate that the material can be
cleaned up with soap and water. Your sprayer is compatible with this type of
material. Your sprayer is NOT compatible with harsh cleaners such as chlorine
bleach.
OIL-BASED: The container label should indicate that the material is
COMBUSTIBILE and can be cleaned up with mineral spirits or paint thinner. The
SDS must indicate that the flash point of the material is above 100° F. Your sprayer
is compatible with this type of material. Use oil-based material outdoors or in a
well-ventilated indoor area with a flow of fresh air. See the safety warnings in this
manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene,
toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and
turpentine. The container label should indicate that this material is
FLAMMABLE. This type of material is NOT compatible with your sprayer
and CANNOT be used.
FIRE AND EXPLOSION HAZARD
•Use only non-flammable or
water-based materials, or
non-flammable paint thinners. Do not
use materials having flash points lower
than 100° F (38° C). This includes, but is
not limited to, acetone, xylene, toluene,
or naphtha. For more information about
your material, request Safety Data
Sheets (SDSs) from the supplier.
NOTICE
Your sprayer is NOT compatible with harsh
cleaners such as chlorine bleach. Using
these cleaners will cause damage to the
sprayer.

Contents
4 3A9014A
Contents
Before You Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Know Your Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cup Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Tip Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Spray Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Triggering Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Reversible Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spray Tip Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clear Tip Clogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cup Refills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pause in Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Static Grounding Instructions (Oil-Based Materials) . . . . . . 21
Cleaning Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
End of Product Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Single Speed, Dual Speed, Dual Speed Premium . . . . . . . . 30
Parts List- Single Speed, Dual Speed, Dual Speed Premium 31
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Variable Speed Premium . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Parts List- Variable Speed Premium . . . . . . . . . . . . . . . . . . . 33
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Warnings
3A9014A 5
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual where
applicable.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This product is equipped with a cord having a grounding wire with an appropriate
grounding plug. The plug must be plugged into an outlet that is properly installed
and grounded in accordance with all local codes and regulations.
•Improper installation of the grounding plug is able to result in a risk of electric
shock.
•This product is for use on a nominal 120 V circuit and has a grounding plug
similar to the plugs illustrated in the figure below.
•Only connect the product to an outlet having the same configuration as the
plug.
•Do not modify the plug provided. If it does not fit the outlet, have the proper
outlet installed by a qualified electrician.
•Do not use a 3-to-2 adapter with this product.
•When repair or replacement of the cord or plug is required, do not connect the
grounding wire to either power terminal.
•The wire with insulation having an outer surface that is green with or without
yellow stripes is the grounding wire.
•Check with a qualified electrician or serviceman when the grounding
instructions are not completely understood, or when in doubt as to whether the
product is properly grounded.
Extension Cords:
•Use only a 3-wire extension cord that has a grounding plug and a grounding
receptacle that accepts the plug on the product.
•Make sure your extension cord is not damaged.
•If an extension cord is necessary, use 12 AWG (2.5 mm2) minimum to carry the
current that the product draws. An undersized cord results in a drop in line
voltage and loss of power and overheating.
ti3509b

Warnings
6 3A9014A
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. To help prevent fire and explosion:
•Do not spray or clean with materials having flash points lower than 100°F (38°C).
Use only non-flammable or water-based materials, or non-flammable paint
thinners. For complete information about your material, request the Safety Data
Sheets (SDSs) from the material distributor or retailer.
•Do not spray combustible materials near an open flame or sources of ignition
such as cigarettes, motors, and electrical equipment.
•Paint or solvent flowing through the equipment is able to result in static
electricity. Static electricity creates a risk of fire or explosion in the presence of
paint or solvent fumes. All parts of the spray system, including the sprayer and
objects in and around the spray area shall be properly grounded to protect
against static discharge and sparks.
•Verify that all containers and collection systems are grounded to prevent static
discharge. Do not use pail liners unless they are anti-static or conductive.
•Connect to a grounded outlet and use grounded extensions cords. Do not use
a 3-to-2 adapter.
•Stop operation immediately if static sparking occurs or you feel a shock. Do
not use equipment until you identify and correct the problem.
•Do not use a paint or a solvent containing halogenated hydrocarbons.
•Keep spray area well-ventilated. Keep a good supply of fresh air moving
through the area.
•Sprayer generates sparks. Keep pump assembly in a well-ventilated when
spraying, flushing, cleaning, or servicing.
•Do not smoke in the spray area or spray where sparks or flame is present.
•Do not operate light switches, engines, or similar spark producing products in
the spray area.
•Keep area clean and free of paint or solvent containers, rags, and other
flammable materials.
•Know the contents of the paints and solvents being sprayed. Read all Safety
Data Sheets (SDSs) and container labels provided with the paints and solvents.
Follow the paint and solvent manufacturer's safety instructions.
•Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the
system can cause electric shock.
•Turn off and disconnect power cord before servicing equipment.
•Connect only to grounded electrical outlets.
•Use only 3-wire extension cords.
•Ensure ground prongs are intact on power and extension cords.
•Do not expose to rain. Store indoors.

Warnings
3A9014A 7
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious injury
that can result in amputation. In the event that injection occurs, get immediate
surgical treatment.
•Do not aim the gun at, or spray any person or animal.
•Keep hands and other body parts away from the discharge. For example, do not
try to stop leaks with any part of the body.
•Always use the spray tip guard. Do not spray without spray tip guard in place.
•Use Graco spray tips.
•Use caution when cleaning and changing spray tips. In the case where the spray
tip clogs while spraying, follow the Pressure Relief Procedure for turning off
the unit and relieving the pressure before removing the spray tip to clean.
•Equipment maintains pressure after power is shut off. Do not leave the
equipment energized or under pressure while unattended. Follow the Pressure
Relief Procedure when the equipment is unattended or not in use, and before
servicing, cleaning, or removing parts.
•Check parts for signs of damage. Replace any damaged parts.
•This system is capable of producing 2000 psi (138 bar, 13.8 MPa). Use Graco
parts or accessories that are rated a minimum of 2000 psi (138 bar, 13.8 MPa).
•Verify that all connections are secure before operating the unit.
•Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar
with the controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Always wear appropriate gloves, eye protection, and a respirator or mask when
painting.
•Do not operate or spray near children. Keep children away from equipment at
all times.
•Do not overreach or stand on an unstable support. Keep effective footing and
balance at all times.
•Stay alert and watch what you are doing.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not alter or modify equipment. Alterations or modifications may void agency
approvals and create safety hazards.
•Make sure all equipment is rated and approved for the environment in which you
are using it.

Warnings
8 3A9014A
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can
cause serious chemical reaction and equipment rupture. Failure to follow this
warning can result in death, serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated
hydrocarbon solvents or fluids containing such solvents.
•Do not use chlorine bleach.
•Many other fluids may contain chemicals that can react with aluminum. Contact
your material supplier for compatibility.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or
on skin, inhaled, or swallowed.
•Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you
are using.
•Store hazardous fluid in approved containers, and dispose of it according to
applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent
serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and
burns. Protective equipment includes but is not limited to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and
solvent manufacturer.

Know Your Sprayer
3A9014A 9
Know Your Sprayer
A Prime Knob
BVacuValveTM
C Spray Tip
D Speed Control (available on select
models only)
E Trigger
FFlexLinerTM
G Cup Support
H Cup Lid
J Funnel
K Strainer
L Strainer’s Air Tube
M Pump Filter
N Spray Tip Guard
P Spray Tip Holder
Q Power Cord

Know Your Controls
10 3A9014A
Know Your Controls
Prime Knob
The Prime Knob directs fluid to either the cup
or the Spray Tip. When priming, it is used to
purge air from the pump. Your sprayer will
not spray with air in the pump.
Turn Prime Knob down to PRIME position to
relieve system pressure.
Turn Prime Knob forward to SPRAY position
to spray fluid.
VacuValve
The VacuValve is used to evacuate air out of
the FlexLiner. This is necessary for the
sprayer to prime.
Spray Tip
The Spray Tip is the key to airless spray
technology. High pressure paint pumped
through the very small hole in the Spray Tip
comes out as a spray.
The Spray Tip has the ability to be reversed
and quickly clear clogs.
Trigger
The Trigger controls the operation of the
sprayer.
Speed Control
The Speed Control* allows you to slow down
or speed up when spraying.
*Available on select models only

Setup
3A9014A 11
Setup
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Turn Prime Knob down to PRIME position
to relieve pressure .
Cup Fill
If spraying oil-based materials, review Fluid
Compatibility, page 21, and follow Static
Grounding Instructions (Oil-Based
Materials), page 21.
1. Insert one FlexLiner into the Cup
Support.
NOTE: Verify there is no damage to the top
sealing edge of the FlexLiner, such as a
crease or fold. If damaged it will leak air and
lose prime.
This sprayer builds up an internal
pressure of 2000 psi (138 bar, 13.8 MPa)
during use. Follow this Pressure Relief
Procedure whenever you stop spraying
and before cleaning, checking, servicing,
or transporting equipment to prevent
serious injury.
Use only water-based or oil-based
(mineral spirit-type) materials with a
flash point greater than 100° F (38° C).
Do not use materials which state
“FLAMMABLE” on the packaging. For
more information about your material,
request a Safety Data Sheet (SDS) from
distributor or retailer.
When spraying oil-based material, use
outdoors or in a well-ventilated indoor
area with a flow of fresh air.
Keep spray area well-ventilated. Keep a
good supply of fresh air moving through
the area.

Setup
12 3A9014A
2. Firmly tighten the Cup Lid onto the Cup
Support to ensure an airtight seal.
NOTE: To ensure an airtight seal, the gasket
inside the Cup Lid is lubricated by the factory.
If lubrication has washed away, apply Seal
Lube (included) to the gasket.
3. Insert the Funnel into the Cup Lid, twist
to lock. Snap the Strainer into the Funnel
to strain your paint as you fill your cup.
4. The Strainer’s Air Tube will prevent paint
from overfilling the cup. Fill the cup as
follows:
a. Watching the Funnel (not the cup),
slowly pour paint into the Funnel.
When the paint stops draining
down, the cup is full.
NOTE: If the paint stops draining but you see
the cup is not full, use a stir stick to scrape
the captured debris on the top of the Strainer
until the paint resumes draining.
Funnel Strainer

Setup
3A9014A 13
b. With the Funnel and Strainer still
attached to the cup, pour excess
paint from the Funnel back into the
paint can.
c. Lift up the Strainer and look to
verify you can see crossbars in the
bottom of the Funnel. If not, the
cup is overfilled. Pour excess paint
back into the paint can.
d. Remove the Funnel and Strainer
from the cup and hook on edge of
paint can.

Startup
14 3A9014A
Startup
1. Install the cup onto the sprayer as
follows:
a. Verify Pump Filter is installed and
clean.
b. Align VacuValve (on Cup Lid) with
Prime Knob (on sprayer).
c. Push cup assembly onto the
sprayer, twist to lock.
2. Prime the pump as follows:
a. Verify Prime Knob is pointed down
to PRIME position.
b. Plug sprayer into a grounded
power source.
c. Open the VacuValve cap and
gently squeeze the FlexLiner until
no more air bubbles appear in the
VacuValve.
NOTE: Tilt the sprayer such that the
VacuValve is the highest point so that all air
in the FlexLiner can be fully evacuated.

Startup
3A9014A 15
d. Continue to squeeze the FlexLiner
while pulling the Trigger for 10
seconds.
NOTE: This will purge all air from the pump
and cup. Paint will not spray out, but will
recirculate through the pump and back into
the cup.
e. When no more air bubbles appear
in the VacuValve, release the
Trigger and close the VacuValve
cap.
3. Turn Prime Knob forward to SPRAY
position. Verify Spray Tip is forward in
the SPRAY position.
4. Point the sprayer into a waste pail and
pull the Trigger for 5 seconds to spray
out storage fluid.
•To avoid pump damage, if the
sprayer does not spray after 5
seconds, STOP and repeat
STARTUP.
You are now ready to spray!
NOTE: For best results, to evacuate all
material from the FlexLiner when the material
is nearly gone, gently squeeze the bottom of
the FlexLiner to push the last of the material
up to the Cup Lid.
IMPORTANT! The motor has a built-in
feature to protect itself from overuse. If the
motor stops, the thermal switch has tripped.
The motor will operate normally after cooling
for 20-30 minutes.

Spraying
16 3A9014A

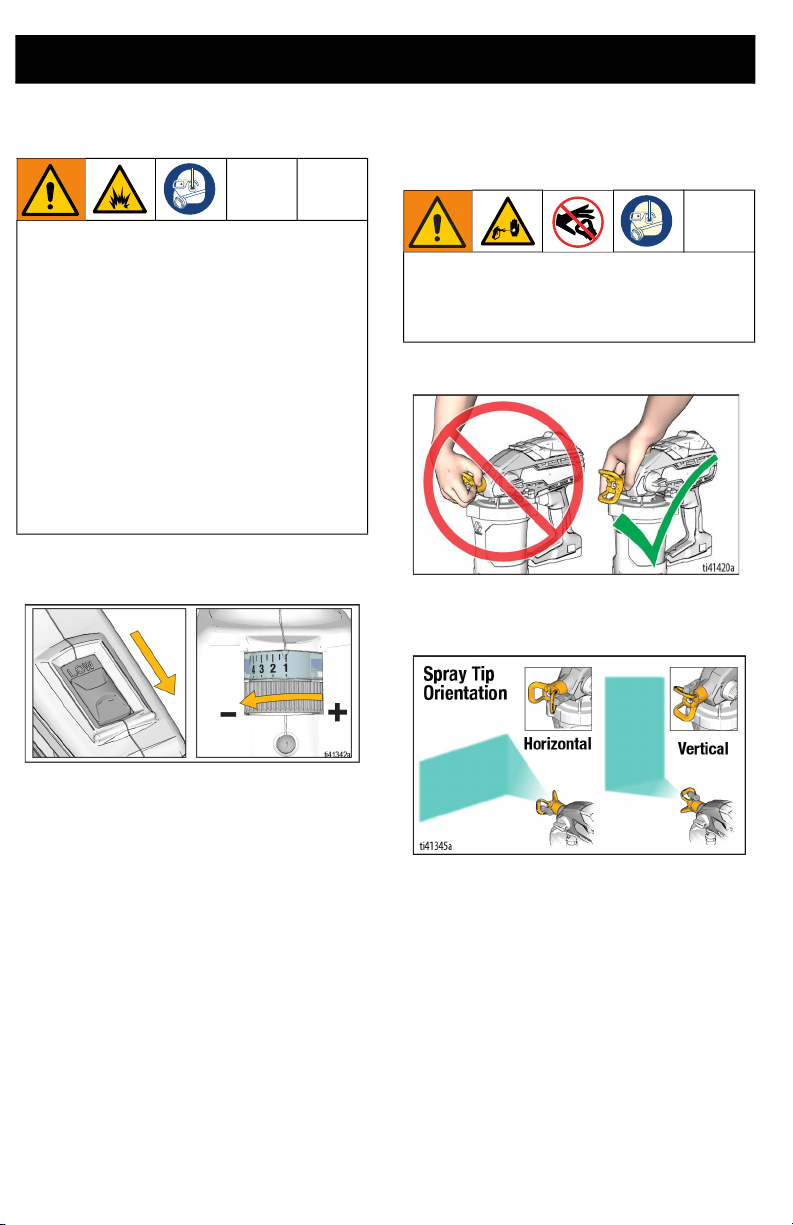

Spraying
1. Set the Speed Control to lowest
available setting.
2. Pointing at a piece of scrap cardboard,
pull the Trigger to test the spray pattern.
3. If needed, slowly increase the Speed
Control to the setting that produces a
good spray pattern.
NOTE: To minimize overspray, always spray
at the lowest speed setting that gives a good
spray pattern.
4. Adjust the sprayer’s distance from the
surface and your hand speed to achieve
the desired surface coverage.
Spray Tip Orientation
Adjust the Spray Tip Guard for the desired
vertical or horizontal spraying direction.
Use only water-based or oil-based
(mineral spirit-type) materials with a
flash point greater than 100° F (38° C).
Do not use materials which state
“FLAMMABLE” on the packaging. For
more information about your material,
request a Safety Data Sheet (SDS) from
distributor or retailer.
When spraying oil-based material, use
outdoors or in a well-ventilated indoor
area with a flow of fresh air.
Keep spray area well-ventilated. Keep a
good supply of fresh air moving through
the area.
To avoid serious injury from skin injection,
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
NO YES

Spraying
3A9014A 17
Spray Pattern Quality
A good spray pattern is evenly distributed
without voids or runs. Adjust sprayer Speed
Control (if available), hand speed, and distance
from the wall to get a good spray pattern.
If tails persist, material may need to be
thinned. If material needs to be thinned,
follow manufacturers recommendations.
Spray Angle
Use a piece of scrap cardboard to practice
these basic spraying techniques before you
begin spraying the surface.
•Hold sprayer 10-12 inches (25-30 cm)
from surface and aim straight at surface.
Tilting the sprayer to direct the spray
angle causes an uneven finish.
•Flex wrist to keep sprayer pointed
straight. Fanning sprayer to direct spray
at angle causes uneven finish.
NOTE: How fast you move the sprayer will
affect spray application. If material is
pulsating, you are moving too fast. If material
drips, you are moving too slow. See
Troubleshooting, page 26.
Aiming Sprayer
Aim the sprayer at the bottom edge of the
previous stroke, overlapping each stroke by
50%.
Triggering Timing
Pull Trigger after starting stroke. Release
Trigger before end of stroke. Sprayer must
be moving when Trigger is pulled and
released.

Spraying
18 3A9014A
Reversible Spray Tips
Your sprayer is shipped with wide and
narrow reversible Spray Tips.
•Blue Spray Tips are for spraying
paint and should be used with the
blue Pump Filter.
•Green Spray Tips are for spraying
stain and should be used with the
green Pump Filter (green tips and
filter are not included with all
models).
Spray Tip Removal
1. Turn Prime Knob down to PRIME
position to relieve system pressure.
2. Rotate Spray Tip 90 degrees.
3. Pull the Spray Tip straight out of the
Spray Tip Guard.
Spray Tip Installation
1. Align Spray Tip locking tab with the
locking tab slot in the Spray Tip Guard.
2. Push the Spray Tip all the way into the
Spray Tip Guard.
3. Rotate the Spray Tip to the SPRAY
position.
NOTE: Make certain the Spray Tip locking
tab is pushed all the way into the slot in the
Spray Tip Guard. You should not be able to
remove the Spray Tip from the Spray Tip
Guard when it is in the SPRAY or UNCLOG
positions.
To avoid serious injury from skin injection,
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
NOTICE
The Spray Tip Guard is permanently
attached to the sprayer. Removal will result
in damage to the sprayer.

Spraying
3A9014A 19
Clear Tip Clogs
In the event debris clogs the Spray Tip, the
sprayer is designed with a reversible Spray
Tip that quickly and easily clears the particles
without disassembling the sprayer.
1. Turn Prime Knob down to PRIME
position to relieve system pressure.
2. Reverse Spray Tip to UNCLOG position.
3. Set Speed Control to highest available
setting.
4. Point sprayer into waste pail, turn Prime
Knob forward to SPRAY position. Pull
Trigger for 5 seconds to clear clog.
NOTE: If Spray Tip is still clogged, you may
have to repeat steps 1-4, or replace with
replacement Spray Tip.
5. Turn Prime Knob downward to PRIME
position. Rotate Spray Tip back to
SPRAY position. Turn Prime Knob
forward to SPRAY position, and resume
spraying.
To avoid serious injury from skin injection,
do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.

Spraying
20 3A9014A
Cup Refills
1. Turn Prime Knob down to PRIME
position to relieve system pressure.
2. Remove cup assembly from sprayer.
Remove the Pump Filter and clean
debris from the filter screen.
3. Reinstall the Pump Filter into the pump.
Set sprayer on a rag.
4. Refill the cup following Cup Fill, page
11, steps 3 and 4. Then follow Startup,
page 14, instructions to proceed.
Pause in Spraying
Paint will dry quickly and cause clogs in the
sprayer. Follow these steps whenever you
pause spraying for 5 minutes to 2 hours.
1. Turn Prime Knob down to PRIME
position to relieve system pressure.
2. Unplug Power Cord.
3. Turn Spray Tip 90 degrees to seal orifice
from drying out.
4. Ensure sprayer is fully sealed. Ensure
VacuValve is closed and cup is attached
to sprayer with all air evacuated.
