Grandstream Networks Grandstream GXP-2000 User manual

User Manual
GXP-2000
Enterprise IP Phone
For Firmware Version 1.1.1.14
Grandstream Networks, Inc.
www.grandstream.com

2
Table of Contents
1. Welcome.........................................................................................................................4
2. Installation......................................................................................................................5
2.1 What is Included in the Package ..........................................................................5
2.2 Connecting Your Phone .......................................................................................5
2.3 Wall Mount...........................................................................................................6
2.4 GXP2000 Extension Board ..................................................................................7
2.5 Safety Compliances..............................................................................................9
2.6 Warranty ...............................................................................................................9
3 Product Overview..........................................................................................................11
3.1 Key Features.......................................................................................................12
3.2 Hardware Specification ......................................................................................13
4 Using GXP-2000 IP Phone ...........................................................................................15
4.1 Getting Familiar with LCD ....................................................................................15
4.2 Getting Familiar with Keypad............................................................................16
4.3 GUI Menu Chart.................................................................................................18
4.4 Making and Answering Phone Calls..................................................................18
4.4.1 Handset, Speakerphone and Headset Mode ................................................18
4.4.2 Multiple SIP Accounts and Lines................................................................18
4.4.3 Making Calls ...............................................................................................19
4.4.4 Making Calls using IP Address ...................................................................19
4.4.5 Receiving Calls............................................................................................20
4.4.6 Call Hold......................................................................................................20
4.4.7 Call Waiting and Switch between Calls......................................................20
4.4.8 Call Transfer................................................................................................20
4.4.9 3-Way Conferencing ...................................................................................21
4.4.10 Checking Message and Message Waiting Indication ..............................21
4.4.11 Mute and Delete .......................................................................................21
4.4.12 Multi-functional Button/Extensional board .............................................22
4.4.12.1 Speed Dial ..............................................................................................22
4.4.12.2 Asterisk Busy Line Field .......................................................................22
4.4.12.3 Extension Board.....................................................................................22
The fifty-six Multi-functional buttons on Extension board function the same as
Multi-functional buttons on the phone base station, except that they can not be
Line keys. .............................................................................................................22
4.4.13 Page Dialing.............................................................................................22
4.5 Call Features.......................................................................................................22
4.6 Customized idle screen.......................................................................................23
4.7 XML phone book downloading .........................................................................23

3
5 Configuration Guide......................................................................................................24
5.1 Configuration with Keypad....................................................................................24
5.2 Configuration with Web Browser ......................................................................27
5.2.1 Access the Web Configuration Menu .........................................................27
5.2.2 End User Configuration...............................................................................27
5.2.3 Advanced User Configuration.....................................................................35
5.2.4 Saving the Configuration Changes ..............................................................49
5.2.5 Rebooting the Phone from Remote .............................................................50
5.3 Configuration through Central Provisioning Server...........................................50
6Firmware Upgrade ...................................................................................................52
6.1 Firmware Upgrade through TFTP/HTTP ..............................................................52
6.2 Configuration File Download.............................................................................53
6.3 Firmware and Configuration File Prefix and Postfix.........................................53
6.4 Managing Firmware and Configuration File Download....................................53
7 Restore Factory Default Setting..................................................................................54
Appendix I Glossary of Terms.....................................................................................55
Appendix II GUI Menu Chart........................................................................................62

4
1. Welcome
Thank you for purchasing Grandstream award-winning GXP-2000 Enterprise IP Phone.
You made an excellent choice and we hope you will enjoy all its capabilities.
Grandstream's award-wining GXP-2000 SIP IP phone is the innovative enterprise IP
telephone that offers a rich set of functionality and superb sound quality. They are fully
compatible with SIP industry standard and can interoperate with many other SIP
compliant devices and software on the market.
Grandstream GXP-2000 has been awarded the Best of Show product in 2005 Internet
Telephony Conference and Expo.
This document is subject to changes without notice. The latest electronic version of this
user manual is available for download from the following location:
http://www.grandstream.com/user_manuals/GXP2000.pdf

5
2. Installation
2.1 What is Included in the Package
The GXP-2000 phone package contains:
1) One GXP-2000 Main Case
2) One Handset
3) One Phone Cord
4) One Universal Power Adaptor
5) One Ethernet Cable
2.2 Connecting Your Phone
Following is a backside picture of GXP-2000; each connection port is labeled with the
name in the following table:
The table below describes the connectors on the GXP-2000 phone:
EXT PC LAN+PoE POWER
HEADSE
T

6
EXT Extension connection for extended keypad(will be
implemented in the future)
LAN/PoE
10/100 Switch LAN port for connecting to Ethernet.
Support PoE (802.3af). Draws power from both spare line
and signal line
PC 10/100 Switch port for connecting PC
POWER 5V power port
HEADSET 3.5mm Headset port
2.3 Wall Mount
GXP-2000 can be wall mounted. There are two wall mount holes on the bottom of the
GXP-2000 main body:
User can simply place the device against the wall with two holes placed to the fixed
hanger position on the wall.
Tab
Handset
Rest
Tab with
extension down
Tab with
extension up
Top Wall
Mount hole
Bottom Wall
Mount hole

7
After wall mounting the main body of GXP-2000, user will need to pull out the tab
(extension downward) from handset cradle on the top of the handset rest, and rotate the
tab and plug it into the slot with the extension up for handset holding.
2.4 GXP2000 Extension Board
GXP-2000 supports up to 2 extension boards from firmware 1.1.1.1. GXP2000
Extension Board expands more Multi Purpose Keys for advanced business phone
applications. One GXP2000 Extension Board carries 56 Multi Purpose Keys. Simply
connect the extension board with GXP2000 via PS2 cable in the same package, the
GXP2000 will automatically reboot itself and initiate the extension board.

8
The GXP2000 will boot up first, and all LED indicators on GXP2000 will be solid on
for a while; the status light at the top right corner of the extension board will blink in
red; and then all of the LED indicators on the extension board will flash three times; and
then the status light at the top right corner of the extension board will turn to solid
green.

9
Note: If you are using GXP2000 with HW0.4, power supply in the same package should
be plugged in the extension board. Hardware version can be found in the GUI STATUS
Menu (you can use the down arrow key to browse GUI menu when the phone is on-
hook).
2.5 Safety Compliances
The GXP-2000 phone is compliant with various safety standards including FCC/CE. Its
power adaptor is compliant with UL standard. The phone should only be operated with
the universal power adaptor provided with the package. Damages to the phone caused
by using other unsupported power adaptors are not covered by the manufacturer’s
warranty.
2.6 Warranty
Grandstream has a reseller agreement with our reseller customer. End user should
contact the company from whom you purchased the product for replacement, repair or
refund.
If you purchased the product directly from Grandstream, contact your Grandstream
Sales and Service Representative for a RMA (Return Materials Authorization) number.
Grandstream reserves the right to remedy warranty policy without prior notification.
Warning: Please do not attempt to use a different power adaptor. Using
other power adaptor may damage the GXP-2000 and will void the
manufacturer warranty.
Caution: Changes or modifications to this product not expressly approved by
Grandstream, or operation of this product in any way other than as detailed by this
User Manual, could void your manufacturer warranty.

10
Information in this document is subject to change without notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without
the express written permission of Grandstream Networks, Inc.

11
3 Product Overview
GXP-2000 series IP phone is designed to be an enterprise telephone, which could also
be used in residential household. The following photo illustrates the appearance of a
GXP-2000 IP phone.
Front View
Back View

12
3.1 Key Features
Grandstream GXP-2000 IP Phone is a next generation enterprise IP telephone based on industry open
standard SIP (Session Initiation Protocol). Built on innovative technology, Grandstream IP Phone
features market leading superb sound quality and rich functionalities at mass-affordable price.
Software Feature:
•Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP, SRTP by SDES, HTTP, ARP/RARP,
ICMP, DNS, DHCP, NTP, TFTP, STUN, etc.
•Support up to 4 SIP accounts and up to 11 media channels.
•The two Ethernet ports can be configured to function as NAT router.
•Powerful digital signal processing (DSP) to ensure superb audio quality; advanced adaptive
jitter control and packet loss concealment technology
•Support popular codecs including G711 (a-law and u-law), G.723.1 (6.3K), G.726 (32K),
G.729A/B, and GSM.
•Support Caller ID/name display or block, Call waiting caller ID, Hold, Call Waiting, Call
Transfer(consultative/blind), 3-way conference, Call Forward, in-band and out-of-band DTMF,
Do-not-Disturb, SIMPLE/PRESENSE, phone book downloading, customized idle screen,
Asterisk BLF, speed dial, paging, message waiting indicator, etc.
•Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise
Generation), Line Echo Cancellation (G.168), and AGC (Automatic Gain Control).
•Support standard encryption and authentication (DIGEST using MD5 and MD5-sess).
•Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS).
•Support automated NAT traversal without manual manipulation of firewall/NAT.
•Provide easy configuration through manual operation (phone keypad), Web interface or
automated provisioning by downloading encrypted configuration file via HTTP/TFTP for mass
deployment
•Support firmware upgrade via TFTP or HTTP.
•Support customized configuration/firmware file name by attaching prefix and post fix.
•Support GXP-2000 Extension board for multi-purpose functionality.
•Support phonebook downloading via HTTP/TFTP.
•Support customizable idle screen by downloading XML format file via HTTP/TFTP
•Support SIP MESSAGE method (RFC 3428); stores up to 100 incoming IM messages.
•Support SIP PUBLISH method (RFC 3903), SIP Presence package (RFC 3856, 3863) for use
of 7 MFKs and GXP-2000EXT, SIP Dialog package (RFC 4235)
•Support Power over Ethernet (PoE) IEEE standard 802.3af
•Support Headset which will auto switch to Headset when plugged in
•Support 10/100 Full/Half Duplex Ethernet Switch with LAN and PC port, Ethernet polarity can
be auto detected, thus either straight through or twist cable can be used.

13
3.2 Hardware Specification
The table below describes the hardware specification of GXP-2000:
Model GXP-2000
LAN interface 2xRJ45 10/100Base-T with PoE (802.3af)
Power over Ethernet IEEE 802.3af standard, can draw power from both spare lines
or signal lines from Ethernet
Headset Jack 3.5mm Headset port
LED 11 LED with different light pattern in RED color
Universal Switching
Power Adaptor
Input: 100-240VAC 50-60 Hz
Output: +5VDC, 1200mA,
UL certified
Dimension 215mm (W)
220mm (D)
57mm (H)
Weight 0.82kg (1.8lbs)
Temperature 40 - 130oF
5 – 45oC
Humidity 10% - 90%
(non-condensing)
Compliance FCC / CE / C-Tick

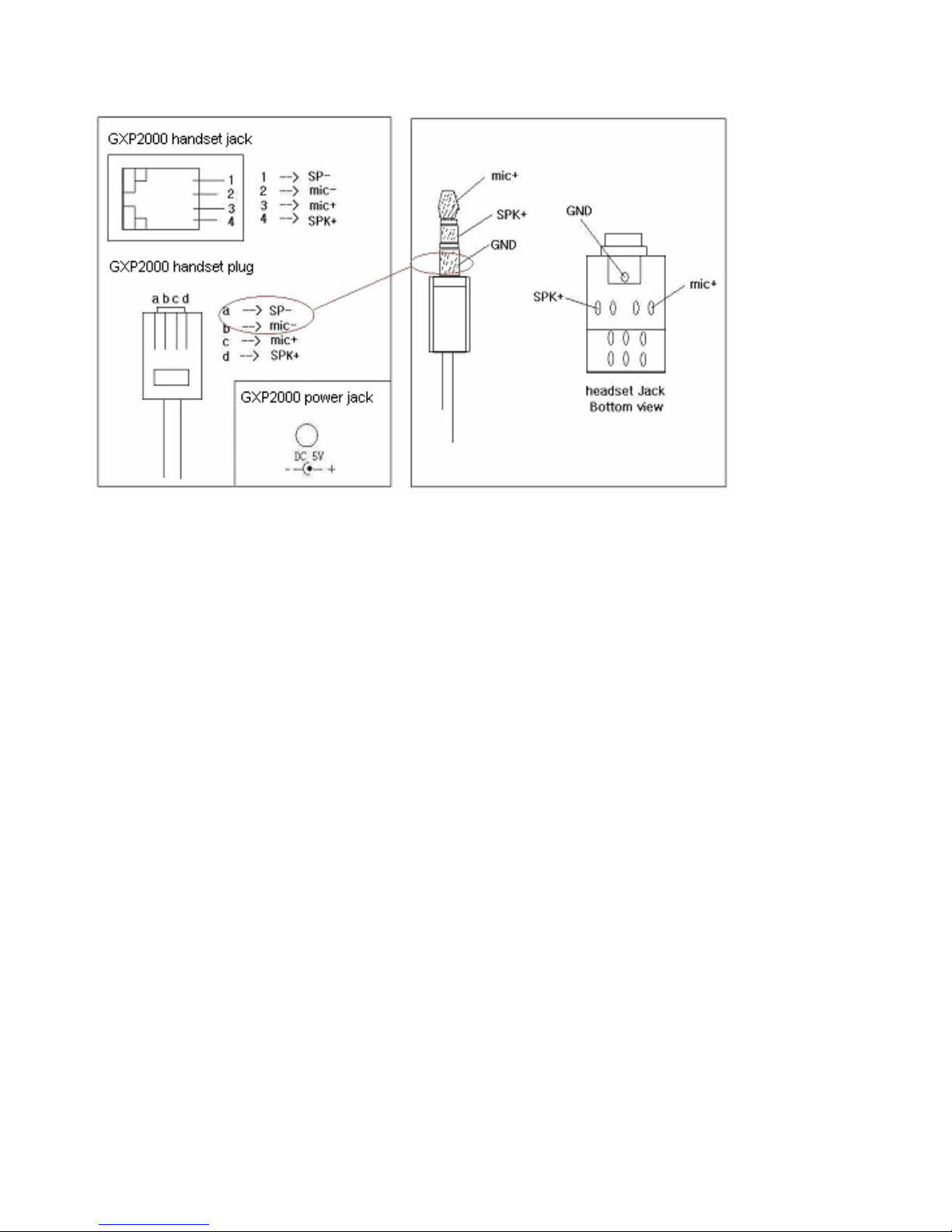

The picture below shows the handset and headset connectors’ wiring schema.

14
As show in the schema, the left side is pin assignment for a RJ11 interface headset; while the right side
is showing a normal 3.5mm headset plug. A 3.5mm to 2.5mm plug converter is required if user want to
user normal 2.5mm cell phone headset. The plug converter can be purchased from any electronics
department store like Radio Shack.

15
4 Using GXP-2000 IP Phone
4.1 Getting Familiar with LCD
GXP-2000 phone has a numeric LCD of 64(rows) x 131 (columns) in pixels. Here is the display when
all segments illuminate:
The LCD is equipped with a backlight. When the phone is configured properly and in the normal idle
state, the backlight is off. Whenever an event occurs, the backlight turns
on automatically and brings the user’s attention.
Icon LCD Icon Definitions
Network Status Icon:
FLASH in the case of Ethernet link failure
OFF if IP address or SIP server is not found
ON if IP address and SIP server are located
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
Speaker Phone Status Icon:
FLASH when phone rings or a call is pending
OFF when the speakerphone is off
ON when the speakerphone is on
Handset, Speakerphone and Ring Volume Icon:
0-7 scales to adjust handset / speakerphone / ring volume

16
Real-time Clock:
Synchronized to Internet time server
Time zone configurable via web browser
Time Icon:
AM for the morning
PM for the afternoon
4.2 Getting Familiar with Keypad
PM
A
M
Hold Speaker Send/Re-Dial Standard Keypad
Message Waiting
Indicator
Line 1-4 Keys
Menu Keys
Speed Dial /
Configurable
line indicators
Mute/Delete
Message
Conference
Transfer
RJ11

17
GXP-2000 phone has 35 key buttons:
Key Button Key Button Definitions
LINE1-LINE4 4 Line keys with LED, can be extended to 11 Lines with the use of
7 Speed Dial Keys on the right
MULTI-FUNCTION 7 Multi-functional keys with LED that can be configured to use for
speed dial/Asterisk BLF/presence watcher
UP ↑
Scroll up Menu item when phone is in MENU mode
Or increase handset/speakerphone volume when phone is ACTIVE
Or access the missed calls menu when phone is in IDLE mode
DOWN ↓
Scroll down Menu item when phone is in MENU mode
Or reduce handset/speakerphone volume when phone is ACTIVE
Or access the Phone Book when phone is in IDLE mode
LEFT ÅShift cursor to left
RIGHT ÆShift cursor to right
MENU ●Enter MENU mode when phone is in IDLE mode.
It is also the ENTER key once entering MENU
TRNF Transfer an ACTIVE call to another number
CONF Bring Calling/Called party into conference
MSG Enter to retrieve voice mails or other messages
MUTE/DEL
Mute an ACTIVE call; or Delete a key entry, call log, voice mail
and etc
Or use of MUTE/DEL key during incoming call ringing state to
reject call using SIP 486 message
Or act as toggle key to turn DND on and off during idle
HOLD Temporarily hold an ACTIVE call
SPEAKER Enter hands-free mode
SEND
Dial a new number or Redial the last number dialed. After entering
the phone number, pressing this key would force a call to go out
immediately before timeout
0 - 9, *, # 12 standard Digit, * and # keys are usually used to make phone
calls

18
4.3GUI Menu Chart
Please see the Appendix II.
4.4Making and Answering Phone Calls
4.4.1 Handset, Speakerphone and Headset Mode
The regular Handset mode can be switched with either the Speaker mode (Hand free) or the Headset
mode, however, whenever the Headset is plugged in, Speaker mode will be switched to the Headset
mode automatically.
To Switch between Handset and Speaker/Headset, simply press the Hook Flash in the Handset cradle
or the Speaker button.
4.4.2 Multiple SIP Accounts and Lines
GXP-2000 can support up to 4 independent SIP accounts. Each account is capable of independent SIP
Server, user and NAT settings among others. GXP-2000 supports up to 11 concurrent audio channels
arbitrarily assigned to these SIP accounts -- they can be used in any combination as long as the server
allows it. Speed dial numbers configured must be associated to a specific SIP account.
Each of the 4 LINE buttons (LINE1-LINE4) is “virtually” mapped to each SIP account. In off hook
state, when user chooses an idle line, the name of the account (as configured in the web interface) will
be displayed in the LCD while a dial tone is being played out. For example, if the 4 SIP accounts are
named FWD, SIPPHONE, BROADVOICE, and PBX respectively and they are all active and
registered. When LINE1 is pressed, user will hear dial tone and see “FWD”. When LINE2 is pressed,
user will hear dial tone and see “SIPPHONE”. When LINE3 is pressed, user will hear dial tone and see
“BROADVOICE”. When LINE4 is pressed, user will hear dial tone and see “PBX”.
For outgoing calls, GXP-2000 will pick up the LINE pressed, which will be lit up in solid red color.
User can switch the dialing account before dialing any digits by pressing the same LINE button one or
more times. If user continues to press one LINE, the selected account will circulate among the
registered accounts. For example, when LINE1 is pressed, LCD displays “FWD”. If LINE1 is pressed
again, LCD displays “SIPPHONE” and the subsequent call will be made through SIP account 2.
For incoming calls, if an account is configured and registered, all incoming calls for that account will
attempt to use its corresponding LINE if it is not in use. When the “virtually” mapped line is in use,
GXP-2000 will flash the next available LINE (from Left to Right, then Top to Bottom) in red color.
LINE 5 to 11 cannot be picked like LINE 1 to 4. This happens automatically. When an incoming call
arrives while all of the 4 LINE (1-4) channels are in use, LINE5 will be selected. When all 4 LINE (1-
4) channels are in use, and user places an active call on hold, user can on-hook and off-hook to activate
the next available channel (LINE5 or whatever the next one). When any one of the 7 functions keys is
associated with a call, they function as LINE keys; otherwise they function as speed dial keys. (So
when LINE 5 is in use, you cannot use speed dial 1, but speed dial 2-7 still work).

19
A LINE is defined as “ACTIVE” when it is making or receiving a call, and its corresponding LINE
LED is lit up in solid RED.
4.4.3 Making Calls
There are many ways to make phone calls:
1. Make Handset/SPEAKER/Headset off hook, or press the available LINE key to select a SIP
account, the corresponding LINE LED will light up in solid red. Enter the phone numbers and
press the SEND key.
2. Make Handset/SPEAKER/Headset off hook, or press the available LINE key, the
corresponding LINE LED will light up in solid red. Press the SEND button to redial the last
number called.
3. Make Handset/SPEAKER/Headset off hook, or press the available LINE key, the
corresponding LINE LED will light up in solid red. Press the Speed Dial key to call the preset
calling party number.
4. Press the DOWN button, then select the number in the Phone Book menu you want to call by
pressing the Menu button, and then press the Menu button again to call this number.
5. Press the UP button, then select the number in the Missed Calls you want to call by pressing the
Menu button, and then press the Menu button again to call this number.
Note:
•Once pressed, the dialed number is displayed on the LCD as the corresponding DTMF tone is
played out.
•If the “SEND” button is not pressed after the phone number, the phone will wait for 4 seconds
before initiating the call.
4.4.4 Making Calls using IP Address
Direct IP calling allows two phones to talk to each other in an ad hoc fashion without a SIP proxy.
VoIP calls can be made between two phones if
•Both phones have public IP addresses, or
•Both phones are on a same LAN using private or public IP addresses, or
•Both phones can be connected through a router using public or private IP addresses.
To make a direct IP calling, disable “Use Random Port” option at advanced web configuration page,
and then press “Menu” button, and then select “Direct IP Call” submenu to enter the direct IP call
interface, and then enter the 12-digit target IP address, and then press Menu button twice to make the
call.

20
From 1.1.0.13 firmware build, GXP2000 begins to offer Quick IP-call feature: first make
Handset/SPEAKER/Headset off hook, and then press # key and enter the last 3-digits of the target IP
address, and then press the SEND key or # key. To use this feature, you need to enable Quick IP-call
mode in the advanced web configuration page.
4.4.5 Receiving Calls
There are two states when GXP-2000 receives a call:
1. When receiving an initial call. Besides ringing with selected Ring Tone, the corresponding
account LINE will flash in red, taking Handset/SPEAKER/Headset off hook will enable user to
hear the calling party in Handset/SPEAKER/Headset.
2. When receiving second or more incoming calls, besides playing stutter Call Waiting tone,
GXP-2000 will pick up the corresponding account LINE or the next available LINE as
described in section 4.4.2.
4.4.6 Call Hold
While in conversation, pressing the “HOLD” button will put the other party on hold. User can resume
the conversation by pressing the corresponding LINE. User will also automatically put the current line
on “HOLD” by pressing another available LINE for making or receiving other phone calls.
4.4.7 Call Waiting and Switch between Calls
GXP-2000 can support up to 11 Lines, user can switch to another line for making or answering calls
by pressing the line button, and automatically put an ACTIVE call on Hold.
When receiving second or more incoming calls, besides playing a stutter Call Waiting tone, GXP-2000
will pick up the corresponding account or the next available LINE as described in section 4.4.2.
4.4.8 Call Transfer
GXP-2000 supports both BLIND and ATTENDED Transfer:
1. Blind Transfer: When a LINE is “ACTIVE”, user will get a dial tone by pressing the “TRNF”
button, and then dial the number and press the “SEND” button. This will transfer the other
party in the corresponding LINE to the dialed number.
