Grandstream Networks UCM6102 User manual

Grandstream Networks, Inc.
www.grandstream.com
Grandstream Networks, Inc.
UCM6100 Basic Configuration Guide

2
TABLE OF CONTENTS
OVERIEW......................................................................................................4
SETUP GUIDE SCENARIO................................................................................4
QUICK INSTALLATION.....................................................................................5
Connecting the UCM6102 .....................................................................................................................5
Access UCM6100 series Web Interface................................................................................................5
CREATE USER EXTENSION .............................................................................6
Configure Extension Range...................................................................................................................6
Batch & Single User Creation................................................................................................................7
Steps on Adding Single User..........................................................................................................7
Steps on Adding Batch of Users.....................................................................................................8
PROVISIONING &ZERO CONFIG....................................................................10
Auto Discovering..................................................................................................................................10
Extension Assignment.......................................................................................................................... 11
CONFERENCE BRIDGE .................................................................................12
How to Setup a Conference Bridge .....................................................................................................12
IVR ...........................................................................................................14
Configure IVR ......................................................................................................................................14
Create New IVR...................................................................................................................................14
TRUNKS .....................................................................................................16
Analog Trunks......................................................................................................................................16
Setup Analog Trunk ......................................................................................................................16
VoIP Trunks..........................................................................................................................................17
Setup VoIP Trunk..........................................................................................................................17
CALL ROUTES.............................................................................................19
Outbound Routes.................................................................................................................................19
How to Configure an Outbound Route .........................................................................................19
Inbound Routes....................................................................................................................................20
Setup Inbound Route....................................................................................................................21

3
TABLE OF FIGURES
Figure 1: Typical UCM Scenario ...................................................................................................................4
Figure 2: Quick Installation Guide for UCM6102 ..........................................................................................5
Figure 3: Quick Installation Guide – Login Screen .......................................................................................5
Figure 4: Create User Extension – Extension Range...................................................................................6
Figure 5: Create User Extension – Extensions.............................................................................................7
Figure 6: Create User Extension – Create New User...................................................................................7
Figure 7: Create User Extension – Created Single User..............................................................................8
Figure 8: Create User Extension – Batch Add User .....................................................................................8
Figure 9: Create User Extension – Create User Prompt ..............................................................................8
Figure 10: Create User Extension – Single and Batch Add Extensions Created .........................................9
Figure 11: Provisioning with Zero Config – Auto Discovery........................................................................10
Figure 12: Provisioning with Zero Config – Extension Assignment ............................................................ 11
Figure 13: Provisioning with Zero Config – Manually Assigned Extension.................................................11
Figure 14: Provisioning with Zero Config – Extension Status..................................................................... 11
Figure 15: Conference Bridge – Create New Conference Room ...............................................................12
Figure 16: Conference Bridge – Create New Conference Room ...............................................................13
Figure 17: Conference Bridge – Conference In Progress...........................................................................13
Figure 18: IVR – Manage IVR.....................................................................................................................14
Figure 19: IVR – Create New IVR...............................................................................................................15
Figure 20: IVR – Key Pressing Events........................................................................................................15
Figure 21: Analog Trunks – Create New Analog Trunk...............................................................................16
Figure 22: VoIP Trunks – Create New Register SIP Trunk.........................................................................18
Figure 23: VoIP Trunks – Edit VoIP Trunk...................................................................................................18
Figure 24: Status – Trunks..........................................................................................................................18
Figure 25: Routes – Create Outbound Route.............................................................................................20
Figure 26: Routes – Create Inbound Route................................................................................................21

4
OVERIEW
This document will provide instructions on how setup a UCM6100 series from an out of the box state
to a fully functional state. This includes design considerations, creating user extensions, provisioning
endpoints with Zero-Config, conferencing, auto attendant configuration, analog/VoIP trunks, routing
inbound/outbound calls and voicemail/fax to email setup.
For detailed information in regards to parameters that are encountered in this guide, please check the
UCM6100 series User Manual
SETUP GUIDE SCENARIO
In this setup guide we will be using the UCM6102 which has a WAN and LAN interface. The image
below shows the most typical setup where you have the UCM6100 series WAN port connected to the
Internet and the LAN side of the UCM6100 series providing DHCP.
We will use this scenario to setup a Grandstream GXP2124 which will be connected to the LAN side
of the UCM6100 series. There can also be a network switch connected to the LAN port of the
UCM6100 series so that there may be more than one device connected.
Figure 1: Typical UCM Scenario

5
QUICK INSTALLATION

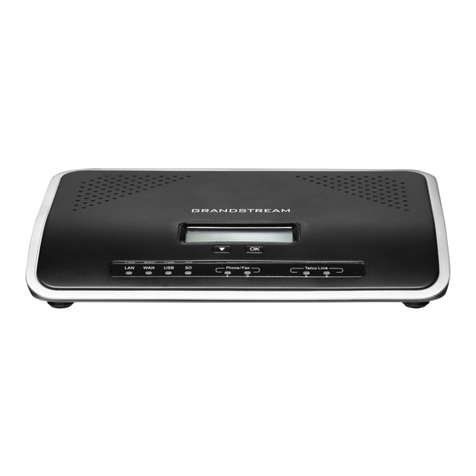

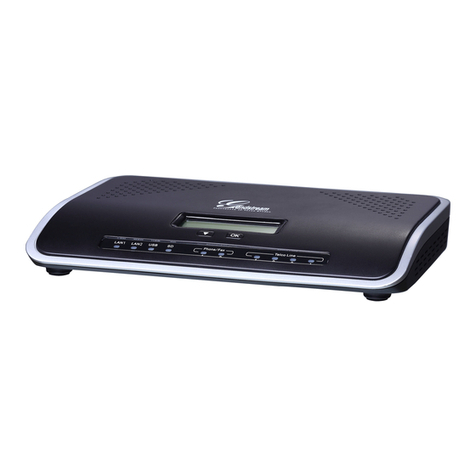

CONNECTING THE UCM6102
Figure 2: Quick Installation Guide for UCM6102
ACCESS UCM6100 SERIES WEB INTERFACE
Accessing the UCM6100 series web interface allow users to manage users and system settings locally as
well as remotely.
To access the web UI, depends on where the user’s computer is connected. If the computer is connected
to the same switch/router that the UCM6100 series WAN port is connected, then browse to the IP
addressed that is displayed on the UCM6100 series LCD. This address is the WAN IP. If the computer is
connected to the LAN side of the UCM6100 series, then users would browse to the default IP of the
UCM6100 series which is 192.168.2.1. If successful, the UCM6100 series login page will be displayed as
shown below.
Figure 3: Quick Installation Guide – Login Screen

6
CREATE USER EXTENSION
CONFIGURE EXTENSION RANGE
First part of configuring the UCM6100 series should be about planning for expansion. Here are some
questions to think about when setting up extension ranges:
•How many users are in the office?
•Will there be departments within the office?
•Is this office interconnecting with another office?
Once there’s a clear picture of how many users will be at each location, how departments are going to be
segmented and what’s the expected growth of the company, a user can then configure the extension
range. Navigate to PBX Internal Options General.
Figure 4: Create User Extension – Extension Range
In the figure above, the user extension range is set with a starting extension of 100 and ending at 195.
This allows up to 196 extensions to assign to users. We have also created a conference extension range
from 196 to 199, which gives 4 conference bridges. Users can configure any extension range as they
desire. Here we’ve configured it to use three digit extensions with a leading 1.
Click “Save” at the bottom. Then remember to click on “Apply Changes” at the top so that our extension
range will be ready for the next steps.

7
BATCH &SINGLE USER CREATION
So now that there’s extension ranges configured, we can now begin creating users to prepare for the
provisioning process. There are two methods of creating a user. One method would be creating a single
user. The other method would be creating a batch of users.
STEPS ON ADDING SINGLE USER
1. Navigate to PBX Basic/Call Routes Extensions. For first time setups users will see “No
Extension defined”.
Figure 5: Create User Extension – Extensions
2. Click on “Create New User”
3. On the “Create New User” screen, users can enter in quite a few options, but they are not required for
this tutorial. Click “Save” at the bottom of the page.
Figure 6: Create User Extension – Create New User
After clicking “Save” the Extensions page will display with the single SIP extension that was just created.
Here the user has the ability to edit the extensions by clicking the at the right.

8
Figure 7: Create User Extension – Created Single User
STEPS ON ADDING BATCH OF USERS
1. Navigate to PBX Basic/Call Routes Extensions
2. Click on “Batch Add Extensions”
3. At the “Batch Add Extensions” dialog, the user can specify the “Starting Extension” and the number
of extensions to generate by setting the “Create Number”. In this tutorial we will have a starting
extension of 101 and have the UCM6100 series generate 5 extensions with a password randomly
generated. This would create extensions 101, 102, 103, 104 and 105.
Figure 8: Create User Extension – Batch Add User
4. Click “Create Users” at the bottom to have the UCM6100 series generate the extensions
5. Next, a prompt will appear asking “Are you sure you want to create users: 101, 102, 103, 104 105”.
Click “OK”.
Figure 9: Create User Extension – Create User Prompt

9
At this point the Extensions page should look similar to this:
Figure 10: Create User Extension – Single and Batch Add Extensions Created
For more details on Extension parameters please see the UCM6100 series User Manual.

10
PROVISIONING &ZERO CONFIG
Grandstream SIP Devices can be configured via Web interface as well as via configuration file through
TFTP/HTTP/HTTPS download. All Grandstream SIP devices support a proprietary binary format
configuration file and XML format configuration file. The UCM6100 provides a Plug and Play mechanism
to auto-provision the Grandstream SIP devices in a zero configuration manner by generating XML config
file and having the phone to download it. This allows users to finish the installation with ease and start
using the SIP devices in a managed way.
To provision a phone, three steps are involved, i.e., discovery, assignment and provisioning. The
UCM6100
creates XML config file to the detected/assigned Grandstream device and accomplishes the following
configurations on the device after the provisioning:
• A UCM6100 extension will be assigned and registered on the phone.
• SIP-related network settings such as "NAT traversal" and "Use Random Port" are configured on
the phone.
• Call settings such as "Dial Plan" and "Auto Answer".
• LDAP client configurations will be set up automatically on the phone to use the default LDAP
directory
• generated in the UCM6100 LDAP server.
This section explains how zero config works on the UCM6100. The settings for this feature can be
accessed via Web GUI->PBX->Basic/Call Routes->Zero Config.
AUTO DISCOVERING
When referring back to our typical scenario in the beginning of this tutorial, we know that there is a
GXP2124 connected to the LAN side of the UCM6100 series. The UCM6100 series LAN interface has
DHCP enabled and has assigned the GXP2124 with an IP address. By default the IP assigned would be
within the 192.168.2.X range. When the UCM6100 series offers an IP address to the phone it also offers
DHCP Option 66, which provides the phone with a config server path that points to the UCM6100 series.
All of Grandstream VoIP devices have Option 66 turned on by default and this is how the GXP2124 was
discovered by the UCM6102.
Upon being discovered, the GXP2124 will provide details about its MAC, IP Address, Version(Firmware),
Vendor, Model, Connection Status and Create Config.
By navigating to PBXBasic/Call RoutesZero Config, a user will be able to see the discovered
device(s).
Figure 11: Provisioning with Zero Config – Auto Discovery

11
EXTENSION ASSIGNMENT
In the Auto Provision settings, users have the option to enable “Automatically Assign Extension”. If
enabled, an extension will be created and assigned to the new device detected. This is a great feature if
specific extension assignment isn’t required, but for our setup we’ll work on manually assigning an
extension to a discovered device.
Navigate to PBXBasic/Call RoutesZero Config and click on the for the discovered device.
The next screen provides details of the device and also allows a user to assign an extension. Since our
GXP2124 is a 4 line phone, the UCM6100 series gives us the option to assign 4 extensions to the phone.
Figure 12: Provisioning with Zero Config – Extension Assignment
Click on the Account 1 and select the desired extension, then click “Save”. Now the Zero Config page
displays the device with an extension assigned to it on Account 1.
Figure 13: Provisioning with Zero Config – Manually Assigned Extension
After assigning an extension, the phone must be rebooted in order to pick up the configuration file from
the UCM6100 series. During this process, the phone will bootup, request for config file,download the
config file, then reboot once more in order to apply the changes.
After the phone is completely booted, Navigate to PBXBasic/Call RoutesExtensions page to see the
extension status. The SIP status will show a green circle for a successful registration.
Figure 14: Provisioning with Zero Config – Extension Status

12
CONFERENCE BRIDGE
The UCM6100 supports conference bridge allowing multiple bridges used at the same time:
• UCM6102/6104 supports up to 3 conference bridges allowing up to 25 simultaneous PSTN or IP
participants.
• UCM6108/6116 supports up to 6 conference bridges allowing up to 32 simultaneous PSTN or IP
participants.
The conference bridge configurations can be accessed under Web GUI->PBX->Call Features-
>Conference. In this page, users could create, edit, view, invite, manage the participants and delete
conference bridges. The conference bridge status and conference call recordings (if recording is enabled)
will be displayed in this web page as well.
HOW TO SETUP A CONFERENCE BRIDGE
1. Click on “Create New Conference Room”
2. At the “Create New Conference Room” screen, the Extension is automatically populated since the
extension range is in effect. Users can assign another number that is within the Conference
Extension range
3. Next, uncheck the option “Public Mode”. This will make the password options available. Enter a
numeric password for an admin as well as the regular user password. In this example, the user
enters 511511 as the user password and 510510 as the admin password.
Figure 15: Conference Bridge – Create New Conference Room

13
4. Click “Save” at the bottom then “Apply Changes” at the top.
We should now have a conference room created and the status page will display the following:
Figure 16: Conference Bridge – Create New Conference Room
With the phone that was registered to the UCM6100 series, dial the conference room extension. For this
example we will dial 196. The user will hear a prompt for the conference password. Depending on the
user, the regular password or admin password can be entered.
During a conference call, the admin can login to the UCM6100 series and view the conference room
status. This provides the admin with details on which conference room is active, who the participants are
and the conference call current duration.
Besides status information, the admin has a several conference management tools. By clicking the
button, the admin can invite other users to the conference. Clicking will kick the selected user from
the conference. When clicking or button the admin will mute/unmute the specific user.
Figure 17: Conference Bridge – Conference In Progress
For more options and features for the conference room, please see the UCM6100 series User Manual

14
IVR
CONFIGURE IVR
IVR configurations can be accessed under the UCM6100 Web GUI->PBX->Call Features->IVR. Users
could create, edit, view and delete an IVR.
•Click on "Create New IVR" to add a new IVR.
•Click on to edit the IVR configuration.
•Click on to delete the IVR.
Figure 18: IVR – Manage IVR
CREATE NEW IVR
1. Click on “Create New IVR”
2. Enter a Name for the IVR. This is used for referencing purposes. In this example the user will
create “OfficeHours2”
3. “Extension” is populated automatically by the extension range that was created in the beginning of
the tutorial. A user may choose another IVR extension within the range if desired.
4. Enable “Dial Other Extensions” to allow callers who reach the IVR to dial a direct internal extension
without having to go through voice prompts.
5. “Welcome Prompt” is the recording that will be played when a caller reaches the IVR. Users can
click on the “Prompt” link next to the dropdown box to configure a welcome prompt.

15
Figure 19: IVR – Create New IVR
6. The next section on configuring an IVR would be the Key Pressing Events. Users can direct calls
based on a callers selection. For example, a caller reaches the IVR and the Welcome Prompt plays,
“Thank you for calling Grandstream Networks. For support, please dial 0. For Sales, please dial 1.”
Click on the drop down box for the first event, which is “Press 0” and select Extension. Another drop
down box will appear and the user can then select an extension from the list. For this example, the
user selects Extension 100.
7. For Key Pressing Event “Press 1” click on the drop down box and select Extension. User selects
Extension 101. Besides from Extension as a Key Pressing Event, the user can select Voicemail,
Conference Room, Voicemail Group, IVR, Ring Group and many more.
Figure 20: IVR – Key Pressing Events
8. Click “Save” at the bottom and then click on “Apply Changes” at the top.
To find out more options and parameter descriptions in regards to the IVR, please refer to the UCM6100
series User Manual.

16
TRUNKS
ANALOG TRUNKS
Go to Web GUI->PBX->Basic/Call Routes->Analog Trunks to add and edit analog trunks.
•Click on "Create New Analog Trunk" to add a new analog trunk.
•Click on to edit the analog trunk.
•Click on to delete the analog trunk.
The UCM6100 series has built in FXO ports which allows it to pull in PSTN lines and provide analog trunk
service. For this example, we will configure an analog line that is connected to FXO1.
SETUP ANALOG TRUNK
1. Click on “Create New Analog Trunk”
2. For “Channels” select 1
3. Trunk Name is set to “Analog1”
4. “Caller ID Scheme” is set for “Bellcore/Telcordia”. Depending on the provider, users can select
other schemes
5. “Tone Country” is set to “United States of America (USA)” since this tutorial is setup in the North
American region. Users can click the dropdown box to select an option more suited for their region
6. Click “Save” and then click on “Apply Changes” at the top
Figure 21: Analog Trunks – Create New Analog Trunk

17
Note: If there are reports of calls being dropped and lines are not disconnecting properly, this could mean
that there are line settings mismatched. The UCM6100 series offers an auto detect feature that tests the
line and provides the best possible settings. This option is called “PSTN Detection” which can be found
under the Analog trunk configuration page.
VOIPTRUNKS
VoIP trunks can be configured under Web GUI->PBX->Basic/Call Routes->VoIP Trunks. Once created,
the VoIP trunks will be listed with Provider Name, Type, Hostname/IP, Username and Options to
edit/detect the trunk.
•Click on "Create New SIP/IAX Trunk" to add a new VoIP trunk.
•Click on to configure detailed parameters for the VoIP trunk.
•Click on to configure Direct Outward Dialing (DOD) for the SIP Trunk
•Click on to start LDAP Sync
•Click on to delete the VoIP trunk.
There are 4 different type of VoIP trunks that can be configured. The types are Peered/Registered SIP
trunk or Peered/Registered IAX trunk. This tutorial will demonstrate how to configure a SIP Registered
Trunk.
SETUP VOIPTRUNK
1. Click on “Create New SIP/IAX Trunk”
2. Click the dropdown box for Type and select “Register SIP Trunk”
3. Enter a name for “Provider Name” e.g., GSTrunk
4. Configure the IP address or URL of the VoIP providers server as the “Host Name” e.g.,
sip.grandstream.com
5. Input the username to authenticate with the VoIP provider as the “Username” e.g, 6266389172
6. Enter password for username to authenticate with VoIP provider server
7. Enter the AuthID. This is the SIP service subscriber’s ID used for authentication. If not configured,
the CallerID will be used for authentication.
8. Enter an outbound proxy if the provider requires one
9. Click “Save” and then “Apply Changes” at the top

18
Figure 22: VoIP Trunks – Create New Register SIP Trunk
After creating the SIP trunk, users can click the on the right of the VoIP trunk for more configuration
options.
Figure 23: VoIP Trunks – Edit VoIP Trunk
To verify if the SIP trunk is registered, the user may navigate to Web UI->Status.
Figure 24: Status – Trunks

19
CALL ROUTES
OUTBOUND ROUTES
In the UCM6100, an outgoing calling rule pairs an extension pattern with a trunk used to dial the pattern.
This allows different patterns to be dialed through different trunks (e.g., "Local" 7-digit dials through a
FXO while "Long distance" 10-digit dials through a low-cost SIP trunk). Users can also set up a failover
trunk to be used when the primary trunk fails.
Go to Web GUI->PBX->Basic/Call Routes->Outbound Routes to add and edit outbound rules.
•Click on "Create New Outbound Rule" to add a new outbound route.
•Click on to edit the outbound route.
•Click on to delete the outbound route.
•Click on to move the outbound route up/down to arrange the priority of the outbound
rule. The outbound rule listed on the top has higher priority. When the dialing pattern matches two or
more outbound rules (for example, the same pattern is configured for 2 different trunks; or dialing out
1000 matches pattern 1xxx for trunk 1 and pattern 100x for trunk 2), the one listed on the top will be
used.
HOW TO CONFIGURE AN OUTBOUND ROUTE
1. Click “Create New Outbound Rule”
2. Configure the name of the Calling Rule. For example, ‘Local’, ‘LongDistance’ and etc.
3. Create a dial Pattern. For 7 digit dialing (Local) the pattern will look like this: XXXXXXX
This means that any 7 digits will use this route. For 10 digit dialing the pattern would look like this:
NXXNXXXXXX. If a ‘1’ is required before dialing out, the dial patter can be configured in this
manner: 1NXXNXXXXXX.
In this example, the dial pattern is going to be created for local 7 digit dialing so the pattern is
XXXXXX
4. Next, set a “Privilege Level”. There are 4 Privilege Levels; Internal, Local, National, International.
Internal is the lowest level of security where as international is the highest level of security.
The way that Privilege Levels are used could be thought of as door locks. Extensions are granted
with “Permissions” that can be seen as keys. If an Extension is configured with an Internal
permission, it CANNOT access an outbound route with a Privilege level of Local, National and
International. A user configured with National permission can access routes that have a Privilege
Level of Internal, Local, National, but not International.
5. The pattern that was configured is a 7 digit dialing pattern. For “Use Trunk” select the Analog Trunk
or select the desired trunk for this particular dial pattern. For long distance calls, it may be cost
effective to route the calls to SIP trunk versus going through a local PSTN line.
6. Click “Save” and then click on “Apply Changes” at the top.

20
Figure 25: Routes – Create Outbound Route
INBOUND ROUTES
In the UCM6100, an incoming calling rule allows for various inbound destinations. Users can route
inbound calls by DID, to Extension, Voicemail, Conference Room, Queue, Ring Group, Page, Voicemail
Group, FAX, DISA or IVR. These inbound routes can also be triggered based on a time condition as well.
Inbound routes can be configured via Web GUI->PBX->Basic/Call Routes->Inbound Routes.
•Click on "Create New Inbound Rule" to add a new inbound route.
•Click on "DID Features" to configure DID features for the inbound route.
•Click on "Blacklist" to configure blacklist for all inbound routes.
•Click on to edit the inbound route.
•Click on to delete the inbound route.
This section of the tutorial will provide instructions on how to setup an inbound route for a Registered SIP
Trunk. Inbound calls into this SIP trunk will have a default destination as well as a time conditioned
destination.
