Grant-bio PCMT Plus User manual

Thermo-shaker for microtubes
and PCR plates
PCMT Plus
Operating Manual

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 2 Operating manual

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 3
Contents
1. About this edition of user manual............................................................................................3
2. Safety precautions..................................................................................................................4
3. General information................................................................................................................5
4. Getting started........................................................................................................................6
5. Operation...............................................................................................................................8
6. Calibration............................................................................................................................10
7. Specifications.......................................................................................................................11
8. Ordering information..............................................................................................................12
9. Guarantee and Service.........................................................................................................13
10. Compliance..........................................................................................................................14
1. About this edition of user manual
1.1. The current edition of the user manual applies to the following models:
Model
Version
PCMT Plus, thermo-shaker for microtubes and PCR plates
V.1GW

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 4 Operating manual
2. Safety precautions
Caution!
Make sure you have fully read and understood the present manual before using
the equipment. Please pay special attention to sections marked by this symbol.
Caution!
Hot surface! Platform surface becomes very hot during use. Always use protec-
tive cotton gloves to install or remove samples when the temperature is set higher
than 60°C.
2.1. General safety
•Use only as specified in the user manual provided.
•Save the unit from shocks or falling.
•Store and transport the unit in a horizontalposition (see package label) at ambient temperatures
between -20°C and +60°C and maximum relative humidity of 80%.
•After transportation or storage keep the unit under room temperaturefor 2-3 h before connecting
it to the electric circuit.
•Use only original parts and accessories, provided by manufacturer for this product.
•Before using any cleaning ordecontamination methods except those recommended by the man-
ufacturer, check with the manufacturer that the proposed method will not damage the equip-
ment.
•Do not make modifications to the design of the unit.
2.2. Electrical safety
•Connect only to the external power supply with voltage corresponding to that on the serial num-
ber label.
•Use only the external power supply provided with this product.
•Ensure that the power switch and external power supply are easily accessible during use.
•Do not plug the unit into an ungrounded power socket, and do not usean ungrounded extension
lead.
•Disconnect the unit from electric circuit before moving.
•If liquid penetrates into the unit, disconnect it from the external power supply and have itchecked
by a repair and maintenance technician.
•Do not operate the unit in premises where condensation can form. Operating conditions of the
unit are defined in the Specifications section.
2.3. During operation
•Do not leave the operating unit unattended.
•Do not impede the platform motion.
•Do not operate the unit in environments with aggressive or explosive chemical mixtures. Please
contact manufacturer for possible operation of the unit in specific atmospheres.
•Do not operate the unit if it is faulty or has been installed incorrectly.
•Do not use outside laboratory rooms.
•Do not check the temperature by touch. Use a thermometer.
2.4. Sound signals
•Two short notes after establishing Bluetooth connection.
•One short note after loosing Bluetooth connection.
•Frequently repeating short notes after finishing the operation (see 5.6.3).
•Infrequently repeating short notes if an error occurred (see 8.5)
2.5. Biological safety
•It is the user’s responsibility to carry out appropriate decontamination if hazardous material is
spilt on or penetrates into the equipment.

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 5
3. General information
PCMT Plus thermo-shaker is designed for intensive mixing of samples in microtest tubes or
PCR plates in a temperature controlled environment. The model has the function of cooling samples
down to +4°C. Bluetooth®connectivity to PC allows for data management, data logging, parameter
control and profiling in the dedicated software. Features of thermo-shakers meet the highest expecta-
tions of users according to many parameters:
•Fast reachingof specified mixingspeed and maintenance of equal amplitude of rotation through-
out the thermo-shaker block;
•Stability of maintaining the set temperature in a wide range throughout the block surface of
thermo-shakers;
•With the help of the temperature calibration function, the user can calibrate the unit approxi-
mately ±6% of the selected temperature to compensate differences in the thermal behaviour of
tubes from different manufacturers;
•LCD display indicates pre-set and current values of temperature, speed and time of operation;
•Quiet motor operation, compact size, prolonged service life;
•Sensor error handling and diagnostics;
•Bluetooth®connectivity, control and profiling from computer.
Functions of heating and mixing can be performed either simultaneously or independently, that
allows using the unit as three independent devices:
1. Thermostat;
2. Shaker;
3. Thermo-shaker.
We offer five heating and cooling blocks for each model, including a block with a plastic lid for
PCR-plates. Within one model of thermo-shaker, the blocks are mutually interchangeable and can be
easily installed.
The devices are applicable in:
•genetic analyses –in extraction of DNA, RNA and further sample preparation;
•biochemistry –for studying of enzymatic reactions and processes;
•cellular biology –extraction of metabolites from cellular material.

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 6 Operating manual
4. Getting started
4.1. Unpacking. Remove packing materials carefully and retainfor futureshipment or storage of theunit.
Examine the unit carefully for any damage incurred during transit. The warranty does not cover in-
transit damage.Warranty covers only units transported in theoriginal package.
4.2. Complete sets.
4.2.1. Standard set
- PCMT Plus thermo-shaker.............................................................................................. 1 pce
- External power supply..................................................................................................... 1 pce
- Power cable ....................................................................................................................1 pce

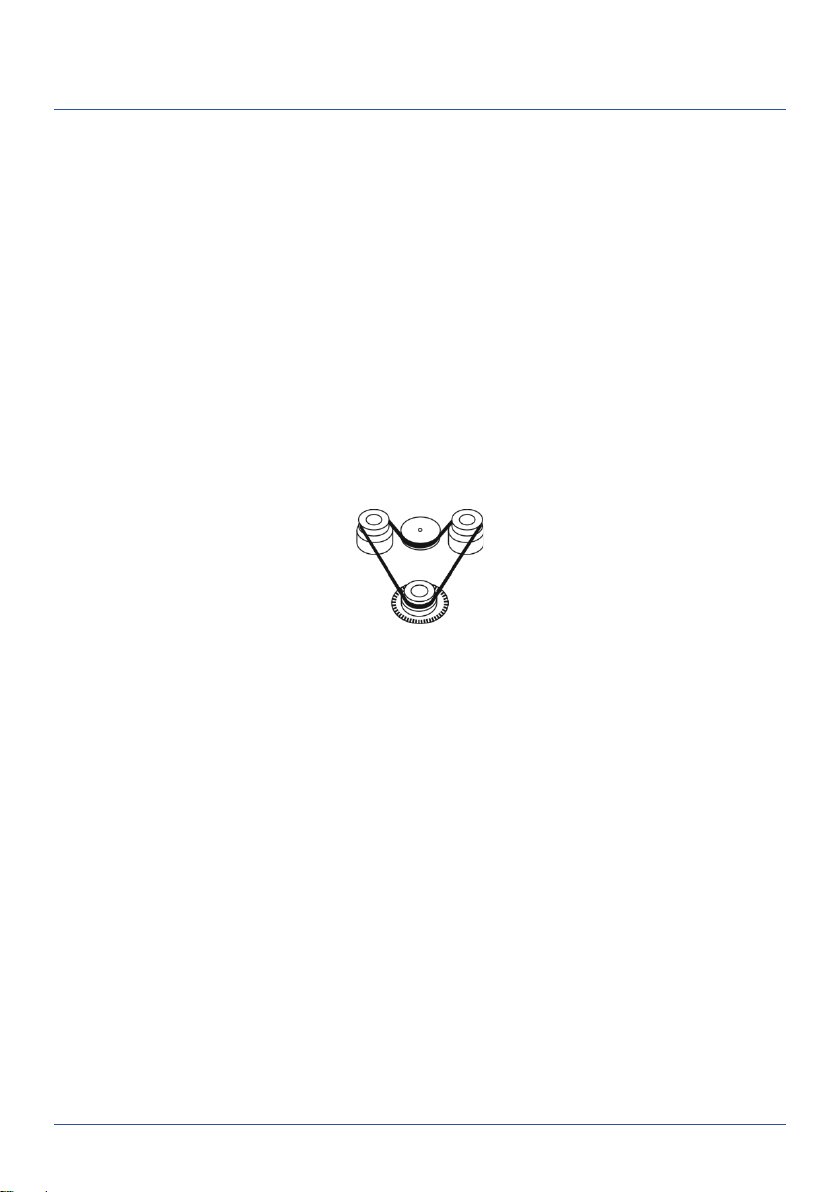

- Spare rubber belt............................................................................................................. 2 pcs
- Bluetooth®adapter for PC ............................................................................................... 1 pce
- Operating manual...........................................................................................................1 copy
- Control software and software manual ...........................................................................1 copy
4.2.2. Optional accessories
- HC18C thermoblock for microtubes......................................................................... on request
- HC32 thermoblock for microtubes ...........................................................................on request
- HC24 thermoblock for microtubes ...........................................................................on request
- HC24N thermoblock for microtubes.........................................................................on request
- HC96 thermoblock for microplate and hex-key ........................................................on request
HC-18 HC-32 HC-24
HC-24N HC-96

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 7
4.3. Setup.
- Place the unit upon even horizontal stable non-flammable surface 30 cm away from any flam-
mable materials, and clear 20 cm around the device on all sides for ventilation. Remove pro-
tective film from the display;
- Plug the external power supply into the socket at the rear side of the unit;
- Connect the power cable to the external power supply.
4.4. Thermoblock installation (if a thermoblock is not installed).
Caution!
Thermoblock installation and replacement have to be performed only when the
Power switch isturned off and external power supply is disconnect from the device.
- Choose the thermoblock, connect the plug to the contact terminal according to the scheme on
fig. 1/1 on the underside of the thermoblock. Make sure that the connector is mounted tightly.
- Align the thermoblock so that the warning label is facing the front of the unit (fig. 2).
- Secure with the four knurled screws (fig. 2/1) or four hex screws.
4.5. Changing blocks.
- Disconnect the external power supply from the device.
- Remove the four knurled screws or four hex screws (in microplate thermoblocks).
- Lift the block without damaging the cable and disconnect the plug (fig. 1/1).
- Select the new thermoblock and install it according to the paragraph 4.4.
Figure 1. Thermoblock connection Figure 2. Thermoblock setup
4.6. Bluetooth®connection. To connect the unit to the PC, follow the Software manual enclosed with
the software.

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 8 Operating manual
5. Operation
Recommendations during operation
•Please check the tubes/microplates before using, be sure that tubes and micro plates are heat-
resistant. Do not heat the microplates over the melting point of the material they are made of.
•We recommend filling tubes and plate wells up to 75% of rated volume for efficiency.
Caution!
Platform surface becomes very hot during use. Please, take necessary care and
use protective cotton gloves to install or remove test samples when set tempera-
ture is higher than 60°C.
Figure 3. Control Panel
5.1. Connect external power supply to a grounded powersocket and set the power switch, located onthe
rear panel of the unit, to position I (ON).
5.2. Thedisplay will turnon with the upper line (Set) showing time, speedand temperatureset earlier and
thelower line (Actual) showing current status: STOP indication, 000 rpm speed and platform temper-
ature in °C.
5.2.1. Simultaniously press and hold the ►/■ RUN/STOP and RUN/STOP keys (fig. 3/4 and 3/5) to view
theprogrammingversion(PV-XX),lastfourdigitsofMACaddress(MAC-XXXX)onthetop line.Ifthe
unitis paired with a PC, display shows the Bluetooth®symbol inthetoprightcornerand the14-digit
serial ID number of the unit in the bottom line.
5.3. Ifa temperatureis set,then the platformtemperature that automaticallyrises tothat temperature.The
time of temperature stabilization depends on the room temperature. If the heating of is turned off by
setting the temperature below 4°C, top line shows indication OFF.
5.4. Working with PC. Install the software, connect and operate the unit according to the instructions
given in the enclosed software manual.
Note.
When the unit is controlled by PC, it blocks all keys on the unit except the power
switch.
5.5. Setting the parameters. Use the readings in the upper line of the display (Set), while setting the
required parameters. Pressing the key for more than 3 s will increase the increment rate. Speed and
temperature can be changed during operation.
5.5.1. Setting time (TIME). Using the and TIME keys (Fig. 3/1) set the required working time interval
in hours and minutes (increment 1 min).
5.5.2. Setting speed (RPM). Using the and RPM keys (Fig. 3/2) set the required speed (increment
10 rpm).
5.5.3. Setting temperature (Т, ºС). Usingtheand Т, ºС keys(Fig. 3/3)set thenecessarytemperature
(increment 0.1°C).
Caution!
Heating/temperature maintenance process does not stop when the timer is fin-
ished. Platform thermal regulation can be turned off only by setting the required
temperature below 4°C (the display shows OFF indication). In this mode, thermo-
shaker can be used in the cold rooms as a mixing device without thermoregulation.

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 9
5.6. Program execution. After the thermal stabilization of the thermo-shaker, i.e. when the set and cur-
rent temperature readings become the same:
5.6.1. Place samples on the platform.
Caution!
Do not fill microtubes or microplates directly inside the unit.
5.6.2. Press the ►/■ RUN/STOP key (fig. 3/4). The platform will start rotating and the timer indicator will
start counting up the time interval (with 1 min precision).
Note.
If the rotation speed is set to zero, pressing ►/■ RUN/STOP key will start the timer
but the platform will not move.
5.6.3. After finishing the program (after the set time elapses) the platform motion will stop and the timer will
show the flashing reading STOP accompanied by the repetitive sound signal until the ►/■
RUN/STOP key is pressed.
5.7. Iftheworkingtimeisnot set(orisreset)andthetimerindicatorintheupperlineshows00:00,pressing
the ►/■ RUN/STOP key will start continuous operation of the device with countdown timer in the
lower line (Actual) until the ►/■ RUN/STOP key is pressedagain.
5.8. The platform motion can be stopped at any time by pressing the ►/■ RUN/STOP key. In this case
theprogramrealizationandtheplatformmotion willstopandthetimerwillswitchintotheSTOPmode
savingpreviously settime. Pressthe►/■ RUN/STOP key to repeat theoperationwiththe same time
and speed.
Caution!
At the end of the set time period the platform movement is stopped automatically,
but the heating can be turned off only by setting the required temperature below
4°C (the display shows OFF indication).
Caution!
The platform remains hot after use. Please, take necessary care and use protec-
tive cotton gloves to install or remove test samples when set temperature is
higher than 60°C.
5.9. After finishing the operation, set the Power switch, located on the rear panel of the unit, in position
O(Off) and disconnect the external power supply from electric circuit.

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 10 Operating manual
6. Calibration
6.1. The device is precalibrated at the factory (calibrating coefficient is 1.000) for operation with tempera-
tures measured by a sensor in the heating block.
6.2. Tochangethe calibrationcoefficient,holdthe RUN/STOP keypressedformorethan8stoactivate
calibration mode, as shown on figure 4).
Figure 4. Display in calibration mode: 1. Calibration mode indicator;
2. Calibration coefficient; 3. Temperature with current coefficient
Note.
Values marked in grey on figures 4 and 5 are not used in calibration and are meant
for service engineers.
6.3. Restoring factory settings. Set 1.000 value using the ▲ and ▼ T, °C keys as shown on fig. 4/1 to
restore the factory settings. Press the ►/■ RUN/STOP key once to save the changes and exit the
calibration mode.
Note.
Coefficient value changes are recommended after the unit has reached 30°C tem-
perature.
6.4. Calibration procedure. To calibrate the unit, use an independent sensor with 0.5°C accuracy,
which can fit in the cell of the block.
6.4.1. Install the sensor into a cell of the block.
6.4.2. Set the required temperature in operation mode (e.g. 40°C).
6.4.3. After the unit reaches the set temperature (when the set and current temperature readings equal),
leave the unit for 30 min for thermal stabilization.
6.4.4. Let us assume that the readings of independent sensor is 39°C, but the display’s actual temperature
is 40°C. Then, it is necessary to add 1°C correction.
6.4.5. Hold the RUN/STOP key pressed for more than 8 s to activate calibration mode (figure 4).
6.4.6. Using the ▲ and ▼ T, °C keys,changethecalibrationcoefficient(fig.5/1)sothatthenewtemperature
value (fig. 5/2) corresponds to the independent sensor temperature. In our example, the calibration
coefficient will be 0.974.
Note.
Calibration coefficient can be changed in range from 0.936 to 1.063 (±0.063), with
increment of 0.001. This calibrating coefficient will correct temperature through all
the operation range.
Note.
Coefficient value changes are recommended after the unit has reached 30°C
temperature.
1.1.1. Press the ►/■ RUN/STOP key once to save the changes and exit the calibration.
6.5. The display will show calibrated temperature as shown on fig. 6/1 and the unit will continue thermal
stabilization according to the previously set temperature.
Figure 5. Changing the coefficient:
1. Calibration coefficient; 2. Temperature
with current coefficient
Figure 6. Display after calibration:
1. Set temperature; 2. Current calibrated
temperature

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 11
7. Specifications
The unit is designed for operation in cold rooms, incubators (excluding CO2incubators) and
closed laboratory rooms at ambient temperature from +4°C to +40°C in a non-condensing atmosphere
and maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative
humidity at 40°C.
Grant is committed to a continuous programme of improvement and reserves the right to alter
design and specifications of the equipment without additional notice.
7.1. Temperature parameters
Setting range...............................................................................................................+4°С to +100°C
Control range.............................................................................................. 15°С below RT
1
to +100°C
Setting resolution.........................................................................................................................0.1°С
Stability
2
, at +37°C.....................................................................................................................±0.1°C
Maintaining accuracy2, at +37°C ................................................................................................±0.5°C
Uniformity over the platform2,
at +4°C..........................................................................................................................±0.6°C
at +37°C........................................................................................................................±0.1°C
at +100°C......................................................................................................................±0.3°C
Average heating speed from +25°С to +100°С ........................................................................ 5°С/min
Average cooling speed
from +100°С to +25°C ................................................................................................. 5°С/min
from +25°C to +4°С .................................................................................................. 1.8°С/min
Calibration option............................................................................................................................ yes
Calibration coefficient range.............................................................................. 0.936...1.063 (± 0.063)
7.2. General parameters
Speed range...................................................................................................................250-1400 rpm
Speed setting resolution ............................................................................................................10 rpm
Maximal speed deviation
for 250 rpm..........................................................................................................................2%
for 1400 rpm.....................................................................................................................0.7%
Orbit.............................................................................................................................................2 mm
Digital time setting ............................................................................................................. 1 min - 96 h
Time setting and countdown resolution........................................................................................ 1 min
Maximal continuous operation time
3
.............................................................................................168 h
Display................................................................................................................... 16x2 symbols, LCD
Dimensions...............................................................................................................220x240x130 mm
Input voltage and current / power consumption........................................................ 12 V, 4.9 A / 60 W
External power supply............................................................in AC 100-240 V, 50/60 Hz, out DC 12 V
Weight, accurate within ± 10%. ................................................................................................... 3.7 kg
1
Room temperature
2
Data for 75% filled tubes or microplates
3
Recommended interval between prolonged operation sessions not less than 1 hour

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 12 Operating manual
8. Ordering information
8.1. Models and versions available:
Model
Version
PCMT Plus
V.1GW
8.2. To inquire about or orderthe optional accessories or replacement parts, contact Grant or your local
Grant representative.
8.2.1. Optional accessories:
Model
Description
Weight1, kg
HC18
For 20x0.5 ml + 12x1.5ml tubes
0.7
HC32
For 20x0.2 ml + 12x1.5ml tubes
0.7
HC24
For 24x2.0 ml microtubes
0.6
HC24N
For 24x1.5 ml microtubes
0.7
HC96
For 96-well microplate for PCR, w/o skirt, with half skirt, low and high profile
0.7
8.2.2. Replacement parts
Replacement part
Description
Rubber belt
122x6x0.6 mm
Bluetooth adapter
For USB port
1
Accurate within ± 10%.

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 13
9. Guarantee and Service
9.1. Guarantee. When usedinlaboratoryconditionsandaccordingtothisOperatingManual,thisproduct
is guaranteed for TWO YEARS (excluding items mentioned in 8.2) against faulty materials or work-
manship.
9.2. Service. There are nouser-serviceable parts inside the unit. Forall maintenance and repairs (except
as defined below) return to our service department in the UK or in other countries, our distributor.
9.3. Cleaning and disinfection.
9.3.1. Use mild soap and water with a soft cloth or sponge for cleaning the unit. Rinse remaining washing
solution with distilled water. Wipe dry the excess water with clean soft cloth or sponge.
9.3.2. To disinfect theunit,use aDNA/RNA removing solution (e.g. Grant PDS-250).Afterdisinfecting, wipe
the surfaces dry.
9.3.3. The unit and its accessories are not autoclavable.
9.4. Rubber belt replacement. For maintenance of reliable operation of the device, the manufacturer
recommends replacing rubber belts after 1.5 years or 2000 hours of operation time.
- Disconnect the external power supply from the device.
- Remove 4 fixation screws on the device bottom and remove the bottom plate.
- Replace the rubber belt (fig. 7).
- Reassemble the device.
Figure 7. Rubber belt replacement
9.5. Error codes in case of a defect. Some malfunctions trigger an error code to appear on display,
accompanied by a sound signal every 8 s. Press the ►/■ RUN/STOP key to turn off the signal. Error
code format is letters ER and a single digit. Disconnect the unit from the electric circuit and report the
error code to Grant or your local Grant representative.
9.6. The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Grant is under license.

Edition 1.01 –December of 2021 Thermo-Shaker for Microtubes and PCR Plates PCMT Plus
Page 14 Operating manual
10. Compliance
EU Declaration of Conformity
All the products covered by this Manual comply with the requirements of the EU harmonised legisla-
tion verified using the following standards
Low Voltage Directive (2014/35/EC) for Electrical safety.
LVS EN 61010 Part 1
LVS EN 61010 Part 2-010
LVS EN 61010 Part 2-051
EMC directive (2014/30/EC) for Electromagnetic compatibility
LVS EN 61326-1
RoHS Directive (Directive 2011/65/EC including 2015/863)
for Hazardous substances
LVS EN50581
UK Declaration of Conformity
All the products covered by this Manual comply with the requirements of UK statutory requirements
verified using the following standards.
Electrical Equipment (Safety) Regulations 2016
BS EN 61010 Part 1
BS EN 61010 Part 2-010
BS EN 61010 Part 2-051
Electromagnetic Compatibility Regulations 2016
BS EN 61326-1
The Restriction of the Use of Certain Substances in Electrical and
Electronic equipment Regulations 2012
BS EN50581
Waste Electrical and Electronic Equipment (WEEE)
All the products covered by this Manual are marked with the crossed-out wheelie bin sym-
bol indicating they must not be disposed of with unsorted waste. Safe recycling of WEEE
helps conserve natural resources and protect human health.
Grant Instruments complies fully with the UK Waste Electrical & Electronic Equipment
(WEEE) regulations 2013. We are a member of the B2B compliance scheme (Scheme
Approval Number WEE/MP3338PT/SCH), which handle our WEEE obligations on our be-
half. Grant Instruments have been issued with a unique registration number by the Environmental
Agency, this reference number is WEE/GA0048TZ.
For information regarding WEEE collections in the UK please contact our B2B Compliance Scheme
directly on 01691 676 124 or www.b2bcompliance.org.uk
In the EU, Grant Instruments complies with WEEE Directive 2012/19/EU.
Contact your local equipment supplier for WEEE collections.
REACH Regulations
This product does not contain any Substances of Very High Concern (SVHCs) at greater than 0.1%
that have to be identified in accordance with Regulation (EC) No 1907/2006 and therefore does not
have an entry in the SCIP database.

Thermo-Shaker for Microtubes and PCR Plates PCMT Plus Edition 1.01 –December of 2021
Operating manual Page 15

Grant Instruments
(Cambridge) Ltd
Shepreth
Cambridgeshire
SG8 6GB
UK
Tel: [phone]
Email: [e-mail]
www.grantinstruments.com
Representative in the European Union
Grant Instruments Europe B.V
Strawinskylaan 411
WTC, Tower A, 4th Floor
1077 XX Amsterdam
The Netherlands
Email: [email protected]antinstruments.com
Thermo-Shaker for Microtubes and PCR Plates / PCMT Plus / 1.01
