BD7600 Quick Start Guide
DrillCommand
Software Versions 02.02.04.00 through 02.03.05.03
195-835QS | Publication Date: 03/25/2022 | © 2022 Great Plains
®
GreatPlainsAg.com

Great Plains | 195-835QS | 03/25/2022 1
BD7600 Quick Start Guide
DrillCommand
Software Versions 02.02.04.00 through 02.03.05.03
Introduction
DrillCommand software will be programmed with
presets from our Great Plains factory. However,
additional system inputs are required to begin field
operations. Great Plains recommends ground speed
and metering system calibration with each field
session, anytime the range gears are changed or
adjusted, and when changing the material. This Quick
Start Guide will cover basic system inputs for BD7600
box drills with hydraulic drive.
Required System Inputs
DrillCommand Home menu displays when the
software program is loaded on your terminal. Required
systems inputs will be accessed through the Machine
Settings menu. You will need to provide required
system inputs under the following menus: Speed
Settings, Hopper Settings, Product Database, and
Meter Settings before drilling material in the field.
Covered Models
This Quick Start Guide has been developed for Great
Plains box drill models BD7600-26, BD7400-30,
BD7600-40, and BD7600-50 hydraulic drive models
equipped with DrillCommand software versions
02.02.04.00 through 02.03.05.03. Refer to
“Identifying Software Version” on page 3 for more
information.
Before You Begin
Understanding the following information will help you
navigate the menus as you enter the required system
inputs.
Inactive soft keys are shadowed as shown.
Return soft key will allow you to return to the
previous menu.
In the menus, tap any of the
blue fields and input new
values.

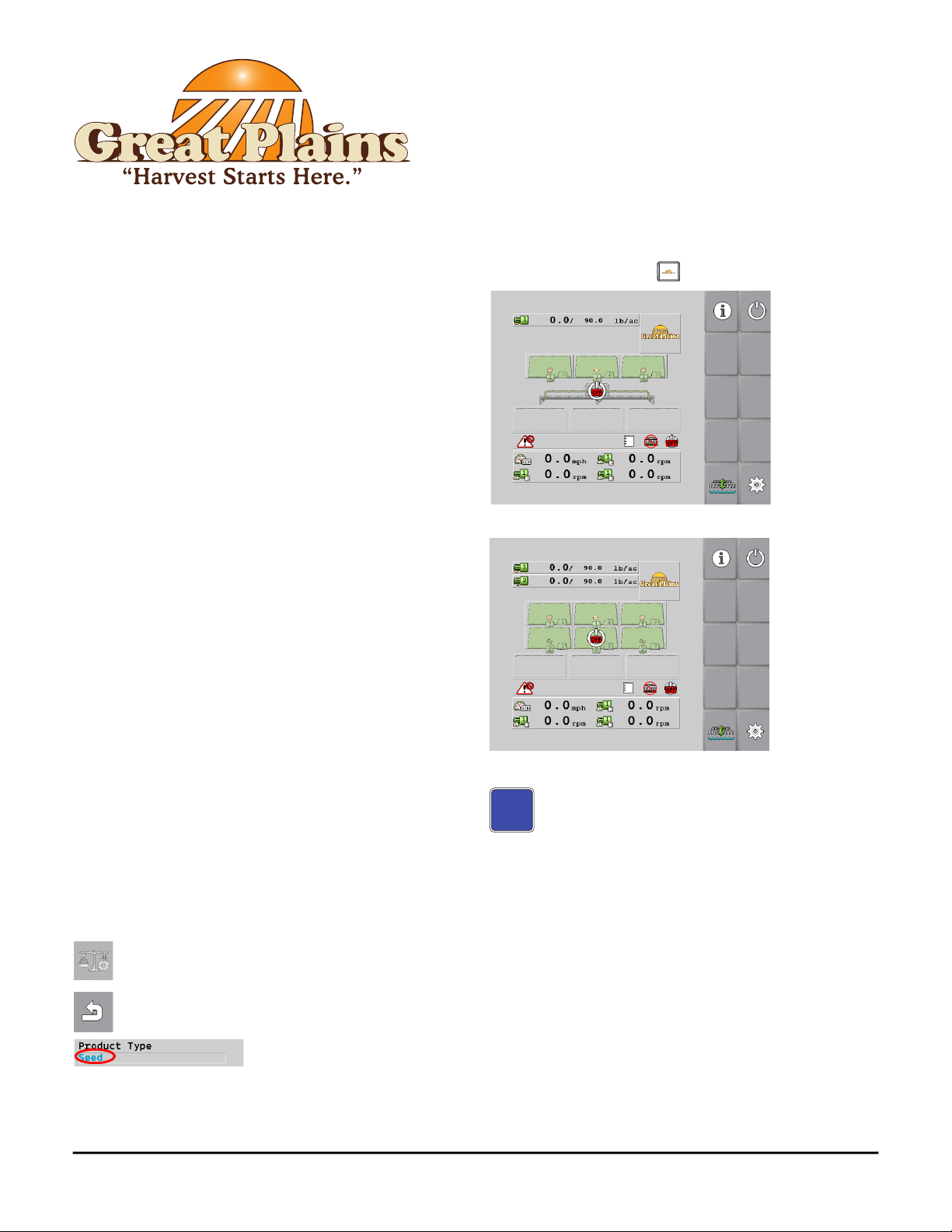

Home Menu
The DrillCommand application will load onto your
terminal when you tap soft key.
Single Hopper Configuration
Split-Box Hopper Configuration
Please Note: The DrillCommand Home
menu appearance will vary based on drill
configuration.
®
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 2

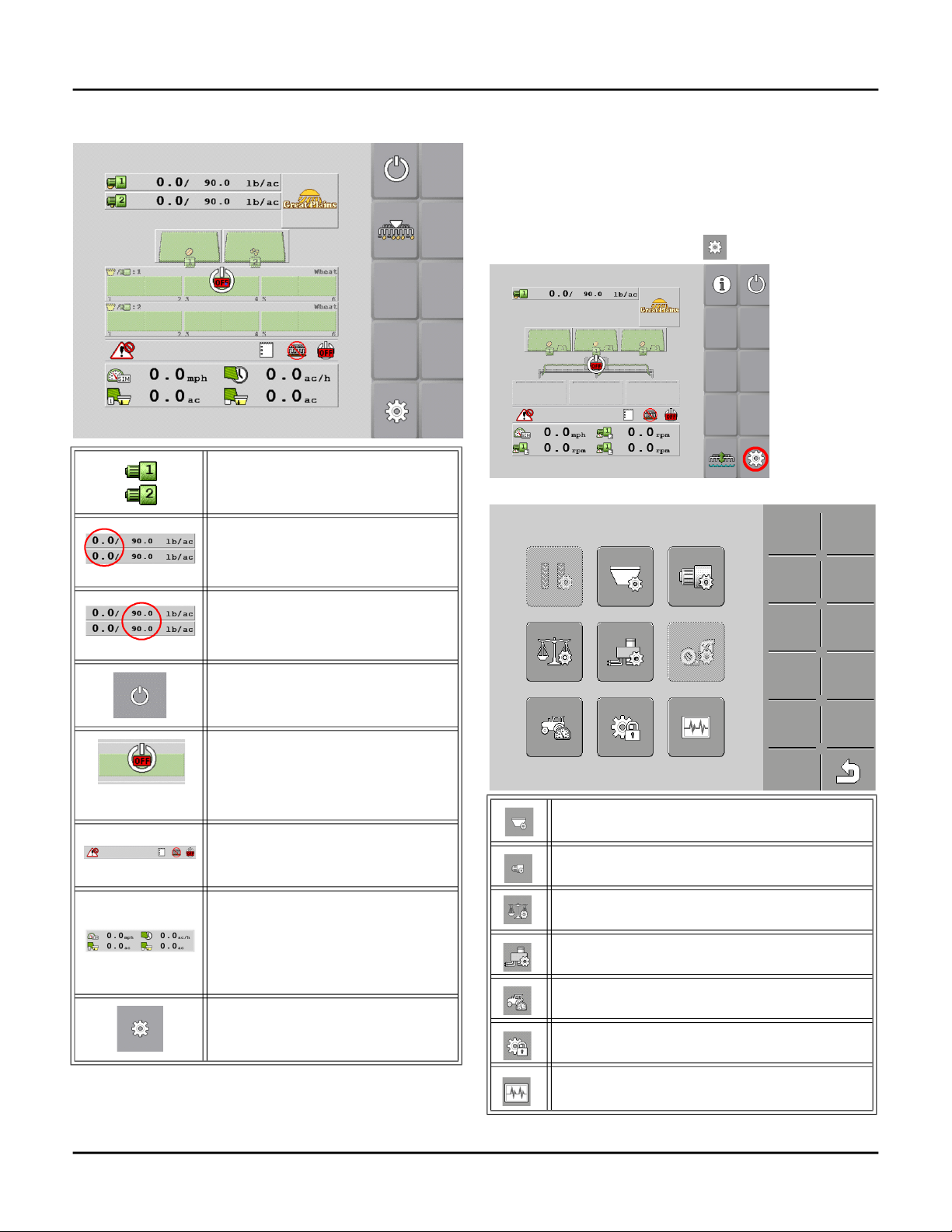

Home Menu Overview Machine Setting Menu Overview
The DrillCommand Home menu will be displayed
when DrillCommand application is loaded onto your
terminal.
To navigate to the Machine Settings menu:
1. On the Home menu, tap soft key.
2. Machine Setting menu will be displayed.
Metering System identifies the
metering system. Split-Box
Hopper configuration shown.
Actual Rate displays the actual
rate of material application.
Target Rate displays the desired
target rate of material application.
Master Switch soft key toggles
DrillCommand™ operational
status On/Off.
Master Switch Status indicates
the operational status. Off
shown.
Status Line contains indicators
for alarms, accessories, systems,
and statuses.
Feedback displays four sets of
feedback data. Toggles to offer
up to eight sets of feedback data.
All eight sets of feedback data
are customizable.
Machine Settings soft key allows
user to access Machine
Configuration Settings menu.
Hopper Settings
Meter Settings
Weigh System Settings
Blockage Settings
Speed Settings
Configuration
Diagnostics

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 3

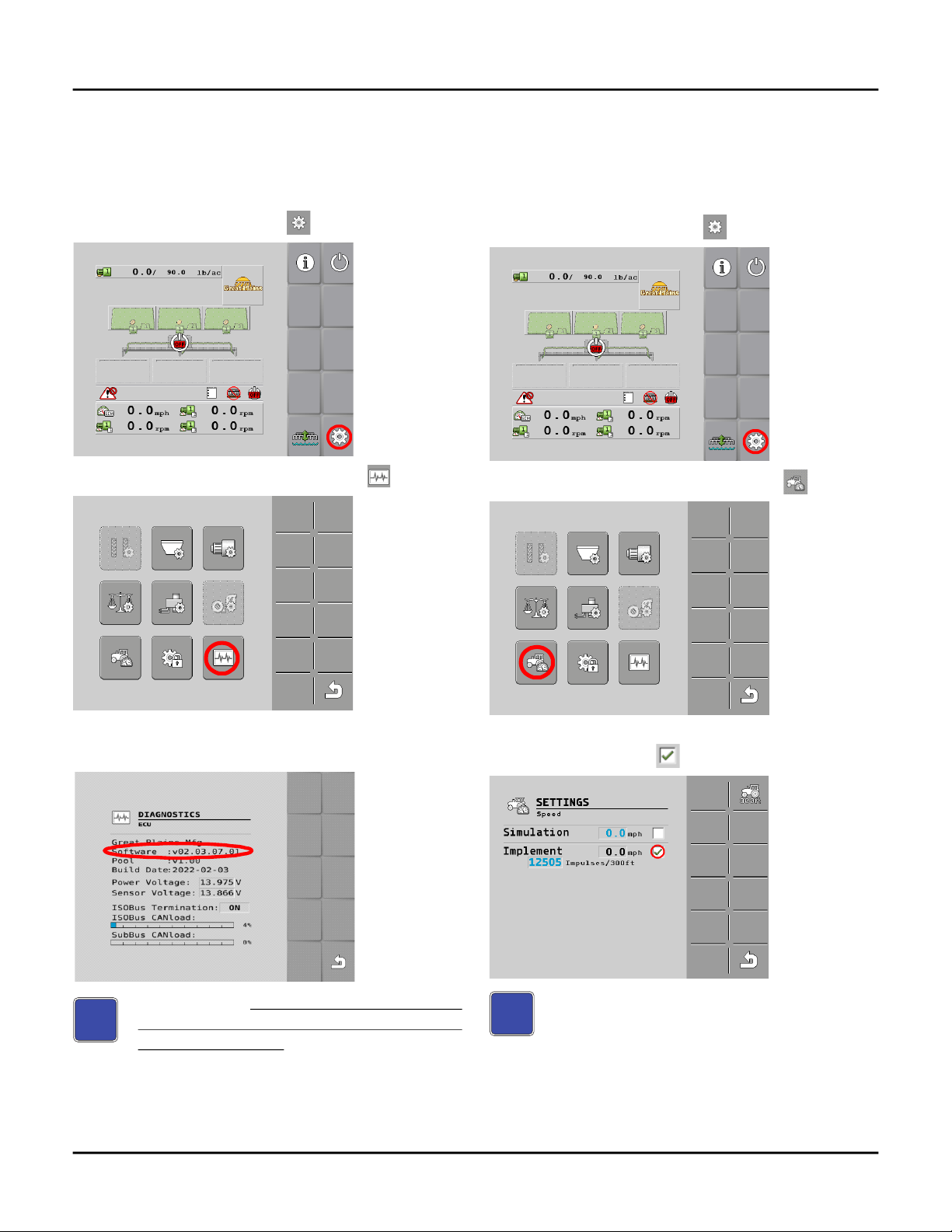

Identifying Software Version
It is important to identify which software version is
installed on your terminal.
To navigate to the software version information:
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. The Informational Diagnostic menu will display
the software version.
Please Note: This Quick Start Guide will
only support software versions 02.02.04.00
through 02.03.05.03.
Speed Calibration
This process will calibrate the ground speed radar on
the drill.
To calibrate ground speed:
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. On the Speed Settings menu, verify there is a
green check mark to select Implement.
Please Note: Tapping the field will toggle to
populate/depopulate the green check mark.
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 4

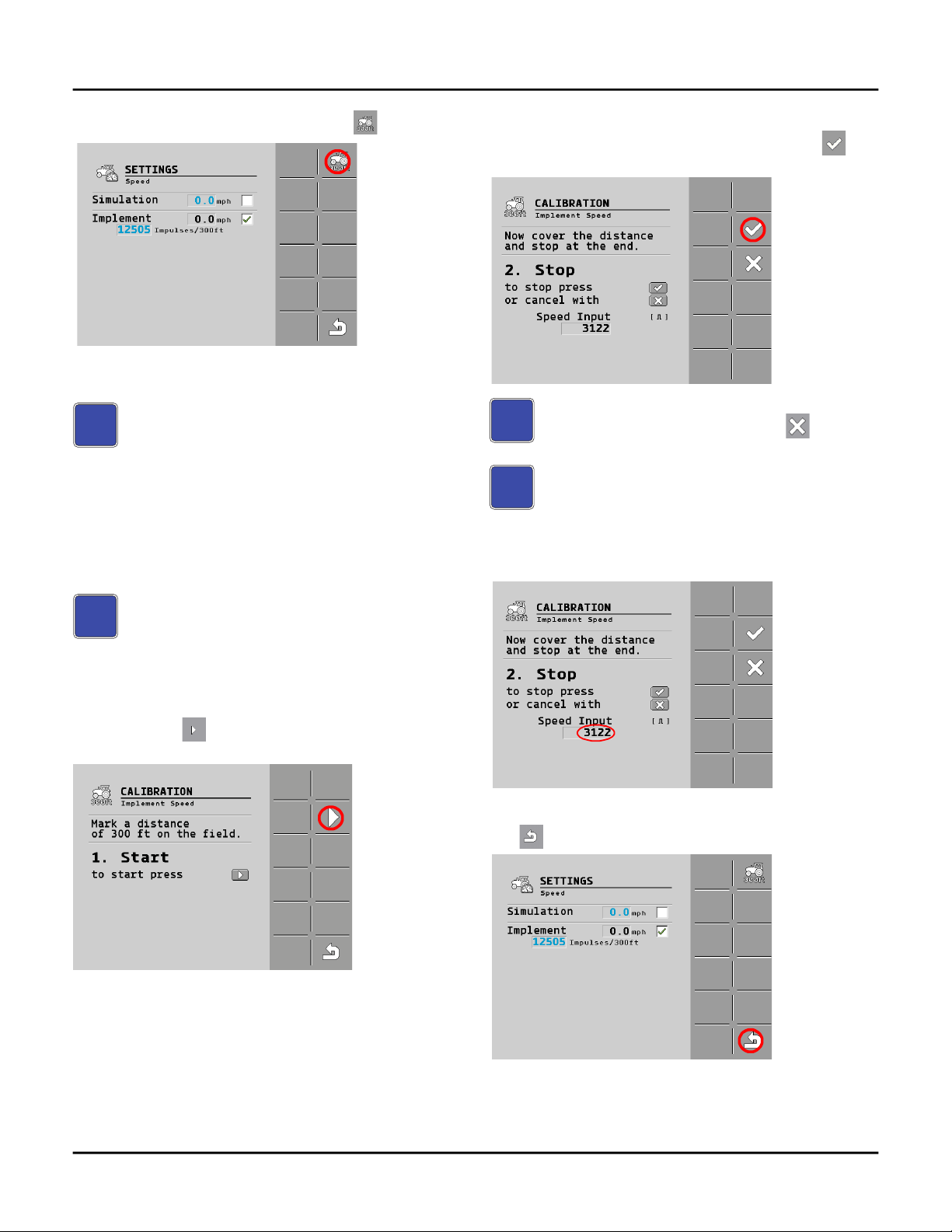

4. On the Speed Settings menu, tap soft key.
5. On the ground, mark a start point and end point
with a distance of 300 ft. (91.5 m) apart.
Please Note: Ground conditions should be
representative of field conditions. Great
Plains recommends completing speed
calibration in the field for best results.
6. Once the start-and-end markers have been
placed in field conditions 300 ft. (91.5 m) apart,
drive the tractor near the start point marker.
Continue to drive the tractor approaching the
start point marker.
Please Note: Intended field speed should
be maintained while traveling the 300 ft.
(91.5 m) distance between the start-and-end
points for an accurate speed calibration.
7. As you drive the tractor pass the start point
marker, on the Implement Speed Calibration
menu, tap soft key. This begins the calibration
operation.
8. Continue to drive the tractor towards the end
point marker.
9. As you drive past the end point marker, on the
Implement Speed Calibration menu, tap soft
key. This will end the calibration operation.
Please Note: It will cancel the speed
calibration operation if you tap soft key.
No results will be saved.
Please Note: The number of impulses will
continuously update in the Speed Input field
as you travel the 300 ft. (91.5 m) distance
between the start-and-end point markers.
Shown below.
10. To accept the displayed calibration results, tap
soft key.
i
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 5

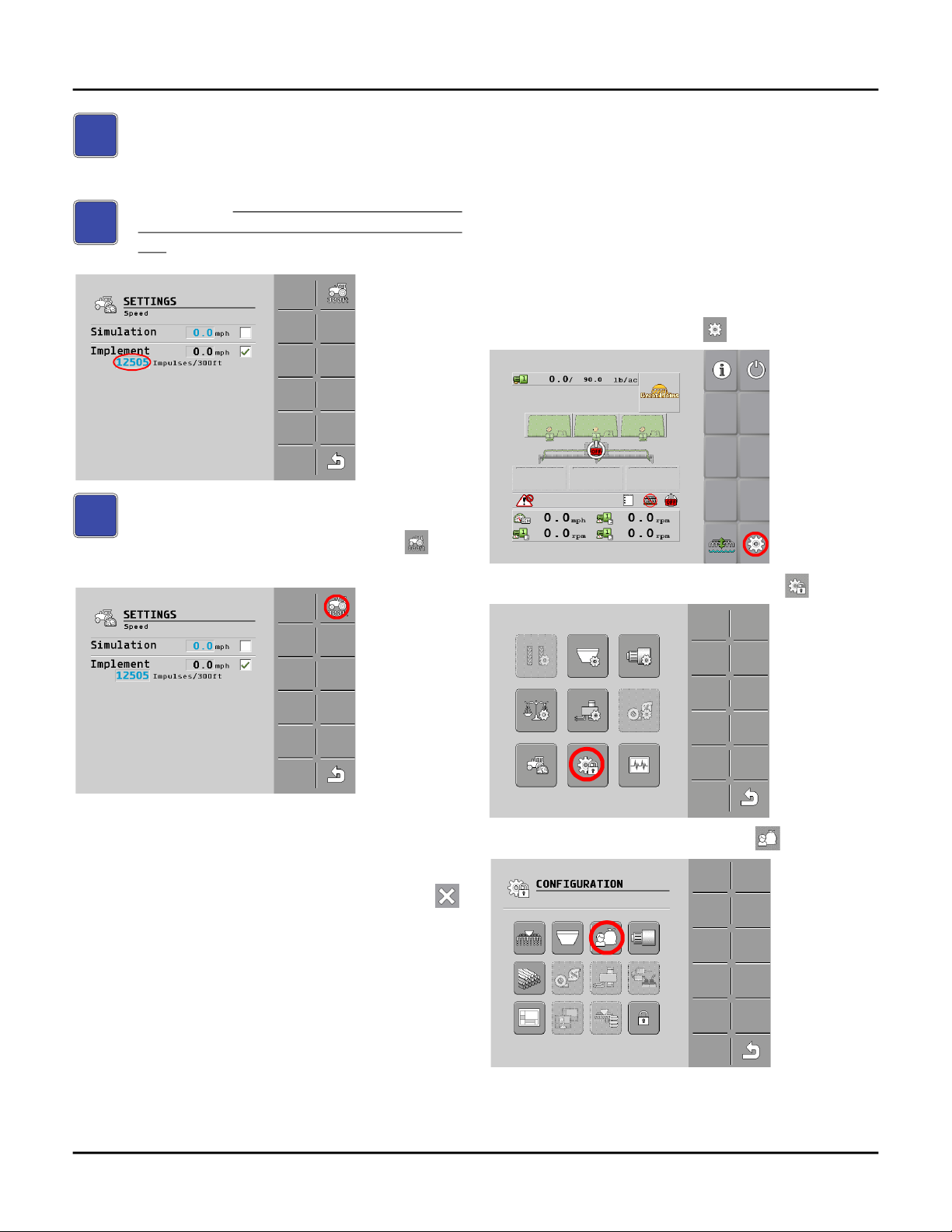

Please Note: The impulses should range
between 5,000 to 15,000. If speed calibration
results are outside this range, perform a new
speed calibration operation.
Please Note: Great Plains does not recommend
manual adjustment of the value in the impulse
field. Shown below.
Please Note: You may complete a new
speed calibration operation without saving
the previous calibration results. Tap soft
key to complete a new calibration.
Troubleshooting
An unsuccessful speed calibration often times occurs
because:
The calibration operation was canceled when the
soft key was tapped.
The intended field speed was not maintained during
the 300 ft. (91.5 m) speed calibration operation. The
number of impulses shown should range between
5,000 to 15,000. If your speed calibration results are
outside of the range, preform a new speed calibration
operation.
The 300 ft. (91.5 m) measurement between the two
field markers was inaccurate.
The radar sensor is improperly mounted. Make
adjustments based on these recommendations:
 Mounting Angle: 35° forward facing.
 Mounting Height: 12 to 48 inches above the
ground or above the crop; average height is 24
inches.
Product Database
This section will provide instruction on how to manage
the Product Database.
Product Profile Configuration
To edit product profile configuration:
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. On the Configuration menu, tap soft key.
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 6
4. Tap each blue field and input the desired values.
Refer to “Required System Inputs” on page 7
for more information.
5. Once the required system inputs have been
entered, tap soft key to return to the previous
menu.
Please Note: After you tap the blue field and
input the desired value, the system automatically
saves the updated information.

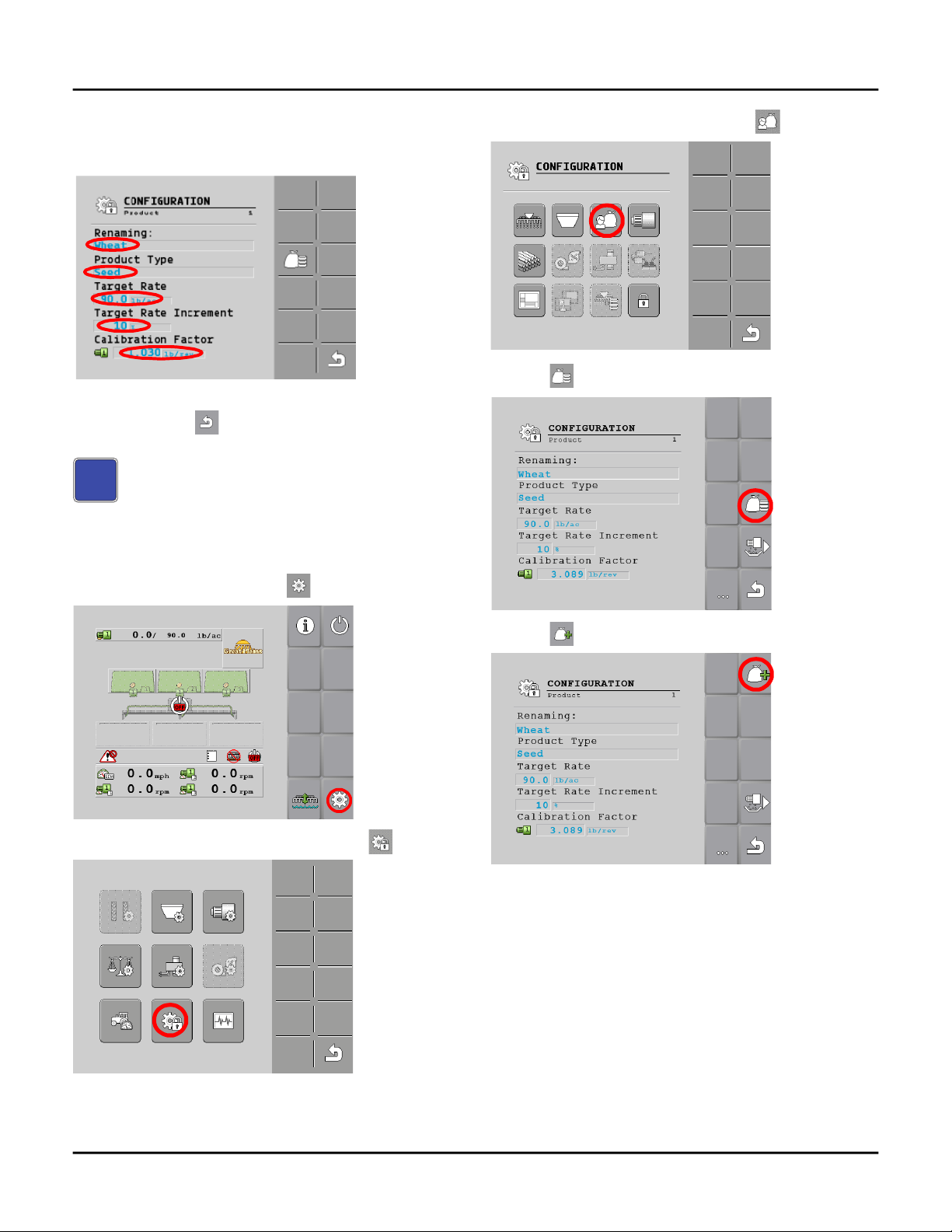

Add a Product Profile
To add a product profile:
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. On the Configuration menu, tap soft key.
4. Tap soft key.
5. Tap soft key.
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 7
6. Tap each blue field and input the desired values.
Refer to “Required System Inputs” on page 7
for more information.
Please Note: After you tap the blue field and
input the desired value, the system
automatically saves the updated information.
Please Note: Each Product Profile must have
a unique name in the Renaming Field.
Single Box Hoppers: Skip to step 9.
7. On Split-Box Hoppers: Once the required
system inputs have been entered, you must
assign a metering system to the product profile.
Tap soft key to select the metering system.
Please Note: This soft key will toggle
between metering system 1 and metering
system 2. The selected metering system will
be displayed near the calibration factor.
Shown below.
8. Confirm the metering system selection before
continuing. Metering System 2 selection shown
below.
9. Tap soft key for Product Database menu.
Required System Inputs
The required system inputs within the Product
Database menu are:
Renaming
Product Type
Target Rate
Target Rate Increment
Calibration Factor
Metering System Selection (Split-Box Hoppers Only)
Please Note: Tap the blue field and input the
desired value for each field, the system
automatically saves the updated information.
i
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 8
Renaming
Tap the Renaming field. Type in an unique name using
the pop-up keyboard.
Product Type
Tap the Product Type field. Select “Seed” for a seed-
based material from the drop-down menu. Select
“Solid” for a dry fertilizer material from the drop-down
menu.
Target Rate
Tap the Target Rate field. Enter the desired rate of
material application during field operation using the
pop-up menu.
Target Rate Increment
Tap the Target Rate Increment field to enter the
desired incremental increases and decreases for
adjustments to target rate during field operations. 10%
is the factory preset value.
Calibration Factor
Tap the Calibration Factor field to enter the calibration
factor from the BD7600 Material Rate manual for your
drill.
Split-Box Hoppers Only: Metering System 1 or 2
selection is required. Tap metering system soft key to
toggle between metering system 1 and metering
system 2.
Selection is indicated by the meter icon next to the
Calibration Factor. Metering System 1 selection shown
below.

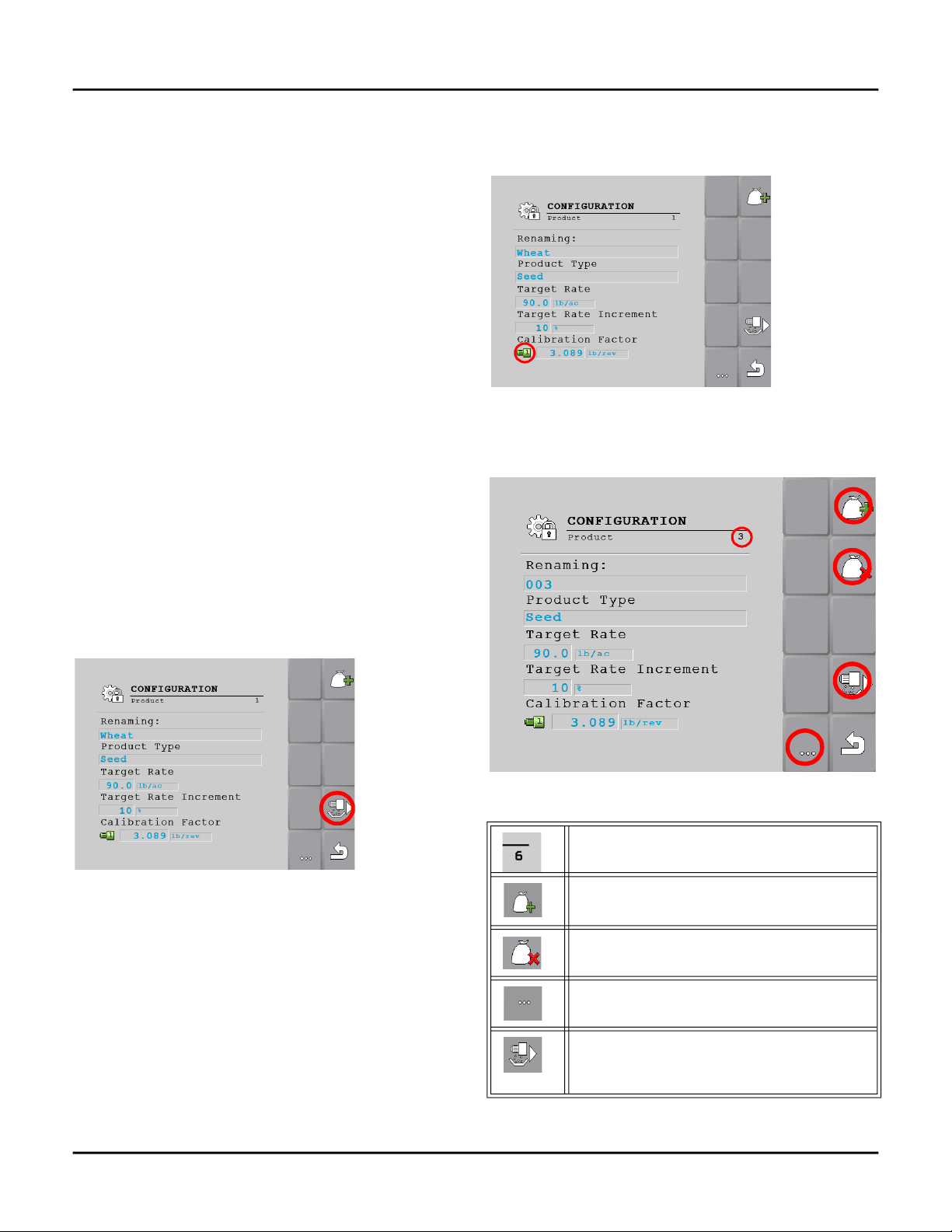

Product Configuration Menu Overview
This section will assist with navigation within the
Product Database menus.
Menu Glossary
Identifies the product profile number.
Tap to add a product to the database.
Tap to delete a product profile. Not an
option for product profiles 1 and 2.
Tap to shuffle through existing product
profiles.
Tap to toggle between metering system 1
or metering system 2. (Split-Box Hoppers
only.)

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 9
Product Profiles 1 and 2
Product profile 1 is preset from the Great Plains factory
for single hopper configurations as wheat. Product
profiles 1 and 2 are preset from the Great Plains
factory for split-box hoppers as wheat and dry fertilizer.
These preset product profiles may not be deleted;
though the values, including the name, may be edited.
The software requires two product profiles at all times.
The delete product soft key will not be display on
product profiles 1 and 2.
Please Note: Each product profile must have
a unique name. Examples to consider when
naming multiple wheat profiles include “Wheat
1”, “Wheat 2”, “Wheat Field 1”, “Wheat 90/lbs”,
“Wheat/65lbs”, etcetera.
Hopper Settings
This section will provide instructions to set up the
hopper boxes to apply material in the field.
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. Tap each blue field and input the desired values.
Refer to “” on page 10 for more information.
Single Hopper Configuration
Split-Box Hopper Configuration
4. Tap soft key for Machine Settings menu.
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 10

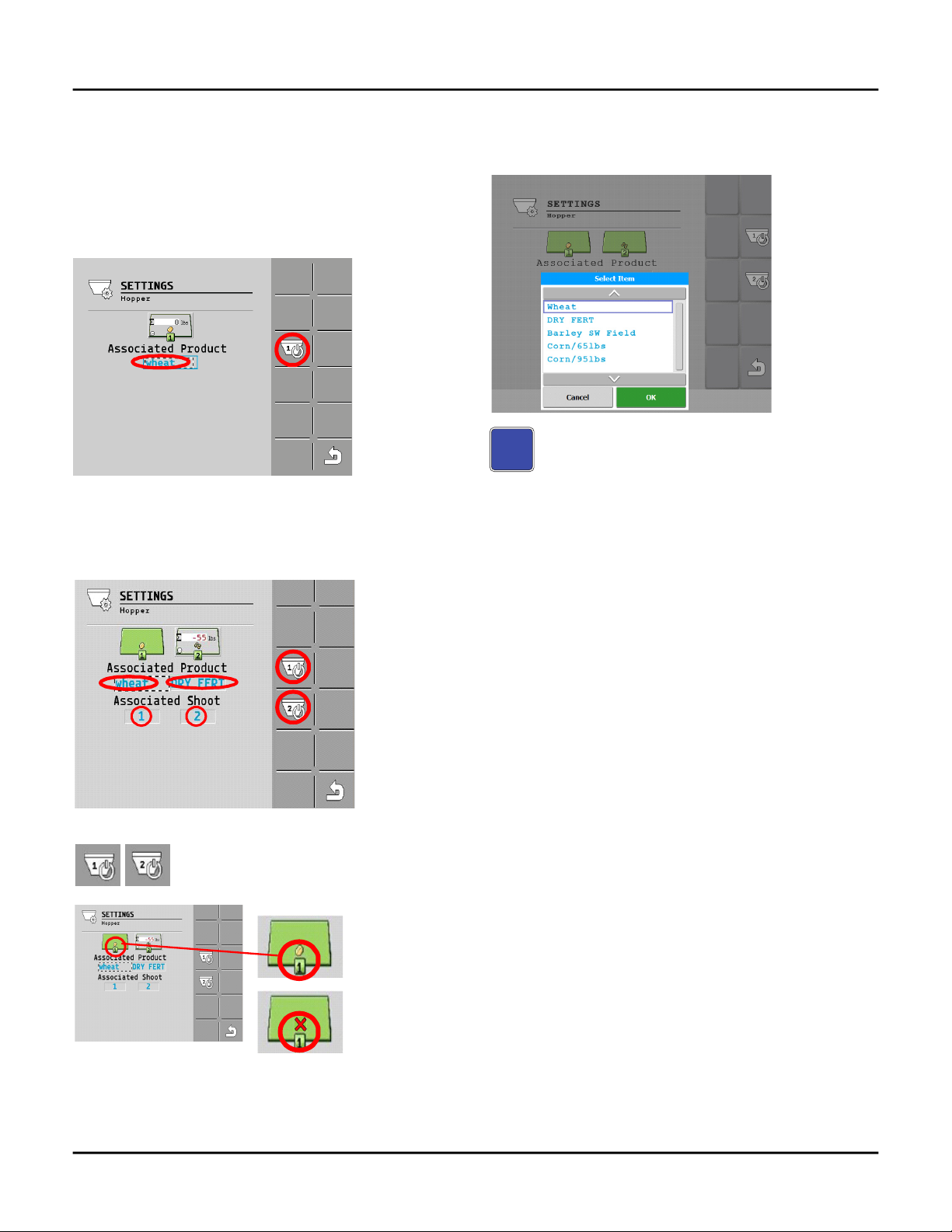

Required System Inputs
The required system inputs within the Hopper Settings
menu are:
Single Hopper Configuration
Hopper Control Status
Associated Product
Split-Box Hopper Configuration
Hopper Control Status
Associated Product
Associated Shoot
Hopper Control Status
Tap soft keys to toggle the status of the
hopper between active and inactive.
Associated Product
Tap the Associated Product field and select the
product profile from the drop-down list.
Please Note: The product profile must already
be present in the product database. It may be
necessary to add a new product profile to the
database. Refer to “Add a Product Profile”
on page 6 for more information.
Split-Box Hoppers Only: Associated Shoot
Tap the Associated Shoot field for each split-box
hopper. At the Great Plains factory, the front metering
system was preset as Shoot 1, and the rear metering
drive is Shoot 2.
Metering System Calibration
This section will provide instruction to calibrate the
metering system drive(s). Drills with a Single Hopper
configuration have one metering system. Split-Box
Hopper configurations have two metering systems. At
the Great Plains factory, the front meters have been
preset as Metering System 1 and the rear meters have
been preset as Metering System 2. Great Plains
recommends performing a metering calibration with
each field session, anytime the range gears are
changed or adjusted, and when changing the material.
The following instructions will provide instructions to
calibrate meter(s) across the drill one section at a time.
Great Plains recommends completing work from left-
to-right across your drill.
Active Hopper
Inactive Hopper
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 11
To calibrate the metering system(s):
1. On the Home menu, tap soft key.
2. On the Machine Settings menu, tap soft key.
3. Tap each blue field and input the desired values.
Refer to “Required System Inputs” on page 16
for more information.
Single Hopper Configuration
Split-Box Hopper Configuration
4. On the Metering Drive Settings menu, tap
soft key.
5. On the Parameters Calibration menu, tap the
metering system field to place a green check
mark to select Metering System 1 and/or 2.
Please Note: Tapping the field will toggle to
populate/depopulate the green check mark.
Please Note: Split-Box Hopper configuration
is shown above. Single Hopper configuration
will only display Metering System 1.
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 12
6. Tap the field speed field to input targeted value.
Please Note: Great Plains recommends a
field speed between 3-6 mph.
7. Tap the catching row field to input the number of
rows for collection.
Please Note: Great Plains recommends
collecting 4-5 rows for a successful metering
calibration operation.
8. Tap soft key.
9. Tap tab.
Please Note: 3-Section Drill, Split-Box
Hopper configuration is shown above.
Single Hopper configuration will only display
Product Meter 1 (Shown below). 2-Section
drills will only display two meters (Shown
next).
3-Section Drill, Single Hopper Configuration
2-Section Drill, Single Hopper Configuration
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 13
10. On the Selection Calibration menu, tap the meter
intended for calibration green check mark to
select meter 1-1, 1-2, and/or 1-3.
Please Note: Tapping the field will toggle to
populate/depopulate the green check mark.
Please Note: 3-Section Drill, Split-Box Hopper
configuration is shown. Shown selection
indicates calibration operation will be performed
on the Metering System 1, on the left-section
hopper box. Metering System 1 is factory preset
as the front meters on Split-Box Hoppers.
Single Box Hoppers: Skip to step 13.
11. Tap tab.
Please Note: Tapping the Product Meter 2 tab
will allow for the meter selection on Metering
System 2. Metering System 2 is factory preset
as the rear meters on Split-Box Hoppers.
12. On the Selection Calibration menu, tap the meter
intended for calibration green check mark to
select meter 2-1, 2-2, and/or 2-3.
Please Note: Tapping the field will toggle to
populate/depopulate the green check mark.
Please Note: 3-Section Drill, Split-Box
Hopper configuration is shown. Shown
selection indicates calibration operation will be
performed on the Metering System 2, on the
left-section hopper box. Metering System 2 is
factory preset as the rear meters on Split-Box
Hoppers.
13. After selecting meter(s) intended for calibration,
tap soft key.
14. On the drill, adjust the range settings on the
metering drive system to the values provided in
the Material Rate manual.
15. For ease, rotate and lock the walk board into an
upright position.
16. Set feed cup flap handles to the correct position.
17. Set upper slide gates to the correct position.
18. Close upper slide gates on rows which will not be
used for calibration.
19. Release the seed cup funnels on the collection
rows.
i
i
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 14
20. Locate the calibration tray(s), collapsible bucket,
and scale.
21. Install the calibration tray(s) over the drive shaft
and let it hang; align calibration tray(s) with rows
which will be caught.
22. In the tractor cab, engage tractor hydraulic
remote for the hydraulic drive.

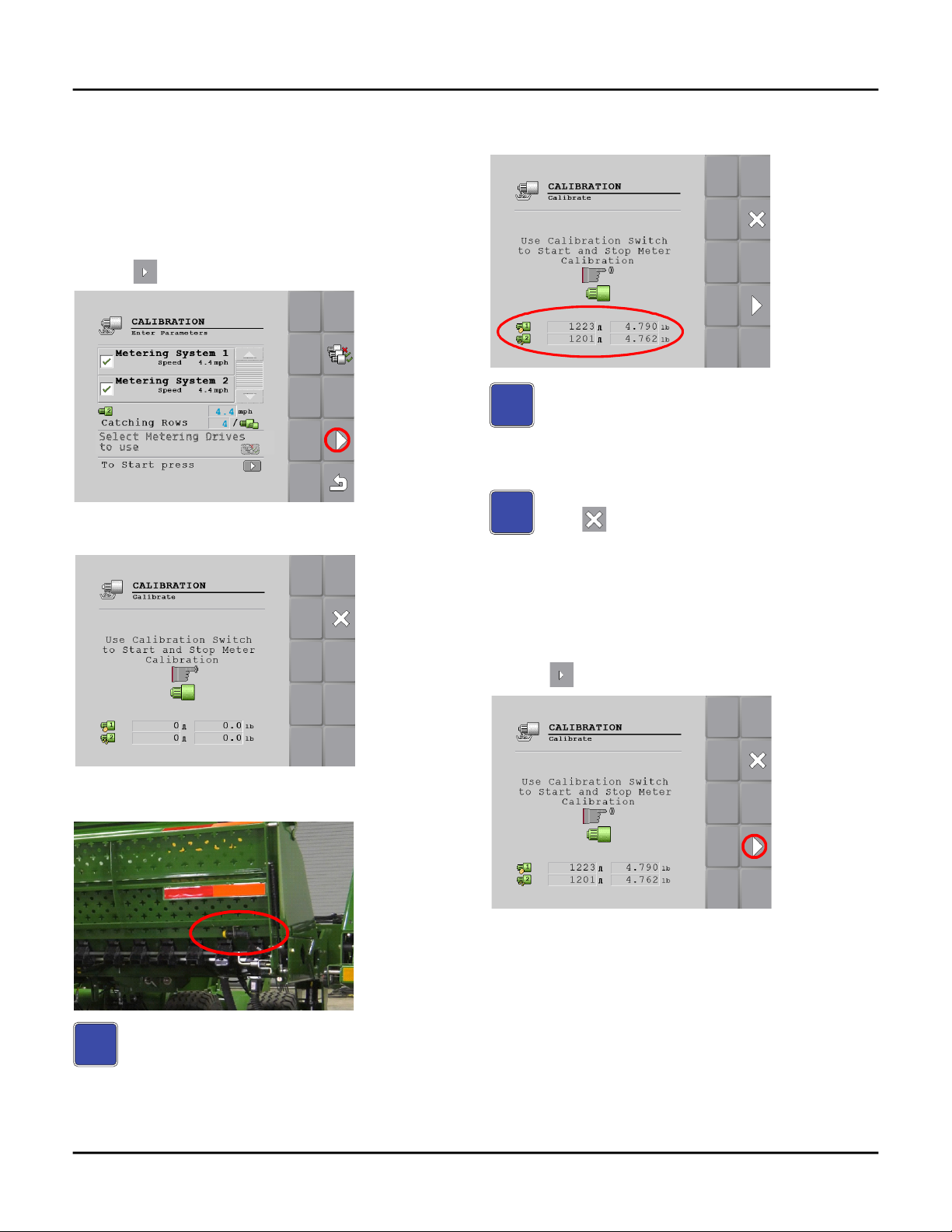

23. Tap soft key.
24. The calibration menu will be displayed. Split-Box
configuration shown below.
25. On the drill, engage the yellow calibration
button.
Please Note: On 2-section drills, the yellow
calibration button is located on the left-section
under the walkboard. On 3-section drills, the
yellow calibration button is located on the
center-section under the walkboard.
26. An active calibration menu will be displayed.
Split-box configuration is shown below.
Please Note: Once the yellow calibration
button on the drill has been engaged, the
Calibration menu will become active and will
update the estimated collection sample data.
Shown above.
Please Note: To end the calibration operation,
tap soft key at any point.
On the drill, you will need to disengage the
yellow calibration button to stop the metering
drive(s).
27. On the drill, once a sufficient calibration sample
has been collected, you will need to disengage
the yellow calibration button.
28. Tap soft key.
29. At the drill, attach collapsible bucket to scale,
and zero scale.
30. Detach calibration tray for Metering System 1
from metering drive shaft and pour collected
sample into the collapsible bucket. Metering
System 1 is factory preset as the front meters on
Split-Box Hoppers.
31. Use the scale to weigh the collected sample.
i
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 15

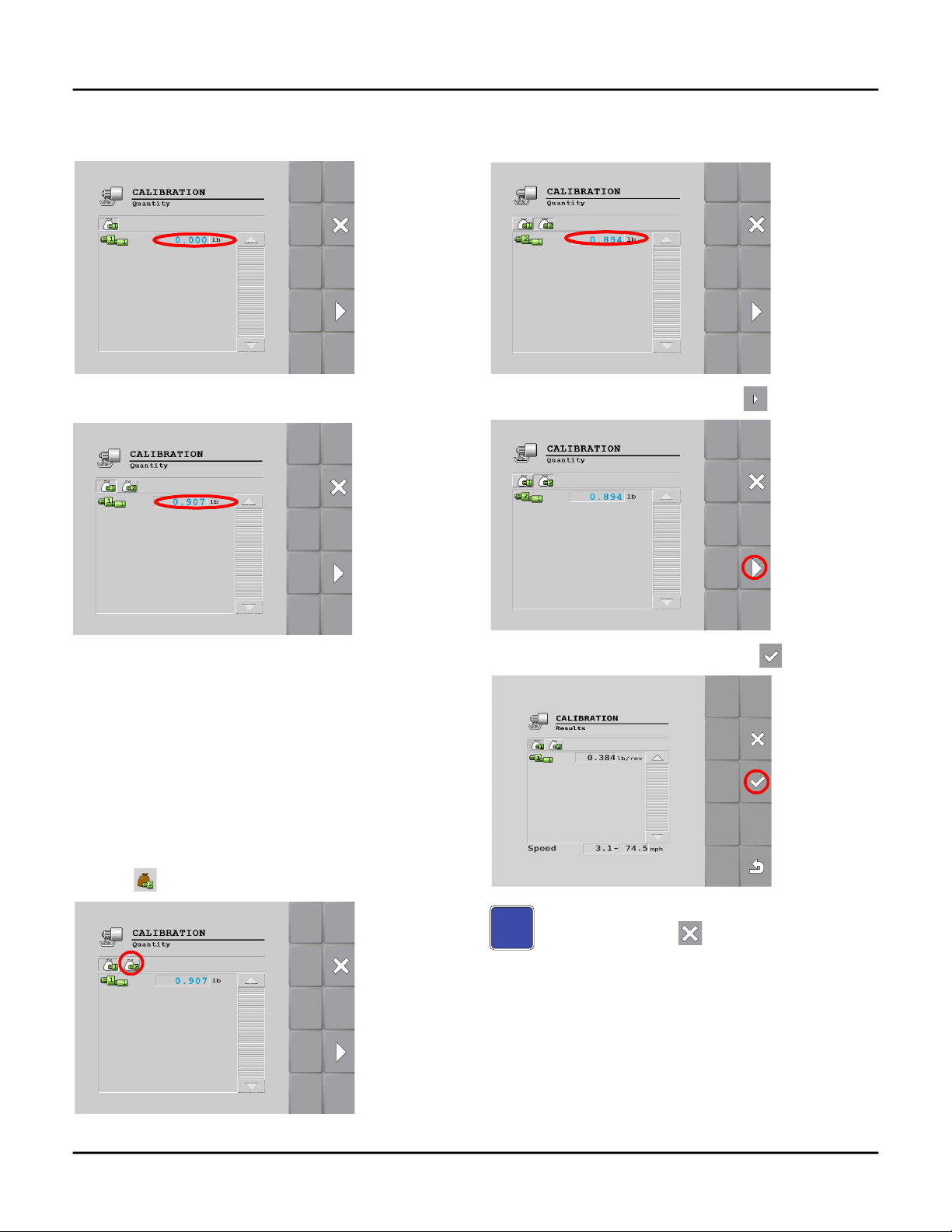

32. Tap the actual weight field to input the weight of
the collected sample for Metering System 1.
Single Hopper Configuration
Split-Box Configuration
Single Box Hoppers: Skip to step 38.
33. Empty collected sample from collapsible bucket.
34. Remove calibration tray from Metering System 2
drive shaft and pour the second collected sample
into the collapsible bucket. Metering System 2 is
factory preset as rear meters on Split-Box
Hoppers.
35. Use the scale to weigh the second collected
sample.
36. Tap tab.
37. Tap the actual weight field to input the weight of
the collected sample for Metering System 2.
38. To view calibration results, tap soft key.
39. To accept calibration results, tap soft key.
Please Note: Calibration results will not be
saved if you tap soft key.
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 16

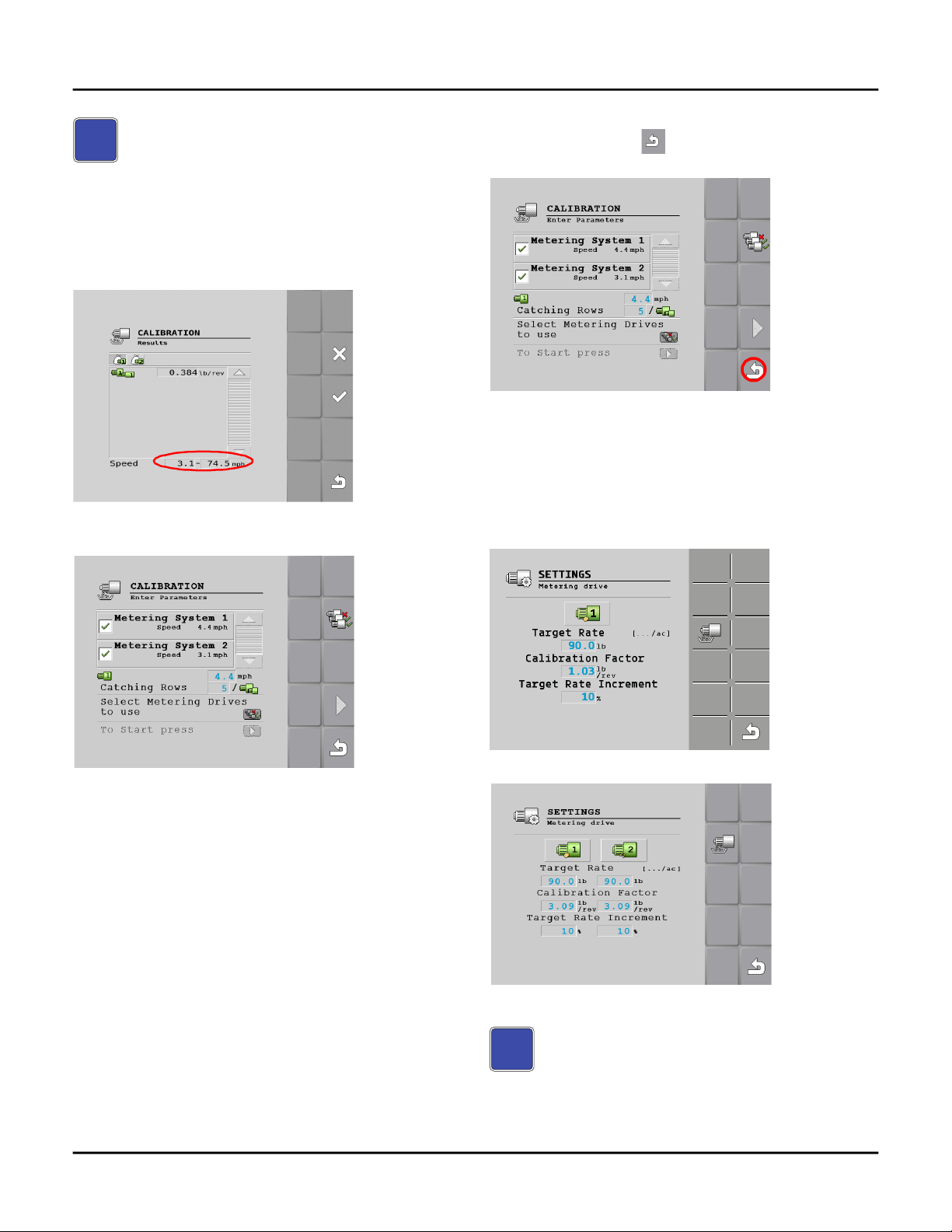

Please Note: On the Calibration Results
menu, the speed range will be displayed. If
the speed range is too low or too high,
consider changing the range gears on the
metering drive. You will need to perform
new calibration operations across the drill if
range gear adjustments are made. Shown
below.
40. Once the calibration results have been accepted,
the Metering Calibration menu will be displayed.
41. To complete the metering system calibration for
the drill, user will need to complete steps 5
through 40 for each drill section, and then
continue to step 42.
42. Once all of the sections on the drill have been
calibrated, tap soft key to exit metering
calibration menu.
Required System Inputs
The required system inputs within the Metering
System Calibration menus are:
Target Rate
Calibration Factor
Target Rate Increment
Single Hopper Configuration
Split-Box Hopper Configuration
Please Note: Tap the blue field and input the
desired value for each field, the system
automatically saves the updated information.
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 17
Target Rate
Tap the Target Rate field to input the desired rate of
material application during field operation.
Target Rate Increment
Tap the Target Rate Increment field to input the
desired incremental increases and decreases for
adjustments to target rate during field operations. 10%
is the factory preset value.
Calibration Factor
Tap the Calibration Factor field to input the calibration
factor from the BD7600 Material Rate manual.
Please Note: It is possible to enter these
values within other menus, however Great
Plains recommends using these instructions to
ensure all required system inputs are entered.

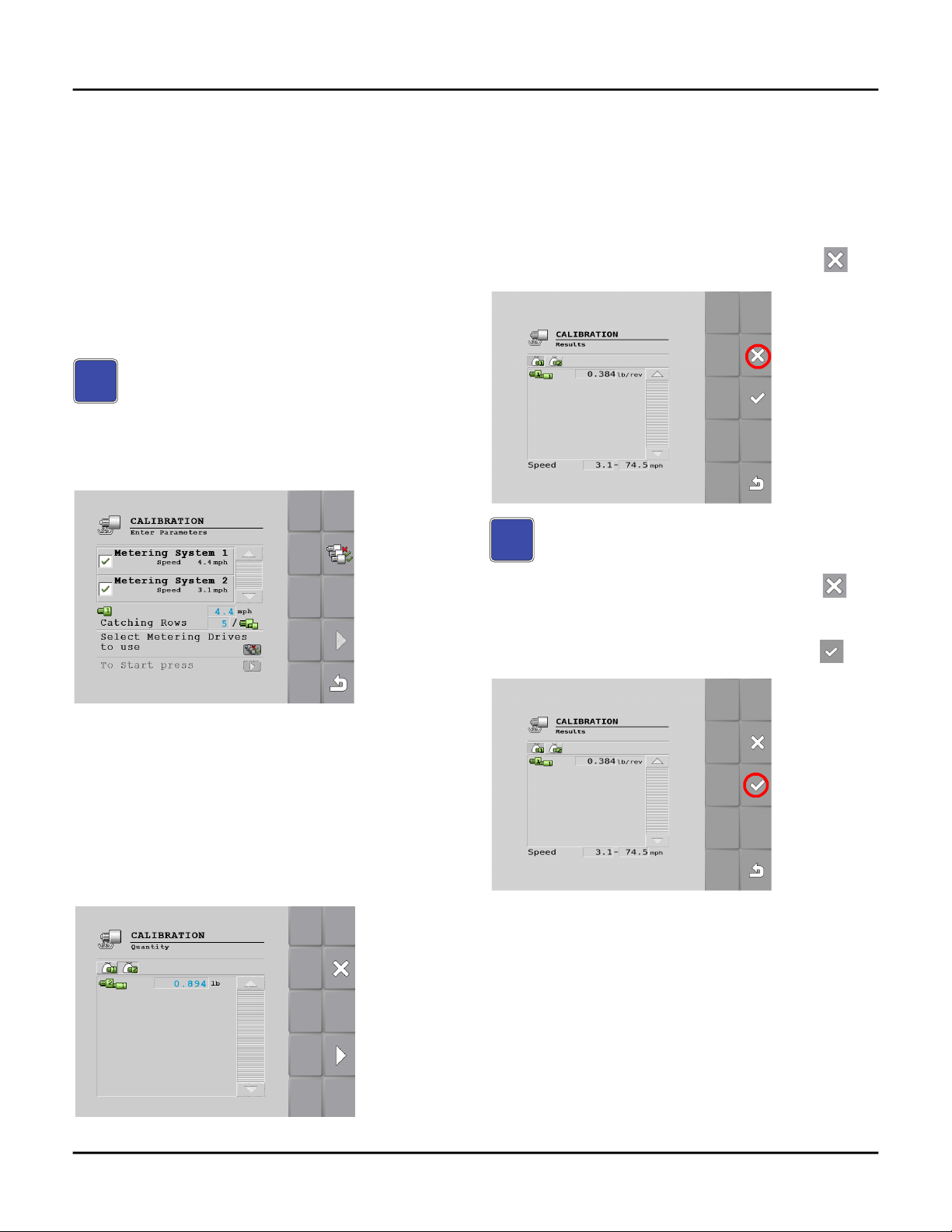

Field Speed
Catching Rows
Field Speed
Tap the Field Speed field to input the target field speed
during field operations. Great Plains recommends a
field speed between 3-6 mph.
Catching Rows
Tap the Catching Rows field to input the number of
rows for collection. Great Plains recommends the
collection of 4-5 rows.
Actual Weight
Actual Weight
Tap the actual weight field to input the actual weight of
the collection sample during the calibration operation.
Troubleshooting
An unsuccessful meter calibration operation most
often times occurs because:
The calibration operation was canceled when soft
key was tapped. Results will not be saved.
Please Note: Menu shown is not the only
opportunity to cancel the calibration operation.
On any of the calibration menus, the calibration
operation can be canceled by tapping soft
key.
The calibration results were not accepted on the final
step. Accept calibration results by tapping soft
keys.
i
i

BD7600 Quick Start Guide
Great Plains | 195-835QS | 03/25/2022 18

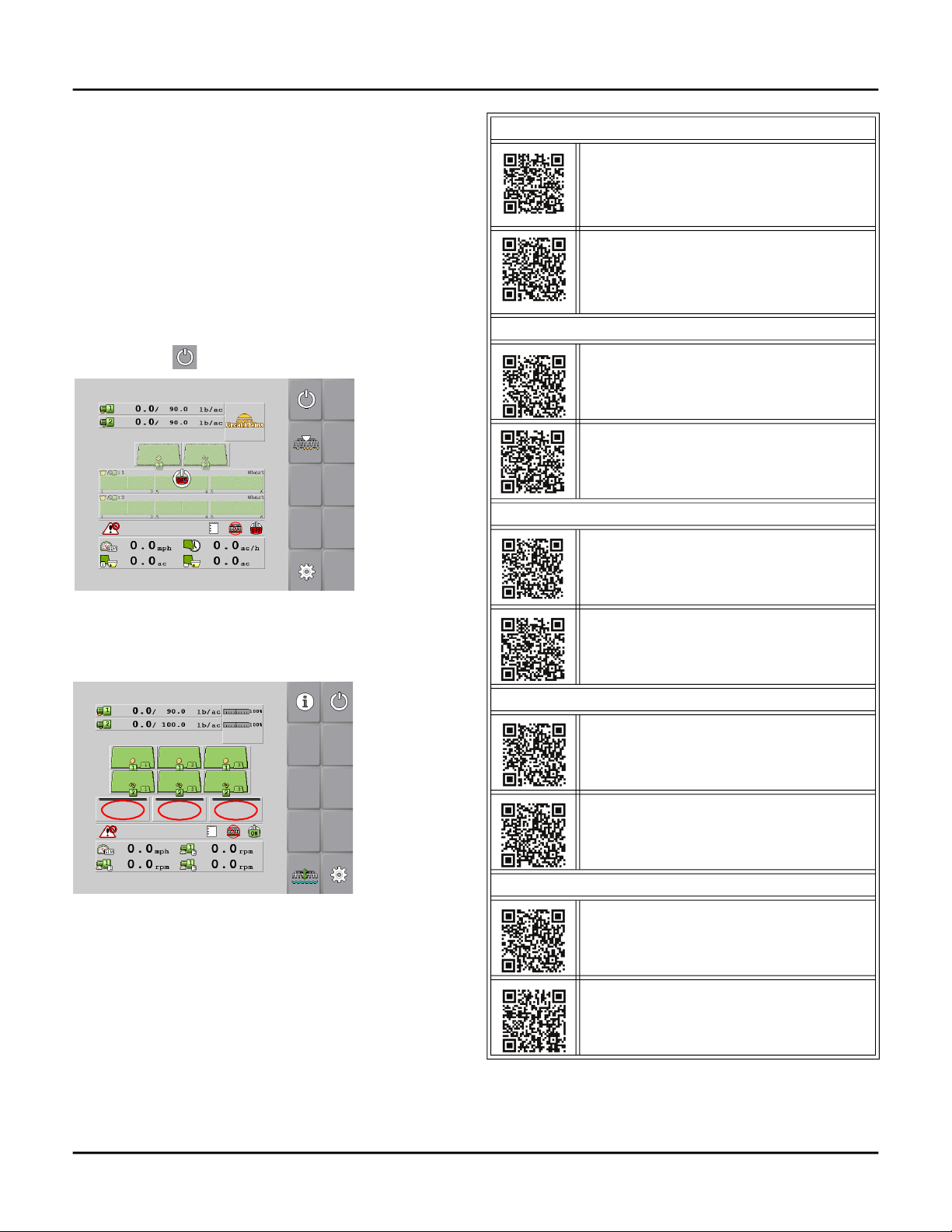

Field Operation
Your drill is ready to begin field operations.
Before you operate the drill, thoroughly read, and
understand, the Operator manual, and all other
accompanying manuals and literature with your drill.
Before drilling material in the field:
Enter required system inputs.
Load material into hoppers.
Ensure hopper lids are closed.
Toggle field operation status to active. On the Home
menu, tap soft key.
Toggle each section of drill to lower openers. On the
active status Home menu, tap each section soft key.
3-Section, Split-Box Hopper configuration shown
below.
Related Resources
For your convenience, the following QR codes may be
scanned using a smart phone or tablet to access
online documents. These related documents are
located on our website.
GreatPlainsAg.com
*Offers generalized user support. Content has been developed to
provide a broad explanation of DrillCommand software functions
across all kinds of equipped Great Plains products.
BD7600 Hydraulic Models:
DrillCommand™ Personal User
Guide for Legacy Software
(160-500M)*
BD7600 Hydraulic Material Rate
Manual for Legacy Software
(195-833B)
BD7600-26 Models:
Operator Manual (195-612M)
Parts Manual (195-612P)
BD7600-30 Models:
Operator Manual (195-613M)
Parts Manual (195-613P)
BD7600-40 Models:
Operator Manual (195-614M)
Parts Manual (195-614P)
BD7600-50 Models:
Operator Manual (195-615M)
Parts Manual (195-615P)

Great Plains, Mfg.
1525 E. North St.
P.O. Box 5060
Salina, KS 67402
