GREAT PLAINS Yield-Pro PL5800 User manual

Read the operator manual entirely. When you see
this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Illustrations may show optional equipment not
supplied with standard unit.
!
Table of Contents Index
Original Instructions 411-474Q
Great Plains
PRE-DELIVERY MANUAL
MODEL PL5800
PLANTER

Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you or the dealer have added options not originally ordered with the machine, or removed options that were originally
ordered, the weights and measurements are no longer accurate for your machine. Update the record by adding the
machine weight and measurements with the option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Year of Construction
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
Dealer’s Customer
No.:
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

To our customer:
Congratulations on the purchase of your Name of Company product. Name of Company
welcomes you to its growing family of new product owners. Your product has been designed and
built by skilled workers using quality materials.
Your dealer has performed the necessary pre-delivery service to your machine, and will advise
you of the proper maintenance and operating practices that will give you long, satisfactory use of
your machine. Do not hesitate to contact your dealer when you have a question related to your
machine.
Your machine has been designed to run efficiently in most operating conditions, and will perform
relative to the service it receives. If you need customer service or repair parts, contact your dealer
who has trained personnel, repair parts, and equipment specially designed for Name of Company
products.
Read this manual carefully before using the machine. It will familiarize you with safety, operation,
adjustments, and maintenance of your new equipment. This manual must always be kept with
your machine.
Name of Company wants you to be satisfied with your product. If for any reason you do not
understand any part of this manual or are otherwise dissatisfied, please take the following actions
first:
1. Discuss the matter with your dealership service manager. Make sure he is aware of
any problems so he can assist you.
2. If you are still unsatisfied, seek out the owner or general manager of the dealership.
If your dealer is unable to resolve the problem or the issue is parts related, please contact:
Great Plains Service Department
1525 E. North St.
P.O. Box 5060
Salina, KS, USA 67402-5060
Printed 09/19/2019 | English
Great Plains reserves the right to revise and improve its products at any time. This publication describes the state of this product at the
time of its publication, and may not reflect the product in the future. The content of this publication may be changed without notice.

© 2019 Great Plains | Printed in the United States of America
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any
means, including photocopying, recording, or other electronic or mechanical methods, without the prior written
permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other
noncommercial uses permitted by copyright law.
Trademarks of Great Plains Manufacturing, Inc. include: AccuShot, DrillCommand, Max-Chisel, Row-Pro, Singulator
Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press.
Registered trademarks of Great Plains Manufacturing, Inc. include: Air-Pro, Clear-Shot, Discovator, Great Plains, Land
Pride, MeterCone, Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo-
Trill, Ultra-Till, Whirlfilter, and Yield-Pro.
Brand and product names that appear and are owned by others are trademarks of their respective owners.
For permission requests, write to the publisher at the address below.
Great Plains Mfg.
1525 E. North St.
P.O. Box 5060
Salina, KS 67402
You can also visit our website at www.greatplainsag.com/en/manuals/905/product-manuals for a full catalog of this
and other manuals.
Ordering Information:
Quantity sales. Special discounts are available on quantity purchases by corporations, associations, and others. For
details, contact the publisher at the address above.
Orders for personal, non-commercial use. Please contact our service department by mail or our website
www.greatplainsag.com.

09/19/2019 v
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . 3
Before Getting Started . . . . . . . . . . . . . . . . . . . . . 3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Handling and Disposing of Chemicals . . . . . . 4
Operation Noise Hazard. . . . . . . . . . . . . . . . . 4
PTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tire Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
High Pressure Fluids . . . . . . . . . . . . . . . . . . . 6
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety Chain. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Lights and Devices . . . . . . . . . . . . . . . 7
Shutdown and Storage. . . . . . . . . . . . . . . . . . . . . 7
Proper Waste Disposal . . . . . . . . . . . . . . . . . . . . 7
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preparation and Setup. . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Introduction
09/19/2019 1
Introduction
Great Plains welcomes you to its growing family of
new product owners. This implement has been
designed with care and built by skilled workers using
quality materials. Proper setup and maintenance
along with safe operating practices will help you get
years of satisfactory use from the machine.
Description of Unit

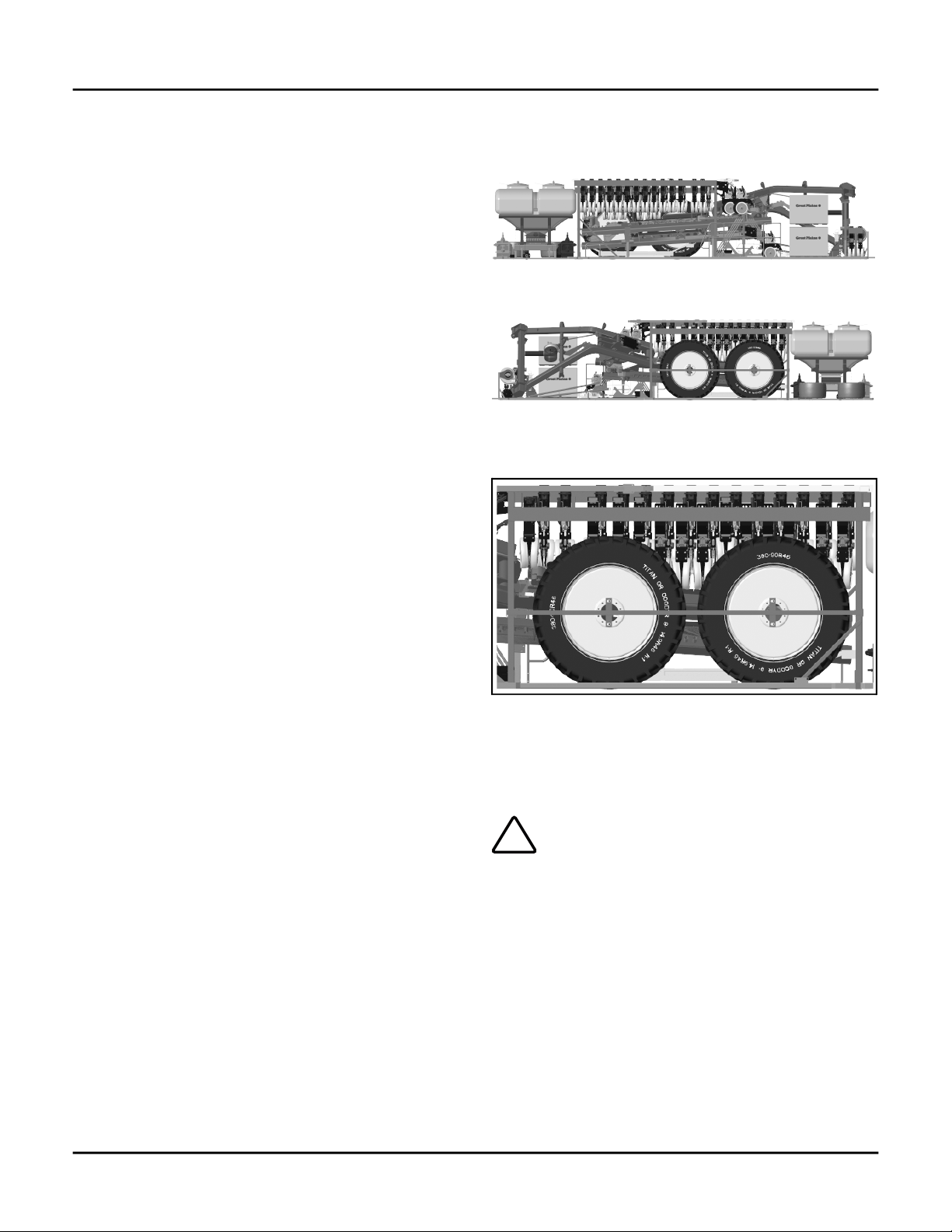

The 12 and 16 Row Yield-Pro® Planters are a pull-
type planting implement for use in conventional till,
minimum-till or light no-till conditions. The 12 and 16
Row Yield-Pro® Planters can be outfitted with
optional unit mounted coulters. The unit mounted
coulters make it suitable for light to moderate no-till
conditions only. The 12 and 16 Row Yield-Pro®
Planters are outfitted with 25 series, side-depth-
control row-units. The 12 and 16 Row Yield-Pro®
Planters fold for transport.
Intended Usage
Use the planter to seed production-agriculture crops
only. Do not modify the planter for use with
attachments other than Great Plains options and
accessories specified for use with the planter.
Using This Manual
This manual was written to help you assemble and
prepare the new machine for the customer. The
manual includes instructions for assembly and setup.
Read this manual and follow the recommendations
for safe, efficient and proper assembly and setup.
An operator’s manual is also provided with the new
machine. Read and understand “Important Safety
Information”and “Operating Instructions” in the
operator’s manual before assembling the machine.
As a reference, keep the operator’s manual on hand
while assembling.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this
manual.
Right and left as used in this manual are determined
by facing the direction the machine will travel while in
use unle
To order additional copies of predelivery instructions
or operator’s and parts manuals, write to the
following address. Include model numbers in all
correspondence.
If you do not understand any part of this manual or
have other assembly or setup questions, assistance
is available. Contact
Product Support
Great Plains Mfg. Inc., Service Department
P.O. Box 5060
Salina, KS 67402-5060

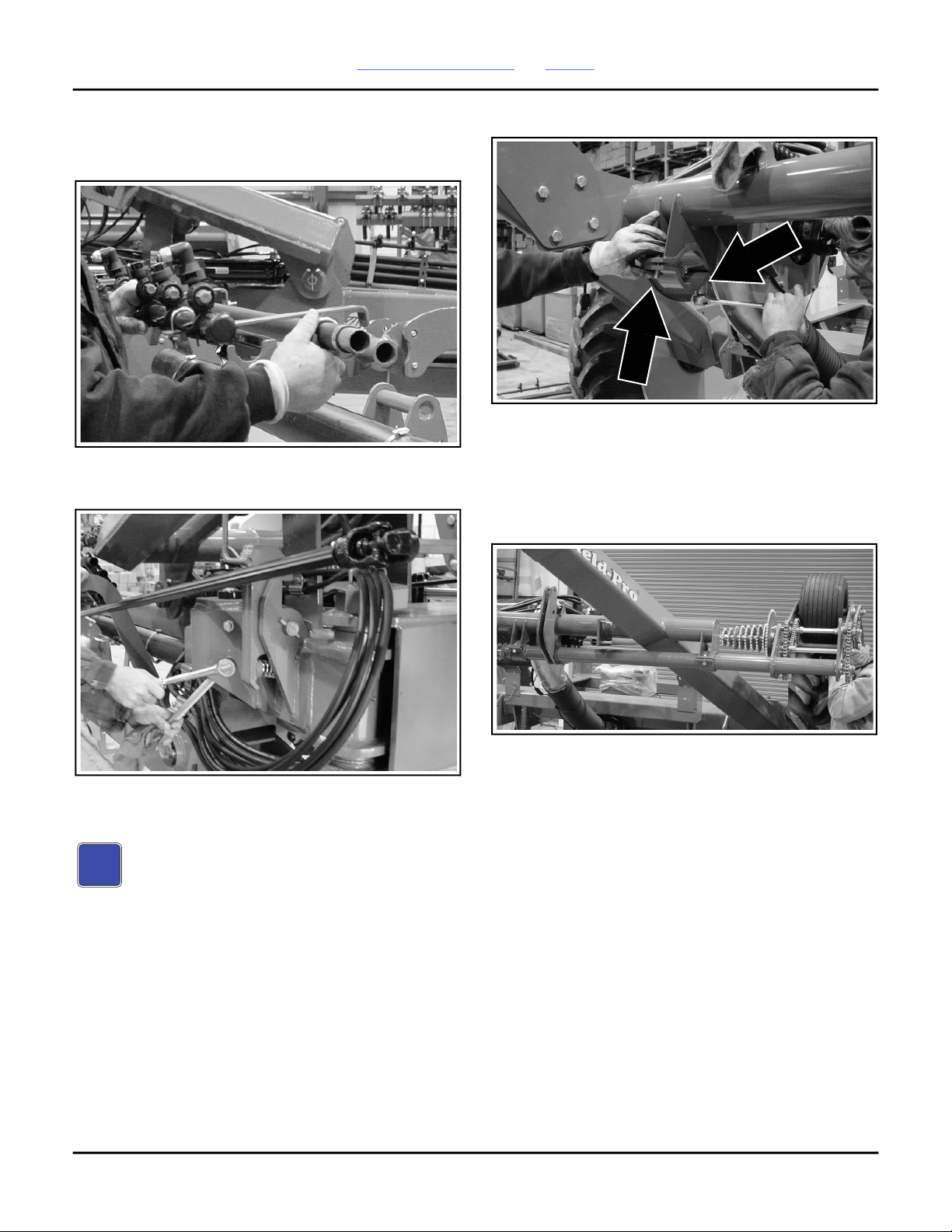

Unloading

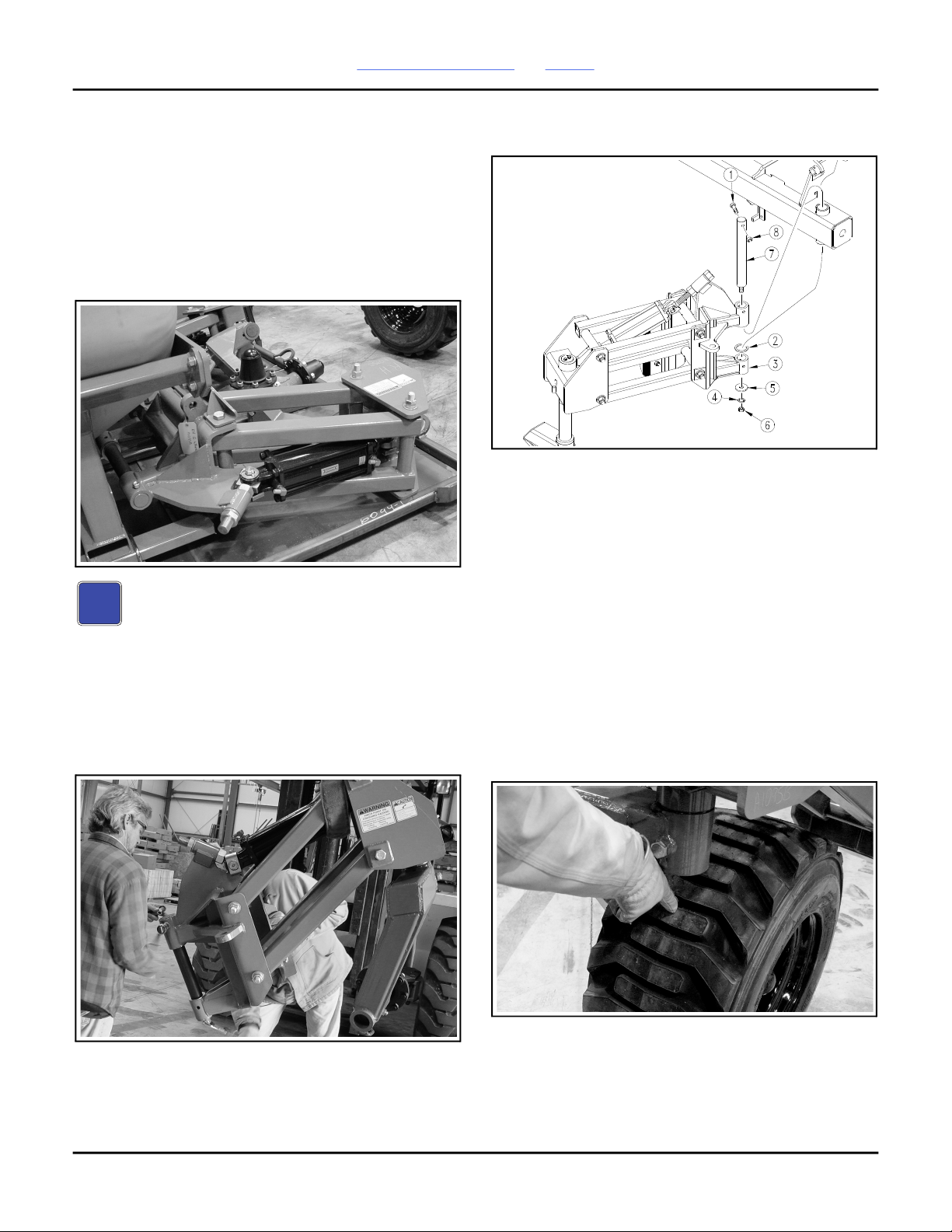

1. Un-bolt pull bars from the upper rack weldment
and remove from top of rack.
2. Secure the weight of each row unit then un-bolt
them from the upper rack weldment, remove from
rack using forklift or overhead hoist with straps.
3. Un-bolt and remove large tires
4. Un-bolt and remove large sub-weldment from the
base rack.

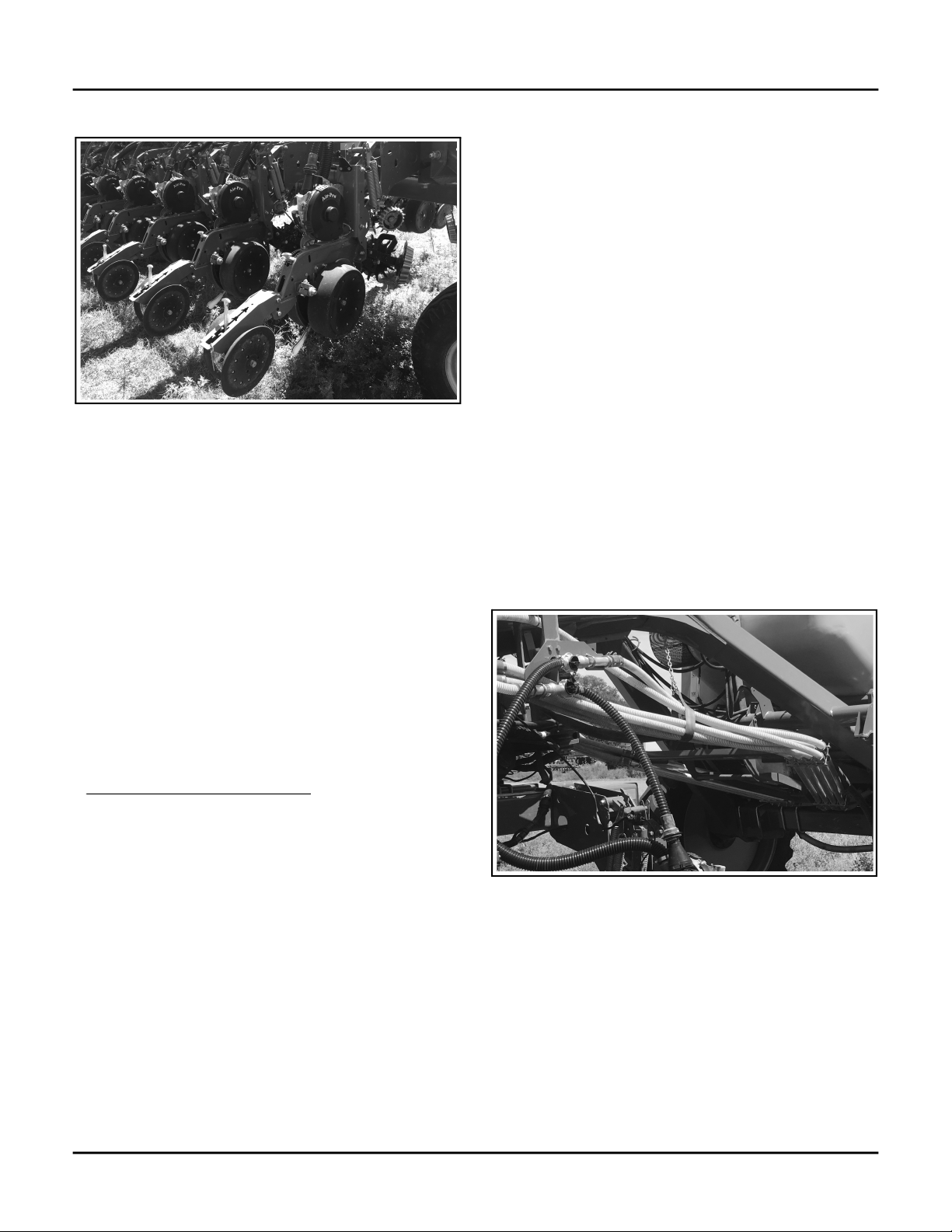

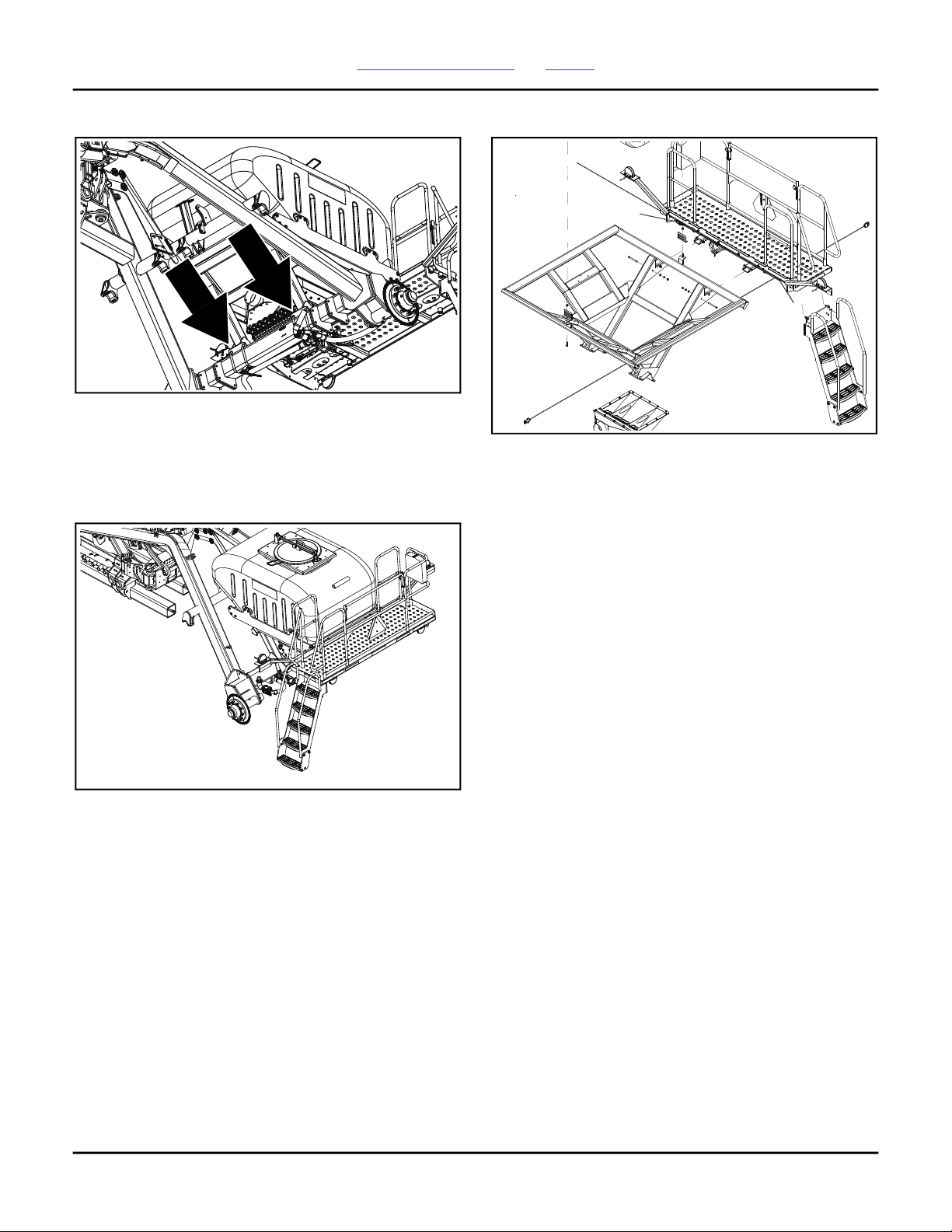

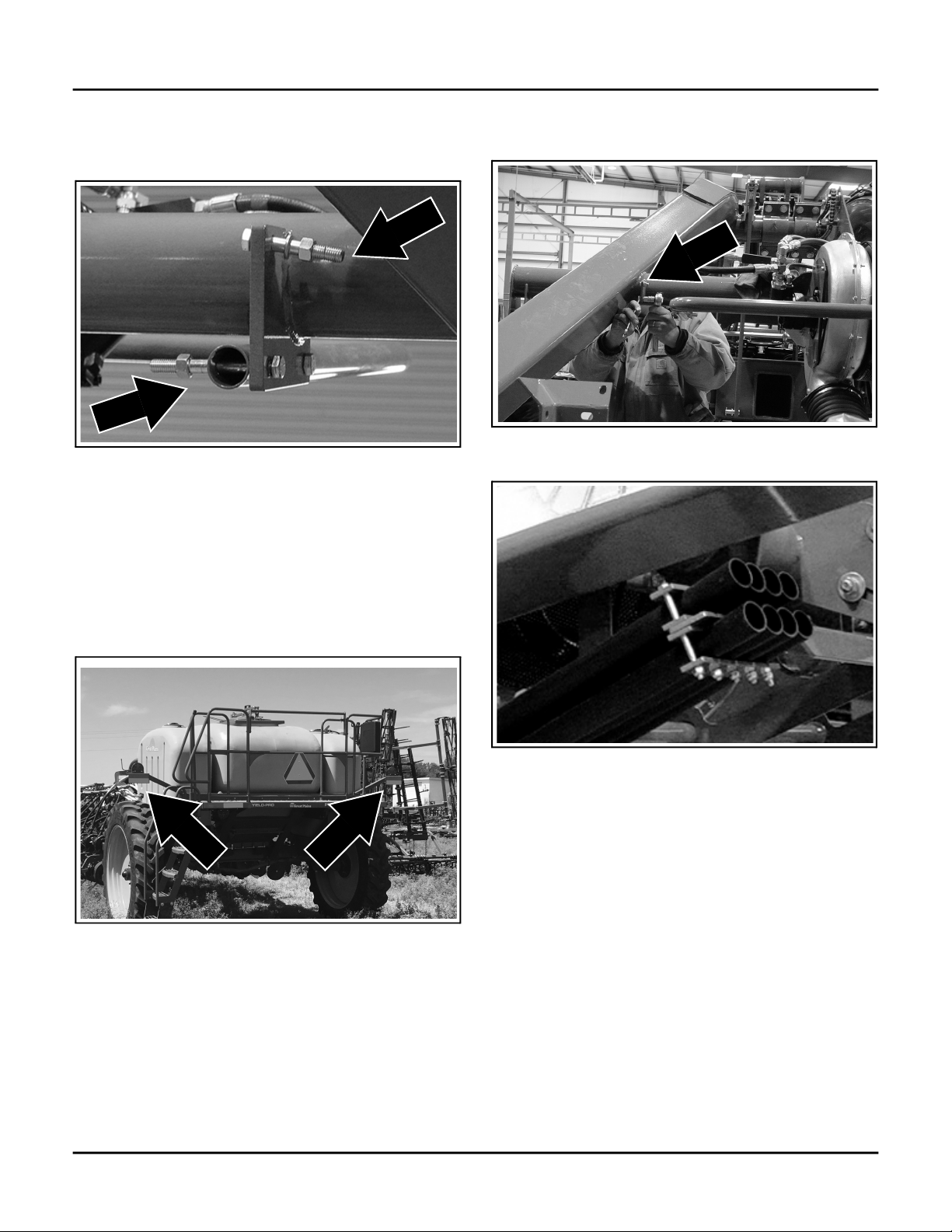

5. Remove cardboard cartons, fertilizer tanks,
markers, press wheels, and other small
components from the bottom of the rack.
6. Mainframe: On each pivot weldment, remove the
U-bolt holding the unit in rotated position and
secure the weight of the unit with forklift or
overhead hoist.
7. Lift entire unit so that it rotates about the 3 pivot
weldments, use the (2) u-bolts that were just
removed to hold the pivot weldments in place to
secure, leaving the unit parallel with the ground.

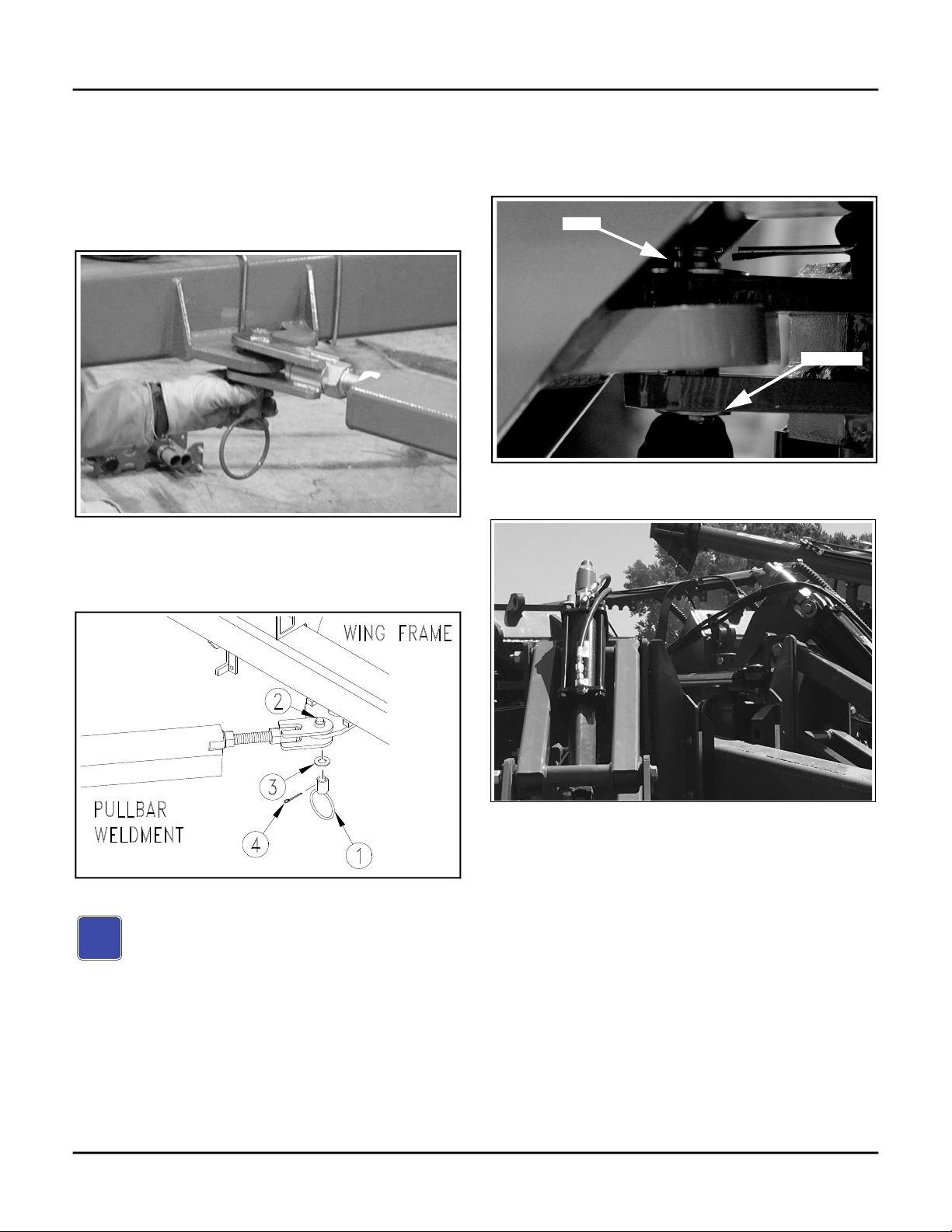

8. With the weight of the unit secured each wing
frame should be un-bolted. The Wings must be
lifted-up, individually, and placed in the U-plate
hanger provided. (this U-plate supports the wing
frames from falling to the ground until the front
Caster wheels can be installed.
9. Install hitch.
10. The mainframe can then be unbolted from the
three pivot weldments and can be lifted-up, off of
the rack.

PL5800 Table of Contents Index Safety Information
Great Plains | 411-474Q | 09/19/2019 3
Safety Information
The safety symbol indicates a potential safety
hazard to persons operating or near the
machine and advises on how to avoid it.
The notice symbol indicates a potential for
machine or property damage from operator
error and advises on how to avoid misuse.
The information symbol indicates useful - but
not crucial - information for machine
operation, assembly, or adjustment.
Before Getting Started
1. Read this manual in its entirety before attempting
to start and operate the machine.
2. Only use operators that are thoroughly trained by
the owner or trained by someone with the
owner’s consent. The operator must be familiar
with all functions of the tractor and attachments,
and be able to handle emergencies quickly.
3. Maintain attention on operation at all times. Do
not operate if using a smart phone, tablet, or
similar electronic device, and never operate
machine while impaired by alcohol, medication,
any controlled substance, or while fatigued.
4. Do not ever allow passengers to ride the
machine at any time, for any reason.
5. Before operation, make sure that all tractor cab
levers are in their neutral positions and that the
parking brake is engaged.
6. Check brakes, link pins, and other mechanical
parts for wear before using machine.
7. Never wear loose or bulky clothing around
machine. Use additional safety equipment, such
as hard hats, eye and ear protection, safety
boots, etc., as needed.
8. Do not modify the machine. Unauthorized
modification can result in unsafe conditions that
lead to machine damage or personal injury.
Operation
1. Always stop the tractor, put in Park and turn off
engine before leaving the cab. Dismounting from a
moving tractor can cause serious injury or death.
2. Consider turning radius of tractor and implement
in the field. Turning tractor too tight can cause
hitched implement to ride up on wheels which can
result in injury or equipment damage.
3. Pull machine only from the hitch at the end of the
tongue. Never pull from jack stand, safety chain,
or any point other than the hitch.
4. Never leave the tractor cab unattended while the
implement is running. Remove key and turn off
tractor before exiting the tractor cab.
5. Watch your surroundings at all times. Do not
operate with bystanders nearby, and avoid
contacting overhead obstructions.
6. Check that all guards and shields are
undamaged, installed, and secure before
operating implement.
7. Keep children out of the work area. Do not
operate or turn on machine while children are in
the area.
8. Do not operate near ditches, holes, steep slopes,
embankments, or other surfaces which may
collapse under the machine’s weight or tip the
machine over.
9. Never stand between tractor and implement
unless parking brake is applied.
!
!
i

Great Plains | 411-474Q | 09/19/2019 4
PL5800 Table of Contents Index Safety Information
Handling and Disposing of Chemicals
Agricultural chemicals can be dangerous. Improper
use can seriously injure persons, animals, plants, soil
and property.
1. Read chemical manufacturer’s instructions
carefully, and then take appropriate precautions
before use.
2. Wear protective clothing.
3. Wash hands and face before eating after working
with chemicals. Shower as soon as application is
completed for the day.
4. Apply only with acceptable wind conditions. Make
sure wind drift of chemicals will not affect any
surrounding land, people or animals.
5. Dispose of unused chemicals and chemical
waste as specified by the manufacturer. Observe
all the local ordinances and regulations in your
area.
Operation Noise Hazard
1. Use proper ear protection like headphones or
earplugs while working.
PTO
1. Wait until all moving components have
completely stopped before adjusting, cleaning, or
servicing any PTO driven equipment.
2. Before installing or using PTO driven equipment,
read the tractor manual and review the safety
labels attached to the equipment.
3. When operating stationary PTO driven
equipment, always apply the parking brake and
place chocks behind wheels.
4. Stay clear of and never step over any rotating
parts.
Maintenance
1. Understand procedure before doing work. Use
proper tools and equipment.
2. Work in a clean, dry area.
3. Lower the implement. Put tractor in Park, turn off
engine. To prevent unauthorized starting, remove
key before performing maintenance or service
work.
4. If work must be performed with wings raised, set
the wing tilt locks to the road position.
5. Make sure all moving parts have stopped and all
system pressure is relieved.
6. Relieve hydraulic pressure before disconnecting
hydraulic lines or performing any work on the
system.
7. Do not work underneath any hydraulically
supported components. Hydraulics can settle,
leak, or be accidentally lowered. If working
underneath hydraulically supported components
is necessary, secure implement with stands or
suitable blocking beforehand.
8. Disconnect electronic monitor and lighting
harness from the tractor before servicing or
adjusting electrical systems.
9. Before welding, disconnect electronic monitor and
lighting harness from the tractor. Protect hydraulic
lines. Avoid fumes from heated paint.
10. Remove buildup of grease, oil, or debris.
11. Check and replace worn brake lines as needed.
12. Remove all tools and unused parts from
implement before operation.
Tire Safety
1. Check tires for cuts, bulges, and correct
pressure. Replace worn or damaged tires.
2. Tire changing can be hazardous and must be
performed by trained personnel using correct
tools and equipment.
3. Tire explosion and/or serious injury can result
from over inflation. Do not exceed tire inflation
pressures.
4. When removing and installing wheels, use wheel-
handling equipment adequate for weight involved.
5. Tighten wheel bolts only to the specified torque.

PL5800 Table of Contents Index Safety Information
Great Plains | 411-474Q | 09/19/2019 5
High Pressure Fluids
1. Escaping fluid from holes in hydraulic lines is
difficult to spot. Do not use your hands or bare
skin to search for suspected leaks; instead, use a
piece of cardboard or wood. If injured by
escaping hydraulic fluid, see a medical
professional immediately. Exposure can result in
gangrene or severe allergic reaction.
2. Check that hydraulic fittings are tight and all
hydraulic hoses and lines are in good condition
before applying pressure to the system.
3. Wear protective gloves and safety glasses or
goggles when working with hydraulic systems.
Transporting
1. As with transporting any piece of heavy
machinery, comply with all local laws and
regulations before and during transport process.
2. Transport only at recommended transport speed
for implement. Some rough terrains require a
slower speed. Sudden braking can cause a
towed load to swerve and upset.
3. Before towing implement on roads, make sure to
empty out all material from the hoppers or boxes.
4. Know transport height and width of implement.
5. Do not tow an implement that, when fully loaded,
weighs more than 1.5 times the weight of towing
vehicle.
6. Keep clear of overhead power lines and other
obstructions when transporting.
7. Do not fold or unfold the implement while the
tractor is moving.
8. Reduce speed when turning, and make as wide a
turn as possible. Turning tractor too tight can
cause implement to tip over.
9. When towing on a trailer, secure implement with
tie downs and chains.
10. When towing on a trailer, sudden braking can
cause a trailer to swerve and upset. Reduce
speed if trailer is not equipped with brakes.
Safety Chain
1. Use a chain with a strength rating equal to or
greater than the gross weight of towed machinery.
2. Replace chain if any links or end fittings are
broken, stretched or damaged.
3. Do not use safety chain for towing.
Safety Lights and Devices
1. Always use safety lighting. Slow-moving tractors
and towed machinery can create a hazard when
driven on public roads. They are difficult to see,
especially at night.
2. If equipped, use flashing warning lights and turn
signals whenever driving on public roads.
3. Use safety devices provided with implement.
4. Keep safety lights and signs clean and visible from
front and rear of machine.
5. Keep lights in operating condition.
Shutdown and Storage
1. Park the tractor and implement on a solid, level
surface where children normally do not play.
2. Fold and tilt wings.
3. Put tractor in park or set the parking brake. Turn
off engine and remove switch key to prevent
unauthorized starting.
4. Wait for all components to come to a complete
stop before leaving the operator’s seat.
5. Turn lockout valve and wing lock levers to locked
position to prevent the wings from lowering.
6. Detach the tractor. Secure the implement using
blocks.
Proper Waste Disposal
1. Dispose of waste properly to avoid threatening
the environment and ecology. Potential harmful
waste includes oil, fuel, filters, and batteries.
2. Use a leak-proof container for draining fluids. Do
not use a food or beverage container that may be
mistaken for a consumable product.
3. Do not drain or pour waste onto the ground,
down a drain, or into any water source.
4. Contact your local environmental or recycling center
for the proper way to recycle or dispose of waste.

Assembly
09/19/2019 9
Assembly
Follow each step to make the job as quick and safe
as possible and produce a properly working
machine.
It is the dealer’s responsibility to unload the new
machine. Unload all equipment before beginning
assembly. Do not attempt any assembly work while
the Yield-Pro® Planter is on the truck.
Tools Required
Basic Hand Tools
Forklift or other lifting implement
Pre-Assembly Checklist
1. Before assembling, read and understand
“Important Safety Information,” beginning on
page 1.
2. Have at least two people on hand while
assembling.
3. Make sure assembly area is level and free of
obstructions (preferably an open concrete area).
4. Have all major components.
5. Have all fasteners and pins shipped with the
Yield-Pro® Planter.
6. Have a copy of the parts manual on hand. If
unsure of proper placement or use of any part or
fastener, refer to the parts manual.
7. Check that all working parts are moving freely,
bolts are tight, and cotter pins are spread.
8. Check for proper tension and alignment on all
drive chains.
9. Check that all safety decals and reflectors are
located correctly and legible. Replace if
improperly located or damaged. Refer to “Safety
Decals” in the operator’s manual.
10. Inflate tires to recommended pressure as listed
on the “Tire Inflation Chart,” page 44. Tighten
wheel bolts as specified on “Torque Values
Chart,” page 44.
Unload Machine from Rack
Unload all small loose pieces from rack.
Pull Bars
Using forklift or other implement, remove pull bars
from top of rack.
Center Frame Tires
Remove bolts securing planter tire to rack.
Once bolts are removed, remove bar securing tire.
Carefully roll tire from rack.
After removal, secure tires in a safe place.
Tire Weight
Tires are extremely heavy. It may take more
than one or two people to move each tire.
Use extreme caution.
!

10 Great Plains | 411-474Q
PL5800 Table of Contents Index
Opener Rack Using Forklift
Attach lift straps to top portion of rack.
Remove bolts securing top portion of rack to bottom
of rack.
Obey all safety instructions from lifting equipment
manufacturer. Be sure lift straps are securely
attached before lifting.
Using forklift, carefully lift top of rack from rack.
Dual Hopper
Remove dual hopper from rack using forklift or other
lifting implement.
Carefully set dual hopper aside. It will be attached to
planter later during assembly process.
Planter Frame
Once hopper is removed from rack, begin loosening
bolts securing planter frame to rack.
Keep Bolts Inserted
Do NOT completely remove bolts. Bolts will
hold frame in place until frame is removed
from rack.
Using a pair of folk lifts, begin attaching lift straps to
planter frame. Make sure both sets of lift straps are
securely attached to the frame.
If not already done, finish loosening bolts securing
planter frame to rack.
Double check that lift straps are securely attached to
planter frame. Remove U-bolts securing frame to
rack.
Heavy Machinery Requirement
To avoid damage to the implement, it will be
necessary to use a third forklift or tractor to
steady frame.
Secure Lift Straps
Obey all safety instructions from lifting
equipment manufacturer. Be sure lift straps are
securely attached to implement before lifting.
Pin tongue of planter frame to third forklift. Raise
tongue slightly so tongue is level with planter frame.
Carefully raise planter frame from rack. Frame
should be level with the ground
While frame is raised, use a tractor or other
implement to pull rack out from under frame.
Keep frame raised while attaching planter tires and
parking stand.
i
i
!

Assembly
09/19/2019 11
Planter Tires
Remove wheel lugs from planter tire hub assembly.
Insert and attach spindle and hub assembly into
frame axle.
Secure hub assembly to frame axle with crossbolt (1).
Attach half of wheel trigger sensor plate to hub
assembly.
Fully Install Components
Spindle and hub assembly are shown not
fully installed. Be sure to slide spindle in and
secure with crossbolt.
Install other half of wheel trigger sensor plate.
Repeat steps 3 and 4 for opposite planter tire.
To install tires properly, measure from the outside of
tire to the mounting plate on both sides of tire.
Check Measurements
One measurement will be considerably less
than the other.
Attach tire to hub assembly with small measurement
toward outside of planter.
Secure planter tire to hub assembly with wheel lugs.
Parking Stand
Remove pin rolls, pin lynch, and flat washers from
parking support pin. Remove parking support pin
from parking stand. Keep all pieces for reuse.
Align holes in parking stands with bottom hole in
planter tongue.
Once parking stand and tongue are aligned, insert
parking support pin along with washers as shown
below.
Insert pin rolls and pin lynch into parking support pin.
Remove pin securing planter tongue to forklift.
Remove lift strips from around the frame.
i
i

12 Great Plains | 411-474Q
PL5800 Table of Contents Index
Gauge Wheel Tires
Attach lift straps to right-hand wing frame. Be sure lift
straps are attached securely to frame and weight is
evenly distributed.
Unlock wing frames from tongue assembly.
Using forklift or other implement, carefully pull right-
hand wing frame away from planter main frame.
Locate right-hand parallel arm assembly.
Guide Block Placement
Parallel arm assemblies come in a right-
hand and left-hand set. Each assembly has
guide blocks that hold the tongue in
transport. Guide blocks go towards center of
planter.
Attach lift straps to right-hand parallel arm assembly.
Remove caster swivel pivot pin from parallel arm
assembly. Keep all pieces for reuse.
Wing Joint
1. Align holes in caster (3) with hole in wing frame.
2. Insert caster swivel pivot pin (7) through top of
caster (3) and through wing frame.
3. Slide washer (2) between bottom of wing frame
and bottom of caster (3).
4. Continue inserting caster swivel pivot pin (7)
through washer (2) and bottom of caster (3).
Attach washer (5), lock washer (4), and hex nut
(6) to bottom of caster swivel pivot pin (7).
Tighten hex nut (6).
5. Secure caster swivel pivot pin (7) to caster (3)
using bolt (1) and nut (8).
Remove wheel lugs from hub assembly.
Attach gauge wheel tire to lower caster weldment so
that wheel’s caster vertical shaft is centered over
gauge wheel tire.
Secure gauge wheel tire to lower caster weldment
using wheel lugs.
Repeat steps 1-14 on opposite wing frame to
complete gauge wheel tire installation.
i

Assembly
09/19/2019 13
Pullbar Weldments
Locate pullbar weldment. Position pullbar weldment
on forklift to make pullbar assembly easier.
1. Align hole in adjustable end of pullbar weldment
with hole in wing frame.
2. Attach pullbar weldment to wing frame using pin.
3. Slide washer (3) on to bottom of pin (2). Cover
bottom of pin with hose support weldment (1).
4. Secure hose support weldment (1) to pin (2) with
cotter pin (4).
Do not remove pullbar weldment from forklift.
Route Hoses and Wires
At this point in assembly, pull hoses and
wires through pullbars. Be sure to get all
hoses, point row clutch wires, and lighting
wires together and pull all at once. Route
lines through hose support shown in Figure
43. Cover hoses with protective wrap on
each end of pullbar.
5. Attach other end of pullbar weldment to tongue.
6. Align hole in pullbar weldment with hole in
tongue.
7. Secure pullbar to tongue using pin, washer, and
pin roll.
8. Remove forklift from under pullbar.
Hydraulic Cylinders
Attach base end of hydraulic cylinder (3) to wing
frame (1).
Attach rod end of hydraulic cylinder to gauge wheel
caster mount.
Complete both steps to install hydraulic cylinders on
both sides.
i
Pin
Washer

14 Great Plains | 411-474Q
PL5800 Table of Contents Index
Seed Delivery Tubes
Attach seed delivery tubes to air system standoff
brackets using bolt, washer, and hex nut.
Air Hose Support
Remove hardware on left-hand toolbar.
Keep all pieces for reuse.
Determine which is left-hand air hose support.
Determine Correct Hosing
The air hose support comes in a left-hand
and right-hand pair. Air hose support will not
attach to toolbar if trying to install right-hand
air hose support to left-hand toolbar.
Attach air hose support to toolbar.
Secure air hose support to toolbar with previously
removed hardware.
Contact Drive Wheel
1. Unscrew bolts from both sets of clamps. Remove
nuts, washers, and bolts. Keep all pieces for reuse.
2. Locate contact drive wheel assembly.
3. Attach lift strap to contact wheel drive assembly.
4. Carefully raise contact wheel drive assembly to
be attach to planter frame.
5. Secure end of contact wheel drive assembly to
planter frame using clamp and hardware
removed in step 1.
6. Finish attaching contact drive wheel assembly to
planter frame. Use clamp and hardware removed
in step 1.
7. Remove lift straps from contract drive wheel
assembly.
8. Flip contact drive wheel upright.
9. Attach link rod to contact drive wheel. Use clevis
pin to secure link rod to contact drive wheel.
Secure clevis pin with cotter pin.
10. Attach spring to contact drive wheel using clevis
pin to secure spring to contact drive wheel.
Secure clevis pin with cotter pin.
To make adjustments to the contact drive wheel after in-
stallation, refer to your operator manual.
i

Assembly
09/19/2019 15
Lights
1. Locate and remove bolts on left-hand side light
bracket that will secure lights to planter frame.
NOTE: Lights come in a pair of left-hand and right-
hand lights.
2. Determine which light is left-hand light. Left-hand
light will attach to planter with amber light toward
the front and red and amber lights toward the
rear.
3. Attach light to light bracket.
4. Secure light to light bracket using hardware
removed in step 1.
5. Complete steps 1-4 on opposite side of planter.
Seed Tube Support Weldment
Remove hardware from seed tube support bracket.
Attach seed tube support weldment to planter main
frame.
Secure seed tube support weldment to planter main
frame using hardware removed in step 1.

16 Great Plains | 411-474Q
PL5800 Table of Contents Index
Hopper
Using forklift or other implement, place hopper (1)
and support frame in rear axle frame.
Secure hopper and support frame to rear axle frame
using supplied u-bolts.
Walkboard Ladder
1. Locate walkboard ladder. Remove u-bolts and hard-
ware from ladder.
2. Keep all pieces for reuse.
3. Attach walkboard ladder to left-hand side of walk-
board support weldment.
4. Use previously remove u-bolts and hardware to se-
cure ladder to weldment.
5. Remove pin wire snap lock from walkboard ladder.
Walkboard
1. Using forklift or other implement, carefully raise
walkboard.
2. Remove marker pivot pin and hardware from
walkboard.
3. Keep all pieces for reuse.
4. Using forklift or other implement, carefully raise
walkboard.
5. Slide walkboard onto walkboard support
weldment.
6. Replace marker pivot pin and hardware.
7. Secure walkboard to walkboard ladder by
replacing pin wire snap lock.
8. Assemble walkboard handrails as shown in
Figure 84.
9. Handrails secure to walkboard as shown in
Figure 83. Use bolts and nuts to secure.
10. Use bolts and nuts to secure pieces of walkboard
handrails to each other.
NOTE: Be sure that top movable center rail is installed
with brackets as shown. Verify that latch pin fully en-
gages in lock plate when up.

Assembly
09/19/2019 17
Openers
NOTE: The YP Planter comes with twelve standard
opener mounts and four special opener mounts to be
mounted on the frame.
1. Locate all openers and hardware. Determine
which openers are standard. NOTE: Standard
opener mount is shown in Figure 87.
NOTE: Before attaching openers to wing frames, note
the chart below. This chart maps out the location for
each row unit. Use this chart when attaching openers
to wing frames.
2. To attach openers, start at pin center on each
wing frame and measure the distance for each
opener.
NOTE: When attaching LH offset opener and RH off-
set opener, the straight side plate is toward the out-
side and the jogged side plate goes toward the inside.
IMPORTANT: To correctly position the two innermost
openers, start at pin center on each wing frame and
measure in towards the center.
NOTE: When attaching the fifth opener from the cen-
ter on each wing frame, it will be necessary to cut a
notch so that the openers clear the air pipe support
brackets.
3. Attach openers to planter wing frames. Use u-
bolts and hardware to secure openers to wing
frames.
Markers
1. Attach first section of marker arm (5) to wing
frame (7). NOTE: First section marker arms
come in a pair of left and right. When the
correct marker arm has been attached to the
correct corresponding wing frame, marker
shear bolt (8) will go toward planter center.
Use bolts (6) and hardware to secure marker arm
to frame.
6. Secure hydraulic cylinder (4) to wing frame (7) with
cylinder pin and cotter pin.
7. Attach second section marker arm to first section
marker arm.NOTE: Second section marker arms
come in a pair of left and right. When the correct
marker arm has been attached to the correct cor-
responding wing frame, marker shear bolt (8) will
go toward planter center.
2. Partially insert second section into first section
marker arm.
3. Align holes in first and second section marker
arms.
4. Insert marker shear pivot pin through holes. Slide
washer over pivot pin and secure with cotter pin.
5. Slide washer up from bottom of marker shear
pivot pin and secure with cotter pin.
6. Secure first section marker to second section
marker arm using shear bolt and hardware.
7. Attach marker extension tube (1) with disc to
marker arm second section.
Air Hoses
NOTE: To install air hoses, planter must be complete-
ly folded up.
1. Attach seed hose to airbox.
2. Attach 1 1/4 air hoses to aluminum seed tubes
using supplied couplers.
3. Use 1 large cable tie to loosely hold the 1 1/4 air
hoses together. NOTE: It must be loose
enough to let them slide against each other.
4. Use 1 smaller tie to secure the large tie in place
by hooking it to one 1 1/2 hose. Large tie should

18 Great Plains | 411-474Q
PL5800 Table of Contents Index
be 28” up from end of black plastic tubing from
manifold.
5. Guide hoses through air hose support.
6. Attach two air hoses to the planter y-transition
assembly located on the air hose support.
7. Attach remaining air hoses to seed delivery
tubes located on the wing frame.
NOTE: Be sure all hoses are securely attached using
hose clamps.
