Greenlee 560XL User manual

560XL
Fiber Optic Power Meter
570XL
850/1300 nm LED Source
580XL
1310/1550 nm Laser Source
Read and understand all of the
instructions and safety information in
this manual before operating or
servicing this tool.
INSTRUCTION MANUAL
0500-01 REV A © 2005 Greenlee Textron Inc. 8/05

Table of Contents
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Purpose of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Model Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–10
570XL LED Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
580XL Laser Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
560XL Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–14
Battery Installation or Replacement . . . . . . . . . . . . . . . . . . . . 11–12
Auto-Shutoff Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Snap-On Connector (SOC) Interface for 580XL . . . . . . . . . . . . . . 14
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–18
570XL LED Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
580XL Laser Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
560XL Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–18
Setting the Source Modulation Frequency . . . . . . . . . . . . . . . . . . 18
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19–27
One Test Jumper Method: Connector Loss . . . . . . . . . . . . . . 19–21
Two Test Jumper Method: Link Loss . . . . . . . . . . . . . . . . . . . 22–24
Dual-Wavelength SM Loss Measurements. . . . . . . . . . . . . . . 25–27
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2

Description
The Greenlee XL fiberTOOLS™ instruments are handheld fiber optic
tools designed to measure optical power levels and link loss on multi-
mode and single-mode fiber optic cabling networks.
• The 560XL power meter measures optical power at 850 nm,
1300 nm, 1310 nm, and 1550 nm and can store reference power
levels. The snap on connector (SOC) interface adapts to FC, SC,
and ST connectors.
• The 570XL LED source provides a light source to measure insertion
loss on multi-mode fiber optic cabling. It is configured for FC, SC,
and ST connectors.
• The 580XL laser source provides a light source to measure inser-
tion loss on single-mode fiber optic cabling. It is configured for FC,
SC, and ST connectors.
Safety
Safety is essential in the use and maintenance of Greenlee tools and
equipment. This instruction manual and any markings on the tool pro-
vide information for avoiding hazards and unsafe practices related to
the use of this tool. Observe all of the safety information provided.
Purpose of This Manual
This instruction manual is intended to familiarize all personnel with the
safe operation and maintenance procedures for the Greenlee 560XL,
570XL, and 580XL fiberTOOLS instruments.
Keep this manual available to all personnel. Replacement manuals are
available upon request at no charge.
All specifications are nominal and may change as design improvements occur.
Greenlee Textron Inc. shall not be liable for damages resulting from misapplica-
tion or misuse of its products.
fiberTOOLS is a trademark of Greenlee Textron Inc.
560XL • 570XL • 580XL
3
KEEP THIS MANUAL

4
Important Safety Information
SAFETY ALERT SYMBOL
Hazards or unsafe practices which, if not avoided, MAY result
in injury or property damage.
Hazards which, if not avoided, COULD result in severe injury or
death.
Immediate hazards which, if not avoided, WILL result in severe
injury or death.
This symbol is used to call your attention to hazards or unsafe
practices which could result in an injury or property damage.
The signal word, defined below, indicates the severity of the
hazard. The message after the signal word provides informa-
tion for preventing or avoiding the hazard.
Read and understand this material before
operating or servicing this equipment.
Failure to understand how to safely operate
this tool could result in an accident causing
serious injury or death.

Important Safety Information
560XL • 570XL • 580XL
5
Electric shock hazard:
Contact with live circuits could result in
severe injury or death.
CAUTION
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS I LASER PRODUCT
The 580XL instrument is a laser device conforming to the require-
ments of CDRH, CFR 1040, Subchapter J. While there is no potential
for eye damage due to unaided direct exposure, users should always
avoid looking directly into the output port. The use of optical viewing
instruments, such as microscopes, magnifiers, etc., should always be
avoided. The use of such devices around active fibers can focus an
intense beam of light energy onto the retina of the eye, which can
result in permanent damage.
Laser hazard:
• When performing measurements on fiber optic systems, avoid
eye exposure to any open-ended fibers, optical connectors,
optical interfaces, or other sources because they may be con-
nected to active laser transmitters.
•Do not look into the optical port when a source is turned on.
• Avoid looking at the free end of a test fiber, i.e., the end not
connected to the instrument. If possible, direct the free end
toward a non-reflective surface.
Failure to observe these precautions may result in injury.

Important Safety Information
6
Electric shock hazard:
• Do not insert batteries with the polarity reversed. Do not mix
batteries of different manufacturers or types, e.g., alkaline and
non-alkaline.
• Do not open the case of the unit for any reason. It contains no
user-serviceable parts.
• Use this unit for the manufacturer’s intended purpose only, as
described in this manual. Any other use can impair the protec-
tion provided by the unit.
Failure to observe these precautions may result in injury and may
damage the unit.
Instrument damage hazard:
• Do not leave the unit in direct sunlight or near direct sources of
heat.
• Protect the unit from strong impacts or shock.
• Do not immerse the unit in water or store in areas with high
humidity.
•When necessary, clean the case, front panel, and rubber cover
with a damp cloth. Do not use abrasives, harsh chemicals, or
solvents.
• Replace the interface dust cap(s) when the unit is not in use.
• Store the unit and interface adapters in a cool, dry, and clean
place.
Failure to observe these precautions may result in injury and may
damage the unit.

Introduction
Model Designations
The XL fiberTOOLS instruments incorporate several different types of
interfaces and must be used with compatible adapters.
XL fiberTOOLS Individual Instruments
560XL InGaAs Optical Power Meter; requires a SOC adapter
for connector interface (see below)
570XL-FC 850/1300 nm LED Source with FC connector
570XL-SC 850/1300 nm LED Source with SC connector
570XL-ST 850/1300 nm LED Source with ST connector
580XL-FC 1310/1550 nm Laser Source with FC connector
580XL-SC 1310/1550 nm Laser Source with SC connector
580XL-ST 1310/1550 nm Laser Source with ST connector
170XL 635 nm Visual Fault Locator
Greenlee SOC Adapters
1020 FC/PC SOC Adapter
1030 SC/PC SOC Adapter
1062 ST/PC SOC Adapter
Unpacking and Inspection
All XL fiberTOOLS instruments have been carefully inspected before
shipment. When received, the shipping carton should contain the
items listed below:
•1 XL fiberTOOLS instrument
• 1 rubber boot with stand
• 1 instruction manual
• 2 AA-size alkaline batteries
•SOC adapter for power meter
Please account for and inspect each item while unpacking and
preparing the instrument for use.
If the instrument received is damaged, contact Greenlee. Refer to the
instructions under “Warranty.”
Keep the shipping carton in case re-shipment is required for any
reason, e.g., annual recalibration.
560XL • 570XL • 580XL
7

Specifications
570XL Series 850/1300 nm Dual-Wavelength
LED Sources*
Center wavelength (FWHM)
Nominal 850 nm 1300 nm
Range 840 to 880 nm 1270 to 1345 nm
Max. spectral width (FWHM) 55 nm 150 nm
Stability, 1 hour ±0.05 dB ±0.05 db
Power output,
62.5/125 µm GI MM** -13 dBm -20 dBm
Power output uncertainty ±0.5 dB ±0.5 dB
Optical connector interface FC, SC, or ST FC, SC, or ST
Functions MOD: Modulated output mode
CW: Continuous Wave output mode
FREQ: Selectable modulation
frequency
Modulation frequencies 270 Hz, 1 kHz, and 2 kHz (±0.5%)
using switch inside battery
compartment
Power requirements Two AA-size alkaline batteries
Battery life > 24 hours
Environment
Operating temperature -15 °C to 55 °C
Storage temperature -35 °C to 70 °C
Humidity, non-condensing 0% to 95%
Dimensions 7.2 x 14.2 x 3.5 cm
(2.8 x 5.6 x 1.4 in)
Weight
Single 215 g (7.6 oz)
Dual 241 g (8.5 oz)
* Within specified operating environment of 20 °C to 25 °C.
** Calibrated launch level, equilibrium modal distribution.
8

580XL Series 1310/1550 nm Dual-Wavelength
Laser Sources*
Center wavelength (FWHM)
Nominal 1310 nm 1550 nm
Range 1280 to 1340 nm 1520 to 1580 nm
Spectral width (FMS) < 5 nm < 5 nm
Stability, 24 hours
max. deviation ±0.2 dB ±0.2 db
Stability vs. temperature,
-15 °C to 55 °C** ±0.5 dB ±0.5 db
Typical power output
at 100%***† -7 dBm ±0.5 dB -7 dBm ±0.5 dB
Power output uncertainty ±0.5 dB ±0.5 dB
Optical connector interface FC, SC, or ST FC, SC, or ST
Functions MOD: Modulated output mode
CW: Continuous Wave output mode
FREQ: Selectable modulation
frequency
Modulation frequencies 270 Hz, 1 kHz, and 2 kHz (±5%)
using switch inside battery
compartment
Power requirements Two AA-size alkaline batteries
Battery life > 50 hours
Environment
Operating temperature -15 °C to 55 °C
Storage temperature -35 °C to 70 °C
Humidity, non-condensing 0% to 95%
Dimensions 7.2 x 14.2 x 3.5 cm
(2.8 x 5.6 x 1.4 in)
Weight 227 g (8 oz)
Laser Class 1
* Within specified operating environment of 20 °C to 25 °C.
** Temperature is ramped up in 5 °C steps. The instrument is allowed to
stabilize at each temperature for 10 minutes. The initial reference power is
measured at approximately 25 °C.
*** With return loss > 30 dB.
†Power is 3 dB lower in modulated mode.
560XL • 570XL • 580XL
9

560XL Series Optical Power Meters*
Detector size and
composition 1 mm InGaAs
Calibrated wavelengths 850, 1300, 1310, 1550 nm
Measurement range +3 to -60 dBm
Linearity:
+3 to -3 dBm ±0.5 dB
-3 to -50 dBm ±0.05 dB
-50 to -60 dBm ±0.5 dB
Absolute accuracy ±0.25 dB
Wavelength dependence (typical):
820 to 880 nm 2.00 dB
975 to 985 nm 0.25 dB
1270 to 1330 nm 0.30 dB
1500 to 1625 nm 0.30 dB
Polarization dependence < 0.1 dB
Resolution ±0.01dB
Optical connector interface FC, SC, or ST
Functions dB: Relative units
dBm: Absolute units
λ: Select wavelength
CAL: Calibrate unit
Power requirements Two AA-size alkaline batteries
Battery life > 100 hours
Environment
Operating temperature -15 °C to 55 °C
Storage temperature -35 °C to 70 °C
Humidity, non-condensing 0% to 95%
Dimensions 7.2 x 14.2 x 3.5 cm
(2.8 x 5.6 x 1.4 in)
Weight 250 g (8.9 oz)
* Within specified operating environment of 20 °C to 25 °C.
10

General Information
This section provides general instructions on how to use the XL
fiberTOOLS instruments.
If circumstances require that the instruments be serviced and main-
tained in-house, contact Greenlee for technical assistance.
Battery Installation or Replacement
All XL fiberTOOLS instruments are powered by two AA-size 1.5 volt
alkaline batteries. Two batteries are shipped with the instruments and
must be installed before the units can be used.
Note: Regular zinc-carbon batteries are not recommended for use in
XL fiberTOOLS instruments. Use of such batteries, often marked
“heavy duty,” will shorten the operating time.
Operating times for the XL fiberTOOLS instruments covered in this
manual are listed in the “Specifications” section.
LED and Laser Sources
One of the front panel LED indicators will blink when the batteries are
low. The instrument may continue to be operated until the front panel
LED shuts off. However, the light output may become unstable after
the power drops past this “low battery” threshold.
Optical Power Meters
Low battery status is indicated by a “B” annunciator appearing in the
upper left-hand corner of the LCD screen. After the “B” appears, the
unit may be operated for a minimum of five hours before the batteries
are depleted.
560XL • 570XL • 580XL
11

Battery Installation or Replacement (cont’d)
To replace the batteries, follow these steps:
1. Carefully remove the protective rubber cover.
2. Turn the instrument onto its front face, then open the battery com-
partment by pressing on the center of the cover (Step 1 below)
while pulling on the sides (Step 2 below).
3. Remove the used batteries and replace them with a fresh pair.
Ensure that the polarization of the batteries is correct, as indicated
by the markings in the battery compartment. Failure to properly
install the batteries may damage the instrument.
12

Auto-Shutoff Feature
All XL fiberTOOLS instruments in this manual incorporate an auto-
shutoff feature to prolong battery life. The instruments shut down
automatically if the front-panel keys are not pressed for a certain
period of time.
LED and Laser Sources
These instruments power down if the front-panel keys are not pressed
for 15 minutes. To disable the auto-shutoff feature, do the following:
1. Press the [ON/OFF] and [MOD] keys simultaneously while turning
the instrument on. A wavelength LED indicator will blink several
times, signaling that the auto-shutoff feature has been disabled.
2. To re-enable the auto-shutoff feature, cycle the power off and on.
Optical Power Meters
The optical power meters power down if the front-panel keys are not
pressed for 70 minutes. To disable the auto-shutoff feature, do the
following:
1. Press the [ON/OFF] and [dB/dBm] keys simultaneously while turn-
ing the instrument on. The auto-shutoff feature is now disabled.
2. To re-enable the auto-shutoff feature, cycle the power off and on.
560XL • 570XL • 580XL
13

Snap-On Connector (SOC) Interface for 580XL
SOC interfaces and adapters offer superior repeatability and are com-
patible with most industry standard fiber optic connectors. SOC
adapters can also be quickly removed from the interface to permit
cleaning of the detector window in accordance with the following
instructions.
Removing a SOC Adapter
1. Grasp the sides of the SOC adapter and pull it off the interface, as
shown above. SOC adapters require considerable force to remove.
Do not attempt to pry the adapter off the interface or damage will
result.
2. Put the adapter in a clean place.
Installing a SOC Adapter
1. Locate the anti-rotation key on the interface.
2. With the keyway properly aligned, push the adapter over the inter-
face until it snaps in place, as shown above.
14

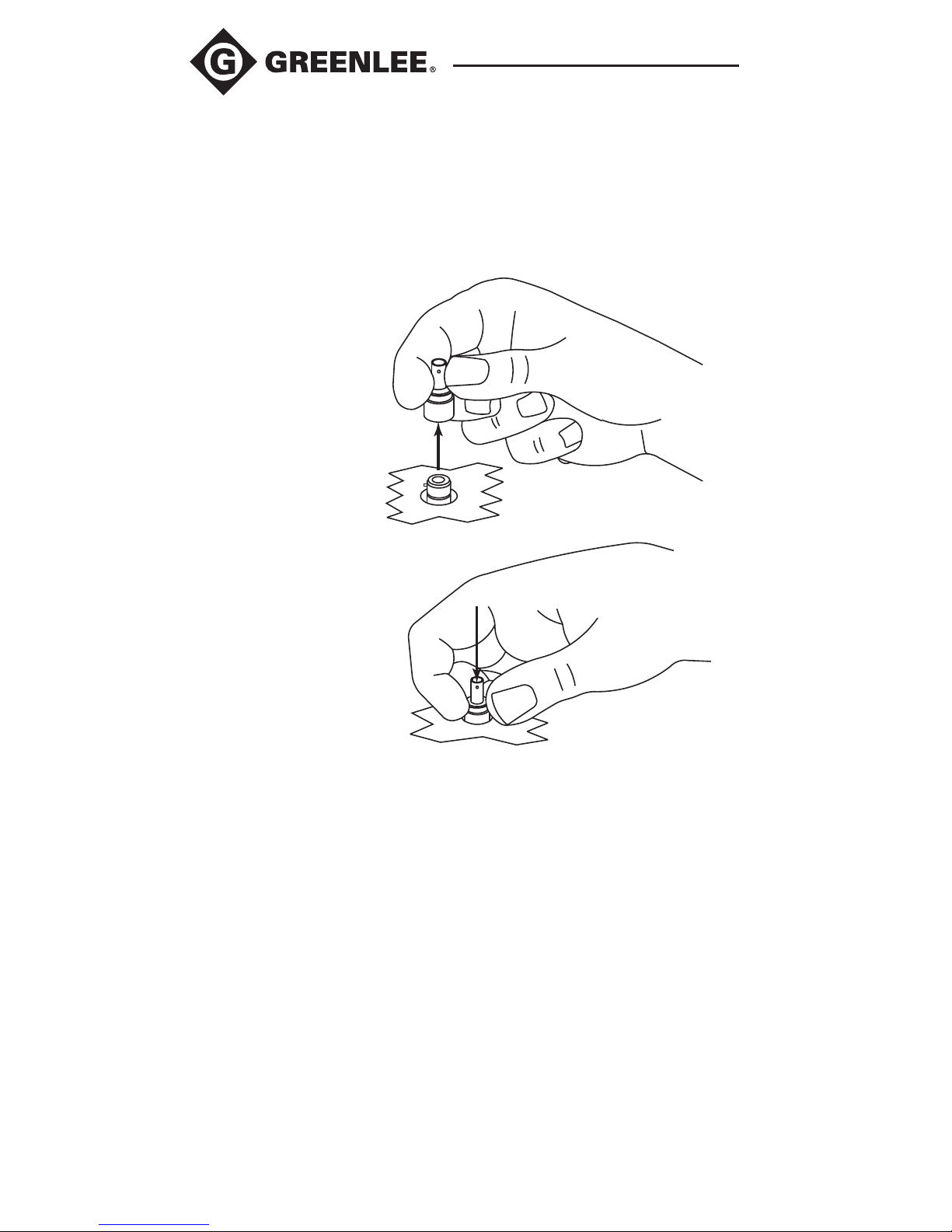

Pulling the adapter
off the interface
Pushing the adapter
onto the interface

Operation

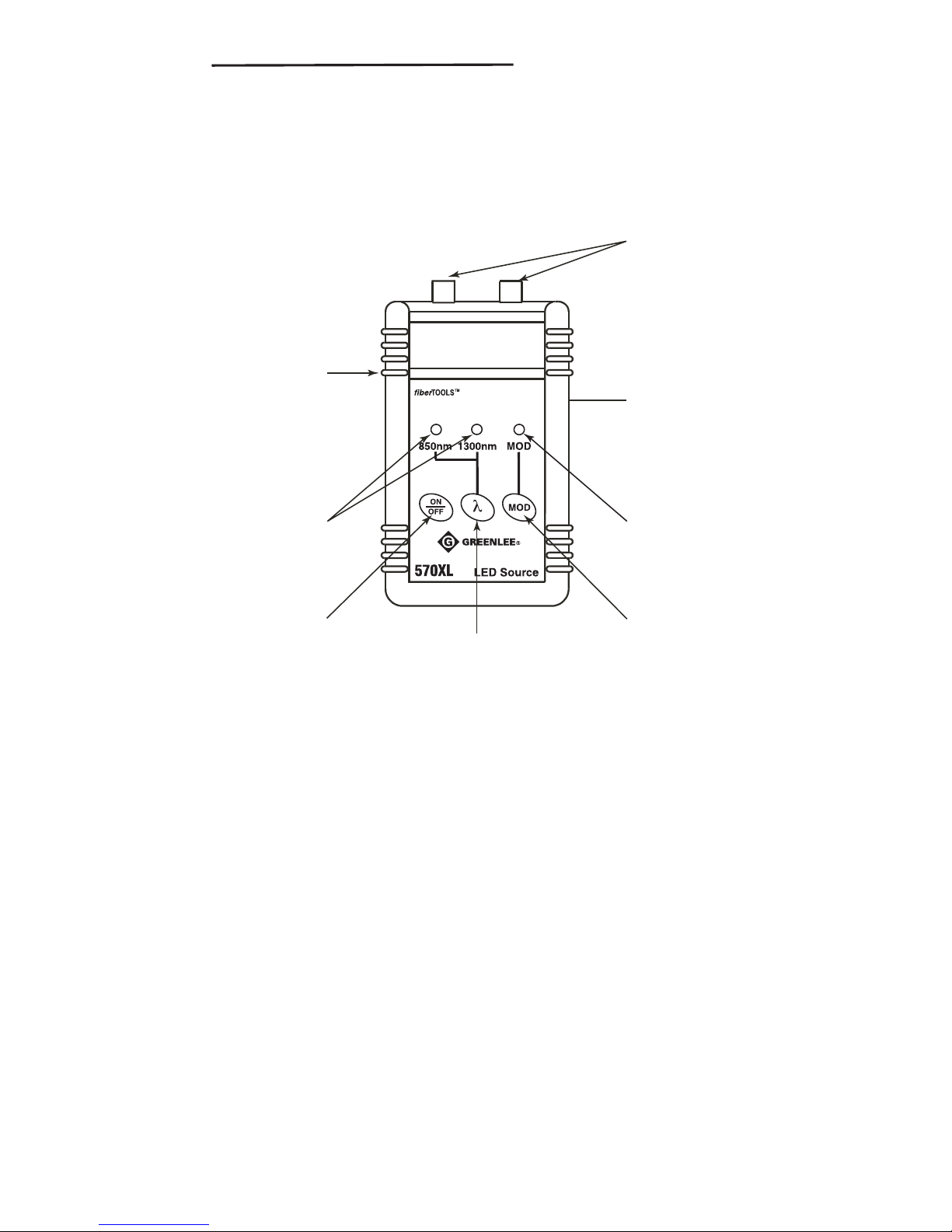

570XL Series Dual-Wavelength LED Sources
[ON/OFF] key: This key turns the instrument on and off.
[λ] key: This key determines which LED is active.
850 nm indicator: This indicator illuminates when the 850 nm LED is
active. It blinks when the battery power is low.
1300 nm indicator: This indicator illuminates when the 1300 nm LED
is active. It also blinks when the battery power is low.
[MOD] key: This key toggles the light output between the
continuous wave (CW) and modulated modes.
MOD indicator: This indicator illuminates when the unit is in
modulated mode.
Frequency select: This switch, located inside the battery compart-
ment, sets the modulation frequency. See “Setting the Source
Modulation Frequency” section.
Output interfaces: Light output is emitted from these interfaces.
560XL • 570XL • 580XL
15
Output
interfaces
Stand
(on back)
Modulated
mode indicator
Modulated
mode key
Wavelength
select key
ON/OFF
key
Wavelength/
low battery
indicators
Removable
rubber cover

16
580XL Series Dual-Wavelength Laser Sources
[ON/OFF] key: This key turns the unit on and off. When the unit is first
turned on, the 1310 nm laser is automatically selected in continuous
wave mode.
[λ] key: This key toggles the instrument between the 1310 nm and
1550 nm lasers. Only one source can be on at a time.
1310 nm indicator: This indicator illuminates when the 1310 nm laser
is active. It blinks when the battery power is low.
1550 nm indicator: This indicator illuminates when the 1550 nm laser
is active. It also blinks when the battery power is low.
[MOD] key: This key toggles between the continuous wave (CW) and
modulated modes.
Frequency select: This switch, located inside the battery compart-
ment, sets the modulation frequency. See “Setting the Source
Modulation Frequency” section.
Output interface: Light output is emitted from these interfaces.
Connector
interface
Stand
(on back)
Modulated
mode indicator
Modulated
mode key
ON/OFF
key
Wavelength/
low battery
indicators
Removable
rubber cover
Wavelength
select key

560XL • 570XL • 580XL
17

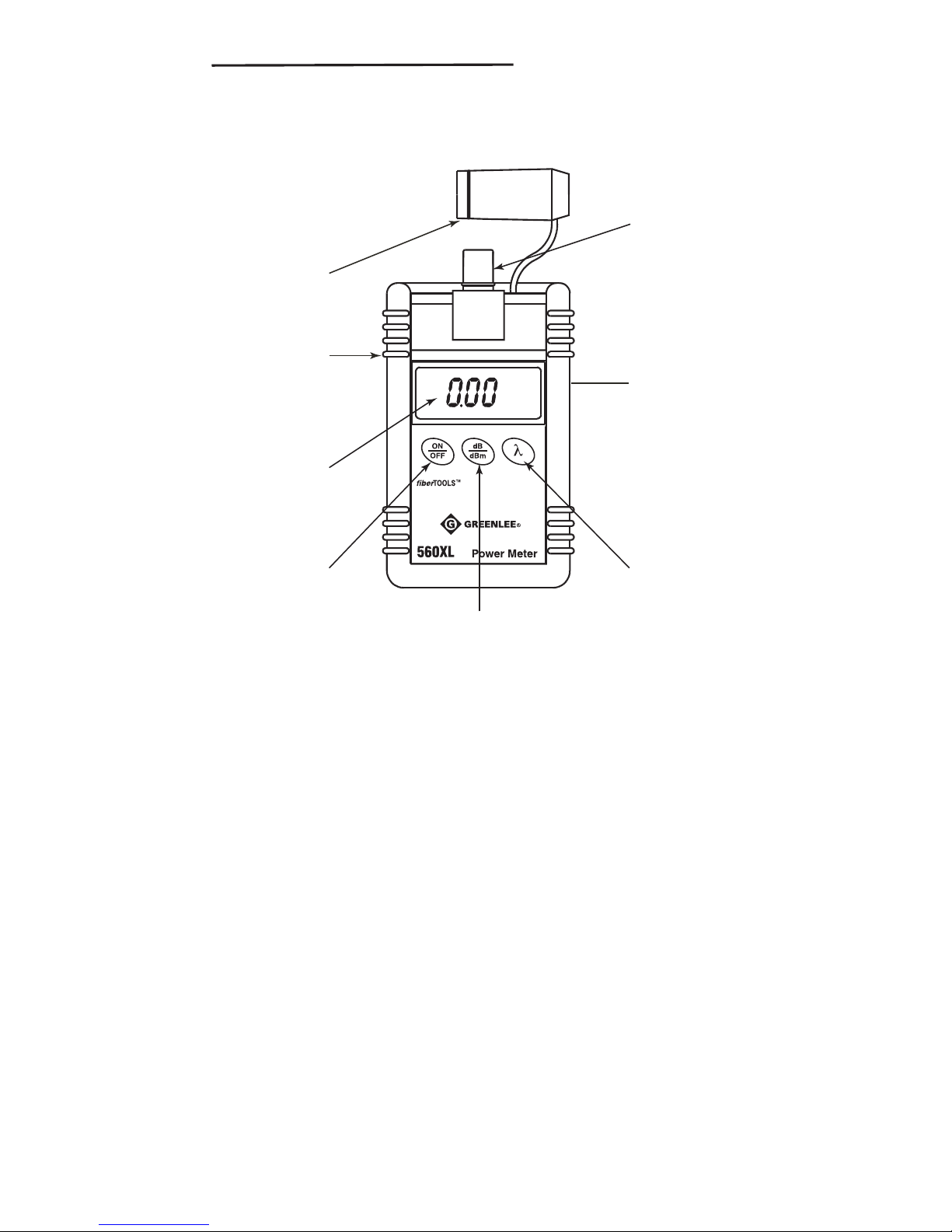

560XL Series Optical Power Meters
[ON/OFF] key: This key turns the unit on and off.
[dB/dBm] key: This key controls the following modes:
• Toggles between absolute dBm and relative dB readouts, without
changing the internally stored reference level, when pressed
momentarily.
• Selects a new 0 dB reference level when held down for three
seconds. This is indicated by the “r” annunciator appearing in the
lower right-hand corner of the LCD screen.
Note: The 560XL Series optical power meters incorporate multi-
wavelength reference storage capability. This enables a 0 dB reference
value to be stored in non-volatile memory for each calibrated wave-
length. The reference values will be stored in memory until a new 0 dB
reference is established for a wavelength by holding down the
[dB/dBm] button as described above.
Input
interface
Stand
(on back)
ON/OFF
key
Removable
rubber cover
Beam
cap
dB/dBm
select key
Wavelength
select key
LCD display

560XL Series (cont’d)
[λ] key: This key controls two modes:
• Selects the calibration wavelength. Available wavelengths vary by
model. See the “Specifications” section for details.
• When the [λ]key is held down at the desired wavelength, pressing
the [dB/dBm] key sets this wavelength as the new power-on default
stored in non-volatile memory.
CAL/OP switch: This switch, located inside the battery compartment
behind a tamper-evident label, is used when recalibrating the instru-
ment. Calibration is recommended every 12 months. Contact Greenlee
for more information regarding periodic recalibration.
NOTE: FOR NORMAL OPERATION, THE CAL/OP SWITCH SHOULD
ALWAYS BE SET TO THE “OP” POSITION. TAMPERING WITH THE
CAL/OP SWITCH WILL VOID CALIBRATION OF THE INSTRUMENT.
Input interface: This is the optical input connector. All 560XL Series
optical power meters are equipped with a SOC interface.
Setting the Source Modulation Frequency
All 570XL Series LED sources and 580XL Series laser sources are
shipped with the modulation frequency switch set at 1 kHz.
To change this setting, remove the batteries and set the switch shown
in the figure below to the desired position using the tip of a pencil or
small screwdriver.
The user may select among 270 Hz, 1 kHz, and 2 kHz square wave
modulated outputs. Replace the batteries, battery cover, and rubber
instrument cover after selecting the modulation frequency.
Note: The average modulated power output will be 3 dB less than the
average power in continuous wave (CW) mode.
18
Modulation frequency switch

Applications
The following applications for the XL fiberTOOLS instruments are
described in this manual:
• Connector/cable insertion loss measurements
• Link loss measurements
• Dual-wavelength SM loss measurements
One Test Jumper Method: Connector Loss
The following procedure conforms to FOTP-171 (Method D), OFSTP-7
(Method B), and OFSTP-14 (Method B).

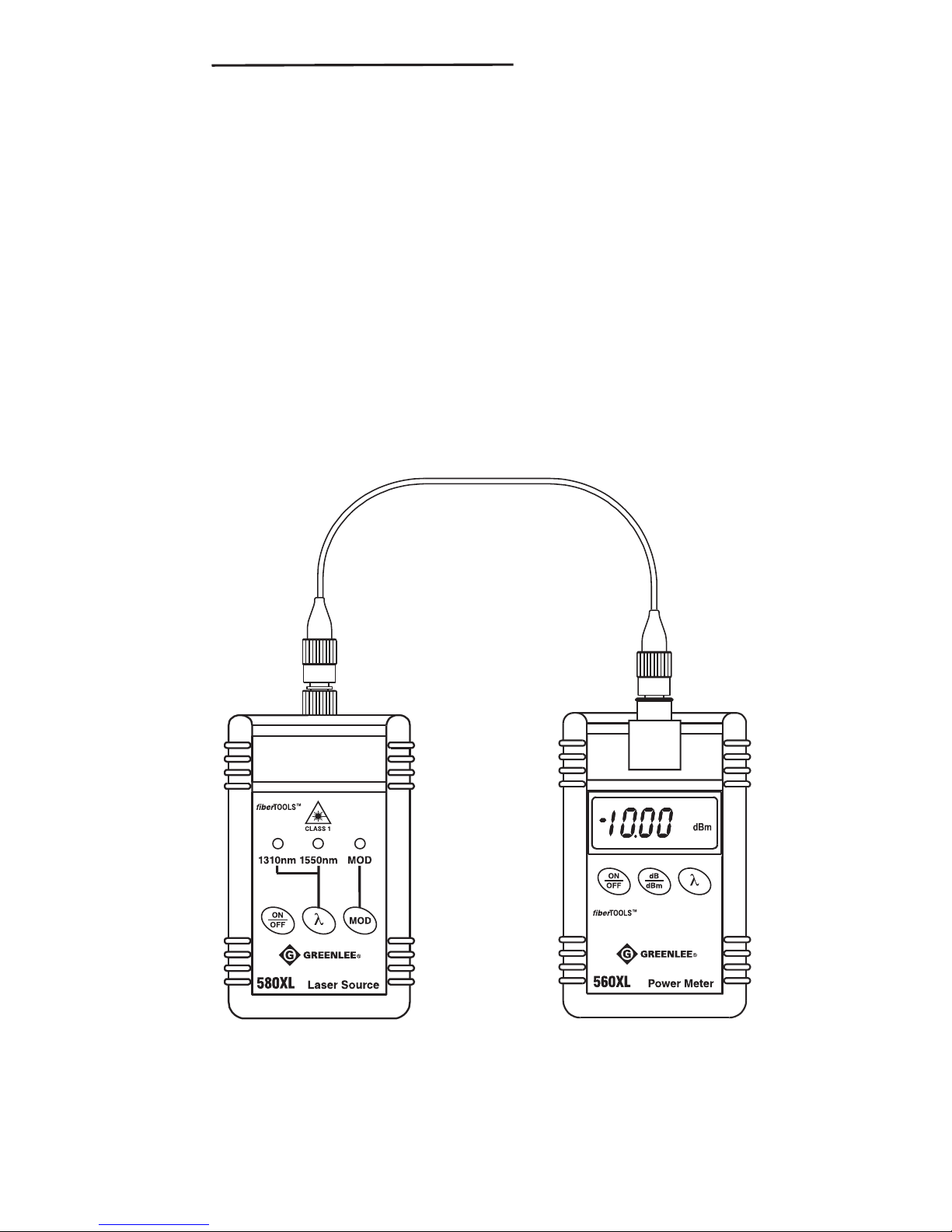

1. Connect an appropriate light source to the optical power meter
using a suitable reference cable with a length of about 2 to 3
meters (6 to 10 feet), as shown below.
560XL • 570XL • 580XL
19

One Test Jumper Method: Connector Loss (cont’d)
2. Ensure that the light source is in continuous wave (CW) output
mode. Set the optical power meter to the appropriate wavelength
(using the [λ] key) and to dBm units (using the [dB/dBm] key).
Note that the dBm output of the reference cable should be within
acceptable limits.
3. To store the reference level, press the [dB/dBm] key on the optical
power meter until the “r” annunciator appears on the LCD screen
(about 3 seconds). The display should read 0.00 dB. See below.
20

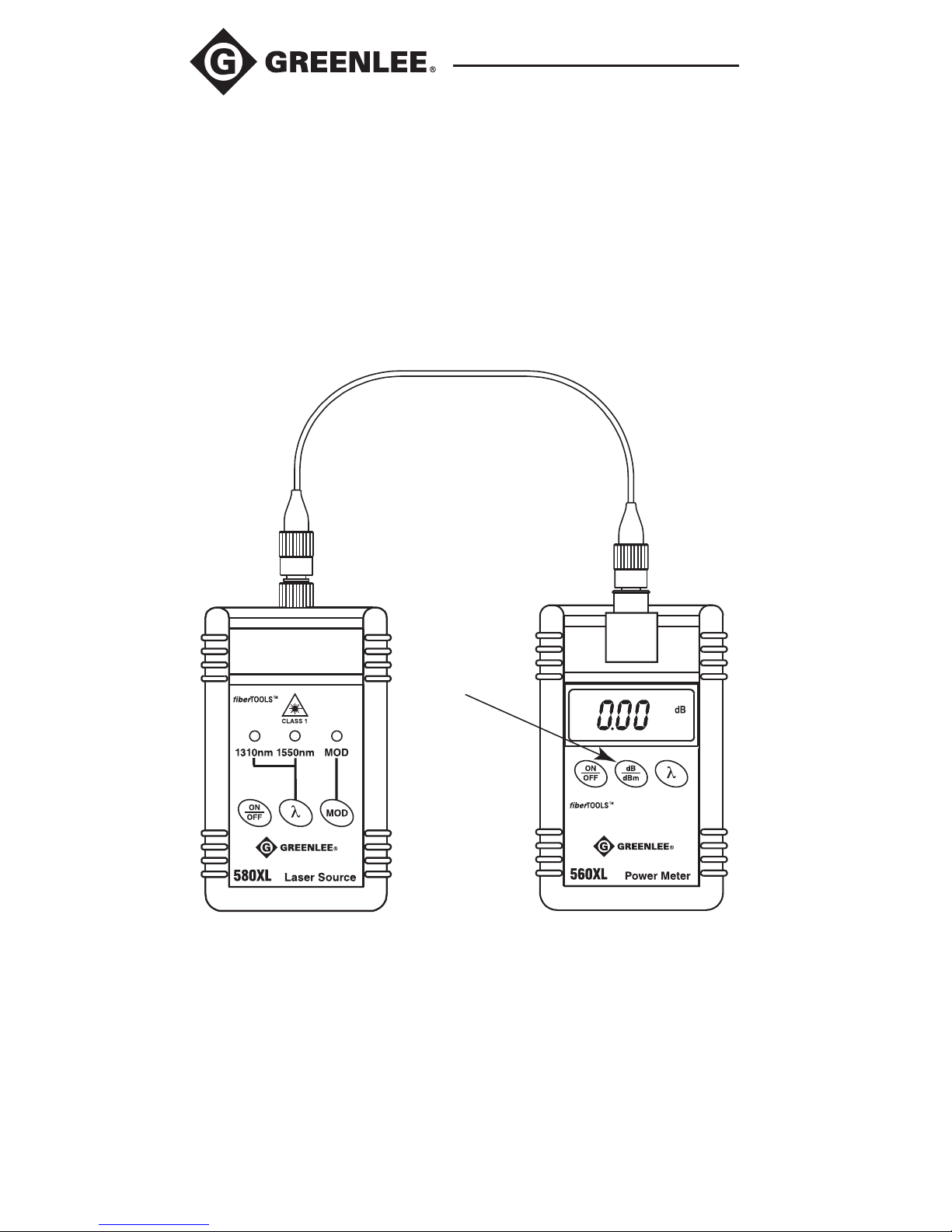

Press the
[dB/dBm]
keytoset the
0 dB reference
