GreenWorks BAG711 User manual

BAG711/BAG708/
BAG709/BAG710
EN OPERATOR MANUAL
FR MANUEL D’OPÉRATEUR
RECHARGEABLE LI-ION BATTERY
BATTERIE RECHARGEABLE AU LITHIUM-ION
ES MANUAL DEL OPERADORBATERÍA RECARGABLE DE LITIO-IÓN
www.greenworkstools.com

1 Important Safety Instructions..........2
2 Safety notes and precautions............2
3 Symbols on the product.................... 2
4 Risk levels...........................................2
5 Proposition 65.................................... 3
6 Environmentally safe battery
disposal............................................... 3
7 Operation........................................... 3
7.1 Check battery capacity.......................................3
7.2 USB power port................................................. 4
8 Technical data.................................... 4
9 Limited warranty.............................. 4
1
English EN

1 IMPORTANT SAFETY
INSTRUCTIONS
For the proper use, maintenance and storage of this battery, it
is crucially important that you read and understand the
instructions given in this manual.
To avoid serious injury, risk of fire, explosion and danger of
electric shock or electrocution:
• If the battery pack case is cracked or damaged, DO NOT
insert into the charger. Replace with a new battery pack.
• Charge the battery pack only with the recommended
charger.
• DO NOT try to short circuit any terminals of battery
pack.
WARNING
If the battery fluid gets in your eyes, flush immediately with
clean water for at least 15 minutes. Get immediate medical
attention. Do not charge the battery pack in rain or in wet
conditions. Do not immerse the tool, battery pack, or
charger in water or other liquid.
• Do not allow the battery pack or charger to overheat. If
they are warm, allow them to cool down. Recharge only
at room temperature.
• Do not place the battery pack in the sun or in a warm
environment. Keep at normal room temperature.
• Keep in shady, cool and dry condition, if the battery is not
charged for a long time; charge the battery for 2 hours
every 2 months.
• The battery pack cells may develop a small leak under
extreme usage or temperature conditions. If the outer seal
is broken and the leakage gets on your skin:
- Use soap and water to wash immediately.
- Neutralize with lemon juice, vinegar, or other mild
acid.
• If leakage gets in your eyes, follow instructions above
and seek medical attention.
• Please check prior use, if output voltage and current of
the battery charger is suitable for the charging battery
pack.
• During transporting, the battery pack needs protective
packaging.
• Handle with care.
• Keep away from humidity and fire.
2 SAFETY NOTES AND
PRECAUTIONS
• Do not disassemble the battery.
• Keep away from the children.
• Do not expose the battery to water or salt water, battery
should be stored in a cool and dry location and should
place the battery in cool and dry environment.
• Do not place the battery in high-temperature locations,
such as near a fire, heater, etc.
• Do not reverse the positive terminal and the negative
terminal of the battery.
• Do not connect the positive terminal and the negative
terminal of the battery to each other with any metal
objects.
• Do not knock, strike or step on the battery.
• Do not solder directly onto the battery and pierce the
battery with nails or other edge tools.
• In the event that the battery leaks and the fluid gets into
one’s eye, do not rub the eye. Rinse well with water.
• Immediately discontinue use of the battery, if, while using
the battery emits an unusual smell, feels hot, changes
color, changes shape, or appears abnormal in any other
way.
3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Explanation
V Voltage
W Power
Direct current
Read all safety warnings and all instruc-
tions.
Precautions that involve your safety.
4 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation,which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation,which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
2
English
EN

SYM-
BOL
SIGNAL MEANING
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
5 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
6 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
WARNING
If the battery pack cracks or breaks, with or without leaks,
do not recharge it and do not use. Dispose of the battery and
replace with a new battery pack. DO NOT ATTEMPT TO
REPAIR IT! To avoid injury and risk of fire, explosion, or
electric shock, and to avoid damage to the environment:
• Cover the battery’s terminals with heavy-duty adhesive
tape.
• DO NOT attempt to remove or destroy any of the
battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular
household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of
any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal centre.
7 OPERATION

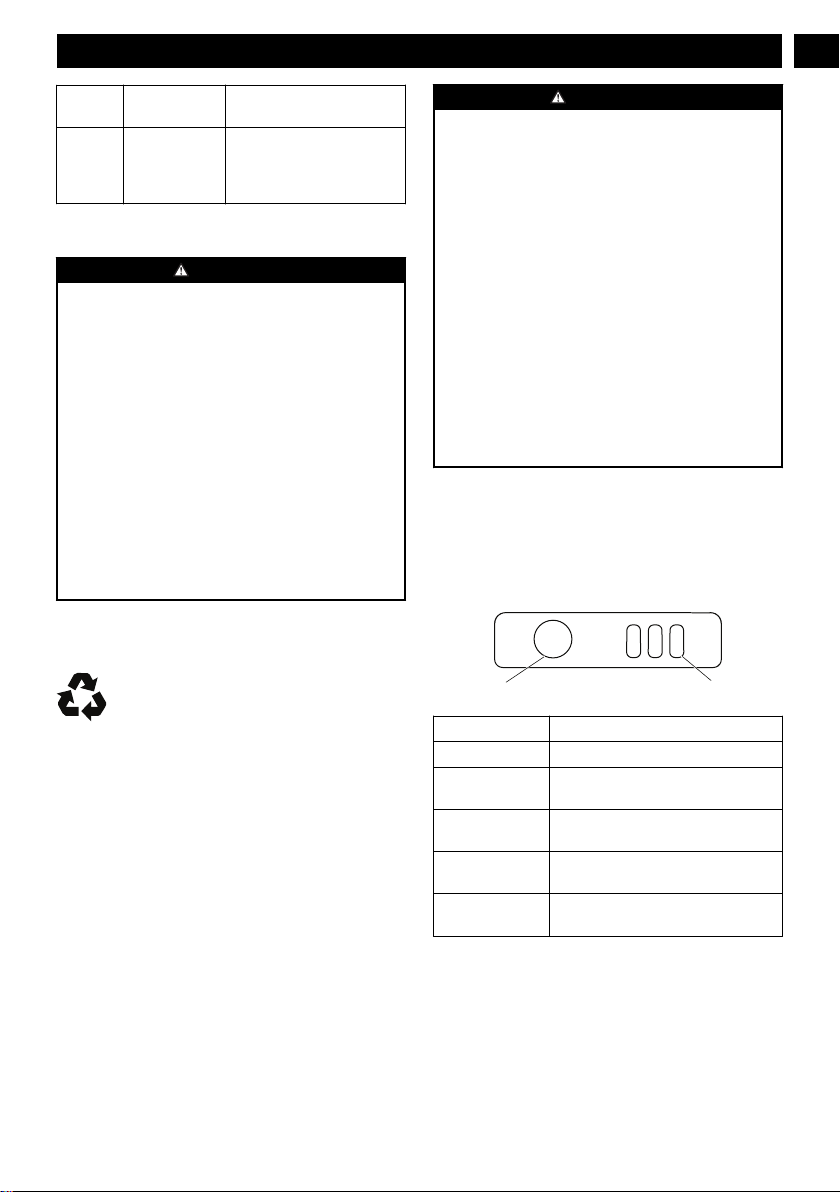

7.1 CHECK BATTERY CAPACITY
Press the battery capacity indicator (BCI) button. The lights
will illuminate according to the batteries capacity level. See
chart below:
12
Lights Capacity
3 Green Lights The battery is more than 80% capacity.
2 Green Lights The battery is between 50% and 80%
capacity.
1 Green Light The battery is between 20% and 50%
capacity.
1 Blinking Green
Light
The battery is between 10% and 20%
capacity.
Lights go out The battery is under 10% capacity and
requires charging immediately.
* 1. BATTERY CAPACITY INDICATOR (BCI) BUTTON
2. LIGHT METRE
BATTERY PROTECTION FEATURES
This lithium-ion battery packs are designed with features that
protect the lithium-ion cells and maximize battery life.
3
English EN

If the tool stops during use, release the trigger to reset and
resume operation. If the tool still does not work, the battery
needs to be recharged.
COLD WEATHER OPERATION
The lithium-ion battery pack can be used in temperatures
down to -14°C (6.8°F). Put the battery pack on a tool and use
the tool in a light duty application. After about a minute, the
pack will warm up and begin operating normally.

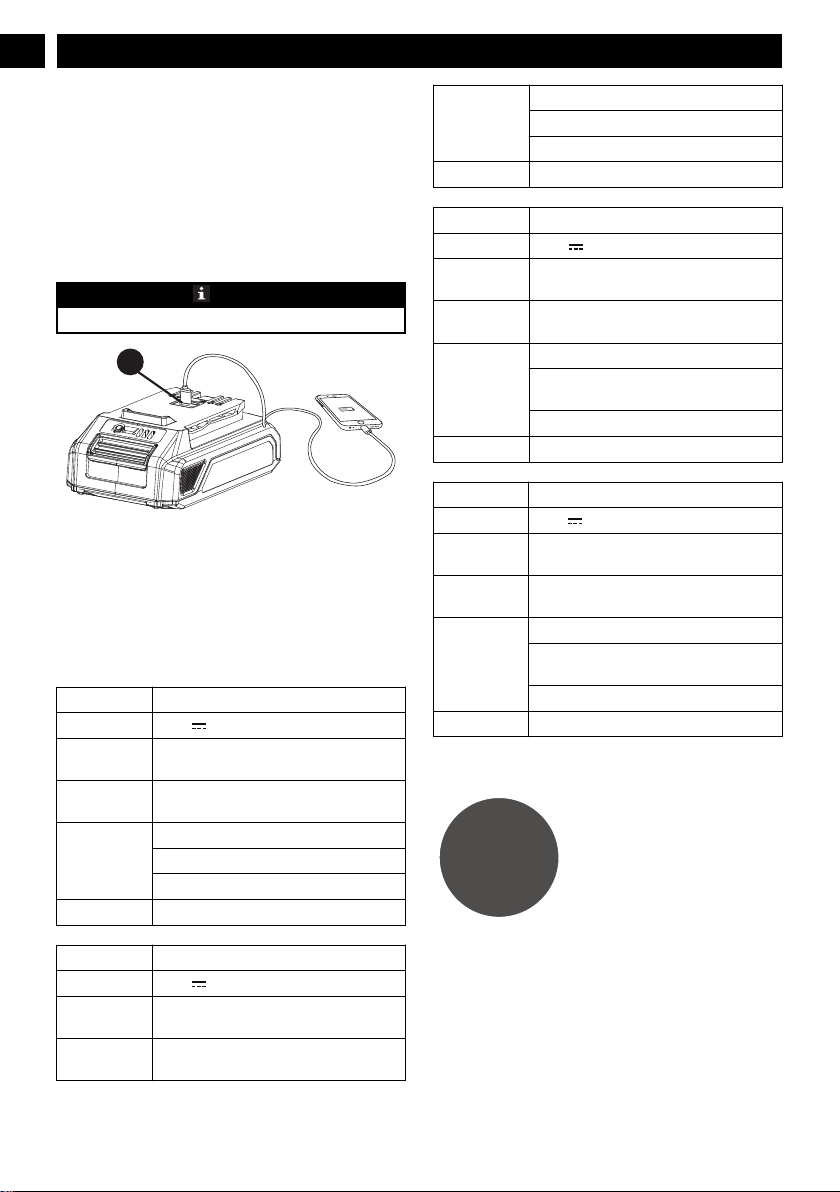

7.2 USB POWER PORT
NOTE
The battery pack is equipped with a USB type A.
A
• Make sure that the battery pack is charged.
• Pull the dust cover.
• Insert a USB plug into USB power port to supply power
or charge your device.
This battery pack can become a portable charger for charging
phones, tablets, mp3 players, and other mobile devices.
8 TECHNICAL DATA
Model BAG711
Battery 21.6V 1.5AH, 32.4Wh, 24V MAX
USB output
voltage
5V DC
USB output
current
1 A
Charge time
180 min. (use 29972 Charger)
45 min. (use CAG801 / CAG812 Charger)
30 min. (use 2903102 / 29862 Charger)
Weight 0.97lbs (0.44kg)
Model BAG708
Battery 21.6V 2.0AH, 43.2Wh, 24V MAX
USB output
voltage
5V DC
USB output
current
1A
Charge time
240 min. (use 29972 Charger)
60 (use CAG801 / CAG812 Charger)
40 min. (use 2903102 / 29862 Charger)
Weight 0.97lbs (0.44kg)
Model BAG709
Battery 21.6V 4.0AH, 86.4Wh, 24V MAX
USB output
voltage
5V DC
USB output
current
1A
Charge time
480 min. (use 29972 Charger)
120 min. (use CAG801 / CAG812 Charg-
er)
80 min. (use 2903102 / 29862 Charger)
Weight 1.72lbs (0.78kg)
Model BAG710
Battery 21.6V 5.0AH, 108Wh, 24V MAX
USB output
voltage
5V DC
USB output
current
1A
Charge time
600 min. (use 29972 Charger)
150 min. (use CAG801 / CAG812 Charg-
er)
100 min. (use 2903102 / 29862 Charger)
Weight 1.72lbs (0.78kg)
9 LIMITED WARRANTY
YEAR
ANS
AÑOS
LIMITED WARRANTY
GARANTIE LIMITÉE
GARANTÍA
LIMITADA
3
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, for a period of three (3)
years against defects in materials, parts or workmanship.
Greenworks, at its own discretion will repair or replace any
and all parts found to be defective, through normal use, free
of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not
been hired or rented for industrial/commercial use, and that
have been maintained in accordance with the instructions in
the owners’ manual supplied with the product from new.
4
English
EN

ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse,
commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade
sharpening;
5. Normal deterioration of the exterior finish due to use or
exposure.
HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-888-909-6757.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA ADDRESS:
Greenworks Tools
P.O. Box 1238
Mooresville, NC 28115
CANADIAN ADDRESS:
Greenworks Tools Canada Inc.
1110 Stellar Drive Unit 102
Newmarket, ON, L3Y 7B7
5
