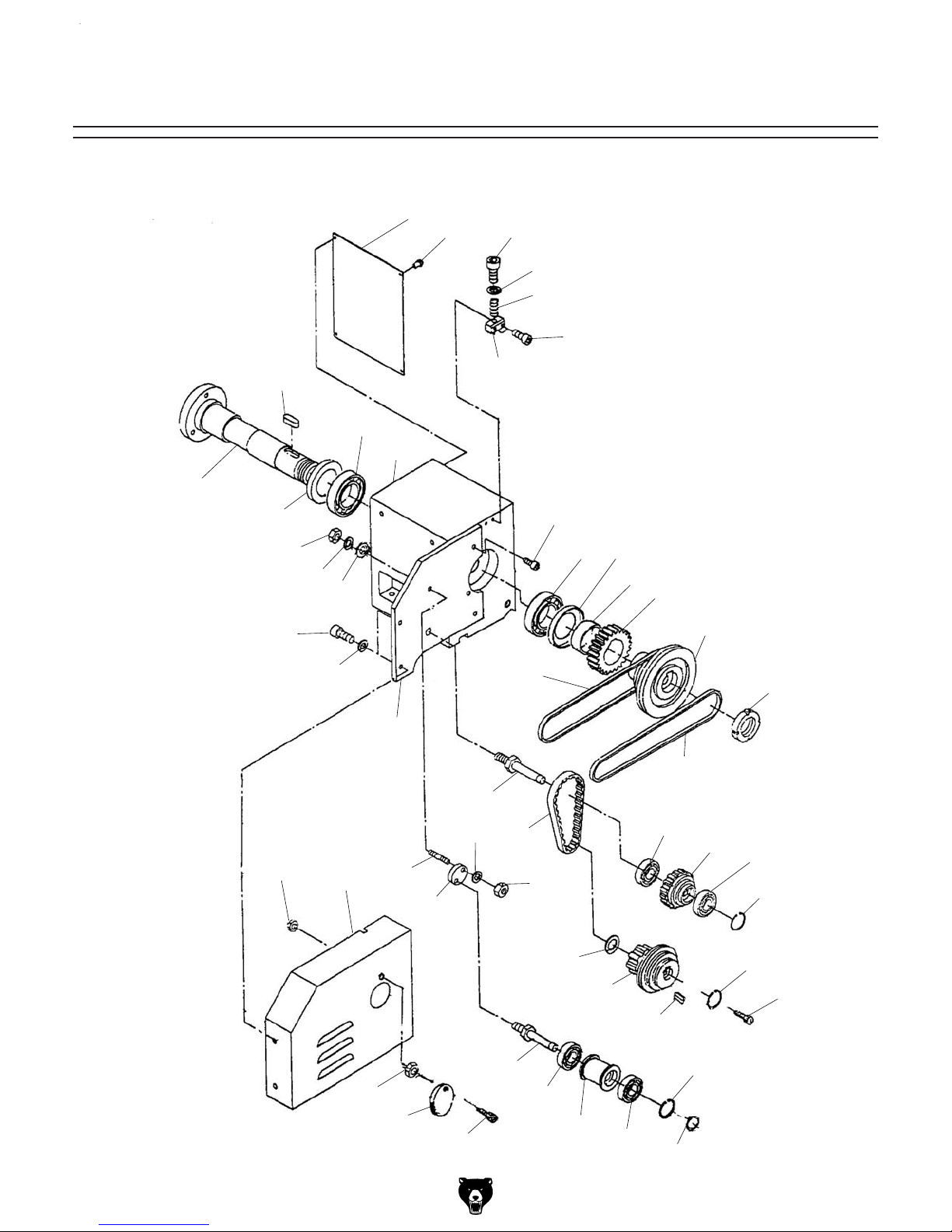

Headstock Breakdown
SECTION 9: PARTS

<..,'O&&m'+AVi]Zl$<ZVgWdm "*,"
Headstock Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P9972Z0001 HEADSTOCK NAMEPLATE 28 PW04M FLAT WASHER 10MM
2 PS17M PHLP HD SCR M4-.7 X 6 29 PSB50M CAP SCREW M5-.8 X 10
5 PSB06M CAP SCREW M6-1 X 25 30 PW23M FLAT WASHER 30MM
6 PW03M FLAT WASHER 6MM 31 P9972Z0031 IDLER SHAFT
7 P9972Z0007 COMPRESSION SPRING .8 X 8 X 20 32 P9972Z0032 TIMING BELT
8 P9972Z0008 THREADED BLOCK 33 P6001-2R2 BALL BEARING 6001-2RS
10 PSB06M CAP SCREW M6-1 X 25 34 P9972Z0034 IDLER PULLEY
11 P9972Z0011 SPINDLE 35 PR49M INT RETAINING RING 12MM
12 PK123M KEY 10 X 10 X 55 36 P9972Z0036 SPECIAL WASHER
13 P9972Z0013 SPACER 37 P9972Z0037 MOTOR PULLEY
14 P32009 TAPER ROLLER BEARING 32009 38 PK11M KEY 6 X 6 X 40
15 P9972Z0015 HEADSTOCK CASTING 39 PR45M INT RETAINING RING 10MM
16 PSB14M CAP SCREW M8-1.25 X 20 40 P9972Z0040 DOUBLE ENDED THREADED STUD
17 P32009 TAPER ROLLER BEARING 32009 41 P9972Z0041 PIVOT BRACKET
17-1 P9972Z0017-1 BEARING CAP 42 PW04M FLAT WASHER 10MM
18 PS26M PHLP HD SCR M6-1 X 20 43 PN02M HEX NUT M10-1.5
19 P9972Z0019 SPACER 44 P9972Z0044 TENSIONING SHAFT
20 P9972Z0020 GEAR 45T 45 P6001-2R2 BALL BEARING 6001-2RS
21 PVM29 V-BELT M-29 3L290 46 P9972Z0046 IDLER ROLLER
22 P9972Z0022 SPINDLE PULLEY 47 PR20M INT RETAINING RING 28MM
23 PVM32 V-BELT M-32 3L320 48 PR03M EXT RETAINING RING 12MM
24 P9972Z0024 SPANNER NUT M30-3.5 49 P9972Z0049 CHANGE GEAR COVER
25 P9972Z0025 BRACKET PLATE 51 PN06M HEX NUT M5-.8
26 PLW06M LOCK WASHER 10MM 52 P9972Z0052 OUTBOUND SPINDLE COVER
27 PN02M HEX NUT M10-1.5 53 PS08M PHLP HD SCR M5-.8 X 12

"*-" <..,'O&&m'+AVi]Zl$<ZVgWdm
Change Gears Breakdown
&%& &%'
&%(
&%)
&%+
&%,
&%-
'%&
'%'
'%(
'%) '%*
'%+
'%,
'%-
'%.
'&%
'&&
'&'
'&(
'&)
'&*
'&+
'&,
'&-
'&.
''%
''&
'''
''(
'')
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PSS01M SET SCREW M6-1 X 10 210 P9972Z0210 BUSHING
102 P9972Z0102 BUSHING 211 PK134M KEY 4 X 4 X 14
103 P9972Z0103 GEAR 45T 212 P9972Z0212 SPACER
104 P9972Z0104 GEAR 24T 213 P9972Z0213 GEAR 84T
106 P9972Z0106 SHAFT 214 PW03M FLAT WASHER 6MM
107 PEC10M E-CLIP 9MM 215 PSB85M CAP SCREW M6-1 X 6
108 P9972Z0108 BALL OILER 216 PLW04M LOCK WASHER 8MM
201 P9972Z0201 CHANGE GEAR BRACKET 217 PSB12M CAP SCREW M8-1.25 X 40
202 P9972Z0202 SPECIAL NUT 218 P9972Z0218 GEAR 28T
203 PW03M FLAT WASHER 6MM 219 P9972Z0219 GEAR 35T
204 P9972Z0204 SHAFT 220 P9972Z0220 GEAR 63T
205 P4000405 BUSHING 221 P9972Z0221 GEAR 69T
206 P9972Z0206 GEAR 127T 222 P9972Z0222 GEAR 70T
207 P9972Z0207 GEAR 120T 223 P9972Z0223 GEAR 77T
208 PEC10M E-CLIP 9MM 224 P9972Z0224 GEAR 78T
209 P9972Z0108 BALL OILER

<..,'O&&m'+AVi]Zl$<ZVgWdm "*."
Feed Rate Gearbox Breakdown
(%& (%' (%( (%)
(%*
(%+
(%,
(%-
(%.
(&%
(&&
(&'
(&(
(&)
(&*
(&+
(&,
(&-
(&.
('%
('&
(''
('(
(')
('*
('+
(',
('-
('.
((%
((&
(('
(((
(()
((*
((+
((,
((-
((.
()%
()& ()' ()(
()) ()*
()+ (),
()-
(). (*%
A
A
B
B
A
B
A
(%'
('(
(''
B
('%
(''
(''

"+%" <..,'O&&m'+AVi]Zl$<ZVgWdm
Feed Rate Gearbox Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P9972Z0301 PLUG 326 P9972Z0326 COLLAR
302 P0554446 O-RING 17 X 1.8 327 PK05M KEY 4 X 4 X 10
303 P9972Z0303 BUSHING 328 P9972Z0328 SHAFT
304 P9972Z0304 GEAR 30-36-33T 329 P9972Z0329 GEAR 33T
305 PK154M KEY 3 X 3 X 18 330 P9972Z0330 GEAR 30T
306 P9972Z0306 SHAFT 331 P9972Z0331 GEAR 35T
307 P9972Z0307 BUSHING 332 P9972Z0332 FLANGE
308 P9972Z0308 GEAR 22-44-33T 333 PSB01M CAP SCREW M6-1 X 16
309 P9972Z0309 PLUG 334 P9972Z0334 SHIFTING FORK
310 PSB50M CAP SCREW M5-.8 X 10 335 P9972Z0335 FRONT GEARBOX COVER
311 P9972Z0311 BACK GEARBOX COVER 336 PRP05M ROLL PIN 5 X 30
312 P9972Z0312 FILL PLUG 337 P9972Z0337 COMPRESSION SPRING .8 X 4.5 X 18
313 P9972Z0313 GEARBOX CASTING 338 P9972Z0338 OIL SIGHT GLASS
314 P9972Z0314 DRAIN PLUG 339 P9972Z0339 INDICATOR DISC
315 P9972Z0315 LEADSCREW SHEAR PIN 340 PSS01M SET SCREW M6-1 X 10
316 P9972Z0316 LEADSCREW COLLAR 341 P9972Z0341 STEEL BALL 5MM
317 PRP25M ROLL PIN 5 X 21 342 P9972Z0342 SHIFT HUB
318 PSB26M CAP SCREW M6-1 X 12 343 PSS01M SET SCREW M6-1 X 10
319 P9972Z0319 FLANGE 344 PSB37M CAP SCREW M6-1 X 50
320 P9972Z0320 BEARING 345 PSB02M CAP SCREW M6-1 X 20
321 P9972Z0321 GEAR 33T 346 POR0061 O-RING 6 X 1.8
322 PR03M EXT RETAINING RING 12MM 347 P9972Z0347 SHAFT
323 PK29M KEY 4 X 4 X 8 348 PRP03M ROLL PIN 5 X 20
324 P9972Z0324 GEAR SHAFT 22T 349 P9972Z0349 SHIFT LEVER
325 P9972Z0325 GEAR 44T 350 P9972Z0350 SHIFTING FORK

<..,'O&&m'+AVi]Zl$<ZVgWdm "+&"

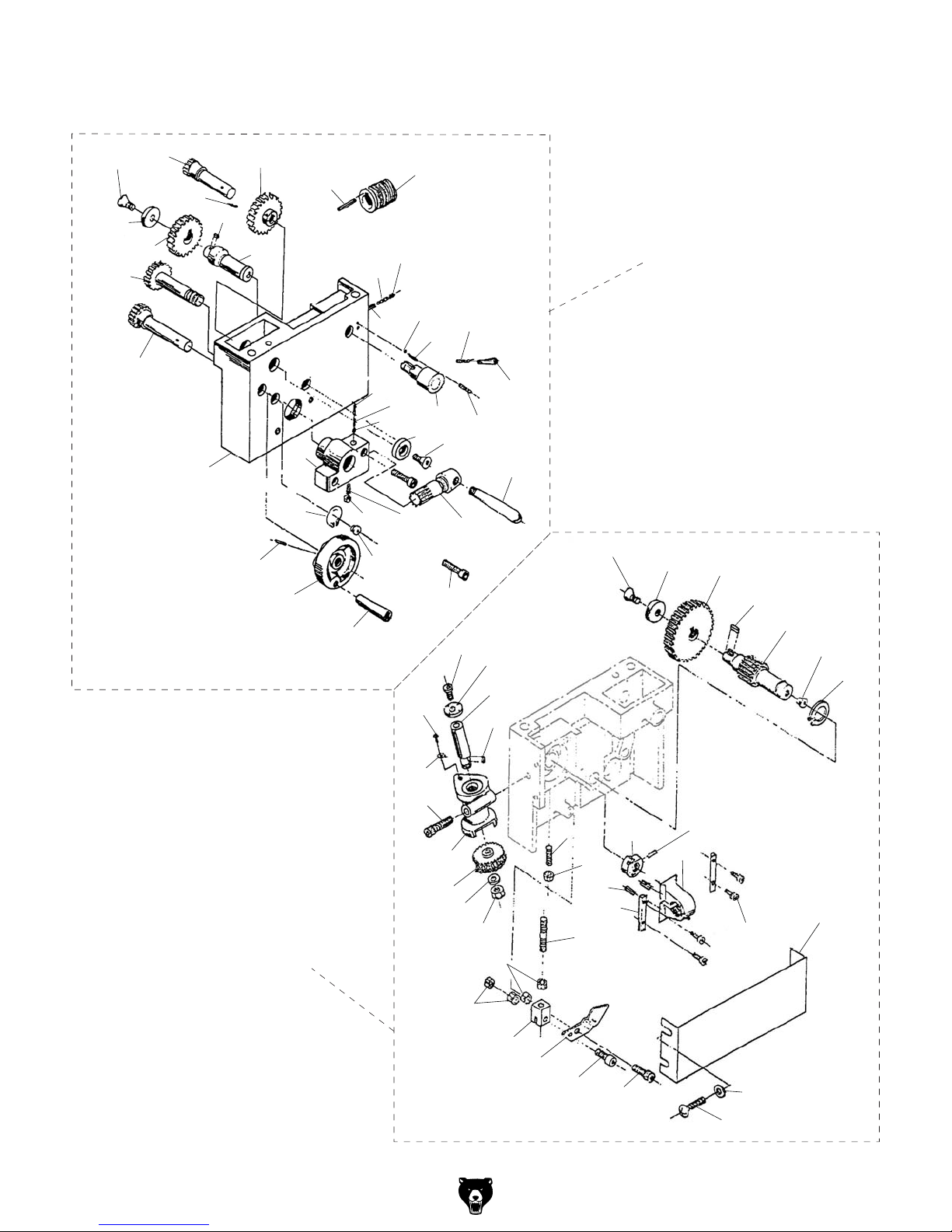

Apron Breakdown
Front
Rear
)%&
)%'
)%(
)%)
)%*
)%+
)%,
)%-
)%.
)&%
)&&
)&'
)&( )&)
)&*
)&+
)&,
)&-
)&.
)'%
)&'
)''
)'(
)')
)'*
)'+
)',
)'-
)'.
)(%
)(&
)('
)(( )(,
)(-
)(.
))%
))'
))(
)))
))*
))+
)),
))-
)).
)*% )*&
)*'
)*(
)*)
)**
)*+
)*,
)*-
)*.
)+%
)+&
)+'
)+(
)+)
)+*
)++
)+,
)'&
)%.
)%,
)&)
)&(
)&) )&(
)'.
)),
)%,
))'"&

"+'" <..,'O&&m'+AVi]Zl$<ZVgWdm
Apron Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P9972Z0401 APRON CASTING 433 P9972Z0433 HANDLE M8-1.25 X 83
402 P9972Z0402 HANDLE SCREW 437 P9972Z0437 GEAR SHAFT 18T
403 P9972Z0403 WORM GEAR 438 PK69M KEY 4 X 4 X 12
404 P9972Z0404 WORM GEAR KEY 439 P9972Z0439 GEAR 42T
405 P9972Z0405 HANDLE HUB 440 PR03M EXT RETAINING RING 12MM
406 P9972Z0406 PIN 4 X 20 442 P9972Z0442 HALF NUT (INCH)
407 PN06M HEX NUT M5-.8 442-1 P9972Z0442-1 HALF-NUT BRACKET
408 PSS34M SET SCREW M5-.8 X 16 443 P9972Z0443 HALF NUT GIB
409 P9972Z0341 STEEL BALL 5MM 444 P9972Z0444 ROLL PIN 2 X 35
410 P9972Z0410 COMPRESSION SPRING 445 PSB16M CAP SCREW M4-.7 X 16
411 P9972Z0411 HANDLE 446 PSS24M SET SCREW M5-.8 X 25
412 PSS02M SET SCREW M6-1 X 6 447 PN06M HEX NUT M5-.8
413 PW04M FLAT WASHER 10MM 448 P9972Z0448 CONTROL BLOCK
414 PFH43M FLAT HD SCR M6-1 X 10 449 P9972Z0449 PIVOT BRACKET
415 P9972Z0415 GEAR SHAFT 12T 450 PSB39M CAP SCREW M4-.7 X 20
416 PRP73M ROLL PIN 4 X 30 451 PSB24M CAP SCREW M5-.8 X 16
417 P9972Z0417 GEAR 43T 452 P9972Z0452 DOUBLE ENDED THREADED STUD
418 P9972Z0418 HANDLE 453 P9972Z0453 THREAD DIAL BODY
419 P9972Z0419 GEAR SHAFT 13T 454 P9972Z0454 PINION GEAR 64T
420 P9972Z0420 POWER FEED LEVER BRACKET 455 P9972Z0455 SHAFT
421 P9972Z0421 COMPRESSION SPRING 456 PK39M KEY 3 X 3 X 10
422 PSS23M SET SCREW M4-.7 X 10 457 PLW04M LOCK WASHER 8MM
423 PSB07M CAP SCREW M6-1 X 30 458 PN03M HEX NUT M8-1.25
424 P9972Z0424 GEAR SHAFT 36T 459 P9972Z0459 THREAD DIAL
425 P9972Z0425 SHAFT 460 PS68M PHLP HD SCR M6-1 X 10
426 PK72M KEY 4 X 4 X 6 461 P9972Z0461 POINTER
427 P9972Z0427 GEAR 60T 462 P9972Z0462 RIVET 2 X 5
428 PR02M EXT RETAINING RING 14MM 463 PSB110M CAP SCREW M4-.7 X 6
429 P9972Z0108 BALL OILER 464 P9972Z0464 REAR APRON COVER
430 P9972Z0430 GEAR SHAFT 22T 465 PW05M FLAT WASHER 4MM
431 P9972Z0431 HANDWHEEL 466 PS17M PHLP HD SCR M4-.7 X 6
432 PRP04M ROLL PIN 4 X 24 467 PRP59M ROLL PIN 5 X 12

<..,'O&&m'+AVi]Zl$<ZVgWdm "+("
Saddle & Cross Slide Breakdown
*%&
*%'
*%(
*%)
*%*
*%+
*%,
*%- *%.
*&%
*&&
*&'
*&(
*&)
*&*
*&+
*&,
*&-
*&.
*'%
*'&
*''
*'(
*')
*'*
*'+
*',
*'-
*'. *(%
*(&
*('
*((
*()
*(*
*(+
*(,
*(-
*(.
*(&
*('
*((
*((
*()
*(*
*((
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P9972Z0501 SADDLE 521 P9972Z0521 SPECIAL PIN
502 P9972Z0502 CROSS SLIDE 522 PSS34M SET SCREW M5-.8 X 16
503 P9972Z0503 CROSS SLIDE GIB 523 PN06M HEX NUT M5-.8
504 P9972Z0504 CROSS SLIDE LEADSCREW NUT 524 P9972Z0524 SADDLE SLIDE
505 P9972Z0505 CROSS SLIDE LEADSCREW 525 PW03M FLAT WASHER 6MM
506 P9972Z0506 LEADSCREW BRACKET 526 PSB01M CAP SCREW M6-1 X 16
507 PSB31M CAP SCREW M8-1.25 X 25 527 P9972Z0527 CLIP
508 P9972Z0508 INDICATOR PLATE 528 PSS25M SET SCREW M6-1 X 20
509 P9972Z0462 RIVET 2 X 5 529 PN01M HEX NUT M6-1
510 P9972Z0510 CROSS SLIDE GRADUATED DIAL 530 PSB48M CAP SCREW M6-1 X 35
511 PK105M KEY 3 X 3 X 6 531 P9972Z0531 WAY WIPER NOTCHED
512 P9972Z0512 SPRING PLATE 532 P9972Z0532 WIPER CLAMP NOTCHED
513 P9972Z0513 HANDWHEEL 533 PS07M PHLP HD SCR M4-.7 X 8
514 P9972Z0514 SPECIAL HEX NUT 534 P9972Z0534 WAY WIPER FLAT
515 PSS17M SET SCREW M8-1.25 X 6 535 P9972Z0535 WIPER CLAMP FLAT
516 P9972Z0516 HANDLE 536 P9972Z0108 BALL OILER
517 P9972Z0517 SLIDE BLOCK 537 PSB40M CAP SCREW M8-1.25 X 35
518 P9972Z0518 CHIP GUARD 538 PSB48M CAP SCREW M6-1 X 35
519 PSB26M CAP SCREW M6-1 X 12 539 P9972Z0539 SPECIAL BOLT
520 PSS11M SET SCREW M6-1 X 16

"+)" <..,'O&&m'+AVi]Zl$<ZVgWdm
Compound Slide & Tool Post Breakdown
+%&
+%' +%(
+%)
+%*
+%+
+%,
+%-
+%.
+&%
+&&
+&'
+&(
+&)
+&*
+&+
+&,
+&-
+&.
+'%
+'&
+''
+'(
+')
+'*
+'+
+',
+'-
+'.
+(% +(&
+%-
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P9972Z0601 COMPOUND SLIDE 617 PSB95M CAP SCREW M5-.8 X 30
602 P9972Z0602 SWIVEL BASE 618 P9972Z0618 TOOL POST HANDLE
603 P9972Z0603 COMPOUND SLIDE GIB 619 P9972Z0619 TOOL POST HANDLE HUB
604 P9972Z0604 CLAMPING RING 620 P9972Z0620 4-WAY TOOL REST
605 P9972Z0605 CLAMPING BASE 621 P9972Z0621 SPECIAL FLAT WASHER
606 P9972Z0606 SPECIAL NUT 622 P9972Z0622 TOOL REST BASE
607 P9972Z0607 SPECIAL PIN 623 P9972Z0623 COMPOUND SLIDE LEADSCREW
608 P9972Z0608 TOOL POST STUD 624 P9972Z0624 LEADSCREW BRACKET
609 PW04M FLAT WASHER 10MM 625 P9972Z0625 GRADUATED DIAL
610 P9972Z0610 SPECIAL PIN 626 P9972Z0626 HANDWHEEL
611 P9972Z0611 COMPRESSION SPRING 627 P9972Z0627 HANDLE
612 P9972Z0612 TOOL POST CAP SCREW 628 PK03M KEY 3 X 3 X 8
613 PSB31M CAP SCREW M8-1.25 X 25 629 P9972Z0629 SPRING PLATE
614 PSB26M CAP SCREW M6-1 X 12 630 P9972Z0630 THREADED COLLAR
615 PSS34M SET SCREW M5-.8 X 16 631 PSS06M SET SCREW M8-1.25 X 16
616 PN06M HEX NUT M5-.8

<..,'O&&m'+AVi]Zl$<ZVgWdm "+*"

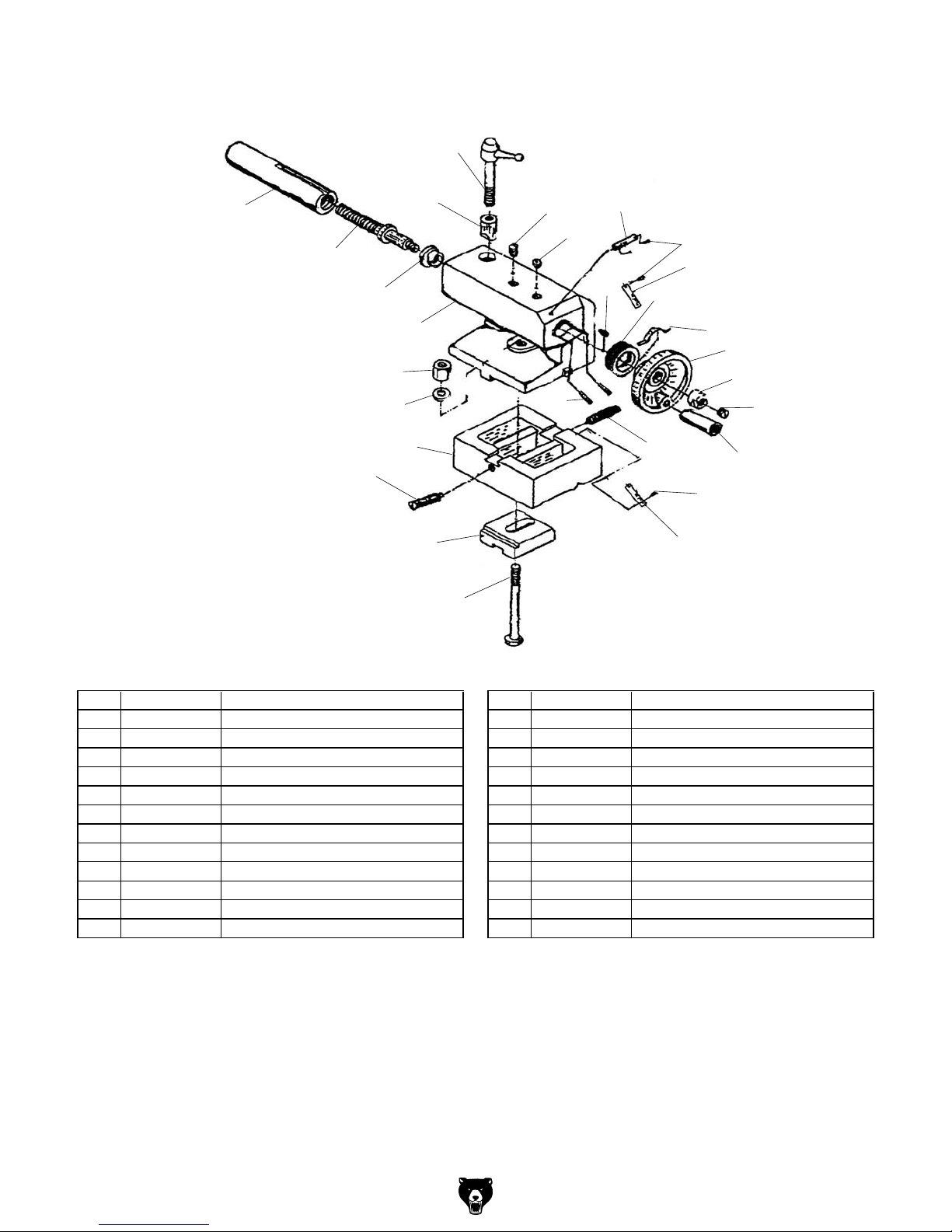

Tailstock Breakdown
,%&
,%'
,%(
,%)
,%*
,%+
,%, ,%-
,%.
,&%
,&&
,&'
,&(
,&) ,&*
,&+
,&,
,&-
,&.
,'%
,'&
,''
,'(
,') ,'*
,'+
,&)
,&.
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 P9972Z0701 TAILSTOCK QUILL MT#3 714 PSS21M SET SCREW M8-1.25 X 25
702 P9972Z0702 TAILSTOCK LEADSCREW 715 P9972Z0715 HANDLE
703 P9972Z0703 BUSHING 716 P9972Z0716 PLATE
704 P9972Z0704 INDICATOR PLATE 717 PK39M KEY 3 X 3 X 10
705 P9972Z0705 HANDWHEEL 718 PN02M HEX NUT M10-1.5
706 P9972Z0706 QUILL LOCK 719 P9972Z0462 RIVET 2 X 5
707 P9972Z0707 LOCK BUSHING 720 P9972Z0108 BALL OILER
708 PSS04M SET SCREW M6-1 X 12 721 P9972Z0721 CLAMPING PLATE
709 P9972Z0709 GRADUATED DIAL 722 P9972Z0722 SPECIAL HEX NUT
710 P9972Z0710 SPRING PLATE 723 PB121M HEX BOLT M12-1.75 X 100
711 P9972Z0711 SPACER 724 PW06M FLAT WASHER 12MM
712 P9972Z0712 TAILSTOCK CASTING 725 PSS26M SET SCREW M5-.8 X 6
713 P9972Z0713 TAILSTOCK BASE 726 P9972Z0726 INDICATOR PLATE

"++" <..,'O&&m'+AVi]Zl$<ZVgWdm
Bed Breakdown
-%&
-%'
-%(
-%)
-%*
-%+
-%,
-%-
-%.
-&%
-&&
-&'
-&(
-&)
-&*
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P9972Z0801 BED 809 P9972Z0809 SPLASH GUARD
802 P9972Z0802 RACK 810 P9972Z0810 THREADED STUD M10-1.5 X 35
803 PSB33M CAP SCREW M5-.8 X 12 811 PN02M HEX NUT M10-1.5
804 P9972Z0804 FEED LEADSCREW INCH 812 PSS44M SET SCREW M8-1.25 X 40
805 P9972Z0805 LEADSCREW END BRACKET 813 PW01M FLAT WASHER 8MM
806 P9972Z0108 BALL OILER 814 PN03M HEX NUT M8-1.25
807 PSB02M CAP SCREW M6-1 X 20 815 P9972Z0815 CHIP PAN
808 PN02M HEX NUT M10-1.5

<..,'O&&m'+AVi]Zl$<ZVgWdm "+,"
Steady Rest Breakdown
.%&
.%'
.%( .%)
.%*
.%+
.%,
.%-
.%.
.%*
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P9972Z0901 STEADY REST CASTING 906 P9972Z0906 ADJUSTING SCREW
902 P9972Z0902 FINGER 907 P9972Z0907 CLAMPING PLATE
903 P9972Z0903 SPECIAL SCREW 908 PB125M HEX BOLT M12-1.75 X 65
904 PLW04M LOCK WASHER 8MM 909 PW06M FLAT WASHER 12MM
905 PN01M HEX NUT M6-1
Follow Rest Breakdown
&%%&
&%%'
&%%(
&%%)
&%%*
&%%+
&%%,
&%%-
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001 P9972Z1001 FOLLOW REST CASTING 1005 PN01M HEX NUT M6-1
1002 P9972Z0902 FINGER 1006 PW01M FLAT WASHER 8MM
1003 P9972Z0903 SPECIAL SCREW 1007 PSB40M CAP SCREW M8-1.25 X 35
1004 P9972Z0906 ADJUSTING SCREW 1008 PW03M FLAT WASHER 6MM

"+-" <..,'O&&m'+AVi]Zl$<ZVgWdm

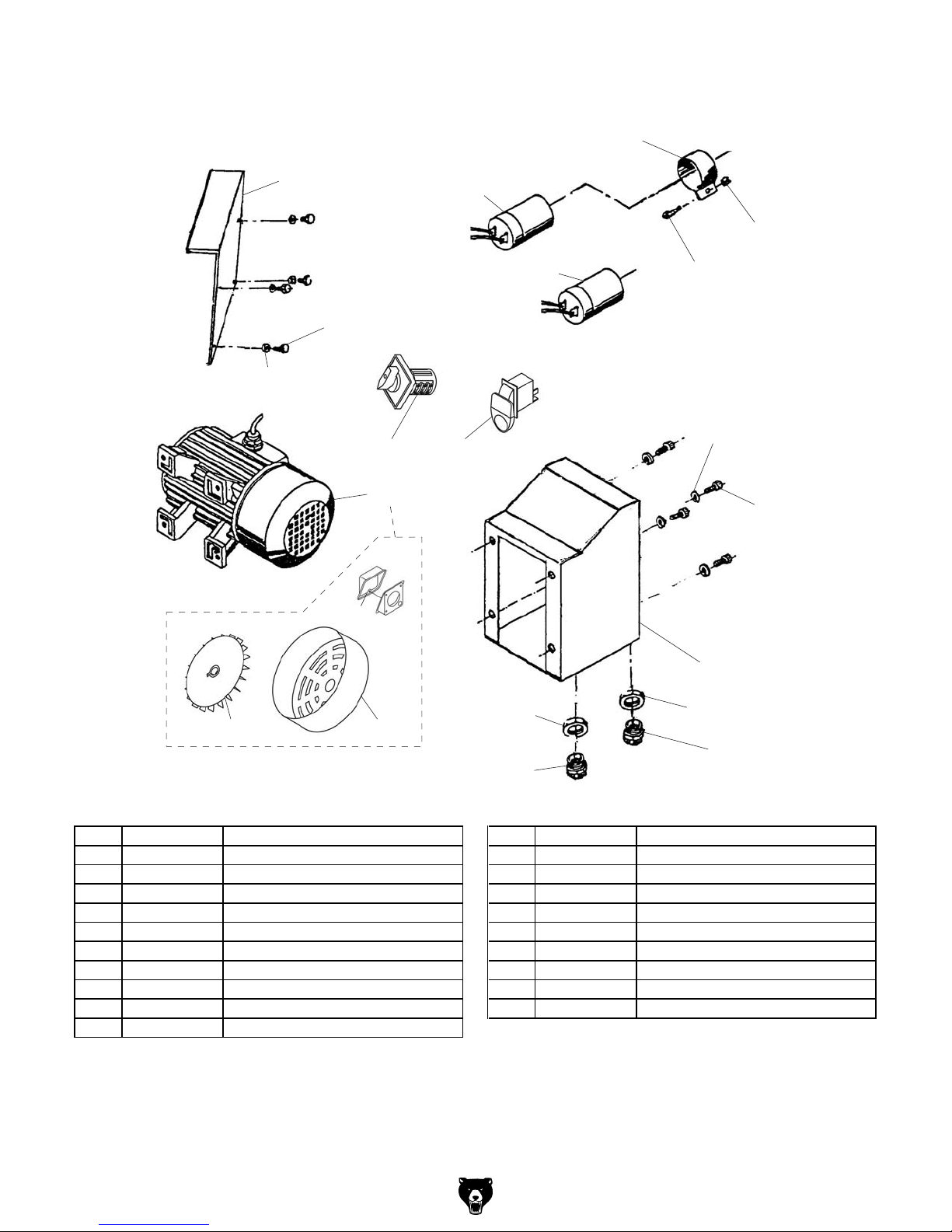

Electrical Components Breakdown
&&%&
&&%'
&&%(
&&%)
&&%*
&&%+
&&%+"&
&&%,
&&%-
&&&%
&&&&
&&&&"& &&&&"'
&&&&"(
&&&'
&&&(
&&&)
&&&*
&&&+
&&&.
&&'%
REF PART # DESCRIPTION REF PART # DESCRIPTION
1101 P9972Z1101 ELECTRICAL CABINET 1111-1 P9972Z1111-1 MOTOR FAN
1102 PSB06M CAP SCREW M6-1 X 25 1111-2 P9972Z1111-2 MOTOR FAN COVER
1103 PLW03M LOCK WASHER 6MM 1111-3 P9972Z1111-3 MOTOR WIRING JUNCTION BOX
1104 P9972Z1104 ELECTRICAL CABINET COVER 1112 PLW01M LOCK WASHER 5MM
1105 P9972Z1105 CAPACITOR COVER W/CLIP 1113 PN04M HEX NUT M4-.7
1106 P9972Z1106 S CAPACITOR 150M 1114 PS52M PHLP HD SCR M4-.7 X 20
1106-1 P9972Z1106-1 R CAPACITOR 20M 1115 P9972Z1115 STRAIN RELIEF 3/4"
1107 P9972Z1107 STRAIN RELIEF NUT 1/2" 1116 P9972Z1116 STRAIN RELIEF NUT 3/4"
1108 P9972Z1108 STRAIN RELIEF 1/2" 1119 P9972Z1109 ON/OFF SWITCH W/COVER
1110 PS09M PHLP HD SCR M5-.8 X 10 1120 P9972Z1109-1 ROTARY SWITCH 3-POSITION
1111 P9972Z1111 MOTOR 1HP 110V 1-PH

<..,'O&&m'+AVi]Zl$<ZVgWdm "+."
Accessories Breakdown
&&&,
&&&-
&&'&
&&''
&&'(
&&')
&&'*
&&'+
&&',
&&'-
&&'.
&&(%
&&(&
&&('
&&((
&&()
&&(*
&&(+
REF PART # DESCRIPTION REF PART # DESCRIPTION
1117 P9972Z1117 4-JAW CHUCK 6-1/4" 1128 PWR1214 COMBO WRENCH 12/14MM
1118 P9972Z1118 DEAD CENTER MT#3 1129 PWR1719 COMBO WRENCH 17/19MM
1121 P9972Z1121 TOOL BOX 1130 PAW03M HEX WRENCH 3MM
1122 P9972Z1122 FACE PLATE 8" 1131 PAW04M HEX WRENCH 4MM
1123 P9972Z1123 3-JAW CHUCK REVERSE JAW SET 1132 PAW05M HEX WRENCH 5MM
1124 P9972Z1124 3-JAW CHUCK KEY 1133 PAW06M HEX WRENCH 6MM
1125 P9972Z1125 4-JAW CHUCK KEY 1134 PAW08M HEX WRENCH 8MM
1126 P9972Z1126 LIVE CENTER MT#4 1135 P9972Z1135 SCREWDRIVER STANDARD
1127 PWR810 COMBO WRENCH 8/10MM 1136 P9972Z1136 SCREWDRIVER PHILLIPS

",%" <..,'O&&m'+AVi]Zl$<ZVgWdm
&'%&
&'%'
&'%(
&'%)
&'%*
&'%+ &'%, &'%- &'%.
Label Placement
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at [phone] or www.grizzly.com to order new labels.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 P9972Z1201 EYE HAZARD LABEL VERT 1206 P9972Z1206 DISCONNECT POWER LABEL VERT
1202 PLABEL-12 READ MANUAL LABEL VERT 1207 P9972Z1207 ENTANGLEMENT HAZARD LABEL
1203 P9972Z1203 MACHINE ID LABEL 1208 PLABEL-14 ELECTRICITY LABEL
1204 P9972Z1204 THREAD DIAL CHART LABEL 1209 PPAINT-1 GRIZZLY GREEN TOUCH UP PAINT
1205 P9972Z1205 PINCH HAZARD LABEL HORIZ
