Grouser Products 1300 Groomer User manual

Date 10-16-2019
PN: 63-16504
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Serial #:200700786-...
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com
1300 U-Blade
Owner’s Manual & Parts Book

The 1300 Grouser blade is a heavy-duty blade that does not contain a safety trip mechanism found in snow blades. Using this blade as a snow
blade could cause serious damage to the blade, the machine, or the operator when you strike an immovable object. Grouser Products will not
warranty this blade if damage occurs while pushing snow.
Caution: This Is A Non-Trip U-Blade
2
Description Page
Welcome To The Owner & Caution 2
Safety Precautions & Torque Specications 3
Blade System 4
Full Skid Shoe & Full Extended Skid Shoe Option 5-6
Universal Quick Attach and Tilt 7
ALO Quick Attach and Tilt 8
Standard Quick Attach and Tilt 9
Electrical, Plumbing, Lubrication and Operation 10
Electric Valve Plumbing 11
Dual Remote Plumbing 12
Relief Valve Plumbing 13
Wire Harness Installation 14
Dimensions 15
Contact Us, Improvements, & Warranty 16
Thank you for your recent purchase of a Grouser Blade. Welcome to the family of satised Grouser blade owners.
Grouser Products is committed to o󰀨ering quality products to help professionals in their daily jobs. We are also committed
to providing you the highest level of customer satisfaction possible. Again, thank you for your patronage. We look
forward to serving you.
This manual contains information concerning the operation, adjustment, safety and maintenance of the blade. You
have purchased a dependable, long lasting piece of equipment. You can expect to receive long lasting performance
and long service built into our products with proper care and operation. Please have all operators read and understand
this manual carefully. Keep the manual available for reference. If, for any reason, you have questions or comments, we
would be happy to hear from you. Call our toll-free number, 800-747-6182, or send us an e-mail at [e-mail].
You can expect us to respond to your e-mail in a timely manner.
ContentsWelcome to the Owner

3
A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help
prevent accidents, read and take the following precautions before operating this equipment. In addition, please follow
all safety and operational instructions of your tractor manufacturer.
The 1300 U-Blade:
1. The blade should be operated only by those who are responsible and instructed to do so.
2. Read the owner’s manual carefully before using this equipment. Lack of operating knowledge can lead to accidents.
3. Keep the blade maintained in reliable and satisfactory condition to ensure your safety.
4. Make sure the area is clear of people before moving any equipment.
5. Do not modify or permit anyone else to modify or alter the equipment and its components without rst consulting
Grouser Products.
6. Lower the blade to the ground when not in use.
Servicing the 1300 U-Blade:
1. Read and follow all safety instructions provided by the tractor manufacturer.
2. Always use proper personal safety gear when performing maintenance on equipment.
3. Before servicing, relieve hydraulic pressure, stop engine and fully engage parking brake.
4. Escaping hydraulic uid under pressure can penetrate skin causing serious injury. If uid is injected into skin, obtain
medical attention immediately.
– DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks.
– Stop the engine and relieve pressure before connecting or disconnecting lines.
– Tighten all connections before starting the engine or pressurizing lines.
Storing the 1300 U-Blade:
1. Thoroughly clean the inside and outside of the blade before storage. Use paint where necessary to prevent rust.
2. Check the blade for worn or damaged parts. Install new parts as required.
3. Lubricate all pins and joints.
Tighten all bolts to the values listed below unless otherwise noted. Refer to the parts lists for proper length and grade of
the bolts.
Torque - Dry (ft–lbs)
SAE Grade 5 SAE Grade 8
Size UNC UNF UNC UNF
5/16 17 19 24 27
3/8 30 35 45 50
7/16 50 55 70 80
1/2 75 85 110 120
9/16 110 120 150 170
5/8 150 170 210 240
3/4 260 300 380 420
7/8 430 470 600 670
1 640 720 910 1020
Torque - Dry (ft-lbs)
Size Grade 10.9
M18 x 2.50 284
M20 x 2.50 401
M22 x 2.50 547
M24 x 3.00 694
Safety Precautions Torque Specications

18
1
2
3
4
5
6
7
9
14
15
16
16
17
19
8
10 or 13
11 or 12
20
8' 9' 10'
Item
No. Part No. Description Qyt. Qty. Qty.
1 15-13850 8' U-Blade Top Ex tension - Center 1
2 15-13855-L 8' U-Blade Top Ex tension - Left 1
3 15-13855-R 8' U-Blade Top Ex tension -Right 1
4 15-13860 8' U-Blade 1
1 15-12660 9' U-Blade Top Ex tension - Center 1
2 15-12665-L 9' U-Blade Top Ex tension - Left 1 1
3 15-12665-R 9' U-Blade Top Ex tension -Right 1 1
4 15-13590 9' U-Blade 1
1 15-15745 10' U-Blade Top Ex tension - Center 1
4 15-15750 10' U-Blade 1
5 16-20126 1/2" x 1-1/2" Hex Bolt Gr 5 NC 16 16 18
6 16-20270 1" x 2-1/2" Hex Bolt Gr 5 NC 6 6 6
7 16-21064 3/8" x 1" Carriage Bolt Gr 5 NC 2 2 2
8 16-21666 5/8" x 1-3/4" Plow Bolt Gr 5 NC 17 18 20
8' 9' 10'
Item
No. Part No. Description Qyt. Qty. Qty.
9 19-7774 1" x 1" Spring Bushing 1 1 1
10 29-7950-6 6' Cutting Edge 1
10 29-7950-7 7' Cutting Edge 1
11 29-13581 20" Cutting Edge 2 2
12 29-13844 17" Cutting Edge 2
13 29-13845 66" Cutting Edge 1
14 52-8204 Tilt Plate 2 2 2
15 57-20742 3/8" Flat Washer 2 2 2
16 57-20744 1/2" Flat Washer 32 32 36
17 57-20749 1" Flat Washer 12 12 12
18 70-20582 3/8" Hex Nut NC 2 2 2
19 70-20604 1/2" Hex Center Lock Nut NC 16 16 18
20 70-20646 5/8" Hex Top Lock Nut NC 17 18 20
4
Blade System

5
4
1
7
3
2
6
7
5
8' 9' 10'
Item
No. Part No. Description Qyt. Qty. Qty.
1 16-21666 5/8" x 1-3/4" Plow Bolt Gr 5 NC 8 10 12
2 16-21672 5/8" x 2-1/2" Plow Bolt Gr 5 NC 9 8 8
3 50-18220 8' U-Blade Skid Shoe - Center 1 - -
4 50-18225-R 8' U-Blade Skid Shoe - Right 1 - -
5 50-18225-L 8' U-Blade Skid Shoe - Left 1 - -
3 50-15905 9' U-Blade Skid Shoe - Center - 1 -
4 50-15904-R 9' / 10'' U-Blade Skid Shoe - Right - 1 1
5 50-15904-L 9' / 10'' U-Blade Skid Shoe - Left - 1 1
3 50-19210 10' U-Blade Skid Shoe - Center - - 1
6 57-20746 5/8" Flat Washer 9 8 8
7 70-20646 5/8" Hex Top Lock Nut Gr 5 NC 17 18 20
Full Skid Shoe Option

6
ITEM NO. QTY. PART NO. DESCRIPTION
1 8 16-21127 1/2" x 1 3/4" Carriage Bolt Gr 5 NC
2 8 16-21672 5/8" X 1 3/4" Plow Bolt Gr 5 NC
3 1 18-42305-L 9' U Snow Blade Outer Skid Shoe, Extended
4 1 18-42305-R 9' U Snow Blade Outer Skid Shoe, Extended
5 2 44-42310 Plate, Bolting
6 1 50-42300 9' U Snow Blade Center Skid Shoe, Extended
7 8 57-20744 1/2" Washer
8 8 57-20756 5/8" Flat Washer - 1-5/16" OD
9 8 70-20604 1/2" Hex Center Lock Nut Gr. 2
10 8 70-20646 5/8" Hex Top Lock Nut Gr 5 NC
6
2
10
8
9
7
5
1
4
3
Full Extended Skid Shoe Option

7
9
10
1
11
3
2
3
4
5
6
7
8
3
12
Item No. Qty. Part No. Description
1 4 16-35C612 3/8" x 3/4" Flanged Bolt
2 2 16-20226 3/4" x 4" Hex Bolt Gr 5 NC
3 5 19-7774 1" x 1" Spring Bushing
4 1 27-2409 Pinch Decal (Hand)
5 2 27-9503 Pinch Decal (Foot)
6 1 27-9507 Grease Decal
7 1 32-8812 Cast Tilt Frame
8 1 43-6903 1-15/16" x 14" Pin
9 1 44-1627 Electric Valv e Cov er Plate
10 1 45-9633 Univ ersal Cast Q.A.
11 1 58-9371 Grease Zerk 1/8" NPT 45°
12 1 70-20607 3/4" Hex Center Lock Nut NC
Universal Quick Attach and Tilt

8
9
10
11
3
1
2
3
4
5
6
7
8
3
12
Item No. Qty. Part No. Description
1 4 16-35C612 3/8" X 3/4" Flanged Bolt
2 2 16-20226 3/4" x 1" Hex Bolt Gr 5 NC
3 5 19-7774 1" x 1" Spring Bushing
4 1 27-2409 Pinch Decal (Hand)
5 2 27-9503 Pinch Decal (Foot)
6 1 27-9507 Grease Decal
7 1 32-8812 Cast Tilt Frame
8 1 43-6903 1-15/16" x 14" Pin
9 1 44-12360 ALO Electric Valv e Cov er Plate
10 1 45-12370 ALO Quick Attach
11 1 58-9371 Grease Zerk 1/8" NPT 45°
12 1 70-20607 3/4" Hex Center Lock Nut NC
ALO Quick Attach and Tilt

9
Standard Quick Attach and Tilt
14
13
15
3
2
Bolt on Bracket Shown on Hydraulic Pages
6
3
7
10
16
17
1
5
9
8
12
11
3
4
Item No. Qty. Part No. Description
1 2 16-20126 1/2" x 1-1/2" Hex Bolt Gr 5 NC
2 2 16-20226 3/4" x 1" Hex Bolt Gr 5 NC
3 5 19-7774 1" x 1" Spring Bushing
4 2 22-17796 Quick Claw Uni Ball - Cat 2
5 1 27-2409 Pinch Decal (Hand)
6 2 27-9503 Pinch Decal (Foot)
7 1 27-9507 Grease Decal
8 1 32-8812 Cast Tilt Frame
9 2 43-11667 Low er Lift Pin - Cat II
10 1 43-13576 Top Pin - Cat II
11 1 43-6903 1-15/16" x 14" Pin
12 1 43-9360 Lynch Pin
13 2 44-8490 1/2" ID - Non Rotating Pin Spacer Bushing
14 1 45-12670 Quick Attach
15 2 57-20794 1/2" Fender Washer
16 1 58-9371 Grease Zerk 1/8" NPT 45°
17 1 70-20607 3/4" Hex Center Lock Nut NC

10
Electrical, Plumbing, Lubrication and Operation
Electrical:
If your loader is equipped with a 12V/4A OEM attachment control kit you may use that circuit to control the
electric solenoid. On loaders without a remote power source, the switching circuit must be installed onto the
loader. A power cord and switch are supplied. (See wiring instructions on page 13)
Plumbing:
The dozer is equipped with angle and tilt; the loader valve operates both functions through an electric crossover
valve that is installed on the dozer. The proper function of the system with angle and tilt is as follows: (See
plumbing diagram on pages 10-12.) The oil is routed directly to the tilt cylinder so it is available at all times to
produce level smooth dozing. To set angle, the operator energizes the solenoid with the OEM or Grouser wire
harness which will divert the oil ow into the angle cylinders.
Lubrication:
The angle pin is to be greased on a regular basis. The cylinder ears contain replaceable bushings and should be
checked for wear and replacement at the operator’s discretion.
Operation:
For maximum strength, the dozer was designed so the loader arms can be in the full down position against the
stops when dozing. If it is necessary to raise the arms in some situations then the operator must be careful not to
overload the arms and cause damage to them.

11
17
16
18
20
Exploded View
Ports As Marked
DETAIL A
LB
LA
TA TB
RB
RA
A
Note: Use PN 31-3616 To Slow Tilt Function.
B
6
6
55
6
6
6
7
Part No. 56-1492
On Valve
5
15
8
1
Right AngleCylinder
Tilt Cylinder
Left Angle Cylinder
4
6
5
2
6
6
5
11
9
12
10
11
913
13
19
3
14
6 or
6 Opt.
1
A
When replacing cylinders that are held in with hitch pin clips,
order 26-34711-K for a new cylinder and hardware.
Item No. Part No. Description Qty.
1 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) 12
2 19-13577 NR Pin Spacer Clev is End 6
3 25-34303 Flush Face Quick Coupler FE Female 2
3 25-34304 Flush Face Quick Coupler FE Male 2
3 25-34311 FF Quick Coupler Female 2
3 25-34312 FF Quick Coupler Male 2
3 25-34321 Tappet Quick Coupler Female 2
3 25-34322 Tappet Quick Coupler Male 2
4 26-34711 4" x 8" Cy linder w / Cast Clev is Ends 3
5 31-34040 8MB-8MJ Straight (6400-8-8) 5
6 31-34050 8MB-8MJ 90° (6801-8-8) 9
6 Opt. 31-3616 8MB-8MJ 90° (6801-8-8) Rest.065 1
7 31-34100 8MJ-8FJX Sw iv el 90° (6500-8-8) 1
8 31-34123 8MB Hollow Hex Plug (6409-8) 2
9 35-30000 15" x 3/8" -8JIC - 8JIC Hose 2
10 35-30003 18" x 3/8" -8JIC - 8JIC Hose 1
11 35-30008 23" x 3/8" -8JIC - 8JIC Hose 2
12 35-30009 24" x 3/8" -8JIC - 8JIC Hose 1
13 35-31232 69" x 3/8" -8JIC - 10MB Hose 2
13 35-31236 81" x 3/8" -8JIC - 10MB Hose 2
13 35-31244 105" x 3/8" -8JIC - 10MB Hose 2
14 43-13580 1" Clev is Bolt In Pin 6
15 56-1492 Electric Selector Valv e 1
16 56-3357 Manifold Block 1
17 68-3487 12V 3A Coil 1
18 68-3356 Cartridge Valv e 1
19 69-8884 70" Wire Harness 1
19 69-8884-81 81" Wire Harness 1
19 69-8884-105 105" Wire Harness 1
20 70-3355 Retainer Nut 1

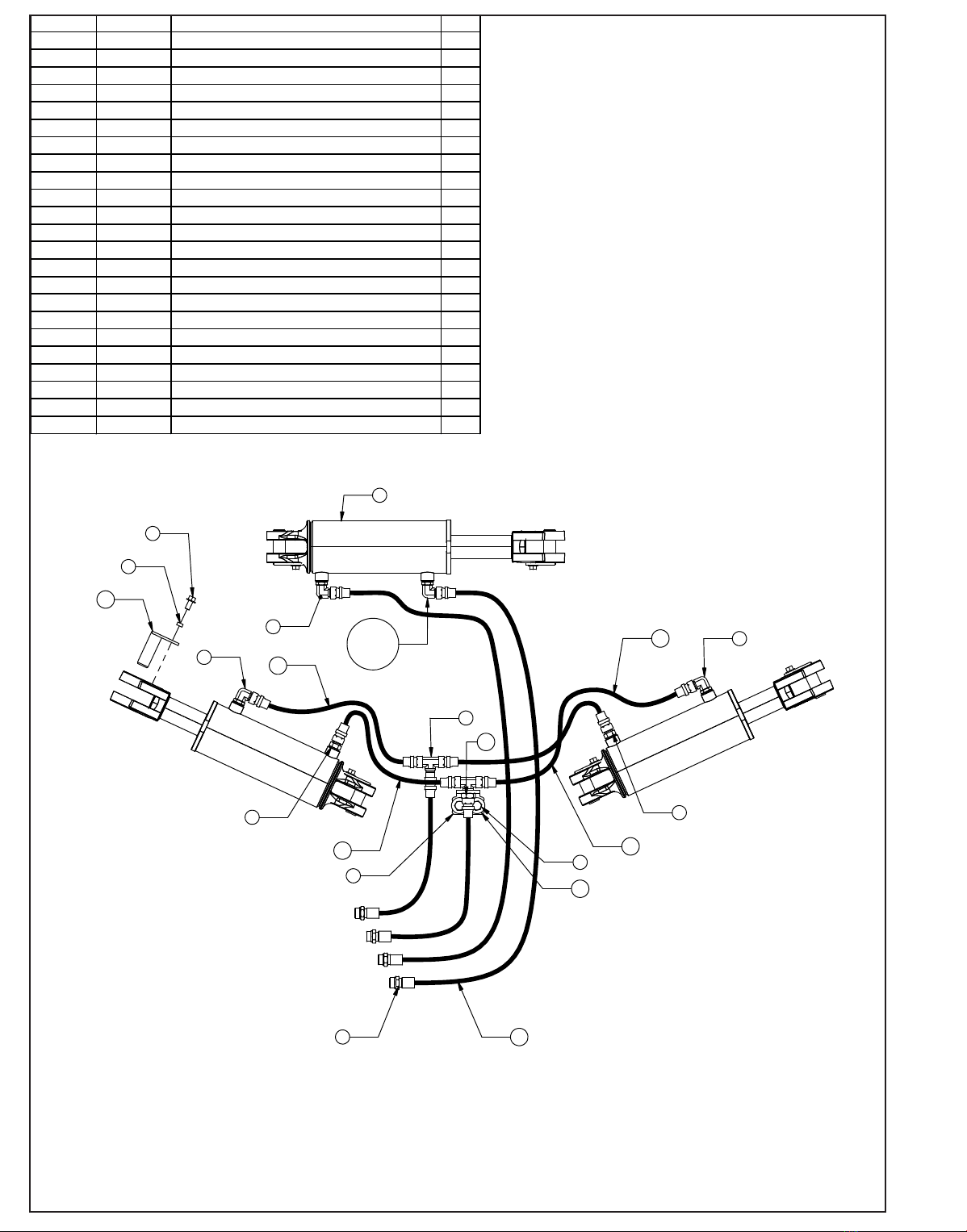

Electric Valve Plumbing

12
order 26-34711-K for a new cylinder and hardware.
When replacing cylinders that are held in with hitch pin clips,
Note: Use PN: 31-3616 To Slow Tilt Function.
4
9 or 9 Opt.
1
Tilt Cylinder
13
9
11
7
14
Left Angle Cylinder
2
11
Right AngleCylinder
12
Note: Hoses Are Not Drawn To Scale.
10
5
8
9
10
4
6
3
9
15
Item No. Part No. Description Qty.
1 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) 6
2 16-20122 1/2" X 3/4 " Hex Bolt Gr 5 NC 2
3 18-16949 Bolt on Bulkhead Tee Bracket 1
4 19-13577 NR Pin Spacer Clevis End 6
5 25-34303 Flush Face Quick Coupler FE Female 4
5 25-34304 Flush Face Quick Coupler FE Male 4
5 25-34311 FF Quick Coupler Female 4
5 25-34312 FF Quick Coupler Male 4
5 25-34321 Tappet Quick Coupler Female 4
5 25-34322 Tappet Quick Coupler Male 4
6 26-34711 4" x 8" Cylinder w/ Cast Clevis Ends 3
7 31-34020 Bulkhead Branch Tee JIC (2703-8-8-8) 2
8 31-34040 8MB-8MJ Straight (6400-8-8) 2
9 31-34050 8MB-8MJ 90° (6801-8-8) 4
9 Opt. 31-3616 8MB-8MJ 90° (6801-8-8) Rest.065 1
10 35-30000 15" x 3/8" -8JIC - 8JIC Hose 2
11 35-30008 23" x 3/8" -8JIC - 8JIC Hose 2
12 35-31232 69" x 3/8" -8JIC - 10MB Hose 4
12 35-31236 81" x 3/8" -8JIC - 10MB Hose 4
12 35-31244 105" x 3/8" -8JIC - 10MB Hose 4
13 43-13580 1" Clevis Bolt In Pin 6
14 57-20744 1/2" Flat Washer 2
15 70-20807 3/4" Hex Jam Nut NF 2
Dual Remote Plumbing

13
order 26-34711-K for a new cylinder and hardware.
When replacing cylinders that are held in with hitch pin clips,
Note: Use PN: 31-3616 To Slow Tilt Function.
5
18 11
1
10 10
Left AngleCylinder
Note: Hoses Are Not Drawn To Scale.
4
11
10
9
4
15
12
12
10
Tilt Cylinder
6
10
2
17
10 or 10 Opt.
Right AngleCylinder
13
8
1
14
16
Item No. Part No. Description Qty.
1 16-20040 5/16" x 2-1/2" Hex Bolt Gr 5 NC 2
2 16-20122 1/2" x 3/4" Hex Bolt Gr 5 NC 4
3 16-35C612 3/8"-16 x 3/4" Flanged Bolt (Yellow Zinc) 6
4 18-16947 Bolt on Relief Valve Bracket 1
5 19-13577 NR Pin Spacer Clevis End 6
6 25-34303 Flush Face Quick Coupler FE Female 4
6 25-34304 Flush Face Quick Coupler FE Male 4
6 25-34311 FF Quick Coupler Female 4
6 25-34312 FF Quick Coupler Male 4
6 25-34321 Tappet Quick Coupler Female 4
6 25-34322 Tappet Quick Coupler Male 4
7 26-34711 4" x 8" Cylinder w/ Cast Clevis Ends 3
8 31-34070 Run Tee JIC x O-Ring (6804-8-8-8) 2
9 31-34040 Straight JIC x O-Ring (6400-8-8) 2
10 31-34050 Straight Thread Elbow 90° JIC x O-Ring (6801-8-8) 6
10 Opt. 31-3616 8MB-8MJ 90° (6801-8-8) Rest.065 1
11 35-30012 27" x 3/8" -8JIC - 8JIC Hose 2
12 35-30015 30" x 3/8" -8JIC - 8JIC Hose 2
13 35-31236 81" x 3/8" -8JIC - 10MB Hose 4
14 35-31244 105" x 3/8" -8JIC - 10MB Hose 4
15 43-13580 1" Clevis Bolt In Pin 6
16 56-7772 Relief Valve 1
17 57-20744 1/2" Flat Washer 2
18 70-20611 5/16" Nyloc Nut 2
Relief Valve Plumbing

14
Item Part # Description
1 8884 Grouser 70” Wire Harness Assy o󰀨 Valve-Trailer End Universal
1 8951 Grouser Attachment Control Kit—23.5’ Universal
2 3554 ASV RC-50 Wire Harness 11’ w/ Switch-Trailer ASV
3 3750 ASV RC-100 WIRE HARNESS ASSY (8 Pin) ASV
2 9291 BC Wire Harness Adapter -Trailer (14 pin) Bobcat
NA 7986 Case Wire Harness Adapter -Trailer (8-pin) Case
3 1444 Cat Wire Harness Adapter Assembly-Trailer (8 pin) Caterpillar
2 1886 JD Wire Harness Adapter -Trailer (3 pin) John Deere
2 1438 JD Wire Harness Adapter -Trailer (14 pin) John Deere
2 9255 Case/NH Wire Harness Adapter-Trailer (14 pin) Case/New Holland
1 3791 Gehl/Mustang/Takeuchi Wire Harness Gehl/Mustang/Takeuchi
3 1444 Komatsu Wire Harness Adapter Assembly-Trailer (8 pin) Kamatsu
123
Approx.
2.00"
Control Handle
2: Attach Switch To Control Handle With Rubber Mounting Strap.
3: To Support The Wire, Use A Second Rubber Mounting Strap Below The Control Handle To Attach The Wire To The Control Rod.
Power Source
Connect To Positive
Connect To Chassis Ground
Black Wire
(Female)
Hot Lead
(Male)
Ground Lead
Red Wire
1: Route And Tie Wire Harness Properly To Avoid Pinching Or Tearing By Boom.
4: Connect Ground (Black Wire) And Power (Red Wire) To A Keyed and Fused Power Supply As Shown.
5: Connect 2 Prong Connector To Mating Connector On Dozer Blade.
Rubber Mounting
Strap
Switch
3359R2
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF GROUSER PRODUCTS INC IS PROHIBITED.
Date:
1300 Wire Harness Installation
1
None
GROUSER PRODUCTS INC.
TITLE
Scale:
WWW.GROUSER.COM
DWG. NO.
Sheet:
755 2nd Ave NW Phone [phone]
West Fargo, ND 58078 Fax [phone]
1/2/07
Wire Harness Installation

15
"B" "C"
30°
38.97
6.99
32.07
39.23
13.25
"F"
"A"
"D"
"E"
"G"
All Models
10°
8' 9' 10'
Dim "A" 15.14" 16.63" 17.42"
Dim "B" 32.31" 36.41" 41.62"
Dim "C" 49.97" 55.57" 60.77"
Dim "D" 82.28" 91.99" 102.39"
Dim "E" 87.31" 97.11" 107.52"
Dim "F" 94.89" 106.08" 118.08"
Dim "G" 97.15" 108.35" 120.35"
Dimensions

16
Grouser Products warrants to the original purchaser of each item that the product be free from defects in
material and workmanship under normal use and service for a period of two years. If such equipment is found to be
defective within two years, it is the obligation of Grouser Products under this warranty to repair or replace (exclusive
of the cost of labor and transportation), any equipment or parts, in the judgment of Grouser Products to be defective
in material or workmanship.
All equipment or parts claimed to be defective in material or workmanship must be made available for
inspection at the place of business of a dealer authorized to handle the equipment covered by this warranty, or,
upon request by Grouser Products, shipped to the Grouser Products factory in West Fargo, North Dakota. Grouser
Products shall have no obligation to bear the cost of labor or transportation in connection with replacement or repair
of any such defective parts in the setup process.
This warranty covers only defects in material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper assembly, improper adjustments, improper maintenance including lack
of proper lubrication, or improper use. Therefore, Grouser Products liability under this warranty shall not be e󰀨ective
or actionable unless the equipment is assembled, maintained and operated in accordance with the operating
instructions accompanying the equipment. Grouser Products shall have no liability if the equipment has been altered
or reworked without the written authorization of Grouser Products.
Grouser Products’ parts, which are furnished under this warranty and properly installed, shall be warranted
to the same extent as the original parts under this warranty if, and only if, such parts are found to be defective within
the original warranty period covering the original equipment.
Warranty
Contact Us
Improvements
Grouser Products Inc. is continually striving to improve its products. We reserve the right to change prices,
specication, or equipment at any time without notice. We also reserve the right to make improvements or changes
when it becomes practical and possible to do so without incurring any obligation to make changes or additions to
the equipment sold previously.
As always, if you have any questions about your 1300 U-Blade or other products made by Grouser, feel free to
contact us.
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com
