Grouser Products AG240 User manual

Date 11-2-2023
PN: 63-44623
AG240 Dozer
Owner’s Manual & Parts Book
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Serial #:10208809-Current
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com

2
Description Page
Welcome To The Owner 2
Safety Precautions, Torque Specications & Abbreviation Key 3
Decals 4
Maintenance & Lubrication 5
Connecting and Disconnecting the Blade 6
Tilt Plate & Skid Shoe Adjustment 7
12’-16’ Hydraulic Angle-Hydraulic Tilt Blade Assembly 8
10’-16’ Hydraulic Angle-No Tilt Blade Assembly 9

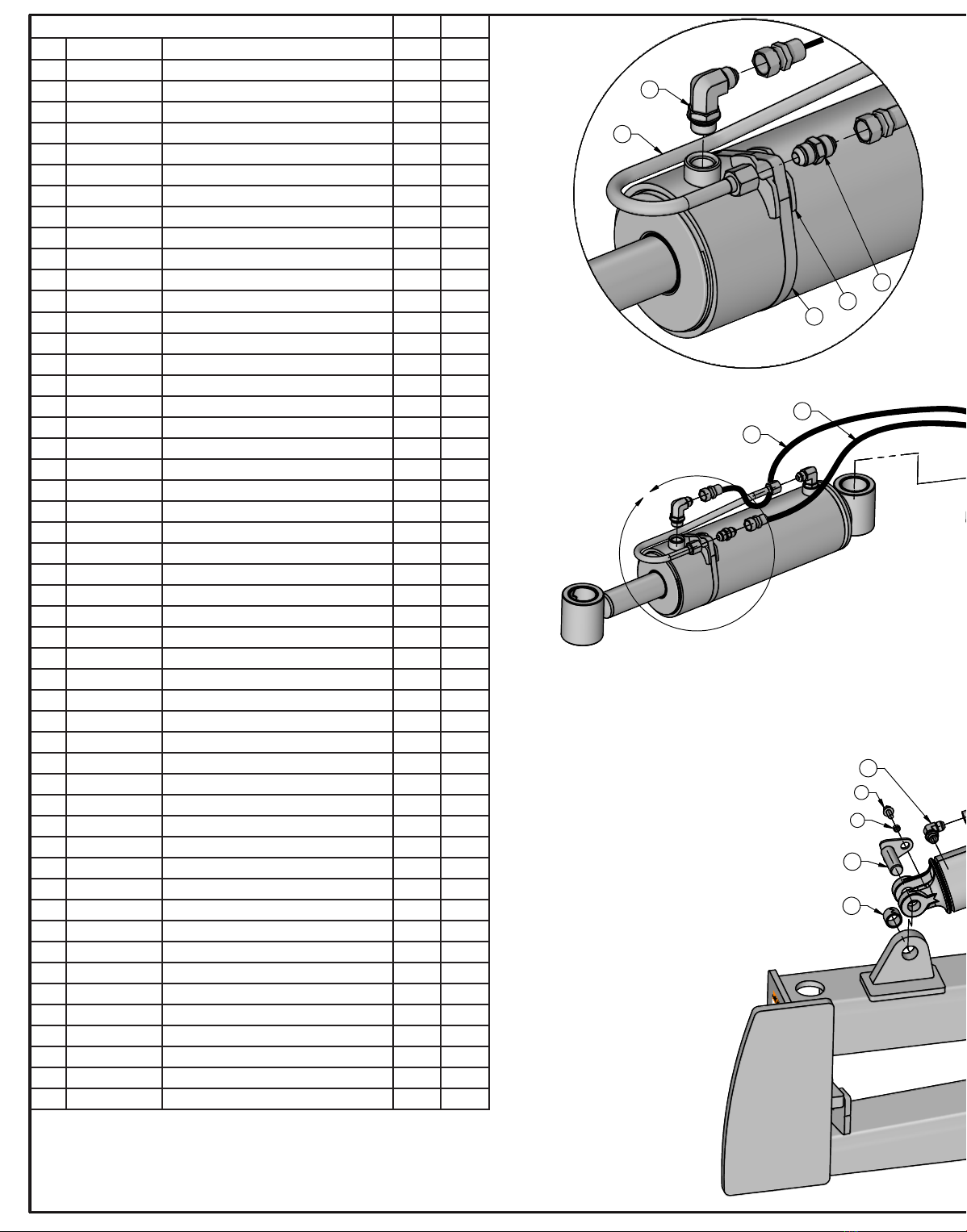

Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle No Tilt System 10-11
Blade Options 12-13
Replacement Parts 14

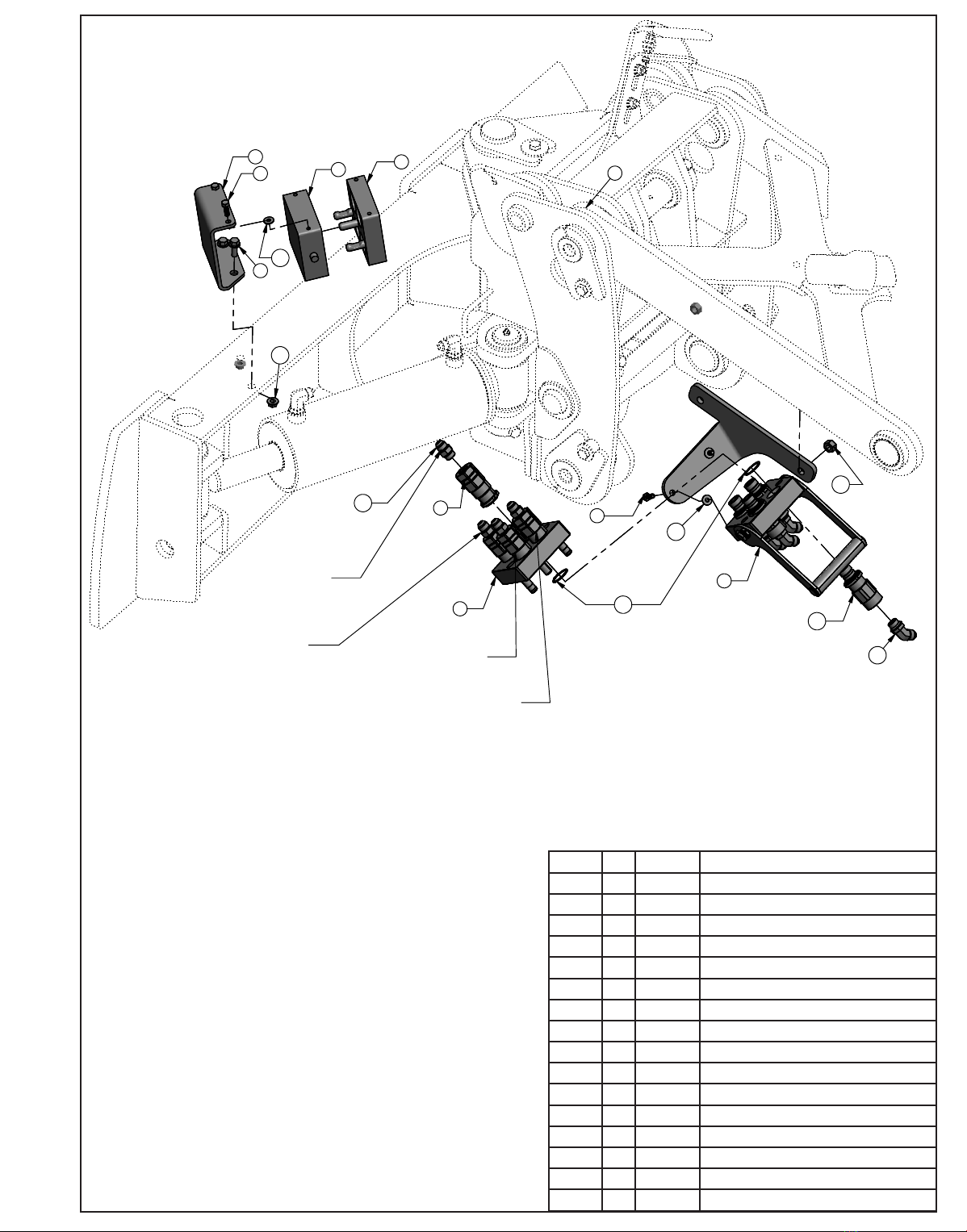

HAHT Hydraulic Multi-Coupler Option 15
HANT Hydraulic Multi-Coupler Option 16

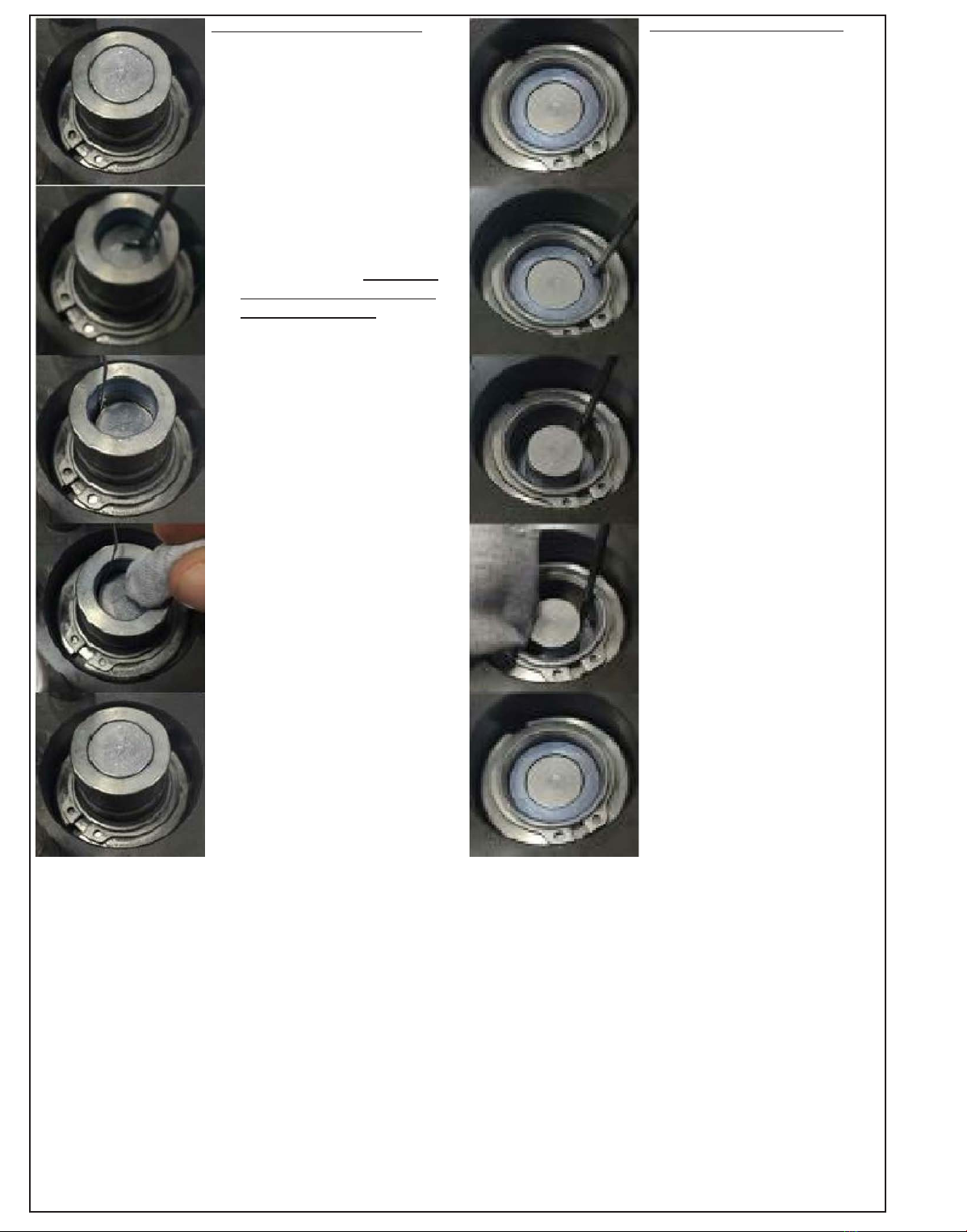

Hydraulic Multi-Coupler Maintenance 17-18

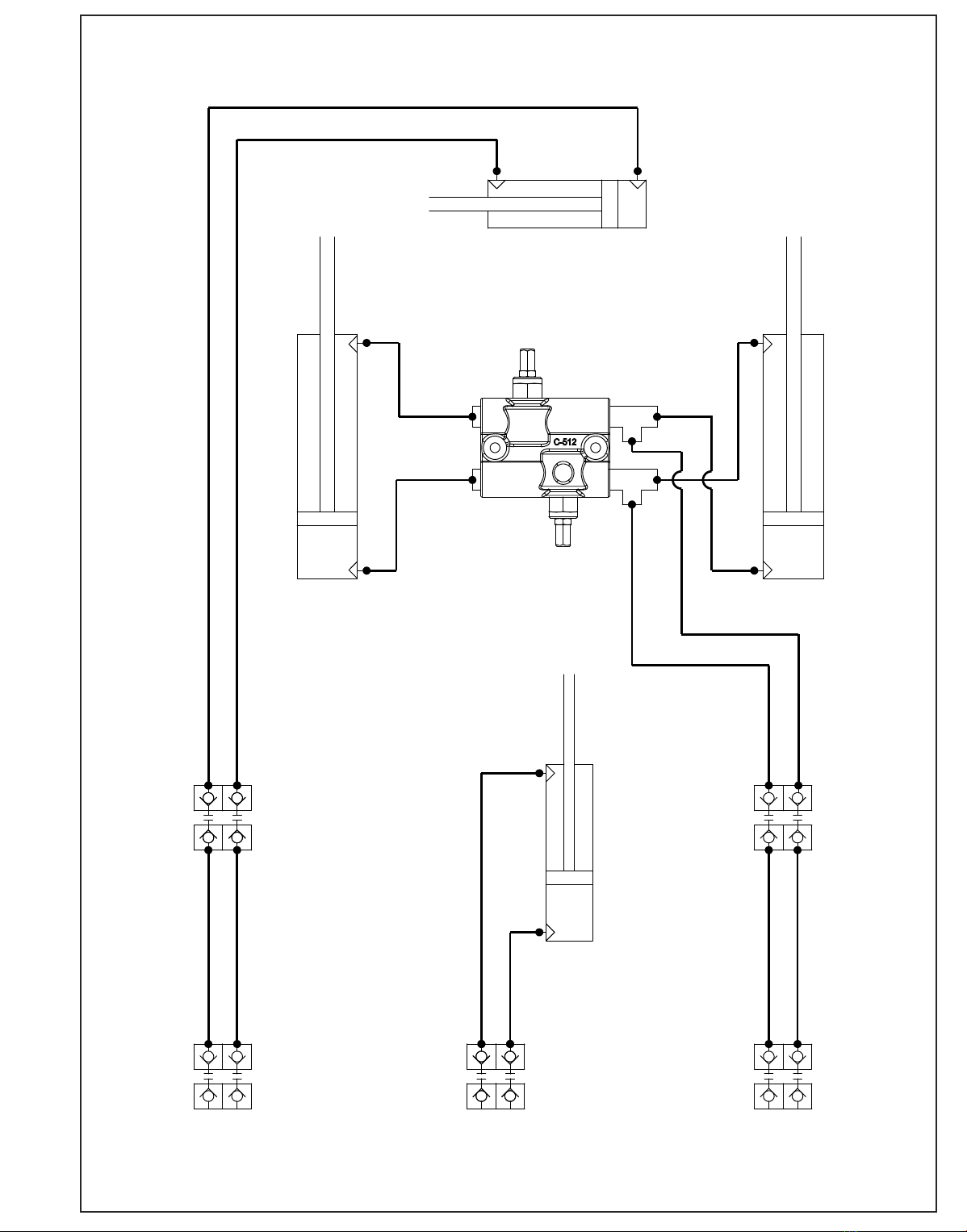

Hydraulic Schematic 19
Contact Us, Improvements, & Warranty 20
Thank you for your recent purchase of a Grouser dozer blade. Welcome to the family of satised Grouser blade owners.
Grouser Products is committed to o󰀨ering quality products to help professionals in their daily jobs. We are also committed
to providing you the highest level of customer satisfaction possible. Again, thank you for your patronage. We look
forward to serving you.
This manual contains information concerning the operation, adjustment, safety and maintenance of the AG240 Dozer.
You have purchased a dependable, long lasting piece of equipment. You can expect to receive long lasting performance
and long service built into our products with proper care and operation. Please have all operators read and understand
this manual carefully. Keep the manual available for reference. If, for any reason, you have questions or comments, we
would be happy to hear from you. Call our toll-free number, 701-282-7710, or send us an e-mail at [e-mail].
You can expect us to respond to your e-mail in a timely manner.
ContentsWelcome to the Owner

3
A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help
prevent accidents, read and take the following precautions before operating this equipment. In addition, please follow
all safety and operational instructions of your tractor manufacturer.
The Dozer:
1. The AG240 Dozer should be operated only by those who are responsible and instructed to do so.
2. Read the owner’s manual carefully before using this equipment. Lack of operating knowledge can lead to accidents.
3. Keep the dozer maintained in reliable and satisfactory condition to ensure your safety.
4. Make sure the area is clear of people before moving any equipment.
5. Do not modify or permit anyone else to modify or alter the equipment and its components without rst consulting
Grouser Products.
6. Lower the blade to the ground when not in use.
Servicing the Dozer:
1. Read and follow all safety instructions provided by the tractor manufacturer.
2. Always use proper personal safety gear when performing maintenance on equipment.
3. Before servicing, relieve hydraulic pressure, stop engine and fully engage parking brake.
4. Escaping hydraulic uid under pressure can penetrate skin causing serious injury. If uid is injected into skin, obtain
medical attention immediately.
– DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks.
– Stop the engine and relieve pressure before connecting or disconnecting lines.
– Tighten all connections before starting the engine or pressurizing lines.
Storing the Dozer:
1. Thoroughly clean the inside and outside of the dozer before storage. Use paint where necessary to prevent rust.
2. Check the dozer for worn or damaged parts. Install new parts as required.
3. Lubricate all pins and joints.
Tighten all bolts to the values listed below unless otherwise noted. Refer to the parts lists for proper length and grade of
the bolts.
Torque - Dry (ft–lbs)
SAE Grade 5 SAE Grade 8
Size UNC UNF UNC UNF
5/16 17 19 24 27
3/8 30 35 45 50
7/16 50 55 70 80
1/2 75 85 110 120
9/16 110 120 150 170
5/8 150 170 210 240
3/4 260 300 380 420
7/8 430 470 600 670
1 640 720 910 1020
Torque - Dry (ft-lbs)
Size Grade 10.9
M18 x 2.50 284
M20 x 2.50 401
M22 x 2.50 547
M24 x 3.00 694
Angle/Tilt Function Abbreviation Key
HAHT Hydraulic Angle - Hydraulic Tilt 6-Way
HANT Hydraulic Angle - No Tilt 4-Way
NANT No Angle - No Tilt 2-Way
Safety Precautions Torque Specications Abbreviation Key

4
Decals
27-9503
PN: 27-9503 PN: 27-2409
Left and Right Side
PN: 27-40962

5

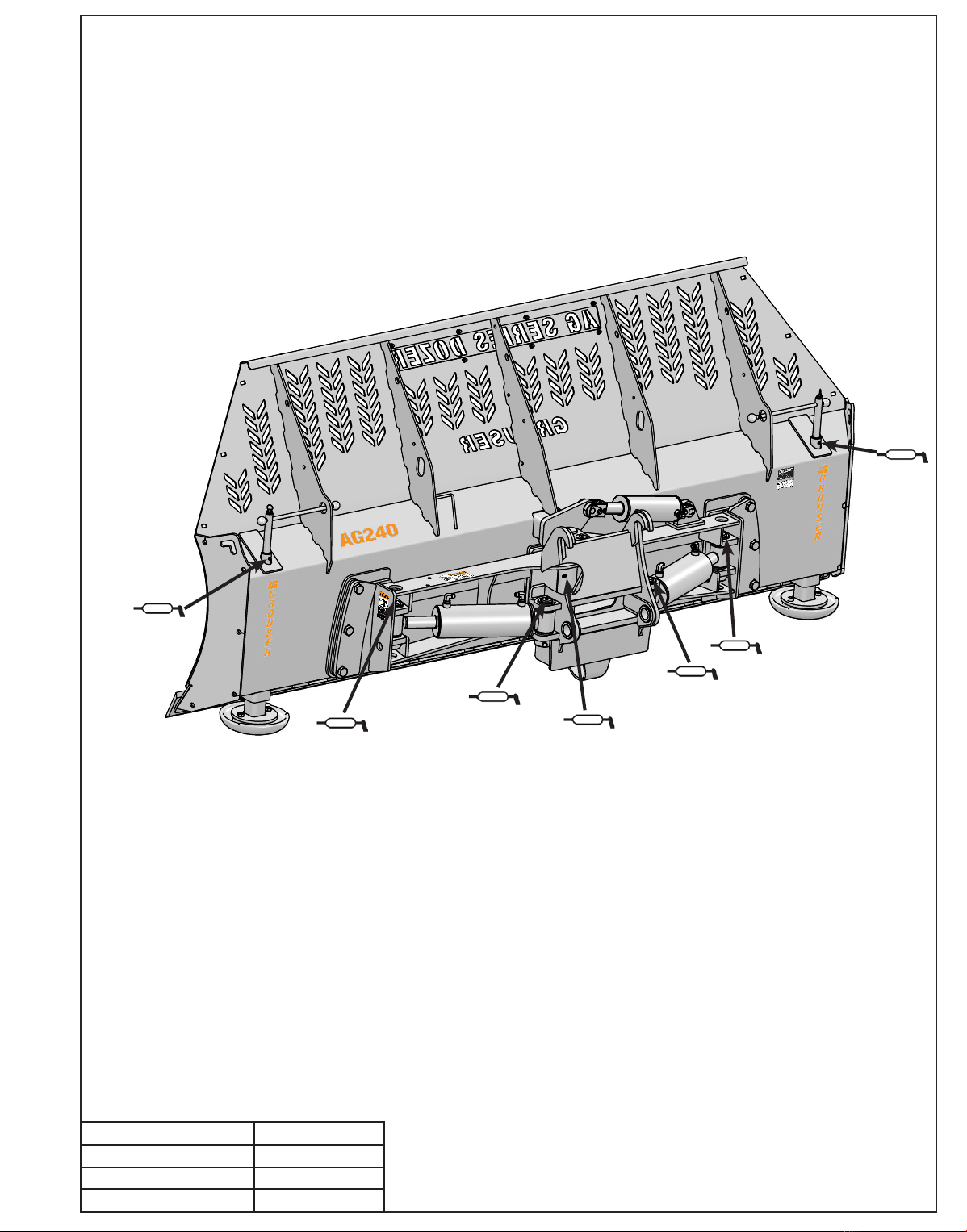

Maintenance & Lubrication
NOTE: Only the HAHT system is shown.
HAHT and HANT have similar grease locations.
NANT only has grease locations on the ratchet jacks.
Grease Locations
Hydraulic Angle & Hydraulic Tilt 10
Hydraulic Angle & No Tilt 10
No Angle & No Tilt 4
Due to the harsh environment this equipment operates in, the following tasks should be
performed every 10 hours or less.
• Inspect all equipment before operation for existing or potential damage.
• Lubricate all joints with high quality grease. See below for grease locations.
• Inspect all bolts, and tighten any loose bolts to torque specications on page 3.
• Check replaceable cutting edge for wear ensuring there is enough material to prevent permanent damage to the blade.
• Check hydraulic cylinders and hoses for damage or leaks. For replacement parts, see hydraulic pages for your specic
system.
• If equipped with hydraulic multi-coupler, see page 16-18 for hydraulic multi-coupler maintenance.
• Make sure all non-rotating pins are secured properly.
• Inspect all decals and order replacement decals from your dealer if any are damaged or worn.
• Check skid shoes for wear and replace if necessary. For adjustment, see page 7.
• Inspect all tilt-ways for wear. See page 7 for tilt plate adjustment.
• Replace parts with original parts only.
1X
4X
4X
4X
4X
1X
6X
2 Places

6
To Connect:
Note: If necessary, use a spotter to help center the blade on the lift system.
1. Lift the locking latch and push the quick attach lock handle on the left side of the lift system to open the quick attach
system. Refer to Lift System Parts Book for further clarication on the quick attach system.
2. Drive the tractor forward slowly until the top edge of the male quick attach is under the top angle frame hook.
3. Raise the lift system until the male quick attach engages the angle frame hooks. Continue to raise the lift system
until the blade is o󰀨 the ground and the angle frame is against the front of the male quick attach.
4. Shut o󰀨 the tractor engine and set the parking brake.
5. Pull the quick attach lock handle to engage the quick attach pins and lift the locking latch to lock the handle in place.
6. Clean and connect hydraulic couplers on the top arm. Refer to Lift System Parts Book for proper locations of all
functions.
To Disconnect:
1. Lower the blade until the cutting edge is o󰀨 the ground a few inches.
2. Shut o󰀨 the tractor engine and set the parking brake.
3. Unhook all of the hydraulic couplers on the top arm.
4. Lift the locking latch and push the quick attach lock handle to disengage the quick attach pins.
5. Start tractor, disengage the parking brake, and lower the blade until cutting edge is on the ground.
6. Continue to slowly lower the lift system to disengage the blade.
7. Slowly back away from the blade. When lift system is clear from the blade, raise the lift system.
8. Shut o󰀨 the tractor engine and set the parking brake.
9. Pull the quick attach lock handle and lift the locking latch to lock the handle in place.
Connecting and Disconnecting the Blade

7

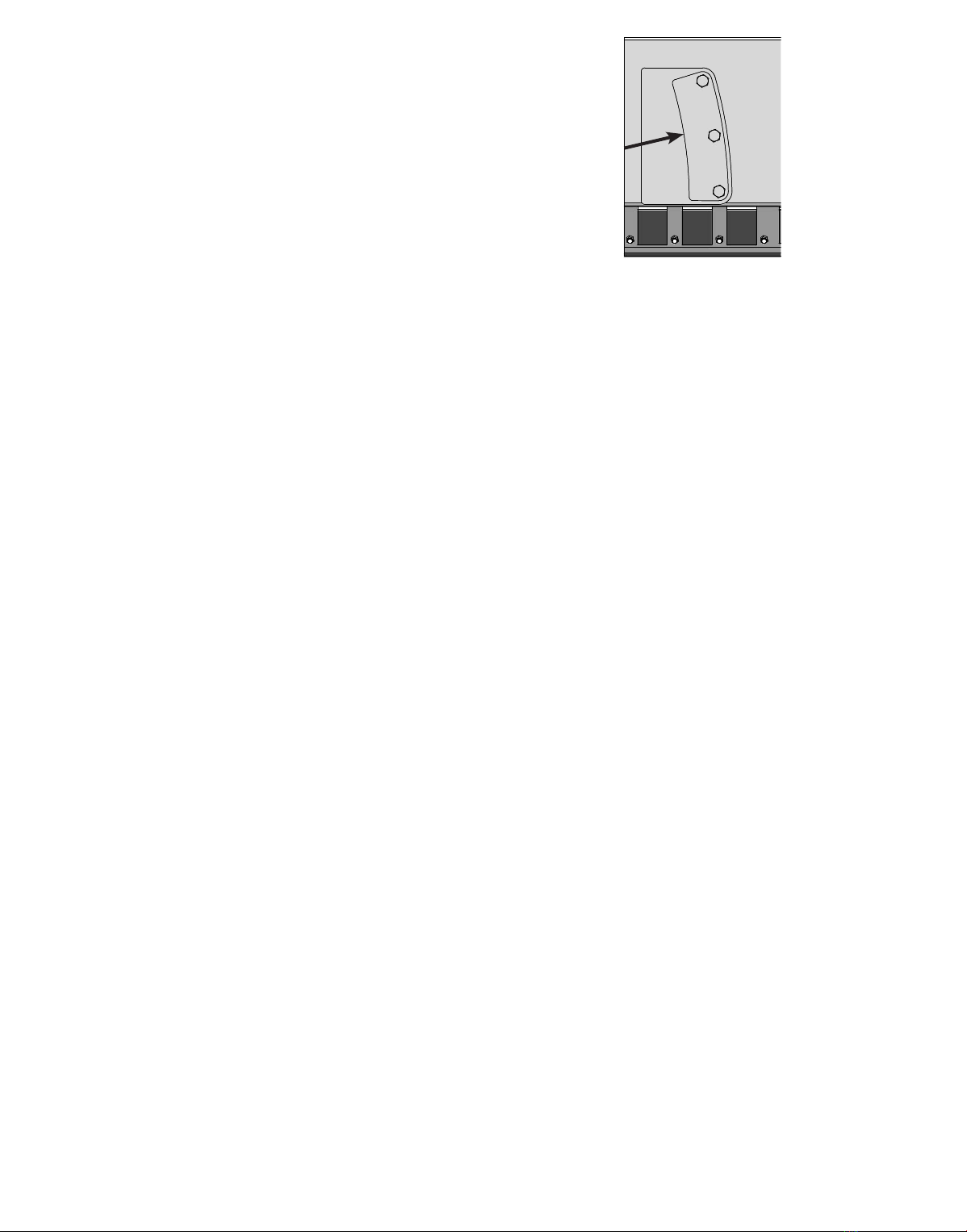

Tilt Plate
Note: Do not remove all of the bolts at the same time.
1. The preferred blade position for adjusting the tilt plates is laying
face down on blocks.
2. Remove the top and bottom bolts from each tilt plate.
3. Add or remove washers as needed to adjust tilt-way clearance
to 1/16” - 1/8”.
4. Reinstall top and bottom bolts.
5. Follow Steps #2-4 for the center bolts.
6. Once the tilt-way clearance is set, torque bolts to 640 ft-lbs.
Tilt Plate & Skid Shoe Adjustment
Skid Shoe Adjustment:
1. Pull up on the retractable plunger on the top of the threaded rod to release the handle.
2. Slide the handle out from the locking position on the blade.
3. Turn the handle to adjust the skid shoe to the preferred height.
4. Place the hande back in the hole on the blade and lock in place with the retractable plunger.

8
ITEM
NO. PART NO.
12'
Qty.
14'
Qty.
16'
Qty. DESCRIPTION
1 15-41815-12 1 - - 240 Blade Weld - 12'
1 15-41815-14 - 1 - 240 Blade Weld - 14'
1 15-41815-16 - - 1 240 Blade Weld - 16'
2 16-20069 2 2 2 3/8" X 2-1/4" Hex Bolt Gr 5 NC CZ
3 16-20560 6 6 6 1" X 2-1/2" Hex Bolt Gr 8 NC YZ
4 16-20562 1 1 1 1" X 3" Hex Bolt Gr 8 NC YZ
5 16-21064 8 8 8 3/8" x 1" Carriage Bolt Gr 5 NC CZ
6 16-21666 28 32 36 5/8" X 1-3/4" Plow Bolt Gr 5 NC
7 19-43777 2 2 2 Bushing
8 19-7774 1 1 1 1" x 1" Spring Bushing
9 27-17262 1 1 1 Ag 240 Decal
10 27-40962 1 1 1 Warning Prop 65 Decal
11 27-9505 2 2 2 Grouser Vertical Decal
12 NA 1 1 1 Serial Number Tag
13 29-7950-6 2 - - Cutting Edge
13 29-7950-7 - 2 - Cutting Edge
13 29-7950-8 - - 2 Cutting Edge
ITEM
NO. PART NO.
12'
Qty.
14'
Qty.
16'
Qty. DESCRIPTION
14 34-40852 2 2 2 Retractable Spring Plunger, 3/8"
15 34-40853 4 4 4 Knob, 1-1/2" Ball
16 44-15339 1 1 1 Back Drag Plate
17 44-16880 1 1 1 Ag Series Name Plate
18 50-15458 2 2 2 12” Round Mushroom Skid Shoe
19 50-40739 2 2 2 Skid Shoe Mount, 240
20 50-40857 2 2 2 Handle, Skid Shoe
21 50-43775 2 2 2 Threaded Rod, Skid Shoe
22 52-17265 2 2 2 240 Tilt Plate
23 57-20749 18 18 18 1" Flat Washer CZ
24 58-9369 2 2 2 Straight 1/8" NPT Grease Zerk
25 70-20612 2 2 2 3/8" Nyloc Hex Nut Gr 5 NC CZ
26 70-20622 8 8 8 3/8" Flange Hex Nut Gr 5 NC CZ
27 70-20646 28 32 36 5/8" Hex Top Lock Nut Gr 5 NC CZ
25
16
24
17
7
26
14
27
20
10
15
13
1
21
18
8
12
22
27
5
6
3
4
19
6
9
11
23
2
12’-16’ Hydraulic Angle-Hydraulic Tilt Blade Assembly

9
21
9
18
18
19
7
20
15
12
2
2
4
14
6
13
3
5
4
10
17
16
11
19
1
8
5
ITEM
NO. PART NO.
10'
Qty.
12'
Qty.
14'
Qty. DESCRIPTION
1 15-42385-10 1 - - 240 HANT Blade Weld
1 15-42385-12 - 1 - 240 HANT Blade Weld
1 15-42385-14 - - 1 240 HANT Blade Weld
2 16-20069 2 2 2 3/8" X 2-1/4" Hex Bolt Gr 5 NC CZ
3 16-21064 8 8 8 3/8" x 1" Carriage Bolt Gr 5 NC CZ
4 16-21666 24 28 30 5/8" X 1-3/4" Plow Bolt Gr 5 NC
5 19-43777 2 2 2 Bushing
6 27-17262 1 1 1 Ag 240 Decal
7 27-40962 1 1 1 Warning Prop 65 Decal
8 27-9505 2 2 2 Grouser Vertical Decal
9 NA 1 1 1 Serial Number Tag
10 29-7950-5 2 - - Cutting Edge
10 29-7950-6 - 2 - Cutting Edge
10 29-7950-7 - - 2 Cutting Edge
ITEM
NO. PART NO.
10'
Qty.
12'
Qty.
14'
Qty. DESCRIPTION
11 34-40852 2 2 2 Retractable Spring Plunger, 3/8"
12 34-40853 4 4 4 Knob, 1-1/2" Ball
13 44-16880 1 1 1 Ag Series Name Plate
14 50-15458 2 2 2 12” Round Mushroom Skid Shoe
15 50-40739 2 2 2 Skid Shoe Mount, 240
16 50-40857 2 2 2 Handle, Skid Shoe
17 50-43775 2 2 2 Threaded Rod, Skid Shoe
18 58-9369 4 4 4 Straight 1/8" NPT Grease Zerk
19 70-20612 2 2 2 3/8" Nyloc Hex Nut Gr 5 NC CZ
20 70-20622 8 8 8 3/8" Flange Hex Nut Gr 5 NC CZ
21 70-20646 24 28 30 5/8" Hex Top Lock Nut Gr 5 NC CZ
ITEM
NO. PART NO.
10'
Qty.
12'
Qty.
14'
Qty. DESCRIPTION
11 34-40852 2 2 2 Retractable Spring Plunger, 3/8"
12 34-40853 4 4 4 Knob, 1-1/2" Ball
13 44-16880 1 1 1 Ag Series Name Plate
14 50-15458 2 2 2 12” Round Mushroom Skid Shoe
15 50-40739 2 2 2 Skid Shoe Mount, 240
16 50-40857 2 2 2 Handle, Skid Shoe
17 50-43775 2 2 2 Threaded Rod, Skid Shoe
18 58-9369 4 4 4 Straight 1/8" NPT Grease Zerk
19 70-20612 2 2 2 3/8" Nyloc Hex Nut Gr 5 NC CZ
20 70-20622 8 8 8 3/8" Flange Hex Nut Gr 5 NC CZ
21 70-20646 24 28 30 5/8" Hex Top Lock Nut Gr 5 NC CZ
ITEM
NO. PART NO.
10'
Qty.
12'
Qty.
14'
Qty. DESCRIPTION
1 15-42385-10 1 - - 240 HANT Blade Weld
1 15-42385-12 - 1 - 240 HANT Blade Weld
1 15-42385-14 - - 1 240 HANT Blade Weld
2 16-20069 2 2 2 3/8" X 2-1/4" Hex Bolt Gr 5 NC CZ
3 16-21064 8 8 8 3/8" x 1" Carriage Bolt Gr 5 NC CZ
4 16-21666 24 28 30 5/8" X 1-3/4" Plow Bolt Gr 5 NC
5 19-43777 2 2 2 Bushing
6 27-17262 1 1 1 Ag 240 Decal
7 27-40962 1 1 1 Warning Prop 65 Decal
8 27-9505 2 2 2 Grouser Vertical Decal
9 NA 1 1 1 Serial Number Tag
10 29-7950-5 2 - - Cutting Edge
10 29-7950-6 - 2 - Cutting Edge
10 29-7950-7 - - 2 Cutting Edge
12’-16’ Hydraulic Angle-No Tilt Blade Assembly

10
A
48
40
15
19
2
21
43
11
23
22
1
33
34
32 33
32
46
39
45
3
24
41
4
10
5
8
37
14
16
17
38
25
20
30
29
12
13
36
35
9
44
B
18
DETAIL B
27
21
26
31
47
6
DETAIL A
1
42
7
7
28
Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle-No Tilt System
Conguration HAHT HANT
Item Part No. Description Qty. Qty.
1 16-20040 5/16” x 2-1/2” Hex Bolt Gr 5 NC 3 2
2 16-20125 1/2” X 1-1/4” Hex Bolt Gr 5 NC 1 -
3 16-20134 1/2” x 3-1/2” Hex Bolt Gr 5 NC 4 4
4 16-20558 1” x 2” Hex Bolt Gr 8 NC 1 1
5 16-35C612 3/8” x 3/4” Flanged Bolt 2 -
6 18-19311-02-P-062 Hose Clamp 1 -
7 18-19312-02 Twin Cover Plate 2 -
8 19-13577 NR Pin Spacer Clevis End 2 -
9 19-40419 2.25 x 2.00 x 1.38 Spring Bushing 8 8
10 19-7774 1”x1” Spring Bushing 1 -
11 25-34342 Tappet Quick Coupler - Male 4 2
12 25-3453 Pioneer Dust Cap Tilt (Green) 2 -
13 25-3455 Pioneer Dust Cap Angle (Red) 2 2
14 26-34711 4 x 8 Cylinder W/ Cast Clevis Ends 1 -
15 26-34748 5 x 12 Cylinder W/ Tube Ends (2.0”) 2 2
15A 26-34759 5 x 10 Cylinder W/ Tube Ends (2.0”) 2 2
16 27-2409 Pinch Decal (Hand) 1 -
17 27-9503 Pinch Decal (Foot) 2 -
18 31-11699-8-8 JIC Union (2403-8-8) 2 2
19 31-34040 Straight JIC x O-Ring (6400-8-8) 2 2
20 31-34050 Straight Thread Elbow 90° JIC x O-Ring (6801-8-8) 2 -
21 31-34051 Straight Thread Elbow 90° JIC x O-Ring (6801-8-10) 8 6
22 31-34070 Run Tee JIC x O-Ring (6804-8-8-8) 2 2
23 31-34100 Swivel Nut Elbow 90° JIC (6500-8-8) 2 2
24 32-18400 Tilt Frame (2.0”) 1 -
25 32-18410 Angle Frame (2.0”) 1 1
26 34-12932 Cylinder Saddle 2 2
27 34-12933 Hose Clamp 2 2
28 34-13807 Spring, Hose Support 1 -
29 34-18888-GR -12 Green - Spiral Band 2 -
30 34-18888-RD -12 Red - Spiral Band 2 2
31 35-17260 240 Formed Steel Line 2 2
31A 35-40780 240 Formed Steel Line (LPA) 2 2
32 35-31010 25” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
33 35-31013 28” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
34 35-31022 39” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
35 35-31030 63” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 1 -
36 35-31032 69” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 1 -
37 43-13580 1” Clevis Bolt in Pin 2 -
38 43-16925 Angle Pin 1 1
39 43-18405 Cylinder Pin (2”) 4 4
40 56-7772 Relief Valve 1 1
41 57-16928 3.50” OD x 1.06” ID Washer 1 1
42 57-20791 5/16” Fender Washer 1 -
43 57-20794 1/2” Fender Washer 1 -
44B 57-10382 1” Machinery Washer 3 3
45 58-9369 Grease Zerk 1/8” NPT Straight 4 4
46 58-9371 Grease Zerk 1/8” NPT 45° 2 2
47 70-20581 5/16” Hex Nut NC 1 -
48 70-20604 1/2” Hex Center Lock Nut NC 4 4
Item A: For Challenger 1000 & Fendt 1000 Tractors.
Item B: Quantity of washer may vary.
See Page 19 for hydraulic schematic.

11
A
48
40
15
19
2
21
43
11
23
22
1
33
34
32 33
32
46
39
45
3
24
41
4
10
5
8
37
14
16
17
38
25
20
30
29
12
13
36
35
9
44
B
18
DETAIL B
27
21
26
31
47
6
DETAIL A
1
42
7
7
28
NOTE: When ordering cylinder seal kits, the part number on the cylinder is needed. The
number is stamped on the base end of the cylinder opposite of the hydraulic ports.
No. On Cylinder Part No. Description
26-34748 49-12272 Seal Kit 5 x 12 Nitrided Rod
26-34711 49-12271 Seal Kit 4 x 8 Nitrided Rod, Clevis Ends
Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle-No Tilt System

12
9
8
5
9
2
1
3
4
8
6
7
5
11 8
3
9
1
17
16
10
5
6
16
12
17
13
14
6
2
240 U-End Plates (U-End) - 19349-K
Item Qty. Part No. Description
1 1 11-18640-L 240 - U-End Plate Brace - Left
2* 1 11-18640-R 240 - U-End Plate Brace - Right
3 4 16-20190 5/8” x 2 1/2” Hex Bolt Gr 5 NC
4 10 16-20219 3/4” x 2-1/4” Hex Bolt Gr 5 NC
5 6 16-20508 3/4” x 2” Hex Bolt Gr 8 NC
6 2 44-19349 240 - 1/2” Box End Plates (U-End)
7 2 44-18645 Lift Hook Washer
8 4 57-20816 5/8” Flat Washer Grade 8 (USS)
9670-20597 3/4” Hex Nut Gr 8 NC
10 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
11 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
Top Ext. for U-End Plates - 19348-K
Item Qty. Part No. Description
12 6 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
13 6 16-21125 1/2” x 1-1/4” Carriage Bolt Gr 5 NC
14 1 44-19348-L 240 - Top Ext for U-End Plates - Left
15* 1 44-19348-R 240 - Top Ext for U-End Plates - Right
16 12 57-20744 1/2” Flat Washer
17 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
240 Box End Plates - 40465-K
Item Qty. Part No. Description
1 10 16-20222 3/4” x 3” Hex Bolt Gr 5 NC
2 2 44-40465 240 - 3/4” Bent End Plates (Std Straight)
3 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
Top Ext. for Box End Plates - 19351-K
Item Qty. Part No. Description
4 6 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
5 6 16-21125 1/2” x 1-1/4” Carriage Bolt Gr 5 NC
6 1 44-19351-L 240 - Top Ext for Box End Plates - Left
7* 1 44-19351-R 240 - Top Ext for Box End Plates - Right
8 12 57-20744 1/2” Flat Washer
9 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
Blade Options
* Parts Not Shown
* Parts Not Shown

13
6
9
1
8
2
4
3
5
10
8
11
7
4
3
5
6
1
12
Blade Options
* Parts Not Shown
FH-440 to 240 Extension Assy - 40285-A
Item Qty. Part No. Description
1 1 11-40610R1 440 To 240 Adapter Stand
2 2 16-20134 1/2” X 3 1/2” Hex Bolt Gr 5 NC
3 1 32-40285R2 FH-440 to 240 Extension
4 2 43-16923R2 240 Pin Pulling Pin
5 1 43-40453 Hitch Pin with Chain
6 1 57-20742 3/8” Flat Washer
7* 1 59-16899-6 Heavy Duty Velcro Strap
8 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
9 1 70-20612 3/8” Nyloc Nut
240 - 1’ End Extension Kit - 17525-1-A
Item Qty. Part No. Description
1115-17525-1-L 1’ End Extension - Left
2* 115-17525-1-R 1’ End Extension - Right
3 10 16-20218 3/4” x 2” Hex Bolt Gr 5 NC
4 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5 2 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
6 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
7 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 - 1’ End Extension Top Extension Kit - 19215-K
Item Qty. Part No. Description
8 1 15-19215-L 240 1’ End Extension Top Extension - Left
9* 1 15-19215-R 240 1’ End Extension Top Extension - Right
10 10 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
11 10 57-20744 1/2” Flat Washer
12 10 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
240 - 2’ End Extension Kit - 17525-2-A
Item Qty. Part No. Description
1* 1 15-17525-2-L 2’ End Extension - Left
2* 1 15-17525-2-R 2’ End Extension - Right
3 10 16-20218 3/4” x 2” Hex Bolt Gr 5 NC
4 8 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5* 2 29-7950-2 2’- 5/8” x 6” Double Bevel Cutting Edge
6 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
7 8 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 - 2’ End Extension Top Extension Kit - 19216-K
Item Qty. Part No. Description
8* 1 15-19216-L 240 2’ End Extension Top Extension - Left
9* 1 15-19216-R 240 2’ End Extension Top Extension - Right
10 12 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
11 12 57-20744 1/2” Flat Washer
12 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
* Parts Not Shown
NOTE: The FH-440 to 240 Extension is an option for tractors equipped with duals. The extension provides extra clearance
between the tires and the blade system. Tire size and row spacing will determine if your system will require the extension.

14
8
9
7
10
5
4
6
21
3
Replacement Parts
1’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-1K
Item Qty. Part No. Description
1 2 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
3 2 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
2’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-2K
Item Qty. Part No. Description
1 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-2 2’- 5/8” x 6” Double Bevel Cutting Edge
3 2 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
5’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-5K
Item Qty. Part No. Description
1 10 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-5 5’- 5/8” x 6” Double Bevel Cutting Edge
3 10 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
6’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-6K
Item Qty. Part No. Description
1 12 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-6 6’- 5/8” x 6” Double Bevel Cutting Edge
3 12 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
7’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-7K
Item Qty. Part No. Description
1 12 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-7 7’- 5/8” x 6” Double Bevel Cutting Edge
3 14 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
8’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-8K
Item Qty. Part No. Description
1 16 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
3 16 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
12” Round Mushroom Skid Shoe Kit (12’-16’ Blades) - 15458-K
Item Qty. Part No. Description
4 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5 2 50-15458 12” Round Mushroom Skid Shoe
6 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 Skid Shoe Kit (10’ Blades) - 8740-K
Item Qty. Part No. Description
7 8 16-21218 3/4” x 2” Carriage Bolt Gr 5 NC
8 2 50-8740 2X0 Skid Shoe
9 8 57-20747 3/4” Flat Washer
10 8 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
NOTE: Multiple cutting edge kits may be required.

15
7
14
2
12
13
6
8
15
4
9
5
14
16
1
2
Tilt Extend
Right Angle Extend &
3
Right Angle Retract &
Left Angle Extend
Left Angle Retract
Red Spiral Band
Green Spiral Band
Tilt Retract
Green Spiral Band
Red Spiral Band
11
10
Item No. Qty. Part No. Description
1 2 16-35C616 3/8” x 1” Flanged Bolt
2 4 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
3 1 18-19008 240 Quick Coupler - Parking Station Mount
4 1 18-19011 240 Quick Coupler Mount
5 1 25-18956 Multi-Coupling Plate - 4 Port Parking Station
6 1 25-19864 Multi-Coupling Plate - 4 Port Fixed
7 4 25-19865 Multi-Coupling Plate - Coupler - Female
8 1 25-19866 Multi-Coupling Plate - 4 Port Mobile
9 1 25-19867 Multi-Coupling Plate - 4 Port - Cap
10 4 25-19870 Multi-Coupling Plate - Coupler - Male
11 8 25-40407 Multi-Coupling Plate - Snap Ring
12 4 31-34040 Straight JIC x O-Ring (6400-08-08)
13 4 31-34150 Straight Thread Elbow 45° JIC x O-Ring (6802-8-8)
14 4 57-20740 1/4” Flat Washer
15 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
16 2 70-20622 3/8” Flange Hex Nut Gr 5 NC
Some parts hidden for clarity
HAHT Hydraulic Multi-Coupler Option
Notes:
1. Follow the multi-coupler maintenance steps for connecting and disconnecting on pages 19-20.
2. After any maintenance, verify that hoses are in their correct position during reinstallation.

16
9
12
2
10
1
11
13
7
3
Red Spiral Band
1
Left Angle Extend
Right Angle Retract &
Left Angle Retract
Red Spiral Band
4
8
9
5
6
Right Angle Extend &
12
HANT Hydraulic Multi-Coupler Option
Item No. Qty. Part No. Description
1 4 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
2 1 18-19011 240 Quick Coupler Mount
3 1 25-19657 Multi-Coupling Plate - 2 Port Parking Station
4 1 25-19868 Multi-Coupling Plate - 2 Port Fixed
5 2 25-19865 Multi-Coupling Plate - Coupler - Female
6 1 25-19869 Multi-Coupling Plate - 2 Port Mobile
7 1 25-19871 Multi-Coupling Plate - 2 Port - Cap
8 2 25-19870 Multi-Coupling Plate - Coupler - Male
9 4 25-40407 Multi-Coupling Plate - Snap Ring
10 2 31-34040 Straight JIC x O-Ring (6400-08-08)
11 2 31-34150 Straight Thread Elbow 45° JIC x O-Ring (6802-8-8)
12 4 57-20740 1/4” Flat Washer
13 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
Some parts hidden for clarity
Notes:
1. Follow the multi-coupler maintenance steps for connecting and disconnecting on pages 19-20.
2. After any maintenance, verify that hoses are in their correct position during reinstallation.

17
Hydraulic Multi-Coupler Maintenance
C
D
B
D
Fixed Half Mobile Half
Before Each Use:
Disconnect the mobile half from the parking station and the cap from the fixed half.1.
Check that there is no contamination (salt, sand, dirt, etc.):2.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
On the face of the plates and couplings.D.
In case of contamination, remove it with a cloth and/or compressed air.3.
Check that there is still a lubricant/anti-corrosion (grease or silicone - see Note 1):4.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
Connect the mobile and fixed halves together.5.
After Each Use:
Disconnect the mobile half from the fixed half.1.
Clean all contamination (salt, sand, dirt, etc.) from the following areas:2.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
On the face of the plates and couplings.D.
*Use a cloth or compressed air. It is advised to not use water to clean these surfaces
Apply a lubricant/anti-corrosion (grease or silicone - see Note 1):3.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
Connect the cap to the fixed half and the mobile half to the parking station.4.
Note 1:
When sand and salt are present, or the plates under go a washdown, a heavy duty silicone spray lubricant should be used to replace grease from the factory. The lubricant
should help protect from corrosion without collecting dust and contaminants, and will resist washing off when exposed to water.
Recommended Lubricant Brands:
Fluid Film (Aerosol or Non-Aerosol), LPS-2 Heavy Duty Lubricant, or CRC 3-36.
PN Description
25-43425 Male Coupler O-Ring Repair Kit
D
A
D
Part Number: 25-19865
Female Coupler
Part Number: 25-19869
Blade Side
Tractor Side
Part Number: 25-19868
Male Coupler
Part Number: 25-19870
See Table Below For Repair Kit
Snap Ring
Part Number: 25-43459
BA
Tractor Side
Part Number: 25-19864
Blade Side
Part Number: 25-19866

18
Hydraulic Multi-Coupler Maintenance
Cleaning The Male Interface Seal:
1. Make sure the coupling is securely
fastened into the plate or place in
a vice.
2. Using a blunt, non-marring tool,
depress the valve face until the seal
is exposed. Insert a bent metal
wire between the valve face and the
body of the coupling. Use caution
not to damage or scratch the seal
when inserting the wire.
3. Inspect the seal and interior
surfaces for contamination.
4. In case of contamination, carefully
wipe surfaces with a soft cloth, or
use compressed air to blow the
contamination out. Do Not press
hard on the seal as contamination
can scratch the seal surface.
5. Using a non-marring tool, depress
the valve face and remove the metal
wire. Release the valve to the ush
position.
Cleaning The Female Bushing:
1. Make sure the coupling is securely
fastened into the plate or place in
a vice.
2. Using a non-marring tool, depress
the outer ring to expose the
bushing. There is no need to
expose the valve seal, so stop
pressing before the valve is opened.
3. Inspect the interior body and
bushing surfaces for contamination.
4. In case of contamination, carefully
wipe surfaces with a soft cloth, or
use compressed air to blow the
contamination out.
5. Release the outer ring so that it
returns to the ush position.

19
Hydraulic Schematic
Left Retract
Lift Up
Tilt to
Tractor Service Valve
Lift Down Angle
Tilt to Right
Extend
Angle Cylinder Right
Right
Tilt Cylinder
Lift Cylinder
Tilt Disconnects Angle Disconnects
Right
Angle
Angle Cylinder Left
Red Spiral Band
& Red Plug
Orange Spiral Band
& Orange Cap
Red Spiral Band
& Red Cap
Red Spiral Band
& Red Cap
Green Spiral Band
& Green Plug
Green Spiral Band
& Green Cap
Green Spiral Band
& Green Cap
Red Spiral Band
& Red Cap
Red Spiral Band
& Red Plug
Orange Spiral Band
& Orange Cap
Green Spiral Band
& Green Cap
Green Spiral Band
& Green Plug
Green Spiral Band
& Green Cap
Red Spiral Band
& Red Cap
D
AB
C

20
Grouser Products warrants to the original purchaser of each item that the product be free from defects in material and
workmanship under normal use and service for a period of two (2) years for Agriculture Series Blades and one (1) year
for Heavy Duty Series from date of original retail delivery.
The obligation of the consumer under this warranty:
1. To read the operators manual and to operate, lubricate, maintain and store equipment in accordance with the
instructions listed in the operators manual.
2. To inspect equipment and if any part needs repair or replacement when continued use would cause damage or
wear to other parts or safety.
3. All equipment or parts claimed to be defective in material or workmanship must be made available for inspection
at the place of business of a dealer authorized to handle the equipment covered by this warranty, or, upon request
by Grouser Products, shipped to the Grouser Products factory in West Fargo, North Dakota.
The obligation of the dealer under this warranty:
1. Complete warranty registration form and submit within 30 days of sale.
2. Contact Grouser Products for authorization prior to performing any warranty repairs or part replacement.
3. Complete warranty request form and submit with photos and supporting documentation.
The obligation of Grouser Products under this warranty:
1. Repair or replace, any equipment or parts, in the judgment of Grouser Products to be defective in material or
workmanship.
2. Grouser Products will cover the cost of parts and ground shipping at dealer invoice only.
3. Grouser Products shall have no obligation to bear the cost of labor or transportation in connection with
replacement or repair of any such defective parts.
This warranty does not cover:
1. Depreciation or damage caused by normal wear, accident, improper assembly, improper adjustments.
2. Improper maintenance including lack of proper lubrication, or improper use. Including loose bolts, nuts, or tting
due to over tightening or vibration after 20 hours of operation.
3. Repairs or alterations without authorization from a Grouser Products representative.
4. Grouser Products shall have no liability if the equipment has been altered or reworked without the written
authorization of Grouser Products.
Grouser Products’ parts, which are furnished under this warranty and properly installed, shall be warranted to the same
extent as the original parts under this warranty if, and only if, such parts are found to be defective within the original warranty
period covering the original equipment.
NO EMPLOYEE OR REPRESENTATIVE OF GROUSER PRODUCTS IS AUTHORIZED TO CHANGE THE WARRANTY
IN ANY WAY OR GRANT ANY OTHER WARRANTY.
Warranty
Contact Us
Improvements
Grouser Products Inc. is continually striving to improve its products. We reserve the right to change prices, specication, or
equipment at any time without notice. We also reserve the right to make improvements or changes when it becomes practical
and possible to do so without incurring any obligation to make changes or additions to the equipment sold previously.
As always, if you have any questions about your system or other products made by Grouser, feel free to contact us.
755 2nd Ave NW - West Fargo, ND 58078
[phone] | [e-mail]
www.grouser.com
