Grouser Products AG240 User manual

Date 4-8-2019
PN: 63-41663
AG240 Dozer
with FH-440 Front Hitch
Owner’s Manual & Parts Book
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Serial #:10205555-...
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com

2
Description Page
Welcome To The Owner 2
6DIHW\3UHFDXWLRQV7RUTXH6SHFL¿FDWLRQV$EEUHYLDWLRQ.H\ 3
Decals 4
0DLQWHQDQFH/XEULFDWLRQ 5
&RQQHFWLQJDQG'LVFRQQHFWLQJWKH%ODGH7LOW3ODWH6NLG6KRH$GMXVWPHQW 6
10’-16’ No Angle-No Tilt Blade Assembly 9
12’-16’ Hydraulic Angle-Hydraulic Tilt Blade Assembly 8
10’-16’ Hydraulic Angle-No Tilt Blade Assembly 9
Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle No Tilt System 10-11

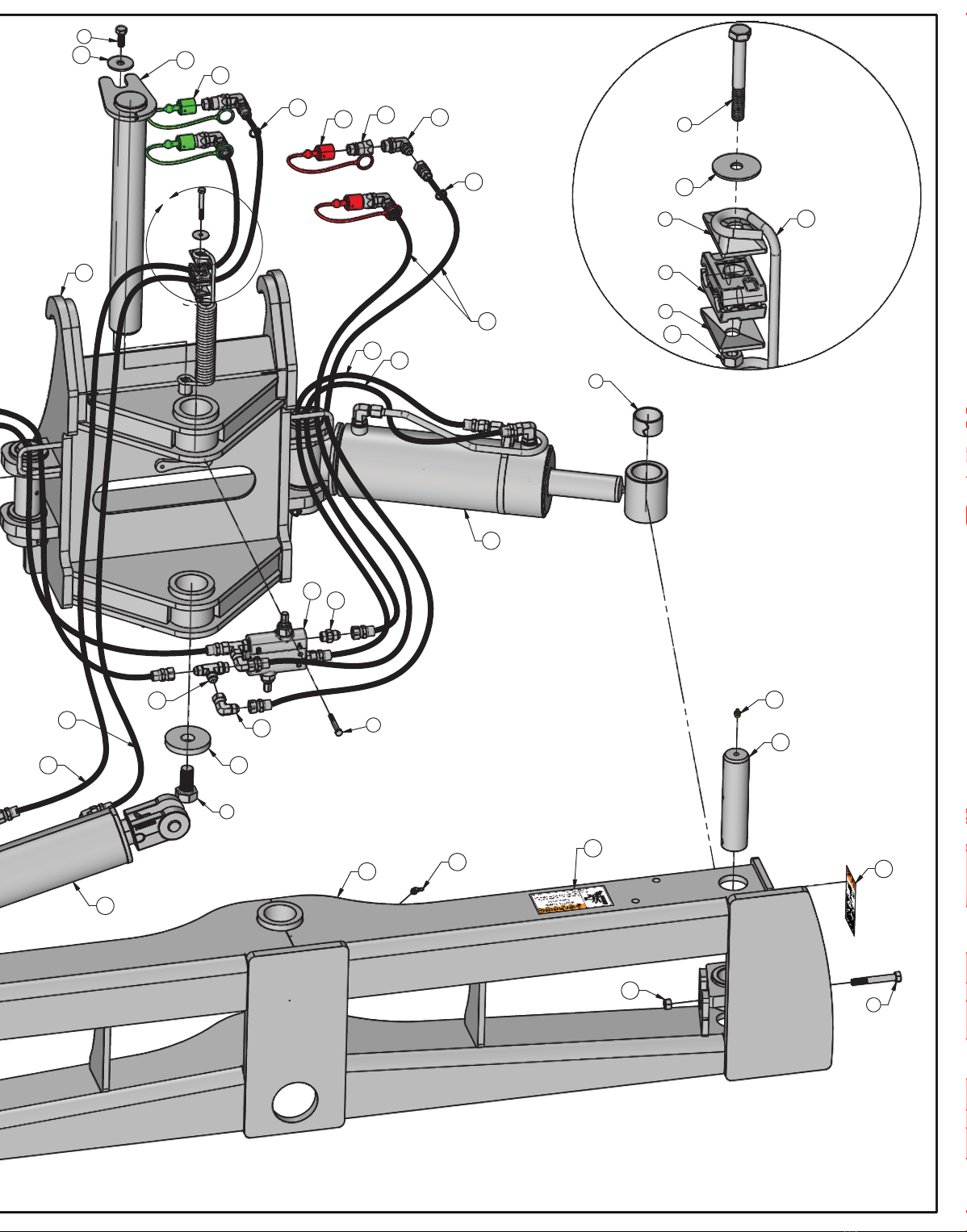

/LIW6\VWHP 12-13
4XLFN$WWDFK6\VWHP 14
Tractor Side Hydraulics 15

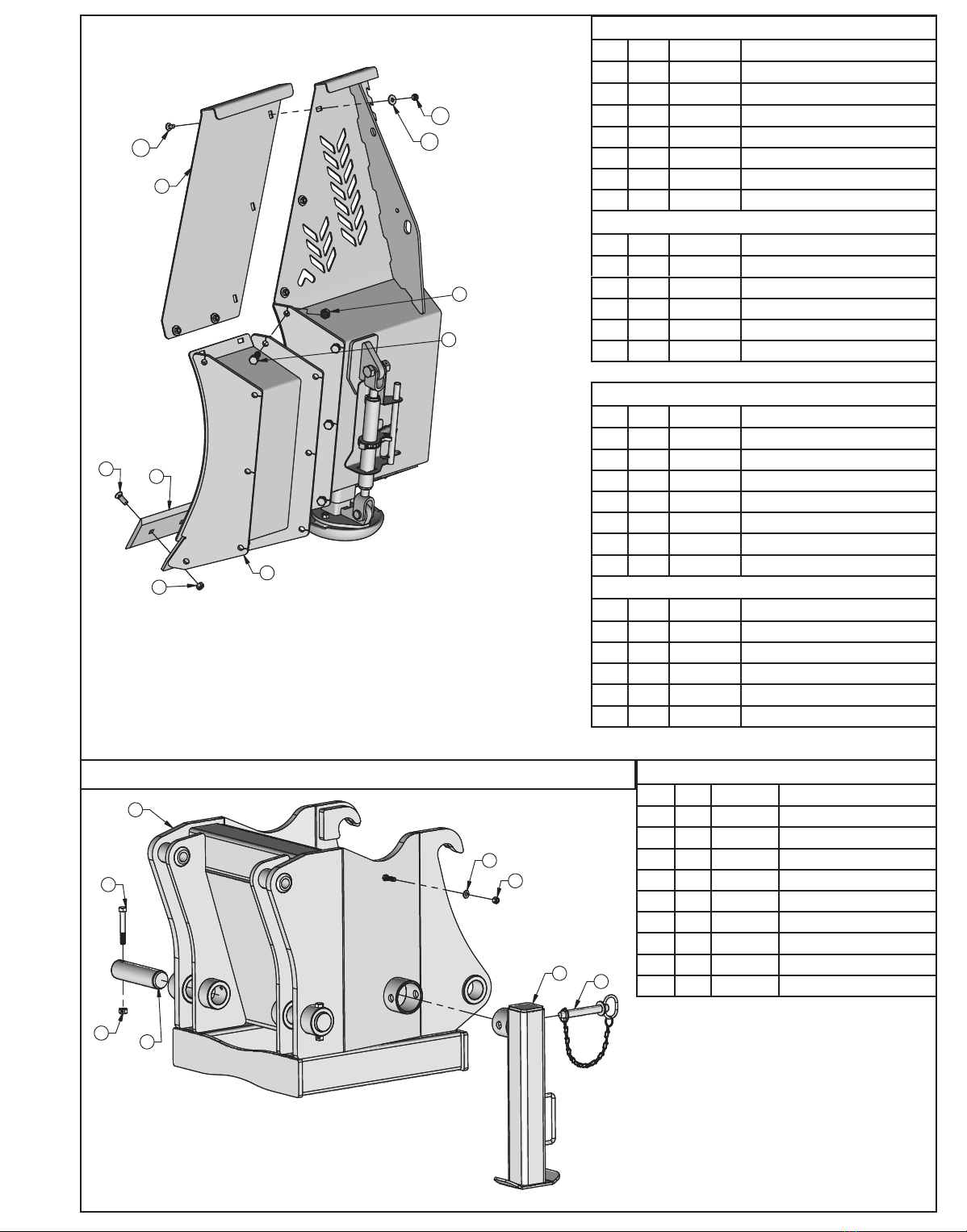

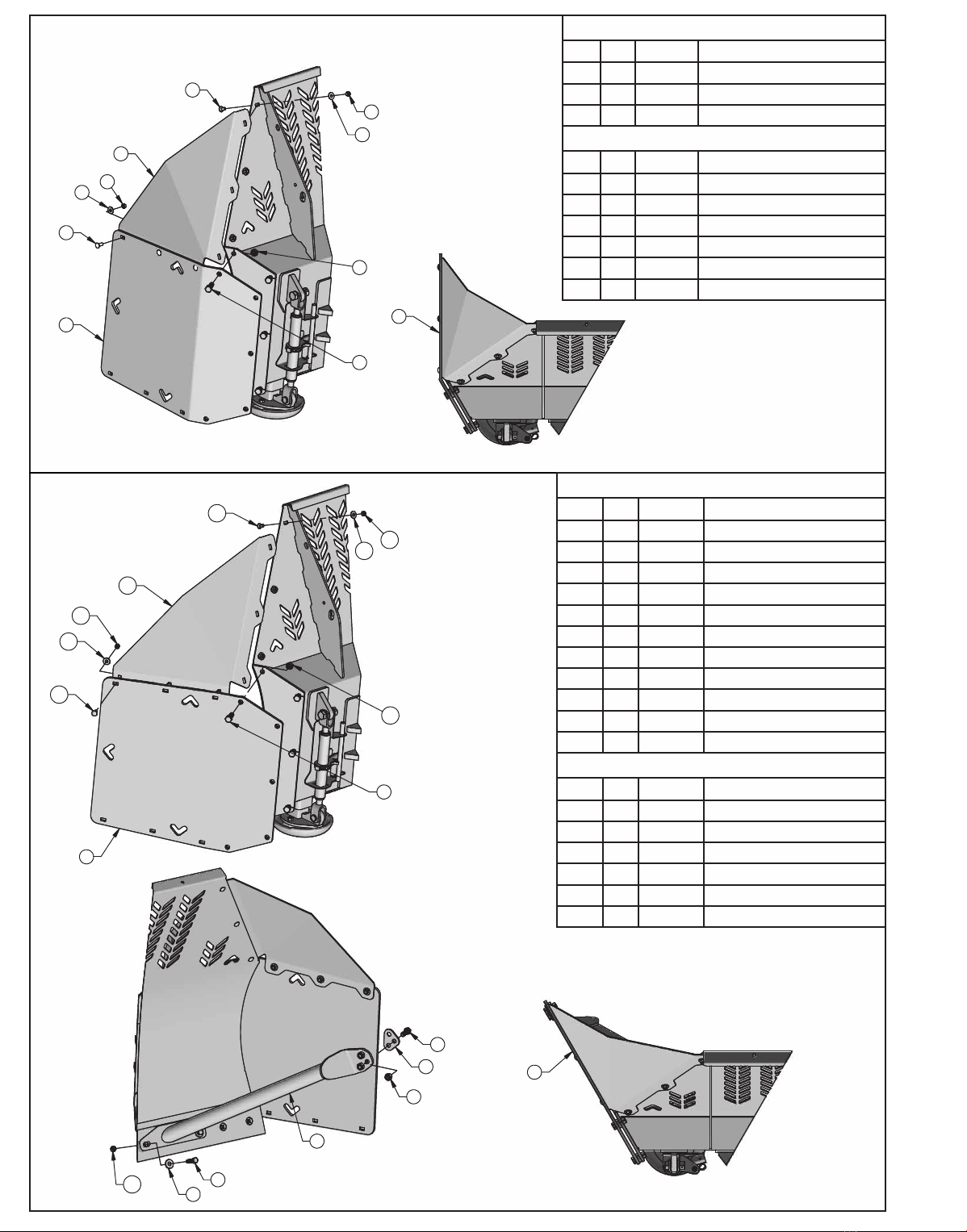

Blade Options 16-17
Replacement Parts 18

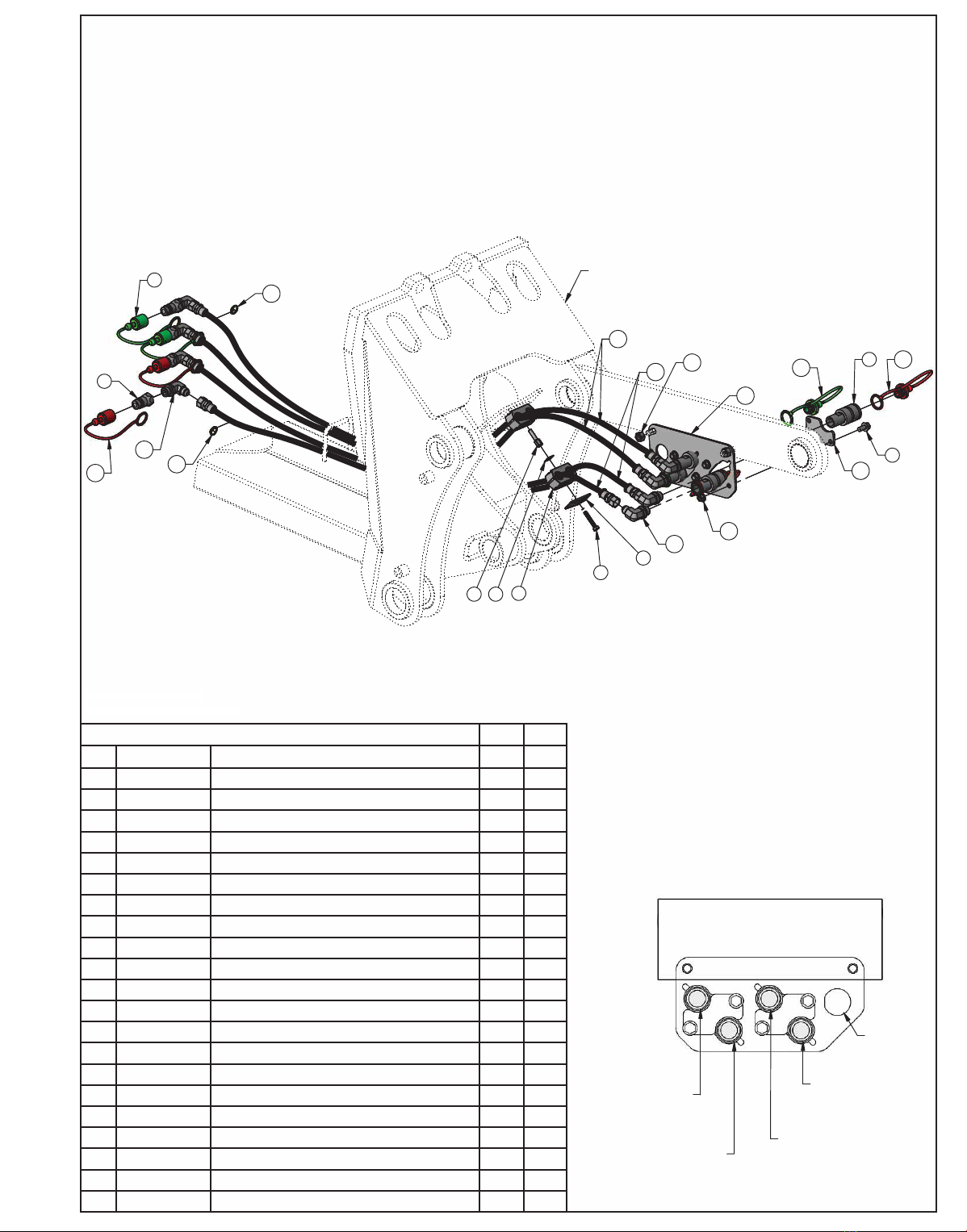

HAHT Hydraulic Multi-Coupler Option 19
HANT Hydraulic Multi-Coupler Option 20
Hydraulic Multi-Coupler Maintenance 21-22
Hydraulic Schematic 23
&RQWDFW8V,PSURYHPHQWV:DUUDQW\ 24
7KDQN\RXIRU\RXUUHFHQWSXUFKDVHRID*URXVHUGR]HUEODGH:HOFRPHWRWKHIDPLO\RIVDWLV¿HG*URXVHUEODGHRZQHUV
*URXVHU3URGXFWVLVFRPPLWWHGWRRႇHULQJTXDOLW\SURGXFWVWRKHOSSURIHVVLRQDOVLQWKHLUGDLO\MREV:HDUHDOVRFRPPLWWHG
WRSURYLGLQJ\RXWKHKLJKHVWOHYHORIFXVWRPHUVDWLVIDFWLRQSRVVLEOH$JDLQWKDQN\RXIRU\RXUSDWURQDJH:HORRN
forward to serving you.
7KLVPDQXDOFRQWDLQVLQIRUPDWLRQFRQFHUQLQJWKHRSHUDWLRQDGMXVWPHQWVDIHW\DQGPDLQWHQDQFHRIWKH$*'R]HUDQG
FH-440 Front Hitch. You have purchased a dependable, long lasting piece of equipment. You can expect to receive long
lasting performance and long service built into our products with proper care and operation. Please have all operators
UHDGDQGXQGHUVWDQGWKLVPDQXDOFDUHIXOO\.HHSWKHPDQXDODYDLODEOHIRUUHIHUHQFH,IIRUDQ\UHDVRQ\RXKDYH
questions or comments, we would be happy to hear from you. Call our toll-free number, 800-747-6182, or send us an
e-mail at [e-mail]. You can expect us to respond to your e-mail in a timely manner.
C
ontentsWelcome to the
O
wner

3
A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help
SUHYHQWDFFLGHQWVUHDGDQGWDNHWKHIROORZLQJSUHFDXWLRQVEHIRUHRSHUDWLQJWKLVHTXLSPHQW,QDGGLWLRQSOHDVHIROORZ
all safety and operational instructions of your tractor manufacturer.
The Dozer:
1. The $*'R]HUDQG)+)URQW+LWFKshould be operated only by those who are responsible and instructed to
do so.
5HDGWKHRZQHU¶VPDQXDOFDUHIXOO\EHIRUHXVLQJWKLVHTXLSPHQW/DFNRIRSHUDWLQJNQRZOHGJHFDQOHDGWRDFFLGHQWV
.HHSWKHGR]HUPDLQWDLQHGLQUHOLDEOHDQGVDWLVIDFWRU\FRQGLWLRQWRHQVXUH\RXUVDIHW\
0DNHVXUHWKHDUHDLVFOHDURISHRSOHEHIRUHPRYLQJDQ\HTXLSPHQW
'RQRWPRGLI\RUSHUPLWDQ\RQHHOVHWRPRGLI\RUDOWHUWKHHTXLSPHQWDQGLWVFRPSRQHQWVZLWKRXW¿UVWFRQVXOWLQJ
*URXVHU3URGXFWV
/RZHUWKHEODGHWRWKHJURXQGZKHQQRWLQXVH
Servicing the Dozer:
1. Read and follow all safety instructions provided by the tractor manufacturer.
2. Always use proper personal safety gear when performing maintenance on equipment.
%HIRUHVHUYLFLQJUHOLHYHK\GUDXOLFSUHVVXUHVWRSHQJLQHDQGIXOO\HQJDJHSDUNLQJEUDNH
(VFDSLQJK\GUDXOLFÀXLGXQGHUSUHVVXUHFDQSHQHWUDWHVNLQFDXVLQJVHULRXVLQMXU\,IÀXLGLVLQMHFWHGLQWRVNLQREWDLQ
medical attention immediately.
±'2127XVH\RXUKDQGWRFKHFNIRUOHDNV8VHDSLHFHRIFDUGERDUGRUSDSHUWRVHDUFKIRUOHDNV
– Stop the engine and relieve pressure before connecting or disconnecting lines.
±7LJKWHQDOOFRQQHFWLRQVEHIRUHVWDUWLQJWKHHQJLQHRUSUHVVXUL]LQJOLQHV
Storing the Dozer:
7KRURXJKO\FOHDQWKHLQVLGHDQGRXWVLGHRIWKHGR]HUEHIRUHVWRUDJH8VHSDLQWZKHUHQHFHVVDU\WRSUHYHQWUXVW
&KHFNWKHGR]HUIRUZRUQRUGDPDJHGSDUWV,QVWDOOQHZSDUWVDVUHTXLUHG
/XEULFDWHDOOSLQVDQGMRLQWV
Tighten all bolts to the values listed below unless otherwise noted. Refer to the parts lists for proper length and grade of
the bolts.
Torque - Dry (ft–lbs)
SAE Grade 5 SAE Grade 8
Size UNC UNF UNC UNF
5/16 17 19 24 27
3/8 30 35 45 50
7/16 50 55 70 80
1/2 75 85 110 120
9/16 110 120 150 170
5/8 150 170 210 240
3/4 260 300 380 420
7/8 430 470 600 670
1 640 720 910 1020
Torque - Dry (ft-lbs)
Size Grade 10.9
M18 x 2.50 284
M20 x 2.50 401
M22 x 2.50 547
M24 x 3.00 694
Angle/Tilt Function Abbreviation Key
HAHT Hydraulic Angle - Hydraulic Tilt 6-Way
HANT Hydraulic Angle - No Tilt 4-Way
NANT No Angle - No Tilt 2-Way
S
a
f
ety Precautions 7RUTXH
6
SHFL
¿
FDWLRQV Abbreviation Key

4
WARNING
INSURE THERE IS
ADEQUATE CLEARANCE
BETWEEN TIRES AND BACK
OF BLADE SYSTEM
27-40425
SEE OWNER’S MANUAL FOR
CORRECT EXTENSION TO
GAIN ADEQUATE CLEARANCE
PN: 27-40425
Decals
27-9503
PN: 27-9503 PN: 27-2409
/HIWDQG5LJKW6LGH See Page 15 for
Extension

5

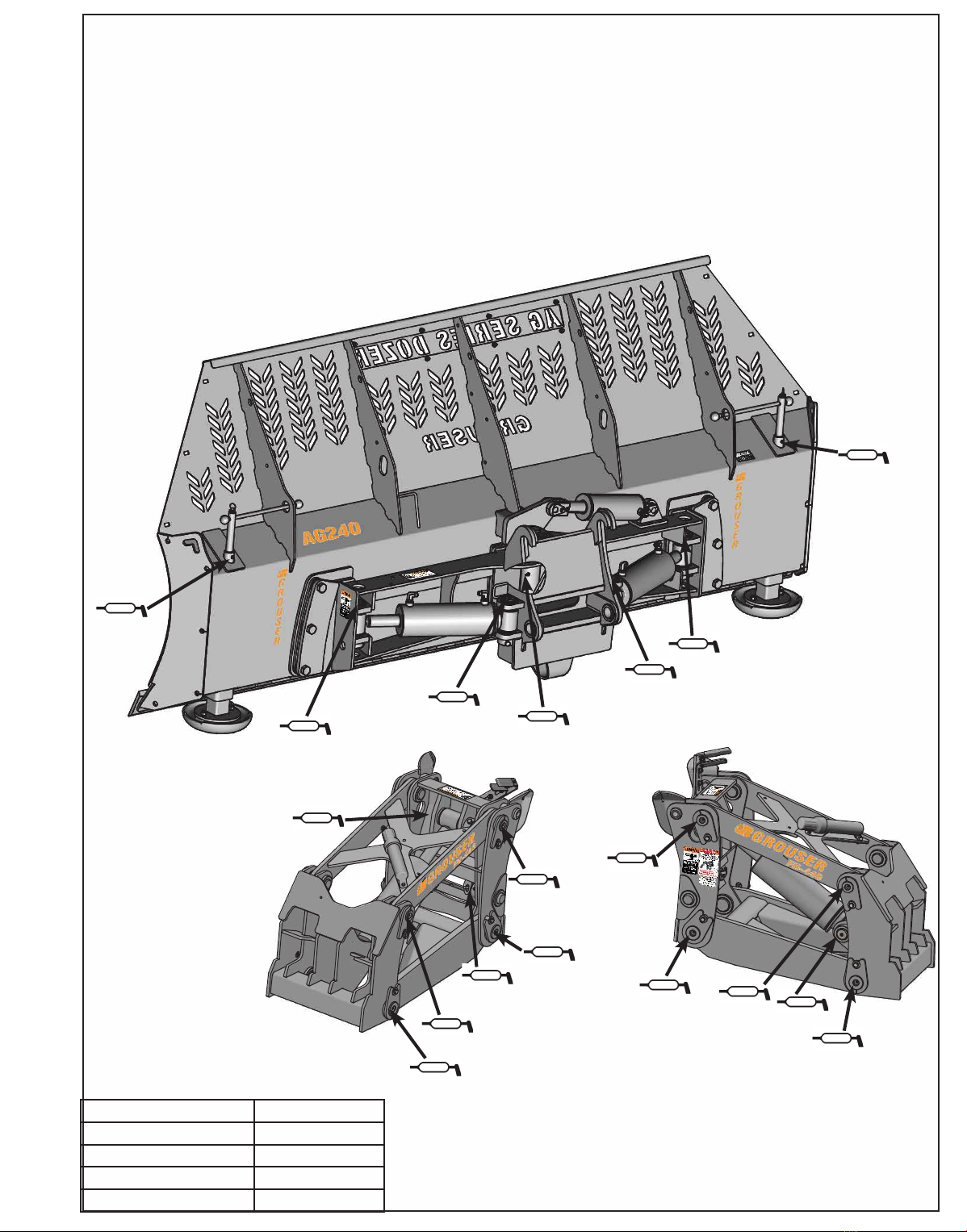

Maintenance
&
Lubrication
NOTE: Only the HAHT system is shown.
HAHT and HANT have similar grease locations.
1$17RQO\KDVJUHDVHORFDWLRQVRQWKHUDWFKHWMDFNV
Grease Locations
Hydraulic Angle & Hydraulic Tilt 10
Hydraulic Angle & No Tilt 10
No Angle & No Tilt 4
Lift System 12
2 Places
Due to the harsh environment this equipment operates in, the following tasks should be
performed every 10 hours or less.
• Inspect all equipment before operation for existing or potential damage.
/XEULFDWHDOOMRLQWVZLWKKLJKTXDOLW\JUHDVH6HHEHORZIRUJUHDVHORFDWLRQV
,QVSHFWDOOEROWVDQGWLJKWHQDQ\ORRVHEROWVWRWRUTXHVSHFL¿FDWLRQVRQSDJH
&KHFNUHSODFHDEOHFXWWLQJHGJHIRUZHDUHQVXULQJWKHUHLVHQRXJKPDWHULDOWRSUHYHQWSHUPDQHQWGDPDJHWRWKHEODGH
&KHFNK\GUDXOLFF\OLQGHUVDQGKRVHVIRUGDPDJHRUOHDNV)RUUHSODFHPHQWSDUWVVHHK\GUDXOLFSDJHVIRU\RXUVSHFL¿F
system.
• If equipped with hydraulic multi-coupler, see page 19-20 for hydraulic multi-coupler maintenance.
0DNHVXUHDOOQRQURWDWLQJSLQVDUHVHFXUHGSURSHUO\
• Inspect all decals and order replacement decals from your dealer if any are damaged or worn.
&KHFNVNLGVKRHVIRUZHDUDQGUHSODFHLIQHFHVVDU\)RUDGMXVWPHQWVHHSDJH
,QVSHFWDOOWLOWZD\VIRUZHDU6HHSDJHIRUWLOWSODWHDGMXVWPHQW
• Replace parts with original parts only.
1X
4X
4X
4X
4X
1X
6X
2 Places
6X
6X
6X
6X
1X
4X
4X
4X
4X
4X 4X

6
To Connect:
Note: If necessary, use a spotter to help center the blade on the lift system.
/LIWWKHORFNLQJODWFKDQGSXVKWKHTXLFNDWWDFKORFNKDQGOHRQWKHOHIWVLGHRIWKHOLIWV\VWHPWRRSHQWKHTXLFNDWWDFK
V\VWHP5HIHUWR3DJHIRUIXUWKHUFODUL¿FDWLRQRQWKHTXLFNDWWDFKV\VWHP
'ULYHWKHWUDFWRUIRUZDUGVORZO\XQWLOWKHWRSHGJHRIWKHPDOHTXLFNDWWDFKLVXQGHUWKHWRSDQJOHIUDPHKRRN
5DLVHWKHOLIWV\VWHPXQWLOWKHPDOHTXLFNDWWDFKHQJDJHVWKHDQJOHIUDPHKRRNV&RQWLQXHWRUDLVHWKHOLIWV\VWHP
XQWLOWKHEODGHLVRႇWKHJURXQGDQGWKHDQJOHIUDPHLVDJDLQVWWKHIURQWRIWKHPDOHTXLFNDWWDFK
6KXWRႇWKHWUDFWRUHQJLQHDQGVHWWKHSDUNLQJEUDNH
3XOOWKHTXLFNDWWDFKORFNKDQGOHWRHQJDJHWKHTXLFNDWWDFKSLQVDQGOLIWWKHORFNLQJODWFKWRORFNWKHKDQGOHLQSODFH
6. Clean and connect hydraulic couplers on the top arm. Refer to Page #13 for proper locations of all functions.
To Disconnect:
/RZHUWKHEODGHXQWLOWKHFXWWLQJHGJHLVRႇWKHJURXQGDIHZLQFKHV
6KXWRႇWKHWUDFWRUHQJLQHDQGVHWWKHSDUNLQJEUDNH
8QKRRNDOORIWKHK\GUDXOLFFRXSOHUVRQWKHWRSDUP
/LIWWKHORFNLQJODWFKDQGSXVKWKHTXLFNDWWDFKORFNKDQGOHWRGLVHQJDJHWKHTXLFNDWWDFKSLQV
6WDUWWUDFWRUGLVHQJDJHWKHSDUNLQJEUDNHDQGORZHUWKHEODGHXQWLOFXWWLQJHGJHLVRQWKHJURXQG
6. Continue to slowly lower the lift system to disengage the blade.
6ORZO\EDFNDZD\IURPWKHEODGH:KHQOLIWV\VWHPLVFOHDUIURPWKHEODGHUDLVHWKHOLIWV\VWHP
6KXWRႇWKHWUDFWRUHQJLQHDQGVHWWKHSDUNLQJEUDNH
3XOOWKHTXLFNDWWDFKORFNKDQGOHDQGOLIWWKHORFNLQJODWFKWRORFNWKHKDQGOHLQSODFH

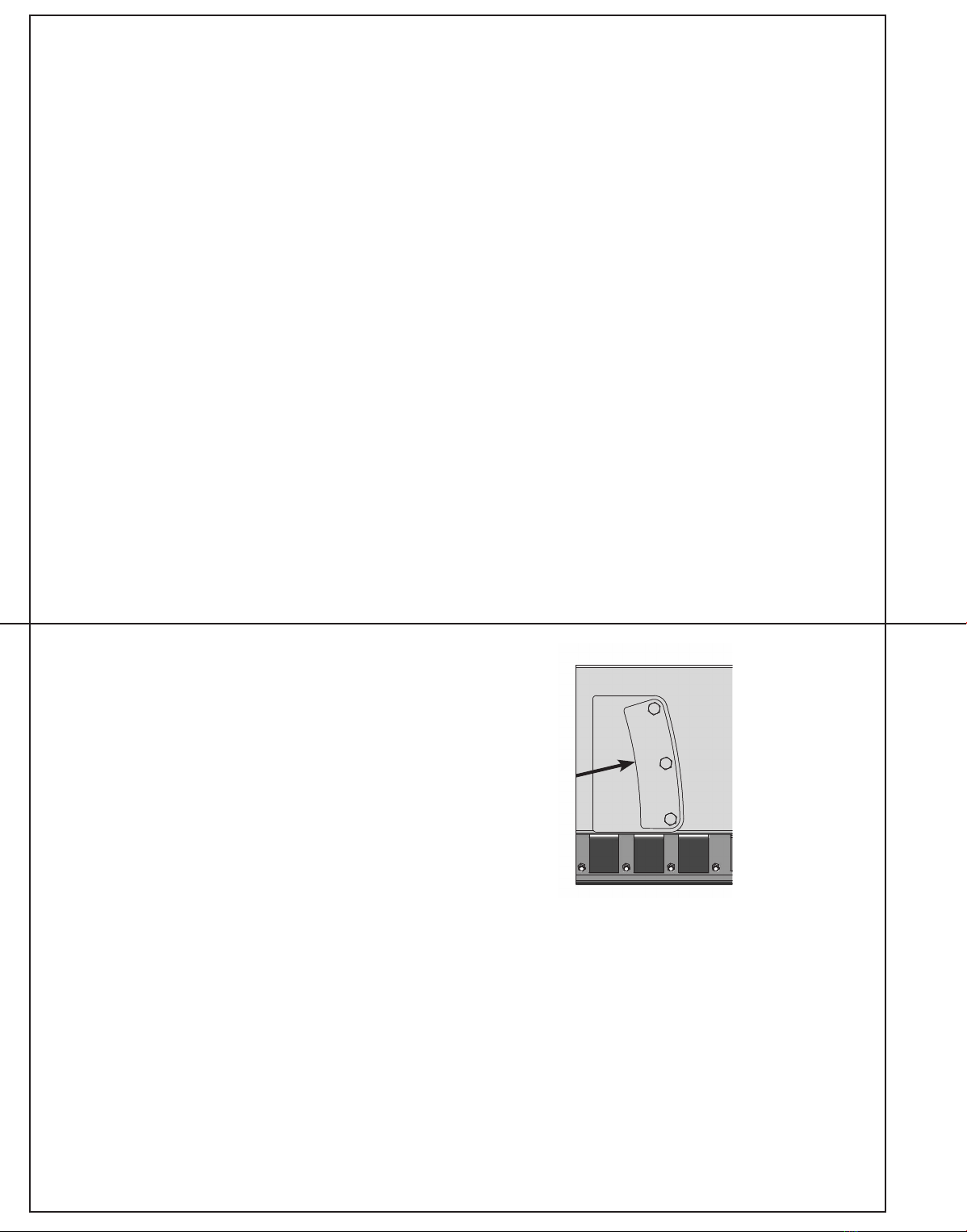

Tilt Plate
Note: Do not remove all of the bolts at the same time.
7KHSUHIHUUHGEODGHSRVLWLRQIRUDGMXVWLQJWKHWLOWSODWHVLVOD\LQJ
IDFHGRZQRQEORFNV
2. Remove the top and bottom bolts from each tilt plate.
$GGRUUHPRYHZDVKHUVDVQHHGHGWRDGMXVWWLOWZD\FOHDUDQFH
to 1/16” - 1/8”.
4. Reinstall top and bottom bolts.
5. Follow Steps #2-4 for the center bolts.
6. Once the tilt-way clearance is set, torque bolts to 640 ft-lbs.
C
onnecting and Disconnecting the BladeTilt Plate
&
S
kid
S
hoe Adjustment
Skid Shoe Adjustment:
1. Pull up on the retractable plunger on the top of the threaded rod to release the handle.
6OLGHWKHKDQGOHRXWIURPWKHORFNLQJSRVLWLRQRQWKHEODGH
7XUQWKHKDQGOHWRDGMXVWWKHVNLGVKRHWRWKHSUHIHUUHGKHLJKW
3ODFHWKHKDQGHEDFNLQWKHKROHRQWKHEODGHDQGORFNLQSODFHZLWKWKHUHWUDFWDEOHSOXQJHU

7
ITEM
NO. PART NO. 10'
QTY.
12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
1 11-11316 1 1 1 1 Arm, Blade Stand
2 15-41950-10 1 - - - 240 2-Way Blade Weld
2 15-41950-12 - 1 - - 240 2-Way Blade Weld
2 15-41950-14 - - 1 - 240 2-Way Blade Weld
2 15-41950-16 - - - 1 240 2-Way Blade Weld
3 16-20558 1 1 1 1 1" x 2" Hex Bolt Gr. 8 NC
4 16-21666 24 28 32 36 5/8" x 1-3/4" Plow Bolt Gr 5 NC
5 27-17262 1 1 1 1 Ag 240 Decal
6 27-40962 1 1 1 1 Warning Prop 65 Decal
7 27-9505 2 2 2 2 Grouser Vertical Decal
8 NA 1 1 1 1 Grouser Dozer Metal Serial Tag
9 29-7950-5 2 - - - Cutting Edge
9 29-7950-6 - 2 - - Cutting Edge
9 29-7950-7 - - 2 - Cutting Edge
9 29-7950-8 - - - 2 Cutting Edge
ITEM
NO. PART NO. 10'
QTY.
12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
10 34-40852 2 2 2 2 Retractable Spring Plunger, 3/8"
11 34-40853 4 4 4 4 Knob, 1-1/2" Ball
12 34-40859 2 2 2 2 Spring Clip, 1-3/16"
13 40-40739 2 2 2 2 Skid Shoe Mount, 240
14 43-7767 1 1 1 1 Cylinder Pin Clip
15 43-9582 1 1 1 1 Pin
16 50-15458 2 2 2 2 12” Round Mushroom Skid Shoe
17 50-40855 2 2 2 2 Threaded Rod, Skid Shoe
18 50-40857 2 2 2 2 Handle, Skid Shoe
19 58-9369 2 2 2 2 Straight 1/8" NPT Grease Zerk
20 70-20609 1 1 1 1 1" Hex Center Lock Nut Gr.2 NC
21 70-20646 24 28 32 36 5/8" Hex Top Lock Nut Gr 5 NC
ITEM
NO. PART NO. 10'
QTY.
12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
10 34-40852 2 2 2 2 Retractable Spring Plunger, 3/8"
11 34-40853 4 4 4 4 Knob, 1-1/2" Ball
12 34-40859 2 2 2 2 Spring Clip, 1-3/16"
13 40-40739 2 2 2 2 Skid Shoe Mount, 240
14 43-7767 1 1 1 1 Cylinder Pin Clip
15 43-9582 1 1 1 1 Pin
16 50-15458 2 2 2 2 12” Round Mushroom Skid Shoe
17 50-40855 2 2 2 2 Threaded Rod, Skid Shoe
18 50-40857 2 2 2 2 Handle, Skid Shoe
19 58-9369 2 2 2 2 Straight 1/8" NPT Grease Zerk
20 70-20609 1 1 1 1 1" Hex Center Lock Nut Gr.2 NC
21 70-20646 24 28 32 36 5/8" Hex Top Lock Nut Gr 5 NC
12
4
7
17
4
21
18
2
10
5
21
13
20
11
16
9
8
6
1
15
3
14
19
10’-16’ No Angle-No Tilt Blade Assembly

8
ITEM NO. PART NO. 12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
1 15-41815-12 1 - - 240 Blade Weld - 12'
1 15-41518-14 - 1 - 240 Blade Weld - 14'
1 15-41815-16 - - 1 240 Blade Weld - 16'
2 16-20560 6 6 6 1" x 2-1/2" Hex Bolt Gr 8 NC
3 16-20562 1 1 1 1" x 3" Hex Bolt Gr.8 NC
4 16-21064 8 8 8 3/8" x 1" Carriage Bolt Gr 5 NC
5 16-21666 28 30 32 5/8" x 1-3/4" Plow Bolt Gr 5 NC
6 19-7774 1 1 1 1" x 1" Spring Bushing
7 27-17262 1 1 1 Ag 240 Decal
8 27-40962 1 1 1 Warning Prop 65 Decal
9 27-9505 2 2 2 Grouser Vertical Decal
10 NA 1 1 1 Grouser Dozer Metal Serial Tag
11 29-7950-6 2 - - Cutting Edge
11 29-7950-7 - 2 - Cutting Edge
11 29-7950-8 - - 2 Cutting Edge
ITEM NO. PART NO. 12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
12 34-40852 2 2 2 Retractable Spring Plunger, 3/8"
13 34-40853 4 4 4 Knob, 1-1/2" Ball
14 34-40859 2 2 2 Spring Clip, 1-3/16"
15 40-40739 2 2 2 Skid Shoe Mount, 240
16 44-15339 1 1 1 Back Drag Plate
17 44-16880 1 1 1 Ag Series Name Plate
18* 44-14830 1 1 1 Custom Name Plate
19 50-15458 2 2 2 12” Round Mushroom Skid Shoe
20 50-40855 2 2 2 Threaded Rod, Skid Shoe
21 50-40857 2 2 2 Handle, Skid Shoe
22 52-8204 2 2 2 240 Tilt Plate
23 57-20749 18 18 18 1" Flat Washer
24 58-9369 2 2 2 Straight 1/8" NPT Grease Zerk
25 70-20622 8 8 8 3/8" Flange Hex Nut Gr 5 NC
26 70-20646 28 30 32 5/8" Hex Top Lock Nut Gr 5 NC
16
4
17
25
3
10
9
6
22
2
15
26
19
5
5
11
26
24
20
14
13
12
21
1
8
23
7
* Part Not Shown
12’-16’ Hydraulic Angle-Hydraulic Tilt Blade Assembly

9
3
16
23
2
22
5
4
24
18
15
4
11
24
22
19
14
13
12
20
1
7
9
8
6
* Part Not Shown
21
ITEM
NO. PART NO. 10' QTY.
12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
1 15-40860-10 1 - - - 240 HANT Blade Weld
1 15-40860-12 - 1 - - 240 HANT Blade Weld
1 15-40860-14 - - 1 - 240 HANT Blade Weld
1 15-40860-16 - - - 1 240 HANT Blade Weld
2 16-20559 8 8 8 8 1" x 2-1/4" Hex Bolt Gr 8 NC
3 16-21064 8 8 8 8 3/8" x 1" Carriage Bolt Gr 5 NC
4 16-21666 24 28 30 32 5/8" x 1-3/4" Plow Bolt Gr 5 NC
5 17-19800 1 1 1 1 Center Adjustable Mount
6 27-17262 1 1 1 1 Ag 240 Decal
7 27-40962 1 1 1 1 Warning Prop 65 Decal
8 27-9505 2 2 2 2 Grouser Vertical Decal
9 NA 1 1 1 1 Grouser Dozer Metal Serial Tag
10* 29-7950-5 2 - - - Cutting Edge
11 29-7950-6 - 2 - - Cutting Edge
11 29-7950-7 - - 2 - Cutting Edge
11 29-7950-8 - - - 2 Cutting Edge
ITEM
NO. PART NO. 10' QTY.
12'
QTY.
14'
QTY.
16'
QTY. DESCRIPTION
12 34-40852 2 2 2 2 Retractable Spring Plunger, 3/8"
13 34-40853 4 4 4 4 Knob, 1-1/2" Ball
14 34-40859 2 2 2 2 Spring Clip, 1-3/16"
15 40-40739 2 2 2 2 Skid Shoe Mount, 240
16 44-16880 1 1 1 1 Ag Series Name Plate
17* 44-14830 1 1 1 1 Custom Name Plate
18 50-15458 2 2 2 2 12” Round Mushroom Skid Shoe
19 50-40855 2 2 2 2 Threaded Rod, Skid Shoe
20 50-40857 2 2 2 2 Handle, Skid Shoe
21 57-20819 8 8 8 8 1" Flat Washer Heavy Duty Gr 8
22 58-9369 4 4 4 4 Straight 1/8" NPT Grease Zerk
23 70-20622 8 8 8 8 3/8" Flange Hex Nut Gr 5 NC
24 70-20646 24 28 30 32 5/8" Hex Top Lock Nut Gr 5 NC
10’-16’ Hydraulic Angle-No Tilt Blade Assembly

10
18
DETAIL B
27
21
26
31
33
32
10
5
8
37
20
B
Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle-No Tilt
S
ystem
&RQÀJXUDWLRQ HAHT HANT
Item Part No. Description Qty. Qty.
1 16-20040 5/16” x 2-1/2” Hex Bolt Gr 5 NC 3 2
2 16-20125 1/2” X 1-1/4” Hex Bolt Gr 5 NC 1 -
3 16-20134 1/2” x 3-1/2” Hex Bolt Gr 5 NC 4 4
4 16-20558 1” x 2” Hex Bolt Gr 8 NC 1 1
5 16-35C612 3/8” x 3/4” Flanged Bolt 2 -
6 18-19311-02-P-062 Hose Clamp 1 -
7 18-19312-02 Twin Cover Plate 2 -
8 19-13577 NR Pin Spacer Clevis End 2 -
9 19-40419 2.25 x 2.00 x 1.38 Spring Bushing 8 8
10 19-7774 1”x1” Spring Bushing 1 -
11 25-34342 Tappet Quick Coupler - Male 4 2
12 25-3453 Pioneer Dust Cap Tilt (Green) 2 -
13 25-3455 Pioneer Dust Cap Angle (Red) 2 2
14 26-34711 4 x 8 Cylinder W/ Cast Clevis Ends 1 -
15 26-34748 5 x 12 Cylinder W/ Tube Ends (2.0”) 2 2
15A 26-34759 5 x 10 Cylinder W/ Tube Ends (2.0”) 2 2
16 27-2409 Pinch Decal (Hand) 1 -
17 27-9503 Pinch Decal (Foot) 2 -
18 31-11699-8-8 JIC Union (2403-8-8) 2 2
19 31-34040 Straight JIC x O-Ring (6400-8-8) 2 2
20 31-34050 Straight Thread Elbow 90° JIC x O-Ring (6801-8-8) 2 -
21 31-34051 Straight Thread Elbow 90° JIC x O-Ring (6801-8-10) 8 6
22 31-34070 Run Tee JIC x O-Ring (6804-8-8-8) 2 2
23 31-34100 Swivel Nut Elbow 90° JIC (6500-8-8) 2 2
24 32-18400 Tilt Frame (2.0”) 1 -
25 32-18410 Angle Frame (2.0”) 1 1
26 34-12932 Cylinder Saddle 2 2
27 34-12933 Hose Clamp 2 2
28 34-13807 Spring, Hose Support 1 -
29 34-18888-GR -12 Green - Spiral Band 2 -
30 34-18888-RD -12 Red - Spiral Band 2 2
31 35-17260 240 Formed Steel Line 2 2
32 35-31010 25” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
33 35-31013 28” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
34 35-31022 39” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 2 2
35 35-31030 63” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 1 -
36 35-31032 69” x 3/8” -8 JIC/-8 JIC Hose w/ Cordura 1 -
37 43-13580 1” Clevis Bolt in Pin 2 -
38 43-16925 Angle Pin 1 1
39 43-18405 Cylinder Pin (2”) 4 4
40 56-7772 Relief Valve 1 1
41 57-16928 3.50” OD x 1.06” ID Washer 1 1
42 57-20791 5/16” Fender Washer 1 -
43 57-20794 1/2” Fender Washer 1 -
44 58-9369 Grease Zerk 1/8” NPT Straight 4 4
45 58-9371 Grease Zerk 1/8” NPT 45° 2 2
46 70-20581 5/16” Hex Nut NC 1 -
47 70-20604 1/2” Hex Center Lock Nut NC 4 4
Item A: For Challenger 1000 & Fendt 1000 Tractors.
See Page 13 for the tractor side hydraulics.
See Page 21 for hydraulic schematic.
NOTE: When ordering cylinder seal kits, the part number on the cylinder is needed. The
number is stamped on the base end of the cylinder opposite of the hydraulic ports.
No. On Cylinder Part No. Description
26-34748 49-12272 Seal Kit 5 x 12 Nitrided Rod
26-34711 49-12271 Seal Kit 4 x 8 Nitrided Rod, Clevis Ends

11
1
42
7
7
46
6
DETAIL A
28
12
40
13
A
36
35
19
47
2
15
43
21
11
23 1
22
32 33
45
39
44
3
24
41
4
14
16
17
38
25
30
29
34
9
Hydraulic Angle-Hydraulic Tilt or Hydraulic Angle-No Tilt
S
ystem

12
23
20
19
DETAIL A
22
18
17
3
21
12
32
2
9
18
33
27
5
16
11
29
31
10
22
6
24
8
A
Li
f
t
S
ystem

13
1
28 26
31
30
4
4
31
30
25
31
14
13
15
7
Li
f
t
S
ystem
Item Qty. Part No. Description
15 1 27-9503 Pinch Decal (Foot)
16 2 27-9504 Grouser Horizontal Decal
17 1 31-11699-8-8 JIC Union (2403-8-8)
18 4 31-34051 Straight Thread Elbow 90° JIC x O-Ring (6801-8-10)
19 1 34-12932 Cylinder Saddle (ZR518)
20 1 34-12933 Hose Clamp
21 1 34-14961 Manual Canister
22 4 34-18888-OR -12 Spiral Band - Orange
23 1 35-17260 240 Formed Steel Line
24 2 35-17721-280-1 280” x 1/2” -8JIC/-8JIC Hose W/ 36” Cordura
25 4 43-16385 240 Upper Pin
26 4 43-16390 240 Lower Pin
27 2 43-18405 240 Cylinder Pin (2.0”)
28 1 45-18300 240 Quick Attach (2.0”)
29 2 57-20741 5/16” Flat Washer
30 8 57-20794 1/2” Fender Washer
31 12 58-9369 Grease Zerk 1/8” NPT Straight
32 2 70-20611 5/16” Nyloc Nut
33 2 70-20604 1/2” Hex Center Lock Nut NC
NOTE: When ordering cylinder seal kits, the part number on the cylinder is
needed. The number is stamped on the base end of the cylinder opposite of
the hydraulic ports.
No. On Cylinder Part No. Description
26-34748 49-12272 Seal Kit 5 x 12 - Nitrided Rod
See Page 21 for hydraulic schematic.
Item Qty. Part No. Description
1 1 11-19000 FH-440 Lower Arm
2 1 11-19010 FH-440 Top Arm
3 2 16-20035 5/16” x 1-1/4“ Hex Bolt Gr 5 NC
4 8 16-20125 1/2” x 1-1/4“ Hex Bolt Gr 5 NC
5 2 16-20424 1/2” x 3-1/2” Hex Bolt Gr 8 NC
6 4 19-7954 2.25 x 2.00 x 2.00 Spring Bushing
7 4 19-16328 2.75 x 2.50 x 2.00 Spring Bushing
8 4 19-40419 2.25 x 2.00 x 1.38 Spring Bushing
9 2 25-34342 Tappet Quick Coupler Male - Poppet Style
10 2 25-3457 Pioneer Dust Cap Lift (Orange)
11 1 26-34748 5 x 12 Cylinder Tube Ends (2.0”) (658378)
12 2 27-17263 FH-440 Decal
13 1 27-40425 Warning Decal - Extension
14 1 27-2409 Pinch Decal (Hand)

14
Q
uick Attach
S
ystem
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 11-16918 Pin Pulling Arm Assembly
2 5 16-17266 3/8" x 3/4" Flange Button Socket Cap Bolt
3 1 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC
4 2 16-21065 3/8" x 1-1/4" Carriage Bolt Gr 5 NC
5 2 19-40440 .378” ID x .503” OD x .375” Spacer
6 1 34-17799 Latch Spring
7 1 39-16931 Latch
8 1 39-3072 Rubber Handle
9 2 43-40765 Pin, 240 Lock Out
10 1 45-18300 Quick Attach
11 2 57-20742 3/8" Flat Washer
12 5 57-20792 3/8" Fender Washer
13 4 57-40408 3/8" Flat Nylon Washer
14 1 70-20610 1/4" Nyloc Hex Nut Gr 5 NC
15 2 70-20612 3/8" Nyloc Hex Nut Gr 5 NC
16 1 75-16915-L Link Assembly
17 1 75-16915-R Link Assembly
7
8
1
4
11
5
15
12
2
16
17
2
12
13
10
12
12
2
2
3
6
14
9
13

15
11
9
14
15
12
4
13
2
20
13
19
18
17
7
3
8
21
1
56
Mounts May Vary
16 10
Green Plug & Spiral Band
(Tilt Cylinder Extend)
Tilt Base
9LHZ)URP/HIW6LGH
Right Angle Extend &
Left Angle Retract
Red Plug & Spiral Band
For Light Kit
Wire Harness
(If applicable)
Tilt Rod
(Tilt Cylinder Retract)
Green Plug & Spiral Band
Right Angle Retract &
Left Angle Extend
Red Plug & Spiral Band
Tractor
S
ide Hydraulics
&RQÀJXUDWLRQ HAHT HANT
Item Part No. Description Qty. Qty.
1 16-35C612 3/8” x 3/4” Flanged Bolt 4 2
2 16-20037 5/16” x 1-3/4 “ Hex Bolt Gr 5 NC 1 1
3 18-19311-03-P-087 Hose Clamp (TS-CLH-03-P-087) 2 1
4 18-19312-03 Twin Cover Plate (TS-TCP-03-Z) 1 1
5 18-19313-03 Twin Stacking Bolt (TS-STB-03-Y-56H) 1 -
6 18-19314-02 Twin Safety Plate (TS-SAF-02-Y) 1 -
7 25-34321 Tappet Quick Coupler - Female 4 2
8 25-34342 Tappet Quick Coupler - Male 4 2
9 25-3453 Pioneer Dust Cap Tilt (Green) 2 -
10 25-3454 Pioneer Dust Plug Tilt (Green) 2 -
11 25-3455 Pioneer Dust Cap Angle (Red) 2 2
12 25-3456 Pioneer Dust Plug Angle (Red) 2 2
13 31-34051 Straight Thread Elbow 90° JIC x O-Ring (6801-8-10) 8 -
14 34-18888-GR -12 Green - Spiral Band 4 -
15 34-18888-RD -12 Red - Spiral Band 4 4
16 35-17722-280-1 280” (23.3’) x 3/8” -8JIC/-8JIC Hose w/21” Cordura & Collar 2 2
17 35-17722-280-2 280” (23.3’) x 3/8” -8JIC/-8JIC Hose w/18.5” Cordura & Collar 2 -
18 44-14734 Female Coupler Retainer 2 1
19 44-16236 Female Coupler Mount 1 1
20 70-20622 3/8” Flange Hex Nut 4 2
21 70-20604 1/2” Hex Center Lock Nut 2 2
See Page 21 for hydraulic schematic.
Some parts hidden for clarity

16












 















240 U-End Plates (U-End) - 19349-K
Item Qty. Part No. Description
1 1 11-18640-L 240 - U-End Plate Brace - Left
2* 1 11-18640-R 240 - U-End Plate Brace - Right
3 4 16-20190 5/8” x 2 1/2” Hex Bolt Gr 5 NC
4 10 16-20219 3/4” x 2-1/4” Hex Bolt Gr 5 NC
5 6 16-20508 3/4” x 2” Hex Bolt Gr 8 NC
6 2 44-19349 240 - 1/2” Box End Plates (U-End)
7 2 44-18645 Lift Hook Washer
8 4 57-20816 5/8” Flat Washer Grade 8 (USS)
9670-20597 3/4” Hex Nut Gr 8 NC
10 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
11 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
Top Ext. for U-End Plates - 19348-K
Item Qty. Part No. Description
12 6 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
13 6 16-21125 1/2” x 1-1/4” Carriage Bolt Gr 5 NC
14 1 44-19348-L 240 - Top Ext for U-End Plates - Left
15* 1 44-19348-R 240 - Top Ext for U-End Plates - Right
16 12 57-20744 1/2” Flat Washer
17 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
240 Box End Plates - 19350-K
Item Qty. Part No. Description
1 10 16-20219 3/4” x 2-1/4” Hex Bolt Gr 5 NC
2 2 44-19350 240 - 1/2” Bent End Plates (Std Straight)
3 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
Top Ext. for Box End Plates - 19351-K
Item Qty. Part No. Description
4 6 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
5 6 16-21125 1/2” x 1-1/4” Carriage Bolt Gr 5 NC
6 1 44-19351-L 240 - Top Ext for Box End Plates - Left
7* 1 44-19351-R 240 - Top Ext for Box End Plates - Right
8 12 57-20744 1/2” Flat Washer
9 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
Blade
O
ptions
* Parts Not Shown
* Parts Not Shown

17


















Blade
O
ptions
* Parts Not Shown
FH-440 to 240 Extension Assy - 40285-A
Item Qty. Part No. Description
1 1 11-40610R1 440 To 240 Adapter Stand
2 2 16-20134 1/2” X 3 1/2” Hex Bolt Gr 5 NC
3 1 32-40285R2 FH-440 to 240 Extension
4 2 43-16923R2 240 Pin Pulling Pin
5 1 43-40453 Hitch Pin with Chain
6 1 57-20742 3/8” Flat Washer
7* 1 59-16899-6 Heavy Duty Velcro Strap
8 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
9 1 70-20612 3/8” Nyloc Nut
240 - 1’ End Extension Kit - 17525-1-A
Item Qty. Part No. Description
1115-17525-1-L 1’ End Extension - Left
2* 115-17525-1-R 1’ End Extension - Right
3 10 16-20218 3/4” x 2” Hex Bolt Gr 5 NC
4 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5 2 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
6 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
7 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 - 1’ End Extension Top Extension Kit - 19215-K
Item Qty. Part No. Description
8 1 15-19215-L 240 1’ End Extension Top Extension - Left
9* 1 15-19215-R 240 1’ End Extension Top Extension - Right
10 10 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
11 10 57-20744 1/2” Flat Washer
12 10 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
240 - 2’ End Extension Kit - 17525-2-A
Item Qty. Part No. Description
1* 1 15-17525-2-L 2’ End Extension - Left
2* 1 15-17525-2-R 2’ End Extension - Right
3 10 16-20218 3/4” x 2” Hex Bolt Gr 5 NC
4 8 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5* 2 29-7950-2 2’- 5/8” x 6” Double Bevel Cutting Edge
6 10 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
7 8 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 - 2’ End Extension Top Extension Kit - 19216-K
Item Qty. Part No. Description
8* 1 15-19216-L 240 2’ End Extension Top Extension - Left
9* 1 15-19216-R 240 2’ End Extension Top Extension - Right
10 12 16-21124 1/2” x 1” Carriage Bolt Gr 5 NC
11 12 57-20744 1/2” Flat Washer
12 12 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
* Parts Not Shown
NOTE: The FH-440 to 240 Extension is an option for tractors equipped with duals. The extension provides extra clearance
between the tires and the blade system. Tire size and row spacing will determine if your system will require the extension.

18









Replacement Parts
1’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-1K
Item Qty. Part No. Description
1 2 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
3 2 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
2’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-2K
Item Qty. Part No. Description
1 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-2 2’- 5/8” x 6” Double Bevel Cutting Edge
3 2 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
5’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-5K
Item Qty. Part No. Description
1 10 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-5 5’- 5/8” x 6” Double Bevel Cutting Edge
3 10 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
6’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-6K
Item Qty. Part No. Description
1 12 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-6 6’- 5/8” x 6” Double Bevel Cutting Edge
3 12 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
7’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-7K
Item Qty. Part No. Description
1 12 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-7 7’- 5/8” x 6” Double Bevel Cutting Edge
3 14 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
8’ - 5/8” x 6” Cutting Edge w/ Hardware Kit - 7950-8K
Item Qty. Part No. Description
1 16 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
2 1 29-7950-1 1’- 5/8” x 6” Double Bevel Cutting Edge
3 16 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
12” Round Mushroom Skid Shoe Kit (12’-16’ Blades) - 15458-K
Item Qty. Part No. Description
4 4 16-21666 5/8” x 1-3/4” Plow Bolt Gr 5 NC
5 2 50-15458 12” Round Mushroom Skid Shoe
6 4 70-20646 5/8” Hex Top Lock Nut Gr 5 NC
240 Skid Shoe Kit (10’ Blades) - 8740-K
Item Qty. Part No. Description
7 8 16-21218 3/4” x 2” Carriage Bolt Gr 5 NC
8 2 50-8740 2X0 Skid Shoe
9 8 57-20747 3/4” Flat Washer
10 8 70-20607 3/4” Hex Center Lock Nut Gr 2 NC
NOTE: Multiple cutting edge kits may be required.

19
7
14
2
12
13
6
8
15
4
9
5
14
16
1
2
Tilt Extend
Right Angle Extend &
3
Right Angle Retract &
Left Angle Extend
Left Angle Retract
Red Spiral Band
Green Spiral Band
Tilt Retract
Green Spiral Band
Red Spiral Band
11
10
Item No. Qty. Part No. Description
1 2 16-35C616 3/8” x 1” Flanged Bolt
2 4 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
3 1 18-19008 240 Quick Coupler - Parking Station Mount
4 1 18-19011 240 Quick Coupler Mount
5 1 25-18956 Multi-Coupling Plate - 4 Port Parking Station
6 1 25-19864 Multi-Coupling Plate - 4 Port Fixed
7 4 25-19865 Multi-Coupling Plate - Coupler - Female
8 1 25-19866 Multi-Coupling Plate - 4 Port Mobile
9 1 25-19867 Multi-Coupling Plate - 4 Port - Cap
10 4 25-19870 Multi-Coupling Plate - Coupler - Male
11 8 25-40407 Multi-Coupling Plate - Snap Ring
12 4 31-34040 Straight JIC x O-Ring (6400-08-08)
13 4 31-34150 Straight Thread Elbow 45° JIC x O-Ring (6802-8-8)
14 4 57-20740 1/4” Flat Washer
15 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
16 2 70-20622 3/8” Flange Hex Nut Gr 5 NC
Some parts hidden for clarity
HAHT Hydraulic Multi-
C
oupler
O
ption
Notes:
1. Follow the multi-coupler maintenance steps for connecting and disconnecting on pages 19-20.
2. After any maintenance, verify that hoses are in their correct position during reinstallation.

20
9
12
2
10
1
11
13
7
3
Red Spiral Band
1
Left Angle Extend
Right Angle Retract &
Left Angle Retract
Red Spiral Band
4
8
9
5
6
Right Angle Extend &
12
HANT Hydraulic Multi-
C
oupler
O
ption
Item No. Qty. Part No. Description
1 4 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
2 1 18-19011 240 Quick Coupler Mount
3 1 25-19657 Multi-Coupling Plate - 2 Port Parking Station
4 1 25-19868 Multi-Coupling Plate - 2 Port Fixed
5 2 25-19865 Multi-Coupling Plate - Coupler - Female
6 1 25-19869 Multi-Coupling Plate - 2 Port Mobile
7 1 25-19871 Multi-Coupling Plate - 2 Port - Cap
8 2 25-19870 Multi-Coupling Plate - Coupler - Male
9 4 25-40407 Multi-Coupling Plate - Snap Ring
10 2 31-34040 Straight JIC x O-Ring (6400-08-08)
11 2 31-34150 Straight Thread Elbow 45° JIC x O-Ring (6802-8-8)
12 4 57-20740 1/4” Flat Washer
13 2 70-20604 1/2” Hex Center Lock Nut Gr 2 NC
Some parts hidden for clarity
Notes:
1. Follow the multi-coupler maintenance steps for connecting and disconnecting on pages 19-20.
2. After any maintenance, verify that hoses are in their correct position during reinstallation.
