Grouser Products HD 19 U-Blade User manual

Date 11-3-2021
PN: 63-43458
Purchase Date
Serial Number
Model Number
Tractor Model
Dealer
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com
HD 19’ U-Blade
Owner’s Manual & Parts Book
Serial Number: 10207014-Current

2
Description Page
Welcome To The Owner 2
Safety Precautions, Torque Specications & Pre-Installation 3
Decals 4
Maintenance & Lubrication 5
Lift System 6
Tractor Side Hydraulics 7-9
Initial Startup 7
Connecting and Disconnecting 10

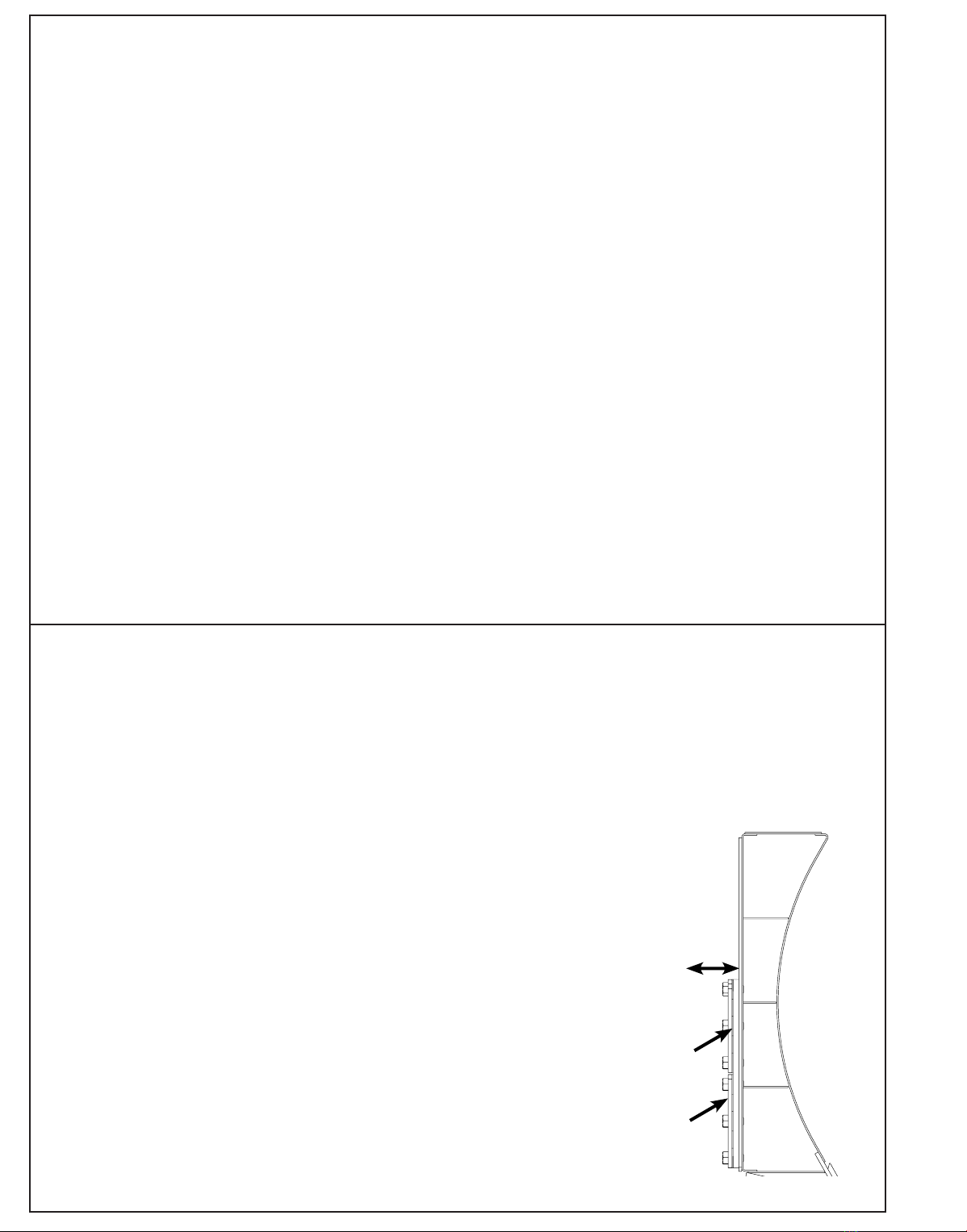

Tilt Plate Adjustment 10

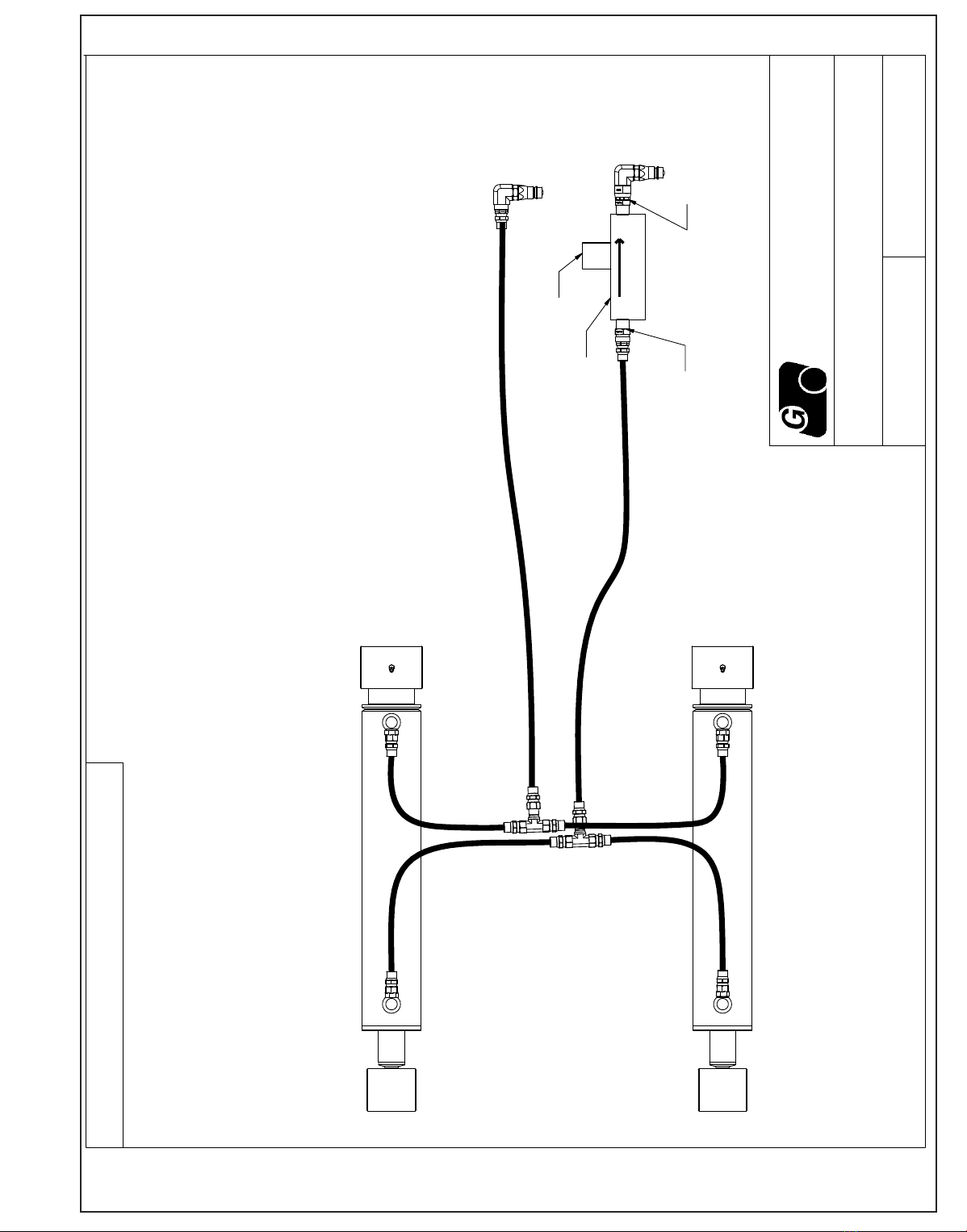

Lift Speed Control Installation 11
Ag Pro 19’ U-Blade 12-13
No Angle - Hydraulic Tilt System 14-15
Hydraulic Multi-Coupler Maintenance 16-17

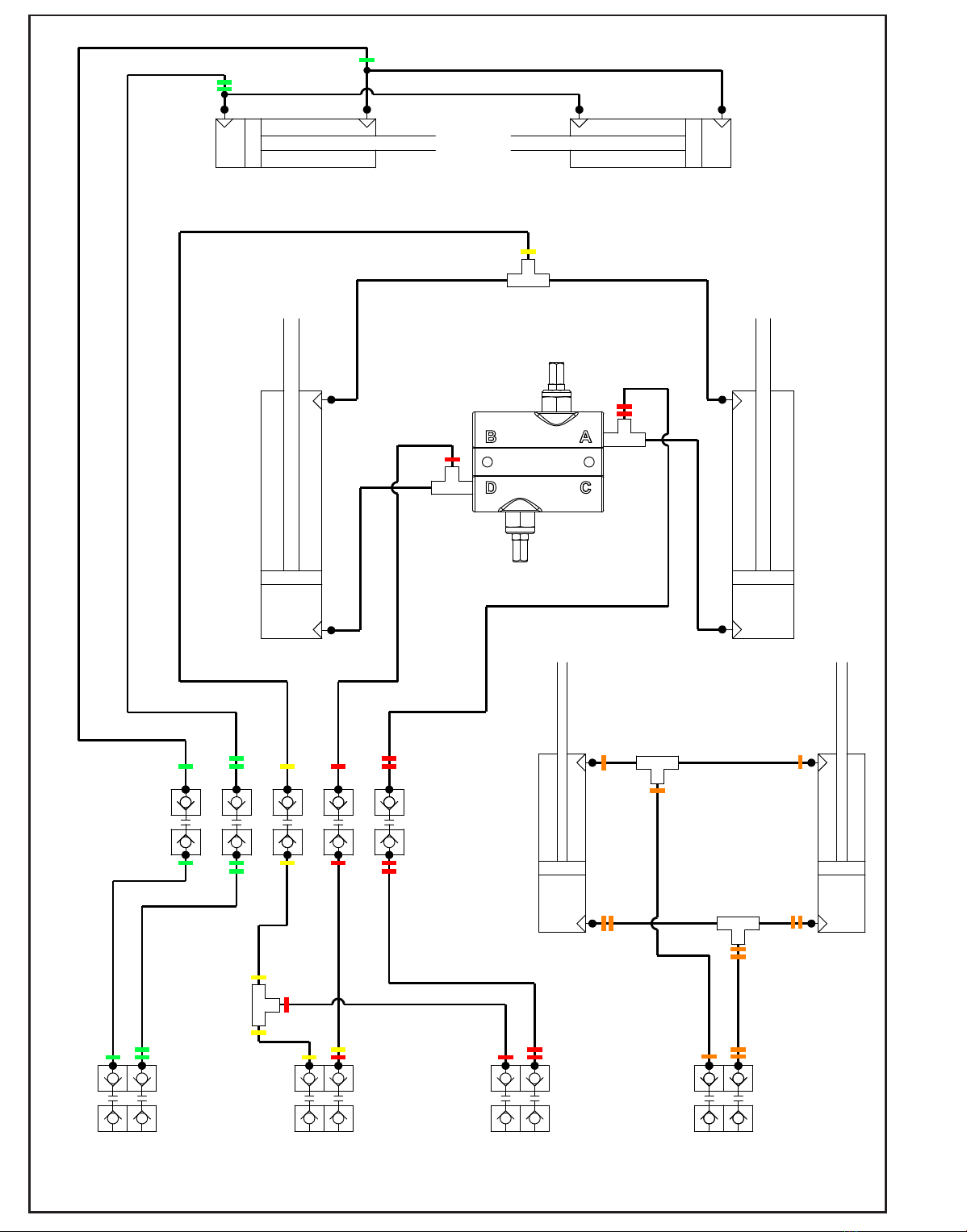

Hydraulic Schematics 18
Notes 19
Contact Us, Improvements, & Warranty 20
Thank you for your recent purchase of a Grouser 19’ U-Blade. Welcome to the family of satised Grouser blade owners. Grouser
Products is committed to offering quality products to help professionals in their daily jobs. We are also committed to providing you
the highest level of customer satisfaction possible. Again, thank you for your patronage. We look forward to serving you.
This manual contains information concerning the operation, adjustment, safety and maintenance of the 19’ U-Blade. You have
purchased a dependable, long lasting piece of equipment. You can expect to receive long lasting performance and long service
built into our products with proper care and operation. Please have all operators read and understand this manual carefully. Keep
the manual available for reference. If, for any reason, you have questions or comments, we would be happy to hear from you. Call
our toll-free number, 800-747-6182, or send us an e-mail at [email protected]. You can expect us to respond to your e-mail in a
timely manner.
ContentsWelcome to the OwnerAbbreviation Key
NAHT No Angle - Hydraulic Tilt

3
A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent
accidents, read and take the following precautions before operating this equipment. In addition, please follow all safety and
operational instructions of your tractor manufacturer.
The 19’ U-Blade:
1. The 19’ U-Blade should be operated only by those who are responsible and instructed to do so.
2. Read the owner’s manual carefully before using this equipment. Lack of operating knowledge can lead to accidents.
3. Keep the 19’ U-Blade maintained in reliable and satisfactory condition to ensure your safety.
4. Make sure the area is clear of people before moving any equipment.
5. Do not modify or permit anyone else to modify or alter the equipment and its components without rst consulting Grouser
Products.
6. Lower the blade to the ground when not in use.
Servicing the 19’ U-Blade:
1. Read and follow all safety instructions provided by the tractor manufacturer.
2. Always use proper personal safety gear when performing maintenance on equipment.
3. Before servicing, relieve hydraulic pressure, stop engine and fully engage parking brake.
4. Escaping hydraulic uid under pressure can penetrate skin causing serious injury. If uid is injected into skin, obtain medical
attention immediately.
– DO NOT use your hand to check for leaks. Use a piece of cardboard or paper to search for leaks.
– Stop the engine and relieve pressure before connecting or disconnecting lines.
– Tighten all connections before starting the engine or pressurizing lines.
Storing the 19’ U-Blade:
1. Thoroughly clean the 19’ U-Blade before storage. Use paint where necessary to prevent rust.
2. Check the 19’ U-Blade for worn or damaged parts. Install new parts as required.
3. Lubricate all pins and joints.
Tighten all bolts to the values listed below unless otherwise noted. Refer to the parts lists for proper length and grade of the bolts.
Torque - Dry (ft–lbs)
SAE Grade 5 SAE Grade 8
Size UNC UNF UNC UNF
5/16 17 19 24 27
3/8 30 35 45 50
7/16 50 55 70 80
1/2 75 85 110 120
9/16 110 120 150 170
5/8 150 170 210 240
3/4 260 300 380 420
7/8 430 470 600 670
1 640 720 910 1020
Torque - Dry (ft-lbs)
Size Grade 10.9
M18 x 2.50 284
M20 x 2.50 401
M22 x 2.50 547
M24 x 3.00 694
Safety Precautions Torque Specications Pre-Installation
Unstrap and remove the lift frame, hoses, top arms, and any boxes of hardware from the undercarriage. If any components are
missing, call Grouser.
Install undercarriage per the tractor specic mounting instructions.

4
Decals
27-9503
PN: 27-9503
PN: 27-2409
Left and Right Side
Left and Right Side
WARNING
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
27-40962
PN: 27-40962
PN: 27-9505
Left and Right Side
HD 19U
PN: 27-41686

5
Maintenance & Lubrication
Due to the harsh environment this equipment operates in, the following tasks should be performed
every 10 hours or less.
• Inspect all equipment before operation for existing or potential damage.
• Lubricate all joints with high quality grease. See below for grease locations.
• Inspect all bolts, and tighten any loose bolts to torque specications on page 3.
• Check replaceable cutting edge for wear ensuring there is enough material to prevent permanent damage to the 19’ U-Blade. For
cutting edge information, see pages 12-13 .
• Check hydraulic cylinders and hoses for damage or leaks. For replacement parts, see hydraulic pages 6, 8-9 and 14-15.
• Make sure all non-rotating pins are secured properly.
• Inspect all decals and order replacement decals from your dealer if any are damaged or worn.
• For multi-coupler maintenance, see pages 16-17.
• Inspect all tilt-ways for wear. See page 10 for tilt plate adjustment.
• Replace parts with original parts only.
4X
2 Places
4X
2 Places
6X
2 Places 4X
2 Places 4X
2 Places
4X
2 Places 6X
2 Places
4X
2 Places

6
43460
DWG. NO.:

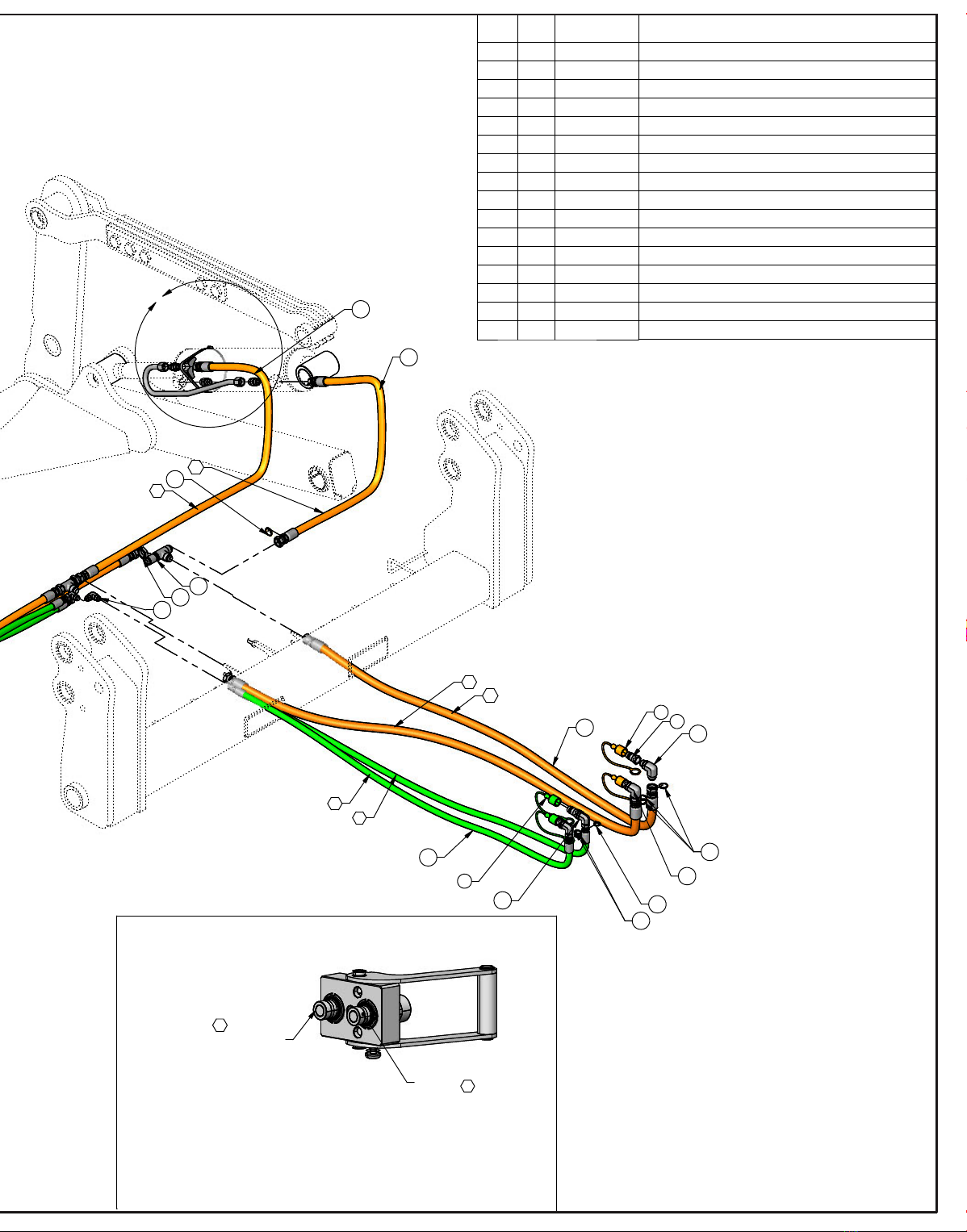

ITEM
NO. QTY. PART NO. DESCRIPTION
1 1 11-40760-L Ag Pro Plus Manual Pitch Top Arm Assy
2 1 11-40760-R Ag Pro Plus Manual Pitch Top Arm Assy
3 2 16-20002 1/4" x 3/4 " Hex Bolt Gr 5 NC
4 2 16-20214 3/4" x 1" Hex Bolt Gr 5 NC
5 2 16-20216 3/4" x 1-1/2" Hex Bolt Gr 5 NC
6 4 16-20217 3/4" x 1-3/4" Hex Bolt Gr 5 NC
7 4 16-20220 3/4" x 2-1/2" Hex Bolt Gr 5 NC
8 10 16-20566 1" X 4" Hex Bolt Gr 8 NC
9 8 19-13515 Spacer, NR Pin
10 2 19-13525 2.75 x 2.50 x 4.75 Spring Bushing
11 8 19-16695 2.25 x 2.00 x 1.50 Spring Bushing
12 2 19-18089 2.75 x 2.50 x 3.75 Spring Bushing
13 2 26-34751 5 x 18 Hydraulic Cylinder
No. On
Cylinder Part No. Description
26-34751 49-12275 Seal Kit 5" (658457) Nitrided Rod
ITEM
NO. QTY. PART NO. DESCRIPTION
14 2 27-9503 Pinch Decal (Foot)
15 2 27-40962 Warning Prop 65 Decal
16 1 32-43320 HD Lift Frame
17 1 34-14961 Manual Canister Small
18 2 43-14725 Lift Frame / UC Pin
19 4 43-18120 Top Pin Weld
20 2 43-18127 Top Arm Pin Weld
21 2 43-18175 Lift Cyl Pin Weld
22 2 43-18635 Ag Pro Plus QA Pin
23 1 45-18110-L Male Quick Attach, Ag Pro S
24 1 45-18110-R Male Quick Attach, Ag Pro S
25 2 57-1530 3" OD X .75 ID X .25" HD Flat Washer
26 6 57-1811 2” Washer
27 2 57-20740 1/4" Flat Washer
28 10 57-20747 3/4" Flat Washer
29 12 58-9369 Straight 1/8" NPT Grease Zerk
30 10 70-20599 1" Hex Nut Gr 8 NC
31 2 70-20607 3/4" Center Lock Hex Nut
32 2 70-20610 1/4" Nyloc Hex Nut Gr 5 NC
15
25
5
20
8
32
3
17
30
1
2
13
24
23
11
10
29
6
28
22
21
9
7
28
29
9
19
29
4
28
18
31
27
Note: The cylinder part number is stamped on the base
end of the cylinder opposite of the hydraulic ports.
14
12
26
16
29

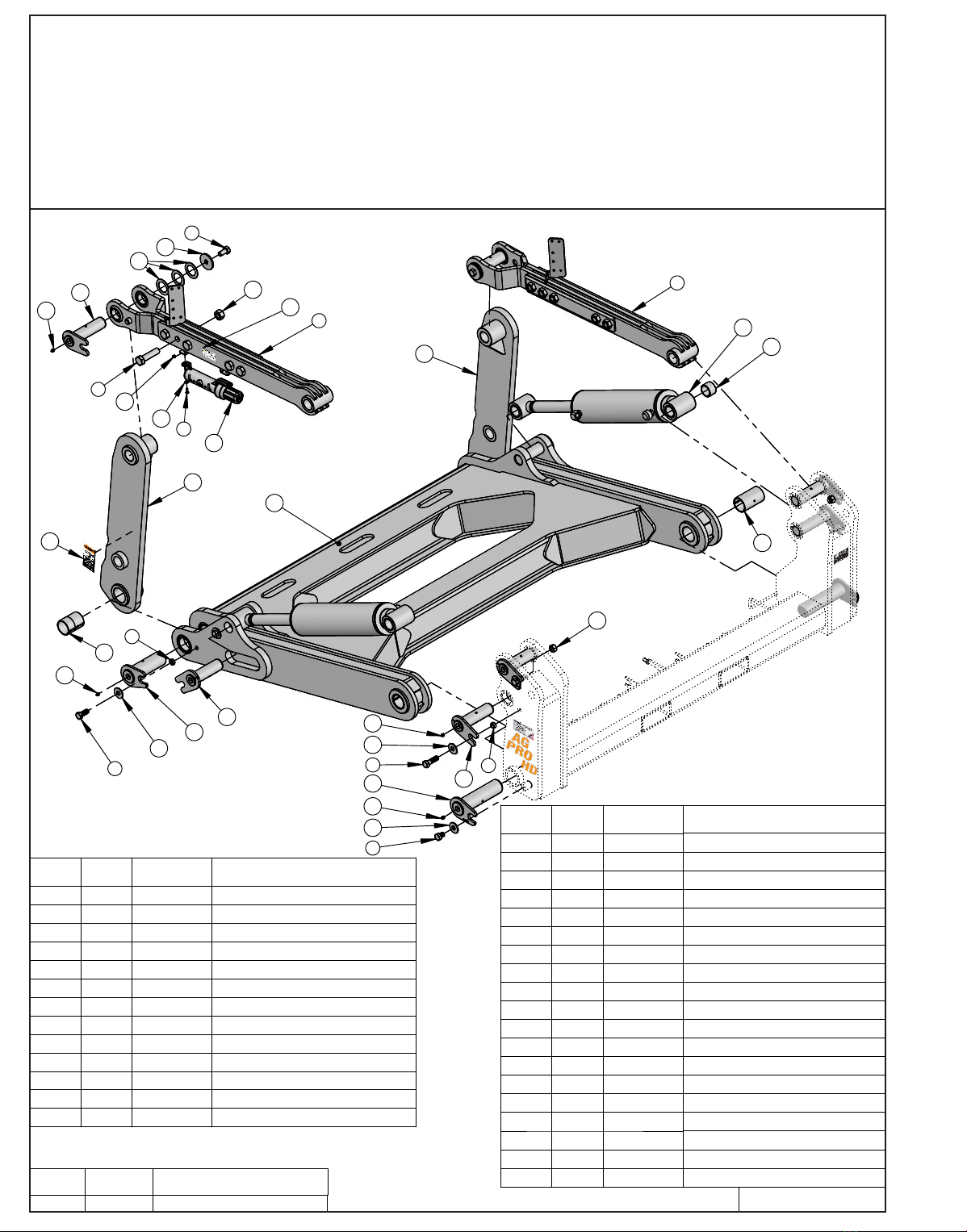

Lift System
Some assembly of Lift System components is necessary. Follow the steps listed below. See diagram below for the correct hardware
and orientation of parts.
1. Remove all pins and fasteners on each side of the undercarriage and set aside for later installation.
2. Position the lift frame between the two plates on both sides of the undercarriage and align to the bottom holes.
3. Insert pins and hardware to attach the lift frame, the base end of the lift cylinders, and the top arms to the undercarriage.
4. Insert pins and hardware to attach the male quick attaches to the lift frame, and to the top arms. Use 2” washers as shims to
keep top arm pins tight and in place. Only use as many as needed until pin is tight.
5. Torque all fasteners according to the specications on Page 3.

7
Tractor Side Hydraulics
Note: Refer to Pages 8-9 for the correct hose lengths and hose location.
Note: All connections are identied by spiral bands. 2 bands are from the base end of a cylinder and 1 band is from the
rod end of a cylinder. Orange = Lift, Green = Tilt, Red = Angle, and Yellow = Angle 2-Stick.
1. Connect the lift hoses to the lift cylinders.
2. Verify that hoses are not twisted and protected from rubbing on any sharp edges. See Pages 8-9 for proper hose routing.
3. Install the 45° ttings into the multi-couplers on both top arms.
4. Identify each remaining hose at the front of the undercarriage by the colored bands on the end of the hose and connect the
hose to the corresponding 45° tting on the multi-coupler. Refer to Pages 8-9 for proper hose locations.
5. Continue below for initial startup instructions.
Initial Startup
Prior to operating the blade system, all air must be purged from the hydraulic system. Follow the steps below for each function on
your blade.
Lift Function:
1. With the lift frame down and blocked, loosen the ttings on both ends of the lift cylinders.
2. Actuate the raise function to supply oil to the rod end of the cylinders.
3. When oil starts to ow from the ttings, stop oil ow, and tighten the tting on the rod end of the lift cylinders.
4. Continue to ow oil until the system is fully raised and then block the lift frame.
5. Actuate the function in the opposite direction to supply oil to the base end of the lift cylinders.
6. When all air is removed from the lift system, stop oil ow and tighten the ttings on the base end of the lift cylinders.
7. Raise lift system and remove blocks. Cycle up and down 5 more times.
8. Check tractor oil level and ll if necessary.
9. Continue with connecting the blade on Page 10.
Tilt Function:
1. Use a lift or jack to tilt the blade system until the left side is fully up, loosen the ttings on the rod and base end of both tilt cylinders.
2. Actuate the tilt function to extend the right tilt cylinder and supply oil to the base end of the right cylinder and to the rod end of the
left cylinder.
3. When oil starts to ow from the ttings, stop oil ow, and tighten the tting on the base end of the right cylinder and rod end of
the left cylinder.
4. Remove the lift or jack.
5. Continue to actuate the tilt function until oil ows out of the remaining open ports.
6. Actuate the tilt function in the opposite direction.
7. When all air is removed from the tilt system, stop oil ow, and tighten the remaining ttings on the cylinders.
8. Cycle both cylinders in and out 5 more times.
9. Check tractor oil level and ll if necessary.
Run the blade through all the functions. If any function does not operate correctly, refer to corresponding section above and re-
bleed. If problem still persists, call Grouser Products.

8

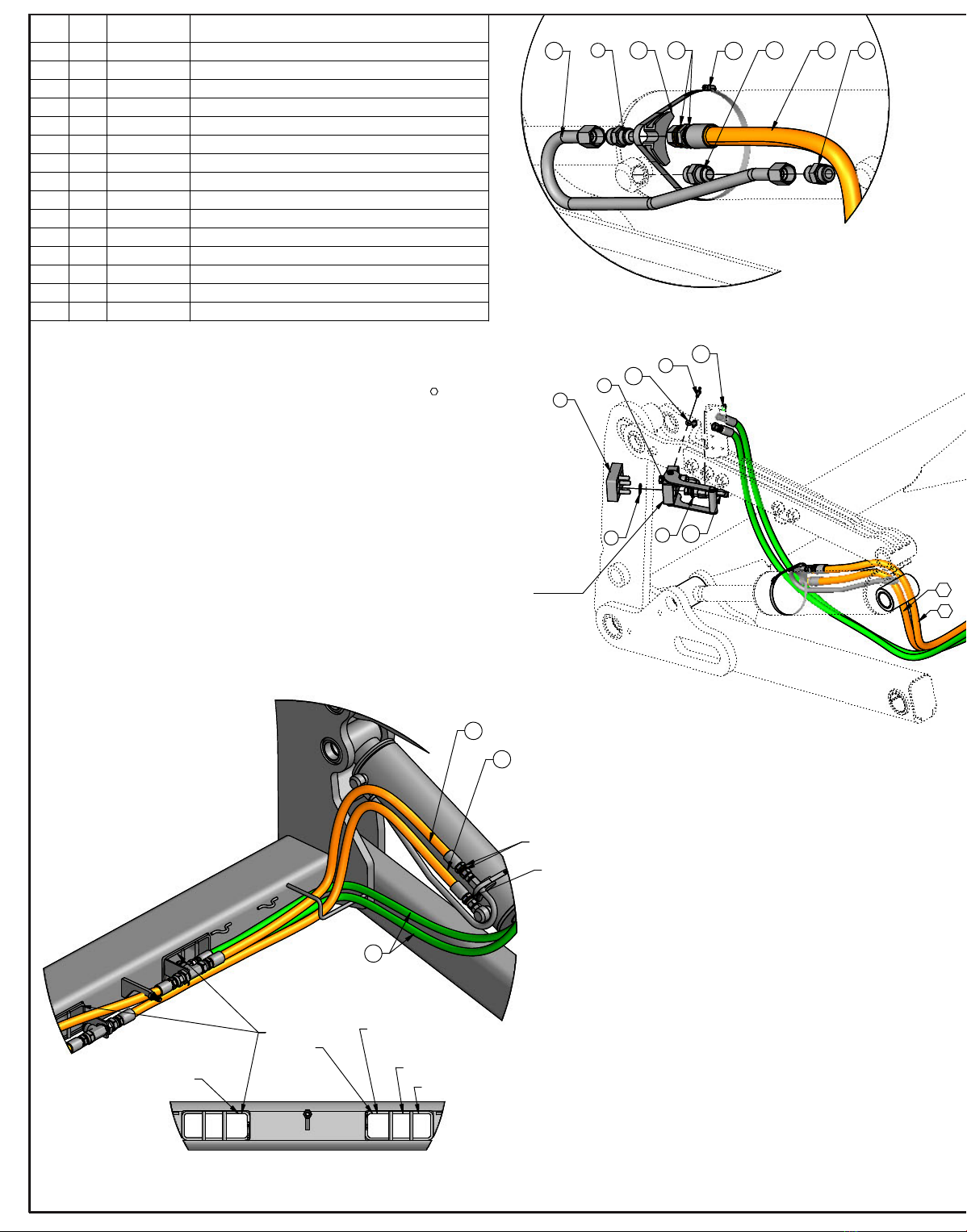

Tractor Side Hydraulics
Lift Base Hose & Tilt Hoses
Angle Hoses (Red Spiral Bands)
2-Stick Hose (Yellow Spiral Band)
(Orange & Green Spiral Bands)
Lift Rod Hose
(Orange Spiral Bands)
1 Orange Spiral Band
From The Front
View of Left Side Hoses
2 Orange Spiral Bands
bands and should be attached to designated
DETAIL B
All hoses are marked with colored spiralNOTE:
ports on the Multi-Coupler.
Green Spiral Band (X2)
Green Spiral Band (X1)
ETilt Rod
Tilt Base F
13
ITEM
NO. QTY. PART NO. DESCRIPTION
1 2 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
2 1 25-19868 Multi-Coupling Plate - 2 Port - Fixed
3 2 25-19870 Multi-Coupling Plate - Male Coupler
4 1 25-19871 Multi-Coupling Plate - 2 Port - Cap
5 4 25-34342 Tappet Quick Coupler Male - Poppet Style
6 2 25-3453 Pioneer Dust Cap Tilt (Green)
7 2 25-3457 Pioneer Dust Cap Lift (Orange)
8 2 25-40407 Multi-Coupling Plate - Snap Ring
9 2 31-11699-10-10 JIC Union
10 2 31-15199-8-8 JIC Union Elbow 90°
11 2 31-34032 Bulkhead Run Tee JIC
12 4 31-34042 Straight JIC x O-Ring
13 2 31-34051 Straight Thread Elbow 90° JIC x O-Ring
14 2 31-34059 Straight Thread Elbow 90° JIC x O-Ring
15 2 31-34150 Straight Thread Elbow 45° JIC x O-Ring
Hoses Not Drawn to Scale
Item A for CNH, JD 9R and JD 9030
Item B for Versatile, Challenger MT900 and JD 9RX
Every hydraulic function from the front to the back of the system is designated by a and a
letter and can also be referenced on the Hydraulic Schematics on Page 18.
Designated Hose
Locations
ITEM
NO. QTY. PART NO. DESCRIPTION
16 2 34-12932 Cylinder Saddle
17 2 34-12933 Hose Clamp (worm drive - 4.5)
18 9 34-18888-GR -12 Green - Spiral Band
19 15 34-19494-OR -16 Orange - Spiral Band
20 2 35-12631-0810 81” x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
21A 2 35-12631-2930 293" (24.42”) x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
21B 2 35-12631-3200 320" (26.67”) x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
22A 2 35-12637-3000 300" (25”) x 3/4" -12JIC/-12JIC Abrasion Resistant Hose
22B 2 35-12637-3200 320" (26.67”) x 3/4" -12JIC/-12JIC Abrasion Resistant Hose
23 1 35-12641-0515 51.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
24 1 35-12641-0535 53.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
25 1 35-12641-0665 66.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
26 1 35-12641-0670 67” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
27 2 35-18240 Lift Cylinder Steel Line
28 2 57-20740 1/4" Flat Washer
29 2 70-20809 1-1/16" Hex Jam Nut
18
1
815
28
11
29
19
27 17
22
7
24
DETAIL A
See Detail B for correct
hose locations
25
F
E
H
G
H
G
H
3
4
14
5
20
18
21
13
G
19
18
2
A
12
2516
23
26
10
6
12199
Lift frame may vary.

9
Tractor Side Hydraulics
Lift Base Hose & Tilt Hoses
Angle Hoses (Red Spiral Bands)
2-Stick Hose (Yellow Spiral Band)
(Orange & Green Spiral Bands)
Lift Rod Hose
(Orange Spiral Bands)
1 Orange Spiral Band
From The Front
View of Left Side Hoses
2 Orange Spiral Bands
bands and should be attached to designated
DETAIL B
All hoses are marked with colored spiralNOTE:
ports on the Multi-Coupler.
Green Spiral Band (X2)
Green Spiral Band (X1)
E
Tilt Rod
Tilt Base F
13
ITEM
NO. QTY. PART NO. DESCRIPTION
1 2 16-812525 8mm x 1.25mm x 25mm Metric Hex Bolt Gr 10.9
2 1 25-19868 Multi-Coupling Plate - 2 Port - Fixed
3 2 25-19870 Multi-Coupling Plate - Male Coupler
4 1 25-19871 Multi-Coupling Plate - 2 Port - Cap
5 4 25-34342 Tappet Quick Coupler Male - Poppet Style
6 2 25-3453 Pioneer Dust Cap Tilt (Green)
7 2 25-3457 Pioneer Dust Cap Lift (Orange)
8 2 25-40407 Multi-Coupling Plate - Snap Ring
9 2 31-11699-10-10 JIC Union
10 2 31-15199-8-8 JIC Union Elbow 90°
11 2 31-34032 Bulkhead Run Tee JIC
12 4 31-34042 Straight JIC x O-Ring
13 2 31-34051 Straight Thread Elbow 90° JIC x O-Ring
14 2 31-34059 Straight Thread Elbow 90° JIC x O-Ring
15 2 31-34150 Straight Thread Elbow 45° JIC x O-Ring
Hoses Not Drawn to Scale
Item A for CNH, JD 9R and JD 9030
Item B for Versatile, Challenger MT900 and JD 9RX
Every hydraulic function from the front to the back of the system is designated by a and a
letter and can also be referenced on the Hydraulic Schematics on Page 18.
Designated Hose
Locations
ITEM
NO. QTY. PART NO. DESCRIPTION
16 2 34-12932 Cylinder Saddle
17 2 34-12933 Hose Clamp (worm drive - 4.5)
18 9 34-18888-GR -12 Green - Spiral Band
19 15 34-19494-OR -16 Orange - Spiral Band
20 2 35-12631-0810 81” x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
21A 2 35-12631-2930 293" (24.42”) x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
21B 2 35-12631-3200 320" (26.67”) x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
22A 2 35-12637-3000 300" (25”) x 3/4" -12JIC/-12JIC Abrasion Resistant Hose
22B 2 35-12637-3200 320" (26.67”) x 3/4" -12JIC/-12JIC Abrasion Resistant Hose
23 1 35-12641-0515 51.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
24 1 35-12641-0535 53.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
25 1 35-12641-0665 66.5” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
26 1 35-12641-0670 67” x 5/8" -10JIC/-12JIC Abrasion Resistant Hose
27 2 35-18240 Lift Cylinder Steel Line
28 2 57-20740 1/4" Flat Washer
29 2 70-20809 1-1/16" Hex Jam Nut
18
1
815
28
11
29
19
27 17
22
7
24
DETAIL A
See Detail B for correct
hose locations
25
F
E
H
G
H
G
H
3
4
14
5
20
18
21
13
G
19
18
2
A
12
2516
23
26
10
6
12199

10
Preferred Method:
1. The preferred blade position for adjusting the tilt plates is laying face down on
blocks.
2. Remove bolts and tilt plates from the right side.
3. Add or remove washers as needed to adjust tilt-way clearance to 1/16” - 1/8”.
4. Reinstall the bolts on the right tilt plates.
5. Follow Steps #2-4 for the left tilt plates.
6. Once the tilt-way clearance is set, torque bolts to 640 ft-lbs.
Non-Preferred Method:
Note: Do not remove all of the bolts at the same time if the blade is not laying
face down.
1. The non-preferred blade position for adjusting the tilt plates is the blade in the
upright position.
2. Remove the 3 bolts from the top right tilt plate and the bottom left tilt plate..
3. Add or remove washers as needed to adjust tilt-way clearance to 1/16” - 1/8”.
4. Reinstall the bolts in the top right tilt plate and the bottom left tilt plate.
5. Follow Steps #2-4 for the bottom right tilt plate and the top left tilt plate.
6. Once the tilt-way clearance is set, torque bolts to 640 ft-lbs.
To Connect:
Note: If necessary, use a spotter to help center the blade on the lift system.
1. If necessary, lift the locking latch and pull the quick attach lock handle on the left side of the lift system to open the quick
attach system. Refer to Page #14-15 for further clarication on the quick attach system.
2. Drive the tractor forward slowly until the top edge of the male quick attach is under the top hook of the female quick attach on
the blade assembly.
3. Raise the lift system until the male quick attach engages the female hook. If both sides don’t fully engage, reposition.
Continue to raise the lift system until the blade is off the ground and the female quick attaches are against the front of the male
quick attaches.
4. Shut off the tractor engine and set the parking brake.
5. Push the quick attach lock handle to engage the quick attach pins and lift the locking latch to lock the handle in place.
6. Clean and connect hydraulic multi-coupler on the top arm. Refer to Pages 16-17 for cleaning and connecting information.
7. If initial startup, refer to Page 7 before operating any function of the blade.
To Disconnect:
1. Lower the blade until the cutting edge is off the ground a few inches.
2. Shut off the tractor engine and set the parking brake.
3. Unhook the multi-coupler on the top arm.
4. Remove the multi-coupler covers from the parking stations on the blade assembly and install on the multi-couplers on the top
arms.
5. Plug the blade side multi-couplers into the parking station.
6. Lift the locking latch and pull the quick attach lock handle to disengage the quick attach pins.
7. Start tractor, disengage the parking brake, and lower the blade until cutting edge is on the ground.
8. Continue to slowly lower the lift system to disengage the blade.
9. Slowly back away from the blade. When lift system is clear from the blade, raise the lift system.
10. Shut off the tractor engine and set the parking brake.
Blade Connection and Disconnection
Tilt Plate
Tilt Plate Adjustment
Figure 1
B
Date:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF GROUSER PRODUCTS INC IS PROHIBITED.
XXXX
GROUSER PRODUCTS INC.
TITLE:
WWW.GROUSER.COM
755 2nd Ave NW Phone [phone]
West Fargo, ND 58078 Fax [phone]
XXXXXXXX
Washers

11
Lift Speed Control Installation
8/24/2016
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
GROUSER PRODUCTS INC ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF GROUSER PRODUCTS INC IS PROHIBITED.
Lift System Speed Control Kit
GROUSER PRODUCTS INC.
Date: TITLE:
WWW.GROUSER.COM
DWG. NO.:
755 2nd Ave NW Phone [phone]
West Fargo, ND 58078 Fax [phone]
19699-INS
Instructions:
Remove the male quick coupler from the SCV - UP which should be from the Rod End of the Lift Cylinder.1. Remove the hose from the 90° fitting installed into the male quick coupler removed in Step #1.2. Install the -12 male pipe x -12 female JIC Swivel fitting into the end of the control valve on the side the arrow is pointing to.3. Attach the 90° fitting with the male quick coupler still attached to the JIC Swivel fitting that was installed in Step #3.4.
Install the -12 male pipe x -12 male JIC Straight fitting into the end of the control valve on the side opposite that the arrow is pointing to.5. Attach the end of the original hose to the fitting attached in Step #5. See diagram below for further clarification on orientation of the control valve.6. Plug male quick coupler back into the tractor7. To adjust the control valve, unscrew the adjusting knob at the top of the valve. Run the the lift cylinders up and down.8. Adjust the lift speed by turning the adjusting knob back in with 1/2 turn incrments.9. After each 1/2 turn, run the lift cylinders up and down. Continue to do this until the desired speed is achieved and there is no chatter or cavitation.10. After the control valve is adjusted, lock the adjusting knob with the lock screw.11.
SCV - UP
SCV - DOWN
Hoses Not Drawn To Scale. Adjusting Knob
Control Valve
Controlled Flow
Note: Your system may look slightly different from the diagram shown above but all lift systems are plumbed so that the rod end of both cylinders come to a t-fitting and then run to the back of the tractor and hook up to the SCV - UP. The base end of both cylinders come to a t-fitting and then run to the back of the tractor and hook up to the SCV - DOWN.
Part Number: 31-12332-12-12 (Female JIC Swivel x Male Pipe)
Part Number: 31-34165 (Male Connector JIC x Pipe)

12
19’ U-Blade
4.23
4.23
34
10
35
11
21
9
28
33
17
20
18
20
16
19
2
25
14
12
15
* Part Not Shown
See Tilt Plate Adjustment and use Items # 29 and 30 as shims
to achieve 1/16"-1/8" clearance.
Note: Cutting Edge 29-13476
is Not Symmetrical
1
31
3
4
27
24 6
26
7
22
832
5
13
29
30
26
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 11-13485 Blade Stand
2 1 15-41965 19' U - Blade Weld
3 2 16-20124 1/2" x 1" Hex Bolt Gr 5 NC
4 2 16-20217 3/4" x 1-3/4" Hex Bolt Gr 5 NC
5 20 16-20558 1" x 2" Hex Bolt Gr 8 NC
6 3 16-20560 1" x 2-1/2" Hex Bolt Gr 8 NC
7 12 16-20562 1" x 3" Hex Bolt Gr 8 NC
8 8 16-21064 3/8" x 1" Carriage Bolt Gr 5 NC
9 24 16-21672 5/8" X 1 3/4" Plow Bolt Gr 5 NC
10 12 16-21756 3/4" x 3" Plow Bolt Gr 8 NC
11 35 16-21776 1" x 3" Plow Bolt Gr 8 NC
12 1 27-40962 Warning Prop 65 Decal
13 2 27-41686 HD 19'U Decal
14 2 27-9505 Grouser Vertical Decal
15 1 NA Grouser Dozer Metal Serial Tag
16 1 29-13471 1" x 10" Cutting Edge - Center
17 1 29-13472 End Bit - Right
18 1 29-13473 End Bit - Left
19 2 29-13475 1" x 10" Cutting Edge - Side
20 2 29-13476 1" x 10" Cutting Edge - Center/Sides
21 2 29-7950-6 Cutting Edge
22 1 44-15150 Ag Pro Dozer Name Plate
23* 1 44-14830 Custom Name Plate
24 1 44-3749 Backdrag Brace Plate
25 4 52-18299 Tilt Plate
26 24 57-20749 1" Flat Washer
27 2 57-20794 1/2" Fender Washer
28 24 57-20816 5/8" Flat Washer Grade 8 (USS) Plated
29 24 57-43452 1" Washer (.06" thickness)
30 24 57-43453 1" Washer (.036" thickness)
31 2 70-20607 3/4" Center Lock Hex Nut
32 8 70-20622 3/8" Flange Hex Nut Gr 5 NC
33 24 70-20646 5/8" Hex Top Lock Nut Gr 5 NC
34 12 70-20657 3/4" Hex Top Lock Nut Gr 5 NC
35 35 70-20999 1" Hex Top Lock Nut Gr 8 NC
DWG. NO.: 41965-A

13
19’ U-Blade
4.23
4.23
34
10
35
11
21
9
28
33
17
20
18
20
16
19
2
25
14
12
15
* Part Not Shown
See Tilt Plate Adjustment and use Items # 29 and 30 as shims
to achieve 1/16"-1/8" clearance.
Note: Cutting Edge 29-13476
is Not Symmetrical
1
31
3
4
27
24 6
26
7
22
832
5
13
29
30
26
ITEM NO. QTY. PART NO. DESCRIPTION
1 2 11-13485 Blade Stand
2 1 15-41965 19' U - Blade Weld
3 2 16-20124 1/2" x 1" Hex Bolt Gr 5 NC
4 2 16-20217 3/4" x 1-3/4" Hex Bolt Gr 5 NC
5 20 16-20558 1" x 2" Hex Bolt Gr 8 NC
6 3 16-20560 1" x 2-1/2" Hex Bolt Gr 8 NC
7 12 16-20562 1" x 3" Hex Bolt Gr 8 NC
8 8 16-21064 3/8" x 1" Carriage Bolt Gr 5 NC
9 24 16-21672 5/8" X 1 3/4" Plow Bolt Gr 5 NC
10 12 16-21756 3/4" x 3" Plow Bolt Gr 8 NC
11 35 16-21776 1" x 3" Plow Bolt Gr 8 NC
12 1 27-40962 Warning Prop 65 Decal
13 2 27-41686 HD 19'U Decal
14 2 27-9505 Grouser Vertical Decal
15 1 NA Grouser Dozer Metal Serial Tag
16 1 29-13471 1" x 10" Cutting Edge - Center
17 1 29-13472 End Bit - Right
18 1 29-13473 End Bit - Left
19 2 29-13475 1" x 10" Cutting Edge - Side
20 2 29-13476 1" x 10" Cutting Edge - Center/Sides
21 2 29-7950-6 Cutting Edge
22 1 44-15150 Ag Pro Dozer Name Plate
23* 1 44-14830 Custom Name Plate
24 1 44-3749 Backdrag Brace Plate
25 4 52-18299 Tilt Plate
26 24 57-20749 1" Flat Washer
27 2 57-20794 1/2" Fender Washer
28 24 57-20816 5/8" Flat Washer Grade 8 (USS) Plated
29 24 57-43452 1" Washer (.06" thickness)
30 24 57-43453 1" Washer (.036" thickness)
31 2 70-20607 3/4" Center Lock Hex Nut
32 8 70-20622 3/8" Flange Hex Nut Gr 5 NC
33 24 70-20646 5/8" Hex Top Lock Nut Gr 5 NC
34 12 70-20657 3/4" Hex Top Lock Nut Gr 5 NC
35 35 70-20999 1" Hex Top Lock Nut Gr 8 NC
DWG. NO.: 41965-A

14
No Angle-Hydraulic Tilt System
DWG. NO.: 42025R1
2
36
3
11
28
15
14
18
37
8
30
34
4
14
17
16
11
21
14
21
10
37
6
26
5
35
9
25
35 32 39
1
20
38
27
36
33
31
2
33
31
6
41
40
33 36
42
29 3
36
12
31
37
33
36
33
31
7
36
22
24
23
19
F
E
13
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC
2 5 16-20128 1/2" x 2" NC Hex Bolt Gr. 5"
3 4 16-20130 1/2" x 2-1/2" Hex Bolt Gr 5 NC
4 2 16-20220 3/4" x 2-1/2" Hex Bolt Gr 5 NC
5 2 16-21065 3/8" x 1-1/4" Carriage Bolt Gr 5 NC
6 2 16-21126 1/2" x 1-1/2" Carriage Bolt Gr 5 NC
7 1 18-41984 Bracket, Center
8 2 19-13515 Spacer, NR Pin
9 2 19-40440 .378” ID x .503” OD x .375” Spacer
10 1 25-19869 Multi-Coupling Plate - 2 Port - Mobile
11 2 26-34728 4 x 12 Cylinder Tube Ends
12 2 27-2409 Pinch Decal (Hand)
13 2 27-9503 Pinch Decal (Foot)
14 4 31-34040 Straight JIC x O-Ring
15 1 31-34050 Straight Thread Elbow 90° JIC x O-Ring
16 1 31-34060 Branch Tee JIC x O-Ring
17 1 31-34080 Swivel Nut Branch Tee JIC
18 1 31-34100 Swivel Nut Elbow 90° JIC
19 1 32-43570 Tilt Frame Weld
20 1 34-17799 Latch Spring
21 6 34-18888-GR -12 Green - Spiral Band
22 1 35-12631-0400 40" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
23 2 35-12631-0450 45" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
24 1 35-12631-0500 50" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
25 1 39-14663 Latch
26 1 39-14665 Handle Weld
27 1 39-3072 Rubber Handle
28 2 43-8234 Pin
29 2 43-18486 Ag Pro SS QA Lock Pin
30 2 43-41638 Pin Weld
31 4 44-8490 Spacer
32 2 57-20742 3/8" Flat Washer
33 8 57-20744 1/2" Flat Washer
34 2 57-20747 3/4" Flat Washer
35 4 57-40408 3/8" Flat Nylon Washer
36 11 70-20604 1/2" Center Lock Hex Nut
37 4 70-20607 3/4" Center Lock Hex Nut
38 1 70-20610 1/4" Nyloc Hex Nut Gr 5 NC
39 2 70-20612 3/8" Nyloc Hex Nut Gr 5 NC
40 1 75-18480 Bell Crank Weld
41 1 75-19575 Plate, Link
42 2 75-19576 Link, Bell Crank To Pin
No. On
Cylinder Part No. Description
23-34728 49-12272 Seal Kit 4” Bore x 2” Rod
Note: The cylinder part number is stamped on the base
end of the cylinder opposite of the hydraulic ports.

15
No Angle-Hydraulic Tilt System
DWG. NO.: 42025R1
2
36
3
11
28
15
14
18
37
8
30
34
4
14
17
16
11
21
14
21
10
37
6
26
5
35
9
25
35 32 39
1
20
38
27
36
33
31
2
33
31
6
41
40
33 36
42
29 3
36
12
31
37
33
36
33
31
7
36
22
24
23
19
F
E
13
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 16-20011 1/4" x 2-3/4" Hex Bolt Gr 5 NC
2 5 16-20128 1/2" x 2" NC Hex Bolt Gr. 5"
3 4 16-20130 1/2" x 2-1/2" Hex Bolt Gr 5 NC
4 2 16-20220 3/4" x 2-1/2" Hex Bolt Gr 5 NC
5 2 16-21065 3/8" x 1-1/4" Carriage Bolt Gr 5 NC
6 2 16-21126 1/2" x 1-1/2" Carriage Bolt Gr 5 NC
7 1 18-41984 Bracket, Center
8 2 19-13515 Spacer, NR Pin
9 2 19-40440 .378” ID x .503” OD x .375” Spacer
10 1 25-19869 Multi-Coupling Plate - 2 Port - Mobile
11 2 26-34728 4 x 12 Cylinder Tube Ends
12 2 27-2409 Pinch Decal (Hand)
13 2 27-9503 Pinch Decal (Foot)
14 4 31-34040 Straight JIC x O-Ring
15 1 31-34050 Straight Thread Elbow 90° JIC x O-Ring
16 1 31-34060 Branch Tee JIC x O-Ring
17 1 31-34080 Swivel Nut Branch Tee JIC
18 1 31-34100 Swivel Nut Elbow 90° JIC
19 1 32-43570 Tilt Frame Weld
20 1 34-17799 Latch Spring
21 6 34-18888-GR -12 Green - Spiral Band
22 1 35-12631-0400 40" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
23 2 35-12631-0450 45" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
24 1 35-12631-0500 50" x 1/2" -8JIC/-8JIC Abrasion Resistant Hose
25 1 39-14663 Latch
26 1 39-14665 Handle Weld
27 1 39-3072 Rubber Handle
28 2 43-8234 Pin
29 2 43-18486 Ag Pro SS QA Lock Pin
30 2 43-41638 Pin Weld
31 4 44-8490 Spacer
32 2 57-20742 3/8" Flat Washer
33 8 57-20744 1/2" Flat Washer
34 2 57-20747 3/4" Flat Washer
35 4 57-40408 3/8" Flat Nylon Washer
36 11 70-20604 1/2" Center Lock Hex Nut
37 4 70-20607 3/4" Center Lock Hex Nut
38 1 70-20610 1/4" Nyloc Hex Nut Gr 5 NC
39 2 70-20612 3/8" Nyloc Hex Nut Gr 5 NC
40 1 75-18480 Bell Crank Weld
41 1 75-19575 Plate, Link
42 2 75-19576 Link, Bell Crank To Pin

16
Hydraulic Multi-Coupler Maintenance
A
D
A
D
C
D
B
D
B
Tractor Side
Part Number: 25-19864
Blade Side
Part Number: 25-19866
Part Number: 25-19865
Blade Side
Part Number: 25-19869
Part Number: 25-40407
Tractor Side
Part Number: 25-19868
Female Coupler
Snap Ring
Male Coupler
Part Number: 25-19870
See Table Below For Repair Kit
Fixed Half Mobile Half
Before Each Use:
Disconnect the mobile half from the parking station and the cap from the fixed half.1.
Check that there is no contamination (salt, sand, dirt, etc.):2.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
On the face of the plates and couplings.D.
In case of contamination, remove it with a cloth and/or compressed air.3.
Check that there is still a lubricant/anti-corrosion (grease or silicone - see Note 1):4.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
Connect the mobile and fixed halves together.5.
After Each Use:
Disconnect the mobile half from the fixed half.1.
Clean all contamination (salt, sand, dirt, etc.) from the following areas:2.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
On the face of the plates and couplings.D.
*Use a cloth or compressed air. It is advised to not use water to clean these surfaces
Apply a lubricant/anti-corrosion (grease or silicone - see Note 1):3.
On the pins.A.
Inside the cam.B.
In the locking mechanism area.C.
Connect the cap to the fixed half and the mobile half to the parking station.4.
Note 1:
When sand and salt are present, or the plates under go a washdown, a heavy duty silicone spray lubricant should be used to replace grease from the factory. The lubricant
should help protect from corrosion without collecting dust and contaminants, and will resist washing off when exposed to water.
Recommended Lubricant Brands:
Fluid Film (Aerosol or Non-Aerosol), LPS-2 Heavy Duty Lubricant, or CRC 3-36.
PN Description
25-43425 Male Coupler O-Ring Repair Kit

17
Hydraulic Multi-Coupler Maintenance
Cleaning The Male Interface Seal:
1. Make sure the coupling is securely fastened
into the plate or place in a vice.
2. Using a blunt, non-marring tool, depress the
valve face until the seal is exposed. Insert a
bent metal wire between the valve face and
the body of the coupling. Use caution not to
damage or scratch the seal when inserting
the wire.
3. Inspect the seal and interior surfaces for
contamination.
4. In case of contamination, carefully
wipe surfaces with a soft cloth, or use
compressed air to blow the contamination
out. Do Not press hard on the seal as
contamination can scratch the seal surface.
5. Using a non-marring tool, depress the valve
face and remove the metal wire. Release
the valve to the ush position.
Cleaning The Female Bushing:
1. Make sure the coupling is securely fastened
into the plate or place in a vice.
2. Using a non-marring tool, depress the
outer ring to expose the bushing. There is
no need to expose the valve seal, so stop
pressing before the valve is opened.
3. Inspect the interior body and bushing
surfaces for contamination.
4. In case of contamination, carefully
wipe surfaces with a soft cloth, or use
compressed air to blow the contamination
out.
5. Release the outer ring so that it returns to
the ush position.

18
Hydraulic Schematic
D
A
B
Tilt Right
Tractor Service Valve
Side Up
Left
Extend
Side Up
Right
Extend
Tilt Left
Angle Angle
Angle Cylinder Right
Tilt Cylinder
Right
Lift Cylinder
Angle
Retract
Angle Cylinder Left
B
Retract
Hydraulic
Lift Cylinder
A
A
Tilt Cylinder
A
D
D
D
D
B
B
B
Right
A
C
C
FEEF
EF
FE
GG
H
G
HH
Angle
Multi-Couplers
G
H
Left
B
Left
B
Colored Lines = Quantity of Colored Spiral Bands
Lift Up Lift Down

19
Notes
Page Left Blank Intentionally

20
Grouser Products warrants to the original purchaser of each item that the product be free from defects
in material and workmanship under normal use and service for a period of two years. If such equipment is found
to be defective within two years, it is the obligation of Grouser Products under this warranty to repair or replace
(exclusive of the cost of labor and transportation), any equipment or parts, in the judgment of Grouser Products to
be defective in material or workmanship.
All equipment or parts claimed to be defective in material or workmanship must be made available for
inspection at the place of business of a dealer authorized to handle the equipment covered by this warranty, or,
upon request by Grouser Products, shipped to the Grouser Products factory in West Fargo, North Dakota. Grouser
Products shall have no obligation to bear the cost of labor or transportation in connection with replacement or
repair of any such defective parts in the setup process.
This warranty covers only defects in material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper assembly, improper adjustments, improper maintenance including
lack of proper lubrication, or improper use. Therefore, Grouser Products liability under this warranty shall not
be effective or actionable unless the equipment is assembled, maintained and operated in accordance with the
operating instructions accompanying the equipment. Grouser Products shall have no liability if the equipment has
been altered or reworked without the written authorization of Grouser Products.
Grouser Products’ parts, which are furnished under this warranty and properly installed, shall be warranted
to the same extent as the original parts under this warranty if, and only if, such parts are found to be defective
within the original warranty period covering the original equipment.
Warranty
Contact Us
Improvements
Grouser Products Inc. is continually striving to improve its products. We reserve the right to change prices,
specication, or equipment at any time without notice. We also reserve the right to make improvements or changes
when it becomes practical and possible to do so without incurring any obligation to make changes or additions to
the equipment sold previously.
As always, if you have any questions about your 19’ U-Blade or other products made by Grouser, feel free to
contact us.
Grouser Products
755 2nd Ave NW - West Fargo, ND 58078
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: www.grouser.com
