STK# DIMENSIONS
113469H (B & C) 30' W x 5' H x 24' L
113470H (B & C) 30' W x 5' H x 36' L
113471H (B & C) 30' W x 5' H x 48' L
Actual building design and dimensions may differ from example shown.

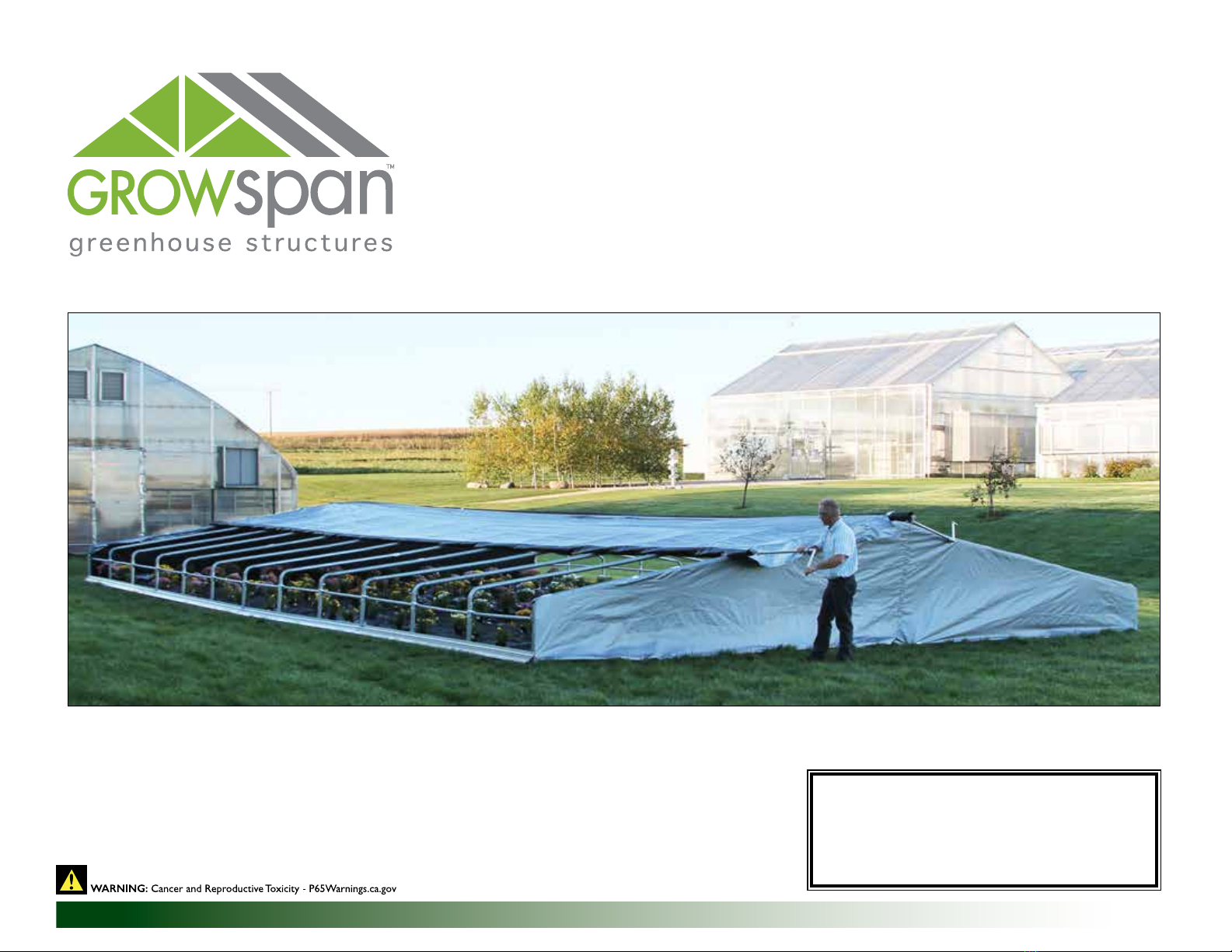

GrowSpan™Roll-Up Low Pro Tunnel

2113469_70_71HBC Revision date: 08.27.19
Important Information
READ THIS DOCUMENT BEFORE YOU BEGIN ASSEMBLY
Thank you for purchasing this GrowSpan Roll-Up Pro Tunnel. When
properly assembled and maintained, this product will provide years of
reliable service. These instructions include helpful hints and important
information needed to safely assemble and properly maintain the tunnel.
Please read these instructions before you begin.
If you have any questions during the assembly, contact Customer Service
at 1-800-245-9881 for assistance.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Wear gloves when handling metal tubes.
• Use a portable GFCI (Ground Fault Circuit Interrupter) when working
with power tools and cords.
• Do not climb on tunnel or framing during or after construction.
• Do not occupy tunnel or attempt to install cover during high winds,
tornadoes, or hurricanes.
• Never attempt to install end panels during windy or stormy conditions.
• Assemble and anchor tunnel frame before installing cover or panels.
• Do not store hazardous materials in tunnel.
• Provide proper ingress and egress to prevent entrapment.
ANCHORING INSTRUCTIONS
Prior to assembling this high tunnel, please read the MUST READ
document included with the shipment.
WARNING: Anchor assembly is an integral part of the high tunnel
construction. Improper anchoring may cause tunnel instability. Failing
to anchor tunnel properly may void manufacturer’s warranty and may
cause serious injury and damage.
LOCATION
Choose the proper location for best results. The following suggestions and
precautions will help determine whether the selected location is the best
location.
• Never erect structure under power lines.
• Identify whether underground cables and pipes are present before site
preparation or anchoring structure.
• Location should be away from structures that could cause snow to drift
on or around tunnel.
• Do not position tunnel where large loads such as snow and ice, large
tree branches, or other overhead obstacles could fall.
• Always check local building codes before you begin.
SITE
After choosing a location, prepare the site. The following site characteristics
will help ensure best results.
• A level site is required. Site must be level to properly and safely erect
and anchor structure.
• Drainage: Water draining off structure and from areas surrounding
the tunnel should drain away from tunnel to protect tunnel and tunnel
contents.
WARNING: The individuals assembling this structure are responsible
for designing and furnishing all temporary bracing, shoring, and support
needed during assembly. For safety reasons, those who are not familiar
with recognized construction methods and techniques must seek the
help of a qualified contractor.

3
Revision date: 08.27.19 113469_70_71HBC
Important Information
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure proper tunnel
assembly. Failing to follow these steps may result in an improperly
assembled and anchored high tunnel and may void all warranty and
protection the owner is entitled. Steps outlining assembly are as follows:
1. Verify all parts are included in shipment. Notify Customer Service for
questions or concerns.
2. Read these instructions, the Must Read document, and all additional
documentation included with shipment before you begin.
3. Gather tools, bracing, ladders (and lifts), and assistance needed to
assemble high tunnel.
4. Check weather before you install roof cover and any panels. Do not
install covers or panels on a windy or stormy day.
5. Re-evaluate location and site based on information and precautions
presented earlier.
6. Prepare site (if applicable).
7. Assemble frame components in the order presented.
8. Assemble frame.
9. If used, attach customer-supplied baseboards boards.
10. Attach the 115287 stabilizer bars along frame sides. Consult these
instructions and all drawings for additional details.
11. Consult MUST READ document and properly anchor the frame. If
frame is anchored in concrete continue with next procedure.
12. Install, tighten, and secure end panels.
13. Install, tighten, and secure main cover.
14. Read care and maintenance information.
15. Complete and return all warranty information as instructed.
REQUIRED TOOLS
The following list identifies the main tools needed to assemble the shelter.
Additional tools and supports may be needed.
• Tape measure or measuring device and marker to mark locations on
the pipes and rafters.
• Variable speed drills and impact drivers. (Cordless with extra batteries
works best.)
• Metal-cutting saws or tools to cut pipe and aluminum.
• Drill bit set
• Wrenches and impact socket set, hammer, and gloves.
• Adjustable pliers and self-locking pliers.
• Ladders, work platforms, and other machinery for lifting designed to
work safely at the height of the frame.
• Safety equipment to protect head, eyes, hands and feet.
UNPACK AND IDENTIFY PARTS
The following steps help ensure all necessary parts are present before
beginning.
1. Unpack contents of the shipment and place where you can easily
inventory the parts. Refer to the Bill of Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec Sheets are
present. If anything is missing or you have questions, consult the
Pictorial Parts Guide and all diagrams for clarification, or contact
Customer Service.
NOTE: Do not open plastic bags containing smaller parts such as
fasteners or washers at this time. Simply verify quantity.

4113469_70_71HBC Revision date: 08.27.19
SHELTER CARE AND MAINTENANCE
Proper care and maintenance of the low pro tunnel is important. Check the
following items periodically to properly maintain the shelter:
• Regularly check cover to ensure it remains tight and in proper repair.
• Replace all damaged or broken components immediately.
• Check connections and all fasteners to verify they remain tight and in
good condition.
• Do not climb or stand on frame at anytime.
• Inspect the anchoring system to verify all components remain tight and
in good condition.
• Verify that end panels are in good condition and secured properly.
• Do not allow cover to remain open for extended time. Periodically,
unroll cover for cleaning and to allow it to dry.
• Remove debris and objects that accumulate on cover. Use tools that
will not damage cover when removing debris.
• Remove snow to prevent excess accumulation. Use tools that will not
damage the cover when removing snow.
• Check contents of tunnel to verify that nothing is touching cover that
could cause damage.
• If tunnel is dismantled and moved, inspect all parts and connections
before using and reassembly.
• For replacement or missing parts, call 1-800-245-9881 for assistance.
NOTE: With the exception of truss buildings and other engineered
structures, shelters and buildings do not have any tested loading criteria
unless otherwise specified.
Space below is reserved for customer notes.
Shelter Care and Maintenance

5
Revision date: 08.27.19 113469_70_71HBC
Important Information

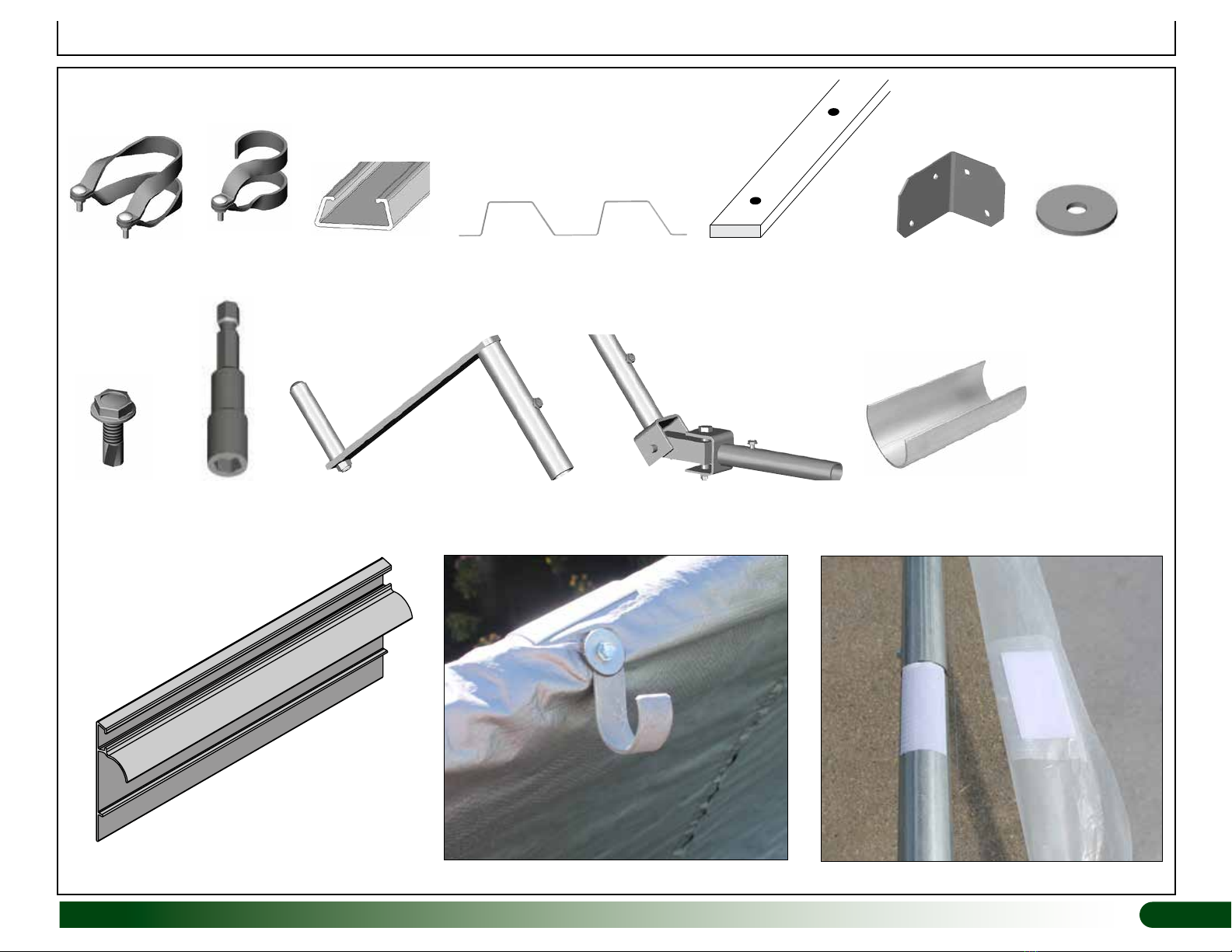

The following graphics will help identify the different parts.
(Some parts are not shown.)
100442 Magnetic
Nut Setter
QH1400C Spin Handle Support & Lock FA4110 & FA4115 Hook & Loop Fasteners
FA4110 FA4115
102857
End Clamp
102197 Aluminum
U-Channel
(Film Cover only)
104642
A-Angle Bracket
102198 Spring for Aluminum
U-Channel
(Film Cover only)
102547
Cross Connector
FA4472B Tek
Screw
103395 Spin Handle 103396 Universal Joint CC6212 Fabric Clip
CC6214 Fabric Clip
110155 Aluminum Bar
(Black/Silver Cover only)
FAMF01B
Fender Washer
115287 Stabilizer Bar

6113469_70_71HBC Revision date: 08.27.19
Prepare and Square Building Site
PREPARE BUILDING SITE
A level site is required to accurately and safely construct building. Consult
the services of a qualified contractor to properly grade and prepare site.
Site should slope away from building for proper water drainage.
After site is prepared, mark locations of frame corners to square frame
position. Taking these steps before shelter assembly begins saves time and
ensures that structure is square and positioned as desired.
The following procedures are suggested methods. Their use depends on
shelter size, shelter use, footings (if applicable), and the method used to
anchor the shelter.
When in doubt, consult the services of a qualified contractor experienced
with the construction of similar structures.
Ground Posts
Ground posts can be set in concrete as described within this manual. Or,
anchor building frame as described in the MUST READ document.
SQUARE SITE: GENERAL STEPS
1. Identify a corner where a ground post will be set, drive a stake, and
string a line the building width. Stake in place. (Width of frame is
measured from center-to-center of ground posts.)
2. After placing first corner stake, string a line the frame width (center-to-
center of ground posts) and drive second corner stake.
3. String a line longer than the building 90° from the line between the first
and second stakes.

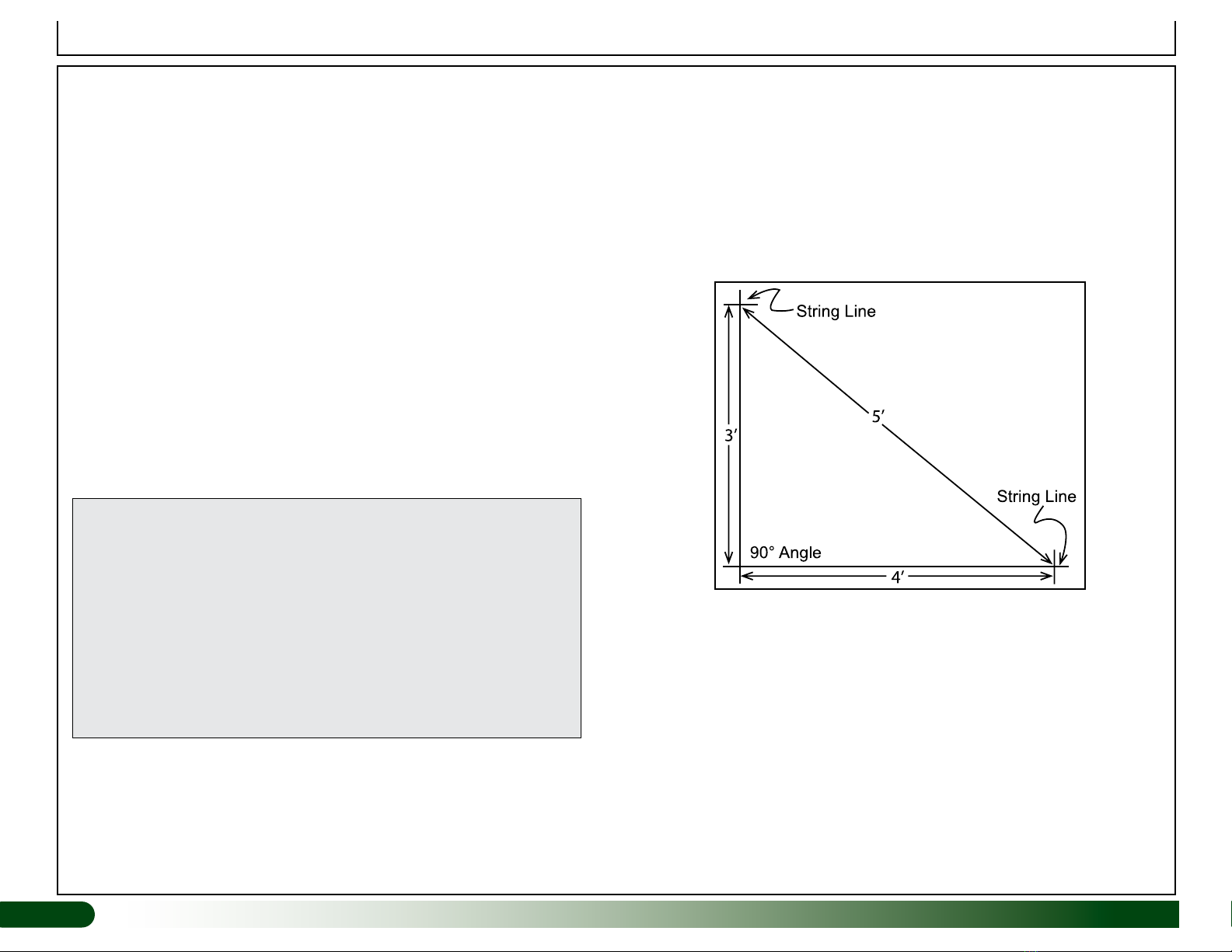

NOTE: A transit can be used to ensure an accurate 90° angle, or the
3-4-5 rule can be used. Refer to diagram. Using multiples of 3-4-5 such
as 6-8-10 or 12-16-20 helps to maintain an accurate 90° angle.
4. After squaring frame position, measure length and drive the third corner
stake.
5. Repeat the same step to set last corner stake.
NOTE: The distance measured diagonally between corner stakes must
be equal for building to be square.
SET GROUND POSTS IN CONCRETE
Sandy or loose soil requires setting ground posts in concrete. Review
the layout diagrams for additional details. Follow all local and regional
building codes during construction.
Enlist the services of a professional and competent contractor to
prepare site and set ground posts.
Failing to secure ground posts in concrete as required may result in
damage to frame, frame contents, and surrounding property and may
void warranty.
Shelter width is measured from ground post center to ground post center.
Length is also measured ground post center-to-center.

7
Revision date: 08.27.19 113469_70_71HBC
on-center
on-center
on-center
on-center
Set Ground Posts
Drawing may show layout of a different length. Refer to
Quick Start section located at back of these instructions for
on-center measurements and post layout for your frame.

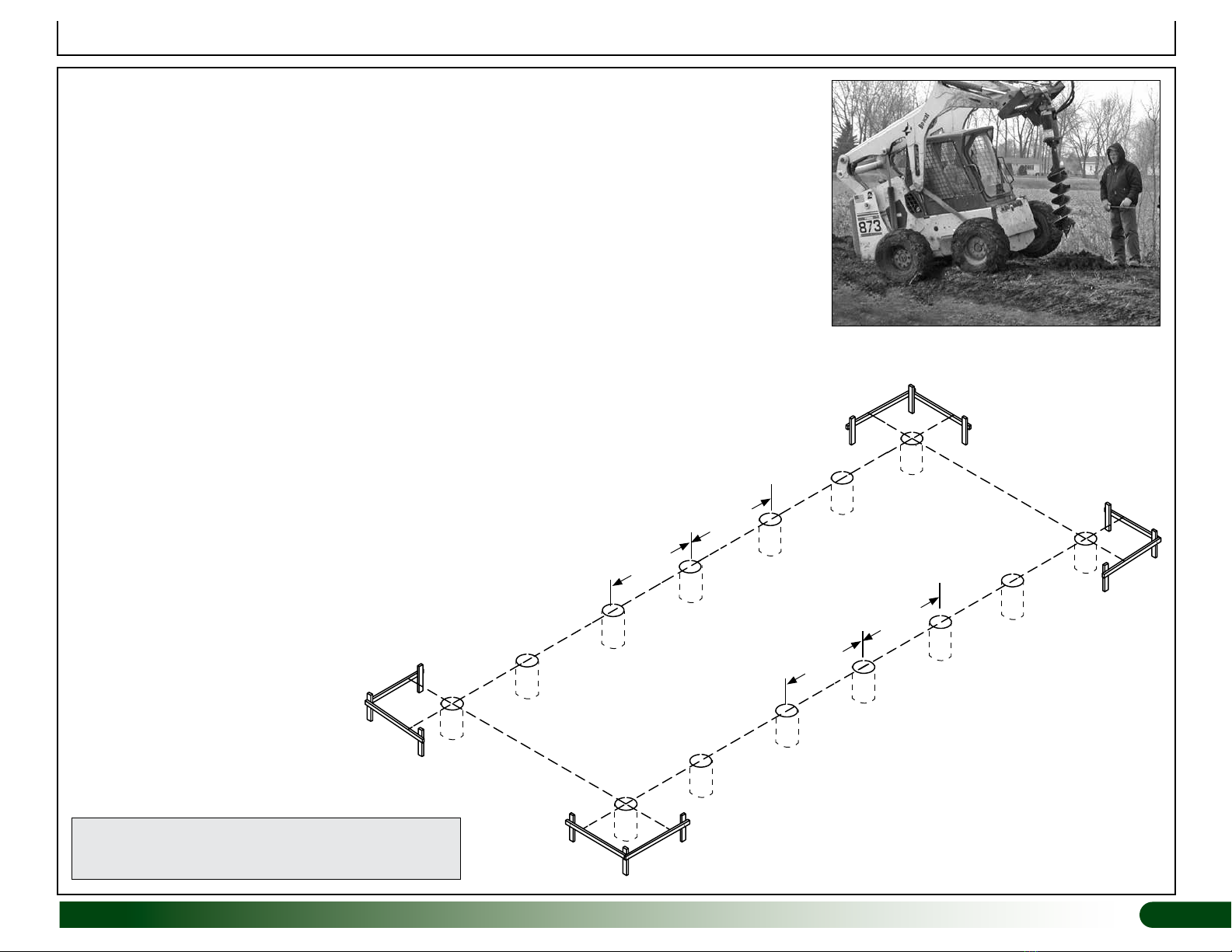

MARK SITE AND DIG POST HOLES FOR CONCRETE
These steps describe marking all ground post locations and digging holes. For some sites, it may not be
possible to complete the procedure in this manner. An alternative procedure such as working from one end
of the building toward the other may be necessary. Determine the best procedure based on site and other
factors and proceed as needed.
NOTE: Refer to Quick Start Section located near the back of these instructions for Side Profile and
related diagrams.
If you are not setting ground posts in concrete and are anchoring frame as described in the MUST
READ document, do not auger holes for ground posts. Instead, follow the steps to mark ground
post locations and drive posts into the ground at those locations. See information below and on
next page.
Complete these steps:
1. Stake building outline using string line and batter boards. Set batter boards 3' back from the
building corners. Check to ensure that building layout is square. Cover or panels (if equipped)
will not install properly if frame is not square once assembled.
2. Consult diagrams in Quick Start section to verify frame length and width dimensions and to
accurately position ground posts.
3. Guided by string line, use a flag or stake to mark each ground post hole location.
4. Move string line and dig a post hole a minimum of two
feet (2') deep or to a depth that is below geographic frost
line. Consult local building codes. A power auger works
best. Minimum hole diameter is 12".
5. After digging all holes, reattach string line to batter
boards and use it as a guide to set and align ground
posts.

8113469_70_71HBC Revision date: 08.27.19
SET GROUND POSTS
Required parts and equipment:
• Ground Posts
• Equipment to level and brace posts
NOTE: Concrete (customer-supplied) is required to secure all ground post in the holes. Set all posts the same height for proper assembly. Position all mounting
holes to point toward the inside/outside of frame. Use holes in ground posts to attach post to customer-supplied framing when setting posts.
Consult the services of a qualified contractor if needed to properly set posts. Here are the basic steps:
1. Take one ground post, measure 24" from the end opposite bolt holes, and mark the location on ground post. Repeat to mark all ground posts.
2. With assistance, brace all posts in place. See diagram below. All posts to be plumb before adding concrete. Use mounting holes in posts and customer-
supplied fasteners and stakes to hold posts in place.
3. Add concrete to anchor posts in holes. Fill hole so concrete remains below finished grade.
ATTENTION: Ground posts include pre-drilled rafter mounting bolt holes and
holes to attach baseboards. Position holes to point outside/inside the frame.
Set Ground Posts
ATTENTION: Whether driving posts or anchoring
in concrete, set top of posts at the same height.
Drive or set posts in concrete 24" below nished
grade. Top of post is 12" above grade.
Use customer-supplied materials
to construct braces.
String line showing top
of all ground posts.
Stake Ground Posts for Concrete
Finished Grade
String line showing top
of all ground posts.
NOTE: Layout above shows how to brace ground
posts when setting posts in concrete.
Outside Frame
Inside Frame

9
Revision date: 08.27.19 113469_70_71HBC
1
Assemble Rafters
ASSEMBLE RAFTER
After site is prepared and an inventory of parts is complete,
continue with rafter assembly.
NOTE: All rafter assemblies include rafter tubes and purlin clamps. Consult
rafter diagrams in Quick Start section before and during assembly.
• Assistance is required for easier rafter and frame assembly.
• Secure all splices using Tek screws.
• Wrap screws and slices with duct tape.

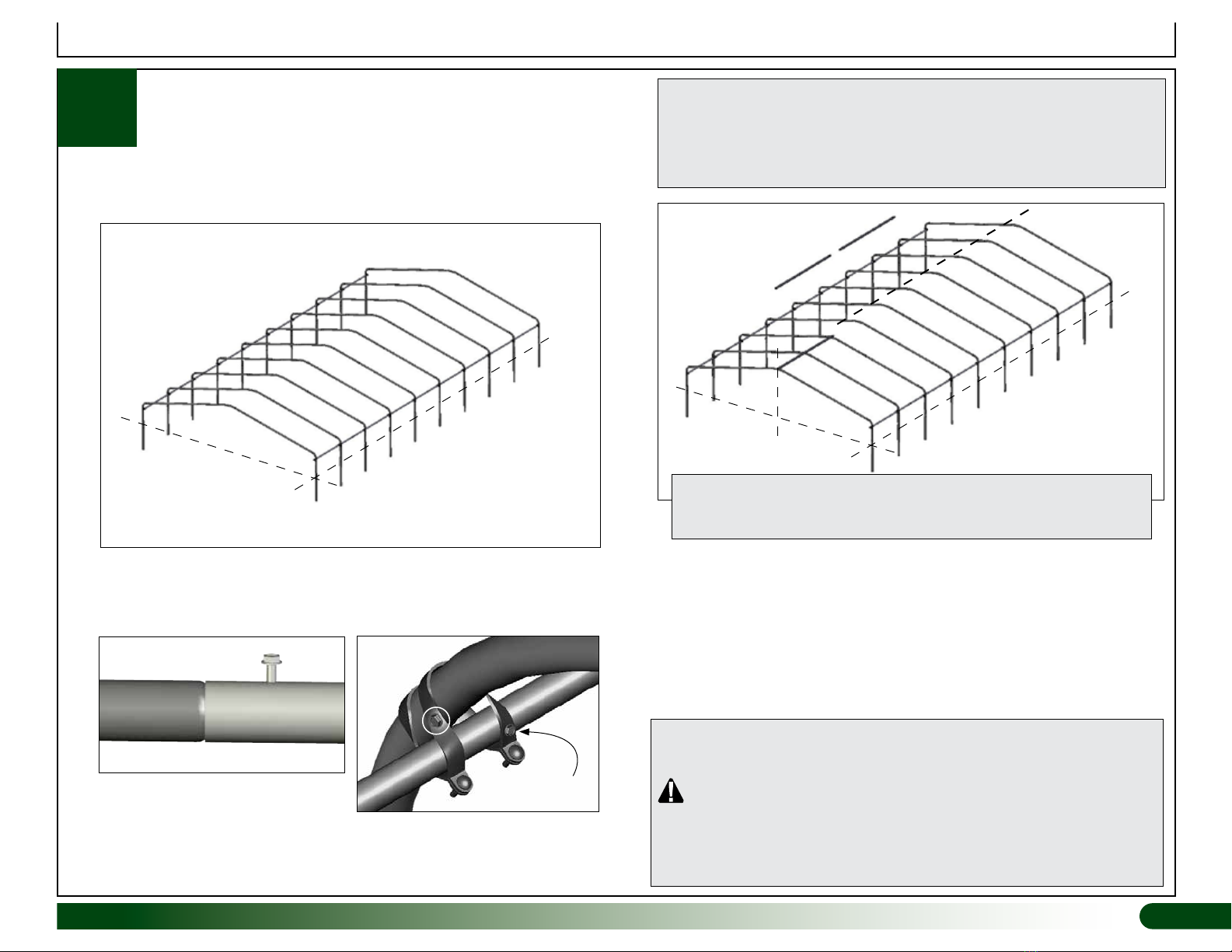

Gather parts:
• Rafter pipes: LPT190ES1W30, LPT190PS1W30, 190S063, &
190S075
• FA4472B Tek screws
• 100442 magnetic nut setter
• Duct tape
STEP 1: Select rafter pipes to
assemble one rafter. See diagram
above and in Quick Start section. A
at, level surface works best.
STEP 3: Secure each rafter joint
using two (2) Tek screws. Install
screws in a location that will not
contact cover when installed.
STEP 2: Slide individual pipe sec-
tions together.
STEP 4: Wrap splice and Tek
screws with duct tape to protect
cover.
190S075
190S063
190S063
190S075
LPT190PS1W30
LPT190ES1W30
LPT190ES1W30

10 113469_70_71HBC Revision date: 08.27.19
2
Assemble Frame
FRAME ASSEMBLY
Use the diagrams and information that follows to assemble
the main frame.
ATTENTION: Rafters are heavy. Move rafter with assistance or using a small lift to prevent damage and injury. Determine best way to move rafters into
position and to set them onto each set of ground posts. Do not set rafters into position until ground post concrete has set (if applicable).
Gather parts:
• Assembled rafters, 102857 end clamps, & 102547 cross connectors
• FAG336B (5/16” x 2-1/2”) bolts & FALB02B (5/16”) nuts
• 1.315" Pipe: 131S075 & 131P0xxx (where x represent length of last pipe)
Complete these steps:
1. Slide one end clamp (102857) onto each end of a rafter as shown in detail
above and in Quick Start diagrams.
2. Set first end rafter in place and anchor to ground posts using 5/16" bolts
and nuts. Add braces for support if needed or have an assistant hold until
next rafter is added and connected with purlins.
3. Set next rafter in place and secure using 5/16" bolts and nuts.
ATTENTION: Only the two end rafters use 102857 end clamps as shown.
All interior rafters use 102547 cross connectors to secure purlins to rafters.
See details in Quick Start section for additional diagrams.
4. Using side profile diagram in Quick Start section for your building length,
attach first purlin pipe on each side between the two rafters. Do not
tighten clamps at this time.
5. Add next rafter and connect using next purlin pipe. See side profile
diagram for pipe identification.
NOTE: Set purlin height on each side just below rafter bend as shown in
diagrams. Purlin runs should be at same location on each side of frame.
For accuracy, stretch a string line end-to-end to keep purlins aligned. See
diagram above.
6. Check on-center spacing of rafters before clamps are tightened.
7. Using a long level or the string line (if present), ensure purlin pipes are
level and tighten cross connectors and end clamps.
Ground Level
String Line
Level
Step 1

11
Revision date: 08.27.19 113469_70_71HBC
ANCHORING INSTRUCTIONS
Read MUST READ document included with shipment.
WARNING: Improper anchoring may cause tunnel instability and
structural failure. Failing to anchor tunnel frame properly will void
manufacturer’s warranty and may cause serious injury and damage.
If ground posts were not set in concrete, anchor frame as described
in the Must Read document.
2
Assemble Frame
FRAME ASSEMBLY – continued
NOTE: Add end clamps to final end rafter to complete frame assembly.
9. Return to each clamp and purlin pipe splice and secure using Tek screws
as shown in detail diagrams.
10. Finally, attach peak purlin (square tube) to frame using Tek screws and
104642 right-angle brackets. Consult side profile diagram and related
detail diagrams in Quick Start section for additional information and pipe
identification. Purlin runs end-to-end down center at top of each rafter.
ATTENTION: At this time, do not install brackets that secure square peak
purlin to end rafters. These are installed after end panel is attached to
end rafter as shown in the next procedure.
NOTE: Install screws in cross
connectors so they do not contact
cover when installed.
Tek
Screws
Rafter
Purlin
8. Continue adding rafters, cross connectors, and purlin pipes to complete
frame assembly. Check on-center rafter spacing and maintain level purlin
runs. Check on-center rafter spacing throughout frame assembly.
Square Tube Peak Purlin
See connection details in Quick Start section to install peak purlin.
Secure all tube joints using a Tek screw installed through side of
tube. Do not install screws on top of purlin tubes.
Flush
Gather parts:
• 104642 brackets and FA4474B Tek screws
• 102897 1.5" x 1.5" x 99" square tube & 104779 (24' & 48' long
frames) or S15P048 (for 36' long frame)

12 113469_70_71HBC Revision date: 08.27.19
End Panel Installation
3END PANEL INSTALLATION Gather parts:
• (2) End panels
• Fabric Clips: CC6214 (for 1.90" rafters)
• For One Panel: 1.315" Pipe: (4) 131S075 & (1) 131P0735
• (2) QH1330 brackets & FA4474B Tek screws
End panel installation typically occurs before stabilizer bar, cover, and baseboards (if
used) are installed. Use the information and photos below to install end panels.
ATTENTION: During installation, do not stretch panel too tight. Doing so will make
Complete these steps:
1. Spread panel out at one end of frame. Roof cover is shown rolled to
peak. Cover is installed later.
2. Assemble end panel conduit using the 1.315" pipe noted above,
secure each pipe joint with Tek screw, and tape over screw. Slide
conduit into pocket.
it difficult if not impossible to close panel once it is unzipped without damaging zippers. Test zippers a few times during installation to ensure these open and
close smoothly. Loosen panel slightly and reposition clips if needed to improve zipper operation.
NOTE: When sliding conduit into panel pocket, do not slide
conduit into door panel section of end panel. Doing so will
prevent rolling door panel up when zippers are opened. Dashed
line shows conduit in panel pocket.
Conduit outside panel
pocket for this section.
conduit
Door Panel of End Panel

13
Revision date: 08.27.19 113469_70_71HBC
End Panel Installation
3END PANEL INSTALLATION – continued
NOTE: If conduit is an inch or two short using pipes identified on
previous page, ensure correct pipes have been used. If correct
pipes are confirmed, extend conduit by loosening one splice and
sliding pipes apart. Reinstall Tek screw in a new location and
wrap with tape. At least 2" of a pipe must remain inside an
adjacent pipe at a splice.
4. Ensure conduit is outside pocket in door section of end panel.
Attach each end of conduit to ground post using Tek screws and
QH1330 brackets.
3. Measure between end rafter ground posts to determine final conduit
length. Cut assembled conduit to fit if needed.
NOTE: Dashed lines identify conduit inside end panel pocket.
See call-out in diagram at the right for location of Detail A shown
above.
A

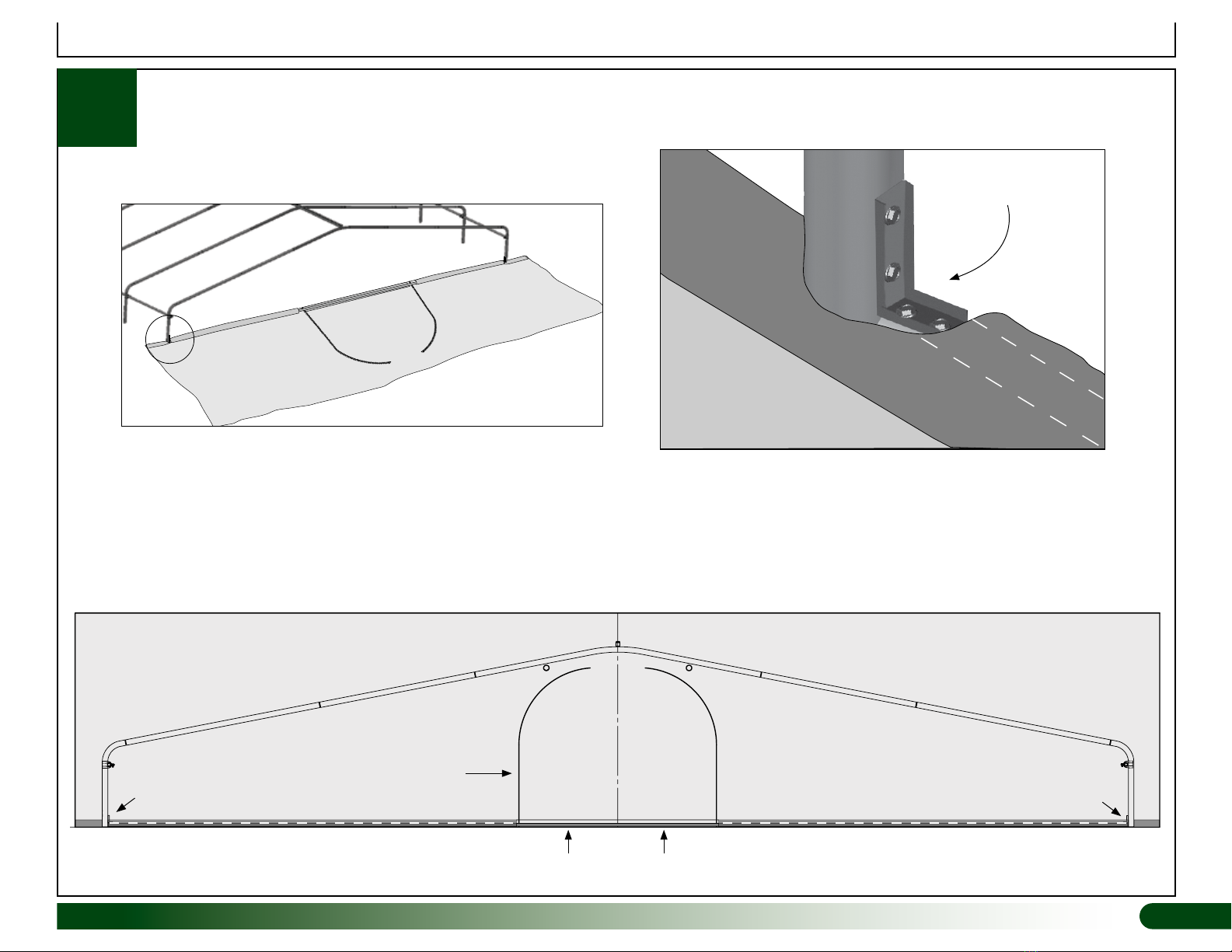

END VIEW FROM INSIDE LOOKING AT END PANEL
End Panel
End Panel
Zipper
QH1330 Bracket
Ground Level
Conduit out of panel pocket.
Wrap this material over end rafter, secure
with fabric clips, and trim excess material.
QH1330 Bracket
Dashed line shows conduit inside panel pocket.
Ground Post
QH1330 Bracket &
Tek Screws
End panel
on ground.
A
Panel Pocket

14 113469_70_71HBC Revision date: 08.27.19
End Panel Installation
3END PANEL INSTALLATION – continued
6. With assistance, carefully lift panel into
position and wrap material around rafter.
Hold in position. If peak purlin is attached to
end rafter, remove Tek screw and work end
panel between peak purlin and rafter.
8. Take a CC6214 fabric clip and snap it to the
backside of the end rafter. Continue adding
clips until entire panel is secured to rafter.
Space fabric clips every 36" along rafter.
9. Test zipper operation. If panel is too tight,
zippers will open, but will not close easily.
Do not force zipper! Loosen panel as
needed so zippers function properly, then
continue.
10. Drive a Tek screw through each clip and
into rafter. Position screws in a location
that will not contact cover material.
Tape over screw if needed to protect cover
material.
11. Carefully remove excess panel material
if desired. Allow a few inches to remain
beyond fabric clips in case panel needs
tightened.
NOTE: Reinstall screw after end panel
install is complete.
7. Continue pulling panel into position until
entire panel is wrapped over rafter. Do not
pull too tight; doing so will stress the zipper.
12. Repeat steps to install remaining end panel.
13. Return to each end rafter and reattach peak
purlin to rafter if it was loosened to install
panel.
14. Continue with next procedure.
5. Fold panel so it rests on top of conduit.
Actual end panel design may differ.

15
Revision date: 08.27.19 113469_70_71HBC
Baseboard Installation — Recommended
BASEBOARD INSTALLATION — RECOMMENDED
Gather parts:
• 2" x 6" treated lumber (supplied by customer).
• 5/16" carriage bolts and nuts supplied by customer. Length depends on
thickness of baseboard material.
Inside of
Shelter
Ground Level
Ground Posts and Baseboard
Baseboard
Diagrams present examples only. Actual installation depends on customer-supplied
materials and other related factors.
Finished
Grade
5/16" Nuts
Splice
5/16" Carriage
Bolts
Outside of
Shelter
When properly installed, baseboard runs the length of frame at ground level. The baseboard
is supplied by the customer. The following procedure describes one way to install baseboards.
Size and type you choose may require alternative steps for installation.
On the outside of frame, attach first baseboard ground post using two (2) 5/16" carriage bolts
and nuts. Countersink bolt heads if carriage bolts are not used. Continue adding baseboards
to complete the first run.

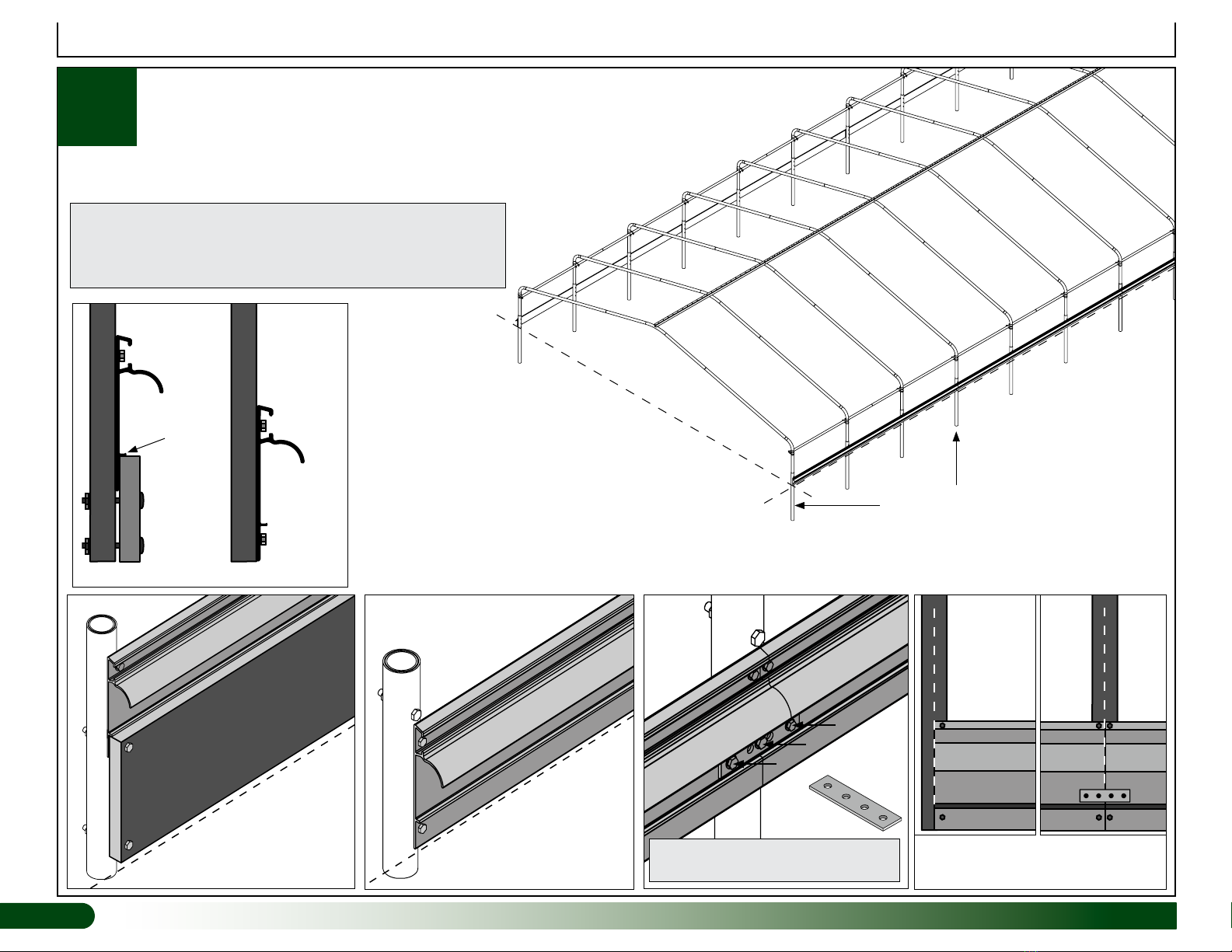

Splices are made between posts as shown in diagram (lower-right). Use a short section
of baseboard to secure separate board at a splice. See diagram. Repeat steps to install
baseboard on remaining side of the frame.
NOTE: Boards should be at ground level or slightly into grade to create a good seal between
board and site if desired.
ATTENTION: A baseboard is not required; however,
depending on desired results, it helps seal the area
between the ground and stabilizer bar once stabilizer
bar is installed along each side of tunnel frame.
If you are not installing a baseboard, skip this page
and continue with the next procedure.
Diagram below shows position of optional baseboard
attached to sample frame.
4

16 113469_70_71HBC Revision date: 08.27.19
Curtain Stabilizer Bar Installation
The curtain stabilizer bar secures the lower end of the retractable cover when it is
closed (or down). Stabilizer bar is installed just above the baseboard (if present),
which is attached at ground level. Secure stabilizer bar to each ground post using
an FA4472B Tek screw.
CURTAIN STABILIZER BAR INSTALLATION—115287
Gather parts:
• 115287 curtain stabilizer bars & GS0049 splice plate
• FA4472B Tek screws & 100442 magnetic nut setter
5
115287
115287
Side Views
with baseboard without baseboard
Tab
Install bar as seen at the
end rafter with optional
baseboard.
Ground Level
Baseboard
Drawing shows install bar as
seen at the end rafter.
Ground Level
115287
Splice sections using Tek screws
and a GS0049 splice plate.
GS0049
Stabilizer bar must be installed on
the center of rafters as shown.
Center of
end rafter
Center
of
Rafter
Stabilizer Bar
Ground Level
Ground post installed
2' below grade.

17
Revision date: 08.27.19 113469_70_71HBC
6
Cover Installation – Blackout Material (B) & Film (C)
Black/silver (B) and clear film (C) cover installations are described in this section. Consult cover details page in Quick Start section before
continuing for general overview of connections. Pay close attention to instructions that pertain to the cover material shipped with your tunnel.
COVER INSTALLATION
Gather parts:
• Clear Film Cover: 102197 U-channel & 102198 spring wire
• Black/Silver Cover: 110155 Aluminum Bar Stock (field cut to fit if needed)
• FA4474B Tek screws
• Cover conduit pipe: 131S075 & 131P0735
WARNING: To prevent damage to cover and to prevent
serious personal injury, DO NOT attempt to install main
cover on windy or stormy days.
To install black/silver cover, skip Step 1 and begin with Step 2. To install clear
film cover, begin with Step 1:
1. Attach 102197 u-channel to peak purlin using FA4474B Tek screws
spaced 24" on-center. Cut final section of u-channel to length if needed.
See cover details page in Quick Start section for additional information.
2. Assemble 1.315" roll-up conduits – one for each side. See side profile
diagrams in Quick Start section for details and pipe identification.
NOTE: Secure each pipe splice with a Tek screw and wrap connection
with duct tape to protect material.
3. Once assembled, position a conduit along each side of frame.
4. With assistance, carefully stage and pull cover onto frame. For some
frames, the over-the-top dimension is similar to frame length dimension.
Determine cover orientation by measuring material first. Material typically
drapes down each side to ground. Approximately 12" should extend
beyond frame at each end rafter. If material doesn't seem to fit, rotate it
90° and check fit. Be careful not to damage material in the process.
5. Once material is correctly oriented on frame, square its position and add
weight along one side to hold in place. See photo above. Inset shows
cover conduit in grass along panel edge.
NOTE: For visibility, photos show black/silver material used for cover
installation examples. Have assistants hold cover material in place on
frame on side that is not weighted down.
Cover
Conduit
Peak Purlin
Peak Purlin
End Rafter
Tek Screw &
U-Channel
U-channel is for film (C)
installation only.
Flush

18 113469_70_71HBC Revision date: 08.27.19
6COVER INSTALLATION – continued
6. With material weighted down along one frame side, have assistants carefully roll or fold material from free end up to peak. Keep cover tight and square on
frame during this process. Rolling cover toward peak allows easier access to complete next step. (Stabilizer bar is not shown in diagrams below.)
7. Choose fastening option shown below for frame cover material.
Solid Black/Silver Cover (B): Diagrams show attaching aluminum bar
(110155) through cover and into peak purlin of frame. Install Tek screws
approximately 17" on-center throughout length of frame.
Clear Film Cover (C): Diagrams show securing film to u-channel using
spring wire. Wear safety glasses and gloves. Be careful during spring
wire installation. Wire can damage cover and cause injuries. Install
with caution!
8. Continue by attaching cover conduits to edges of cover.
17" oc
Aluminum Bar
Weights
Ground Level
Weighted side of cover.
Cover Installation – Blackout Material (B) & Film (C)

19
Revision date: 08.27.19 113469_70_71HBC
Attach Cover Conduit
7ATTACH COVER CONDUIT
Cover conduit is used to roll cover to peak of tunnel frame.
Gather parts:
• CC6212 fabric clips
• FA4474B Tek screws
Complete these steps:
1. With cover edge weighted down and stretched evenly along side of frame, place assembled cover conduit on edge of cover.
2. Measure and remove excess cover
material. Cover should wrap around
conduit two (2) or three (3) turns the
full length of frame after removing
excess material. Check cover length.
NOTE: Once cover is wrapped
around conduit, conduit should rest
on ground next to frame when length
is correct. See photo (inset) right.
3. Unroll cover from conduit. Realign
conduit with cover edge. Conduit
should extend 1"- 2" beyond end of
cover material at the end where spin
handle will be located.
4. Secure cover to conduit using
CC6212 clips and Tek screws
spaced every 48" throughout
length of conduit.
5. Repeat to attach remaining conduit
to other side of cover.
6. Complete next procedure.
Ground Level
End View – Cover Conduit
Conduit
attached
to cover.
Install clip. Install Tek
screw.
Space every 48". Tape over screw.

20 113469_70_71HBC Revision date: 08.27.19
8
Spin Handle Installation
Gather parts:
• 103395 spin handle & 131P036 spin handle extension
• 103396 universal joint & FA4474B Tek screws
• 166P006 easy spin for handle
• QH1400C spin handle hook
• FAMF01B fender washer for handle hook installation
With cover material installed and roll-up conduits attached to both edges of cover,
continue by assembling and attaching spin handles.
SPIN HANDLE INSTALLATION
Complete these steps:
1. Attach spin handle to 36" extension pipe using one (1) Tek screw.
2. Slide 6" easy spin pipe (166P006) onto free end of 36" extension pipe.
3. Attach universal joint to end of 36" extension pipe.
4. Attach assembly to roll-up cover conduit.
5. Repeat steps to assemble and attach remaining spin handle.
6. Roll cover to peak of frame. Use spin handle length to judge position of handle hook. Attach hook to end rafter using Tek screw and fender washer.
QH1400C
Handle Hook
Tek Screw &
Washer
Step 3 Step 4Step 1
166P006
Step 2
166P006
Easy Spin – This
pipe slides on
extension pipe.
131P036
Extension Pipe
103396
Universal Joint
QH1400C
103395
Spin Handle
Cover is shown fully opened with
spin handle in locked position.
