Guardian Fall Protection CB-18 Anchor User manual

Product Name: CB-18 Anchor
Instruction Manual
Part #: 00652; 00654; 00656; 00657; 00658; 00659; 10652; 10655; 10656; 10683
Do not throw away these instructions!
Read and understand these instructions before using equipment!
Introduction 1
Applicable Safety Standards 1
Worker Classifications 2
Safety Information 9
Product Specific Applications 2
Limitations 3 - 4
Components and Specifications 4
Maintenance, Cleaning, and Storage 7
Inspection 8
Installation and Use 5 - 7
Inspection Log 8
Labels 10

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
1
Introduction
Thank you for purchasing a Guardian Fall
Protection CB-18. This manual must
be read and understood in its entirety,
and used as part of an employee
training program as required by OSHA
or any applicable state agency.
This and any other included instructions
must be made available to the user of
the equipment. The user must understand
how to safely and effectively use the
CB-18, and all fall safety equipment
used in combination with the CB-18.
User Information
Date of First Use:
Serial #:
Trainer:
User:
Applicable Safety Standards
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926
Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 standards for fall protection, depending on
application (see below). This product has been tested in compliance with the requirements of
ANSI/ASSE Z359.7. Testing only covers hardware and does not extend to the anchorage or substrate to which
this product is attached. Applicable standards and regulations depend on the type of work being done, and
also might include state-specific regulations. Consult regulatory agencies for more information on personal fall
arrest systems and associated components.
CB-18 Anchors do not comply with ANSI/IWCA I-14.1-2001 Section 9 requirements for tie-back/suspension
anchorages for window washing or facade maintenance equipment.
CB-18 Anchors do not comply with CalOSHA section 3291 (f) for roof tie-back/suspension anchorages, which
are required on all buildings in California above 36’ (or three stories), with certain rare exceptions.
Contact Guardian’s Engineered Services Group (ESG) for more information or for anchors compliant with
CalOSHA and/or IWCA standards.
PRODUCT COMPLIANCE OSHA 1910 & OSHA 1926 Subpart M ANSI Z359.18 & ANSI A10.32
Wood Installations
Metal Installations
Concrete Installations
YES
YES
YES YES
NO
NO
Backer Plate Installations YES YES
Welding Installations YES YES
Distributed by: BEST MATERIALS ®
Ph: 800-474-7570, 602-272-8128
www.BestMaterials.com
Email: [email protected]

Worker Classifications
!
CAUTION
Understand the following definitions of those who
work near or who may be exposed to fall hazards.
Qualified Person: A person with an accredited degree or certification, and with extensive experience or
sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall
protection and rescue systems.
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be
responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,
and application. A person who is proficient in identifying existing and predictable fall hazards, and who has
the authority to stop work in order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be subject to potential or
existing fall hazards.
It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all
applicable safety regulations are complied with.
Product Specific Applications
Personal Fall Arrest: CB-18 Anchors may be used to support a MAXIMUM 1 personal fall arrest
system (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the
directions permitted by the system of at least 5,000 lbs., or achieve a minimum 2:1 safety factor, as
determined by a Qualified Person. Maximum free fall is 6‘, or up to 12’ if used in combination with
equipment explicitly certified for such use. If PFAS anchor point is intended for permanent
installation, it must be designed for use in Fall Arrest. Applicable D-ring: Dorsal.
Restraint: CB-18 Anchors may be used in Restraint applications. Restraint systems prevent workers
from reaching the leading edge of a fall hazard. Always account for fully deployed length of
lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system of
at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on surfaces with
slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.
!
WARNING
Use of equipment in unintended applications may result in serious
injury or death. Maximum 1 attachment per connection point.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-420 lbs.
Rescue/Confined Space: CB-18 Anchors may be used in Rescue/Confined Space applications.
Rescue systems function to safely recover a worker from a confined location or after exposed to a
fall. There are various configurations of Rescue systems depending on the type of rescue. Structure
must withstand loads applied in the directions permitted by the system of at least 3,000 lbs. No
free fall is permitted. Applicable D-rings: Dorsal, Chest, Shoulder.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
2
Work Positioning: CB-18 Anchors may be used in Work Positioning applications. Work Positioning
systems allow a worker to be supported and work freely with both hands. Structure must
withstand loads applied in the directions permitted by the system of at least 3,000 lbs. Maximum
allowable free fall is 2’. Applicable D-rings: Side.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
3

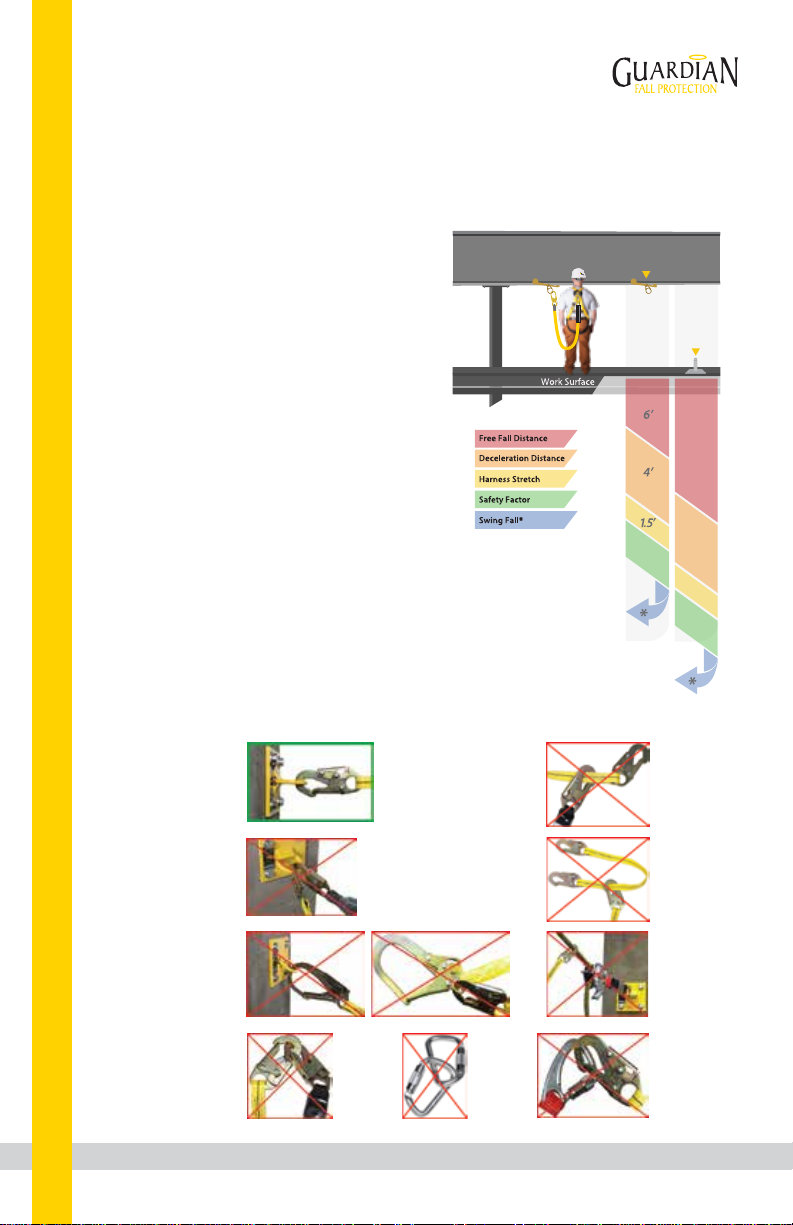

Limitations
Fall Clearance: There must be sufficient
clearance below the anchorage connector
to arrest a fall before the user strikes the
ground or an obstruction. When calculating
fall clearance, account for a MINIMUM 2’
safety factor, deceleration distance, user
height, length of lanyard/SRL, harness
stretch, and all other applicable factors.
Diagram shown is an example fall
clearance calculation ONLY.
Swing Falls: Prior to installation or use, make
considerations for eliminating or minimizing
all swing fall hazards. Swing falls occur when
the anchor is not directly above the location
where a fall occurs. Always work as close to in
line with the anchor point as possible. Swing
falls significantly increase the likelihood of
serious injury or death in the event of a fall.
Compatibility: When making connections with
CB-18, eliminate all possibility of roll-out. Roll-out
occurs when interference between a hook and
the attachment point causes the hook gate to
unintentionally open and release. All connections
must be selected and deemed compatible with
CB-18 by a Competent Person. All connector
gates must be self-closing and self-locking, and
withstand minimum loads of 3,600 lbs. See the
following for examples of compatible/incompatible
connections:
Connector
closed and
locked to
D-ring. OK.
Connector
to integral
lanyard.
NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
D-ring. NO.
Connector
directly to
horizontal
lifeline. NO.
Connector
directly to
webbing.
NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.
Fall clearance calculation shown based on standing
worker falling directly in-line with anchor point.
Always consider potential swing fall and other
hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.
1.5’
2’
12’
5’
Anchor Point
at Foot Level
12’ Free Fall
Lanyard
Anchor Point
Level w/Dorsal D-ring
6’ Free Fall
Lanyard
2’

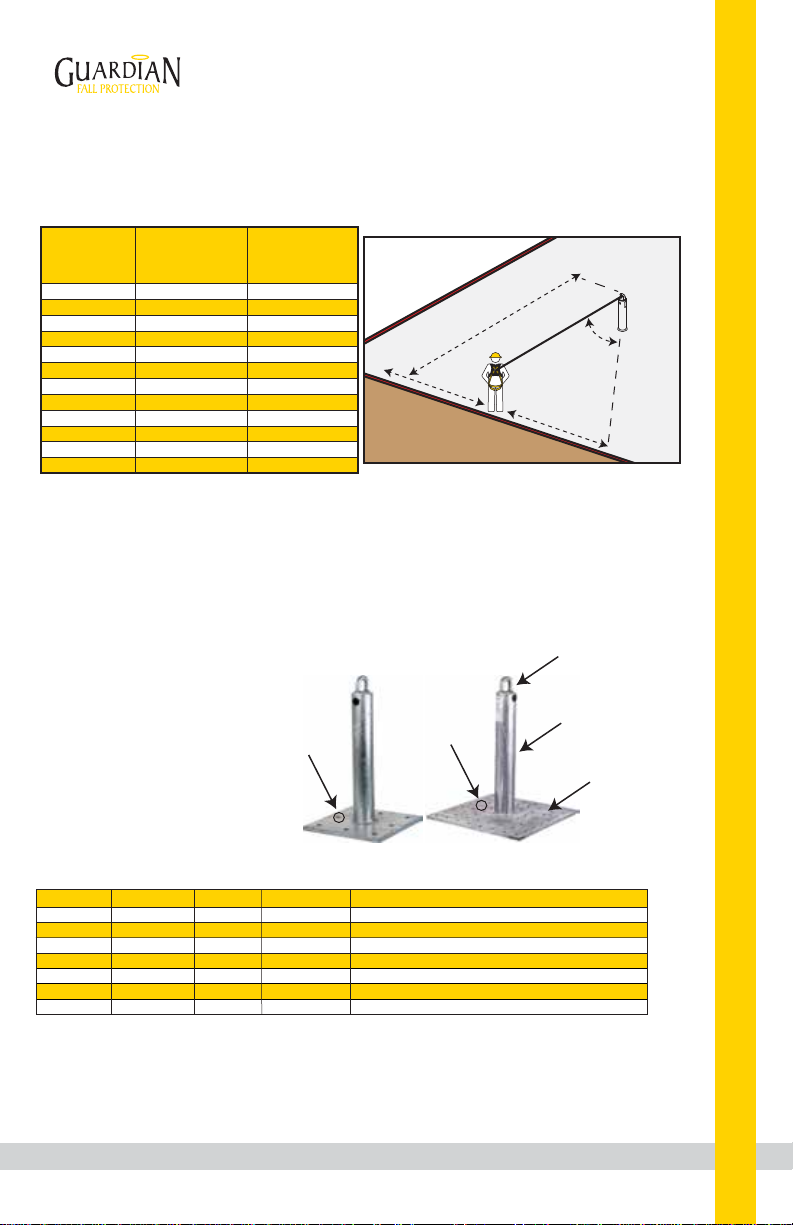

Components and Specifications
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
4
Type A anchorage connector.
Minimum permitted service
temperature: -30° F.
5,000 lb. MBS (minimum
breaking strength).
Materials: galvanized steel.
Connection Point
Anchor Post
Base Plate
Concrete
fastener
installation
holes (x8)
Wood/metal
fastener
installation
holes (x60)
Correct Anchorage Positioning:
This chart details allowable working zones required
to reduce risk of swing falls and improper side loading.
ALWAYS adhere to information specified by chart.
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Ø)
6’
10’
15’
20’
25’
30’
35’
40’
45’
50’
55’
60’
8’
9’ - 9”
11’ - 7”
13’ - 3”
14’ - 6”
16’
17’ - 2”
18’ - 3”
19’ - 4”
19’ - 10”
21’ - 4”
22’ - 3”
53°
45°
38°
33°
30°
28°
26°
24°
23°
21°
21°
21°
For example, if the anchorage connector is 6’ from the leading
edge (Y), the working distance (X) is 8’ in each direction from
the perpendicular, which translates to a 53° working angle.
Ø: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
ø
X
Leading Edge
Standard Swivel Top Post Base Description
#00656
#10655
#10683
#00652
#10652
-
18”
18”
-
12” x 12”
-
12” x 12”
CB-18 Anchor for Concrete Applications
CB-18 Weld-On Anchor
CB-18 Backer Plate
#00658 - 18” 12” x 12” CB-18 Anchor w/Pass-Through Top for Concrete Applications
#00657 #00654 18” 16” x 16” CB-18 Anchor for Wood & Metal Applications
#00659 - 18” 16” x 16” CB-18 Anchor w/Pass-Through Top for Wood & Metal Applications
#10656 - - CB-18 Weld-On Anchor w/Pass-Through Top18”

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
5

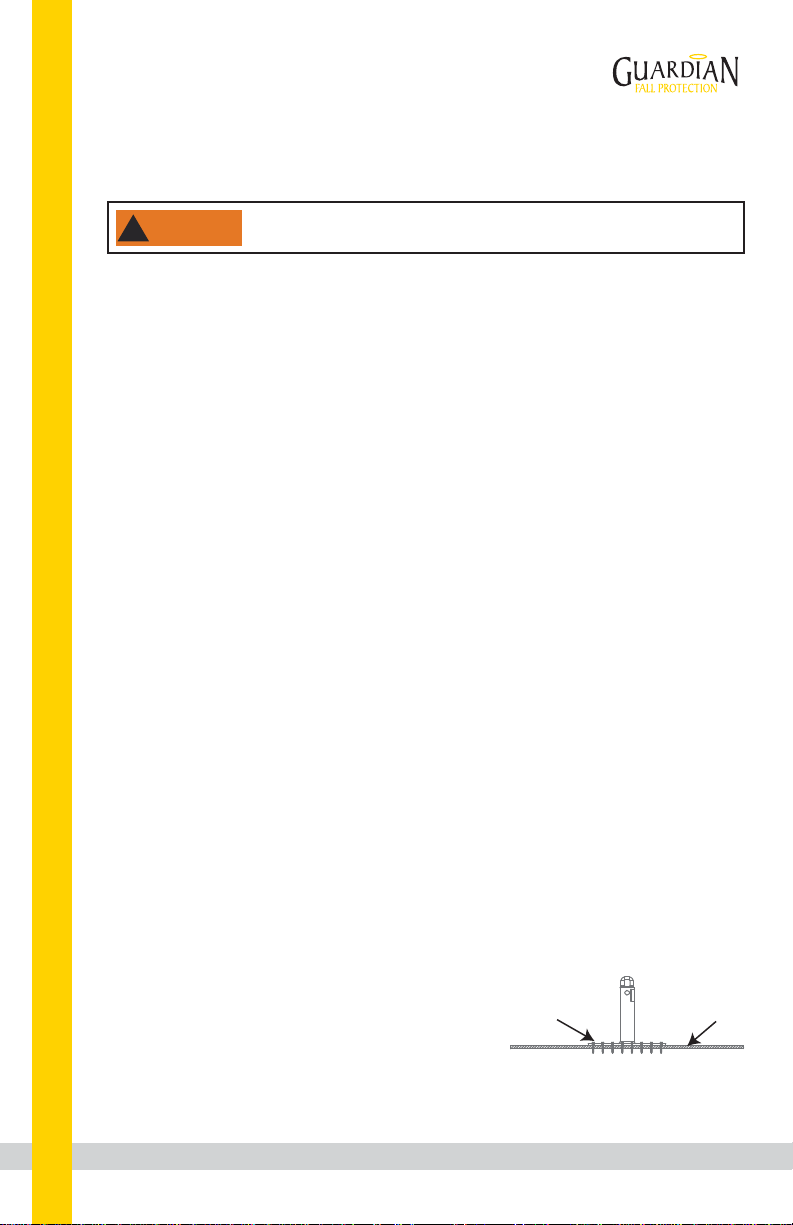

All installation of CB-18 Anchors MUST be approved by a Competent or
Qualified Person, or by a Guardian Fall Protection certified installer.
!
WARNING
3/4” min.
All fasteners fully
embedded in substrate
*Sample profile shown only
Installation and Use
Prior to use, plan your system:
1. Ensure all PFAS equipment is selected and deemed compatible with CB-18 by a Competent Person.
2. Eliminate or minimize all risk of swing fall.
3. Ensure structure to which CB-18 is to be installed, and on which work is to be performed, is free of all
hazards, including, but not limited to, debris, rot, rust, sharp or abrasive edges and surfaces, and hazardous
materials.
4. A Qualified Person must determine that structure to which CB-18 is to be installed is rated to withstand
minimum required loads. There are no minimum or maximum spacing requirements for CB-18 Anchors,
provided structure is of sufficient strength.
5. For all CB-18 Anchors, all applicable fastener holes MUST be used and all fasteners MUST be fully embedded
in substrate. NEVER over-tighten fasteners.
6. CB-18 is rated for loading in any direction provided it is installed as prescribed. Suitable for use in HLL
applications.
MINIMUM substrate thickness requirements:
• Wood: 3/4” CDX.
• Metal: 18 gauge, or 20 gauge if reinforced with
CB Spanner Plate (part # 00604, contact Guardian
for more information).
• Concrete: 6”, 2,500 psi or better.
Substrate fastener requirements:
• Wood: #14 x 10, 2” wood deck screws. Qty. 60.
• Metal: #14 x 14, 2” metal deck screws. Qty. 60.
Please note that longer screws may be required in order
to achieve the minimum necessary substrate
penetration. All fasteners must penetrate metal decking
by at least ¼”.
• Concrete: ½” x 3” concrete bolts. Qty. 8.
CB-18 roof slope compatibility: flat - sheer. Any installation past sheer (for example, on the
underside of a beam) must be done in combination with backer plate.
Installation, CB-18
Wood Install (part #s 00654, 00657, and 00659):
MINIMUM substrate requirement: 3/4” thick CDX.
1. Place CB-18 at selected installation location.
2. Install all (60) fasteners until snug, and ensure CB-18 is
fully secured to substrate.
3. All fasteners MUST be fully embedded in wood decking.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
6

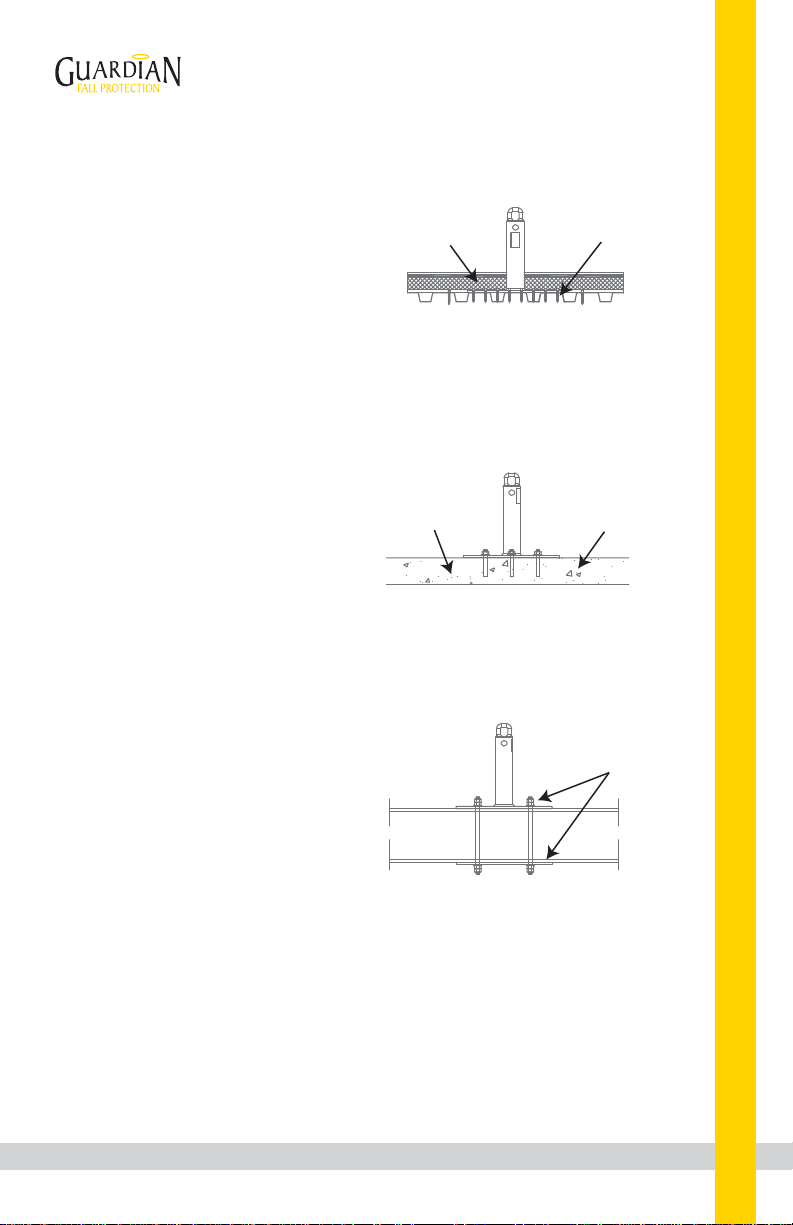

Metal Install (part #s 00654, 00657, and 00659):
MINIMUM substrate requirement: 18 gauge, or 20 gauge
if reinforced with CB Spanner Plate (part # 00604, contact
Guardian for more information).
1. Place CB-18 at selected installation location.
2. Install all (60) fasteners until snug, and ensure CB
Anchor is fully secured to substrate.
3. All fasteners MUST penetrate metal decking by at
least ¼”.
Concrete Install (part #s 00652, 00656, and 00658):
MINIMUM substrate requirement: 6“ thick, 2,500 psi.
Installation must be done a MINIMUM 8“ from all
fall hazards.
1. Place CB-18 at selected installation location.
2. Install all (8) fasteners until snug, and ensure CB-18
is fully secured to substrate.
3. Always refer to fastener manufacturer’s instructions
regarding fastener installation.
Backer Plate Install:
Compatible beam width: 6” - 8” *.
1. Place CB-18 at compatible installation location.
2. Secure Backer Plate to CB-18 with (4) ½“ threaded
rods. (2) ½” lock washers and (2) ½” hex nuts
required per threaded rod.
3. Tighten all fasteners until snug, and ensure
CB-18 is secured to substrate.
4. Deform threads on all fasteners to prevent
tampering.
Min. 18 gauge
All fasteners penetrate
substrate by at least ¼”
*Sample profile shown only
Min. 6” thick
All fasteners fully
embedded in substrate
*Sample profile shown only
(2) ½” lock washers
and (2) ½” hex nuts
per threaded rod
*Backer plate installation may also be done
on structural member other than I-beam,
provided structural member is deemed
compatible by jobsite Competent Person
Distributed by: BEST MATERIALS ®
Ph: 800-474-7570, 602-272-8128
www.BestMaterials.com
Email: [email protected]

Welding must
be done by AWS
certified welder
Maintenance, Cleaning, and Storage
If CB-18 fails inspection in any way, immediately remove it from service, and contact Guardian to inquire
about its return or repair. Field serviceability testing is not required, and should not be done by the end user.
Cleaning after use is important for maintaining the safety and longevity of CB-18. Remove all dirt, corrosives,
and contaminants from CB-18 before and after each use. If CB-18 cannot be cleaned with plain water, use mild
soap and water, then rinse and wipe dry. NEVER clean CB-18 with corrosive substances.
When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,
or other degrading elements.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
7

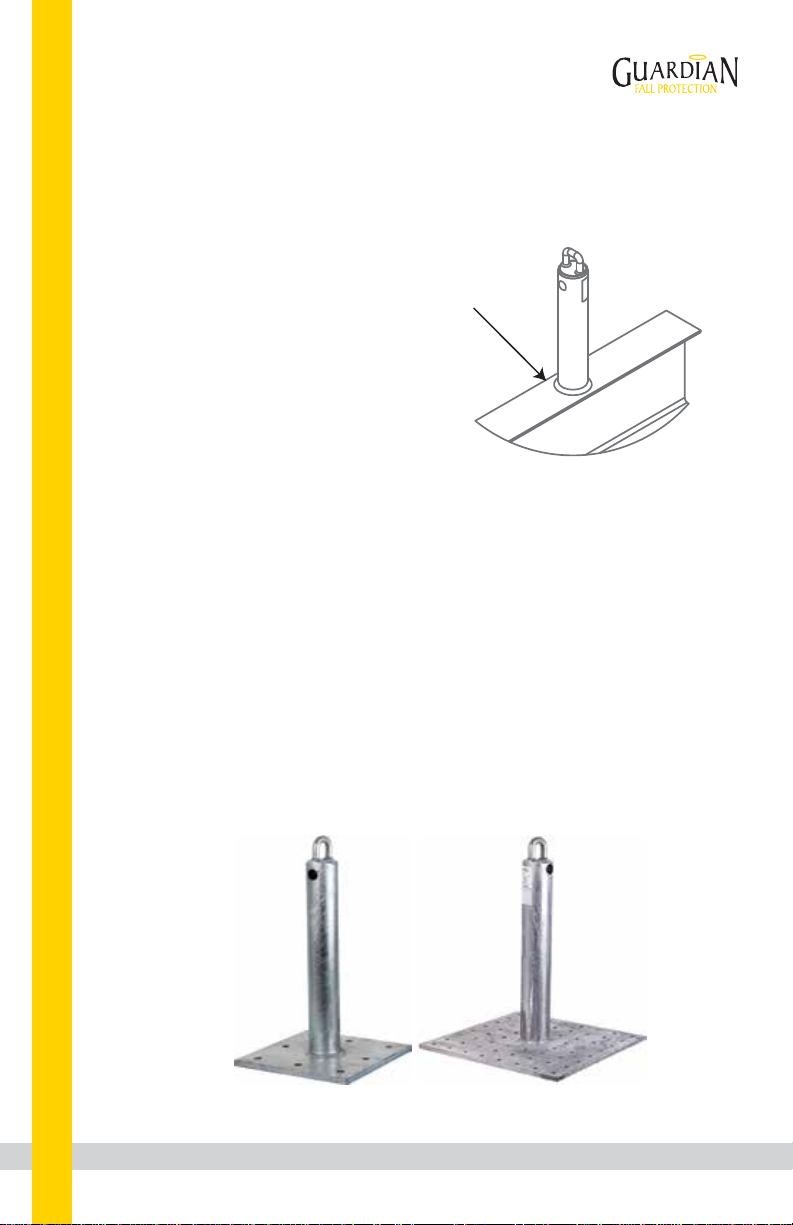

Installation, CB-18 Weld-On (part # 10652, 10655, and 10656)
CB-18 Weld-On Post must be installed by an American Welding Society (AWS) certified welder in
accordance with all applicable welding regulations.
Post diameter: 2
7/8
”
Fillet weld: 5/16”
Minimum beam flange width: 3½”

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
8
Prior to EACH use, inspect CB-18 for deficiencies, including, but not limited to, corrosion, deformation,
pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating, alteration, and
missing or illegible labels. IMMEDIATELY remove CB-18 from service if defects or damage are found, or
if exposed to forces of fall arrest.
Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,
cracking, and hazardous materials. Ensure that selected work area will support the application-specific
minimum loads set forth in this instruction manual. Work area MUST be stable.
At least every 12 months, a Competent Person other than the user must inspect CB-18. Competent
Person inspections MUST be recorded in inspection log in instruction manual and on equipment
inspection grid label. The Competent Person must sign their initials in the box corresponding to the
month and year the inspection took place.
During inspection, consider all applications and hazards CB-18 have been subjected to.
Inspection
Inspection Log
Date of First Use: __________________.
Product lifetime is indefinite as long as it passes pre-use and Competent Person inspections. User must
inspect prior to EACH use. Competent Person other than user must complete formal inspection at least
every 12 months. Competent Person to inspect and initial.
This inspection log must be specific to one CB-18. Separate inspection logs must be used for each
CB-18. All inspection records must be made visible and available to all users at all times.
If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
9
Safety Information
Failure to understand and comply with safety regulations may result in
serious injury or death. Regulations included herein are not all-inclusive,
are for reference only, and are not intended to replace a Competent
Person’s judgment or knowledge of federal or state standards.
!
WARNING
Do not alter equipment. Do not misuse equipment.
Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,
machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent
Person before fall protection equipment is selected.
The analysis of the workplace must anticipate where workers will be performing their duties, the routes they
will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall
protection equipment must be chosen by a Competent Person. Selections must account for all potential
hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused
condition.
Fall protection systems must be selected and installed under the supervision of a Competent Person, and used
in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,
and safety regulations. Forces applied to anchors must be calculated by a Competent Person.
Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.
No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls
within 54”.
Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of
compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied
in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be
self-locking and self-closing, and must never be connected to each other.
A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The
rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt
rescue. Store rescue equipment in an easily accessible and clearly marked area.
Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment
must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize
the likelihood of fall hazards, and the correct use of personal fall arrest systems.
NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless
explicitly certified for such use.
Equipment subjected to forces of fall arrest must immediately be removed from use.
Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there
is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of
equipment. Pregnant women and minors must not use this equipment.
Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension
may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
10 85342 (Rev. A)

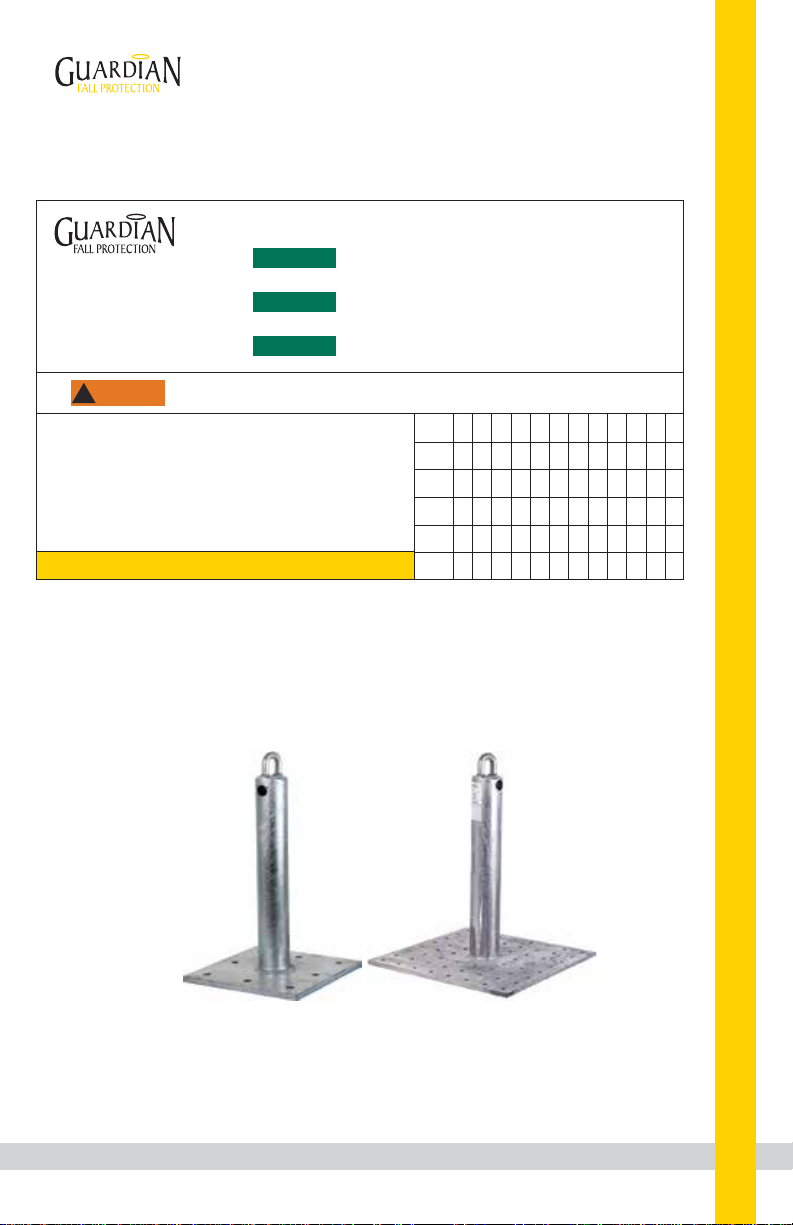

Labels
1-800-466-6385
www.guardianfall.com
CB-18 Anchor
Part #:
Date of Manufacture:
Materials: Galvanized steel
Prior to use, read and understand all manufacturer’s
instructions provided with equipment at time of shipment.
Compliant with OSHA 1910, OSHA
1926 Subpart M, ANSI A10.32-2012,
and ANSI Z359.18-2017* regulations.
*Depending on application. Refer
to instructions for more details. Worker capacity range (including all equipment): 130-420 lbs.
All PFAS equipment must be selected and deemed compatible with
CB-12 Anchor by a Competent Person.
Only make compatible connections. Refer to instructions for proper
installation and connection methods.
MAXIMUM 1 connection
per anchor.
Avoid contact with hazards, including, but not limited to, heat,
chemicals, electricity, and sharp or abrasive edges and surfaces.
!
WARNING
User must inspect prior to EACH use. Competent Person
must complete formal inspection every 12 months.
Competent Person to inspect and initial.
Product lifetime is indefinite as long as equipment
passes pre-use and Competent Person inspections.
If equipment fails inspection, IMMEDIATELY REMOVE FROM SERVICE
DO NOT REMOVE LABEL
Date of First Use:
________________
Inspection Grid J F M A M JJ A S O N D
20___
20___
20___
20___
20___
90893 (Rev. A) / COO
Serial #:
Type A anchorage connector.
5,000 lb. MBS (minimum breaking strength).
Minimum service temperature: -30° F.
Distributed by: BEST MATERIALS ®
Ph: 800-474-7570, 602-272-8128
www.BestMaterials.com
Email: [email protected]
