Guardian Fall Protection 00432 User manual

Product Name: Truss Boss Anchor
Instruction Manual
Part #: 00432; 00420; 00422; 00440; 00441; 00442
Do not throw away these instructions!
Read and understand these instructions before using equipment!
Introduction 1
Applicable Safety Standards 1
Worker Classifications 1
Safety Information 6
Product Specific Applications 2
Limitations 2 - 3
Components and Specifications 3
Maintenance, Cleaning, and Storage 5
Inspection 5
Installation and Use 4 - 5
Inspection Log 5
Labels 7

Introduction
Thank you for purchasing a Guardian Fall Protection Truss Boss Anchor. This manual must be read and
understood in its entirety, and used as part of an employee training program as required by OSHA or any
applicable state agency.
This and any other included instructions must be made available to the user of the equipment. The user must
understand how to safely and effectively use the Truss Boss Anchor, and all fall safety equipment used in
combination with the Truss Boss Anchor.
User Information
Date of First Use:
Serial #:
Trainer:
User:
Applicable Safety Standards
When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926
Subpart M and OSHA 1910 standards for fall protection. Applicable standards and regulations depend on the
type of work being done, and also might include state regulations if applicable. Consult regulatory agencies
for more information on personal fall arrest systems and associated components.
Worker Classifications
!
CAUTION
Understand the following definitions of those who
work near or who may be exposed to fall hazards.
Qualified Person: A person with an accredited degree or certification, and with extensive experience or
sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall
protection and rescue systems.
Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be
responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,
and application. A person who is proficient in identifying existing and predictable fall hazards, and who has
the authority to stop work in order to eliminate hazards.
Authorized Person: A person who is assigned by their employer to work around or be subject to potential or
existing fall hazards.
It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all
applicable safety regulations are complied with.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
1

Work Positioning: Truss Boss Anchor may be used in Work Positioning applications. Work
Positioning systems allow a worker to be supported while in suspension and work freely with
both hands. Structure must withstand loads applied in the directions permitted by the system of
at least 3,000 lbs. Maximum allowable free fall is 2’. Applicable D-rings: Side.
Product Specific Applications
Personal Fall Arrest: Truss Boss Anchor may be used to support a MAXIMUM 1 Personal Fall Arrest
System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the
directions permitted by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if
used in combination with equipment explicitly certified for such use. Applicable D-ring: Dorsal.
Restraint: Truss Boss Anchor may be used in Restraint applications. Restraint systems prevent
workers from reaching the leading edge of a fall hazard. Always account for fully deployed length
of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system
of at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on surfaces
with slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.
!
WARNING
Use of equipment in unintended applications may result in serious
injury or death. Maximum 1 attachment per connection point.
For all applications: worker weight capacity range
(including all clothing, tools, and equipment) is 130-420 lbs.
Limitations
Fall Clearance: There must be sufficient
clearance below the anchorage connector
to arrest a fall before the user strikes the
ground or an obstruction. When
calculating fall clearance, account for a
MINIMUM 3’ safety factor, deceleration
distance, user height, length of
lanyard/SRL, harness stretch, and all
other applicable factors.
Diagram shown is an example fall
clearance calculation ONLY.
Swing Falls: Prior to installation or use,
make considerations for eliminating or
minimizing all swing fall hazards.
Swing falls occur when the anchor is not
directly above the location where a fall
occurs. Always work as close to in line
with the anchor point as possible. Swing
falls significantly increase the likelihood
of serious injury or death in the event
of a fall.
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
2

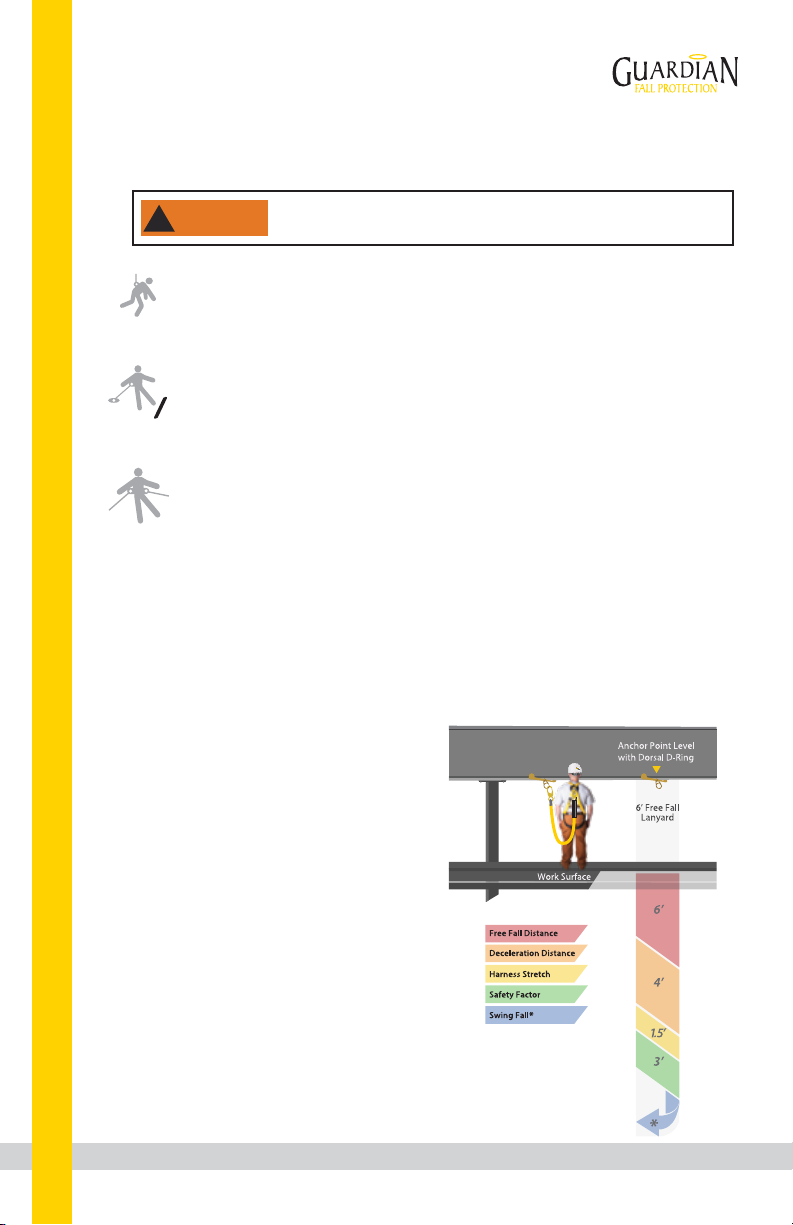

Fall clearance calculation shown based on standing
worker falling directly in-line with anchor point.
Always consider potential swing fall and other
hazards when calculating fall clearance.
*Eliminate Swing Fall whenever
possible! If Swing Fall exists,
always account for additional
fall clearance.

Correct Anchorage Positioning:
This chart details allowable working zones required
to reduce risk of swing falls and improper side loading.
ALWAYS adhere to information specified by chart.
Anchor Distance
From
Leading Edge (Y)
Working Distance
Along Roof Edge
(Either Direction) (X)
Working Angle
From
Perpendicular (Ø)
6’
10’
15’
20’
25’
30’
35’
40’
45’
50’
55’
60’
8’
9’ - 9”
11’ - 7”
13’ - 3”
14’ - 6”
16’
17’ - 2”
18’ - 3”
19’ - 4”
19’ - 10”
21’ - 4”
22’ - 3”
53°
45°
38°
33°
30°
28°
26°
24°
23°
21°
21°
21°
For example, if the anchorage connector is 6’ from the leading
edge (Y), the working distance (X) is 8’ in each direction from
the perpendicular, which translates to a 53° working angle.
Ø: Total Working Angle
X: Working Distance
Along Leading Edge
Y: Distance From
Leading Edge
X
Y
ø
X
Leading Edge
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
3

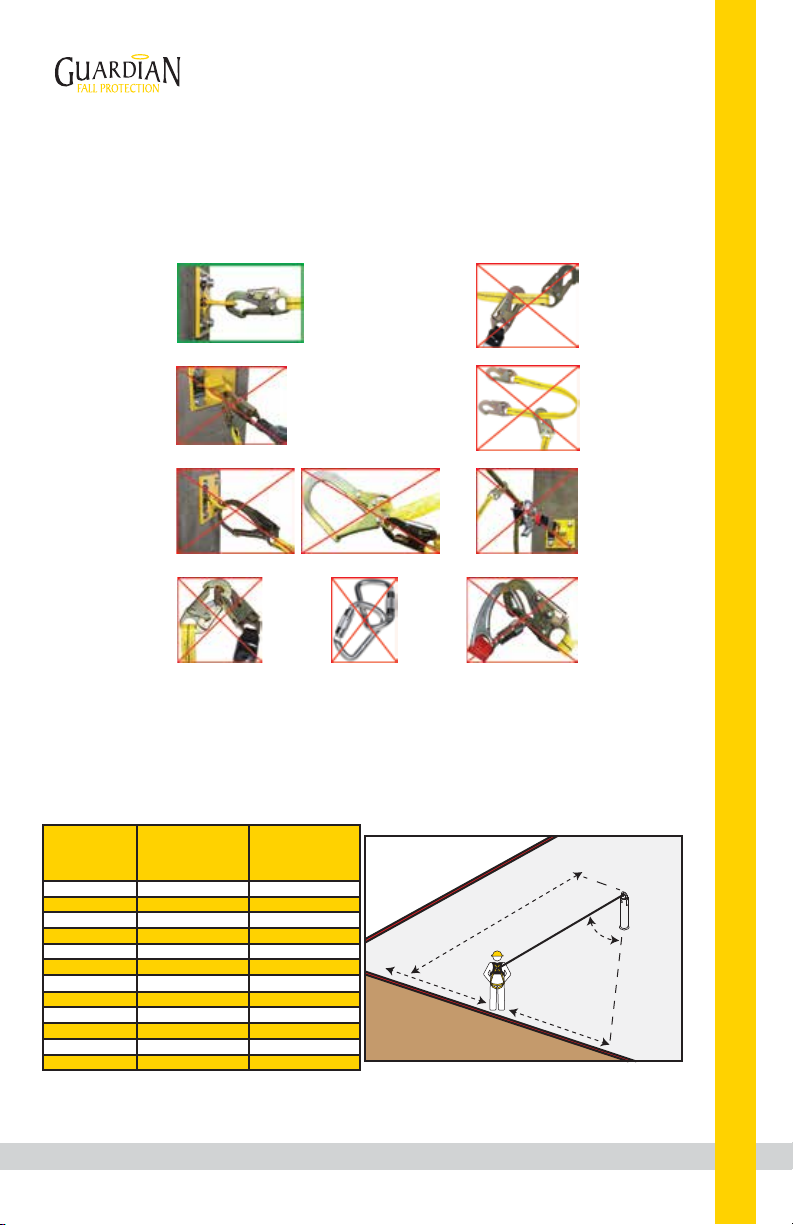

Compatibility: When making connections with Truss Boss Anchor, eliminate all possibility of roll-out. Roll-out
occurs when interference between a hook and the attachment point causes the hook gate to unintentionally
open and release. All connections must be selected and deemed compatible with Truss Boss Anchor by a
Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of
3,600 lbs. See the following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
Connector
to integral
lanyard.
NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Two connectors
to same
D-ring. NO.
Connector
directly to
horizontal
lifeline. NO.
Connector
directly to
webbing.
NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.

Flashing
Installation and Use
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
4
Materials:
Truss Boss Anchor: Zinc-plated steel.
Flashing: PVC or steel.
Cap: PVC.
Fasteners (12): Galvanized steel.
Fastener Installation
Location (8 total)
Connection
Point
!
WARNING
Prior to installation, refer to anchorage positioning chart (pg. 3)
to ensure installation location will satisfy intended work applications.
Prior to installation, plan your system:
1. Ensure all PFAS equipment is selected and deemed compatible with Truss Boss Anchor by a Competent
Person.
2. Select mounting location for Truss Boss Anchor. Selected mounting location must be compatible roof truss,
rafter, or other structural member, and must withstand minimum loads as specified by this instruction manual.
3. Make considerations for eliminating or minimizing swing fall hazards.
4. Not for use in combination with horizontal lifelines (HLLs).
5. Truss Boss Anchor may be installed in either upright or inverted orientations.

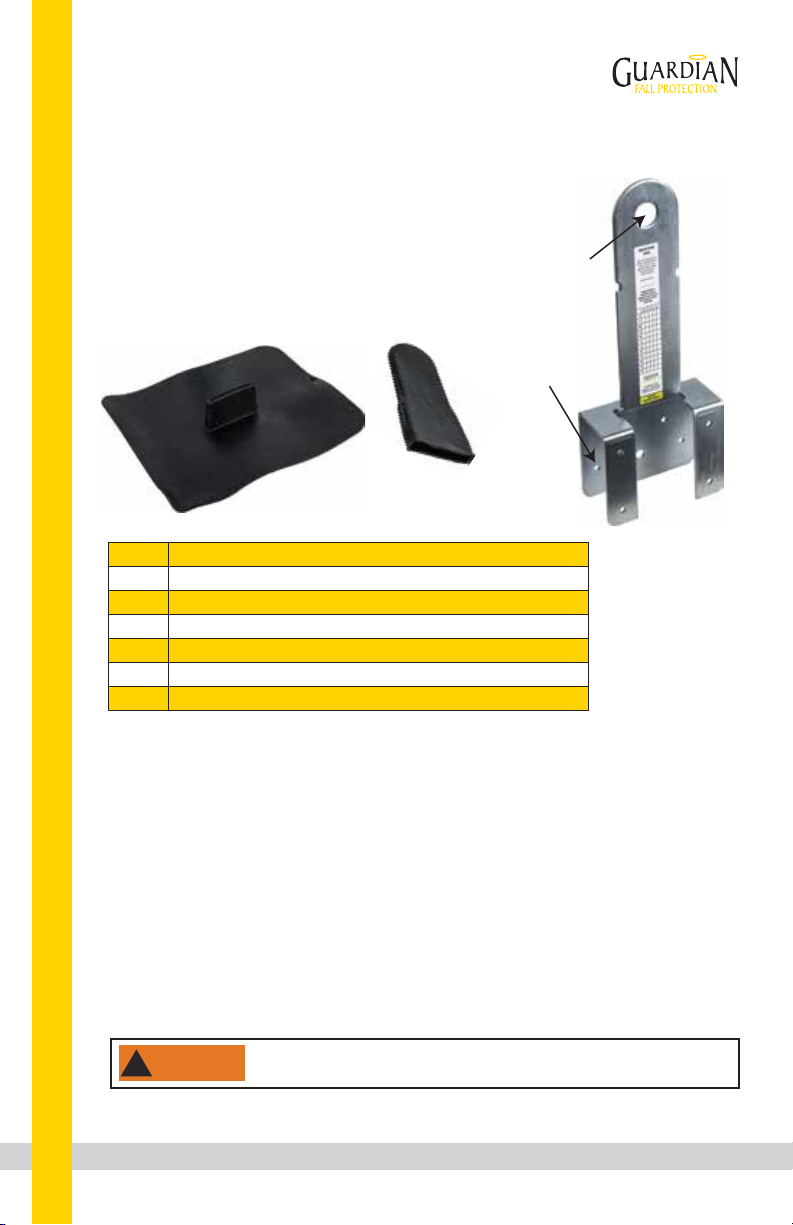

Components and Specifications
Part # Description
00432
00422
00420
Truss Boss Anchor
Truss Boss Anchor Cap
Truss Boss Anchor Kit (Includes Weather Proof Cap & Flashing)
00440
00441
00442
Tile Truss Boss Anchor Kit - Gray
Tile Truss Boss Anchor Kit - Terracotta
Tile Truss Boss Anchor Kit - Black
Anchor Cap

All (8) fasteners
fully embedded
in substrate
Truss Boss
Anchor flush
with support
beam
Connection
Point
*Shown without
Flashing/Anchor Cap
Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
5
Installation:
1. Place Truss Boss Anchor over selected installation
application. Truss Boss Anchor must lie flush with substrate.
2. Install (8) provided nails in fastener installation locations
on Truss Boss Anchor. All (8) nails must be fully embedded in
substrate and sit flush against anchor.
3. If applicable, install Flashing. Place Flashing fully over
Truss Boss Anchor Connection Point and push down until
Flashing lies flush with substrate. At EACH corner of Flashing,
1” in from each side, install (1) nail through Flashing and
fully embed into substrate.
4. If applicable, when Truss Boss Anchor is not in use, snap
Truss Boss Anchor Cap in place over Connection Point. Prior
to use, remove Anchor Cap.
5. Connect complete and compatible PFAS to Truss Boss
Anchor Connection Point.
Maintenance, Cleaning, and Storage
If Truss Boss Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to
inquire about its return or repair.
Cleaning after use is important for maintaining the safety and longevity of Truss Boss Anchor. Remove all dirt,
corrosives, and contaminants from Truss Boss Anchor before and after each use. If Truss Boss Anchor cannot be
cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean Truss Boss Anchor
with corrosive substances.
When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,
or other degrading elements.
Prior to EACH use, inspect Truss Boss Anchor for deficiencies, including, but not limited to, corrosion,
deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating,
alteration, broken stitching, fraying, and missing or illegible labels. IMMEDIATELY remove Truss Boss Anchor
from service if defects or damage are found, or if exposed to forces of fall arrest.
Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,
cracking, and hazardous materials. Ensure that selected work area will support the application-specific
minimum loads set forth in this instruction manual. Work area MUST be stable.
At least every 12 months, a Competent Person other than the user must inspect Truss Boss Anchor.
Competent Person inspections MUST be recorded in inspection log in instruction manual and on
equipment inspection grid label. The Competent Person must sign their initials in the box
corresponding to the month and year the inspection took place.
During inspection, consider all applications and hazards Truss Boss Anchor have been subjected to.
Inspection

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
6
Inspection Log
If equipment fails inspection
IMMEDIATELY REMOVE FROM SERVICE.
Date of First Use: __________________.
Product lifetime is indefinite, as long as it
passes pre-use and Competent Person
inspections. User must inspect prior to
EACH use. Competent Person other than
user must complete formal inspection at
least every 12 months. Competent Person
to inspect and initial.
This inspection log must be specific to one
Truss Boss Anchor. Separate inspection logs
must be used for each Truss Boss Anchor.
All inspection records must be made visible
and available to all users at all times.
Safety Information
Failure to understand and comply with safety regulations may result in
serious injury or death. Regulations included herein are not all-inclusive,
are for reference only, and are not intended to replace a Competent
Person’s judgment or knowledge of federal or state standards.
!
WARNING
Do not alter equipment. Do not misuse equipment.
Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,
machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent
Person before fall protection equipment is selected.
The analysis of the workplace must anticipate where workers will be performing their duties, the routes they
will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall
protection equipment must be chosen by a Competent Person. Selections must account for all potential
hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused
condition.
Fall protection systems must be selected and installed under the supervision of a Competent Person, and used
in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,
and safety regulations. Forces applied to anchors must be calculated by a Competent Person.
Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.
No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls
within 54”.
Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of
compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied
in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be
self-locking and self-closing, and must never be connected to each other.
A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The
rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt
rescue. Store rescue equipment in an easily accessible and clearly marked area.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: [phone] fax: [phone] www.guardianfall.com
785095 (Rev. C)
Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment
must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize
the likelihood of fall hazards, and the correct use of personal fall arrest systems.
NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless
explicitly certified for such use.
Equipment subjected to forces of fall arrest must immediately be removed from use.
Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there
is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of
equipment. Pregnant women and minors must not use this equipment.
Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension
may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.
Labels
User must inspect prior
to EACH use. Competent
Person must complete
formal inspection
every 12 months.
Competent Person to
inspect and initial.
Product lifetime is
indefinite as long as
equipment passes pre-use
and Competent Person
inspections.
INSPECTION
GRID
If equipment
fails inspection,
IMMEDIATELY REMOVE
FROM SERVICE
DO NOT
REMOVE LABELS
Compliant with
OSHA 1910 and
OSHA 1926 Subpart M
regulations.
Prior to use, read
and understand all
manufacturer’s
instructions
provided with
equipment at
time of shipment.
Capacity Range:
130-420 lbs. (including
all equipment).
1-800-466-6385
www.guardianfall.com
Truss Boss Anchor
Part #:
90077 (Rev. E)
Date of First Use:
________________
MAXIMUM 1
connection per anchor.
Avoid contact with
hazards, including, but
not limited to, heat,
chemicals, electricity,
and sharp or abrasive
edges and surfaces.
J
F
M
A
M
J
J
A
S
O
N
D
20__ 20__ 20__ 20__ 20__
!
WARNING
Materials:
Zinc-plated steel.
All PFAS equipment
must be selected and
deemed compatible
with Truss Boss Anchor
by Competent Person.
Only make compatible
connections. Refer to
instructions for proper
connection methods.
Date of Manufacture:
Serial #:
