GW Instek GDS-3000 Series User manual

Digital Storage Oscilloscope
GDS-3000 Series
USER MANUAL
GW INSTEK PART NO. 82DS-33040M01
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.

TABLE OF CONTENTS
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED......................................................... 11
GDS-3000 Series Overview................... 12
Appearance.......................................... 17
Set Up.................................................. 28
QUICK REFERENCE......................................................... 37
Menu Tree / Operation Shortcuts ........ 39
Default Settings ................................... 52
Built-in Help ........................................ 55
MEASUREMENT.............................................................. 57
Basic Measurement ............................. 59
Cursor Measurement ........................... 77
Math Operation ................................... 83
Applications......................................... 88
Using Go_NoGo .................................. 90
Power Analysis..................................... 95
Serial Bus ............................................ 96
CONFIGURATION........................................................... 99
Acquisition ........................................ 101
Display............................................... 108
Horizontal View ................................. 114
Vertical View (Channel)...................... 119
Trigger ............................................... 126
System Info / Language / Clock ......... 143
SAVE/RECALL ................................................................147
File Format/Utility ............................. 148

GDS-3000 Series User Manual
4
Create/Edit file labels......................... 152
Save ................................................... 154
Recall................................................. 161
Reference Waveforms......................... 166
FILE UTILITIES...............................................................169
PRINT OUT....................................................................177
REMOTE CONTROL CONFIG .........................................181
Interface Configuration ...................... 182
MAINTENANCE .............................................................191
FAQ ...............................................................................197
APPENDIX .....................................................................201
GDS-3000 Specifications.................... 201
Probe Specifications .......................... 205
GDS-3000 Dimensions ....................... 206
Declaration of Conformity .................. 207
INDEX............................................................................209

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the GDS-
3000.
WARNING Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION Caution: Identifies conditions or practices that
could result in damage to the GDS-3000 or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

GDS-3000 Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

SAFETY INSTRUCTIONS
7
Safety Guidelines
General
Guideline
CAUTION
Make sure the BNC input voltage does not
exceed 300V peak.
Never connect a hazardous live voltage to the
ground side of the BNC connectors. It might
lead to fire and electric shock.
Do not place any heavy object on the GDS-3000.
Avoid severe impact or rough handling that
leads to damaging the GDS-3000.
Do not discharge static electricity to the GDS-
3000.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not perform measurement at a power source
or building installation site (Note below).
Do not disassemble the GDS-3000 unless you
are qualified.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. the
GDS-3000 falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage: 100 ~ 240V AC, 48 ~ 63Hz,
auto selection
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.

GDS-3000 Series User Manual
8
Cleaning the
GDS-3000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemical containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 50°C
(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees
and their requirements as follows. The GDS-3000 falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -20°C to 70°C
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

SAFETY INSTRUCTIONS
9

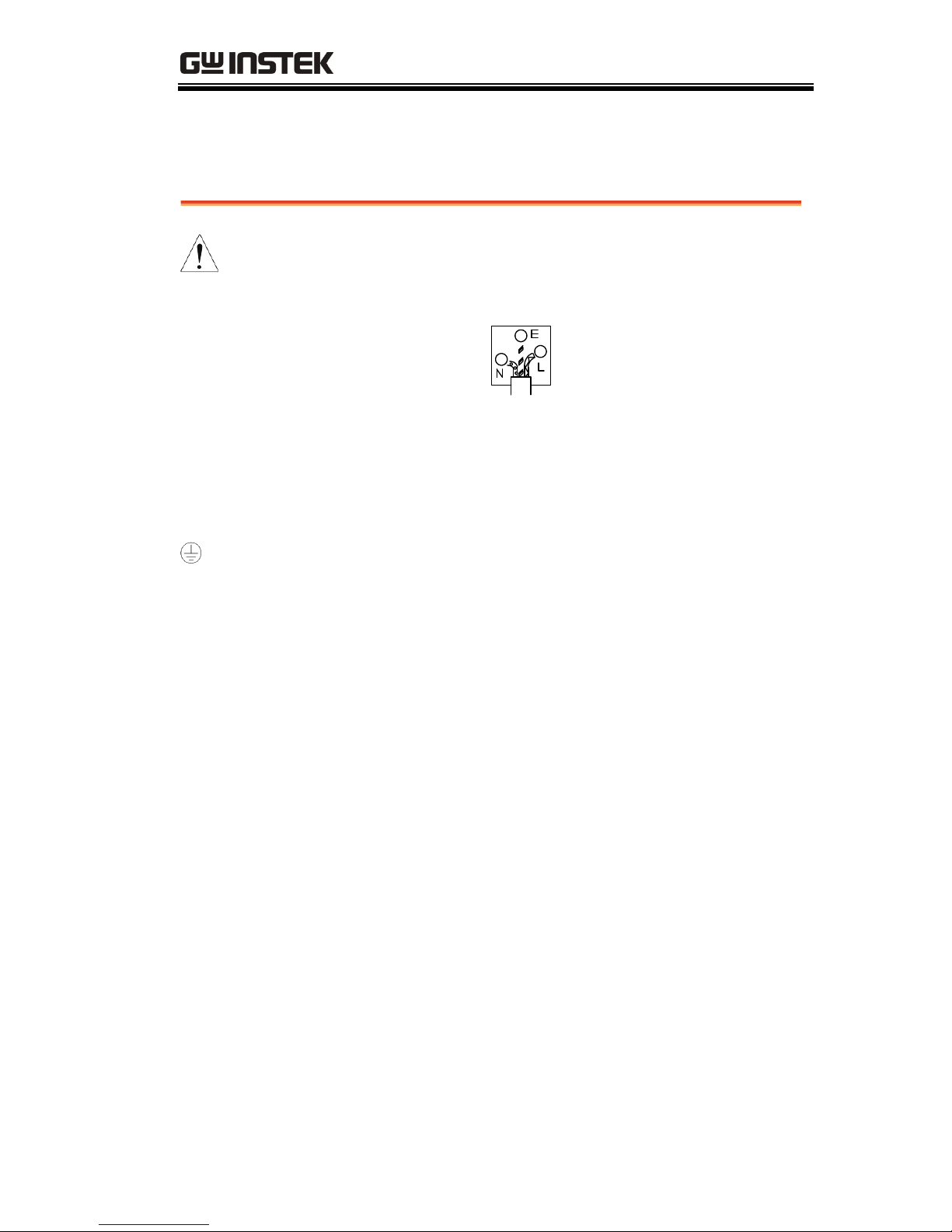

Power cord for the United Kingdom
When using the oscilloscope in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GDS-3000 Series User Manual
10

GETTING STARTED
11
GETTING STARTED
This chapter describes the GDS-3000 in a nutshell,
including its main features and front / rear panel
introduction. After going through the overview,
follow the Set Up section to properly set up the
oscilloscope for first time use. The Set Up section
also includes a starter on how to use this manual
effectively.
GDS-3000 Series Overview .............................................. 12
Series lineup..........................................................................12
Main Features .......................................................................13
Accessories............................................................................14
Package Contents.................................................................16
Appearance ..................................................................... 17

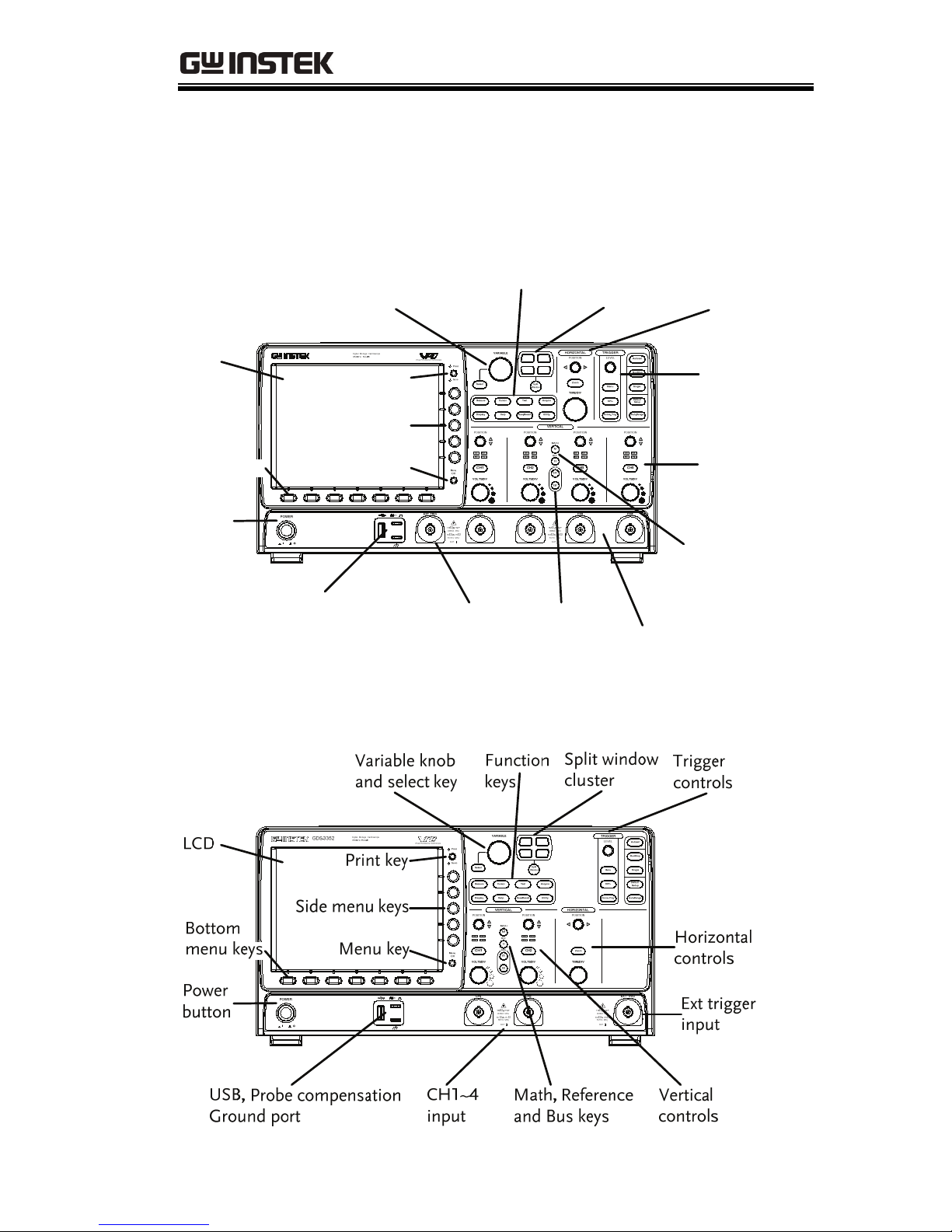

GDS-3554/3354/3254/3154 Front Panel .......................17
GDS-3352/3252/3152 Front Panel..................................17
Rear Panel .............................................................................23
Display...................................................................................25
Set Up............................................................................. 28
Tilt Stand...............................................................................28
Power Up ..............................................................................29
First Time Use......................................................................30
How to Use This Manual....................................................33

GDS-3000 Series User Manual
12
GDS-3000 Series Overview
Series lineup
The GDS-3000 series consists of 6 models, divided into 2-channel
and 4-channel versions.
Model name Frequency
bandwidth
Input channels Real-time
Sampling Rate
GDS-3152 150MHz 2 2.5GSa/s
GDS-3252 250MHz 2 2.5GSa/s
GDS-3352 350MHz 2 5GSa/s
GDS-3154 150MHz 4 5GSa/s
GDS-3254 250MHz 4 5GSa/s
GDS-3354 350MHz 4 5GSa/s
The 2 channel and 4 channel models differ in the position of the
horizontal controls, the math, reference and bus keys as well as the
position of the EXT trigger.

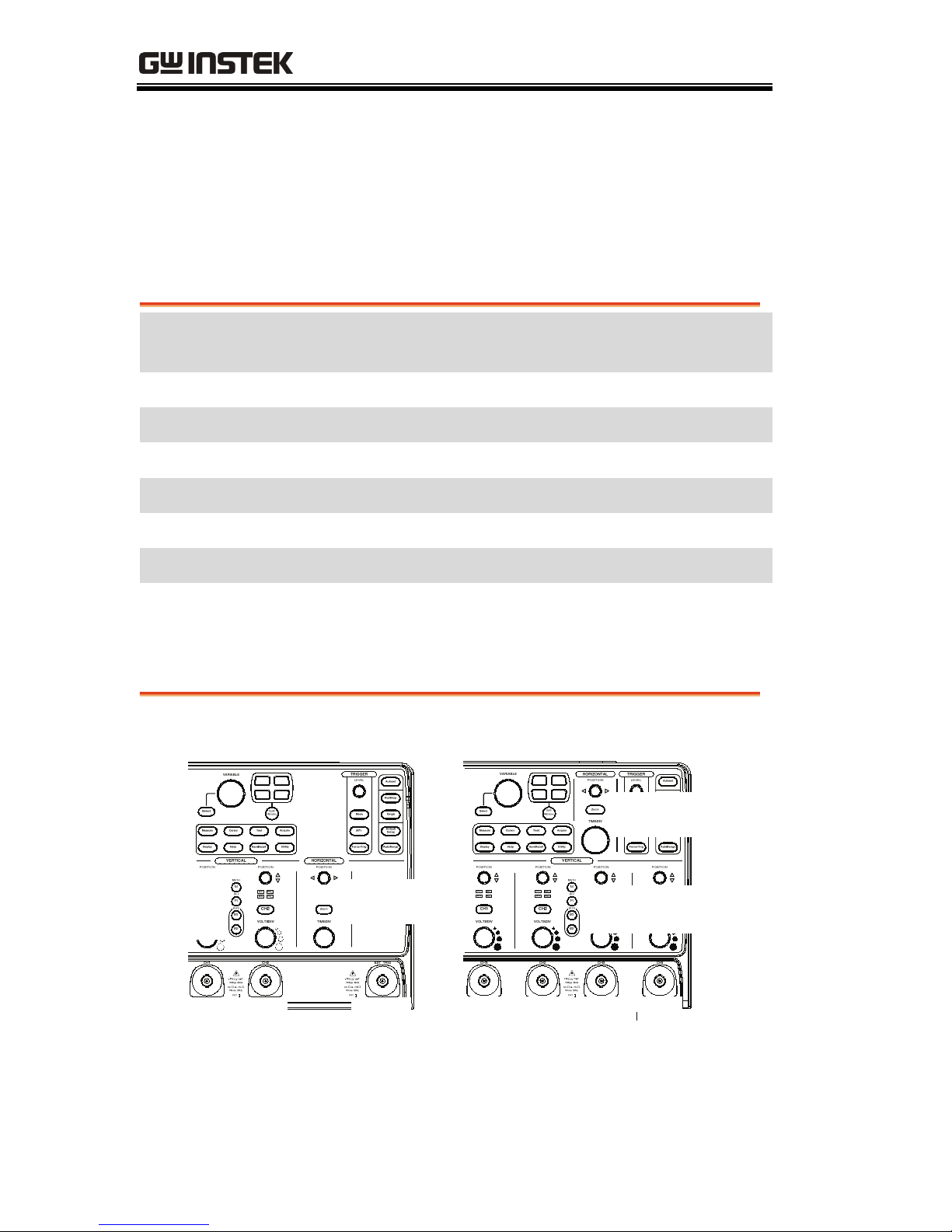

2-Channel model
CH1
input
CH2
input
EXT
trigger
Horizontal
controls
Math,
Reference
Bus keys
4-Channel model
CH1
input
CH2
input
CH3
input
CH4
input
Horizontal
controls
Math, Reference
Bus keys

GETTING STARTED
13
Main Features
Performance
High sampling rate: up to 5GSa/s real-time,
100GSa/s equivalent-time
Deep memory: 25k points record length
Minimum 2ns peak detection
Features
2 and 4 channel models
Bandwidth up to 350 MHz
5GSa/s (200ps resolution) real-time sampling
rate
100GSa/s equivalent sample rate
VPO waveform processing
Large 8’’ 800 x 600 high-resolution TFT LCD
Unique split window function
Flexible application modules
Three standard input impedances
(50Ω/75Ω/1MΩ)
Optional power measurement functions are
available for fast analysis of power quality tests
Optional analysis software for I2C, SPI and
UART serial signal triggering and decoding
2 and 4 channel models available up to 350 MHz
Large 8” color TFT LCD, supporting a large 8 x
10 graticule
On-screen Help
64 MB internal flash memory.
Freewave remote control software (free
download)

GDS-3000 Series User Manual
14
Interface USB host port: front and rear panel, for storage
devices
USB slave port(Optional GPIB to USB), RS-232C
port: for remote control
Calibration output
Go-No Go output
External trigger input
Ethernet port
Accessories
Standard
Accessories
Part number Description
82DS-33040M01 User manual
N/A region dependent Power cord
Options Option Number Description
Opt. 1 GPIB Interface
Optional
Accessories
Part number Description
GTC-001
Instrument cart, 450(W)x430(D)mm
(120V input Socket)
GTC-002
Instrument cart, 330(W)x430(D)mm
(120V input Socket)
GTL-110
test lead, BNC to BNC heads
GTL-232
RS-232C cable, 9-pin Female to 9-pin
female, Null modem for computer
GTL-242
USB cable, USB2.0A-B type cable 4P
GUG-001
USB to GPIB converter
GDP-025
25MHz high voltage differential
probe

GETTING STARTED
15
GDP-050
50MHz high voltage differential
probe
GDP-100
100MHz high voltage differential
probe
GCP-530
50MHz/ 30A current probe
GCP-1030
100MHz/ 30A current probe
GCP-206P
Power supply for current probe (2
input channel)
GCP-425P
Power supply for current probe (4
input channel)
GTP-151R
Passive probe; 150 MHz,10X with
readout
GTP-251R
Passive probe; 250 MHz,10X with
readout
GTP-351R
Passive probe; 350 MHz,10X with
readout
Driver Name Description
dso_cdc.inf USB driver

GDS-3000 Series User Manual
16
Package Contents
Check the contents before using the GDS-3000.
Opening the box
Contents Main unit
Probe set
GTP-151R for GDS-3152 / GDS-3154
GTP-251R for GDS-3252 / GDS-3254
GTP-351R for GDS-3352 / GDS-3354
Power cord
User manual (this document)
Note For detailed probe specifications, see page205.
The programming manual, PC software, and
USB driver are downloadable from the
GWInstek website. Visit www.gwinstek.com, in
the oscilloscope section.

GETTING STARTED
17
Appearance
GDS-3554/3354/3254/3154 Front Panel
GDS-3354
LCD Print key
Variable knob
and select key
Split window
cluster
Horizontal
controls
Trigger
controls
CH1~4
input
Vertical
controls
Math and
Reference
keys
Function
keys
Ext trigger
input
USB
Probe compensation,
Ground port
Power
button
Menu key
Bus keys
Bottom
menu keys
Side menu keys
GDS-3352/3252/3152 Front Panel

GDS-3000 Series User Manual
18
LCD display 8” SVGA TFT color LCD. 800 x 600 resolution,
wide angle view display.

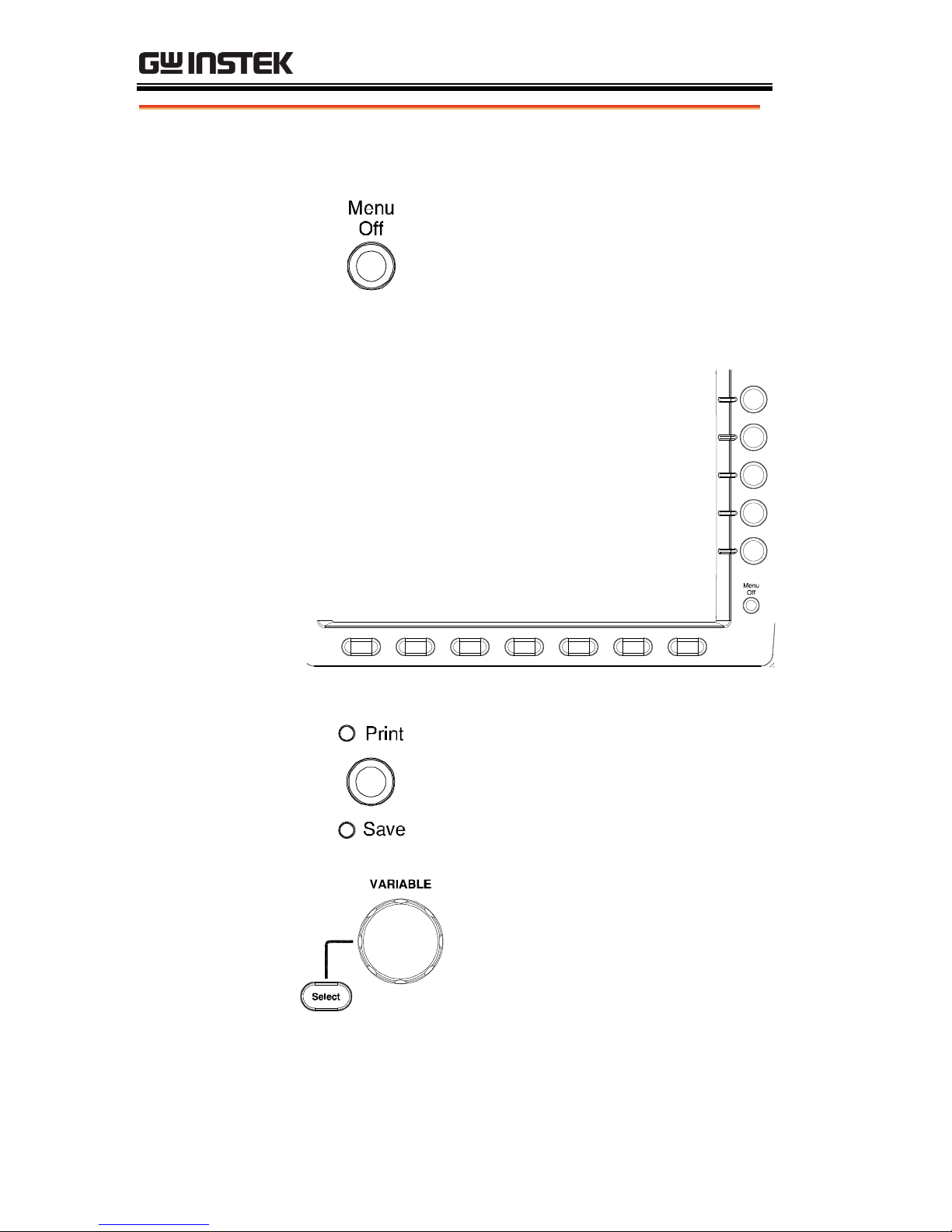

Menu Key
Use the Menu Off key to
hide/show the onscreen menu
system.
Side Menu keys The Side menu and Bottom menu keys are used to
make selections from the soft-menus on the LCD
user interface.
To choose menu items, use the 7 Bottom
menu keys located on the bottom of the
display panel.
To select a variable or option from a menu,
use the Side menu keys on the side of the
panel. See page 33 for details.
Bottom Menu
keys
Print key
The print key is a quick save or
quick print key, depending on its
configuration. For more
information see pages 156(save) or
178(print).
Variable knob and
Select key
The Variable knob is used to
increase/decrease values or to
move between parameters.
The select key is used to make
selections.

GETTING STARTED
19
Split Window
Cluster
Use the Split Window key to cycle
between single and split screen
mode. To separate each channel
into a split window, use one of the
four windowed keys. For more
details on windowing see page 67.
Horizontal
Controls
The horizontal controls are used to change the
position of the cursor, set the time base settings,
and to zoom into the waveforms.
Horizontal
Position
The Position knob is used to
position the waveforms vertically
on the display screen.
Zoom Press Zoom in combination with
the horizontal POSITION knob.
TIME/DIV
The Time/Div knob is used to
change the horizontal scale.
Trigger controls The trigger controls are used to control the trigger
level and options.
Level Knob
Used to set the trigger level.
Trigger Menu key
Used to bring up the trigger menu.
50% key Sets the trigger level to the half
way point (50%).
Force - Trig Press to force an immediate trigger
of the waveform.

GDS-3000 Series User Manual
20
Autoset Press the Autoset key to
automatically set the trigger,
horizontal scale and vertical scale.
Run/Stop key Press to Freeze (Stop) or continue
(Run) signal acquisition (page62).
Single Sets the acquisition mode to single
triggering mode.
Default Setup Resets the oscilloscope to default
settings.
Auto-Range Sets the oscilloscope range
automatically.
Vertical
POSITION
Sets the vertical position of the
waveform.
Channel Menu
Key Press the CH1~4 key to set the
coupling and vertical scale of the
corresponding channel.
VOLTS/DIV Knob
Sets the vertical scale.
Input Terminals
Accepts input signals. Input
impedance, selectable: 50Ω, 75Ω,
1MΩ.
Math key
Use the math key to set and
configure math functions.
