Haes ESPRIT-G Guide

ESPRIT-G FIRE CONTROL
EXTINGUISHING PANEL
INSTALLATION,
COMMISSIONING &
OPERATING MANUAL
This manual covers the installation, programming and commissioning of the Esprit
Extinguishing Fire Alarm Control Panels for One and Two Flood Zones.

ESPRIT Gas Extinguishing User Manual INTRODUCTION
2
Approved Document Ref: UI-ESG-01 Issue 2.0
INTRODUCTION
2797
Haes Technologies Ltd, Unit 3, Horton Industrial Park, West Drayton, Uxbridge, UB7 8JD
Model Number CPR Number
ESG-1001/1002/1003/1004 2797-CPR-720738
European Standard EN54-2 : 1997 + A1 : 2006
Control and indicating equipment for fire detection and fire alarm systems for buildings.
Provided Options (with requirements):
Output to fire alarm devices, dependency type ‘A’, test condition
European Standard EN54-4 : 1998
Power supply equipment for fire detection and fire alarm systems for buildings.
European Standard EN12094-1 : 2003
Requirements and test methods for electrical automatic control and delay devices
Haes Technologies Ltd declare that the products identified below conform to the essential
requirements specified in the Construction Products Regulation CPR305/2011/EU.
In addition, the product complies with the following:
Low Voltage Directive 2014/35/EC,
EN60950-1: 2006 Safety of information technology equipment,
Electromagnetic Compatibility Directive 2014/30/EC,
EN61000-6-3:2007 + A1:2011 Emissions, Class B,
EN50130-4: 2011 +A1:2014 Immunity, Product Family Standard.
This product has been designed to comply with the requirement of the low voltage safety and the EMC
directives. Failure to follow the instructions may compromise its adherence to this standard.

ESPRIT Gas Extinguishing User Manual INTRODUCTION
3
Approved Document Ref: UI-ESG-01 Issue 2.0
List of optional functions with requirements:
EN 12094-1: 2003
- Electrical automatic control and delay device.
- Environmental class: A
- 1 Flooding Zone
- CO2 Low Pressure
- CO2 High Pressure
- Inert gas systems
Provided options:
- 4.17 Delay of extinguishing signal
- 4.18 Monitor Flow of Extinguishing Agent
- 4.19 Monitoring od status of components
- 4.20 Emergency Hold Device
- 4.21 Control of flooding time: (60 –1800) seconds
- 4.23 Manual Only Mode
- 4.26 Triggering Signals to Equipment outside the System
- 4.27 Emergency Abort Device
- 4.30 Activation of Alarm Devices with Different Signals
EN54-2: 1997 + A1
- Control and indicating equipment for fire detection and fire alarm systems for buildings
Provided options:
- 7.8 Outputs to Fire Alarm Devices
- 7.9 Fire alarm routing
- 7.11 Delays to outputs
- 7.13 Alarm Counter
- 8.9 Fault warning routing equipment
- 10 Test Condition
EN54-4: 1998
- Power supply equipment for fire detection and fire alarm systems for buildings. Non-standard
Provided Options:
- Manual Extraction Control
- Charge during alarm
- Earth fault monitoring
- UPS Mode
- Changeable password for Level 2
- Adjustable Date & Time

ESPRIT Gas Extinguishing User Manual INTRODUCTION
4
Approved Document Ref: UI-ESG-01 Issue 2.0
Panels Model No.
Model No
Model Name
Standby
Current
Alarm
Current
ESG-1001
Esprit Ext Control Panel, Single Flood Zone, 1.2A PSU
205mA
300mA
ESG-1002
Esprit Ext Control Panel, Single Flood Zone, 3.4A PSU
205mA
300mA
ESG-1003
Esprit Ext Control Panel, Dual Flood Zone, 3.4A PSU,
Large Cabinet
207mA
365mA
ESG-1004
Esprit Ext Control Panel, Single Flood Zone, 3.4A PSU,
Large Cabinet
205mA
300mA

ESPRIT Gas Extinguishing User Manual INTRODUCTION
5
Approved Document Ref: UI-ESG-01 Issue 2.0
Contents
INTRODUCTION.....................................................................................................................................2
PRODUCT OVERVIEW..........................................................................................................................7
General Description of the Equipment ................................................................................................7
Cabinet for Single Flood Zone.........................................................................................................8
Cabinet for Two Flood Zones ..........................................................................................................8
Circuit Boards ..................................................................................................................................9
Circuit Description/Function...........................................................................................................11
Technical Specification .........................................................................................................................13
INSTALLATION CONSIDERATION .....................................................................................................17
Safety.................................................................................................................................................17
Warnings........................................................................................................................................17
Cautions.........................................................................................................................................17
ESD Precaution .............................................................................................................................18
Installing the System .........................................................................................................................18
Environment...................................................................................................................................18
Mounting the Cabinet.....................................................................................................................18
Mains Connections ........................................................................................................................19
Connecting the Batteries ...............................................................................................................19
Battery Charging Voltage Checks..................................................................................................20
Detection Zone Inputs....................................................................................................................20
Sounders / Monitored Output Circuits............................................................................................22
Relay Outputs ................................................................................................................................23
Inputs - Class Change and Pulse ..................................................................................................24
Monitored Input Wiring...................................................................................................................25
Extinguishing Actuator Output Wiring............................................................................................25
Igniting Actuators ...........................................................................................................................25
Solenoid Actuators.........................................................................................................................26
Remote Status Unit (RSU) Wiring .................................................................................................27
OPERATING INSTRUCTIONS.............................................................................................................28
Panel Control and Indicators.............................................................................................................28
Control Panel .................................................................................................................................28
User Controls.....................................................................................................................................32
General User Controls ...................................................................................................................32
Authorized User Controls...............................................................................................................33
Engineer Controls ..........................................................................................................................34
Panel Alarm Conditions.....................................................................................................................36
Fire Alarm Condition ......................................................................................................................36
Activated/Released Condition........................................................................................................36
Hold Condition ...............................................................................................................................39
Abort Condition..............................................................................................................................39

ESPRIT Gas Extinguishing User Manual INTRODUCTION
6
Approved Document Ref: UI-ESG-01 Issue 2.0
Fault Condition...............................................................................................................................39
CONFIGURING THE SYSTEM.............................................................................................................41
Accessing the Menu Structure...........................................................................................................41
Learn System ....................................................................................................................................42
Set Common Output for HOLD & ABORT.........................................................................................44
User Menu.........................................................................................................................................46
User Menu: AUTO/MANUAL MODE Menu ...................................................................................46
User Menu: DISABLE....................................................................................................................47
User Menu: Time & Date ...............................................................................................................48
User Menu: LAMP TEST ...............................................................................................................49
User Menu: Contrast......................................................................................................................49
User Menu: BUZZER.....................................................................................................................50
User Menu/sub-menu Breakdown .................................................................................................51
CONFIG Menu...................................................................................................................................53
CONFIG Menu: PANEL.................................................................................................................54
CONFIG Menu: GAS CARD..........................................................................................................57
CONFIG Menu: DEVICES.............................................................................................................58
CONFIG Menu: P-BUS..................................................................................................................61
CONFIG Menu: PSU......................................................................................................................61
CONFIG Menu/sub-menu Breakdown...........................................................................................62
CONTROL Menu...............................................................................................................................68
Control Menu: EXTRACT ..............................................................................................................68
Control Menu: FLOODING ............................................................................................................69
Control Menu: DELAYS.................................................................................................................69
CONTROL Menu/sub-menu Breakdown.......................................................................................70
Report Menu......................................................................................................................................71
Report Menu: ALARM....................................................................................................................71
Report Menu: FAULT.....................................................................................................................72
Report Menu: DISABLE.................................................................................................................73
Report Menu: OTHER....................................................................................................................74
Report Menu: HISTORY................................................................................................................75
Report Menu: Versions..................................................................................................................76
Report Menu: COUNTER ..............................................................................................................76
Report Menu: Gas Card.................................................................................................................77
Report Menu: PSU Card................................................................................................................77
Report Menu: BATTERY................................................................................................................77
Report Menu/sub-menu Breakdown..............................................................................................79
ENG Menu.........................................................................................................................................83
ENG Menu: TEST..........................................................................................................................83
ENG Menu: MISC..........................................................................................................................85
ENG Menu/sub-menu Breakdown.................................................................................................86
SERVICE & MAINTENANCE................................................................................................................87

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
7
Approved Document Ref: UI-ESG-01 Issue 2.0
PRODUCT OVERVIEW
General Description of the Equipment
The ESPRiT-G extinguishing gas panel acts as both a conventional fire alarm panel and an automatic
extinguisher control panel and was designed from the ground up to be intuitive and flexible for the
engineer. The panel is easy to install and programme and incorporates a large 240 x 64-pixel graphical
LCD display, with an easy-to-navigate menu system, which contains simple discernible icons in each
section.
In-built safety features ensure the client’s employees and assets are protected to the highest degree
with the minimum risk.
The panels are available in One Flood Zone (three Conventional Detection Circuits), and Two Flood
Zones(six conventional detection circuits), and hence will be presented in two different enclosure sizes.
The Gas panel can be powered by either; 35W, 1.2 Amps (for 1 Flooding Area), or 100W, 3.4 Amps
(for 2 Flooding Areas), switch mode PSU’s, rated at 230VAC, 50/60Hz.
The panel also offers optional Output Expansion Relay Board providing additional volt-free relay
outputs.
The panel supports connections for up to Sixteen Remote Status Units (RSU), or up to Sixteen
Economy Remote Status Units (EcoRSU).
This product has been designed and manufactured in the United Kingdom.

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
8
Approved Document Ref: UI-ESG-01 Issue 2.0

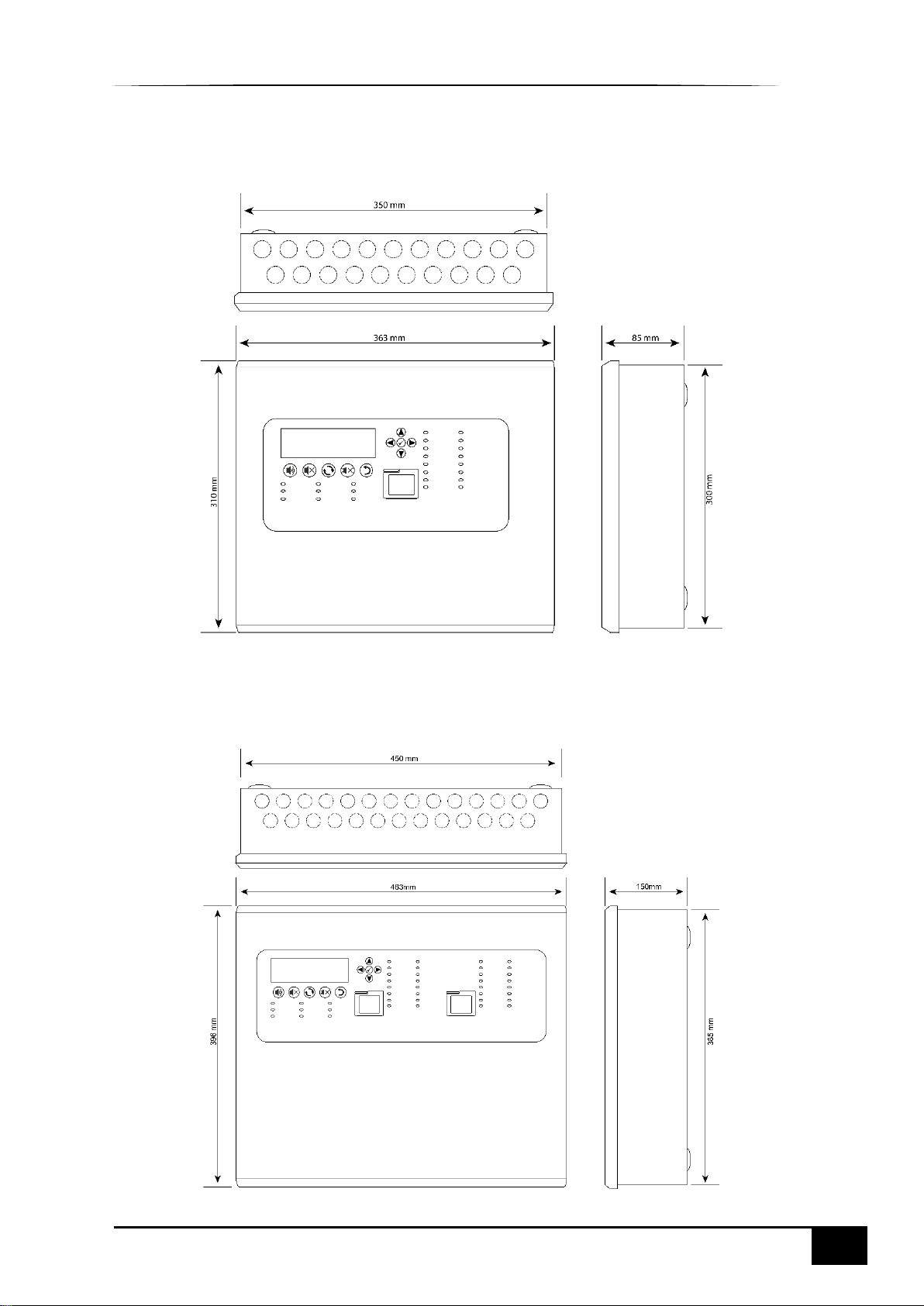

Cabinet for Single Flood Zone
Cabinet for Two Flood Zones

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
9
Approved Document Ref: UI-ESG-01 Issue 2.0
Circuit Boards

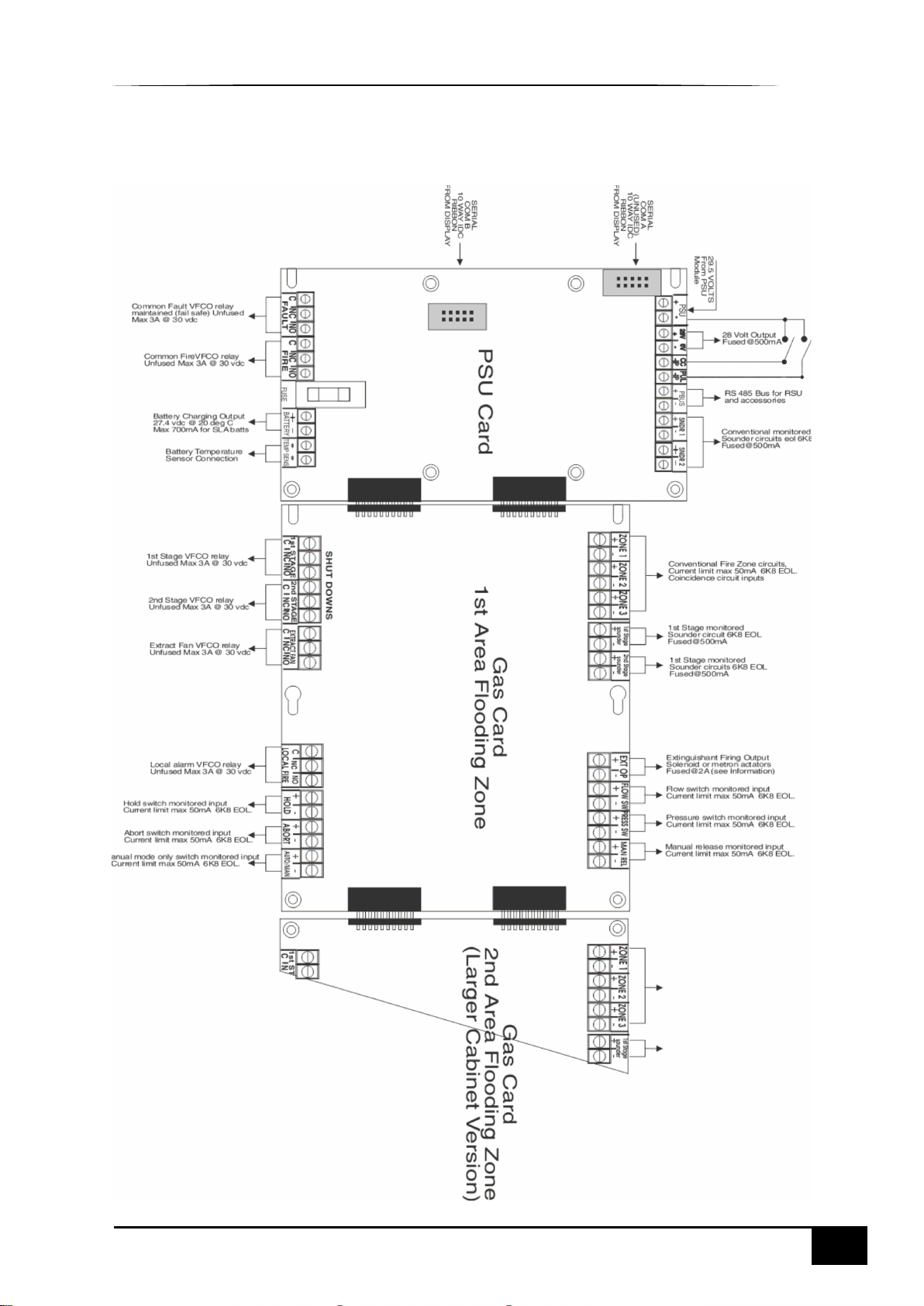

2827-206 DISPLAY CARD & 2972-206 EXTENSION LEDs CARD (2nd Flood Zone)

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
10
Approved Document Ref: UI-ESG-01 Issue 2.0
2879-206 PSU CARD & 2883-206 GAS CARD

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
11
Approved Document Ref: UI-ESG-01 Issue 2.0
Circuit Description/Function
TPC2827-206 DISPLAY CARD
IP1/IP2/0V
Monitored inputs for Activate Controls (IP1/0V) and Select Mode (IP2/0V) key switches.
IP3/IP4
Not used.
TPC2972-206 EXTENSION LEDs CARD (2nd Flood Zone)
28V/0V
28V input.
0V/IP1
Monitored input from Flood Zone 2 Select Mode key switch.
IP2
Not used.
TPC2879-206 PSU PCB
PSU (+ -)
Monitored 29.5VDC input from power supply module.
28V/0V (+ -)
28V output, fused at 500mA.
CC (-IP)
Class Change switch (–ve) inputs, which cause the common sounder outputs to operate.
Note: Stage sounders will not be affected unless programmed to do so (see program details).
PUL (-IP)
Pulse switch (–ve) inputs, which cause the common sounder and loop sounders outputs to pulse.PBUS
(+ -)
Note: Stage sounders will not be affected unless programmed to do so (see program details).
PBUS
Input for RS-485 Peripheral BUS (PBUS) circuit, for remote control call points. The PBUS circuit is not
intended for repeaters or networking.
SNDR 1 (+ -)/SNDR 2 (+ -)
Two 24VDC programmable and monitored sounder outputs, configurable as FARE and FFRE (Fire
and Fault routing).
•They can be programmed to turn OFF or ON in Continuously mode or in Pulsing mode (1s ON
and 1s OFF).
•The sounders can be configured to be non-silencing or silencing.
FAULT (C NC NO)
Common fault signal changeover relay contacts. Normally energised (failsafe) contacts, change over
when any fault is active on the panel or in the event of total power loss. Unfused, Max 3A at 30VDC.
FIRE (C NC NO)
Common alarm changeover relay contacts. Activate when an alarm condition (470R) exists on the input
or ZONE circuit. Unfused, Max 3A at 30VDC.

ESPRIT Gas Extinguishing User Manual PRODUCT OVERVIEW
12
Approved Document Ref: UI-ESG-01 Issue 2.0
BATTERY (+ -)
Connections for two VRLA batteries (up to 18Ahr, depending on cabinet size) charging output
(temperature compensated). 27.4VDC output at 20°C, Max. 700mA.
TEMP SENS (* *)
Connections for battery temperature sensor.
TPC2883-206 Gas Card
ZONE 1 (+ -)/ZONE 2 (+ -)/ZONE 3 (+ -)
Conventional fire zone circuits, coincidence circuit inputs. Current limit Max. 50mA (6K8 End-of-Line
(EOL) resistor).
1st Stage Sounder (+ -)/2nd Stage Sounder (+ -)
Monitored sounder circuit (6K8 EOL), fused at 500mA.
EXT OP (+ -)
Extinguishant firing output (Solenoid or metron actuators). Fused at 2A
FLOW SW (+ -)
Flow switch monitored input. Current limit Max. 50mA (6K8 EOL).
PRESS SW (+ -)
Pressure switch monitored input. Current limit Max. 50mA (6K8 EOL).
MAN REL (+ -)
Manual release monitored input. Current limit Max. 50mA (6K8 EOL).
SHUT DOWNS –1st STAGE (C NC NO)/2nd STAGE (C NC NO)
1st and 2nd stage common fault signal changeover relay contacts. Unfused, Max 3A at 30VDC.
EXTRACT FAN (C NC NO)
Extract fan common fault signal changeover relay contacts. Unfused, Max 3A at 30VDC.
LOCAL FIRE (C NC NO)
Local fire common alarm changeover relay contacts. Unfused, Max 3A at 30VDC.
HOLD (+ -)
Hold switch monitored input. Current limit Max. 50mA (6K8 EOL).
ABORT (+ -)
Abort switch monitored input. Current limit Max. 50mA (6K8 EOL).
AUTO/MAN (+ -)
Auto/Manual and Manual only mode selector switch monitored input. Current limit Max. 50mA (6K8
EOL).

ESPRIT Gas Extinguishing User Manual Technical Specification
13
Approved Document Ref: UI-ESG-01 Issue 2.0
Technical Specification
General Specification
Enclosure
Steel IP30. Epoxy powder coated Interpon Radon, silver grey
Cabling
Fire resistant screened cable, minimum size 1mm2. Max cable
length 1Km (20 Ohm). Fire Burn, FP200 or equivalent (max
capacitance 1uF, max inductance 1 millihenry).
Temperature range: -5°C to +40°C
Maximum Relative Humidity: 95%
Number of conventional detection
circuits
3 for single flood zone area. 6 for dual flood zone area
Works with following conventional
detectors
Apollo: S65, Orbis. / Hochiki CDX. / Nittan EV
Approx. dimensions of panel
(W x H x D)
363 x 310 x 85(mm) (Single Flood Zone)
436 x 396 x 150 (mm) (Two Flood Zones)
Power Supply Specification
Mains supply
230VAC +10% / -15% 50Hz max
current 0.74Amp (35W) for
Single flood zone
230VAC +10% / -15% 50Hz max
current 2.1 Amp (100W) for Dual
flood zone
Mains supply fuse
2 Amp (T2A 250V) 35W unit
4 Amp (T4A 250V) 100W unit
Not accessible for servicing. Internal
to switched mode power unit
Power supply rating
1.2 Amps total including battery
charging for single flood zone
3.4 Amps total including battery
charging for single and dual flood
zones
Maximum load shared between
outputs = 1 Amp single flood zone, 3
Amp single and dual flood zones
Power supply output voltage
19.8 - 29.7VDC
Tolerance +/- 0.1%
Maximum continuous load
for battery standby (I max A)
I max A = 650mA for single flood
zone
I max A = 930mA for single and
dual flood zone
I max B not specified
Minimum current drawn by
panel
Single Flood Zone = 168mA
Single and Dual Flood Zone =
240mA
Maximum ripple voltage
150 mV p-p (Both single and
dual)
Supply and charger fault monitored

ESPRIT Gas Extinguishing User Manual Technical Specification
14
Approved Document Ref: UI-ESG-01 Issue 2.0
Min/max battery size and
type
2 x 3.2 Ah 12volt VRLA
(minimum)
2 x 7Ah 12volt VRLA (1 Flood
zone)
Small cabinet
2 x 18.0Ah 12volt VRLA. (1 or 2
Flood zone) Use Yuasa NP
range batteries
Large cabinet
Battery charging voltage
27.3VDC nominal at 20°C for
single and dual flood zones
Temperature compensated
Battery charging output
current
700mA (Both sizes)
Current limited
Charging supressed During Alarm
Condition
Battery high impedance fault
(Batt Hi Z)
Resistance > 1 Ohm
1-hour reporting time
Max current drawn from
batteries
5 Amps with main power source
disconnected. Battery fuse 3.15A
(5x20 glass, quick blow)
Min current supplied by PSU
I min
70mA for both single and dual
flood zones

ESPRIT Gas Extinguishing User Manual Technical Specification
15
Approved Document Ref: UI-ESG-01 Issue 2.0
Electrical Specification Inputs & Outputs –TPC2879-206 PSU PCB for Single and Dual
Flood Zone Panels
Terminal capacity
0.5mm2to 2.5mm2solid or stranded
wire.
PSU Input +/- to PCB
29.5VDC supply input. Diode
protected for reversal and
independent short circuit.
Max current 5 amps.
Max input current 5 amps. Input
voltage 29.5VDC to 30VDC.
28V+, 0V- power output
28VDC supply output for fire alarm
accessory relays etc. Max
continuous use = 400mA.
Fused at 500mA. Fuse = 500mA
resettable fuse.
Common fire relay
Fire relay contact. Clean C/O. Max
3A at 30VDC.
Unfused
Common fault relay
Maintained fault relay contact. Clean
C/O Max 3A at 30VDC.
Unfused
Inputs: CC, PULSE
Switched -ve inputs, connect to 0V to
trigger. Max input voltage = 30VDC.
Non-latching, max resistance 100R.
Protected via 10K Ohm impedance,
3v6 Zener diode.
SOUNDERS 1 & 2
28VDC polarity reversal monitored
sounder outputs to fire alarm
devices.
6K8 Ohm 5% 0.25W EOL resistor.
Monitoring current limit 28mA, fused
at 500mA. Typical max load 22
devices at 18mA each per circuit.
PBUS Output + / -
RS485
RSU Comms, fused at 20mA
Temp Sense Input * *
Input for connection of battery
temperature sensor, Attach to central
point of sealed lead acid battery pair.
Thermistor TTC5103
10,000 Ohms at 25°C.
Electrical Specification Inputs & Outputs –TPC2883-206 Gas Card PCB –1 fitted for
Single Flood Zone Panel, 2 fitted for Dual Flood Zone Panel
Zone 1 - 3 +/ - for single
flood area
Zone 1 - 6 +/- for dual
flood area
Fire alarm zone circuits.
Conventionally wired detection
circuit. 6K8 Ohm 5% 0.25W EOL
resistor.
Monitoring current limit 42mA. Max 32
devices per zone.
1st Stage Sounder
Output +/-
2nd Stage Sounder
Output +/-
28VDC polarity reversal monitored
sounder output to fire alarm devices.
6K8 Ohm 5% 0.25W EOL resistor.
Monitoring current limit 28mA, fused at
500mA. Typical max load 22 devices at
18mA each per circuit.

ESPRIT Gas Extinguishing User Manual Technical Specification
16
Approved Document Ref: UI-ESG-01 Issue 2.0
EXT OP +/-
Extinguishant Release Output.
28VDC polarity reversal monitored
output to Solenoids or Metron
actuators.
1N4002 diode EOL, Circuit
parameters learnt during
commissioning.
21- 30VDC: 2A continuous rated for
solenoids;
3A at 450mS available for Metron
actuators
Monitored inputs (6):
FLOW SW, PRESS
SW, MAN REL, HOLD,
ABORT, AUTO/MAN
(+/-)
End of line resistor 6K8, Thresholds
8K to 1K2 Normal, 1K1 to 150R
active (nominal 470R), 150R to 0R
Short circuit
Monitoring current limit 14mA
1ST STAGE RELAY, 2ND
STAGE RELAY,
EXTRACT FAN, LOCAL
FIRE RELAY C/NC/NO
Auxiliary relay contacts. Clean C/O.
Max 3A at 30VDC.
Unfused

ESPRIT Gas Extinguishing User Manual INSTALLATION
17
Approved Document Ref: UI-ESG-01 Issue 2.0
INSTALLATION
Safety
Important notice:
Please read this manual before handling the equipment and observe all advice given within it.
Important Notes:
The product must be installed, commissioned and maintained for operation in accordance with the
instructions and the applicable wiring codes of practice and national standard regulations for fire
systems appropriate to the country and location of the installation.
This equipment is designed to be operated from 230V AC 50/60 Hz mains supplies and is of Class I
construction. As such it must be connected to a protective earthing conductor in the fixed wiring of the
installation. Failure to ensure that all conductive accessible parts of this equipment are adequately
bonded to the protective earth will render the equipment unsafe.
Warnings
Warning Sign: Before installation refer to the ratings shown on the label inside the
product and to the ‘Specifications Chart’ in this document. If you are unclear on any
point, please DO NOT proceed. Contact the manufacturer or supplier for
clarification and guidance.
Only trained service personnel should undertake the Installation, Programming
and Maintenance of this equipment.
Cautions
Equipment Guarantee
This product has been manufactured in conformance with the requirements of all
applicable EU Council Directives and is not guaranteed unless the complete system
is installed and commissioned in accordance with the laid down national standards.
This product has been designed to comply with the requirements of the Low Voltage Safety and the
EMC Directives. Failure to follow the installation instructions may compromise its adherence to
these standards.
Waste Electrical and Electronic Equipment Directive
!

ESPRIT Gas Extinguishing User Manual INSTALLATION
18
Approved Document Ref: UI-ESG-01 Issue 2.0
ESD Precaution
This particularly applies to the precautions necessary to avoid Electro-Static Discharge.
Attention –Observe precaution for handling electro-static sensitive devices.
This equipment is constructed with static sensitive components. Wear an anti-static earth strap
connected to panel enclosure earth point. Before installing or removing any printed circuit boards
remove all sources of power (mains and battery).
Note: This equipment is a piece of class 1 equipment and must be earthed.
Installing the System
Environment
The site chosen for the location of the panel should be clean, dry and not subject to shock or vibration.
Environments where there is damp, salt air, water ingress or extremes of temperature must be avoided.
The temperature should be in the range of -5°C to +40°C, and the relative humidity should not exceed
95%.
Mounting the Cabinet
Secure the cabinet to the wall using the four indented holes in the back of the cabinet. Ensure the
cabinet is mounted level and in a convenient location for it to be operated and serviced.
Recommended screws size is M 4.0 * 38mm.
External cables should pass through a suitable gland and fitted to the cabinet via preformed knockouts
at the top and rear of the cabinet. Any unused knockouts must be securely blanked off.
Knockouts should be removed with a sharp tap at the rim of the knockout, using a 6mm broad bladed
screwdriver. Use of excessive force will damage the enclosure around the knockout.

ESPRIT Gas Extinguishing User Manual INSTALLATION
19
Approved Document Ref: UI-ESG-01 Issue 2.0
Mains Connections
Note: All connection must be carried out in accordance to local requirements and regulations.
Connecting the Batteries
Note: In the event of mains failure, the battery charger circuit will protect the batteries from full
discharge by disconnecting them when they reach below 19v. When the mains supply is restored the
batteries will be automatically reconnected.
Note: If the mains are connected before the batteries, the panel will show a Power Supply fault for up
to 1 minute until the monitoring cycle has finished polling. This is normal. If the fault doesn’t clear after
1 minute, check connections.
Connect the red lead to the positive (+) terminal of battery No.1 and the black lead to the negative (-)
terminal of battery No.2. Connect the negative terminal of battery No.1 to the positive terminal of
battery No.2, using the supplied link cable.

ESPRIT Gas Extinguishing User Manual INSTALLATION
20
Approved Document Ref: UI-ESG-01 Issue 2.0
Battery Charging Voltage Checks
The battery charging voltage is factory calibrated to 27.3VDC +/- 0.2V at 20°C. This should not normally
require adjustment. Where battery problems are experienced, the following information should be
considered.
Quiescent current and alarm current details for standby battery calculations:
a) If a battery is disconnected from the charger, no voltage will appear on the output leads or
terminals, due to intelligent battery controls.
b) Check the power supply voltage at the PSU supply input terminals. With the batteries disconnected
the voltage should be 29.0VDC +/- 0.2V.
c) To test the batteries, turn off the mains and see if the system will run on the batteries. Check the
battery voltage, which should be 26.8V for a good battery or 22V for a flat battery.
d) The power supply voltage can be adjusted using the potentiometer on the power supply module,
checking at the 28V & 0V output terminals with a calibrated voltmeter. Batteries should be
disconnected and the Access Level 3 DIL switch should be set to ‘ON’, which will override the
temperature compensation controls. Carefully adjust the voltage to 29.0VDC +/- 0.2V. When
completed, switch off Access Level 3 DIL switch and re-connect the batteries.
e) When the panel is re-charging a low battery, it should be possible to see the voltage across the
batteries increase gradually. If this is not occurring, the batteries or the panel may be faulty.
Battery Charging Voltage Calibration
Should the battery charging voltage require calibrating (i.e. following replacement of the main board),
proceed as follows:
•Turn Activate Controls key clockwise to On
or
•Use the keypad to enter Authorised User (Access level 2) code 1111:
oPress ✓key
oUse Up/Down arrow keys to increase/decrease the number value
oUse Left/Right arrow keys to move to the next digit in the 4-digit sequence
oWhen all 4 digits have been set to the code 1111, press the ✓key again
•The Main Menu will become available for operation
•On the Main Menu, use Left/Right arrow keys to move cursor box to Report menu
•Press Enter ✓key to select the Report menu
•Under Report Menu, use Left/Right arrow keys to highlight the BATTERY option, and then
press Enter ✓key to select it
•BATTERY STATUS menu will display the following:
TEMPERATURE: nn.nn
