Haes AlarmSense PLUS User manual

EN54 APPROVED 8-12 ZONE PULSE2 ALARMSENSE PLUS
CONTROL PANEL
810a/06
Document EUFS-UI-ASP-02 Issue 1.0

0832
Haes Systems Ltd, Columbia House, Packet Boat Lane, Cowley Peachey, Uxbridge, UB8 2JP
13
Model Number CPR Number
Haes AlarmSense PLUS 4-12 zone AlarmSense panel ASP-4/8/12 0832-CPR-F0574
European Standard EN54-2 : 1997 + A1 : 2006
Control and indicating equipment for fire detection and fire alarm systems for buildings.
Provided Options (with requirements):
Output to fire alarm devices, delays to outputs, test condition
European Standard EN54-4 : 1997 + A1 : 2002 + A2 : 2006
Power supply equipment for fire detection and fire alarm systems for buildings.
IMPORTANT NOTE
PLEASE READ THIS MANUAL BEFORE HANDLING THE EQUIPMENT AND
OBSERVE ALL ADVICE GIVEN IN IT
THIS PARTICULARLY APPLIES TO THE PRECAUTIONS NECESSARY TO
AVOID E.S.D
IMPORTANT SAFETY NOTES ATTENTION
The panel is safe to operate provided it has been installed in compliance with the manufacturer’s instructions
and used in accordance with this manual.
Hazardous voltages are present inside the panel—DO NOT open it unless you are qualified and authorised
to do so. There is no need to open the panel’s enclosure except to carry out commissioning, maintenance
and remedial work. This work must only be carried out by competent service personnel who are fully
conversant with the contents of the panel’s installation manual and have the necessary skills for maintaining
this equipment.
This fire alarm system requires periodic checks as specified in BS 5839 Part 1 It is the responsibility of the
system user to ensure it is regularly serviced and maintained in good working order.
Disclaimer
No responsibility can be accepted by the manufacturer or distributors of this fire alarm panel for any
misinterpretation of an instruction or guidance note or for the compliance of the system as a whole. The
manufacturer’s policy is one of continuous improvement and we reserve the right to make changes to
product specifications at our discretion and without prior notice. E & O E.
!

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
1
MAINS CONNECTIONS
Do not connect the mains supply to the panel
until you are fully conversant with the layout
and features of the equipment.
A rating plate is attached to the power supply
module describing the nature of the supply
permitted.
The incoming mains supply should be brought
into the panel via one of the knockouts
provided.
A suitable cable gland must be used to secure
the outer sheath of the cable used. The earth
must first be connected to the primary earth
stud (peg) marked with a symbol, using
the ring crimp provided.
Sufficient earth lead should be left to allow Live and Neutral connections to be accidentally pulled from the
terminal block while leaving the earth connection intact.
CONNECTING THE BATTERIES
Batteries of even very small capacity are capable of delivering very high currents which can cause fire or
injury, therefore battery connections should be done with caution.
The panel is supplied with battery leads already connected to the battery terminals on the main PCB.
These leads are coloured red for +ve and black for -ve.
2 x 12v batteries should be connected in series
using the white jumper lead provided. See
diagram.
To optimise the service life of the batteries, the
battery charger output voltage varies with
temperature.
N.B.
In the event of mains failure, the battery charger
circuit will protect the batteries from full discharge
by disconnecting them when they reach below
19v. When the mains supply is restored the
batteries will be automatically reconnected.
NOTE:
If the mains is connected before the batteries, the panel will show a Power Supply fault for up to 1 minute
until the monitoring cylce has finished polling. This is normal. If the fault doesn’t clear after 1 minute, check
connections.
ON
+ -
BATTERY
1 2 3
-ve
+ve
12v SLA Battery
12v SLA Battery
V+
V-
E
N
L

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
2
What is AlarmSense?
AlarmSense ® is a range of conventional detection and alarm products designed to be connected to the
same pair of supply wires. It is not compatible with other ranges of detectors and must be used with
AlarmSense compatible control equipment.
Non Priority Alarm
The sounder base, sounder/beacon base and AlarmSense relays have a ‘priority/non priority’ option DIL
switch feature which can provide an enhanced operation particularly suited to HMO dwellings.
This feature, when set, provides up to a two minute delay on the activation of a smoke detector with a local
sounder, which enables the user to clear a false alarm prior to the full activation of the alarms.
The AlarmSense relay can be used to monitor conventional alarm sounders and has a DIL switch to enable
selection of the relay operation for the non priority or priority mode.
The Pulse2 AlarmSense panels have special programming options incorporated for use with AlarmSense
devices:
• Setting as to whether non priority mode is available per zone.
• Programmable time delay for non priority alarms, 30, 60 or 120 seconds.
• Panel display response during non priority alarms (either no indication or zone LED with buzzer).
Non Priority Functionality
When a sounder base has been set as ‘non priority’;
If smoke is detected, the local base sounder will activate (along with any alarm relay set accordingly). After
the programmed time period e.g, 120 secs, the panel will attempt to reset the detector. If clear, the panel
will resume to normal. If the detector re-alarms or another detector comes into alarm during the delay
period a full alarm will occur.
A manual call point activation at any time will cause a full alarm condition.
Please refer to the Apollo AlarmSense ® Installation Guide for device connection details
L1 IN
-R
2-way DIL switch
No field wires are
connected to these
terminals
This product does not
support a remote
indicator
L1 OUT
L1
L2
L1
L2
EARTH
L2
DIL switch positions
ON Switch 1 –OFF = Priority (default)
ON = Non-priority
Switch 2 –OFF = High volume (default)

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
3
PROGRAMMING OPTIONS - SEE FULL MANUAL FOR FURTHER DETAILS
Option/Setting Description Code(s)
View History
View the last 40 events
1111
Set Fault Buzzer Volume
Set the fault buzzer volume to high or low
2224
Disable Buzzer In Test Mode
Disable the panel buzzer during test mode
2223
Clear All Disablements
Remove all disablements which have been set for any zone,
sounder circuit, output or delay
1121
Initialise Factory Settings
Restores all programming, test modes and disablements back to
factory default settings
1113
Panel Wide Settings
• Change/remove keypad access code
• Set number of repeater panels on system
• Set time for panel delay timer
• Disable battery monitoring
• Setup internal PCB config (add/remove zone & comms cards)
• Change network/repeater comms monitoring type
• Set number of output cards
• Inhibit muted tone beeps
2123
Zone Function Settings
• Set zone to latching or non latching
• Set zone to old B.S (short circuit = fire)
• Set zone to silent mode (provides visual & audible indication at
the panel but no sounder operation)
• Turn off priority alarm feature for zone
3121
AlarmSense Options
• Set non priority zones
• Set alarm confirmation delay time
• Set non priority mode indication
1212
EN54 Sounder Resound Options
Set zones to not resound alarms after an initial fire condition
1114
Delays to Outputs
Apply delays to outputs in response to selected zones
2323
Input Functions
Change the default functions of the Class Change and Alert inputs
4141
Output Programmability &
Miscellaneous
Set panel outputs to be programmable, switch on fault latching,
invert fault output
4142
Output Zonal Response
Set how each output or sounder circuit responds for each zone (off,
continuous or pulsing)
4242, 4342,
3122, 4243
Zone of Origin Setting
Quick set codes for zone of origin or zonal sounder ringing for
AlarmSense sounder circuits
3311, 3312
Set Coincidence Zones
Select zones to be included for coincidence alarm
2131
Output Functional Options
Change the default output responses to ‘Silence Alarms’,
‘Evacuate’, ‘Class Change’, ‘Alert’, ‘Delay’, ‘Non Priority’ and
‘Coincidence Alarm’
4244, 3123,
4344, 4343
System Diagnostics Mode
Tests system PCB config setup for fault diagnosis
3114
Repeater Programming
Repeater panel setup & programming
4443

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
4
PANEL CONTROLS & INDICATIONS
Zones in Fire
Zone Fault / Disabled / Test
Fire Detection System
RESOUND SILENCE RESET
Supply Healthy
General Fire
General Fault
Test Mode
Sounder Status
AuxOutputStatus
Delay Status
Repeater Fault
System Fault
Off
1 2 3 4 ENTER
General Disablement
PowerSupplyFault
AccessLevel
On
Disable
Mode Test Mode Mute Buzzer Test Lamps Activate
Controls
Activate Controls
In normal standby mode the keypad controls are inactive to protect from unauthorised operation. Controls
can be activated by using the ‘Activate Controls’ key switch or by entering a four digit code using the
keypad.
The use of a code entry to activate the controls is enabled by default but can be disabled in the Level 3
engineering functions.
Toactivate the controls using the key switch
Turn the key clockwise to the ‘On’ position. The ‘Access Level’ indicator LED will light and all buttons on
the keypad will now be operational. To deactivate the controls, turn the key back to the ‘Off’ position and
the ‘Access Level’ indicator LED will extinguish.
If the key switch is in the ‘On’ position the keypad will remain active.
NOTE : It is not possible to remove the key in the ‘On’ position.
To activate the controls using the keypad
Enter the four digit code using buttons 1 - 4. The factory default code is 1-2-3-4 but can be changed in
the engineering functions. After entering the four digit code press the ‘ENTER’ button. The ‘Access Level’
indicator LED will light and all buttons on the keypad will now be operational.
After activation by code entry, controls will automatically deactivate again after 2 minutes and the panel
will return to standby mode.
The test lamps and mute buzzer functions are operational without the need to activate controls.

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
5
DISABLE MODE
Disable Mode is used to disable or isolate individual zone circuits or all sounder circuits, all auxiliary
outputs and any delays to outputs.

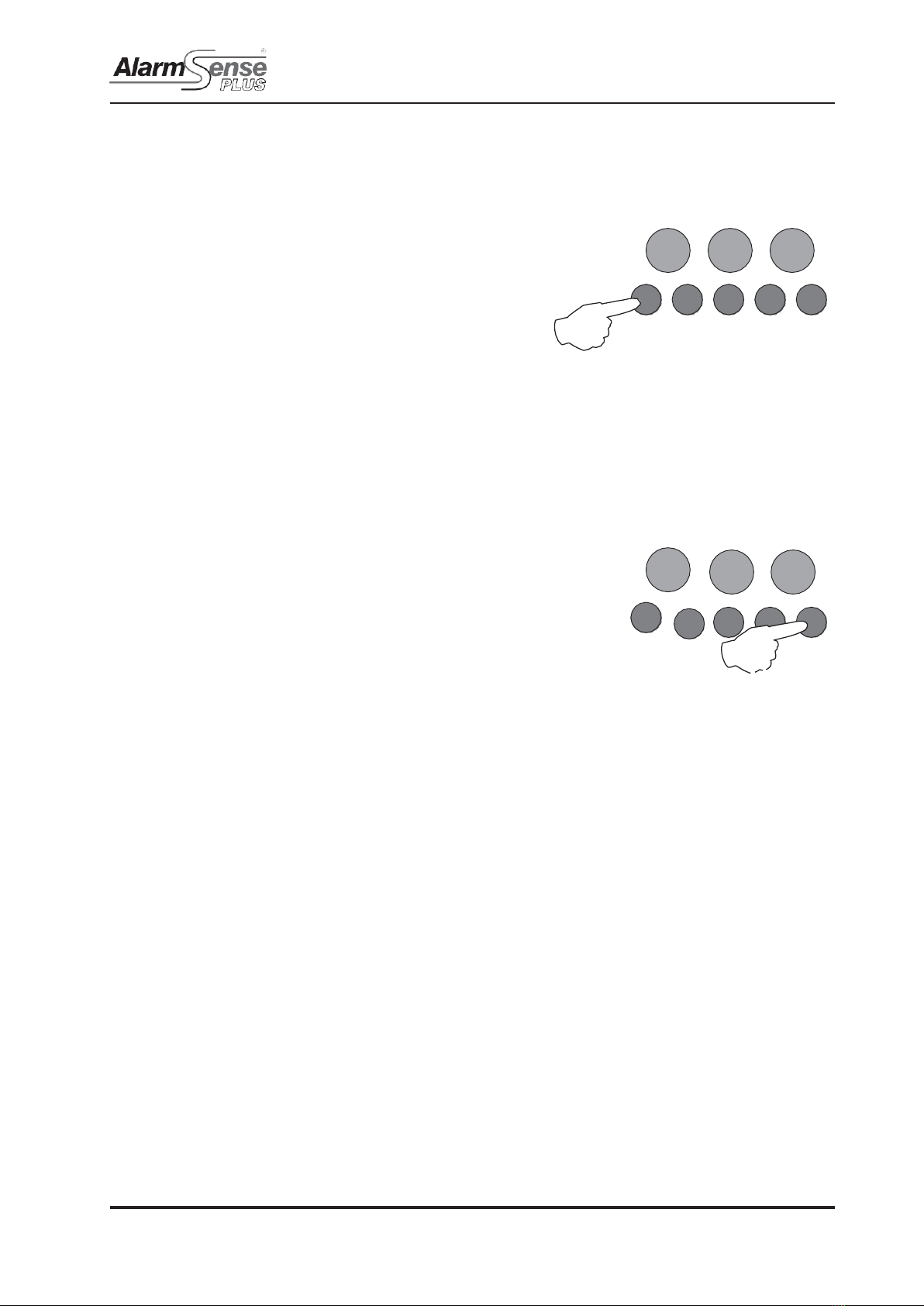

To initialise Disable Mode firstly activate the controls by turning
the key switch or by entering the four digit code. Then press and
hold the Disable Mode button (1) for 3 seconds.
After 3 seconds the panel will bleep and the General Disablement
LED and Zone 1 Fault LED will pulse slowly, indicating that Zone
1 is in disable selection mode.
Test
Mode
Mute
Buzzer
Test
Lamps

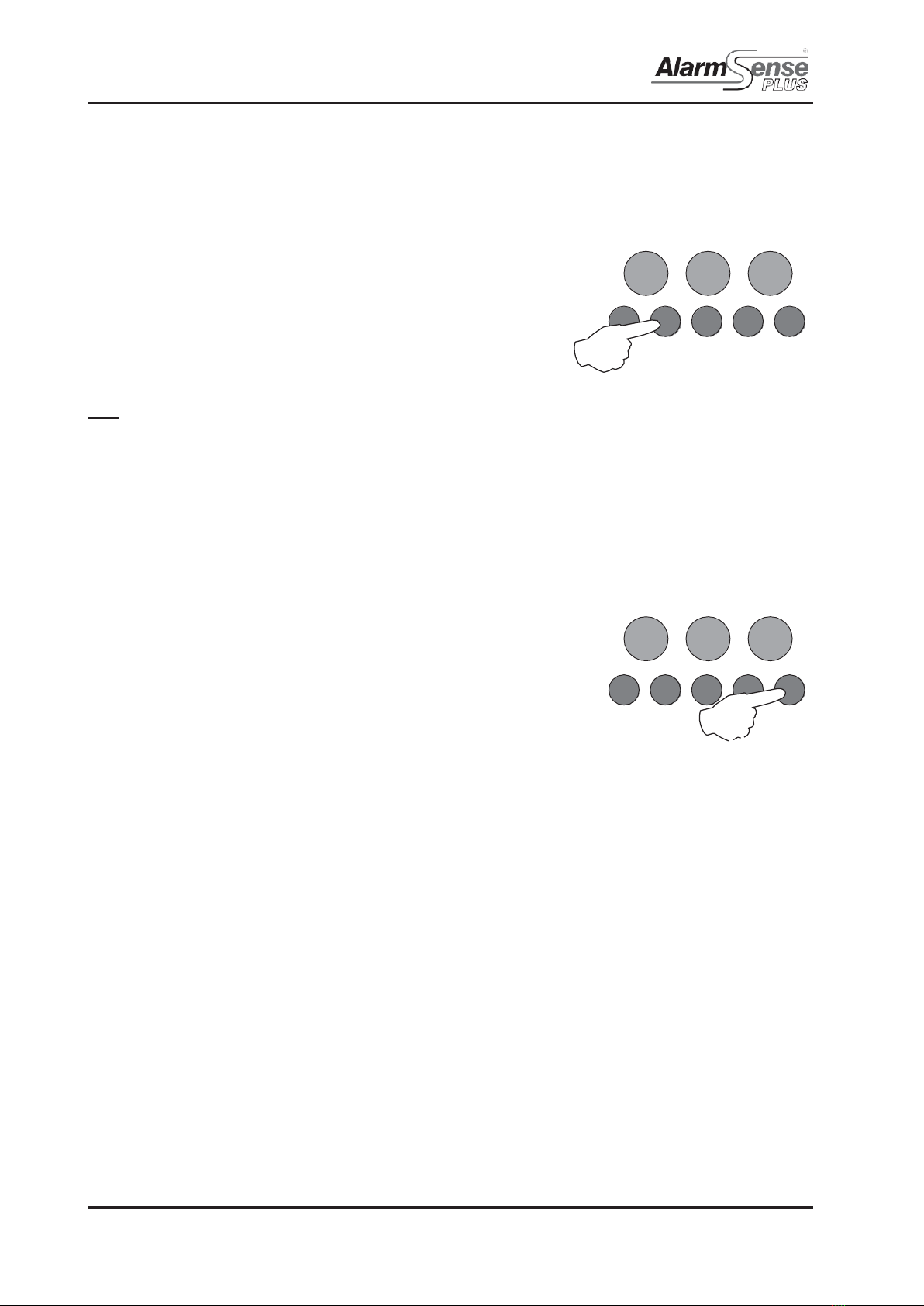

Pressing the Disable Mode button again will move disable selection mode to Zone 2 and the Zone 2 Fault
LED will be pulsing instead. Subsequent presses will move the selection to Zones 3 - 12, dependant on
the number of zones fitted to the panel. I.e up to zone 4 on a 4 zone, 6 on a 6 zone, 8 on a 8 zone etc.
After the last available zone the next press will move the selection mode to the sounder circuits, indicated
by the Sounder Status LED and then to the Aux outputs, indicated by the Aux Output Status LED and
finally to the Delay LED. Pressing the button once more will move the selection back to Zone 1 again.
When the desired circuit, outputs or delays to be disabled is indicated by
a slow pulsing LED, use the ENTER button to select it. Once selected
the indicator LED will change to a rapid pulse. Pressing ENTER again will
toggle the circuit between disabled and enabled. Then use Disable Mode
button again to move to the next circuit. Any or all circuits, outputs or
delays can be disabled simultaneously.
Disable
Mode
Test
Mode
When all disablements have been set, press and hold the Disable Mode
button for 3 seconds again. This will exit the disable selection mode and the panel will return to standby.
All disabled circuits and the General Disablement will now be indicated by a steady LED.
To enable the circuits again, repeat the above process using the Disable Mode button to select the circuit
and the ENTER button to remove the disablement.
Tip:
With the controls active, pressing the Disable Mode button briefly will reveal which circuits are disabled (as
opposed to in test mode). This is useful if using Disable Mode and TestMode at the same time.
2
RESET
SILENCE
RESOUND
SILENCE
RESET
1
Disable
Mode
2
3
4
ENTER
RESOUND
1
3
Mute
Buzzer
4
Test
Lamps
ENTER

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
6
RESOUND
SILENCE
RESET
TEST MODE
Test Mode is used when testing the fire alarm system. In test mode the devices in the zone(s) in test,
detectors and call points etc, can be activated and the panel will automatically reset, enabling the system
to be tested by one person. It is possible to test head removal monitoring and to test the system with or
without the sounders.
To initialise Test Mode, firstly activate the controls by turning the key
switch or by entering the four digit code. Then press and hold the Test
Mode button (2) for 3 seconds.
After 3 seconds the panel will bleep and the TestMode LED and Zone
1 Fault LED will pulse slowly, indicating that Zone 1 is in test
Mute
Buzzer
Test
Lamps
selection mode. The Sounder Status LED will also be pulsing rapidly, this indicates that the test will be
with sounders. (Test mode without sounders is explained below)
Pressing the Test Mode button again will move test selection mode to Zone 2 and the Zone 2 Fault LED will
be pulsing instead. Subsequent presses will move the selection to Zones 3 - 12, dependant on the number
of zones fitted to the panel. I.e up to zone 4 on a 4 zone, 6 on a 6 zone, 8 on a 8 zone etc..
After the last available zone the next press will move the selection mode to the sounder circuits, indicated
by no Zone Fault LEDs on. This position selects whether or not the sounders will ring during test. Pressing
the button once more will move the selection back to Zone 1 again.
When the desired zone to be tested is indicated by a slow pulsing LED, use the ENTER button to select
it. Once selected the indicator LED will change to a rapid pulse. Pressing
ENTER again will toggle the zone between in and out of test. Then use
Test Mode button again to move to the next zone. Any or all zones can be
in test mode simultaneously.
When at the sounder status position, use the ENTER button to toggle
between testing with or without sounders. A rapid pulse = with sounders
(default), a slow pulse = without sounders.
Disable
Mode
Test
Mode
When all zones to be tested have been selected, press and hold the Test Mode button for 3 seconds again.
This will exit the test selection mode. All zones in test and the Test Mode will now be indicated by a steady
LED.
To take zones out of test mode, repeat the above process using the Test Mode button to select the zone
and the ENTER button to change the status.
Test Mode With Sounders
Activation of a call point or detector - sounders will pulse twice, device is automatically reset.
Removal of a detector - sounders will pulse once.
Test Mode Without Sounders
Activation of a call point or detector - panel buzzer and LED response only, device is automatically reset.
Tip:
With the controls active, pressing the Test Mode button briefly will reveal which circuits are in test mode (as
opposed to disabled). This is useful if using Disable Mode and Test Mode at the same time.
1 2
Disable Test
Mode Mode
3
4
ENTER
RESOUND
SILENCE
RESET
1
2
3
Mute
Buzzer
4
Test
Lamps
ENTER

Quick Start Guide
AlarmSense PLUS Quick Start Guide
Document Ref: EUFS-UI-ASP-02 Issue 1.0
7
FAULT DIAGNOSIS
If the panel has detected a fault on the system the General Fault LED will be illuminated and the internal
fault buzzer will sound. Secondary LEDs will also be illuminated depending on the location of the fault.
Pressing and holding the ENTER button will reveal more detailed
information about the loction and type of fault.
This function will not work if the panel is in a fire condition. If no faults exist
pressing the ENTER button will have no effect.
This function is operational only when controls are not active.
The following table shows details of the indications in fault diagnosis mode:
Disable
Mode
Test
Mode
LED Indicator
& State before
pressing ENTER
LED Pulsing after
pressing ENTER
LED Steady after
pressing ENTER
LED Off after
pressing ENTER
Location
Zone 1 Fire LED
(off)
Sounder circuit 1
short circuit
Sounder circuit 1
open circuit
OK
Main PCB SNDR 1
Zone 2 Fire LED
(off)
Sounder circuit 2
short circuit
Sounder circuit 2
open circuit
OK
Main PCB SNDR 2
Zone 3 Fire LED
(off)
Sounder circuit 3
short circuit
Sounder circuit 3
open circuit
OK
High Spec
Extension Zone
Card
Zone 4 Fire LED
(off)
Sounder circuit 4
short circuit
Sounder circuit 4
open circuit
OK
High Spec
Extension Zone
Card
Zone 5 Fire LED
(off)
Sounder circuit 5
short circuit
Sounder circuit 5
open circuit
OK
High Spec
Extension Zone
Card
Zone 6 Fire LED
(off)
Sounder circuit 6
short circuit
Sounder circuit 6
open circuit
OK
High Spec
Extension Zone
Card
Zone 1 - 4 Fault/
Disabled/Test LED
(pulsing)
Zone # short
circuit
Zone # open
circuit
(slow pulse)
Zone # detector
removed
Main PCB Zones
1 - 4
Zone 1 - 4 Fault/
Disabled/Test LED
(steady)
N/A
N/A
Zone # disabled or
in test mode
Power Supply
Fault LED
(pulsing)
Mains failure
Battery failure or
high impedance
Voltage fault
Main PCB
RESOUND
SILENCE
RESET
1
2
3
Mute
Buzzer
4
Test
Lamps
ENTER

8
SCHEDULE OF TESTING
This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System
DATE &
DEVICE TESTED
& LOCATION
COMMENTS
(IF ANY)
INITIALS
OF
TESTER
TIME OF TEST
Excel-EN Quick Start Guide Approved Document Ref: UI-XLEN-03 Issue 1.0

USER INSTRUCTIONS
If an alarm condition is present YOU MUST FOLLOW YOUR NORMAL FIRE DRILL
PROCEDURES. A responsible person should then:-
1. Check the control panel to see which area or zone has caused the system to go into alarm. This
will be indicated by a pulsing red LED on the front of the control panel.
2. Go to the area which has caused the alarm to check if a fire exists.
3. Only when it is safe to do so should the alarms be silenced. Activate the controls by turning the
key switch or by entering the four digit code (see Activate Controls in the OPERATING section)
and press the (blue) SILENCE ALARMS button (fig 1). To sound the alarms again press the (red)
RESOUND button (fig 2).
4. In the event of a false alarm look for the device that has caused the alarm. A detector will have a
red LED lit, or check to see if a call point glass is broken (if so replace the glass or call an engineer).
5. When fully satisfied that there is no fire, return to the control panel and press the (green) RESET
button, (fig 3). The panel display should return to normal and only the green SUPPLY HEALTHY
LED should be lit on the control panel.
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps

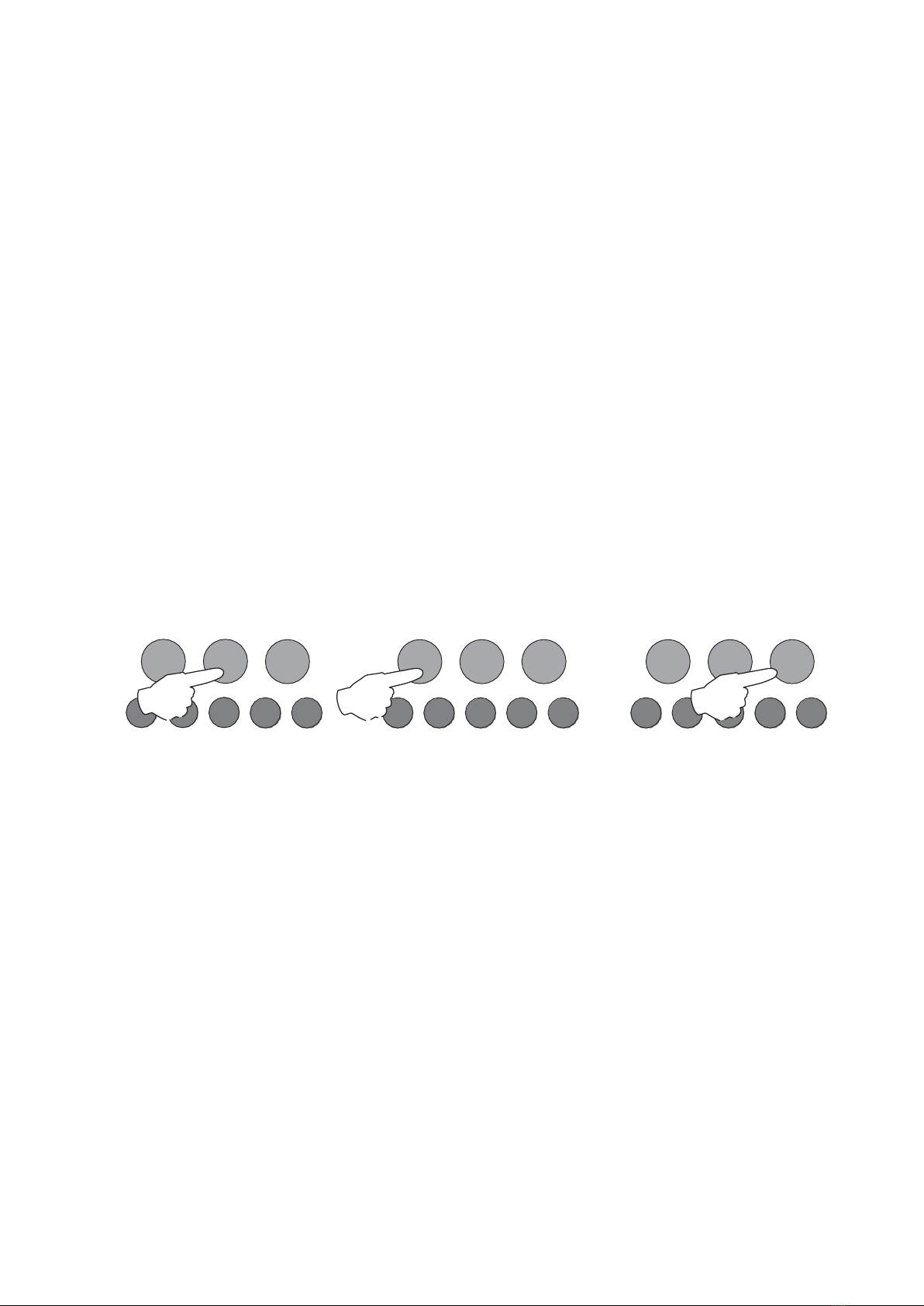

fig 1 fig 2 fig 3
If the system continues to false alarm, call an engineer
Fault Condition
If a buzzer is sounding in the control panel but the sounders or bells are not ringing, then there is either a
fault on the system, or zones / sounders have been disabled. CALL AN ENGINEER
The internal fault buzzer can be silenced by pressing MUTE BUZZER (button 3 on the keypad). DO
NOT RESET THE SYSTEM UNTIL AN ENGINEER HAS INVESTIGATED THE FAULT.
RESOUND
SILENCE
1
2
3
RESET
4
ENTER
RESOUND
1
2
SILENCE
RESET
3
4
ENTER
RESOUND
SILENCE
RESET
2
3 4
1
ENTER

EU Fire & Security
Units 2-4 The Pavilions,
Bridgefold Road,
Rochdale
OL11 5BY
