Halma LZR-WIDESCAN User manual

75.5916.06 LZR-WIDESCAN 20200625 Page 1 of 20
LZR®-WIDESCAN
Visit website for
available languages of
this document.
OPENING, PRESENCE & SAFETY SENSOR
FOR INDUSTRIAL DOORS
EN

Page 2 of 20 75.5916.06 LZR-WIDESCAN 20200625
6
1
2
3
4
5
7
8
9
10
11
12
13
14
1. main connector
2. protection film
3. laser window
4. USB cap
5. LED display
6. cover
7. cover lock
8. cable passage
9. LCD screen
10. keypad
11. tilt angle adjustment screw (1)
12. parallel angle adjustment screw (2)
13. lateral angle lock screw (1)
14. mounting bracket
DESCRIPTION
USER’S GUIDE SYMBOLS
Factory value (User’s Guide) Factory value (LCD) Important! Good to know

75.5916.06 LZR-WIDESCAN 20200625 Page 3 of 20

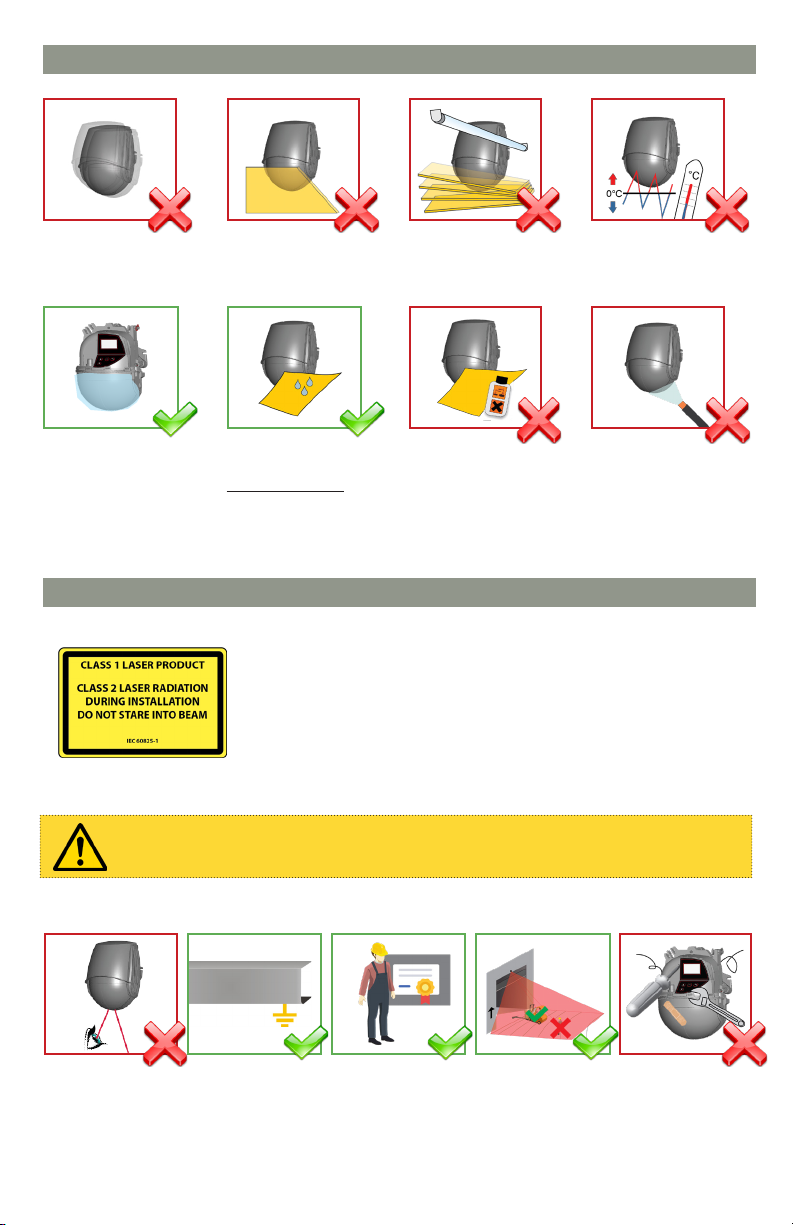

It is recommended to
clean the optical parts
at least once a year or
more if required due to
environmental conditions.
Do not use aggressive
products to clean the
optical parts.
Only trained and
qualified personnel
are recommended to
install and set up the
sensor.
The warranty is invalid if
unauthorized repairs are
made or attempted by
unauthorized personnel.
Following installation,
always test for proper
operation before
leaving the premises.
The door control
unit and the header
cover profile must be
correctly grounded.
Avoid moving objects
and light sources in the
detection field.
Avoid exposure to sudden
and extreme temperature
changes.
Avoid direct exposure to
high-pressure cleaning.
Avoid extreme vibrations. Do not cover the sensor.
Do not look directly
into the laser emitter
or the visible red laser
beams.
CAUTION!
Use of controls, adjustments, or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
Keep the protection film
during the mounting
of the sensor. Remove
it before launching a
teach-in.
INSTALLATION & MAINTENANCE TIPS
SAFETY
The device emits invisible (IR) and visible laser radiations that can be
activated during the installation process to adjust precisely the position of
the detection field.
The visible laser beams are inactive during normal functioning.
Do not stare into visible laser beams.

Page 4 of 20 75.5916.06 LZR-WIDESCAN 20200625
H
W
D
H
WD
MOTION
There are 3 main functions that create 3 overlapping detection fields, each with certain detection characteristics:
The sensor carries out a 3D object
analysis and detects depending on
height, width, depth, direction, and
speed.
SENSOR DETECTS IF:
- motion in motion field
- certain object type
- certain direction
SENSOR DETECTS IF:
- presence in presence field
- certain object type
SENSOR DETECTS IF:
- presence in safety field
PRESENCESAFETY
There are 4 additional opening functions. All detection functions can be combined to trigger a specific output.
Motion +: detection of other moving object type in motion field
Pull-cord: detection of object in learned, pull-cord zone
Speed: detection of object with a minimum speed
Height: detection of object with a minimum height
BASIC PRINCIPLES: FUNCTIONS & OBJECT

75.5916.06 LZR-WIDESCAN 20200625 Page 5 of 20
1 2 3
1
3
2
4
H H
W
W
D
D
2
1

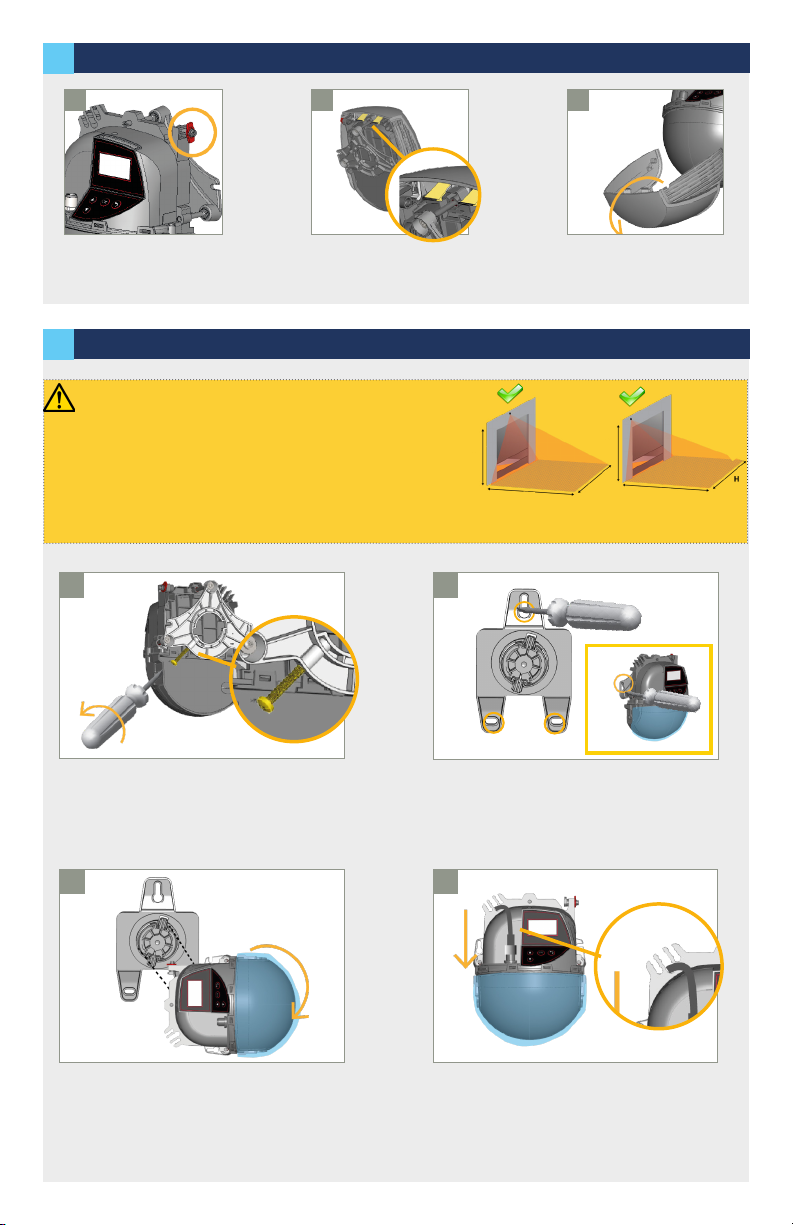

Before opening the sensor,
make sure the cover is not
locked (red cover lock).
Remove the cover completely
before installing the sensor.
Pull the two legs on top in
order to open the cover.
Remove the mounting bracket from the sensor
and secure it to the wall. You can also install
the sensor directly without using the mounting
bracket.
Verify that the angle lock screw is positioned as
indicated. Unscrew slightly if necessary.
Position the sensor horizontally (as shown) and
secure the sensor to the mounting bracket.
Plug in the connector and pass the cable (PN
35.1554) through the cable passage without
making a loop.
Mounting height: as high as possible (max. 32’).
Field width and field stop are limited by the
mounting height (1:1.2). Sensor will adjust field
sizes to the max possible value for the mounting
height.
Mounting position:center of door or left corner.
Mounting on the right side of the door should be
avoided.
MOUNTING
OPENING THE SENSOR

Page 6 of 20 75.5916.06 LZR-WIDESCAN 20200625
OK
3
LONG

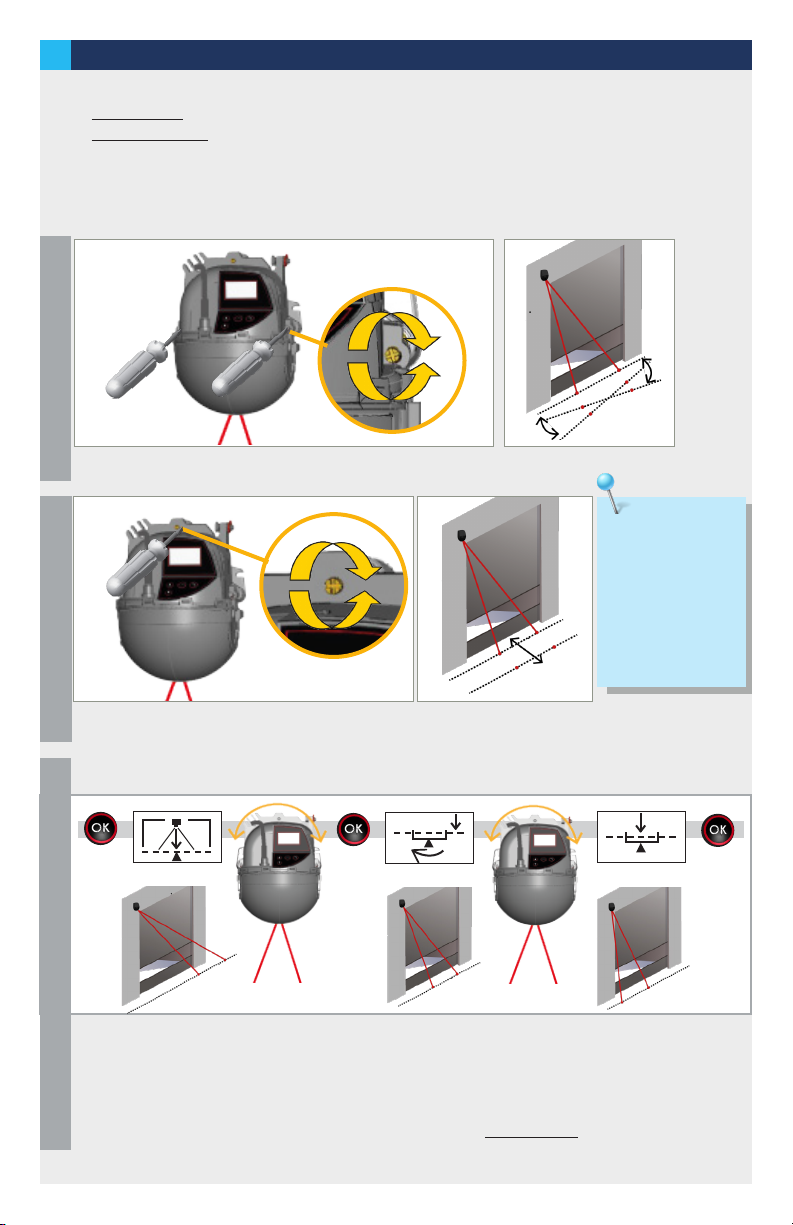

Position the curtain closer to or farther away from the door by turning the screw at the top.
When the safety
function is required,
the red spots should be
as close to the door as
possible.
Negative angles reduce
the depth of the
detection fields.
Make sure the curtain is parallel to the door by adjusting one or both screws on the side.
Launch the POSITION WIZARD to position the detection field correctly in front of the door.
1. Push and hold OK to launch the POSITION WIZARD.
2. Rotate the sensor in order to align the center of the red spots with the center of the door. Push OK.
3. Rotate the sensor until the LCD screen validates the position. Push OK to exit.
NOTE: It is best to make minor adjustments to the sensor and then verify that you are not obstructing
the pattern. Verify that both red spots are on the floor with no interference.
CLOSERCLOSER
AWAYAWAY
Depending on the mounting location, position the detection field:
• center mount: adjust parallel and tilt angles (lateral angle adjustment may not be necessary)
• off-center mount: adjust parallel, tilt, and lateral angles
Remove the blue protection film from the laser window.
The two visible laser spots can be activated by pressing the OK button twice or pressing
UNLOCK > MAGIC WAND > MAGIC WAND on the remote control.
POSITIONING OF DETECTION FIELD
PARALLEL ANGLETILT ANGLELATERAL ANGLE

75.5916.06 LZR-WIDESCAN 20200625 Page 7 of 20
5
5
x
x
LED SIGNALS & SYMBOLS
LED flashing LED flashing
slowly
LED off LED flashing
x times
LED flashing
quickly
LED on
All fields
Motion detectionUnlocked
Motion field
Pull-cord detection
Teach-in status
Pull-cord
Presence detection
Troubleshooting
Not connected
Connected
Presence field
Safety detection
Safety field

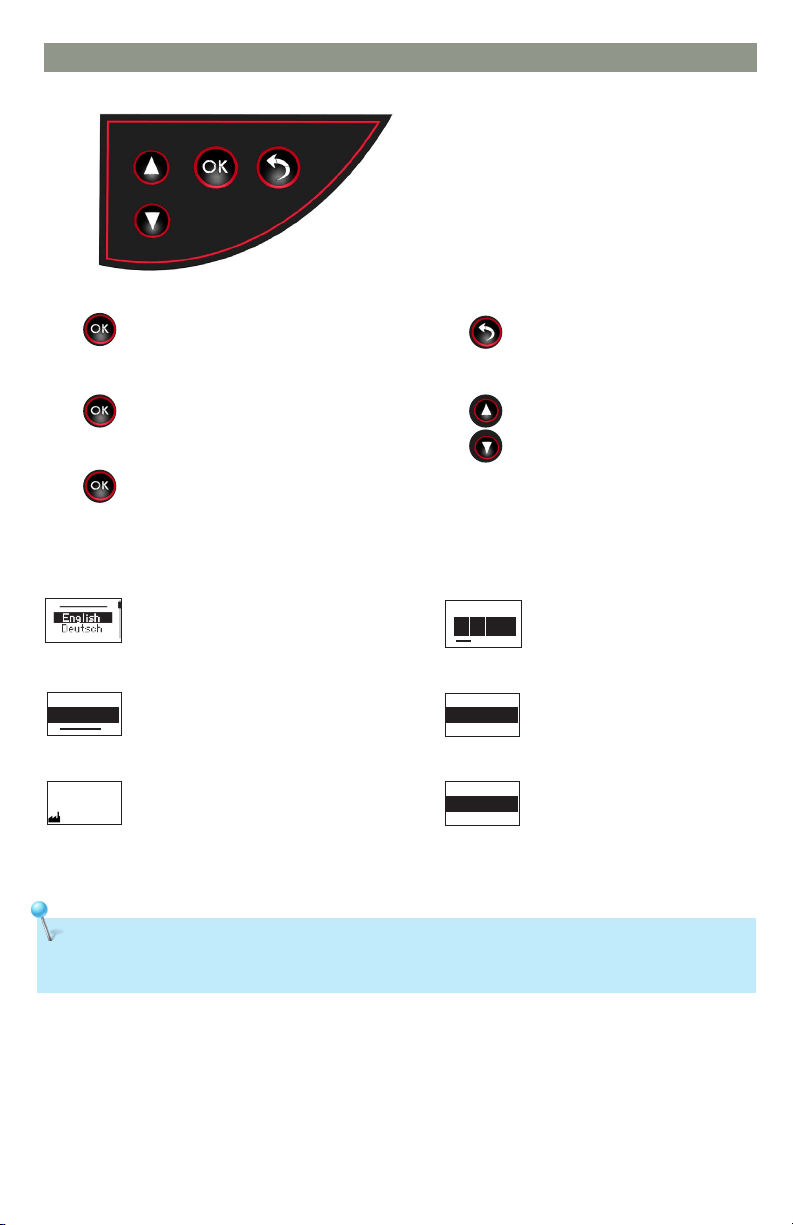

SETTINGS
DETECTIONGENERAL SMARTPHONE
PROGRAMMING THE SENSOR
INSTALL
Connect the wires accordingly. The output
functions can be configured if necessary
(see page 9).
Push OK to return to detection display.
*output status powered during non-detection with factory values
Teach-in reminder
COM
NO
NC
TEST
POWER
PRESENCE
SAFETY
MOTION/PULL-CORD
OUT 1
OUT 2
RELAY
*
*
*
RD
BK
YE
YE
PK
PK
BU
BU
GN-GREY
GN
WH-GN
4WIRING
Setting any field width or depth to
000 will eliminate that field along
with its associated LED flash.

Page 8 of 20 75.5916.06 LZR-WIDESCAN 20200625
4
5
5 s 10 s
H
W
D

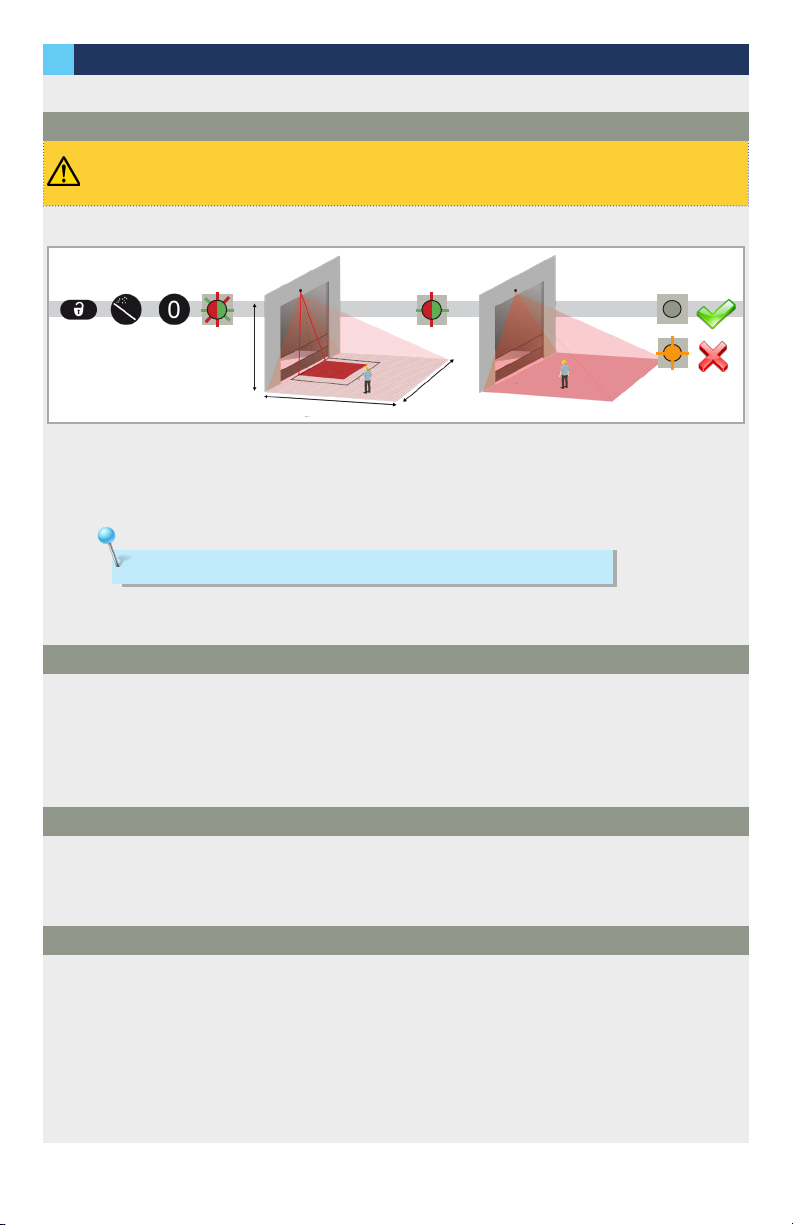

-The teach-in zone (i.e. square in front of the 2 visible spots) must be completely clear.
-This teach-in must be launched each time a sensor angle has been changed.
-Make sure the blue protection film and cover are removed!
1. Launch a teach-in by remote control. It starts after 5 seconds.
2. Wait while the position, angle, and height are learned and the background is analyzed.
3. The teach-in ends successfully. If not, refer to Troubleshooting on page 14.
a. TEACH-IN: INSTALL

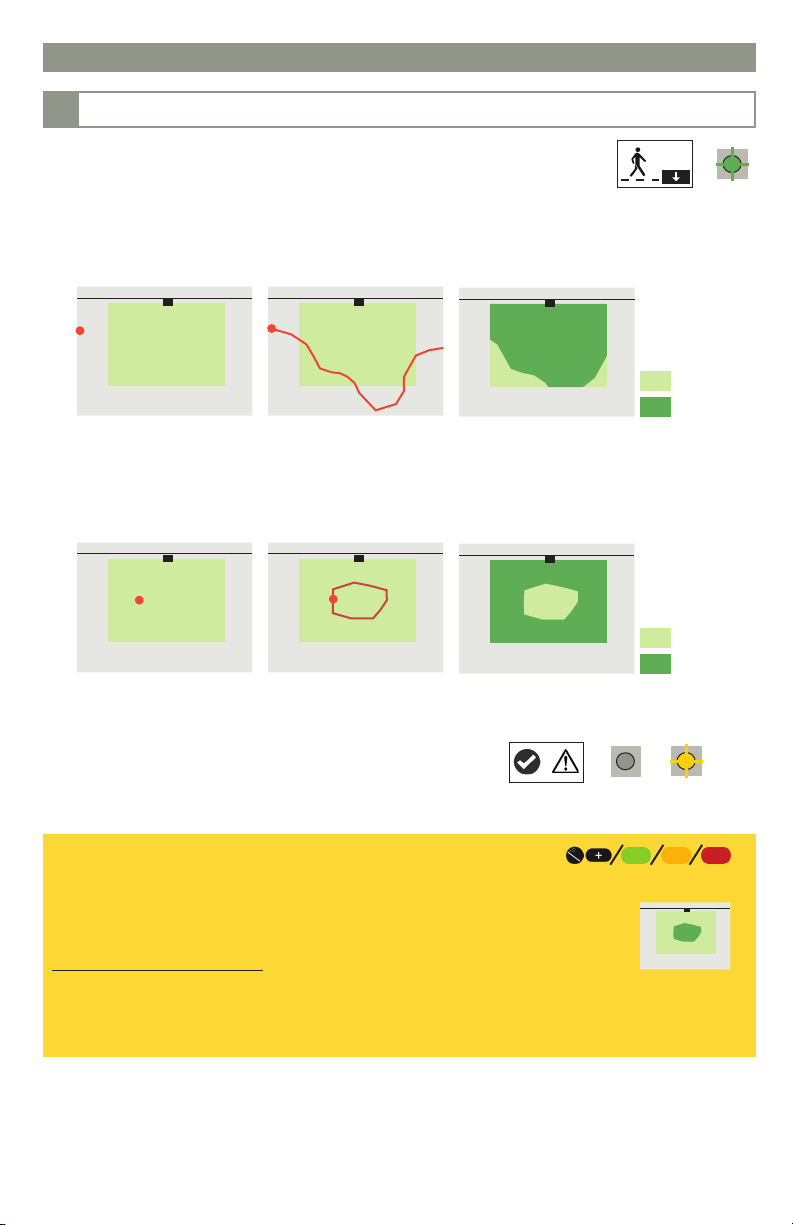

Instructions for a walk teach-in may be found in the Appendix, pages 18 –19.
• using the LCD (BEA recommends), locate the IN-OUT menu and set desired parameters
reference the LZR-WIDESCAN MENU TREE (75.5982)
• using the remote control – see page 9
Program all desired field settings according to pages 10 – 11.
Program any additional settings:
• Pull-Cord (see page 12)
• Heating function (see page 12)
• Height Trigger (see page 13)
• Speed Trigger (see page 13)
b. ASSIGN OUTPUT FUNCTIONS, OUTPUT LOGIC, AND HOLD TIMES
c. PROGRAM FIELD SETTINGS
d. PROGRAM ADDITIONAL SETTINGS
PROGRAMMING THE SENSOR (cont.)

75.5916.06 LZR-WIDESCAN 20200625 Page 9 of 20
OUTPUT FUNCTIONS, OUTPUT LOGIC, HOLD TIMES

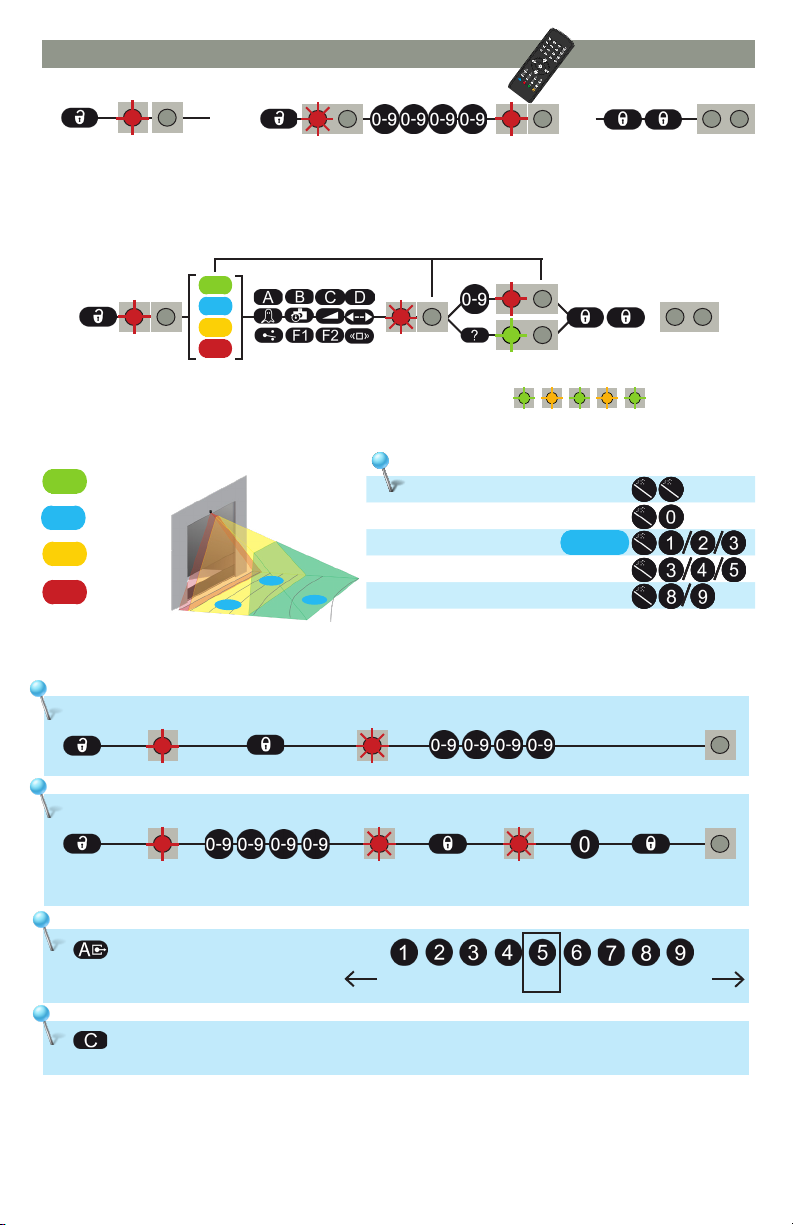

OPTIONAL REMOTE SETTINGS
Out 1 Logic* NO NC
Relay Logic* passive active
Out 2 Logic* NO NC * Output status during non-detection.
passive: de-engergized when in detection or loss of power
active: energized when in detection or loss of power
Out 1 Function motion or
pull-cord presence
presence
or safety safety pull-cord motion + speed motion + height
motion
pull-cord
safety
motion
pull-cord
presence
no change
Out 2 Function motion or
pull-cord presence
presence
or safety safety pull-cord presence + height motion + height
motion
pull-cord
safety
motion
pull-cord
presence
no change
Relay Function motion or
pull-cord presencemotion safety pull-cord motion + speed motion + height
motion
pull-cord
safety
motion
pull-cord
presence
no change
Out 1 Holdtime 100 ms 1 s 3 s 5 s 10 s 30 s 1 min 5 min 10 min 20 min
Out 2 Holdtime 100 ms 1 s 3 s 5 s 10 s 30 s 1 min 5 min 10 min 20 min
Relay Holdtime 100 ms 1 s 3 s 5 s 10 s 30 s 1 min 5 min 10 min 20 min
When programming each of the parameters listed below (function, logic, holdtime), you must always enter 3 digits
for the given parameter (output 1, output 2, relay). If you do not want to change the setting of an output, select 0.
1st digit = Output 1
2nd digit = Output 2
3rd digit = Relay
NOTE: You must enter all three digits quickly, as taking too long will cause the setting to time out.
FOR EXAMPLE, if you want the outputs to be Motion or Pull-Cord (Output 1), Pull-Cord (Output 2), and Safety (relay),
you must push the following buttons in the following order:
Factory Reset full partial
Service Mode
Red Spots
The service mode deactivates the presence and safety detection during 15 minutes and can be useful
during an installation, a mechanical teach-in of the door, or maintenance work.
Exit the service mode using the same sequence.
full: complete reset of all values
partial: reset of all values except IN/OUT
Pressing "magic wand" twice activates the 2 visible laser spots, enabling angle adjustments and
sensor positioning.

Page 10 of 20 75.5916.06 LZR-WIDESCAN 20200625
...
XXX
XXX
XXX
240 in
287 in
000 in
ANY
UNI
UNI 100% UNI REV
UNI 100%+
Always press the UNLOCK button before entering the function and setting.
1 ANY bidirectional detection – approaching and going away
2UNI 100%
(default) unidirectional detection – approaching with cross traffic rejection
6 UNI REV unidirectional detection with inversion – only going away
7 UNI 100%+ unidirectional detection – approaching with cross traffic rejection
+1m in front of door : bidirectional detection without cross traffic rejection
9 UNI unidirectional detection – approaching in any direction
(distance between object and sensor decreases)
1
ANY UNI
REV
UNI
100%+ UNI
2
UNI
100%
3 4 5
000 (min) – 460 (max)
detects large vehicles; rejects bicycles & narrow forklifts
detects all types of vehicles; rejects pedestrians
detects all objects
vehicle XL:
vehicle:
any:
000 (min) – 460 (max)
000 (min) – 460 (max)

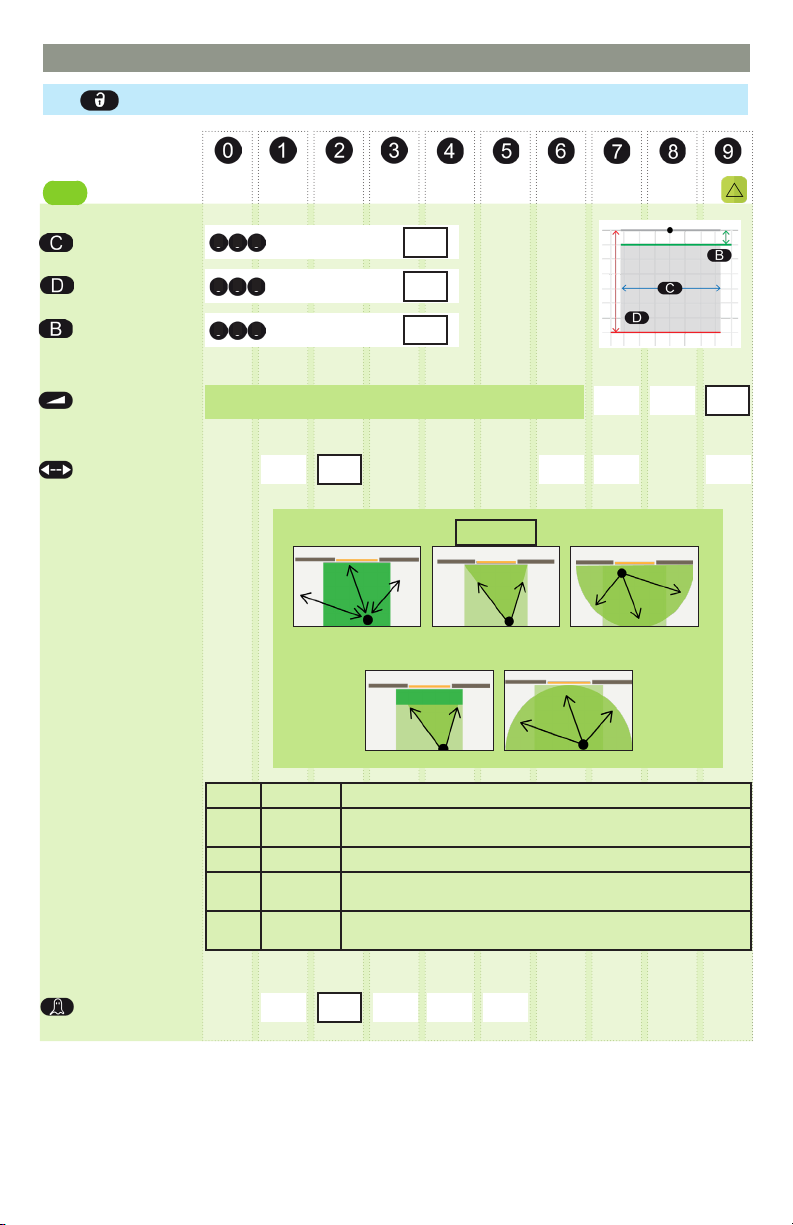

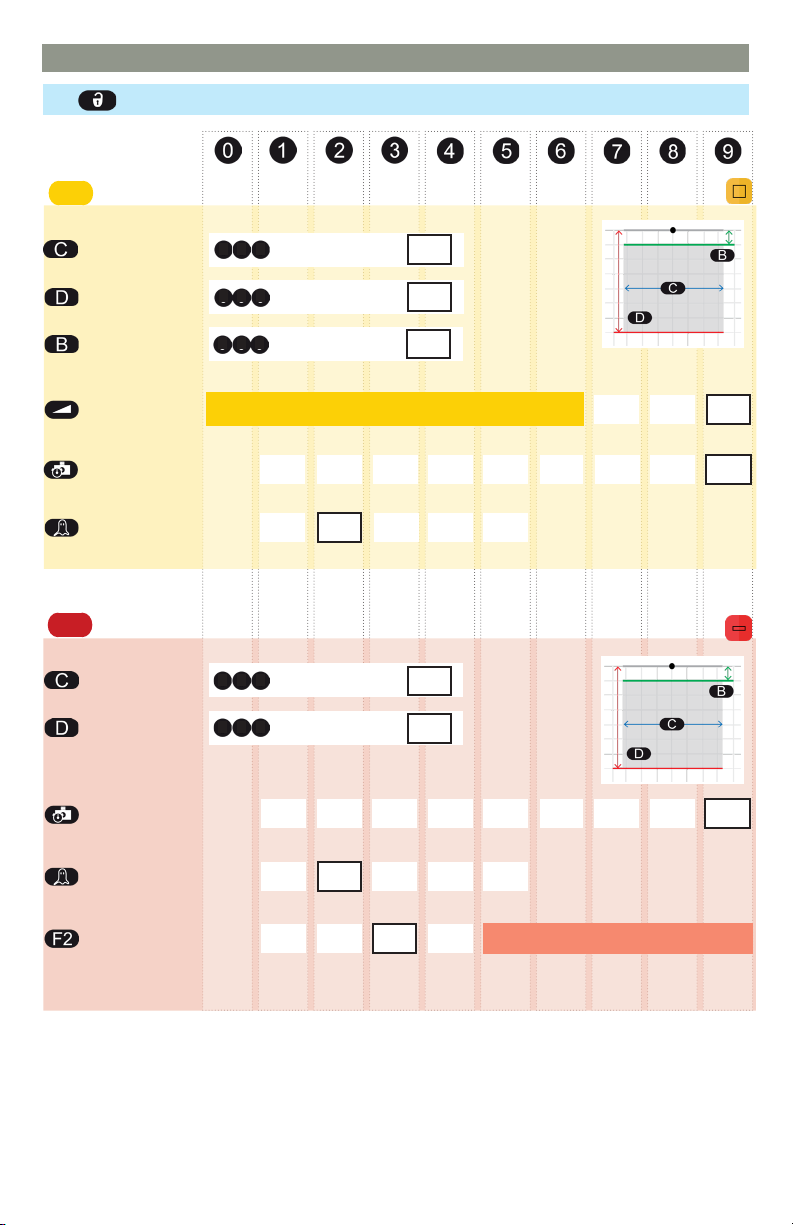

OPTIONAL REMOTE CONTROL FIELD SETTINGS
Field width
Field depth (stop)
Object type
Direction
Immunity
FIeld start
MOTION
vehicle
vehicle
XL any
