Hamax Universal Carrier adapter User manual

Ø=10 – 20 mm
120 – 175 mm
User ManualEN
Congratulations on purchasing the Hamax bicycle child seat. You now have
a comfortable and safe child seat that can be adjusted to fit your child as
she/he grows.
Please read the instructions carefully before assembling or using the child
seat.
Keep these instructions in a safe place as they will be useful if you later
buy extra equipment for your child seat.
Please check the user manual of the child seat or www.hamax.no if the
child seat is compatible with this carrier adapter.
Hamax AS
Visiting address:
Vålerveien 159
N-1599 Moss
Norway
Tel.: [phone]
email: kontak[email protected]
www.hamax.com
12180, Rev. 000, User manual Carrier Adapter
User
Manual
Universal Carrier adapter
FR Manuel de l’utilisateur
DE Gebrauchsanleitung
NO Monterings- og bruksanvisning
CS Návod k použití
DA Brugervejledning
ES Manual del usuario
FI Käyttöohjeet
HR Korisnički Priručnik
HU Felhasználói útmutató
IT Manuale d’uso
KO 사용자 설명서
NL Gebruikshandleiding
PL Instrukcja montażu i użytkowania
PT Instruções de utilização
RO Manualul utilizatorului
SR Uputstvo za korisnike
RU Руководство пользователя
SV Bruksanvisning
SL Uporabniški priročnik
SK Návod na použitie
BG Ръководство за потребителя
UK Посібник користувача
TR Kullanım Kılavuzu
LV Lietotāja rokasgrāmata
www.hamax.com/user-manuals
www.hamax.com/user-manuals
Important!
max 22 kg

INSTALLATION
• Can be mounted on bicycles with a luggage
carrier which meets the EN 11243 standard (25
Kg or more).
• Can be mounted on bicycles with a luggage
carrier with an outer width between 120 and 175
mm.
• Can be mounted on bicycles with a luggage
carrier with round tube profile with diameter
between 10 and 20 mm.
• Other tube shape: Make sure that the carrier
adapter has good grip and fitment on the
carrier.
• Cannot be mounted on bicycles with a luggage
carrier that does not have straight and parallel
sides.
• Cannot be mounted on bicycles with a luggage
carrier with a tube diameter of less than 10 mm.
• Cannot be mounted on bicycles with a luggage
carrier with a tube diameter of more than 20
mm.
• Cannot be used on cycles fitted with shock
absorbers
• Make sure that the carrier adapter does not
touch or damages the battery of the E-bike.
• The seat should only be mounted on a bicycle
which is suitable for this kind of load. Please
ask your bicycle supplier for detailed advice.
• The child seat is fitted on the luggage carrier
of the bike with the carrier adapter. The bolts,
accessible from the right side of the carrier
adapter, must be tightened hard enough to fix
the seat securely and prevent it from sliding.
Make it a rule to check this before starting a
trip with the bike.
• Make sure the carrier adapter is well
tightened and check this at regular intervals.
• The additional safety strap needs to be
secured to the bicycle frame or seat post.
• For optimal comfort and safety of the child,
ensure that the seat does not slope forwards,
so that the child does not tend to slide out of it.
• Check all parts of the bike that they function
correctly with the bicycle seat mounted.
USE
• To take a child on a bicycle, the rider must
normally be over 16 years. Check your national
laws and regulations.
• The child seat is approved for children from
about 9 months to 6 years or maximum 22 kg
weight. Ensure that you re-check from time to
time that the child’s weight and size do not
exceed the maximum capacity of the seat.
• Do not carry a child that is too young to sit
safely in the seat. The child must be able to sit
unaided for a longer period; at least as long as
the intended bicycle journey. Please observe
the recommended minimum age. If you are
uncertain, please consult a paediatrician.
• Ensure that it is not possible for any part of
the child’s body or clothing to come into
contact with any moving part of the seat or
cycle and to re-check as the child grows, due to
the danger of entrapment of feet in the wheel
and of the finders in brake mechanisms and
sprung saddles. The child seat gives good side
and feet protection. However, you are
recommended to buy and fit a closed wheel
guard/chain guard. You can buy this at your
bicycle dealer.
• Check there are no sharp objects, such as split
wires, on the bicycle that can harm the child.
• Ensure that the restraint system is not loose or
able to become trapped in any moving parts
particularly the wheels, including when the
cycle is ridden without a child in the seat.
• Always use the safety belt/restraint system,
ensuring the child is restrained in the seat.
• A child sitting in a child seat should be dressed
more warmly than the rider.
• The child should be protected against rain with
suitable waterproof garments.
• Remember to put the child’s helmet on before
starting your bicycle trip.
• Remember that the child seat can get very hot
standing out in the sunshine, so check the
child seat before placing your child in it.
• When transporting the bicycle by car (outside
the car) remove the seat. Air turbulence might
damage the seat or loosen its fastenings to the
cycle, which could result in an accident.
WARNINGS
• WARNING: Do not attach extra luggage or
equipment to the child seat, as this could lead
to the total load exceeding 22 kg. We
recommend that extra luggage is attached at
the front of the bicycle.
• WARNING: Do not modify the product. This will
automatically invalidate the guarantee and the
manufacturer’s product liability will lapse.
• WARNING: Be aware that the load of a child in
the child seat may alter the bicycle’s stability
and handling characteristics, particularly when
steering and braking.
• WARNING: Never leave the bicycle parked
with a child in the seat unattended.
• WARNING: Do not use the product if any parts
are broken.
• WARNING: Assemble the foot protections and
make sure they are well attached.
• WARNING: The total load of the seat with child
and baggage on the carrier should never
exceed the maximum load of the luggage
carrier.
• WARNING: The additional safety strap should
be kept fastened to the bike whenever the seat
is mounted on the bicycle.
• WARNING: For safety reasons must this seat
only be fitted to luggage carriers conforming
to EN 11243.
• WARNING: Make sure any exposed rear
saddle springs are covered.
MAINTENANCE
• When cleaning the product, use only lukewarm
soapy water.
• If the seat has been involved in an accident, is
damaged, has fallen to the ground or if the
bicycle has fallen with the seat attached,
contact your dealer to check that it can still be
used. Damaged parts must always be replaced.
Contact your dealer if you are not sure how to
fit the new parts.
We wish you and your child many enjoyable
bicycle trips with your Hamax child seat!
Best regards from us at Hamax.
Important!EN CHILL
Carrier adapter
b
1
a
cd
f
e

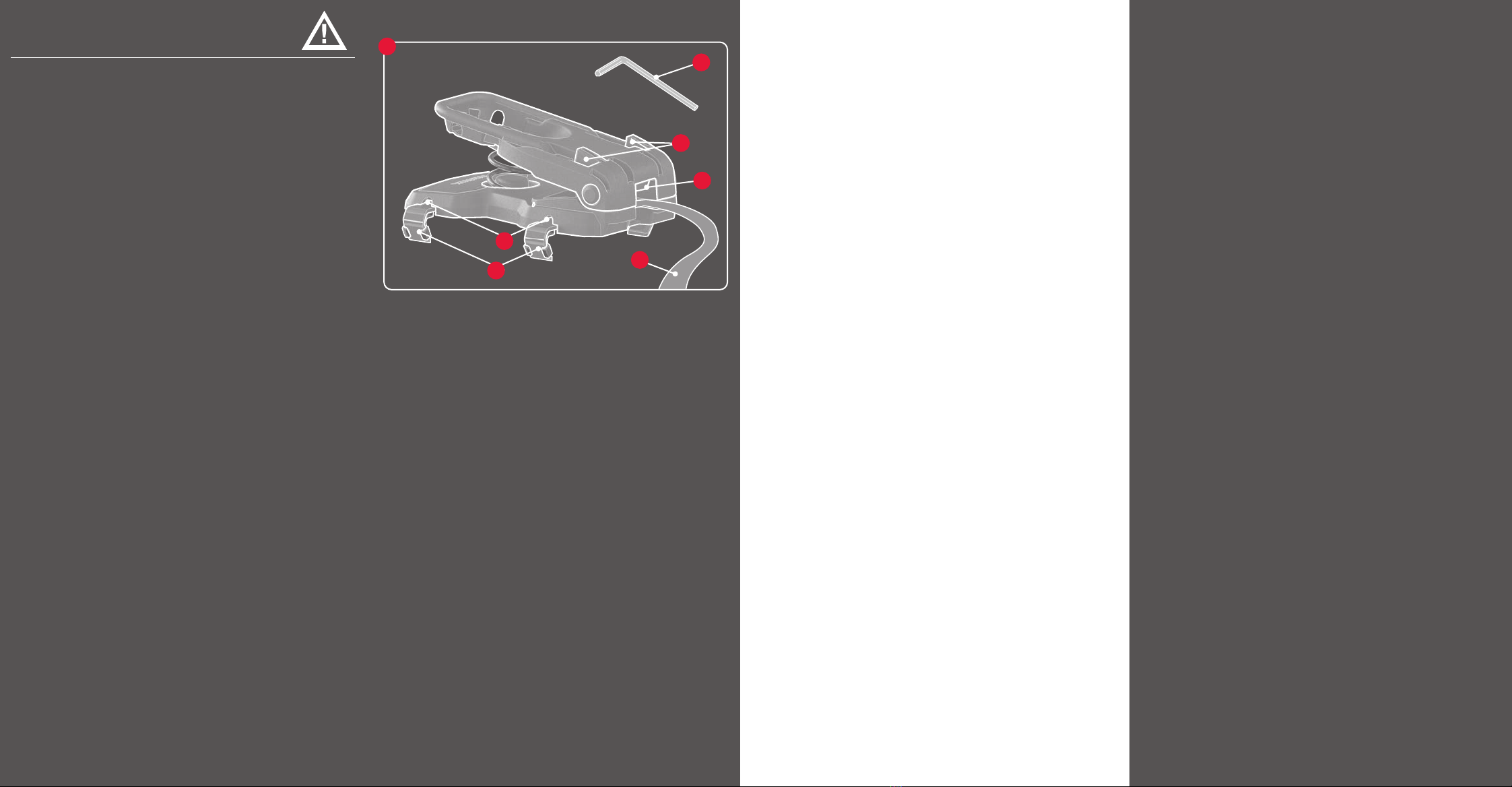

1. Carrier adapter
a) Hooks
b) Release button
c) Clamps (4x)
d) Safety strap
e) Hex tool
f) Bolts

Universal Carrier adapter
User
Manual

1f 1e 1f
1c
1
2x
1a
4

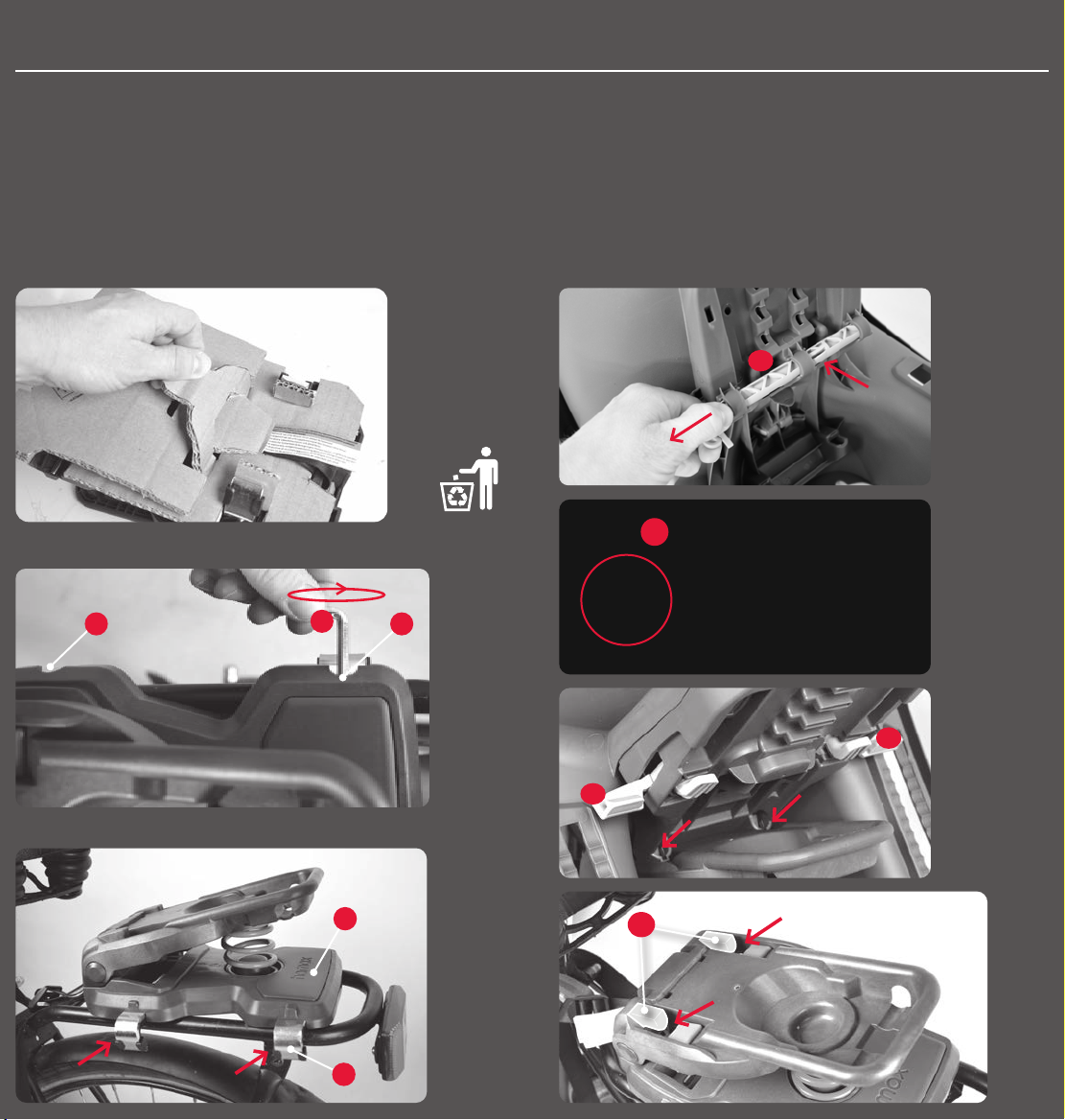

EN Unscrew the 2 bolts (1f) with the Hex tool (1e) until the 4 clamps
(1c) fit over the carrier rack of the bicycle. Place the Carrier adapter
on the carrier rack making sure the clamps (1c) are on the outer side
of the carrier rack.
Do not tighten the bolts (1f) completely yet.
EN To mount the seat on the adapter, open the side levers (2),
take out the excentric shaft (3) or open the hooks (4).
The seat hooks under the pins in the front of the adapter (1a ).
Slide the seat forward over the carrier adapter until it clicks in the
front lock.
AMount the adapter on the carrier BMount the seat on the adapter
Click!
2
2
3

1c
1f
EN Tighten the rear bolt (1f) first, with the seat still on the
carrier adapter. Remove the seat and tighten the front clamps.
Minimal tightening torque is 2 Nm.
Make sure that the clamps have a good grip on the carrier and
are not blocked by the frame or the E-bike battery (1c).
EFix the adapter on the luggage carrier
3
4
2
1
Set the seat down on the adapter. Close the 2 side levers (2) or insert
and lock the excentric shaft (3) to make the rear connection.The
hooks of Caress will lock automatically when the seat is pushed
down. When the system is closed, the release button (4) will stick out
at the back.
Check if the seat is firmly attached to the adapter.
EN Position the seat (1) and adapter as much towards the front
as possible while still leaving room for reclining the seat (2) if
needed.
2
CLock the seat on the adapter DAdjusting the seat
2

3
1

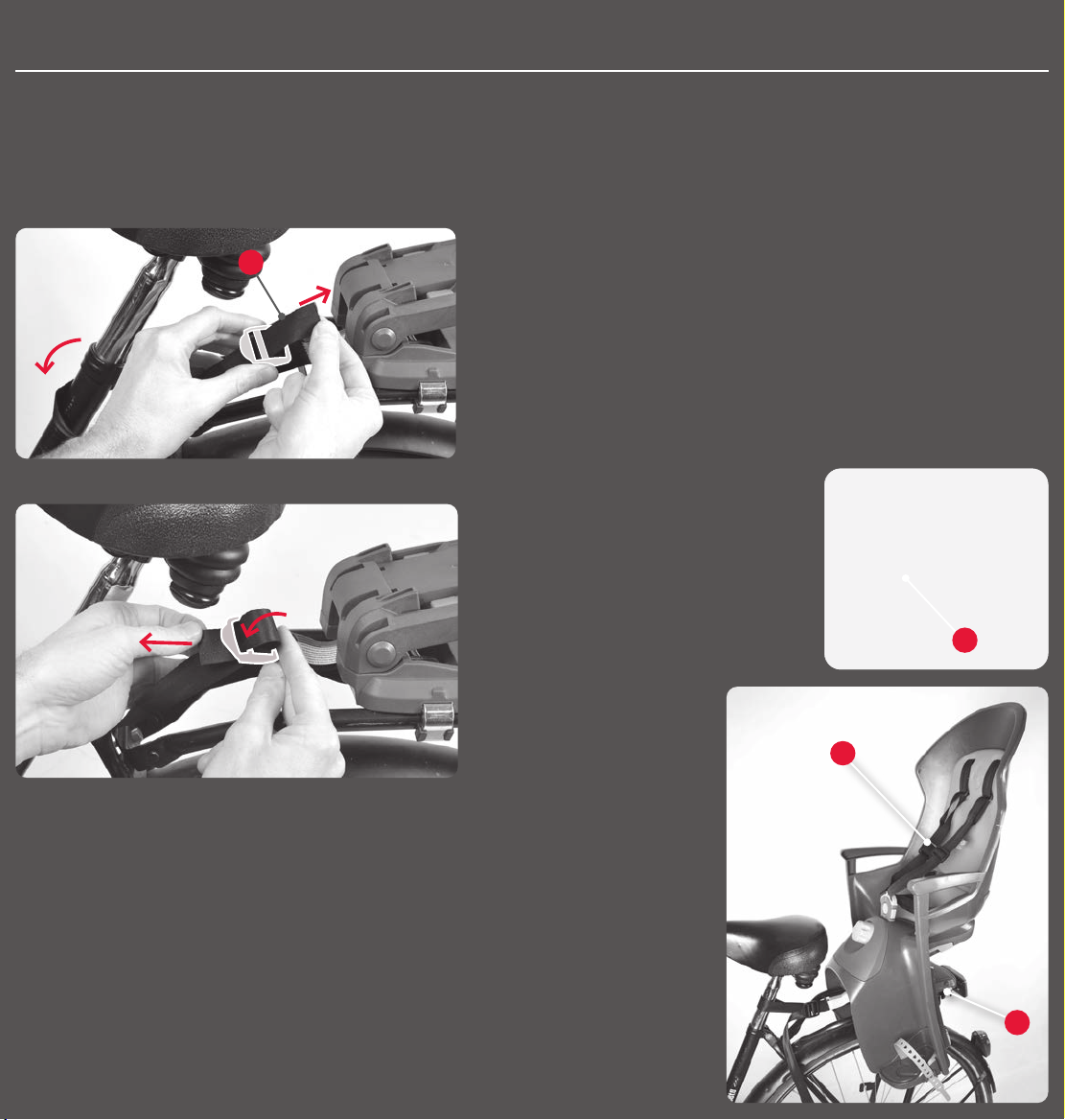

EN The additional safety strap needs to be secured to the frame or
seat post. Lead the safety strap (1d) through the holes as shown in
pic. 1 & 2, then pull at the end to tighten it.
• Adjust the safety belt (2)
• Adjust the foot rests and fasten
foot straps (3)
• Check if the carrier adapter (1) is
secured well and does not slide
• Check that the seat is fixed well
to the carrier adapter.
• Always wear helmets, child and
adult.
NB! Never leave your child
alone in the bicycle child seat.
Please note that the kick stand
is not a suitable support to hold
the bicycle with a child in the
seat.
2
EN
FAttach the safety strap GBefore embarking on a bicycle trip
1d

ab
1b

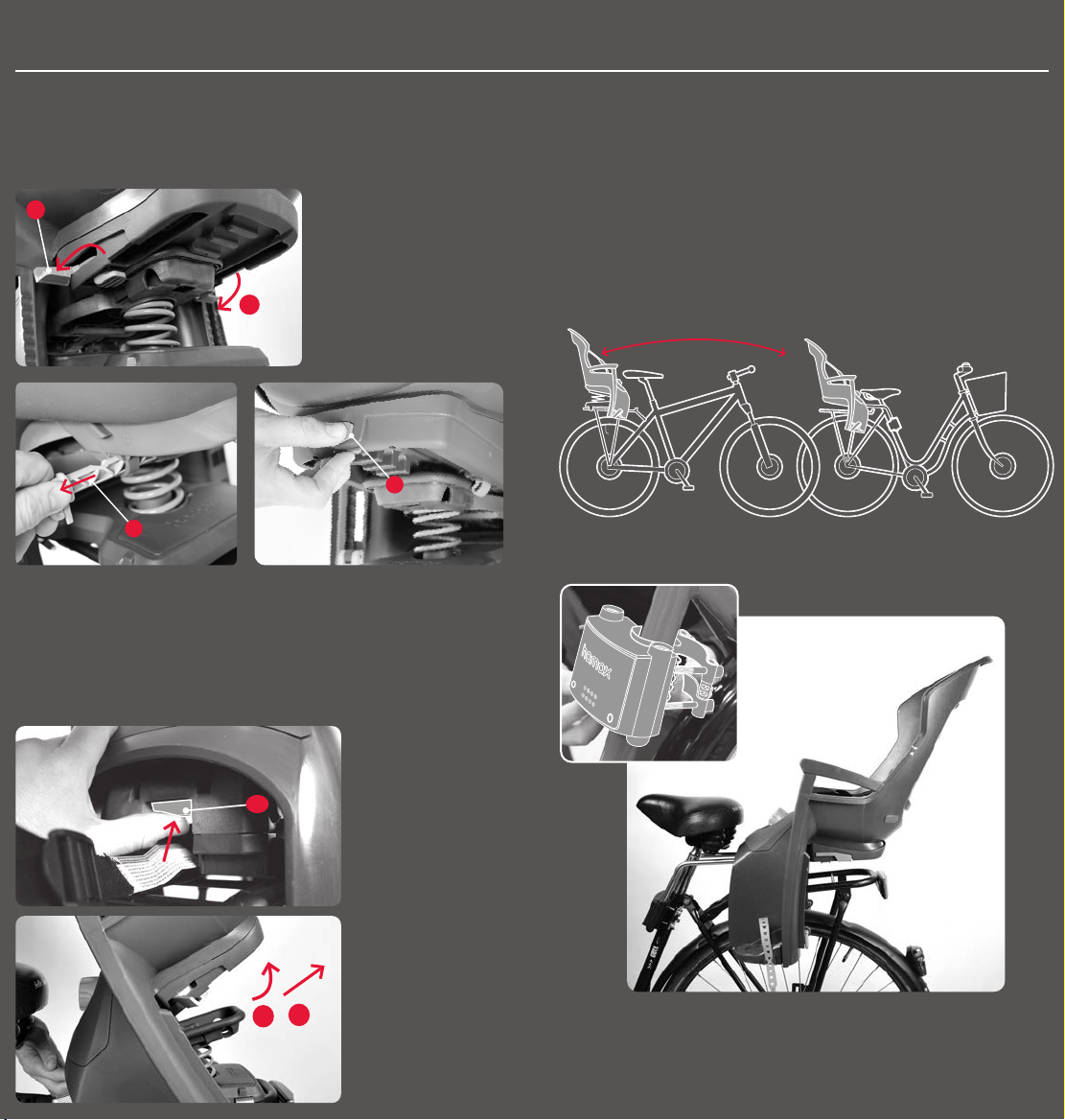

EN Open the side levers (2) on both sides of the seat, unlock and
take out the excentric shaft (3) or unlock the hooks by pushing the
button (4).
EN With an extra adapter you can quickly move this seat from one
bicycle to the next. You may also mount the seat on a bicycle frame
using the Hamax frame bracket, suitable for tube diameter of 28-40
mm. This can be useful if your family uses different types of bicycles.
Full assembly instructions follows the product when purchased, and
can also ble downloaded from www.hamax.com.
To take the seat off, press the release button (1b) up and hold.
Now rotate the rear of the seat upwards (a) and then pull it (b)
rearwards.
HHow to take off the Carrier Adapter IMoving the seat between bicycles
2
2
3
4
