HAMPTON BAY Brookedale User manual

Brookedale
60 in Ceiling Fan
Owner’s Manual
Brookedale
Ventilador de Techo de 1,52 m
Manual del Propietario
247 008

Brookedale by Hampton Bay
®

60” Brookedale
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit . . . . . . . . . . . 10
Operating Your Transmitter . . . . . . . . . . . 11
Care of Your Fan . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . 14
Warranty Information . . . . . . . . . . . . 15
792145353935
219032
247-008

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED "ACCEPTABLE FOR
FAN SUPPORT OF 22.7 KG (50 LBS.) OR LESS" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.

2

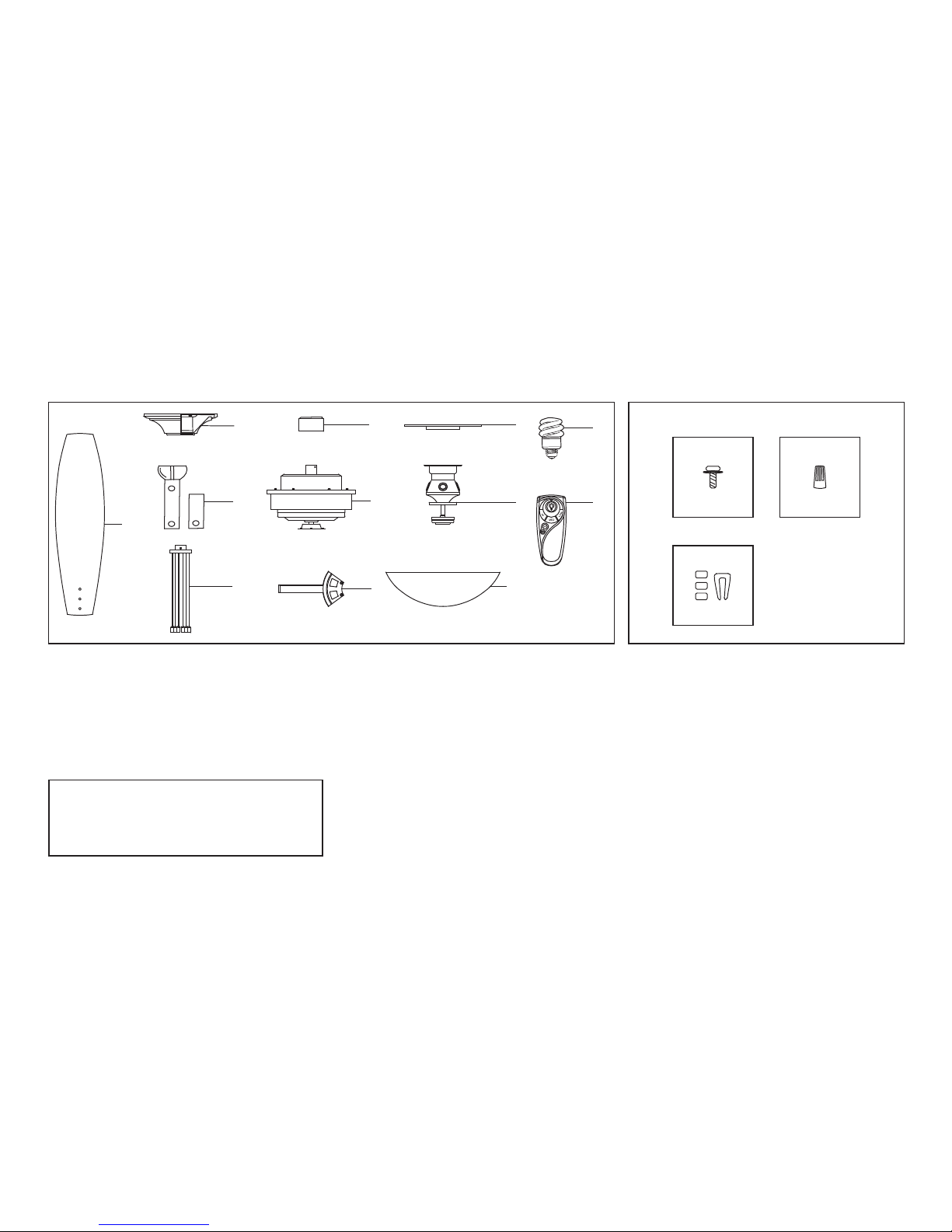

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
A
C
B
Set of blades (5)
Canopy assembly
Ball/downrod assembly (1)
& extra downrod (1)
Decorative cable wire assembly
Coupling cover
1.
2.
3.
4.
5.
Fan motor assembly
Blade arms (5)
Mounting plate
Light kit
Glass shade
13 Watt compact fluorescent bulbs (2)
Transmitter+holder+2 mounting
screws + 2 plastic plugs
6.
7.
8.
9.
10.
11.
12.
Blade Attachment Hardware
(16 Screws with Fiber Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Balancing Kit
A.
B.
C.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
1
2
3
4
5
7
8
10
11
126 9

3
Installing Your Fan
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR PERSONAL INJURY, MOUNT TO OUTLET BOX
MARKED "ACCEPTABLE FOR FAN SUPPORT OF
22.7 KG (50 LBS.) OR LESS" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
MOST OUTLET BOXES COMMONLY USED FOR
THE SUPPORT OF LIGHT FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND MAY
NEED TO BE REPLACED. DUE TO THE
COMPLEXITY OF THE INSTALLATION OF THIS
FAN, A QUALIFIED LICENSED ELECTRICIAN IS
STRONGLY RECOMMENDED.

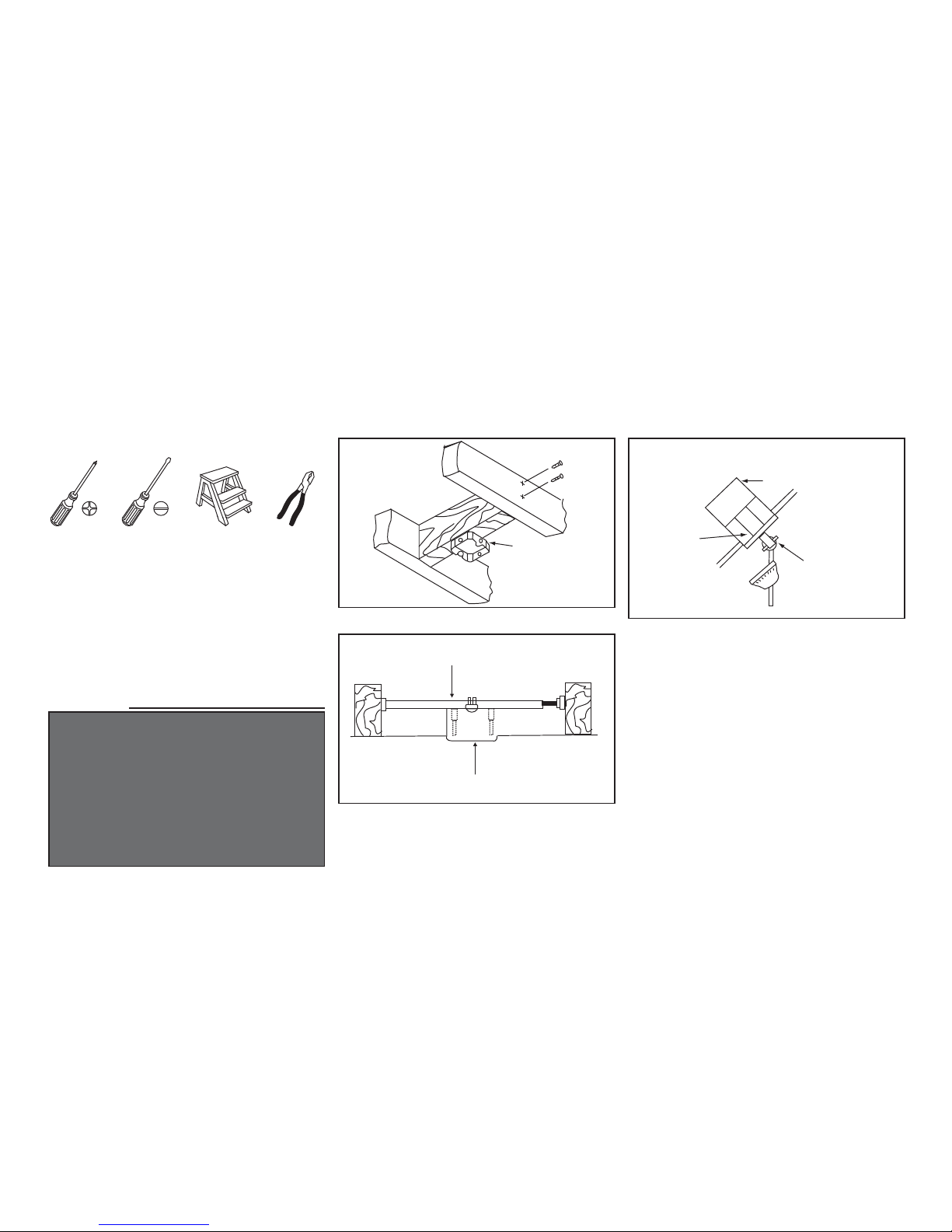

Figure 2
Figures 1~3 are examples of different ways to
mount the outlet box.
Outlet Box
Figure 1
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
heavy duty fan brace as shown in Figure 2
(available at any Home Depot store).
Figure 3
Heavy Duty Outlet Box for Fan
Heavy Duty Fan Brace
Provide Strong Support
Recessed
Outlet Box
Mounting bracket
opening must be
toward the top
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 18°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
WARNING
FAILURE TO PROPERLY INSTALL COTTER
PIN AS NOTED IN STEP 6 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Tighten two set screws at top of the fan motor
collar firmly and evenly. (Fig. 5)
Place the nut at the end of the decorative cable
wire to the screw on the top of the motor
housing. Tighten the nut to the screw. Repeat
this procedure for the remaining decorative
cable wires. Secure the coupling with setscrew
tightly. (Fig. 6)
7.
8.
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 4)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the
bottom of the mounting bracket and loosening
the other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the mounting bracket from the
canopy. (Figure 4)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Fig.5)
Loosen the setscrew from the coupling located
at the top of the decorative cable wire
assembly.
Route wires exiting from the top of the fan
motor through the coupling cover, decorative
cable wire assembly, canopy cover, canopy
and then through the ball/downrod. (Fig. 5)
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing. (Figure 5) Carefully insert the
clevis pin through the holes in the collar and
1.
2.
3.
4.
5.
6.
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 5.

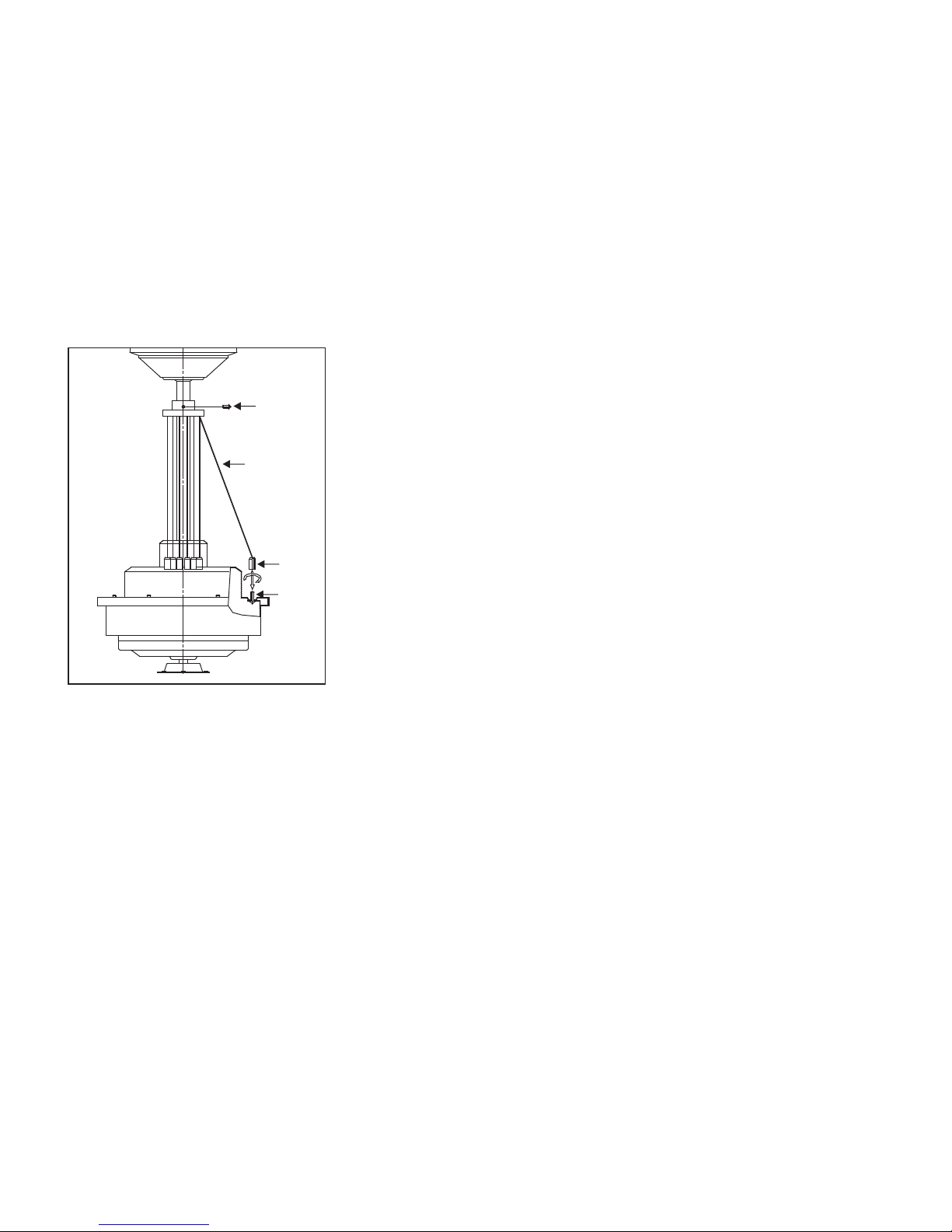

Figure 4
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover
Figure 5
Motor Wires
Ceiling Canopy
Ball/Downrod
Assembly
Canopy Bottom
Cover
Cotter Pin
Tighten Screw
Firmly Motor Collar
Clevis Pin
Coupling
Cover
Decorative Cable
Wire Assembly
Pin in Locked
Positioon

5
Changing the Downrod
(Optional)
Set Screw
Decorative
Cable
Nut
Screw
Figure 6
NOTE: Your fan comes with a 12" downrod
attached to the hanger ball. In addition you have
been provided with a 4-1/2" downrod to use if
desired. If you choose to use the 4-1/2" downrod,
perform the following steps:
Remove the hanger ball from the 12" downrod
by loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
Slide the hanger ball down the downrod and
remove the support pin.
Insert the support pin in the holes at the top of
the 4-1/2" downrod and slide the hanger ball up
the 4-1/2" downrod. Make sure the support pin
is properly seated in the grooves in the top of
the hanger ball.
Tighten the set screw firmly.
1.
2.
3.
4.

6
Figure 8
Groove
Tab
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN
THE GROOVE COULD CAUSE DAMAGE TO
WIRING.
Figure 7
Ceiling
Mounting
Bracket
120V
Wires
Washers
Tab
UL Listed
Outlet Box
Posts in the
Outlet Box
Mounting
Screws (Supplied
with Electrical Box)
Figure 9
Safety Cable
Ceiling
Mounting
Bracket
Installing Fan to the
Electrical Box
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
WARNING
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 7.
Install the ceiling mounting bracket to the
outlet box; be sure to align the holes in the
hanger bracket with the post holes in the outlet
box and secure with screws and washers
provided by the outlet box. (Fig. 7)
Security tighten the two mounting screws.
Carefully lift the fan assembly up to the ceiling
mounting bracket and seat the hanger ball in
the mounting bracket socket. Make sure the tab
on the mounting bracket socket is properly
seated in the groove in the hanger ball (Figure
8). This will help to balance the ceiling fan.
Secure the safety cable to the building structure
as shown in Figure 9.
1.
2.
3.
4.
5.

7
Connect the fan supply (black) wire to the
black household supply wire as shown in
Figure10.
Connect the neutral fan (white) wire to the
white neutral household wire.
Connect the fan ground wire (green) to the
household ground wire.
After connecting the wires, spread them apart
so that the green and white wires are on one
side of the outlet box and the black wires are on
the other side.
Turn the connecting nuts upward and push the
wiring into the outlet box.
1.
2.
3.
4.
5.
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR REFER-
ENCE ONLY. OPTIONAL USE OF ANY LIGHT
KIT SHALL BE UL LISTED AND MARKED
SUITABLE FOR USE WITH THIS FAN.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.
Figure 10
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green Ground
Lead
Ground to
Fan
BLACK
WHITEWHITE
BLACK
GREEN
Making the Electrical
Connections

8
Attaching the Fan Blades
Attach blades to blade arm using the screws
with fiber washers provided. (Fig. 12) Start a
screw into the blade arm, do not tighten.
Repeat for the 2 remaining screws and
washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then
tighten the two screws and washers already
installed in the blade arms. (Figure 13)
1.
2.
3.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Figure 11
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover
WARNING
MAKE SURE THE TAB ON THE MOUNTING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Figure 13
Tuck connections neatly into ceiling outlet
box.
Slide the canopy up to mounting bracket and
place the key hole on the canopy over the
screw on the mounting bracket, turn canopy
until it locks in place at the narrow section of
the key holes. (Fig. 11)
Align the circular hole on canopy with the
remaining hole on the mounting bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
1.
2.
3.
Finishing the Fan
Installation
Blade Blade Arm
Figure 12
Screws with
Fiber Washers
Motor
Tab
Slot
Blade Arm
Screw

9
Blade Balancing
Figure 14
Check that all blade and blade bracket screws are secure.
Most fan wobble problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure from a point on the center of each blade to the point
on the ceiling. Measure this distance as shown in Figure 14. Rotate the fan
until the next blade is positioned for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝. Run the fan for 10
Minutes.
Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
1.
2.
3.
The following procedure should correct most fan wobble. Check after each
step.
Touching Ceiling

10
Installing the Light Kit
Remove 1 screw (A1) and loosen 2 screws
(A2) from the mounting ring; do not remove
the 2 screws. (See illustration)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed.
Remove 1 screw (B1) and loosen 2 screws (B2)
from the mounting ring, do not remove the 2
screws. (See illustration)
Raise and hold the light kit close to the mount-
ing plate and make the wire connections.
Connect the white wire connectors from the
light kit and fan, follow the same procedure
with the black wire connectors. (Fig. 15)
1.
2.
3.
4.
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
NOTE
Figure 15
A1
A2
B1
B2
Mounting Ring
Mounting Plate
Screws
Light Kit
Screws
Mounting Ring
Wire
connectors
5.
6.
7.
8.
9.
Carefully push all wires back into the mount-
ing plate, then install the light kit onto the
mounting ring with 3 screws provided. Be sure
to tighten all screws. (Fig. 15)
Remove the metal plate and glass cover from
the light kit.
Install 2 x 13 watt (Max.) compact fluorescent
bulbs (included)
Raise the glass shade up against the light kit,
Place the metal plate with rubber on the top
over the stem and turn it clockwise until it
locks up against the glass shade. Do not
overtighten. (Fig. 16)
Raise the glass cover against the glass shade
and secure it to the stem by turning the glass
cover clockwise until snug.

1111
Installing the Battery:
Install 12V MN21/A23 battery (included), to
prevent damage to transmitter, remove the battery
if not used for long periods. (Figure 18)
Operating Your Transmitter
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.
Bulbs
Glass Shade
Metal Plate
Glass Cover
Figure 16
The receiver frequency selector is located on
the top of the motor assembly plate as shown in
Fig. 17.
The transmitter frequency selector is located in
the battery compartment as shown in Fig.17.
Each frequency selector has 4 switches, you
may use any number of possible combinations
but you must set each switch in the transmitter
to match the same switch in the receiver.
1.
2.
Figure 17
Code Switch
Figure 18

12
Figure 20
Figure 21
Figure 19
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect.(Fig.
20) This allows you to set your air conditioner on
a higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
21) This allows you to set your heating unit on a
lower setting without affecting your comfort.
NOTE
TO OPERATE THE REVERSE FUNCTION ON
THIS FAN, PRESS THE "REV" BUTTON WHILE
THE FAN IS RUNNING.
Restore power to the ceiling fan and test for
proper operation.
1.
2.
3.
4.
"HI, MED, LOW" buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed,
MED= Medium speed
HI=High speed
"OFF" button:
This button turns the fan off.
The ""button turns the light ON or OFF.
(NOTE: CFL bulbs are NOT dimmable.)
The " " Button: This button is used to
change the direction of the rotation of the
blades; forward for warm weather or reverse
for warm weather.

13
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in the
switch housing.
Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
Make sure wire nut connections are not rattling against each other or the
interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new
fan disappear during this time.
If using an optional light kit, make sure the screws securing the glassware
are tight. Check that the light bulb is also secure.
Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
2.
Fan will not start
Fan sounds noisy
Remote control
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

14
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
60” 120 15.58 kgs
(34.37 lbs)
18.72 kgs
(41.30 lbs) 4.45’
LOW
MED.
HIGH
0.40
0.58
0.72
28
60
91
60
100
130
2948
4902
6657
These are approximate measures. They do not include Amps and Wattage used by the light kit.

15
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Hampton Bay Lifetime Limited Warranty
(lifetime warranty on motor)
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
2919 E. Philadelphia Street
Ontario, Ca 91761
Attach receipt here for easy
location
