Harmar Mobility AL600 Pioneer User manual

19MAR2021 | MKT-000174 REV A
AL600 / AL600HD
UNIVERSAL
HYBRID LIFT
AL600HD
AL600
OWNER’S
MANUAL

From all of us at Harmar, thank you for placing your trust in our
products and allowing us to be a part of your journey.
For more than 20 years we have been commied to building
products that help you maintain independence. With a drive to
empower people to live as they choose, Harmar Lis Lives.
Beyond vehicle lis, like the one you’ve purchased, Harmar designs
and manufactures Vercal Plaorm Lis, award-winning Stair Lis,
and more.
We strive to be the leading provider of li-assisng technology in
your home and on the road.
Visit harmar.com or speak to your dealer about the other soluons
available from Harmar.
THANK YOU

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
3
TABLE OF CONTENTS
AL600 / AL600HD
TABLE OF CONTENTS
SAFETY ..................................................................................4
Safety Denions....................................................... 4
INTRODUCTION ................................................................ 6
Device Name:
AL600 / AL600HD Hybrid Vehicle Lis ...................... 6
Read and Understand ............................................... 6
Technical Specicaons ............................................ 6
OPERATION ....................................................................... 7
Loading and Securing your Mobility Device ............. 7
Unloading your Mobility Device ............................. 10
SAFETY & MAINTENANCE ............................................ 12
Owner/Maintenance .............................................. 12
Maintenance/Service Record ................................. 13
WARRANTY....................................................................... 14

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
4
SAFETY
AL600 / AL600HD: SECTION 1
Indicates a hazardous situaon that, if not
avoided, could result in death or serious injury.
WARNING
!
Indicates a hazardous situaon that, if not avoided,
could result in minor or moderate injury.
CAUTION
!
Indicates a situation which can cause damage to
the lift and/or the environment, or cause the lift to
operate improperly.
NOTICE
!
SECTION 1
SAFETY
SAFETY DEFINITIONS
This safety alert symbol appears with
safety statements. It means attention,
become alert, your safety and the
safety of others are involved! Please
read and abide by the message that
follows the safety alert symbol.
NOTE: Indicates a condition that should be followed in
order for the lift to function in the manner intended.
If you do not understand any portion of the
installation or operation procedures, please consult
Harmar's Technical Service Department at
800-833-0478. Do not attempt to install or use this
lift if you have any hesitation or question. Serious
injury or damage can result if proper procedures are
not followed.
Consider the following general information when
using your lift. Specifics may vary based on your
chair model and lift combination.
Always make certain your lift is fully deployed and
flush with the ground prior to loading your mobility
device.
Ensure you have positioned the chair properly on
the platform and that it is secured on the lift before
transport.
Always verify wheels are captured by cradles or
aligned evenly on the platform. Also ensure the
securement device is fully engaged (hold-down
device or retention straps). Please consult your
dealer on the specifics of your application if you
have questions.
Always drive slowly over rough terrain such as
potholes, unpaved roads, railroad tracks, speed
bumps or other uneven surfaces. Excessive loads
and rough driving will damage your lift and will not
be covered by the warranty.
Stop using the lift immediately if you notice any
damage. Do not attempt to transport a mobility
device with a compromised lift. Damage to your
chair, lift and/or vehicle may occur. Contact your
dealer and ask for an evaluation of the lift prior to
further use.
Always check to make sure nobody is in the process
of getting on or off the mobility device before
operating the lift.
Always verify the mobility device is held firmly in
place prior to transport.
Never attempt to move the vehicle without the lift
being in the full stowed position and the cargo door/
hatch closed.
Indicates a hazardous situaon that, if not
avoided, could result in death or serious injury.
WARNING
!
Indicates a hazardous situaon that, if not avoided,
could result in minor or moderate injury.
CAUTION
!
Indicates a situation which can cause damage to
the lift and/or the environment, or cause the lift to
operate improperly.
NOTICE
!

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
5
SAFETY
AL600 / AL600HD: SECTION 1
This li is NOT meant for human transport. The
chair or scooter MUST be unoccupied before
operang the li. Each li is designed to transport
a specic mobility device only. DO NOT aempt
to move any mobility devices, objects, people, or
materials other than those for which the li was
intended.
WARNING
!
When using the li, keep your hands and feet from
under the plaorm.
WARNING
!
Do not allow anyone to use this li unless they
are properly instructed on operaonal and safety
procedures.
CAUTION
!

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
6
INTRODUCTION
AL600 / AL600HD: SECTION 2
SECTION 2
INTRODUCTION
DEVICE NAME:
AL600 / AL600HD HYBRID
VEHICLE LIFT
Indications of Use: The intended use of the AL600
/ AL600HD is to lift, secure and transport an
unoccupied mobility device for patients or mobility-
impaired persons.
READ AND UNDERSTAND
This manual provides instructions for proper use
and maintenance of your AL600 / AL600HD Hybrid
Vehicle Lift. Please refer to this Owner’s Manual
for operating instructions. Any alterations to
the equipment without written authorization by
the manufacturer is prohibited and will void the
warranty.
If you have questions concerning the operation and
maintenance of your Hybrid Vehicle Lift, please
contact your dealer.
Please ensure that you fill out the separate warranty
form and return it within ten (10) days of purchase
to register your lift.
TECHNICAL
SPECIFICATIONS
Visit harmar.com for specifications on the specific
lift model and configuration.

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
7
OPERATION
AL600 / AL600HD: SECTION 3
SECTION 3
OPERATION
LOADING AND SECURING
YOUR MOBILITY DEVICE

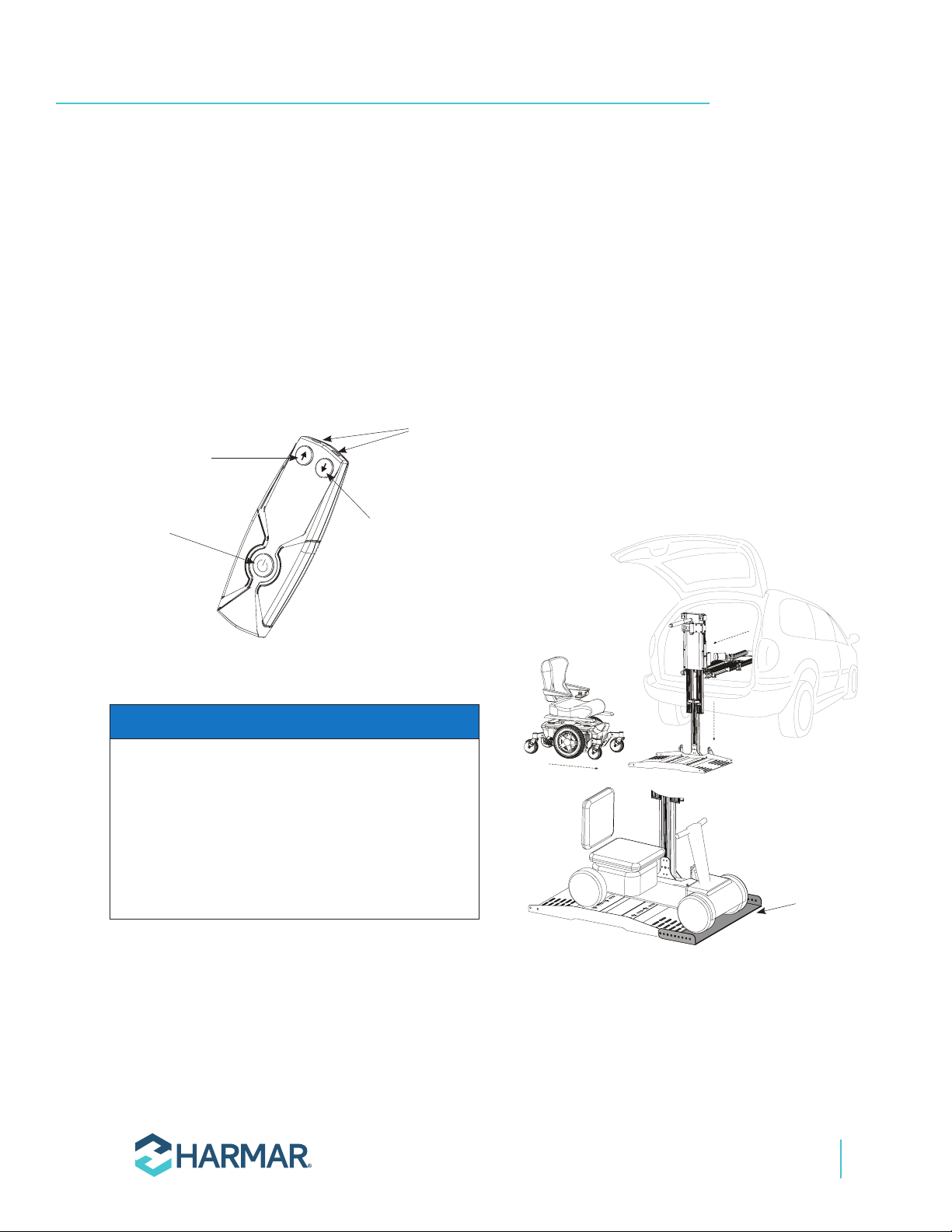

Using your remote control, lower the lift platform
until it reaches the ground and becomes level.
See Figure 3-1.
LEDs
Down
Up
Power
Button
Figure 3-1
NOTE: Your lift is designed to draw power from the car
battery as needed and will operate while the vehicle is
off. However, it is recommended that the lift be operated
while the car is running for optimal performance.
1. Drive your mobility device onto the platform.
Determine the heaviest portion of the mobility
device. This is usually under the drive wheels,
motor(s), and batteries. Always drive onto the
platform with the heaviest portion closest to
the lifting tower. If loading a scooter and the
platform has the AL617 extension plate, drive
onto the platform so that the scooter’s front
wheels are resting on the extension plate,
and the rear wheels are on the main platform.
This allows the heaviest portion of the scooter
to be closest to the lifting tower. Set your
mobility device speed control to slow speed to
maneuver easily onto the platform.
See Figures 3-2.
SLOW
Scooter
extension
plate
Figure 3-2
The power button must be pressed to enable the hand
control to operate. At which time, the buttons will
light up and the front LED’s will act as a flashlight.
If no button is pressed after approximately two (2)
minutes, the hand control will turn off automatically.
Press the power button to turn back on.
NOTICE

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
8
OPERATION
AL600 / AL600HD: SECTION 3

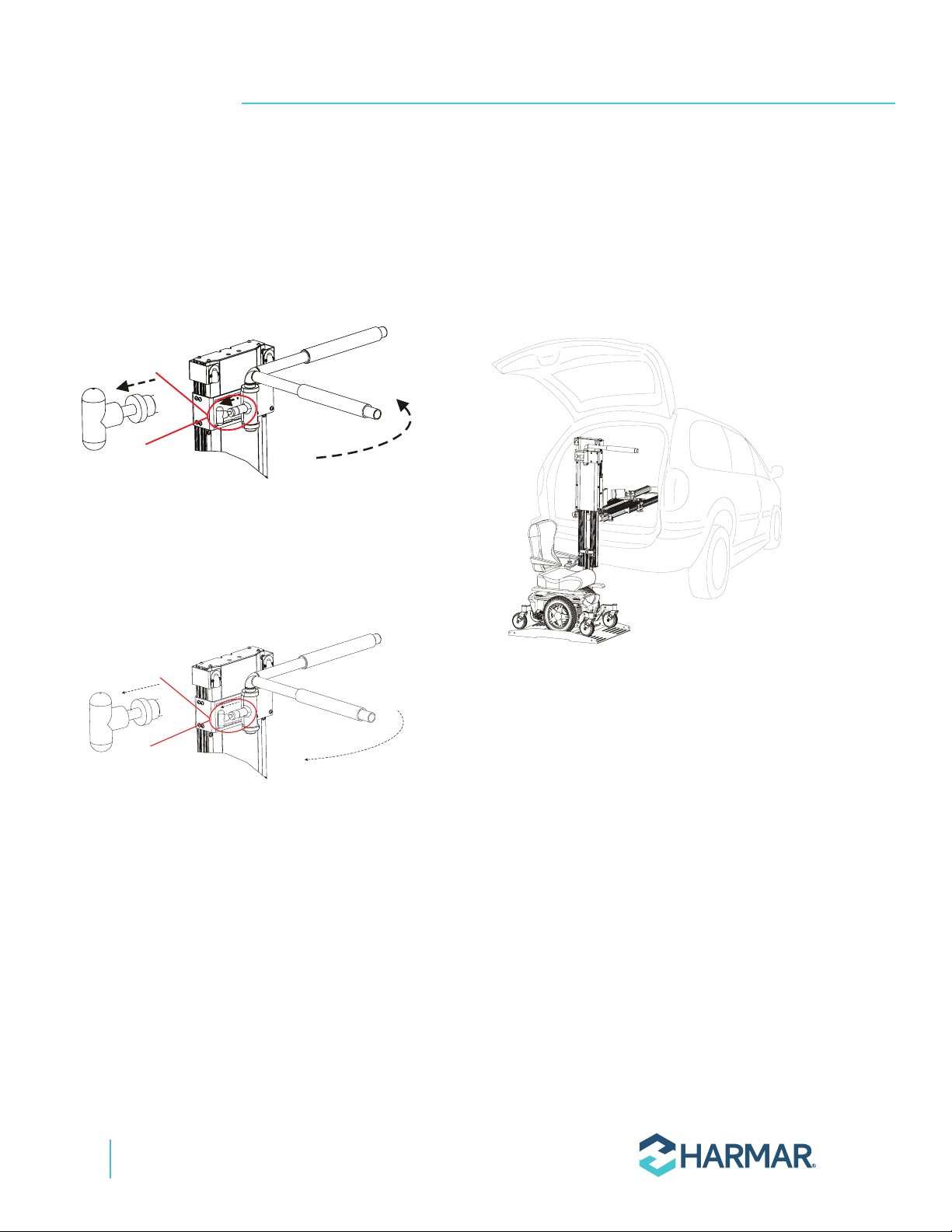

SECUREMENT WITH OPTIONAL
HOLD-DOWN ARM
1. If applicable, the hold-down arm may be rotated
out of the way. Pull the T-handle and rotate the
hold-down arm to the desired posion. Release
the T-handle to lock in place. See Figure 3-3.
Figure 3-3
2. If applicable, the hold-down arm can be
rotated over the center of the seat. Pull the
T-handle and rotate the arm to the desired
position. Release the T-handle to lock in place.
See Figure 3-4.
Figure 3-4

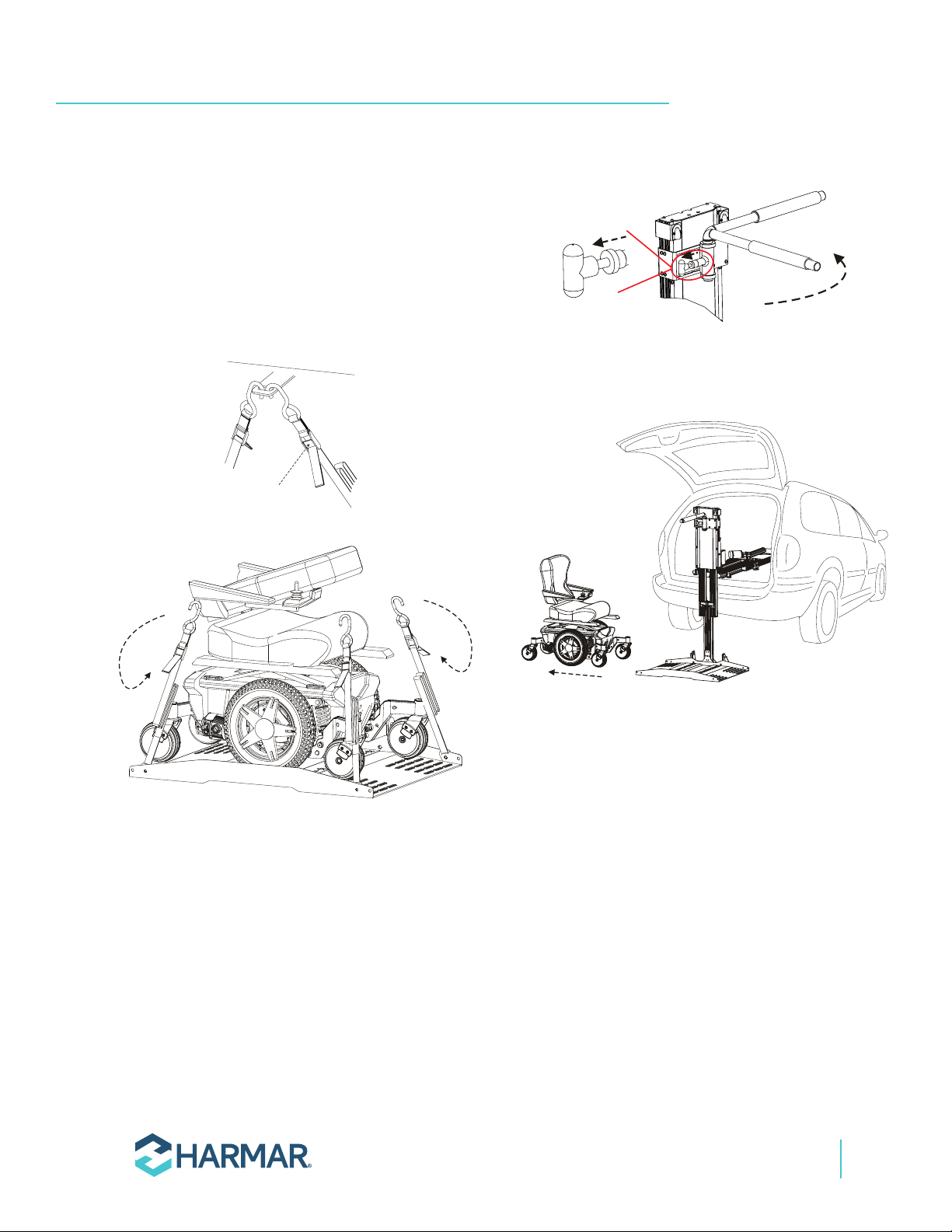

SECUREMENT WITH CAMBUCKLE
RETENTION STRAPS
1. Each corner of the AL600 platform has a
restraint attached, with a hook on the end.
Place each hook in either the anchor plate slot,
each U-bolt, or tie-down loop attached to the
mobility device. See Figure 3-5.
Figure 3-5
2. Pull the loose end of each strap tight. To
release, simply press the release tab on the
cambuckle, pull and remove the hooks.
See Figure 3-6.

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
9
OPERATION
AL600 / AL600HD: SECTION 3
PULL to
TIGHTEN
PUSH to
RELEASE
Figure 3-6
3. If you ordered your lift with the optional
Q’Straint retractors, place each hook in the
appropriate anchor plate slot, U-bolt, or tie-
down loop. The straps will automatically retract
and secure the mobility device. Make sure each
strap retracts without any interference or slack
in the strap. Adjust if necessary. To release,
press and hold the lever to release the straps
and then remove the hooks. See Figure 3-7.
PUSH TO
RELEASE
TURN TO
TIGHTEN
Figure 3-7
4. If your chair has a folding seatback, you may
want to place it in the down position for easier
clearance when loading the chair into the
vehicle. Depending on the size of your chair,
you may need to remove the headrest as well.
5. Double-check that the mobility device is
secured properly on the platform. While
holding the hand control, stand to the side and
away from the lift. Press the “Up” button.
When the platform stops retracting, release
the button. The platform will automatically
lock itself into a travel position. Close the door
slowly, making sure that no part of the mobility
device or other objects in the cargo area
contacts the door. See Figure 3-8.
Figure 3-8

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
10
OPERATION
AL600 / AL600HD: SECTION 3
6. Use the hand-held pendant controller or
optional wireless key-fob controller, to raise
and retract the platform into the stowed/travel
position. Start by activating the control with
the power button. The controller has two
operating buttons for raise and lower functions
that must be continually pressed to complete
the desired function. The controller has
integrated LED lights to aid in visibility when
using at night. See Figure 3-9.
Figure 3-9
PUDDLE LIGHTS (OPTIONAL)
LEDs will illuminate automatically when the platform
reaches its out position. The LEDs will stay on as
long as the platform is out of the vehicle. UP or
DOWN. Once the platform starts to travel
horizontally (inward), the LEDs will turn off.
See Figure 3-10.
Figure 3-10
If you plan on leaving the lift out / down for an
extended period of time and wish to turn off the
LEDs, turn the power OFF on the top of the control
box. See Figure 3-11.
Figure 3-11
UNLOADING YOUR
MOBILITY DEVICE
1. Open the rear cargo door. Double-check that the
mobility device did not shift during travel and is
properly secured on the platform. Stand to the
side of the vehicle and press the “Down” button
until the lift reaches the ground. See Figure 3-12.
Figure 3-12

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
11
MAINTENANCE
AL600 / AL600HD: SECTION 4
2. If your lift has the optional Q’Straint retractors,
press and hold the lever to release the straps
and unhook them from the anchor plates,
U-bolt, or tie-down loops.
If your lift is secured with the securement
straps, loosen the straps by pressing the release
tab on the cambuckle, pull, and then remove the
hooks. See Figure 3-13.
PUSH to
RELEASE
Figure 3-13
3. If applicable, the hold-down arm may be rotated
out of the way. Pull the T-handle and rotate the
hold-down arm. Release the T-handle to lock in
place. See Figure 3-14.
Figure 3-14
4. Drive the mobility device off the platform
slowly. See Figure 3-15.
SLOW
Figure 3-15

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
12
MAINTENACE
AL600 / AL600HD: SECTION 4
SECTION 4
SAFETY & MAINTENANCE
Except as described elsewhere in this manual,
maintenance must be performed only by qualified
technicians. Contact your dealer with questions
or to schedule any needed inspections, repairs, or
service.
This hybrid lift is designed to be as trouble-free as
possible, but as with any mechanical device, regular
maintenance will help ensure that it continues to
offer reliable and safe use for years to come.
We recommend that you schedule a preventative
safety and maintenance inspection with your dealer
at least once a year on motors, lift frame, wiring
harness, strap integrity, and all moving parts of the
lift.
OWNER/MAINTENANCE
Before Use: Do not use lift until these conditions
are rectified.
• Check for any obstructions in the path of the
lift. Keep items away from aluminum channels.
• Visually check lifting strap (during empty travel)
before loading chair.
• Clean any debris from the platform.
• Keep hand control cord away from moving
parts.
• Avoid loose items in the cargo area of the lift.
• If applicable, change remote hand control
batteries annually.
• If any unusual noise or noticeable change
occurs in the speed or travel of the lift, please
contact your service technician.
• Check for paint chips and touch up bare metal.
• Use a good black enamel or lacquer to inhibit
rust. You may need to do this more frequently
if your lift is subject to salt air or road salt.

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
13
MAINTENANCE
AL600 / AL600HD: SECTION 4
Date Time
Type of Service (check all that apply) Notes, Nature of Service/Accident, Parts Replaced,
Warranty Technician
Check Repair Maint. Accident
MAINTENANCE/SERVICE RECORD

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
14
WARRANTY
AL600 / AL600HD: SECTION 5
SECTION 7
Your lift came with a separate warranty page on
page 15. You must return this page in within ten
(10) days of installation to register your lift. This
warranty policy page must remain in your Owner’s
Manual for your records. Do not tear out this page.
Dealer/Installer Name:
Address:
Phone:
E-Mail:
If you need service or warranty work, your dealer
will require the information below to receive factory
information or order parts for your lift.
Date Purchased:
Serial # of the Lift:
THIS EXPRESS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES OR CONDITIONS, INCLUDING ALL IMPLIED
WARRANTIES OR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND THERE ARE NO
WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION
OF THE LIMITED WARRANTY DESCRIBED HEREIN. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND
YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH
VARY FROM STATE TO STATE.
Harmar Mobility warrants to the original purchaser of the
vehicle li manufactured by Harmar to be free of defects
in material, mechanical and electrical component (parts),
excluding labor costs, paint and covers, for a period of
three (3) years from date of retail purchase, provided
that the products have been installed and maintained
by an authorized Harmar distributor or cered Harmar
installer and operated properly.
This warranty does not cover defects in vehicles on which
Harmar products are installed or malfuncons in Harmar
products caused by defects in any part of the vehicle
upon which the product is installed. This warranty does
not cover maintenance or adjustments. Harmar will not
be charged for labor, consequenal damage or repair
expenses. Harmar will not, under any circumstances,
be liable for the loss of the use of its products or loss of
me. This warranty becomes null and void if the product
has been lost, damaged by accident, over-stressed,
misused and/or neglected, or if the product has been
modied in any way. Defecve parts must be returned,
prepaid, to Harmar, for inspecon prior to credit, repair
or replacement, at Harmar’s opon. Harmar’s sole
obligaon and the exclusive remedy under this warranty
is limited to such credit, repair or replacement. All
warranty claims must be reported to the dealer from
whom the li was purchased as they have responsibility
for handling warranty claims.
Dealers may charge for labor, service, travel, or other
associated costs to make repairs, and such charges are
not covered by this Limited Warranty.
All parts used to replace defecve materials must be
genuine Harmar parts to be covered by this Limited
Warranty. This Limited Warranty grants specic legal
rights, other rights vary from state to state.
3-YEAR LIMITED WARRANTY
PRODUCTS COVERED: AL600 SERIES MODELS

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
15
WARRANTY
AL600 / AL600HD: SECTION 5
PRODUCT INFORMATION
Model:
Serial Number:
Purchase Date:
Installation Date:
INSTALLER INFORMATION
Company Name:
Contact Name:
Address:
Phone:
Fax:
Email:
APPLICATION INFORMATION
 Scooter  Power Wheelchair
 Wheelchair  N/A
Year:
Manufacturer:
Model:
PURCHASER INFORMATION
Name:
Address:
Phone:
Email:
ADDITIONAL INFORMATION
How did you hear about Harmar?
 Harmar Dealer
 Internet
 Magazine
Which:
 Friend or Acquaintance
 Saw Harmar product somewhere
 Other:
I purchased my Harmar li because of:
 Style/Appearance
 Harmar Representative
 Previous Experience
 Ease of Use
 Recommendation
 Price/Value
PLEASE FILL OUT ALL FIELDS AND RETURN WITHIN TEN (10) DAYS OF PRODUCT INSTALLATION.
Fax completed form to 1-866-234-5680 or mail to:
Harmar, ATTN Warranty Department, 1500 Independence Blvd., Suite 220, Sarasota Florida 34234.

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
16
WARRANTY
AL600 / AL600HD: SECTION 5
Page Intenonally Le Blank

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
17
NOTES

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
18
NOTES

AL600 / AL600HD: Owner’s Manual
19MAR2021 | MKT-000174 REV A
19
NOTES

1500 Independence Blvd., Suite 220 | Sarasota, FL 34234
800.833.0478
harmar.com
