HARTING Han M23 User manual

HARTING
Han®M23 Circular Connectors

Economic and Reliable
Connections
Specifications
IEC 60068-2-6
Environmental testing,
Vibration
DIN EN 61984
Connectors –
Safety requirements and tests
Note:
The connectors included in this catalogue should not be coupled
or decoupled under electrical load unless otherwise stated.
The provision of protection against electric shock is the
responsibility of the user. Protection can be achieved by the use
of HARTING hoods and housings coupled with/or alternatively to
appropriate installation methods provided by the user.
Approvals
UL File No. ECBT2.E235076 (www.ul.com)
General information
It is the customer’s responsibility to check whether the compo-
nents illustrated in this catalogue also comply with regulations
different from those stated in the special fields of applications.
We reserve the right to modify designs or substance of content
in order to improve quality, keep pace with technological
advancement or meet particular requirements in production.
This information describes the components, but should not be
considered as a guarantee of certain properties.
No part of this catalogue may be reproduced in any form (print,
photocopy, microfilm or any other process) or processed,
duplicated or distributed by means of electronic systems
without the prior written consent of HARTING Electric
GmbH & Co. KG, Espelkamp. We are bound by the German
version only.
© HARTING Electric GmbH & Co. KG, Espelkamp – All rights
reserved, including those of the translation.
General information
HARTING eCatalogue
The HARTING eCatalogue / eShop can be found
on our homepage at www.HARTING.com or at the
direct link www.eCatalogue.HARTING.com.
The HARTING e-Catalogue is your platform for
conveniently selecting individual products as well as
configuring complete solutions. Our comprehensive
product pages provide you with all necessary
technical information and CAD files in various
formats for downloading. You may also contact our
technical sales department directly.
Find out about product innovations and news on
the start page of the HARTING e-Catalogue or go
directly to www.product-news.HARTING.com.
Registered users can take advantage of
MyHARTING to check on availability or prices, and
to place or track their orders. Here, your customized
“HARTING history” provides you with a list of your
inquiries, quotations and more.
Sign up now for your free e-Catalogue account at
HARTING!
www.eShop.HARTING.com

Table of contents Page
Han®M23 Signal
Features .................................................................................................. 51.05
Approvals ................................................................................................ 51.05
Technical characteristics ......................................................................... 51.06
Hoods ...................................................................................................... 51.07
Bulkhead mounted housing .................................................................... 51.09
Panel feed-through / Cable to cable housings ......................................... 51.12
Inserts ..................................................................................................... 51.13
Contacts .................................................................................................. 51.19
Accessories ............................................................................................. 51.20
Crimping tools ......................................................................................... 51.21
Assembly instructions ............................................................................. 51.24
Han®M23 Power / Hybrid
Features .................................................................................................. 51.29
Approvals ................................................................................................ 51.29
Technical characteristics ......................................................................... 51.30
Hoods ...................................................................................................... 51.31
Bulkhead mounted housings ................................................................... 51.32
Cable to cable housings .......................................................................... 51.34
Inserts ..................................................................................................... 51.35
Contacts .................................................................................................. 51.37
Accessories ............................................................................................. 51.38
Crimping tools ......................................................................................... 51.39
Assembly instructions ............................................................................. 51.44

51
04
Han® M23 Signal

51
05
,
Note General information
6-19
Features Approvals
For operating voltages over 50 volts, the connector
must be used with conductive housing parts, in
compliance with the safety directives in DIN VDE
410 / IEC 60364-4-41.
Connectors should not be connected or
disconnected while under electrical load.
It is the user’s responsibility to check whether the
components illustrated in this catalogue comply with
different regulations from those stated in special
fields of application which we are unable to foresee.
We reserve the right to modify designs in order
to improve quality, keep pace with technological
advancement or meet particular requirements
in production. This information describes the
components but should not be considered as a
guarantee of certain properties.
HARTING Electric GmbH & Co. KG
Wilhelm-Harting-Strasse 1
D-32339 Espelkamp, Germany
Phone [phone]
HARTING [e-mail]

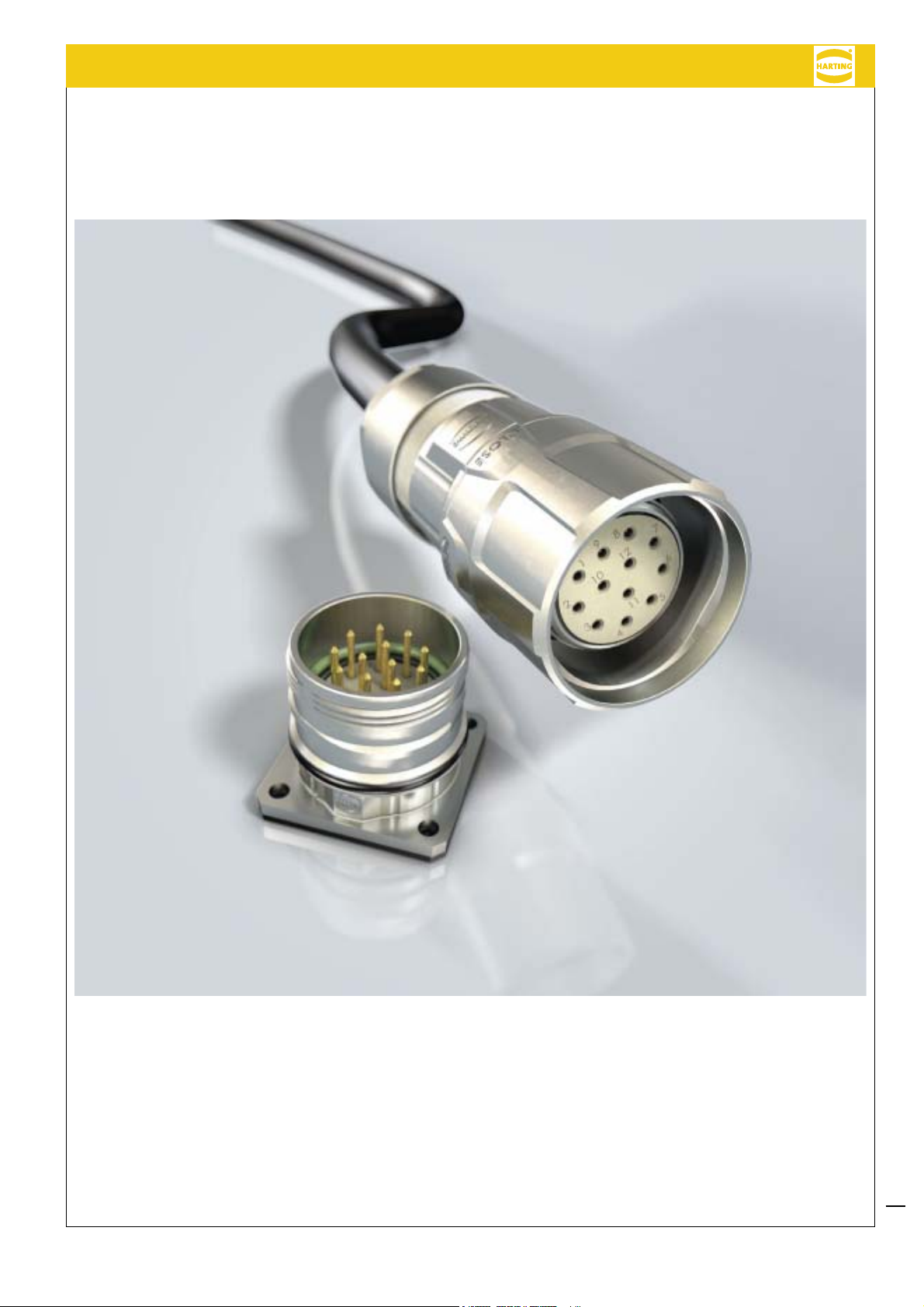

• High contact density with up to 19 contacts
• Interchangeable combination of inserts and
hoods/housings
• No special tools for assembly process required
• Crimp, solder and solder-in termination technique
• 360° EMC capability
• Shock and vibration proof
• Robust hoods and housings for industrial
environment
Number of contacts
≤ 300 V
≤ 20 A
Han®M23 Signal

51
06
Technical characteristics
Derating and EMC diagram
Hoods and housings
Material Copper zinc alloy
Surface Nickel plated
Seal NBR
Limiting temperatures -40 °C … +125 °C
Degree of protection and seal in locked position IP67 / IP69K
Clamping range 3 – 17 mm
Inserts
Material Thermoplastic polyamid
Termination technique Crimp, solder, solder-in
Number of poles 6 7 9 12 17 19
Number of contacts 6 7 8 1 12 17 16 3
Contact Ø mm 2 2 1 2 1 1 1 1.5
Rated current A 20 20 8 20 8 8 8 10
Rated voltage1) V 300 300 200 200 160 100
Test voltage V 2500 2500 2500 2500 1500 1500
Insulation resistance MΩ> 1010 > 1010 > 1010 > 1010 > 106> 106
Max. contact resistance mΩ333333
1) According to DIN VDE 0627, metallic parts which may be touched by a person and may have voltages present under fault conditions must have
integral protection.
Operating current [A]
Ambient temperature [oC]
The current carrying capacity is limited by maximum temperature
of materials for inserts and contacts including terminals. The
current capacity-curve is valid for continuous, non-interrupted
current-loaded contacts of connectors when simultaneous
power on all contacts is given, without exceeding the maximum
temperature.
Control and testing procedures, according to DIN IEC 60512-5-2.
12 poles insert,
conductor
cross-section:
1.00 mm²
Transfer impedance [mΩ]
Frequency [Hz]
Han®M23 Signal Technical characteristics

51
07
09 15 100 0401
09 15 100 0402
09 15 100 0403
09 15 100 04911)
09 15 100 04812)
09 15 100 04921)
09 15 100 04822)
09 15 100 04931)
09 15 100 04832)
3 - 7
7 - 12
11 - 17
3 - 7
7 - 12
11 - 17
Hood,
including EMC cable gland
Hood,
ComLock – rapid locking,
including EMC cable gland
Clamping range Drawing
Identification (mm) Part number Dimensions, in mm
1) fast locking hood for Han® M23 Signal
2) fast locking hood for Speedtec products
Han®M23 Signal Hoods

51
08
09 15 100 0601
09 15 100 0602
09 15 100 0603
7 - 12
7 - 12
7 - 12

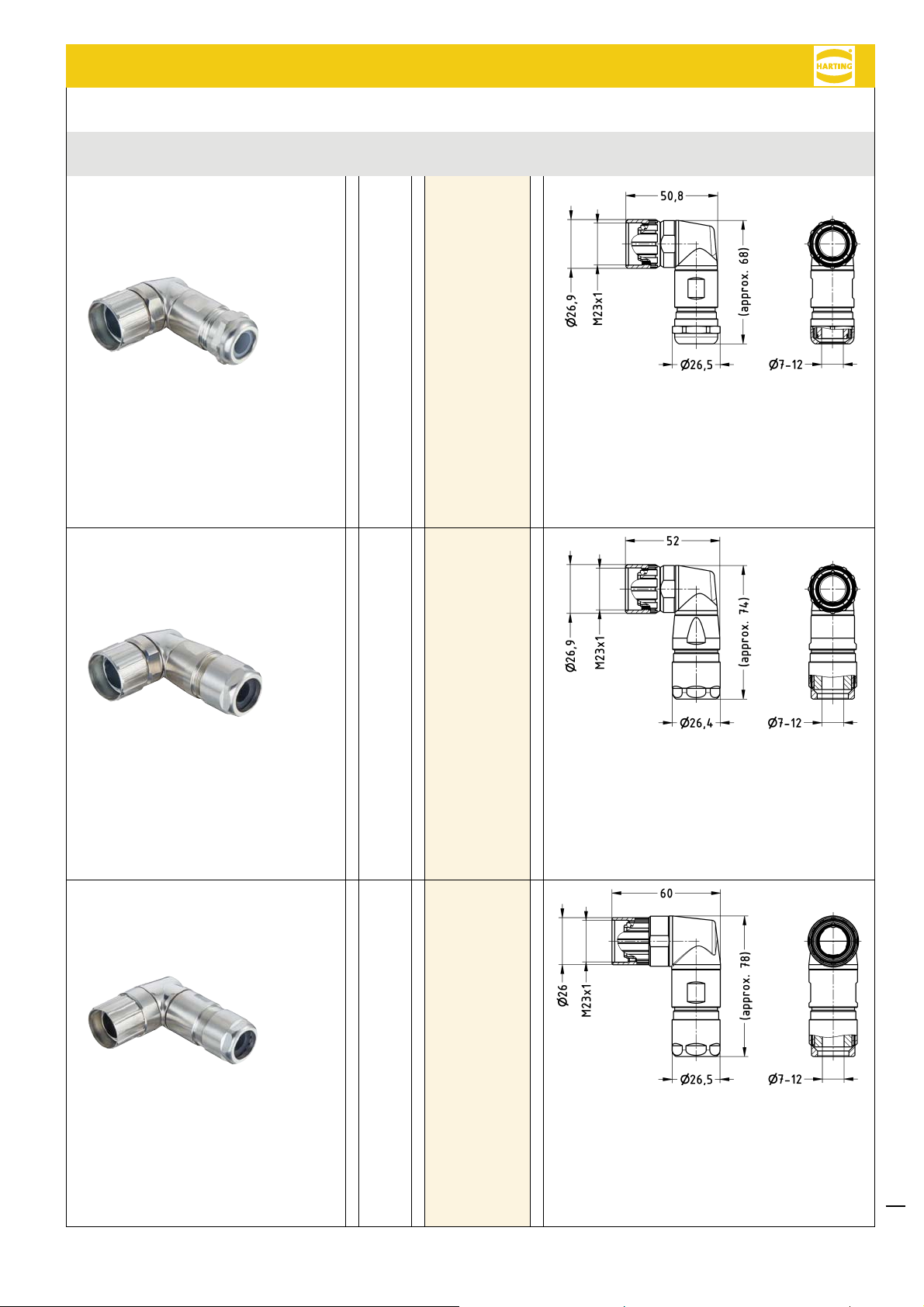

Angled hood,
without EMC
Angled hood,
including EMC cable gland
Angled hood,
rotatable,
including EMC cable gland
Clamping range Drawing
Identification (mm) Part number Dimensions, in mm
Han®M23 Signal Hoods

51
09
09 15 100 0301
09 15 100 0302
09 15 100 0901
09 15 100 0902
Bulkhead mounted housing,
front wall assembly,
flat seal (4 x 2.7 mm)
Bulkhead mounted housing,
front wall assembly,
O-ring seal (4 x 3.2 mm)
Bulkhead mounted housing,
angled,
front wall assembly,
O-ring seal (4 x 2.7 mm)
Bulkhead mounted housing,
angled, rotatable
front wall assembly,
O-ring seal (4 x 2.7 mm)
Drawing
Identification Part number Dimensions, in mm
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø 20
Han®M23 Signal Bulkhead mounted housing

51
10
09 15 100 03631)
09 15 100 03731)
09 15 100 03641)
09 15 100 03741)
Bulkhead mounted housing,
front wall assembly,
for male insert (M20 x 1.5)
Bulkhead mounted housing,
front wall assembly,
for female insert (M20 x 1.5)
Bulkhead mounted housing,
front wall assembly,
for male insert (PG 13.5)
Drawing
Identification Part number Dimensions, in mm
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø PG 13.5
1) Not suitable for rapid locking
Bulkhead mounted housing,
front wall assembly,
for female insert (PG 13.5)
Panel cut out Ø PG 13.5
Han®M23 Signal Bulkhead mounted housing

51
11
09 15 100 03051)
09 15 100 03061)
09 15 100 03071)
09 15 100 03081)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x M2.5)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x M3)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (4 x 2.7 mm)
Bulkhead mounted housing,
back wall assembly,
O-ring seal (M25)
Drawing
Identification Part number Dimensions, in mm
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø 20
Panel cut out Ø PG 13.5
1) Not suitable for rapid locking
Han®M23 Signal Bulkhead mounted housing

51
12
09 15 100 0309
09 15 100 0310
09 15 100 0311
09 15 100 0701
09 15 100 0702
09 15 100 0703
3 - 7
7 - 12
11 - 17
3 - 7
7 - 12
11 - 17

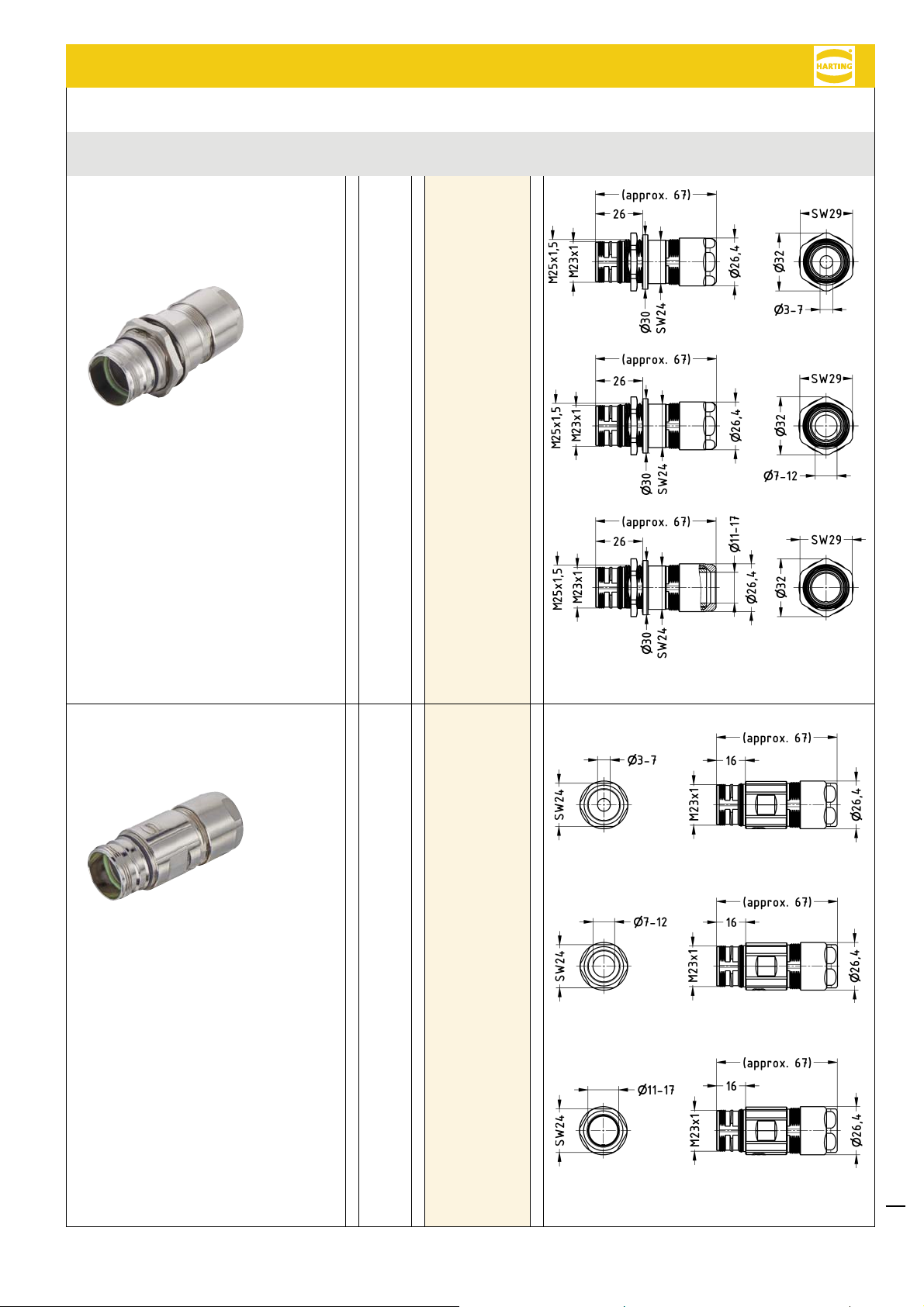

Han®M23 Signal Panel feed-through / Cable to cable housings
Panel feed-through housing,
back wall assembly,
with central locking (M25)
Cable to cable housing,
including EMC cable gland
Clamping range Drawing
Identification (mm) Part number Dimensions, in mm

51
13

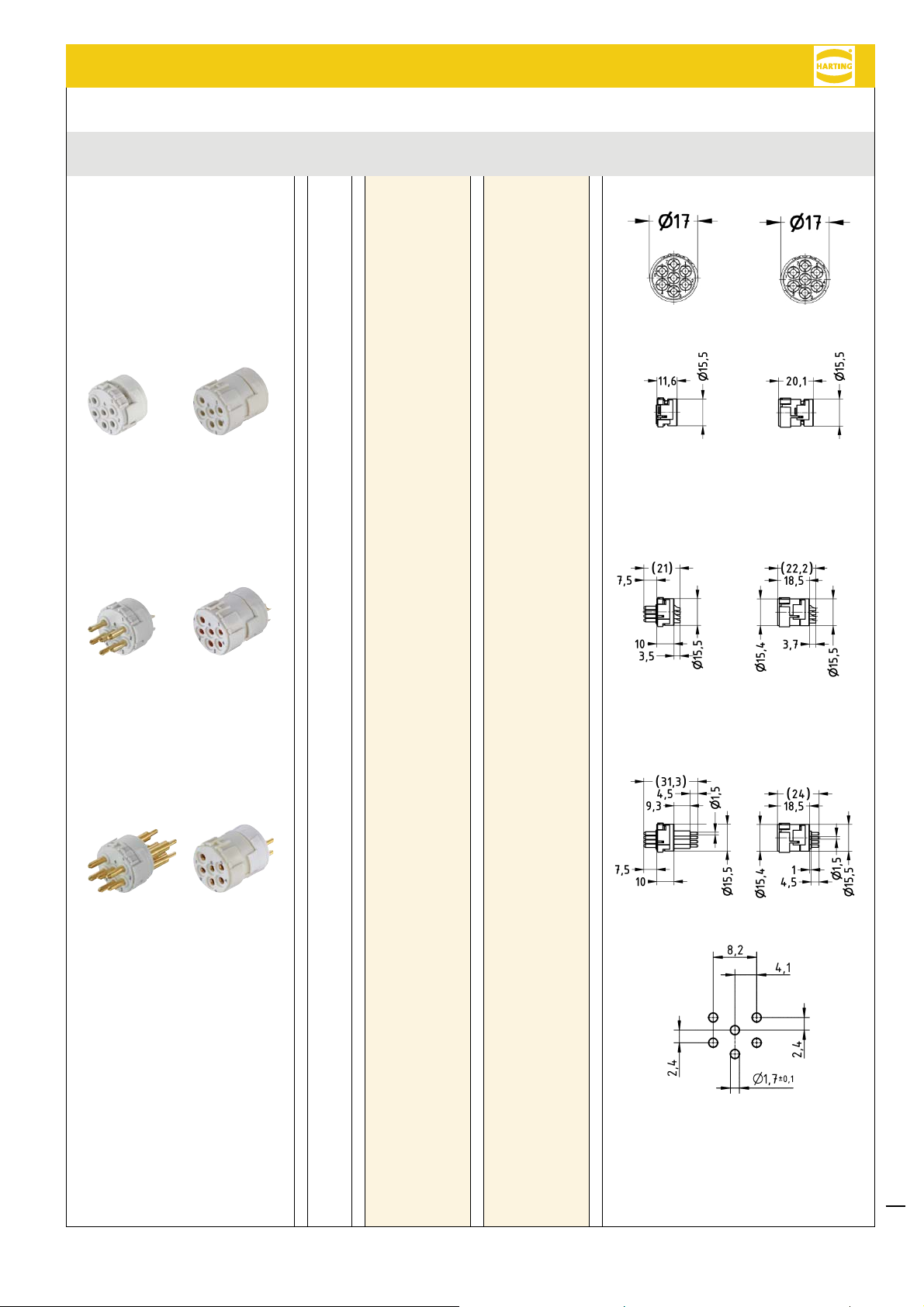

6 09 15 106 3001 09 15 106 3101
6 09 15 106 2602 09 15 106 2702
6 09 15 106 2603 09 15 106 2703
Crimp termination;
6 x 2 mm contacts
Solder termination
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
14

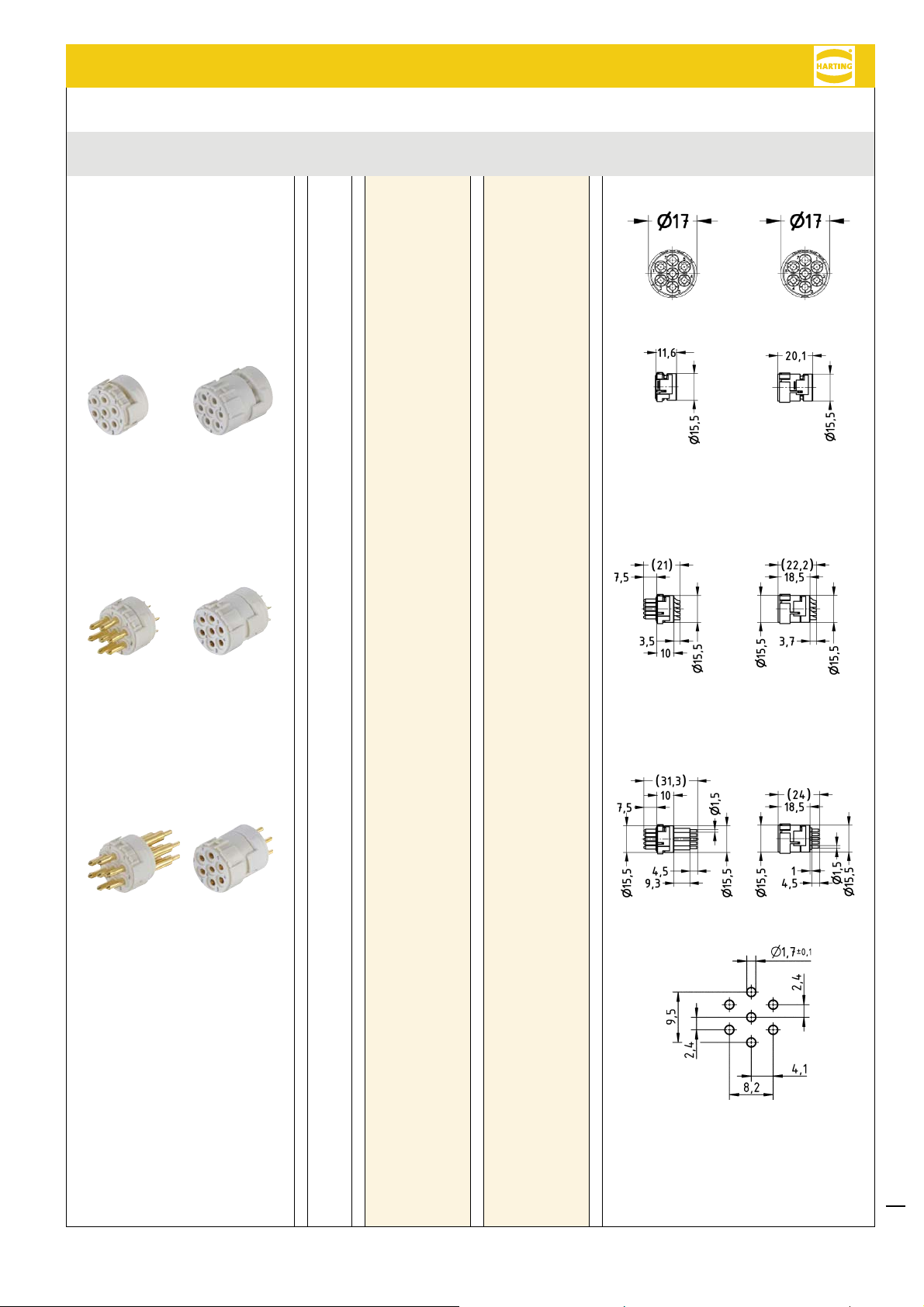

7 09 15 107 3001 09 15 107 3101
7 09 15 107 2602 09 15 107 2702
7 09 15 107 2603 09 15 107 2703
Crimp termination;
7 x 2 mm contacts
Solder termination
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
15

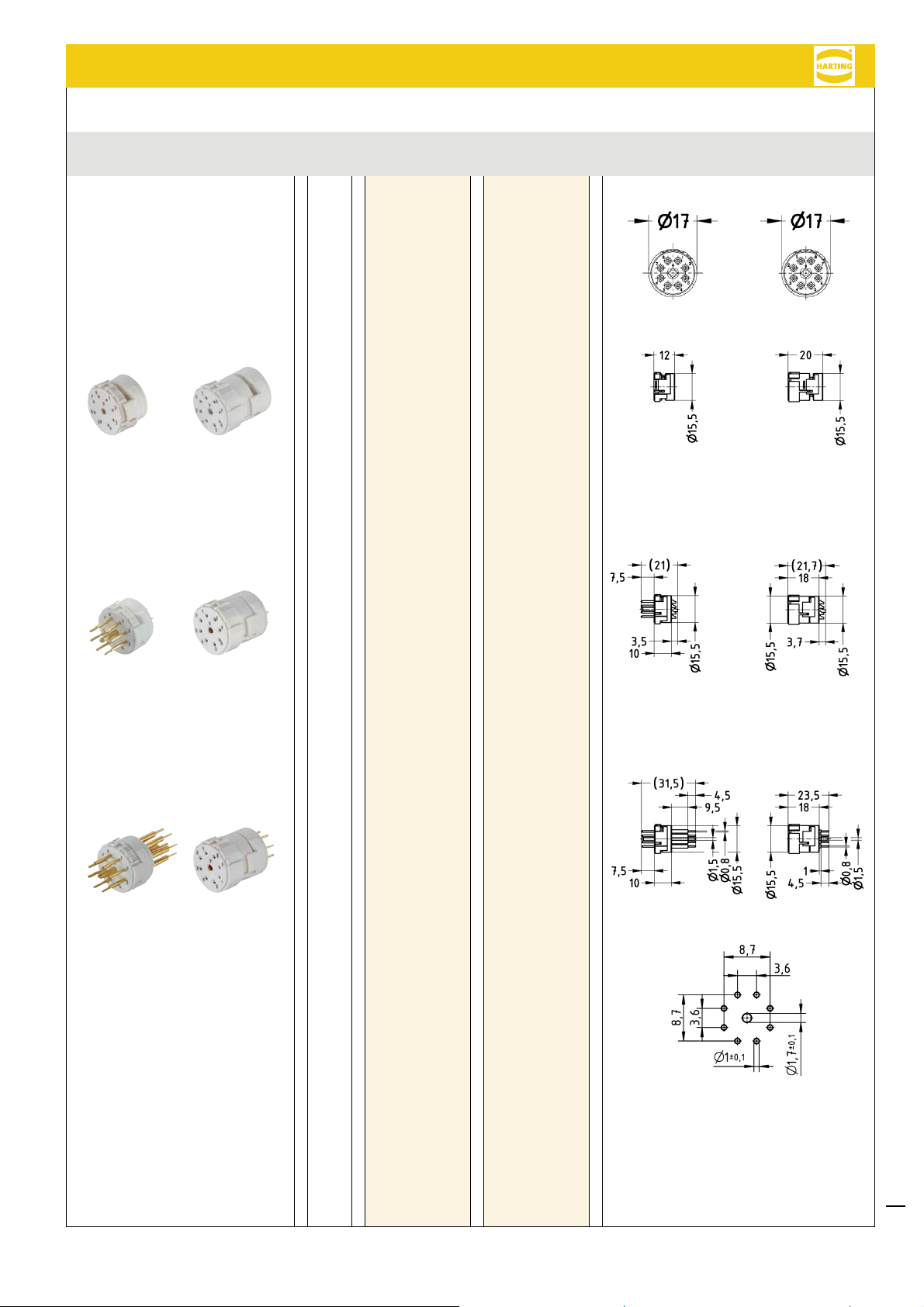

9 09 15 109 3001 09 15 109 3101
9 09 15 109 2602 09 15 109 2702
9 09 15 109 2603 09 15 109 2703
Crimp termination;
8 x 1 mm contacts
1 x 2 mm contact
Solder termination
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
16
12 09 15 112 3001 09 15 112 3101
12 09 15 112 3021 09 15 112 3121
12 09 15 112 2602 09 15 112 2702
12 09 15 112 2622 09 15 112 2722
12 09 15 112 2603 09 15 112 2703
Crimp termination;
12 x 1 mm contacts
Crimp termination (with PE):
12 x 1 mm contacts
Solder termination
Solder termination (with PE)
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
17
17 09 15 117 3001 09 15 117 3101
17 09 15 117 2602 09 15 117 2702
17 09 15 117 2603 09 15 117 2703
Crimp termination;
17 x 1 mm contacts
Solder termination
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
18
19 09 15 119 3001 09 15 119 3101
19 09 15 119 2602 09 15 119 2702
19 09 15 119 2603 09 15 119 2703
Crimp termination;
16 x 1 mm contacts
3 x 1.5 mm contacts
Solder termination
PCB solder-in termination1)
Contact Part number Drawing
Identification number Male insert Female insert Dimensions, in mm
Male Female
1) Only for use with bulkhead mounted housings: 09 15 100 0301, 09 15 100 0302, 09 15 100 0305, 09 15 100 0306 and 09 15 100 0307
Han®M23 Signal Inserts

51
19
09 15 100 6201
09 15 100 6202
09 15 100 6203
09 15 100 6211
09 15 100 6212
09 15 100 6221
09 15 100 6101
09 15 100 6102
09 15 100 6103
09 15 100 6111
09 15 100 6121

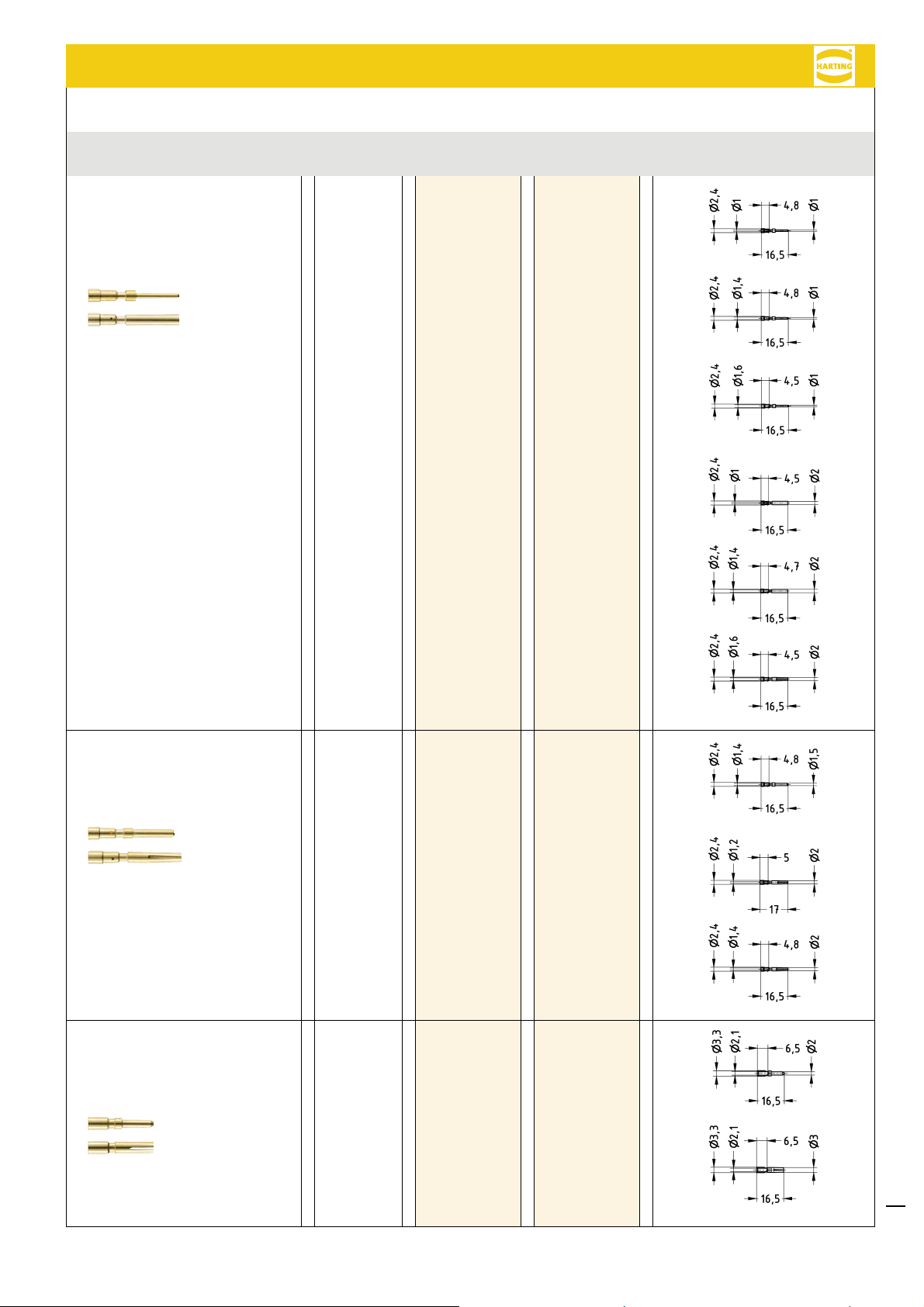

Han®M23 crimp contacts,
1 mm turned;
Contact surface:
gold plated
Han®M23 crimp contacts,
1.5 mm turned;
Contact surface: gold plated
Han®M23 crimp contacts,
2 mm turned;
Contact surface: gold plated
Conductor cross-section Part number Drawing
Identification (mm²) Male Female Dimension, in mm
0.08 – 0.56
0.14 – 1.00
0.75 – 1.50
0.08 – 0.56
0.34 – 1.00
0.75 – 1.50
0.14 – 1.00
0.14 – 0.56
0.34 – 1.00
0.75 – 2.50
0.75 – 2.50
Han®M23 Signal Contacts

51
20
09 15 100 9101
09 15 100 9102
09 15 100 9103
09 99 000 0890
Screw cover for bulkhead
mounted and cable to cable
housings
Screw cover for bulkhead mounted
and cable to cable housings,
including chain (70 mm)
Screw cover
for hoods,
with chain (100 mm)
Four-indent crimping tool
Drawing
Identification Part number Dimensions, in mm
Han®M23 Signal Accessories
