Harvest TEC 300 Series User manual

1
344-345-350-351-16-OPR
5/22
Operation Manual
300 Series Small Square Baler Models
25 & 55 gallon Preservative Applicators
Forage Harvester

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec LLC.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press and for the application of innoculants onto
forage crops.
MODEL: 344-345-350-351-16-OPR
BRAND: Harvest Tec
SERIAL NUMBER:
This application preservatives for hay Harvest Tec system meets the Directive 2006/42/EC of the
European Parliment and the Council of 17 May 2006 and other applicable European Directives
including Directive 2004/108/EC on the Electromagnetic compatability.
The application of preservatives for hay Harvest Tec system will be turned on after being installed on
a farm press has been declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and
making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
Small Square Baler Models Operation Table of Contents
Page
Introduction
5
Model Reference Kit
5
Safety
5-6
Safety Sign Definitions
6
Preparing the applicator for operation
7-8
Filling the tank
7-8
Model 344,350 & 351
7
Model 345
8
Operation of the main ball valve
8
Connecting the power harness
8
Operation
9-10
Turn On / Off iPad
9
Downloading Harvest Tec App
9
iPad Integration Control Module
10
iPad Integration Control Module Light Signals
10
Bluetooth Receiver
10
Shutting Down the Hay App
11
Operating the Harvest Tec App
12-13
Device Selection
12
Demo Mode & Manual Selection
13
Recommended Preservative
13
Tab Descriptions
14
Automatic mode & Manual Mode
14
Diagnostics
14
Setup mode
14
Job records
14
Screen menus
15-17
Automatic mode
15
Manual mode
15
Setup mode
16
Job Records
17
First time and annual startup instructions
18
Checking and priming the pumps
18
Setting up system for initial use
19-20
Application rate
19
Selecting high and low tips
19
Baling rate
20
Operating Instructions
21-23
Automatic mode
21
Manual mode
22
Job records
23
Software versions
23
Maintenance
24-26
Maintenance schedule
24
Diagnostics & Filter bowl cleaning
24
Tips & tip screen, Tank lid cleaning
24
Dielectric grease connections
25
Rebuild pumps
25
Battery connections
25
Solenoid Valves
25
Miscellaneous maintenance
25

4
Table of Contents (continued)
Page
Winter storage
25
Wiring Diagram
26
Common Questions
27
Troubleshooting
28
Pin Outs
30-31
Parts breakdown
31-49
344 Base Kit
32
345 Base Kit
32
350 Base Kit
33
351 Base Kit
33
Pump Assembly
34
Star Wheel Sensors
35
Hoses & Drain Fill Kit
35
Controls and Wiring Harnesses
36
End of Bale Sensor Kits
36
300 Solenoid Packages
37
Parts Bags
38
Optional iPad Mini Mounting Kit
39
Optional iPad Display Kit
40
4409C Install kit
41
4410C Install kit
42
4412C Install kit
43
4415C Install kit
44
4416C Install kit
45
4485C Install kit
46
4502C Install kit
47
4506C Install kit
48
4507C Install kit
49
Notes
50
Warranty statement
51

5
Introduction
Read this manual carefully to ensure correct steps are done to operate the applicator. This applicator is
designed to apply Harvest Tec buffered propionic acid. Use of alternative products may cause complications.
Including inaccurate readings from the flow meter and damage to all parts. Resulting in the warranty being
void. The applicator can be installed on many square balers with the proper installation kit. Before installing the
unit on the baler, make sure you have the proper installation kit (See the chart below).
*Made for iPad®running the current iOS operating system
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
300 Series Applicators with serial number before THS07000 will require the THS to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6670C).
Hay App version must be at least 2.7.1 (or higher) to operate with the iPad Integration Module (030-6672C)
Model Kit Reference
Baler Make
Baler Model
Model Number
Installation Kit
Tank Size
AGCO
7105, 7110, 7115, 7120, 1835,
1837, 1837, 1841
344
4416C
55 Gallon
Case IH
8500 Series
344
4416C
55 Gallon
Case IH
SBX 520, 521
345
4409C
25 Gallon
Case IH
SBX 530, 540, 550, SB531,
SB541, SB551
345
4415C
25 Gallon
Case IH
SBX 530, 540, 550, SB531,
SB541, SB551
351
4415C
55 Gallon
Challenger
SB 34, 36, 44
344
4416C
55 Gallon
Freeman
270, 370
350
4506C
55 Gallon
Hesston
4550, 4570, 4590, 4600, 4655
344
4416C
55 Gallon
Hesston
4690N, 4690S
350
4502C
55 Gallon
John Deere
328, 336, 338, 346, 347, 348
345
4410C
25 Gallon
Massey Ferguson
1835, 1836, 1837, 1838, 1839,
1840, 1841, 1842
344
4416C
55 Gallon
Massey Ferguson
1843N, 1843S
350
4502C
55 Gallon
Massey Ferguson
1844N, 1844S
350
4485C
55 Gallon
New Holland
200, 300 Series, 565 & BC5050
345
4409C
25 Gallon
New Holland
570, 575, 580, BC5060,
BC5070, BC5080
345
4415C
25 Gallon
New Holland
570, 575, 580, BC5060,
BC5070, BC5080
351
4415C
55 Gallon
New Holland
585, BB900
350
4507C
55 Gallon
New Idea
7205, 7210, 7215
344
4416C
55 Gallon
Welger
AP630, AP730, AP830
345
4412C
25 Gallon
Safety
Carefully read all the safety signs in this manual and on the applicator before use. Keep signs clean and in
good working order. Replace missing or damaged safety signs. Replacement signs are available from your
local authorized dealer. See your installation manual or under the replacement parts section for the correct part
numbers.
Keep your applicator in proper working condition. Unauthorized modifications to the applicator may impair the
function and/or safety of the machine. Carefully read and understand all of the baler safety signs before
installing or servicing the baler. Always use the supplied safety equipment on the baler to service the
applicator.

6
Safety Signs Definitions
Number 1
Spraying hazard. Disconnect power before servicing the
applicator
Part no. DCL-8003
Number 2
Falling hazard. Do not step in this area.
Part no. DCL-8002
Number 3
Use caution when working around chemicals. Wear all
protective equipment according to the label of the
product.
Part no. DCL-8001
Number 4
Read and understand the operator’s manual before using or
working around the equipment.
Part no. DCL-8000
Number 5
Open (unlocked) and closed (locked) position of the ball valve.
Part no. DCL-8004

7
Preparing the Applicator for Operation
After the Applicator has been installed on the baler, follow the below steps to prepare for operating the
applicator both safely and correctly.

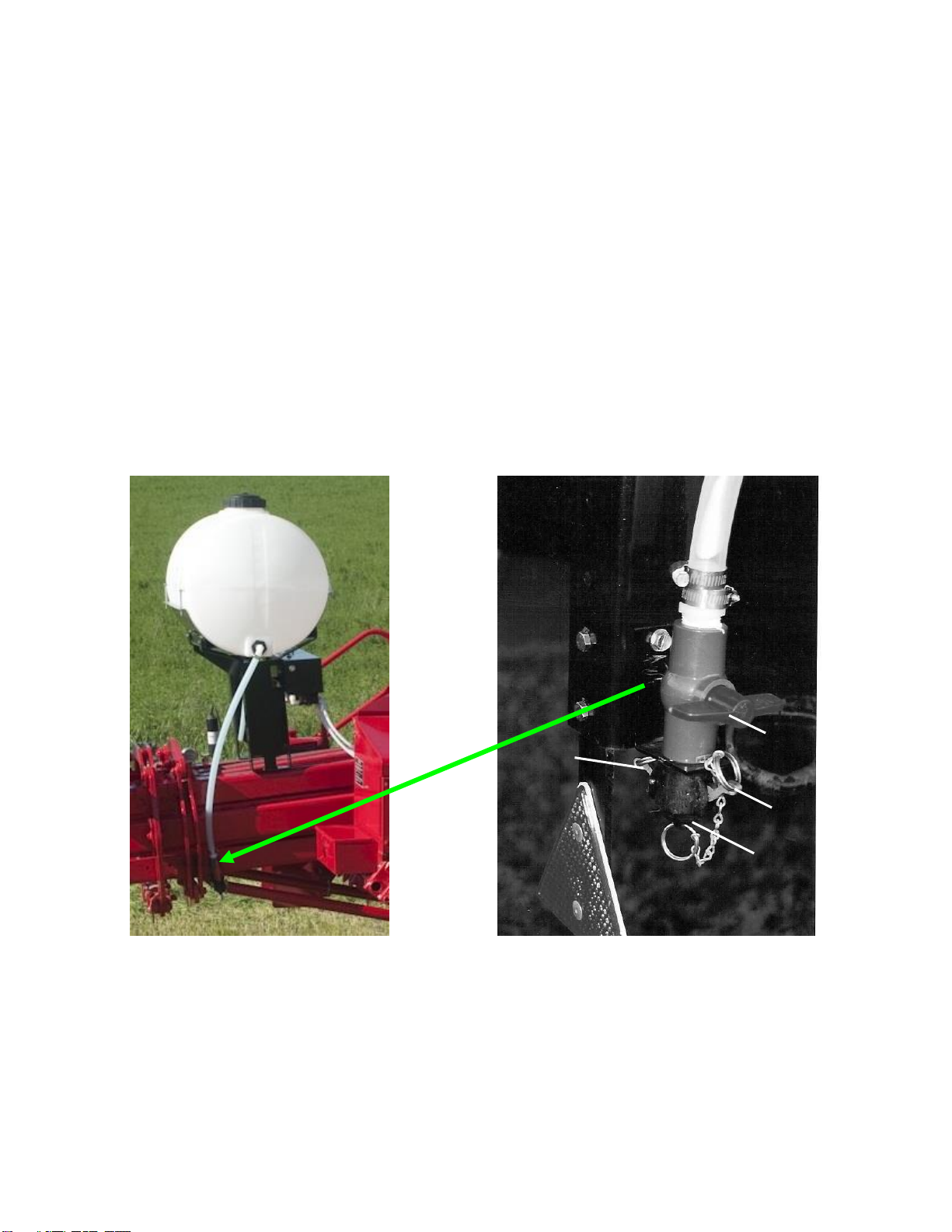

Filling the tank through the Drain / Fill kit (Model 344, 350 & 351)
Read the label of the product being filled into the tank to determine what individual protective measures need
to be taken. Locate the drain/fill line on the baler. Open the cam-couplers (A) and remove the protective plug
(B). Insert the male coupler (found on transfer pump) into the female cam and close the cams (A).
To open the ball valve (C) turn the handle so it is vertical. After the ball valve has been turned on switch the
pump to the On position. Monitor the level on the tank visually and shut off the pump before over filling. Once
the pump is turned off, close the ball valve and remove the male coupler.
The handle of the ball valve (C) will be horizontal when closed. Reinstall the protective plug and close the
cams. The Harvest Tec model 9212 transfer pump is recommended for this process.
Water is recommended for first time and annual start up procedures.
Drain/Fill line on the baler
A
A
B
C
Enlarged view of the drain/fill line valve
and cam-coupler assembly.

8
Filling the tank through the tank lid opening (Model 344, 345, 350, 351)
Read the label of the product being filled into the tank to determine what individual protective measures need
to be taken. Clean the tank lid area and unscrew the lid. Transfer product from the container into the tank.
Water is recommended for first time and annual start up procedures.
Operation of the Main Ball Valve
The ball valve should always be closed when the applicator is not being used. The valve should also be closed
when any service work is being done to the baler or applicator.

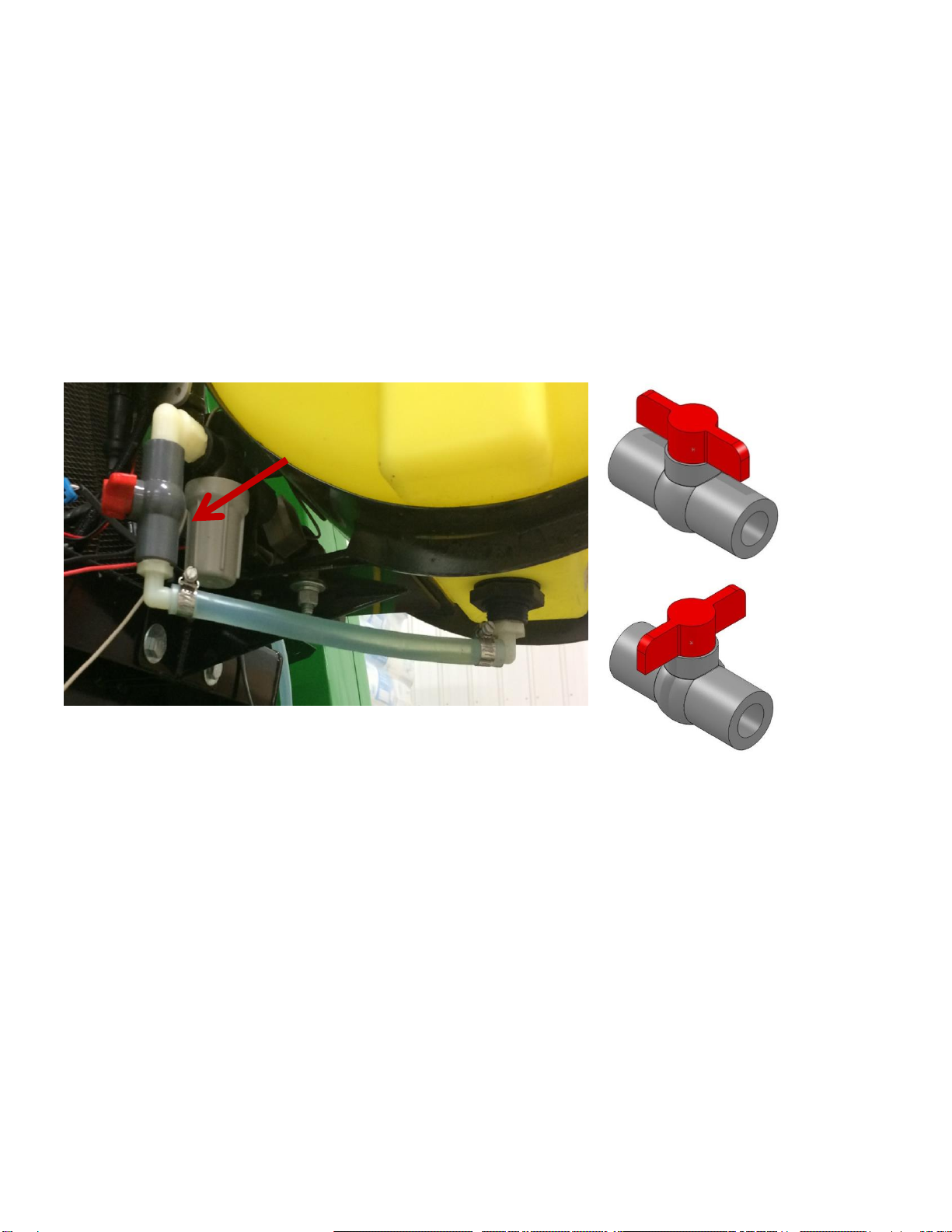

The valve is located next to the pump and by the applicator tank. The arrow below points at the valve.
Valve
open
Valve
closed
Connecting the power harness
The power harness that supplies power from the tractor battery to the applicator pump has a disconnect at the
hitch. Connect the two together for operation. Always disconnect before servicing the applicator or baler.
WARNING: Stop tractor engine and shift to park, set brakes and remove key before leaving the tractor.

9
Operation

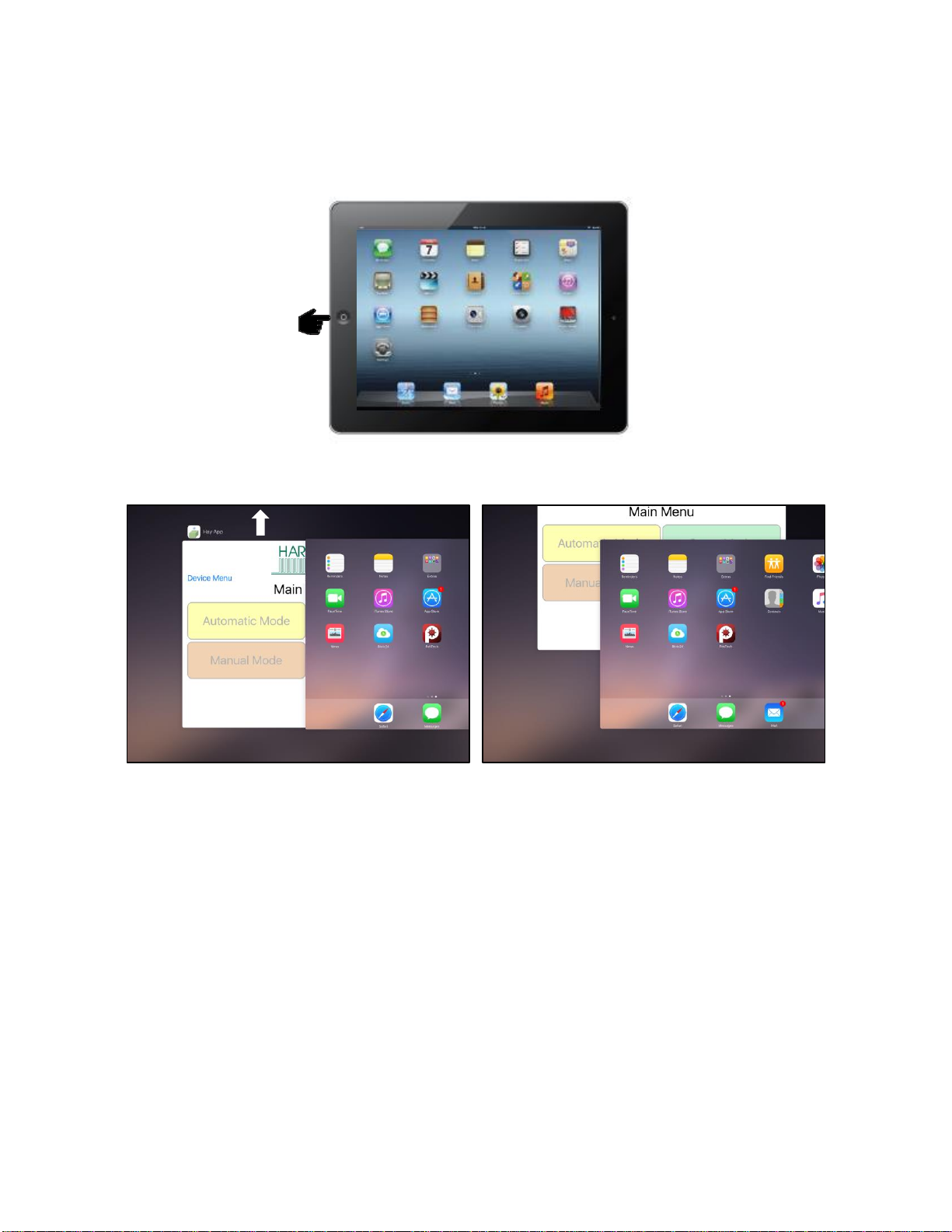

Turn On / Off iPad using the Sleep/Wake button
*(Info from Apple User’s Guide)
Turn iPad on. Hold down the Sleep/Wake button until Apple logo appears. iPad will take a moment to load.
You can lock iPad and put it to sleep when you’re not using it. Locking
iPad puts the display to sleep, saves the battery, and prevents
anything from happening if you touch the screen.
When you are not going to use the iPad for an extended period of time put the unit into sleep mode by pressing
the Sleep/Wake button. Press Sleep/Wake button to wake iPad and then unlock iPad by entering passcode.
Turn iPad off. Hold down the Sleep/Wake button for a few seconds until the slider appears onscreen, then drag
the slider to the right.

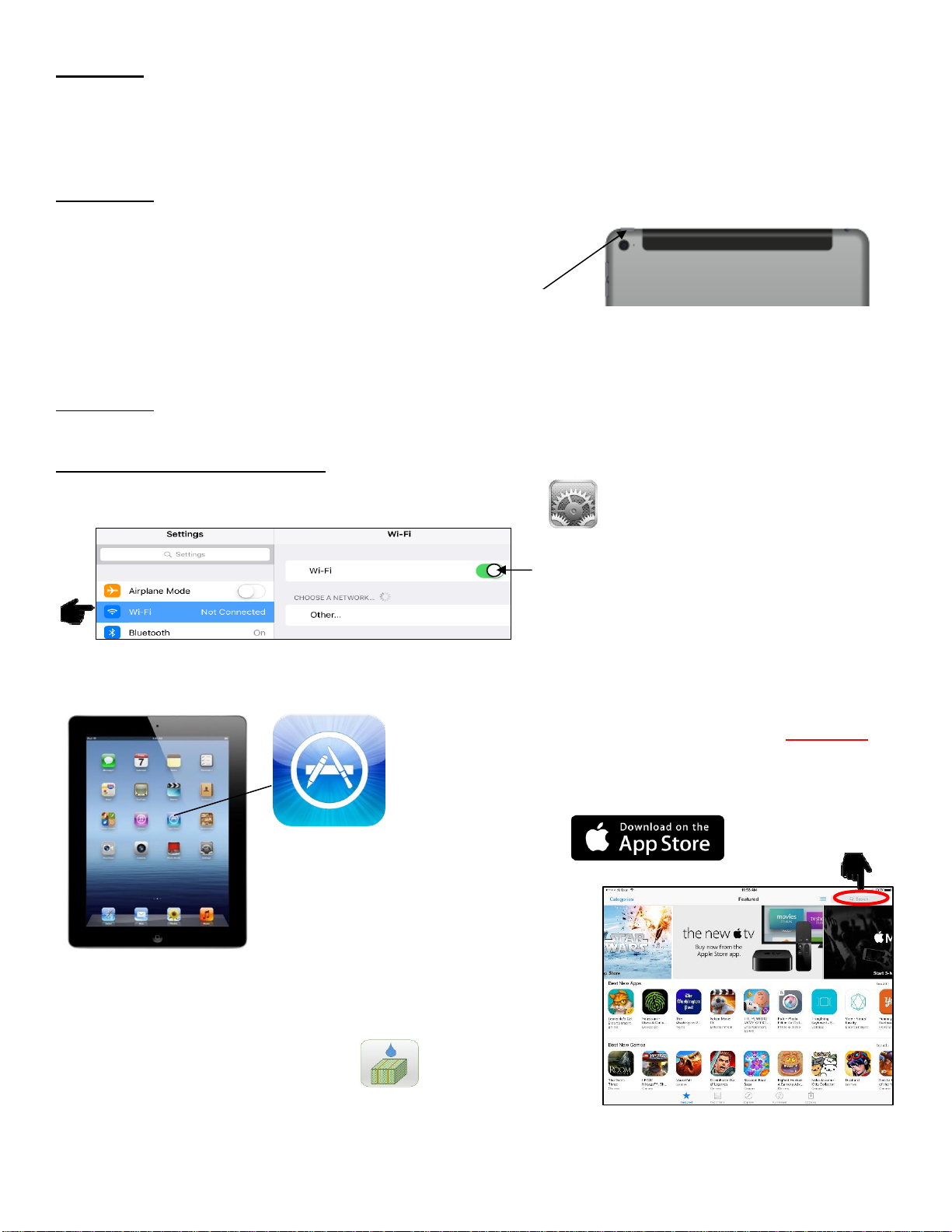

Downloading Harvest Tec App
1. If iPad does not have Wi-Fi turned on, select the Settings tab then select the Wi-Fi tab (below).
4. Select an available network when detected by the iPad, shown in area above that currently says ‘Other.’
5. Select App Store icon (below) and open. *You will need a Wi-Fi connection available to view App Store.
Download the Hay App in the App Store by searching for
‘Hay App’ in the search bar in the top right corner of screen (right):
*The advertisements displayed on the App Store screen will change.
The app will have the icon as shown:
Note: Made for iPad®running the current iOS operating system
Hay App
Sleep/Wake Button
2. Turn Wi-Fi on by sliding button to the right.
*Green bar indicates ON
3. Use same process to turn on Bluetooth function
**The Harvest Tec system WILL NOT
appear under the Bluetooth tab in the
Setting App. Open the Hay App to
connect.

10
iPad Integration Control Module
To operate the applicator, connect the iPad cord to the iPad
Integration Control in the port indicated by:
iPad Integration Control Light Signals
Green Slow Blink –Power supplied to the applicator system and the unit is going
through its startup process. This will take approximately 25-35 seconds.
Green Double Blink –Indicating the iPad module recognizes the iPad but the app is not open or connected.
Green Solid Light –Module is connected to the app and is ready to operate.
*Recommended to use the USB cable included with the applicator kit (006-6672USBC)
Bluetooth Receiver Lights
Pre-2020 applcaitors equipped with Bluetooth receivers (030-6672B)
are now equipped with lights to indicate both power and Hay App
connection on the Apple iPad. Clean light regularly
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –The Bluetooth receiver is connected to the Hay App.
300 Series Applicators with serial number before THS07000 will require the THS to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6670C).
Hay App version must be at least 2.7.1 (or higher) to operate with the iPad Integration Module (030-6672C)
*Made for Apple iPad badge
Use of the Made for Apple iPad badge means that an accessory has been designed to connect specifically to
the Apple product(s) identified in the badge and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with safety
and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless performance.
030-6672C

11
Shutting Down the Hay App
1. To shut down the Hay App double click the home button (Figure A). This will show the open apps that are
running on your iPad (Figure B).
*Note: By pressing the home button one time to return to the home screen, the Hay App does not shut
down. The system will however, stop applying preservative after 10 seconds.
2. Slide the app you want to shut down by sliding the app toward the top of the iPad, until the app is no longer
visible (Figure C).
Figure A
Figure B
Figure C

12
Operating the Harvest Tec iPad App
When ready to operate your applicator system, open the Hay App on the iPad by selecting the Hay App icon.
Device Selection
The app will open to the Device Menu screen as shown below.
Pre-2020 applicators which are equipped with the Bluetooth receiver (030-6672B) that are within range (20’) of
the iPad and have power going to them, will be shown under the Active Connections section (below) after the
initial startup of the system (35-45 seconds).
Production year 2020 applicator systems and beyond will include the iPad Integration Module 030-6672C,
shown on the previous page. When plugging in the iPad cord to the module the app will change to the
applicator Main Menu for immediate operation. Unplug the cord to return to the Device Menu page.
*Hay App version must be at least 2.7.1 (or higher) to operate with the iPad Integration Module (030-6672C)
The In-Active Connections section will show applicator systems that have been connected in the past, but are
not within range of the iPad or do not currently have power going to them (bottom left).
To remove a baler from the In-Active list, slide the bar displaying the baler name to the left, and select the
Delete button that will appear (bottom right).
After the iPad connects to
the Bluetooth receiver,
select the applicator you
want to connect with.

13
Operating the Harvest Tec iPad App (continued)
Demo Mode
Selecting the 300 Demo or 600 Demo button (below) will allow you to view the different screens of the
applicator without requiring connection to an applicator system.
*This function is intended to be used as a visual aid, no values will be displayed.
Manual Selection
Selecting the Manual button (below) displayed to the right of the baler name will open the operation manual for
your baler.
*You do not need to be connected to a baler to open the manual and recommended preservative tabs after a
baler has been connected.
Recommended Preservative
To view recommended preservative information, application rates, and frequently asked preservative
questions, select Recommended Preservative (below).

14
Operating the Harvest Tec iPad App (continued)

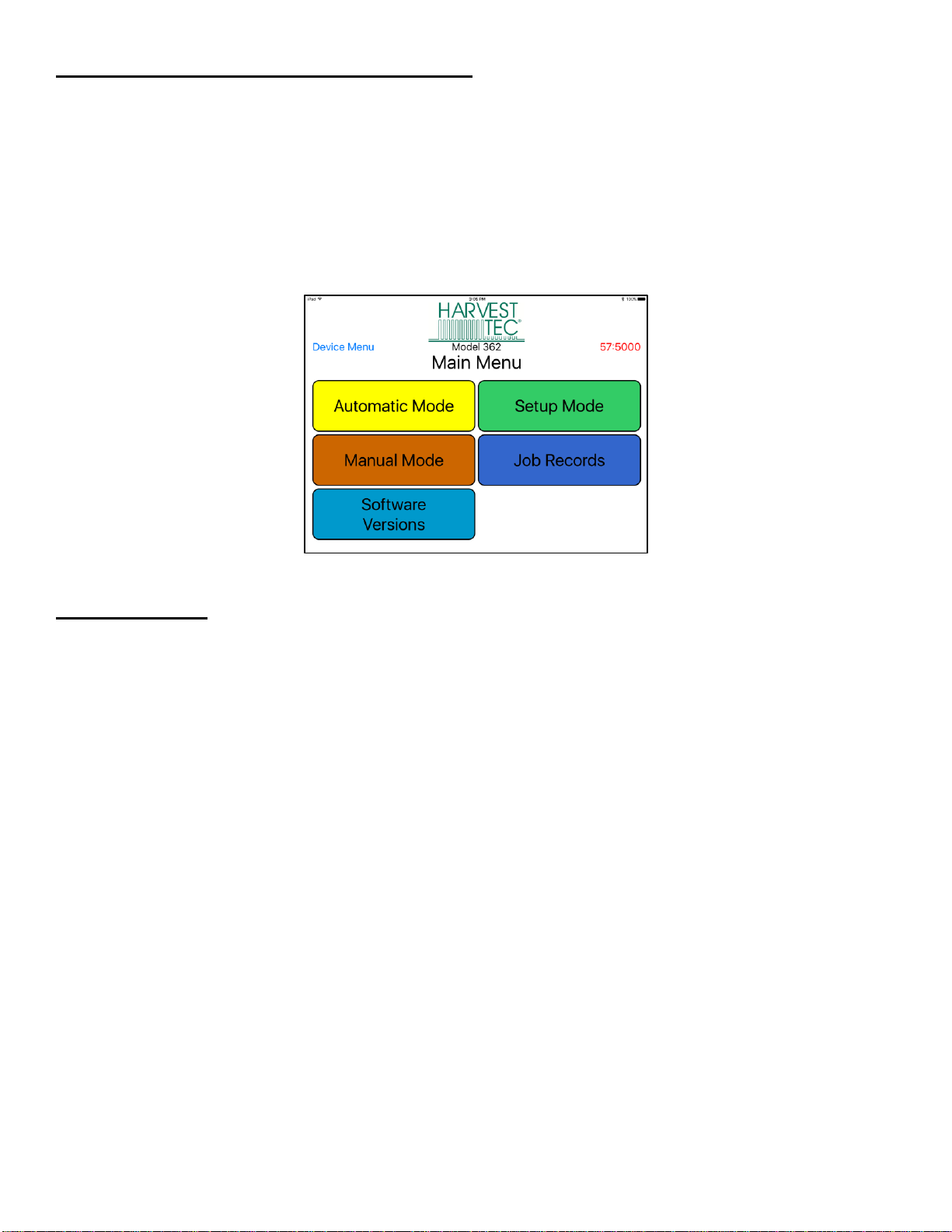

Once you have selected the baler you want to connect with from the Device Menu, the applicator main menu
will display (below).
Ensure the iPad Bluetooth function is turned on in the Settings App.
*The applicator system will not appear under the Bluetooth Devices in the Settings App upon initial connection.
You must open the Hay App to view the available devices by selecting the Device Menu. After you have
connected through the Hay App, the system will then appear under the Bluetooth Devices in the Settings App.
Tab Descriptions
Automatic Mode: This mode allows you to use all of the applicator features such as adjusting preservative
application on the go and counting total pounds of product used.
Manual Mode: Allows operator to manually turn pump on and off. This mode also has moisture content
displayed. Use this mode to prime pump.
Software Versions: This will allow you to view the current software versions running on the applicator.
Setup Mode: This mode allows the operator to adjust bale rate, application rate settings and select tip output.
Job Records: Keep track of up to 300 jobs with total product used, average moisture content, tons baled, and
baling date.
Device Menu: This button will take you back to the Device Menu to select an applicator to connect with.

15
Screen Menus

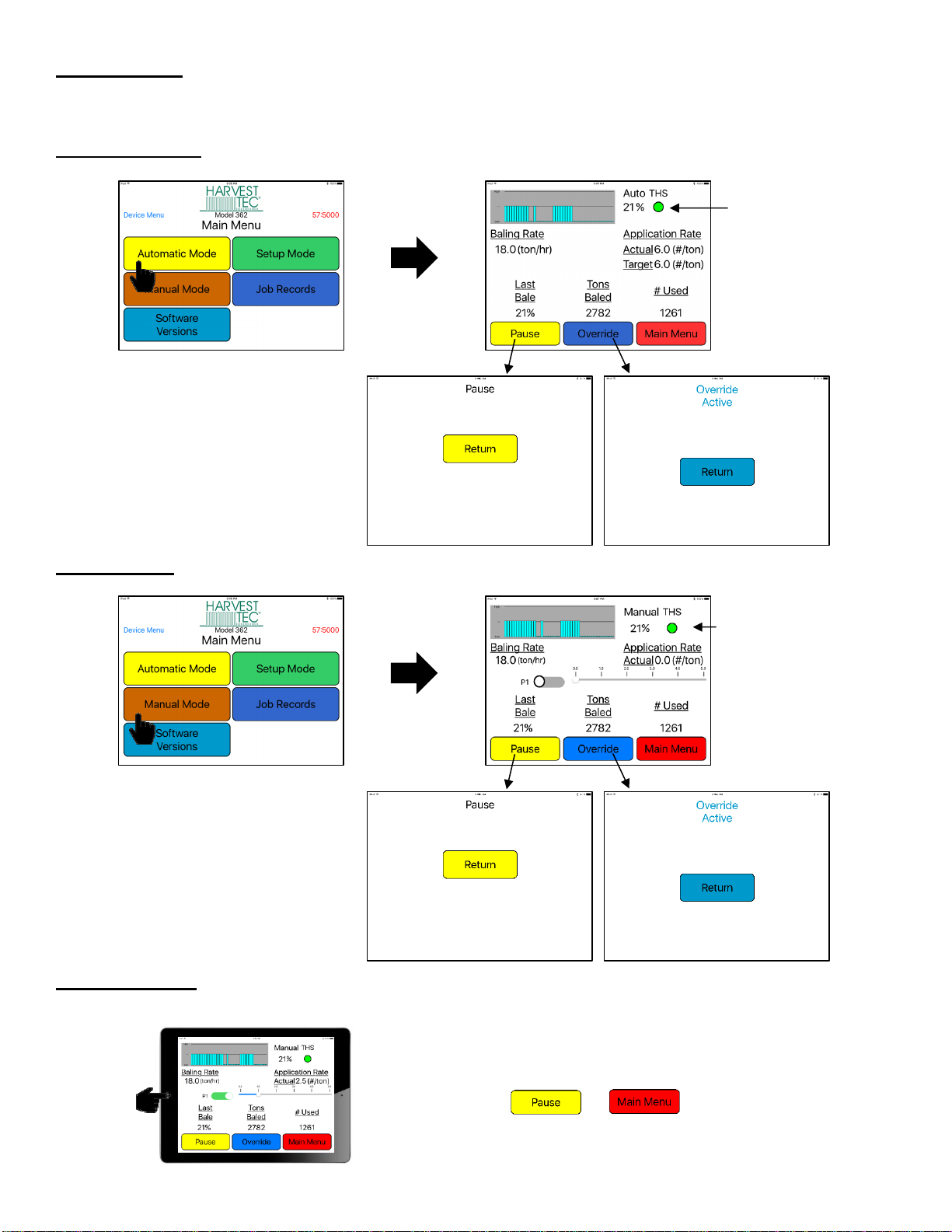

Use the screen shots below to navigate through the operation screens.
Automatic Mode
Manual Mode
Operation Note:
Pressing the Home Button on the iPad WILL NOT stop application of the Harvest Tec System (see below):
Select or to stop application
*To close app see the Shutting Down Hay App Section
Bluetooth Connection Indicator
Green
-iPad is connected
Yellow
-iPad connecting
Red
-iPad not connected
Bluetooth Connection Indicator
Green
-iPad is connected
Yellow
-iPad connecting
Red
-iPad not connected

16
Setup Mode
*All values can be changed
*All values can be changed
Slide option to right to turn On

17
Job Records
Select New Job to create a new job
record
Type in Field Name and press Create
Job
Select Job Details to view
job records
Select the Up and Down arrows
to view different jobs
Software Versions
*This is an Example,
Software Versions will change

18
First Time and Annual Startup Instructions
THE UNIT MUST BE CHECKED OUT BEFORE FIELD OPERATION!
Check and Prime the Pumps
1. Put 10 gal (5L) of water or preservative in tank and turn main ball valve on.
2. Inspect for any leaks or drips at this time. If any are found tighten or replace area or fitting.
3. Turn controller on.
4. Press the SETUP MODE key. Turn the AVG Bale weight to 100 lbs (45kg), and Time Per Bale to 10
seconds and turn off the bale rate timer. Press the MAIN MENU key to return to the opening screen.

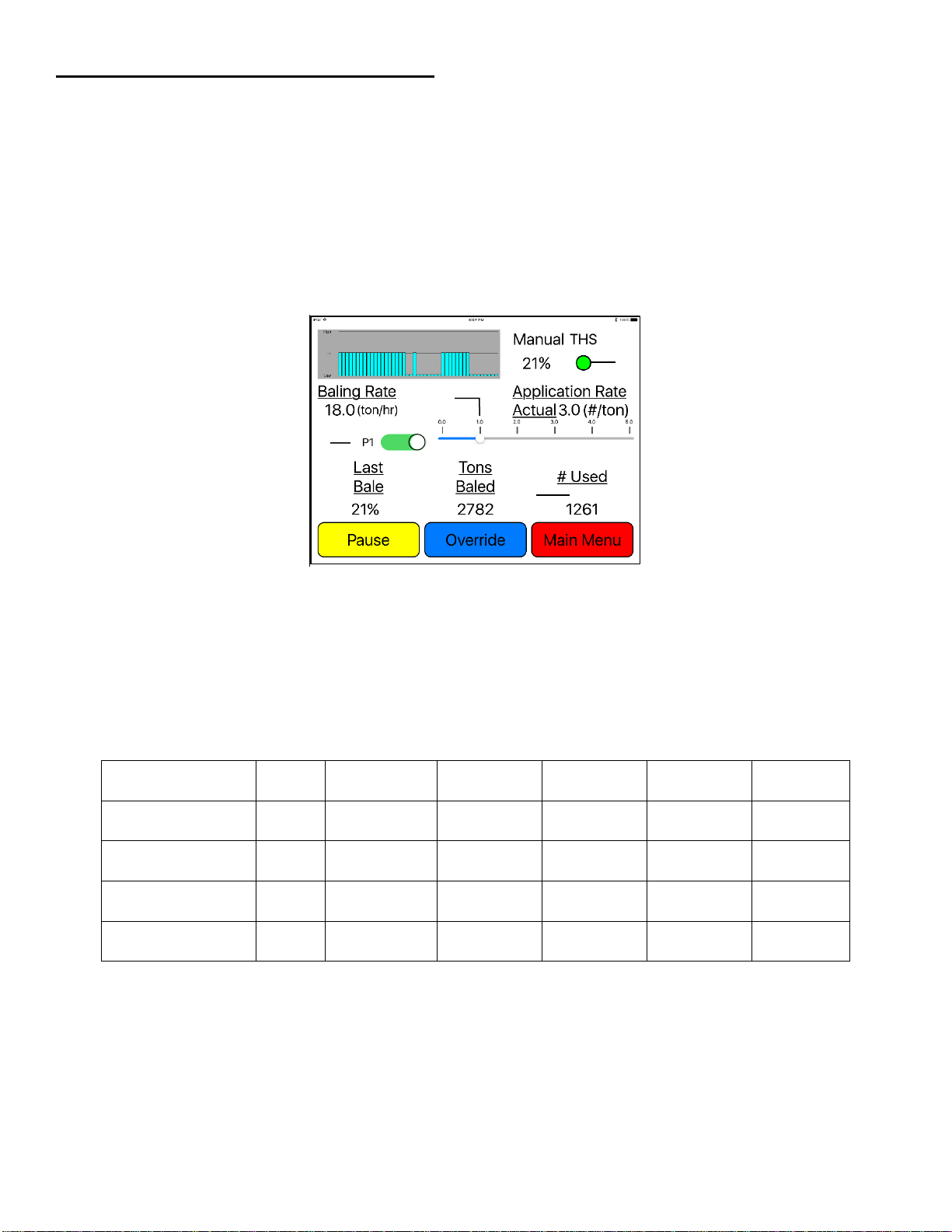

5. Press the MANUAL MODE key and the screen shown below will appear.
iPad
*Note: The system comes with the high tips already installed on the spray shield. Test the system with the tips
you will use most often.
6. Turn the pump on (P1). To turn the pump on slide the button next to P1 to the right. This will turn the bar
next to P1 green, indicating the pump is on.
7. Set the pump output to setting 1.0.
8. Move the pump output settings to 2.0, 3.0, 4.0 and 5.0. With the baling rate set at 18 tons/hr, the
application rate actual reading should be:
9. This process will also be used to prime the pump whenever needed.
10. While running pump check for a good spray pattern out of the respective tips and verify that no parts of the
system are leaking.
11. While doing these tests the Volume Used on the bottom of the screen will be increasing, this verifies that
the flow meter is functioning.
12. The THS (Three Hundred Series) button displays your connection signal with the Bluetooth receiver. Green
–THS is connected, Yellow –THS is connecting, Red –THS not connected.
13. Press main menu to return to the initial startup screen. Go to Setup Mode, select Baling Rate Setup and
reset your Avg Bale Weight, the time per bale and turn the Bale Rate Timer on.
Testing Liquid
Tips
Level 1.0
#/Ton (L)
Level 2.0
#/Ton (L)
Level 3.0
#/Ton (L)
Level 4.0
#/Ton (L)
Level 5.0
#/Ton (L)
Water
Low
2.8-3.3
(1.2-1.4)
3.6-4.2
(1.5-1.8)
4.6-5.4
(2.0-2.3)
5.8-6.8
(2.5-2.9)
8.2-9.7
(3.5-4.1)
Water
High
3.4-4.0
(1.5-1.7)
6.1-7.1
(2.6-3.1)
9.5-11.2
(4.1-4.8)
14.6-17.2
(6.3-7.4)
17.7-20.8
(7.6-8.9)
Preservative
Low
1.4-1.6
(.6-.7)
2.7-3.1
(1.1-1.3)
3.8-4.5
(1.6-1.9)
5.1-6.0
(2.2-2.6)
6.4-7.5
(2.7-3.2)
Preservative
High
1.9-2.3
(.8-1.0)
4.7-5.5
(2.0-2.4)
8.4-9.8
(3.6-4.2)
13.3-15.6
(5.7-6.7)
18.1-21.3
(7.8-9.1)
11
11
6
7

19
Setting Up the System for initial use with the iPad
In this mode you will setup your initial application rate and baling rate.
Application Rate

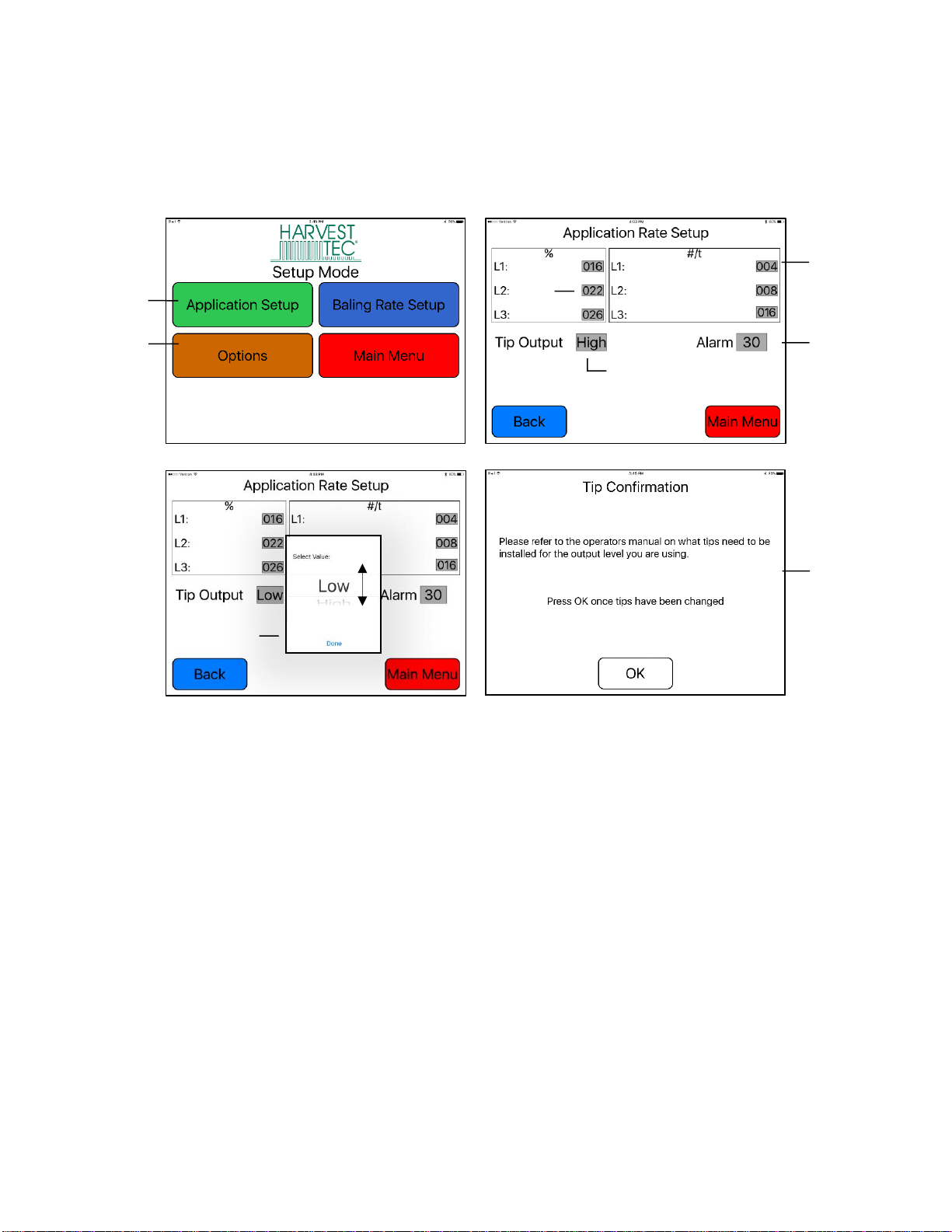

After pushing the SETUP MODE key in the Main Menu screen, the top left screen will appear:
1. On the Setup Mode screen press the APPLICATION RATE key. Once selected the SETUP APPLICATION
RATE screen will be shown. (Top right picture)
2. Press any of the grey number values to the right of %MC to adjust their figures. The scroll pad shown on
the bottom left will display. Remember level 1 must be lower than level 2 and level 2 must be lower than
level 3. Press Done, when value has been selected. Harvest Tec products recommend set points of 16, 22,
and 26 % MC levels. These are preset from the factory. Press Back to return.
3. To change rate of chemical application, press any of the grey number values to the right of RATE.
Remember level 1 must be lower than level 2 and level 2 must be lower than level 3. Press Done, when
value has been selected. Harvest Tec products recommend rates of 4, 8, and 16 lbs/ton (2,3,8 L/MT).
These rates are preset from the factory. Press Back to return to previous screen. IT IS THE OPERATORS
RESPONSIBILITY TO FOLLOW THE RECOMMENDATIONS OF THE PRESERVATIVE. ONLY THE
OPERATOR CAN APPLY THE PROPER RATE.
4. To set the alarm, press the grey number value and set the level at which you want the alarm to activate. To
turn the alarm off, set level above 50.
5. Press the grey area next to Tip Output to cycle between the high and low sets of tips. Use the correct
tip set for the field conditions.
6. The menu will appear to choose between Low and High Output tips. Based on 4, 8, 16 #/Ton application
rates, select the one that best represents your ton/hr rate: Low 3-7 Ton/hr, High 4-25 Ton/hr.
7. The tip confirmation screen will appear. Press OK once tips are changed.
8. Next press the BACK key found on the bottom left hand figure of the screen to return to SETUP MODE
screen or press MAIN MENU key on bottom right hand figure of the screen to return to opening screen.
9. Press OPTIONS to adjust the unit between metric and standard units.
2
1
3
4
9
5
7
6

20
Baling Rate Settings –Small Square Balers
After pushing the SETUP MODE key in the Main Menu screen, the screen on the left will appear:
1. On the setup mode screen press the BALING RATE SETUP key.
2. Press the grey number value to the right of AVG Bale Weight (Lbs). To adjust the weight of your bales, the
scroll tool shown on the right will display. Scroll through the values to select correct information, press
DONE when value has been selected. The information will be saved until updated. Use the same
procedure for adjusting time per bale.
3. Small square balers are equipped with a Bale Rate Timer which can be turned ON by sliding the bar to the
right as shown above. A green bar indicates that the bale rate sensors are on. While a grey bar means the
bale rate sensors are off.
Note: Bale rate sensors are used instead of a fixed time per bale to help determine a real time ton per hour
reading.
4. Press the BACK key found on the bottom left hand figure of the screen to return to SETUP MODE screen
or press the MAIN MENU key to return to the opening screen.
3
