Harvest TEC 696 User manual

1
696-16-OPR
12/19
Operation Manual
Model 696
100 & 110 Gallon Preservative Applicator
Forage Harvester

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec Inc.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press and for the application of innoculants onto forage crops.
MODEL: 696-16-OPR-BLE
BRAND: Harvest Tec
SERIAL NUMBER:
This application preservatives for hay Harvest Tec system meets the Directive 2006/42/EC of the European Parliment and
the Council of 17 May 2006 and other applicable European Directives including Directive 2004/108/EC on the
Electromagnetic compatability.
The application of preservatives for hay Harvest Tec system will be turned on after being installed on a farm press has
been declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
Harvest Tec Model 696 Operations Table of Contents
PAGE
Introduction
5
System Requirements
5
Installation Kit Reference Chart
5-6
Safety
Safety Decals
6
7
Safety Sign Locations
8
Preparing the Applicator for Operation
9-10
Filling the tank
9
Connecting power and communication harnesses
10
Operation of the main ball valve
10
Krone ISOBUS Integration (optional)
10
Operation
11-23

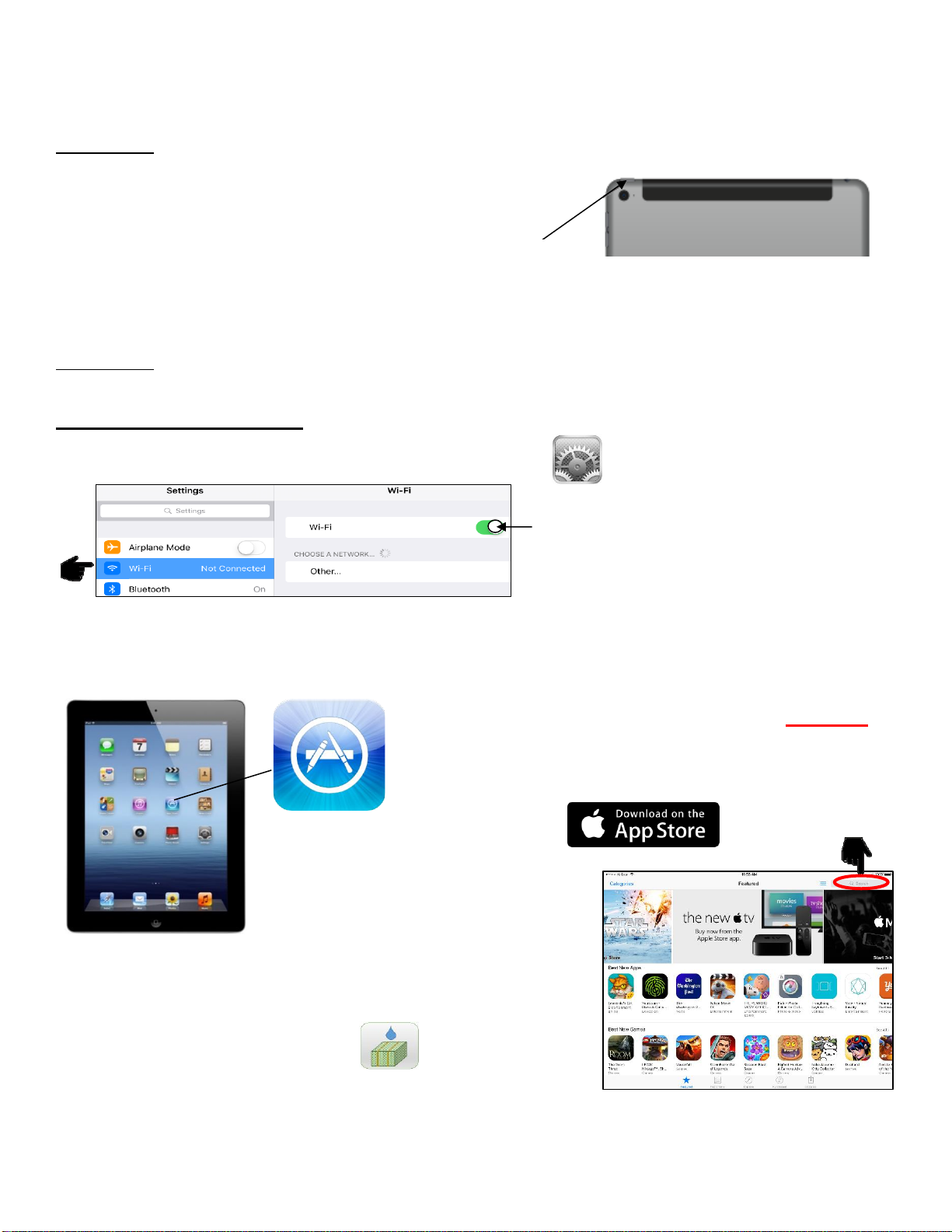

Downloading the Harvest Tec App
11
iPad Integration Control Module
12
iPad Integration Control Light Signals
12
Bluetooth Receiver Lights
12

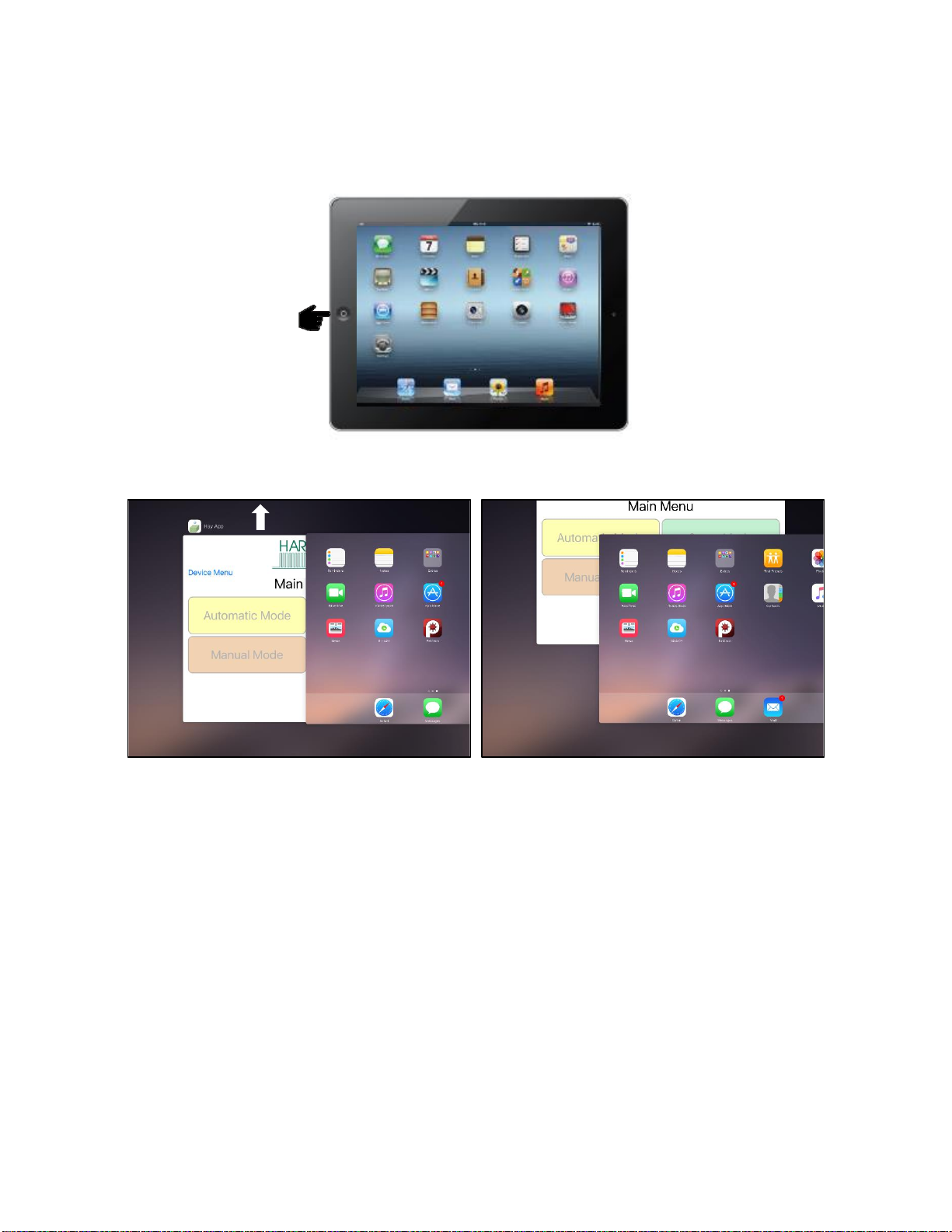

Shutting Down the Hay App
13
Device Selection
14
Manual Selection & Recommended Preservative
15
Tab Descriptions
16
Screen Menus
17-23

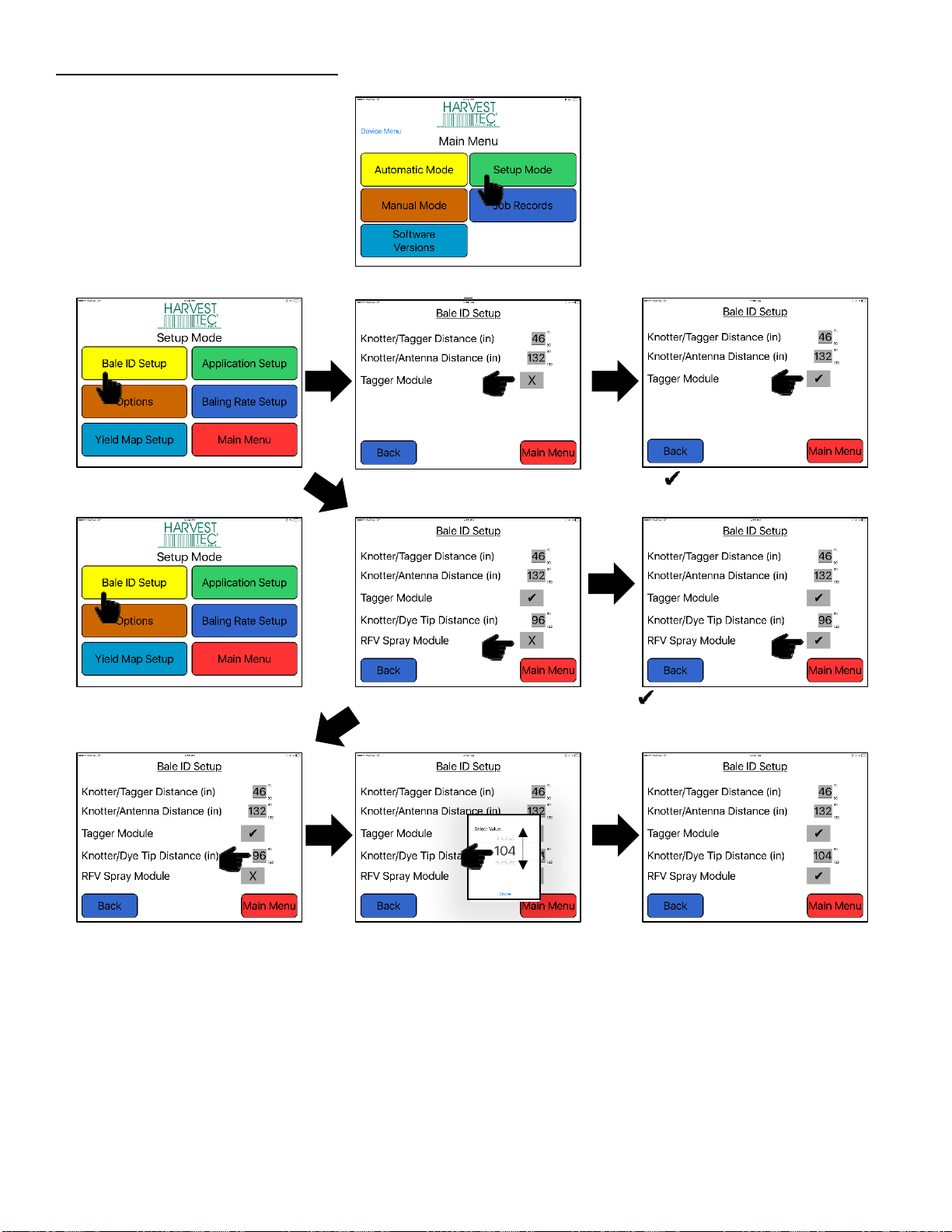

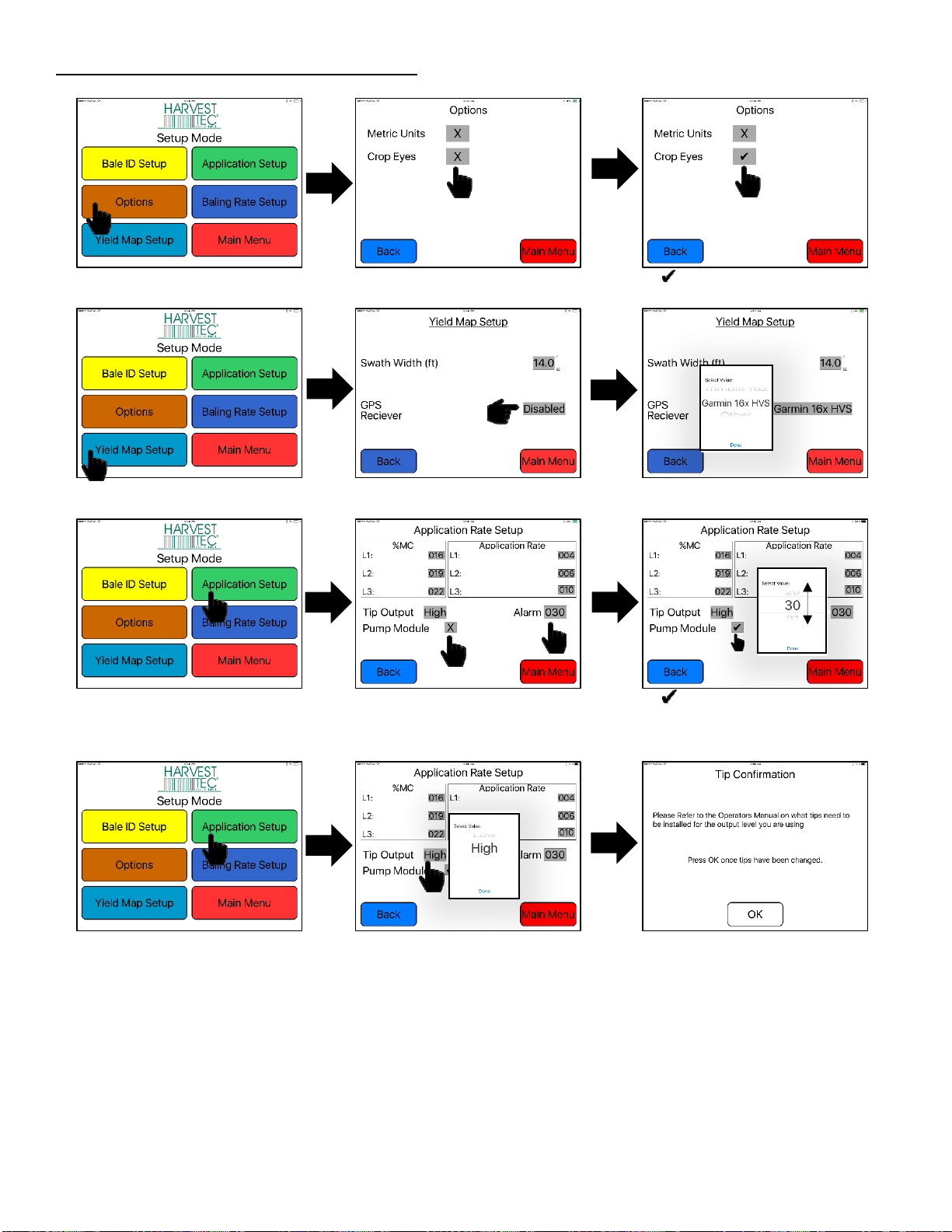

Setup Mode
18-24
Software Versions
21
Job Records
22-23
First time and Annual Startup
24
Setting up System for Operation
25-33
Application Rate & Bailing Rate
25
Bailing Rate Settings –Baler Sensors
26
RFV Setup
26
Operating Instructions
28-33

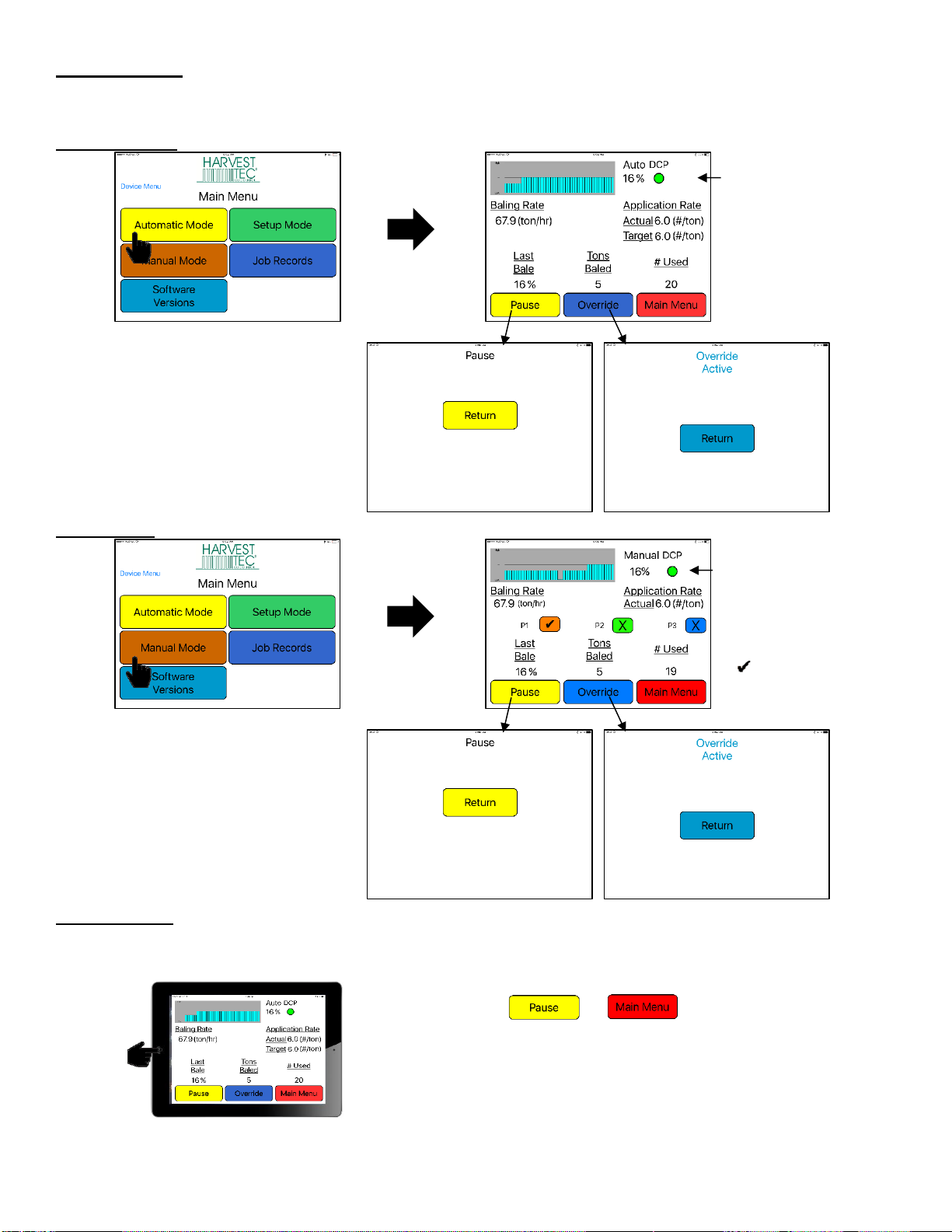

Automatic Mode
28
Manual mode
29
Job Records
30
Download Job Records
31
Export Job Records
32-33
Wiring Diagram –Krone ISOBUS Integration (optional)
34
Wiring Diagram
35
Maintenance
36-38
Maintenance Schedule, Diagnostics, Filter Bowl Cleaning
36
Tips & tip screen cleaning
37
Tank Lid Cleaning & Dielectric grease connections
38
Rebuild pumps & Battery connections
38
Check valves & Miscellaneous maintenance
38
Winter Storage
39
Status Alerts
39
Pin Outs
40-42
Common Questions
43
Troubleshooting
44-45
iPad Troubleshooting
46
Parts Breakdown
47-80
Tank, Saddle & Legs 100 Gal Tank
47
Tank, Saddle & Legs 110 Gal Tank
47-49
Pump manifold
50
Star wheel sensors
51

4
Table of Contents
PAGE
Control boxes and wiring harnesses
52
Hose and drain/fill line
53
Optional iPad Mini Mounting Kit
54
Optional iPad Display Kit
55
Installation kits specific to balers
Install Kit 4438B
56
Install Kit 4439B
57
Install Kit 4490B
58
Install Kit 4491B
59
Install Kit 4492B
60
Install Kit 4494B
61
Install Kit 4495B & 4528B
62
Install Kit 4497B & 4529B
63
Install Kit 4498B
64
Install Kit 4499B
65
Install Kit 4500B
66
Install Kit 4501B
67
Install Kit 4509B
68
Install Kit 4510B
69
Install Kit 4511B
70
Install Kit 4514B
71
Install Kit 4515B
72
Install Kit 4525B
73
Install Kit 4525JB
74
Install Kit 4537B
75
Install Kit 4539B
76
Install Kit 4540B
77
Install Kit 4540BX
78
Install Kit 4541B
79
Install Kit 4541BX
80
Notes
81-82
Warranty statement
83

5
Introduction
Thank you for purchasing a Harvest Tec Model 696 Hay Preservative Applicator. This 696 applicator system
has been designed to be operated through an Apple iPad (not included) using the Hay App. As well as the
option to plug directly into most tractors that have an ISOBUS Monitor. The 696 Applicator System offers these
advantages by operating through an Apple iPad:
1. Large bright, clear, colorful display
2. More durable and can be read in bright sunlight
3. Can be used for multiple other uses than just the applicator display
4. Option to tie-into the tractor ISOBUS system
The 696 Hay Preservative Applicator System is designed to apply buffered propionic acid to the forage crop as
it is baled and will adjust the rate of application based on moisture and tonnage of the crop being harvested.
The model 696 base kit includes: tank, frame, pumps, hose, and the Dual Channel Processor (DCP). This
manual will take you through the steps for installing the applicator. If you are unsure about installing the system
after consulting this manual, contact your local authorized dealership for additional assistance. If you are in
need of parts for the system please see the parts breakdown in the back of this manual and contact your local
authorized dealer to order the parts. This applicator is designed to apply Harvest Tec buffered propionic acid.
Right and Left sides are determined by facing in the direction of forward travel.
*Made for iPad®(3rd through Pro 2nd generation), running the current iOS operating system
or one version previous required for iPad option
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
**600 Series Applicators with serial number before DCP27000 will require the DCP to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6672C).
*Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module
If choosing to operate the unit though the ISOBUS monitor, pn 006-6670A will need to be ordered through your
local equipment dealer. 2018 Krone balers (and beyond) Serial Number 976909 will need pn 006-6650VAK.
Attention:
For kits on 2010 Krone HDP balers and newer Krone part number 20 073 194 0 must be ordered to mount the
star wheels.
Please see attached supplemental manual for further instructions.
Installation Kit Reference Chart
BALER MAKE
MODEL
INSTALL KIT
AGCO
Hesston
4750 - 4755
4760
4790
4900 - 4910
4760 roto-cutter
4790 roto-cutter
7430
7430 roto-cutter
030-4490B
030-4494B
030-4492B
030-4491B
030-4500B
030-4501B
030-4494B
030-4500B
Case IH
8570 - 8575
8585
8580 - 8590
LBX331 - 332 STD or packer
LBX431 - 432 STD or packer
030-4490B
030-4492B
030-4491B
030-4495B
030-4495B

6
LBX331 -332 roto-cutter
LBX431 - 432 roto-cutter
LB333 - 433 STD or packer
LB333 - 433 roto-cutter
LB 433 STD or packer (2011-2012)
LB 433 roto-cuter (2011-2012)
030-4497B
030-4497B
030-4495B
030-4497B
030-4528B
030-4529B
Challenger
LB33
LB34
LB44
030-4494B
030-4492B
030-4491B
Claas
2200/1200/3200/3400
2100
3300
030-4499B
030-4509B
030-4537B
Krone
VFS 88
VFS 88 cutter
VFS 128
VFS 128 cutter
890-12130 XC
890-12130
BP 4x4, BP 4x4 HS
890 XC High Speed
1270,1290, 1290HDP, 4x4 XC HS
030-4498B
030-4495B
030-4498B
030-4495B
030-4514B
030-4515B
030-4539B
030-4540B
030-4541B
Kuhn
LSB 870 - 890
LSB 1270 - 1290
Omni-cut
030-4510B
030-4511B
030-4525B
Massey
Ferguson
2050
2050 roto-cutter
030-4494B
030-4500B
New Idea
7233
7234
7244
7333
030-4490B
030-4492B
030-4491B
030-4494B
New Holland
590 - BB9080 STD or packer
BB940 - BB9080 roto-cutter
BB9080 STD or packer (2011-2012)
BB9080 roto-cutter (2011-2012)
030-4495B
030-4497B
030-4528B
030-4529B
Taarup
6570 - 6570 OC
6670 - 6690 OC
030-4510B
030-4511B
Vermeer
SQ2731
SQ3347
030-4438B
030-4439B
Vicon
LB 8200
LB 12200
030-4510B
030-4511B
Safety
Carefully read all the safety signs in this manual and on the applicator before use. Keep signs clean and
visible. Replace missing or damaged safety signs. Replacement signs are available from your local authorized
dealer. See your installation manual under the replacement parts section for the correct part numbers.
Keep your applicator in proper working condition. Unauthorized modifications to the applicator may impair the
function and/or safety of the machine.
Carefully read and understand all of the baler safety signs before installing or servicing the baler. Always use
the supplied safety equipment on the baler to service the applicator.

7

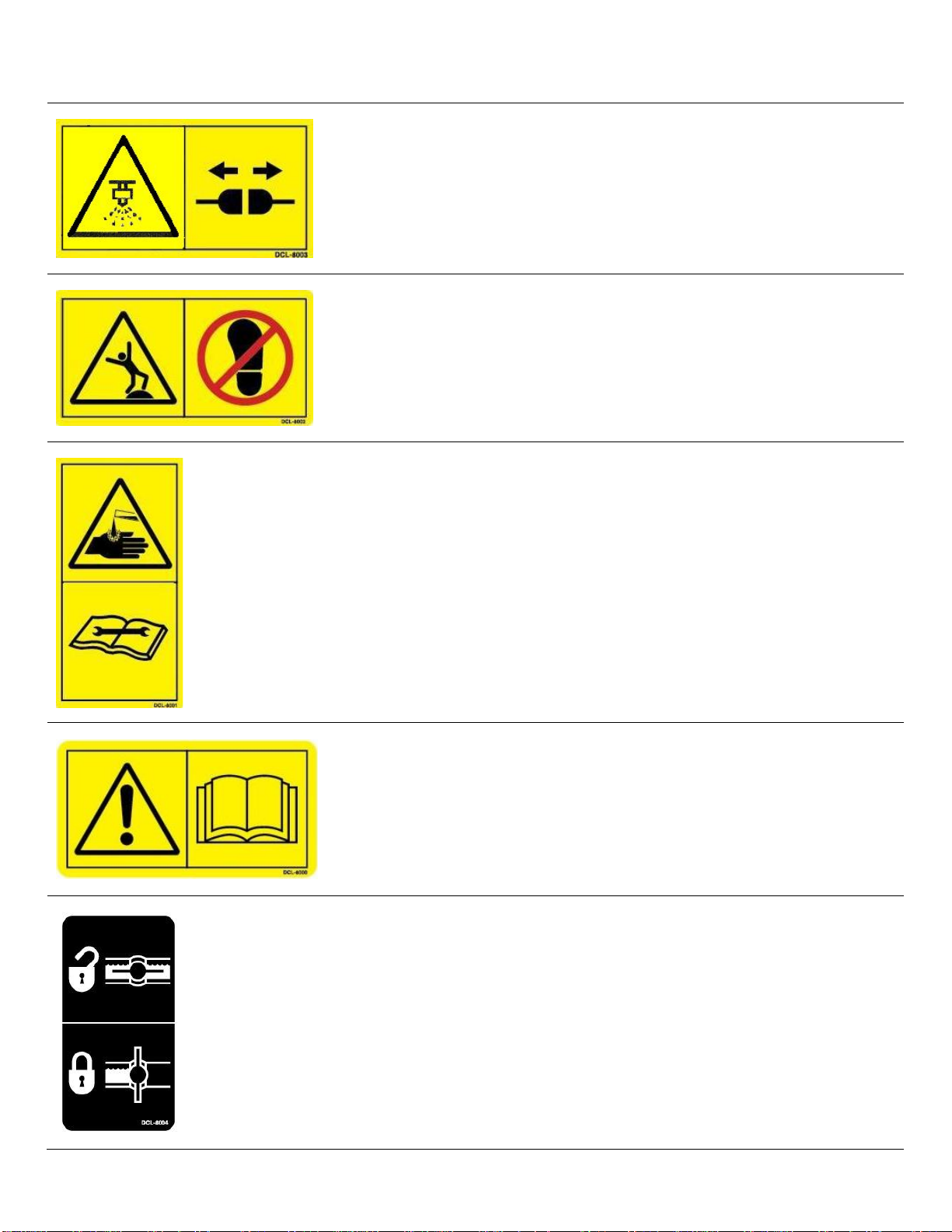

Safety Decals
Number 1
Spraying hazard. Disconnect power before servicing the
applicator
Part no. DCL-8007
Number 2
Falling hazard. Do not step in this area.
Part no. DCL-8002
Number 3
Use caution when working around chemicals. Wear all
protective equipment according to the label of the
product.
Part no. DCL-8006
Number 4
Read and understand the operator’s manual before using
or working around the equipment.
Part no. DCL-8000
Number 5
Open (unlocked) and closed (locked) position of the ball
valve.
Part no. DCL-8004

8
Safety Sign Locations
3, 4, 5
1
2
3, 5

9
Preparing the Applicator for Operation
After the Applicator has been installed on the baler, please follow the steps below to prepare for operating the
applicator both safely and correctly.
Filling the tank:
Read the label of the product you choose to fill the tank to determine individual protective measures you the
operator should take. Locate the drain/fill line on the right side of the baler. Open the cam-couplers (A) and
remove the protective plug (B). Insert the male coupler (found on transfer pump) into the female cam and
close the cams (A). To open the ball valve (C) turn the handle so it is vertical. After the ball valve has been
turned on switch the pump to the On position. Monitor the level on the tank visually and shut off the pump
before over filling. Once the pump is turned off, close the ball valve and remove the male coupler. The handle
of the ball valve (C) will be horizontal when closed. Reinstall the protective plug and close the cams. The
Harvest Tec model 9212 and 9215 transfer pumps are recommended for this process.
Water is recommended for first time and annual start up procedures.
Connecting Power and Communication Harness
The harnesses are located at the front of the baler near
the hitch and at the back of the tractor near the drawbar.
See arrow below. Make sure all connection wires are free
between the hitch of the baler and the back of the tractor,
especially when tractor is turning away.
WARNING: Stop tractor engine and shift to park or
neutral, set brakes and remove key before leaving the
tractor.
Drain/Fill line on right side of baler
A
A
B
C
Enlarged view of the drain/fill line valve
and cam-coupler assembly.

10
Operation of the Main Ball Valve
The ball valve shall be closed at all times when the applicator is not being used. The valve shall also be closed
when any service work is being done to the baler or applicator.
The ball valve is located on the left side of the baler, connected to the pumping manifold. See arrow below.
Krone ISOBUS Integration (optional)
*Refer to the Installation Manual for details on connecting the system to the ISOBUS.
Harvest Tec applicators will now be able to display on a split-screen ISO terminal, the CCI1200, offered with
Krone balers. The moisture can also be shown on the baler’s operating screen but the split-screen setup is the
recommended option from Harvest Tec for the monitoring of all critical system functions such as moisture,
application and bale information.
All 2018 (and beyond) Krone balers (starting with SN 976909) will be
capable of running through the ISOBUS. If unsure, balers with a
software version structured similar to the screen shot below will be
capable (right):
After the integration harness is hooked up, you should see a status
bar as the ISO display loads the Harvest Tec display information.

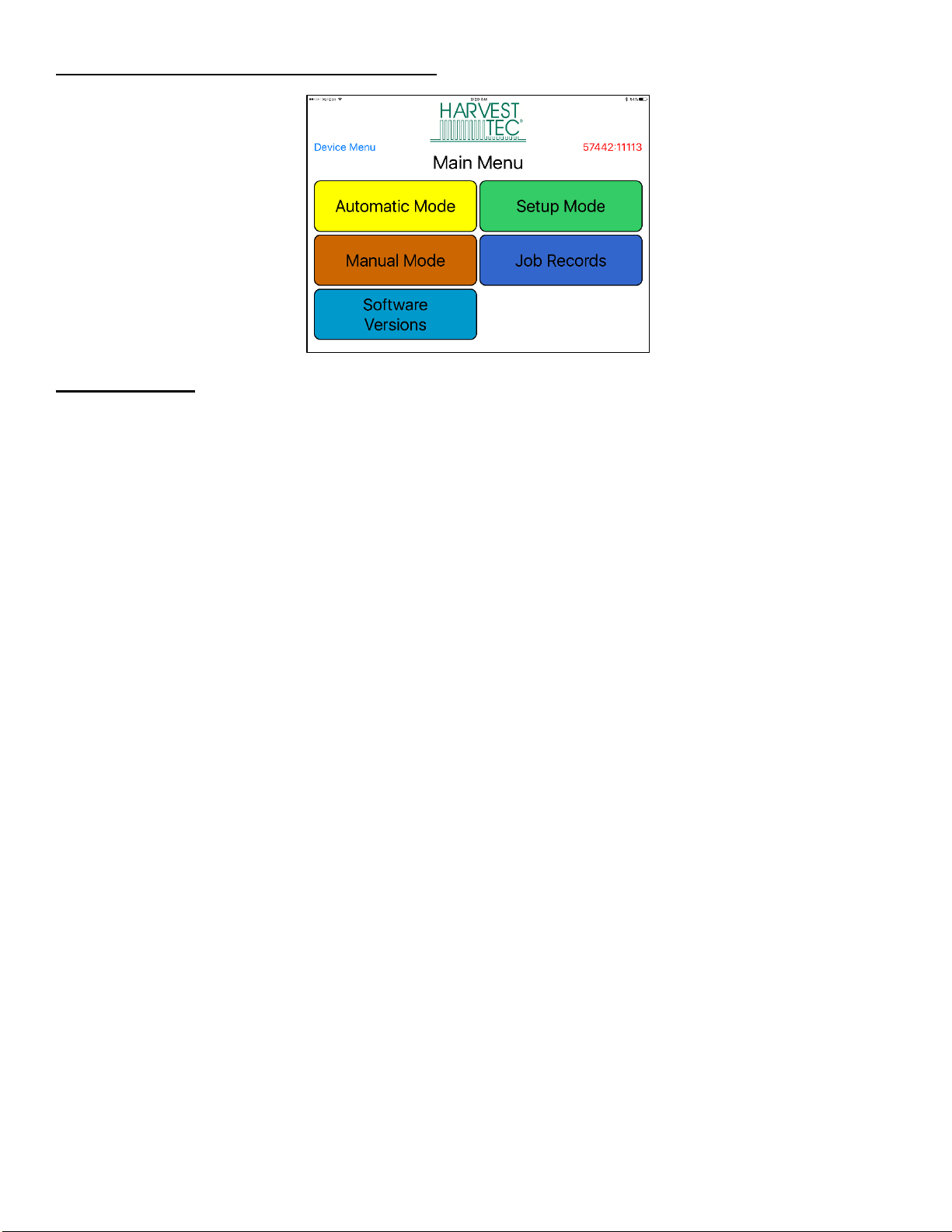

After loading, the Harvest Tec system Main Menu will be visible on
the terminal. (as pictured below)
For information on how to configure the CCi1200, please reference the manufacturer’s operation manual.
Open valve position
Closed valve position

11
Hay App
Turn On / Off iPad using the Sleep/Wake button
*(Info from Apple User’s Guide)
Turn iPad on. Hold down the Sleep/Wake button until Apple logo appears. iPad will take a moment to load.
You can lock iPad and put it to sleep when you’re not using it. Locking
iPad puts the display to sleep, saves the battery, and prevents
anything from happening if you touch the screen.
When you are not going to use the iPad for an extended period of time put the unit into sleep mode by pressing
the Sleep/Wake button. Press Sleep/Wake button to wake iPad and then unlock iPad by entering passcode.
Turn iPad off. Hold down the Sleep/Wake button for a few seconds until the slider appears onscreen, then drag
the slider to the right.
Downloading Harvest Tec App
1. If iPad does not have Wi-Fi turned on, select the Settings tab then select the Wi-Fi tab (below).
4. Select an available network when detected by the iPad, shown in area above that currently says ‘Other.’
5. Select App Store icon (below) and open. *You will need a Wi-Fi connection available to view App Store.
Download the Hay App in the App Store by searching for
‘Hay App’ in the search bar in the top right corner of screen (right):
*The advertisements displayed on the App Store screen will change.
The app will have the icon as shown:
Note: Made for iPad®(3rd through Pro 2nd generation), running the current iOS operating system
or one version previous required for iPad option
Sleep/Wake Button
2. Turn Wi-Fi on by sliding button to the right.
*Green bar indicates ON
3. Use same process to turn on Bluetooth function
**The Harvest Tec system WILL NOT
appear under the Bluetooth tab in the
Setting App. Open the Hay App to
connect.

12
iPad Integration Control Module
To operate the applicator, connect the iPad cord to the iPad
Integration Control in the port indicated by:
iPad Integration Control Light Signals
Green Slow Blink –Power supplied to the applicator system and the unit is going through its
startup process. This will take approximately 25-35 seconds.
Green Double Blink –Indicating the iPad module recognizes the iPad but the app is not open or connected.
Green Solid Light –Module is connected to the app and is ready to operate.
*Recommended to use the USB cable included with the applicator kit (006-6672USBC)
Bluetooth Receiver Lights
Pre-2020 applcaitors equipped with Bluetooth receivers (030-6672B)
are now equipped with lights to indicate both power and Hay App
connection on the Apple iPad. Clean light regularly
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –The Bluetooth receiver is connected to the Hay App.
**600 Series Applicators with serial number before DCP27000 will require the DCP to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6672C).
Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module
*Made for Apple iPad badge
Use of the Made for Apple iPad badge means that an accessory has been designed to connect specifically to
the Apple product(s) identified in the badge and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with safety
and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless performance.
030-6672C

13
Shutting Down the Hay App
To shut down the Hay App double click the home button (Figure A). This will show the open apps that are
running on your iPad (Figure B).
*Note: By pressing the home button one time to return to the home screen, the Hay App does not shut down.
The system will however, stop applying preservative after 10 seconds.
Slide the app you want to shut down by sliding the app toward the top of the iPad, until the app is no longer
visible (Figure C).
Figure A
Figure B
Figure C

14
Operating the Harvest Tec iPad App (continued)
When ready to operate your applicator system, open the Hay App on the iPad by selecting the Hay App icon.
Device Selection
The app will open to the Device Menu screen as shown below.
Pre-2020 applicators which are equipped with the Bluetooth receiver (030-6672B) that are within range (20’) of
the iPad and have power going to them, will be shown under the Active Connections section (below) after the
initial startup of the system (35-45 seconds).
Production year 2020 applicator systems and beyond will include the iPad Integration Module 030-6672C.
When plugging in the iPad cord to the module the app will change to the applicator Main Menu for immediate
operation. Unplug the cord to return to the Device Menu page.
*Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module (030-6672C)
The In-Active Connections section will show applicator systems that have been connected in the past, but are
not within range of the iPad or do not currently have power going to them (bottom left).
To remove a baler from the In-Active list, slide the bar displaying the baler name to the left, and select the
Delete button that will appear (bottom right).
After the iPad connects to
the Bluetooth receiver,
select the applicator you
want to connect with.

15
Operating the Harvest Tec iPad App (continued)
Manual Selection
Selecting the Manual button (below) displayed to the right of the baler name will open the operation manual for
your baler.
*Use the following information for Large Square Balers.
*You do not need to be connected to a baler to open the manual after a baler has been connected.
When finished reviewing the manual, press the Done button in the top left corner to return to the Device Menu.
Recommended Preservative
To view recommended preservative information, application rates, and frequently asked preservative
questions, select Recommended Preservative (below).
*You do not need to be connected to a baler to open the recommended preservative page.

16
Operating the Harvest Tec iPad App (continued)
Tab Descriptions
Automatic Mode: This mode allows you to use all of the applicator features such as adjusting preservative
application on the go and counting total pounds of product used.
Manual Mode: Allows operator to manually turn pumps on and off. This mode also has moisture content
displayed. Use this mode to prime pumps.
Software Versions: Selecting this tab will display the software currently installed.
Setup Mode: This mode allows the operator to adjust bale rate, application rate settings and select tip output.
Job Records: Keep track of up to 300 jobs with total product used, average moisture content, tons baled, and
baling date.

17
Screen Menus
Use the screen shots below to navigate through the operation screens.
Automatic Mode
Manual Mode
Operation Note:
Pressing the Home Button on the iPad WILL NOT immediately stop application of the System (see below):
Select or to stop application
*To close app see the Shutting Down Hay App Section
**When the app is not displayed for 10 seconds,
preservative application will stop.
Bluetooth Connection Indicator
Green
-DCP is connected
Yellow
-DCP connecting
Red
-DCP not connected
Bluetooth Connection Indicator
Green
-DCP is connected
Yellow
-DCP connecting
Red
-DCP not connected
X
-Pump is OFF
-Pump is ON

18
Setup Mode –Large Square Balers
*Only used if equipped with Tagger
NEEDSTO BEU PDATED
Turn Tagger ON by selecting the X
Indicates tagger is ON
*If RFV Equipped, additional options
will appear on Bale ID Screen (next)
If using RFV Spray Module,
turn ON by selecting the X
Indicates Spray Module is ON
Make sure Knotter/Dye Tip
Distance is correct
Select correct distance

19
Setup Mode –Large Square Baler (continued)
*Select X to turn on options shown
Indicates Crop Eyes are ON
*Only used if equipped with GPS
*Select grey area to change
*Select appropriate GPS unit
*Adjust alarm setting and turn on pump
module by selecting X in grey area
indicates Pump Module is on
Select correct tip setting
*High tips are installed from factory
Press OK if correct tip output
has been selected

20
Setup Mode –Large Square Baler (continued)
*Select correct bale weight, length,
and time per bale information
*Turn on Bale Rate sensor,
Green bar indicates sensors are ON
*Ensure all baler sensors are turned OFF
*If using a scale kit, turn sensor ON
