Installation Manual
Model 300SS
Moisture Only Kit for Small Square Balers
Forage Harvester
300SS-16-INST
4/18

2
(intentionally blank)

3
300SS Installation Manual Table of Contents
Page
Introduction
4
System Requirements
4
Tools Needed
4
Bluetooth Receiver Lights
4
Installation of the 300SS
5-6
Installation of Three Hundred Series (THS) controller
5
Installation of the End of Bale Sensors
6
Installation of Star Wheels
6
Wiring Diagram
7
Pin Outs
8-9
Parts Breakdown
10-13
Control Boxes and Wiring Harnesses
10
End of Bale Sensor Kits
10
Star Wheels Sensors, Moisture Harness
11
Optional iPad Mini Mounting Kit (030-2014MK)
12
Optional iPad Display Kit (030-4670DK)
13
Notes
14
Warranty Statement
15

4
Introduction
Congratulations and thank you for purchasing a Harvest Tec Model 300SS moisture only kit. Please read this
manual carefully to ensure correct steps are taken to attach the system to the baler. This applicator is designed
to read moisture through an Apple iPad. A parts break of the system is located in the back of the manual.
Right and Left sides are determined by facing in the direction of forward travel.
System Requirements
*iPad Mini or iPad 3rd Generation (2012) or newer, running the current iOS operating system
or one version previous required for iPad option
Tools Needed:
- Standard wrench set
- Electric drill and bits
- Side cutter
- Standard nut driver set
- Standard socket set
- Hammer
- Center punch

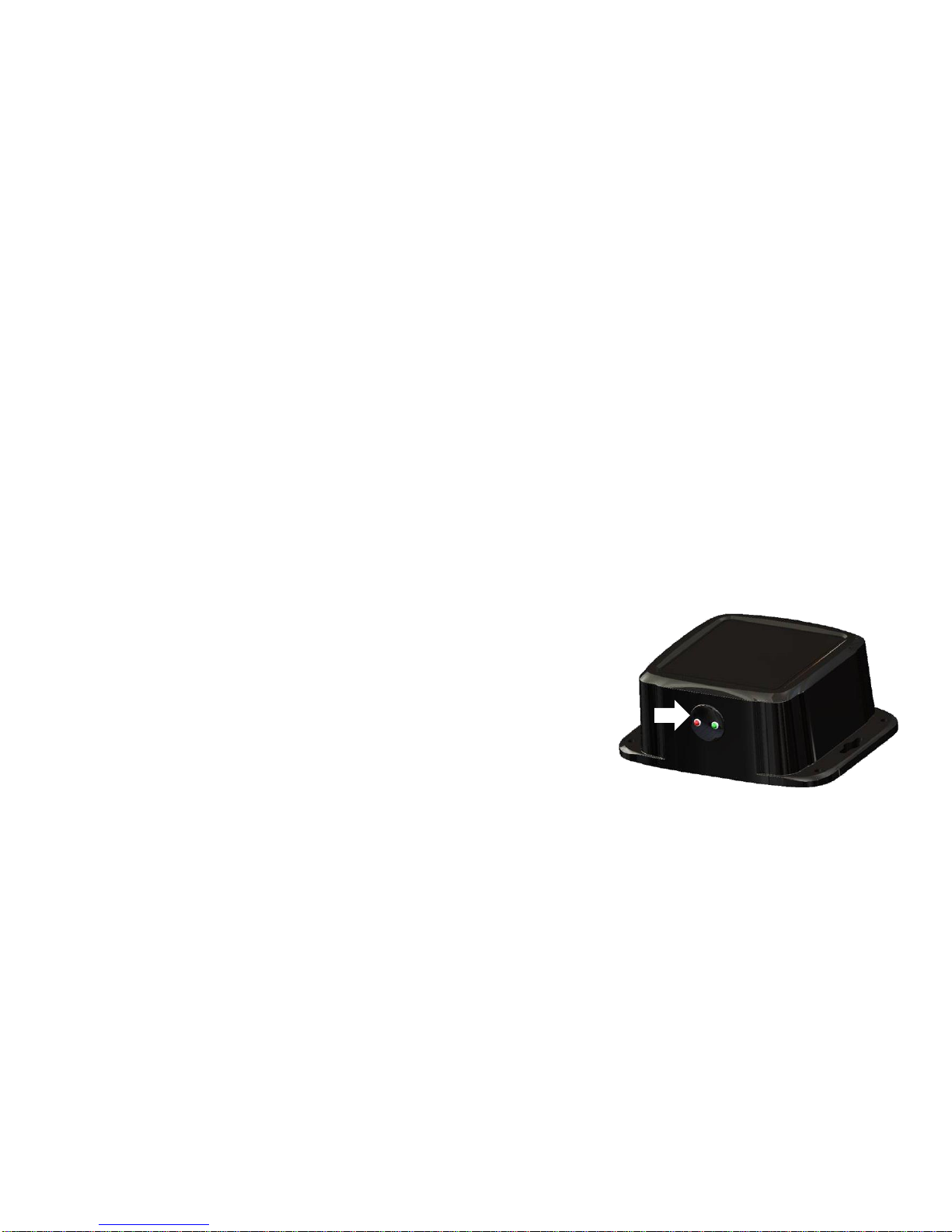

Bluetooth Receiver Lights
*New for production year 2018. All Bluetooth receivers (030-6672B) are
now equipped with lights to indicated both power and iPad connection.
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –When the proper active connection is selected in the Hay
App menu, the green light will indicate connection with the iPad.

5
Installation of the 300SS

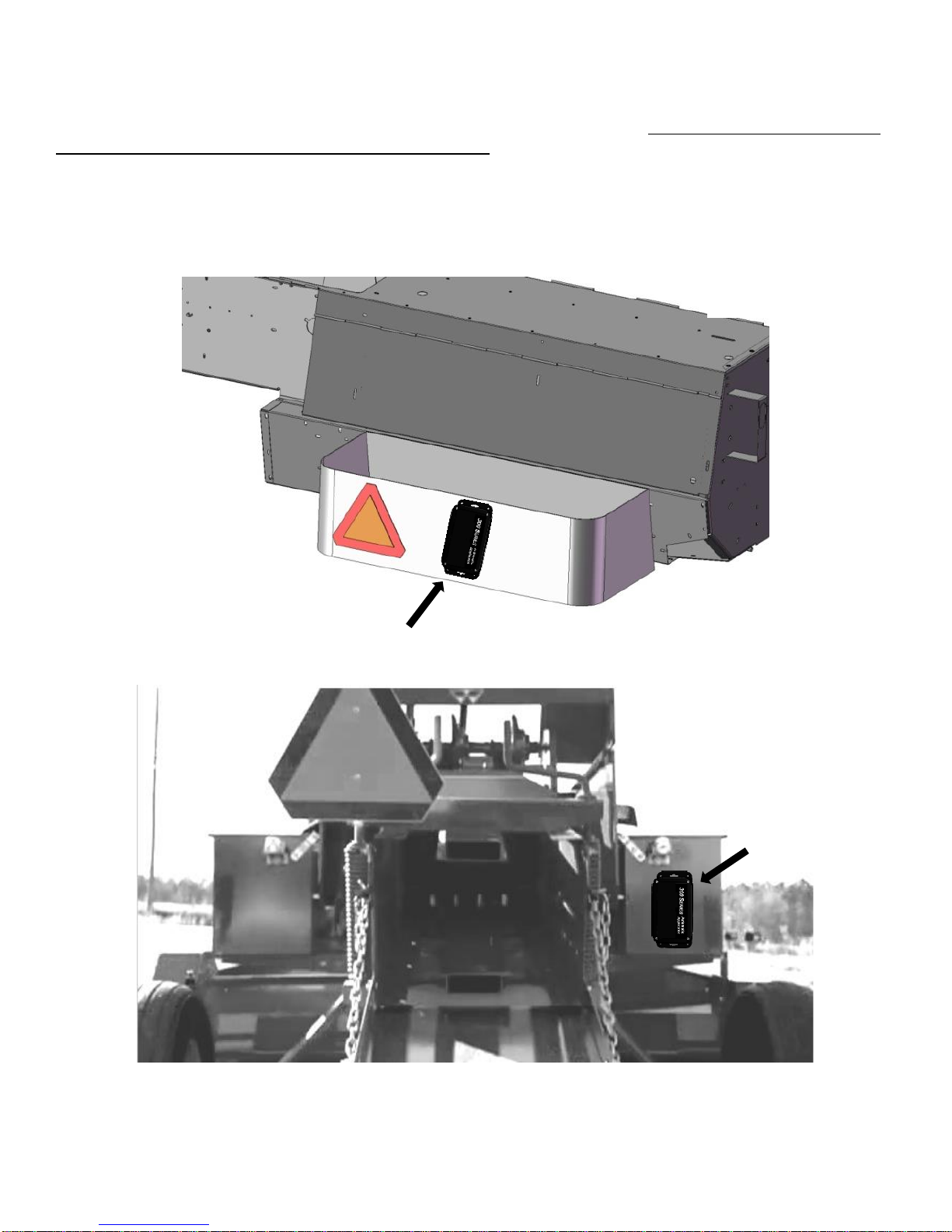

Locate the controls package. Select a mounting location for the Three Hundred Series (THS) control box (006-
3671SS) easily accessible that is away from moving parts and access panels. Check before drilling to ensure
nothing will be damaged on the opposite side of the THS. After selecting the location for the THS, use the THS
as a drill guide and mark the four mounting holes.
Drill the four mounting hole locations to 3/16" (5mm) in size. The locations shown in figures 1 and 2 are
examples of mounting the THS on the twine box (looking at the back of the baler). Use the supplied 10/32 x
3/4" Phillips flathead machine screws, nylock washers and nuts to mount the control box.
Figure 1
Figure 2

6
Installation of End of Bale Sensor
Mount the 006-7400 sensor to the mounting bracket 001-4648SI for AGCO as shown below (Figure 1). Case
IH, New Holland, & John Deere and other balers will use bracket 001-4648SS. Mount the assembly on the
right side of the baler chamber. The face of the sensor needs to be parallel to the arm attached to the needles
(Figure 2). Mark and drill two 3/8” (10mm) holes. Install the sensor using two 5/16” x 1“ allen head bolts, locks,
and nuts. The end of the sensor needs to be no greater than 1/4” (7mm) away from the needle arm. Tighten
nuts on sensor after adjustment.
Installation of Star Wheels
The pair of star wheels will need to mount on the bottom side as close to the front of the bale chute as possible
and at least 3/8" (10mm) away from any metal. They will need to maintain a safe distance away from the twine.
The star wheels will require two holes to be drilled per block, when drilling make sure to keep the wheel square
to the bale chamber. Any angle will cause stress on the wheel and will eventually cause the wheel to work itself
out of the block. Some balers may require a notch cut on the bottom of the bale chamber to mount the star
wheels as close to the front of the chamber as possible.
Use the supplied bolts and place the carriage head inside of the bale chamber followed by lock and nut. Next
attach the star wheels to the bolts followed by flat washer, lock washer and nut.
First, remove the cover from the star wheel block and use a 1/4" (7mm) nut driver to remove the nut from the
electronic swivel. Next, run the star wheel sensor wire through the black grommet and place the eye terminal
on the star wheel sensor. Tighten the eye loop with the nut on the sensor and put the star wheel cover back on
the base. Next, tighten the grommet to form a tight seal around the wire. Once the star wheel connection is
complete, run the harness along the baler frame to the Three Hundred Series (THS) controller.
001-4848SS
or
001-4648SI
006-7400
Three-Tie Balers
and CNH Two-Tie Balers
Two-Tie Balers
Figure 2
Figure 1

7
Wiring Diagram –300SS
1. Connect the power harness (006-3650T) to the tractor battery (12 volt) using the red wire with fuse to
the positive side and the black wire to the negative.
a. The power harness must be connected to the battery! The unit will draw more amps than
convenience outlets can handle. Any modifications of the power harness will void systems
warranty. CONTACT HARVEST TEC BEFORE MODIFICATIONS.
b. This unit will not function on positive ground tractors.
c. If the unit loses power while operating it will not keep track of accumulated pounds of
product used.
2. The power harness on the tractor (006-3650T) will run from the tractor battery to the hitch. The power
harness on the baler (006-3650B1) will connect to the tractor power harness (006-3650T) at the hitch.
3. Connect the keyed power wire (006-5650K) to a keyed power source on the tractor. The keyed power
wire must connect to a keyed source or the unit will not power up correctly.
4. Attached the Bluetooth Receiver (030-6672B) to the tractor power harness (006-3650T). Mount the
Bluetooth receiver in a safe location as close to iPad as possible in cab.
5. Attach the End of Bale (EOB) connection on the controller to the End of Baler Sensor (006-7400).

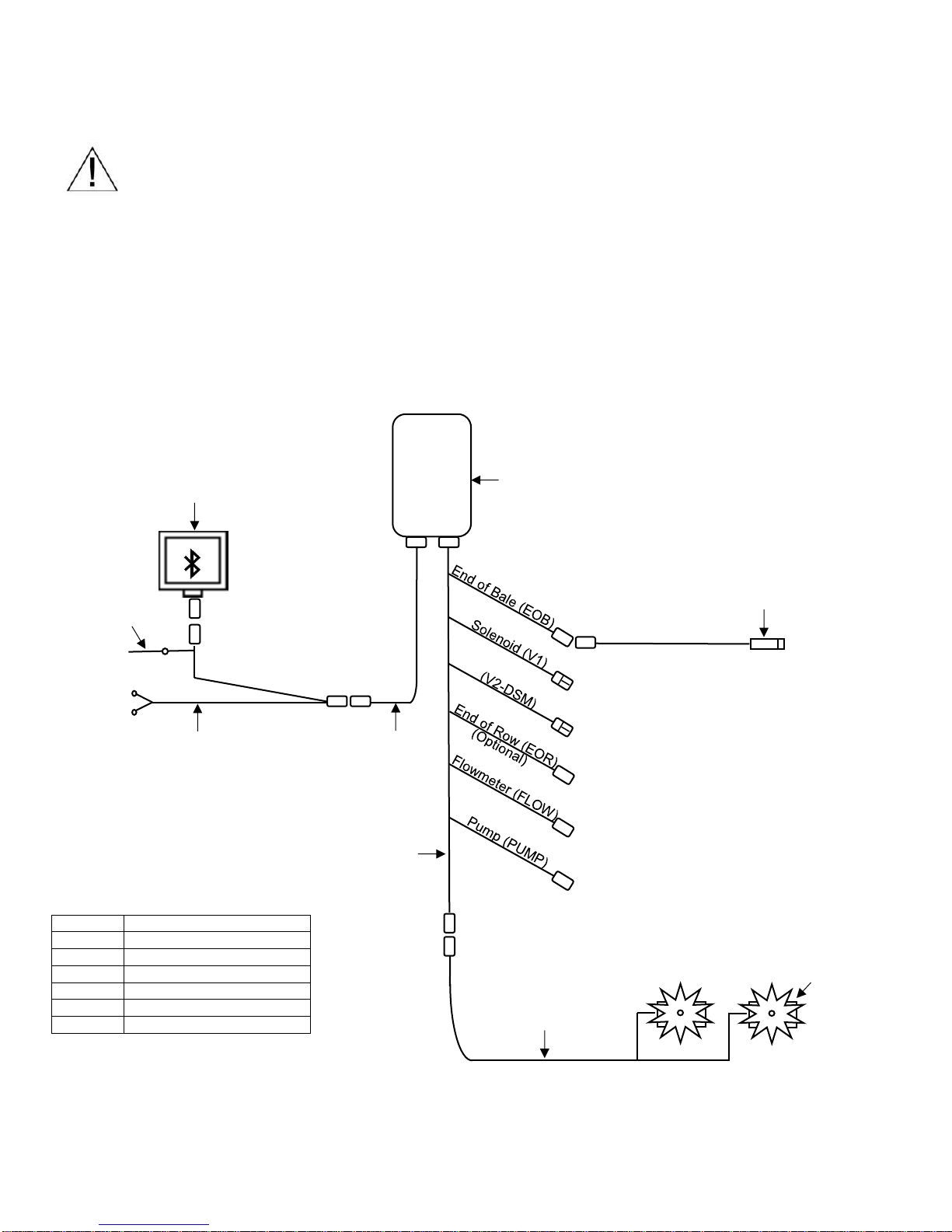

System wiring diagram
Power Harness on Tractor
006-3650T
300 Control Box
006-3671SS
Moisture Harness
006-4640D2
or 006-4640K2
Moisture Content (MC%)
End of Bale Sensor
006-7400
Bluetooth Receiver
030-6672B
Orange Wires to
Keyed Power
006-5650K
Power/ Harness on Baler
006-3650B1
Harness
Color
EOB
Brown
V1
White (Delphi Connector)
EOR
Yellow
FLOW
White
V2-DSM
White (Delphi Connector)
Pump
Orange
Moisture Disc
006-4642 (x2)

8

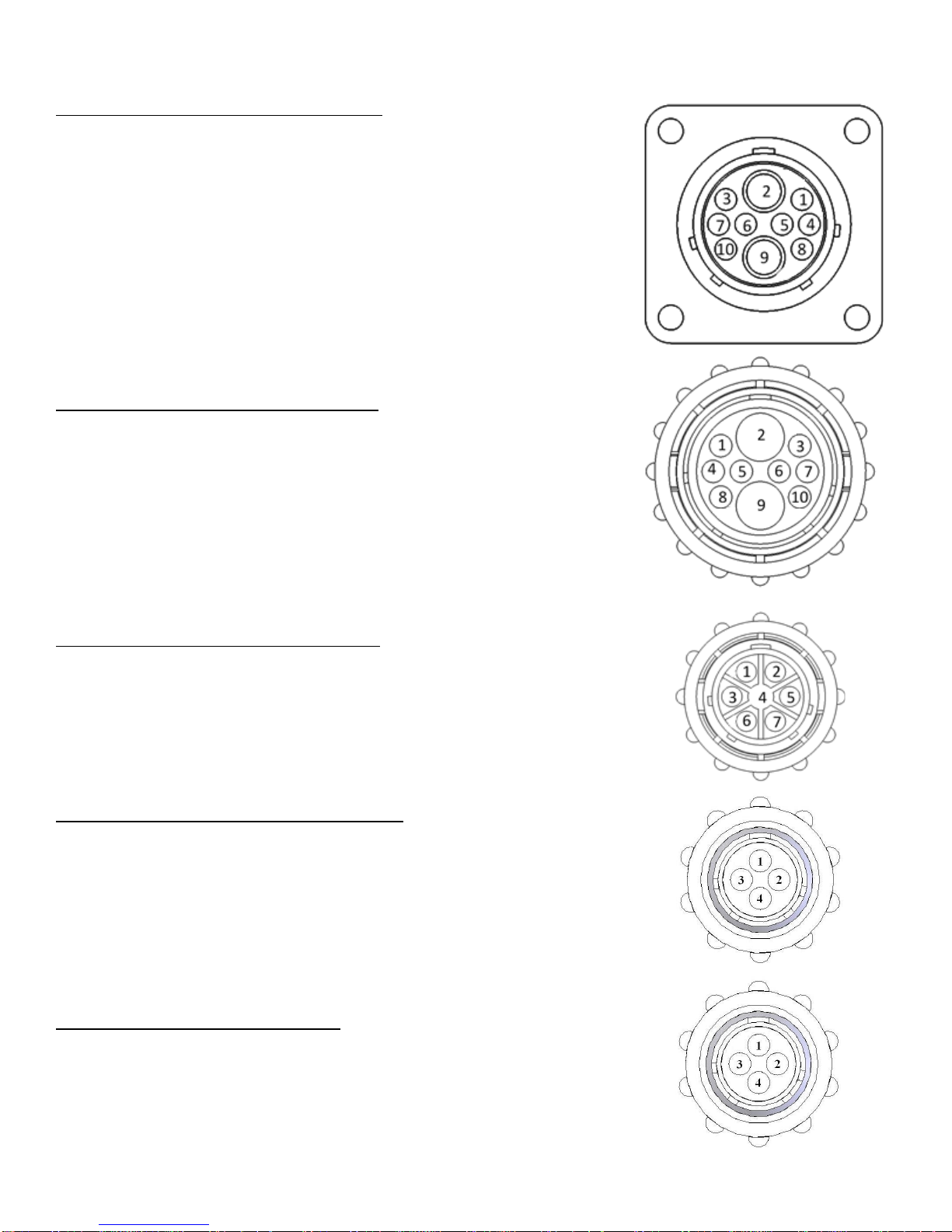

Pin Outs
Power Harness 006-3650T at Tractor Hitch
Pin 1 Red +12V Power to BLE
Pin 2 Red +12V Power to THS
Pin 3 Orange Keyed Power
Pin 4 Not Used
Pin 5 Green HT Can Low
Pin 6 Yellow HT Can Hi
Pin 7 Not Used
Pin 8 Black Ground from BLE
Pin 9 Black Ground from THS
Pin 10 Not Used
Power Harness 006-3650B1 at Baler Hitch
Pin 1 Red +12V Power to BLE
Pin 2 Red +12V Power to THS
Pin 3 Orange Keyed Power
Pin 4 Not Used
Pin 5 Green HT Can Low
Pin 6 Yellow HT Can Hi
Pin 7 Not Used
Pin 8 Black Ground from BLE
Pin 9 Black Ground from THS
Pin 10 Not Used
Bluetooth Receiver on Harness 006-3650T
Pin 1 Red +12V Power for BLE
Pin 2 Black Ground for BLE
Pin 3 Yellow HT Can Low
Pin 4 Not Used
Pin 5 Green HT Can Hi
Pin 6 Not Used
Pin 7 Not Used
End of Bale Sensor at 300 Controller Harness
Pin 1 Brown Sensor Power
Pin 2 Blue Sensor Ground
Pin 3 N/A
Pin 4 Black Signal from Sensor
Flow Meter at 300 Controller Harness
Pin 1 White +5-12V Power
Pin 2 Brown Ground
Pin 3 Green Signal
Pin 4 Not Used

9
Pin Outs (continued)
End of Row Sensor at 300 Controller Harness
Pin 1 Red/White +12V Power
Pin 2 Black/White Ground
Pin 3 Yellow Signal
Pin 4 N/A
Moisture Sensor connection at 300 Controller Harness
Pin 1 Not Used
Pin 2 Not Used
Pin 3 Not Used
Pin 4 Not Used
Pin 5 Not Used
Pin 6 Not Used
Pin 7 Not Used
Pin 8 Blue Signal for Sensor 1
Pin 9 Blue Signal for Sensor 2
Pump connection at 300 Controller Harness
Pin 1 Red Power to Pump
Pin 2 Black Ground to Pump
Solenoid Connection at 300 Controller Harness
Pin A Black Solenoid Pause
Pin B White Solenoid Ground
V2-DSM Connection at 300 Controller Harness
Pin A Black Solenoid Pause
Pin B White Solenoid Ground
Pin A
Pin B
Pin 1
Pin 2
Pin A
Pin B

10
Control Box and Wiring Harnesses
Ref
Description
Part#
Qty
Ref
Description
Part#
Qty
1
Power lead baler 20’
006-3650B1
1
5
300 Series Controller
006-3671SS
1
2
Power lead tractor
006-3650T
1
6
Dust Plugs
006-5651Plugs
1
3
Key Switch Wire
006-5650K
1
7
Power lead baler 30’ (AGCO)
006-3650B2
1
4
Bluetooth Receiver
006-6672A
1
Complete Assembly (1-6)
030-362CPA
Complete Assembly (2-7)
030-362CPB
End of Bale Sensor Kit A End of Bale Sensor Kit B
Ref
Description
Part #
Qty
1
End of Bale Sensor
006-7400
1
2
EOB Extension
006-7400EXT
1
3
End of Bale Bracket
001-4648SS
1
Complete Assembly
EOB-SS-A
Ref
Description
Part #
Qty
4
End of Bale Sensor
006-7400
1
5
EOB Extension
006-7400EXT
1
6
End of Bale Bracket
001-4648SI
1
Complete Assembly
EOB-SS-B
2
1
3
5
4
6
2
4
1 or 7
5
3
6

11
Star Wheel Sensors
Moisture Harness
Ref
Description
Part#
Qty
1
Washer (per side)
006-4642K
2
2
Dust Seal (per side)
w/006-4642K
1
3
Snap Ring (per side)
w/006-4642K
2
4
Swivel
006-4642A
2
5
Star Wheel
030-4641E
2
6
Insert
w/ Ref # 5
2
7
Wiring grommet
008-0821A
2
8
Star wheel block
006-4641A
2
9
Plug Fitting
003-F38
2
10
Block Cover
006-4641B
2
1-10
Star wheel assembly
030-4642
2
1
2
3
4
10
9
8
7
5
6
Ref
Description
Part #
Qty
NP
Moisture Harness (10’)
006-4640D2
1
NP
Moisture Harness (15’)
006-4640K2
1

12
Optional iPad Mini Mounting Kit (030-2014MK)
Ref
Description
Part #
Qty
1
Suction cup mount
001-2012SCM
1
2
Ram mount
001-2012H
1
3
iPad Mini spring load cradle (Mini 2)
001-2012SLC
1
4
16 gauge power wire
006-4723P
1
5
Female spade connector
Hardware
2
6
Eye loop connector
Hardware
2
7
iPad Mini Charger 12V
001-2012P
1
8
iPad Mini 4 case
001-2012C4
1
NP
4 amp fuse
Hardware
1
Mounting Kit Assembly
030-2014MK
(Includes All Parts)
Installation Instructions
1. Identify 12V power source for wires to connect.
a. Eye loops included if wiring directly to the battery is desired.
b. Test for key power source if preferred to have power to the USB shut off with the key.
2. Once power source is identified, cut wires to desired length.
3. Crimp the two supplied quick connectors onto each the white and black wire.
4. Remove the round locking plastic nut from USB plug before connecting the wires. Black (+) White (-).
5. The wires will then be hooked to the designated terminals on the bottom of the USB plug
6. Drill a 1 1/8” hole in the preferred mounting location. Be sure to clean any sharp edges after drilling.
7. Feed the wires through the mounting hole.
8. If using the round plastic nut to secure plug in place, slide the nut back over the wiring before
connecting the wires to powered source.
9. Connect the wires to the identified power source if easier to do so before tightening the plug into place.
10. Tighten plug using either the round plastic nut or mounting plate and two screws, both options supplied.
11. Once connected, hook a USB charging cord into the plug and connect a mobile device/tablet to ensure
the plug is operating as you wish (key power working properly if necessary).
NOTE: This plug is not designed to charge two iPads. System damage could occur if this is attempted.
System will charge a mobile phone and iPad simultaneously without problem.
1
2
3
4
5
8
7
6

13

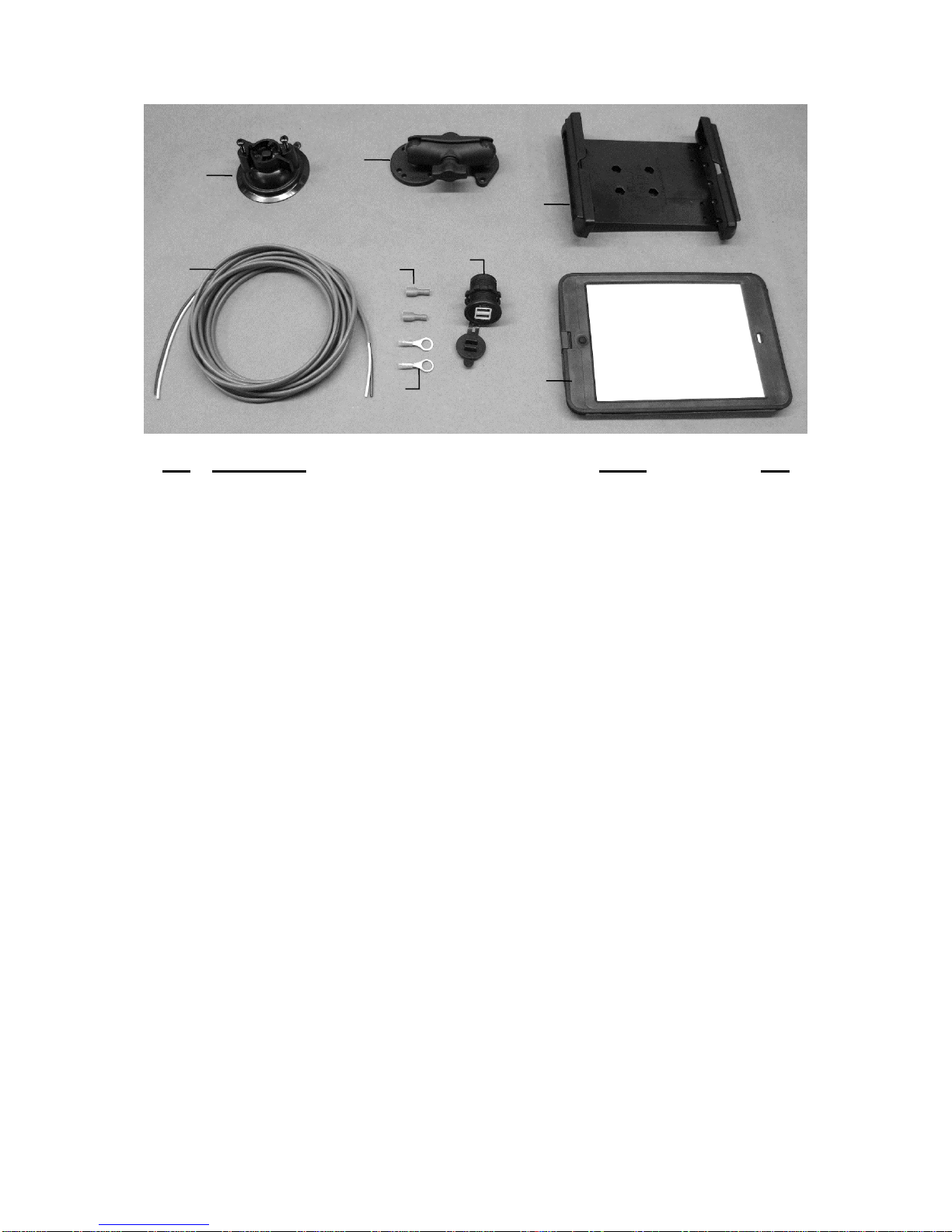

Optional iPad Display Kit (030-4670DK)
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Suction cup mount
001-2012SCM
1
7
iPad Mini Charger 12V
001-2012P
1
2
Ram mount
001-2012H
1
8
iPad Mini 4 case
001-2012C4
1
3
iPad Mini spring load
cradle (Mini 4)
001-2012SLC
1
9
iPad Mini 4
006-4670IP
1
4
16 gauge power wire
006-4723P
1
NP
4 amp fuse
Hardware
1
5
Female spade connector
Hardware
2
6
Eye loop connector
Hardware
2
Mounting Kit Assembly
030-4670DK
(Includes All Parts)
Installation Instructions
1. Identify 12V power source for wires to connect.
2. Eye loops included if wiring directly to the battery is desired.
3. Test for key power source if preferred to have power to the USB shut off with the key.
4. Once power source is identified, cut wires to desired length.
5. Crimp the two supplied quick connectors onto the white and black wire.
6. Remove the round locking plastic nut from USB plug before connecting the wires. Black (+) White (-).
7. The wires will then be hooked to the designated terminals on the bottom of the USB plug
8. Drill a 1 1/8” hole in the preferred mounting location. Be sure to clean any sharp edges after drilling.
9. Feed the wires through the mounting hole.
10. If using the round plastic nut to secure plug in place, slide the nut back over the wiring before connecting
the wires to powered source.
11. Connect the wires to the identified power source if easier to do so before tightening the plug into place.
12. Tighten plug using either the round plastic nut or mounting plate and two screws, both options supplied.
13. Once connected, hook a USB charging cord into the plug and connect a mobile device/tablet to ensure
the plug is operating as you wish (key power working properly if necessary).
NOTE: This plug is not designed to charge two iPads. System damage could occur if this is attempted.
System will charge a mobile phone and iPad simultaneously without problem.
7
1
2
3
4
5
8
6
9

14
Notes

15
Harvest Tec Inc. Warranty and Liability Agreement
Harvest Tec, Inc. will repair or replace components that are found to be defective within 12 months from the
date of manufacture. Under no circumstances does this warranty cover any components which in the opinion
of Harvest Tec, Inc. have been subjected to negligent use, misuse, alteration, accident, or if repairs have been
made with parts other than those manufactured and obtainable from Harvest Tec, Inc.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original purchaser
any part that in our judgment shows evidence of defective or improper workmanship, provided the part is
returned to Harvest Tec, Inc. within 30 days of the failure. If it is determined that a non-Harvest Tec branded
hay preservative has been used inside the Harvest Tec applicator system where the failure occurred, then
Harvest Tec reserves the right to deny the warranty request at their discretion. Parts must be returned through
the selling dealer and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, Inc. liable for injury or damages of any kind,
direct, consequential, or contingent, to persons or property. Furthermore, this warranty does not extend to loss
of crop, losses caused by delays or any expense prospective profits or for any other reason. Harvest Tec, Inc.
shall not be liable for any recovery greater in amount than the cost or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular purpose
intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, Inc. will not affect
our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, Inc. reserves the right to make design changes, improve design, or change specifications, at any
time without any contingent obligation to purchasers of machines and parts previously sold.
Revised 4/17

16
HARVEST TEC, INC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016
PHONE: [phone]
1-800-635-7468
FAX: [phone]
Email: [e-mail]
