Harvest TEC 300RBC User manual

1
Operation Manual
Model 300RB & 300RBC
Moisture Only Kit for Round Balers
Forage Harvester
300RB & 300 RBC-16-OPR
11/19

2
(intentionally blank)

3
300RB & 300 RBC Operation Manual Table of Contents
Page
Introduction
4
System Requirements
4
Safety
4
Safety Decals
4
Operation
5-9
Downloading Hay App
5
iPad Integration Control Module
6
iPad Integration Control Light Signals
6
Bluetooth Receiver Lights
6
Shutting Down the Hay App
7
Operation the Hay App
8
Device Selection
8
Demo Mode
9
Manual Selection
9
Recommended Preservative
9
Tab Descriptions
10
Screen Menus
11-14
Automatic Mode
11
Manual Mode
11
Setup Mode
12
Job Records
13
Software Versions
13
Baling Rate Settings
14
Automatic Mode
15
Manual Mode
16
Job Records
17
Wiring Diagram –300RB
18

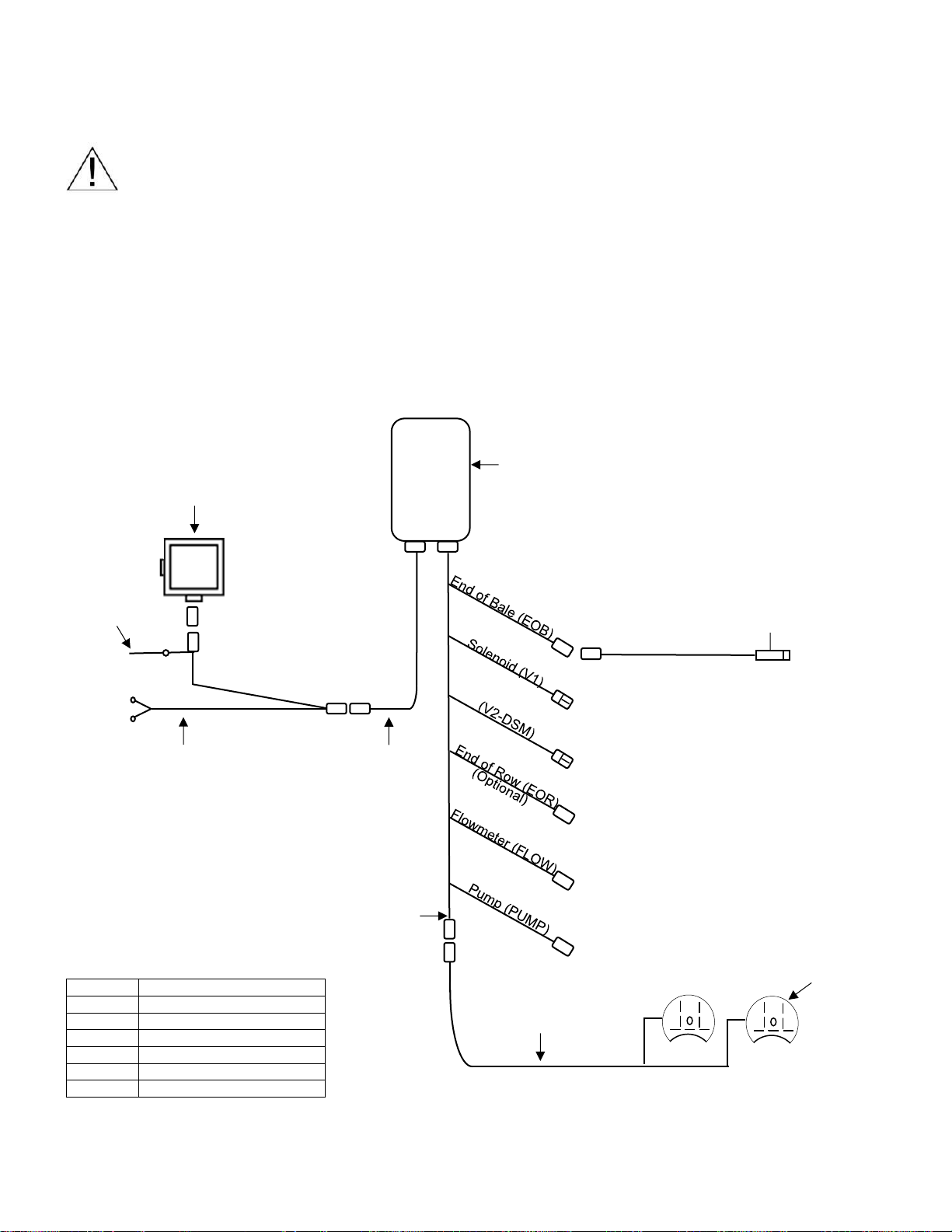

Wiring Diagram –300RBC
19
Maintenance & Winter Storage
20
Common Questions
20
Troubleshooting
20
iPad Troubleshooting
221
Pin Outs
22-23
Parts Breakdown
24-27
Controls and Harnesses
24
End of Bale Sensor Kit
24
Moisture Pads
25
Optional iPad Display Kit
26
Warranty Statement
27

4
Introduction
Congratulations and thank you for purchasing a Harvest Tec Model 300RB or 300RBC moisture only kit.
Please read this manual carefully to ensure correct steps are taken to attach the system to the baler. A parts
break of the system is located in the back of the manual.
Right and Left sides are determined by facing in the direction of forward travel.
System Requirements
*Made for iPad®(3rd through Pro 2nd generation), running the current iOS operating system
or one version previous required for iPad option
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
300 Series Applicators with serial number before THS07000 will require the THS to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6670C).
Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module (030-6672C)
Safety
Carefully read all the safety signs in this manual and on the applicator before use. Keep signs clean and
visible. Replace missing or damaged safety signs. Replacement signs are available from your local authorized
dealer. See your installation manual under the replacement parts section for the correct part numbers.
Keep your applicator in proper working condition. Unauthorized modifications to the applicator may impair the
function and/or safety of the machine.
Carefully read and understand all of the baler safety signs before installing or servicing the baler. Always use
the supplied safety equipment on the baler to service the applicator.
Safety Decals
Number 1
Disconnect power before servicing.
Part no. DCL-8003
Number 2
Read and understand the operator’s manual
before using or working around the equipment.
Part no. DCL-8000

5
Operation
Turn On / Off iPad using the Sleep/Wake button
*(Info from Apple User’s Guide)
Turn iPad on. Hold down the Sleep/Wake button until Apple logo appears. iPad will take a moment to load.
You can lock iPad and put it to sleep when you’re not using it. Locking
iPad puts the display to sleep, saves the battery, and prevents
anything from happening if you touch the screen.
When you are not going to use the iPad for an extended period of time put the unit into sleep mode by pressing
the Sleep/Wake button. Press Sleep/Wake button to wake iPad and then unlock iPad by entering passcode.
Turn iPad off. Hold down the Sleep/Wake button for a few seconds until the slider appears onscreen, then drag
the slider to the right.
Downloading the Hay App
1. If iPad does not have Wi-Fi turned on, select the Settings tab then select the Wi-Fi tab (below).
4. Select an available network when detected by the iPad, shown in area above that currently says ‘Other’.
5. Select App Store icon (below) and open. *You will need a Wi-Fi connection available to view App Store.
Download the Hay App in the App Store by searching for
‘Hay App’ in the search bar in the top right corner of screen (right):
*The advertisements displayed on the App Store screen will change.
The app will have the icon as shown:
Note: Made for iPad®(3rd through Pro 2nd generation), running the current iOS operating system
or one version previous required for iPad option
Hay App
Sleep/Wake Button
2. Turn Wi-Fi on by sliding button to the right.
*Green bar indicates ON
3. Use same process to turn on Bluetooth function
**The Harvest Tec system WILL NOT
appear under the Bluetooth tab in the
Setting App. Open the Hay App to
connect.

6

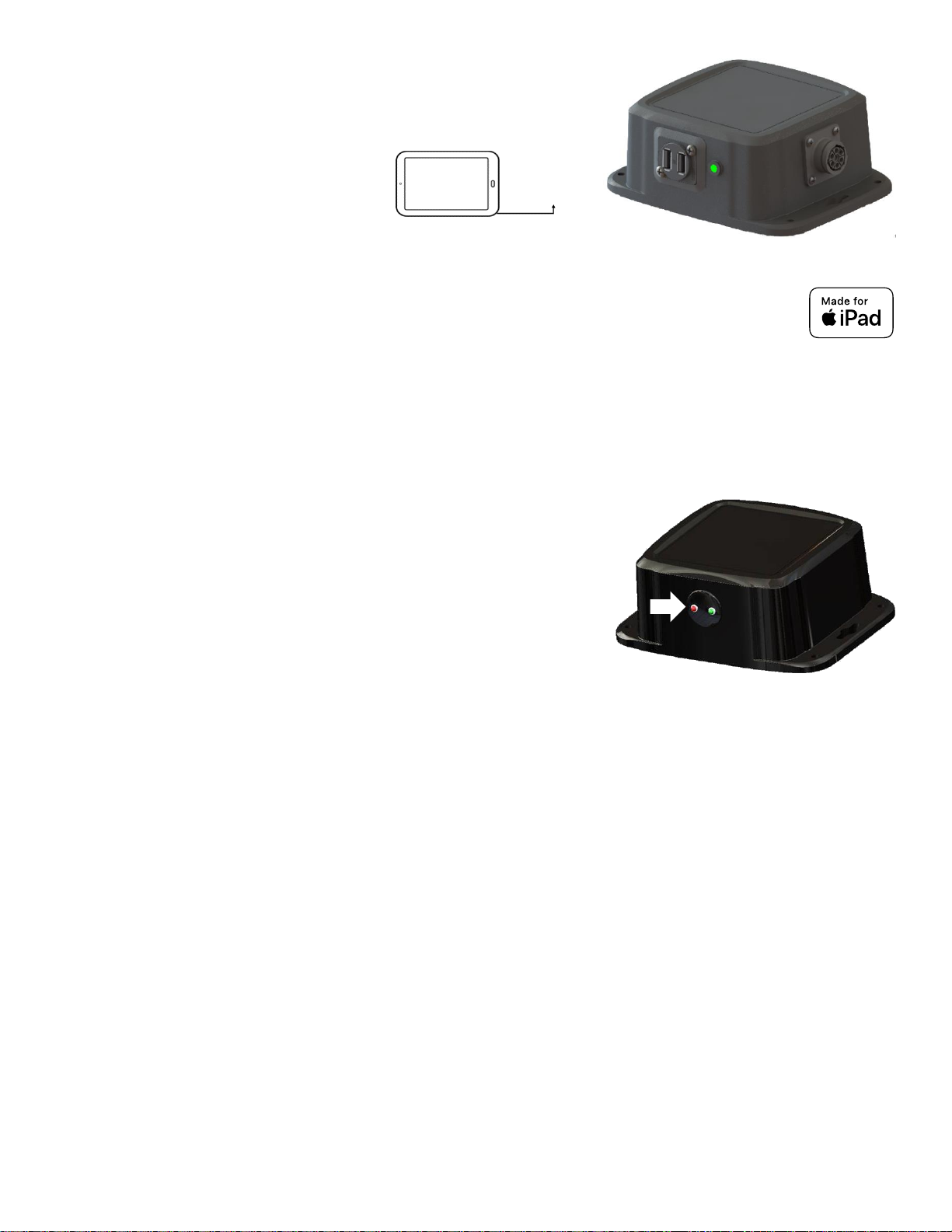

iPad Integration Control Module
To operate the applicator, connect the iPad cord to the iPad
Integration Control in the port indicated by:
iPad Integration Control Light Signals
Green Slow Blink –Power supplied to the applicator system and the unit is going
through its startup process. This will take approximately 25-35 seconds.
Green Double Blink –Indicating the iPad module recognizes the iPad but the app is not open or connected.
Green Solid Light –Module is connected to the app and is ready to operate.
*Recommended to use the USB cable included with the applicator kit (006-6672USBC)
Bluetooth Receiver Lights
Pre-2020 applcaitors equipped with Bluetooth receivers (030-6672B)
are now equipped with lights to indicate both power and Hay App
connection on the Apple iPad. Clean light regularly
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –The Bluetooth receiver is connected to the Hay App.
300 Series Applicators with serial number before THS07000 will require the THS to be sent to Harvest
Tec for a required update in order to use the iPad Integration Module (030-6670C).
Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module (030-6672C)
*Made for Apple iPad badge
Use of the Made for Apple iPad badge means that an accessory has been designed to connect specifically to
the Apple product(s) identified in the badge and has been certified by the developer to meet Apple
performance standards. Apple is not responsible for the operation of this device or its compliance with safety
and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless performance.
030-6672C

7

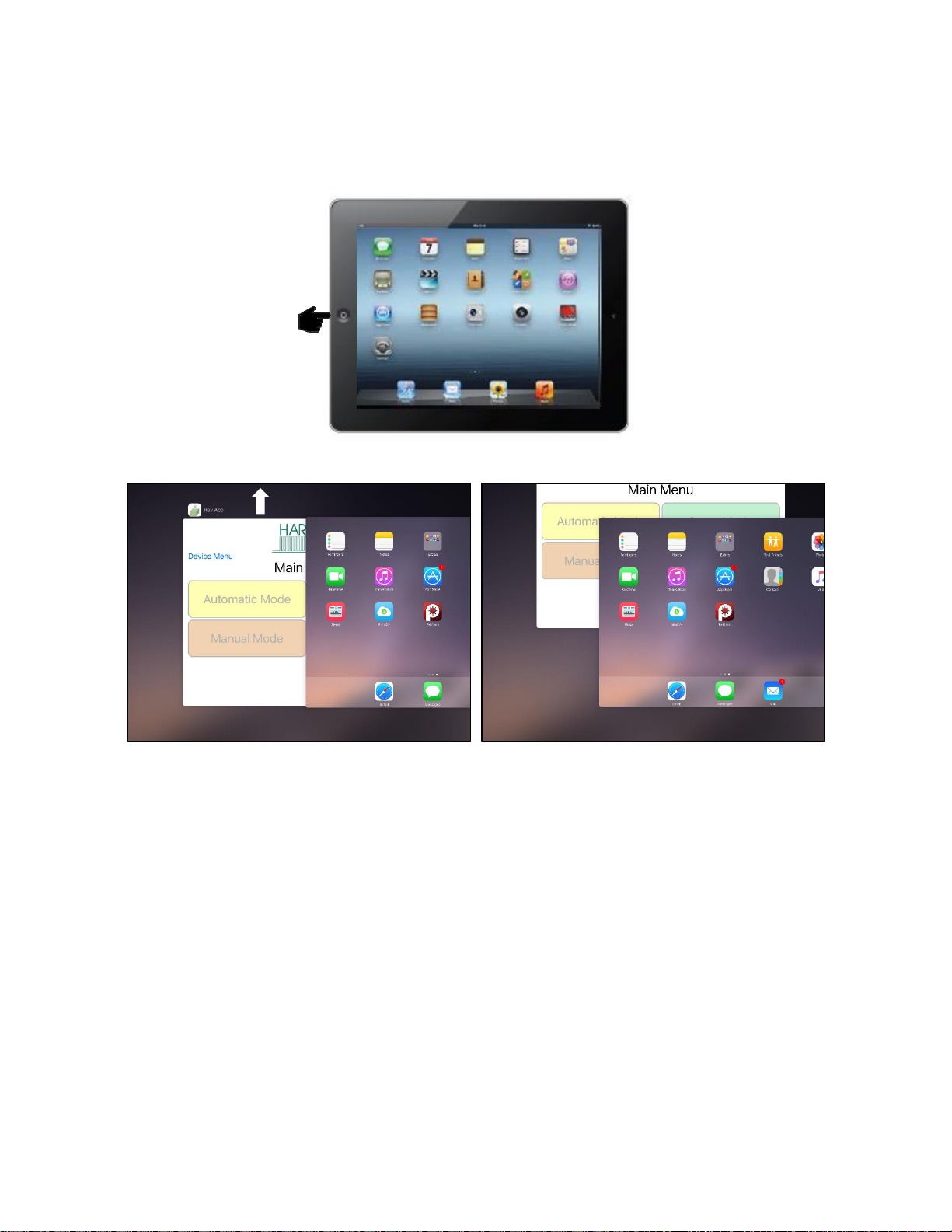

Shutting Down the Hay App
To shut down the Hay App double click the home button (Figure A). This will show the open apps that are
running on your iPad (Figure B).
*Note: By pressing the home button one time to return to the home screen, the Hay App does not shut down.
The system will however, stop applying preservative after 10 seconds.
1. Slide the app you want to shut down by sliding the app toward the top of the iPad, until the app is no longer
visible (Figure C).
Figure A
Figure B
Figure C

8
Operating the Harvest Tec iPad App (continued)
When ready to operate your applicator system, open the Hay App on the iPad by selecting the Hay App icon.

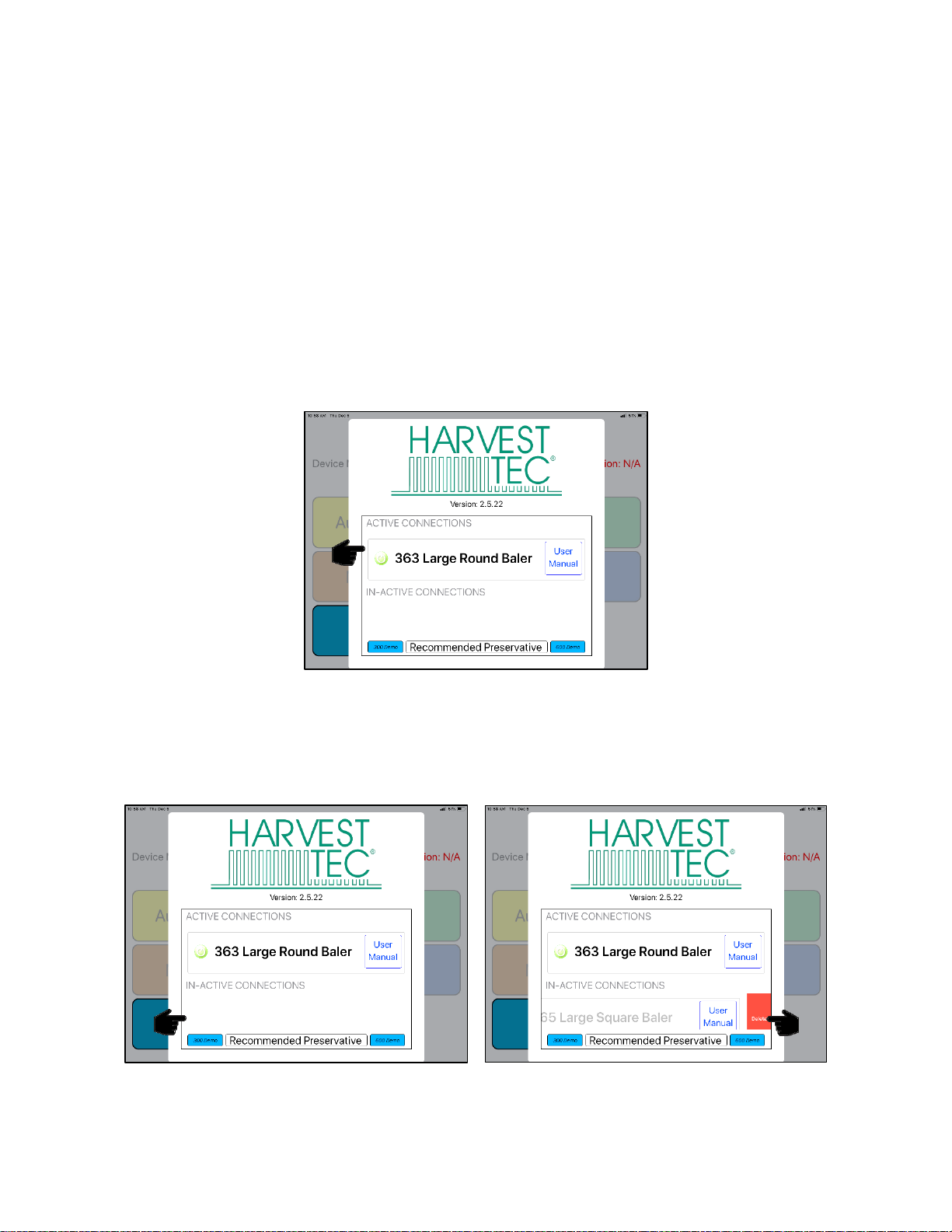

Device Selection
The app will open to the Device Menu screen as shown below.
Pre-2020 applicators which are equipped with the Bluetooth receiver (030-6672B) that are within range (20’) of
the iPad and have power going to them, will be shown under the Active Connections section (below) after the
initial startup of the system (35-45 seconds).
Production year 2020 applicator systems and beyond will include the iPad Integration Module 030-6672C,
shown on the previous page. When plugging in the iPad cord to the module the app will change to the
applicator Main Menu for immediate operation. Unplug the cord to return to the Device Menu page.
*Hay App version must be at least 2.5.18 (or higher) to operate with the iPad Integration Module (030-6672C)
The In-Active Connections section will show applicator systems that have been connected in the past, but are
not within range of the iPad or do not currently have power going to them (bottom left).
To remove a baler from the In-Active list, slide the bar displaying the baler name to the left, and select the
Delete button that will appear (bottom right).
After the iPad connects to
the Bluetooth receiver,
select the applicator you
want to connect with.

9
Operating the Harvest Tec iPad App (continued)

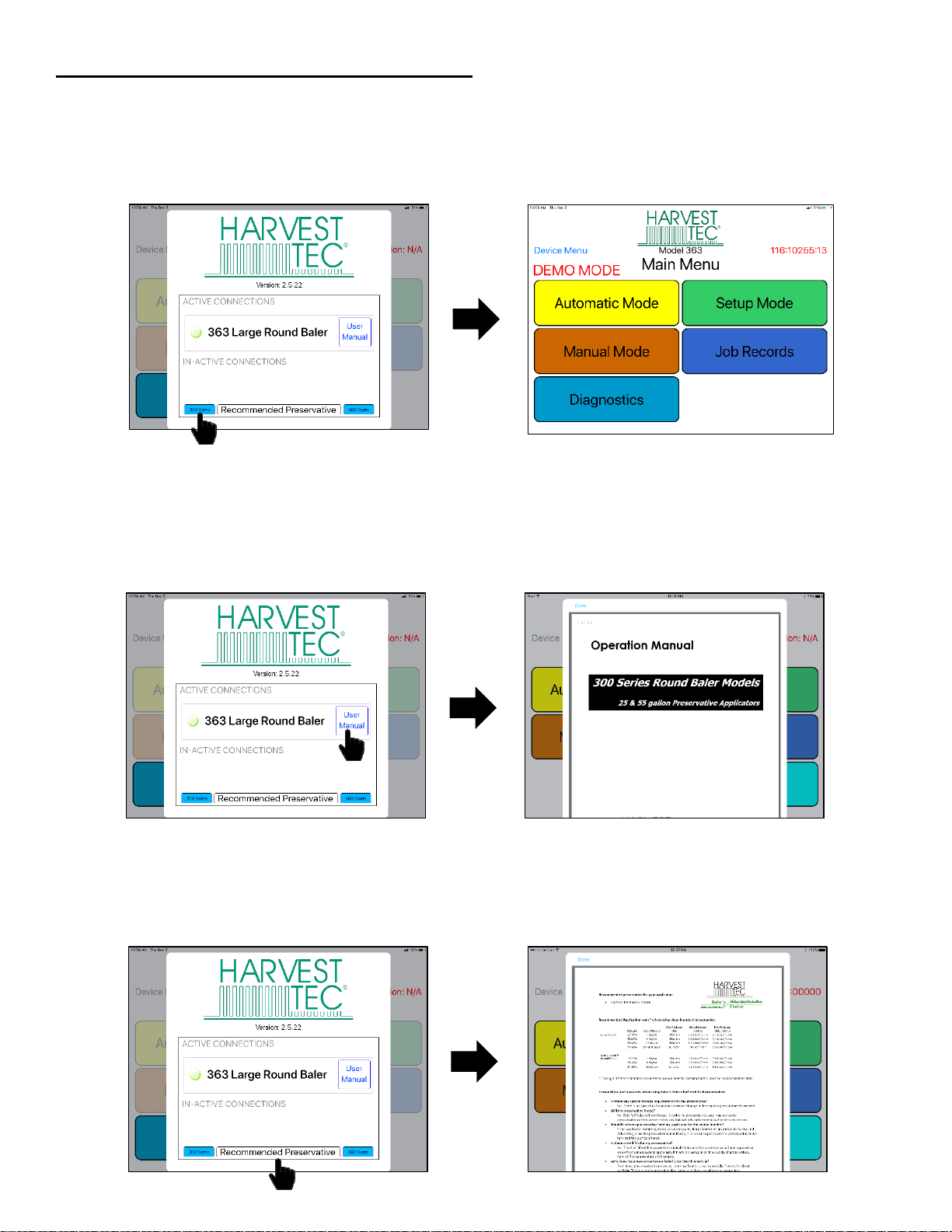

Demo Mode
Selecting the 300 Demo or 600 Demo button (below) will allow you to view the different screens of the
applicator without requiring connection to an applicator system.
*This function is intended to be used as a visual aid, no values will be displayed.
Manual Selection
Selecting the Manual button (below) displayed to the right of the baler name will open the operation manual for
your baler.
*You do not need to be connected to a baler to open the manual and recommended preservative tabs after a
baler has been connected.
Recommended Preservative
To view recommended preservative information, application rates, and frequently asked preservative
questions, select Recommended Preservative (below).

10
Operating the Harvest Tec iPad App (continued)
Once you have selected the baler you want to connect with from the Device Menu, the applicator main menu
will display (below).
Tab Descriptions
Automatic Mode: This mode allows you to use all of the applicator features such as adjusting preservative
application on the go and counting total pounds of product used.
Manual Mode: Allows operator to manually turn pumps on and off. This mode also has moisture content
displayed. Use this mode to prime pump.
Software Versions: Selecting this tab will display the software currently installed.
Setup Mode: This mode allows the operator to adjust bale rate, application rate settings and select tip output.
Job Records: Keep track of up to 300 jobs with total product used, average moisture content, tons baled, and
baling date.

11

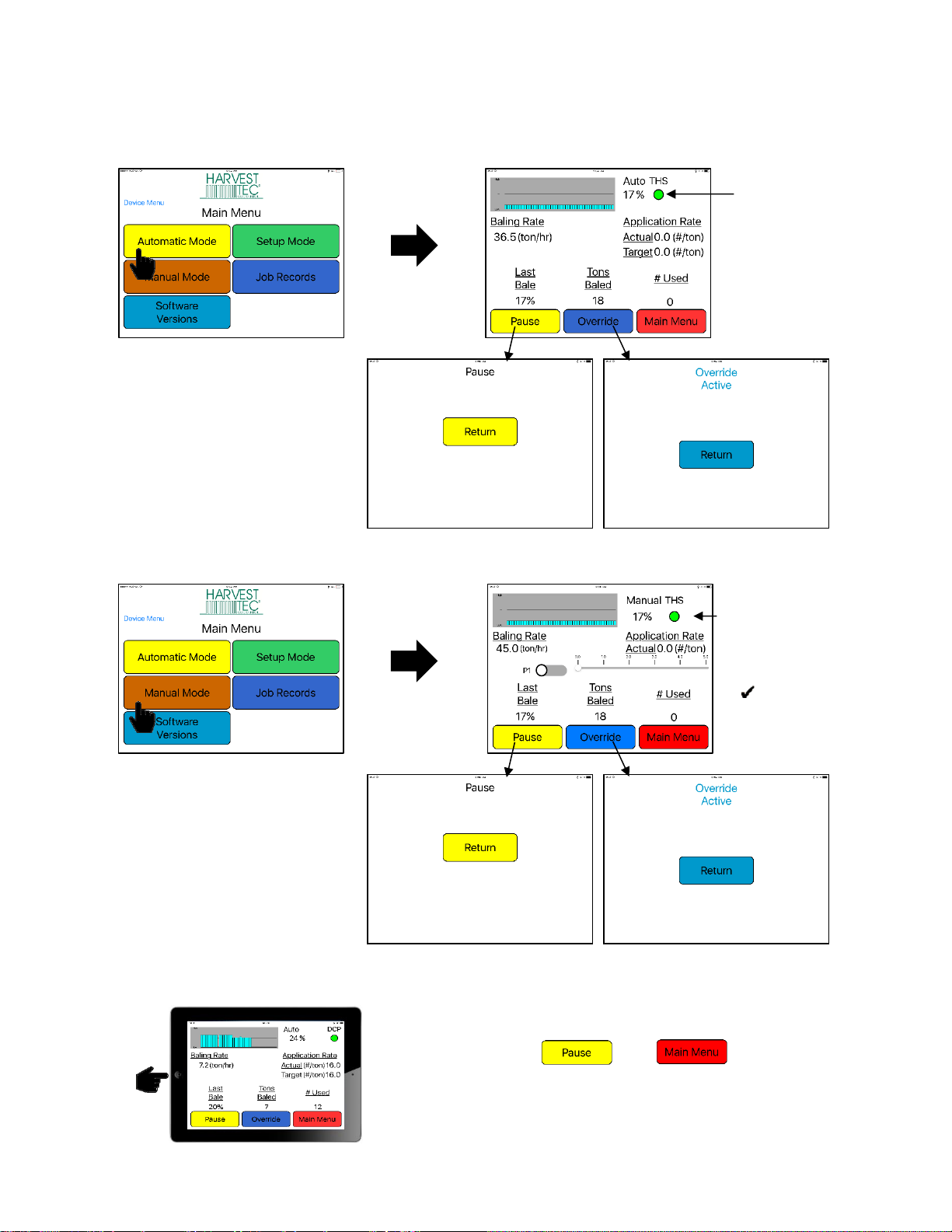

Screen Menus
Use the screen shots below to navigate through the operation screens.
Automatic Mode
Manual Mode
Operation Note:
Pressing the Home Button on the iPad WILL NOT immediately stop reading moisture.
Select or to stop.
*Pressing the home button will cause the system to
stop reading moisture after 10 seconds.
Bluetooth Connection Indicator
Green
-THS is connected
Yellow
-THS connecting
Red
-THS not connected
*Actual, Target, and # Used will
read 0 with moisture only system
Bluetooth Connection Indicator
Green
-THS is connected
Yellow
-THS connecting
Red
-THS not connected
X
-Pump is OFF
-Pump is ON
*Ensure pumps are shut off with
moisture only system

12

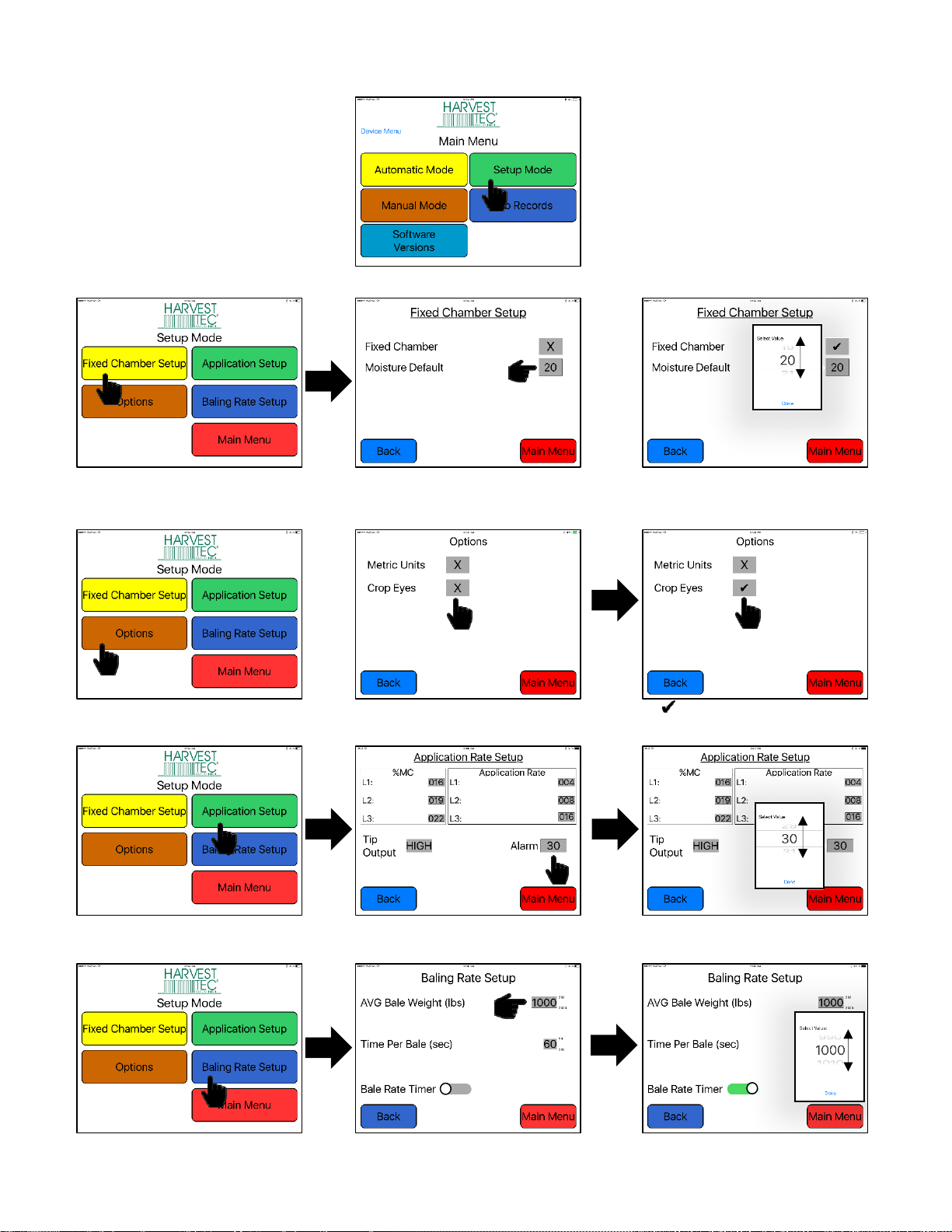

Setup Mode
If using a fixed chamber baler,
select the X to turn on
Adjust the moisture default to the
moisture of the last bale reading
*Select X to turn on options shown
Indicates Crop Eyes are ON
Adjust moisture alarm to desired level
Select desired alarm moisture
Adjust bale weight information
Select desired bale weight

13

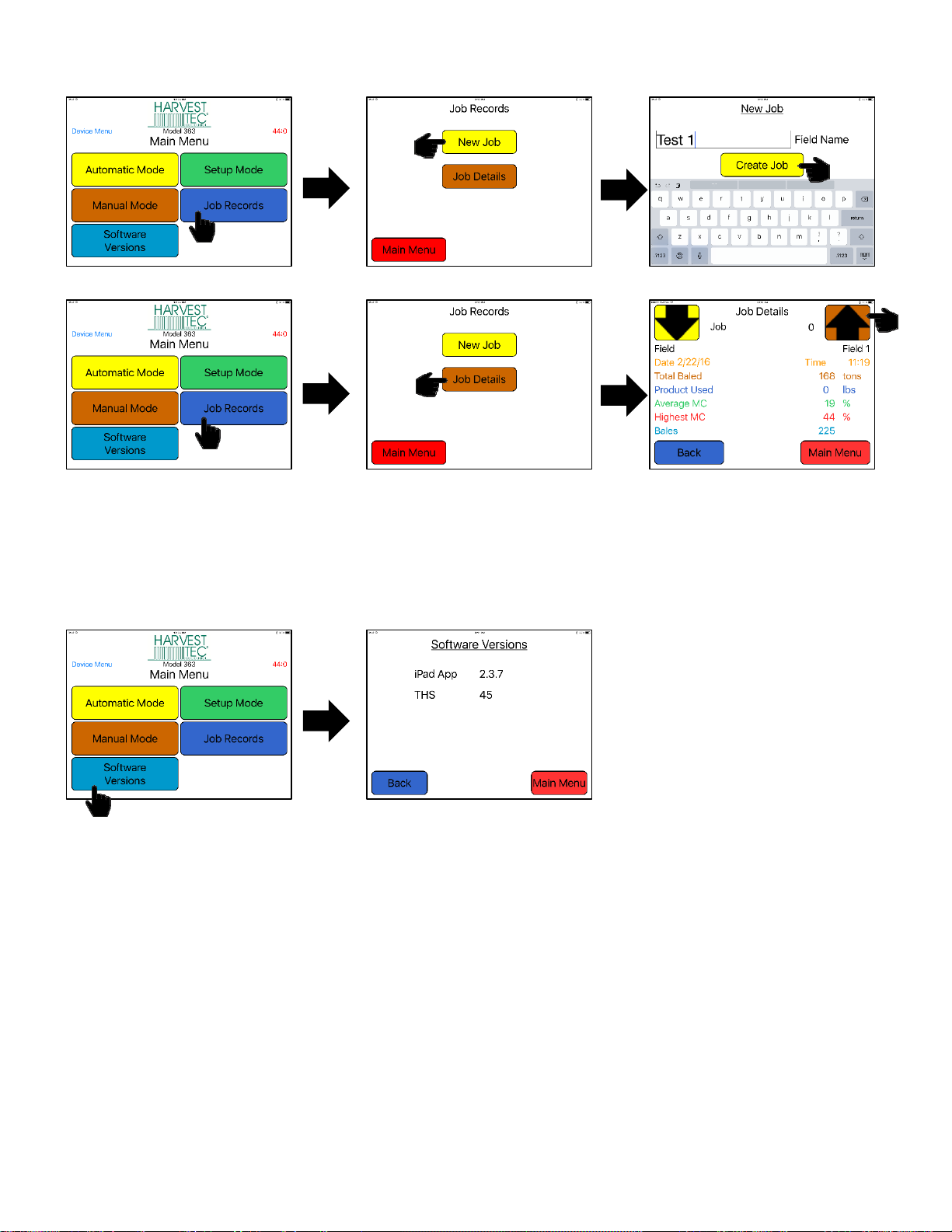

Job Records
Select New Job to create new job
Type in Field Name, press Create Job
Select Job Details to view
job records
Select the Up and Down arrows
to view different jobs
Software Versions
*This is an example, Software
Versions will change

14
Baling Rate Settings –Round Balers
iPad Operation
1. On the setup mode screen press the BALING RATE key.
2. Press the grey number value to the right of AVG Bale Weight (Lbs). To adjust the weight of your bales, the
scroll tool shown on the right will display. Scroll through the values to select correct information, press
DONE when value has been selected. The information will be saved until updated. Use the same
procedure for adjusting time per bale.
Note: Only count time that hay is coming into the baler, do not count tie time or drive time.
3. Press the BACK key found on the bottom left hand figure of the screen to return to SETUP MODE screen
or press the MAIN MENU key to return to the opening screen.

15

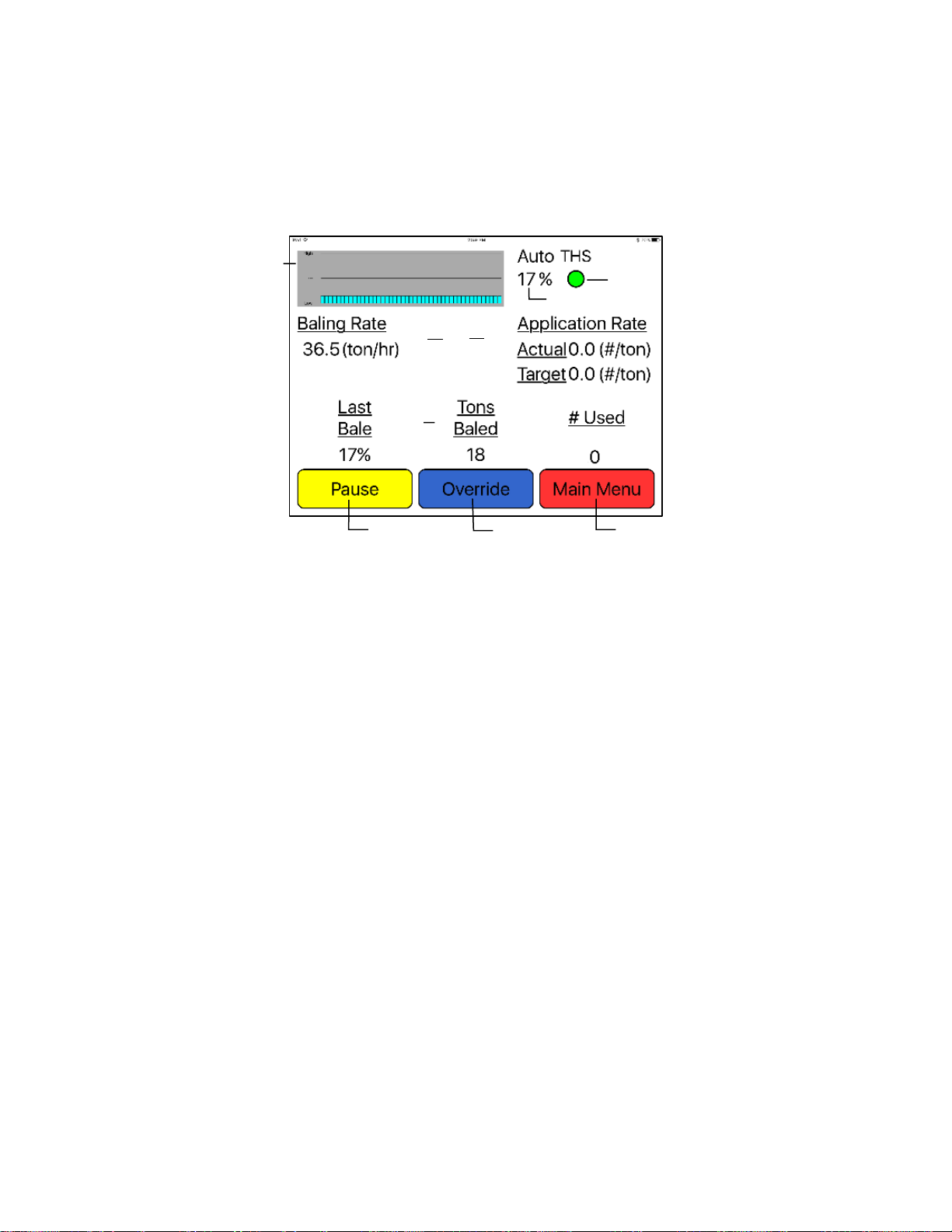

Operation Instructions
Automatic mode will allow you to view the moisture information and baling rate.
Automatic Mode
After pushing the AUTOMATIC MODE key in the Main Menu screen, the following screen will appear:
iPad
1. To pause the unit while in operation select the Pause key.
2. Push the OVERRIDE key to turn on the pump for full output of the system. This button is not used with
a moisture only system.
3. The moisture content is shown in the upper right hand corner.
4. Baling Rate and Application Rate are shown in the middle of the screen. Application rate will read zero
with moisture only systems.
5. Volume of preservative used will be shown at the bottom of the screen will show accumulated pounds
of preservative used on the go. There will not be any information shown in the # Used section with a
moisture only unit.
6. The graph shows the moisture trend from the past 90 seconds in 3 second intervals.
7. The iPad button shown when using an iPad displays your connection signal with Bluetooth receiver.
Green –iPad is connected, Yellow –iPad is connecting, Red –iPad not connected.
8. Press the MAIN MENU key to return to the opening screen.
1
8
3
2
5
6
7
4

16
Manual Mode
After pushing the MANUAL MODE key in the Main Menu screen, the following screen will appear:
iPad
1. To pause the unit during operation select the Pause key.
2. Push the OVERRIDE key to turn on the pump for full output of the system. This function is not used with a
moisture only unit.
3. Ensure the pump is off with a moisture only unit. Grey bar indicates the pump is off.
4. The moisture content is shown in the upper right hand corner.
5. Baling rate and Application rate are shown in the middle of the screen. The Actual reading will read zero
with a moisture only unit.
6. Volume used shown at the bottom of the screen will show accumulated pounds of preservative used on the
go. This number will reset at power down, but remains in the job record screen. # Used will read zero with
moisture only unit.
7. The graph in the upper left corner shows the moisture trend from the last 90 seconds of baling (one every 3
seconds).
8. The iPad button shown displays your connection signal with Bluetooth receiver. Green –iPad is connected,
Yellow –iPad is connecting, Red –iPad not connected.
9. Pressing MAIN MENU will return you to the opening screen.
2
1
7
8
6
3
5
9
4

17
Job Records
After pushing the JOB RECORDS key in the Main Menu screen, the following screen will appear:
1. The job number will be displayed at the top center. The current job being viewed will always read "Job #:
0". Product used and average moisture content will be reset when the NEW JOB key is pressed. The job
records screen will store up to 300 jobs allowing access previous jobs by using the up and down arrows.
2. Scrolling through previous jobs is done by pressing the UP or Down keys.
3. The field name is located under the up arrow.
4. The accumulated information from the field will be displayed in the middle of the screen. Every time the
NEW JOB key is pressed the accumulated pounds on auto and manual modes will be reset to zero.
After 300 jobs have been stored, the next time the NEW JOB key is pressed the system will start over with
job one and the old job will be replaced.
NOTE: Initial start-up requires pressing the New Job key in the Job Records screen in order for
Volume Used accumulation to be recorded. This only needs to be done once on initial start-up of
system and not every time the system is started for operation.
2
3
1
4

18
Wiring Diagram –300RB
1. Connect the power harness (006-3650T) to the tractor battery (12 volt) using the red wire with fuse to
the positive side and the black wire to the negative.
a. The power harness must be connected to the battery! The unit will draw more amps than
convenience outlets can handle. Any modifications of the power harness will void systems
warranty. CONTACT HARVEST TEC BEFORE MODIFICATIONS.
b. This unit will not function on positive ground tractors.
c. If the unit loses power while operating it will not keep track of accumulated pounds of
product used.
2. The power harness on the tractor (006-3650T) will run from the tractor battery to the hitch. The power
harness on the baler (006-3650B1) will connect to the tractor power harness (006-3650T) at the hitch.
3. Connect the keyed power wire (006-5650K) to a keyed power source on the tractor. The keyed power
wire must connect to a keyed source or the unit will not power up correctly.
4. Attached the iPad Integration Control (030-6672C) to the tractor power harness (006-3650T).
5. Attach the End of Bale (EOB) connection on the controller to the End of Baler Sensor (006-7400).
System wiring diagram
Power Harness on Tractor
006-3650T
300 Control Box
006-3671RB
Moisture Harness
006-4640G2
Moisture Content (MC%)
End of Bale Sensor
006-7400
iPad Integration Control
030-6672C
Orange Wires to
Keyed Power
006-5650K
Power/ Harness on Baler
006-3650B1
Harness
Color
EOB
Brown
V1
White (Delphi Connector)
EOR
Yellow
FLOW
White
V2-DSM
White (Delphi Connector)
Pump
Orange
Moisture Disc
006-4641H (x2)

19
Wiring Diagram –300RBC
1. Connect the power harness (006-3650T) to the tractor battery (12 volt) using the red wire with fuse to the
positive side and the black wire to the negative.
a. The power harness must be connected to the battery! The unit will draw more amps than
convenience outlets can handle. Any modifications of the power harness will void systems
warranty. CONTACT HARVEST TEC BEFORE MODIFICATIONS.
b. This unit will not function on positive ground tractors.
c. If the unit loses power while operating it will not keep track of accumulated pounds of
product used.
2. The power harness on the tractor (006-3650T) will run from the tractor battery to the hitch. The power
harness on the baler (006-3650B1) will connect to the tractor power harness (006-3650T) at the hitch.
3. Connect the keyed power wire (006-5650K) to a keyed power source on the tractor. The keyed power
wire must connect to a keyed source or the unit will not power up correctly.
4. Attached the iPad Integration Control (030-6672C) to the tractor power harness (006-3650T).
5. Attach the End of Bale (EOB) connection on the controller to the End of Baler Sensor (006-7400).
System wiring diagram
Power Harness on Tractor
006-3650T
300 Control Box
006-3671RB
Moisture Harness
006-4640GX2
Moisture Content (MC%)
End of Bale Sensor
006-7400
iPad Integration Control
030-6672C
Orange Wires to
Keyed Power
006-5650K
Power/ Harness on Baler
006-3650B1
Harness
Color
EOB
Brown
V1
White (Delphi Connector)
EOR
Yellow
FLOW
White
V2-DSM
White (Delphi Connector)
Pump
Orange
Moisture Disc
006-4641HX (x2)

20
Maintenance
Dielectric Grease Connections: Disconnect all harnesses on the applicator, clean the connections, and
repack with dielectric grease.
Battery Connections: Follow the batteries safety warnings and clean the battery connections. If the
connections cannot be cleaned, replace harness.
Winter Storage
Disconnect power from the Three Hundred Series controller (THS).
Common Questions
1. How do I turn the system on/off?
To turn the system ON open the Hay App and select the active system for the baler you are using.
2. The moisture content displays “LO” or “HI” all the time.
When the moisture content display does not change frequently while baling, there is likely a faulty moisture
disc connection. Check if there is build up around the moisture discs and for grounding between the disc
and the bale chamber. Also, check all moisture disc wires and connectors to see if there is a continuity.
3. Should the battery connections be removed before jump starting or charging a battery?
Yes. Anytime the tractor will have voltage going up rapidly the connections should be removed.
4. What is the expected battery life of the iPad when baling?
3.5 hours is the expected amount of time for the battery when continuously baling. Shut off all other
applications, wireless internet, and Wi-Fi signal to reduce the amount of programs iPad is running.
It is recommended to use an accessory outlet charger when operating (not included with iPad).
*Note: Not all chargers are designed to charge an iPad, verify before purchasing.
5. What is the max distance for connection between the iPad and the Bluetooth Receiver?
Pre-2020 applicators were equipped Bluetooth receivers (030-6672B). The range for the connection will
depend on the amount of equipment (tractor, baler, ect.). The max distance will range between 10’–20’.
6. What do the lights on the 030-6672B indicate?
Pre-2020 applicators were equipped Bluetooth receivers (030-6672B) and are now equipped with lights to
indicate both power and Hay App connection on the Apple iPad. Red Light –The Bluetooth receiver has
power. Green Light –The Bluetooth receiver is connected to the Hay App.
Troubleshooting
Problem
Possible cause(s)
Solution(s)
Moisture reading errors
(reading high or low)
1. Wire disconnected or bad
connection
1. Reconnect wire.
2. Low power supply to THS
2. Check voltage at box. Min of 12V
3. Hay over 60% moisture
4. Ground contact with one or both
moisture disc and THS
4. Reconnect.
5. Short in wire between moisture
5. Replace wire.
Moisture Reading Erratic
1. Check all wiring connections for
corrosion or poor contact.
1. Apply dielectric grease to all
connections.
2. Check power supply at tractor.
Voltage 12V-14V
2. Install voltage surge protection on
tractors alternator.
Bluetooth Receiver lights will
not illuminate
1. Bluetooth receiver not connected
2. Harness disconnected
3. Low power
1. Check connections and voltage.
Minimum 12.5V needed.
Red Light –The Bluetooth receiver has power
Green Light –When the proper active connection is selected in the Hay App menu,
the green light will indicate connection with the iPad.
