Haws 1920HO Guide

08/23 Model 1920HO/1920HPSHO/1920WHO Page 1 of 11
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [email protected]  website: www.hawsco.com
No. 0510001063 (6)
Model 1920HO/1920HPSHO/1920WHO
Hands-Off Bottle Filler
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that all of its products are guaranteed against defective material or poor workmanship for
a period of one year from the date of shipment. The foregoing notwithstanding, HAWS warrants certain
specific products or components thereof for an adjusted period. A list of these excepted products and
components and a description of their respective warranty terms
may be found here:
www.hawsco.com/warranty. HAWS’ liability under this warranty shall be discharged by furnishing without
charge F.O.B. HAWS factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first-class workmanship, provided that a claim is made in
writing to Company within a reasonable period after receipt of the product. Where claims for defects are
made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. HAWS shall
not be liable for the cost of repairs, alterations or replacements, or the labor required to implement them,
or for any expense connected therewith made by the owner or owner’s agents, except upon written
authority from HAWS. HAWS shall not be liable for any damages caused by defective materials or poor
workmanship, except for replacements, as provided above. Buyer agrees that HAWS has made no other
warranties either express or implied in addition to those above stated, except that of title with respect to
any of the products or equipment sold hereunder and that HAWS shall not be liable for general, special,
incidental, or consequential damages claimed to arise under the contract of sale.
Equipment manufactured by HAWS is warranted to function if installation and maintenance instructions
provided are adhered to. The units also must be used for the purpose for which they were intended. Any
HAWS emergency equipment is intended to supplement first-aid treatment. Due to widely varying
conditions, HAWS cannot guarantee that the use of this emergency equipment will prevent serious injury
or the aggravation of existing or prior injuries.
EXCEPT AS EXPRESSLY STATED HEREIN, HAWS HEREBY DISCLAIMS ALL WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AN
D FITNESS FOR A
PARTICULAR PURPOSE. THIS WARRANTY MAY NOT BE MODIFIED OR EXTENDED WITHOUT THE
WRITTEN CONSENT OF HAWS. REMEDIES AND REPLACEMENTS STATED HEREIN ARE
EXCLUSIVE. IN NO EVENT SHALL HAWS BE LIABLE FOR ANY SPECIAL, PUNITIVE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON INCLUDING BUT NOT LIMITED
TO DAMAGES FOR LOSS OF USE OR PROFITS, SUBSTITUTE PRODUCTS OR COSTS, PROPERTY
DAMAGE, OR OTHER MONETARY LOSS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE:
1-888-640-4297
CAUTION! Prior to making any electrical connections, verify with a voltmeter that power
from the service panel is off.

08/23 Model 1920HO/1920HPSHO/1920WHO Page 2 of 11
REQUIRED TOOLS: Screwdriver, 3/32” and 5/32” hex key set, adjustable wrench or socket.
LOCATION OF UNIT: The Model 1920HO/1920HPSHO/1920WHO bottle filler water
dispenser can be installed in various applications. Possible installations include indoor over
an existing drinking fountain, outdoor over an existing fountain, or a standalone wall-mounted
bottle filler. When installing this unit, local, state or federal codes should be adhered to.
SUPPLY LINE: The minimum recommended line size is 3/8" O.D. copper or plastic tubing
with 30-90 psi (2-6 ATM) pressure. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: Inlet is 3/8“ O.D. push-in type fitting.
ELECTRICAL CONNECTIONS: Bottle filler may be mounted on external wall of building
provided transformer shall be mounted inside the wall and protected from water per
NEC/CEC and local code.
Sensor: 1920HO with 1RKHO.H: 100-277VAC x 9VDC, 50-60Hz, 5 Watts
MAINTENANCE: Periodically clean the supply line Y-strainer.
INSTALLATION PROCEDURE
GENERAL NOTES:
1. For all plastic push-in type fitting connections, only connect NSF-61 copper or
plastic tubing. Stainless steel or glass tubing is not recommended. The
following assembly instructions must be followed to ensure a watertight
connection:
a. Cut tubing square and clean.
b. Mark from end of tube the length of insertion (See table below).
c. Push tube into the fitting until it bottoms out.
d. To remove, depress collet and pull tubing out.
Tube Sizes
O.D.
Tolerance Insertion Depth
3/8”
±.005”
3/4”
STEP 1: Thoroughly flush supply line to remove all foreign matter. Install ½” IPS supply
screwdriver-stop (not supplied). Assemble parts in following order:
Install supplied 3/8” O.D. tee into fountain supply line. Using supplied 3/8” O.D.
tubing, connect tee to Y-strainer inlet.
Use supplied 3/8” O.D. tubing to connect Y-strainer outlet to solenoid valve inlet.
Use supplied 3/8” O.D. tubing to connect solenoid valve outlet to regulator valve inlet.
STEP 2: Open screwdriver-stop wide open while checking for leaks at all connections.
STEP 3: Adjust flow rate using the black pressure regulator mounted inside the 1920 bracket
by loosening the locknut and rotating the knob clockwise to increase flow or
counterclockwise to reduce flow. Tighten the locknut and check flow rate. Repeat
these steps until desired flow rate is achieved.
STEP 4: 1RKHO.H Transformer and Sensor Setup: Refer to the 1RKHO.H manual for
instructions (supplied).

08/23 Model 1920HO/1920HPSHO/1920WHO Page 3 of 11
CLEANING INSTRUCTIONS FOR HI-POLISHED STAINLESS PRODUCTS:
Haws’ recommended cleaning procedure for hi-polished stainless products is as follows:
Use a mild detergent or soap and water for removing stains and fingerprints or use a clean cloth
with window cleaner.
BOTTLE FILLER BRACKET:
If installing the bottle filler in new construction, it is recommended to use Model 6700 Mounting
Plate. Follow the installation instructions supplied with the 6700 for mounting dimensions.
Reference Pages 7-11 of this document for 1920HO/1920HPSHO/1920WHO button heights
when mounted over different Haws drinking fountains. (Note: Mounting Hardware is only
supplied with the 6700 Series Mounting Plates and not the Bottle Filler Water Dispensers).
If installing as a retrofit in old construction, it is recommended to use the Model 6700 Mounting
Plate behind the finished wall. If that is not possible, it is recommended to install wood stud
cross-braces behind the wall and mount the 1920HO/1920HPSHO/1920WHO directly to the
wood support. If that is not possible, Model 6700R Retrofit Plate may be used. Follow the
installation instructions supplied with the 6700R. (Note: Mounting Hardware is only supplied with
the 6700 Series Mounting Plates and not the Bottle Filler Water Dispensers).
If installing as a stand-alone bottle filler, use the mounting hole location diagram on Page 6 and
bolt the 1920HO/1920HPSHO/1920WHO securely to the wall. (Note: Mounting Hardware is not
supplied with the Bottle Filler Water Dispensers).
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1. Insufficient water flow. 1a. Check that any inlet screwdriver stop valve (not
supplied) is wide open. Turn counterclockwise.
b.
Verify minimum 30 psi flowing supply pressure.
c. Clean any strainer(s) that may be installed in
water supply line.
d.
e.
Adjust black regulator valve Model 5867 to
increase flow. Clockwise increases flow.
Make sure nozzle is free of debris.
2. Excessive water flow. 2a. Adjust black regulator valve model 5867 to
decrease flow. Counterclockwise decreases flow.
3. Water flow is crooked or
splatters.
3a.
b.
c.
Make sure nozzle is free of debris.
Verify that bottle filler is installed level and
straight.
Adjust black regulator valve model 5867 to
decrease flow. Counterclockwise decreases flow.
For more information about Haws products, see our website: www.hawsco.com
© 2023 Haws®Corporation – All Rights Reserved
HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.

PARTS BREAKDOWN
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
H
A
W
S
a
n
d
o
t
h
e
r
t
r
a
d
e
m
a
r
k
s
u
s
e
d
i
n
t
h
e
s
e
m
a
t
e
r
i
a
l
s
a
r
e
t
h
e
e
x
c
l
u
s
i
v
e
p
r
o
p
e
r
t
y
o
f
H
a
w
s
C
o
r
p
o
r
a
t
i
o
n
.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
FV
08/18/20
6
0510001063
1920HO/1920HPSHO/1920WHO
1:14
1 1
FV
09/06/23
5574
KM
4 OF 11

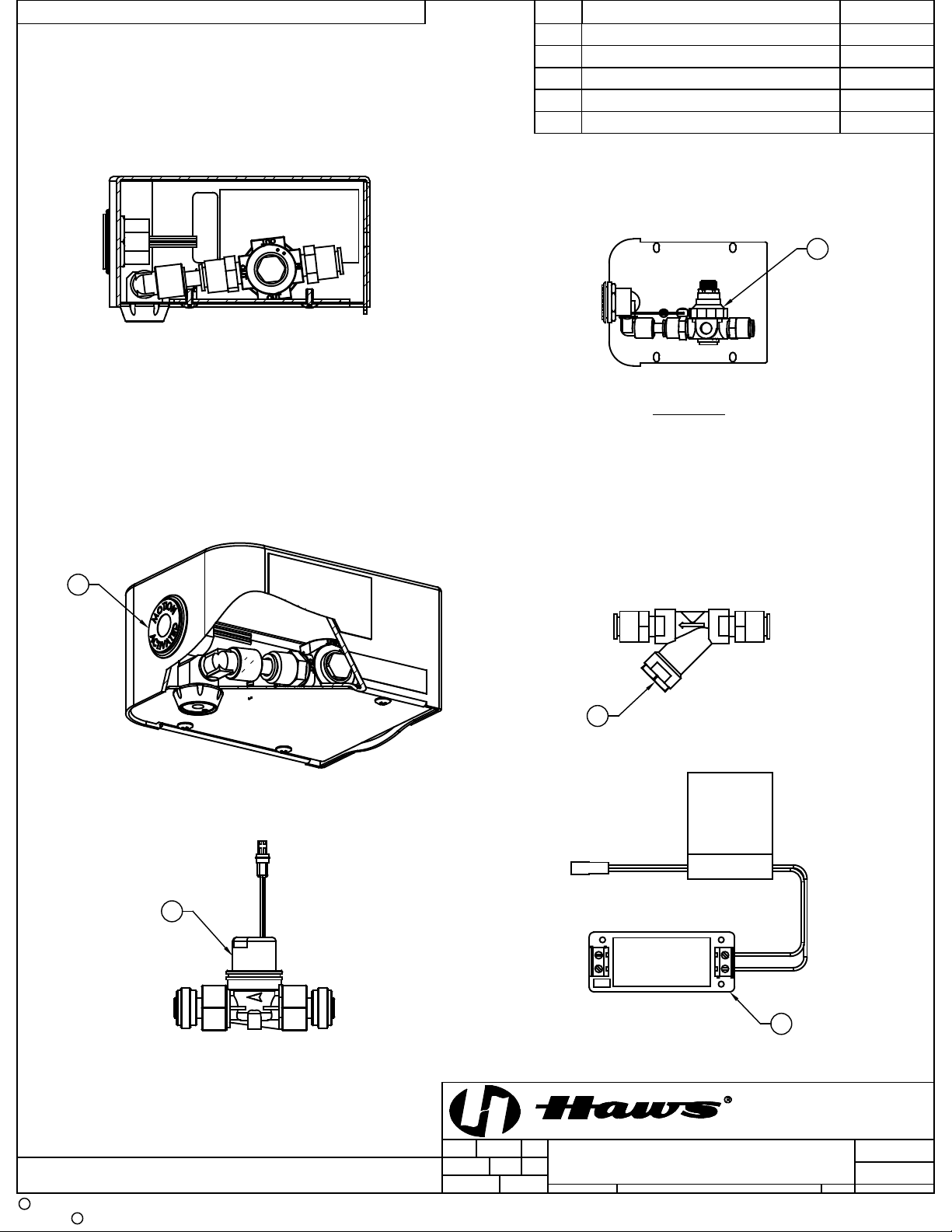

PARTS BREAKDOWN
5893
2023
FV
NOTES:
1. 3/8"-16 UNC BRACKET MOUNTING HARDWARE NOT
SUPPLIED.
1SENSOR
2
3
4
5
SOLENOID VALVE
TRANSFORMER
PRESSURE REGULATOR VALVE
Y-STRAINER
VRKHO6
VRKH05
VRKH08
5867
6433
5
2
1
4
TOP VIEW
BRACKET REMOVED
FOR CLARITY
3
WIRING HARNESS
NOT SHOWN
ON THIS VIEW

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
1 7
FV
09/06/23
5574
KM
5 of 11
INSTALLATION
5893
2023
FV

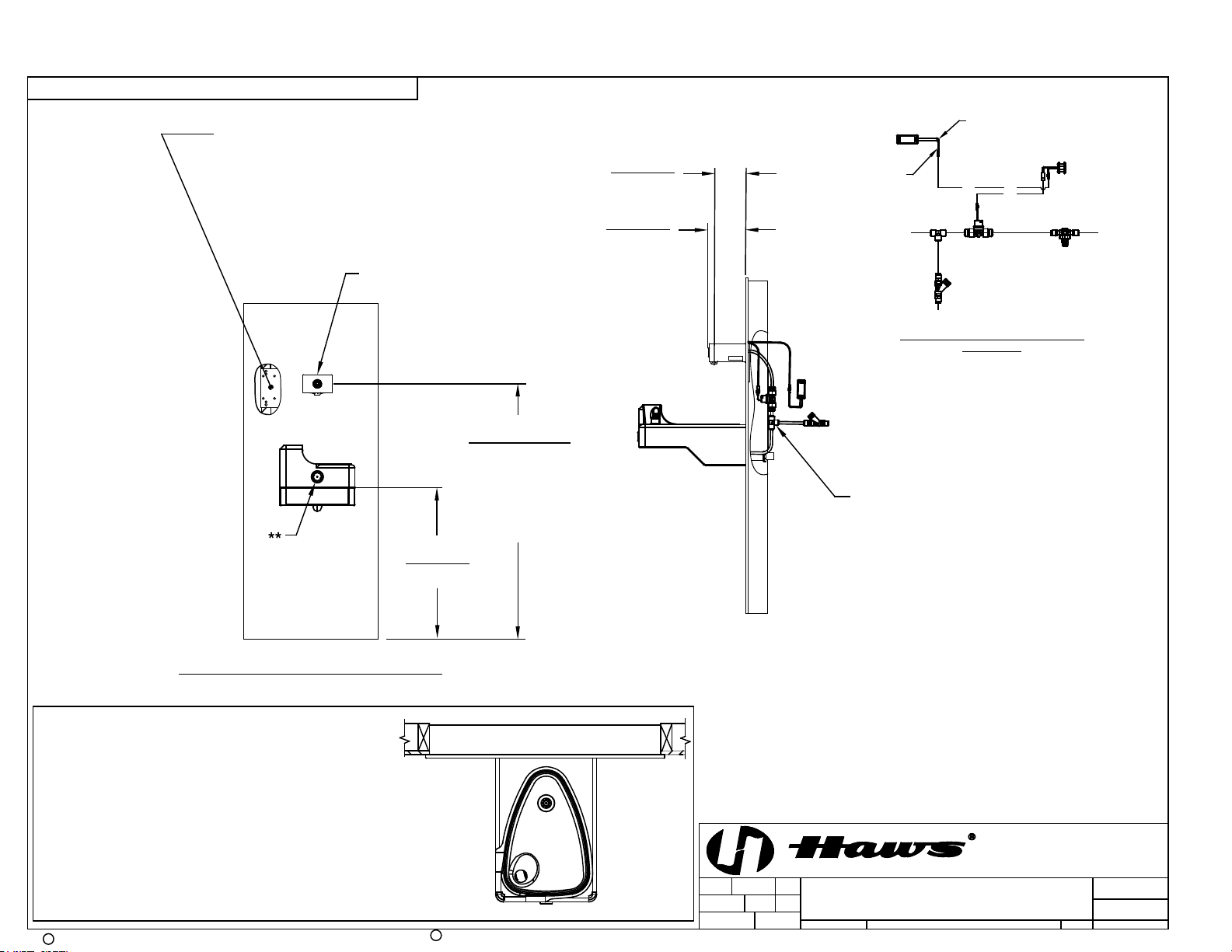

1920HO SERIES MOUNTING HOLE LOCATIONS
NOTES:
1.
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE OR FEDERAL CODES
SHOULD BE ADHERED TO FOR INSTALLATION LOCATIONS,
WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
1-1/8"
29mm
1-27/32"
47mm
Ø7/16"
Ø11mm
3"
76mm
5/8"
17mm
4X
3-5/8"
92mm
3-1/4"
82mm
6-3/4"
171mm
SEE SEPARATE INSTALLATION DRAWINGS FOR MOUNTING PLATES
AND BACK PANELS (SHOWN FOR REFERENCE - NOT SUPPLIED).
5-1/4"
133mm
(3/8"-16 UNC MOUNTING HARDWARE NOT SUPPLIED)
3 REFER TO 1RKHO.H OPERATION & MAINTENANCE INSTRUCTIONS FOR SENSOR SETUP.
3
SENSOR
EYE

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
2 7
FV
09/06/23
5574
KM
6 of 11
INSTALLATION
5893
2023
FV

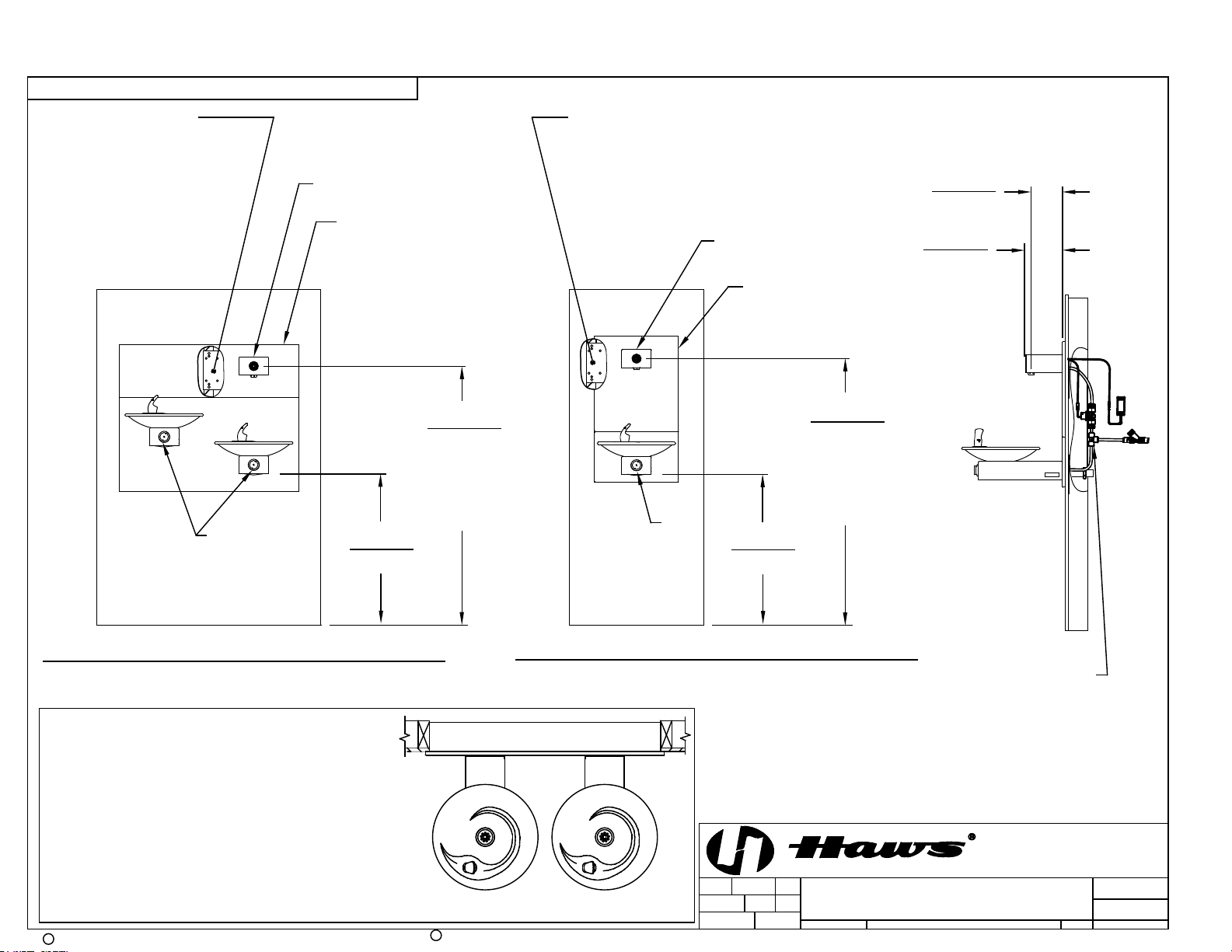

INSTALLATION ABOVE HAWS 1001 & H1001.8 SERIES
INSTALLATION ABOVE HAWS 1011 & H1011.8 SERIES
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920HO/1920HPSHO
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
6700
FINISH WALL)
BP32/BP32HPS
(47-11/16")
(1211mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(46-1/4")
(1175mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-3/4"
171mm
5-5/8"
143mm
BP15/BP15HPS
1920HO/1920HPSHO
- OR -
RETROFIT PLATE
(ON TOP OF
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL 1RKHO.H OR
2RKHO.H DEPENDING ON
CUSTOMER REQUIREMENTS.
**
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACK PANELS
(SHOWN FOR REFERENCE - NOT SUPPLIED).

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
3 7
FV
09/06/23
5574
KM
7 of 11
INSTALLATION
5893
2023
FV
1920HO
INSTALLATION ABOVE HAWS 1109 & H1109.8 SERIES
INSTALLATION ABOVE HAWS 1119 & H1119.8 SERIES
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
(47-5/8")
(1210mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(47-5/8")
(1210mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-3/4"
171mm
5-5/8"
143mm
BP15
6469 6469
1920HO
6700
FINISH WALL)
BP32
- OR -
RETROFIT PLATE
(ON TOP OF
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL 1RKHO.H OR
2RKHO.H DEPENDING ON
CUSTOMER REQUIREMENTS.
**
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES, BACK PANELS
AND DRIP TRAY (NOT SUPPLIED).

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
4 7
FV
09/06/23
5574
KM
8 of 11
INSTALLATION
5893
2023
FV
INSTALLATION ABOVE HAWS 1107L (SHOWN) & H1107.8
(NOT SHOWN)
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
(45-5/8")
(1159mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(46-1/16")
(1170mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-3/4"
171mm
5-5/8"
143mm
** **
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL 1RKHO.H OR
2RKHO.H DEPENDING ON
CUSTOMER REQUIREMENTS.
**
INSTALLATION ABOVE HAWS 1117L (SHOWN),
H1117.8 & HO SERIES (NOT SHOWN)
1920HO
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
BP15
1920
6700
FINISH WALL)
BP32
- OR -
RETROFIT PLATE
(ON TOP OF (IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACK PANELS
(SHOWN FOR REFERENCE - NOT SUPPLIED).

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
5 7
FV
09/06/23
5574
KM
9 of 11
INSTALLATION
5893
2023
FV
INSTALLATION ABOVE HAWS 1311INSTALLATION ABOVE HAWS 1501
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
(47-3/4")
(1213mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(45-7/16")
(1154mm)
SENSOR
HEIGHT
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920WHO ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)
1920WHO
6700
FINISH WALL)
BP32W
- OR -
RETROFIT PLATE
(ON TOP OF
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32RW)
MOUNTING PLATE
(BEHIND
6700R
FINISH WALL)
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL 1RKHO.H OR
2RKHO.H DEPENDING ON
CUSTOMER REQUIREMENTS.
**
** **
1920WHO
BP15W
BP8W
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACK PANELS
(SHOWN FOR REFERENCE - NOT SUPPLIED).

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
08/18/20
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
6 7
FV
09/06/23
5574
KM
10 of 11
INSTALLATION
5893
2023
FV
1920HO
INSTALLATION ABOVE HAWS 1047
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
(45-1/2")
(1156mm)
SENSOR
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
6-7/8"
175mm
5-5/8"
143mm
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920HO ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)
SENSOR
FROM SUPPLY
TO
NOZZLE
-Vo
+Vo
AC(L)
AC(N)
BLACK WIRE
WHITE WIRE
TRANSFORMER
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
TO
FOUNTAIN SOLENOID
VALVE
Y-STRAINER
PRESSURE
REGULATOR
EXISTING PUSH BUTTON
ASSEMBLY SHOWN, CAN
BE CONVERTED TO HANDS
OFF STYLE, USING RETRO-
FIT KIT MODEL 1RKHO.H.
**
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACK PANELS
(SHOWN FOR REFERENCE - NOT SUPPLIED).

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
10/04/21
6
0510001063.D
1920HO/1920HPSHO/1920WHO
N/A
7 7
FV
09/06/23
5744
KM
11 of 11
INSTALLATION
5893
2023
FV
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
BP15
1920HO
6468 BP6
INSTALLATION ABOVE 6468
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACK PANELS
(SHOWN FOR REFERENCE - NOT SUPPLIED).
