OmniLogic
Installation Manual
HLBASE
Contents
Before You Begin........................1
Overview....................................1
Preparing Pool/Spa Water..........4
Mounting Equipment.................6
Plumbing...................................9
Wiring.......................................13
System Startup.........................23
Conguration Wizard................24
Automation and Chlorination
092472 RevA

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should
always be followed, including the following:
• READ AND FOLLOW ALL INSTRUCTIONS
• WARNING-Toreducetheriskofinjury,donotpermitchildrentousethisproduct,
unless they are closely supervised at all times.
• Awireconnector(bondinglug)isprovidedonthisunittoconnectaminimumNo.
8AWG(8.4mm²)(No.6AWGinCanada)solidcopperconductorbetweenthis
unit and any metal equipment, metal enclosures of electrical equipment, metal
waterpipe,orconduitwithin5feet(1.5m)oftheunit.
• AgreencoloredterminaloraterminalmarkedG,GR,Ground,orGroundingislo-
catedinsidethesupplyterminalboxorcompartment.Toreducetheriskofelectric
shock,thisterminalmustbeconnectedtothegroundingmeansprovidedinthe
electrical supply service panel with a continuous copper wire equivalent in size
the circuit conductors supplying this equipment.
• WARNING:DisconnectallACpowerduringinstallation.
• WARNING:Waterinexcessof100degreesFahrenheitmaybehazardousto
your health.
• OnebondinglugforUSmodels(twoforCanadianmodels)isprovidedonthe
externalsurface.Toreducetheriskofelectricshock,connectthelocalcommon
bonding grid in the area of the swimming pool, spa, or hot tub to these terminals
withaninsulatedorbarecopperconductornotsmallerthan8AWGUS/6AWG
Canada.
• SAVE THESE INSTRUCTIONS

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Hayward could void the user’s authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio / TV technician for help.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The term “IC” before the certification / registration number only signifies that the Industry Canada technical specifications were met.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Table of Contents
Introduction Installation Steps...............................................................3
Preparing General Water Chemistry...................................................4
Pool/Spa Water Salt..................................................................................5
Mounting OmniLogic Enclosure........................................................6
Equipment Temperature Sensors........................................................7
Optional Chlorination.......................................................8
Optional HL-CHEM Sensing Kit........................................8
Optional AQL-CHEM2 pH Dispensing................................8
Optional HLWALLMOUNT.................................................8
Optional HLWLAN...........................................................8
Optional Valve Actuators.................................................8
Plumbing Pool/Spa Configuration......................................................9
TurboCell.......................................................................12
Flow Switch....................................................................12
Electrical MainService...................................................................14
Wiring Grounding and Bonding...................................................14
Circuit Breaker Installation and Wiring..............................14
General Purpose Outlet...................................................14
OmniLogic Power............................................................14
Pool Equipment Connection Table....................................15
High Voltage Pool Equipment...........................................16
Low Voltage Wiring..........................................................17
Final Steps BeforeStartup.................................................................23
Startup and Startup and Configuration Wizard.....................................24
Configuration Bodies of Water.........................................................25
Filter Pumps......................................................25
Heaters.............................................................26
HL-CHEM..........................................................28
Chlorinator.........................................................29
Cleaners............................................................29
Water Features..................................................30
ColorLogic Lights...............................................31
Other Lights......................................................31
Accessories.......................................................31
Sensors....................................................................32
Backyard Accessories...............................................33
Interlocks.................................................................33
Warranty OmniLogic Limited Warranty............................................35

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
1
Before you Begin
What’s Included
Before attempting to install the OmniLogic system, check that the following components have been included in the package:
• OmniLogicElectronicsUnit
• (3)Temperature sensors with 15 ft. (5m) cable, hose clamp
What’s NOT Included
Some of the additional items that you may need to complete an installation include:
Circuit breakers
None are included with control—see page 14 and inside door label for suitable breakers
Wire
4-conductor cable for connection to optional wired terminal(s)
Wire/conduit for 125A service from main panel to OmniLogic
Wire/conduit for filter pump and other high voltage loads
Wire for remote heater control and other low voltage devices
Wire for bonding
Miscellaneous
Optional utility electrical outlet and weatherproof cover (for mounting on side of OmniLogic)
Mounting hardware (screws, bolts, etc.) for mounting OmniLogic and remote terminals
Valve Actuators (to automate valve functions)
Accessory Products - Order Separately
T-CELL-3 Chlorinator Cell - generates chlorine for pools up to 15k gallons
T-CELL-9 Chlorinator Cell - generates chlorine for pools up to 25k gallons
T-CELL-15 Chlorinator Cell - generates chlorine for pools up to 40k gallons
P-KIT Chlorination plumbing kit containing flow switch and cell unions
HL-CHEM ORP & pH Sensing Kit for monitoring and controlling pool chemistry
HLRELAYBANK Additional relay pack adds 4 high voltage relays
HLIOEXPAND Input/Output Expander Board adds 4 additional sensor/external inputs, 4 heater/low voltage outputs, and 4 actuator outputs
HLDIMMER Light Dimmer Relay Kit
HLRELAY Single high voltage relay kit
HLWLAN Wireless home network connectivity - eliminates the need to hard wire the OmniLogic to the home’s router/access point
HLWALLMOUNT Wired Wall Mount Remote Terminal
GVA-24 Valve Actuator
V&A-xx Valve & Actuator (xx=1P (1.5” pos. seal), -2P (2” pos. seal)
NOTE: Before installing this product as part of a saline water purification system in a pool or spa using natural stone for coping or for immediately adjacent
patios/decking, a qualified stone installation specialist should be consulted regarding the appropriate type, installation, sealant (if any) and maintenance of stone
used around a saline pool with electronic chlorine generator in your particular location and circumstances.
NOTE: The use of dry acid (sodium bisulfate) to adjust pool pH is discouraged especially in arid regions where pool water is subject to excessive evaporation and
is not commonly diluted with fresh water. Dry acid can cause a buildup of by-products that can damage your chlorinator cell.
Overview
The OmniLogic HLBASE is a multifunction pool automation control that is expandable to meet all your needs and fully manage your pool/spa system. The Om-
niLogic can control pumps, valves, lighting, heaters, pool chemistry and more. It offers the next generation of technology to manage pool/spa equipment and
the backyard experience. Using a touchscreen interface and network connectivity, the OmniLogic gives the user complete control over both automation and
chlorination of their pool and spa.
Although the OmniLogic is easy to use, it is important to completely read through this manual before attempting to install, configure or operate the unit.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
2
Optional pH and ORP
up to 10 120/240V Relays (using HLRELAYBANK)
up to 8 24V Actuators (using HLIOEXPAND)
up to 8 Heaters and Low
Voltage devices (using HLIOEXPAND)
If using HLIOEXPAND, up to
8 Temperature Sensors
and External Input devices
Optional Wireless
Remote Terminals
Optional Wired
Remote Terminals
Flow Switch
Computers Android and IOS
Mobile devices
optional Chlorinator Cell
up to 10 120/240V Relays
up to 8 24V Actuators
Chlorinator Cell
Circuit Breaker
Subpanel
Circuit Breaker
Subpanel
240 VAC
Power
240 VAC
Power
Features
The standard Hayward HLBASE OmniLogic offers the following features:
• controlupto4highvoltage(120/240V)relaystocontrolpumps,poollights,yardlights,waterfeatures,chemicaldispensersandmore
• controlupto4automaticvalveactuatorsincludingpoolandspavalves,waterfeaturevalves,cleanervalvesandmore
• controlupto4heatersorlowvoltageequipmentincludinggasheaters,electricheatpumps,andsolarheatersaswellasvariouslowvoltagedevices
• inputsforupto4temperaturesensorsorexternalinputdevices
• ethernetportforwiredconnectiontothehome’srouter/accesspointallowingcommunicationtodevicesonthehomenetworkorontheweb
• 100Aelectricalsubpanelthatcanaccommodateupto12circuitbreakers
• connectionforHaywardTurboCellusedtogeneratechlorine
• connectionforowswitchusedtodetectwaterow
• inputforORPandpHsensing(HL-CHEM)
• connectionforExpansionPanelifmorethanonOmniLogicisrequired
Optional accessories (page 1) can expand the functionality of the HLBASE. Determine your needs and select the necessary HLBASE accessories before you
begin the installation.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
3
Chlorination
When used with an optional Hayward TurboCell and P-KIT, the OmniLogic can generate all the chlorine needs for pools up to 40,000 gallons (150,000 liters), or
the needs of most commercial pools up to 25,000 gallons (95,000 liters). If enabled (see Configuration Wizard), this operation requires a low concentration of
salt (sodium chloride) in the pool/spa water. The OmniLogic automatically converts salt into free chlorine which kills bacteria and algae in the pool/spa. Chlorine
will revert back to sodium chloride after killing bacteria. These reactions will continuously recycle, virtually eliminating the need to add sanitizing chemicals
to your pool/spa. The only time you may need to add more salt to the pool/spa is when water is replenished due to backwashing, draining, or splashing (not
evaporation). The actual amount of chlorination required to properly sanitize a pool varies due to bather load, rainfall, temperature, and the pool’s cleanliness.
Installation Steps
DANGER of Death, Injury or Property Damage if procedure not followed. Dead front removal is required for this installation. Power to the OmniLogic
panel MUST be shut off before the dead front is removed. This means a complete shutdown of power to the entire OmniLogic panel.
Details on each installation step are presented on the following pages:
1. Prepare the pool water (page 4)
General Water Chemistry
Salt
2. Mounting the equipment (page 6)
OmniLogic main unit
Temperature sensors
Remote display/keypad (optional)
Valve actuators (if applicable)
3. Plumbing (page 9)
General Pool Equipment
TurboCell
Flow Switch
4. Electrical Wiring (page 13)
Main service
Grounding and bonding
Circuit breakers
OmniLogic power
High Voltage pool equipment
Low voltage wiring (temperature sensors, flow switch, etc.)
5. System Startup and checkout (page 24)
NOTE: If replacing a Pro Logic Controller using networked ColorLogic Lights, the lights must be put into “Standalone” (default) mode before disconnecting the
Pro Logic. The OmniLogic can only control ColorLogic lights in “Standalone” mode.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
4
Preparing Pool/Spa Water
General Water Chemistry
Salt is required only if you are using the chlorinator features on the OmniLogic Control Center. If you are NOT using the chlorinator, it is recommended that
you follow all of the other chemistry recommendations besides salt.
Water Chemistry

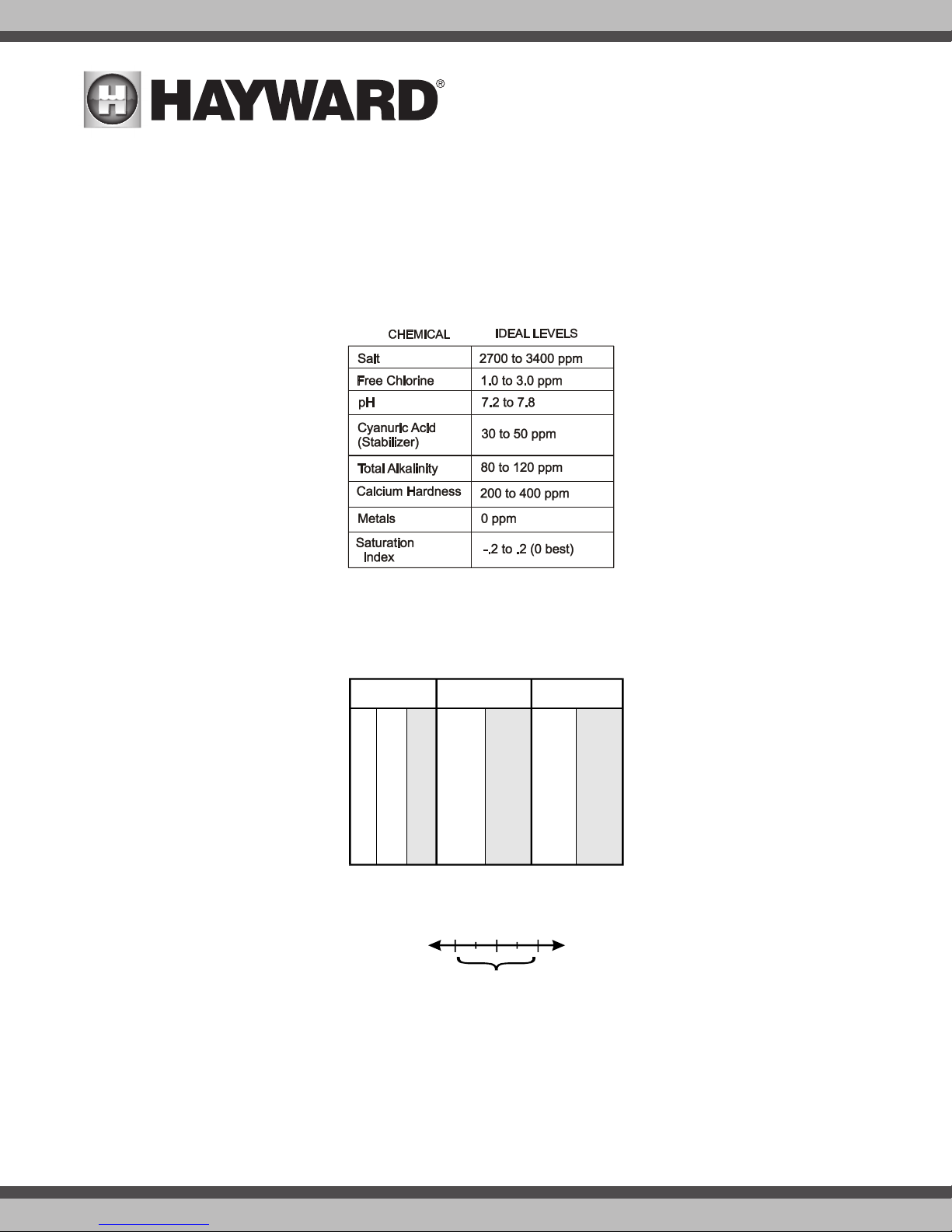

This table summarizes the levels that are recommended by the Association of Pool and Spa Professionals (APSP). The only special requirements for the
OmniLogic are the salt level and stabilizer.
Saturation index
The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water “balance”. Your water is properly balanced
if the Si is 0 ±0.2. If the Si is below -0.2, the water is corrosive and plaster pool walls will be dissolved into the water. If the Si is above +0.2, scaling and
staining will occur. Use the chart below to determine the saturation index.
The pool’s chemistry must be balanced BEFORE activating the OmniLogic’s optional chlorinator function. NOTE: If the pool does not have new water, add
metal remover and non-copper based algaecide to the pool, per manufacturer’s instructions. This ensures a quick, troublefree transfer to the OmniLogic
system.
ºC ºF Ti Calcuim
Hardness
Ci
Total
Alkalinity
Ai
53
60
66
76
84
94
103
12
16
19
24
29
34
39
.3
.4
.5
.6
.7
.8
.9
How to use: Measure pool pH, temperature, calcium hardness,
andtotalalkalinity.UsethechartabovetodetermineTi,Ci,and
Ai from your measurements. Insert values of pH, Ti, Ci and Ai
into the above equation. If Si equals .2 or more, scaling and
stainingmayoccur.IfSiequals-.2orlesscorrosionorirritation
may occur.
Si = pH + Ti + Ci + Ai - 12.1
-.2 0.2
CORROSIVE SCALING
75 75
100 100
125 125
150 150
200 200
250 250
300 300
400 400
600 600
800 800
1.5 1.9
1.6 2.0
1.7 2.1
1.8 2.2
1.9 2.3
2.0 2.4
2.1 2.5
2.2 2.6
2.4 2.8
2.5 2.9
OK

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5
Salt (When using optional chlorinator function)
Use the chart at the bottom of the page to determine how much salt in pounds or (Kgs) should be added to reach the recommended levels. Use the Pool Sizing
Formula below (measurements are in feet/gallons and meters/liters) if pool size is unknown.
The operating salt level is between 2700-3400 PPM (parts per million) with 3200 PPM being optimal. Before adding any salt, test the salt level. This is espe-
cially important for retrofit installation to older pools where all of the chlorine added to the pool over time is ending up as salt. If the level is low, determine the
number of gallons in the pool and add salt according to the chart below. A low salt level will reduce the efficiency of the sanitization and result in low chlorine
production. A high salt level can cause the OmniLogic to stop chlorinating. The salt in your pool/spa is constantly recycled and the loss of salt throughout the
swimming season should be minimal. This loss is due primarily to the addition of water because of splashing, backwashing, or draining (because of rain). Salt
is not lost due to evaporation.
Type of Salt to Use
It is important to use only sodium chloride (NaCl) salt that is greater than 99.0% pure. This can be found at most pool stores in 40-80 lb. bags labeled “for use
in swimming pools”. Alternatively, use common food quality or water softener salt that is at least 99.0% pure. It is also acceptable to use water conditioning
salt pellets, however, it will take longer for them to dissolve. Do not use rock salt, or salt with more than 1% of yellow prussiate of soda, salt with anti-caking
additives, or iodized salt.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
6
How to Add Salt
For new plaster pools, wait 10-14 days before adding salt to allow the plaster to cure. Turn the circulating pump on and add salt directly into the pool. Brush the
salt around to speed up the dissolving process—do not allow salt to pile up on the bottom of the pool. Run the filter pump for 24 hours with the suction coming
from the main drain (use pool vacuum if there is no main drain) to allow the salt to evenly disperse throughout the pool. The salt display may take 24 hours to
respond to the change in salt concentration.

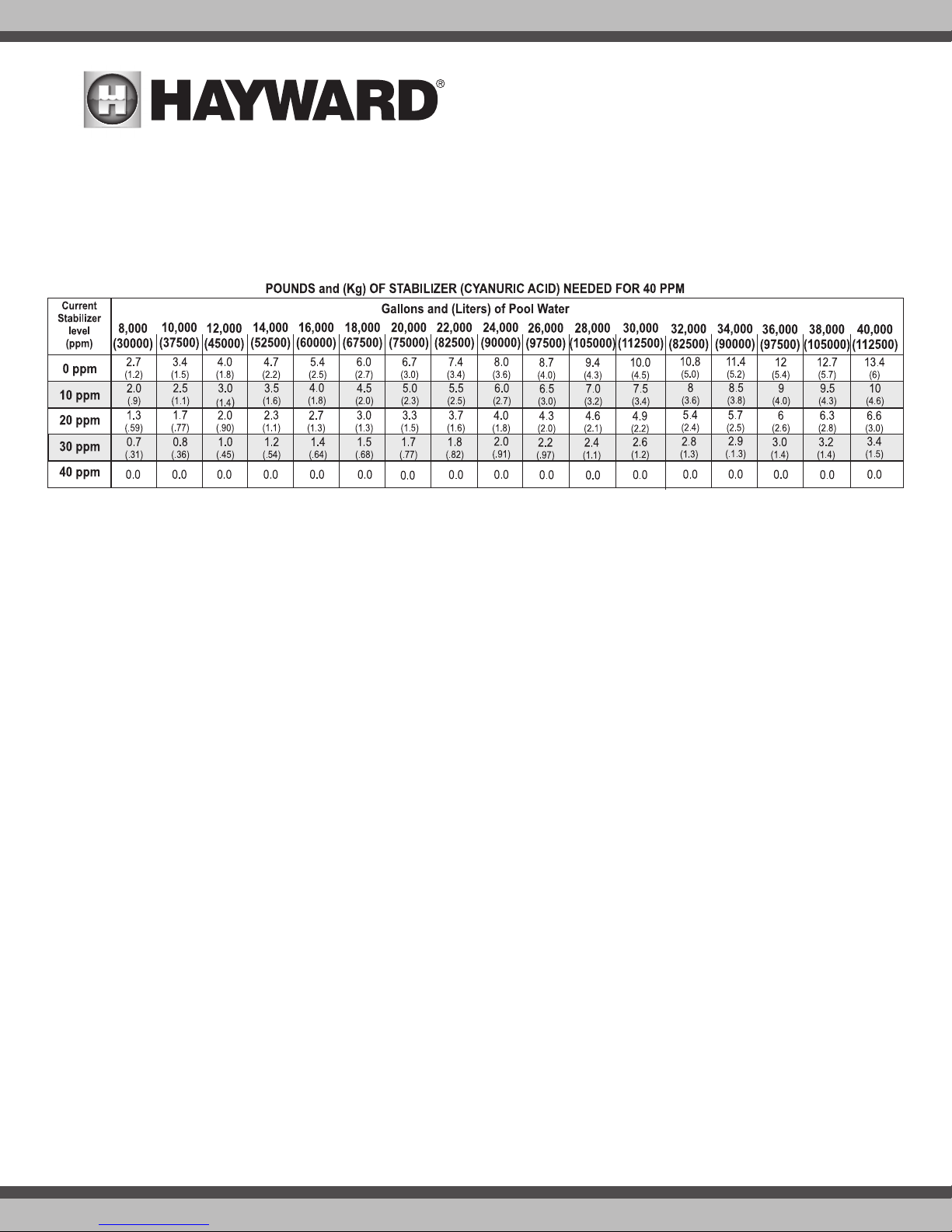

Always check stabilizer (cyanuric acid), when checking salt. These levels will most likely decline together. Use the chart below to determine how much stabilizer
must be added to raise the level to 40 ppm.
Mounting the Equipment
OmniLogic Enclosure
The OmniLogic is contained in a raintight enclosure that is suitable for outdoor mounting. The control must be mounted a minimum of 6 ft. (2 meters) horizontal
distance from the pool/spa (or more, if local codes require). The OmniLogic is designed to mount vertically on a flat surface with the knockouts facing downward.
Because the enclosure also acts as a heat sink (disperses heat from inside the box), it is important not to block the four sides of the control. Do not mount the
OmniLogic inside a panel or tightly enclosed area.
When selecting a location, note that the standard cables supplied with the included flow switch and temperature sensors, as well as optional accessories like
Hayward TurboCells and actuators are all 15 ft. (5m) long.
The OmniLogic weighs close to 60lbs. and will require two people to position and install. Select the proper location and mounting hardware given the size and
weight of the unit. The OmniLogic mounting brackets require a total of 6 mounting bolts to fasten the OmniLogic to the mounting surface.

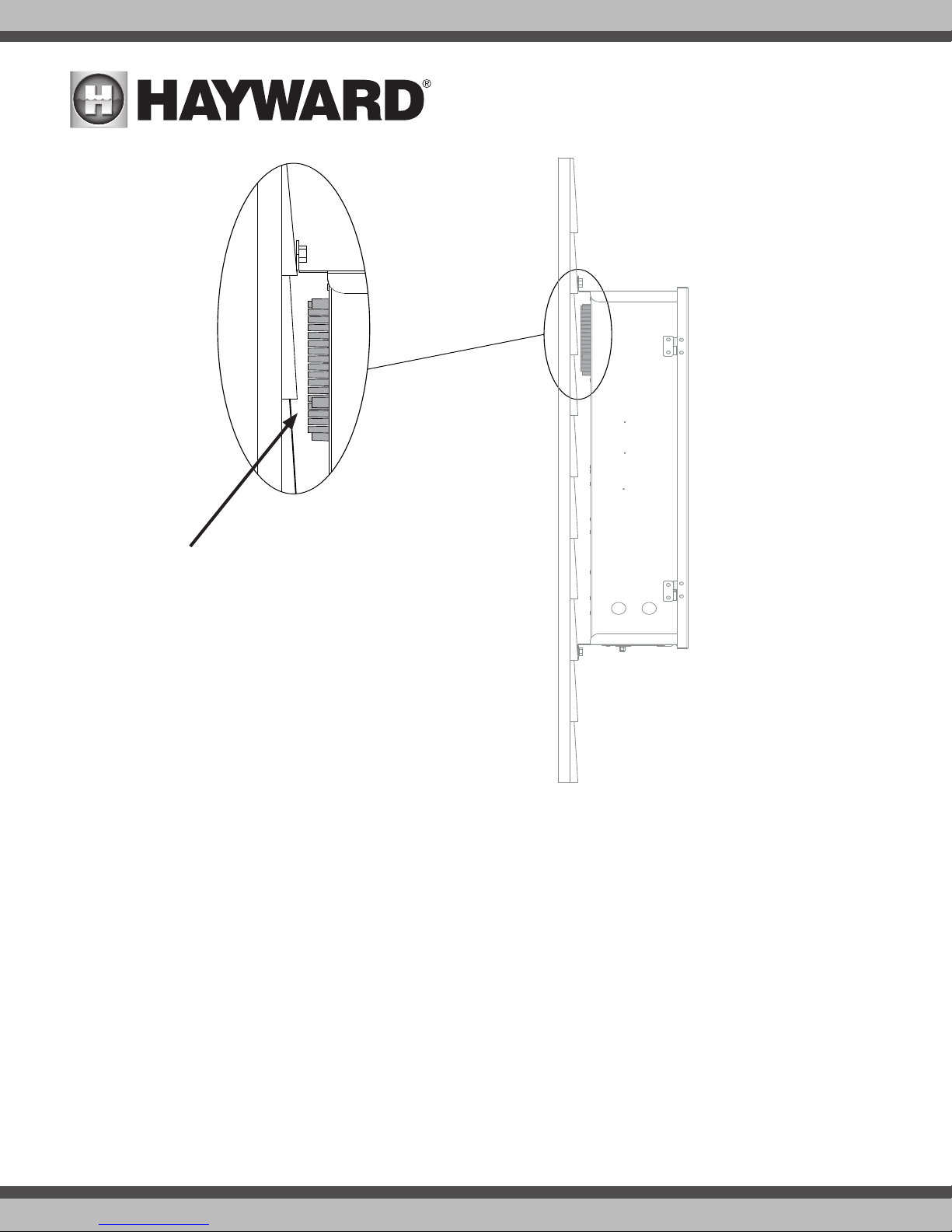

Note that there is a heatsink on the back of the enclosure. Refer to the following information regarding the OmniLogic heatsink:
In all cases the heat sink on the back of the OmniLogic panel should not contact the wall behind the panel. This restricts air flow and makes the heat sink less
efficient. A minimum separation of 1/8” (except for vinyl siding) should be maintained between any heat sink pin and the siding on the wall behind the enclosure.
In the case of a flat wall the mounting flanges on the enclosure ensure that the minimum clearance is maintained. For shingles, clapboards or other siding with
a non-flat profile, the installer must ensure the minimum separation. Refer to the diagram on page 7.
Special Installation Instructions for Vinyl Siding
IMPORTANT: The heat sink on the back of the OmniLogic panel cannot be allowed to contact vinyl siding; during normal chlorinator operation the heat sink pins
get warm enough to deform vinyl siding on contact. An increased minimum separation of 3/8” should be maintained between any heat sink pin and the vinyl
siding behind the enclosure.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
7
Temperature Sensors
Three sensors are included with the OmniLogic. A water sensor and an air sensor must be installed at all times for proper operation. A solar sensor is required
if the solar function is enabled.
Water Sensor
This sensor is used to measure the pool/spa temperature and is installed in the filtration plumbing after the filter but before either the solar or conventionally
fueled heaters—refer to the plumbing overview diagram.
1. Drill a 3/8” (10mm) diameter hole in the PVC piping and remove all chips and burrs.
2. Insert sensor until O-ring collar sits flush on the hole.
3. Position hose clamp over the sensor and gently tighten until O-ring makes an adequate seal. Do not overtighten.
Air Sensor
Mount the air sensor outdoors. IMPORTANT: The air sensor must not be mounted in direct sunlight.
Solar Sensor
For solar applications, mount the sensor near the solar collector array so that it is exposed to the same sunlight as the collectors. Use additional cable (20 AWG)
if necessary.
Minimum Clearance between heatsink and mounting surface - 1/8”
For Vinyl Siding - 3/8”

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
8
Optional Chlorination Function
The OmniLogic model requires the use of a chlorinator cell and plumbing kit to provide pool chlorination. These items are not included with the OmniLogic and
can be purchased separately at your local Hayward dealer. Choose a chlorinator cell model based on the size of your pool. The following models are available:
T-CELL-15 for pools up to 40,000 gallons
T-CELL-9 for pools up to 25,000 gallons
T-CELL-3 for pools up to 15,000 gallons
In addition to the chlorinator cell, a plumbing kit (P-KIT) must be purchased. This kit contains the cell unions and flow switch. Refer to pages 12 and 23 for
plumbing and wiring instructions.
Optional HL-CHEM Sensing Kit
The HL-CHEM is an ORP and pH sensing kit for the OmniLogic. When chlorination is enabled (requires chlorinator cell and P-KIT), the OmniLogic senses the
pool’s ORP and pH levels and generates the correct amount of chlorine to keep your pool properly sanitized. Wiring and plumbing requirements for the HL-CHEM
should be considered before installing the OmniLogic. Refer to the HL-CHEM manual for specific installation information.
Optional AQL-CHEM2 CO2 Dispensing Kit
The AQL-CHEM2 is a CO2 dispensing device that connects directly to the OmniLogic. When used with an HL-CHEM, the OmniLogic will sense the pool’s pH
level and automatically dispense the correct amount of CO2 to control the pool’s pH to the desired level. Wiring and plumbing requirements for the AQL-CHEM2
should be considered before installing the OmniLogic. Refer to the AQL-CHEM2 manual for specific installation information.
Wired Remote Terminal
Hayward offers an optional wired remote terminals for the OmniLogic, giving you the ability to control your pool’s functions from a remote location, away from
the pool pad. The OmniLogic can also be controlled remotely by various internet enabled devices such as phones, tablets and PCs.
HLWALLMOUNT
The HLWALLMOUNT is a wired touchscreen remote terminal designed to be mounted up to 500’ away (depending on cable gauge) from the OmniLogic. The
HLWALLMOUNT must be mounted indoors or in a weather protected area (rain should never touch the unit). It can mount over a single gang electrical utility box
or can be mounted directly onto any wall surface. When selecting a mounting location, refer to the HLWALLMOUNT manual for more information.
Networking and Web Enabled Devices
The OmniLogic offers ethernet connectivity to the web through the home’s network. Once connected, web enabled devices such as a PC, laptop, tablet or phone
can be used to control and monitor the OmniLogic. For web connectivity, an ethernet cable must be run from the OmniLogic to the router or access point or a
wireless connection can be made to the home’s router using an optional HLWLAN.
HLWLAN
If running ethernet cable from the home’s router/access point to the OmniLogic is impractical, an optional HLWLAN can be used. The HLWLAN is a 802.11b/g/n
transceiver kit that can make a wireless connection up to 250’ to the home’s router/access point preventing the need to run cable for web access. Refer to the
HLWLAN Owner’s Manual for wiring and configuration information.
Optional Valve Actuators
For optional actuators used with the OmniLogic—note that the internal cams in the actuator may also have to be adjusted depending on the way the actuator
is mounted on the valve and the desired valve action.
RETURN SUCTION
OUT
(Common)
IN
(Common)
OUT IN OUT IN

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
9
Plumbing

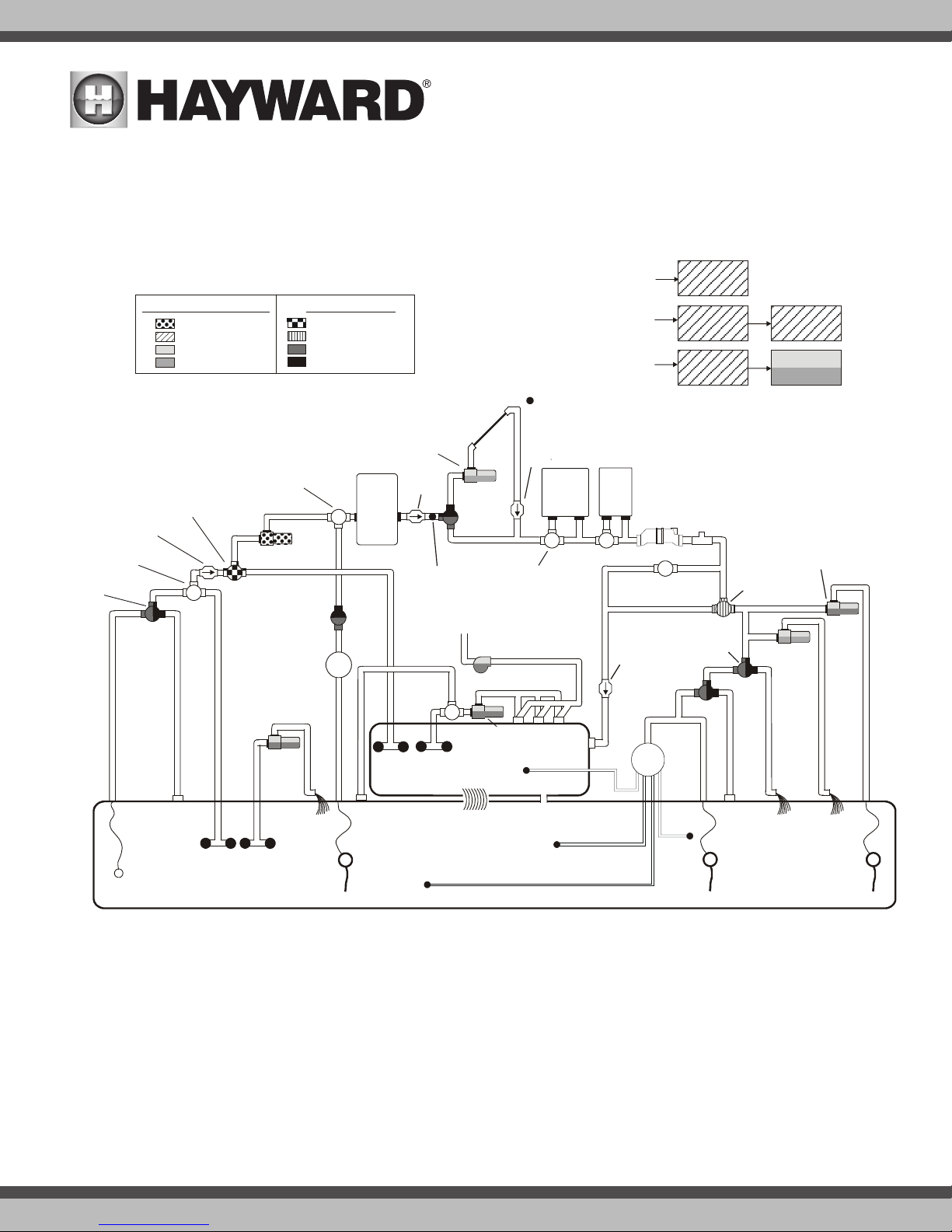

Pool/Spa System Configuration
These systems use a single filter pump and filter. Pool or spa operation is controlled by two 3-way valves (suction and return). Refer to the diagram below.
Some important notes regarding standard Pool/Spa systems:
1. The OmniLogic can be programmed to accommodate spa spillover, if desired.
2. A conventional heater (gas or heat pump) and solar can be used to heat both the pool and the spa.

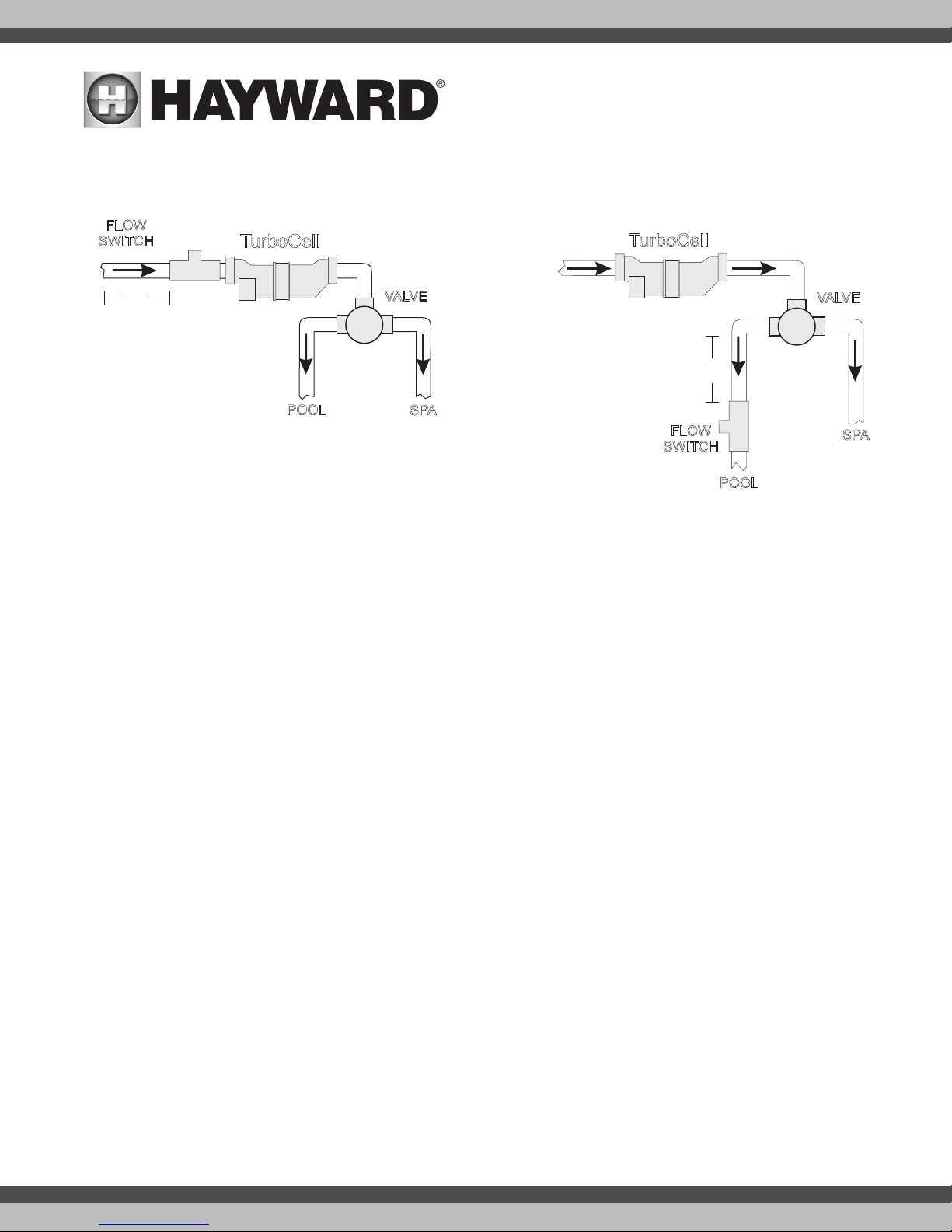

3. If the chlorinator cell is plumbed prior to the pool/spa return valve, then both the pool and the spa can be chlorinated
4. The water sensor should be installed prior to any heater or solar and will display either the pool or the spa temperature, depending on the current operation
of the pool. The temperature will only be displayed when the filter pump is running.
5. If any water feature or pressure side cleaner boost pumps are used, be sure to enable the “interlock” feature (see CONFIGURATION for details) to ensure
that the pumps operate only when the filter pump is on and the system is in the “pool only” operating mode.
6. The plumbing diagram above is intended to be used as a general guideline and is not a complete plumbing schematic for the pool.
7. The air sensor must be installed if the freeze protection feature is enabled for the filter, valves, chlorinator, other pool functions.
FILTER
SOLAR BOOST
PUMP
SOLAR
VALV E
HEATER HEAT
PUMP
HEATER
BYPASS
VALV E
(manual)
CELL FLOW
SWITCH
CHECK
VALV E
POOL SWEEP
BOOST PUMP
WATER
FEATURE
PUMP
POOL/SPA
RETURN
VALV E
WATER
FEATURE
VALV E
SPA
SPA JET
PUMP
SPA
BLOWER
POOL/SPA SUCTION
VALV E
CHECK VALVE
POOL VACUUM
VALV E
MANUAL
VALV E
MANUAL
VALV E
MANUAL
VALV E
ENERGY
FILTER
TWO-WAY
VALV E
SKIM
POP-UP
SPILLOVER
POP-UP
OVERFLOW
POP-UP
RETURN
JET
IN-FLOOR
CLEANER
VALV E
WATER
FEATURE
PUMP
WATER
FEATURE
POP-UP
MAIN
DRAIN ENERGY
SAVER
PRESSURE
CLEANER
NON-BOOST
PRESSURE
CLEANER PRESSURE
CLEANER
SUCTION
CLEANER
SOLAR
TEMPERATURE
SENSOR
POOL
FILTER
PUMP
High Voltage Relays Valve Outputs
Filter Pump
Lights
Aux1
Aux 2
Pool/SpaSuction
Pool/SpaReturn
Valve 3
Valve 4
TRANSFORMER
HIGH VOLTAGE
LIGHTS
LOW VOLTAGE
LIGHTS
FIBER OPTIC
LIGHT SOURCE COLOR WHEEL
ISOLATED
WATER
FEATURE
PUMP
POOL/SPA
TEMPERATURE
SENSOR
CHECK
VALV E
(prevents draining
of raised spas)
CHECK
VALV E
(prevents draining
of raised spas)

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
10
“Dual Equipment - Separate Heaters” for Pool/Spa Configuration
These systems have 2 complete sets of equipment (filter pump, filter, heater)—1 set for the pool and the other set for the spa. Refer to the diagram below:
Some important notes regarding the control of Dual Equipment Pool/Spa systems with separate heaters:
1. When dual equipment is selected:
a. The pool filter can be a one, two or variable pump.
b. The spa filter can be a one, two or variable pump.
2. The water sensor should be installed on the pool loop prior to the heater and will display the pool temperature whenever the “Pool Filter” pump is running.
3. The dual equipment spa sensor should be installed on the spa loop prior to the heater and will display the spa temperature whenever the “Spa Filter” pump
is running.
4. The OmniLogic can be programmed to accommodate spillover if desired. Note that spillover operation will be automatically suspended whenever the spa
filter pump is turned on.
5. The chlorinator cell must be installed in the pool plumbing. If spillover is enabled, then the OmniLogic can chlorinate both the pool and spa (during spillover
operation). Otherwise, the OmniLogic will only chlorinate the pool and the spa sanitization will have to be handled manually.
6. If any water feature or pressure side cleaner boost pumps are used, be sure to enable the “interlock” feature (see CONFIGURATION for details) to ensure
that the pumps operate only when the “Pool Filter” pump is on and the system is in the “pool only” operating mode.
7. The plumbing diagram on page 9 is intended to be used as a general guideline and is not a complete plumbing schematic for the pool.
FILTER
HEATER
HEATER
BYPASS
VALV E
(manual)
HEATER
BYPASS
VALV E
(manual)
POOL SWEEP
BOOST PUMP
WATER
FEATURE
PUMP
POOL/SPA
SPILLOVER
VALV E
WATER
FEATURE
VALV E
SPA
SPA JET
PUMP
SPA
BLOWER
POOL VACUUM
VALV E
MANUAL
VALV E
ENERGY
FILTER
TWO-WAY
VALV E
SKIM
POP-UP
SPILLOVER
POP-UP
OVERFLOW
POP-UP
RETURN
JET
IN-FLOOR
CLEANER
VALV E
WATER
FEATURE
PUMP
WATER
FEATURE
POP-UP
MAIN
DRAIN ENERGY
SAVER
PRESSURE
CLEANER
NON-BOOST
PRESSURE
CLEANER PRESSURE
CLEANER
SUCTION
CLEANER
POOL
High Voltage Relays Valve Outputs Heater Outputs
Pool Filter Pump
Lights
SpaFilterPump(Aux1)
Aux2-Aux6
Pool/SpaSpillover
Valve 3
Valve 4
TRANSFORMER
HIGH VOLTAGE
LIGHTS
LOW VOLTAGE
LIGHTS
FIBER OPTIC
LIGHT SOURCE COLOR WHEEL
ISOLATED
WATER
FEATURE
PUMP
POOL
TEMPERATURE
SENSOR
SPA
TEMPERATURE
SENSOR
HEATER
CELL FLOW
SWITCH
MANUAL
VALV E
POOL FILTER
PUMP
SPA FILTER
PUMP
CHECK
VALV E
(prevents draining
of raised spas) (adjust cams as necessary
for proper spillover)
Heater1(Spa)
Heater2(Pool)
SOLAR BOOST
PUMP
SOLAR
VALV E
CHECK
VALV E
SOLAR
TEMPERATURE
SENSOR
CHECK
VALV E
FILTER

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
11
“Dual Equipment - Shared Heaters” for Pool/Spa Configuration
These systems have 2 complete sets of equipment (filter pump, filter) and shared heaters. Refer to the diagram below:
Some important notes regarding the control of Dual Equipment Pool/Spa systems with shared heaters:
In the Pool/Spa Config., select:
1. When dual equipment is selected:
a. The pool filter can be a one, two or variable pump.
b. The spa filter can be a one, two or variable pump.
c. The heater(s) will be dedicated to the spa whenever the spa filter is on and the spa temperature setting is not off.
2. The water sensor should be installed on the pool loop prior to the heater(s) and will display the pool temperature whenever the “Pool Filter” pump is running.
3. The dual equipment spa sensor should be installed on the spa loop prior to the heater(s) and will display the spa temperature whenever the “Spa Filter”
pump is running.
4. The OmniLogic can be programmed to accommodate spillover if desired. Note that spillover operation will be automatically suspended whenever the spa
filter pump is turned on.
5. The chlorinator cell and flow switch must be installed in the heater return path. If spillover is enabled, then the OmniLogic can chlorinate both the pool and
spa (during spillover operation). Otherwise, the OmniLogic will only chlorinate the pool when the spa does not control the heater(s) and the spa sanitization
will have to be handled manually.
6. If any water feature or pressure side cleaner boost pumps are used, be sure to enable the “interlock” feature (see CONFIGURATION for details) to ensure
that the pumps operate only when the “Pool Filter” pump is on and the system is in the “pool only” operating mode.
7. The plumbing diagram on page 9 is intended to be used as a general guideline and is not a complete plumbing schematic for the pool.
POOL
FILTER
ELECTROLYTIC
CELL
FLOW
SWITCH
POOL FILTER
PUMP
VALV E 1
VALV E 2
VALV E 3
In from POOL
Out to SPA
Out to POOL
In from SPA
SPA
TEMPERATURE
SENSOR
SPA
FILTER
SPA FILTER
PUMP
HEATER HEATER
SOLAR BOOST
PUMP
SOLAR
VALV E
CHECK
VALV E
SOLAR
TEMPERATURE
SENSOR
CHECK
VALV E

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
12
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Optional TurboCell
The TurboCell (used for chlorine generation) must be plumbed AFTER the filter and heater. If installed on a pool/spa combination system, the cell must be
plumbed BEFORE the pool/spa return valve in order to allow proper chlorination of both the pool and the spa. Refer to plumbing diagram below:
The cell may be mounted vertically or horizontally, and water can move in either direction through the cell. Install using the 2” unions provided. Tighten unions
BY HAND for a watertight seal. For systems with 1½“ plumbing use adapters (provided by installer).
Flow Switch (supplied with P-KIT)
A Hayward flow switch is required if using the optional TurboCell for chlorination or an AQL-CHEM2 for pH dispensing. The flow switch is a safety device that
ensures that water is flowing through the cell before the OmniLogic starts to generate chlorine or dispenses acid.
The flow switch must be plumbed in the same section of plumbing as the TurboCell. Failure to properly install the flow switch can result in explosive gases
accumulating in the pool plumbing system.
IMPORTANT: There must be at least a 12” (30cm) straight pipe run before (upstream) the flow switch. If the switch is plumbed after the cell, the cell can by
counted as the 12” (30cm) of straight pipe.
IMPORTANT: To ensure proper operation, verify that the arrow on the flow switch points in the direction of water flow.
FLOW
SWITCH
VALVE
POOL
SPA
12”
FLOW
SWITCH
VALVE
TurboCell TurboCell
POOL SPA
12”
min
min
Flow Switch
before Cell
Flow Switch
after Cell

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
13
Electrical Wiring
The OmniLogic requires both high and low voltage connections. Low voltage connections will be made to actuators, sensors, remote keypad, etc. High voltage
connections will be made to pumps, lights, etc., as well as providing direct input power to the Control Center. Always:
-Ensure that Power is disconnected prior to performing any wiring
-Follow all local and NEC (CEC if applicable) codes
-Use copper conductors only
-Remove power to the OmniLogic subpanel before removing the deadfront

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14
Main Service (Power to the Circuit Breaker Subpanel)
The OmniLogic circuit breaker subpanel can accommodate up to 12 circuit breakers and is rated for 125A service. Run properly rated conductors (L1, L2, N,
and ground) from the primary house electrical panel to the main power connections on the OmniLogic circuit breaker base. The connection at the main house
panel should be to a 240VAC circuit breaker rated at 125A maximum.
Grounding and Bonding
Connect a ground wire from the primary electrical panel to the OmniLogic ground bus bar. Also ground each piece of high voltage (120 or 240VAC) equipment
that is connected to the OmniLogic control relays or circuit breakers. The OmniLogic should also be connected to the pool bonding system by an 8AWG (6AWG
for Canada) wire. A lug for bonding (2 for Canada) is provided on the outside/bottom of the OmniLogic enclosure.
Circuit Breaker Installation and Wiring
Circuit breakers are to be supplied by the installer. Refer to the circuit breaker chart below for a list of suitable circuit breakers that can be used. Follow the
code and the circuit breaker manufacturer’s rating requirements regarding the size and temperature rating for wiring. Note that some pool equipment may be
required to be connected to ground fault circuit breakers—check local and NEC (CEC) codes.
General Purpose Outlet
If desired, a duplex receptacle with weatherproof cover (supplied by installer) may be installed in the knockout on the lower right side of the OmniLogic enclosure.
Per code, use a GFCI type receptacle or a standard receptacle protected by a Ground Fault Circuit Breaker.
OmniLogic Power
The OmniLogic requires 120VAC, 5A power to operate the control logic circuits and the chlorinator. This power should be connected to a dedicated circuit
breaker.
WARNING: 120VAC only (permanent damage will occur if connected to 240V)
!

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
15
Connection Table
The HLBASE includes 4 high voltage relays, 4 low voltage/heater relays, 4 valve outputs and 4 temperature sensor inputs. Additional relays and inputs/outputs
can be added using an HLRELAYBANK, HLIOEXPAND or HLRELAY(s) (see Accessories) . When wiring pool equipment to the OmniLogic, keep a record of all
connections. You’ll need to record which input/output is used and what equipment is attached. To aid in this process, use the table below. To identify the vari-

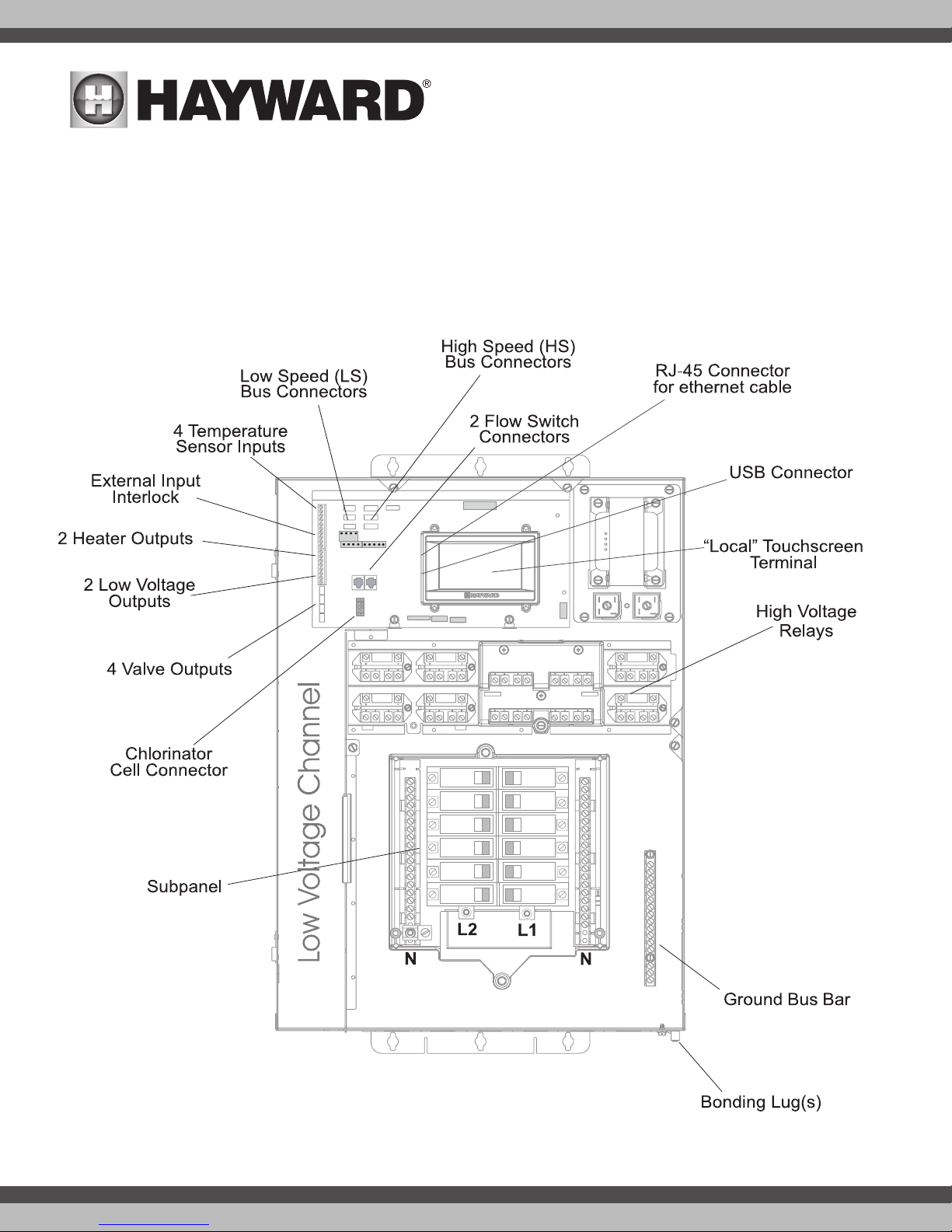

ous inputs/outputs, refer to the diagram on the side of the table. After attaching a equipment to the OmniLogic, fill in the appropriate information in the table.
HVR5
HVR6
HVR8
HVR7
Connection Table

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
16
High Voltage Wiring
High Voltage Relays - (120/240V) Pool Equipment
All OmniLogic relays are double pole (they make/break both “legs” of 240V circuits) and are rated at 3HP/30A at 240V (1½HP/30A at 120V). Refer to the
diagram below for typical relay wiring. Record all connections using the table on page 15.
WARNING: Do not use the OmniLogic to control an automatic pool cover. Swimmers may become entrapped underneath the cover.
Two speed filter pump
Requires two relays for proper operation of both speeds. NOTE: When selecting relays for two speed operation, note that both relays must be within the Relay
Bank (HLRELAYBANK) or neither relay should be within the Relay Bank. The diagram below shows the pump connected to relays outside of the Relay Bank.
!
