HEALTH RIDER HREL2005.0 User manual

CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
Model No. HREL2005.0
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-922-4222
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.healthriderservice.com
Visit our website at
www.healthrider.com
new products, prizes,
fitness tips, and much more!
V
USER'S MANUAL

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING:Toreduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
5. Inspect and properly tighten all parts regu-
larly.Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothes when
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer-
cising.
9. When mounting and dismounting the ellipti-
cal exerciser, always hold the handlebars
and step onto and off the pedal that is in the
lowest position.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
11. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

3
BEFORE YOU BEGIN
Thank you for selecting the new HEALTHRIDER®
C300E low-impact elliptical exerciser. The C 300E is
an incredibly smooth exerciser that moves your feet in
anatural elliptical path, minimizing the impact on your
knees and ankles. Welcome to a whole new world of
natural, elliptical-motion exercise.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
this manual. To help us assist you, please note the
product model number and serial number before call-
ing. The model number is HREL2005.0. The serial
number can be found on a decal attached to the ellip-
tical exerciser (see the front cover of this manual).
Toavoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.healthriderservice.com/registra-
tion.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
FRONT
BACK
RIGHT SIDE
Pedal Arm
Pedal Disk
Side Shield Pedal
Upright
Water Bottle Holder
(Bottle is not included)
Console Handlebar
The decal shown above has been placed on the
elliptical exerciser. If the decal is missing, or if it is
illegible, call the toll-free telephone number on the
front cover of this manual and order a free replace-
ment decal. Apply the decal in the location shown.

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , two adjustable wrenches , and a rubber
mallet .
See the drawings below to identify the small parts needed for assembly. The number in parenthesis below
each drawing is the key number of the part, from the PART LIST on page 14. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
4
M8 x 25mm Button
Screw (51)–4
M8 Nylon
Locknut (46)–4
M8 Split
Washer (49)–4 M10 Split
Washer (67)–2 M10 Nylon
Locknut (29)–6
M10 x 25mm Button
Screw (21)–2
M4 x 16mm
Screw (66)–4
M4 x 19mm
Screw (33)–6 M8 x 45mm Button
Bolt (50)–4
Bolt Set (27)–2 M10 x 68mm
Carriage Bolt (19)–2
M10 x 75mm
Carriage Bolt (34)–2
Handlebar Axle Cap (17)–2 Pedal Arm Axle Cap (16)–2
ASSEMBLY

5
1. Attach the Rear Stabilizer (4) to the Frame (1) with
two M10 x 75mm Carriage Bolts (34) and two M10
Nylon Locknuts (29).
2. Hold the Lower Cable (15) and the Lower Wire
Harness (65) in the indicated slot in the Frame (1),
and insert the Front Stabilizer (3) into the Frame. Make
sure that the Front Stabilizer is oriented as
shown. Be careful to avoid pinching the Lower
Cable and the Lower Wire Harness. Carefully tip
the elliptical exerciser onto one side, and attach the
Front Stabilizer with two M10 x 25mm Button Screws
(21) and two M10 Split Washers (67). Do not tighten
the Button Screws yet.
2
34
4
1
29
29
21
3
15
67
Slot
1
65
3. Hold the Console Bracket (26) near the Upright (2),
and locate the wire extending from the bottom of the
Console Bracket. Carefully pull the upper end of the
Upper Wire Harness (55) to remove any slack, and tie
the wire around the Upper Wire Harness, as shown in
the inset drawing. Carefully pull the wire up through
the Console Bracket until the Upper Wire Harness is
extending from the top of the Console Bracket. Then,
untie the wire and discard it.
Insert the Console Bracket (26) into the Upright (2).
Be careful to avoid pinching the Upper Wire
Harness (55). Attach the Console Bracket with four
M8 x 25mm Button Screws (51) and four M8 Split
Washers (49).
26
55
2
49
49
49
51
51 51 55
Wire
3
5Batteries
4
4. The Console (5) requires three “AA” batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the Console; make sure that the
batteries are oriented as shown by the diagram
inside of the Console.
1

6
6. While another person holds the Upright (2) near the
Frame (1), connect the Upper Wire Harness (55) to
the Lower Wire Harness (65). Next, connect the con-
sole cable to the Lower Cable (15) in the following
way:
•See drawing A. Pull up on the metal bracket on the
Lower Cable (15), and insert the tip of the console
cable into the wire clip inside of the metal bracket.
•See drawing B. Firmly pull the console cable and
slide it into the metal bracket on the Lower Cable
(15) as shown.
•See drawing C. Using pliers, squeeze together the
prongs on the upper end of the metal bracket.
Push the excess cable and wire up into the Upright
(2). Set the holes in the front of the Upright over the
studs in the Front Stabilizer (3). Be careful to avoid
pinching the cables and the wires. Finger tighten
two M10 Nylon Locknuts (29) onto the studs.
Carefully tip the elliptical exerciser onto one side, and
attach the Upright (2) to the Frame (1) with two M10 x
68mm Carriage Bolts (19) and two M10 Nylon
Locknuts. Tighten all four M10 Nylon Locknuts.
See step 2 on page 5. Tighten the M10 x 25mm
Button Screws (21).
2
65
29
55
1
315
Console
Cable
19
29
6
15 15
B C
15
5. While another person holds the Console (5) near the
Console Bracket (26), insert the console cable into
the Console Bracket and down through the Upright
(2). Next, connect the console wire to the Upper Wire
Harness (55). Then, connect the ground wire to the
Console Bracket with an M4 x 16mm Screw (66).
Insert the Wire Harnesses down into the Console
Bracket.
Attach the Console (5) to the Console Bracket (26)
with three M4 x 16mm Screws (66). Be careful to
avoid pinching the cable and the wires.
Ground
Wire
Console
Cable
Console
Wire
5
55
66
66
66
26
2
5
Console
Cable
Console
Cable
Console
Cable
Metal
Bracket
A

7
8
9
2
33
Grease
13
14
10
8. Gently tap an Handlebar Axle Cap (17) onto one end
of the Pivot Axle (38). Apply a generous amount of the
included grease to the Pivot Axle.
Identify the Left and Right Handlebars (9, 10), which
are marked with stickers.
Slide the Left Handlebar (9) onto the Pivot Axle (38),
and insert the Pivot Axle into the Upright (2). Make
sure that the Left Handlebar is oriented as shown.
Next, slide the Right Handlebar (10) onto the Pivot
Axle. Gently tap a Handlebar Axle Cap (17) onto the
other end of the Pivot Axle.
9. Identify the Left Pedal (13), which has an “L” molded
into its bottom surface.
Attach the Left Pedal (13) to a Pedal Arm (14) with
three M4 x 19mm Screws (33). Note: The Left Pedal
can be attached in any of three positions.
Attach the Right Pedal (not shown) to the other Pedal
Arm (not shown) in the same way.
17
17
9
38
7
9
39
46
Hexagonal
Holes
50
7. Identify the Left Handlebar (9), which is marked with a
sticker.
Insert the Left Handlebar (9) into one of the
Handlebar Legs (39). Make sure that the Left
Handlebar is oriented as shown. Attach the Left
Handlebar with two M8 x 45mm Button Bolts (50) and
two M8 Nylon Locknuts (46). Do not tighten the
Button Bolts yet.
Attach the Right Handlebar (not shown) to the other
Handlebar Leg (not shown) in the same way.

8
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TOEXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, firmly hold the handle-
bars and carefully step onto the pedal that is in the
lowest position. Next, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedal disks can turn in either
direction. It is recommended that you turn the
pedal disks in the direction shown at the right;
however, for variety, you can turn the pedal disks
in the opposite direction.
To dismount the elliptical exerciser, allow the pedals to
come to a complete stop. CAUTION: The elliptical
exerciser does not have a freewheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO ADJUST THE RESISTANCE
To increase the resistance of the pedals, turn the resis-
tance knob clockwise; to decrease the resistance, turn
the resistance knob counterclockwise. Important: Stop
turning the knob when turning becomes difficult, or
damage may result.
Pedal
Pedal Disk
Handlebars
10. Apply a thin film of grease to the shaft of a Bolt Set
(27) and to the axle on the left Crank Arm (36).
Slide a Pedal Spacer (64) and the left Pedal Arm (14)
onto the axle on the left Crank Arm (36). Attach the
Pedal Arm with a Pedal Arm Axle Cap (16).
Attach the left Handlebar Leg (39) to the left Pedal
Arm (14) with the Bolt Set (27).
See step 7 on page 7. Tighten the M8 x 45mm Button
Bolts (50). Make sure that the M8 Nylon Locknuts
(46) are seated in the hexagonal holes.
Attach the right Pedal Arm (not shown) to the right
side of the elliptical exerciser in the same way.
11. Make sure that all parts of the elliptical exerciser are properly tightened. Place a mat under the elliptical
exerciser to protect the floor or carpet from damage.
14
16 64
27
39
10
Grease
Grease
36
Resistance
Knob

9
FEATURES OF THE CONSOLE
The easy-to-use console is designed to help you get
the most from your workouts. As you exercise, the
console will display the following modes:
Time—This mode displays the elapsed time (or the
time remaining in a pace program). Note: If you stop
pedaling, the time will begin to flash.
Distance—This mode displays the distance that you
have pedaled.
Calories—This mode displays the approximate number
of calories you have burned.
Fat calories—This mode displays the approximate
number of fat calories you have burned (see FAT
BURNING on page 13).
Pulse—This mode displays your heart rate when you
use the pulse sensor.
Speed—This mode displays your pedaling speed.
Scan—When this mode is selected, the upper section
of the display will show both the time mode and the
distance mode, and the lower left section of the display
will show the calories mode and the fat calories mode.
The console also offers four pace programs. Each pro-
gram automatically prompts you to increase or
decrease your pace as it guides you through an effec-
tive workout.
HOW TO OPERATE THE CONSOLE
4
2

10
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the console,
peel off the plastic.
Turn on the console.
Toturn on the console, press the On/Reset button
or begin pedaling.
Select the manual mode.
Each time the
console is
turned on, the
manual mode
will be selected.
If a pace pro-
gram has been
selected, select
the manual
mode by pressing the Program button repeatedly
until the upper right corner of the display is blank.
Begin pedaling and adjust the resistance of
the pedals.
As you exercise, adjust the resistance of the ped-
als as desired by turning the resistance knob.
Follow your progress with the display.
When the con-
sole is turned
on, the scan
mode will be
selected, as
shown by the
mode bar below
the word SCAN.
As you exercise,
the upper sec-
tion of the dis-
play will alter-
nately show the elapsed time and the distance
that you have pedaled; the lower left section of
the display will alternately show the number of
calories you have burned and the number of fat
calories you have burned; and the lower right sec-
tion will show your pedaling speed.
In addition, the pace indicator on the right side of
the display will provide a visual representation of
your pedaling pace. As you increase or decrease
your pace, the indicator will increase or decrease in
height.
To cancel the
scan mode,
press the Mode
button. The
mode bar below
the word SCAN
will disappear.
The upper sec-
tion of the dis-
play will then show only the elapsed time, and the
lower left section of the display will show only the
number of calories you have burned. Press the
Mode button again. The upper section of the dis-
play will then show only the distance pedaled,
and the lower left section of the display will show
only the number of fat calories you have burned.
To select the scan mode again, press the Mode
button repeatedly until a mode bar appears below
the word SCAN.
To reset the display, press the On/Reset button.
Note: The console can show speed and dis-
tance in either miles or kilometers. To change
the unit of measurement, hold down the
On/Reset button for about six seconds. When
the batteries are replaced, it may be necessary
to reselect the desired unit of measurement.
Measure your heart rate if desired.
Note: If there
are thin sheets
of clear plastic
on the metal
contacts of the
handgrip pulse
sensor,peel off
the plastic.
Touse the pulse sensor,hold the handle on the
console, with your right palm covering the two
right contacts and your left palm covering the two
left contacts. Avoid moving your hands. When
your pulse is detected, the heart-shaped indicator
in the display will flash each time your heart beats
and two dashes (– –) will appear. After a moment,
your heart rate will be shown. For the most accu-
rate heart rate reading, continue to hold the hand-
grips for about 15 seconds.
When you are finished exercising, the console
will automatically turn off after a few minutes.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve the
batteries.
6
5
4
3
2
1
Mode Bar
Pace Indicator
This corner
should be blank
Metal
Contacts

11
HOW TO USE A PACE PROGRAM
Turn on the console.
See step 1 on page 10.
Select one of the four pace programs.
Each time the
console is
turned on, the
manual mode
will be selected.
To select a
pace program,
press the
Program button
repeatedly until the number 1, 2, 3, or 4 appears
in the upper right corner of the display.
The four profiles on the right side of the console
show how the target pace will change during the
programs. For example, profile number 1 shows
that during program 1, the target pace will
increase near the beginning of the program, and
then decrease near the end.
Start the program.
To start the program, begin pedaling. Each pro-
gram consists of either 20 or 30 one-minute peri-
ods. One target pace is programmed for each
period. Note: The same target pace setting may
be programmed for consecutive periods.
The target pace
settings for the
program will be
shown by the
target pace
indicator in the
display. (Note:
The pace indi-
cator will show
your actual
pedaling pace.)
As the target pace indicator changes in height
during the program, adjust your pedaling pace so
that both indicators are the same height. If your
pedaling pace is slower than the current target
pace setting, an arrow will appear next to the
pace indicators to prompt you to increase your
pace; if your pace is faster than the target pace,
an arrow will prompt you to decrease your pace.
Important: The target pace settings for the
program are intended only to provide a goal.
Your actual pace may be slower than the tar-
get pace settings, especially during the first
few months of your exercise program. Make
sure to exercise at a pace that is comfortable
for you.
During the program, adjust the resistance of the
pedals as desired by turning the resistance knob.
The display will show the time remaining in the
program. If you continue exercising after the pro-
gram is completed, the display will continue to
show exercise feedback.
Follow your progress with the display.
See step 4 on page 10.
Measure your heart rate if desired.
See step 5 on page 10.
When you are finished exercising, the console
will automatically turn off after a few minutes.
See step 6 on page 10.
6
5
4
3
2
1
Target Pace Indicator
Pace Indicator

Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
ately.
The elliptical exerciser can be wiped clean with a soft
cloth and mild detergent. Do not use abrasives or
solvents. To prevent damage to the console, keep
liquids away from the console and keep the console
out of direct sunlight.
When storing the elliptical exerciser, remove the bat-
teries from the console. Keep the elliptical exerciser in
aclean, dry location, away from moisture and dust.
CONSOLE TROUBLESHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, see
assembly step 4 on page 5.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper-
ly,see step 5 on page 10.

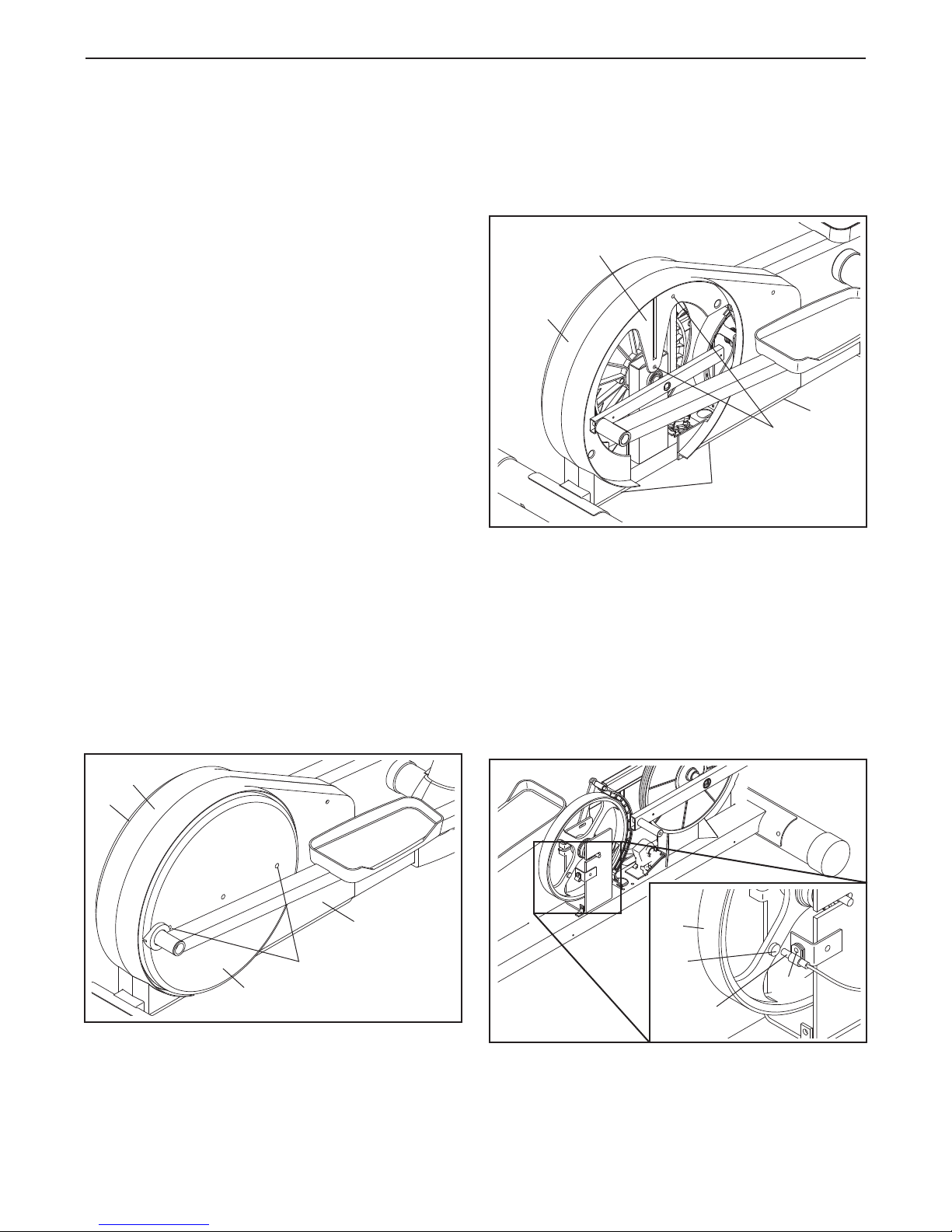

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, remove the indicated Screws (62) from both
Pedal Disks (8). Pull both Pedal Disks out of the Side
Shields (6, 7). Rotate the right Pedal Disk so that you
are able to see beneath it.
Remove the indicated Screws (62) from the Right
Side Shield (7). Remove the indicated Screws (66)
from both Side Shields (6, 7). Lift the Side Shields off
the elliptical exerciser.
Next, locate the Reed Switch (57). Turn the Flywheel
(41) until the Magnet (43) is aligned with the Reed
Switch. Loosen, but do not remove, the indicated
Screw (66). Slide the Reed Switch slightly closer to or
away from the Magnet, and then retighten the Screw.
Rock the Flywheel forward and back just enough that
the Magnet passes the Reed Switch repeatedly.
Repeat until the console displays correct feedback.
When the Reed Switch is correctly adjusted, reattach
the side shields and the pedal disks.
12
MAINTENANCE AND TROUBLESHOOTING
62
57
41
43
66
8
86
7
7
62
66
66
6

13
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat burn-
ing, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age; the three numbers are your “training
zone.” The lowest number is the recommended heart
rate for fat burning; the middle number is the recom-
mended heart rate for maximum fat burning; and the
highest number is the heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber or the middle number in your training zone as you
exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
Awarm-up,consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise,consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down,with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. The key to success is make exercise a regu-
lar and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for individuals over the age
of 35 or individuals withpre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
CONDITIONING GUIDELINES

14
PART LIST—Model No. HREL2005.0 R0805B
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
1 1 Frame
21 Upright
31 Front Stabilizer
4 1 Rear Stabilizer
5 1 Console
6 1 Left Side Shield
7 1 Right Side Shield
8 2 Pedal Disk
9 1 Left Handlebar
10 1 Right Handlebar
11 2 Foam Grip
12 1 Right Pedal
13 1 Left Pedal
14 2 Pedal Arm
15 1 Lower Cable
16 2 Pedal Arm Axle Cap
17 2 Handlebar Axle Cap
18 4 Rear Pedal Arm Bushing
19 2 M10 x 68mm Carriage Bolt
20 1 Side Shield Bracket
21 2 M10 x 25mm Button Screw
22 1 M4 x 16mm Flat Head Screw
23 1 Strap
24 6Handlebar Bushing
25 1 Strap Clamp
26 1Console Bracket
27 2 Bolt Set
28 4Front Pedal Arm Bushing
29 6 M10 Nylon Locknut
30 1 Hook
31 2Front Stabilizer Endcap
32 1 Cable Clamp
33 6 M4 x 19mm Screw
34 2 M10 x 75mm Carriage Bolt
35 2Rear Stabilizer Endcap
36 1 Left Crank Arm
37 1 Pulley
38 1 Pivot Axle
39 2 Handlebar Leg
40 2 Crank Bearing
41 1 Flywheel
42 2 Flywheel Bearing
43 1 Magnet
44 1 Flywheel Axle
45 1 M4 x 64mm Screw
46 6 M8 Nylon Locknut
47 2 Crank Screw
48 1 Right Crank Arm
49 4 M8 Split Washer
50 4 M8 x 45mm Button Bolt
51 4 M8 x 25mm Button Screw
52 2 Flywheel Washer
53 2 “U” Bracket
54 1 Small Pulley Spacer
55 1 Upper Wire Harness
56 1 Belt
57 1 Reed Switch
58 1 Spring
59 2M6 Eyebolt
60 2M6 Nut
61 1 Reed Switch Clamp
62 10 M5 x 16mm Screw
63 1 Pulley Spacer
64 2Pedal Spacer
65 1 Lower Wire Harness
66 11 M4 x 16mm Screw
67 2M10 Split Washer
68 2 Handlebar Endcap
# 1 Allen Wrench, Set
# 1 Grease
#1User’s Manual
Key No. Qty. Description Key No. Qty. Description

1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
14
16 18
18
23
24
24
24
24
25
26
27
28
27
30
31
32
35 34
29
29
48
36 37
21 40
40
41 42
42 43
44
46
47
47
51
56
62
15
38
61
66
57
39
55
65
17
17
50
46
50
46
39
46
59
60 53
45
66
62
66
66
24
28
20
31
24
62
35
27
27 28
28
18
18
58
66
66
66
66
62
62
62
16
60 59
53
67
63
19 54
22
62
33
33
51
49
49
49
51
68
68
52
52
64
64
67
29
29
66
EXPLODED DRAWING—Model No. HREL2005.0 R0805B
15

Part No. 232159 R0805B Printed in China ©2005 ICON IP,Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information when calling:
•the MODEL NUMBER of the product (HREL2005.0)
•the NAME of the product (HEALTHRIDER C 300E elliptical exerciser)
•the SERIAL NUMBER of the product (see the front cover of this manual)
•the KEY NUMBER and DESCRIPTION of the part(s) (see page 14)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
HEALTHRIDER is a registered trademark of ICON IP,Inc.
