ICON Health & Fitness NordicTrack AIRGLIDE 14i User manual

USER’S MANUAL
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. NTEL71423.4
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
REGISTER YOUR
PRODUCT
MEMBER CARE
For service at any time, go to
my.iFIT.com or scan the QR code.
Please do not contact the store.

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................18
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
MAINTENANCE AND TROUBLESHOOTING.....................................................34
EXERCISE GUIDELINES ....................................................................36
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. Google Maps is a trademark of Google LLC. The
Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.
This decal is
on both sides

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Keep children under age 16 and pets away
from the elliptical at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise pro-
gram during pregnancy. Use the elliptical
only as authorized by your health care
provider.
5. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
6. Use the elliptical only as described in this
manual.
7. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
8. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
9. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
10. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
11. When connecting the power cord, plug the
power cord into a grounded circuit.
12. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
13. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
14. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
15. The elliptical should not be used by persons
weighing more than 300 lbs. (135 kg).
16. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
17. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical. Before mounting or dismounting,
bring the pedals to a stop with the pedal
on the mounting or dismounting side in its
lowest position.

4
SAVE THESE INSTRUCTIONS
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the
elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

5

6
Thank you for selecting the revolutionary
NORDICTRACK®AIRGLIDE 14I elliptical. The
AIRGLIDE 14I elliptical provides an impressive selec-
tion of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

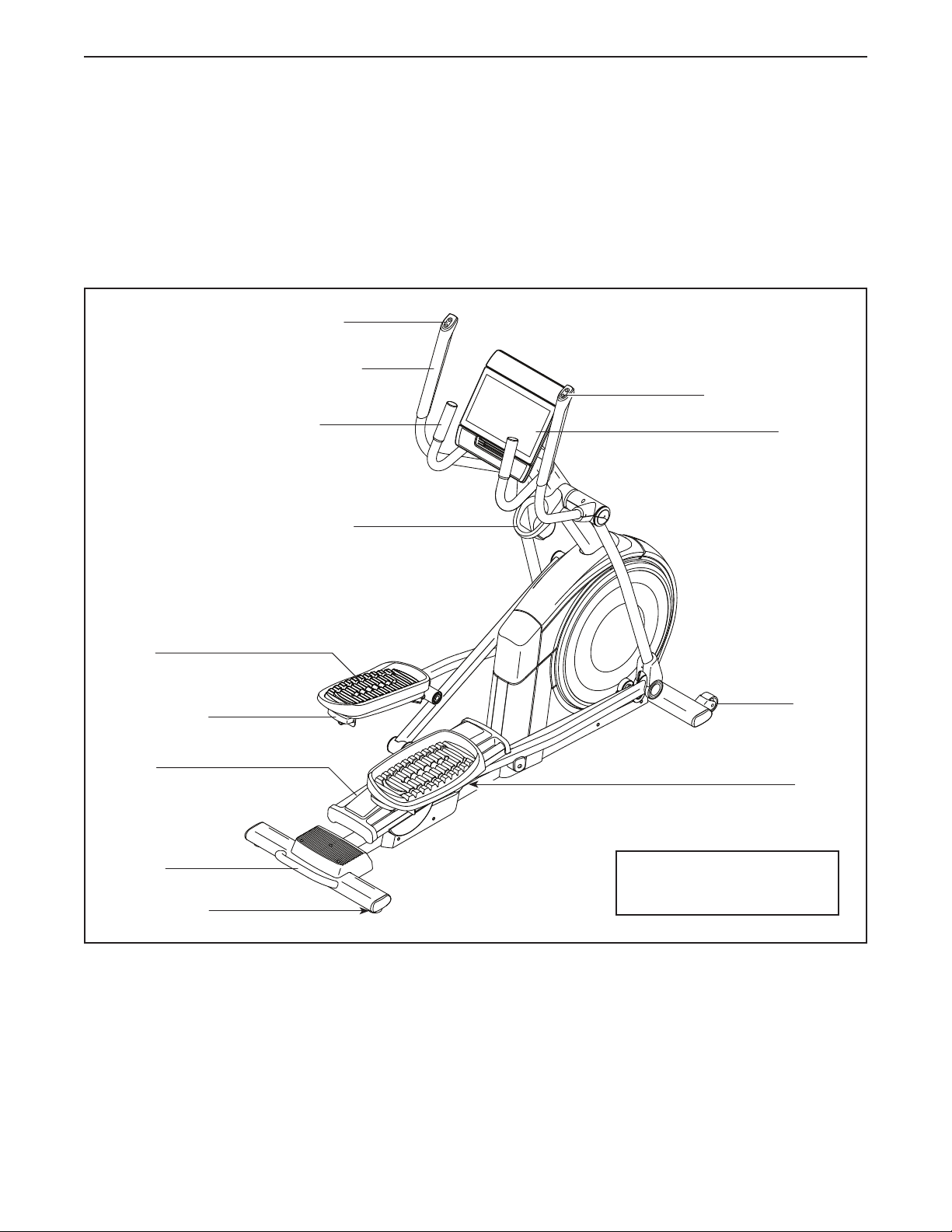

the parts that are labeled in the drawing below.
Accessory Tray
Handlebar
Upper Body Arm
Ramp Control
Pedal
Pedal Handle
Roller
Handle
Ramp
Console
Resistance Control
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 11 in. (180 cm)
Width: 2 ft. 1 in. (64 cm)

7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
M10 x 115mm Screw (104)–2
M8 x 13mm
Screw (82)–4
M8 x 20mm Flat
Head Screw (120)–2
M8 x 20mm
Screw (146)–2
M4 x 16mm
Screw (101)–16
M8 x 22mm
Washer (129)–2
M8 x 28mm
Washer (97)–2
M10 x 25mm
Screw (92)–2
M10 x 60mm Screw
(90)–4
M4 x 18mm
Machine Screw
(155)–3
M8 x 41mm Screw
(96)–4

8
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping until you
complete this step.
If there are shipping supports attached to the
rear of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Next, attach the Rear Stabilizer (2) to the Frame
(1) with four M10 x 60mm Screws (90).
Then, remove the packing materials from under
the Frame (1).
2
1
2
90
90
ASSEMBLY
90
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• Assembly can be completed using the included
tools. Note: Keep the included tools. One or more
of the tools may be needed to make adjustments
in the future. To avoid damaging parts, do not use
power tools for assembly or adjustment.

9
4
6
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second person
hold the Frame to prevent it from tipping until
you complete this step.
If there are shipping supports attached to the
front of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Next, attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 115mm Screws (104).
Then, remove the packing materials from under
the Frame (1).
1
104
3. Attach the Rear Stabilizer Cover (15) to the Rear
Stabilizer (2) with three M4 x 18mm Machine
Screws (155); start all three Machine Screws,
and then tighten them.
3
1
2
155
15

10
5
7759
45
146
5. Apply a small amount of the included grease to
the axle on the right Crank Arm (20).
Next, identify the Right Roller Arm (59), orient
it as shown, and slide it onto the right Crank
Arm (20).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (146) and a Crank Arm
Cover (77); make sure that the Crank Arm
Cover is oriented as shown in the inset
drawing.
Repeat this step for the Left Roller Arm (45).
20
146
77
Grease
6
4
110
1
6. Have a second person hold the Upright (4) near
the Frame (1) as shown.
Next, connect the Upright Wire (157) to the Main
Wire (110).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. If they do not, turn one
connector and try again. You must connect
the wires properly for your treadmill to func-
tion properly. To see a short video about how
to connect wires, scan the QR code or go to
my.iFIT.com.
157

11
Avoid pinching
the wires
7
4
1
92
92
110
7. Avoid pinching the wires. Have a second
person hold the Upright (4) on the Frame (1).
Note: Two M10 x 25mm Screws (92) are
preattached to the Frame (1).
Attach the Upright (4) with two additional
M10 x 25mm Screws (92); do not fully tighten
the Screws yet.
See the inset drawing. Insert the connectors
on the wires into the left side of the Upright (4).
Next, route the Main Wire (110) through the
notch in the Grommet (156) as shown, and then
press the Grommet into the Upright.
4
156
110
8

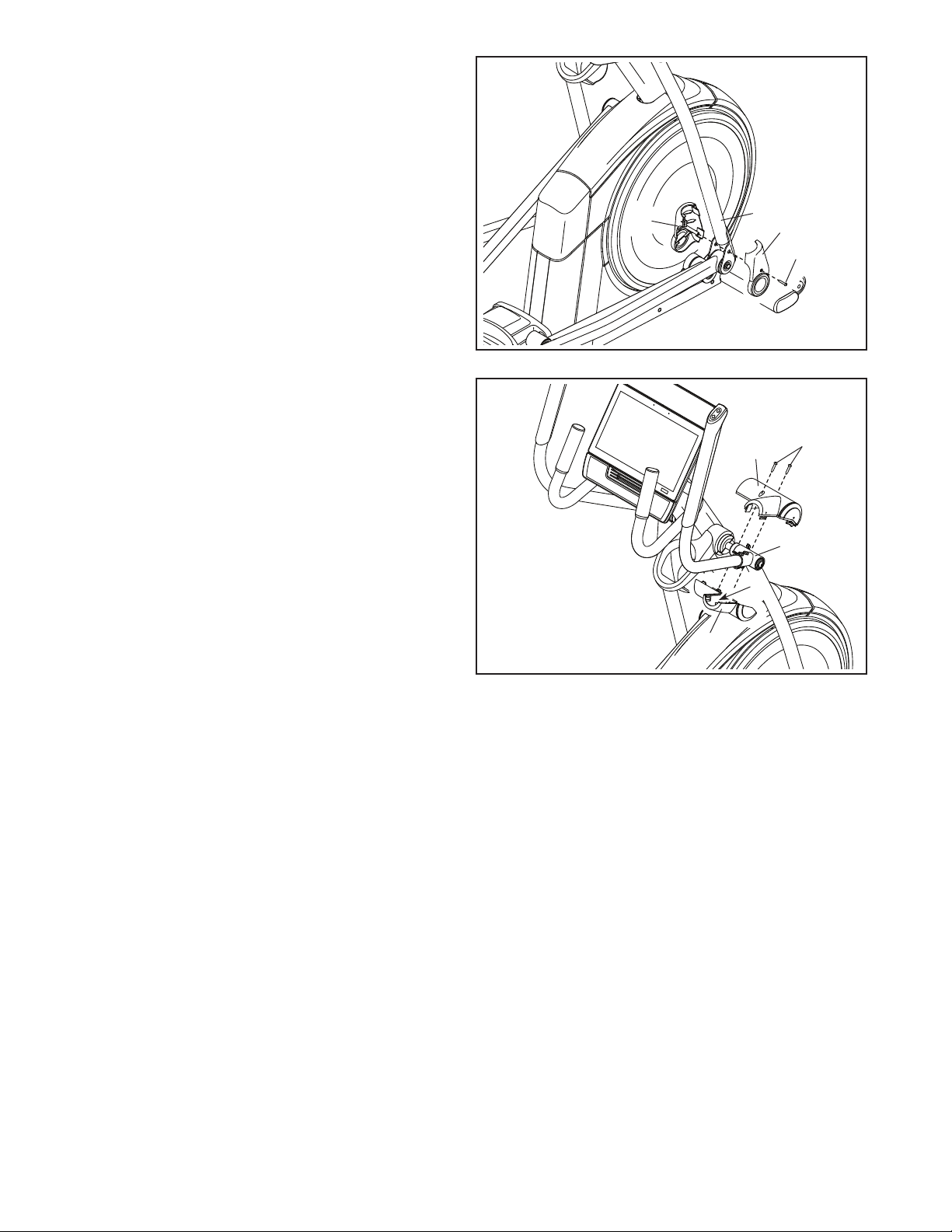

8. Apply grease to the axle on the right side of the
Upright (4).
Next, slide a Pivot Spacer (54) onto the right
side of the Upright (4).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Upright (4).
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step to attach the Left Upper
Body Leg (46).
46
4Grease
60
54
82
97

12
9
60
9. Orient the Right Pedal Arm (58) as shown, and
apply grease to the axle.
Insert the Right Pedal Arm (58) into the Right
Upper Body Leg (60) and into the Right Roller
Arm (59).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Flat Head
Screw (120) and a Retainer (55); make sure
that the flat side (A) of the Retainer is facing
the Right Roller Arm as shown in the inset
drawing.
Repeat this step for the Left Pedal Arm (44).
Grease
55
B58
44
59
55 A
120
120
10
10. Apply grease to one of the Pedal Arm Axles (64).
Insert the Pedal Arm Axle (64) into the Right
Upper Body Leg (60) and the Right Pedal Arm
(58) from the direction shown.
Next, slide an M8 x 22mm Washer (129) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.
82 129
60
64
Grease
58

13
11
7
4
110
111
162
11. See step 7. Tighten the four M10 x 25mm
Screws (92).
Next, have a second person hold the Console
(7) near the Upright (4). Connect the wires
on the Console to the Main Wire (110) and to
the Left and RightExtension Wires (111, 146).
IMPORTANT: The wire connectors should
slide together easily and snap into place with
an audible click. If they do not, turn one con-
nector and try again. You must connect the
wires properly for your elliptical to function
properly.
Then, insert the connectors and the excess wire
into the Console (7).
92
92
12
Avoid pinching
the wires
7
101
128

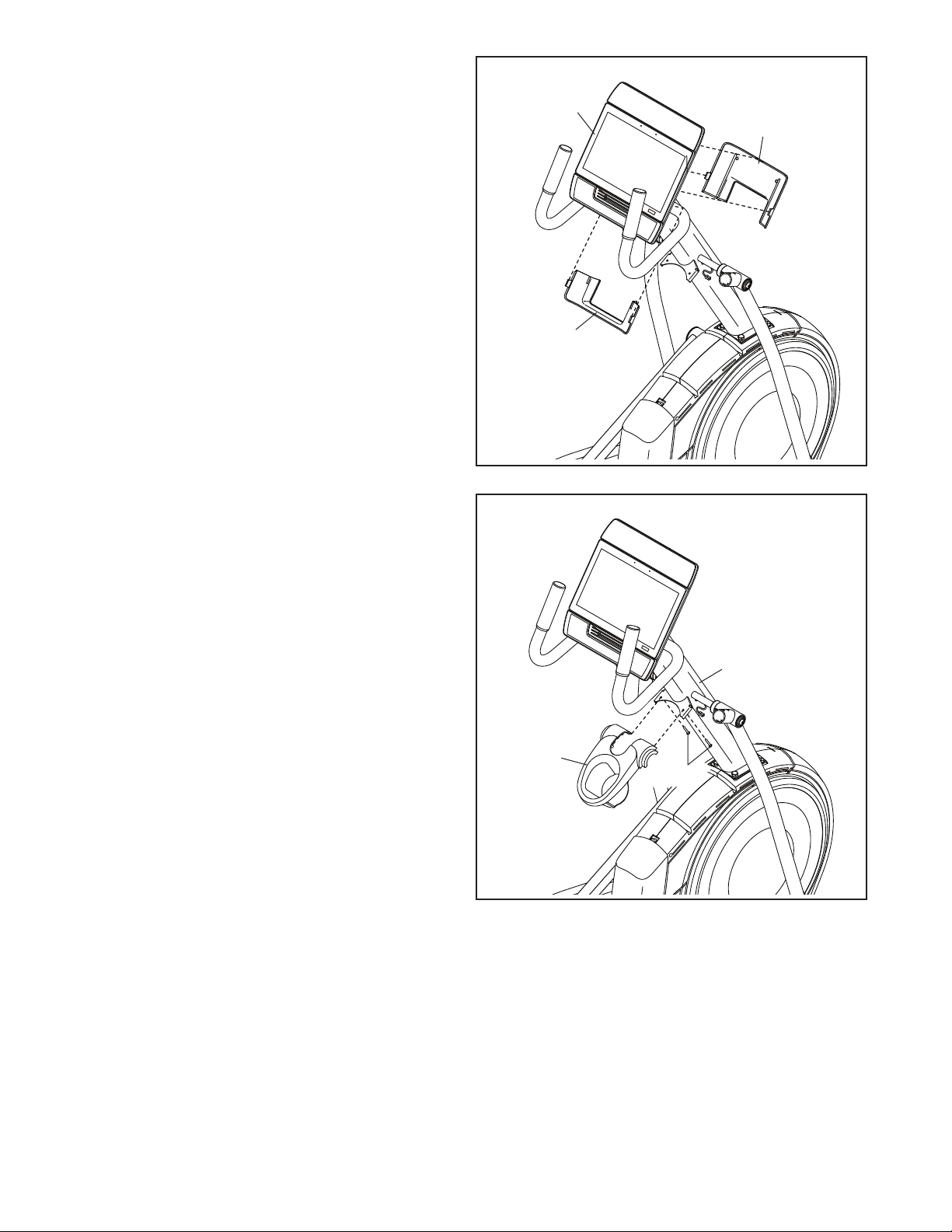

12. If there is a hang tag (not shown) attached to the
Console Bracket (128), discard the hang tag.
Avoid pinching the wires. Attach the
Console (7) to the Console Bracket (128) with
four M4 x 16mm Screws (101); start all four
Screws, and then tighten them.
101

14
13
13. Orient the Lower Console Cover (152) as shown,
and snap it into the back of the Console (7).
Note: It may be helpful to pivot the Console
downward.
Then, orient the Upper Console Cover (153)
as shown, and snap it into the back of the
Console (7). Note: It may be helpful to pivot the
Console upward.
153
152
7
14
14. Orient the Accessory Tray (37) as shown, and
attach it to the Upright (4) with two M4 x 16mm
Screws (101).
4
101
37

15
15
15. Identify the Right Upper Body Arm (61) and have
a second person hold it near the Right Upper
Body Leg (60).
See the inset drawing. Locate the Right Control
Wire (134) in the Right Upper Body Arm (61).
Feed the Right Control Wire into the Upper Body
Leg (60) and out of the indicated hole (D).
Avoid pinching the Right Control Wire (134).
Insert the Right Upper Body Arm (61) into
the Right Upper Body Leg (60). Attach the
Right Upper Body Arm with two M8 x 41mm
Screws (96).
Repeat this step with the Left Upper Body
Arm (47).
60
61
47
96
Avoid pinching
the wires
134
16
16. See the left inset drawing. Connect the Right
Control Wire (134) to the Right Extension Wire
(162). IMPORTANT: The wire connectors
should slide together easily and snap into
place with an audible click. You must con-
nect the wires properly for your elliptical to
function properly. Then, insert the connectors
and the excess wire into the Upright (4).
See the right inset drawing. Press the Right
Control Wire (134) into the slot in the Wire Clip
(159).
Repeat this step on the left side of the
elliptical.
162 134
134
4
159
?
?
134
60
61
D

16
17
101
81
37
17. Avoid pinching the wires. Orient a Lower Tray
Cover (81) as shown, and hold it near the Right
Control Wire (134). Attach the Lower Tray Cover
to the right side of the Accessory Tray (37) with
two M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
Avoid
pinching
the wires
134
75
4
117
73, 74
18. Avoid pinching the wires. Press the Front
Shield Cover (117) onto the Left and Right
Shields (73, 74).
Then, press the Center Shield Cover (75) onto
the Left and Right Shields (73, 74).
Avoid pinching
the wires
18

17
21. Make sure that all parts are properly tightened. Extra parts may be included. Place a mat beneath the
elliptical to protect the floor. Note: Keep the included tools. One or more of the tools may be needed to make
adjustments in the future.
20
65
60
101
66
20. Avoid pinching the wires. Orient the Right Arm
Front and Rear Covers (65, 66) around the Right
Upper Body Leg (60) as shown, and attach them
with two M4 x 16mm Screws (101).
Repeat this step on the other side of the
elliptical.
Avoid pinching
the wires
E
19. Identify the Right Leg Inner Cover (83), orient it
as shown, and insert it through the Right Upper
Body Leg (60).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Attach the Right Leg Outer and Inner Covers
(69, 83) to each other with an M4 x 16mm
Screw (101).
Repeat this step on the other side of the
elliptical.
60
101
69
19
83

18
HOW TO USE THE ELLIPTICAL

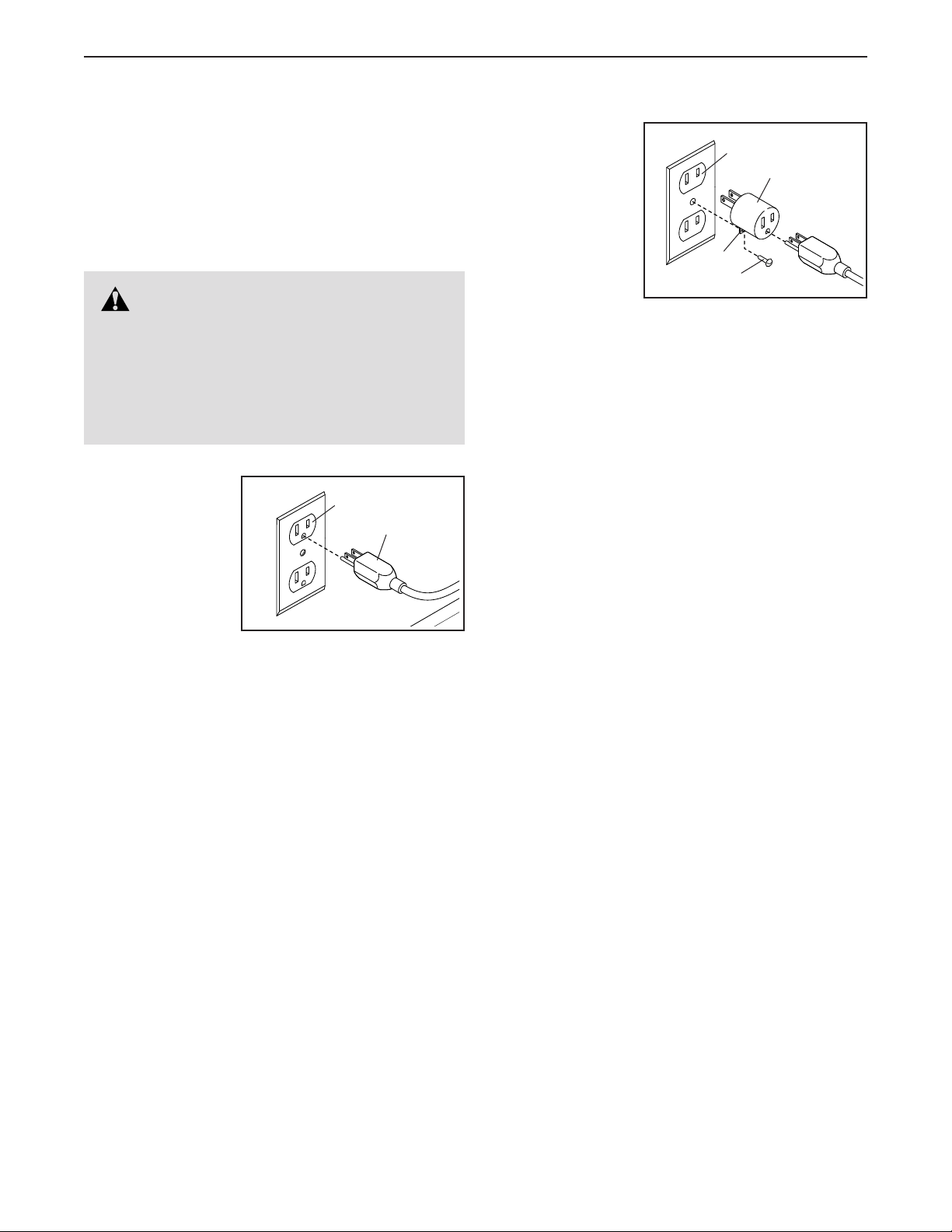

HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the power
cord (A) into
an appropriate
outlet (B) that is
properly installed
and grounded in
accordance with
all local codes and
ordinances. The
outlet must be
on a nominal 120-volt circuit.
A temporary
adapter (C) may
be used to con-
nect the power
cord to a 2-pole
receptacle (D)
as shown at the
right if a properly
grounded outlet is
not available.
The lug (E) or wire extending from the adapter must
be connected with a metal screw (F) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
B
A
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
D
C
E
F

19

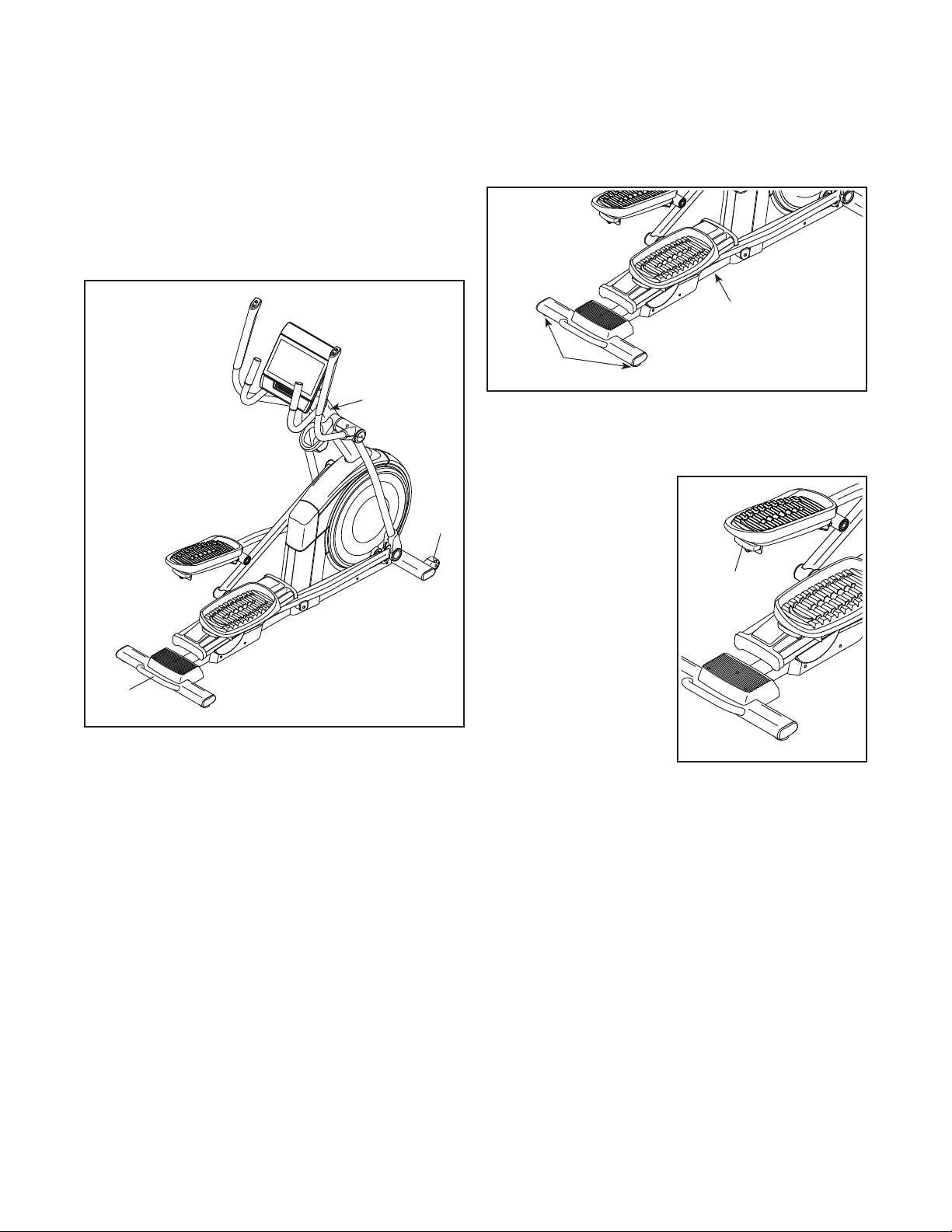

HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, mov-
ing it requires two persons. Take any necessary
measures to avoid damaging your floor. Stand in
front of the elliptical, hold the upright (G), and place
one foot against one of the wheels (H). Next, pull on
the upright and have a second person lift the handle (I)
until the elliptical will roll on the wheels. Carefully move
the elliptical to the desired location, and then lower it to
the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet (J) beneath the rear
stabilizer or turn the leveling foot (K) under the center
of the frame until the rocking motion is eliminated.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be
adjusted to several
positions. To adjust
each pedal, simply
pull the pedal handle
(L) outward, move the
pedal to the desired
position, and then
release the pedal
handle into an adjust-
ment hole beneath the
pedal. Make sure to
adjust both pedals to
the same position.
G
I
H
J
K
L

20

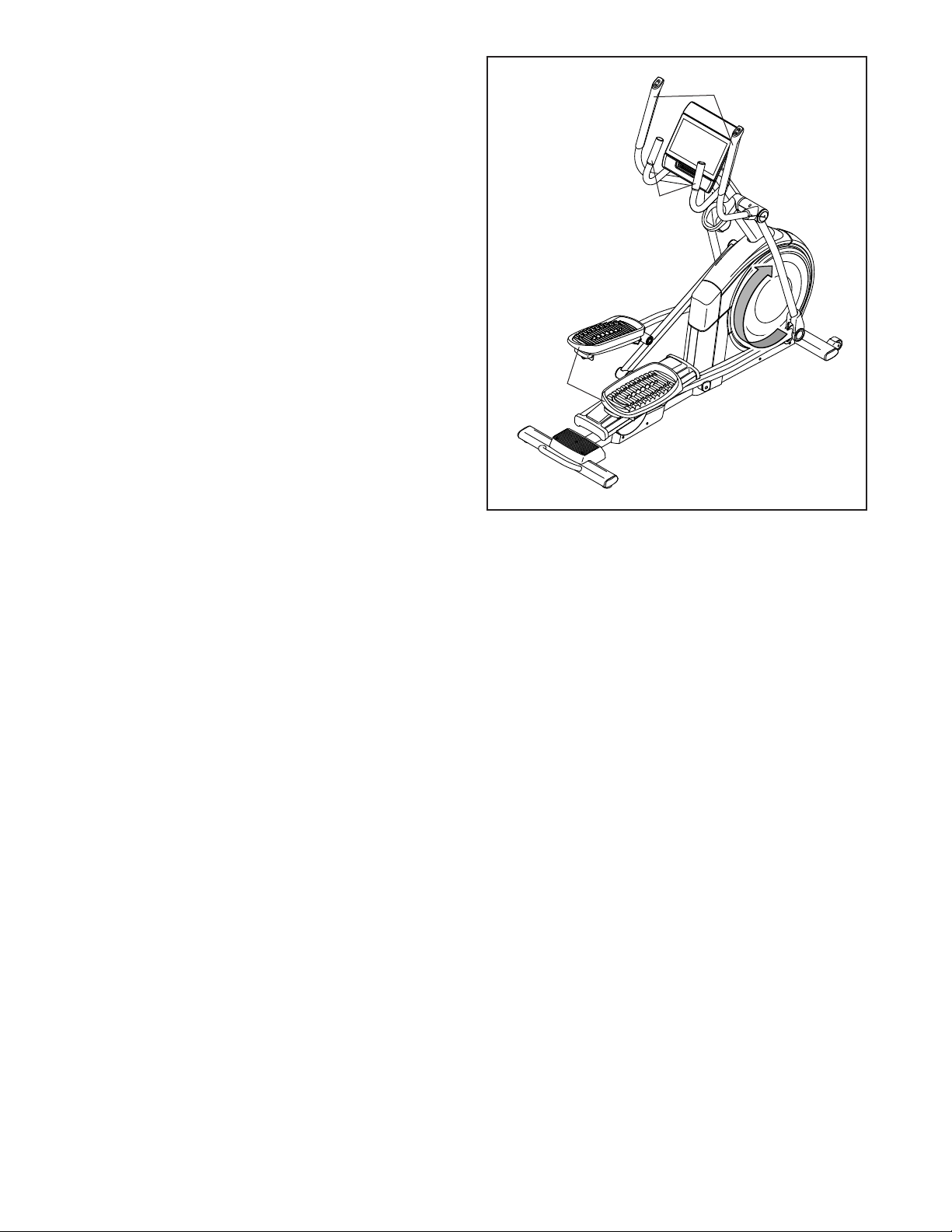

HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (M) or
the upper body arms (N) and step onto the pedal (O)
that is in the lower position. Then, step onto the other
pedal. Push the pedals until they begin to move with
a continuous motion. Note: The pedals can turn in
either direction. It is recommended that you turn
the pedals in the direction shown by the arrow;
however, for variety, you can turn the pedals in the
opposite direction.
To dismount the elliptical, wait until the pedals (O)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the higher pedal first. Then, step off
the lower pedal.
M
N
O
