Sunny Health & Fitness SF-E905 User manual

MAGNETIC ELLIPTICAL BIKE
SF-E905
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving
is required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only. It is not intended for commercial
use!

2
EXPLODED DIAGRAM 1

3
EXPLODED DIAGRAM 2
HARDWARE PACKAGE
#102 S8 1PC
#103 S6 1PC
#19L Φ16*89*L23*B0.5*20-L 1PC
#19R Φ16*89*L23*B0.5*20-R 1PC
#37 M8*40 4PCS
#28 M10*L45*L25 4PCS
#104 S13、S14 2PCS
#105 S17、S19 2PCS
#29 d10*1.5 4PCS
#30 M10 4PCS
#14 Φ20*d8.5*R25 4PCS
#33 M8 4PCS
#39 Φ13*B2 2PCS
#40L B0.5X20 1 PC
#40R B0.5*20 1 PC

4
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
44
Foam Grip
2
2
Front Stabilizer
1
45
Round End Cap
2
3
Rear Stabilizer
1
46
Pulse Sensor Wire
2
4
Roller Cap
2
47
Spherical Cap
2
5
Leveler Cap
2
48
Mushroom Cap
2
6
Carriage Bolt
M10XL57
4
49
Crank Arm
1
7
Arc Washer
Φ10X1.5XΦ25XR28
4
50
Tension Controller
Cover
1
8
Domed Nut
M10
4
51
Hex Bolt
M10X50
2
9
Handlebar Post
1
52
Connecting Joint
2
10a
Tension Controller
1
53
Axle Bushing 1
4
10b
Tension Cable
1
54
Flat Washer
d10X1.5
2
11
Phillips Screw
1
55
Alloy Bushing
4
12
Flat Washer
1
56
Nylon Nut
M10
2
13
Allen Bolt
M8X20
4
57
Nut Cap
S19
2
14
Arc Washer
Φ20Xd8.5XR25
8
58
Nut Cap
S14
4
15
Upper Senor Wire
1
59
Spacer
Φ32X59
2
16
Lower Sensor Wire
1
60
Axle Bushing 2
4
17
Tension Hook
1
61
Wave Washer
Φ17.1XΦ23X0.3
2
18L/R
Pedal Support Tube
1pr.
62
Nylon Nut
1
19L/R
Hinge Bolt
Φ16X89
1pr.
63
Plug
2
20
Nut Cap
S13
2
64
Crank Cover
2
21
Hex Bolt
M8X55
2
65L/R
Belt Cover
1pr.
22
Flat Washer
d8X15
2
66
Nut
1
23
Nylon Nut
M8（Black color）
2
67
Washer
1
24L/R
Swing Bar (L/R)
1pr.
68
Two-slot Nut
1
25
Hex Bolt
M8X15
2
69
Ball Bearings
2
26
Flat Washer
Φ8.2XΦ32X2
2
70
Bearing Housing
2
27L/R
Pedal
1pr.
71
Sensor
1
28
Hex Bolt
M10XL45
4
72
Bolt
ST3X10
2
29
Flat Washer
d10X1.5
4
73
Three-slot Nut
1
30
Nylon Nut
M10 (White color)
4
74
Big Washer
1
31
Armrest
1
75
Belt
1
32L/R
Handlebar
1pr.
76
Belt Pulley
1
33
Domed Nut
M8
4
77
Hex Bolt
M5XL60
1
34
Spring Washer
d8X1.5
2
78
Hex Nut
M5
2
35
Hex Bolt
2
79
Hex Bolt
M6XL15
2
36
Decorative Cover
1
80
Spring Washer
d6
2
37
Carriage Bolt
M8X40
4
81
Flat Washer
D6
2
38
Meter
1
82
Axle Stop Ring
2
39
Spring Washer
Φ13XB2
2
83
Magnetic Board Axle
1
40L/R
Nylon Nut
B0.5X20
1pr.
84
Magnetic Board
1
41
Nut Cap
S17
4
85
Spring
1
42
Square End Cap
2
86
Square Magnet
8
43
Foam Grip
2
87
Hex Thin Nut
M10X1
1

5
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
88
Adjusting Belt Bolt
M6X50
2
97
Bolt
ST5X20
4
89
Adjusting U Washer
2
98
Flat Washer
d10X20X1.5
1
90
Hex Nut
M6
2
99
Flat Washer
d5X1
4
91
Spacer
1
100
Flat Washer
d8X19X1.5
2
92
Bearing
6000z
2
101
Alloy Sleeve
1
93
Flywheel Axle
1
102
Wrench
S=8
1
94
Flywheel
1
103
Wrench
S=6
1
95
Bolt
ST4.3X20
5
104
Spanner
S=13、14
2
96
Flange Nut
1
105
Spanner
S=17、19
2

6
ASSEMBLY INSTRUCTION
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Attach the Front Stabilizer (No. 2)
and Rear Stabilizer (No. 3) onto the
Main Frame (No. 1), secure with 4
Carriage Bolts (No. 6), 4 Arc
Washers (No. 7) and 4 Domed Nuts
(No. 8) which are preattached to the
stabilizer, tighten with Spanner (No.
105).
Note: Ensure that all bolts and
washers are in place and partially
threaded in before completely
tightening any of them.

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 2:

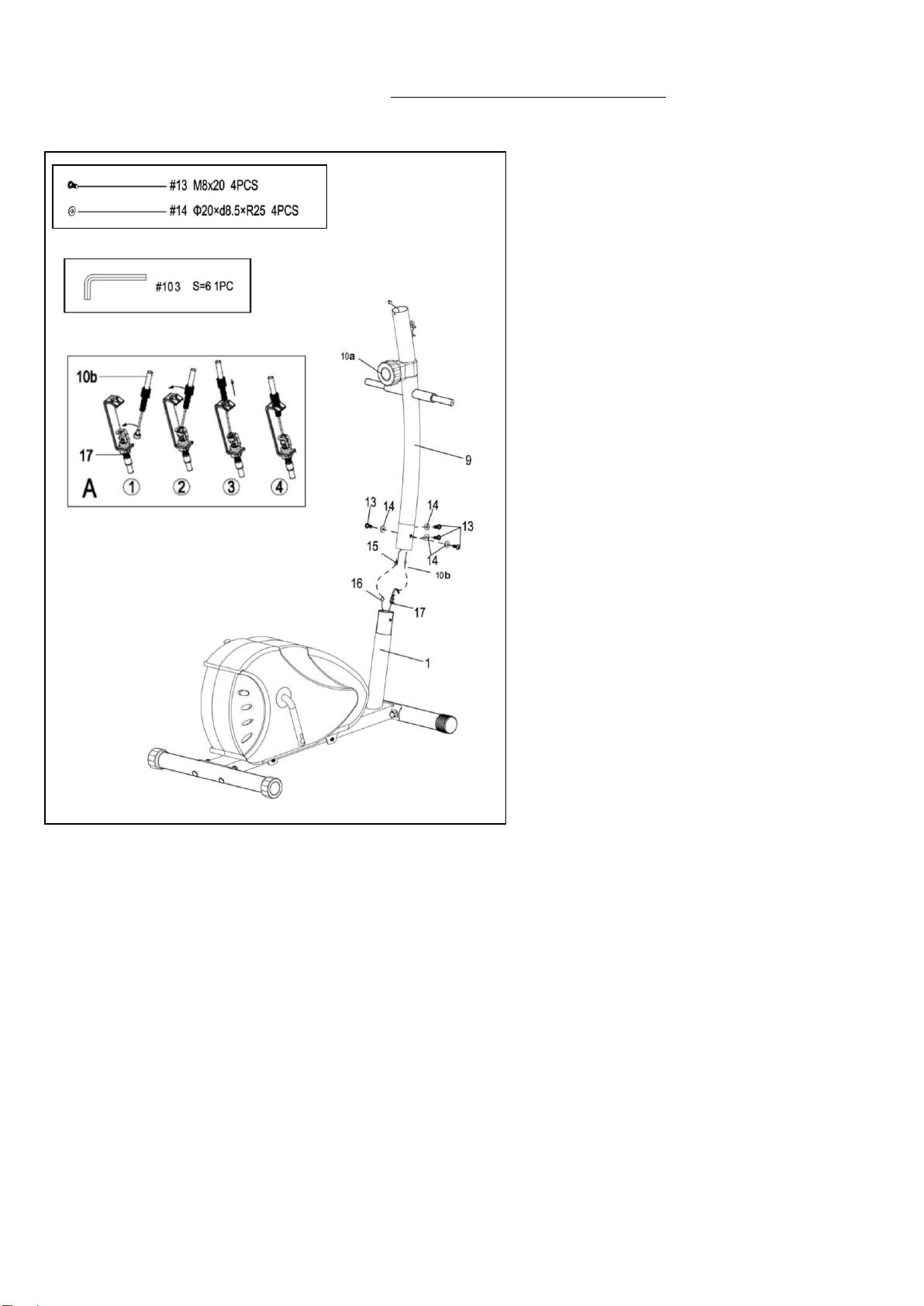

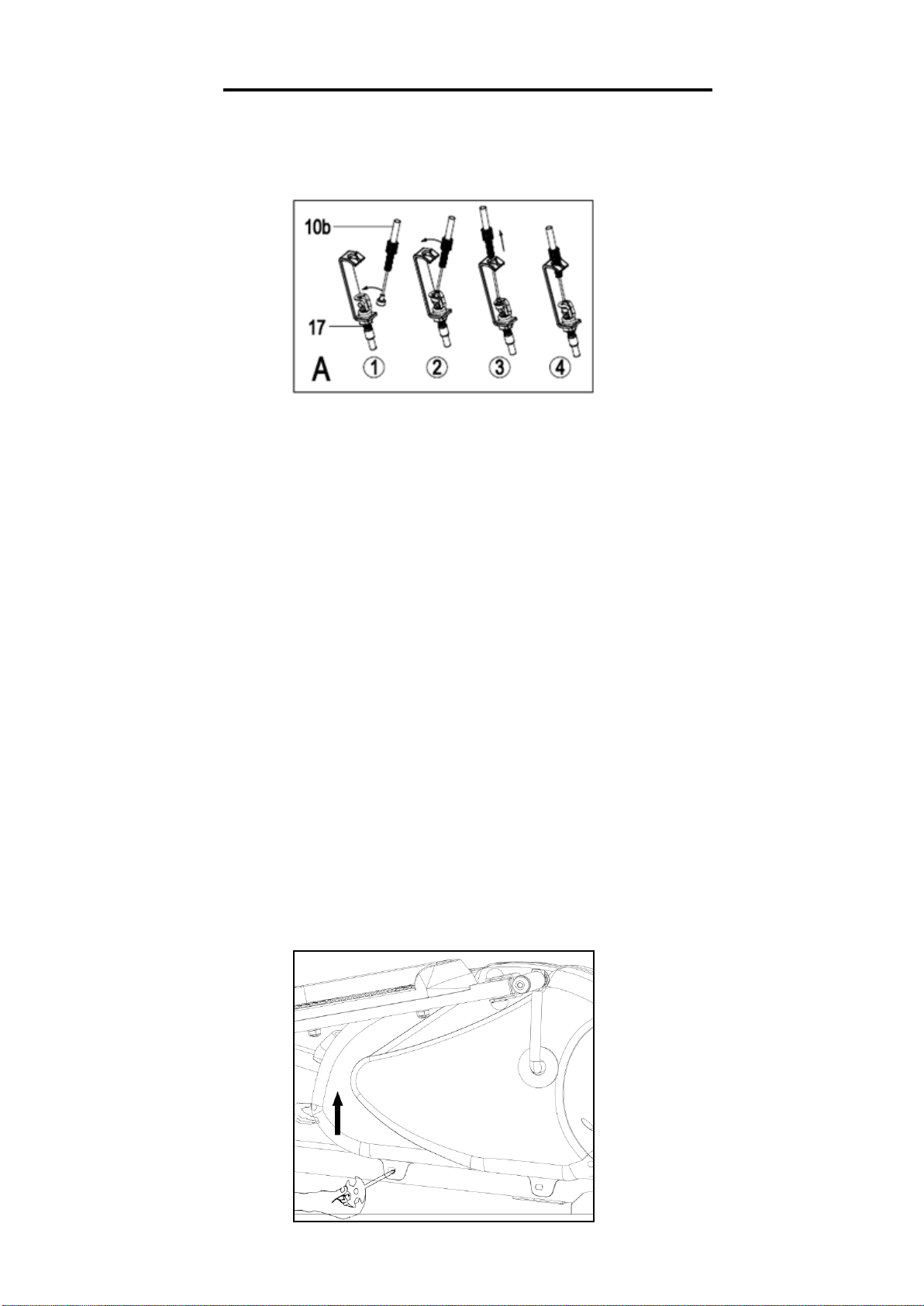

A: Connect the Lower Sensor Wire
(No. 16) to the Upper Sensor Wire
(No. 15), and then connect Tension
Hook (No. 17) with Tension Cable
(No. 10b) as shown in Diagram A.
Note: Make sure the Tension
Controller (No. 10a) is at the lowest
level before you connect the
Tension Cable (No. 10b). This
ensures the wires are at their longest
point. We recommend the assistance
of a second person to help hold the
Handlebar Post (No. 9). This will
make the connection easier when
you are attaching Tension Hook
(No. 17) to Tension Cable (No.
10b).
B: Remove the preassembled 4
Allen Bolts (No. 13) and 4 Arc
Washers (No. 14) from the
Handlebar Post (No. 9). Insert the
Handlebar Post (No. 9) into the post
of the Main Frame (No. 1); secure
with 4 Allen Bolts (No. 13) and 4
Arc Washers (No. 14) that were just
removed with Wrench (No. 103).
Note: Ensure that all bolts and
washers are in place and partially
threaded in before completely
tightening any of them.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
A: Attach the 2 Swing Bars (No.
24L/R) to the long axle of the
Handlebar Post (No. 9) with 2 Hex
Bolts (No. 25) and 2 Flat Washers
(No. 26) with 2 Spanners (No. 104).
Note: Please do not fully tighten at this
time.
B: Attach the 2 Pedal Support
Tubes (No. 18L/R) to the Crank Arm
(No. 49) with 2 Hinge Bolts (No.
19L/R), 2 Wave Washers (No. 61),
then put on 2 Spring Washers (No.
39) and 2 Nylon Nuts (No. 40L/R) to
the end of 2 Hinge Bolts (No. 19L/R)
using Wrench (No. 102) and Spanner
(No. 105).
Note: Please do not fully tighten at this
time.
C: Fasten the 2 Swing Bars (No.
24L/R) and the 2 Pedal Support
Tubes (No. 18L/R) tightly with 2 Hex
Bolts (No. 21), 2 Flat Washers (No.
22) and 2 Nylon Nuts (No. 23) using 2
Spanners (No. 104).
D: Fasten 2 Hex Bolts (No. 25) and 2
Nylon Nuts (No. 40L/R) tightly now.
Then cover with the 12 Nut Caps (No.
20 & 58 & 57 & 41).
Note: Ensure that all bolts and
washers are in place and partially
threaded in before completely
tightening any of them.

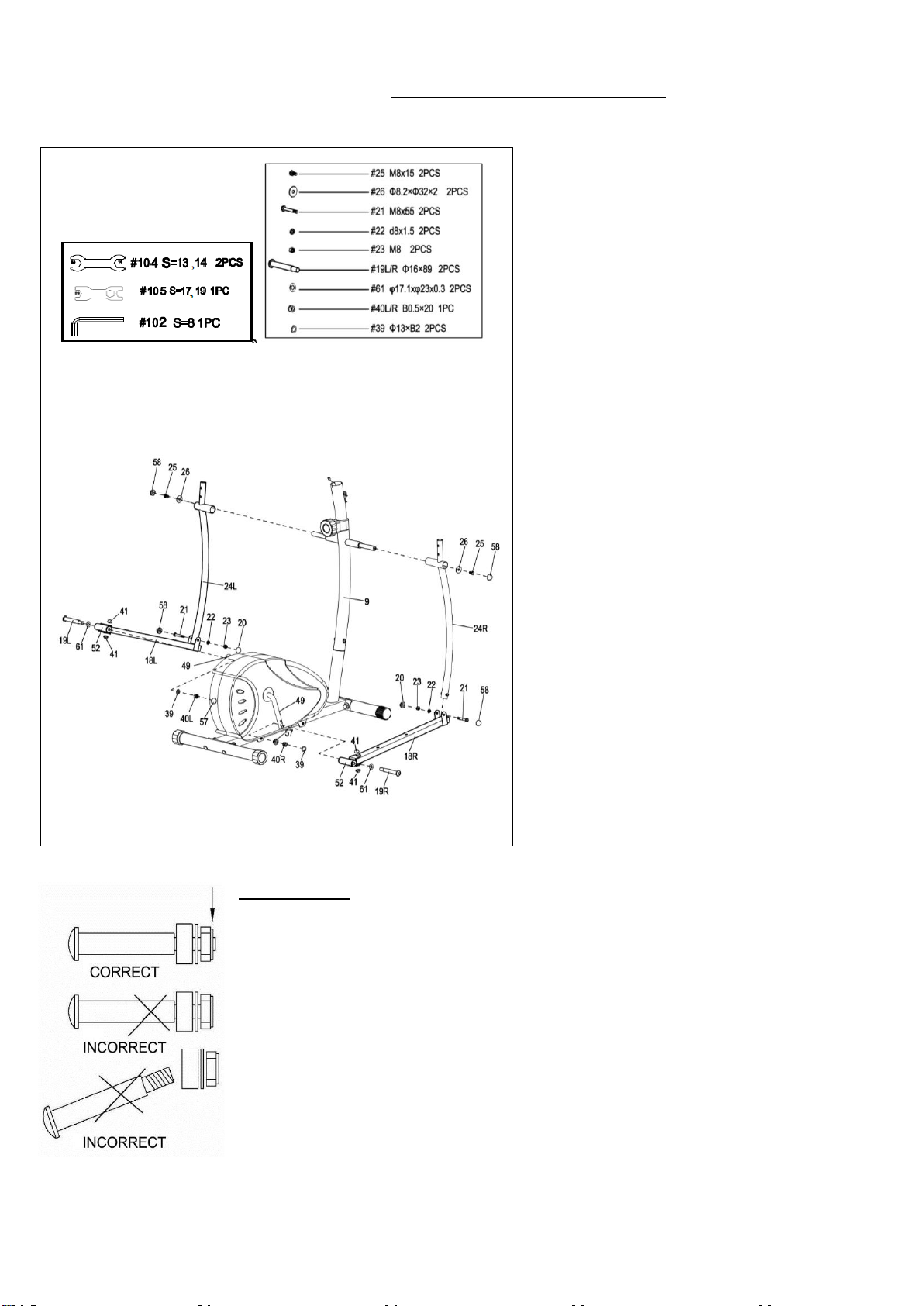

IMPORTANT: Hinge Bolt (No. 19L/R) is labeled L for LEFT and R for
RIGHT. Please make sure to turn Left Hinge Bolt (No. 19L)
counter-clockwise and Right Hinge Bolt (No. 19R) clockwise.
The Hinge Bolt (No. 19L/R) must fully penetrate the nylon ring of the
Nylon Nut (No. 40L/R). This will ensure the stability and durability of your
Elliptical Trainer. The end of LEFT Nylon Nut (No. 40L) is Blue, while the
RIGHT Nylon Nut (No. 40R) is White. Please make sure to turn Left Nylon
Nut (No. 40L) clockwise and Right Nylon Nut (No. 40R)
counter-clockwise.
In order to install the Hinge Bolt (No. 19L/R) properly, it must go through
the Connecting Joint (No. 52) and then screw into the hole of the Crank
Arm (No. 49). Then attach Spring Washer (No. 39) and Nylon Nut (No.
40L/R) to the end of Hinge Bolt (No. 19L/R). If the hinge bolt is connected
to the crank arm at an angle, damage to both the hinge thread and the
crank arm may occur.

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
If you experience any trouble with this step; please STOP and read our alternate assembly
directions below before continuing. Incorrect installation can result in permanent damage to your
machine. Please try below alternate assembly suggestion.
Step A:
Disconnect the Connecting Joint (No.
52) from the Pedal Support Tube (No.
18L/R).
Step B:
Insert the Hinge Bolt (No. 19L/R) through
the hole of the Connecting Joint (No.
52), then screw the Hinge Bolt (No.
19L/R) in the Crank Arm (No. 49).
Note: Remember when assembling the
left side, you must screw
counter-clockwise to tighten. Connect the
Spring Washer (No. 39) and Nylon Nut
(No. 40L/R) and attach the Nut Cap (No.
41). You can now reattach the
Connecting Joint (No. 52) to the Pedal
Support Tube (No.18L/R).
STEP 4:
Secure the 2 Pedals (No. 27L/R) to the 2
Pedal Support Tubes (No. 18L/R)
respectively using 4 Hex Bolts (No. 28), 4
Flat Washers (No. 29) and 4 Nylon Nuts
(No. 30) using Spanner (No. 105).
CAUTION:
Both pedals are labeled; L for LEFT
and R for RIGHT.

10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 5:
A: Remove the preassembled 2 Spring
Washers (No. 34) and 2 Hex Bolts (No.
35) from the Handlebar Post (No. 9).
Attach Armrest (No. 31) to the
Handlebar Post (No. 9) in place.
Secure it with 2 Spring Washers (No.
34) and 2 Hex Bolts (No. 35) that were
just removed using Wrench (No. 103),
and then pull the Pulse Sensor Wire
(No. 46) out of the Handlebar Post (No.
9). Finally attach the Decorative Cover
(No. 36) onto the Armrest (No. 31).
B: Attach the 2 Handlebars (No. 32L/R)
on the 2 Swing Bars (No. 24L/R) with 4
Carriage Bolts (No. 37), 4 Arc
Washers (No. 14) and 4 Domed Nuts
(No. 33) using Spanner (No. 104).
Note: If the Handlebar (No. 32L/R) rubs
against the Armrest (No. 31) during the
workout please recheck if the
Handlebar (No. 32L/R) is assembled
correctly. You should attach Handlebar
(No. 32L/R) to Swing Bar (No. 24L/R)
according to the label marked with L or
R.
STEP 6:
Connect the 2 Pulse Sensor Wires (No.
46) and Upper Sensor Wire (No. 15) to
the Meter (No. 38) respectively. Align
the slot of the Handlebar Post (No. 9) to
the bulge inside the Meter (No. 38) then
slide it onto the Handlebar Post (No. 9)
slowly.
Note: To avoid damaging the wires,
please push them into the Handlebar
Post (No. 9) before sliding the Meter
(No. 38) onto it.
THE ASSEMBLY IS COMPLETE!

11
ADJUSTMENTS & USAGE GUIDE
1. If you find there is no difference between tension level 1 to level 8, please check the
connection of the tension cable. Please see Diagram A under Step 2.
2. If the meter does not show numbers correctly, please check the batteries. If the meter does
not count the speed and time, please check the connections of Upper Sensor Wire (No.
15) to the Meter (No. 38) and Upper Sensor Wire (No. 15) to Lower Sensor Wire (No.
16).
3. If you have difficulty putting Hinge Bolts (No. 19L/R) into the Crank Arm (No. 49), please
try moving the Crank Arm (No. 49) to a different angle. *Keep in mind the Left Locking
Bolt (No. 19L) has reversed threading and must be installed by turning counter-clockwise.
4. If you hear any noise when using the machine, please check if Hinge Bolts (No. 19L/R),
Hex Bolts (No. 21), Flat Washers (No. 26) and Connecting Joints (No. 52)are loose.
You may remove these parts and add some lubricant oil to eliminate all noise possibilities.
Remember to tighten all the parts securely.
5. When you first use the machine, if you hear any unusual noises from the inside of the Belt
Cover (No. 65L/R), please loosen the screws on the belt cover about two rotations, then
push the Belt Cover (No. 65L/R) up a little bit. Finally, fasten the screws you loosened
before. See the following diagram. (During shipping, the Belt Cover (No. 65L/R) can be
dislocated, and the Flywheel (No. 94) may rub on the Belt Cover (No. 65L/R).

12
6. If it is very hard to pedal on the higher tension levels, or you hear rubbing noises, please
remove the Belt Cover (No. 65L/R), and adjust the screw seen in the following diagram.
You will need to lower the position of the screw by turning counter-clockwise. This will keep
the Magnet Board (No. 84) from contacting the magnetic flywheel. Before re-installing the
Belt Cover (No. 65L/R), test the tension level 8 to ensure the magnets do not touch the
flywheel.
7. If you still hear noises after you did Step 5 and Step 6, please remove the Belt Cover (No.
65L/R). Loosen the screws for the Flywheel (No. 94) about a half of a rotation. See the
following diagram below.
8. If you feel the machine is uneven, please adjust the Leveler Cap (No. 5) on Real
Stabilizer (No. 3) by turning it. If the machine is wobbly when you use it, please consider
adding an exercise mat under it.

13
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
The meter uses 2 AA batteries. Open the
battery cover from the back of meter, then
put 2 batteries into the battery compartment.
Make sure the (+) and (-) ends of the
batteries are in the correct position. Put the
battery cover back.
BATTERY REPLACEMENT:
If there is a problem with the display, try
changing the batteries first. Open the battery
cover, remove the old batteries and replace
with new batteries. Make sure the (+) and (-)
ends of the batteries are in the correct
position. Put the battery cover back.
When changing batteries, always replace
both with new batteries. Do not mix old and
new batteries.

14
EXERCISE METER
FUNCTION KEYS:
1. MODE:
Press to select functions.
Press and hold the MODE button for 6 seconds to reset time,
distance and calories.
2. SET: Press to set values of time, pulse, distance and calories
when not in scan mode.
Press the MODE button to select desired functions: time, distance
or calories.
Use the SET button to set a value for time, distance or calories. The value of a function will
be set on a countdown.
Press the MODE button once more, to save the function value you've created.
3. RESET: Press to reset time, pulse, distance and calories to zero when not in scan mode.
FUNCTIONS:
1. SCAN: Press MODE button until "▼" appears at SCAN position (or until "SCAN" appears).
The meter will rotate through all 5 functions: Time, Speed, Distance, Calories and Total
Distance. Each display will be held for 6 seconds.
2. TIME: Counts the total time of the exercise f r om start to finish.
3. SPEED: Displays the current speed.
4. DISTANCE (DIST): Counts the distance of an exercise from start to finish.
5. CALORIES (CAL): Counts total calories burned during exercise f r om start to finish.
6. TOTAL DISTANCE (ODO): Counts the total distance after installing the batteries.
7. AUTO ON/OFF & AUTO START/STOP: If the wheel is in motion or any button is pressed,
the meter will become active and shall remain active. The meter will turn off automatically if
there is no motion or button pressed for 4 minutes.
8. PULSE RATE (If Available): Press MODE button until "▼" appears at PULSE position, (or
until " V " appears). In order to properly measure your pulse rate, you must place both your
palms on the contact pads located on the handlebar next to the seat. Once you have done
this, the meter will show your current heartbeat rate in beats per minute (BPM) after 3~4
seconds.
Note: During the process of "pulse measurement", the measurement value may be higher
than virtual pulse rate during the first 2~3 seconds as a result of the contact jamming.
Afterwards, it will return to normal level. To ensure testing accuracy, it is suggested that user
tests pulse during stop/pause exercise to avoid any possible influence.
The measurement value cannot be regarded as the basis of medical treatment.
9. ALARM: The functions of time, distance and calorie can be set to countdown, if any of the
above value goes to zero, the meter will alarm for 15 seconds.
Press MODE to select the function, then press SET to adjust the value.
Note:
•The meter containing only the "MODE" button does not have ALARM function.
•If you find "M" on the left side of meter screen, it is the Imperial system. The unit will be
expressed as mile.

15
BATTERY DISPOSAL: The meter uses 2 AA batteries, which are packed with the meter.
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.
SPECIFICATIONS
Version 1.13
FUNCTION
Auto Scan
Every 6 seconds
Running Time
00:00 ~ 99:59 (Minute: Second)
Current Speed
The max pick-up signal is 999.9 MPH (or 1500 RPM)
Trip Distance
0.00 ~ 99.99 MILE
Calories
0 ~ 999.9 Kcal
Total Distance
0 ~ 999.9 MILE
Pulse Rate
40-240 BPM
Battery Type
2 pcs of SIZE-AA
Operating Temperature
0 C ~ 40°C (32°F ~ 104°F)
Storage Temperature
-10C ~ 60C (14°F ~ 140°F)

16

17

18

19
