HEALTH RIDER Momentum 831.285770 User manual

USERÕS MANUAL
Patent Pending
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. 831.285770
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE HEALTHRIDER¨MOMENTUM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual before
using the MOMENTUM.
2. It is the responsibility of the owner to
ensure that all users of the MOMENTUM are
adequately informed of all precautions.
3. Place the MOMENTUM on a level surface,
with a mat beneath it to protect the floor or
carpet. Keep the MOMENTUM indoors, away
from moisture and dust.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the MOMENTUM at all times.
6. The MOMENTUM should not be used by
persons weighing more than 250 pounds.
7. Wear appropriate exercise clothing when
using the MOMENTUM. Always wear athletic
shoes for foot protection.
8. Hold the handlebars when mounting or dis-
mounting the MOMENTUM. Always hold the
handlebars or the upper body arms when
using the MOMENTUM.
9. When you stop exercising, allow the pedals
to slowly come to a stop.
10. Keep your back straight when using the
MOMENTUM. Do not arch your back.
11. If you feel pain or dizziness while exercis-
ing, stop immediately and begin cooling
down.
12. The MOMENTUM is intended for in-home
use only. Do not use it in any commercial,
rental, or institutional setting.
13. The decal shown below is found on the
MOMENTUM. If the decal is missing, or if it
is not legible, call our toll-free HELPLINE to
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the HEALTHRIDER MOMENTUM.

3
BEFORE YOU BEGIN
Congratulations for selecting the revolutionary
HEALTHRIDER¨MOMENTUM elliptical exerciser.
The MOMENTUM is an incredibly smooth exerciser
that moves your feet in a natural elliptical path,
minimizing the impact on your knees and ankles. And
the unique MOMENTUM features adjustable resis-
tance, two-position incline, and upper body arms to
help you get the most from your exercise. Welcome to
a whole new world of natural, elliptical-motion exercise
from HEALTHRIDER.
For your benefit, read this manual carefully before
you use the HEALTHRIDER¨MOMENTUM. If you
have additional questions, please call our toll-free
HELPLINE at 1-800-736-6879, Monday through
Saturday, 7 a.m. until 7 p.m. Central Time (excluding
holidays). To help us assist you, please note the
product model number and serial number before
calling. The model number is 831.285770. The serial
number can be found on a decal attached to the
MOMENTUM (see the front cover of this manual for
the location of the decal).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Handlebar
Upper Body Arm
Arm
Resistance
Knob
FRONT
BACK RIGHT SIDE
Pedal Arm
Pedal Disk
Side Shield
Pedal
Console
Incline Bracket
Incline Frame
Stabilizer
Water Bottle Holder/Towel Rack
(Water Bottle is not included)

4
PART IDENTIFICATION CHART

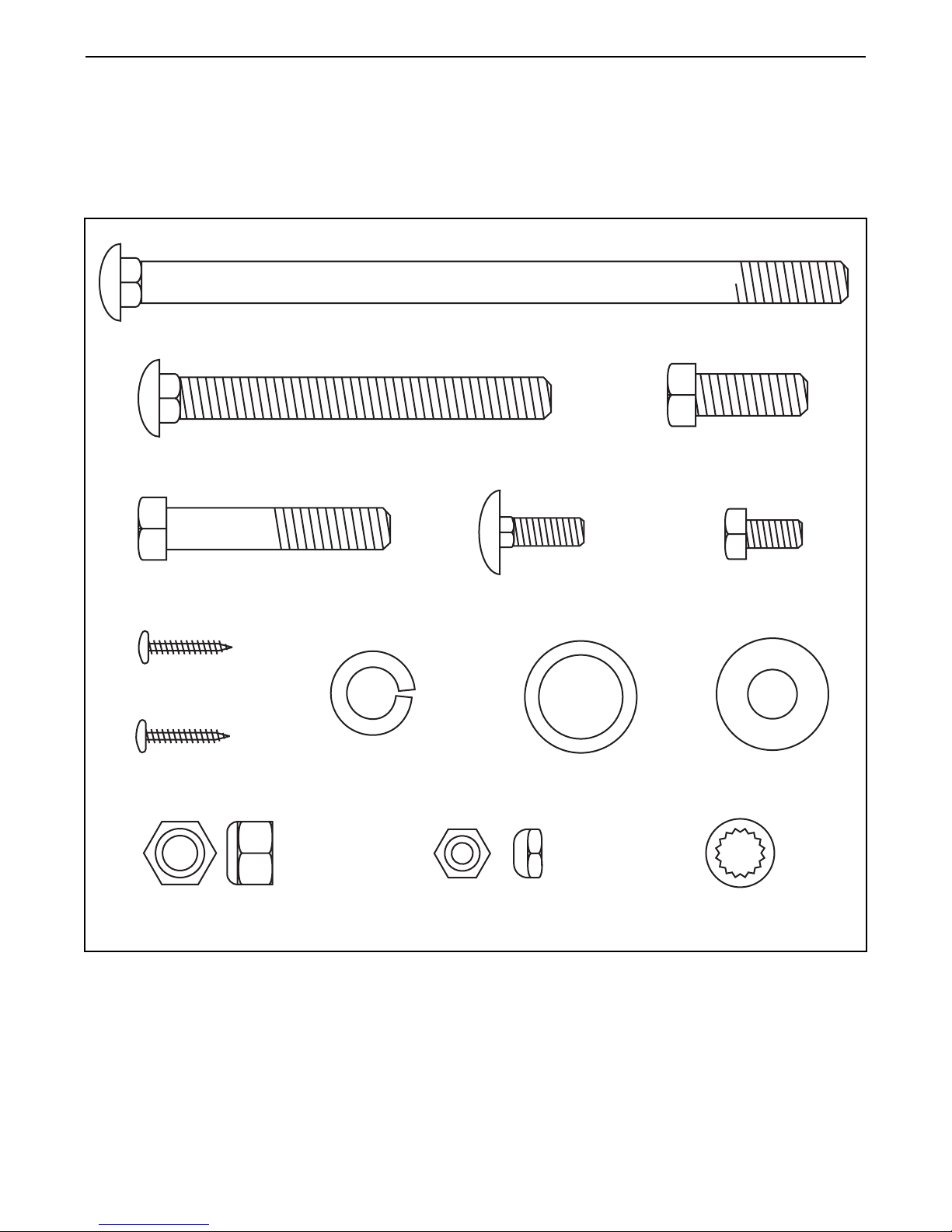

Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
is the key number of the part, from the PART LIST on
page 14. The number after the dash indicates the
quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.
3/8" Nylon Locknut (29)Ñ10
Long Carriage Bolt (66)Ñ1
Black Screw (44)Ñ6
1/4" Nylon Jam Nut (48)Ñ3
3/8" Bolt (50)Ñ2
Flat Washer (57)Ñ2
Lock Washer (58)Ñ2
3/8" Screw (59)Ñ2
Plastic Spacer (56)Ñ4
1/4" Carriage Bolt (64)Ñ1
3/8" Carriage Bolt (28)Ñ4
1/4" Bolt (71)Ñ2
3/8" Star Washer (68)Ñ1
Zinc Screw (26)Ñ4

5

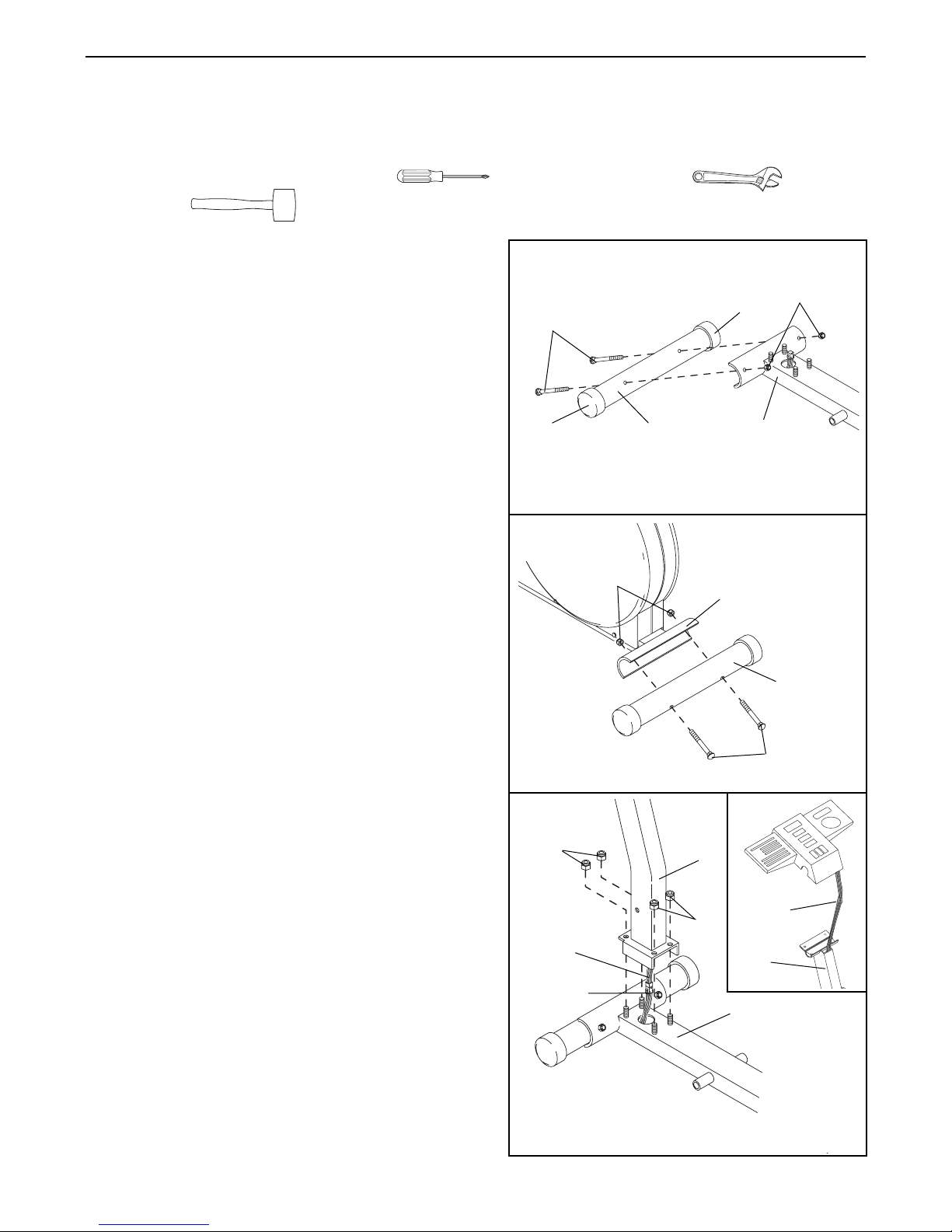

1. Make sure that there are Stabilizer Endcaps (27) on
the ends of both Stabilizers (30).
Hold one of the Stabilizers (30) against the saddle on
the front of the Base (1). Make sure that the Stabilizer
is turned so the square holes are facing away from the
Base. Attach the Stabilizer with two 3/8Ó Carriage Bolts
(28) and two 3/8Ó Nylon Locknuts (29).
2. Hold the other Stabilizer (30) against the saddle on the
rear of the Base (1). Make sure that the Stabilizer is
turned so the square holes are facing away from the
Base. Attach the Stabilizer with two 3/8Ó Carriage Bolts
(28) and two 3/8Ó Nylon Locknuts (29).
ASSEMBLY
Assembly requires two persons. Place all parts of the HEALTHRIDER¨MOMENTUM in a cleared area and
remove the packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , two adjustable wrenches , and a
rubber mallet .
2
1
27 1
1
30
30
29
29
28
28
27
3
Console
Wire
Harness
29
29
3
1
39
3. Refer to the inset drawing. Feed the console wire
harness down into the Upright (3), until the end of the
console wire harness extends from the lower end of
the Upright.
While another person holds the Upright (3), connect
the console wire harness to the Main Wire Harness
(39). If the wire harnesses do not fit together easily,
turn themÑdo not force them together. After you
have connected the wire harnesses, pull any slack
in the wire harnesses up through the Upright.
Slide the Upright (3) onto the welded bolts on the
Base (1). Be careful to avoid pinching the wire
harnesses. Tighten a 3/8Ó Nylon Locknut (29) onto
each welded bolt.
3
Console
Wire
Harness

6
31
Sticker
26
3
48
71
Console
Wire
Harness
6
6

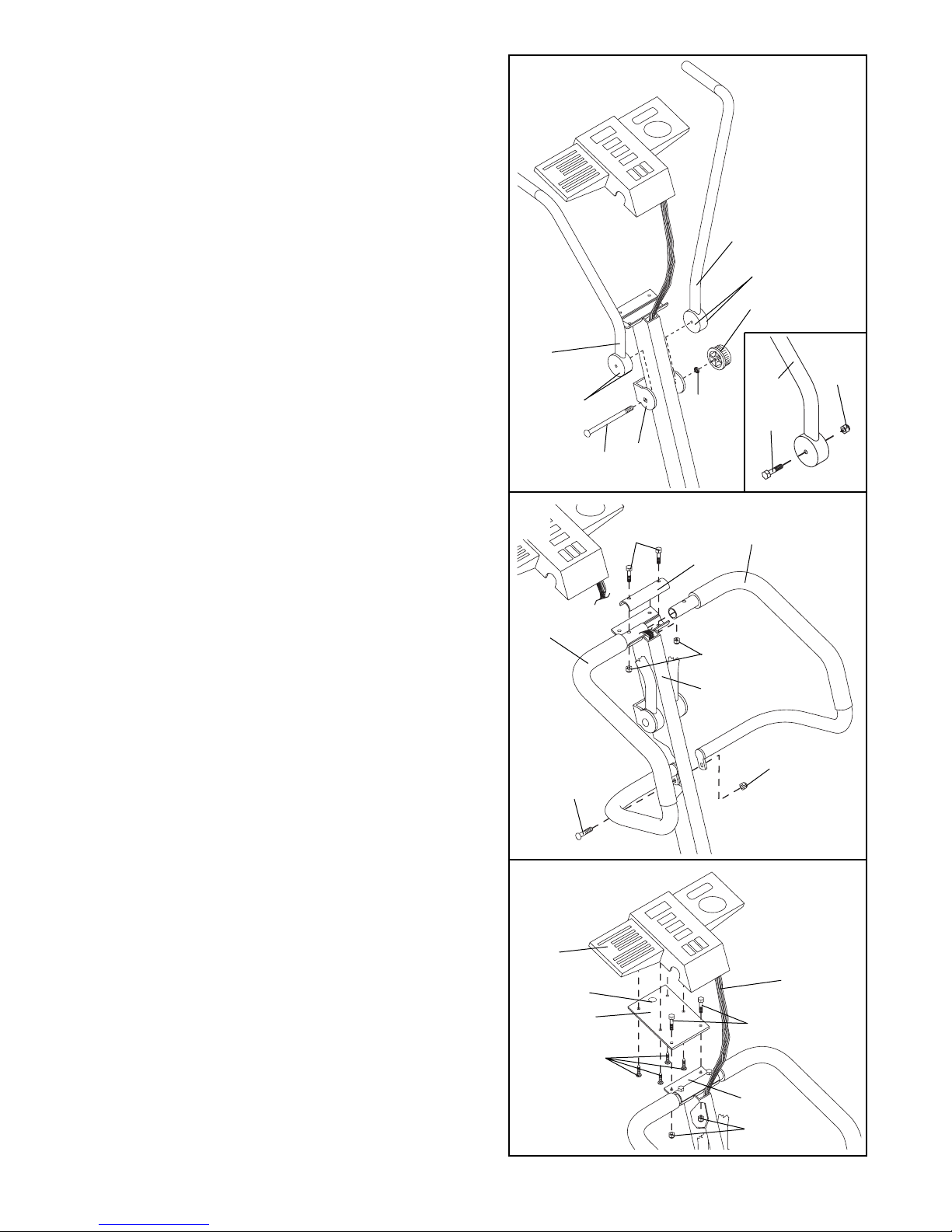

6. Attach the Console Plate (31) to the Upright (3) with
two 1/4Ó Bolts (71) and two 1/4Ó Nylon Jam Nuts (48).
Make sure that the Console Plate is turned so the
sticker is on the side shown.
Feed all of the slack in the console wire harness down
into the Upright (3). Attach the Console (6) to the
Console Plate (31) with four Zinc Screws (26). Be
careful to avoid pinching the console wire harness.
5. Hold the Left Handlebar (8) against the left side of the
Upright (3) as shown. Set the Saddle Bracket (72) on
top of the Left Handlebar. Insert a 3/8Ó Bolt (50) down
through the Saddle Bracket, the Left Handlebar, and
the Upright. Thread a 3/8Ó Nylon Locknut (29) onto the
Bolt. Do not tighten the Nylon Locknut yet. Insert a
1/4Ó Carriage Bolt (64) through the lower end of the
Left Handlebar and the tab on the front of the Upright.
Hold the Right Handlebar (9) against the right side of
the Upright (3). Insert a 3/8Ó Bolt (50) down through
the Saddle Bracket (72), the Right Handlebar, and the
Upright. Thread a 3/8Ó Nylon Locknut (29) onto the
Bolt. Do not tighten the Nylon Locknut yet.
Thread a 1/4Ó Nylon Jam Nut (48) onto the 1/4Ó Carriage
Bolt (64). Tighten all parts used in this step.
5
8
9
3
64
48
29
50
72
4. Refer to the inset drawing. Remove the 3/8Ó Bolt (50)
and the 3/8Ó Nylon Locknut (29) from the lower end of
each Upper Body Arm (10, 11). The Bolts and Nylon
Locknuts will be used in assembly step 5.
Apply a thin film of grease to both Upper Body Arms
(10, 11) in the indicated locations.
Hold the lower end of the Left Upper Body Arm (10)
inside the bracket on the Upright (3). Insert the Long
Carriage Bolt (66) into the bracket and through the
Left Upper Body Arm. Note: When inserting the
Long Carriage Bolt, be careful to avoid damaging
the console wire harness inside the Upright.
Hold the Right Upper Body Arm (11) inside the bracket
on the Upright (3). Insert the Long Carriage Bolt (66)
through the Right Upper Body Arm. Make sure that the
head of the Carriage Bolt is in the square hole in the
bracket. Slide the 3/8Ó Star Washer (68) onto the Long
Carriage Bolt. Tighten the Arm Resistance Knob (69)
onto the Long Carriage Bolt.
11
Grease
Grease
69
68
3
66
10
4
50
10 29

7
9
9. Plug the Power Cord (7) into the jack at the rear of the
MOMENTUM. Make sure to keep the Power Cord
away from walkways and heated surfaces.
10. Make sure that all parts of the MOMENTUM are properly tightened. To protect the floor or carpet from
damage, place a mat under the MOMENTUM.
7
60
12
44

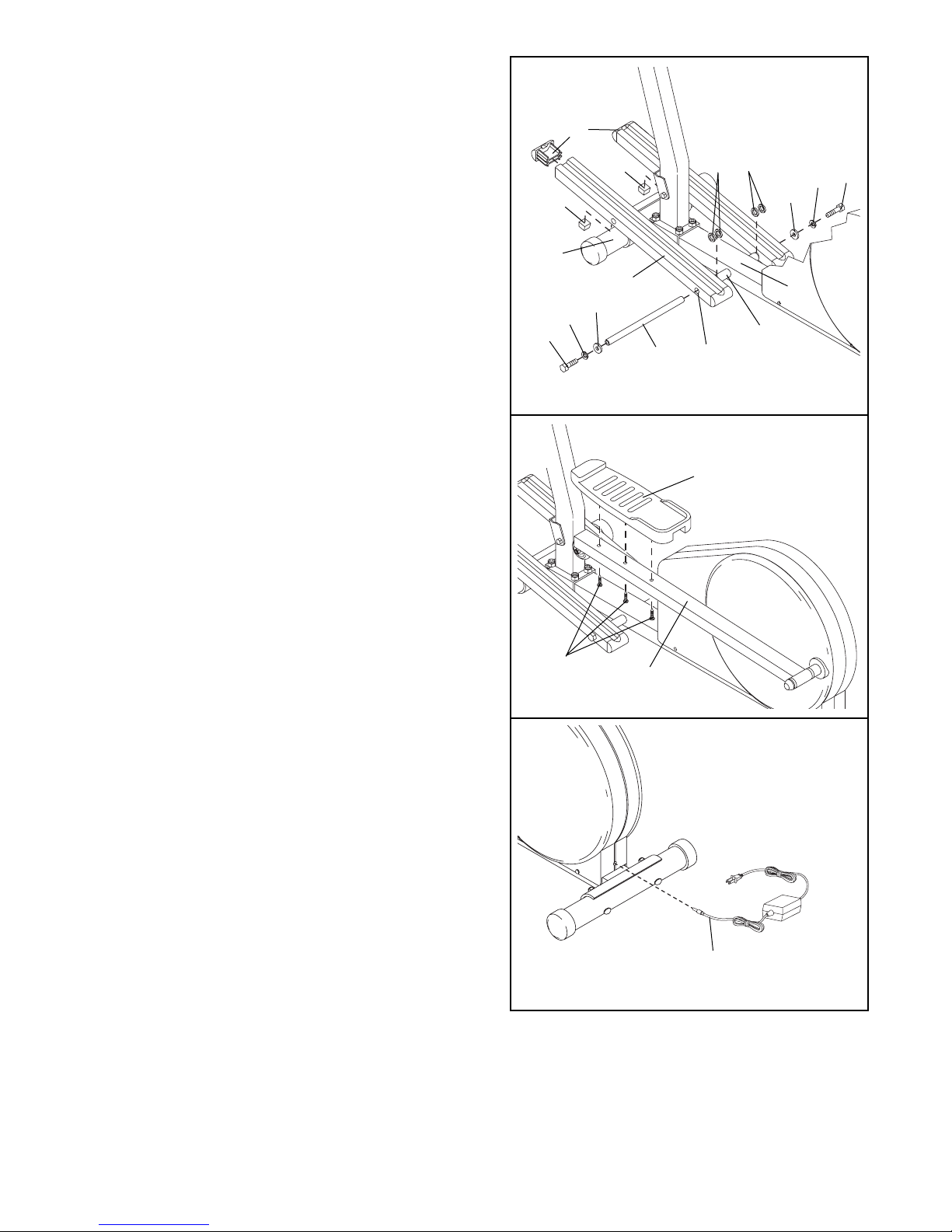

8. Raise the left Pedal Arm (12). Attach a Pedal (60) to
the Pedal Arm with three Black Screws (44).
Attach a Pedal (60) to the right Pedal Arm (not shown)
as described above.
8
7
2
55
1
75
57
57 58 59
58
59
56 56
30
Hole
Tube
62
62
7. Align the indicated holes in the Incline Frame (2) with
the tube on the Base (1). (Note: The Wheels on the
Pedal Arms [not shown] should be on top of the Incline
Frame.) Insert the Incline Axle (75) through the left
side of the Incline Frame, through two Plastic Spacers
(56), through the tube on the Base, through two more
Plastic Spacers, and through the right side of the
Incline Frame. Using two adjustable wrenches, tighten
a 3/8Ó Screw (59), with a Lock Washer (58) and a Flat
Washer (57), into each end of the Incline Axle.
Tap the two Incline Frame Endcaps (55) into the
Incline Frame (2).
Remove the backing from the two Bumpers (62).
Press the Bumpers onto the underside of the Incline
Frame (2) where the Incline Frame touches the front
Stabilizer (30).

8
HOW TO USE THE HEALTHRIDER¨MOMENTUM

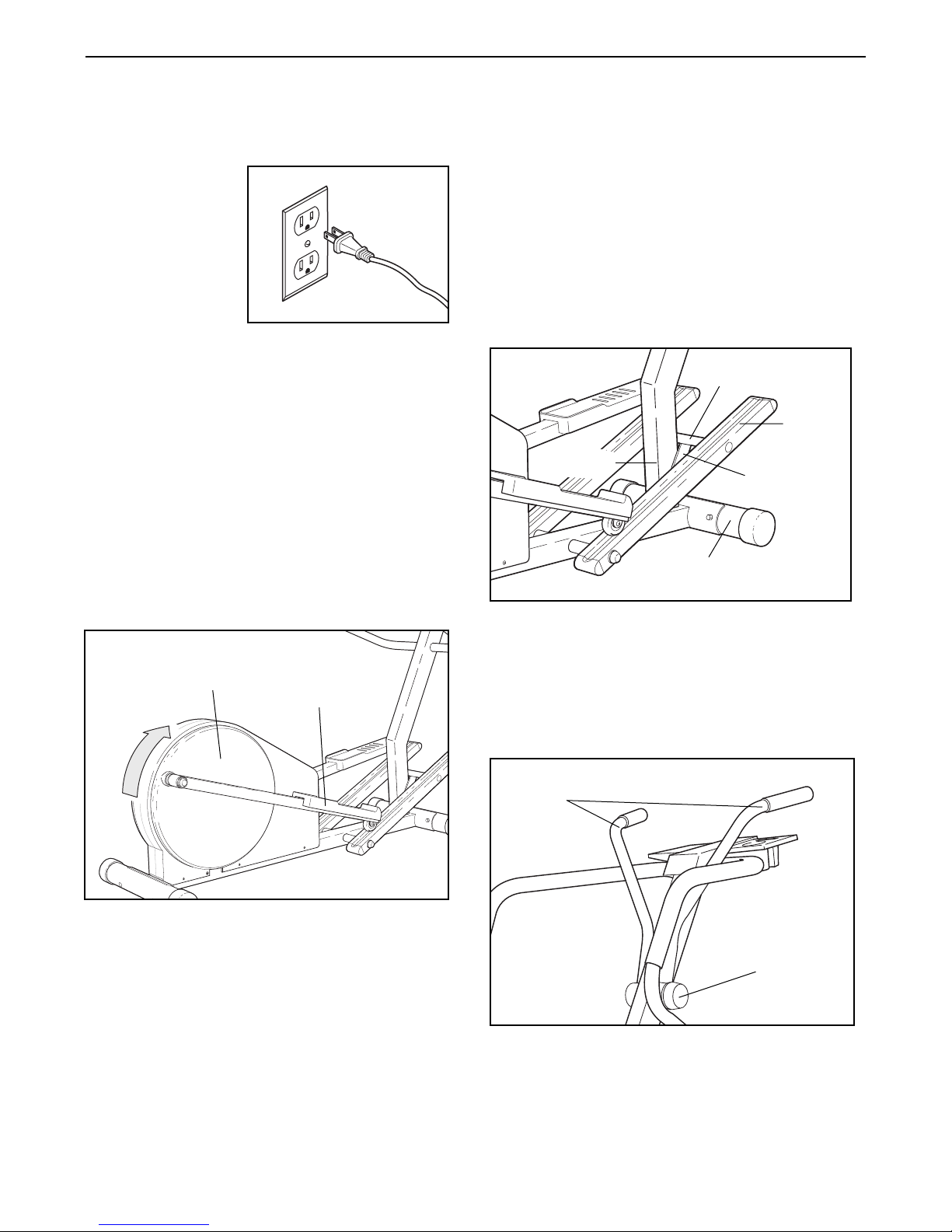

PLUGGING IN THE POWER CORD
Plug the power
cord into a 120-volt
outlet. The displays
and indicators on
the console will
flash once; the dis-
plays and various
indicators will then
light and a tone will
sound. Please
read through all instructions in this section before
using the MOMENTUM.
HOW TO EXERCISE ON THE MOMENTUM
To mount the MOMENTUM, hold the handlebars and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion. Note: The
pedal disks can turn in either direction. It is rec-
ommended that you move the pedals disks in the
direction shown below; however, to give variety to
your exercise, you may choose to turn the pedal
disks in the opposite direction.
To dismount the MOMENTUM, wait until the pedals
come to a complete stop. CAUTION: The MOMEN-
TUM does not have a freewheel; the pedals will
continue to move until the flywheel stops. When
the pedals are stationary, step off the highest pedal
first. Then, step off the lowest pedal.
INCLINE ADJUSTMENT
The incline frame can be raised or lowered to vary the
intensity of your exercise. To raise the incline frame,
lift the end of the incline frame until the crossbar is
resting on top of the incline bracket. Make sure that
the incline frame is resting securely on top of the
incline bracket. To lower the incline frame, first lift
the incline frame slightly. Then, push the incline brack-
et toward the upright and lower the incline frame onto
the stabilizer.
HOW TO USE THE UPPER BODY ARMS
The upper body arms are designed to give you a total
body workout. As you exercise, move the upper body
arms forward and back in order to work your arms,
back, and shoulders.
To vary the intensity of your upper body exercise, the
resistance of the upper body arms can be adjusted.
To increase the resistance, turn the arm resistance
knob clockwise; to decrease the resistance, turn the
knob counterclockwise.
Pedal
Pedal Disk
Arm
Resistance
Knob
Upper
Body
Arms
Incline
Frame
Incline
Bracket
Stabilizer
Crossbar
Upright

9
FEATURES OF THE CONSOLE
The console offers a variety of features that help you
get the most from your exercise. When the console is
in the manual mode, the resistance of the pedals can
be changed with a touch of a button. As you exercise,
four LED displays will provide continuous exercise
feedback. The console also offers six workout pro-
grams. Each workout program is designed to change
the resistance automatically as it guides you through
an effective workout.
DIAGRAM OF THE CONSOLE
1. Program ProfilesÑThese profiles show how the
resistance will change during the six workout pro-
grams. During program 5, for example, the resis-
tance will gradually increase during the first half of
the program, and then gradually decrease during
the last half.
2. Mode IndicatorsÑThese indicators show which
mode is selected (the manual mode or one of the
six workout programs).
3. TIME displayÑWhen the manual mode is selected,
this display will show the elapsed time. When a
workout program is selected, this display shows the
time remaining in the program.
4. DISTANCE displayÑThis display shows the total
distance you have completed, in miles.
5. SPEED displayÑThis display shows the number of
strides you are taking per minute, as well as your cur-
rent speed in miles per hour. The display will change
from one number to the other every seven seconds.
When the number of strides per minute is shown, the
STRIDES MIN. indicator will light; when your current
speed is shown, the MPH indicator will light.
6. CALORIES displayÑThis display shows the total
number of calories you have burned and the number
of fat calories you have burned. (See BURNING
FAT on page 12 for an explanation of fat calories.)
The display will change from one number to the
other every seven seconds. When the total number
of calories is shown, the TOTAL indicator will light;
when the number of fat calories is shown, the FAT
indicator will light.
7. MODE buttonÑThis button is used to select the
MANUAL mode and the six workout programs.
8. START/PAUSE buttonÑThis button is used to start
and pause the workout programs.
9. RESISTANCE (RESIS.) buttonÑThis button
changes the resistance of the pedals.
Note: If there is a thin sheet of clear plastic on
the face of the console, remove it before
using the console.
1
23
4
5
6
79
8

10
HOW TO USE THE MANUAL MODE
Make sure that the power cord is plugged into a
120-volt outlet. Follow the steps below to use the
manual mode of the console.
Turn on the power.
If you just plugged in the power cord or moved
the pedals, the power will already be on. The
power can also be turned on by pressing any
button on the console.
Select the manual mode.
When the power
is first turned on,
the manual mode
will automatically
be selected and
the manual mode
indicator will light.
If a different mode is selected, press the MODE
button repeatedly to select the manual mode.
Begin striding and adjust the resistance.
When the MANU-
AL mode is select-
ed, the resistance
of the pedals will
be at the minimum
setting. As you
exercise, adjust
the resistance as desired by pressing the RESIS.
button. Pressing the upper arrow on the button
will increase the resistance; pressing the lower
arrow will decrease the resistance.
If you stop exercising for twenty seconds or
longer, or if you press the START/PAUSE button,
a tone will sound, the console will pause, and the
TIME display will begin to flash. In addition, the
resistance of the pedals will return to the mini-
mum setting. To restart the console, press the
START/PAUSE button or simply begin striding.
Follow your progress with the four displays.
As you exercise, the four displays will provide
continuous feedback (see paragraphs 3, 4, 5,
and 6 on page 9).
Turn off the power.
If the pedals are not moved and the console but-
tons are not pressed for ten minutes, the power
will turn off automatically.
HOW TO USE THE WORKOUT PROGRAMS
Turn on the power.
See step 1 at the left.
Select one of the six workout programs.
Press the MODE
button repeatedly
to select the
desired program.
An indicator will
light to show which
program you have
selected. Programs
1, 2, and 3 are
twenty-minute pro-
grams; programs 4,
5, and 6 are thirty-
minute programs.
Start the program.
Press the START/PAUSE button and begin strid-
ing. As you exercise, the resistance of the pedals
will periodically change as shown by the profiles
on the left side of the console. (Note: If the resis-
tance is too high or too low, it can be adjusted
with the RESIS. button. Pressing the upper arrow
on the button will increase all resistance settings
of the program; pressing the lower arrow will
decrease all resistance settings.) The program
will continue until no time remains in the TIME
display.
To pause the program before the program is
completed, press the START/PAUSE button. A
tone will sound, the console will pause, and the
TIME display will begin to flash. In addition, the
resistance of the pedals will return to the mini-
mum setting. (Note: The program will also auto-
matically pause if the pedals are not moved for
twenty seconds.) To restart the program, press
the START/PAUSE button or simply begin strid-
ing. After a moment, the resistance of the pedals
will return to the current program setting.
Follow your progress with the four displays.
During the program, the four displays will provide
continuous feedback.
Turn off the power.
If the pedals are not moved and the console but-
tons are not pressed for ten minutes, the power
will turn off automatically.
1
1
2
2
3
4
5
3
4
5
Indicator
Indicator

Inspect and tighten all parts of the MOMENTUM
regularly. Replace any worn parts immediately.
For smooth operation of the MOMENTUM, the incline
frame should be kept clean. Using a soft cloth and
mild detergent, clean dust and other residue from the
incline frame where the wheels move along it. Other
parts of the MOMENTUM can also be cleaned in this
manner. Never use abrasives or solvents to clean
the MOMENTUM.
HOW TO LUBRICATE THE UPPER BODY ARMS
If a squeaking sound is heard when the upper body
arms are moved, a small amount of grease should be
applied. Refer to the drawing below. Turn the arm
resistance knob counterclockwise and remove it.
Next, remove the star washer. Using pliers, grip the
head of the carriage bolt and remove it. Apply a thin
film of grease to both upper body arms in the indicat-
ed locations. Reattach all parts, making sure that they
are in the positions shown.
11
MAINTENANCE
Incline
Frame
Wheel
Upper Body Arms
Arm
Resistance
Knob
Carriage
Bolt
Star
Washer
Grease

12
The following guidelines will help you to plan your
exercise program. Remember that a proper diet and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. For effective exercise, your heart
rate should be maintained at a level between 70% and
85% of your maximum heart rate as you exercise. This
is known as your training zone.
You can find your training zone in the table below.
Training zones are listed according to age and physi-
cal condition.
Burning Fat
To burn fat, you must exercise at a low intensity level
for a sustained period of time. During the first few
minutes of exercise, your body uses easily accessible
carbohydrate calories for energy. Only after the first few
minutes of exercise does your body begin to use stored
fat calories for energy. If your goal is to burn fat, adjust
the intensity of your exercise until your heart rate is
near the low end of your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the middle of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop
exercising and
place two fingers
on your wrist as
shown. Take a
six-second
heartbeat count,
and multiply the
result by ten to
find your heart
rate. (A six-sec-
ond count is used because your heart rate drops
quickly when you stop exercising.) If your heart rate is
too high, decrease the intensity of your exercise. If
your heart rate is too low, increase the intensity of
your exercise.
WORKOUT GUIDELINES
Each workout should include three important parts:
(1) a warm-up, (2) training zone exercise, and (3) a
cool-down.
Warming up
Warming up prepares the body for exercise by
increasing circulation, delivering more oxygen to the
muscles, and raising the body temperature. Begin
each workout with 5 to 10 minutes of stretching and
light exercise to warm up.
20 138-167 133-162
25 136-166 132-160
30 135-164 130-158
35 134-162 129-156
40 132-161 127-155
45 131-159 125-153
50 129-156 124-150
55 127-155 122-149
60 126-153 121-147
65 125-151 119-145
70 123-150 118-144
75 122-147 117-142
80 120-146 115-140
85 118-144 114-139
AGE
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
CONDITIONED
TRAINING ZONE
(BEATS/MIN)
CONDITIONING GUIDELINES
WARNING: Before beginning this or any exer-
cise program, consult your physician. This is
especially important for persons over the age
of 35 or persons with pre-existing health
problems.

13
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
right. Move slowly as you stretchÑnever bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean for-
ward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees out-
ward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
Training Zone Exercise
After warming up, increase the intensity of your exer-
cise until your heart rate is in your training zone for 20
to 30 minutes.
Cooling Down
Finish each workout with 5 to 10 minutes of stretching.
Stretching after exercise develops flexibility and helps
prevent post-exercise problems. A proper cool-down
should leave you feeling relaxed and comfortably tired.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired.

14
PART LISTÑModel No. 831.285770 R0897B
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
Key Part
No. No. Qty. Description
1 NSP 1 Base
2 139685 1 Incline Frame
3 141046 1 Upright
4 139468 1 Right Side Shield
5 139466 1 Left Side Shield
6 141047 1 Console
7 109954 1 Power Cord/Transformer
8 141049 1 Left Handlebar/Foam
9 141050 1 Right Handlebar/Foam
10 140843 1 Left Upper Body Arm
11 140844 1 Right Upper Body Arm
12 140845 2 Pedal Arm
13 013282 3 #10 Screw
14 140847 1 Resistance Strap
15 140848 1 Strap Buckle
16 013540 1 Buckle Screw
17 012090 2 Adjustment Nut
18 100128 2 Adjustment Bracket
19 104536 2 Eyebolt
20 119425 2 3/8Ó Nylon Jam Nut
21 139613 1 Flywheel Axle
22 113834 2 Flywheel Bearing
23 140849 1 Flywheel
24 140850 1 Magnet
25 130566 1 Sensor Wire/Reed Switch
26 104626 5 Zinc Screw
27 139418 4 Stabilizer Endcap
28 109692 4 3/8Ó Carriage Bolt
29 012108 11 3/8Ó Nylon Locknut
30 139797 2 Stabilizer
31 139699 1 Console Plate
32 140851 1 Pulley
33 141091 3 Long Pulley Axle Pin
34 140852 2 Pulley Arm
35 113391 2 Short Pulley Axle Pin
36 140853 2 Pulley Bearing
37 140854 2 Pedal Disk
38 013576 11 #8 Screw
39 140901 1 Main Wire Harness
40 100244 2 Screw
41 140902 2 Pedal Arm Spacer
42 140903 4 Pedal Arm Bushing
43 103735 2 Axle Cap
44 013322 6 Black Screw
45 139678 2 1/2Ó Shoulder Bolt
46 014073 4 Wheel Washer
47 136130 4 Wheel Bearing
48 119439 5 1/4Ó Nylon Jam Nut
49 140904 2 Wheel
Key Part
No. No. Qty. Description
50 013580 2 3/8Ó Bolt
51 140713 1 Wire Harness Extension
52 014132 4 3/8Ó Washer
53 104049 1 Incline Bracket Bolt
54 139659 1 Incline Bracket
55 139686 4 Incline Frame Endcap
56 139810 4 Plastic Spacer
57 014087 2 Flat Washer
58 105135 2 Lock Washer
59 104581 2 3/8Ó Screw
60 139465 2 Pedal
61 140905 2 Handlebar Grip
62 129740 2 Bumper
63 141048 2 Upper Body Arm Housing
64 113750 1 1/4Ó Carriage Bolt
65 140913 1 Pulley Axle
66 140906 1 Long Carriage Bolt
67 140912 1 Belt
68 104345 1 3/8Ó Star Washer
69 140343 1 Arm Resistance Knob
70 012135 4 Limit Switch Nut
71 103025 2 1/4Ó Bolt
72 140825 1 Saddle Bracket
73 140911 2 Limit Switch
74 105500 2 Foam Grip
75 139859 1 Incline Frame Axle
76 140907 1 Tension Spring
77 140908 1 Tension Cord
78 105437 2 Motor Nut
79 121737 8 Rubber Washer
80 140909 1 Motor Assembly
81 140393 1 Limit Switch Bracket
82 101041 1 Tension Cord Spool
83 140910 1 Limit Switch Actuator
84 113528 2 Upper Motor Screw
85 013058 2 Lower Motor Screw
86 140711 4 Limit Switch Screw
87 101049 1 #12 Screw
88 125022 2 1/2Ó Inner Cap
89 139975 1 Reed Switch Bracket
90 012137 1 Push Nut
# 139804 1 UserÕs Manual
# 140385 2 Side Shield Decal
# 139803 1 Hardware Kit
# 139801 1 Warning Decal
# 122625 1 HELPLINE Decal
# 104838 1 Grease Packet

70
73
83
85
84
79
86
81
79
80
79
79
82
78
77
76
14
17 18
19
20
21
15
16
22
23
24
25
26
1718
19
20
22
27
27
28
29
29
30
1
23
4
5
6
731
8
9
10
11
12
12
29
29
28
27
30
27
32
33
34
33
34
35
35
36
36
37
37
38
38
39
40
41
42
43
41
42
43
42
44
45
46
47
48
46
49
44
45
46
47
48
46
49
29
29
52
53
54
55
56
57 58
59
57
58
59
55
60
60
61
61
48
64
38
66
68 69
48
29
29
50
71
72
26
74
74
39
67
63
63
75
65
51
52
52
52
62
62
13
13
90
87
89
88
88
EXPLODED DRAWINGÑModel No. 831.285770 R0897B
15

Part No. 139804 G02760AC R0897B Printed in USA © 1997 Sears, Roebuck and Co.
The model number and serial number of your HEALTHRIDER¨
MOMENTUM are listed on a decal attached to the frame. See the
front cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be pre-
pared to provide the following information:
¥ The NAME OF THE PRODUCT (HEALTHRIDER¨MOMENTUM )
¥ The MODEL NUMBER OF THE PRODUCT (831.285770)
¥ The PART NUMBER OF THE PART (see page 14)
¥ The DESCRIPTION OF THE PART (see page 14).
Model No. 831.285770
QUESTIONS?
If you find that:
¥ you need help assembling or
operating the HEALTHRIDER¨
MOMENTUM
¥ a part is missing
¥ or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
MondayÐSaturday, 7 amÐ7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need to
be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS ELLIPTICAL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the ELLIPTICAL EXERCISER, free of charge.
This warranty does not apply when the ELLIPTICAL EXERCISER is used commercially or for rental
purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
