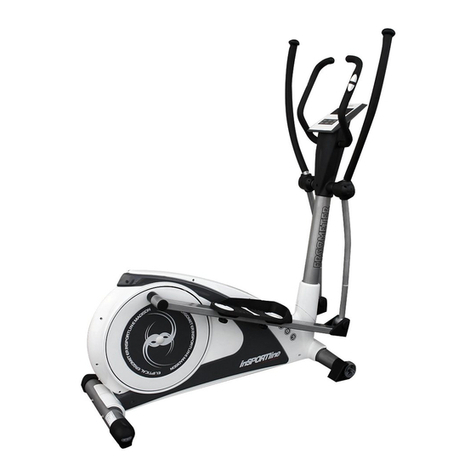

Insportline inCondi ET2000i User manual

USER MANUAL –EN
IN 19901 Elliptical Trainer inSPORTline inCondi ET2000i

2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
IMPORTANT NOTES.............................................................................................................................. 3
DIAGRAM................................................................................................................................................ 5
PARTS LIST............................................................................................................................................ 7
ASSEMBLY MATERIAL....................................................................................................................... 9
ASSEMBLY ........................................................................................................................................... 10
PARTS LIST....................................................................................................................................... 11
STEP 1............................................................................................................................................... 13
STEP 2............................................................................................................................................... 14
STEP 3............................................................................................................................................... 15
STEP 4............................................................................................................................................... 16
STEP 5............................................................................................................................................... 17
STEP 6............................................................................................................................................... 18
STEP 7............................................................................................................................................... 19
STEP 8............................................................................................................................................... 20
ELIPTICAL TRANSPORT.................................................................................................................. 21
POWER CORD.................................................................................................................................. 21
RESISTANCE.................................................................................................................................... 22
STRIDE LENGTH .............................................................................................................................. 22
CONSOLE............................................................................................................................................. 23
FUNCTIONS...................................................................................................................................... 23
BUTTONS.......................................................................................................................................... 24
DISPLAY FUNCTION DESCRIPTION .............................................................................................. 24
INTRODUCTION ............................................................................................................................... 27
QUICK START FUNCTION ............................................................................................................... 29
COMMUNITY CENTER..................................................................................................................... 30
MANUAL PROGRAM ........................................................................................................................ 31
PROGRAMS...................................................................................................................................... 32
WATT PROGRAM ............................................................................................................................. 33
HRC PROGRAM................................................................................................................................ 34
RECOVERY FUNKCE....................................................................................................................... 35
NOTES............................................................................................................................................... 35
USE OF ELEPTICAL TRAINER............................................................................................................ 36
MAINTENANCE .................................................................................................................................... 36
ENVIRONMENT PROTECTION ........................................................................................................... 36
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 36

3
SAFETY INSTRUCTIONS
•To ensure the best safety of the exerciser, regularly check it on damages and worn parts.
•If you pass on this exerciser to another person or if you allow another person to use it, make
sure that that person is familiar with the content and instructions in these instructions.
•Only one person should use the exerciser at a time.
•Before the first use and regularly make sure that all screws, bolts and other joints are properly
tightened and firmly seated.
•Before you start your work-out, remove all sharp-edged objects around the exerciser.
•Only use the exercise for your work-out if it works flawlessly.
•Any broken, worn or defective part must immediately be replaced and/or the exerciser must no
longer be used until it has been properly maintained and repaired.
•Parents and other supervisory persons should be aware of their responsibility, due to
situations which may arise for which the exerciser has not been designed and which may
occur due to children’s natural play instinct and interest in experimenting.
•If you do allow children to use this exerciser, be sure to take into consideration and assess
their mental and physical condition and development, and above all their temperament.
Children should use the exerciser only under adult supervision and be instructed on the
correct and proper use of the exerciser. The exerciser is not a toy.
•For your own safety, always ensure that there is at least 0.6 meter of free space in all
directions around your product while you are exercising.
•To avoid possible accidents, do not allow children to approach the exerciser without
supervision, since they may use it in a way for which it is not intended due to their natural play
instinct and interest in experimenting.
•Please note that an improper and excessive work-out may be harmful to your health.
•Please note that levers and other adjustment mechanisms are not projecting into the area of
movement during the work-out.
•When setting up the exerciser, please make sure that the exerciser is standing in a stable way
and that any possible unevenness of the floor is evened out.
•Always wear appropriate clothing and shoes which are suitable for your work-out on the
exerciser. The clothes must be designed in a way so that they will not get caught in any part of
the exerciser during the work-out due to their form (for example, length). Be sure to wear
appropriate shoes which are suitable for the work-out, firmly support the feet and which are
provided with a non-slip sole.
•Be sure to consult a physician before you start any exercise program. He may give you proper
hints and advice with respect to the individual intensity of stress for you as well as to your
work-out and sensible eating habits.
•Weight limit: 150 kg
•WARNING! The hart rate monitor may not be accurate. Overloading during training may
cause serious injury or death. If you feel any discomfort, immediately stop the exercise!
•Category: SC (EN957 standard) suitable for professional and club use
IMPORTANT NOTES
•Assemble the exerciser as per assembly instructions and be sure to only use the structural
parts provided with the exerciser and designed for it. Prior to the assembly, make sure the
contents of the delivery is complete by referring to the parts list of the assembly and operating
instructions.

4
•Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If
you wish to protect the place particularly against pressure points, contamination, etc., it is
recommended to put a suitable, non-slip mat under the exerciser.
•The general rule is that exercisers and training devices are no toys. Therefore, they must only
be used by properly informed or instructed persons.
•Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical
symptoms. In case of doubt, consult your physician immediately.
•Children, disabled and handicapped persons should use the exercise only under supervision
and in presence of another person who may give support and useful instructions.
•Be sure that your body parts and those of other persons are never close to any moving parts
of the exerciser during its use.
•When adjusting the adjustable parts, make sure they are adjusted properly and note the
marked, maximum adjusting position, for example of the saddle support, respectively.
•Do not work out immediately after meals!

5
DIAGRAM

6

7
PARTS LIST
NO
NAME
QTY
NO
NAME
QTY
A
Main frame
1
A36
Ground wire
1
A1
SENSOR WIRE 900mm
1
A37
Ac power switch to power cord
1
A2
Sensor wire
1
A39
Axle
1
A3
Motor
1
A40
Power cord
1
A3-1
Screw
4
A42
Flywheel
1
A4
Dc wire dc wire
1
A43
Flywheel cover
2
A5
Nut
1
A45
Magnetic housing
1
A6
Sensor wire
1
A50
Front pedal support tube
2
A7
Sensor wire housing
1
A51
Motor push rod
2
A8
Screw
1
A54
Pushrod bracket
2
A9
Connection slice
2
A55
Pushrod bracket
2
A10
Adaptor
1
A56
Front cover
2
A11
Screw m3x8
4
A57
End cap
4
A12
Sleeve
2
A58
Side cover bolts
4
A13
End cap
2
A61
Nylon sleeve
8
A14
Stabilizing feet
2
A62
BOLT M8 x 20
8
A15
Stride length control
1
A64
Washer m8
8
A16
Stride length sensor wire
2
A65
BOLT M12 x 53
2
A17
Wheel
2
A67
Nut m12
2
A18
Spring
1
A69
Bearing sleeve
14
A20
Belt wheel
1
A75
Oscillating axle base (L)
1
A21
Magnet
1
A76
Oscillating axle base (R)
1
A22
Axle
1
A77
Handlebar support cover
2
A23
Overload protection
1
A80
Front connecting shaft
2
A24
Wire (overload switch to ac power
switch)
1
A84
Bearing sleeve
12
A25
Power connection wire
1
A90
Nut m10
2
A26
Switch ac power
1
A91
End cap
2
A27
Power cord socket
1
A92
Crank housing
2
A28
Bearing nut
1
A94
Main chain cover (L)
1
A29
Belt
1
A95
Main chain cover (R)
1
A30
Crank
2
A96
Small chain cover (L)
1
A31
Flat key
2
A97
Small chain cover (R)
1
A33
Turing plate
2
A99
Screw m4x19
8
A34
Plate
1
B1
Pedal support tube (L)
1
A35
Overload switch to ac power switch
1
B2
Pedal support tube (R)
1

8
B3
Pedal housing (L)
2
D12
Foam spacer ring Ø23 x 3tt x 150
mm
2
B4
Pedal housing (R)
2
D13
Foam grip Ø23 x 3tt x 150 mm
2
B5
Lower pedal support tube
2
D14
Sensor wire
1
B9
Pedal bracket (L)
1
D16
Sensor wire
1
B10
Pedal bracket (R)
1
D17
Sensor wire L1
1
B11
Foot rest (L)
1
D18
Sensor wire L2
1
B12
Foot rest (R)
1
D19
Pc board load -
1
B13
Front cover pedal (L)
1
D20
Toggle load -
1
B14
Cushion pad (L)
1
D21
Toggle cover P1
1
B15
Pedal (L)
1
D22
Toggle cover P2
1
B18
Pedal (R)
1
D23
Pc board load+
1
B19
Cushion pad (R)
1
D24
Toggle load+
1
B20
Front cover pedal (R)
1
D25
Screw
4
B21
Upper cap for pedal support
2
D26
Sensor wire
1
B22
Lower cap for pedal support
2
D27
Sensor wire
1
B23
Screw
2
E1
Handle bar (L)
1
B24
Middle pedal support rod
2
E2
Handle bar (P)
1
B34
Screw
4
F1
Central support tube
1
B35
Pedal reinforcement strip
4
F2
Iron bracket
1
B36
Screw
8
F3
Central support tube cover (L)
1
C1
Side connecting tube (L)
1
F4
Central support tube cover (P)
1
C2
Side connecting tube (R)
1
F6
Screw
2
C3
Adjusted nut
2
G
Console
1
C4
Adjusted end
2
G1
Screw
4
D
Console holder
1
G2
Stride length LED sensor
1
D1
Sensor wire 350 mm
1
H
Water bottle holder
1
D2
Sensor wire 200 mm
1
I
Adapter
1
D3
Sensor wire 300 mm
1
J3
Screw M4 x 6
2
D4
Handle pulse wire
2
L1
Side tube cover set (L1)
1
D5
Handle pulse ring Ø31,8 x 0,9t x
19,5 mm
2
L2
Side tube cover set (L2)
1
D6
Spacer ring Ø32 x 30,4
2
L3
Side tube cover set (L3)
1
D7
Handle pulse
4
L4
Side tube cover set (L4)
1
D8
Upper handle pulse housing
2
R1
Side tube cover set (R1)
1
D9
Lower handle pulse housing
2
R2
Side tube cover set (R2)
1
D10
Handle pulse ring Ø31,8 x 0,9t x
19,5 mm
2
R3
Side tube cover set (R3)
1
D11
Plastic pipe
2
R4
Side tube cover set (R4)
1

9
ASSEMBLY MATERIAL
NO
NAME
QTY
NO
NAME
QTY
SW001-B
Screw M3 x 8
4
SW056-B
Screw M4 x 12
6
SW004
Screw M4 x 15
12
SW057-B
Screw M4 x 16
6
SW006
Screw M6 x 12
8
SW060
Screw M4 x 38 mm
4
SW007
Screw M3 x 10
4
SW069-B
Screw M8 x 16
4
SW013-B
Screw M8 x 25
4
SW071-B
Screw M12 x 53
2
SW014-B
Screw M8 x 28
6
SW072-B
Screw M12 x 79
8
SW015-B
Screw M8 x 40
4
SW073-B
Screw M12 x 109
4
SW016-B
Axle
2
SW074-B
Screw M12 x 133
2
SW020
Screw M4 x 20
10
SW076
Screw M5 x 15
2
SW029-B
Screw M5 x 10
2
SW082-B
Screw M8 x 45
2
SW031
Screw M10 x 40
2
SW088-B
Screw M10 x 16
4
SW039-B
Screw M8 x 20
10
SW094
Screw M6 x 20
1
SW047
Screw M5 x 12
2
SW099-B
Screw M8 x 55
4
SW049
Screw M5 x 10
4
SW101
Screw M8 x 45
1
NO
NAME
QTY
NO
NAME
QTY
BR6005
Bearing 6005zz
2
BH02
Bush Ø 7.9*Ø (12+15)+(3.8+7)
8
BR6905
Bearing BR6905zz
2
BH08
Bush Ø 15*Ø 12.35*90L
2
BR2203
Bearing BR2203
2
BH09
Bush Ø 15*Ø 12.35*52L
1
BR6201
Bearing BR2203zz
20
BH12
Bush Ø 16*Ø 12.05*20L
4
BR6001
Bearing 6001zz
10
BH14
Bush Ø 16*Ø 12.05*10.5L
8
BR6003
Bearing 6003zz
2
BH15
Bush Ø 19*Ø 12.05*48.5L
2
BR6004
Bearing 6004zz
2
BH16
Bush Ø 29.2*Ø 25.2*5L
1
BH17
Bush Ø 29.2*Ø 25.2*54.4L
1
BH13
Bush Ø 16*Ø 12.05*14.75L
12
NO
NAME
QTY
NO
NAME
QTY
NT-M8-B
Nut M8
5
W26-B
Washer Ø M8
4
NT-M4
Nut M4
10
W37
Washer Ø 20*Ø 12*2T
4
NT-NM8-B
Nut M8
14
W36-B
Washer Ø 20*Ø 12*1.5T
16
NT-NM10
Nut M10
4
W35
Washer Ø 20*Ø 10*3T
2
NT-M12
Nut M12
3
W31
Washer Ø 19*Ø 6.2*2T
2
NT-NM12-B
Nut M12
16
C-R17
Clip R17
1
NT014-B
Nut M8 x 28
6
C-R28
Clip R28
4
C-R36
Clip R36
12

10
ASSEMBLY
Lay the box down flat so that the lid can be lifted. Unpack the handle bars, side support tubes, pedal
support tube and owner’s manual. Remove the top polyfoam pieces 1 & 2 and finish up packing the
console, console holder, central support tube, pedal support tube, and hardware bag, leaving the Main
frame (A) and bottom polyfoam pieces 3 & 4 inside the box until you are instructed to remove them.

11
PARTS LIST

12

13
STEP 1
Central support tube
1. Remove the two pre-assembled screw (SW088-B) from the Main frame(A) and two screws
(SW088-B) from the Central support tube (F1).
2. Connect the Central tube (F1) to the Main frame (A), use the previously removed screw
(SW088-B) to attach them.
Note: Tighten all screws (SW088-B) before Step 2.

14

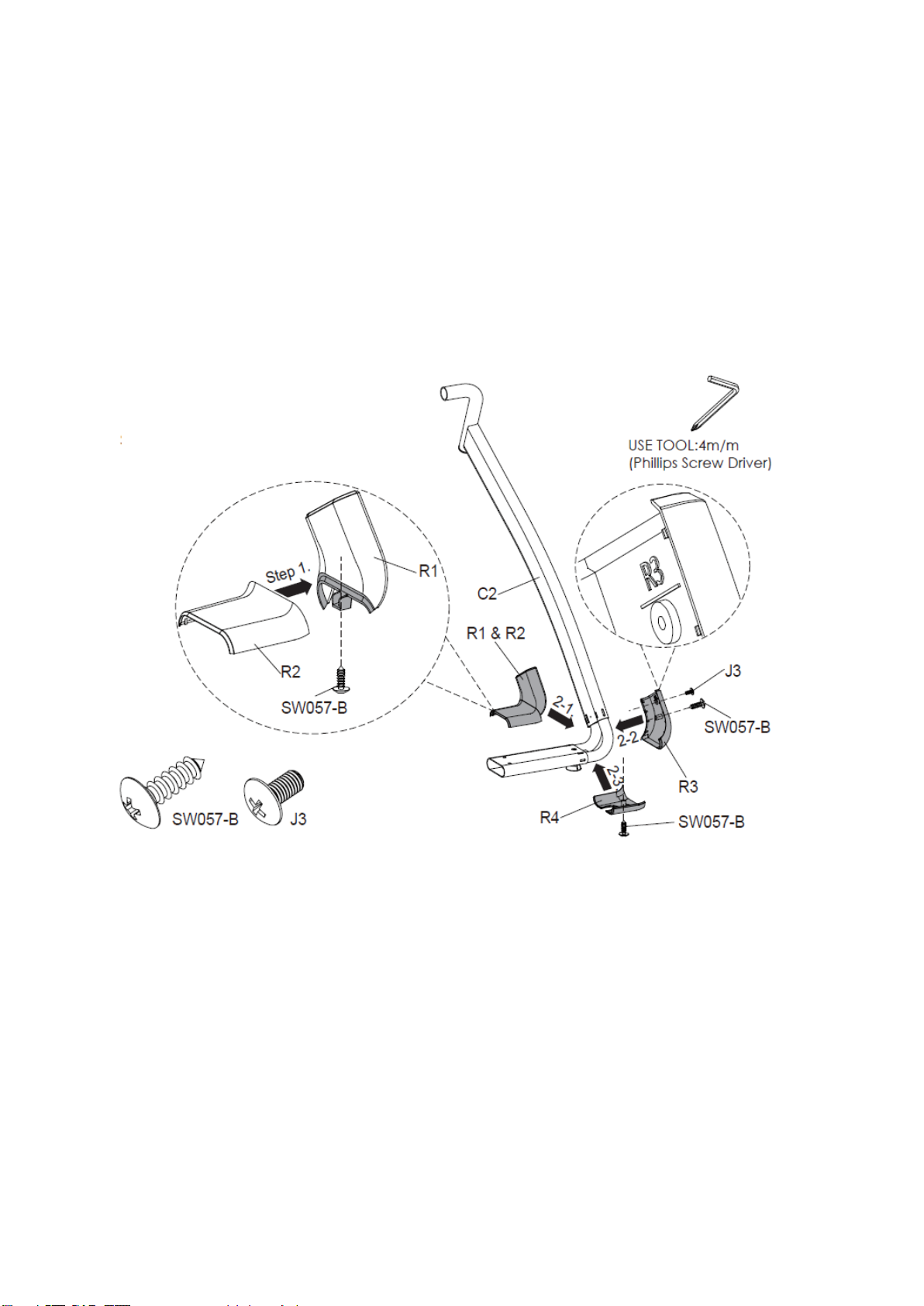

STEP 2
Side cover sets
1. Assemble Cover (R2) with Cover (R1) and connect with screw (SW057-B)
2. Connect Cover (R1+R2) on the right side of Connecting tube (C2).
3. Connect the Cover (R3) on Tube (C2).
4. Connect the Cover (R4) on Tube (C2).
•To connect Cover use Screws (J3) and (SW057-B) as shown on the picture below.
Repeat on the other side.

15

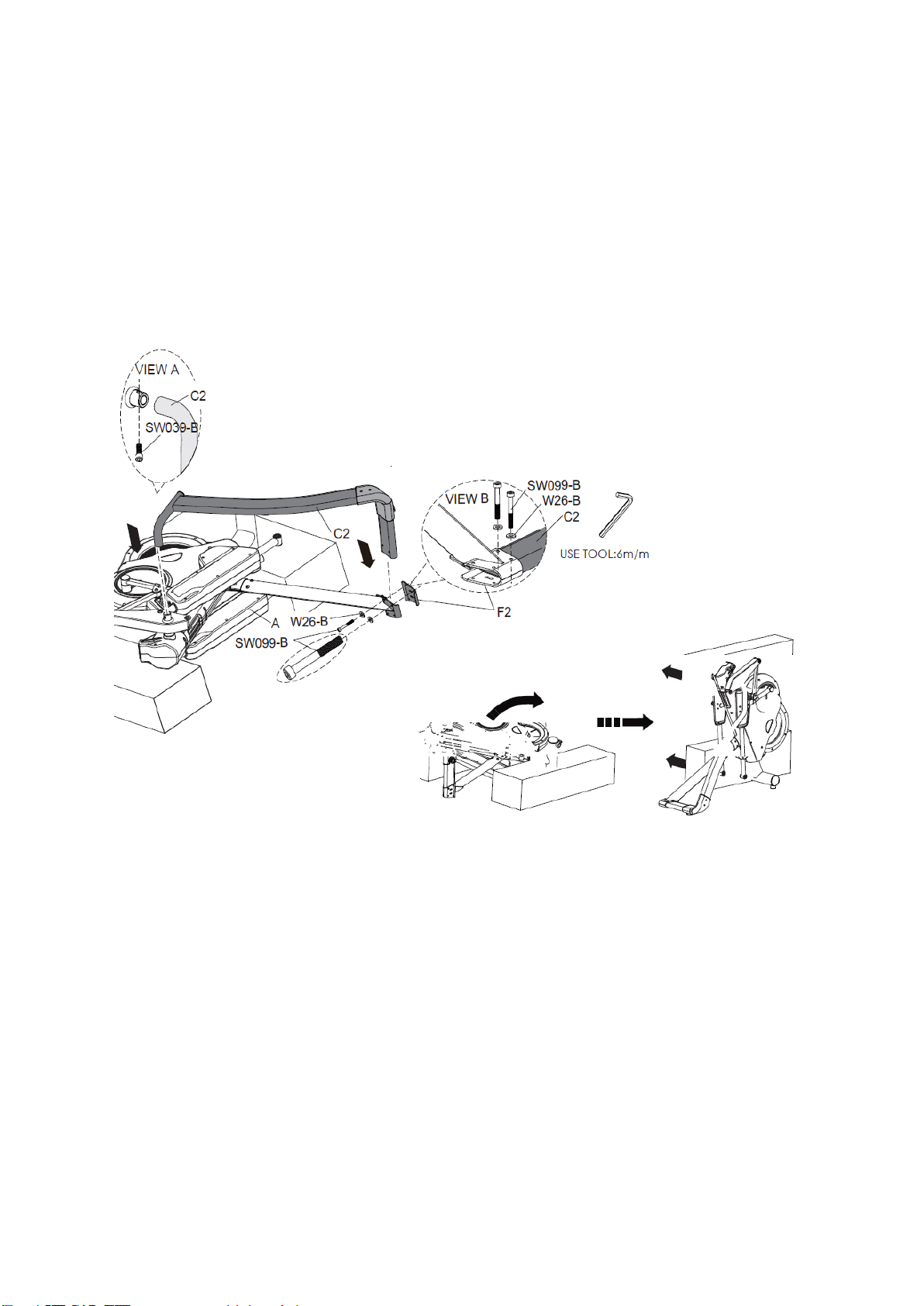

STEP 3
Ride side connection tube
1. Connect the Tube (C2) to Main frame (A) according to VIEW A.
2. With Screws (SW039-B) M8x20 connect the Tube to the Frame.
3. Refer to the VIEW B, use 2 pieces Screw (SW099-B) M8x55 two Washers (W26-B) and the
Iron to the bottom of the Frame bracket (F2) to attach the Tube
4. Raise Frame (A) with another person and remove the rest of the packing material.
Note: Tighten SW039-B and SW099-B only after completing 3 Step.

16
STEP 4
Connecting of left side tube and joint cover assembly
1. Connect the left Tube (C1) to the Frame (A).
2. Attach the Tube to the Frame on the top with the Screw (SW039-B) and on the bottom with
two Screws (SW099-B), two washers (W26-B) to the Iron Support (F2).
3. Tighten all Screws (SW088-B, SW099-B and SW039-B).
Note: Make sure that the central supporting tube is assembled in a position parallel with the main
frame tube to avoid the pedals to hit central supporting tube.

17
STEP 5
Pedal support
1. First secure the Screw (SW073-B), with Washer (W36-B) and Nuts (NT-NM12-B) according to
VIEW C.
2. Connect the right Tube (B2) to the Main frame (A) and secure with Nut (NT-NM12-B), Washer
(W36-B) and Screw (SW072-B) according to View D.
3. After assembling in VIEW D, secure the tube by tighten the pre-installed Screw (SW073-B)
and Nut (NT-NM12-B) according to VIEW E.
4. Connect the left Tube (B1) the same way.

18
STEP 6
Handlebar assembly
1. Remove six pre-assembled Screws (SW014-B a NT014-B) from left Handlebar (E1).
2. Connect the left Handlebar (E1) to the Main frame (A) with screws (SW014-B a NT014-B)
according to VIEW F.
3. Right Handlebar (E2) connect the same way.

19
STEP 7

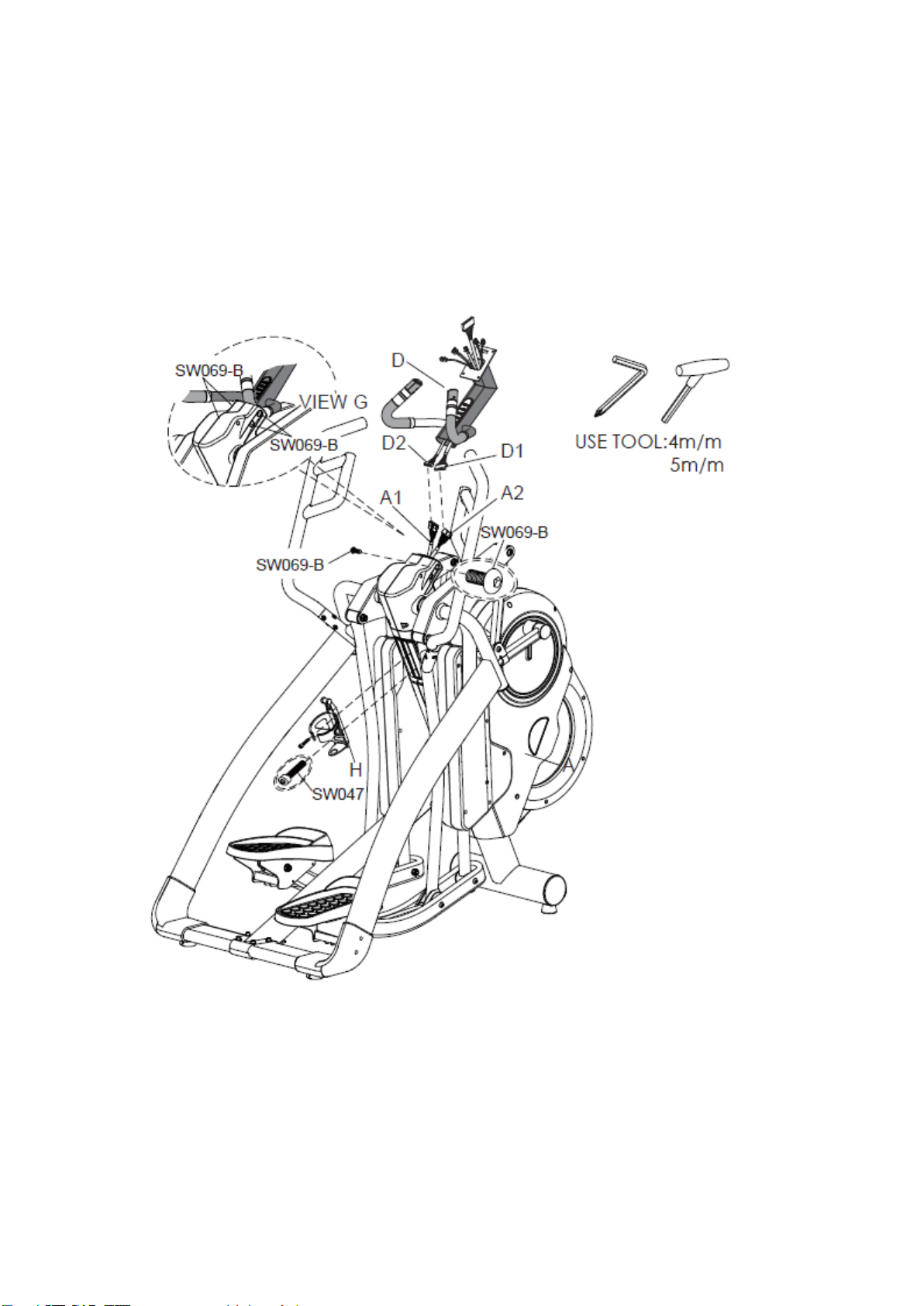

Console holder
Connect Cables (D1 and D2) from Console holder (D) to the Cables (A1 and A2) from Main frame (A).
With two screws (SW069-B) and two pre-assembled screws (DW069-B) connect the Console holder
(D) to the Main frame (A). Tighten the screws according to VIEW G.
With screw (SW047) connect the Bottle holder (H) to the Main frame (A).

20
STEP 8
Console connection
1. Remove 4 screws (G1) from the back part of Console (G).
2. Connect cables (D1, D3, D14, 16) and cable (D4) to the Console.
Make sure that the cables are properly connected, pushing the excessive cables into the
Console holder (D).
Console (G) connect to Console holder (D) with screws (G1).
3. Balance the device with rear stabilizer.
Note: You can adjust the angle of the console.
