BH FITNESS LK500Ti User manual

LK500Ti
OWNER’S MANUAL
BH FITNESS | 620 N. 2nd Street, St. Charles, MO 63301
p.636-487-0050 | www.BHFitnessUSA.com | www.BHFitnessCanada.ca
Important: Read all instructions carefully before using this product.
Register your product warranty online at: www.BHFitnessUSA.com.
Retain this owner’s manual for future reference.


Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
2
TABLE OF CONTENTS
Title ......................... Page
Congratulations ................02
Maintenance and Cleaning .......02
Safety Information ..............03
Grounding Instructions . . . . . . . . . . 04
Exercise Instruction .............05
Training Guidelines .............06
Suggested Stretches ............ 10
Assembly Instructions ........... 12
Console Operations . . . . . . . . . . . . . .19
Exploded View Drawing .......... 31
Parts List......................32
Warranty ......................34
French / Français...............35
CONGRATULATIONS
Congratulations on your purchase of BH
Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers
around the world have come to expect from
BH Fitness.
If you have any questions, concerns or
product issues please call our Customer
Service Team at 1-866-325-2339 or email us
at [e-mail].
Carefully read through the instructions
contained in this manual. They provide you
with important information about assembly,
safety, tness and use of the machine. Please
read ALL the safety information contained on
the following page.
MAINTENANCE AND CLEANING
Care has been taken to assure that your
equipment has been properly adjusted
and lubricated at the factory. It is not
recommended that the user attempt service
on the internal components. Instead, seek
service from an authorized service center.
However, you may clean the outer surface.
Use a soft cloth, dampened with warm water.
Do not use aerosol sprays or pump bottles
as they may deposit sediments upon the
console surface. The use of harsh chemicals
will destroy the protective coating and cause a
static build-up that may damage the some of
the components.

3
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
SAFETY INFORMATION
PRECAUTIONS
The machine has been designed and constructed to provide maximum safety. Nevertheless,
certain precautions should be taken when using exercise equipment. Read the whole manual
before assembling and using the machine. Please observe the following safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this
machine STOP exercising. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get
caught in the machine. Always wear athletic shoes when using the machine and tie the
laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by BH Fitness.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without
the assistance of a qualied person or doctor.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Maintain a minimum safety clearance of 12” in the front, 24” on the sides and 79” to the
rear of the treadmill.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. This machine was designed for a maximum user weight of 450 lbs (204 kg)
18. The machine can only be used by one person at a time.
Caution: Consult your doctor before beginning to use the machine or any exercise program.
Read all of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
4
It is important that the product must be grounded rst. If a malfunction or breakdown
occurs, grounding will provide a path of least resistance for electric current to reduce the risk
of electric shock.
The product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
DANGER– Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or serviceman if you doubt whether the
products are properly grounded. Do not modify the plug provided with the product – if it will
not t the outlet, have a proper outlet installed by a qualied electrician.
The products is for use on normal 110V-120V circuit and contains a grounded plug that
looks like the one illustrated below. Make sure that the product is connected to an outlet
having the same conguration as the plug. No adapter should be used with the product.
GROUNDING INSTRUCTIONS
GROUNDED OUTLET
GROUNDED PIN

5
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
EXERCISE INSTRUCTION
Use of the machine offers various benets; it will improve tness, muscle tone and when
used in conjunction with a calorie controlled diet, it will help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to undergo a
complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself
3. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose clothing; do
not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Step on to the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your workout
interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.
TREADMILL OPERATION
When you are ready to use the treadmill, don't stand on the running belt. First turn on the
power, hold the handrails and step on the protective side rails, then press ”START” to start
the treadmill. When the motor is running at low speed, move your feet with the running
belt. Remember to clip the safety key to the waist to avoid dangers resulted from falling or
uncomfortable health. Don’t start the treadmill with high speed and try to jump onto the
running belt. In an emergency, please hold the front handrails or the lateral handrails, and
move your feet from the running belt and onto the protective side rails.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
6
TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual. Listed
among its benets are:
• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory efciency
• Decreased risk of coronary heart disease
• Changes in body metabolism, e.g. losing weight
• Delaying the physiological effects of age
• Reduction in stress, increase in self-condence, etc.
There are several components of physical tness and each is dened below.
STRENGTH
The capacity of a muscle to exert a force against resistance. Strength contributes to power
and speed.
MUSCULAR ENDURANCE
The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular
endurance of your legs to carry you 10 km without stopping.
FLEXIBILITY
The range of motion of your joints. Improving exibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle
injury or soreness.
CARDIO-RESPIRATORY ENDURANCE
The most essential component of physical tness. It is the efcient functioning of the heart
and lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the
aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the
body's metabolic or energy-generating process. Many types of exercise are aerobic, and by
denition are performed at moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING
Is an exercise intense enough to trigger anaerobic metabolism. This means “without oxygen”
and is the output of energy when the oxygen supply is insufcient to meet the body’s long
term energy demands. (For example, a 100 meter sprint.)

7
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
TRAINING GUIDELINES
OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to
deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect
that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max
indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen,
and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
This is the minimum level of exercise which is required to produce signicant improvements
in any physical tness parameter.
OVERLOAD
This is where you exercise above your comfort level. The intensity, duration and frequency of
exercise should be above the training threshold and should be gradually increased as the
body adapts to the increasing demands. As your tness level improves, the training threshold
should rise. Working through your program and gradually increasing the overload factor is
important.
PROGRESSION
As you become more t, a higher intensity of exercise is required to create an overload and
therefore provide continued improvement.
SPECIFICS
Different forms of exercise produce different results. The type of exercise that is carried out
is specic to the muscle groups being used and to the energy source involved. There is little
transfer of the effects of exercise, i.e. from strength training to cardiovascular tness. That is
why it is important to have an exercise program tailored to your specic needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benets you
have gained. Regular workouts are the key to success.
WARM-UP
Every exercise program should start with a warm-up where the body is prepared for the
effort to come. It should be gentle and preferably use the muscles group to be involved
later. Stretching should be included in both your warm-up and cool down, and should be
performed after 3-5 minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise,
a large supply of blood remains in the working muscles. If it is not returned promptly to the
central circulation, pooling of blood may occur in the muscles.

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
8
HEART RATE
As you exercise, your heart rate increases. This is often used as a measure of the required
intensity of an exercise. You need to exercise hard enough to condition your circulatory
system, and increase your pulse rate, but not enough to strain your heart.
Your initial level of tness is important when developing an exercise program. Depending on
the individual, when starting an exercise program, you can achieve good training results with
a heart rate of 110-120 beats per minute (BPM). If you are more t, you will need a higher
threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70%
of your maximum heart rate. If you nd this is too easy, you may want to increase it, but it is
better to lean on the conservative side.
As a rule of thumb, your maximum heart rate is calculated by subtracting your age from 220.
As you increase in age, your heart, like other muscles, loses some of its efciency. Some of
this loss can be won back as tness improves.
HOW TO CALCULATE YOUR HEART RATE
Immediately after exercising, take your heart rate by applying two ngers to your wrist or
carotid artery in the neck. Count the beats for ten seconds. Multiply the number of beats
times 6 to calculate your current heart rate in BPM (beats per minute). Ten seconds is long
enough for accuracy. Since heart rate slows as you recover, a count longer than ten seconds
isn’t as accurate.
The following tables are guides for target heart rate per beginning tness and above average
tness levels based on your age.
BEGINNER FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Heart Rate In Beats Per Minute 138 132 132 126 120 114 114 108 108
ABOVE AVERAGE FITNESS LEVEL
AGE GROUP 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Heart Rate In Beats Per Minute 156 156 150 144 138 132 132 126 120
Don’t push yourself too hard to reach the gures on this table. It can be very uncomfortable
if you over exercise. Let it happen naturally as you work through your program. Remember,
the target is a guide, not a rule, a little above or below is just ne.
Don’t be concerned with day to day variations in your pulse rate. Being under pressure or not
enough sleep can affect it. Your pulse rate is a guide, don’t become obsessed with it.
TRAINING GUIDELINES

9
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
MUSCLE SORENESS
For the rst week or so, muscle soreness may be the only indication you have that you
are on an exercise program. This, of course, does depend on your overall tness level. A
conrmation that you are on the correct program is a very slight soreness in most major
muscle groups. This is quite normal and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you
have increased your program too rapidly.
If you experience pain during or after exercise, your body is telling you something. Stop
exercising and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should
be light enough to allow the body to cool. Excessive clothing that causes you to perspire more
than you normally would gives you no advantage. The extra weight you lose is body uid and
will be replaced with the next glass of water you drink. Always wear a pair of athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
REST PERIODS
Once you start your exercise program, you should continue through to the end. Do not break
off halfway through and then restart at the same place later on without going through the
warm-up stage again. The rest period required between exercises may vary from person to
person.
TRAINING GUIDELINES

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
10
HEAD ROLLS
Rotate your head to the right for one count while feeling the stretch
up the left side of your neck. Next, rotate your head back for one
count, stretching your chin to the ceiling. Rotate your head to the left
for one count, and nally, drop your head to your chest for one count.
SHOULDER LIFTS
Lift your left shoulder up toward your ear for one count. Then lift your
right shoulder up for one count as you lower your left shoulder.
SIDE STRETCHES
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for one
count. Feel the stretch up your left side. Repeat this action with your
right arm.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach behind you and pull
your left foot up. Bring your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with right foot up.
SUGGESTED STRETCHES

11
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
INNER THIGH STRETCH
Sit with the soles of your feet together with your knees pointing
outward. Pull your feet as close into your groin as possible. Gently
push your knees towards the oor. Hold for 15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting your back and shoulders
relax as you stretch toward your toes. Reach down as far as you can
and hold for 15 counts.
HAMSTRING STRETCHES
Sit with your right leg extended. Rest the soles of your left foot
against your right inner thigh. Stretch toward your toes as far as
possible. Hold for 15 counts. Relax and then repeat with left leg
extended.
CALF/ACHILLES STRETCHES
Lean against a wall with your right leg in front of the left and your
arms forward. Keep your left leg straight and the right foot on the
oor; then bend the right leg and lean forward by moving your hip
toward the wall. Hold, then repeat on the other side for 15 counts.
SUGGESTED STRETCHES

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
12
ASSEMBLY INSTRUCTIONS
The assembly of this product requires two or more people. When assembling the uprights, one
person should hold the uprights to prevent them from falling.


13
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
ASSEMBLY INSTRUCTIONS
ASSEMBLY CHECKLIST
ITEM Description Qty
A Computer Console 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Lower Console
Structure
1
F Left Motor Lateral
Cover
1
G Right Motor Lateral
Cover
1
H MP3 Cable 1
ITEM Description Qty
a Nylon Nut M8xP1.25 4
bTruss Philips Screw
M5xP0.8x15 6
cTruss Hex Screw
(Ø13) 12
dT-shaped Wrench
8mmx200mm 1
e
L-shaped Hex
Wrench 5mmx30m-
mx120mm
1
fBushing Spanner +
Screwdriver (13mm) 1
gBottled Silicon
DC-1000 1
hPower Cord Switch
Cover 1
iTruss Philips Screw
M4xP0.7x10 2
j
Knockdown Truss
Hex Screw (Ø13)
M8xP1.25x90
2
k Bottle 1

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
14
ASSEMBLY INSTRUCTIONS
STEP 1
Attach the Left Upright (C) onto Frame (B). Then attach the control wire (located on the right
of the motor shroud) to the guide wire coming out of the bottom of the Right Upright (D). Then
pull the guide wire (that is attached to the control wire) through the Right upright (D) and out
the top with the control wire. Be careful not to damage the wires. Then attach the Right Upright
(D) to the Frame (B).


15
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
ASSEMBLY INSTRUCTIONS
STEP 2 (This step will require two people)
Place the Lower Console Structure (E) above the Left & Right uprights (C,D). Attach the control
wire sticking out of the Right Upright (D) to the guide wire located on the bottom right of the
lower console structure. Then pull the control wire through the lower console structure with
the guide wire. Then attach the Lower Console Structure (E) to the Left & Right Uprights (C,D)
with the Nylon Nut (a) and tighten the Screws (c). Attach the Left & Right Motor Lateral Covers
(F,G) with Screws (b), tighten securely.


Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
16
STEP 3 (This step will require two people)
Put the Console (A) above the Lower Console Structure (E) and connect the wires as shown in
the gure below. Then attached the Console (A) to the Lower Console Structure (E) with Screws
(C,J). Be careful not to damage the wires. Note: The control wire has a red mark.

Lower Control Wire (Upper)
Lower Control Wire (Lower)
Safety Key Wire (Upper)
Control Wire (Upper)
Keyboard Cable (Upper)
Hand Grip Pulse Wire (Upper)
Computer Grounding Wire
Safety Key Wire (Lower)
Control Wire (Lower)
Keyboard Cable (Lower)
Hand Grip Pulse Wire (Lower)
Frame Grounding Wire
3-1
ASSEMBLY INSTRUCTIONS

17
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
STEP 4
Place the cup holders on the Lower Console Structure (E) and tighten by turning the left cup
counter clockwise and the right cup clockwise (as shown in image below).
STEP 5
Remove the power cord and insert it into the machine, then place the Power Cord Switch Cover
(h) onto the machine and tighten with Screws (i).




Cup
ASSEMBLY INSTRUCTIONS

Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
18

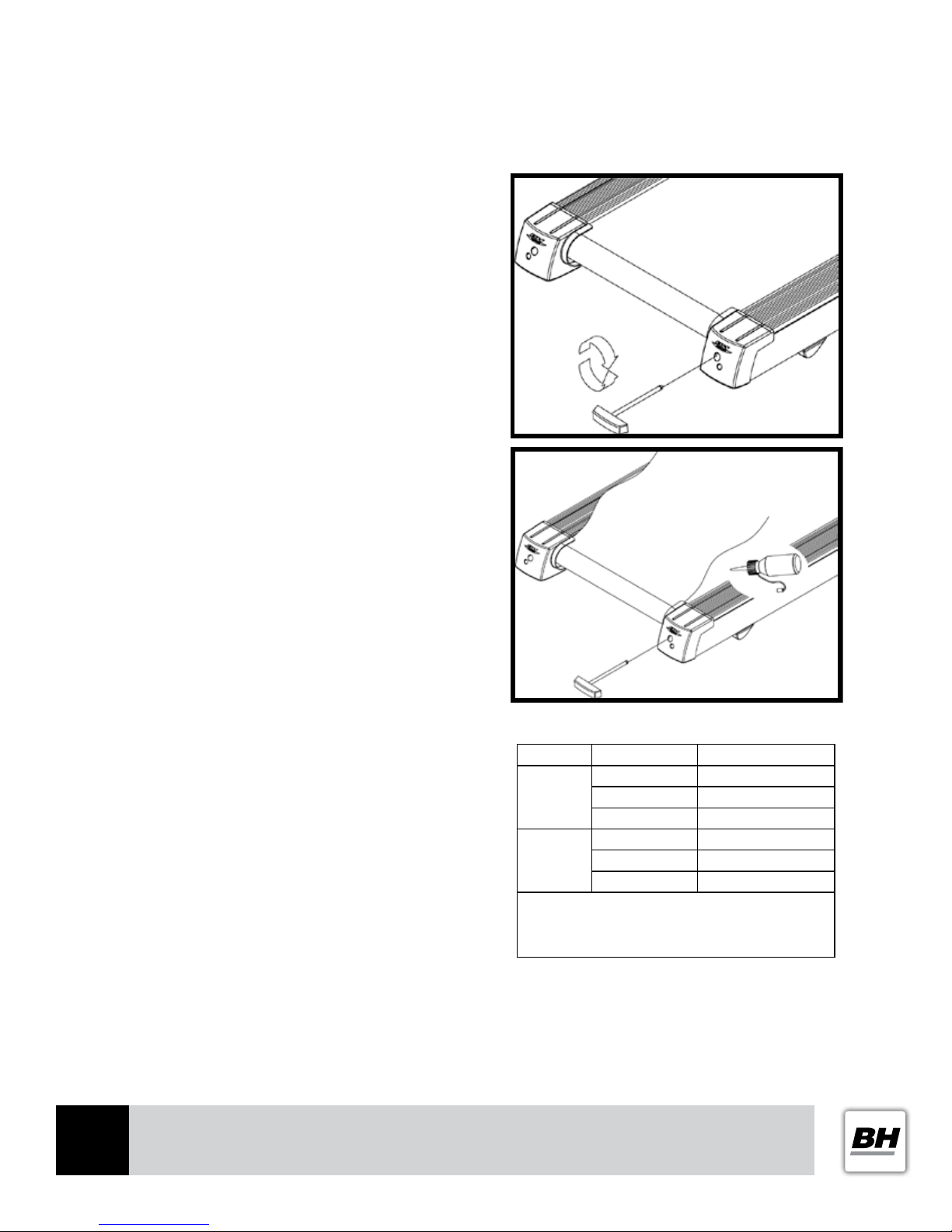

BELT ADJUSTMENTS
To adjust the running belt, stop the treadmill,
then use the Hex Wrench and adjust the
Hex Screw located in the Rear End Cap. If
the running belt is moving towards the left
side, tighten the left Hex Screw about 1/4
turn (clockwise); if the running belt is moving
towards the right side, tighten the right Hex
Screw about 1/4 turn (clockwise); Turn the
treadmill on after it has been adjusted. If you
nd that the belt has not moved to the proper
position, please repeat the steps above. Don’t
use the treadmill until the running belt returns
to the center position.
The position of running belt might not stay
precisely in the center, it can and will shift
slightly towards the left and right sides,
however, you do not need to adjust the belt if
it is not rubbing against the side rails.
Depending on the usage of the product,
please apply silicon according to the chart to
the right. Use the Hex Wrench to unscrew the
bolt inside the Rear Roller. Then pull the belt
up and put some silicon to the center of the
board. After that, adjust the belt to the center
of the deck, followed by tightening the screw
to the original set.
When the belt is sliding, please follow the
above method to lubricate the running board. KGS/LBS Speed Interval
KGS
6KM/hr Below 1 year
6~12KM/hr 6 months
12KM/hr Above 3 months
LBS
4mile/hr Below 1 year
4~8mile/hr 6 months
8mile/hr Above 3 months
Note: This maintenance is intended for household use. If
used for business, it is suggested to examine the product
every other month.
Silicon Chart


ASSEMBLY INSTRUCTIONS

19
Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
CONSOLE OPERATIONS


Register your product warranty online at: www.BHFitnessUSA.com
Questions regarding warranty and parts call: 636.634.2217
20
ABOUT THE MUSCLE DISPLAY
When the USER changes the incline level it will display on the screen.
Level 0
Levels 7-9
Levels 1-3
Levels 10-12
Levels 4-6
Levels 13-15
Time HRC & Age Heart Rate
Training
Program
Array
Calories
Muscle Display
Incline
Level
Speed Weight/Distance iDevice
Connection Status
Alpha-Numeric
Display
CONSOLE OPERATIONS
