HEINE® iC2 Charger
MED 113964 V-200.00.155
Date: 2018-01-17
Please read and follow these instructions for use
and keep them for future reference.
Intended use
The HEINE® iC2 Charger is intended for inductive charging
exclusively with the HEINE® iC2 Funduscope.
It should only be operated by qualified medical personnel
within a professional health facility.
For U.S.only:
Federal law restricts this device to sale by or on the
order of a Physician or Practitioner.
Warnings and safety information
Caution! This symbol indicates potential hazardous
situations. Ignoring the corresponding instructions
may lead to dangerous situations of mild to moder-
ate extent.
(Background colour yellow; foreground colour
black).
Note! This symbol indicates valuable advice in terms
of set up, operation, maintenance or repair, as
applicable.
Notes are important, but not related to hazardous
situations.
Product overview
1 Charging indicator
2 USB connector
Setting up
Primary country adapter
The primary country adapter of the power supply is inter-
changeable, this enables worldwide operation. The following
picture describes the procedure of changing the plug.
After you checked the mains voltage indicated on
the nameplate of the device, connect the mains
supply plug to the mains supply.
Mount the power supply in such a position where it
can be easily unplugged.
To put the power supply out of operation just dis-
connect the power supply from the mains supply.
The HEINE charger is intended for installation in medical areas
outside the patient environment (at least 1.5 meters from the
patient or patient support pursuant to IEC 60601-1, see figure).
The above figure defines the patient environment (minimum
radius around the patient).
Operation
For charging the iC2 Funduscope place it onto the iC2 Charger
as pictured in the product overview.
Make sure that there are no objects in the charging cradle.
The regular blue pulsating charge indicator indicates that the
iC2 Funduscope is being charged. When the instrument is fully
charged, the indicator will be lit permanently blue.
If the charge indicator is not on or flashes orange after inserting
the instrument into the charger, check whether the mains plug
is plugged in and the instrument is correctly seated. If neces-
sary, reset the charging process by removing the instrument
from the charger for a few seconds and then replacing it in
again. If you do not notice any improvement, please contact the
manufacturer.

MED 113964_HEINE iC2 Charger_ENG_2018-01-17 Seite 2 von 3
On the back of the iC2 Charger there is a USB port that allows
you to charge devices (e.g. your smartphone, BETA 4 USB charg-
ing handle).
Hygienic reprocessing
The instructions are available at:
- www.heine.com
- in a paper version which you can request from the address
listed
Maintenance
The device is maintenance free.
Service
The device has no components serviceable by the end-user.
General notes
The warranty for the entire product is invalidated if
non-genuine HEINE products or non-original parts
are used and if repairs or modifications are made to
the device by persons not authorized by HEINE. For
more information, please visit www.heine.com.
The expected life cycle, when the device is normal
used and the warning and safety information as well
as the maintenance instructions are observed, is up
to 7 years.
Beyond this period, the product may continue to be
used if it is in a safe and good condition.
General warnings
Check the correct operation of the device before
use! Do not use the device if there are visible signs
of damage.
The inductive charging of third-party products is not
permitted.
Do not place metallic objects (e.g. paper clips, coins)
in the charging cradle.
Do not use the device in fire or explosive risk area
(e.g. oxygen saturated or anaesthetic environments).
This product is not allowed to enter or be used in
areas with strong magnetic fields e.g. MRI scanners.
Do not modify the device.
Use only original HEINE parts, spare parts, accesso-
ries and power sources.
Repairs shall only be carried out by qualified per-
sons.
Do not use the power supply outdoors.
Heating of the housing during operation is normal
and harmless. Make sure that the device isn’t
covered during operation, that it isn’t placed in close
proximity to a heating and that isn’t exposed to
direct sunlight.
Disposal
The product must be recycled as separated electrical
and electronic devices. Please observe the relevant
state-specific disposal regulations.

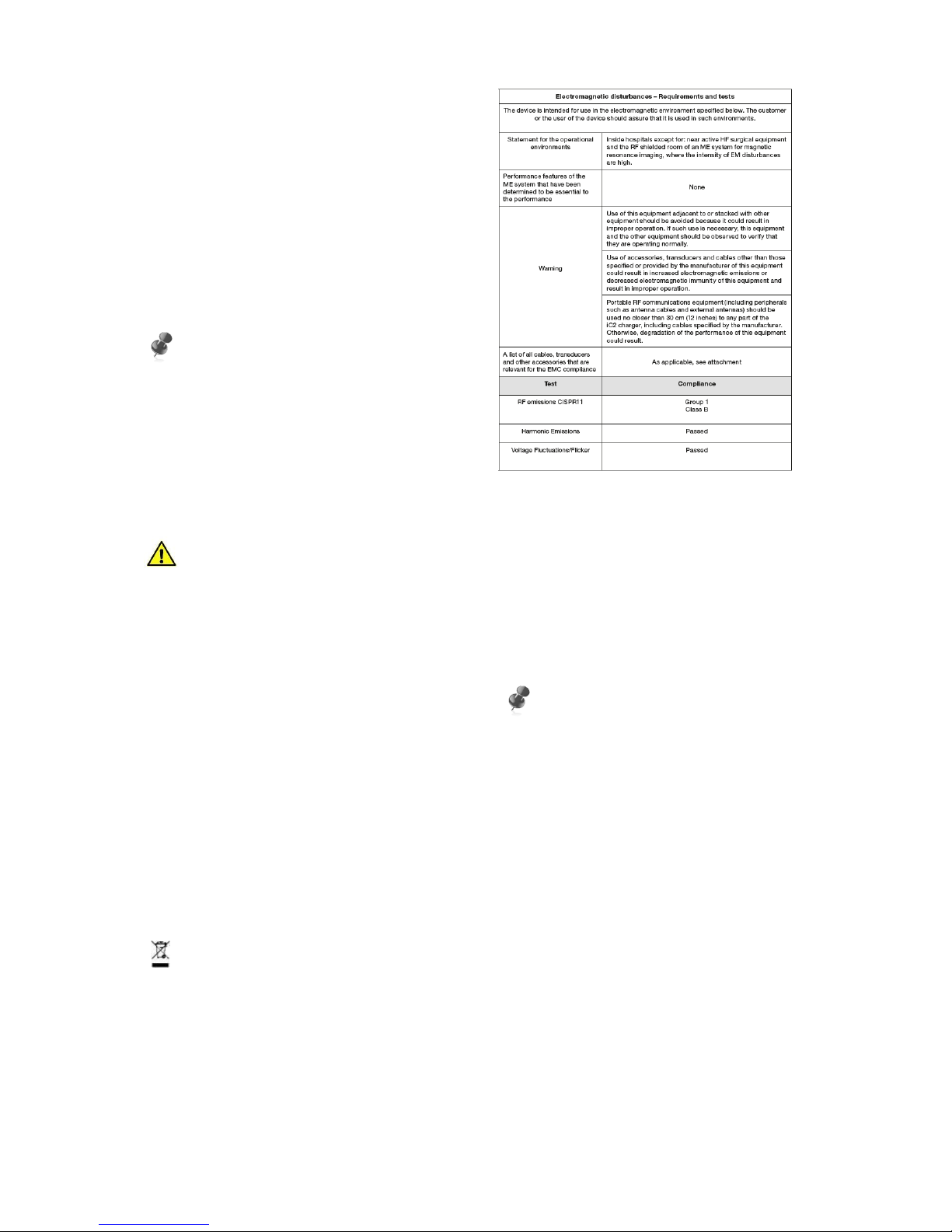

The appendix contains following tables:
- Electromagnetic disturbances - Requirements and tests
- Technical specification
- Explanation of the used symbols
Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The Federal Communications Commission (FCC) warns the users
that changes or modifications to the unit not expressly ap-
proved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be deter-mined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the Receiver is connect-
ed.
- Consult the dealer or an experienced radio/TV
technician for help.
Industry Canada (IC) emissions
This device complies with Industry Canada’s license-exempt
RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interfer-
ence that may cause undesired operation of the device.

MED 113964_HEINE iC2 Charger_ENG_2018-01-17 Seite 3 von 3
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage ra-
dioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
RF exposure statement (mobile and fixed devices)
This device complies with the RF exposure requirements for
mobile and fixed devices. However, the device shall be used in
such a manner that the potential for human contact during
normal operation is minimized.
Technical specifications
Nominal input voltage
100 –240 V AC / 50 –60 Hz
Power consumption
< 15 W
Nominal output voltage USB
5 V
Nominal output current USB
600 mA
Class
II
Protection class
IP 20
Environmental conditions
Environmental condi-
tions for operation:
+10 °C to +35 °C
30 % to 75 % rel. humidity
700 hPa to 1060 hPa
Environmental condi-
tions for storage:
+5 °C to +45 °C
45 % to 80 % rel. humidity
500 hPa to 1060 hPa
Environmental condi-
tions for transport:
-20 °C to +50 °C
45 % to 80 % rel. humidity
500 hPa to 1060 hPa
Explanation of utilized symbols
The CE mark indicates that the product complies
with the European medical device directive
93/42/EEC.
Catalogue- or order number
Serial number
Manufacturer
Date of manufacture
Product bearing this symbol may not be dis-
posed of together with general household waste,
but instead requires separate disposal according
to local provisions. (European Waste Electrical
and Electronic Equipment Directive, WEEE)
Temperature limits in °C for storage and
transport
Temperature limits in °F for storage and
transport
Humidity limitation for storage and transport
Pressure limitation for storage and transport
Follow instructions for use!
(Background color: blue, foreground color:
white.)
Keep dry!
For indoor use only
Instructions for use
Class II equipment
Trade mark of the manufacturer
UL Recognized Component Mark (for USA and
Canada)
Approval mark of SIQ (for Slovenia)
The Regulatory Compliance Mark (RCM)
UL Mark for Canada and the USA
Efficiency level (US)
(Background color: blue, foreground color:
white.)
