Helvex TZF NAO User manual

perico
adjustable
wrench
INSTALLATION GUIDE
GUÍA DE INSTALACIÓN
6
1
Dimensiones / Dimensions
TZF NAO17
Taza para Fluxómetro NAO17 Elongada, Trampa
Expuesta 3,5/4,8/6,0 lpd / NAO17 0,9/1,26 /1,5 gpf
Elongated Flushometer Bowl
silicón
antihongos
anti-fungus
silicone
Herramienta Requerida / Required Tools
Hola soy Fluxy, te
ayudaré a instalar
tu producto.
Hi I'm Fluxy, I'll
help you to install
your product.
Vista Superior / Top View
Desagüe
Drain
Marcas para barrenos
de fijación de la taza
Bolts Mark
90° Muro Terminado
Finished Wall
15,5 cm
(6,1")
Instale la taza de acuerdo a las distancias que se muestran en la figura. / Install the cup according to the
distances shown in the figure.
tubería de PVC Ø 4”
PVC pipe Ø 4 "
pared con
acabado final
wall with final finish
* 30,5 cm
(12")
43,2 cm
(17”)
NPT
FFL
2%
[email protected]
Original Spare Parts:
Consultancy and Technical
01(55)53339431
01800 909 2020 01 (55) 53 33 94 00
Refacciones Originales:
Asesoría y Servicio Técnico:
Ext. 5068, 5815 y 5913
Service:
53 33 94 21
01 800 890 0594
[email protected]
ADVERTENCIA / WARNING
Para disminuir el riesgo de lesiones o daños a la propiedad, lea todas las instrucciones antes de instalar el
producto. Utilice gafas de seguridad. En obras de construcción, instalación, modificación, ampliación y
reparación deben cumplir con el reglamento de construcción y obras de su localidad. El producto ilustrado
puede sufrir cambios de aspecto como resultado de la mejora continua a la que está sujeto.
To reduce the risk of injury or property damage, read all instructions before installing the product. Use safety
glasses. In construction, installation, alteration, extension and repair must comply with the rules of
construction an your local. The illustrated product may change in appearance as a result of continuous
improvement to which it is subject.
Cada metro de altura de
su producto a la base
del tinaco equivalen a
(0,1 kg/cm²) [1,42 PSI].
Meter of height of your
product to the base of
the tub is equivalent to
(0,1 kg/cm²) [1,42 psi].
Agradecemos su elección por los productos HELVEX.
Estamos seguros de que su confiabilidad por el producto excederá sus más altas expectativas, cuya
funcionalidad, estética, durabilidad, respaldo integral y alta calidad le otorgarán plena satisfacción por años,
reflejando el compromiso con la calidad, innovación y el medio ambiente que forman parte de Helvex.
Thank you for choosing HELVEX products.
We are confident that the product reliability will exceed your highest expectations, whose functionality,
aesthetics, durability, high quality and comprehensive support grant him full satisfaction for years, reflecting
the commitment to quality, innovation and the environment as part Helvex.
Esta Guía de Instalación Aplica al Producto en Cualquier Acabado. / This Installation
Guide Applies to the Product in Any Finish.
Requerimientos de Instalación
Installation Requirements
Requerimientos de Instalación
Installation Requirements
Mínima / Minimum Máxima / Maximum
kg/cm² PSI kPa kg/cm² PSI kPa
Para el correcto funcionamiento de éste producto, se
recomiendan las siguientes presiones:
For the correct operation of these product, the following
pressures are recommended:
lápiz
taladro con
broca de Ø 3/8”
* Medidas Recomendadas
*Recommended Dimensions
(Nivel de Piso Terminado)
(Finish Floor Level)
2Trace sus líneas como se indica. / Draw lines
as showed bellow.
Instalación General
Ø 3/8" Drill bit
with drill
pencil
Inodoro para Discapacitados
Toilet for People with Disability
Artículos Incluidos en su Producto
/ Item Included in your Product
floor fixing kit
kit de fijación
al piso
Taza para Fluxómetro NAO Elongada Trampa
Expuesta 3,5/4,8/6,0 lpd / NAO 0,9/1,26 /1,5 gpf
Elongated Flushometer Bowl
TZF NAO
TZF NAO
TZF NAO17
/ General Installation
pared con
acabado final
wall with final finish
37 cm
(14,6”)
* 30,5 cm
(12")
tubería de PVC Ø 4”
PVC pipe Ø 4 "
NPT
FFL
2%
TZF NAO TZF NAO17
30,5 cm
(12" )
3,5 0,9
4,8 / 6,0
gpf
Maximum
Consumption
(Gallons Per Flush)
lpd
Consumo Máximo
(Litros Por Descarga)
2,0
6,0 85,3 588,3
28,4 196,0
1,0 14,2 98,0
6,0 85,3 588,3
1,26 / 1,5
2
01 55 53 33 94 00
Ext. 5804, 5805 y 5806 (0133) 36 19 01 13
Comunícate:
Participa en nuestros
cursos gratuitos
de capacitación.
(0181) 83 33 57 67
(0181) 83 33 61 78
In Guadalajara:
Contact:
Enter our free
training courses.
In Monterrey:
En la Ciudad de México:
In Mexico City:
En Monterrey:
En Guadalajara:
Es muy importante seguir las siguientes instrucciones para conservar los
acabados de los productos HELVEX, con brillo y en perfecto estado:
1. Utilice únicamente agua y un paño limpio.
2. No utilice fibras, polvos, abrasivos, ni productos químicos.
3. No utilice objetos punzo-cortantes para limpiar los acabados.
4. Se recomienda realizar la limpieza de su producto diariamente.
Nota: Vea nuestros tips en la pag. www.helvex.com.mx
It is very important to follow the instructions below to preserve HELVEX products
finishes, shiny and in perfect condition:
1. Use only water and a clean cloth.
2. Do not use fibers, powders, abrasives, or chemicals.
3. Do not use sharp objects to clean the finish.
4. It is recommended to clean your product daily.
Note: See our tips on: www.helvex.com.mx
Recomendaciones de Limpieza / Cleaning Recommendations
Posibles Causas y Soluciones / Troubleshooting
Problema / Problem
No se barren los sólidos. / The toilet
doesn't flush properly all the residues.
Causa / Cause Solución / Solution
Se mueve la taza.
/ Toilet moves.
Existe filtración en la base de la taza.
The water filters from below the bowl .
Presión por debajo de la recomendada.
/ Water pressure below the recommended limit.
Las tuercas de sujeción están
flojas. / The locking nuts are loose.
No acopló correctamente la taza en el empaque.
/ The bowl was not installed properly.
Verifique que su fluxómetro cumpla con los requerimientos de
operación. / Verify that the flush valve operates properly.
Apriete las tuercas de sujeción. / Tighten the nuts.
Acople correctamente la taza en el empaque.
/ Place properly the bowl on the wax ring and apply weight.
345
Barrene en las marcas con broca de Ø
5/16” para concreto (no incluida). / Drill the
marks with Ø 5/16 " concrete drill (not
included).
tubo de drenaje
drain tube
Coloque los taquetes en los barrenos y
enrosque manualmente las pijas con tuerca
en los taquetes. / Place the anchors in the
holes and hand screw the lag screws in the
anchors.
taquete
anchor
pija con tuerca
lag screw with nut
No utilice herramienta al
efectuar esta operación.
Do not use the tool to
perform this operation.
6a 6b
tuerca
(incluida)
nut
(included) pija (incluida)
lag screw (included)
45 a 50 mm
(1,7" to 1,9")
Desenrosque las tuercas de las pijas. /
Unscrew the nuts from the lag screws.
789
barreno
drill
Instale su fluxómetro. / Install your
flushometer.
24 cm
(9,4")
Enrosque el cubre pijas y coloque silicón
antihongos alrededor de la base de la taza. /
Screw the bolt caps and place anti-fungus
silicone around the base of the bowl.
Inserte las rondanas y enrosque la tuerca en
la pija. / Insert the washers and screw the
nuts as show.
Apriete a tope para evitar
daños a la taza. / Tighten to
prevent damage to toilet.
tuerca / nut
silicón antihongos / anti-fungus silicone
Coloque el cuello de cera en el barreno
de descarga a piso. / Place the wax ring
(not included) in the drain.
Instale la taza sobre el cuello de cera. / Install
the toilet over the wax ring.
cuello de cera
(no incluido)
wax ring
(not included)
barreno de
descarga a piso
toilet drain
Instalación con brida sanitaria (no incluida)
Sanitary flange installation (not included).
Se recomienda usar
las pijas incluidas.
It is recommended to use
the bolts included.
Coloque la brida e inserte la taza. / Place the
flange and insert the toilet.
taza
toilet
brida
flange
Instalación con cuello de cera (no incluido) / Wax ring installation (not included)
Procure no dañar los
acabados durante la
instalación. / Be careful
not to damage finishes
during installation.
Presione hacia abajo
firmemente para que el sello
sanitario actúe correctamente.
Press the bowl firmly in order
for the seal to be applied
sanitary seal acts correctly.
rondana
metálica
metallic
washer
HELVEX, S. A. DE C. V. Calzada Coltongo # 293, Col. Industrial Vallejo, Del. Azcapotzalco, C. P. 02300, Ciudad de México.
spud Ø 38 mm
spud (Ø 1/2")
cubre pijas
bolt caps
rondana plástica
plastic washer

This manual suits for next models

1

Other Helvex Toilet manuals

Helvex WC 2.5 User manual

Helvex

Helvex WC 2.5 User manual

Helvex WC MURANO User manual

Helvex

Helvex WC MURANO User manual

Helvex MG GOBI TDS User manual

Helvex

Helvex MG GOBI TDS User manual

Helvex WLU GOBI TDS User manual

Helvex

Helvex WLU GOBI TDS User manual

Helvex WC DRAKAR2 User manual

Helvex

Helvex WC DRAKAR2 User manual

Helvex WC AUSTRAL User manual

Helvex

Helvex WC AUSTRAL User manual

Helvex WC MIURA16 User manual

Helvex

Helvex WC MIURA16 User manual

Helvex WC MIURA User manual

Helvex

Helvex WC MIURA User manual

Helvex WC OPTION User manual

Helvex

Helvex WC OPTION User manual

Helvex WC AUSTRAL 2P W User manual

Helvex

Helvex WC AUSTRAL 2P W User manual

Helvex TZF NAO PARED User manual

Helvex

Helvex TZF NAO PARED User manual

Helvex OP RIVOLI PLUS User manual

Helvex

Helvex OP RIVOLI PLUS User manual

Helvex WC BOLMEN User manual

Helvex

Helvex WC BOLMEN User manual

Helvex AT-4 User manual

Helvex

Helvex AT-4 User manual

Helvex WC-OPTION-AT2 User manual

Helvex

Helvex WC-OPTION-AT2 User manual

Helvex WC Bolmen User manual

Helvex

Helvex WC Bolmen User manual

Helvex ATM User manual

Helvex

Helvex ATM User manual

Helvex AT-1 User manual

Helvex

Helvex AT-1 User manual

Helvex BOLMEN2 User manual

Helvex

Helvex BOLMEN2 User manual

Helvex WC DRAKAR User manual

Helvex

Helvex WC DRAKAR User manual

Helvex MG Ferry User manual

Helvex

Helvex MG Ferry User manual

Helvex NAO W User manual

Helvex

Helvex NAO W User manual

Helvex WC AUSTRAL P User manual

Helvex

Helvex WC AUSTRAL P User manual

Helvex AT-5 User manual

Helvex

Helvex AT-5 User manual

Popular Toilet manuals by other brands

Jungborn DUE 59 operating instructions

Jungborn

Jungborn DUE 59 operating instructions

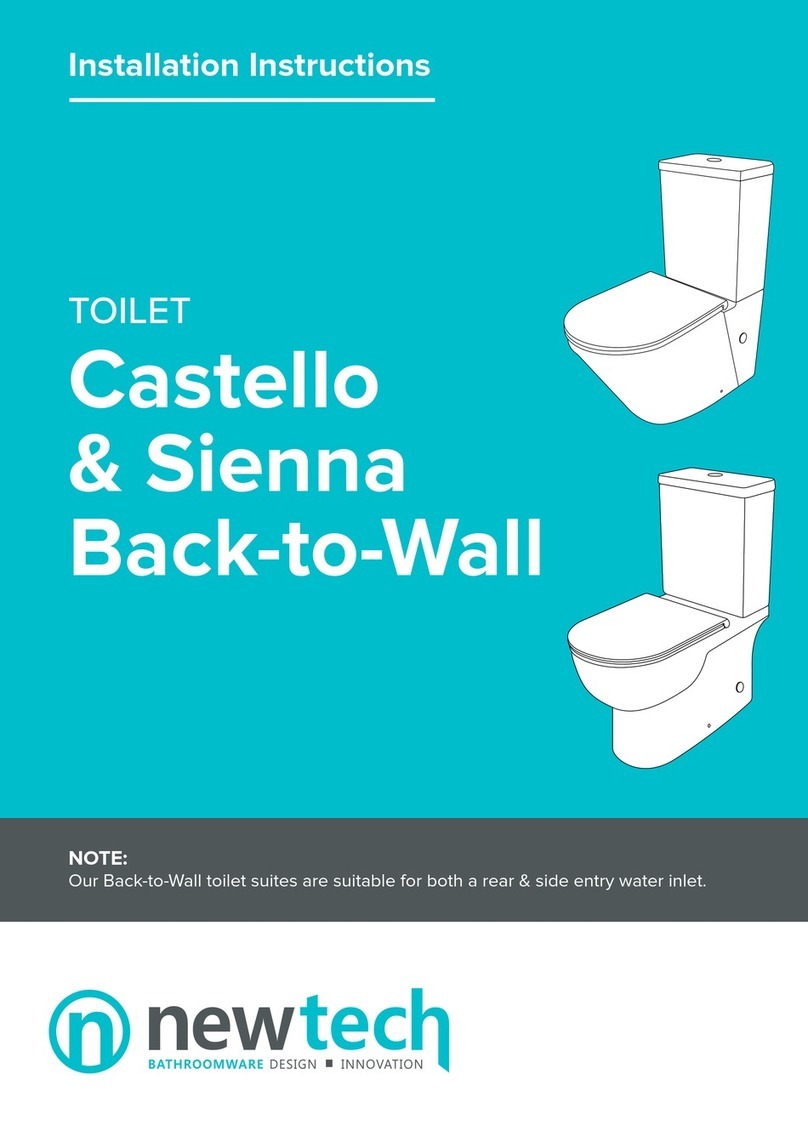

Newtech Castello installation instructions

Newtech

Newtech Castello installation instructions

Guardian G1-201LBX1 User instructions and warranty

Guardian

Guardian G1-201LBX1 User instructions and warranty

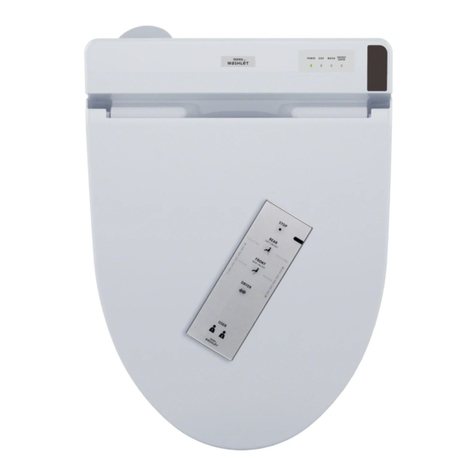

Toto Washlet C200 Connect+ Series manual

Toto

Toto Washlet C200 Connect+ Series manual

ITT Industries JABSCO 37275 Series quick start guide

ITT Industries

ITT Industries JABSCO 37275 Series quick start guide

contrac KINDERGARTEN instructions

contrac

contrac KINDERGARTEN instructions

Korpinen Gaius DUO installation instructions

Korpinen

Korpinen Gaius DUO installation instructions

Geberit AQUACLEAN TUMA COMFORT 146290SJ1 installation manual

Geberit

Geberit AQUACLEAN TUMA COMFORT 146290SJ1 installation manual

Geberit aquaclean sela quick start guide

Geberit

Geberit aquaclean sela quick start guide

Kohler K-4744 Installation and care guide

Kohler

Kohler K-4744 Installation and care guide

Luca Varess Riana installation guide

Luca Varess

Luca Varess Riana installation guide

KELISS T16 instruction manual

KELISS

KELISS T16 instruction manual

Geberit Kind 573360000 Care Instructions

Geberit

Geberit Kind 573360000 Care Instructions

noken TONO 100188372-N396990886 manual

noken

noken TONO 100188372-N396990886 manual

BATHCO Canberra 4573 quick start guide

BATHCO

BATHCO Canberra 4573 quick start guide

Kohler Portrait K-4317 manual

Kohler

Kohler Portrait K-4317 manual

Porcelanosa Noken URBAN C 100208327 N603470030 manual

Porcelanosa

Porcelanosa Noken URBAN C 100208327 N603470030 manual

OVE MICAH 6701001 installation manual

OVE

OVE MICAH 6701001 installation manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
