Hendi 272411 User manual

User manual
Gebrauchsanweisung
Gebruiksaanwijzing
Instrukcja obsługi
Mode d’emploi
Istruzioni per l’utente
Instrucţiunile utilizatorului
Руководство по эксплуатации
Οδηγίες χρήσης
Návod k použití
Návod na použitie
Item: 272411
LOUNGE HEATER
You should read these user instructions carefully before using
the appliance.
Bevor Sie das Gerät in Betrieb nehmen, sollten Sie diese
Gebrauchsanweisung aufmerksam lesen.
Alvorens de apparatuur in gebruik te nemen dient u deze
gebruiksaanwijzing aandachtig te lezen.
Przed uruchomieniem urządzenia należy koniecznie dokładnie
przeczytać niniejszą instrukcję obsługi.
Lisez attentivement ce mode d’emploi avant d’utiliser
l’appareil.
Prima di mettere in funzione l’apparecchio, leggere
attentamente le presenti istruzioni per l’uso.
Citiţi cu atenţie prezentul manual de utilizare înainte de
folosirea aparatului.
Внимательно прочитайте руководство пользователя перед
использованием прибора
Πρέπει να διαβάσετε αυτές τις οδηγίες χρήσης προσεκτικά πριν
χρησιμοποιήσετε τη συσκευή.
Před uvedením spotřebiče do provozu byste si měli pečlivě
přečíst návod k použití.
Pred uvedením spotrebiča do prevádzky by ste si mali dôkladne
prečítať návod na použitie.

2
0063/18
size : 215mm X 70mm
Steenoven 21, NL-3911 TX Rhenen www.hendi.eu
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /
Consumo/Consum/потребление/Κατανάλωση/Spotreba/Spotřeba
Set up / Auflegung / Inrichting / Przeznaczony na /
Conçu pour / Configurare / Configurarea / Настройка /
Nastavenie / Nastavení / Ρύθμιση
Serial no. / Serien nr. / Serie nr. / Nr. seryjny /
N°de série / N° seriale / Număr serial /
Серийный номер / Sériové číslo / Výrobní č. /
Αριθμός σειράς
Power / Belasting / Leistung / Moc nominaina / Puissance /
Potenza / Putere / Мощность / Výkon / Výkon / Ισχύς
Item / Artikel / Item / Artykuł / Article / Articolo /
Articol / пункт / Položka / Položka / Στοιχείο
Category/ Categorie/ Kategorie/ Kategoria/ Catégorie/ Categoria/
Categorie / категория / Kategória / Kategorie / Κατηγορία
[HS] 12,5 kW [HS] 11,5 kW
900 g/h 900 g/h
G31 - 50 mbar G31 - 37 mbar
NL/DE/AT/PL BE/FR/LU/GB/IE/GR
Country / Land / Land / Kraj / Payes / Paese /
țară / страна /Krajina / Země / Χώρα
3P (propane)
[HS] 13,5 kW
970 g/h
G30 - 50 mbar
AT
3P (propane)
272411 Lounge Heater PIN : 0063CO7365
3B/P butane/
propane
( )
A se folosi doar spații deschise.
Citiți cu atenție instrucțiunile înainte de utilizarea aparatului.
AVERTISMENT: piesele accesibile pot fi foarte fierbinți.
A nu se lăsa la îndemâna copiilor.
Use outdoors only.
Read the instructions before using the appliance.
WARNING: accessible parts may be very hot.
Keep young children away.
Nur im Freien verwenden.
Lesen Sie die Bedienungsanleitung vor Inbetriebnahme
des Gerätes. ACHTUNG: Zugängliche Teile können sehr
heiß sein. Kinder fernhalten.
Alleen buiten gebruiken.
Lees de instructies voor ingebruikname.
WAARSCHUWING: Aanraakbare delen kunnen erg heet zijn.
Houdt jonge kinderen op afstand.
A n'utiliser qu'à l'extérieur des locaux.
Consulter la notice avant l'utilisation.
ATTENTION : des parties accessibles peuvent être très
chaudes. Eloigner les jeunes enfants.
Για χρήση μόνο σε εξωτερικό χώρο.
Διαβάστε τις οδηγίες πριν χρησιμοποιήσετε τη συσκευή.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: τα προσβάσιμα σημεία μπορούν να θερμανθούν
υπερβολικά.
Διατηρείτε τη συσκευή μακριά από παιδιά.
Používajte iba vo vonkajšom prostredí.
Pred použitím zariadenia si preštudujte pokyny.
VÝSTRAHA: přístupné díly mohou být velmi horké.
Zamezte přístup dětem.
Používat výhradně venku.
Před použitím zařízení si pečlivě přečtěte tuto uživatelskou
příručku.
VAROVANIE: prístupné časti môžu byť veľmi horúce.
Udržiavajte malé deti v bezpečnom odstupe.
Stosować tylko na wolnej przestrzeni.
Przeczytaj instrukcję przed użyciem urządzenia.
OSTRZEŻENIE: dostępne części urządzenia mogą być
bardzo gorące.
Trzymaj dzieci z dala od urządzenia.
Può essere utilizzato solo all'aperto.
Prima dell'uso leggere attentamente le istruzioni d'uso.
AVVERTENZE! I componenti del dispositivo possono essere molto
caldi.
Assicurarsi che non ci siano bambini nelle vicinanze del dispositivo.
Использовать на открытом воздухе.
Перед использованием устройства прочитайте, пожалуйста
руководство по обслуживанию.
ВНИМАНИЕ: Детали устройства могут быть горячими.
Убедитесь в том, что рядом с устройством нет детей.
0063
Keep these instructions with the appliance.
Diese Gebrauchsanweisung bitte beim Gerät aufbewahren.
Bewaar deze handleiding bij het apparaat.
Zachowaj instrukcję urządzenia
Gardez ces instructions avec cet appareil.
Conservate le istruzioni insieme all’apparecchio.
Păstraţi maualul de utilizare alături de aparat.
Хранить руководство вместе с устройством.
Φυλάξτε αυτές τις οδηγίες μαζί με τη συσκευή.
Uchovávejte tento návod v blízkosti spotřebiče.
Tento návod k použití prosím uchovávejte v blízkosti spotrebiče.
Use outdoors only.
Nur im Freien verwenden.
Alleen buiten gebruiken.
Stosować tylko na wolnej przestrzeni.
A n’utiliser qu’à l’extérieur des locaux.
Può essere utilizzato solo all’aperto.
A se folosi doar spații deschise.
Использовать на открытом воздухе.
Για χρήση μόνο σε εξωτερικό χώρο.
Používat výhradně venku.
Používajte iba vo vonkajšom prostredí.

Dear Customer,
Thank you for purchasing this Hendi appliance. Please read this manual carefully before connecting the
appliance in order to prevent damage due to incorrect use. Read the safety regulations in particular very
carefully.
Safety regulations
• This appliance must be used outdoors or in a well ventilated area, and should not be
installed or used indoors.
• Change the gas cylinder in a well ventilated area, away from any inflammation sources.
• The cylinder must be stored outdoors or in a well ventilated area.
• Storage this appliance indoors is permissible only if gas cylinder is disconnected and
removed from the appliance.
• Do not move this appliance when in operation, or after it has been turned off before the
temperature has cooled down.
• Do not attempt to alter the appliance in any manner. Do not paint the radiant screen,
control panel or reflector.
• Do not obstruct the ventilation holes of the cylinder housing.
• The appliance must be installed and gas cylinder stored in accordance with local gas
fitting regulations.
• Shut off the valve at the gas cylinder or the regulator before moving the appliance.
• Use only the type of gas specified by the manufacturer.
• Repairs should be done by a qualified person.
• In case of violent wind, particular attention must be taken against tilting of the appliance.
• Check that the regulator seal is correctly fitted and able to fulfil its function.
• Close the gas supply at the valve of the gas cylinder or the regulator after use.
• Do not use this appliance until all connections have been leak tested.
• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply
shall be shut off and the appliance shall be investigated and rectified before it is used
again.
• Checking the tubing or the flexible hose per month and each time the cylinder is changed.
• The tubing or the flexible hose must be changed within the prescribed intervals or with-
in one year. The flexible hose should not extended than 1.5m according to standard
EN16436:2014.
• The hose assembly must be replaced prior to the appliance being put into operation if
there is evidence of excessive abrasion or wear, or if the hose is damaged, and that the
replacement hose assembly shall be that specified by the manufacturer.
• The heater should be inspected before use and at least annually by a qualified service
person. More frequent cleaning may be required as necessary. It is imperative that control
compartment, burners and circulating air passageways of the appliance be kept clean.
• Shut off and check heater immediately if any of the following conditions exist:
¨The smell of gas in conjunction with extreme yellow tipping of the burner flames.
¨Heater does not reach a proper temperature. A temperature less than 5ºC will cause
3
NLEN

4
EN
restricted heat flow and the appliance will not work properly.
¨The appliance starts making popping noises during use (a slight popping noise is nor-
mal when the appliance is extinguished).
• The regulator & hose assembly must be located out of pathways where people may trip
over it or in area where the hose will not be subject to accidental damage.
• Any guard or other protective device removed for servicing the heater must be replaced
before operating the heater.
• Children and adults should be warned of the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
• Young children and pets should be carefully supervised when they are in the area of the
heater.
• Clothing or other flammable materials should not be hung from the appliance, or placed
on or near the appliance.
• Do not place articles on or against this appliance. Certain material or items when stored
under or near this appliance will be subjected to radiant heat and could be seriously
damaged.
• Do not use or store flammable materials near this appliance.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Always maintain at least 0.9m clearance from combustible materials.
• Always position the appliance on a firm level surface. An amply ventilated area must have
a minimum of 25% of the surface area open. The surface area is the sum of the walls
surface.
• The injector in this appliance is not removable and the injector is only assembled by
manufacture. This appliance is forbidden to convert from one gas pressure to another
pressure.
• Do not connect the gas cylinder directly to the appliance without regulator.
Part list
PART NO. PART NAME QTY
1 Grid (left) 1
2 Double head bolt A 6
3 Double head bolt B 4
4 Grid (right) 1
5 Reflector A 1
6 Reflector B 1
7 Emitter 1
8 Whole burner assembly 1
9 Handle 1
10 Rear housing 1
11 Door 1
12 Wheels 1
13 Base 1

5
EN

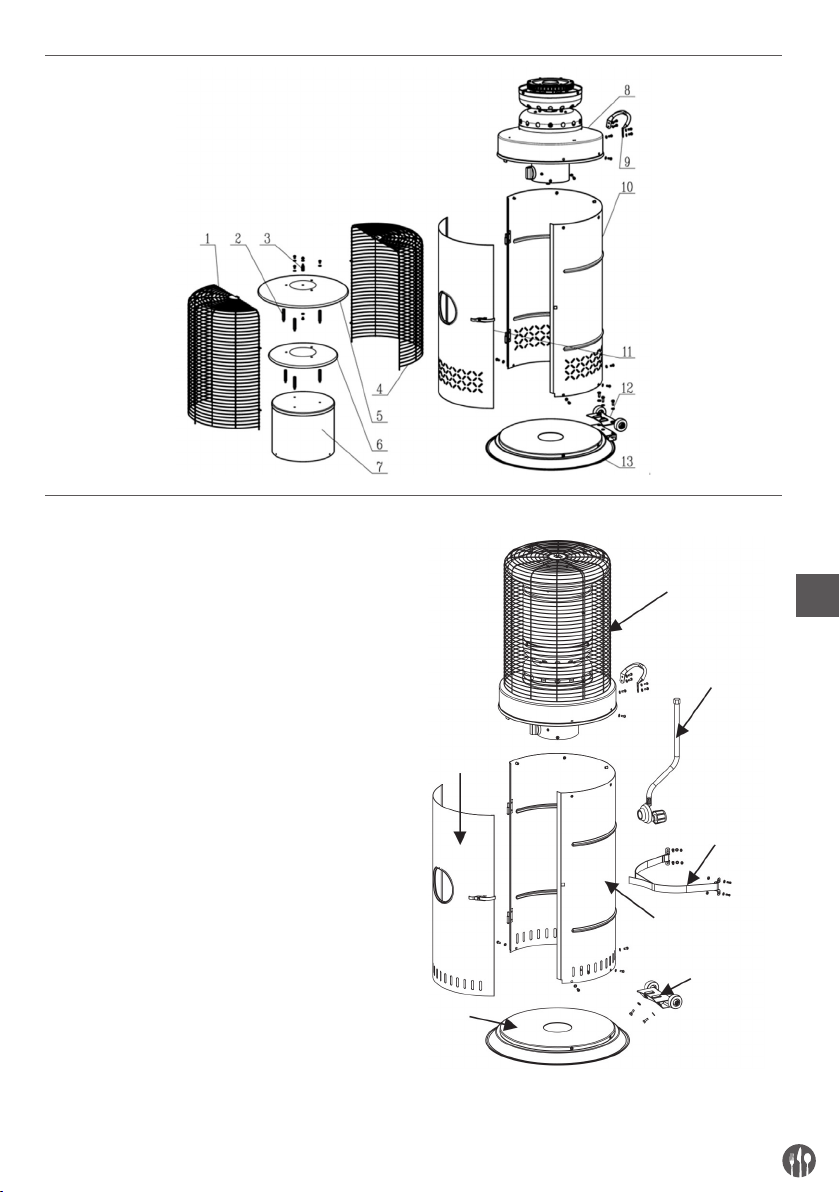

Exploded view

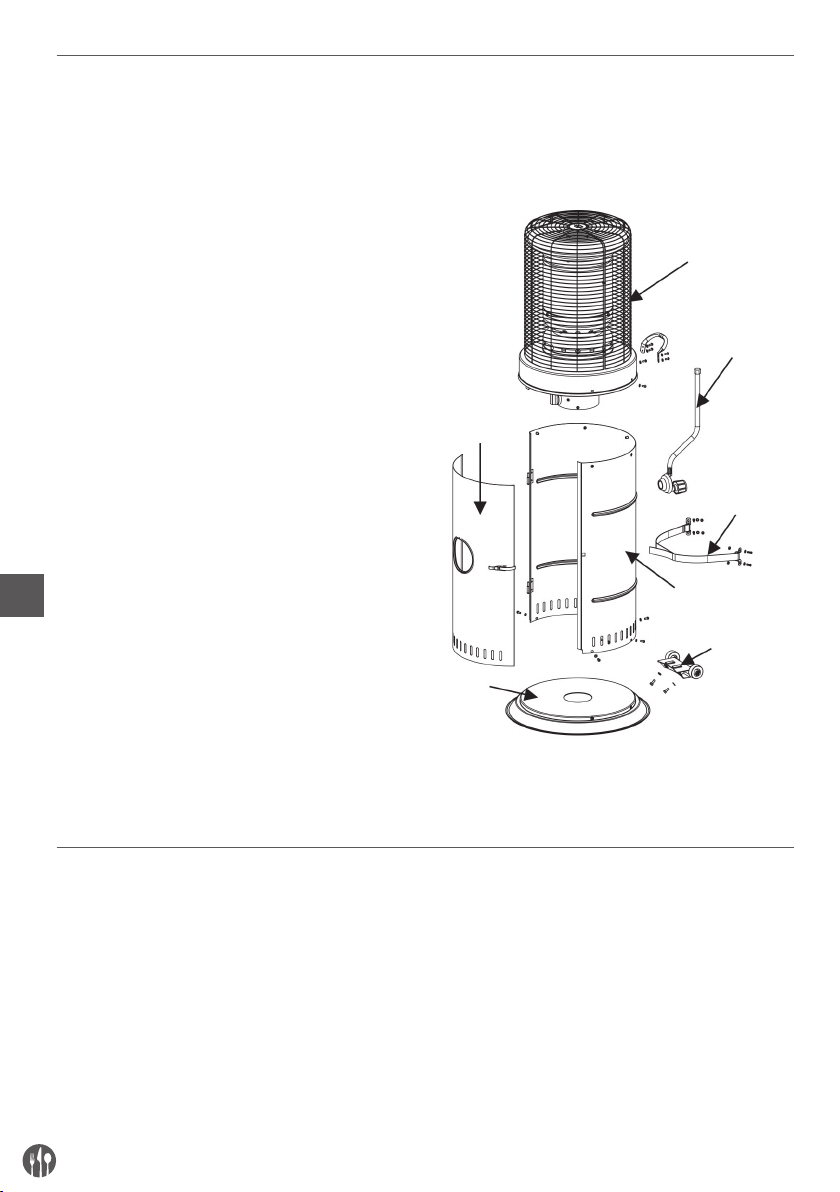

Assembly
Tools required: Philips head screwdriver
Note: Remove any transit protection material be-
fore assembly.
Step 1: Place the base on a flat surface. Secure the
rear housing to the base using 5pcs M5*10
screws and washers.
Step 2: Secure The burner assembly outside of the
rear housing using 5pcs M5*10 screws and
washers.
ATTENTION: To close the door well, lift the burn-
er assembly by one hand to secure 5pcs M5*10
screws and washers with the lowest position of
screw holes in burner assembly.
Step 3: Connecting hose & regulator to the burner
assembly.

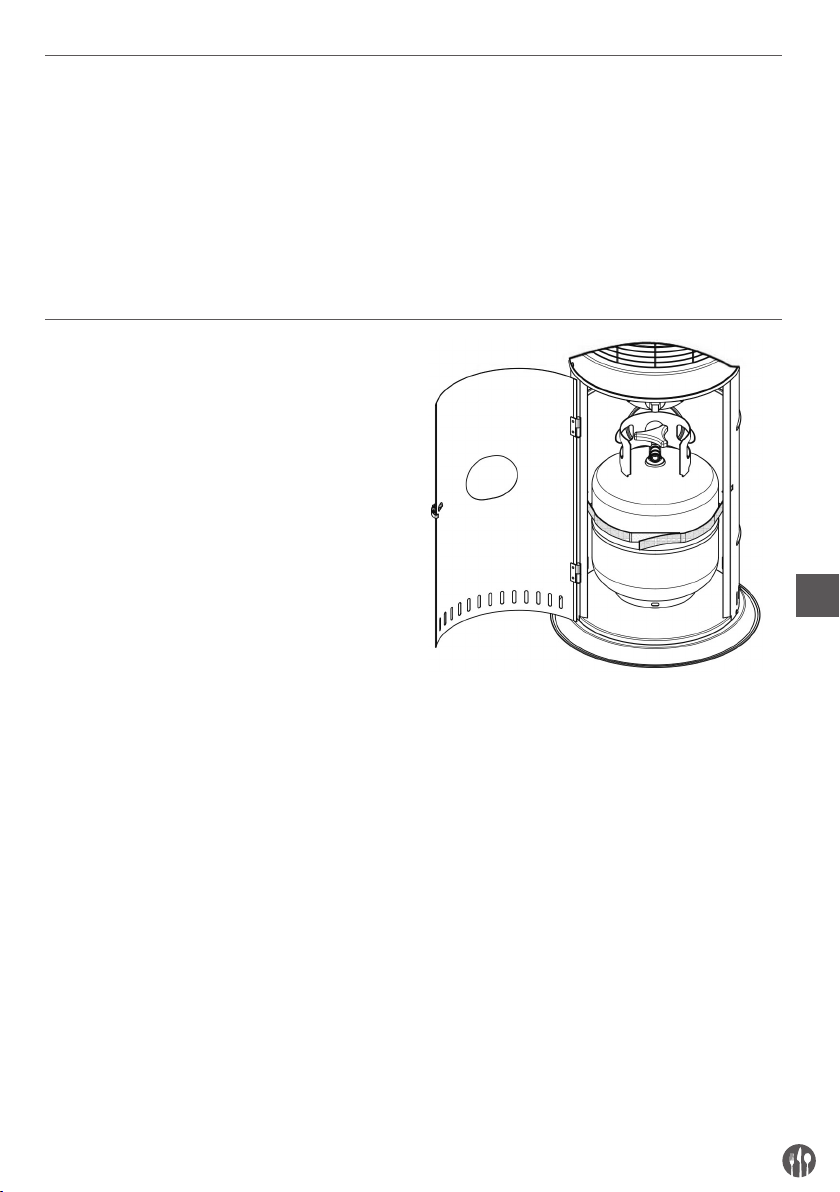

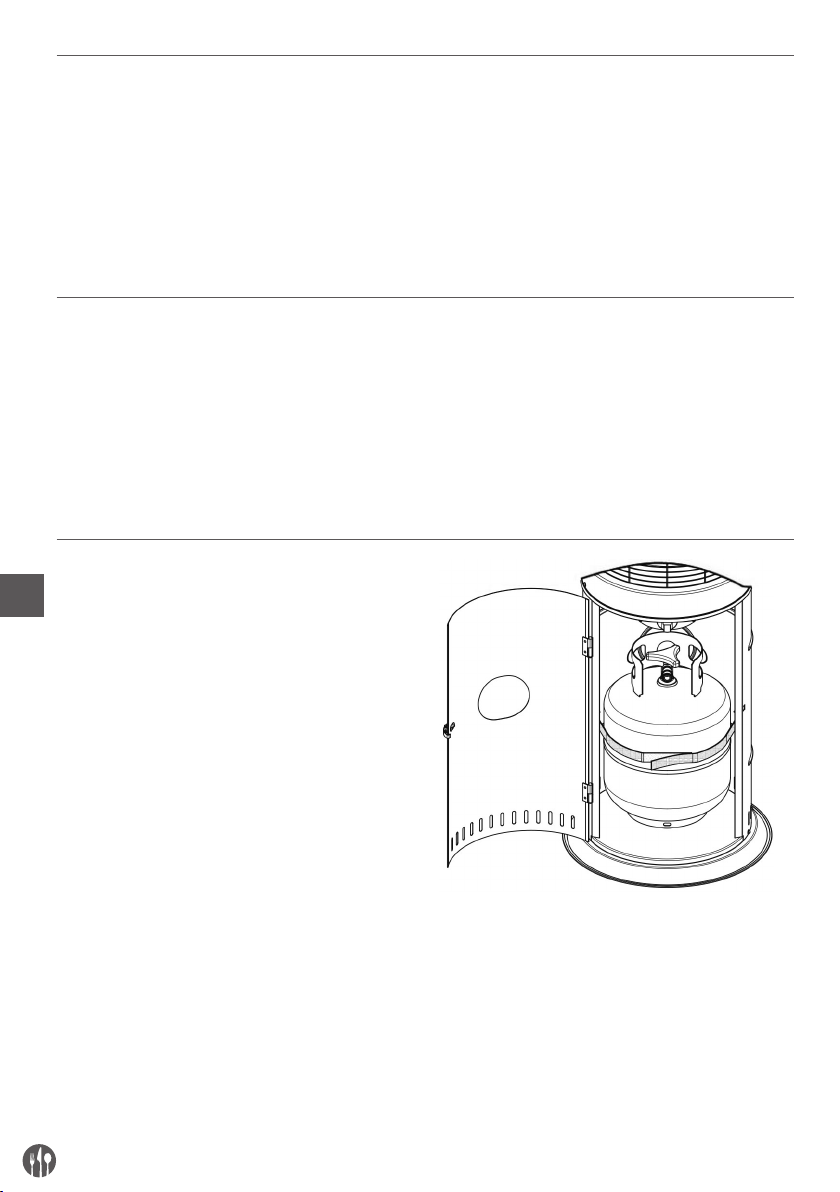

Put gas cylinder on the base and connecting
regulator to a gas cylinder, then assembly 2
cylinder belts and ensure gas cylinder us-
ing belts. (See “Connecting to a Gas Cylin-
der” and “Securing a Gas Cylinder”)
Check leakage for all connections using
a soapy water solution. (See “Gas Leakage
Test”)
Step 4: Slide the housing door onto the hinge of
rear housing, close door and lock.
Step 5: Attach wheels set to the base with 2pcs
M6*12 screws and washers. (Ignore this
step in case wheels set is assembled).
Burner assembly
Hose & regulator
Housing door
Base
Rear housing
Wheels set
Belts for
gas cylinder

Gas requirements
• The appliance must use an EN12864 approved
gas regulator and CE approved gas hose with a
length of 0.5meter (BS3212 and EN1763-1).
• Never use a gas cylinder with a damaged body,
valve, collar, or foot ring. A dented or rusty gas
tank may be hazardous and should be checked
out by a gas supplier.
• Never connect this appliance to an unregulated
gas source.
• When the appliance is not in use, turn the gas
cylinder OFF.
• Always perform a leak test on gas connections
whenever a cylinder is connected. If bubbles form
in the leak test solution, do not use. Never use a
flame to test for leaks.
Connecting to a gas cylinder
• Refer to your gas supplier for instructions on the
use of your gas cylinder.
• Only change gas cylinders outdoors or in a well
ventilated area away from naked flames and any
other source of ignition.
• The gas cylinder must always be used in an up-
right position.
• Close the heater control knob by turning fully
clockwise.
• Close the gas cylinder tap and then attach the
regulator onto the gas cylinder.
• Tighten all connections firmly and with a spanner
where appropriate. The cylinder should be locat-
ed on the cylinder base.
• Check for leaks at all joints using soapy water. If
a leak is found, tighten the joint and then re-test.
Securing a gas cylinder
1. Fix both cylinder restraint straps onto the rear
tank housing using 4pcs M5x12 bolts with M5
washer and M5 nuts.
2. Position a gas cylinder inside the tank housing.
3. Connect the gas cylinder with a regulator. Please
refer to the instructions attached with the regu-
lator on how to connect a regulator with the gas
cylinder.
4. Stick cylinder restraint straps together as above
photo illustrated. The straps must be in a proper
tightness for the gas cylinder.
Caution: Please take care that the cylinder re-
straint straps. DO NOT strain the regulator as-
sembly.
6
EN

7
EN
Minimum clearance from combustible materials
Important safety rules
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of
25% of the surface area open.
The surface area is the sum of the walls surface.
The use of this appliance in enclosed areas can be
dangerous and is PROHIBITED.
Children and adults should be aware of the high op-
erating temperatures of areas above the post when
operating this heater. Children should be carefully
supervised when in the vicinity of the heater.
NEVER hang anything, including clothes or any
other flammable items, on this heater.
DO NOT operate this heater unless it is fully as-
sembled with its reflector in place.
Respect the minimum clearances from combus-
tible materials.
Top 100cm
Side 50cm
Gas leakage test
Never use a naked flame to check for leaks. Never
leak test while smoking.
The gas connections on this appliance are leak
tested at the factory prior to shipment.
This appliance needs to be periodically checked
for leaks and an immediate check is required if the
smell of gas is detected.
• Make a soap solution using 1 part of liquid
dish-washing soap to 3 parts water. The soap
solution can be applied with a soap bottle, brush,
or rag to the leak tested points shown in the fig-
ure above.
• The valve of the gas cylinder should be in the OFF
position at this point of the leak test. Once the
soapy solution is applied to the gas connections,
the valve of the gas cylinder needs to be turned to
the ON position.
• Soap bubbles will begin to form in the soapy solu-
tion if a leak is present.
• In case of a leak, turn off the gas supply. Tighten
any leaking fittings, then turn the gas supply on
and recheck.
Leak Test Point ①②③

8
EN

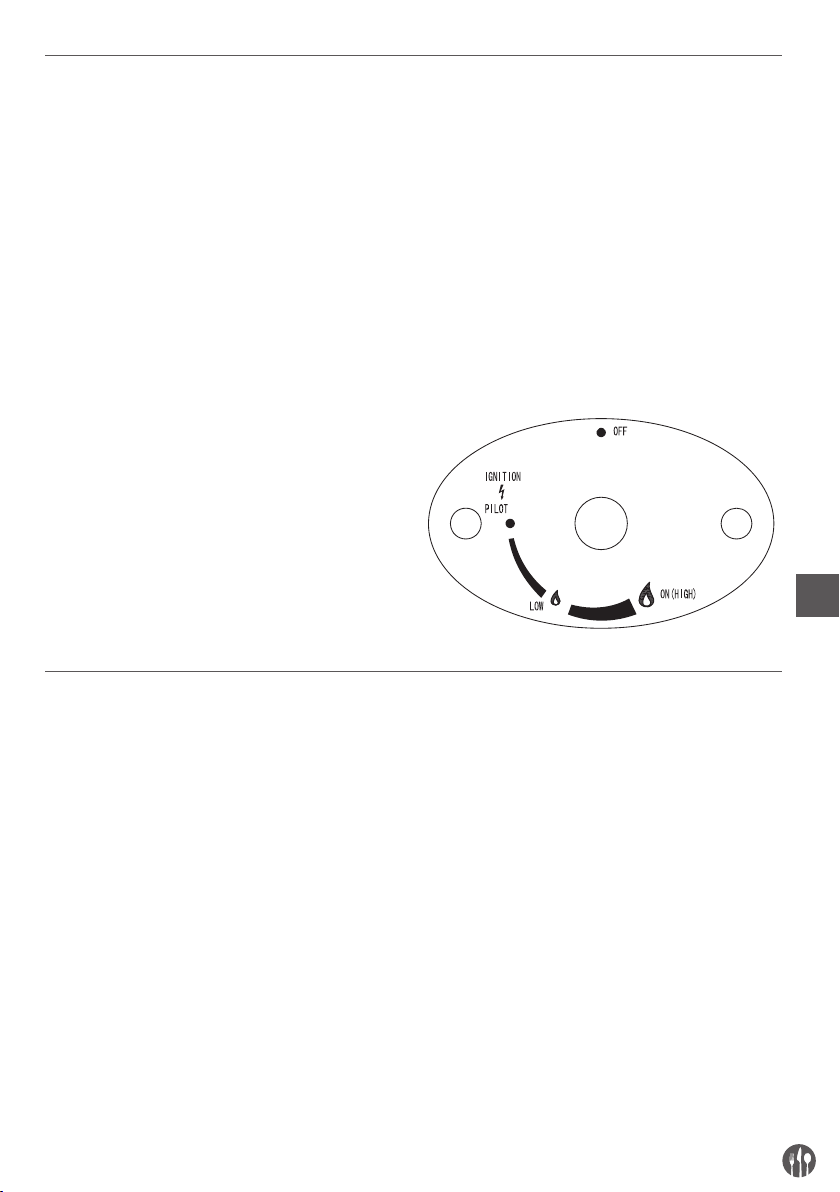

Lightling instructions
Before first use and after every gas cylinder
change, gas delivery system must be purged of air
before igniting! To do this, turn the control knob an-
ticlockwise to the pilot setting. Press knob in and
hold for 3 minutes before attempting ignition.
• Check all gas connections prior to use.
• Turn on gas supply at source.
• Press to turn control knob anticlockwise to ‘IGNI-
TITION (PILOT)’.
• Hold knob depressed until pilot flame is lit, then
continue to hold the knob depressed for 20 sec-
onds until the pilot remains lit after releasing
knob.
• If pilot fails to ignite or remain alight, press to
turn knob clockwise to ‘OFF’ and repeat.
• The pilot should be lit & the knob set to ‘PILOT’.
• Hold knob depressed gently & turn anticlockwise
to ‘LOW’ or “HIGH” as desired.
To Entinguish
• Hold knob despressed & turn the knob clockwise
to “OFF”.
• Close the valve of the gas cylinder or the regula-
tor after use.
• Allow this appliance to cool before moving.
Maintenance & servicing
To enjoy years of outstanding performance from
your heater, make sure you perform the following
maintenance activities on a regular basis:
• Keep exterior surfaces clean.
• Use warm soapy water for cleaning. Never use
flammable or corrosive cleaning agents.
• While washing your unit, be sure to keep the area
around the burner and pilot assembly dry at all
times. If the gas control is exposed to water in
any way, DO NOT try to use it. It must be replaced.
• Airflow must be unobstructed. Keep controls,
burner and circulation air passageways clean.
Signs of possible blockage include:
- Gas odor with extreme yellow tipping of flame.
- Heater does NOT reach the desired temper-
ature.
- Heater glow is excessively uneven.
- Heater makes popping noises.
• Spiders and insects can nest in burner or orifices.
This dangerous condition can damage the heater
and render it unsafe for use. Clean burner holes
by using a heavy duty pipe cleaner. Compressed
air may help clear away smaller particles.
• Carbon deposits may create a fire hazard. If any
carbon deposits develop, clean dome and engine
with warm soapy water.
Note: in a salt-air environment (such as near the
sea), corrosion occurs more quickly than normal.
Frequently check the corroded areas and repair
them promptly.
Servicing
• Please consult your local dealer for servicing this
appliance and replacement of its parts. The ser-
vicing of the appliance shall be carried out only by
authorised personnel.
• Caution: do not use unauthorized parts or com-
ponents for this appliance, only use original
equipment replacement parts and components.
The use of unauthorized parts or components
will void the warranty and can create an unsafe
condition.

9
EN
Note
• It is recommended to replace the gas hose after
3 or 4 years (see date shown on hose). The gas
hose becomes porous after a time. Also check
the hose for leaks on a yearly basis at least. Even
if the expiration date has not been expired yet,
you must check the condition of the hose always.
In case of damage/cracks you have to replace
the hose immediately. Please make sure that you
comply with all local health and safety regula-
tions (e.g. fire code).
• Pressure regulators have a default maximum life
span as indicated by the date printed on the regu-
lator, but please note that local health and safety
regulations may overrule this.
• Only replace the pressure regulator with one pro-
vided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well
as when empty.
Storage
There is no limitation on the storage of the appli-
ance indoors provided that the cylinder is removed
from the appliance. Between uses:
• Turn control knob OFF
• Turn gas cylinder OFF
Store heater upright in an area sheltered from di-
rect contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover to protect exterior surfaces and to
prevent build up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when
transporting:
• Turn control knob OFF.
• Disconnect gas cylinder and move to a secure,
well ventilated location outdoors. DO NOT store
in a location that will exceed 50°C.
Store heater upright in an area sheltered from di-
rect contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces
and to prevent build up in air passages.
Note: Wait until heater is cool before covering
Troubleshooting
IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS:
Pilot won’t light
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube Clean or replace orifice or pilot tube
Air in the gas line Open gas line and bleed it (pressing control knob in) for
not more than 1-2 minutes or until you smell gas
Low gas pressure Gas cylinder low or empty
Igniter fails Use match to light pilot, and obtain new igniter and re-
place. ( See below pictures)
Pilot won’t stay lit
Dirt build up around pilot Clean dirt from around pilot
Connection between gas valve and pilot
assembly is loose Tighten connection and perform leak test
Bad thermocouple Replace thermocouple
Burner won’t light
Gas pressure is low Replace gas cylinder
Blockage in orifice Clear blockage
Control knob is not in "ON" position Turn control knob to "ON" position

10
EN
Burner flame is low
Note: Do not operate
heater below 5°C
Gas pressure is low Replace gas cylinder
Outdoor temperature is greater than 5°C
and tank is less than 25% full. Replace gas cylinder
Supply hose is bent or kinked Straighten hose and perform leak test on hose
Control knob is fully " ON" Turn control knob to "OFF", let it cool to room temperature
& check burner and orifices for blockage
Emitter glows uneven
Note: Bottom 2.5cm of
emitter normally does
not normally glow
Gas pressure is low Replace gas cylinder
Base is not on a level surface Place heater on a level surface
Heater not level Level heater
Carbon build-up Dirt or film on reflector and emitter Clean reflector and emitter
Thick black smoke Blockage in burner Turn control knob to "OFF", let it cool to room temperature
and remove blockage and clean burner inside and outside.
Warning
Read the instructions before using this appliance.
The appliance must be installed in accordance with
instructions and local regulations.
The use of this appliance in enclosed areas can be
dangerous and is PROHIBITED.
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of
25% of the surface area open.
The surface area is the sum of the walls surface.
Warranty
Any defect affecting the functionality of the appli-
ance that becomes apparent within one year after
purchase will be corrected by free repair or re-
placement provided the appliance has been used
and maintained in accordance with the instructions
and has not been abused or misused in any way.
Your statutory rights are not affected. If the appli-
ance is claimed under warranty, state where and
when it was bought and include proof of purchase
(e.g. receipt).
In line with our policy of continuous product devel-
opment we reserve the right to change the product,
packaging and documentation specifications with-
out notice.
Discarding & Environment
At the end of the life of the appliance, please dis-
pose of the appliance according to the regulations
and guidelines applicable at the time.
Throw packing materials like plastic and boxes in
the appropriate containers.
